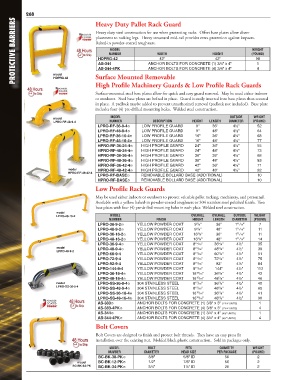

Page 20 - Protective Barriers

268 Heavy Duty Pallet Rack Guard
PROTECTIVE BARRIERS placement to racking legs. Heavy structural mid-rail provides extra protection against impacts. 98

Heavy duty steel construction for use when protecting racks. Offset base plates allow closer
Baked-in powder-coated toughness.
MODEL
WEIGHT
HEIGHT
WIDTH
(POUND)
NUMBER
HDPRG-42
42"
42"
AS-344
ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4"
1
AS-344-4PK
ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4"
4
model
Surface Mounted Removable
HDPRG-42
High Profile Machinery Guards & Low Profile Rack Guards
Surface-mounted steel base plates allow for quick and easy guard removal. May be used either indoors
or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then secured
in place. A padlock maybe added to prevent unauthorized removal (padlock not included). Base plate
includes four (4) pre-drilled mounting holes. Welded steel construction.
MODEL OUTSIDE WEIGHT
model
LPRO-RF-48-9-4 NUMBER DESCRIPTION HEIGHT LENGTH DIAMETER (POUND)
LPRO-RF-36-9-4� LOW PROFILE GUARD 9" 36" 4½" 52
LPRO-RF-48-9-4� LOW PROFILE GUARD 9" 48" 4½" 64
LPRO-RF-36-16-4� LOW PROFILE GUARD 16" 36" 4½" 68
LPRO-RF-48-16-4� LOW PROFILE GUARD 16" 48" 4½" 77
HPRO-RF-36-24-4� HIGH PROFILE GUARD 24" 36" 4½" 55
HPRO-RF-48-24-4� HIGH PROFILE GUARD 24" 48" 4½" 73
HPRO-RF-36-36-4� HIGH PROFILE GUARD 36" 36" 4½" 68
HPRO-RF-48-36-4� HIGH PROFILE GUARD 36" 48" 4½" 83
HPRO-RF-36-42-4� HIGH PROFILE GUARD 42" 36" 4½" 71
model HPRO-RF-48-42-4� HIGH PROFILE GUARD 42" 48" 4½" 92
HPRO-RF-48-42-4
LPRO-RF-BASE� REMOVABLE BOLLARD BASE (ADDITIONAL) 10
HPRO-RF-BASE� REMOVABLE BOLLARD BASE (ADDITIONAL) 10
Low Profile Rack Guards
May be used either indoors or outdoors to protect valuable pallet racking, machinery, and personnel.
Available with a yellow baked-in powder-coated toughness or 304 stainless steel polished finish. Two
base plates with four (4) pre-drilled mounting holes in each plate. Welded steel construction.
model
LPRO-48-16-2 MODEL OVERALL OVERALL OUTSIDE WEIGHT
NUMBER FINISH HEIGHT LENGTH DIAMETER (POUND)
3
11
LPRO-36-9-2� YELLOW POWDER COAT 9 /8" 36" 1 /16" 7
11
3
LPRO-48-9-2� YELLOW POWDER COAT 9 /8" 48" 1 /16" 11
3
11
LPRO-36-16-2� YELLOW POWDER COAT 16 /8" 36" 1 /16" 11
3
11
LPRO-48-16-2� YELLOW POWDER COAT 16 /8" 48" 1 /16" 14
15
5
LPRO-36-9-4� YELLOW POWDER COAT 8 /16" 36 /8" 4½" 35
model YELLOW POWDER COAT 8 /16" 48 /8" 4½" 39
5
15
LPRO-48-9-2 LPRO-48-9-4�
LPRO-60-9-4 YELLOW POWDER COAT 8 /16" 60 /8" 4½" 51
15
5
LPRO-72-9-4 YELLOW POWDER COAT 8 /16" 72 /8" 4½" 75
5
15
LPRO-92-9-4 YELLOW POWDER COAT 8 /16" 92" 4½" 84
15
LPRO-144-9-4 YELLOW POWDER COAT 8 /16" 144" 4½" 112
15
15
5
LPRO-36-16-4� YELLOW POWDER COAT 16 /16" 36 /8" 4½" 42
15
5
LPRO-48-16-4� YELLOW POWDER COAT 16 /16" 48 /8" 4½" 46
5
model LPRO-SS-36-9-4� 304 STAINLESS STEEL 8 /16" 36 /8" 4½" 40
15
LPRO-SS-36-9-4
15
5
LPRO-SS-48-9-4� 304 STAINLESS STEEL 8 /16" 48 /8" 4½" 65
5
15
LPRO-SS-36-16-4� 304 STAINLESS STEEL 16 /16" 36 /8" 4½" 41
5
15
LPRO-SS-48-16-4� 304 STAINLESS STEEL 16 /16" 48 /8" 4½" 90
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" (1 11 /16" UNITS) 1
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" (1 11 /16" UNITS) 4
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" (4½" UNITS) 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" (4½" UNITS) 4
Bolt Covers
Bolt Covers are designed to finish and protect bolt threads. They have an easy press fit
installation over the existing nut. Molded black plastic construction. Sold in packages only.
MODEL BOLT FITS QUANTITY WEIGHT
NUMBER DIAMETER HEAD SIZE PER PACKAGE (POUND)
BC-BK-38-PK� 3/8" 5/8" ID 50 2
model BC-BK-12-PK� 1/2" 7/8" ID 50 2
BC-BK-34-PK BC-BK-34-PK� 3/4" 1¼" ID 20 2
