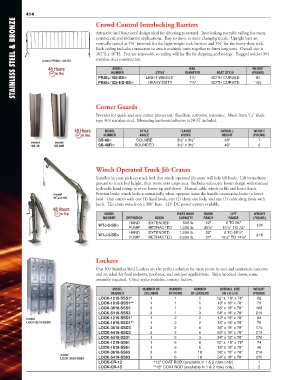

Page 12 - Stainless Steel & Bronze Products
P. 12

414                          Crowd Control Interlocking Barriers
       STAINLESS STEEL & BRONZE  model PRAIL-102-SS  commercial and industrial applications.  Easy to move to meet changing needs.  Upright bars are


                                         Attractive and functional design ideal for directing personnel.  Interlocking portable railing has many
                                         vertically spaced at 5⅞" intervals for the light-weight style barriers and 5¾" for the heavy-duty style.
                                         Each railing includes connectors to attach multiple units together to form long runs.  Overall size is
                                         102"L x 40"H.  Feet are removable so railing will lay flat for shipping and storage.  Rugged welded 304
                                         stainless steel construction.

                                                                               RAIL
                                                                                                         WEIGHT
                                               MODEL
                                                                              DIAMETER
                                                                                                         (POUND)
                                                                                           FOOT STYLE
                                                                 STYLE
                                               NUMBER
                                          PRAIL-102-SS
                                                                                        BOTH CURVED
                                                             LIGHT-WEIGHT
                                                                               1¼"
                                                                                                           85
                                                                                5
                                          PRAIL-102-HD-SS
                                         Corner Guards        HEAVY-DUTY       1 /8"    BOTH CURVED       105
                                                                                                       1
                                         Provides for quick and easy corner protection.  Excellent corrosion resistance.  Made from  /16" thick
                                         type 304 stainless steel.  Mounting hardware/adhesive is NOT included.
                                            MODEL          STYLE           FLANGE           OVERALL       WEIGHT
                                            NUMBER         ANGLE            WIDTH            HEIGHT      (POUND)
                                          SS-48         SQUARE           3½" x 3½"           48"           7
              model     model
              SS-48    SS-48R             SS-48R        ROUNDED          3½" x 3½"           48"           6

                                         Winch Operated Truck Jib Cranes
                                         Installed in your pick-up truck bed, this winch operated jib crane will help lift loads.  Lift items from
                                         ground to truck bed height, then rotate into cargo area.  Includes telescopic boom design with manual
                                         hydraulic hand pump to pivot boom up and down.  Manual cable winch to lift and lower loads.
                       model             Friction brake winch locks automatically when operator turns the handle counterclockwise to lower
                       WTJ-2-SS          load.  Unit comes with one (1) fixed hook, one (1) chain slot lock, and one (1) cable sling hook with
                                         latch.  The crane swivels on a 360° base.  12V DC power option available.
                                            MODEL                         FIXED HOOK  BOOM      LIFT      WEIGHT
                                            NUMBER   OPERATION   BOOM       CAPACITY  REACH    RANGE      (POUND)
                                                      HAND    EXTENDED      500 lb.   52"     0 TO 86"
                                          WTJ-2-SS                                                        134
                                                                                               1
                                                      PUMP    RETRACTED    1,000 lb.  30½"   15 /8" TO 72"
                                                                                                   7
                                                      HAND    EXTENDED     1,000 lb.  52"     0 TO 85 /8"
                                          WTJ-4-SS                                                        218
                                                      PUMP    RETRACTED    2,000 lb.  31"   15½" TO 74½"
                                         Lockers
                                         Our 304 Stainless Steel Lockers are the perfect solution for areas prone to rust and sanitation concerns
                                         and are ideal for food industry, pool area, and outdoor applications.  Ships knocked down, some
                                         assembly required.  Other styles available, contact factory.

                                               MODEL        NUMBER OF   NUMBER   NUMBER     OVERALL SIZE  WEIGHT
                                               NUMBER       COLUMNS    OF ROWS  OF LOCKERS   (W x D x H)  (POUND)
                                          LOCK-1218-SSS1*      1         1         1       12" x  18" x 78"  62
                                          LOCK-1818-SSS1**     1         1         1       18" x 18" x 78"  79
                                          LOCK-3618-SSS3       3         1         3       36" x 18" x 78"  168
                                          LOCK-5418-SSS3       3         1         3       54" x 18" x 78"  219
            model                         LOCK-1218-SSD1*      1         2         2       12" x 18" x 78"  64
            LOCK-3618-SSD3                LOCK-1818-SSD1**     1         2         2       18" x 18" x 78"  79
                                          LOCK-3618-SSD3       3         2         6       36" x 18" x 78"  174
                                          LOCK-5418-SSD3       3         2         6       54" x 18" x 78"  219
                                          LOCK-5418-SS31       1         3         3       54" x 18" x 78"  270
                                          LOCK-1218-SS61       1         6         6       12" x  18" x 78"  74
                                          LOCK-1818-SS61       1         6         6       18" x 18" x 78"  96
                                          LOCK-3618-SS63       3         6         18      36" x 18" x 78"  216
                          model
                          LOCK-3618-SS63  LOCK-5418-SS63       3         6         18      54" x 18" x 78"  270
                                          LOCK-CR-12             *12" COAT ROD (available in 1 & 2 rows only)  1
                                          LOCK-CR-18            **18" COAT ROD (available in 1 & 2 rows only)  2
   7   8   9   10   11   12   13   14   15   16   17
