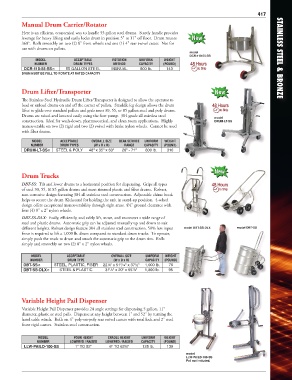

Page 15 - Stainless Steel & Bronze Products
P. 15
417
Manual Drum Carrier/Rotator
Here is an efficient, economical way to handle 55 gallon steel drums. Sturdy handle provides
leverage for heavy lifting and easily locks drum in position 5" to 11" off floor. Drum rotates New
360°. Rolls smoothly on two (2) 8" front wheels and one (1) 4" rear swivel caster. Not for
use with drums on pallets.
model
DCR-110-55-SS
MODEL ACCEPTABLE ROTATION UNIFORM WEIGHT STAINLESS STEEL & BRONZE
NUMBER DRUM TYPES METHOD CAPACITY (POUND)
DCR-110-55-SS 55 GALLON STEEL MANUAL 800 lb. 143
DRUM MUST BE FULL TO ROTATE AT RATED CAPACITY
Drum Lifter/Transporter New
The Stainless Steel Hydraulic Drum Lifter/Transporter is designed to allow the operator to
load or unload drums on and off the corner of pallets. Straddle leg design allows the drum
lifter to glide over standard pallets and grab most 30, 55, or 85 gallon steel and poly drums.
Drums are raised and lowered easily using the foot pump. 304 grade all stainless steel model
construction. Ideal for wash-down, pharmaceutical, and clean room applications. Highly DRUM-LT-SS
maneuverable on two (2) rigid and two (2) swivel with brake nylon wheels. Cannot be used
with fiber drums.
MODEL ACCEPTABLE OVERALL SIZE BEAK SERVICE UNIFORM WEIGHT
NUMBER DRUM TYPES (W x D x H) RANGE CAPACITY (POUND)
DRUM-LT-SS STEEL & POLY 48" x 35" x 63" 26" - 71" 800 lb. 310
New
Drum Trucks
DBT-SS: Tilt and lower drums to a horizontal position for dispensing. Grips all types
of steel 30, 55, & 85 gallon drums and most rimmed plastic and fiber drums. Robust,
non-corrosive design featuring 304 all stainless steel construction. Adjustable chime hook
helps to secure the drum. Kickstand for holding the unit in stand-up position. 4-wheel
design offers exceptional maneuverability through tight areas. 4½" ground clearance with
four (4) 8" x 2" nylon wheels.
DBT-SS-DLX: Easily, efficiently, and safely lift, move, and maneuver a wide range of
steel and plastic drums. Automatic grip can be adjusted manually up and down to suit
different heights. Robust design feature 304 all stainless steel construction. 50% less input model DBT-SS-DLX model DBT-SS
force is required to lift a 1,000 lb. drum compared to standard drum trucks. To operate,
simply push the truck to drum and attach the automatic grip to the drum rim. Rolls
simply and smoothly on two (2) 8" x 2" nylon wheels.
MODEL ACCEPTABLE OVERALL SIZE UNIFORM WEIGHT
NUMBER DRUM TYPE (W x D x H) CAPACITY (POUND)
3
DBT-SS STEEL, PLASTIC, FIBER 22¼" x 51 /16" x 37½" 1,000 lb. 70
1
1
DBT-SS-DLX STEEL & PLASTIC 31 /8" x 20" x 55 /8" 1,000 lb. 95
Variable Height Pail Dispenser
Variable Height Pail Dispenser provides 24 angle settings for dispensing 5 gallon, 11"
diameter, plastic or steel pails. Dispense at any height between 1" and 52" by turning the
hand cable winch. Rolls on 4" poly-on-poly rear swivel casters with total lock and 2" steel
front rigid casters. Stainless steel construction.
MODEL POUR HEIGHT CRADLE HEIGHT UNIFORM WEIGHT
NUMBER LOWERED / RAISED LOWERED / RAISED CAPACITY (POUND)
LLW-PAILD-100-SS 1" TO 52" 6" TO 62¾" 125 lb. 139
model
LLW-PAILD-100-SS
Pail not included.
