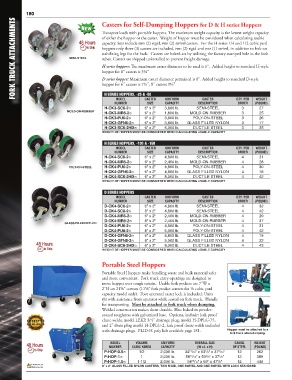

180                    New     Casters for Self-Dumping Hoppers for D & H series Hoppers
       FORK TRUCK ATTACHMENTS  SEMI-STEEL  of either the hopper or the caster.  Weight of hopper must be considered when calculating usable


                                           Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity
                                           capacity. Sets include two (2) rigid, two (2) swivel casters.  For the H series 1/4 and 1/2 cubic yard
                                           hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on
                                           stabilizing legs for the back.  Casters are bolted-on by utilizing the factory stamped hole in the fork
                                           tubes. Casters are shipped uninstalled to prevent freight damage.
                                           H series hoppers: The maximum caster diameter to be used is 6".  Added height to standard H-style
                                           hopper for 6" casters is 3¾"
                                           D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style
                                           hopper for 6" casters is 7½", 8" casters 9½"

                                            H SERIES HOPPERS, -25 & -50
                                                 MODEL
                                                                                     CASTER
                                                                                                           WEIGHT
                                                                                                   ORDER
                                                NUMBER       CASTER  UNIFORM       DESCRIPTION     QTY. PER  (POUND)
                                                                     CAPACITY
                                                              SIZE
                                            H-CK3-SC6-2�     6" x 2"  3,600 lb.   SEMI-STEEL         3      27
                             MOLD-ON-RUBBER
                                            H-CK3-MR6-2�     6" x 2"  1,800 lb.  MOLD-ON-RUBBER      3      25
                                            H-CK3-PU6-2�     6" x 2"  3,600 lb.  POLY-ON-STEEL       3      26
                                            H-CK3-GFN6-2�    6" x 2"  3,600 lb.  GLASS FILLED NYLON  3      17
                                            H-CK3-SC6-2HD�   6" x 2"  6,000 lb.  DUCTILE STEEL       3      35
                                           WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY
                                            H SERIES HOPPERS, -100 & -150
                                                 MODEL       CASTER  UNIFORM         CASTER        QTY. PER  WEIGHT
                                                NUMBER        SIZE   CAPACITY      DESCRIPTION     ORDER  (POUND)
                                            H-CK4-SC6-2�     6" x 2"  4,800 lb.   SEMI-STEEL         4      31
                                            H-CK4-MR6-2�     6" x 2"  2,400 lb.  MOLD-ON-RUBBER      4      28
                             POLY-ON-STEEL  H-CK4-PU6-2�     6" x 2"  4,800 lb.  POLY-ON-STEEL       4      30
                                            H-CK4-GFN6-2�    6" x 2"  4,800 lb.  GLASS FILLED NYLON  4      18
                                            H-CK4-SC6-2HD�   6" x 2"  8,000 lb.  DUCTILE STEEL       4      42
                                           WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY
                                            D SERIES HOPPERS
                                                 MODEL       CASTER  UNIFORM         CASTER        QTY. PER  WEIGHT
                                                NUMBER        SIZE   CAPACITY      DESCRIPTION     ORDER  (POUND)
                                            D-CK4-SC6-2�     6" x 2"  4,800 lb.   SEMI-STEEL         4      32
                                            D-CK4-SC8-2�     8" x 2"  4,800 lb.   SEMI-STEEL         4      42
                                            D-CK4-MR6-2�     6" x 2"  2,400 lb.  MOLD-ON-RUBBER      4      29
                                            D-CK4-MR8-2�     8" x 2"  2,400 lb.  MOLD-ON-RUBBER      4      37
                            GLASS FILLED NYLON
                                            D-CK4-PU6-2�     6" x 2"  4,800 lb.  POLY-ON-STEEL       4      31
                                            D-CK4-PU8-2�     8" x 2"  5,000 lb.  POLY-ON-STEEL       4      42
                                            D-CK4-GFN6-2�    6" x 2"  4,800 lb.  GLASS FILLED NYLON  4      19
                                            D-CK4-GFN8-2�    8" x 2"  5,000 lb.  GLASS FILLED NYLON  4      22
                                            D-CK4-SC6-2HD�   6" x 2"  8,000 lb.  DUCTILE STEEL       4      43
                                           WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY

                                           Portable Steel Hoppers

                                           Portable Steel Hoppers make handling waste and bulk material safer
                                           and more convenient.  Fork truck entry openings are designed to
                                           move hopper over rough terrain.  Usable fork pockets are 7"W x
                                           2"H on 21⅝" centers (11⅝" fork pocket centers for ½ cubic yard
                                           capacity model only).  Foot operated caster lock is included. Units
                                           tilt with assistance from operator while seated on fork truck.  Handle
                                           for transporting.  Must be attached to fork truck when dumping.
                                           Welded construction makes them durable. Blue baked-in powder-
                                           coated toughness with galvanized base.  Options, including leak proof
                                           chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75,
                                           and 2" drain plug model H-DPLG-2, leak proof chute welds included
                                           with drainage plugs.  PLID-H poly lids available page 181.  Hopper must be attached to a
                                                                                                fork truck when dumping.

                                               MODEL     VOLUME     UNIFORM      OVERALL SIZE     GAUGE   WEIGHT
                                              NUMBER    CUBIC YARDS  CAPACITY     (W x L x H)    OF STEEL  (POUND)
                                                                                            3
                                                                               13
                                                                                     11
                                            P-HOP-0.5�    1/2      2,000 lb.  34 /16" x 53 /16" x 37 /16"  12  262
                                                                                            1
                                                                                     15
                                                                               13
                                            P-HOP-1�       1       2,000 lb.  58 /16" x 53 /16" x 37 /8"  12  389
                                                                                            5
                                                                               13
                                                                                      1
                                            P-HOP-1.5�    1-1/2    2,000 lb.  58 /16" x 59 /4" x 47 /8"  12  440
              CA Residents see             8" x 2" GLASS FILLED NYLON CASTERS, TWO RIGID, ONE SWIVEL AND ONE SWIVEL WITH LOCK STANDARD
            WARNING A, Pg. 459
