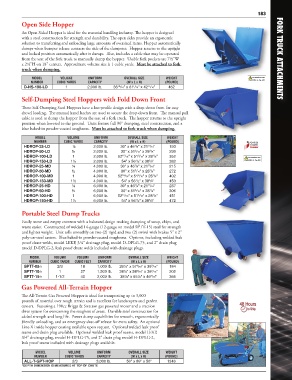

P. 7

183
          Open Side Hopper

          An Open Sided Hopper is ideal for the material handling industry. The hopper is designed
          with a steel construction for strength and durability. The open sides provide an ergonomic
          solution to transferring and unloading large amounts of oversized items. Hopper automatically
          dumps when bumper release contacts the side of the dumpster.  Hopper returns to the upright
          and locked position automatically after it dumps.  Also, includes a cable that may be operated
          from the seat of the fork truck to manually dump the hopper.  Usable fork pockets are 7½"W               FORK TRUCK ATTACHMENTS
          x 2½"H on 18" centers.  Approximate volume size is 1 cubic yards.  Must be attached to fork
          truck when dumping.

              MODEL       VOLUME     UNIFORM        OVERALL SIZE      WEIGHT                             CA Residents see
              NUMBER     CUBIC YARDS  CAPACITY       (W x L x H)     (POUND)                            WARNING A, Pg. 459
           D-NS-100-LD      1        2,000 lb.  38 /16" x 61 /16" x 42 /16"  462
                                                              11
                                                  13
                                                        1
          Self-Dumping Steel Hoppers with Fold Down Front
          These Self-Dumping Steel Hoppers have a low-profile design with a drop-down front for easy
          shovel loading.  The manual hand latches are used to secure the drop-down front.  The manual pull
          cable is used to dump the hopper from the seat of a fork truck.  The hopper returns to the upright
          position when lowered to the ground.  Units feature full 90° dumping, steel construction, and a
          blue baked-in powder-coated toughness.  Must be attached to fork truck when dumping.

                MODEL        VOLUME     UNIFORM       OVERALL SIZE    WEIGHT
               NUMBER      CUBIC YARDS  CAPACITY       (W x L x H)    (POUND)
           HDROP-25-LD         ¼        2,000 lb.  30" x 46 /8" x 21 /16"   193
                                                         1
                                                              11
           HDROP-50-LD         ½        2,000 lb.  30" x 51 /16" x 28 /8"  239
                                                               1
                                                         3
           HDROP-100-LD        1        2,000 lb.  52 /16" x 51 /16" x 28 /8"  352                     CA Residents see
                                                   15
                                                                1
                                                          3
           HDROP-150-LD       1½        2,000 lb.  54" x 56 /2" x 38 /8"  382                         WARNING A, Pg. 459
                                                               5
                                                         1
           HDROP-25-MD         ¼        4,000 lb.  30" x 46 /8" x 21 /16"   215
                                                         1
                                                              11
                                                               1
                                                         3
           HDROP-50-MD         ½        4,000 lb.  30" x 51 /16" x 28 /8"  272
                                                          3
                                                                1
           HDROP-100-MD        1        4,000 lb.  52 /16" x 51 /16" x 28 /8"  402
                                                   15
           HDROP-150-MD       1½        4,000 lb.  54" x 56 /2" x 38 /8"  453
                                                               5
                                                         1
           HDROP-25-HD         ¼        6,000 lb.  30" x 46 /8" x 21 /16"   237
                                                              11
                                                         1
           HDROP-50-HD         ½        6,000 lb.  30" x 51 /16" x 28 /8"  306
                                                               1
                                                         3
           HDROP-100-HD        1        6,000 lb.  52 /16" x 51 /16" x 28 /8"  451
                                                   15
                                                          3
                                                                1
                                                         1
                                                               5
           HDROP-150-HD       1½        6,000 lb.  54" x 56 /2" x 38 /8"  472
          Portable Steel Dump Trucks
          Easily move and empty contents with a balanced design making dumping of scrap, chips, and
          waste easier.  Constructed of welded 14-gauge (12-gauge on model SPTT-15) steel for strength
          and lighter weight.  Unit rolls smoothly on two (2) rigid and two (2) swivel with brakes 5" x 2"
          poly-on-steel casters.  Blue baked-in powder-coated toughness.  Options, including welded leak
          proof chute welds, model LEKP, 3/4" drainage plug, model D-DPLG-75, and 2" drain plug
          model D-DPLG-2, leak proof chute welds included with drainage plugs.
             MODEL     VOLUME    VOLUME  UNIFORM      OVERALL SIZE    WEIGHT
             NUMBER   CUBIC YARDS  CUBIC FEET  CAPACITY  (W x L x H)  (POUND)
                                                          9
                                                                3
           SPTT-05�      2/3      18     1,000 lb.  26¼" x 57 /16" x 36 /16"  184
                                                          3
                                                                3
           SPTT-10�      1        27     1,500 lb.  38¼" x 58 /16" x 36 /16"  202
                                                               3
           SPTT-15�     1-1/2     40     2,000 lb.  38¼" x 65¼" x 45 /16"  365
          Gas Powered All-Terrain Hopper
          The All-Terrain Gas Powered Hopper is ideal for transporting up to 3,000 pounds
          of material over rough terrain and is excellent for landscapers and garden centers.
          Featuring a 190cc horsepower Briggs & Stratton gas powered motor and a traction
          drive system for overcoming the roughest of areas.  Durable steel construction for
          added strength and long life.  Power dump capabilities for smooth, ergonomically
          friendly unloading, and an emergency shut-off release for extra safety.  An optional
          Line-X inside hopper coating available upon request.  Optional welded leak proof
          seams and drain plug available.  Optional welded leak proof seams, model LEKP,
          3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2,
          leak proof seams included with drainage plugs available.
                MODEL        VOLUME      UNIFORM      OVERALL SIZE   WEIGHT
               NUMBER       CUBIC YARDS  CAPACITY      (W x L x H)   (POUND)
           ALL-T-GPT-HOP       2/3       3,000 lb.    50" x 89" x 50"  1346
          *DEPTH DIMENSION IS MEASURED AT TOP OF CHUTE
