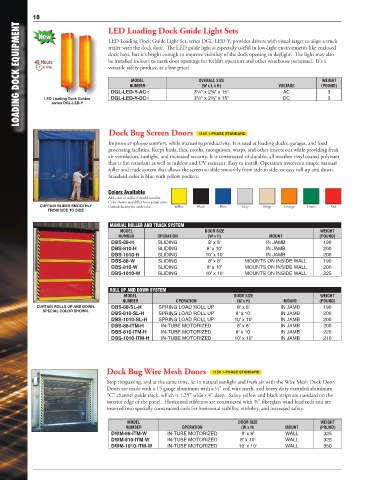

Page 12 - Vestil Catalog 112
P. 12

18 New                  LED Loading Dock Guide Light Sets
       LOADING DOCK EQUIPMENT  LED Loading Dock Guides  trailer with the dock door.  The LED guide light is especially useful in low-light environments like enclosed


                                    LED Loading Dock Guide Light Set, series DGL-LED-Y, provides drivers with visual target to align a truck
                                    dock bays, but it's bright enough to improve visibility of the dock opening in daylight.  The light may also
                                    be installed indoors to mark door openings for forklift operators and other warehouse personnel.  It's a
                                    versatile safety product, at a low price!

                                                                                                          WEIGHT
                                            MODEL
                                                                  OVERALL SIZE
                                                                                            VOLTAGE
                                                                   (W x L x H)
                                                                                                          (POUND)
                                           NUMBER
                                                                3 /8" x 2¾" x 15"
                                     DGL-LED-Y-AC�
                                                                 5
                                                                                              AC
                                                                                                            3
                                                                                             DC
                                                                 5
                                     DGL-LED-Y-DC�
                                                                                                            3
                                                                3 /8" x 2¾" x 15"
                  series DGL-LED-Y
                                     Dock Bug Screen Doors        115V 1-PHASE STANDARD
                                    Improve employee comfort, while increasing productivity. It is used at loading docks, garages, and food
                                    processing facilities. Keeps birds, flies, moths, mosquitoes, wasps, and other insects out while providing fresh
                                    air ventilation, sunlight, and increased security. It is constructed of durable, all weather vinyl coated polyester
                                    that is fire retardant as well as mildew and UV resistant. Easy to install. Operation involves a simple manual
                                    roller and track system that allows the screen to slide smoothly from side to side, or easy roll up and down.
                                    Standard color is blue with yellow pockets.
                                    Colors Available
                                    Add color to suffix of model number.
                                    Color shown may differ from actual color.
              CURTAIN SLIDES SMOOTHLY  Consult factory for each color.  Yellow  Black  Blue  Gray  Beige  Orange  Green  Red
                 FROM SIDE TO SIDE
                                     MANUAL ROLLER AND TRACK SYSTEM
                                        MODEL                       DOOR SIZE                             WEIGHT
                                        NUMBER      OPERATION        (W x H)             MOUNT           (POUND)
                                     DBS-88-H        SLIDING         8' x 8'            IN JAMB            190
                                     DBS-810-H       SLIDING         8' x 10'           IN JAMB            200
                                     DBS-1010-H      SLIDING        10' x 10'           IN JAMB            200
                                     DBS-88-W        SLIDING         8' x 8'     MOUNTS ON INSIDE WALL     190
                                     DBS-810-W       SLIDING         8' x 10'    MOUNTS ON INSIDE WALL     200
                                     DBS-1010-W      SLIDING        10' x 10'    MOUNTS ON INSIDE WALL     225

                                     ROLL UP AND DOWN SYSTEM
                                          MODEL                              DOOR SIZE                    WEIGHT
                                         NUMBER            OPERATION          (W x H)         MOUNT      (POUND)
             CURTAIN ROLLS UP AND DOWN.  DBS-88-SL-H  SPRING LOAD ROLL UP      8' x 8'       IN JAMB       190
               SPECIAL COLOR SHOWN.
                                     DBS-810-SL-H    SPRING LOAD ROLL UP      8' x 10'       IN JAMB       200
                                     DBS-1010-SL-H   SPRING LOAD ROLL UP      10' x 10'      IN JAMB       200
                                     DBS-88-ITM-H     IN-TUBE MOTORIZED        8' x 8'       IN JAMB       200
                                     DBS-810-ITM-H    IN-TUBE MOTORIZED       8' x 10'       IN JAMB       220
                                     DBS-1010-ITM-H   IN-TUBE MOTORIZED       10' x 10'      IN JAMB       210





                                    Dock Bug Wire Mesh Doors           115V 1-PHASE STANDARD
                                    Stop trespassing, and at the same time, let in natural sunlight and fresh air with the Wire Mesh Dock Door.
                                    Doors are made with a 15 gauge aluminum with a ½" coil wire mesh, and heavy duty extruded aluminum
                                    “C” channel guide track, which is 1.25" wide x 4" deep.  Safety yellow and black strips are standard on the
                                    interior edge of the panel.  Horizontal stiffeners are constructed with ¾" fiberglass wind load rods and are
                                    inserted into specially constructed coils for horizontal stability, visibility, and increased safety.

                                           MODEL                               DOOR SIZE                  WEIGHT
                                          NUMBER             OPERATION          (W x H)       MOUNT       (POUND)
                                     DWM-88-ITM-W       IN-TUBE MOTORIZED       8' x 8'       WALL         325
                                     DWM-810-ITM-W      IN-TUBE MOTORIZED       8' x 10'      WALL         325
                                     DWM-1010-ITM-W     IN-TUBE MOTORIZED      10' x 10'      WALL         350
