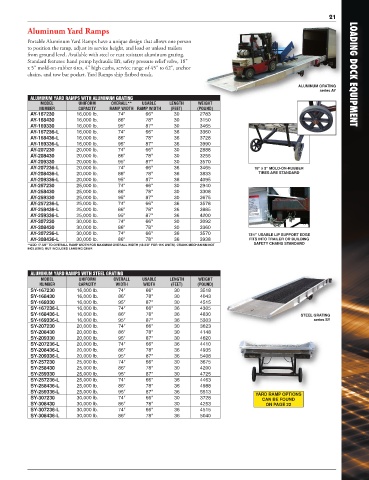

          Aluminum Yard Ramps

          Portable Aluminum Yard Ramps have a unique design that allows one person
          to position the ramp, adjust its service height, and load or unload trailers
          from ground level. Available with steel or rust resistant aluminum grating.
          Standard features: hand pump hydraulic lift, safety pressure relief valve, 18"
          x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor
          chains, and tow bar pocket. Yard Ramps ship flatbed truck.                                               LOADING DOCK EQUIPMENT

                                                                                                  ALUMINUM GRATING
                                                                                                          series AY
           ALUMINUM YARD RAMPS WITH ALUMINUM GRATING
              MODEL        UNIFORM   OVERALL**  USABLE  LENGTH    WEIGHT
              NUMBER       CAPACITY  RAMP WIDTH RAMP WIDTH  (FEET)  (POUND)
           AY-167230      16,000 lb.    74"      66"      30      2783
           AY-168430      16,000 lb.    86"      78"      30      3150
           AY-169330      16,000 lb.    95"      87"      30      3465
           AY-167236-L    16,000 lb.    74"      66"      36      3360
           AY-168436-L    16,000 lb.    86"      78"      36      3728
           AY-169336-L    16,000 lb.    95"      87"      36      3990
           AY-207230      20,000 lb.    74"      66"      30      2888
           AY-208430      20,000 lb.    86"      78"      30      3255
           AY-209330      20,000 lb.    95"      87"      30      3570
           AY-207236-L    20,000 lb.    74"      66"      36      3465              18" x 5" MOLD-ON-RUBBER
           AY-208436-L    20,000 lb.    86"      78"      36      3833                TIRES ARE STANDARD
           AY-209336-L    20,000 lb.    95"      87"      36      4095
           AY-257230      25,000 lb.    74"      66"      30      2940
           AY-258430      25,000 lb.    86"      78"      30      3308
           AY-259330      25,000 lb.    95"      87"      30      3675
           AY-257236-L    25,000 lb.    74"      66"      36      3578
           AY-258436-L    25,000 lb.    86"      78"      36      3885
           AY-259336-L    25,000 lb.    95"      87"      36      4200
           AY-307230      30,000 lb.    74"      66"      30      3092
           AY-308430      30,000 lb.    86"      78"      30      3360
           AY-307236-L    30,000 lb.    74"      66"      36      3570            13½" USABLE LIP SUPPORT EDGE
           AY-308436-L    30,000 lb.    86"      78"      36      3938            FITS INTO TRAILER OR BUILDING
          **ADD 17-3/8" TO OVERALL RAMP WIDTH FOR MAXIMUM OVERALL WIDTH (18-3/8" FOR 16K UNITS). CRANK MECHANISM NOT   SAFETY CHAINS STANDARD
          INCLUDED, BUT INCLUDES LANDING GEAR.


           ALUMINUM YARD RAMPS WITH STEEL GRATING
              MODEL        UNIFORM    OVERALL   USABLE  LENGTH    WEIGHT
              NUMBER       CAPACITY    WIDTH    WIDTH    (FEET)   (POUND)
           SY-167230      16,000 lb.    74"      66"      30      3518
           SY-168430      16,000 lb.    86"      78"      30      4043
           SY-169330      16,000 lb.    95"      87"      30      4515
           SY-167236-L    16,000 lb.    74"      66"      36      4305
           SY-168436-L    16,000 lb.    86"      78"      36      4830                             STEEL GRATING
           SY-169336-L    16,000 lb.    95"      87"      36      5303                                  series SY
           SY-207230      20,000 lb.    74"      66"      30      3623
           SY-208430      20,000 lb.    86"      78"      30      4148
           SY-209330      20,000 lb.    95"      87"      30      4620
           SY-207236-L    20,000 lb.    74"      66"      36      4410
           SY-208436-L    20,000 lb.    86"      78"      36      4935
           SY-209336-L    20,000 lb.    95"      87"      36      5408
           SY-257230      25,000 lb.    74"      66"      30      3675
           SY-258430      25,000 lb.    86"      78"      30      4200
           SY-259330      25,000 lb.    95"      87"      30      4725
           SY-257236-L    25,000 lb.    74"      66"      36      4463
           SY-258436-L    25,000 lb.    86"      78"      36      4988
           SY-259336-L    25,000 lb.    95"      87"      36      5513               YARD RAMP OPTIONS
           SY-307230      30,000 lb.    74"      66"      30      3728                 CAN BE FOUND
           SY-308430      30,000 lb.    86"      78"      30      4253                  ON PAGE 22
           SY-307236-L    30,000 lb.    74"      66"      36      4515
           SY-308436-L    30,000 lb.    86"      78"      36      5040
