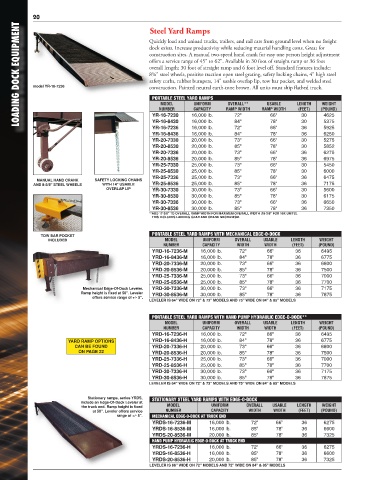

20                                    Quickly load and unload trucks, trailers, and rail cars from ground level when no freight
       LOADING DOCK EQUIPMENT  model YR-16-7236   dock exists. Increase productivity while reducing material handling costs. Great for
                                                  Steel Yard Ramps



                                                  construction sites. A manual two-speed hand crank for easy one person height adjustment
                                                  offers a service range of 45" to 62". Available in 30 foot of straight ramp or 36 foot
                                                  overall length; 30 foot of straight ramp and 6 foot level off. Standard features include:
                                                  8⅝" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel
                                                  safety curbs, rubber bumpers, 14" usable overlap lip, tow bar pocket, and welded steel
                                                  construction. Painted neutral earth-tone brown. All units must ship flatbed truck.
                                                   PORTABLE STEEL YARD RAMPS
                                                                                                          WEIGHT
                                                                           OVERALL**
                                                     MODEL
                                                                UNIFORM
                                                                                        USABLE
                                                     NUMBER
                                                                CAPACITY
                                                                                                   (FEET)
                                                   YR-16-7230
                                                                                         66"
                                                                                                    30
                                                                              72"
                                                                                                           4625
                                                   YR-16-8430
                                                                16,000 lb.
                                                                              84"
                                                                                                           5375
                                                                                         78"
                                                                                                    30
                                                   YR-16-7236   16,000 lb.  RAMP WIDTH  RAMP WIDTH  LENGTH  (POUND)
                                                                16,000 lb.
                                                                                         66"
                                                                                                    36
                                                                                                           5925
                                                                              72"
                                                   YR-16-8436   16,000 lb.    84"        78"        36     6250
                                                   YR-20-7330   20,000 lb.    73"        66"        30     5275
                                                   YR-20-8530   20,000 lb.    85"        78"        30     5852
                                                   YR-20-7336   20,000 lb.    73"        66"        36     6275
                                                   YR-20-8536   20,000 lb.    85"        78"        36     6975
                                                   YR-25-7330   25,000 lb.    73"        66"        30     5450
                                                   YR-25-8530   25,000 lb.    85"        78"        30     6000
                                                   YR-25-7336   25,000 lb.    73"        66"        36     6475
             MANUAL HAND CRANK  SAFETY LOCKING CHAINS
            AND 8-5/8" STEEL WHEELS  WITH 14" USABLE   YR-25-8536  25,000 lb.  85"       78"        36     7175
                                    OVERLAP LIP    YR-30-7330   30,000 lb.    73"        66"        30     5600
                                                   YR-30-8530   30,000 lb.    85"        78"        30     6175
                                                   YR-30-7336   30,000 lb.    73"        66"        36     6650
                                                   YR-30-8536   30,000 lb.    85"        78"        36     7350
                                                  **ADD 17-3/8" TO OVERALL RAMP WIDTH FOR MAXIMUM OVERALL WIDTH (18-3/8" FOR 16K UNITS).
                                                     THIS INCLUDES LANDING GEAR AND CRANK MECHANISM.
              TOW BAR POCKET                       PORTABLE STEEL YARD RAMPS WITH MECHANICAL EDGE-O-DOCK
                 INCLUDED                              MODEL       UNIFORM    OVERALL   USABLE  LENGTH   WEIGHT
                                                      NUMBER       CAPACITY   WIDTH    WIDTH     (FEET)  (POUND)
                                                   YRD-16-7236-M   16,000 lb.  72"      66"       36      6495
                                                   YRD-16-8436-M   16,000 lb.  84"      78"       36      6775
                                                   YRD-20-7336-M   20,000 lb.  73"      66"       36      6800
                                                   YRD-20-8536-M   20,000 lb.  85"      78"       36      7500
                                                   YRD-25-7336-M   25,000 lb.  73"      66"       36      7000
                                                   YRD-25-8536-M   25,000 lb.  85"      78"       36      7700
                            Mechanical Edge-Of-Dock Leveler.   YRD-30-7336-M  30,000 lb.  73"  66"  36    7175
                           Ramp height is fixed at 50". Leveler   YRD-30-8536-M  30,000 lb.  85"  78"  36  7875
                               offers service range of +/- 5".
                                                  LEVELER IS 64" WIDE ON 72" & 73" MODELS AND 75" WIDE ON 84" & 85" MODELS
                                                   PORTABLE STEEL YARD RAMPS WITH HAND PUMP HYDRAULIC EDGE-O-DOCK**
                                                       MODEL       UNIFORM    OVERALL   USABLE  LENGTH   WEIGHT
                                                      NUMBER       CAPACITY   WIDTH    WIDTH     (FEET)  (POUND)
                                                   YRD-16-7236-H   16,000 lb.  72"      66"       36      6495
                       YARD RAMP OPTIONS           YRD-16-8436-H   16,000 lb.  84"      78"       36      6775
                         CAN BE FOUND              YRD-20-7336-H   20,000 lb.  73"      66"       36      6800
                           ON PAGE 22              YRD-20-8536-H   20,000 lb.  85"      78"       36      7500
                                                   YRD-25-7336-H   25,000 lb.  73"      66"       36      7000
                                                   YRD-25-8536-H   25,000 lb.  85"      78"       36      7700
                                                   YRD-30-7336-H   30,000 lb.  73"      66"       36      7175
                                                   YRD-30-8536-H   30,000 lb.  85"      78"       36      7875
                                                  LEVELER IS 64" WIDE ON 72" & 73" MODELS AND 75" WIDE ON 84" & 85" MODELS
                              Stationary ramps, series YRDS,   STATIONARY STEEL YARD RAMPS WITH EDGE-O-DOCK
                           include an Edge-Of-Dock Leveler at
                            the truck end. Ramp height is fixed   MODEL  UNIFORM  OVERALL   USABLE  LENGTH  WEIGHT
                               at 50". Leveler offers service   NUMBER  CAPACITY  WIDTH   WIDTH    (FEET)  (POUND)
                                       range of +/- 5".  MECHANICAL EDGE-O-DOCK AT TRUCK END
                                                   YRDS-16-7236-M    16,000 lb.    72"     66"      36     6275
                                                   YRDS-16-8536-M    16,000 lb.    85"     78"      36     6600
                                                   YRDS-20-8536-M    20,000 lb.    85"     78"      36     7325
                                                   HAND PUMP HYDRAULIC EDGE-O-DOCK AT TRUCK END
                                                   YRDS-16-7236-H    16,000 lb.    72"     66"      36     6275
                                                   YRDS-16-8536-H    16,000 lb.    85"     78"      36     6600
                                                   YRDS-20-8536-H    20,000 lb.    85"     78"      36     7325
                                                  LEVELER IS 66" WIDE ON 72" MODELS AND 72" WIDE ON 84" & 85" MODELS
