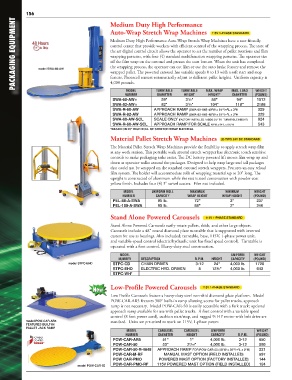

Page 4 - Packaging Equipment

156 Medium Duty High Performance 115V 1-PHASE STANDARD
PACKAGING EQUIPMENT model SWA-60-AW Medium Duty High Performance Auto-Wrap Stretch Wrap Machines have a user friendly

Auto-Wrap Stretch Wrap Machines

control center that provide workers with efficient control of the wrapping process. The state of
the art digital control circuit allows the operator to set the number of pallet rotations and film
wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator ties
off the film wrap on the carousel and presses the start button. When the unit has completed
the wrapping process, the operator can cut film or use the auto brake feature and remove the
wrapped pallet. The powered carousel has variable speeds 0 to 13 with a soft start and stop
feature. Photocell sensors automatically adjust to different pallet heights. Uniform capacity is
4,000 pounds.
WEIGHT
MODEL
HEIGHT
DIAMETER
NUMBER TURNTABLE TURNTABLE MAX. WRAP MAX. LOAD (POUND)
HEIGHT*
DIAMETER
1
SWA-60-AW� 59" 3 /8" 88" 94" 1512
1
SWA-82-AW� 82" 3 /8" 104" 118" 2186
SWA-R-60-AW APPROACH RAMP (SWA-60-AW) 48"W x 61 13 / 32 "L x 3"H 329
SWA-R-82-AW APPROACH RAMP (SWA-82-AW) 48"W x 61 13 / 32 "L x 3"H 329
SWA-60-AW-SCL SCALE ONLY (FACTORY INSTALLED / ADDS 3½" TO TURNTABLE HEIGHT) 924
SWA-R-60-AW-SCL APPROACH RAMP FOR SCALE 48"W x 94"L x 6½"H 543
*BASED ON 20" HIGH ROLL OF STRETCH WRAP MATERIAL
Material Pallet Stretch Wrap Machines (2) TWO 24V DC STANDARD
The Material Pallet Stretch Wrap Machines provide the flexibility to apply stretch wrap film
at any work station. This portable walk around stretch wrapper has electronic touch sensitive
controls to make packaging tasks easier. The DC battery powered lift moves film wrap up and
down as operator walks around the packages. Designed to help wrap large and tall packages
that could not be wrapped on the standard carousel stretch wrappers. Features an easy reload
film system. The holder will accommodate rolls of wrapping material up to 20" long. The
upright is constructed of aluminum while the rest is steel construction with powder coat
yellow finish. Includes four (4) 3" swivel casters. Film not included.
MODEL UNIFORM ROLL MAXIMUM MINIMUM WEIGHT
NUMBER CAPACITY WRAP HEIGHT WRAP HEIGHT (POUND)
PEL-88-A-SWA 95 lb. 72" 2" 237
PEL-100-A-SWA 95 lb. 88" 2" 246

Stand Alone Powered Carousels 115V 1-PHASE STANDARD
Stand Alone Powered Carousels easily rotate pallets, skids, and other large objects.
Carousels include a 48" round diamond plate turntable that is supported with inverted
casters for use as bearings. Also included; turntable, base, 115V, 1-phase power unit,
and variable-speed control (electric/hydraulic unit has fixed speed control). Turntable is
operated with a foot control. Heavy-duty steel construction.
MODEL UNIFORM WEIGHT
NUMBER DESCRIPTION R.P.M. HEIGHT CAPACITY (POUND)
model STPC-EHD STPC-CD CHAIN DRIVEN 3-12 24" 4,000 lb. 1728
STPC-EHD ELECTRIC HYD. DRIVEN 8 13½" 4,000 lb. 643
STPC-WH*

New Low-Profile Powered Carousels 115V 1-PHASE STANDARD
Low Profile Carousels feature a heavy-duty steel non-skid diamond plate platform. Model
POW-CAR-AR5 features 300° built-in ramp allowing access for pallet trucks, approach
ramp is not necessary. Model POW-CAR-50 is easily accessible with a fork truck; optional
approach ramp available for use with pallet trucks. A foot control with a variable speed
control (8 foot power cord), cushion start/stop, and rugged ¾ HP motor with belt drive are
model POW-CAR-AR5 standard. Units are pre-wired to work on 115V, 1-phase power.
FEATURES BUILT-IN
PALLET JACK RAMP
MODEL CAROUSEL CAROUSEL UNIFORM WEIGHT
NUMBER DIAMETER HEIGHT CAPACITY R.P.M. (POUND)
POW-CAR-AR5 51" 1" 4,000 lb. 3-12 650
1
POW-CAR-50 50" 2 /16" 4,000 lb. 3-12 599
POW-CAR-50-R-4848 APPROACH RAMP FOR POW-CAR-50 (48"W x 39 15 / 16 "L x 2"H) 221
POW-CAR-M-RF MANUAL MAST OPTION (FIELD INSTALLED) 597
POW CAR-PMO POWERED MAST OPTION (FACTORY INSTALLED) 144
POW-CAR-PMO-RF 115V POWERED MAST OPTION (FIELD INSTALLED) 194
model POW-CAR-50
