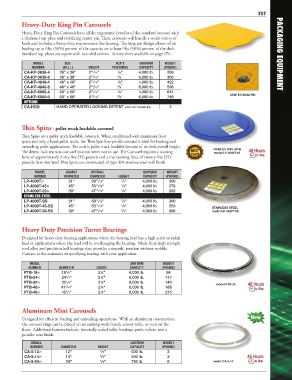

Page 5 - Packaging Equipment

157
Heavy-Duty King Pin Carousels

Heavy-Duty King Pin Carousels have all the ergonomic benefits of the standard carousel with
a diamond top plate and stabilizing center pin. These carousels will handle a wider variety of
loads and includes a heavy-duty maintenance free bearing. The king pin design allows off set
loading up to fifty (50%) percent of the capacity on at least fifty (50%) percent of the deck.
Standard top plates are square with rounded corners. Survey sheet available on page 176. PACKAGING EQUIPMENT

MODEL SIZE PLATE UNIFORM WEIGHT
NUMBER (W x L) HEIGHT THICKNESS CAPACITY (POUND)
11
CA-KP-3636-4 36" x 36" 2 /16" ¼" 4,000 lb. 269
CA-KP-3636-6 36" x 36" 2 /16" 3 " 6,000 lb. 306
13
/8
CA-KP-4848-4 48" x 48" 2 /16" ¼" 4,000 lb. 422
11
13
CA-KP-4848-6 48" x 48" 2 /16" 3 " 6,000 lb. 506
/8
11
CA-KP-6060-4 60" x 60" 2 /16" ¼" 4,000 lb. 641
13
CA-KP-6060-6 60" x 60" 2 /16" 3 /8" 6,000 lb. 749 CENTER KING PIN
OPTIONS
CA-HOD HAND OPERATED LOCKING DETENT (FACTORY INSTALLED) 2
Thin Spins - pallet truck loadable carousel
Thin Spins are a pallet truck loadable carousels. When confronted with minimum floor
space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and
unloading pallet applications. The unit is pallet truck loadable because of its sleek overall height.
The detent lock restricts carousel rotation when not in use. The Carousel requires a starting PAINTED THIN SPIN
model LP-4000T-45
force of approximately thirty-five (35) pounds and a maintaining force of twenty-five (25)
pounds. Stainless Steel Thin Spins are constructed of type 304 stainless steel mill finish.

MODEL USABLE OVERALL UNIFORM WEIGHT
NUMBER DIAMETER DIAMETER HEIGHT CAPACITY (POUND)
11
LP-4000T� 51" 59 /16" 7 /8" 4,000 lb. 300
11
LP-4000T-45� 45" 53 /16" 7 /8" 4,000 lb. 278
11
LP-4000T-39� 39" 47 /16" 7 /8" 4,000 lb. 232
STAINLESS STEEL
11
LP-4000T-SS 51" 59 /16" 7 /8" 4,000 lb. 300
11
LP-4000T-45-SS 45" 53 /16" 7 /8" 4,000 lb. 253 STAINLESS STEEL
11
LP-4000T-39-SS 39" 47 /16" 7 /8" 4,000 lb. 206 model LP-4000T-SS
Heavy Duty Precision Turret Bearings
Designed for heavy duty bearing applications where the bearing load has a high aerial or radial
load or applications where the load will be overhanging the bearing. Made from high strength
steel alloy and precision ball bearings that provides a smooth, rotation without wobble.
Contact us for assistance in specifying bearing with your application.
MODEL UNIFORM WEIGHT
NUMBER DIAMETER HEIGHT CAPACITY (POUND)
1
PTB-19� 19 /8" 2¼" 6,000 lb. 98
1
PTB-24� 24 /4" 2¼" 6,000 lb. 117
1
PTB-32� 32 /8" 2¼" 6,000 lb. 149 model PTB-24
3
PTB-40� 41 /16" 2¼" 6,000 lb. 188
7
PTB-46� 45 /8" 2¼" 6,000 lb. 215
Aluminum Mini Carousels
Designed for efficient loading and unloading operations. With an aluminum construction, New
the carousel rings can be placed on an existing work bench, scissor table, or even on the
floor. Additional features include: internally sealed roller bearings, guide rollers, and a
powder coat finish.
MODEL UNIFORM WEIGHT
NUMBER DIAMETER HEIGHT CAPACITY (POUND)
CA-5-12� 12" 5 /8" 500 lb. 3
CA-5-14� 14" 5 /8" 500 lb. 3
CA-5-24� 24" 5 /8" 750 lb. 8 model CA-5-14
