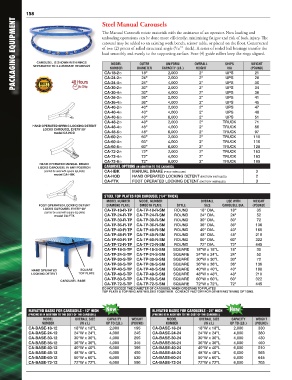

158                            Steel Manual Carousels
       PACKAGING EQUIPMENT  SEPARATED TO ILLUSTRATE BEARINGS  unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The


                                           The Manual Carousels rotate materials with the assistance of an operator. Now loading and
                                           carousel may be added to an existing work bench, scissor table, or placed on the floor. Constructed
                                                                         3
                                           of two (2) pieces of rolled structural angle ( /16"" thick). A series of sealed ball bearings transfer the
                                           load smoothly and evenly to the supporting surface. Four (4) guide rollers keep the rings aligned.
                CAROUSEL IS SHOWN WITH RINGS
                                                                      UNIFORM
                                                                                                         WEIGHT
                                                                                              SHIPS
                                                                                 OVERALL
                                               MODEL
                                                           OUTER
                                                                                  HEIGHT
                                                          DIAMETER
                                                                                                         (POUND)
                                                                                               VIA
                                                                    CAPACITY (LB.)
                                              NUMBER
                                                            18"
                                                                      2,000
                                                                                              UPS
                                                                                                          21
                                                                                   2"
                                            CA-18-2�
                                            CA-24-2�
                                                                                                          30
                                                            24"
                                                                                              UPS
                                                                                   2"
                                                                      4,000
                                            CA-24-4�
                                                                                                          34
                                                            30"
                                                                      2,000
                                                                                   2"
                                                                                              UPS
                                            CA-30-2�
                                                                                   2"
                                                            30"
                                                                      4,000
                                                                                                          36
                                                                                              UPS
                                            CA-30-4�        24"       2,000        2"         UPS         28
                                            CA-36-2�        36"       2,000        2"         UPS         41
                                            CA-36-4�        36"       4,000        2"         UPS         45
                                            CA-40-2�        40"       2,000        2"         UPS         47
                                            CA-40-4�        40"       4,000        2"         UPS         49
                                            CA-40-6�        40"       6,000        2"         UPS         51
                                            CA-48-2�        48"       2,000        2"        TRUCK        71
              HAND OPERATED SPRING LOCKING DETENT  CA-48-4�  48"      4,000        2"        TRUCK        86
                   LOCKS CAROUSEL EVERY 90°
                       model CA-HOD         CA-48-6�        48"       6,000        2"        TRUCK        97
                                            CA-60-2�        60"       2,000        2"        TRUCK        110
                                            CA-60-4�        60"       4,000        2"        TRUCK        116
                                            CA-60-6�        60"       6,000        2"        TRUCK        128
                                            CA-72-2�        72"       2,000        2"        TRUCK        163
                                            CA-72-4�        72"       4,000        2"        TRUCK        163
                                            CA-72-6�        72"       6,000        2"        TRUCK        169
                 HAND OPERATED MANUAL BRAKE
                 LOCKS CAROUSEL IN ANY POSITION  CAROUSEL OPTIONS (IN ADDITION TO THE CAROUSEL)
                   (cannot be used with square top plate)  CA-HBK  MANUAL BRAKE (FIELD INSTALLED)          3
                       model CA-HBK         CA-HOD      HAND OPERATED LOCKING DETENT (FACTORY INSTALLED)   2
                                            CA-FTK      FOOT OPERATED LOCKING DETENT (FACTORY INSTALLED)   3
                                            STEEL TOP PLATES FOR CAROUSEL (1/4" THICK)
                                             MODEL NUMBER  MODEL NUMBER             OVERALL    USE WITH   WEIGHT
                 FOOT OPERATED LOCKING DETENT  DIAMOND PLATE  SMOOTH PLATE  STYLE    SIZE    CAROUSEL DIA.  (POUND)
                   LOCKS CAROUSEL EVERY 90°  CA-TP-18-R-TP  CA-TP-18-R-SM  ROUND    18" DIA.    18"        35
                   (cannot be used with square top plate)
                        model CA-FTK        CA-TP-24-R-TP  CA-TP-24-R-SM  ROUND     24" DIA.    24"        52
                                            CA-TP-30-R-TP  CA-TP-30-R-SM  ROUND     30" DIA.    30"        72
                                            CA-TP-36-R-TP  CA-TP-36-R-SM  ROUND     36" DIA.    36"        136
                                            CA-TP-40-R-TP  CA-TP-40-R-SM  ROUND     40" DIA.    40"        160
                                            CA-TP-48-R-TP  CA-TP-48-R-SM  ROUND     48" DIA.    48"        210
                                            CA-TP-60-R-TP  CA-TP-60-R-SM  ROUND     60" DIA.    60"        322
                                            CA-TP-72-R-TP  CA-TP-72-R-SM  ROUND     72" DIA.    72"        445
                                            CA-TP-18-S-TP  CA-TP-18-S-SM  SQUARE  18"W x 18"L   18"        35
                                            CA-TP-24-S-TP  CA-TP-24-S-SM  SQUARE  24"W x 24"L   24"        52
                                            CA-TP-30-S-TP  CA-TP-30-S-SM  SQUARE  30"W x 30"L   30"        72
                                            CA-TP-36-S-TP  CA-TP-36-S-SM  SQUARE  36"W x 36"L   36"        136
              HAND OPERATED       SQUARE    CA-TP-40-S-TP  CA-TP-40-S-SM  SQUARE  40"W x 40"L   40"        160
              LOCKING DETENT     TOP PLATE  CA-TP-48-S-TP  CA-TP-48-S-SM  SQUARE  48"W x 48"L   48"        210
                                            CA-TP-60-S-TP  CA-TP-60-S-SM  SQUARE  60"W x 60"L   60"        322
                          CAROUSEL BASE
                                            CA-TP-72-S-TP  CA-TP-72-S-SM  SQUARE  72"W x 72"L   72"        445
                                           DO NOT EXCEED THE DIAMETER OF CAROUSEL WHEN ORDERING TOP PLATES
                                           TOP PLATE & TOP RING ARE WELDED TOGETHER.  CONTACT FACTORY FOR OTHER FASTENING OPTIONS.
             ELEVATED BASES FOR CAROUSELS - 12" HIGH   New      ELEVATED BASES FOR CAROUSELS - 24" HIGH   New
             (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL)  (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL)
                   MODEL        OVERALL SIZE  CAPACITY  WEIGHT        MODEL        OVERALL SIZE  CAPACITY  WEIGHT
                  NUMBER          (W x L)    UP TO (LB.)  (POUND)    NUMBER          (W x L)    UP TO (LB.)  (POUND)
             CA-BASE-18-12      18"W x 18"L   2,000     195     CA-BASE-18-24      18"W x 18"L   2,000      330
             CA-BASE-24-12      24"W x 24"L   4,000     245     CA-BASE-24-24      24"W x 24"L   4,000      380
             CA-BASE-30-12      30"W x 30"L   4,000     295     CA-BASE-30-24      30"W x 30"L   4,000      430
             CA-BASE-36-12      36"W x 36"L   4,000     345     CA-BASE-36-24      36"W x 36"L   4,000      460
             CA-BASE-40-12      40"W x 40"L   6,000     395     CA-BASE-40-24      40"W x 40"L   6,000      510
             CA-BASE-48-12      48"W x 48"L   6,000     450     CA-BASE-48-24      48"W x 48"L   6,000      565
             CA-BASE-60-12      60"W x 60"L   6,000     530     CA-BASE-60-24      60"W x 60"L   6,000      645
             CA-BASE-72-12      72"W x 72"L   6,000     590     CA-BASE-72-24      72"W x 72"L   6,000      705
