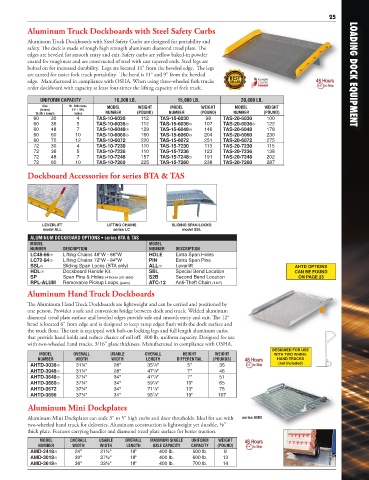

P. 19

25
          Aluminum Truck Dockboards with Steel Safety Curbs

          Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and
          safety. The deck is made of tough high strength aluminum diamond tread plate. The
          edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder
          coated for toughness and are constructed of steel with cast tapered ends. Steel legs are
          bolted on for increased durability.  Legs are located 11" from the beveled edge.  The legs
          are canted for easier fork truck portability.  The bend is 11° and 9" from the beveled                   LOADING DOCK EQUIPMENT
          edge.  Manufactured in compliance with OSHA. When using three-wheeled fork trucks
          order dockboard with capacity at least four-times the lifting capacity of fork truck.

              UNIFORM CAPACITY        10,000 LB.           15,000 LB.           20,000 LB.
               Size     Ht. Difference  MODEL  WEIGHT    MODEL     WEIGHT     MODEL    WEIGHT
              (Inches)   11° / 19%
             Width x Length   Inches  NUMBER  (POUND)   NUMBER     (POUND)   NUMBER    (POUND)
            60    30      4      TAS-10-6030   112   TAS-15-6030    98    TAS-20-6030   100
            60    36      5      TAS-10-6036  112   TAS-15-6036   107   TAS-20-6036  122
            60    48      7      TAS-10-6048  129   TAS-15-6048   146   TAS-20-6048   178
            60    60      10     TAS-10-6060  160   TAS-15-6060   204   TAS-20-6060   230
            60    72      12     TAS-10-6072   220   TAS-15-6072    251   TAS-20-6072   275
            72    30      4      TAS-10-7230   110   TAS-15-7230    113   TAS-20-7230   115
            72    36      5      TAS-10-7236   110   TAS-15-7236    123   TAS-20-7236   138
            72    48      7      TAS-10-7248   157   TAS-15-7248   191   TAS-20-7248   202
            72    60      10     TAS-10-7260   225   TAS-15-7260    238   TAS-20-7260   287
          Dockboard Accessories for series BTA & TAS








               LEVERLIFT            LIFTING CHAINS       SLIDING SPAN LOCKS
               model ALL              series LC              model SSL
           ALUMINUM DOCKBOARD OPTIONS • series BTA & TAS
           MODEL                                  MODEL
           NUMBER     DESCRIPTION                 NUMBER  DESCRIPTION
           LC48-66   Lifting Chains 48"W - 66"W  HOLE    Extra Span Holes
           LC72-84   Lifting Chains 72"W - 84"W  PIN     Extra Span Pins
           SSL       Sliding Span Locks (BTA only)  ALL  Leverlift                             AHTD OPTIONS
           HDL       Dockboard Handle Kit        SBL     Special Bend Location                  CAN BE FOUND
           SP         Span Pins & Holes (4 holes per side)  S2B  Second Bend Location              ON PAGE 23
           RPL-ALUM   Removable Pickup Loops (pairs)  ATC-12  Anti-Theft Chain (144")
          Aluminum Hand Truck Dockboards
          The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by
          one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum
          diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12°
          bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and
          the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs
          that provide hand holds and reduce chance of roll off.  800 lb. uniform capacity. Designed for use
          with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
                                                                                          DESIGNED FOR USE
              MODEL      OVERALL     USABLE     OVERALL      HEIGHT    WEIGHT              WITH TWO WHEEL
             NUMBER       WIDTH      WIDTH       LENGTH    DIFFERENTIAL  (POUNDS)           HAND TRUCKS
                                                                                            (not included)
                                                   7
           AHTD-3036     31¼"        28"        35 /8"       5"         35
                                                   7
           AHTD-3048     31¼"        28"        47 /8"       7"         46
                                                   7
           AHTD-3648     37¼"        34"        47 /8"       7"         51
                                                   7
           AHTD-3660     37¼"        34"        59 /8"       10"        65
           AHTD-3672      37¼"        34"        71 /8"       13"        75
                                                   7
           AHTD-3696      37¼"        34"        95 /8"       19"       107
                                                   7
          Aluminum Mini Dockplates
          Aluminum Mini Dockplates can scale 3" to 5" high curbs and door thresholds. Ideal for use with   series AMD
          two-wheeled hand truck for deliveries. Aluminum construction is lightweight yet durable, ⅛"
          thick plate. Features carrying handles and diamond tread plate surface for better traction.
              MODEL     OVERALL  USABLE   OVERALL  MAXIMUM SINGLE   UNIFORM  WEIGHT
              NUMBER     WIDTH    WIDTH   LENGTH   AXLE CAPACITY  CAPACITY  (POUND)
           AMD-2418     24"      21½"     18"       400 lb.    500 lb.   8
           AMD-3018     30"      27½"     18"       400 lb.    600 lb.   13
           AMD-3618     36"      33½"     18"       400 lb.    700 lb.   14
