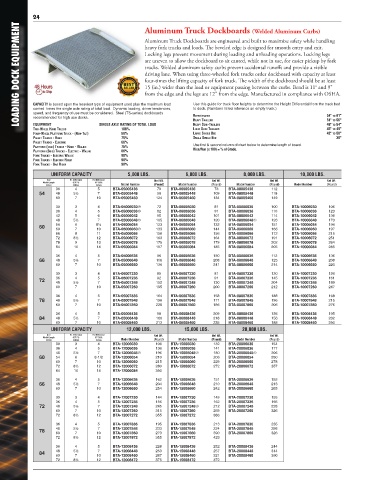

24                                  Aluminum Truck Dockboards (Welded Aluminum Curbs)
       LOADING DOCK EQUIPMENT                   heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit.


                                                Aluminum Truck Dockboards are engineered and built to maximize safety while handling
                                                Locking legs prevent movement during loading and unloading operations. Locking legs
                                                are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork
                                                trucks. Welded aluminum safety curbs prevent accidental runoffs and provide a visible
                                                driving lane. When using three-wheeled fork trucks order dockboard with capacity at least
                                                four-times the lifting capacity of fork truck. The width of the dockboard should be at least
                                                15 (in.) wider than the load or equipment passing between the curbs. Bend is 11° and 9"
                                                from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

            CAPACITY is based upon the heaviest type of equipment used plus the maximum load
                                                                to dock. (Numbers listed reference an empty truck.)
            carried  times the single axle rating of total load.  Dynamic loading, driver tendencies,
            speed, and frequency of use must be considered.  Steel (TS-series) dockboards
                                                                                                            54" to 61"
                                                                RefRigeRated
            recommended for high use docks.
                                                                                                            51" to 56"
                                                                Heavy tRaileRs
            EQUIPMENT
                                                                Heavy semi-tRaileRs
                                                                                                            48" to 54"
                                         100%

                                                                                                            45" to 49"
            two-wHeel Hand tRucks   SINGLE AXLE RATING OF TOTAL LOAD  Use this guide for truck floor heights to determine the Height Differential from the truck bed
                                                                ligHt semi-tRaileRs
            fouR-wHeel PlatfoRm tRuck - (non-tilt)      50%     laRge single Bed                            42" to 50"
            Pallet tRucks - Hand         75%                    small single Bed                               30"
            Pallet tRucks - electRic      66%
            PlatfoRm (skid) tRucks - Hand - walkie      75%     Use first & second column of chart below to determine length of board.
            PlatfoRm (skid) tRucks - electRic - walkie      66%   Rise/Run (x 100) = % of Grade.
            foRk tRucks - electRic walkie      90%
            foRk tRucks - electRic RideR      90%
            foRk tRucks - gas RideR      90%
                  UNIFORM CAPACITY         5,000 LBS.         6,000 LBS.         8,000 LBS.        10,000 LBS.
                Size    Ht. Difference  Ht. Difference  Net Wt.       Net Wt.            Net Wt.            Net Wt.
               Width-Length  8°/17%  11°/19%
                Inches   Inches  Inches  Model Number  (Pound)  Model Number  (Pound)  Model Number  (Pound)  Model Number  (Pound)
                   36     4      5    BTA-05005436  79   BTA-06005436  73   BTA-08005436  112
              54   48    5½      7    BTA-05005448  98   BTA-06005448  109  BTA-08005448  118
                   60     7      10   BTA-05005460  124  BTA-06005460  134  BTA-08005460  149
                   30     3      4    BTA-05006030  72  BTA-06006030  81   BTA-08006030  100   BTA-10006030  106
                   36     4      5    BTA-05006036  82  BTA-06006036  91   BTA-08006036  110   BTA-10006036  123
                   42     5      6    BTA-05006042  95   BTA-06006042  101  BTA-08006042  114   BTA-10006042  136
                   48    5½      7    BTA-05006048  105  BTA-06006048  120  BTA-08006048  126  BTA-10006048  173
              60   54     6     8½    BTA-05006054  123  BTA-06006054  132  BTA-08006054  151   BTA-10006054  194
                   60     7      10   BTA-05006060  133  BTA-06006060  144  BTA-08006060  166  BTA-10006060  197
                   66     8      11   BTA-05006066  156  BTA-06006066  156  BTA-08006066  172   BTA-10006066  215
                   72    8½      12   BTA-05006072  163  BTA-06006072  164  BTA-08006072  191   BTA-10006072  251
                   78     9      13   BTA-05006078  175  BTA-06006078  179  BTA-08006078  202   BTA-10006078  264
                   84    10      14   BTA-05006084  197  BTA-06006084  185  BTA-08006084  205   BTA-10006084  285
                   36     4      5    BTA-05006636  96   BTA-06006636  150  BTA-08006636  112   BTA-10006636  136
              66   48    5½      7    BTA-05006648  116  BTA-06006648  208  BTA-08006648  125   BTA-10006648  208
                   60     7      10   BTA-05006660  126  BTA-06006660  241  BTA-08006660  214   BTA-10006660  220
                   30     3      4    BTA-05007230  85   BTA-06007230  81   BTA-08007230  120   BTA-10007230  126
              72   36     4      5    BTA-05007236  92   BTA-06007236  91   BTA-08007236  145   BTA-10007236  161
                   48    5½      7    BTA-05007248  152  BTA-06007248  130  BTA-08007248  204   BTA-10007248  189
                   60     7      10   BTA-05007260  195  BTA-06007260  200  BTA-08007260  212   BTA-10007260  247
                   36     4      5    BTA-05007836  164  BTA-06007836  158  BTA-08007836  188   BTA-10007836  168
              78   48    5½      7    BTA-05007848  196  BTA-06007848  171  BTA-08007848  196   BTA-10007848  215
                   60     7      10   BTA-05007860  228  BTA-06007860  186  BTA-08007860  206   BTA-10007860  276
                   36     4      5    BTA-05008436  98   BTA-06008436  209  BTA-08008436  126   BTA-10008436  195
              84   48    5½      7    BTA-05008448  160  BTA-06008448  218  BTA-08008448  156   BTA-10008448  232
                   60     7      10   BTA-05008460  212  BTA-06008460  235  BTA-08008460  188   BTA-10008460  250
                  UNIFORM CAPACITY        12,000 LBS.        15,000 LBS.        20,000 LBS.
                Size    Ht. Difference  Ht. Difference  Net Wt.       Net Wt.            Net Wt.
               Width-Length  8°/17%  11°/19%  Model Number  (Pound)  Model Number  (Pound)  Model Number  (Pound)
                Inches   Inches  Inches
                   30     3      4    BTA-12006030  106  BTA-15006030  132  BTA-20006030  154
                   36     4      5    BTA-12006036  136  BTA-15006036  141  BTA-20006036  177
                   48    5½      7    BTA-12006048  196  BTA-15006048  180  BTA-20006048  206
              60   54     6     8-1/2  BTA-12006054  210  BTA-15006054  206  BTA-20006054  250
                   60     7      10   BTA-12006060  215  BTA-15006060  229  BTA-20006060  278
                   72    8½      12   BTA-12006072  280  BTA-15006072  272  BTA-20006072  357
                   84    10      14   BTA-12006084  350
                   36     4      5    BTA-12006636  162  BTA-15006636  151  BTA-20006636  192
              66   48    5½      7    BTA-12006648  204  BTA-15006648  210  BTA-20006648  213
                   60     7      10   BTA-12006660  254  BTA-15006660  242  BTA-20006660  265
                   30     3      4    BTA-12007230  144  BTA-15007230  149  BTA-20007230  155
                   36     4      5    BTA-12007236  156  BTA-15007236  162  BTA-20007236  195
              72   48    5½      7    BTA-12007248  245  BTA-15007248  212  BTA-20007248  228
                   60     7      10   BTA-12007260  315  BTA-15007260  269  BTA-20007260  326
                   72    8½      12   BTA-12007272  355  BTA-15007272  386
                   36     4      5    BTA-12007836  195  BTA-15007836  213  BTA-20007836  235
              78   48    5½      7    BTA-12007848  233  BTA-15007848  224  BTA-20007848  298
                   60     7      10   BTA-12007860  273  BTA-15007860  390  BTA-20007860  326
                   72    8½      12   BTA-12007872  355  BTA-15007872  423
                   36     4      5    BTA-12008436  228  BTA-15008436  232  BTA-20008436  244
              84   48    5½      7    BTA-12008448  253  BTA-15008448  257  BTA-20008448  314
                   60     7      10   BTA-12008460  267  BTA-15008460  321  BTA-20008460  390
                   72    8½      12   BTA-12008472  375  BTA-15008472  372
