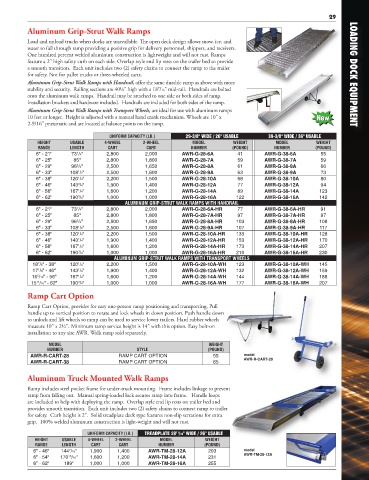

          Aluminum Grip-Strut Walk Ramps

          Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and
          water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers.
          One hundred percent welded aluminum construction is lightweight and will not rust. Ramps
          feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide
          a smooth transition.  Each unit includes two (2) safety chains to connect the ramp to the trailer
          for safety. Not for pallet trucks or three-wheeled carts.                                                LOADING DOCK EQUIPMENT
          Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more
                                                     7
          stability and security.  Railing sections are 40¼" high with a 18 /16" mid-rail.  Handrails are bolted
          onto the aluminum walk ramps.  Handrail may be attached to one side or both sides of ramp.
          Installation brackets and hardware included.  Handrails are included for both sides of the ramp.
          Aluminum Grip-Strut Walk Ramps with Transport Wheels, are ideal for use with aluminum ramps
          10 feet or longer.  Height is adjusted with a manual hand crank mechanism. Wheels are 10" x    New
          2-9/16" pneumatic and are located at balance points on the ramp.

                                     UNIFORM CAPACITY (LB.)   29-3/8" WIDE / 26" USABLE  39-3/8" WIDE / 36" USABLE
             HEIGHT     USABLE     4-WHEEL      2-WHEEL         MODEL        WEIGHT        MODEL        WEIGHT
             RANGE      LENGTH      CART         CART          NUMBER        (POUND)       NUMBER       (POUND)
                          1
             6" - 21"   73 /4"      2,800       2,000       AWR-G-28-6A        41      AWR-G-38-6A        55
             6" - 25"    85"        2,800       1,800       AWR-G-28-7A        59      AWR-G-38-7A        59
             6" - 29"   96 /4"      2,500       1,650       AWR-G-28-8A        61      AWR-G-38-8A        66
                          3
             6" - 33"   108 /2"     2,500       1,600       AWR-G-28-9A        63      AWR-G-38-9A        73
                           1
                           1
             6" - 38"   120 /4"     2,200       1,500       AWR-G-28-10A       68      AWR-G-38-10A       80
                           3
             6" - 46"   143 /4"     1,900       1,400       AWR-G-28-12A       77      AWR-G-38-12A       94
                           1
             6" - 56"   167 /4"     1,600       1,200       AWR-G-28-14A       89      AWR-G-38-14A      123
                           3
             6" - 62"   190 /4"     1,000       1,000       AWR-G-28-16A      122      AWR-G-38-16A      142
                                          ALUMINUM GRIP-STRUT WALK RAMPS WITH HANDRAIL
             6" - 21"   73 /4"      2,800       2,000       AWR-G-28-6A-HR     77      AWR-G-38-6A-HR     91
                          1
             6" - 25"    85"        2,800       1,800       AWR-G-28-7A-HR     97      AWR-G-38-7A-HR     97
             6" - 29"   96 /4"      2,500       1,650       AWR-G-28-8A-HR    103      AWR-G-38-8A-HR    108
                          3
                           1
             6" - 33"   108 /2"     2,500       1,600       AWR-G-28-9A-HR    107      AWR-G-38-9A-HR    117
                           1
             6" - 38"   120 /4"     2,200       1,500       AWR-G-28-10A-HR   133      AWR-G-38-10A-HR   128
                           1
             6" - 46"   143 /4"     1,900       1,400       AWR-G-28-12A-HR   153      AWR-G-38-12A-HR   170
                           1
             6" - 56"   167 /4"     1,600       1,200       AWR-G-28-14A-HR   173      AWR-G-38-14A-HR   207
             6" - 62"   190 /4"     1,000       1,000       AWR-G-28-16A-HR   210      AWR-G-38-16A-HR   230
                           3
                                      ALUMINUM GRIP-STRUT WALK RAMPS WITH TRANSPORT WHEELS
             7
                           1
            18 /8" - 38"  120 /4"   2,200       1,500       AWR-G-28-10A-WH   123      AWR-G-38-10A-WH   145
                           1
             1
            17 /4" - 46"  143 /4"   1,900       1,400       AWR-G-28-12A-WH   132      AWR-G-38-12A-WH   159
           16 /16" - 56"  167 /4"   1,600       1,200       AWR-G-28-14A-WH   144      AWR-G-38-14A-WH   188
                           1
             5
                           3
           15 /16" - 62"  190 /4"   1,000       1,000       AWR-G-28-16A-WH   177      AWR-G-38-16A-WH   207
             11
          Ramp Cart Option
          Ramp Cart Option, provides for easy one-person ramp positioning and transporting. Pull
          handle up to vertical position to rotate and lock wheels in down position. Push handle down
          to unlock and lift wheels so ramp can be used to service lower trailers. Hard rubber wheels
          measure 10" x 2½". Minimum ramp service height is 14" with this option. Easy bolt-on
          installation to any size AWR. Walk ramp sold separately.
                 MODEL                                               WEIGHT
                NUMBER                        STYLE                  (POUND)
           AWR-R-CART-28                RAMP CART OPTION               55        model
           AWR-R-CART-38                RAMP CART OPTION               65        AWR-R-CART-28
          Aluminum Truck Mounted Walk Ramps
          Ramp includes steel pocket frame for under-truck mounting.  Frame includes linkage to prevent
          ramp from falling out.  Manual spring-loaded lock secures ramp into frame.   Handle loops
          are included to help with deploying the ramp.  Overlap style end lip rests on trailer bed and
          provides smooth transition.  Each unit includes two (2) safety chains to connect ramp to trailer
          for safety.  Curb height is 2".  Solid treadplate deck type features non-slip serrations for extra
          grip.  100% welded aluminum construction is light-weight and will not rust.
                              UNIFORM CAPACITY (LB.)  TREADPLATE 28 /16" WIDE / 26" USABLE
                                                           11
            HEIGHT   USABLE   4-WHEEL  2-WHEEL       MODEL          WEIGHT
             RANGE   LENGTH    CART     CART         NUMBER         (POUND)
                        7
            6" - 46"  144 /16"  1,900  1,400     AWR-TM-28-12A       203         model
                                                                                 AWR-TM-28-12A
                       15
            6" - 54"  170 /16"  1,600  1,200     AWR-TM-28-14A       231
            6" - 62"  189"    1,000    1,000     AWR-TM-28-16A       255
