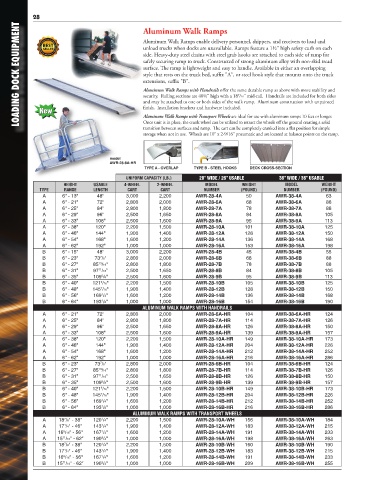

28                                  Aluminum Walk Ramps
       LOADING DOCK EQUIPMENT                   unload trucks when docks are unavailable. Ramps feature a 1½" high safety curb on each


                                                Aluminum Walk Ramps enable delivery personnel, shippers, and receivers to load and
                                                side. Heavy-duty steel chains with steel grab hooks are attached to each side of ramp for
                                                safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread
                                                surface. The ramp is lightweight and easy to handle. Available in either an overlapping
                                                style that rests on the truck bed, suffix "A", or steel hook style that mounts onto the truck
                                                extensions, suffix "B".
                                                Aluminum Walk Ramps with Handrails offer the same durable ramp as above with more stability and
                                                                               7
                                                security.  Railing sections are 40¼" high with a 18 /16" mid-rail.  Handrails are included for both sides
                                                and may be attached to one or both sides of the walk ramp.  Aluminum construction with unpainted
                                                finish.  Installation brackets and hardware included.
              New
                                                Aluminum Walk Ramps with Transport Wheels are ideal for use with aluminum ramps 10 feet or longer.
                                                Once unit is in place, the crank wheel can be utilized to retract the wheels off the ground creating a solid
                                                transition between surfaces and ramp.  The cart can be completely cranked into a flat position for simple
                                                storage when not in use.  Wheels are 10" x 2-9/16" pneumatic and are located at balance points on the ramp.



                                     model
                                     AWR-28-8A-HR
                                                TYPE A - OVERLAP  TYPE B - STEEL HOOKS  DECK CROSS-SECTION
                                          UNIFORM CAPACITY (LB.)  28" WIDE / 26" USABLE     38" WIDE / 36" USABLE
                      HEIGHT    USABLE    4-WHEEL   2-WHEEL         MODEL       WEIGHT        MODEL       WEIGHT
              TYPE    RANGE     LENGTH     CART       CART          NUMBER      (POUND)       NUMBER      (POUND)
               A     6" - 13"    48"      3,000      2,200       AWR-28-4A       50        AWR-38-4A        63
               A     6" - 21"    72"      2,800      2,000       AWR-28-6A       68        AWR-38-6A        86
               A     6" - 25"    84"      2,800      1,800       AWR-28-7A       78        AWR-38-7A        88
               A     6" - 29"    96"      2,500      1,650       AWR-28-8A       84        AWR-38-8A       105
               A     6" - 33"   108"      2,500      1,600       AWR-28-9A       95        AWR-38-9A       113
               A     6" - 38"   120"      2,200      1,500       AWR-28-10A      101       AWR-38-10A      125
               A     6" - 46"   144"      1,900      1,400       AWR-28-12A      128       AWR-38-12A      150
               A     6" - 54"   168"      1,600      1,200       AWR-28-14A      136       AWR-38-14A      168
               A     6" - 62"   192"      1,000      1,000       AWR-28-16A      153       AWR-38-16A      198
               B     6" - 15"    48"      3,000      2,200       AWR-28-4B       45        AWR-38-4B        55
                                  7
               B     6" - 23"   73 /8"    2,800      2,000       AWR-28-6B       68        AWR-38-6B        88
                                 13
               B     6" - 27"  85 /16"    2,800      1,800       AWR-28-7B       78        AWR-38-7B        88
               B     6" - 31"   97 /16"   2,500      1,650       AWR-28-8B       84        AWR-38-8B       105
                                 11
                                  5
               B     6" - 35"   109 /8"   2,500      1,600       AWR-28-9B       95        AWR-38-9B       113
               B     6" - 40"  121 /16"   2,200      1,500       AWR-28-10B      105       AWR-38-10B      125
                                  9
                                  7
               B     6" - 48"  145 /16"   1,900      1,400       AWR-28-12B      128       AWR-38-12B      150
                                  1
               B     6" - 56"   169 /4"   1,600      1,200       AWR-28-14B      136       AWR-38-14B      168
                                  1
               B     6" - 64"   193 /8"   1,000      1,000       AWR-28-16B      154       AWR-38-16B      190
                                                ALUMINUM WALK RAMPS WITH HANDRAILS
               A     6" - 21"    72"      2,800      2,000       AWR-28-6A-HR    104       AWR-38-6A-HR    124
               A     6" - 25"    84"      2,800      1,800       AWR-28-7A-HR    114       AWR-38-7A-HR    126
               A     6" - 29"    96"      2,500      1,650       AWR-28-8A-HR    126       AWR-38-8A-HR    150
               A     6" - 33"   108"      2,500      1,600       AWR-28-9A-HR    139       AWR-38-9A-HR    157
               A     6" - 38"   120"      2,200      1,500       AWR-28-10A-HR   149       AWR-38-10A-HR   173
               A     6" - 46"   144"      1,900      1,400       AWR-28-12A-HR   204       AWR-38-12A-HR   226
               A     6" - 54"   168"      1,600      1,200       AWR-28-14A-HR   212       AWR-38-14A-HR   252
               A     6" - 62"   192"      1,000      1,000       AWR-28-16A-HR   216       AWR-38-16A-HR   286
                                  7
               B     6" - 23"   73 /8"    2,800      2,000       AWR-28-6B-HR    104       AWR-38-6B-HR    124
                                 13
               B     6" - 27"  85 /16"    2,800      1,800       AWR-28-7B-HR    114       AWR-38-7B-HR    126
                                 11
               B     6" - 31"   97 /16"   2,500      1,650       AWR-28-8B-HR    126       AWR-38-8B-HR    150
                                  5
               B     6" - 35"   109 /8"   2,500      1,600       AWR-28-9B-HR    139       AWR-38-9B-HR    157
                                  9
               B     6" - 40"  121 /16"   2,200      1,500       AWR-28-10B-HR   149       AWR-38-10B-HR   173
               B     6" - 48"  145 /16"   1,900      1,400       AWR-28-12B-HR   204       AWR-38-12B-HR   226
                                  7
               B     6" - 56"   169 /4"   1,600      1,200       AWR-28-14B-HR   212       AWR-38-14B-HR   252
                                  1
                                  1
               B     6" - 64"   193 /8"   1,000      1,000       AWR-28-16B-HR   216       AWR-38-16B-HR   286
                                            ALUMINUM WALK RAMPS WITH TRANSPORT WHEELS
                      7
                                  1
               A    18 /8" - 38"  120 /4"  2,200     1,500       AWR-28-10A-WH   156       AWR-38-10A-WH   184
                      1
               A    17 /4" - 46"  143 /4"  1,900     1,400       AWR-28-12A-WH   183       AWR-38-12A-WH   215
                                  1
                                  1
                      5
               A    16 /16" - 56"  167 /4"  1,600    1,200       AWR-28-14A-WH   191       AWR-38-14A-WH   233
               A    15 /16" - 62"  190 /4"  1,000    1,000       AWR-28-16A-WH   198       AWR-38-16A-WH   263
                                  3
                      11
               B    18 /8" - 38"  120 /4"  2,200     1,500       AWR-28-10B-WH   160       AWR-38-10B-WH   190
                      7
                                  1
                                  1
                      1
               B    17 /4" - 46"  143 /4"  1,900     1,400       AWR-28-12B-WH   183       AWR-38-12B-WH   215
                                  1
                      5
               B    16 /16" - 56"  167 /4"  1,600    1,200       AWR-28-14B-WH   191       AWR-38-14B-WH   233
                                  3
                      11
               B    15 /16" - 62"  190 /4"  1,000    1,000       AWR-28-16B-WH   209       AWR-38-16B-WH   255
