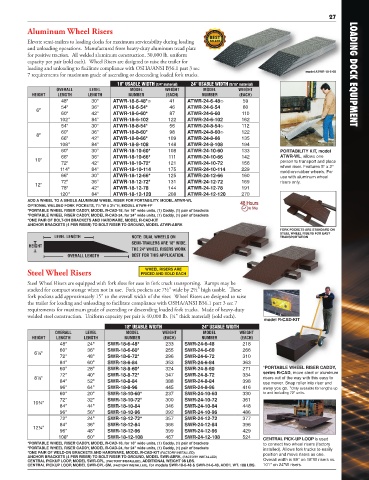

          Aluminum Wheel Risers

          Elevate semi-trailers to loading docks for maximum serviceability during loading
          and unloading operations.  Manufactured from heavy-duty aluminum tread plate
          for positive traction.  All welded aluminum construction. 30,000 lb. uniform
          capacity per pair (sold each).  Wheel Risers are designed to raise the trailer for
          loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec
          7 requirements for maximum grade of ascending or descending loaded fork trucks.            model ATWR-18-6-60  LOADING DOCK EQUIPMENT
                                       18" USABLE WIDTH (1/4" material)  24" USABLE WIDTH (5/16" material)
                    OVERALL   LEVEL         MODEL      WEIGHT      MODEL       WEIGHT
           HEIGHT   LENGTH    LENGTH       NUMBER      (EACH)      NUMBER      (EACH)
                     48"       30"    ATWR-18-6-48*    41    ATWR-24-6-48    59
                     54"       36"    ATWR-18-6-54*     46    ATWR-24-6-54      60
             6"
                     60"       42"    ATWR-18-6-60*     87    ATWR-24-6-60      110
                     102"      84"    ATWR-18-6-102     122   ATWR-24-6-102     162
                     54"       30"    ATWR-18-8-54*     56    ATWR-24-8-54     112
                     60"       36"    ATWR-18-8-60*     98    ATWR-24-8-60     122
             8"
                     66"       42"    ATWR-18-8-66*     109   ATWR-24-8-66      135
                     108"      84"    ATWR-18-8-108     148   ATWR-24-8-108     194
                     60"       30"    ATWR-18-10-60*    108   ATWR-24-10-60     133          PORTABILITY KIT, model
                     66"       36"    ATWR-18-10-66*    111   ATWR-24-10-66     142          ATWR-WL, allows one
            10"                                                                              person to transport and place
                     72"       42"    ATWR-18-10-72*    121   ATWR-24-10-72     156
                     114"      84"    ATWR-18-10-114    175   ATWR-24-10-114    229          wheel riser. Features 5" x 2"
                                                                                             mold-on-rubber wheels. For
                     66"       30"    ATWR-18-12-66*    125   ATWR-24-12-66     160          use with aluminum wheel
                     72"       36"    ATWR-18-12-72*    131   ATWR-24-12-72     169          risers only.
            12"
                     78"       42"    ATWR-18-12-78     144   ATWR-24-12-78     191
                     120"      84"    ATWR-18-12-120    208   ATWR-24-12-120    270
          ADD A WHEEL TO A SINGLE ALUMINUM WHEEL RISER FOR PORTABILITY. MODEL ATWR-WL
          OPTIONAL WELDED FORK POCKETS, 7½"W x 2½"H, MODEL ATWR-FP
          *PORTABLE WHEEL RISER CADDY, MODEL R-CAD-18, for 18" wide units, (1) Caddy, (1) pair of brackets
          *PORTABLE WHEEL RISER CADDY, MODEL R-CAD-24, for 24" wide units, (1) Caddy, (1) pair of brackets
          *ONE PAIR OF BOLT-ON BRACKETS AND HARDWARE, MODEL R-CAD-KIT
          ANCHOR BRACKETS (4 PER RISER) TO BOLT RISER TO GROUND, MODEL ATWR-ABRK
                                                                                             FORK POCKETS ARE STANDARD ON
                                                                                             STEEL WHEEL RISERS FOR EASY
                   LEVEL LENGTH             NOTE: DUAL WHEELS ON                             TRANSPORTATION
                                            SEMI-TRAILERS ARE 18" WIDE.
          HEIGHT
                                            THE 24" WHEEL RISERS WORK
                       OVERALL LENGTH       BEST FOR THIS APPLICATION.
                                                WHEEL RISERS ARE
          Steel Wheel Risers                   PRICED AND SOLD EACH
          Steel Wheel Risers are equipped with fork slots for ease in fork truck transporting.  Ramps may be
          stacked for compact storage when not in use.  Fork pockets are 7½" wide by 2½" high usable.  These
          fork pockets add approximately 15" to the overall width of the riser.  Wheel Risers are designed to raise
          the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7
          requirements for maximum grade of ascending or descending loaded fork trucks.  Made of heavy-duty
          welded steel construction.  Uniform capacity per pair is 40,000 lb. (¼" thick material) (sold each).
                                                                                       model R-CAD-KIT
                                          18" USABLE WIDTH         24" USABLE WIDTH
                   OVERALL   LEVEL        MODEL       WEIGHT       MODEL       WEIGHT
           HEIGHT  LENGTH   LENGTH        NUMBER      (EACH)       NUMBER       (EACH)
                     48"      24"   SWR-18-6-48*       233   SWR-24-6-48        218
                     60"      36"   SWR-18-6-60*       255   SWR-24-6-60        266
            6¼"
                     72"      48"   SWR-18-6-72*       296   SWR-24-6-72        310
                     84"      60"   SWR-18-6-84        353   SWR-24-6-84        363
                     60"      28"   SWR-18-8-60*       324   SWR-24-8-60        271    *PORTABLE WHEEL RISER CADDY,
                     72"      40"   SWR-18-8-72*       347   SWR-24-8-72        334    series R-CAD, move steel or aluminum
            8¼"                                                                        risers out of the way with this easy to
                     84"      52"   SWR-18-8-84        388   SWR-24-8-84        398    use mover. Snap roller into riser and
                     96"      64"   SWR-18-8-96        445   SWR-24-8-96        416    away you go. *Only available for lengths up
                     60"      20"   SWR-18-10-60*      237   SWR-24-10-60       330    to and including 72" units.
                     72"      32"   SWR-18-10-72*      300   SWR-24-10-72       361
            10¼"
                     84"      44"   SWR-18-10-84       346   SWR-24-10-84       448
                     96"      56"   SWR-18-10-96       392   SWR-24-10-96       486
                     72"      24"   SWR-18-12-72*      357   SWR-24-12-72       377
                     84"      36"   SWR-18-12-84       366   SWR-24-12-84       396
            12¼"
                     96"      48"   SWR-18-12-96       399   SWR-24-12-96       429
                    108"      60"   SWR-18-12-108      467   SWR-24-12-108      524    CENTRAL PICK-UP LOOP is used
          *PORTABLE WHEEL RISER CADDY, MODEL R-CAD-18, for 18" wide units, (1) Caddy, (1) pair of brackets  to connect two wheel risers (factory
          *PORTABLE WHEEL RISER CADDY, MODEL R-CAD-24, for 24" wide units, (1) Caddy, (1) pair of brackets  installed). Allows fork trucks to easily
          *ONE PAIR OF WELD-ON BRACKETS AND HARDWARE, MODEL R-CAD-KIT (FACTORY INSTALLED)
          ANCHOR BRACKETS (4 PER RISER) TO BOLT RISER TO GROUND, MODEL SWR-ABRK, (FACTORY INSTALLED)  position and move risers as one.
          CENTRAL PICKUP LOOP, MODEL SWR-CPL, (FACTORY INSTALLED), ADDITIONAL WEIGHT 98 LBS.   Overall width is 89" on 18"W risers vs.
          CENTRAL PICKUP LOOP, MODEL SWR-CPL-SM, (FACTORY INSTALLED), for models SWR-18-6-48 & SWR-24-6-48, ADD'L WT. 108 LBS.   101" on 24"W risers.
