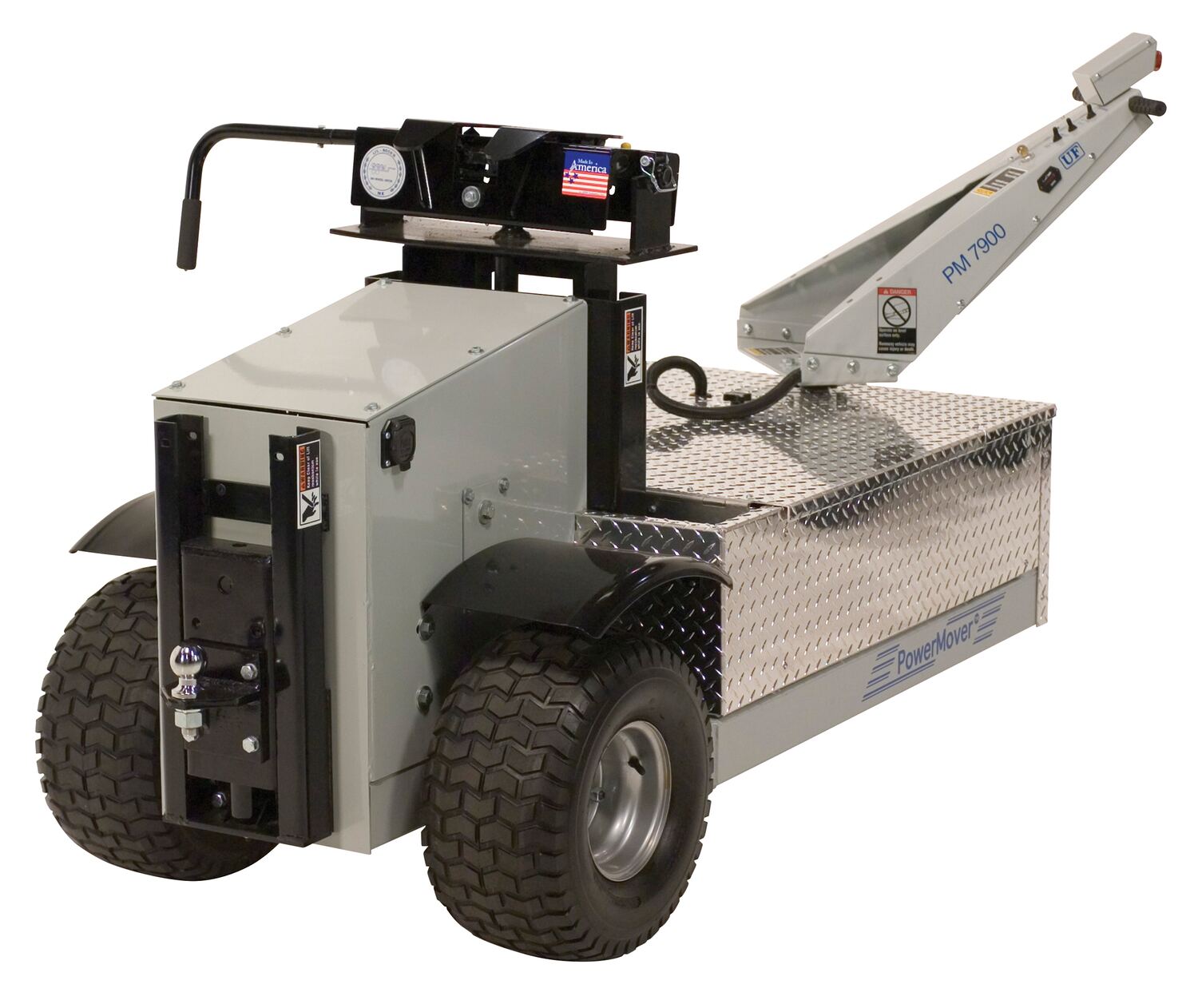

model: PMM-3000-15


SERIES: PMM
Power Move Masters

24V DC POWERED STANDARD

Power Move Masters are compact in size and easy to use. They are highly maneuverable, making them ideal for turning in tight spaces (not recommended for use on an incline or slope). DC powered for smooth, quiet operation with variable speed control for generous low speed torque and precise positioning. Built in battery charger for quick recovery. In addition, their ergonomic design provides stability and simple control. A variety of hitch attachments along with other options are available, contact factory. The tire size is 18" x 9-1/2". The hydraulic lift is standard on models PMM-3000 and PMM-3000-15, 9" to 26". Optional hydraulic lift option available on model PMM-1000. Three point mounting configurations allow for adjustable service range.



PMM-1000

model PMM-1000


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Power Move Master
Model PDF Overall Size
(WxLxH)
Tongue Weight
Load From
Lift (lbs)
Push/Pull
Maximum
Weight (lbs)
Wt.
(lbs)

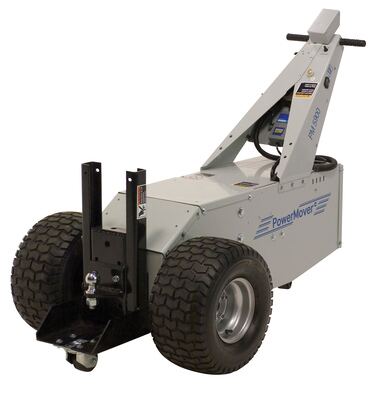

PMM-1000 icon_approvaldrawings.jpgWarranty PDF 37-1/2"x53"x37" 1,000 40,000 970

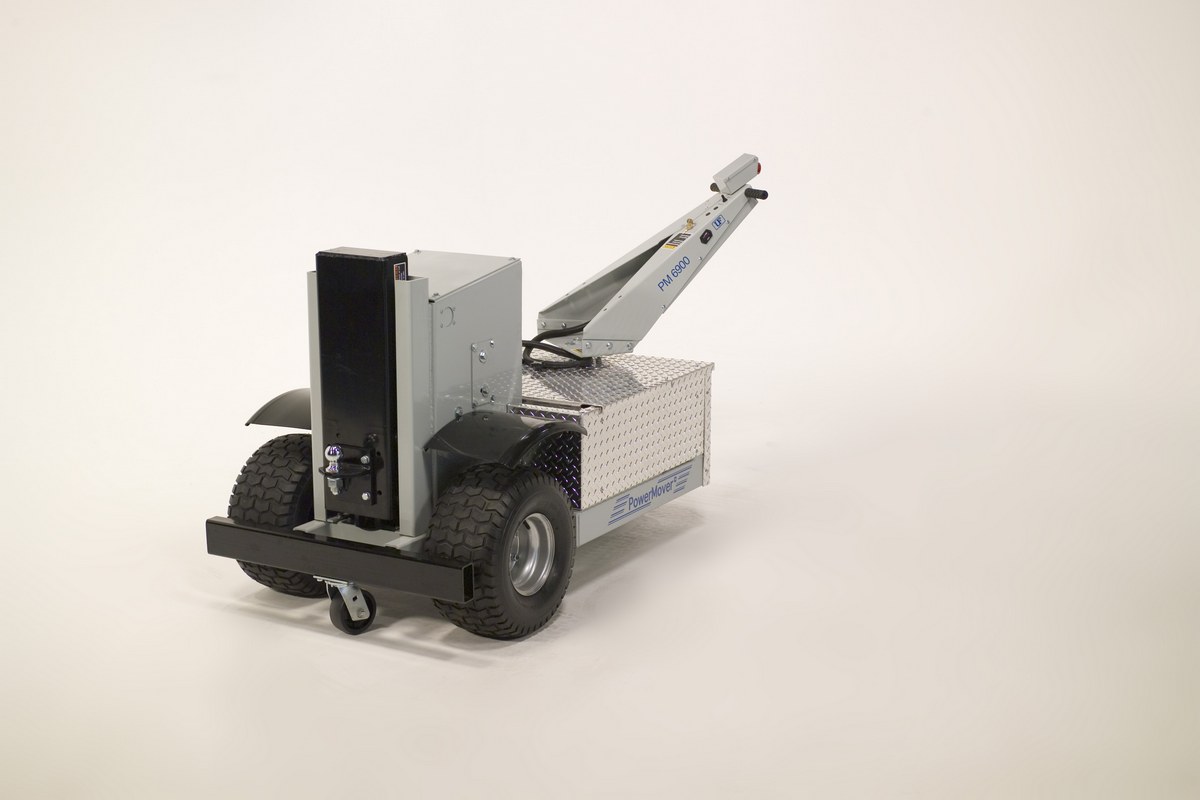

PMM-3000 icon_approvaldrawings.jpgWarranty PDF 36"x78"x43" 1,000 70,000 2120
PMM-3000-15 icon_approvaldrawings.jpgWarranty PDF 36"x96"x43" 3,000/1,000* 70,000 2260

* 3,000 lbs. Front/ 1,000 lbs. Top Lift

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Power Move Master Options
Model Description Wt. (lbs)

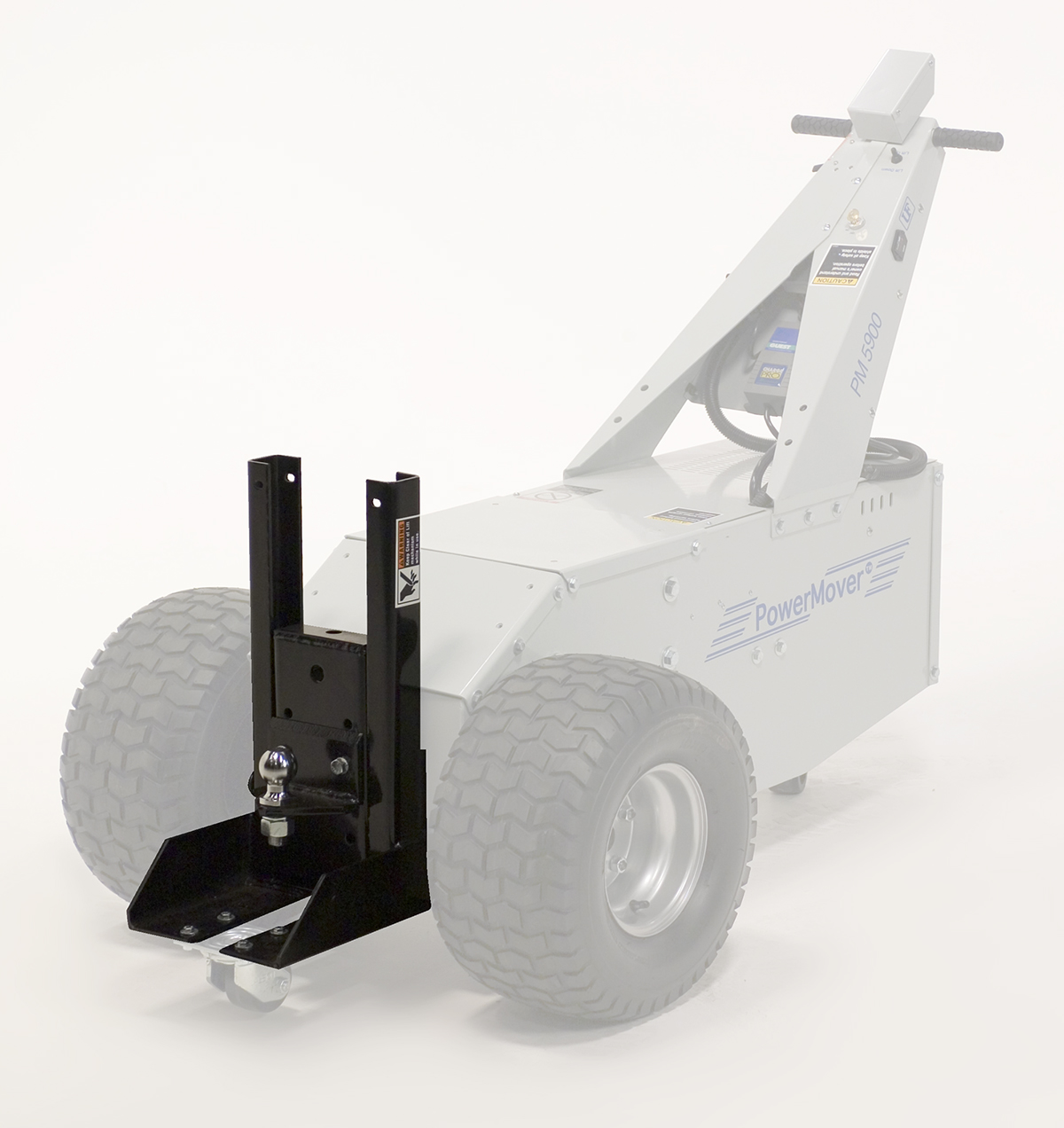

PMM-HYD-LIFT Hydraulic Lift Option, 9" to 26" Adjustable 84

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

PMM-1000

PMM-1000

PMM-3000

PMM-3000

PMM-3000-15

PMM-3000-15

PMM-HYD-LIFT

PMM-HYD-LIFT






Power Move Masters PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

PMM-1000
PMM-3000
PMM-3000-15

Testing Certificates

No Testing Certificates For This Product

Other PDF's

No "Other PDFs" For This Product...
