Click Image to Enlarge

model: PBSS-YLTRY

SERIES: PBSS

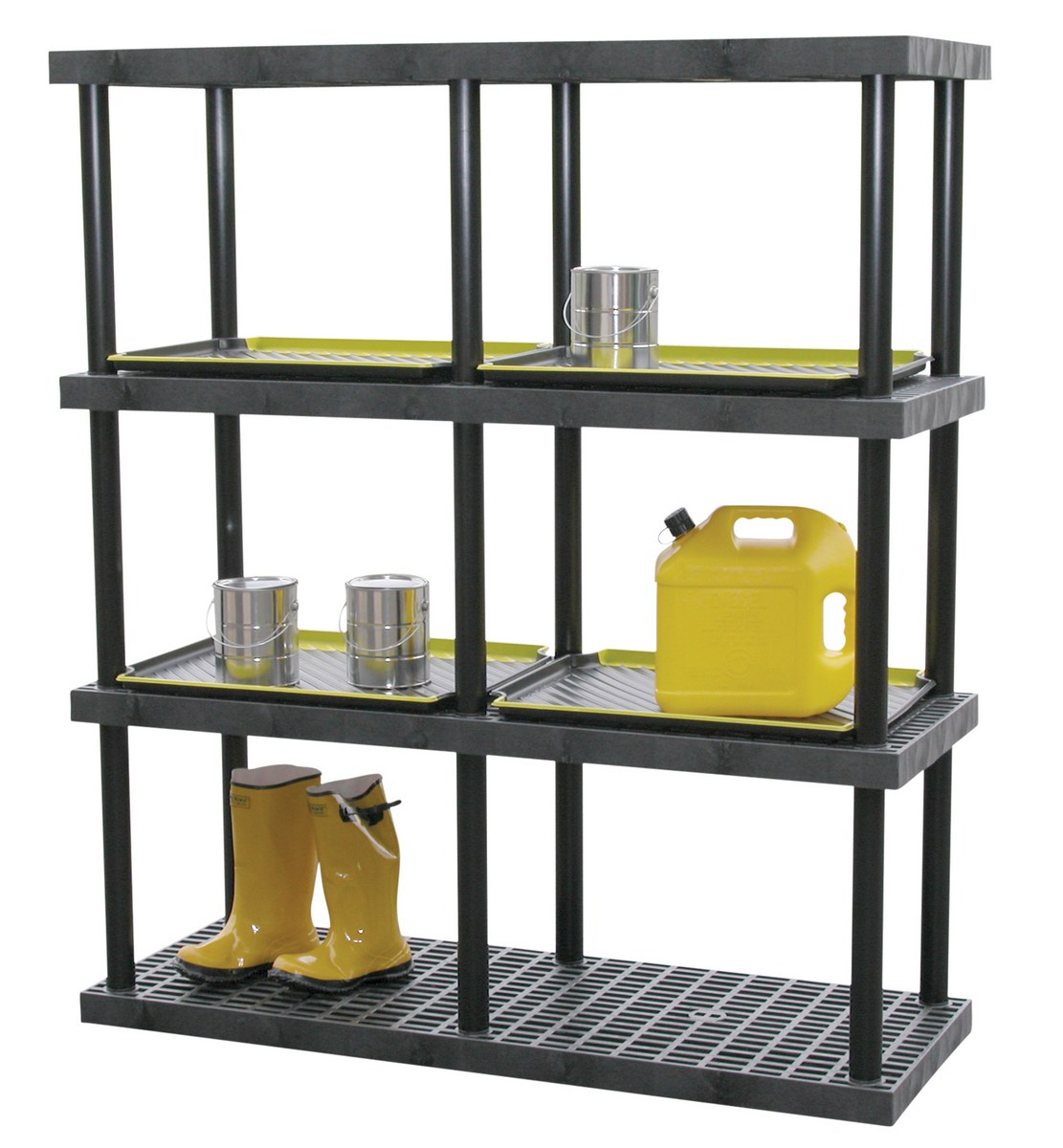

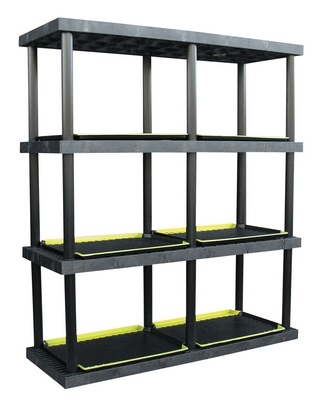

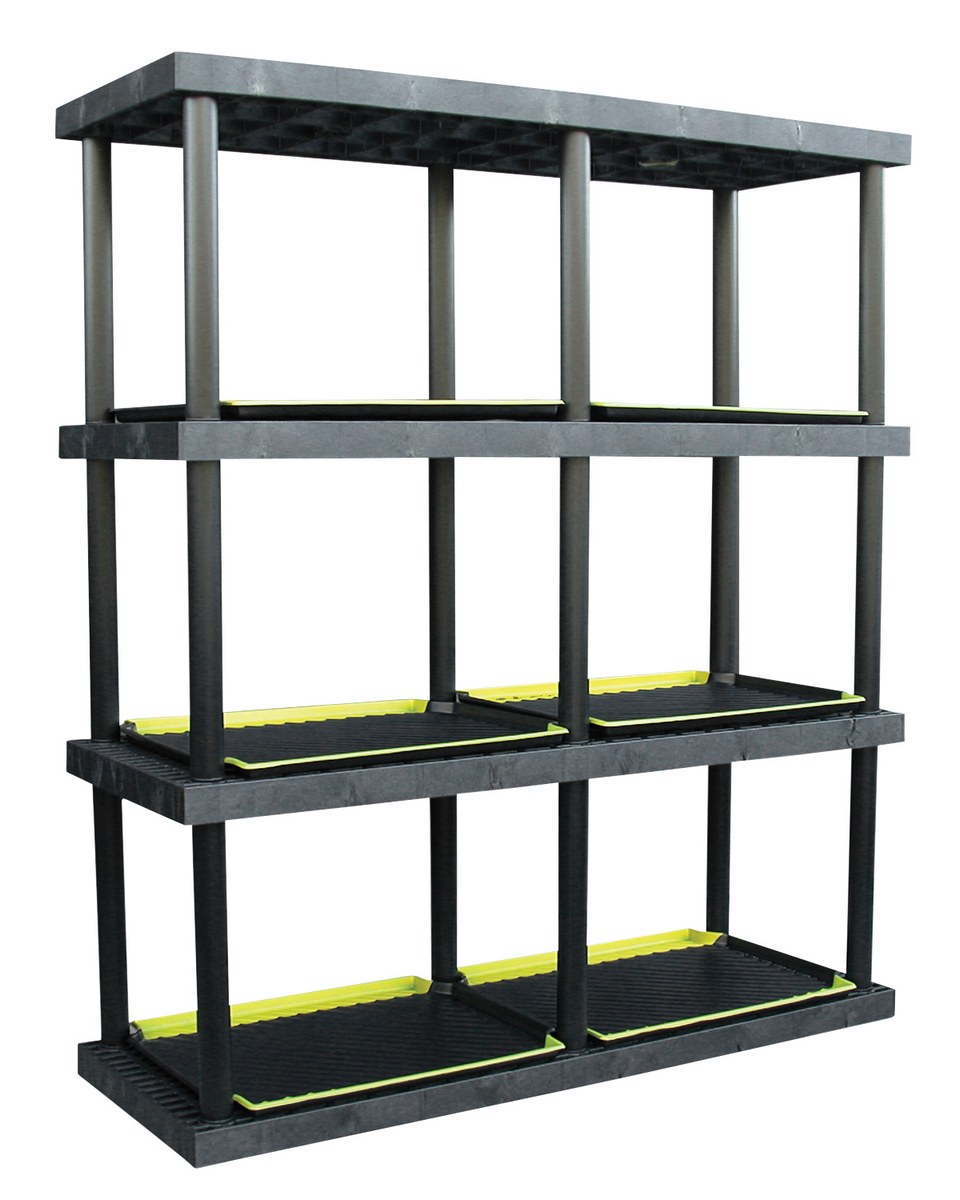

Plastic Bulk Shelving & Storage

Largest all-purpose industrial-grade plastic shelving system in the industry. Our unique leg stacker system lets you choose whether to build up, out our both. Our rigid high-density polyethylene panels are a stout 2-5/8" thick with a grid top that allows liquids to flow through, promotes air circulation and prevents dust build up. Optional drip trays available for containment applications, contact factory. The entire system is chemically resistant, making it an ideal choice for HAZMAT storage or any other applications, corrosive or not.

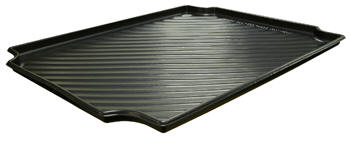

Optional Drip Tray (model PBSS-BKTRY shown)


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Plastic Bulk Shelving & Storage

Model PDFs # Of
Shelves
Shelf Size
(WxL)
Overall
Height
Total
Capacity
(lbs)
Wt.
(lbs)
PBSS-3616-3 Warranty PDF 3 36"x16" 51" 500 35
PBSS-3624-3 Warranty PDF 3 36"x24" 51" 750 41
PBSS-6624-3 Warranty PDF 3 66"x24" 51" 1,390 64
PBSS-9624-3 Warranty PDF 3 96"x24" 51" 2,025 102
PBSS-3616-4 Warranty PDF 4 36"x16" 75" 675 48
PBSS-3624-4 Warranty PDF 4 36"x24" 75" 1,000 56
PBSS-6624-4 Warranty PDF 4 66"x24" 75" 1,850 88
PBSS-9624-4 Warranty PDF 4 96"x24" 75" 2,700 139

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

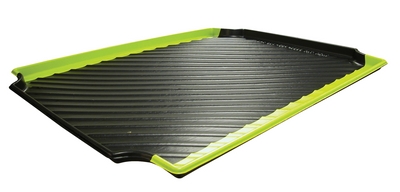

Optional Plastic Shelf Containment Trays

Model Color Description Wt.
(lbs)
PBSS-BKTRY Black General Storage 5
PBSS-RDTRY Red Flammables 5
PBSS-BLTRY Blue Health Hazards/Toxics 5
PBSS-YLTRY Yellow Reactives/Oxidizers 5
PBSS-WTTRY White Contact Hazards 5

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

PBSS-3616-3

PBSS-3616-3

PBSS-3616-4

PBSS-3616-4

PBSS-3624-3

PBSS-3624-3

PBSS-3624-4

PBSS-3624-4

PBSS-6624-3

PBSS-6624-3

PBSS-6624-4

PBSS-6624-4

PBSS-9624-3

PBSS-9624-3

PBSS-9624-4

PBSS-9624-4

PBSS-BKTRY

PBSS-BKTRY

PBSS-BLTRY

PBSS-BLTRY

PBSS-RDTRY

PBSS-RDTRY

PBSS-WTTRY

PBSS-WTTRY

PBSS-YLTRY

PBSS-YLTRY






Plastic Bulk Shelving & Storage PDF's will open in a new window when clicked.
