SERIES: TG


Tree Grates

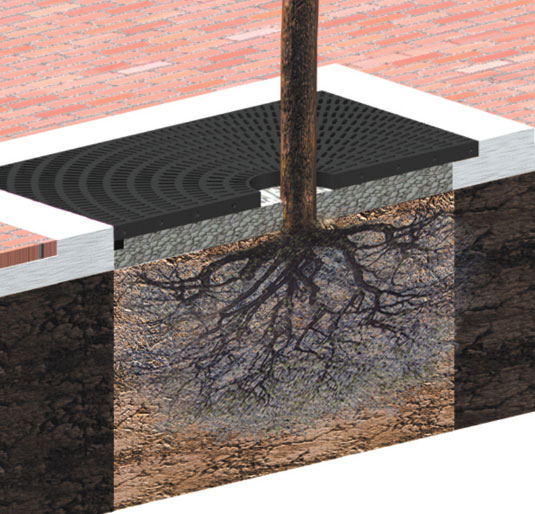

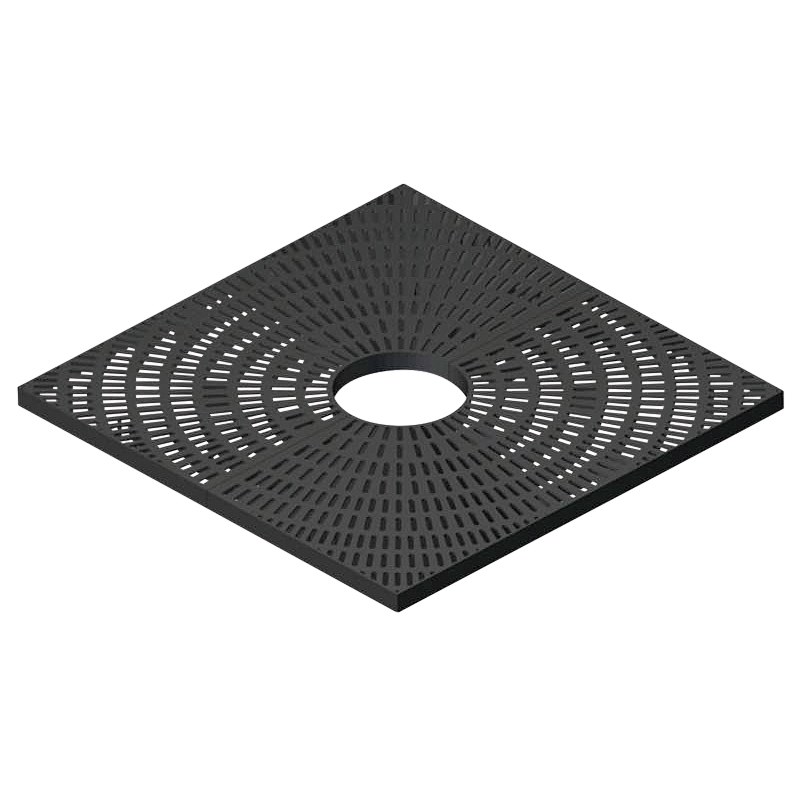

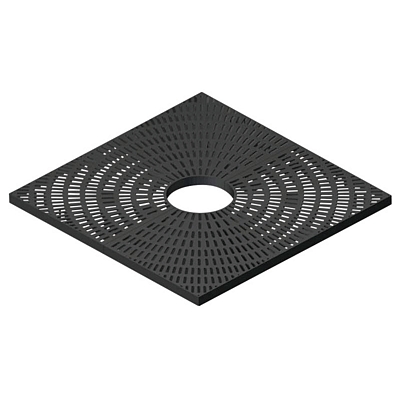

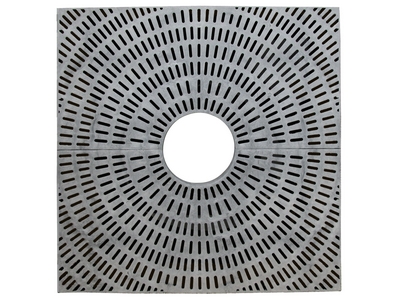

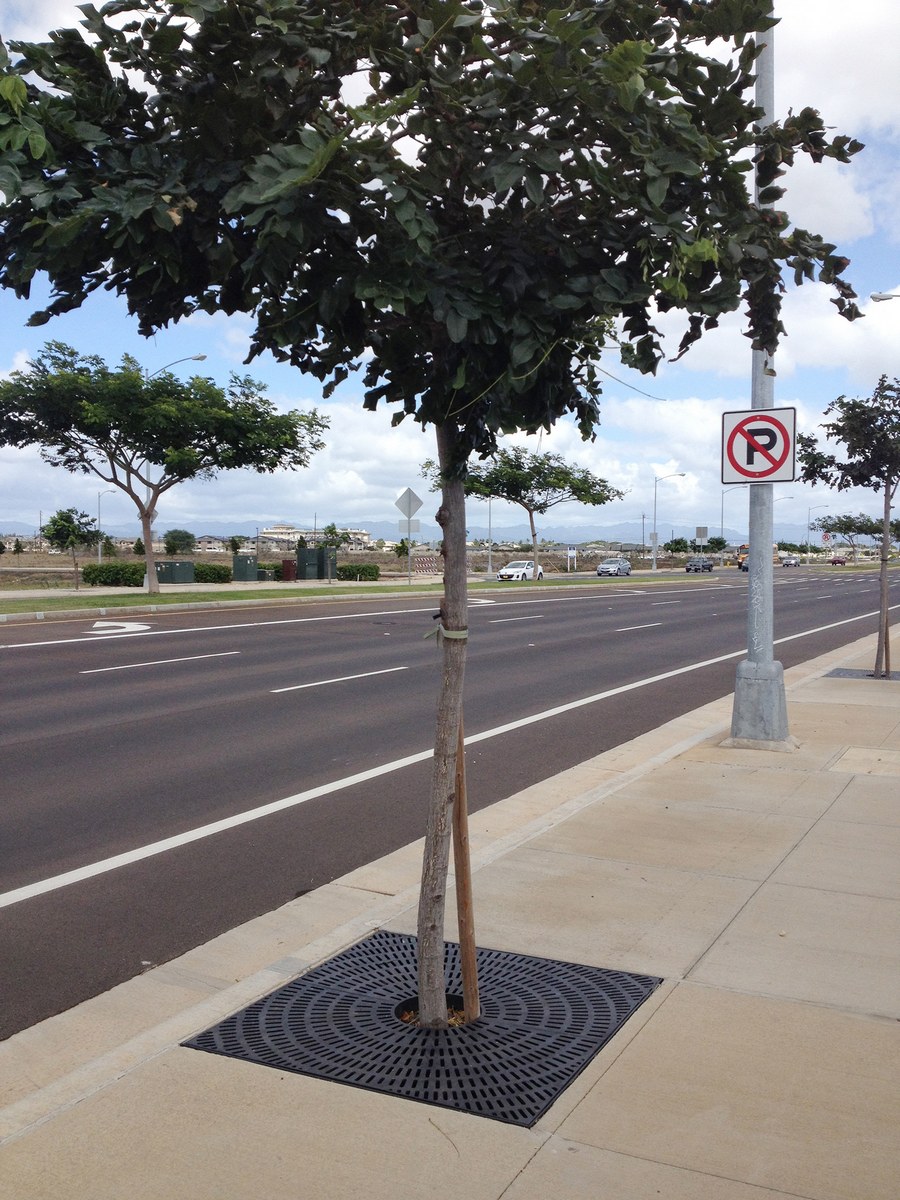

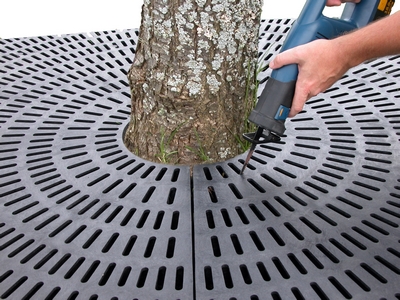

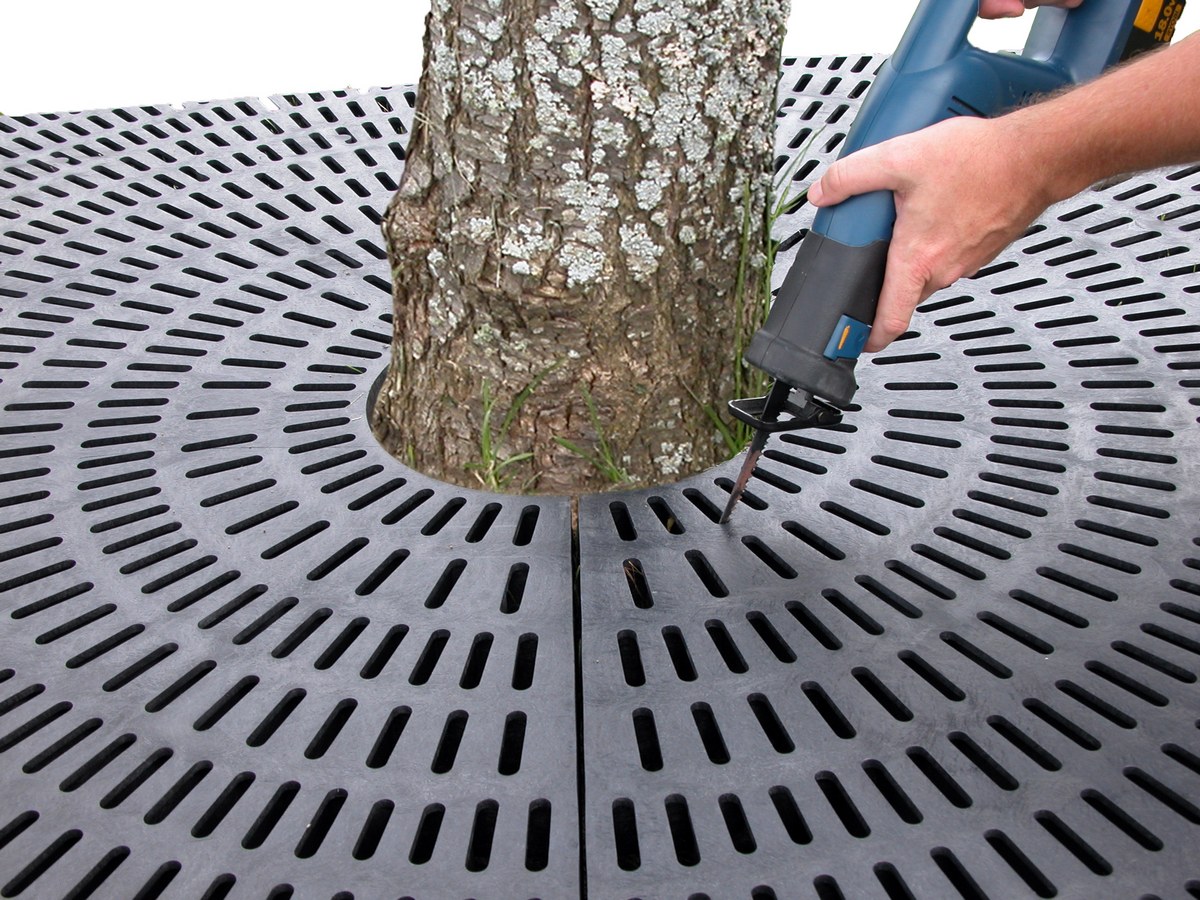

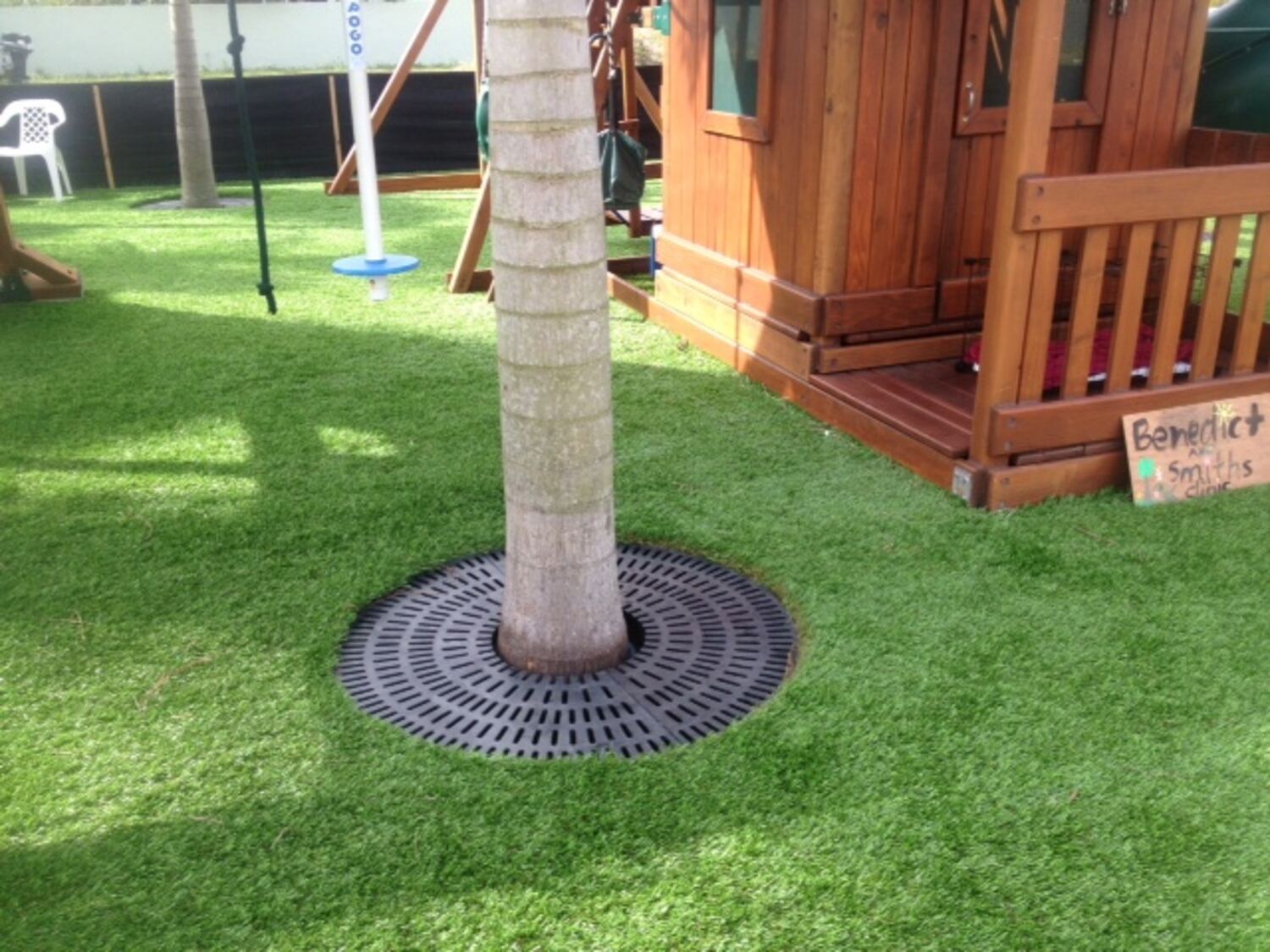

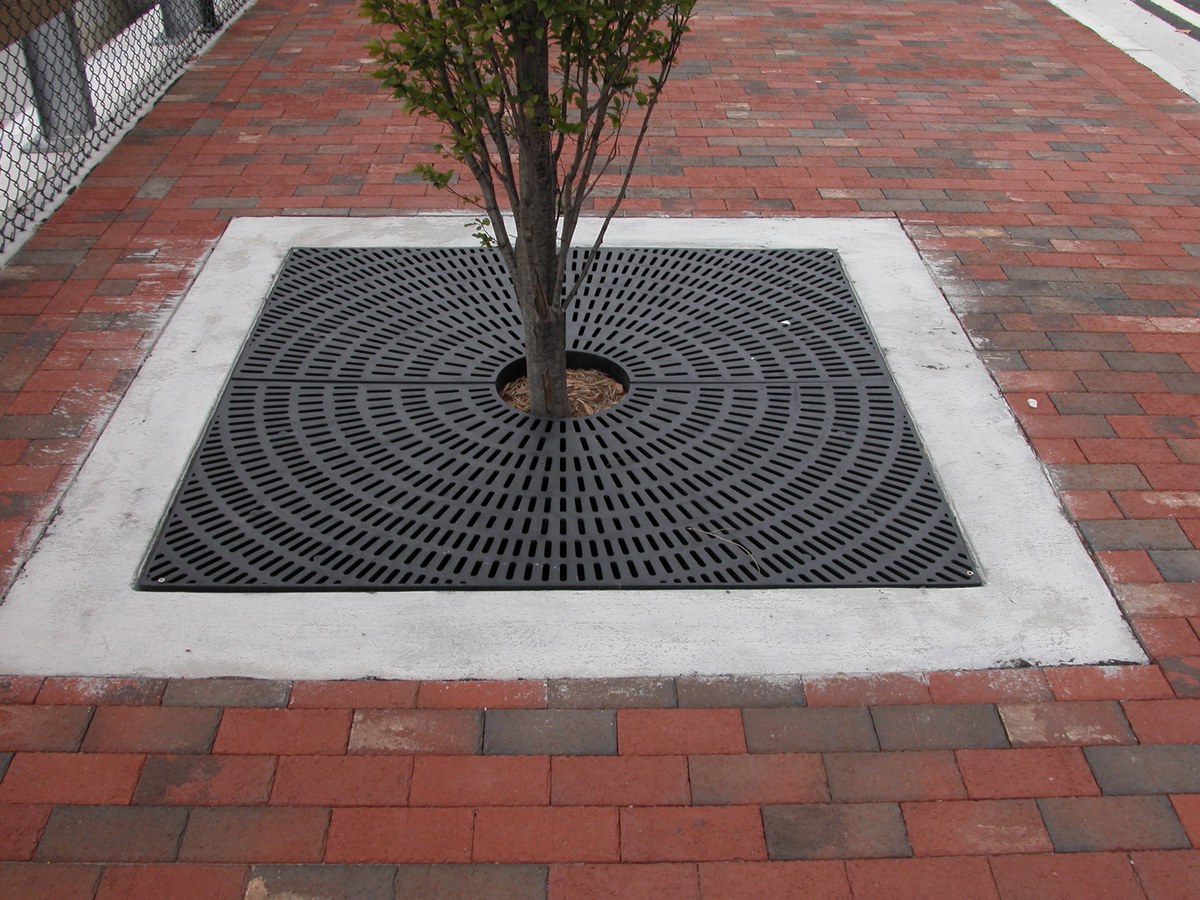

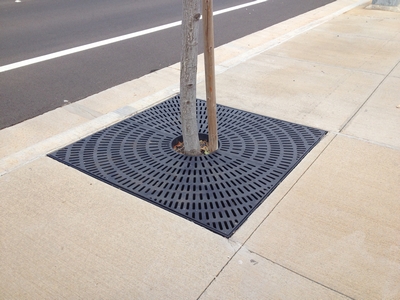

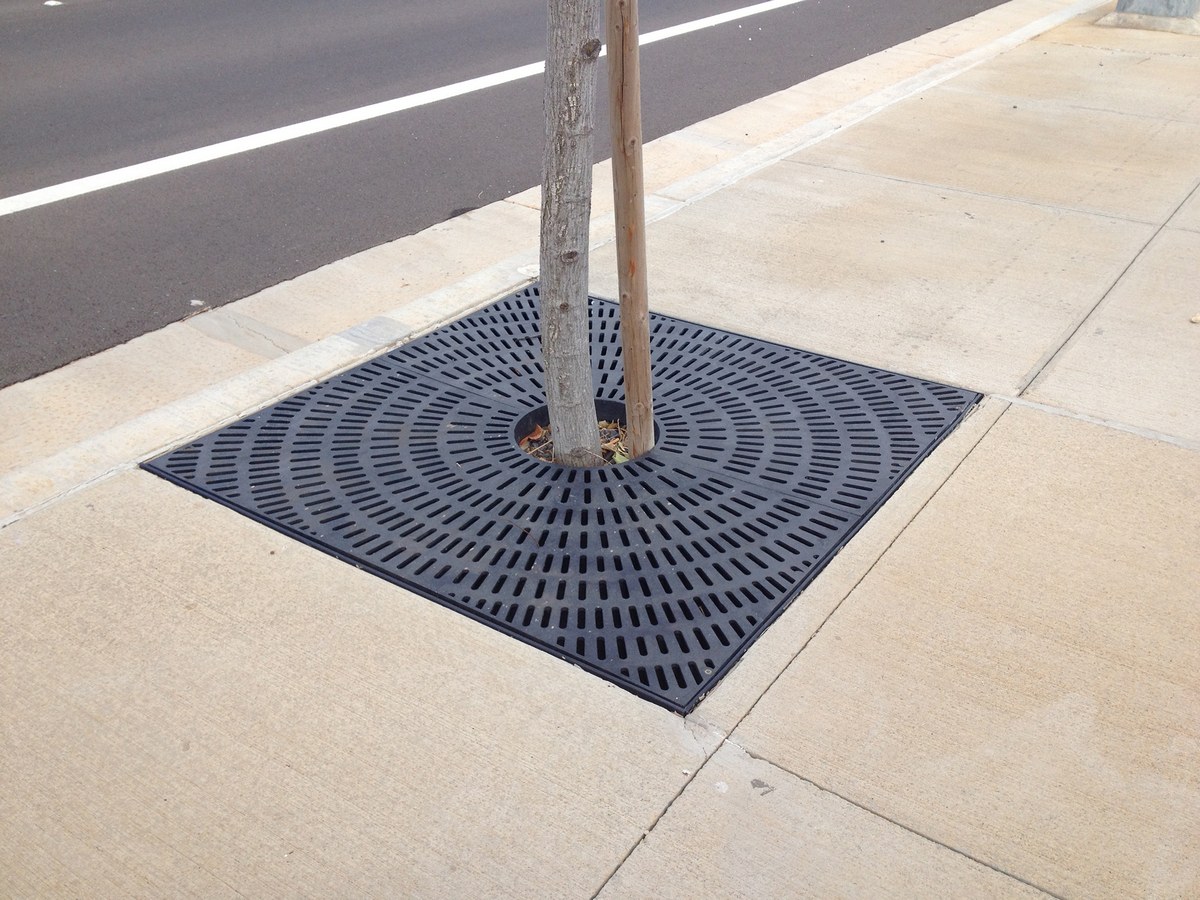

The tree grate is the perfect addition to any facilities landscaping resources. The grate provides safety to the vegetation while maintaining the quality of the surrounding environment. The units are available in both square and round shapes to better fit the users landscaping needs. With a lightweight design, the units are able to be easily installed without the use of additional personnel. As the tree grows, the inside grate diameter can be expanded for a better fit. For best use, place each half of the grate around the tree on a flat surface and lock in place with the included hardware. ADA compliant.

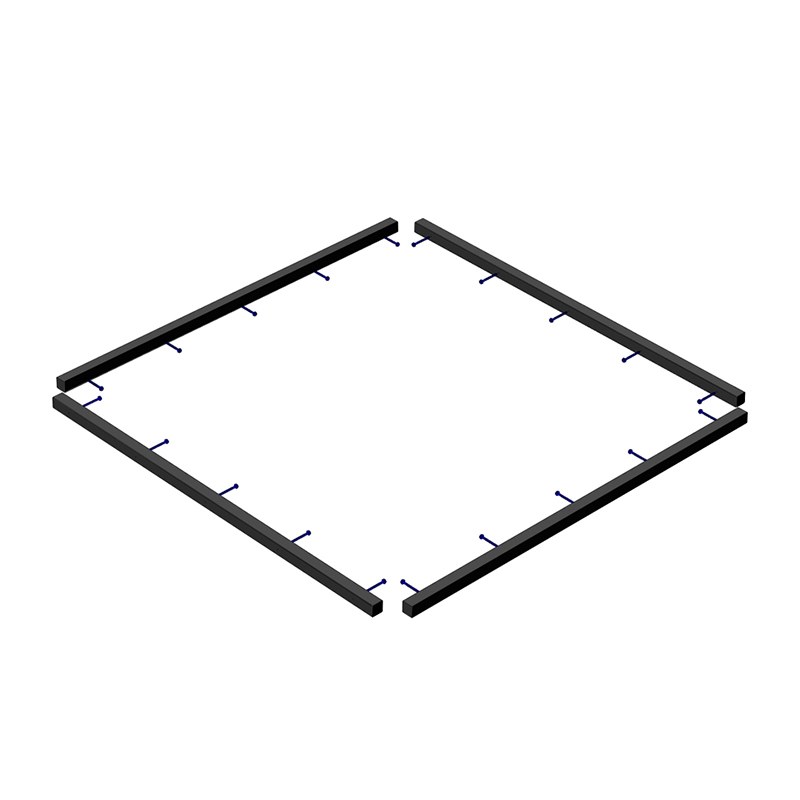

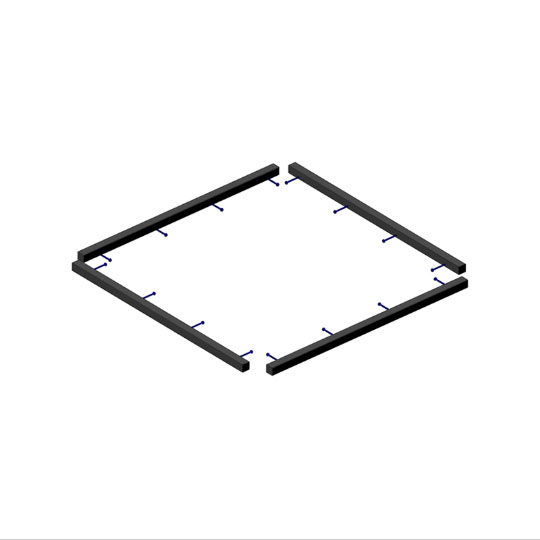

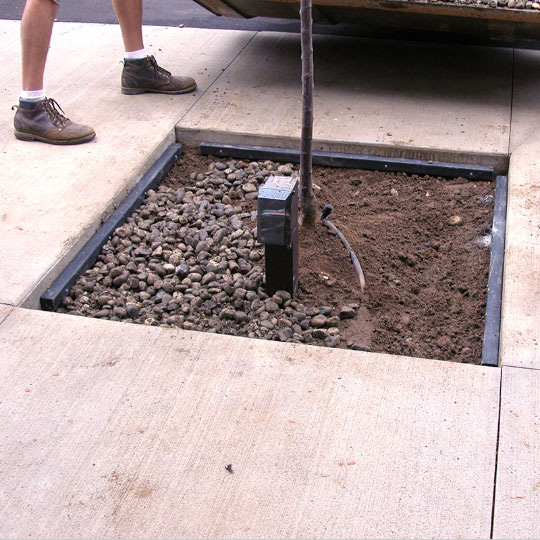

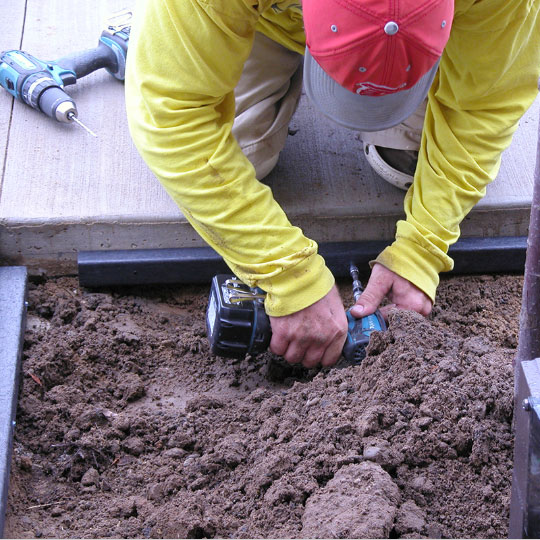

The tree grate frame delivers great support to any existing or new grates. For best use, place each portion of the frame under the surface edge and fasten into place. Once in place, a new or existing grate can be fitted inside the frame for a smooth, uninterrupted surface. Frame comes complete with (4) 1-1/2" square pre-drilled plastic frames (42" length for use with 48" square grate, or 54" length for use with 60" square grate).


TG-3R-BK

model TG-3R-BK

TG-5S-BK

model TG-5S-BK

TG-5S-F-BK

model TG-5S-F-BK




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Tree Grates
Model Image PDFs Description Overall Size
(WxLxH)
Color Wt.
(lbs)
TREE GATES

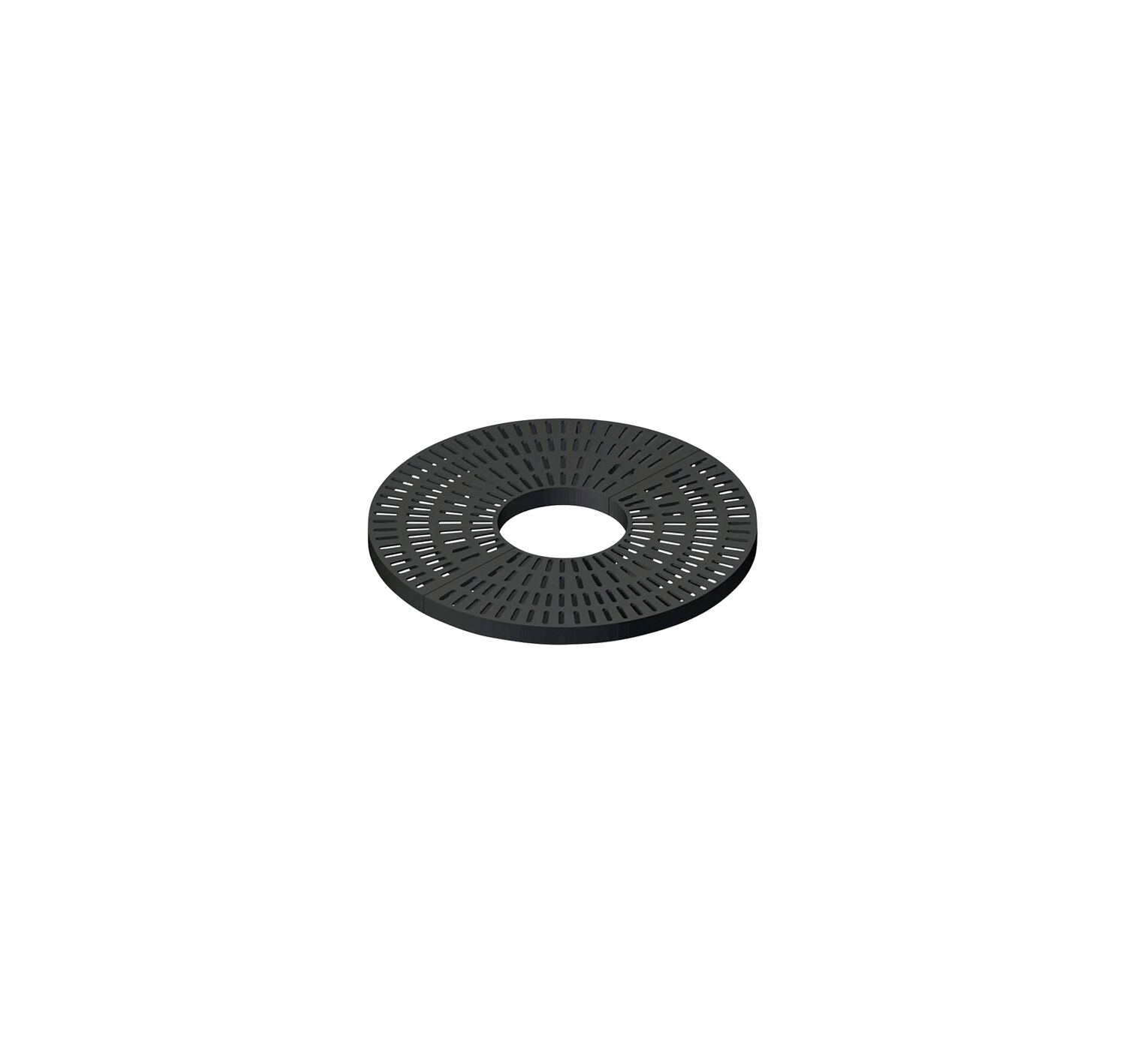

TG-3R-BK Warranty PDF 3 ft. Round 36"x36"x2" Black 23
TG-4S-BK Warranty PDF 4 ft. Square 48"x48"x2" Black 43

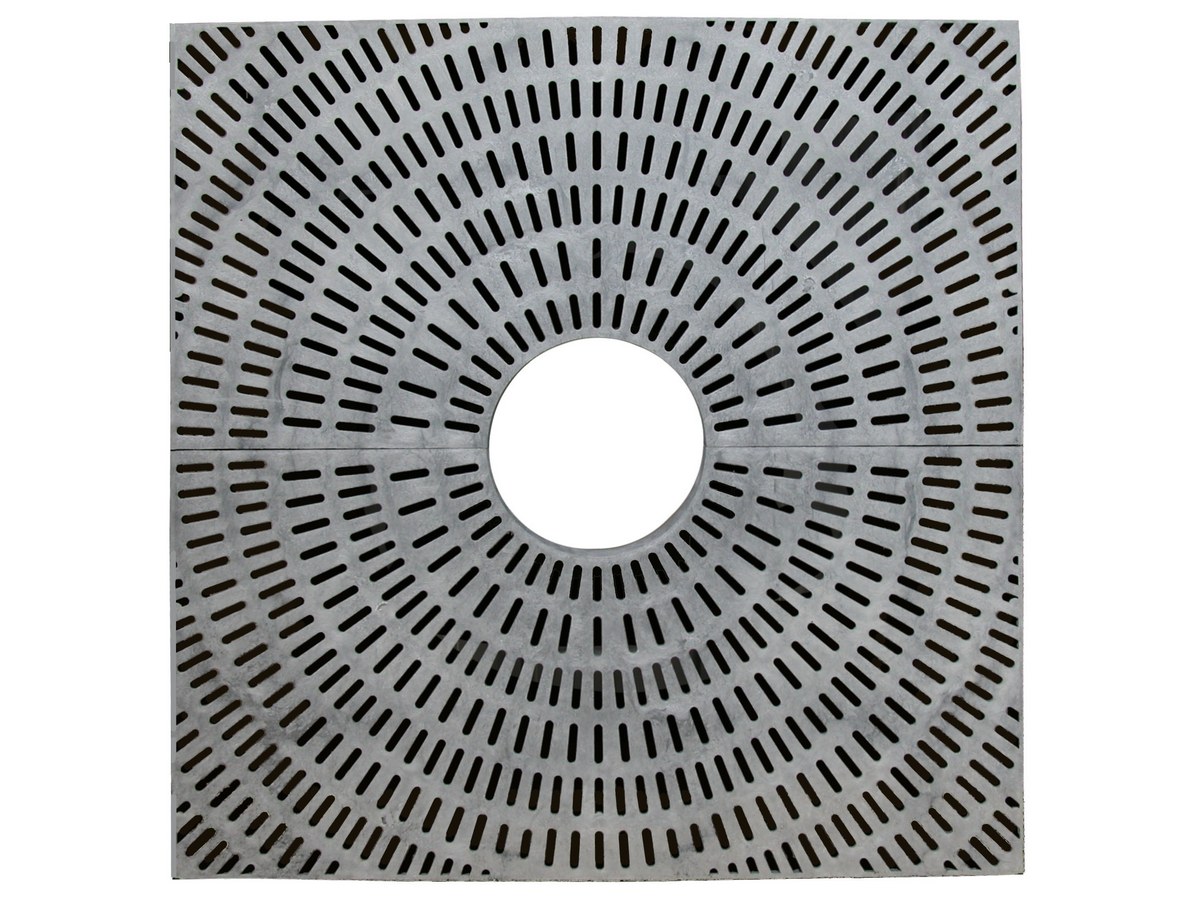

TG-5S-BK Warranty PDF 5 ft. Square 60"x60"x2" Black 65
FRAMES
TG-4S-F-BK Warranty PDF 4 ft. Square Frame 1-1/2"x42"x1-1/2" Black 20
TG-5S-F-BK Warranty PDF 5 ft. Square Frame 1-1/2"x54"x1-1/2" Black 20

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

TG-3R-BK

TG-3R-BK

TG-4S-BK

TG-4S-BK

TG-4S-F-BK

TG-4S-F-BK

TG-5S-BK

TG-5S-BK

TG-5S-F-BK

TG-5S-F-BK






PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

* No Approval Drawings For This Product

Testing Certificates

TG-3R-BK
TG-4S-BK
TG-4S-F-BK
TG-5S-BK
TG-5S-F-BK
