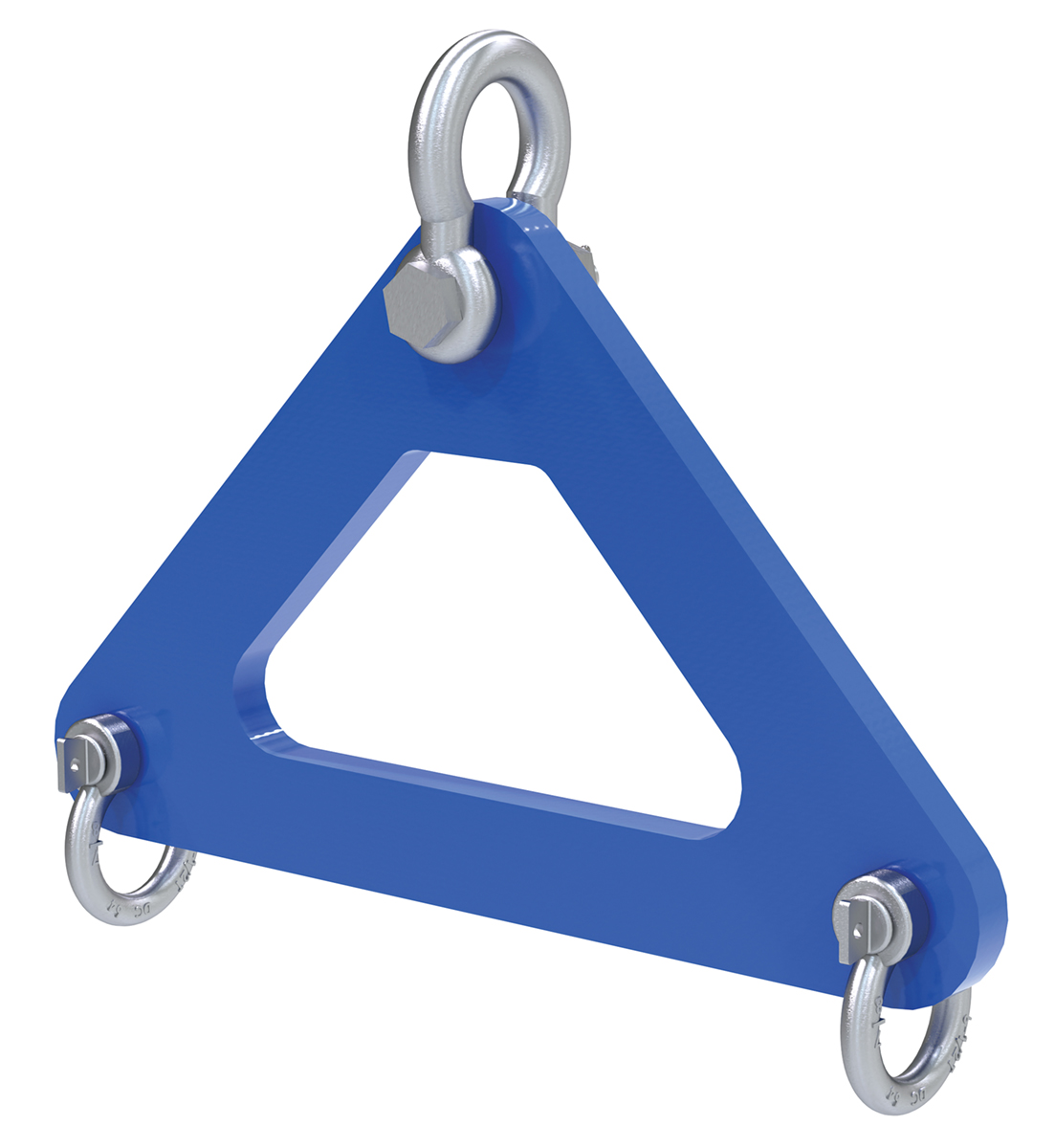

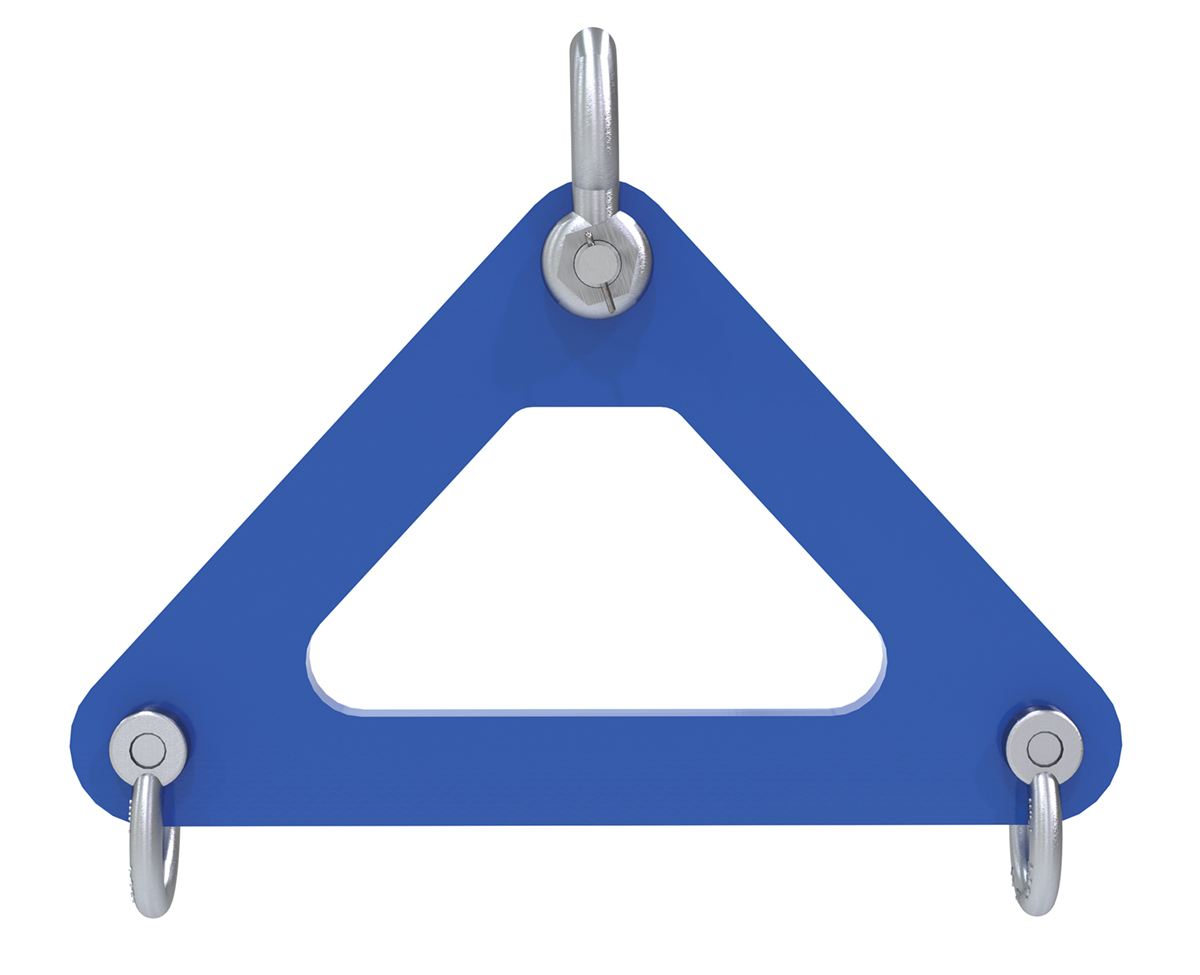

Short Span Steel Lifting Plate
SERIES: SSLP

Moving large heavy items is sometimes difficult. With the short span lifting plate, that process is made easier. A unique design enables products to be attached and moved, with the help of a lifting device, in a safe and efficient way. Multiple hook points give the user options when securing items to the plate. Smooth powder coat finish for added built in toughness.

  • Large capacity for heavy lifting
  • Strong construction
  • Compact design
  • Powder coated finish

Moving large heavy items is sometimes difficult. With the short span lifting plate, that process is made easier. A unique design enables products to be attached and moved, with the help of a lifting device, in a safe and efficient way. Multiple hook points give the user options when securing items to the plate. Smooth powder coat finish for added built in toughness.

  • Large capacity for heavy lifting
  • Strong construction
  • Compact design
  • Powder coated finish



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
SSLP-200-2 90 Days Limited WarrantySteel Short Span Lifting Plate 20,000 Lb. CapacityUniform Capacity (lb.): 20,000
Material Thickness: 1-1/4"
92

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Steel Short Span Lifting Plate 20,000 Lb. Capacity


Unit: Each

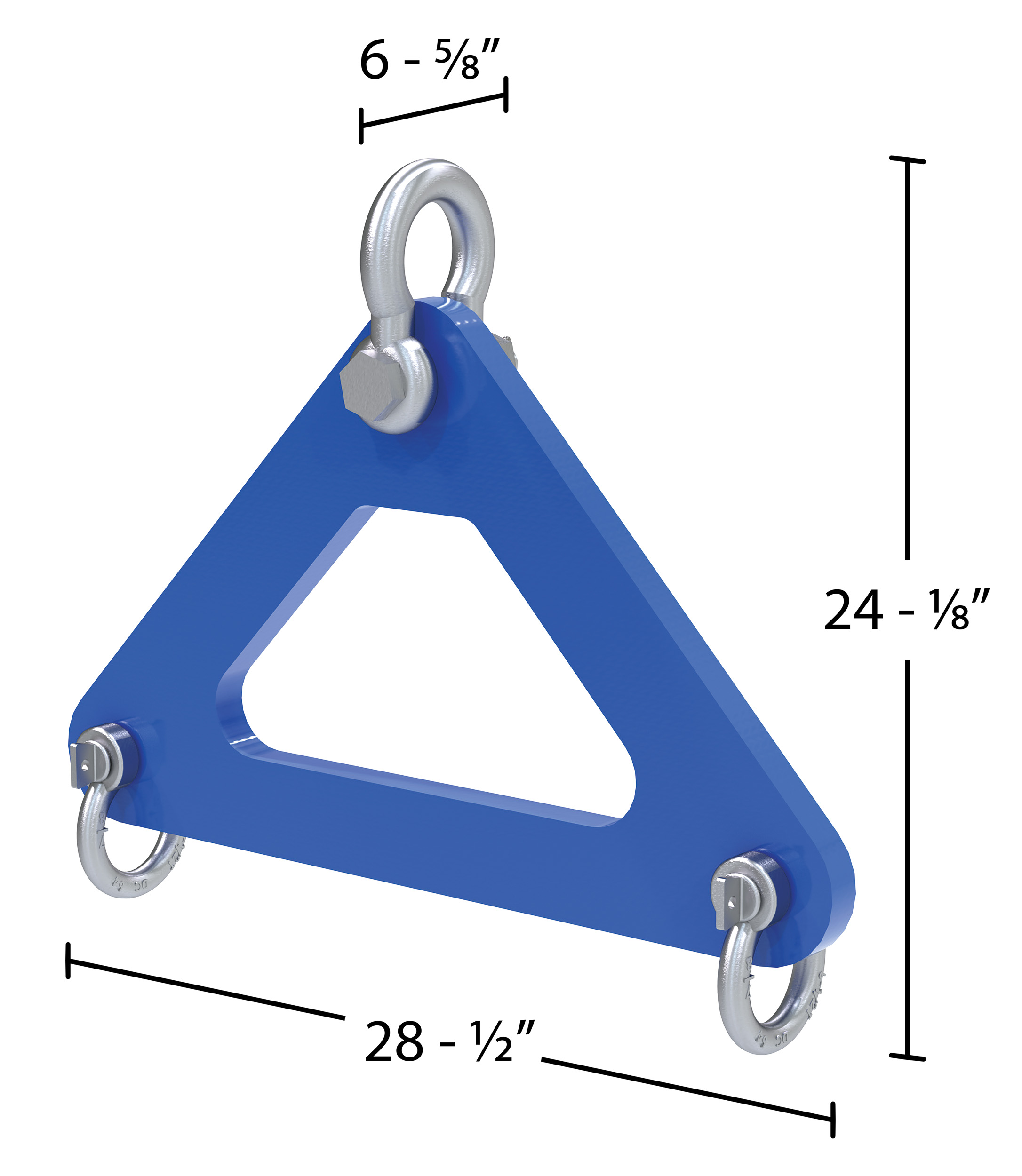

Size: 28-1/2"W x 6-5/8"L x 24-1/8"H
Weight: 92
90 Days Limited Warranty
Uniform Capacity (lb.): 20,000
Material Thickness: 1-1/4"
Uniform Capacity (lb.): 20,000
Material Thickness: 1-1/4"


Short Span Steel Lifting Plate PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We will continue adding new product images to each gallery as they become available. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Short Span Steel Lifting Plate




Moving large heavy items is sometimes difficult. With the short span lifting plate, that process is made easier. A unique design enables products to be attached and moved, with the help of a lifting device, in a safe and efficient way. Multiple hook points give the user options when securing items to the plate. Smooth powder coat finish for added built in toughness.

  • Large capacity for heavy lifting
  • Strong construction
  • Compact design
  • Powder coated finish

Lifting Plate

Model

Image PDF's

Capacity
(lbs)

Overall Size
(LxWxH)
Material
Thickness
Wt.
(lbs.)
SSLP-200-2 - 20,000 6-5/8"x28-1/2"x 1/8" 1-1/4" 126
