High Rise Fork Truck Booms

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

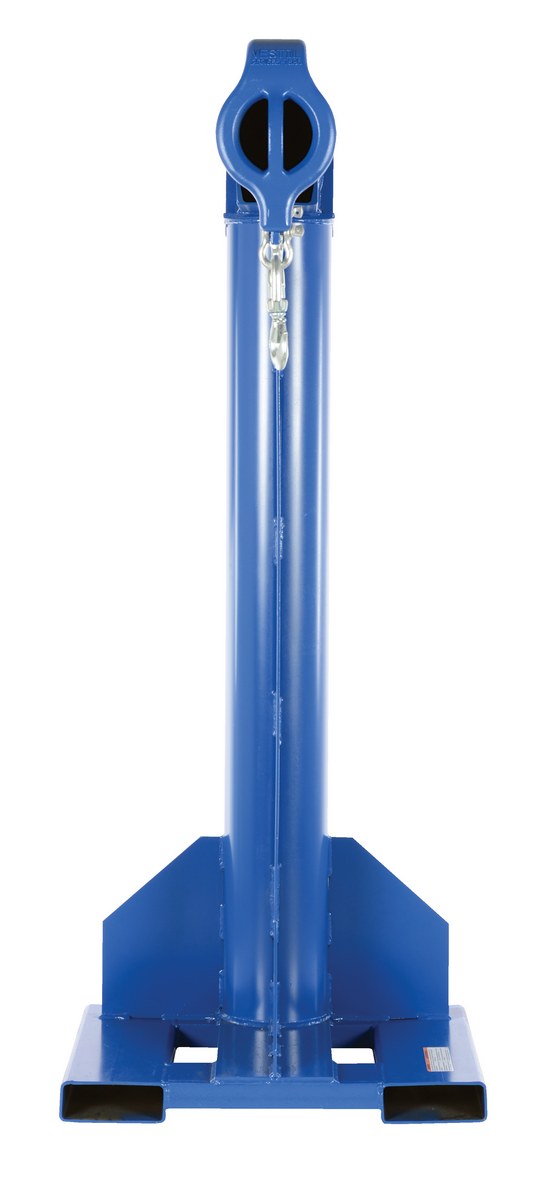

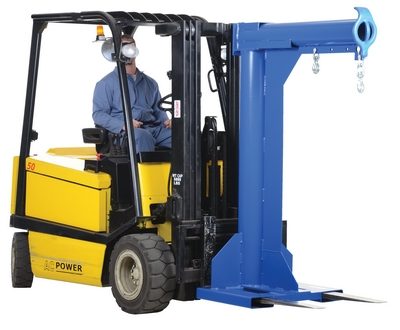

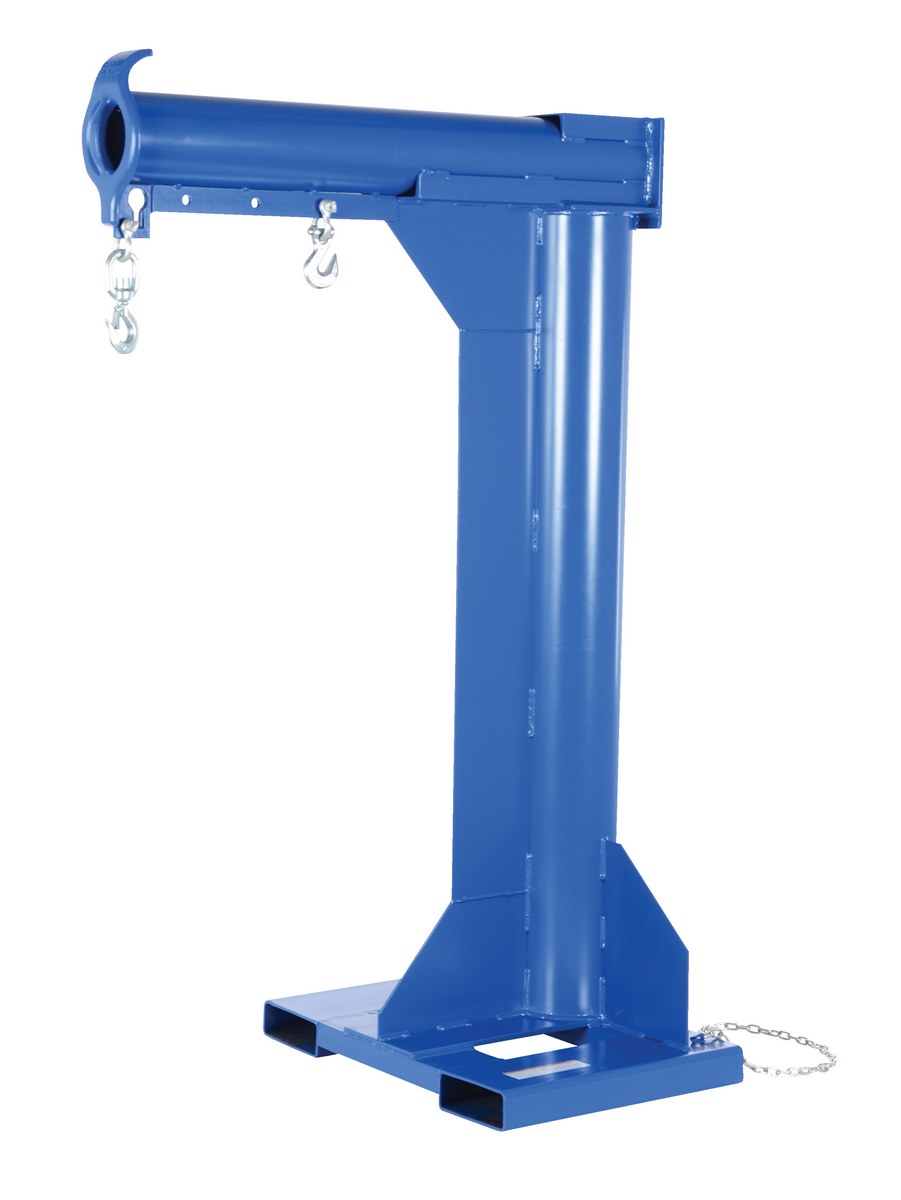

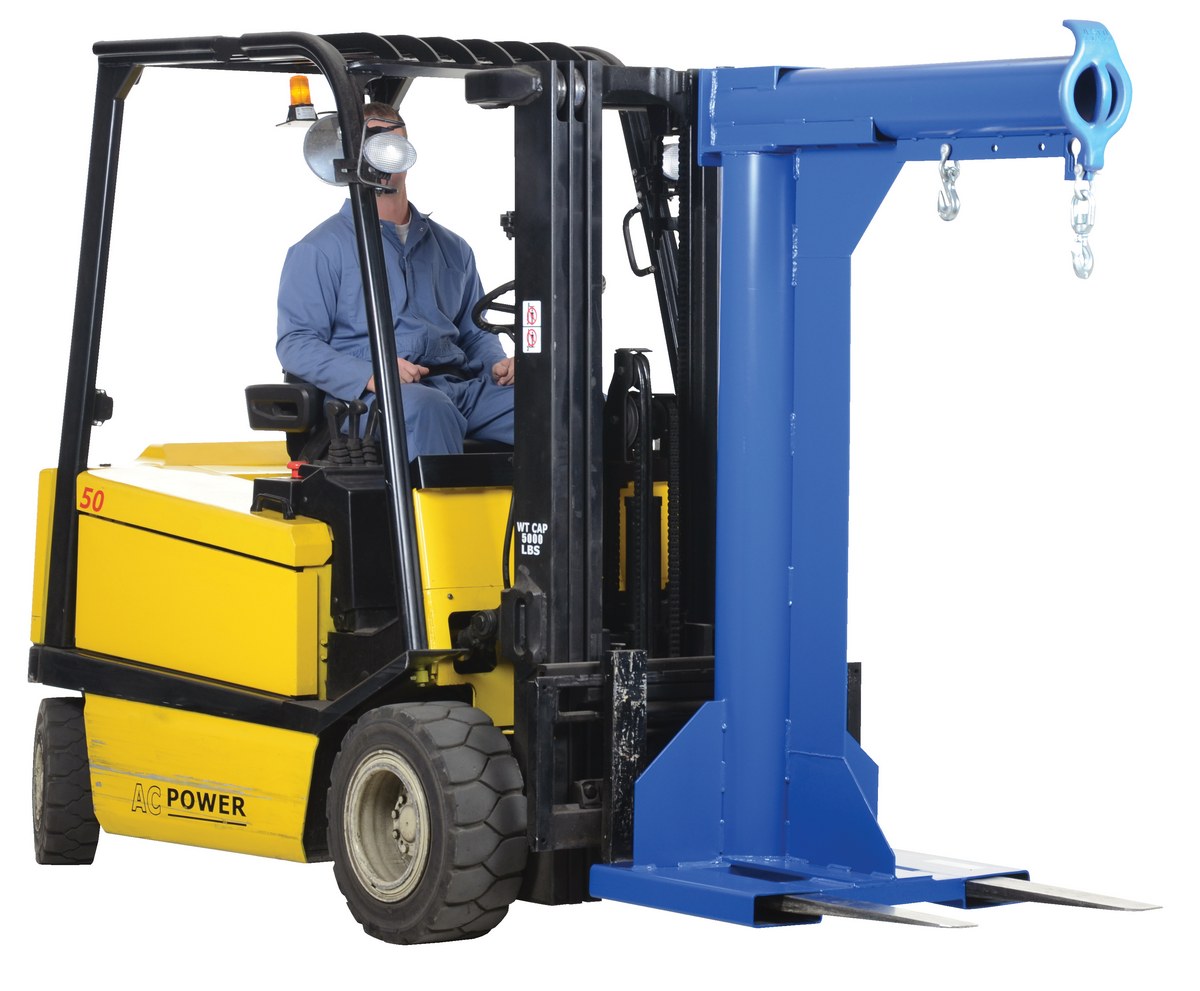

LM-HRNT-4-24_A.jpg LM-HRNT-4-24_B.jpg LM-HRNT-4-24_C.jpg LM-HRNT-4-24_D.jpg
High Rise Fork Truck Booms

model: LM-HRNT-4-24



Featured Fork Truck Attachments


Fork Mounted Front Load Dumpster Mover
Forklift Tie-Down Clamps
Trash Bin Equipment
Fork Rear Spacers
Fork Truck Plastic Magnetic Storage Bin
Lift Truck Safety Light
Drop Bottom Hopper
DC Power Trash Can Dumper
Salt Boxes and Scoop
model chart

Product Family Overview

Print Friendly
High Rise Fork Truck Booms
SERIES: LM-HRT / LM-HRNT

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

Check Out Vestil's Other Fork Truck Boom Styles:


Carriage Mounted Fork Truck Booms
Hydraulic Powered Fork Truck Booms
Lift Master Fork Truck Booms

Orbiting Fork Truck Booms
Shorty Fork Truck Booms

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

Check Out Vestil's Other Fork Truck Boom Styles:


Carriage Mounted Fork Truck Booms
Hydraulic Powered Fork Truck Booms
Lift Master Fork Truck Booms

Orbiting Fork Truck Booms
Shorty Fork Truck Booms

Other Lift Master Booms

 Hydraulic Powered Fork Truck Booms Shorty Lift Master Fork Truck Booms Orbiting Fork Truck Booms High Rise Fork Truck Booms

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LM-HRNT-4-24 LM-HRNT-4-241 Year Limited WarrantySteel High Rise Non Telescoping Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24		889

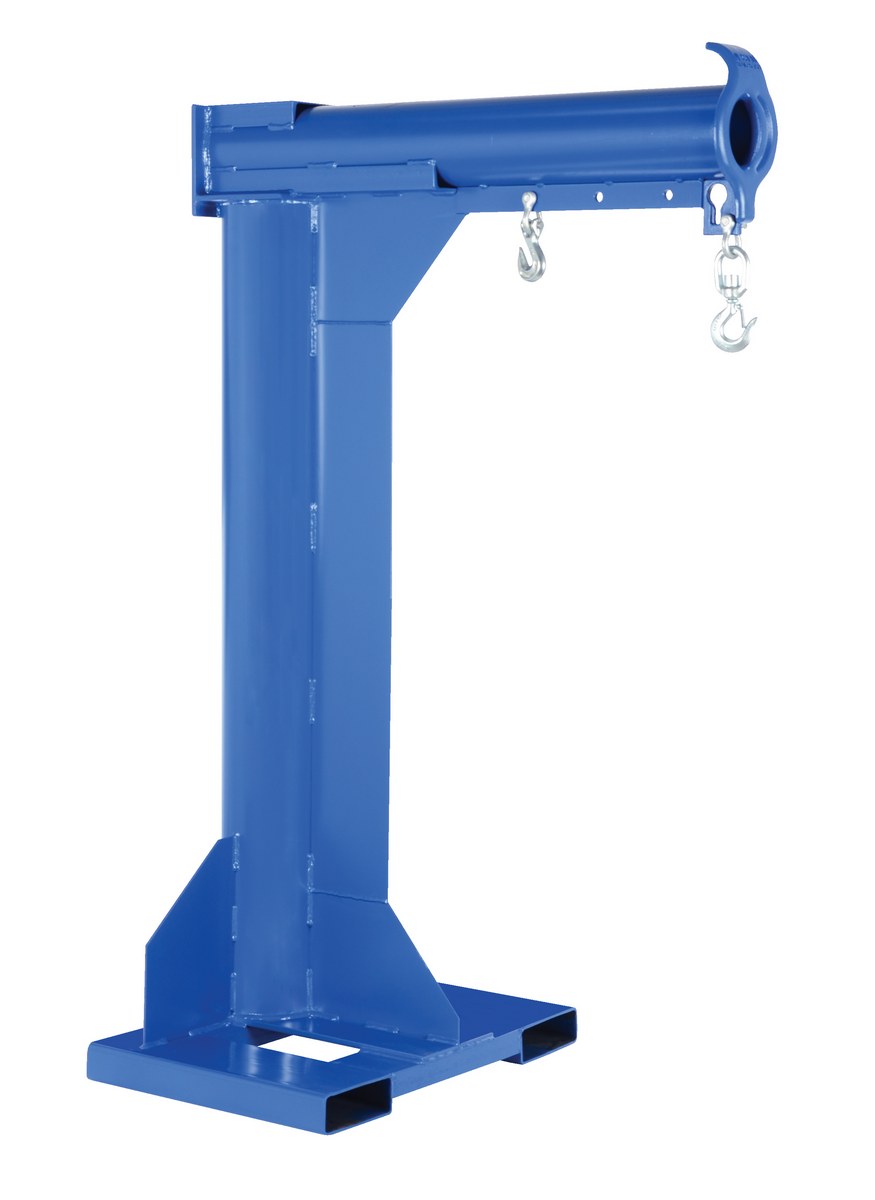

LM-HRNT-4-30 LM-HRNT-4-301 Year Limited WarrantySteel High Rise Non Telescoping Boom 30 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30		904
LM-HRNT-4-36 LM-HRNT-4-361 Year Limited WarrantySteel High Rise Non Telescoping Boom 36 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36		919
LM-HRNT-6-24 LM-HRNT-6-241 Year Limited WarrantySteel High Rise Non Telescoping Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24		924
LM-HRNT-6-30 LM-HRNT-6-301 Year Limited WarrantySteel High Rise Non Telescoping Boom 30 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30		939
LM-HRNT-6-36 LM-HRNT-6-361 Year Limited WarrantySteel High Rise Non Telescoping Boom 36 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36		954

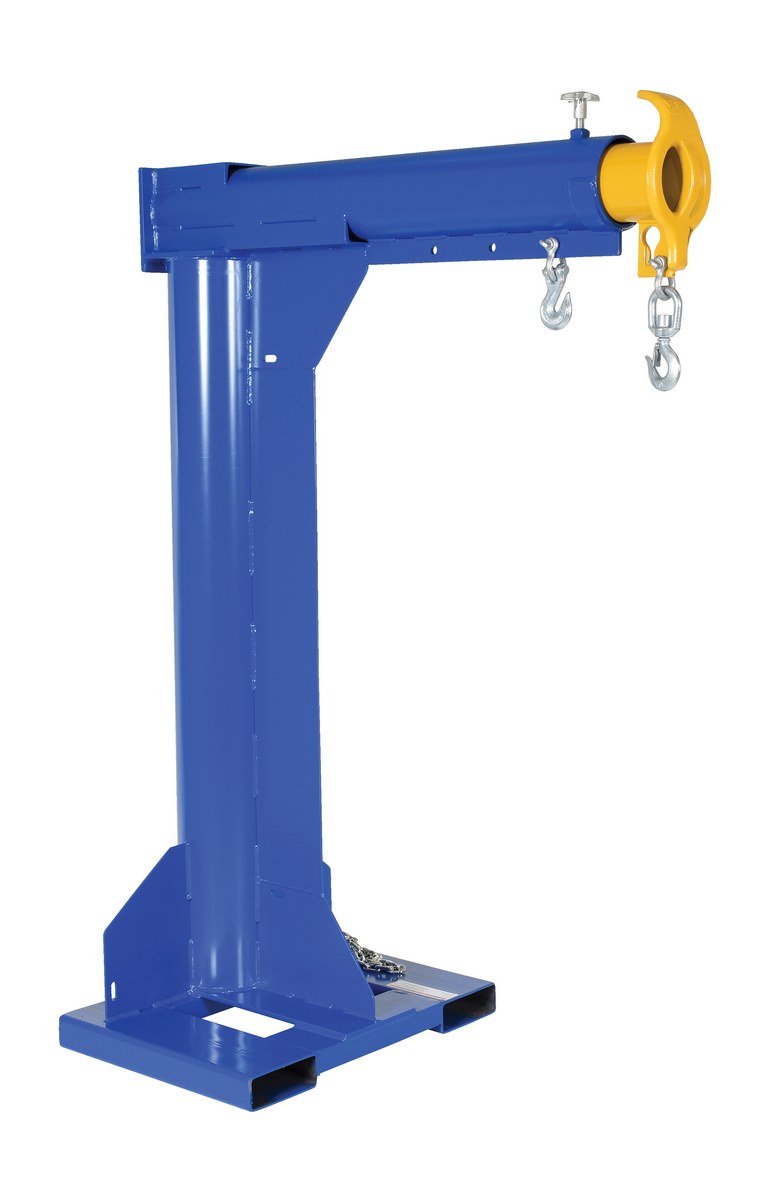

LM-HRT-4-24 LM-HRT-4-241 Year Limited WarrantySteel High Rise Telescoping Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24		870
LM-HRT-4-30 LM-HRT-4-301 Year Limited WarrantySteel High Rise Telescoping Boom 30 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30		930
LM-HRT-4-36 LM-HRT-4-361 Year Limited WarrantySteel High Rise Telescoping Boom 36 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36		936
LM-HRT-6-24 LM-HRT-6-241 Year Limited WarrantySteel High Rise Telescoping Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24		880
LM-HRT-6-30 LM-HRT-6-301 Year Limited WarrantySteel High Rise Telescoping Boom 30 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30		945
LM-HRT-6-36 LM-HRT-6-361 Year Limited WarrantySteel High Rise Telescoping Boom 36 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36		1009

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LM-HRNT-4-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24

LM-HRNT-4-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30

LM-HRNT-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36

LM-HRNT-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24

LM-HRNT-6-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30

LM-HRNT-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36

LM-HRT-4-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24

LM-HRT-4-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 30

LM-HRT-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 36

LM-HRT-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24

LM-HRT-6-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 30

LM-HRT-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 36
For More Details of the Option Click the Red Model Button
Model Image Description Usable Fork Pocket Width/Height (in.)
LM-FP Factory Installed Steel Fork Pockets 8.25 In. x 4.25 For Lift Boom Models 8-1/4 x 4-1/4
LM-FP-37 Factory Installed Steel Fork Pockets 7 In. x 3 For Lift Boom Models 7 x 3
LM-FP-39 Factory Installed Steel Fork Pockets 9 In. x 3 In. For Lift Boom Models 9 x 3
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
High Rise Fork Truck Booms PDF's will open in a new window when clicked.

Manuals


LM
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LM-HRNT-4-24

LM-HRNT-4-30

LM-HRNT-4-36

LM-HRNT-6-24

LM-HRNT-6-30

LM-HRNT-6-36

LM-HRT-4-24

LM-HRT-4-30

LM-HRT-4-36

LM-HRT-6-24

LM-HRT-6-30

LM-HRT-6-36

Testing Certificates


LM-HRNT-4-24

LM-HRNT-4-30

LM-HRNT-4-36

LM-HRNT-6-24

LM-HRNT-6-30

LM-HRNT-6-36

LM-HRT-4-24

LM-HRT-4-30

LM-HRT-4-36

LM-HRT-6-24

LM-HRT-6-30

LM-HRT-6-36

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Carriage Mount and Hydraulic Lift Booms Mailing Brochure
