Product Family Overview


Ball Transfer Strips & Single Ball Transfers
SERIES: BALL

Single strips of ball transfers are easy to install and simple to use. To install, simply line it up on your cart, table, or workstation and bolt on at each end. Standard finish is chrome. The Single Ball Transfers feature a hardened cup, protective debris shield, and include lag-down tabs.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern

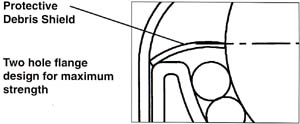

  • Feature a hardened cup and protective debris shield
  • Includes lag-down tabs for added security


Single strips of ball transfers are easy to install and simple to use. To install, simply line it up on your cart, table, or workstation and bolt on at each end. Standard finish is chrome. The Single Ball Transfers feature a hardened cup, protective debris shield, and include lag-down tabs.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Feature a hardened cup and protective debris shield
  • Includes lag-down tabs for added security


Additional Models In This Family

BALL-1F

model BALL-1F

BALL-S40

model BALL-S40

BALL-S60

model BALL-S60

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

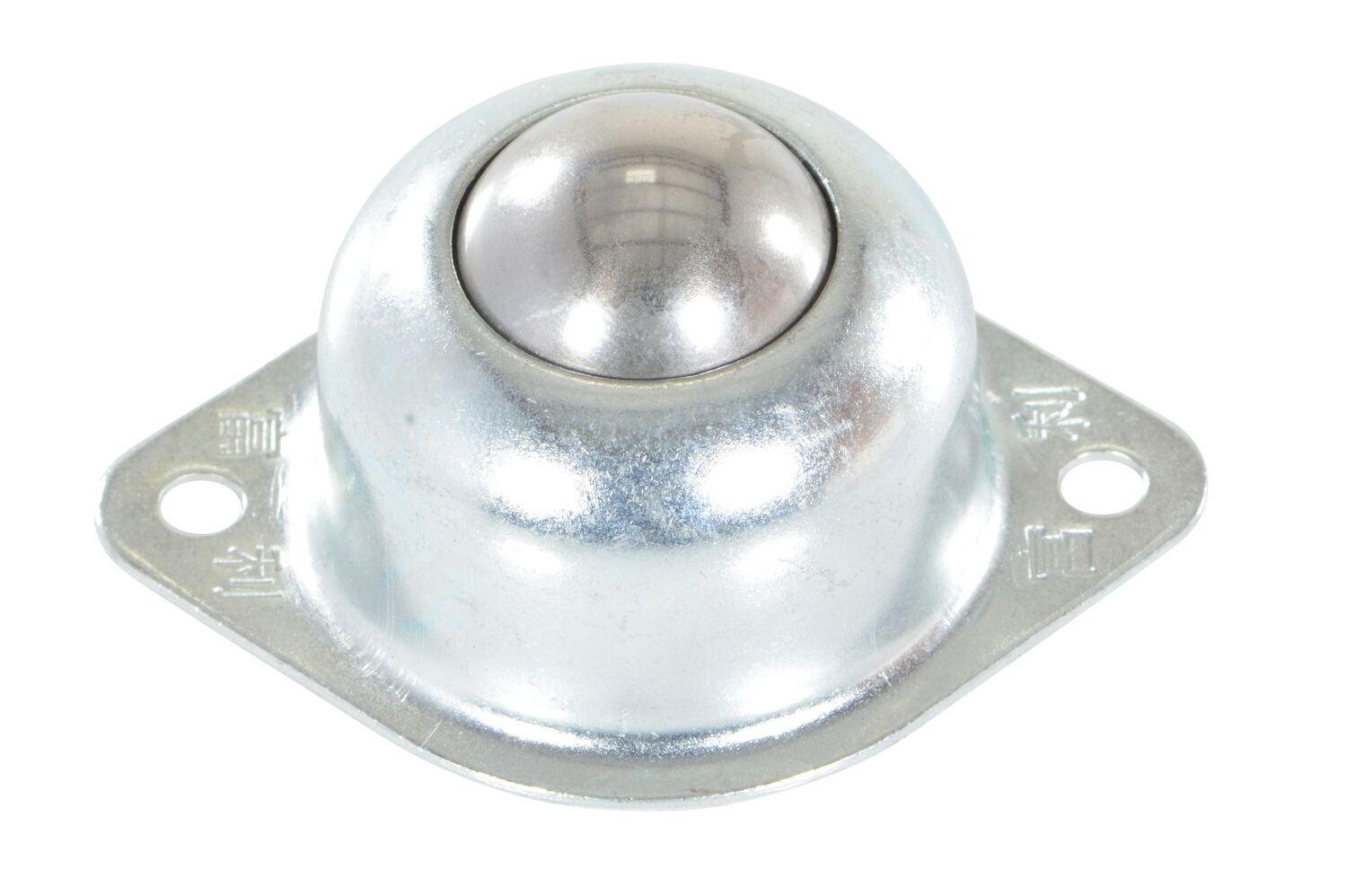

BALL-1F BALL-1F90 Days Limited WarrantySteel Single Ball Transfer Flange Mount SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
1

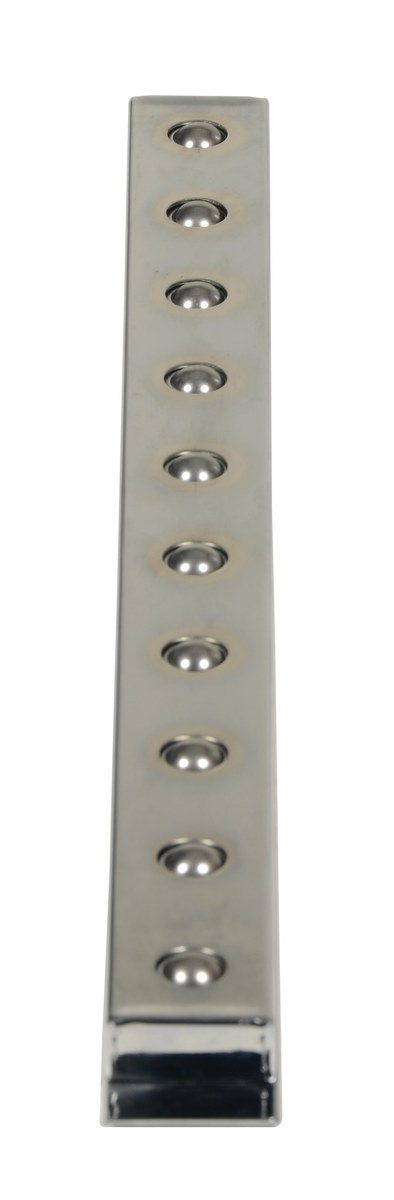

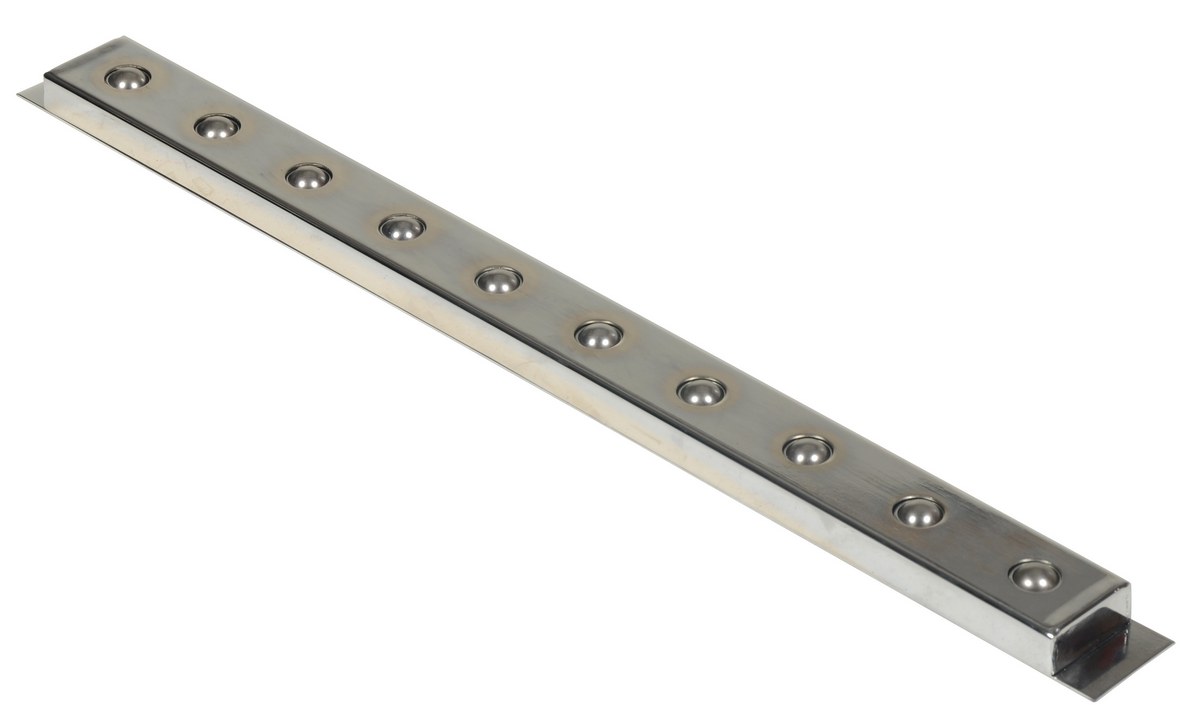

BALL-S30 BALL-S3090 Days Limited WarrantySteel Ball Transfer Strip 30 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3
10

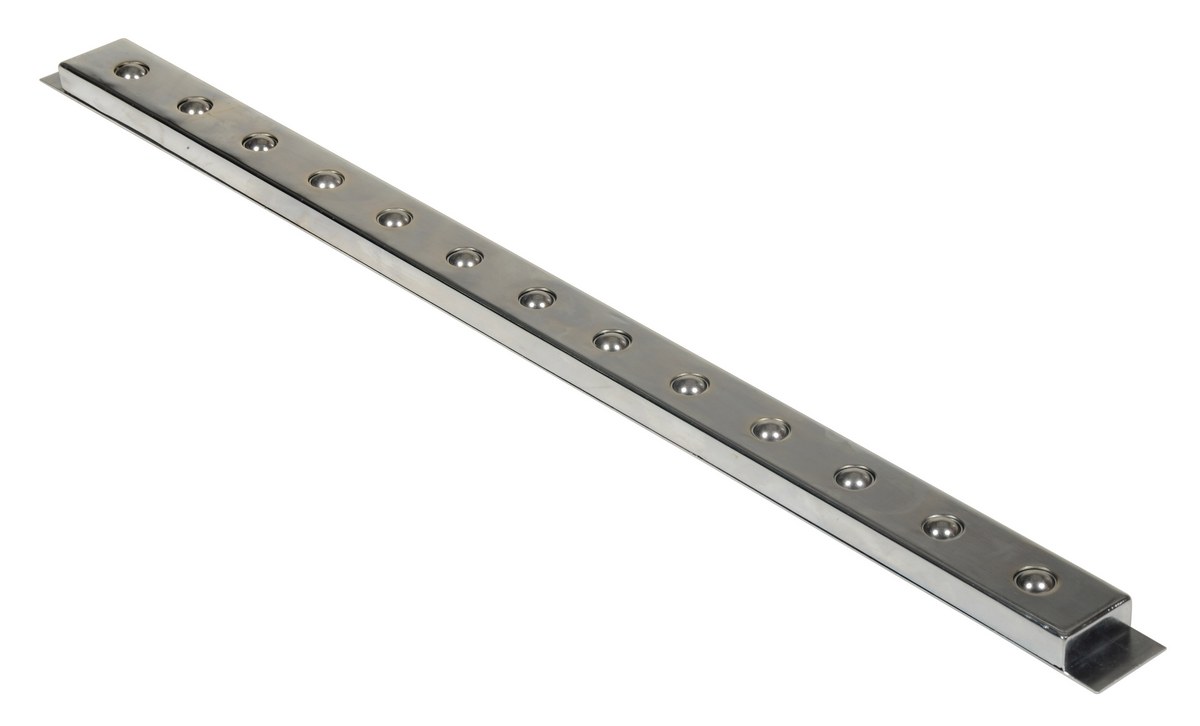

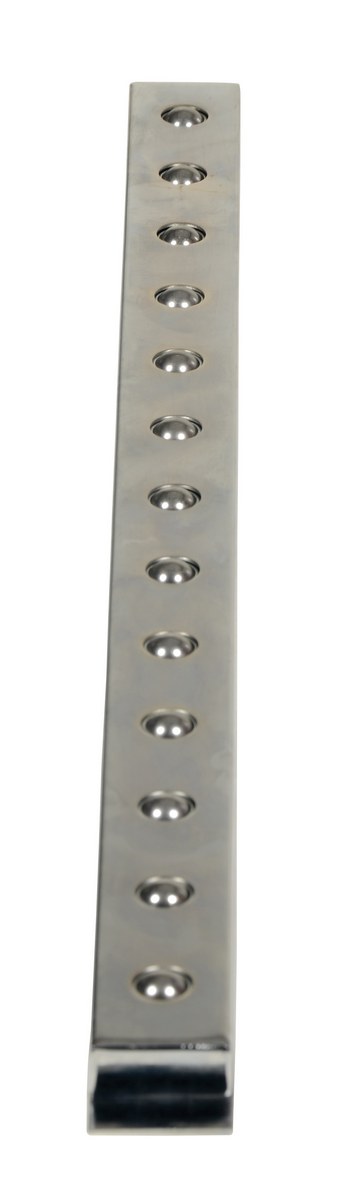

BALL-S40 BALL-S4090 Days Limited WarrantySteel Ball Transfer Strip 40 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
11

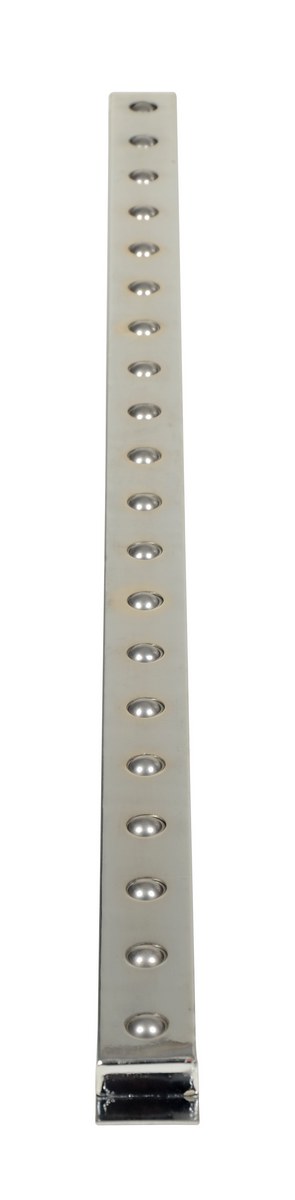

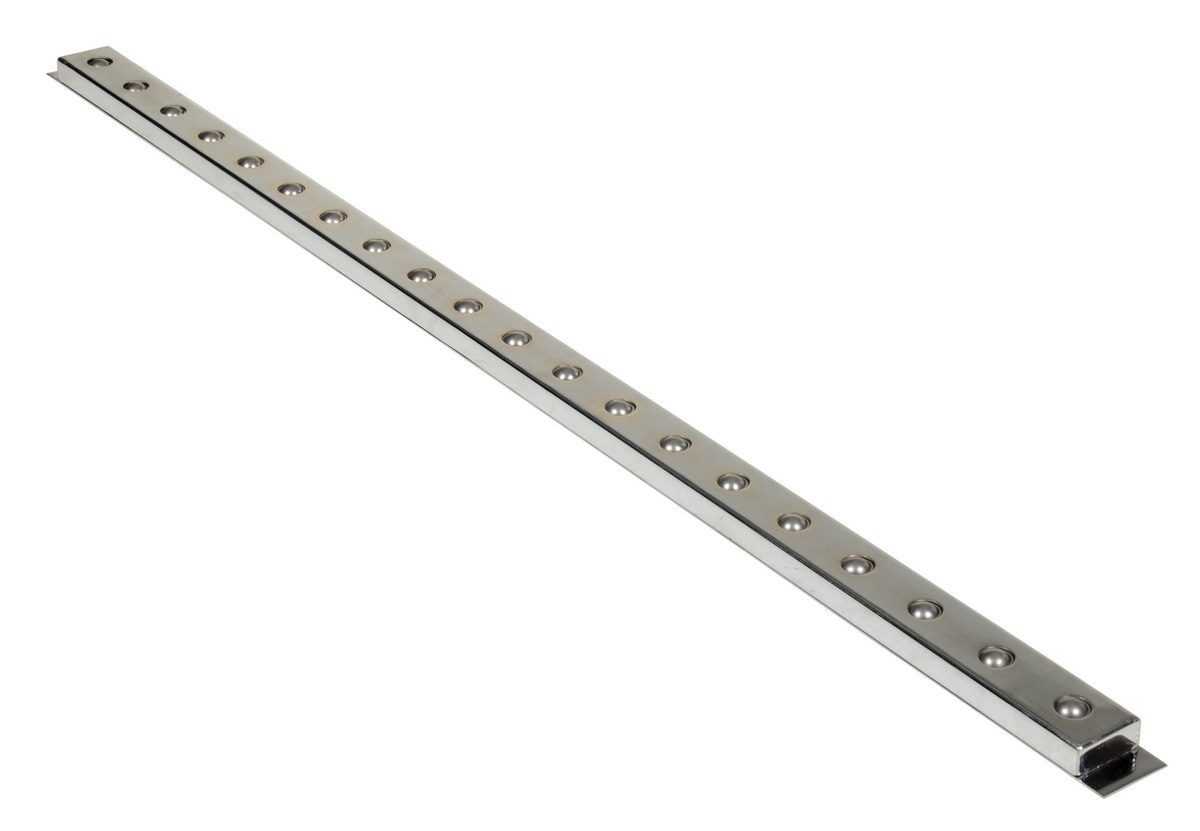

BALL-S60 BALL-S6090 Days Limited WarrantySteel Ball Transfer Strip 60 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
15

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

BALL-1F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4

BALL-S30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3

BALL-S40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4

BALL-S60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
Uniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4

Ball Transfer Strips & Single Ball Transfers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BALL-1F

BALL-S30

BALL-S40

BALL-S60

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ball Transfer Strips & Sin...




Single strips of ball transfers are easy to install and simple to use. To install, simply line it up on your cart, table, or workstation and bolt on at each end. Standard finish is chrome. The Single Ball Transfers feature a hardened cup, protective debris shield, and include lag-down tabs.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Feature a hardened cup and protective debris shield
  • Includes lag-down tabs for added security




Model # Description Attributes Net Wt.
(lbs)
BALL-1F BALL-1FSteel Single Ball Transfer Flange Mount SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
1
BALL-S30 BALL-S30Steel Ball Transfer Strip 30 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3
10
BALL-S40 BALL-S40Steel Ball Transfer Strip 40 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
11
BALL-S60 BALL-S60Steel Ball Transfer Strip 60 In. x 2-3/4 In. 75 Lb. Capacity SilverUniform Capacity/Ball (lb.): 75
Ball Spacing (in.): 3-1/4
15
