Positive Locking Plate Clamps

- - - -

Description
Model Chart
PDF's
Image Gallery

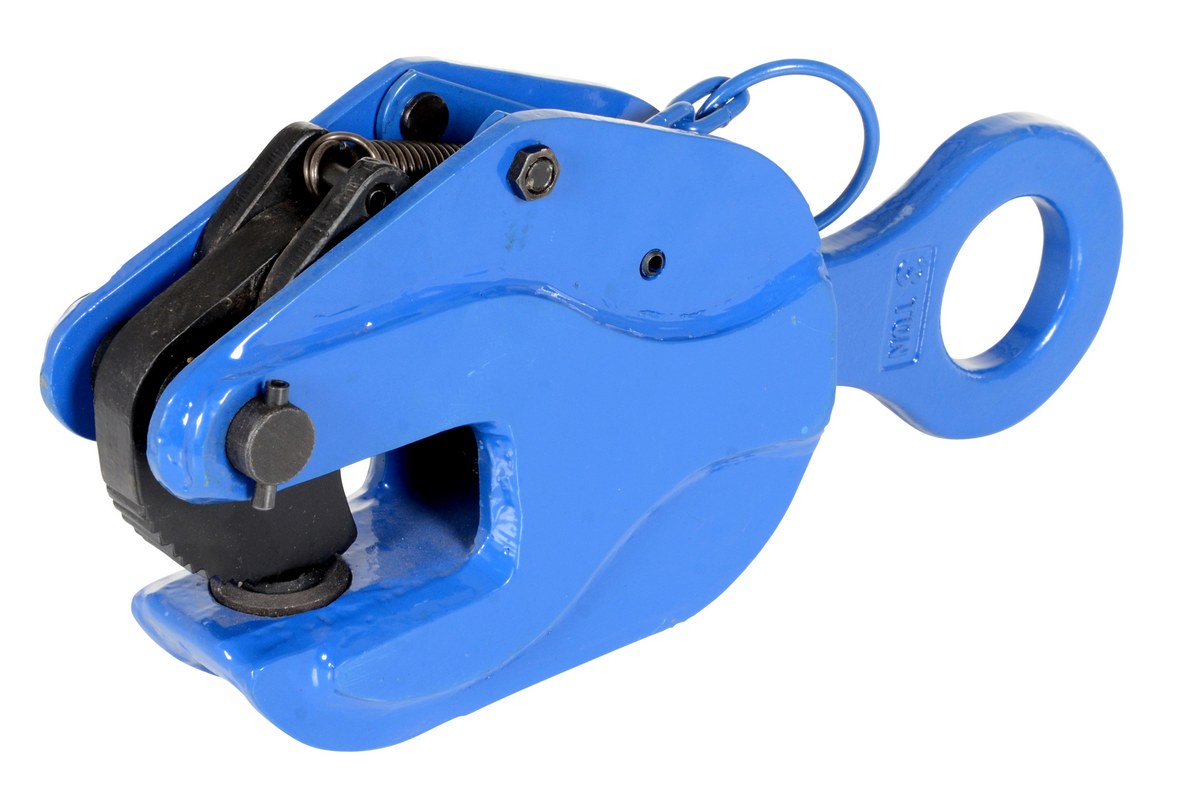

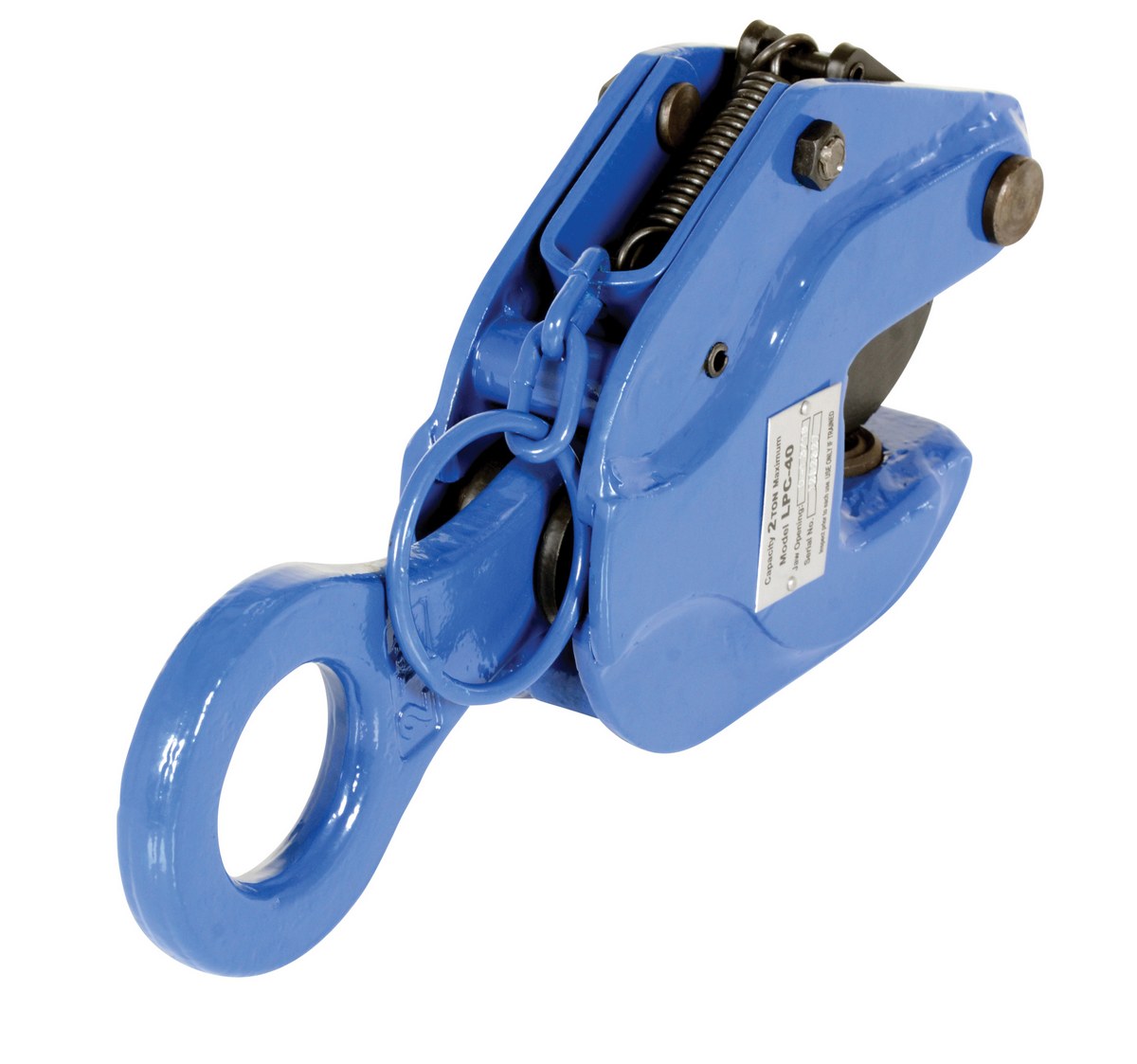

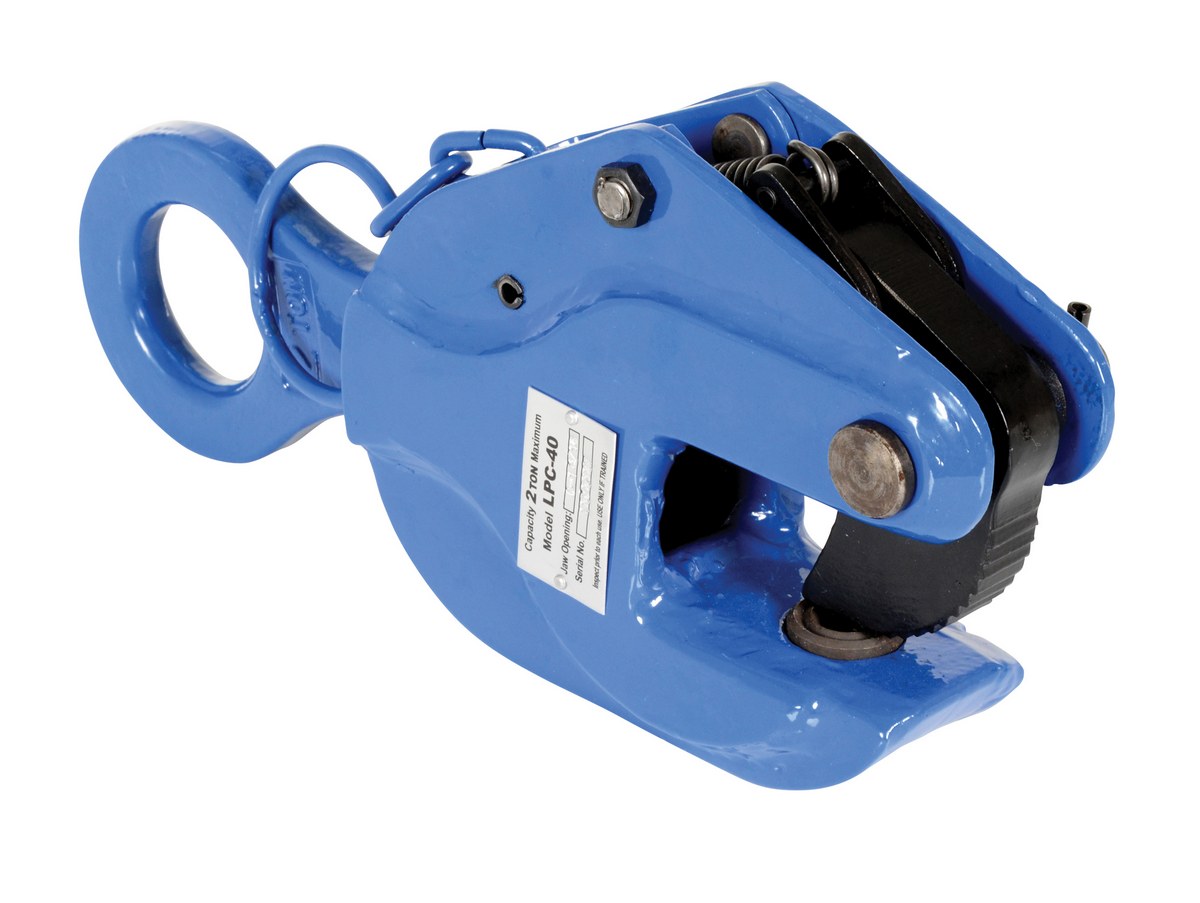

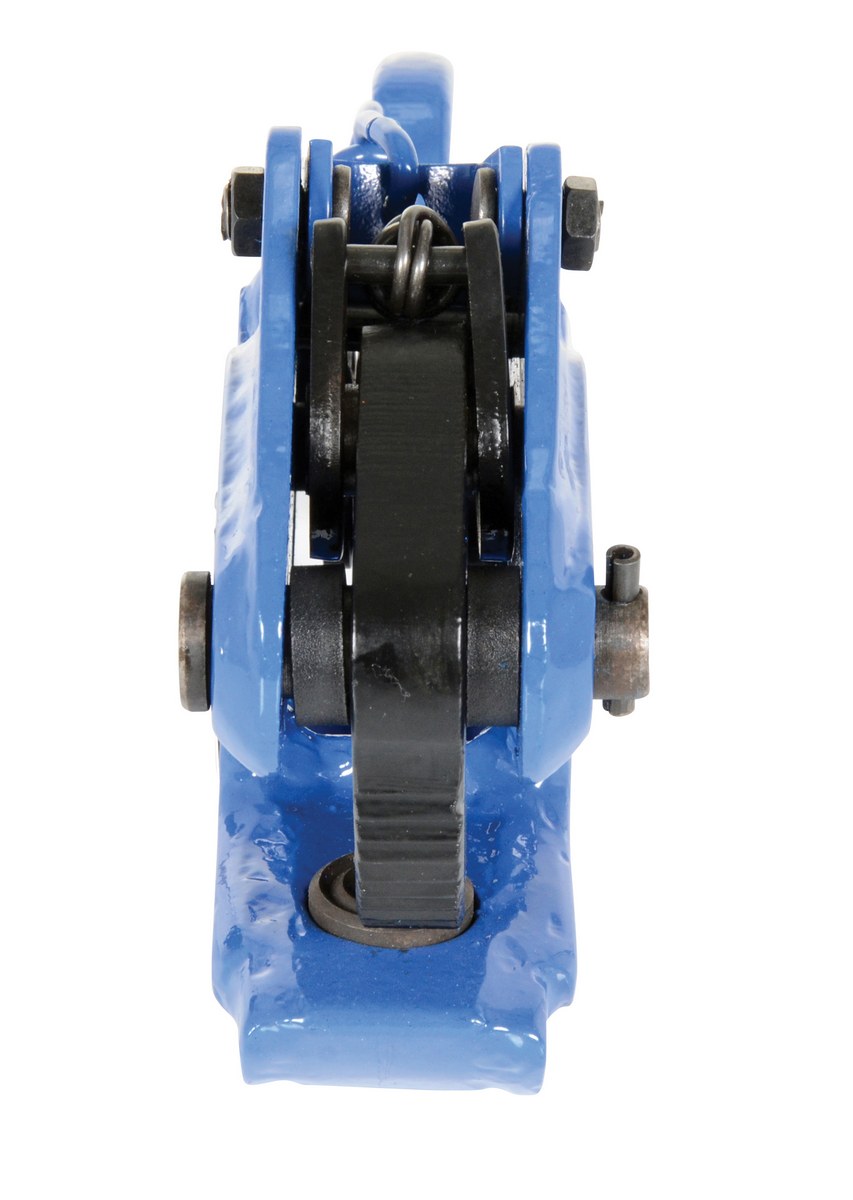

LPC-40_F.jpg LPC-40_A.jpg LPC-40_B.jpg LPC-40_C.jpg
LPC-40_D.jpg LPC-40_E.jpg

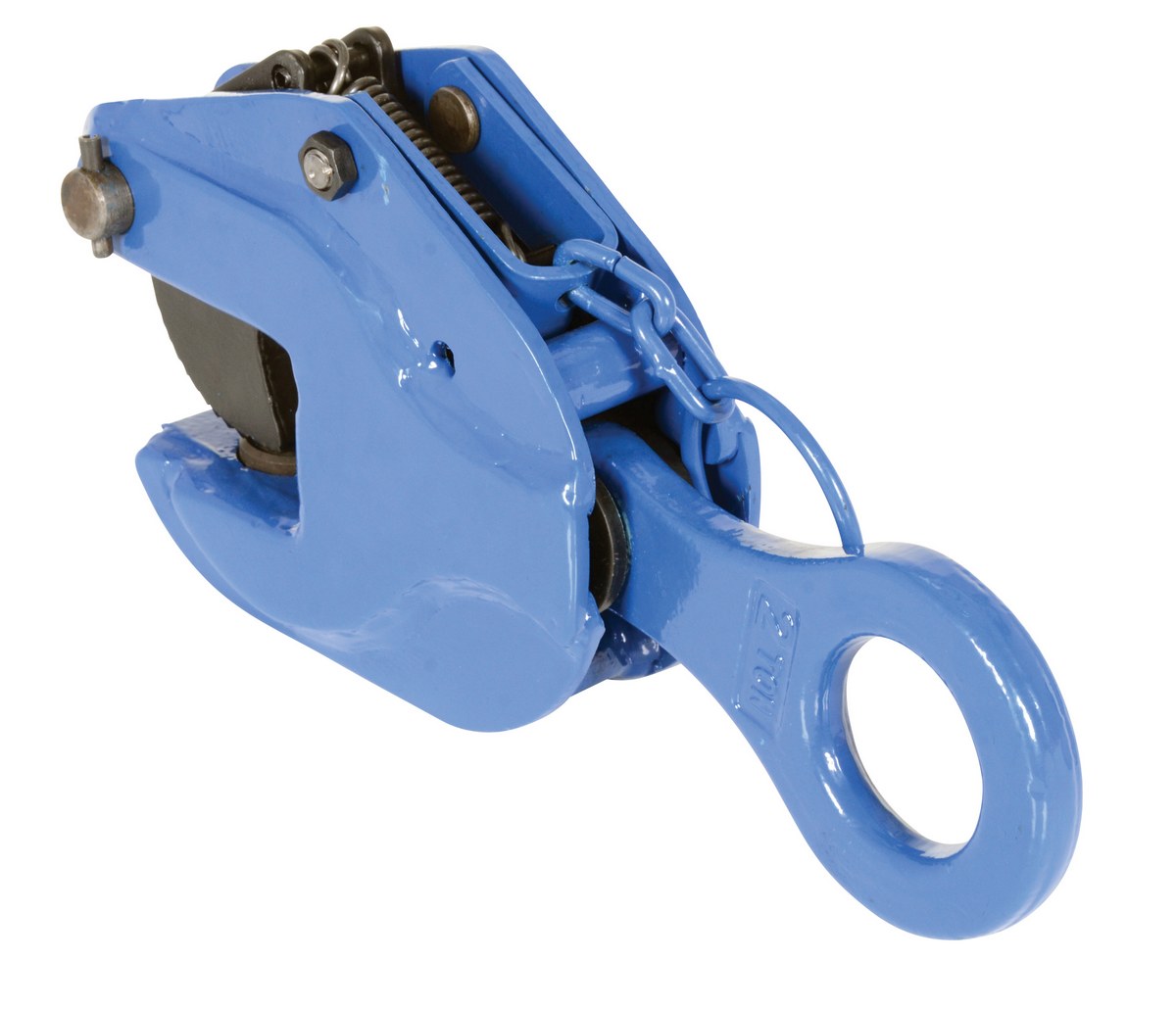

Positive Locking Plate Clamps

model: LPC-40



Positive Locking Plate Clamps

model: LPC-40

Featured Overhead Lifting


Fixed Steel Gantry Cranes with Pneumatic Casters
Electric Mini Hanging Cable Hoists
Power Lift Jib Cranes
Fixed Steel Gantry Cranes
Hoist Trailer
Fixed Height Aluminum Gantry Cranes with Adjustable Leveling Option
Compact & Lightweight Lever Hoist (disc brake)
Fixed Steel Gantry Cranes with Total Locking Casters
Beam Clamps
model chart

Product Family Overview

Print Friendly
Positive Locking Plate Clamps
SERIES: LPC

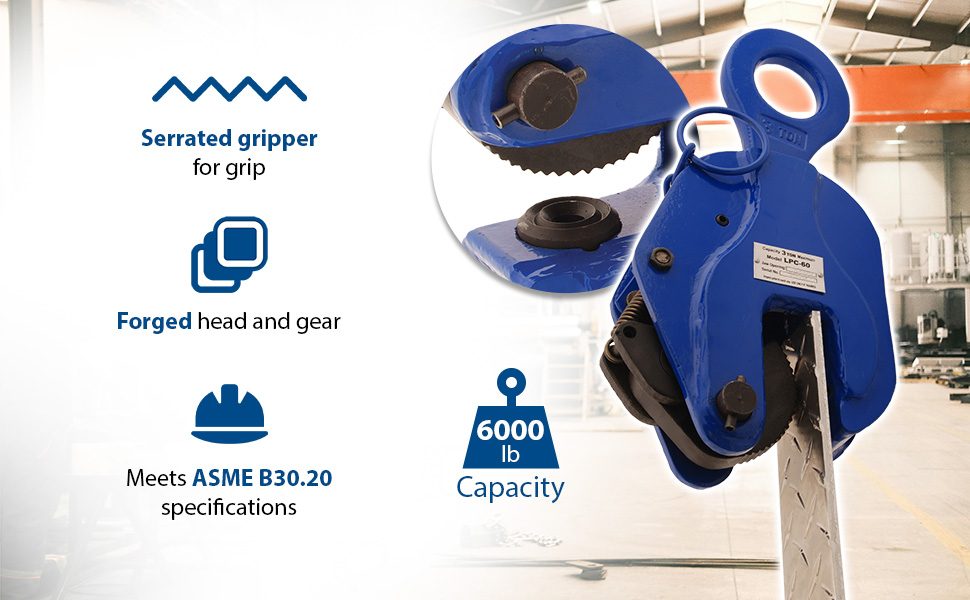

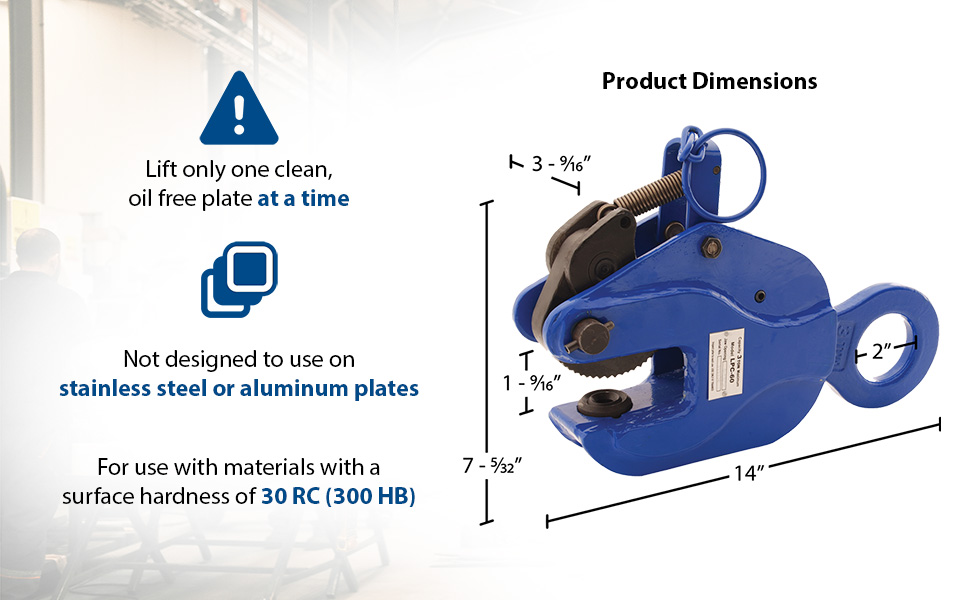

Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Safety factor is 2 to 1. Power coated finish. Designed to meet ASME B30.20 standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Safety factor is 2 to 1. Power coated finish. Designed to meet ASME B30.20 standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

Other Clamps & Tongs

 Vertical Plate Clamps Positive Locking Plate Clamps Horizontal Plate Clamps Heavy-Duty Die Lifting Tongs

Additional Models In This Family
view entire Image Gallery

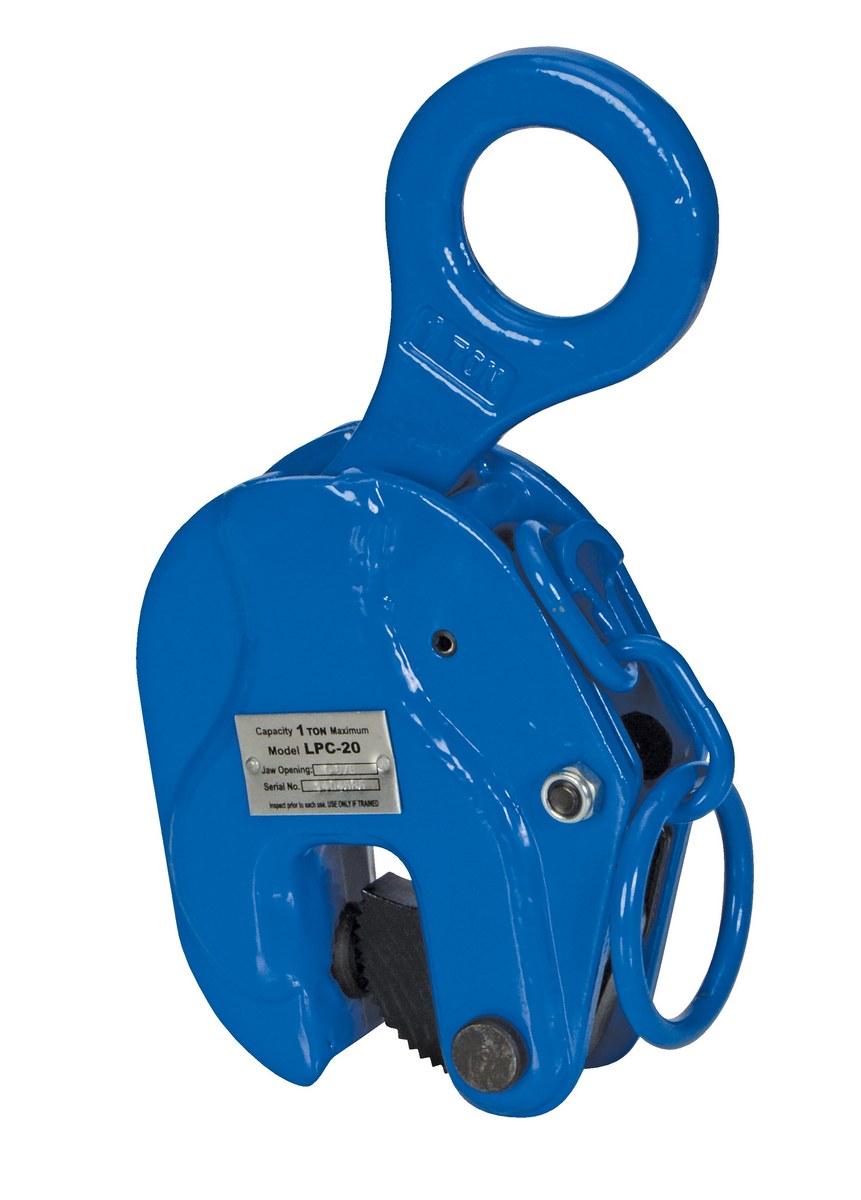

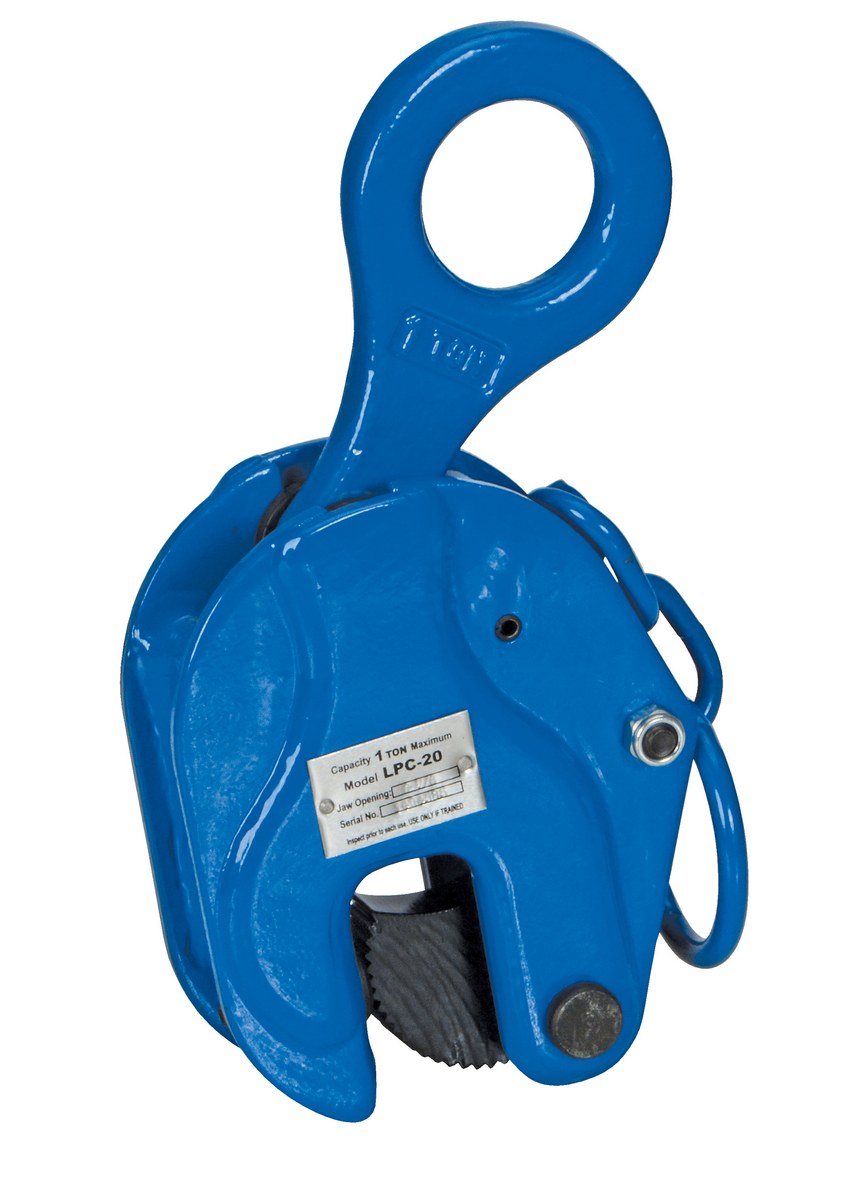

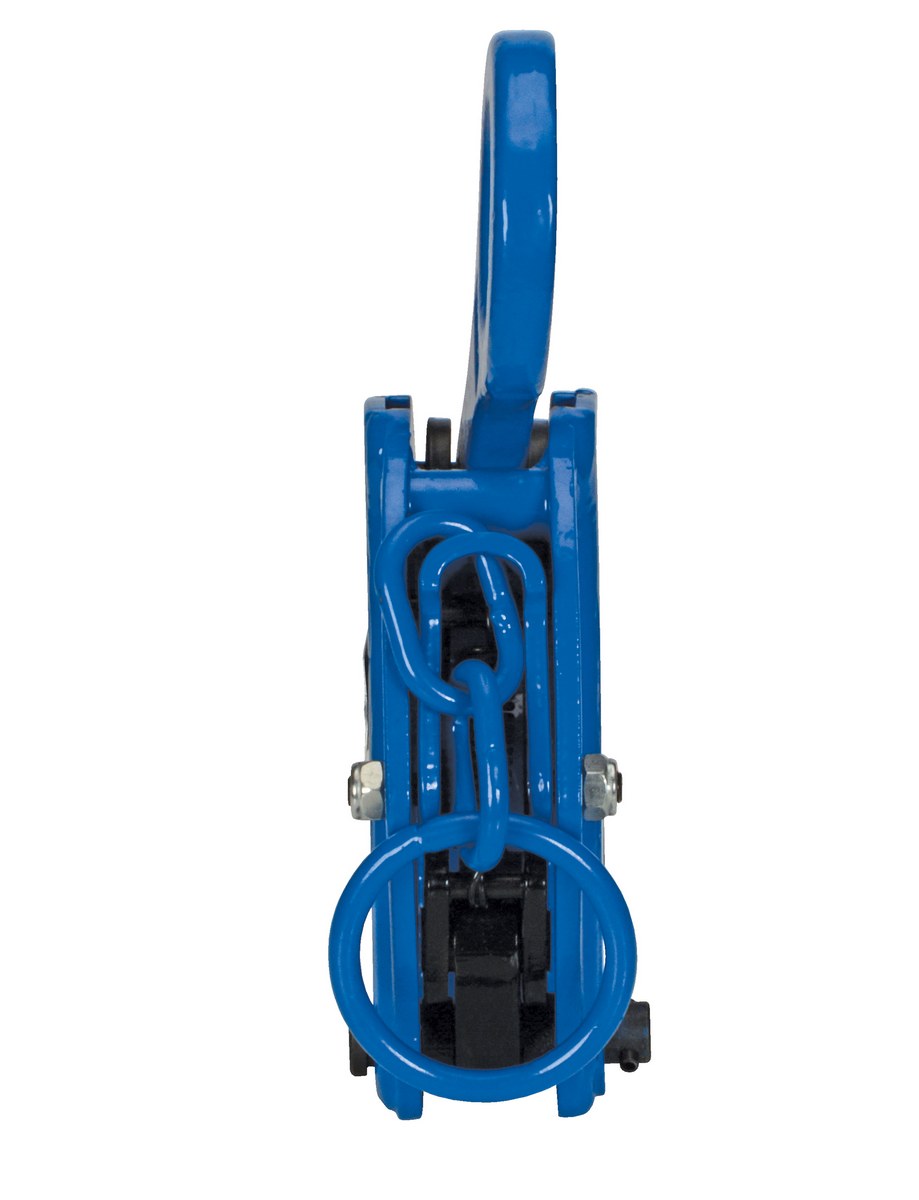

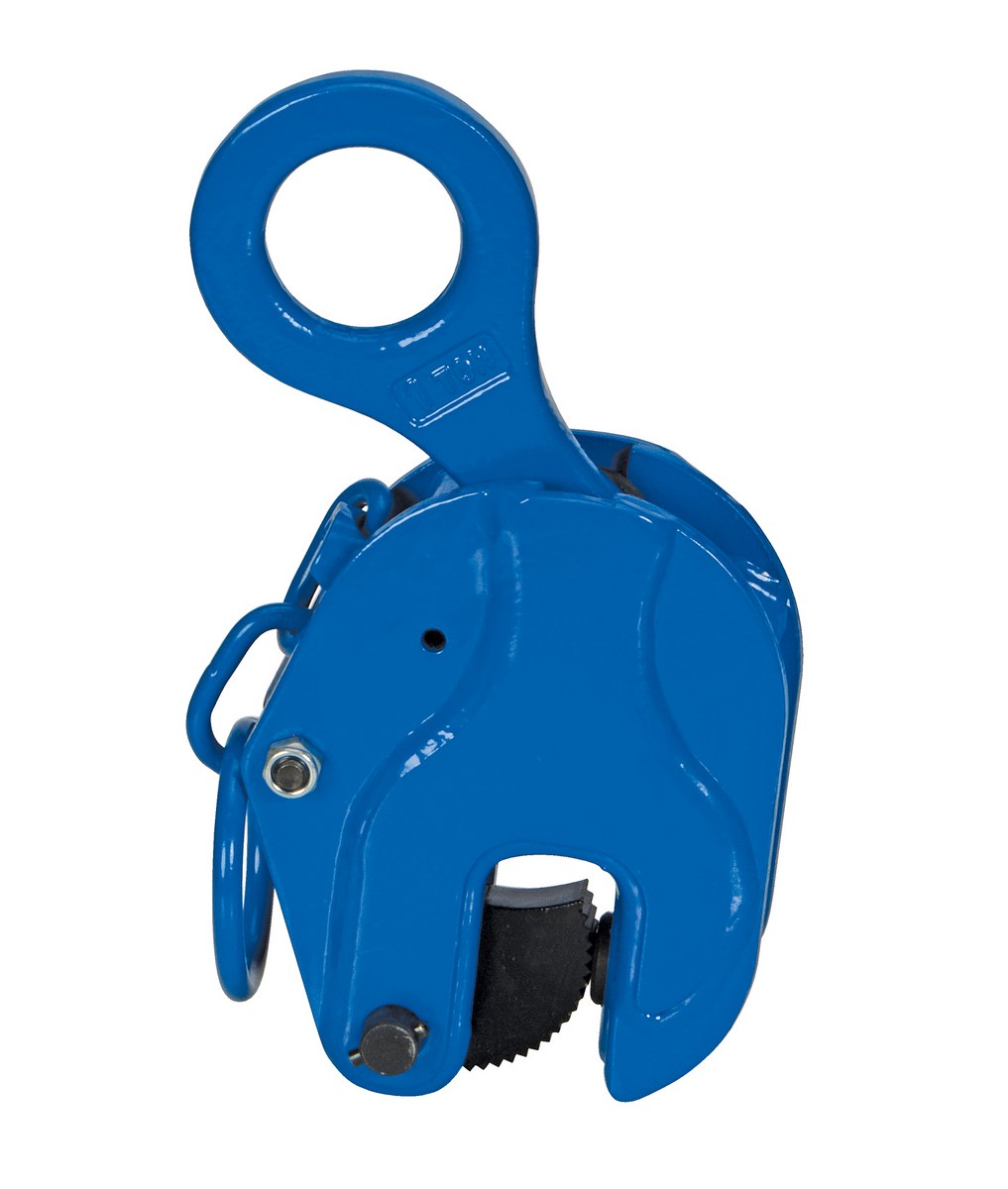

LPC-20

model LPC-20

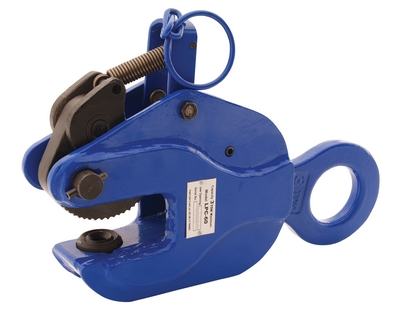

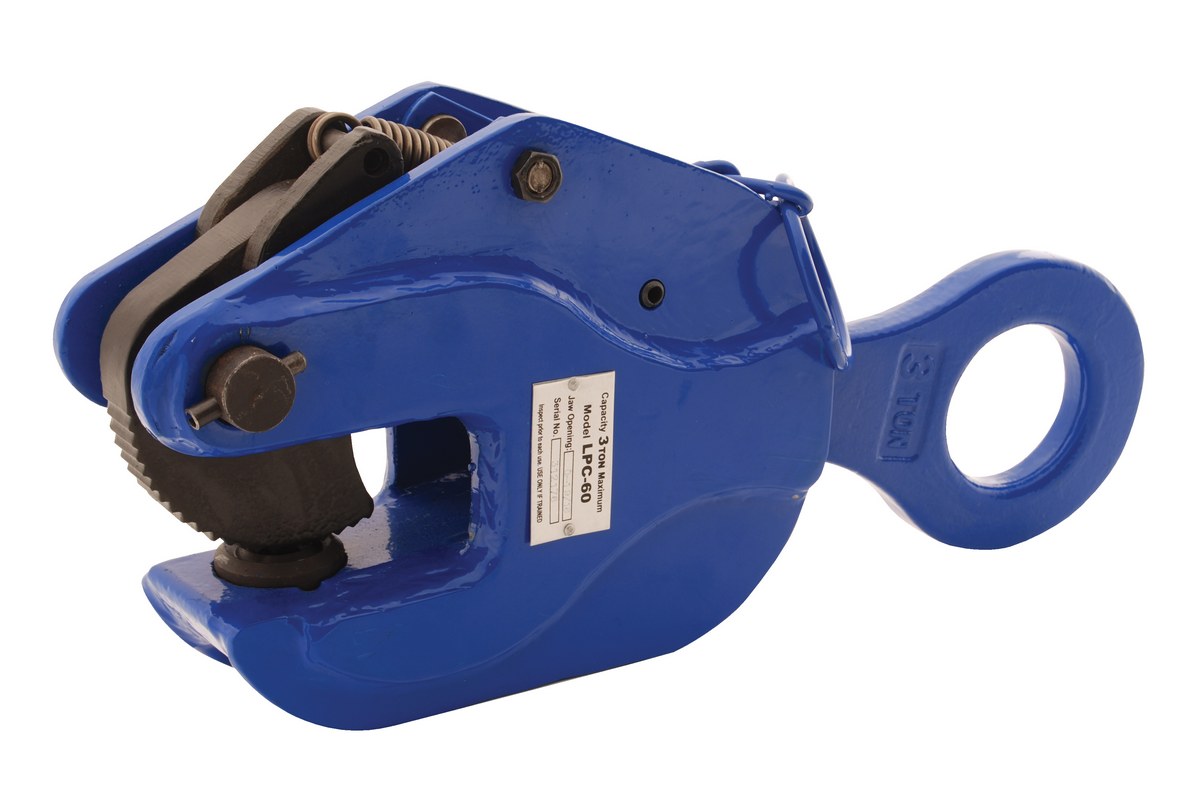

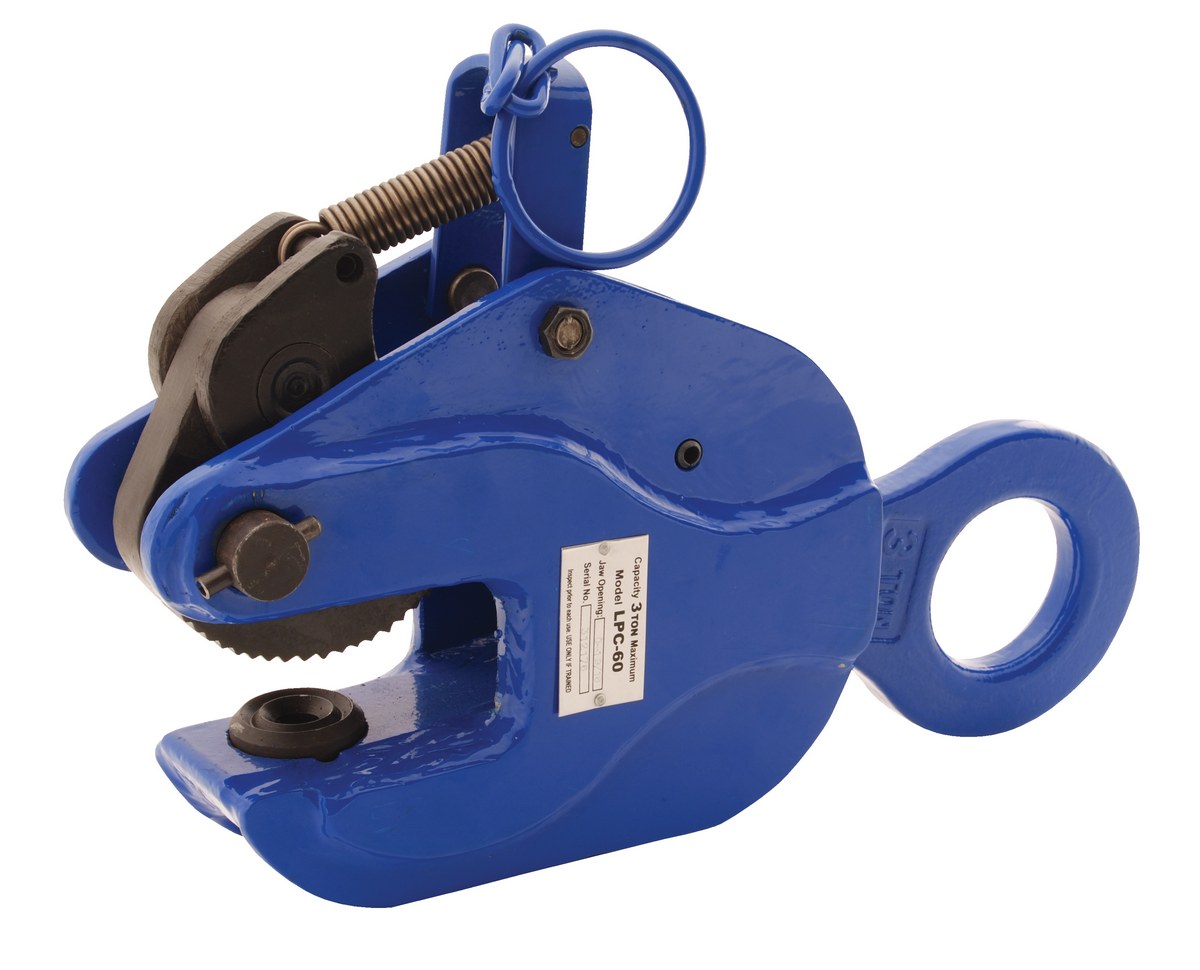

LPC-60

model LPC-60

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LPC-20 LPC-2090 Days Limited WarrantySteel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity BlueUniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400		9
LPC-40 LPC-4090 Days Limited WarrantySteel Vertical Positive Locking Plate Clamp 12 In. x 3-1/2 In. x 7-1/2 In. 4000 Lb. Capacity BlueUniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800		13
LPC-60 LPC-6090 Days Limited WarrantySteel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity BlueUniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200		21

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400

LPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800

LPC-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200
Uniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200
Positive Locking Plate Clamps PDF's will open in a new window when clicked.

Manuals


LPC
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LPC-20

LPC-40

LPC-60

Testing Certificates


LPC-20

LPC-40

LPC-60

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Non-Marring Plate Clamps
Product

Non-Marring Plate Clamps

Vertical Plate Clamps with Chain
Product

Vertical Plate Clamps with Chain

Vertical Plate Clamps
Product

Vertical Plate Clamps

Horizontal Plate Clamps
Product

Horizontal Plate Clamps

Heavy-Duty Beam Tongs
Product

Heavy-Duty Beam Tongs

Heavy-Duty Die Lifting Tongs
Product

Heavy-Duty Die Lifting Tongs

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Positive Locking Plate Clamps




Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Safety factor is 2 to 1. Power coated finish. Designed to meet ASME B30.20 standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

Model # Description Attributes Net Wt.
(lbs)
LPC-20 LPC-20Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity BlueUniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400		9
LPC-40 LPC-40Steel Vertical Positive Locking Plate Clamp 12 In. x 3-1/2 In. x 7-1/2 In. 4000 Lb. Capacity BlueUniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800		13
LPC-60 LPC-60Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity BlueUniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200		21
