FEATURED Alternating Step Cross-Over Ladders

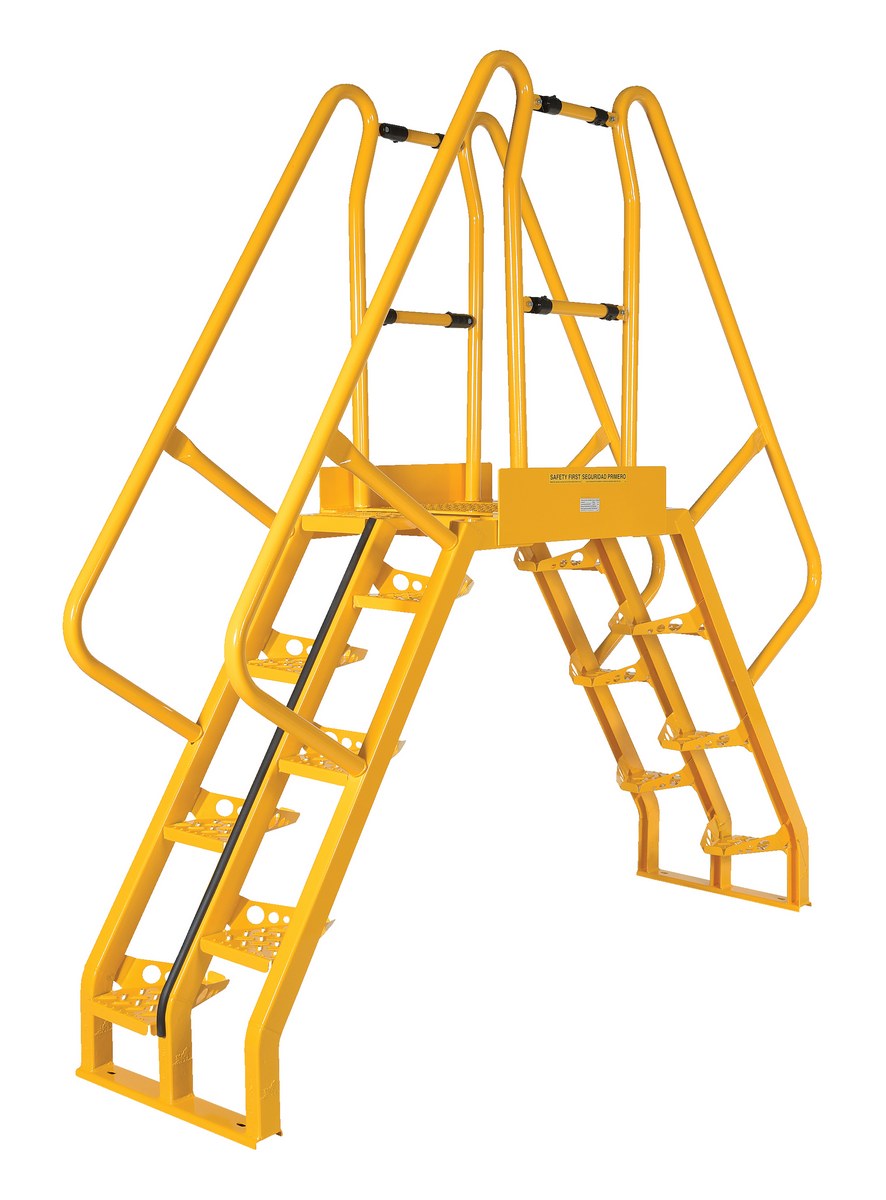

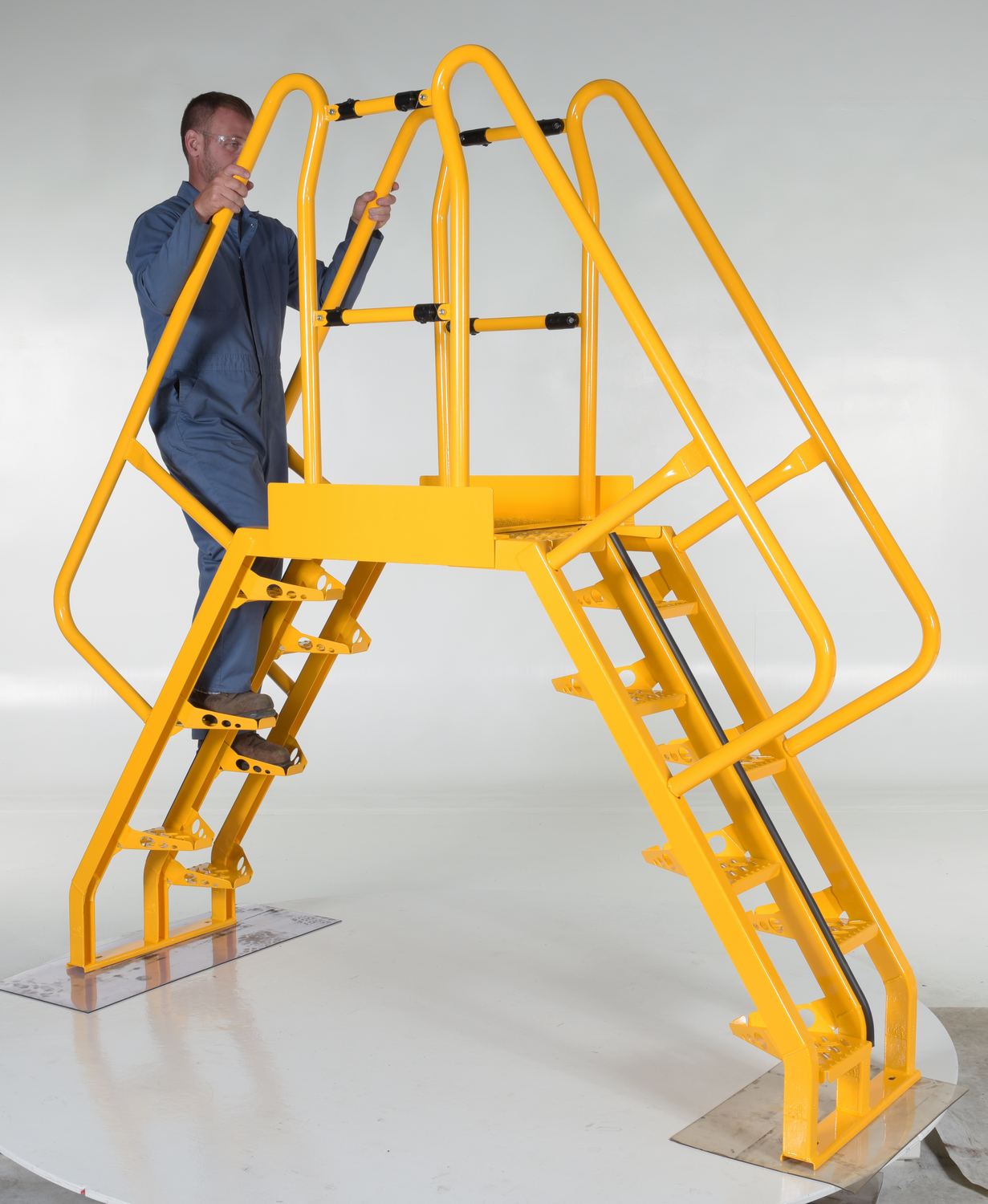

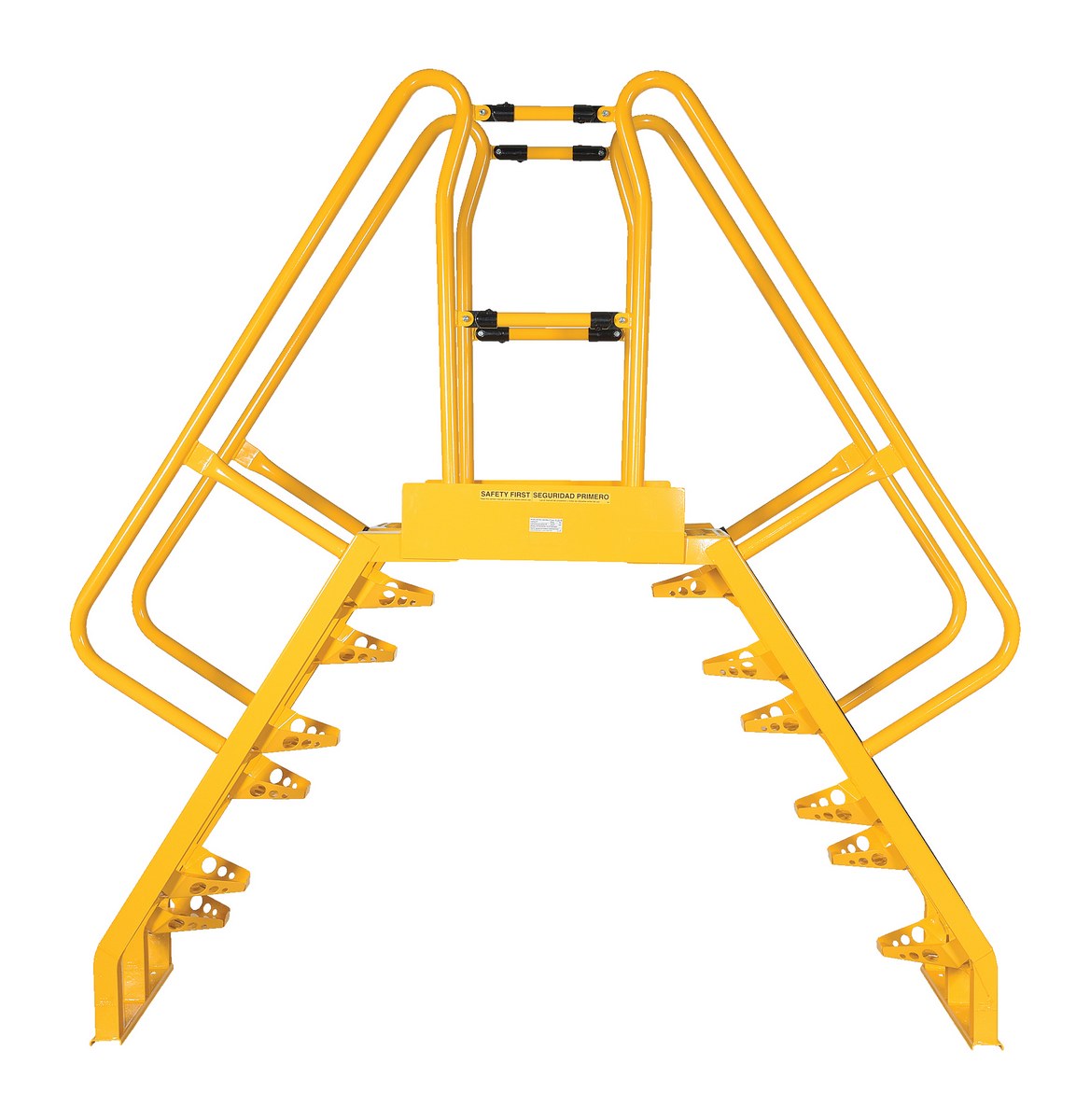

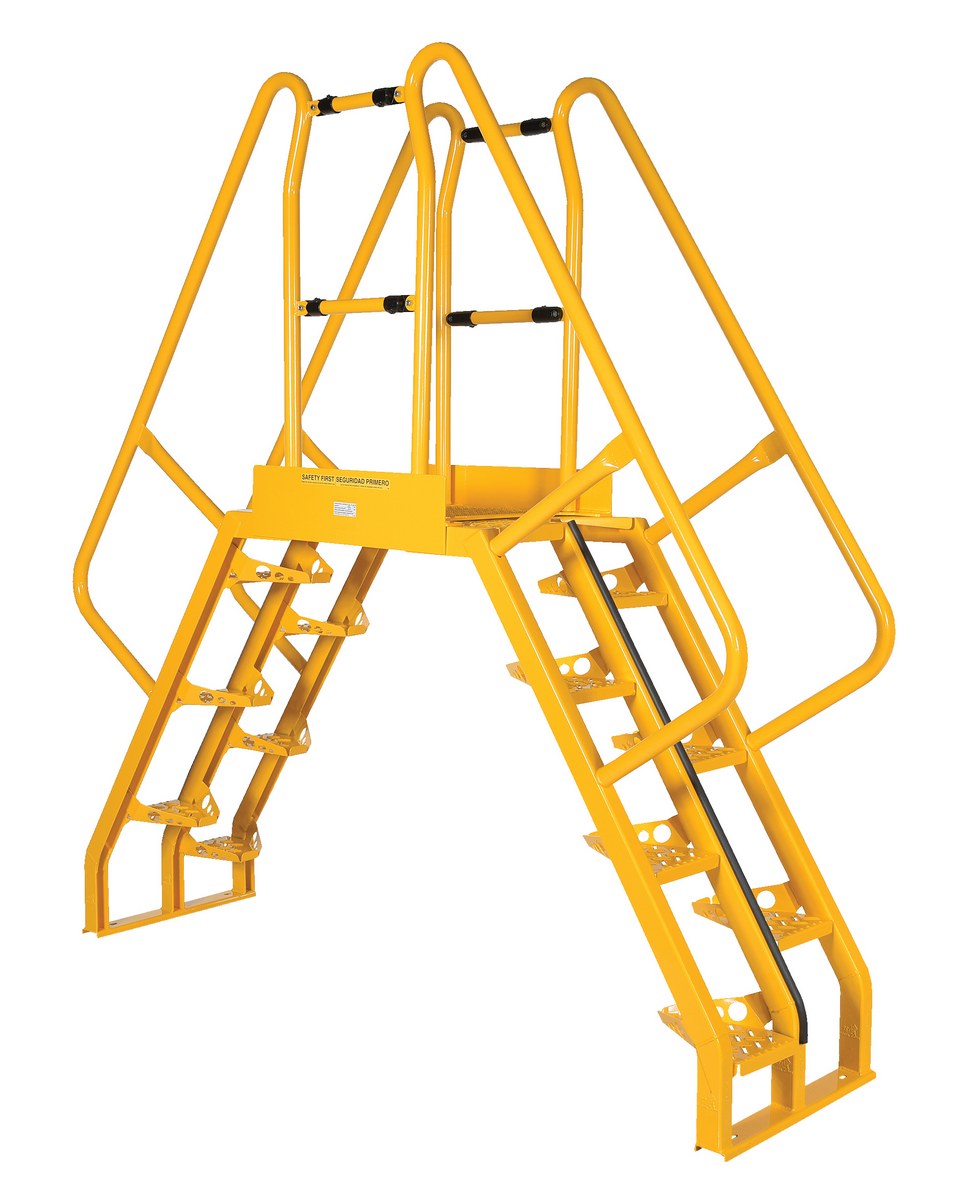

model: COLA-4-56-20

Alternating Step Cross-Over Ladders

SERIES: COLA 48Products

Powder Coat

Alternating Step Crossover Platforms for Compact Industrial Access

Alternating step crossover ladders provide permanent access over conveyors, pipes, machinery, production lines, and other floor-level obstructions where space is limited. The alternating tread design creates a shorter overall span than traditional crossover stairs, helping facilities maintain clear travel paths while improving access across busy work areas.

Space-Saving Crossover Design

The compact stair layout is well suited for manufacturing plants, warehouses, maintenance areas, processing facilities, and equipment access points. Clear span and clear height options allow the ladder to be matched to different obstacles, making it easier to keep personnel moving safely around fixed equipment and restricted floor layouts.

Platform Safety Features

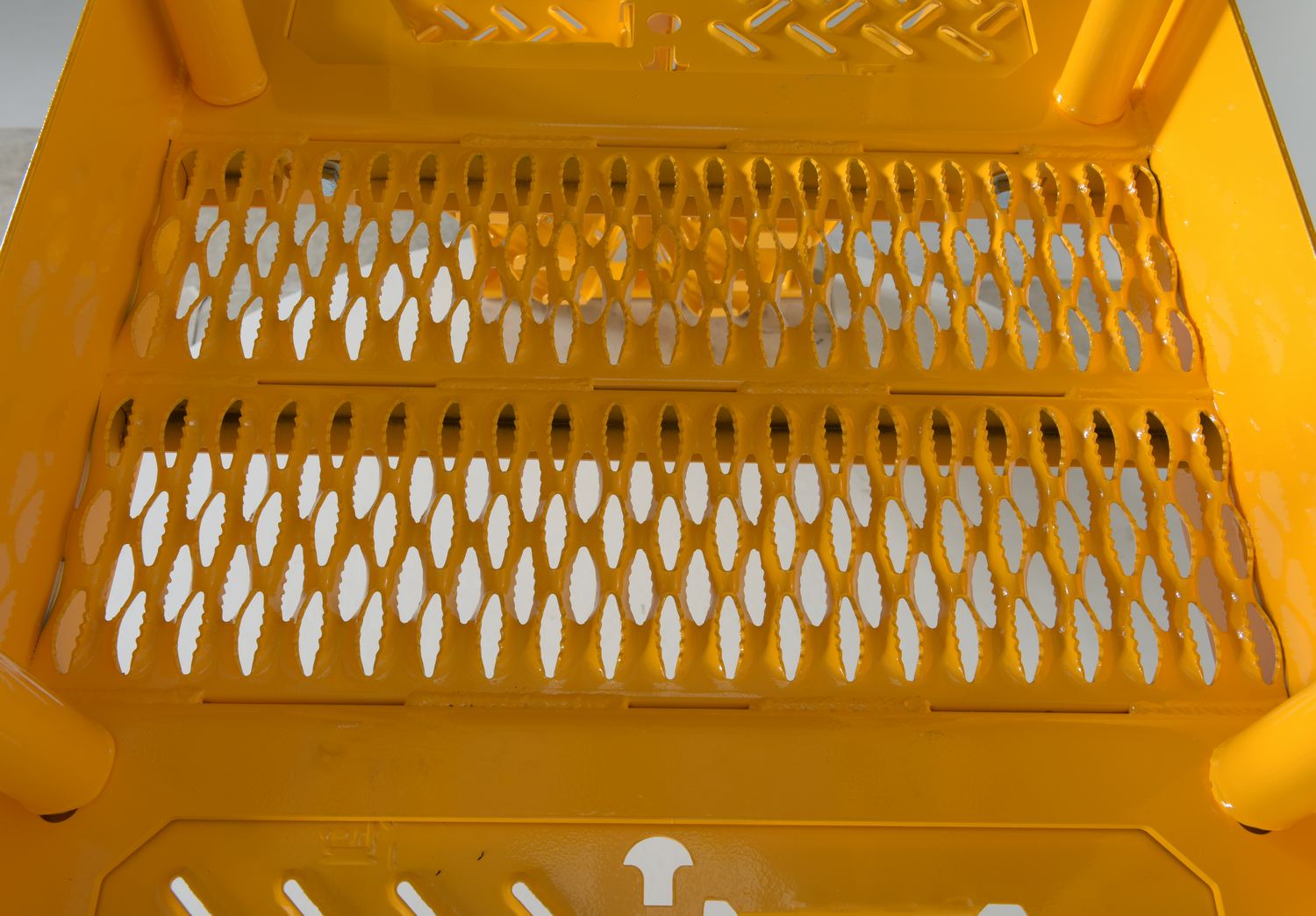

The upper platform includes removable two-sided 39 inch high handrails, a 21 inch mid-rail, and fixed 4 inch toeboards to help prevent objects from rolling off. A 20-1/16 inch usable width between handrails provides practical walk-through access across the platform.

Angles, Capacities, and Installation

This family includes 56 degree and 68 degree step angle models with multiple clear spans and heights to fit different crossover requirements. Steel construction, a durable yellow powder-coated finish, and 350 lb. uniform capacity support long-term industrial use. Pre-drilled lag-down points allow secure floor installation; mounting hardware is not included.

Alternating Step Cross-Over Ladders

model: COLA-4-56-20

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Owner's Manuals

1

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

48

Testing Certificates

48

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

0

No label page PDFs for this product family.

Other PDFs

0

No other PDFs for this product family.

Print Friendly

Related or Similar Products:

More From Ladders

Tip-N-Roll Mobile Ladders

Tip-N-Roll Mobile Ladders

Fiberglass Industrial Step Stands

Fiberglass Industrial Step Stands

Roll-A-Fold Ladders

Roll-A-Fold Ladders

Folding Ladders with Wheels

Folding Ladders with Wheels

Aluminum Cross-Over Ladders

Aluminum Cross-Over Ladders

Rolling Warehouse Ladders (6-11 Step)

Rolling Warehouse Ladders (6-11 Step)

Alternating Step Cross-Over La...

Alternating Step Crossover Platforms for Compact Industrial Access

Alternating step crossover ladders provide permanent access over conveyors, pipes, machinery, production lines, and other floor-level obstructions where space is limited. The alternating tread design creates a shorter overall span than traditional crossover stairs, helping facilities maintain clear travel paths while improving access across busy work areas.

Space-Saving Crossover Design

The compact stair layout is well suited for manufacturing plants, warehouses, maintenance areas, processing facilities, and equipment access points. Clear span and clear height options allow the ladder to be matched to different obstacles, making it easier to keep personnel moving safely around fixed equipment and restricted floor layouts.

Platform Safety Features

The upper platform includes removable two-sided 39 inch high handrails, a 21 inch mid-rail, and fixed 4 inch toeboards to help prevent objects from rolling off. A 20-1/16 inch usable width between handrails provides practical walk-through access across the platform.

Angles, Capacities, and Installation

This family includes 56 degree and 68 degree step angle models with multiple clear spans and heights to fit different crossover requirements. Steel construction, a durable yellow powder-coated finish, and 350 lb. uniform capacity support long-term industrial use. Pre-drilled lag-down points allow secure floor installation; mounting hardware is not included.

Model #		Description	Attributes	Net Wt. (lbs)
COLA-2-56-20		Steel Alternating Crossover Ladder 8 Step 56 Degrees 79 In. x 73 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	324

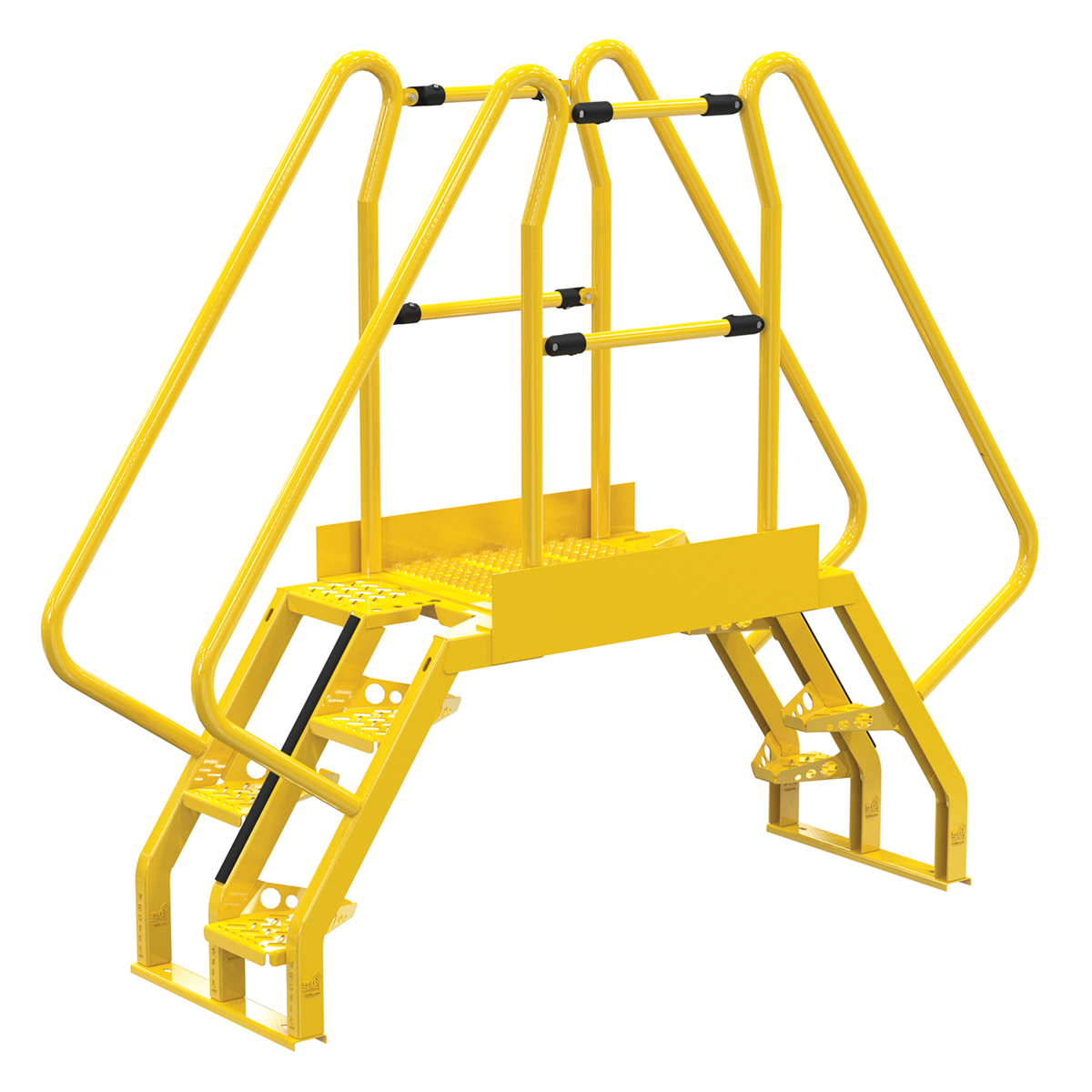

COLA-2-56-32		Steel Alternating Crossover Ladder 8 Step 56 Degrees 86 In. x 73 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	357

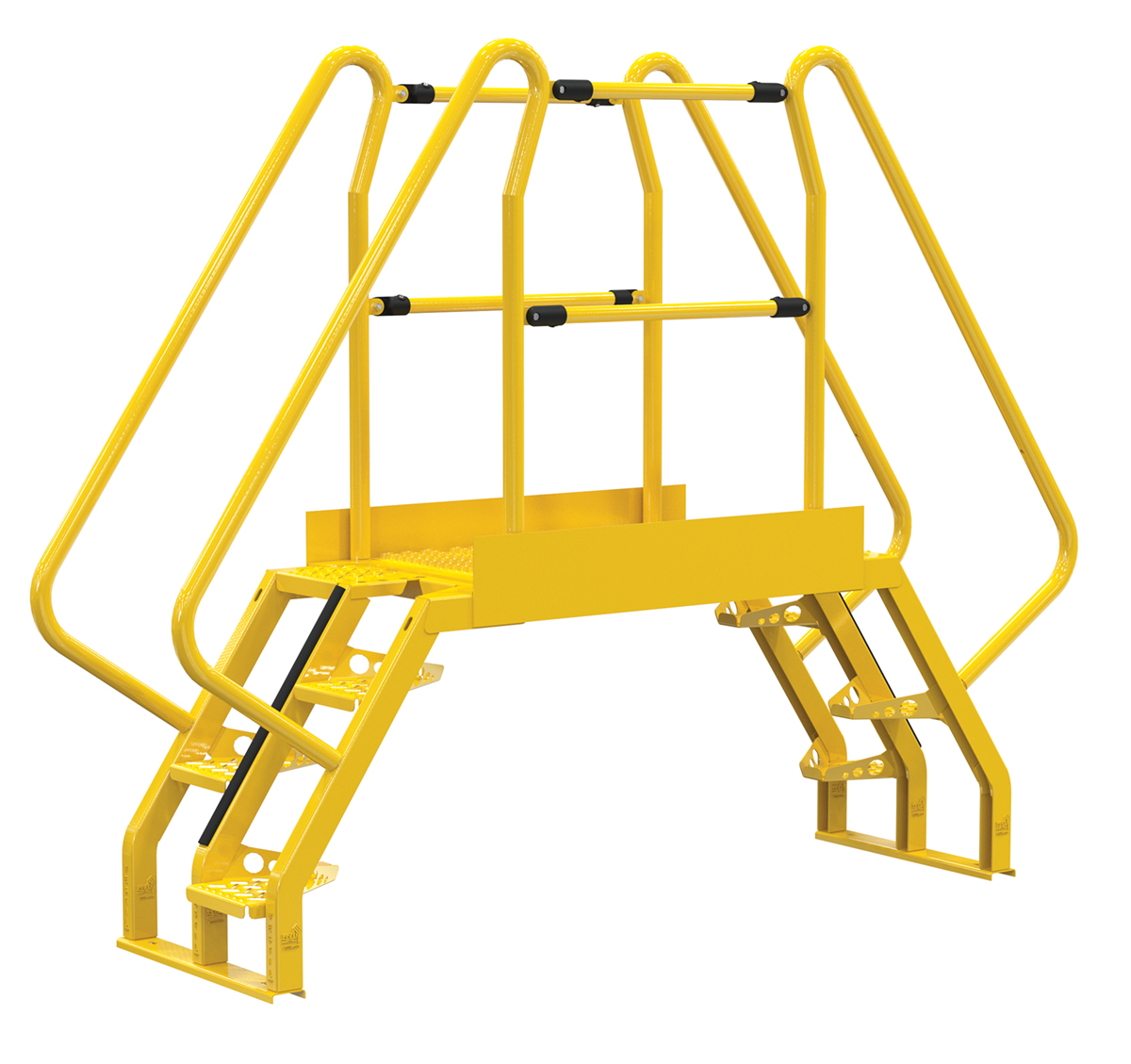

COLA-2-56-44		Steel Alternating Crossover Ladder 8 Step 56 Degrees 93 In. x 73 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	390

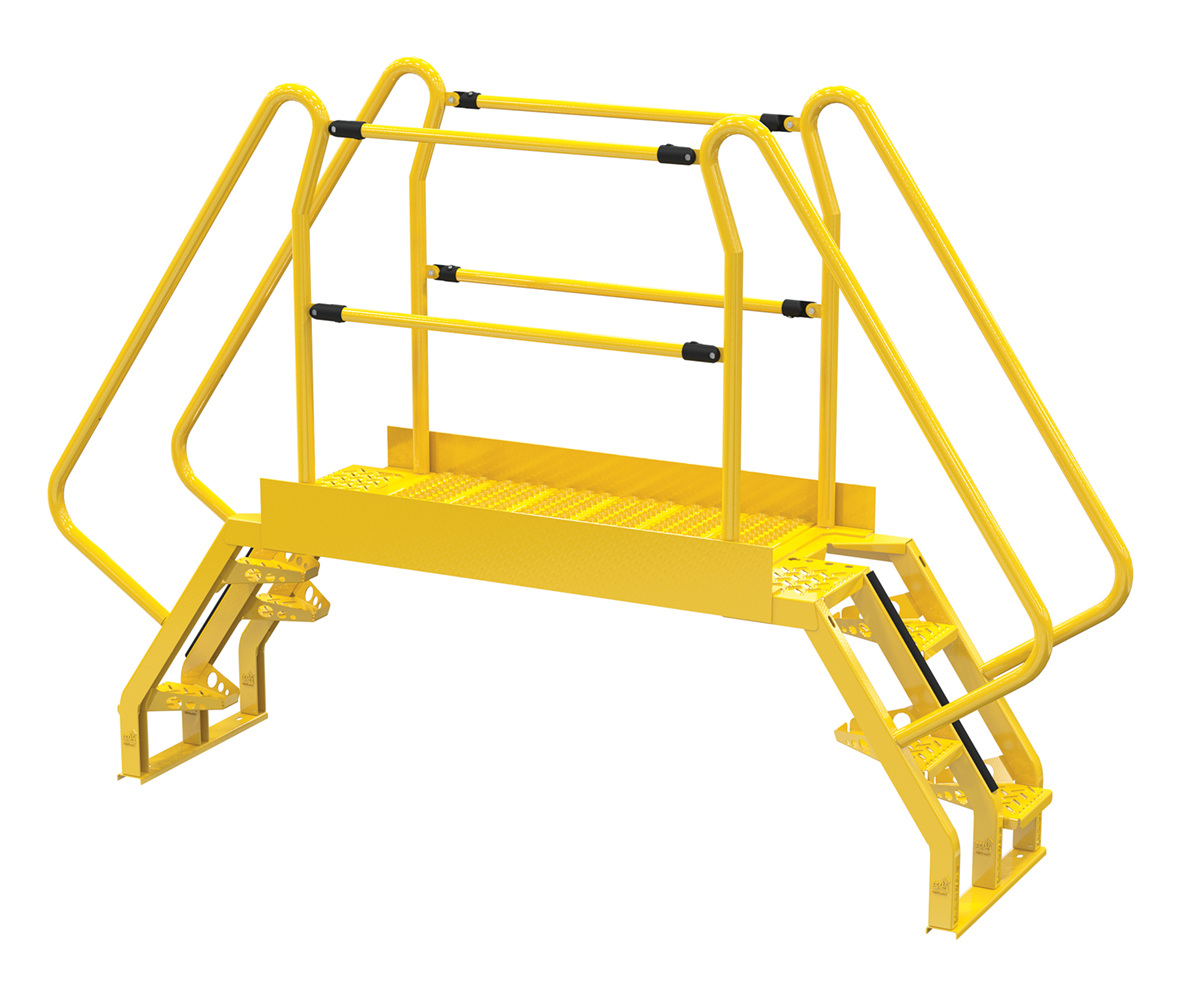

COLA-2-56-56		Steel Alternating Crossover Ladder 8 Step 56 Degrees 107 In. x 73 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	423

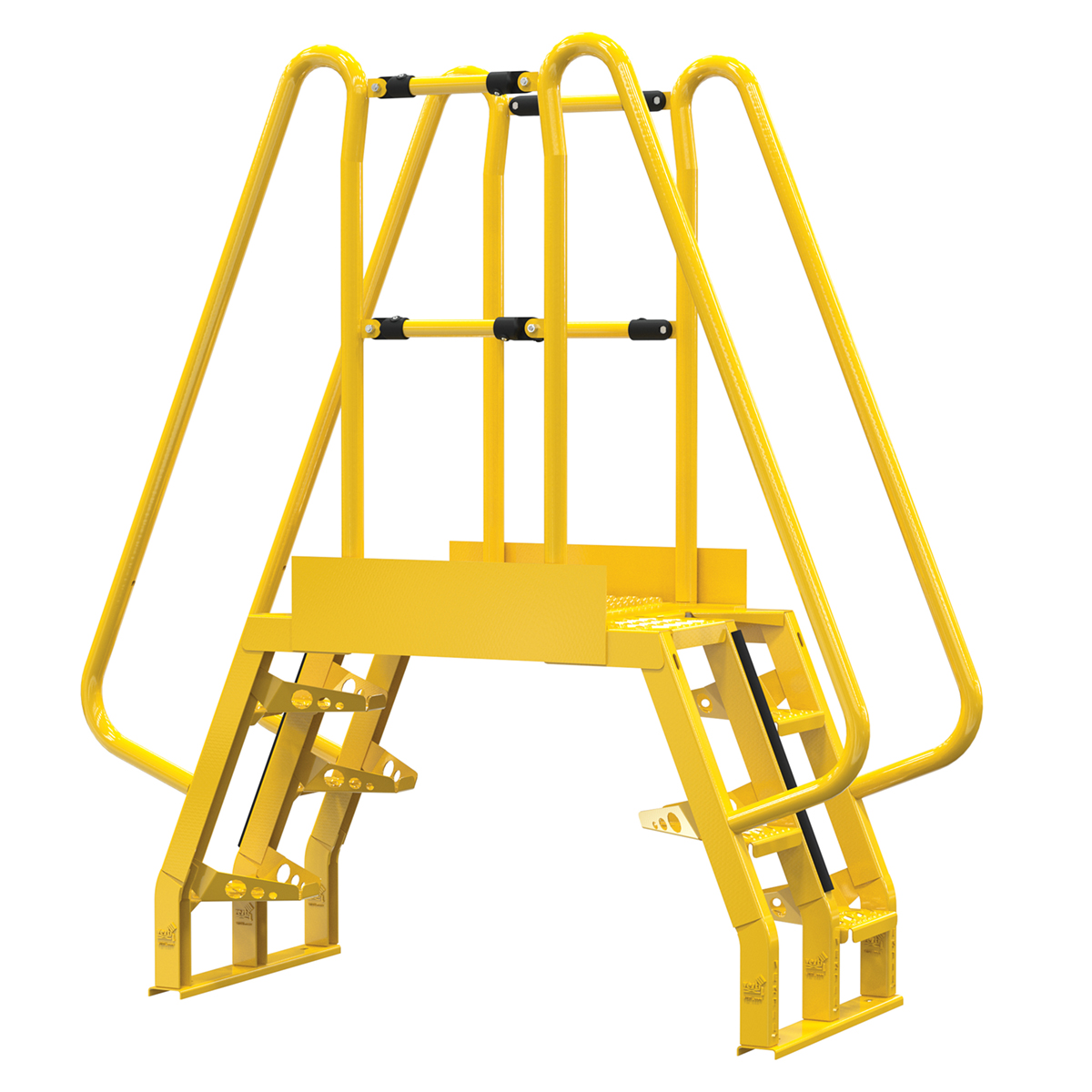

COLA-2-68-20		Steel Alternating Crossover Ladder 8 Step 68 Degrees 66 In. x 72 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	296

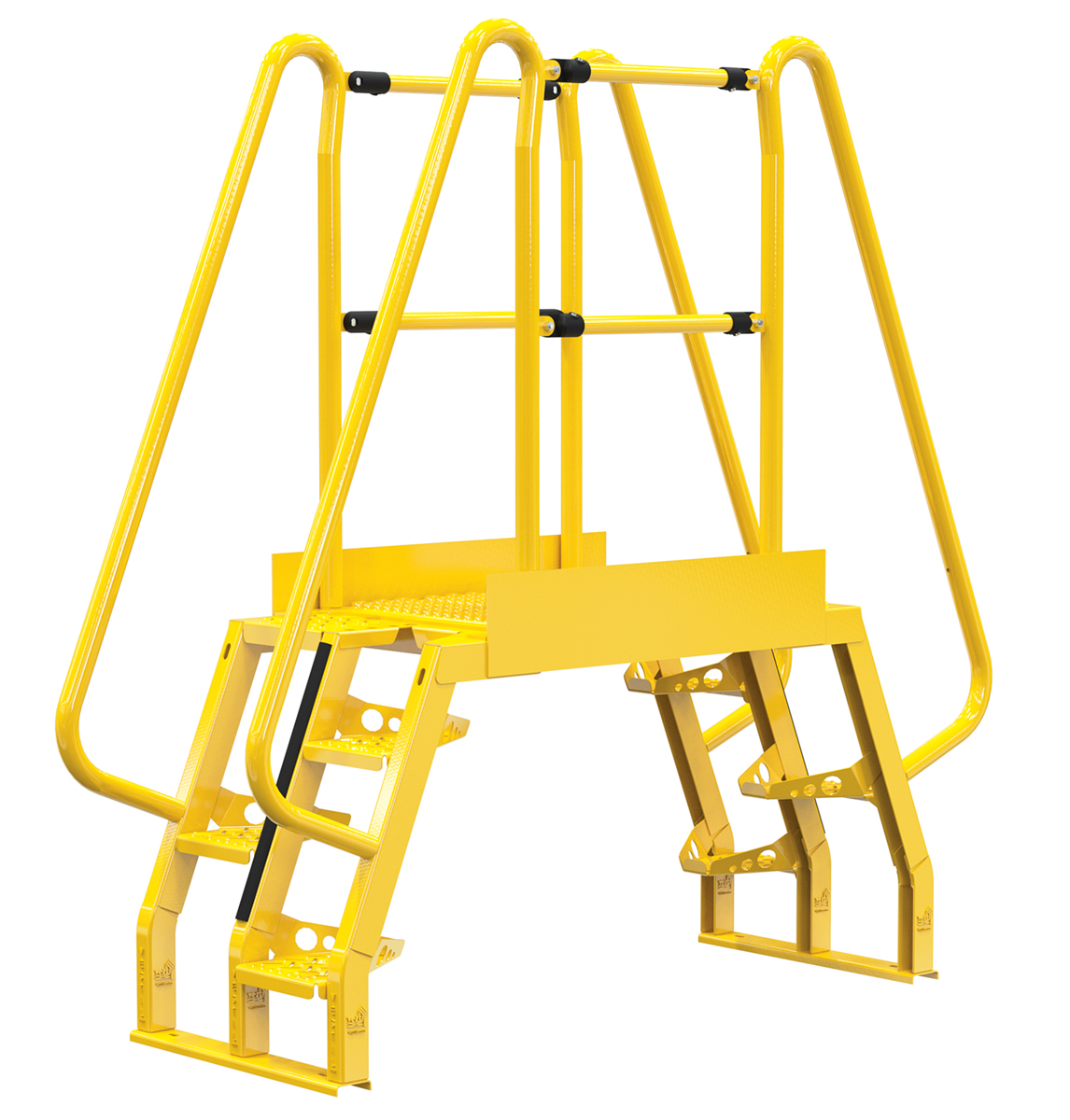

COLA-2-68-32		Steel Alternating Crossover Ladder 8 Step 68 Degrees 73 In. x 72 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	329

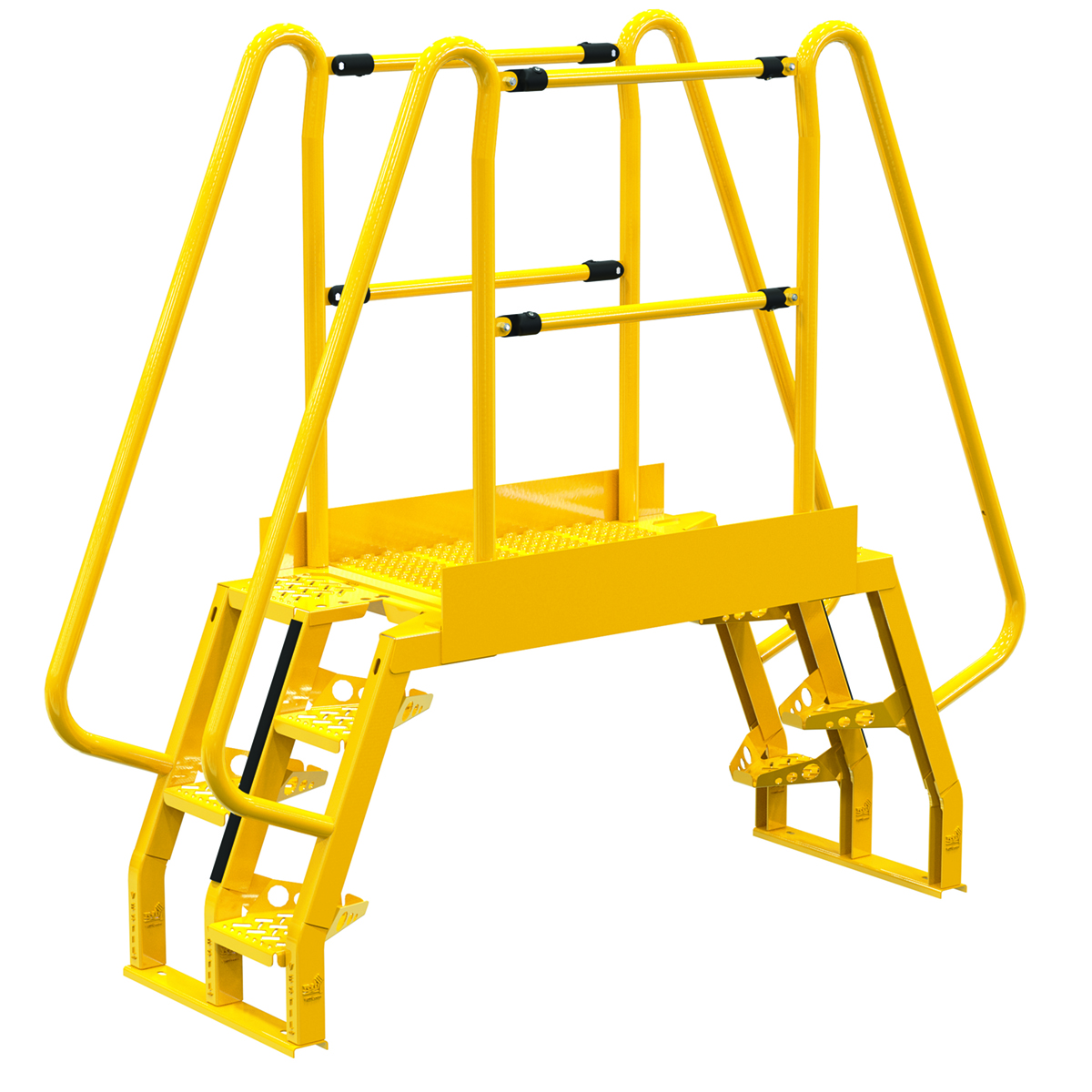

COLA-2-68-44		Steel Alternating Crossover Ladder 8 Step 68 Degrees 80 In. x 72 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	362

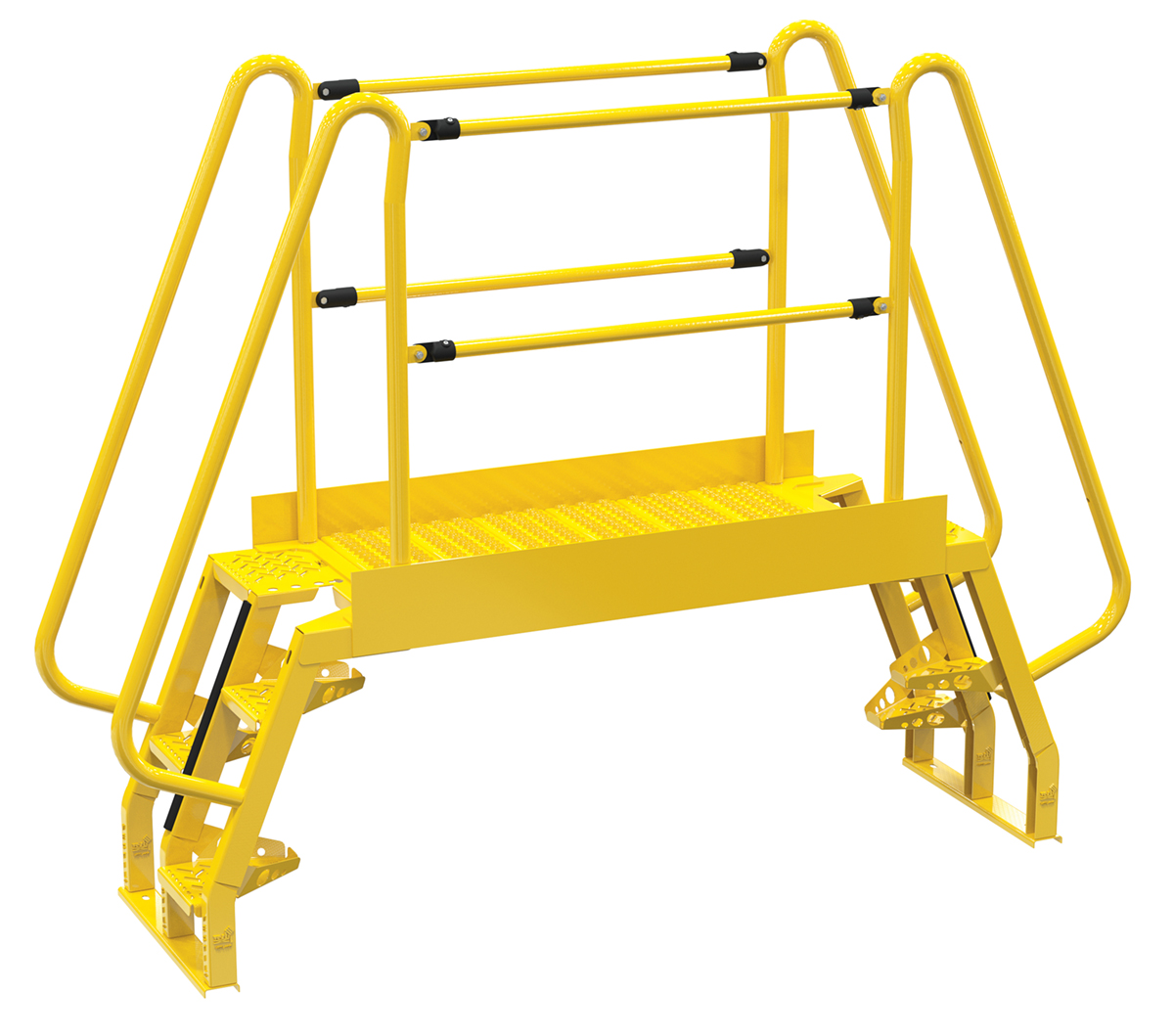

COLA-2-68-56		Steel Alternating Crossover Ladder 8 Step 68 Degrees 94 In. x 72 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4	396

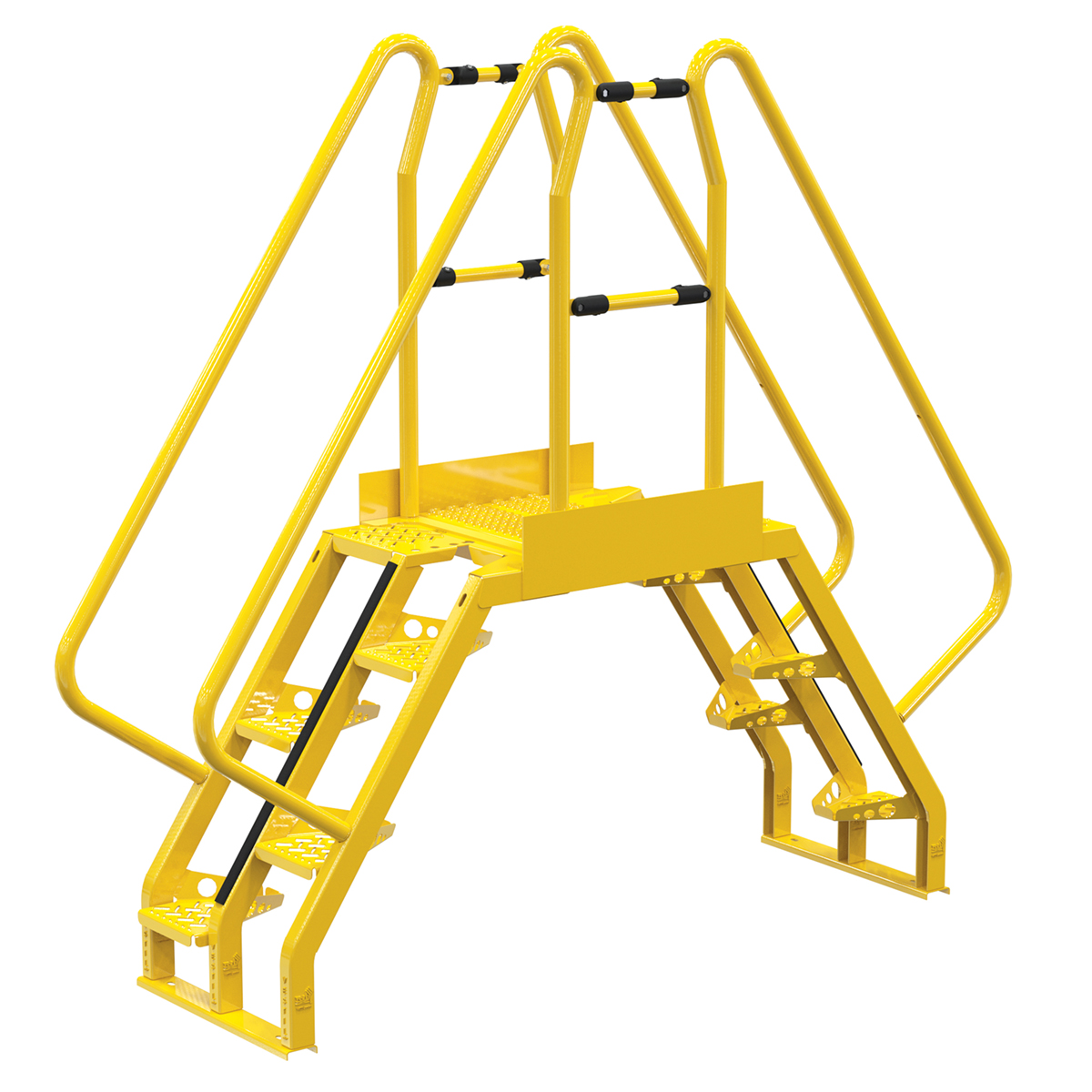

COLA-3-56-20		Steel Alternating Crossover Ladder 10 Step 56 Degrees 88 In. x 81 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	324

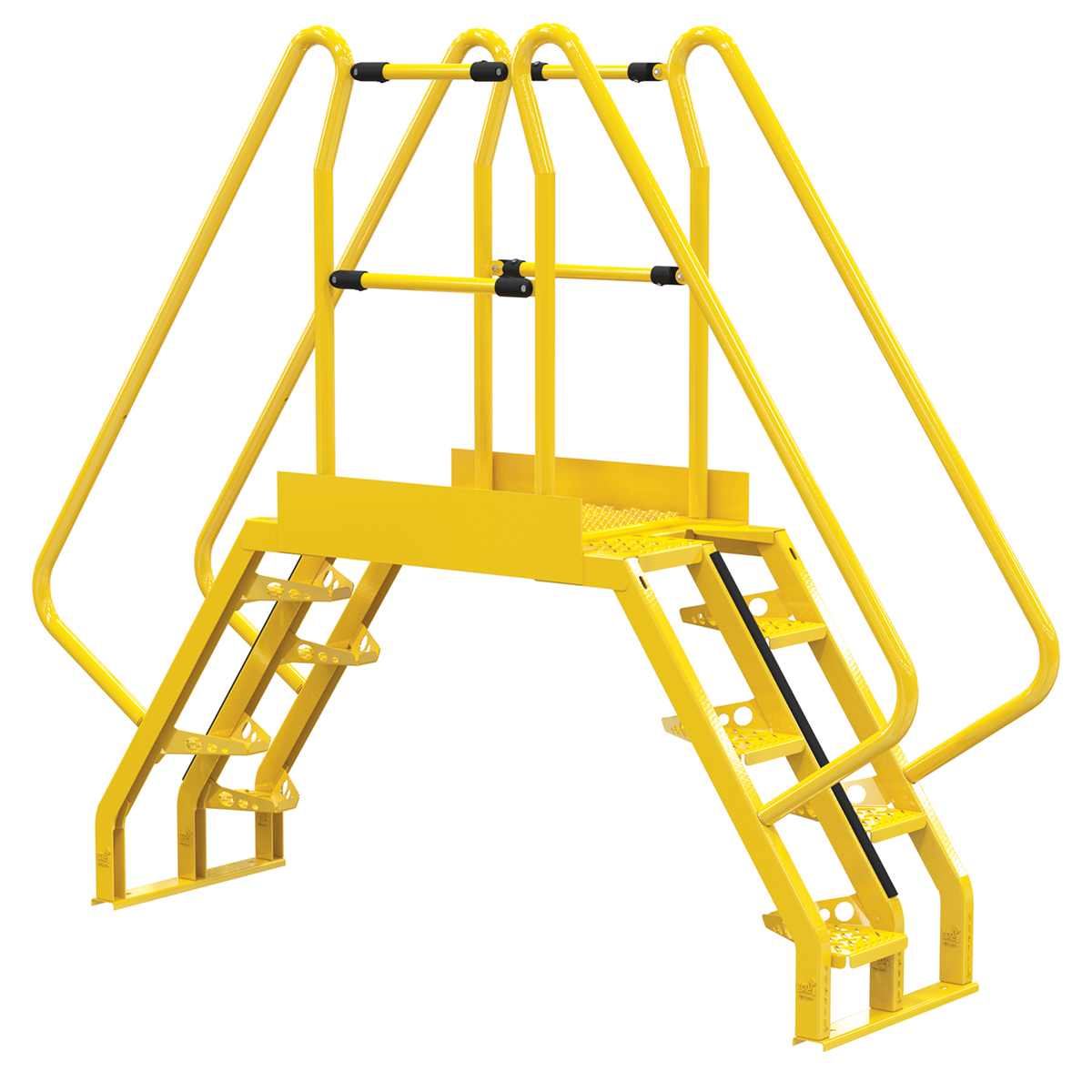

COLA-3-56-32		Steel Alternating Crossover Ladder 10 Step 56 Degrees 96 In. x 81 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	357

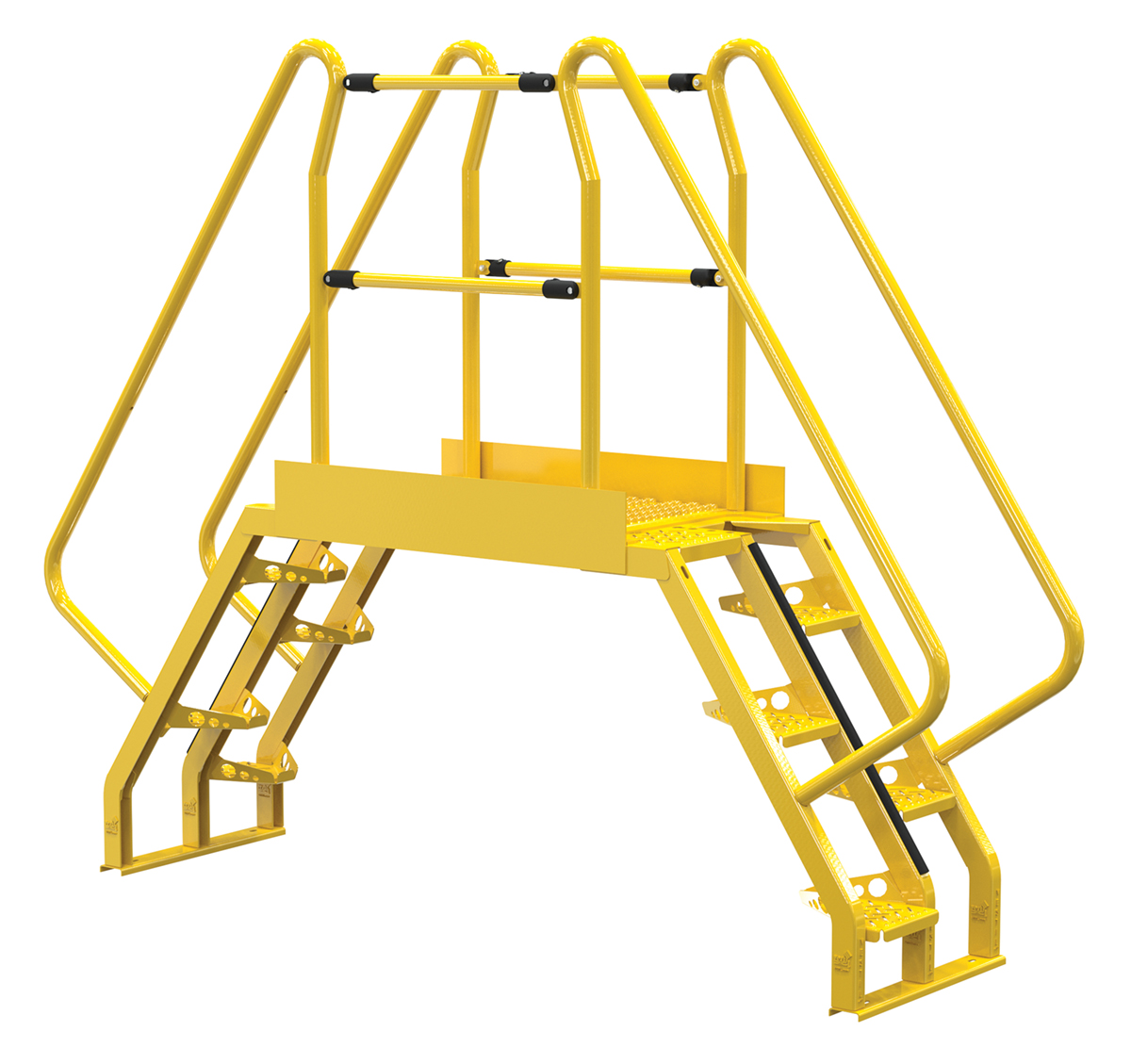

COLA-3-56-44		Steel Alternating Crossover Ladder 10 Step 56 Degrees 103 In. x 81 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	390

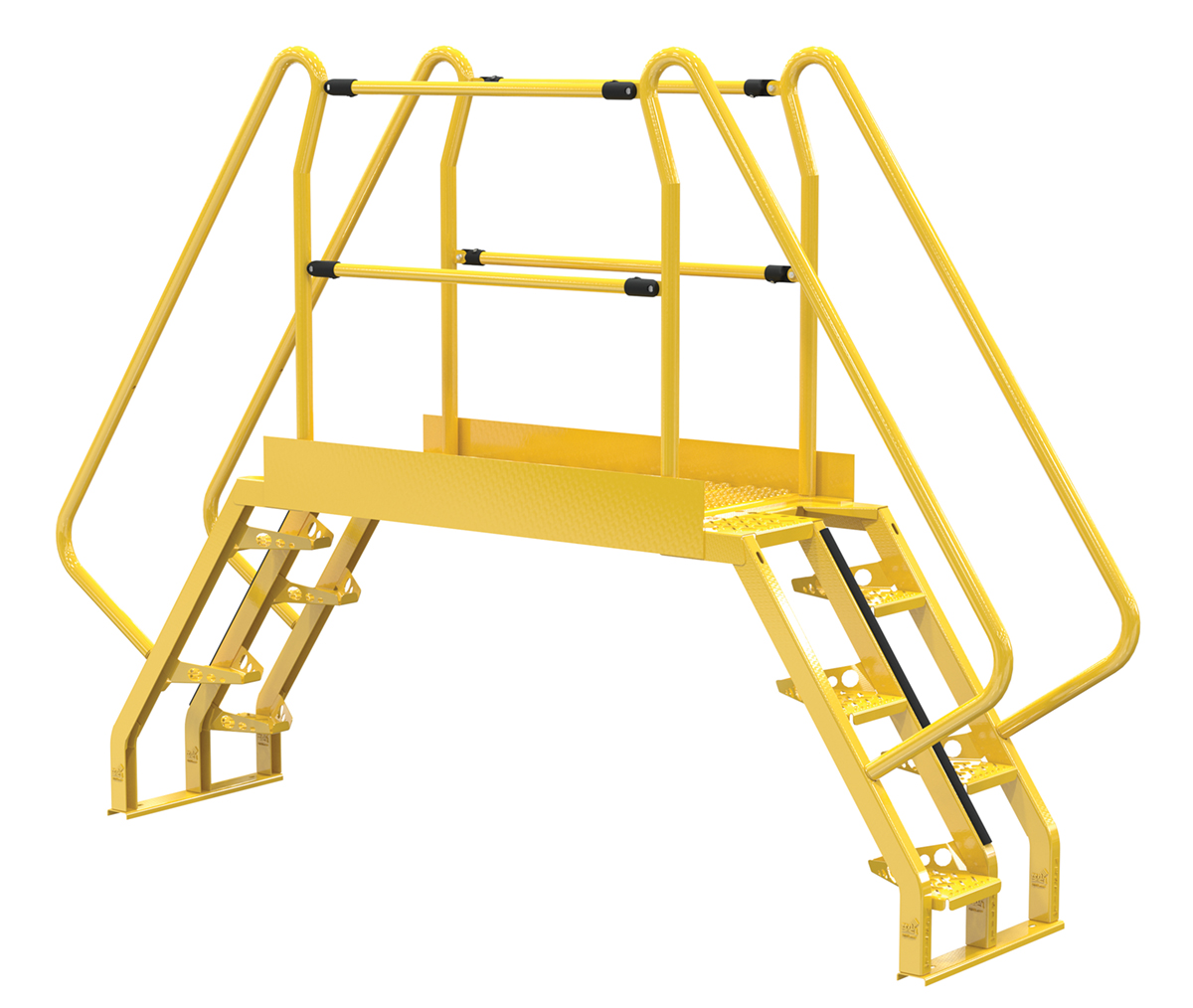

COLA-3-56-56		Steel Alternating Crossover Ladder 10 Step 56 Degrees 117 In. x 81 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	423

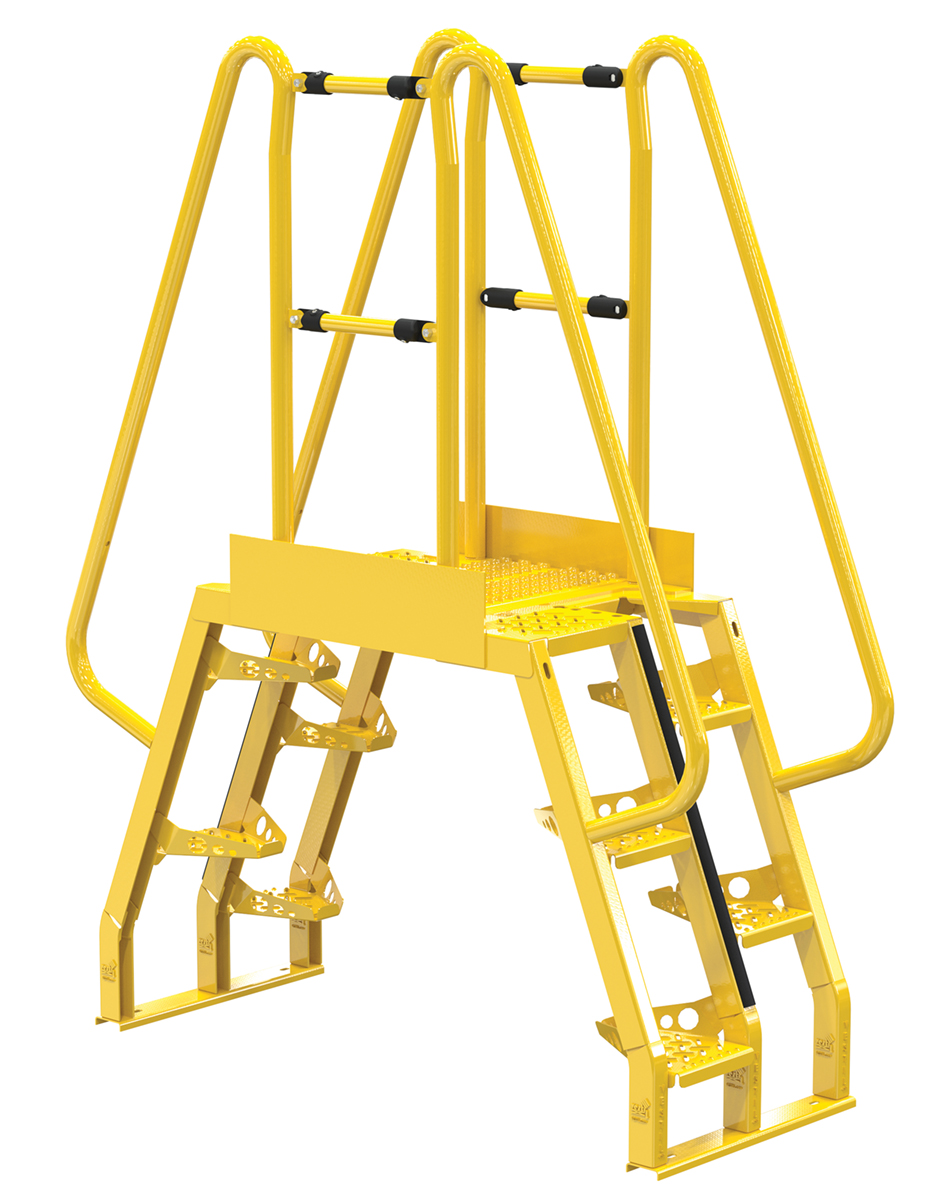

COLA-3-68-20		Steel Alternating Crossover Ladder 10 Step 68 Degrees 66 In. x 80 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	296

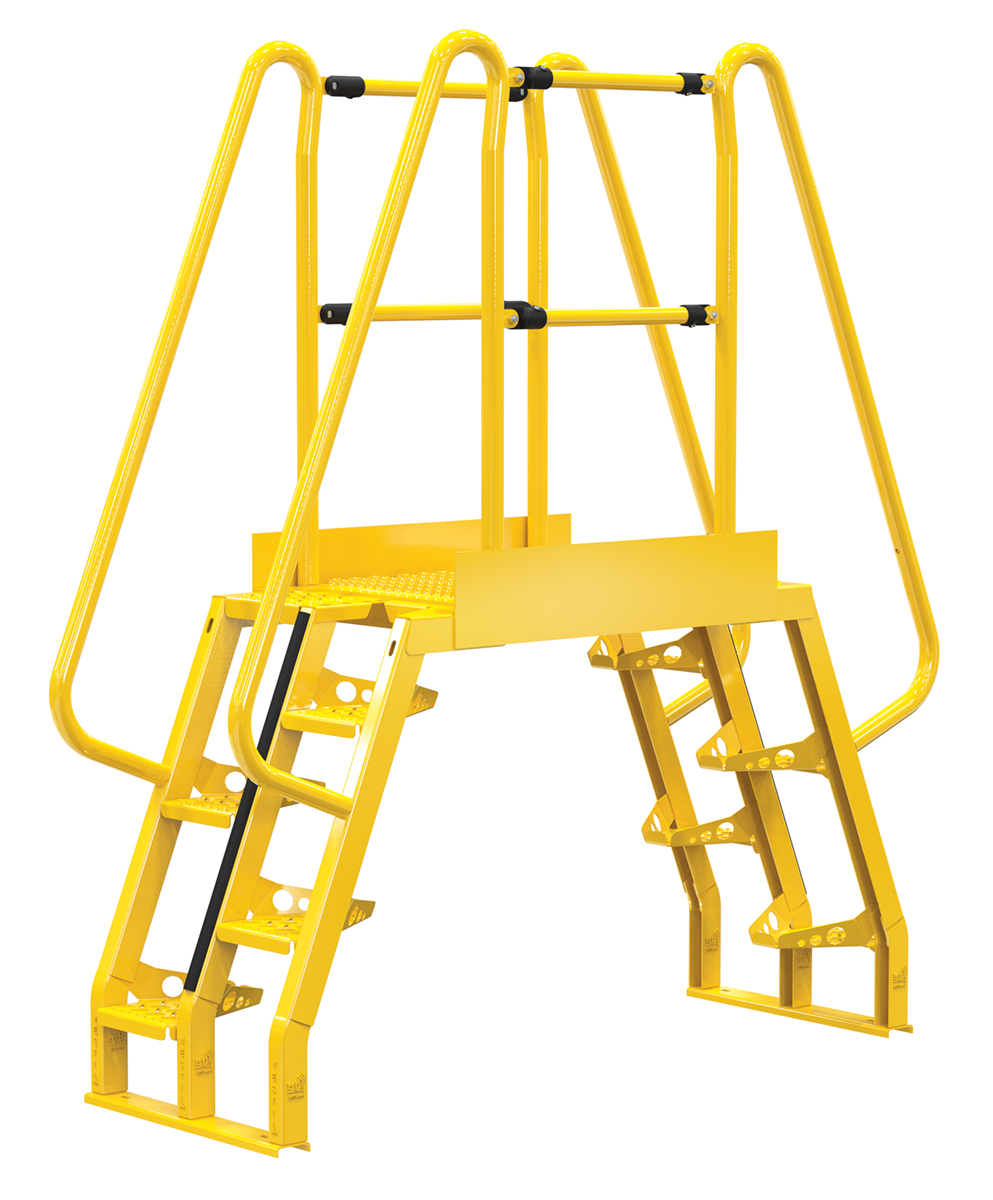

COLA-3-68-32		Steel Alternating Crossover Ladder 10 Step 68 Degrees 73 In. x 80 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	329
COLA-3-68-44		Steel Alternating Crossover Ladder 10 Step 68 Degrees 80 In. x 80 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	362

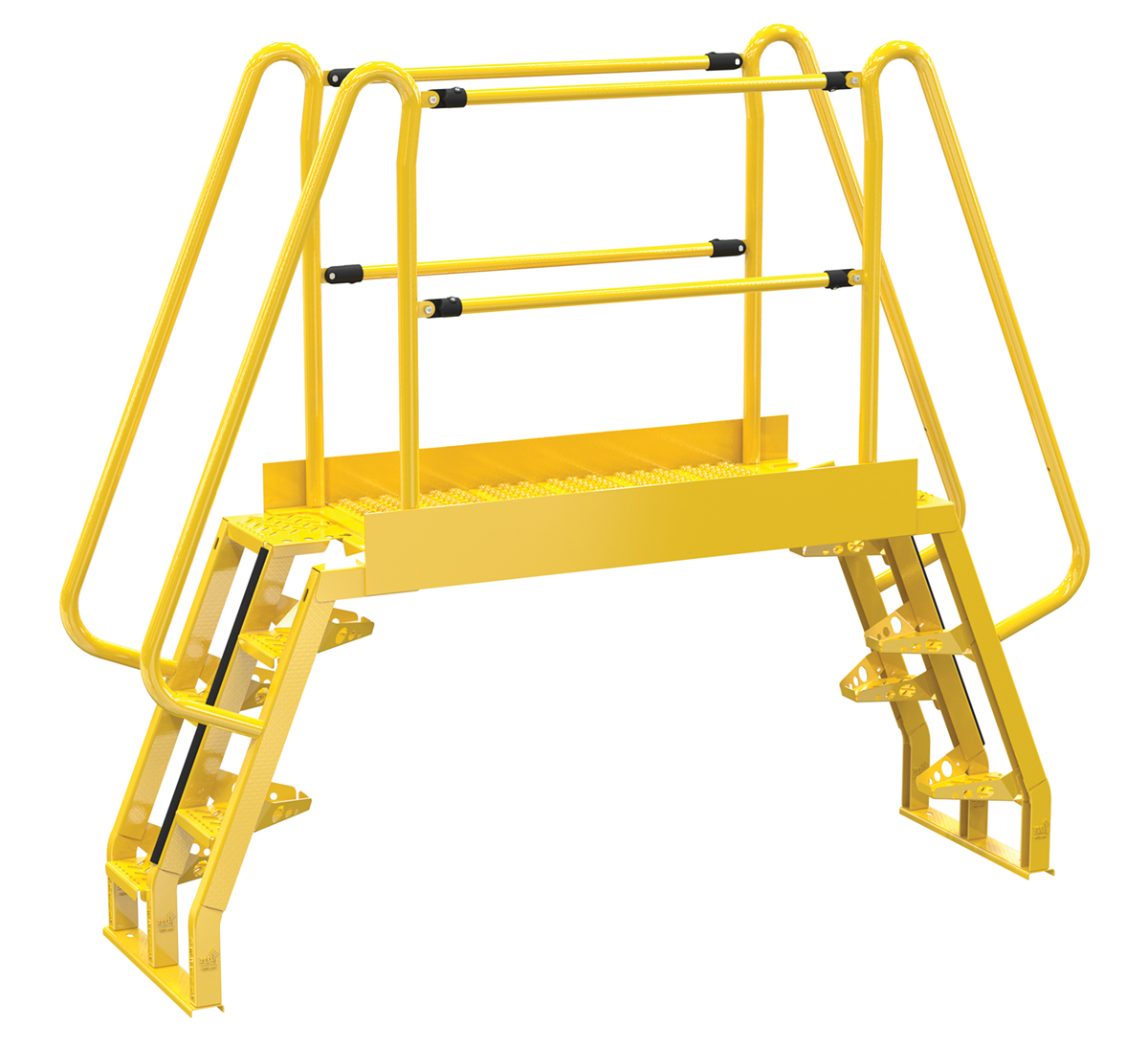

COLA-3-68-56		Steel Alternating Crossover Ladder 10 Step 68 Degrees 94 In. x 80 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 5	363

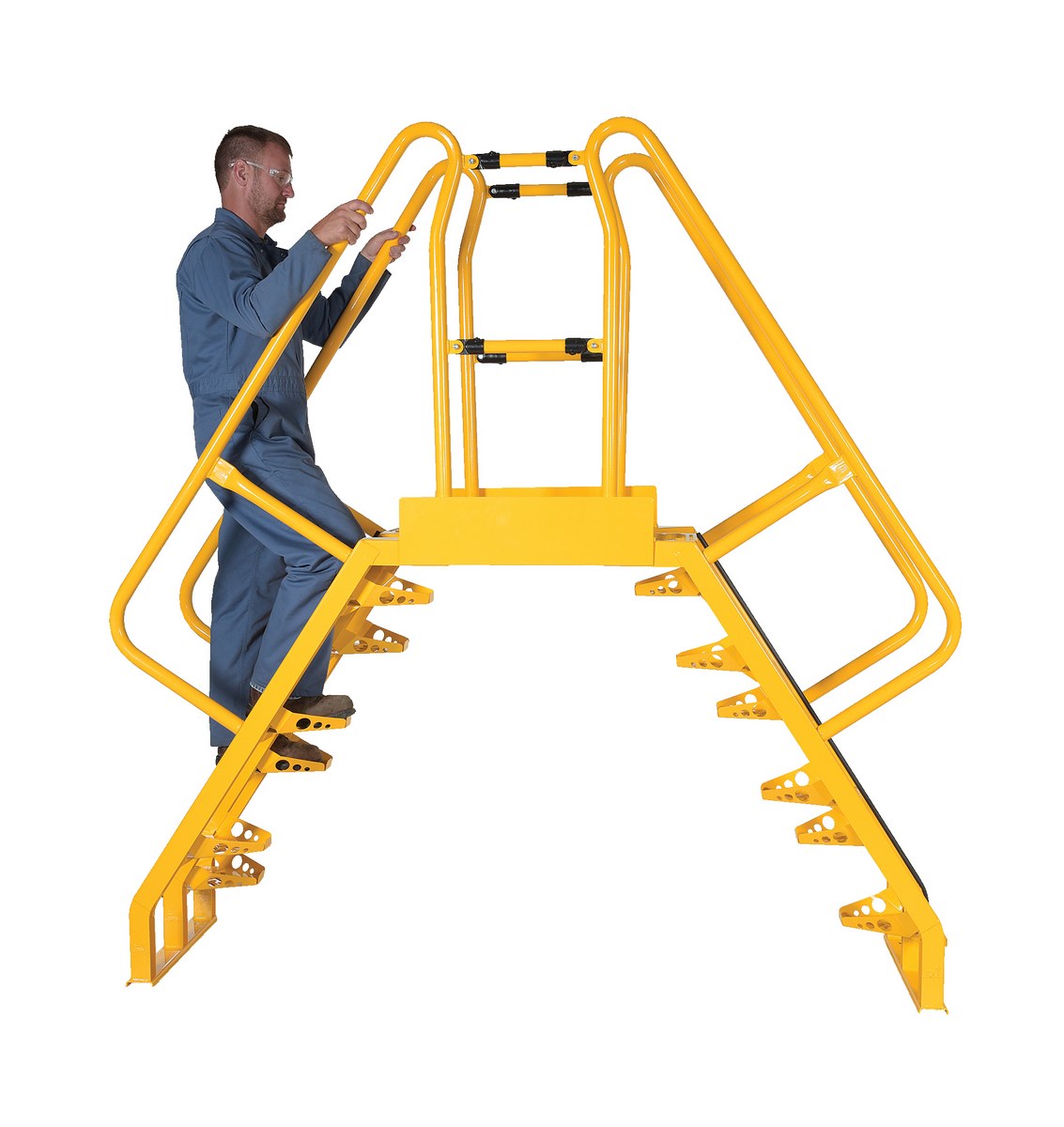

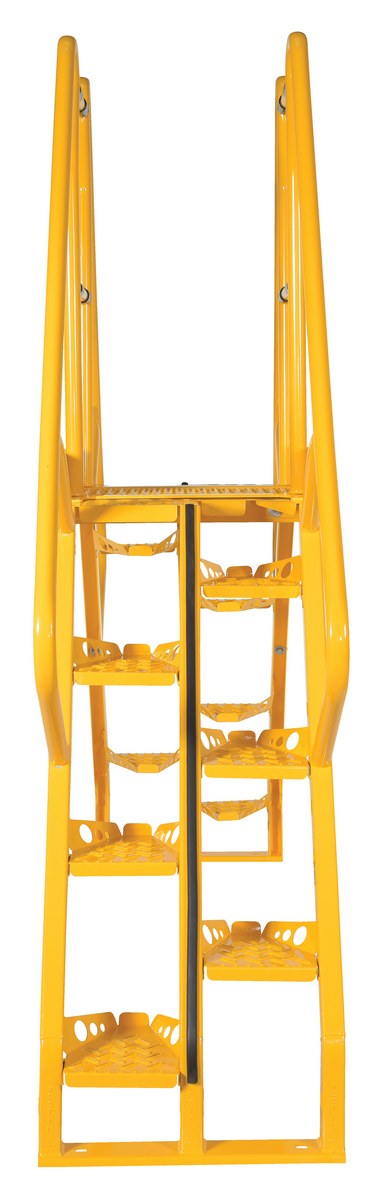

COLA-4-56-20		Steel Alternating Crossover Ladder 14 Step 56 Degrees 91 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	324

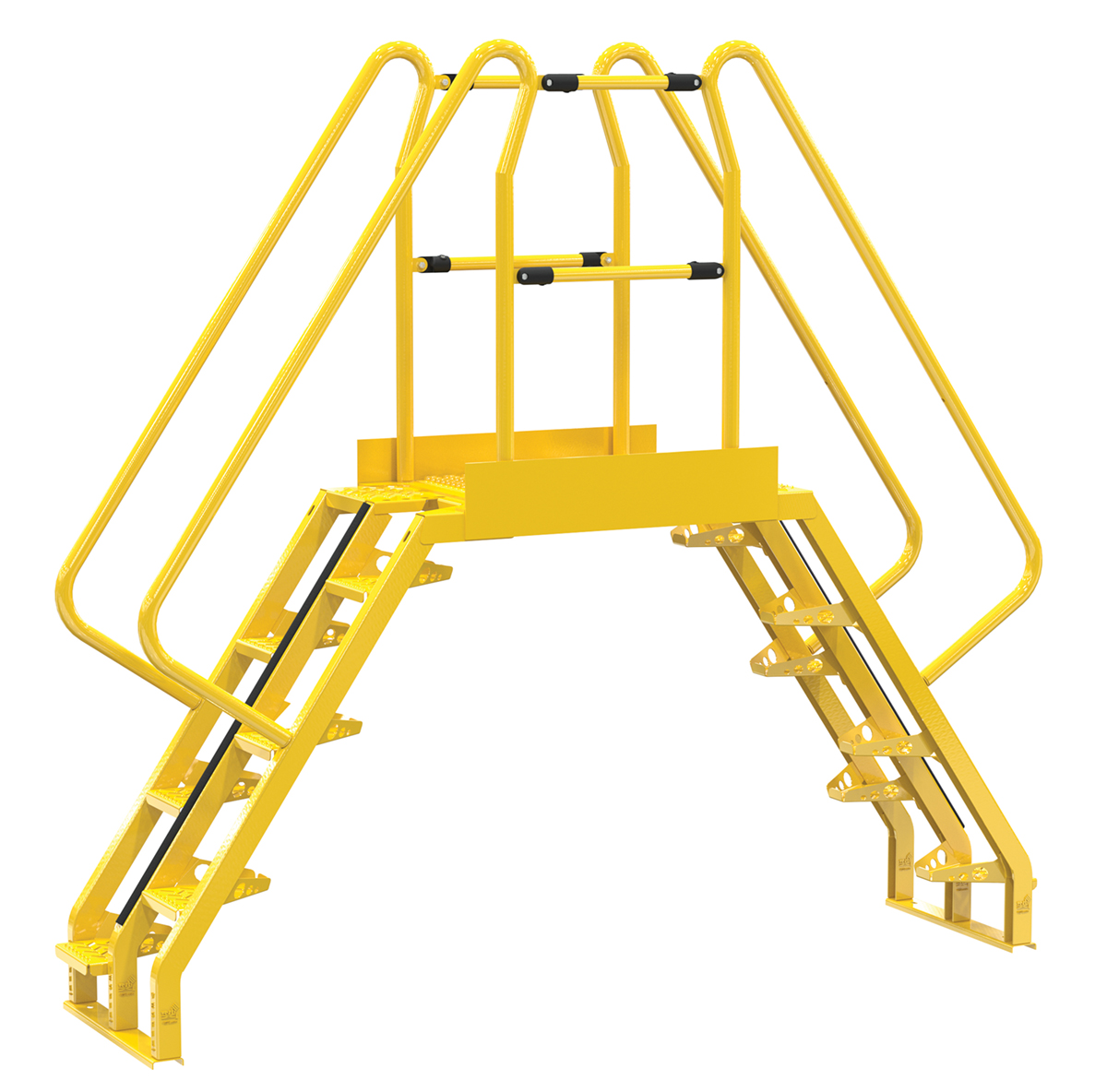

COLA-4-56-32		Steel Alternating Crossover Ladder 14 Step 56 Degrees 98 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	357

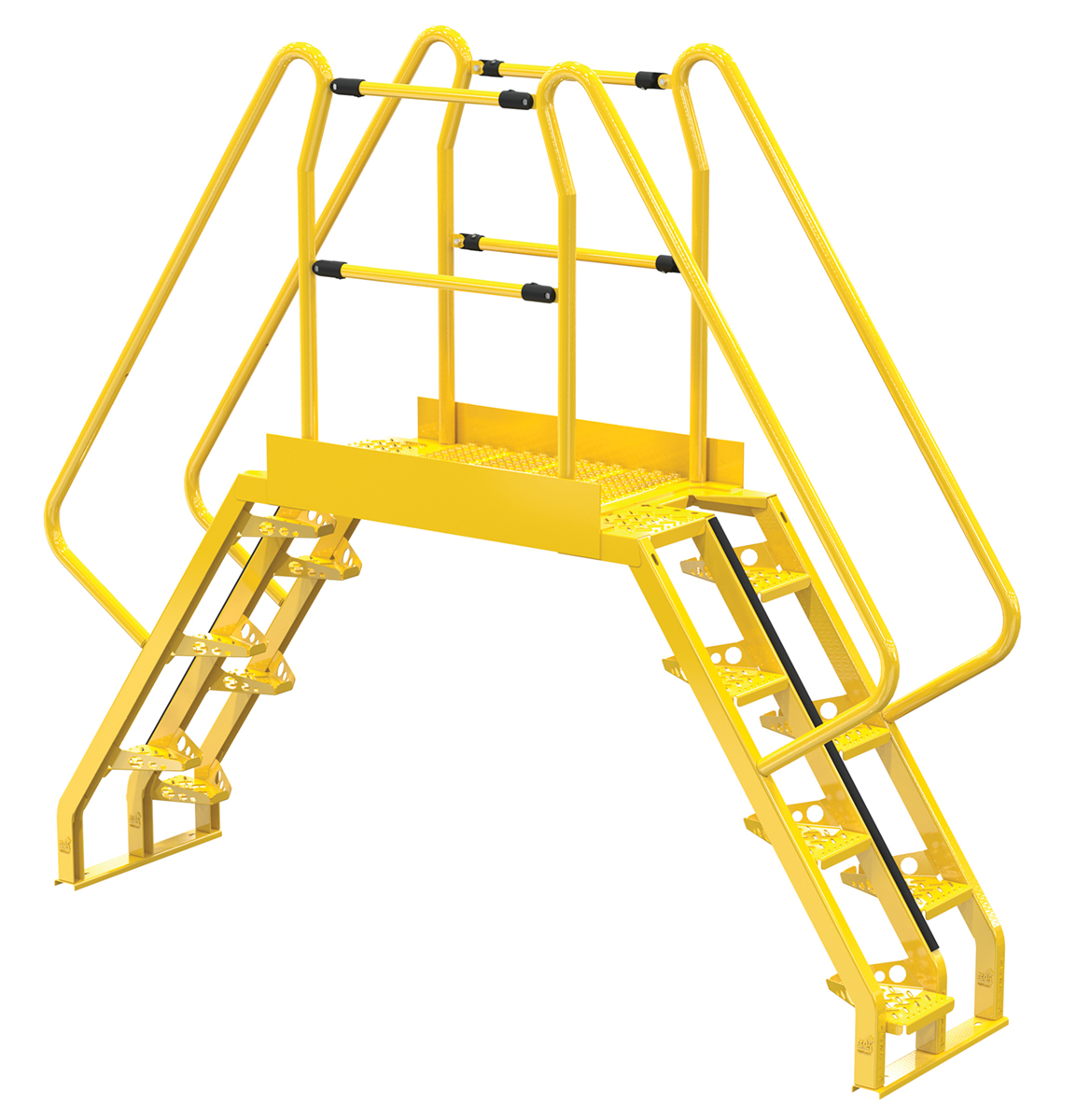

COLA-4-56-44		Steel Alternating Crossover Ladder 14 Step 56 Degrees 105 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	390

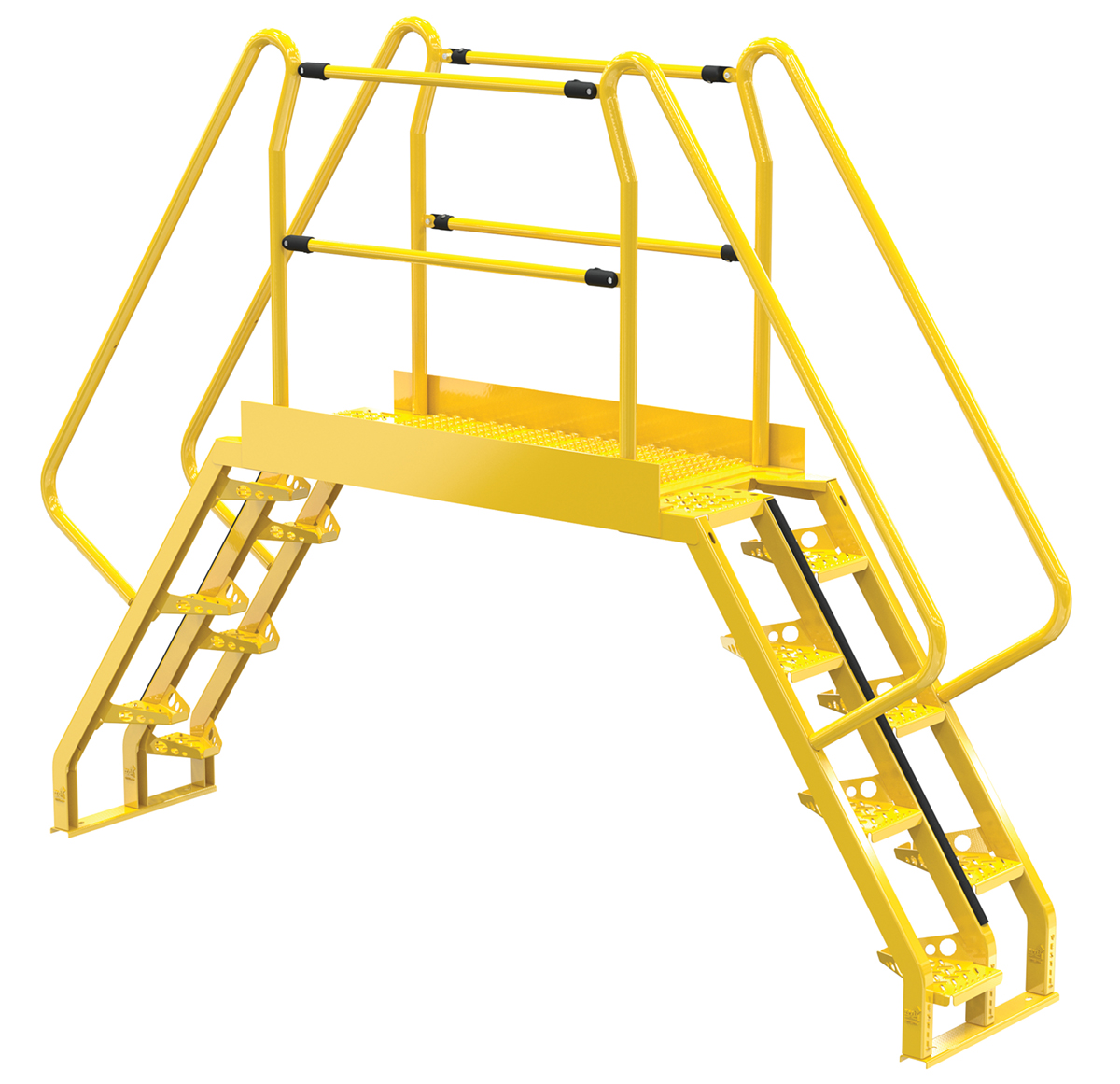

COLA-4-56-56		Steel Alternating Crossover Ladder 14 Step 56 Degrees 119 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	423

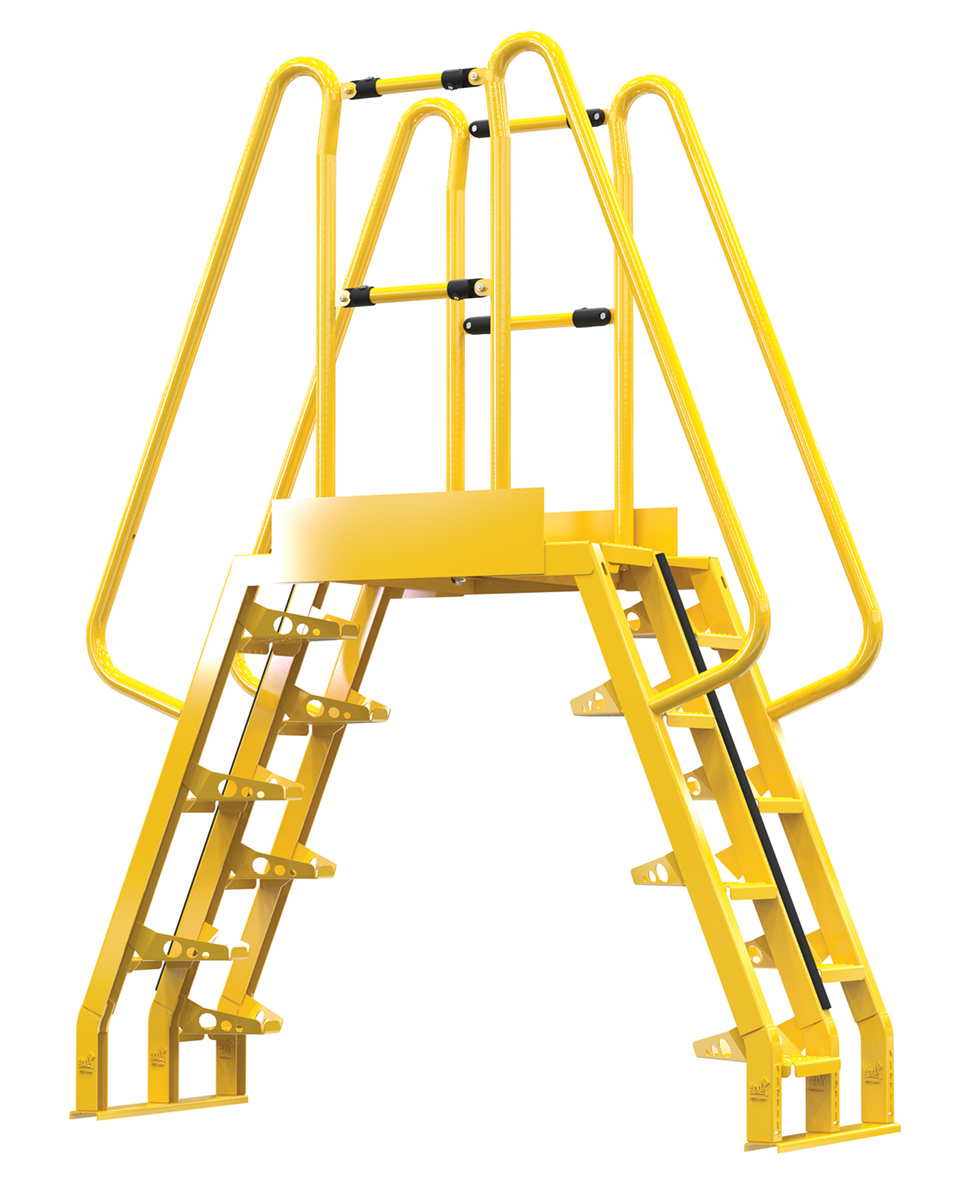

COLA-4-68-20		Steel Alternating Crossover Ladder 14 Step 68 Degrees 69 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	353

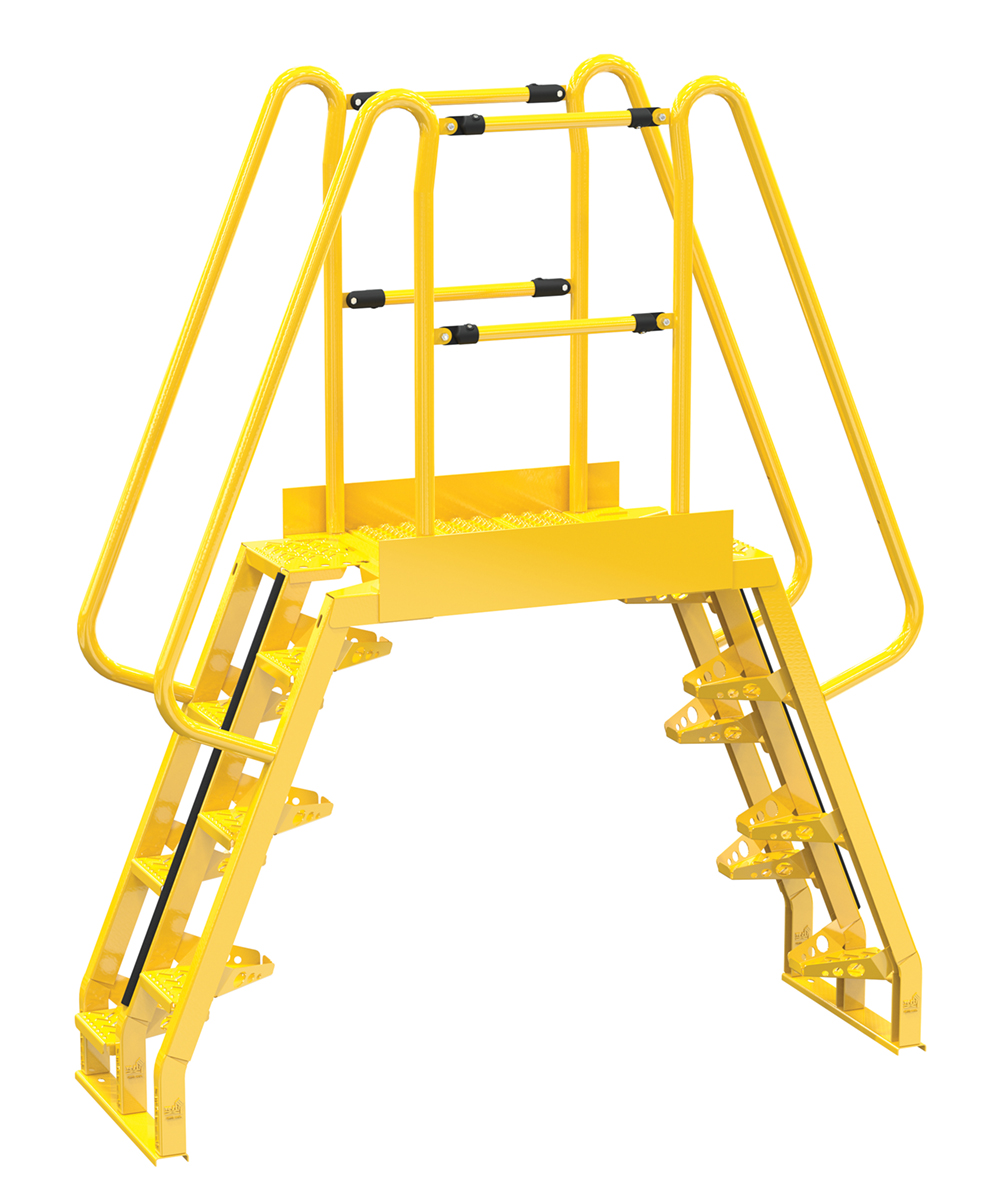

COLA-4-68-32		Steel Alternating Crossover Ladder 14 Step 68 Degrees 76 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	361

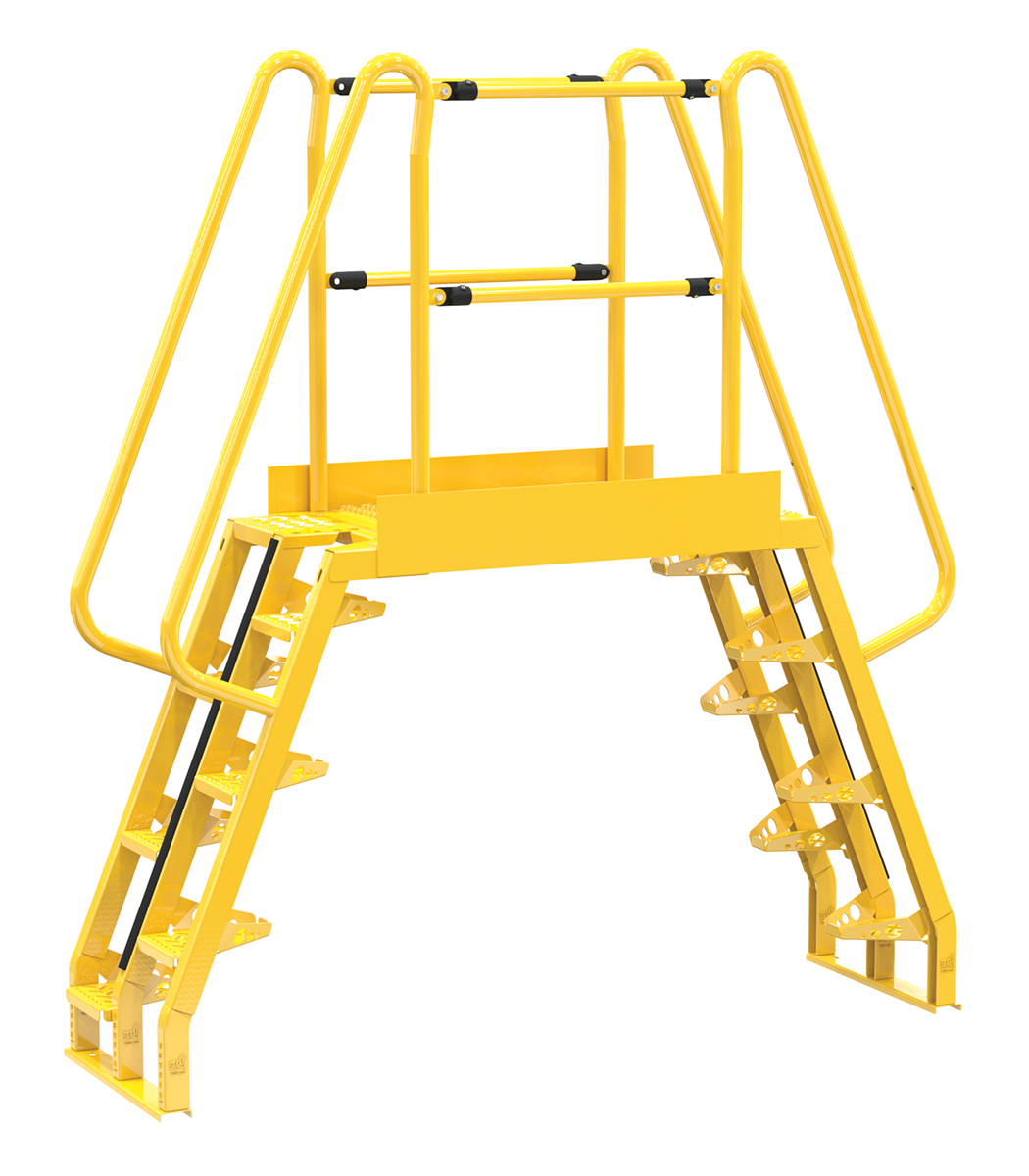

COLA-4-68-44		Steel Alternating Crossover Ladder 14 Step 68 Degrees 83 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	362

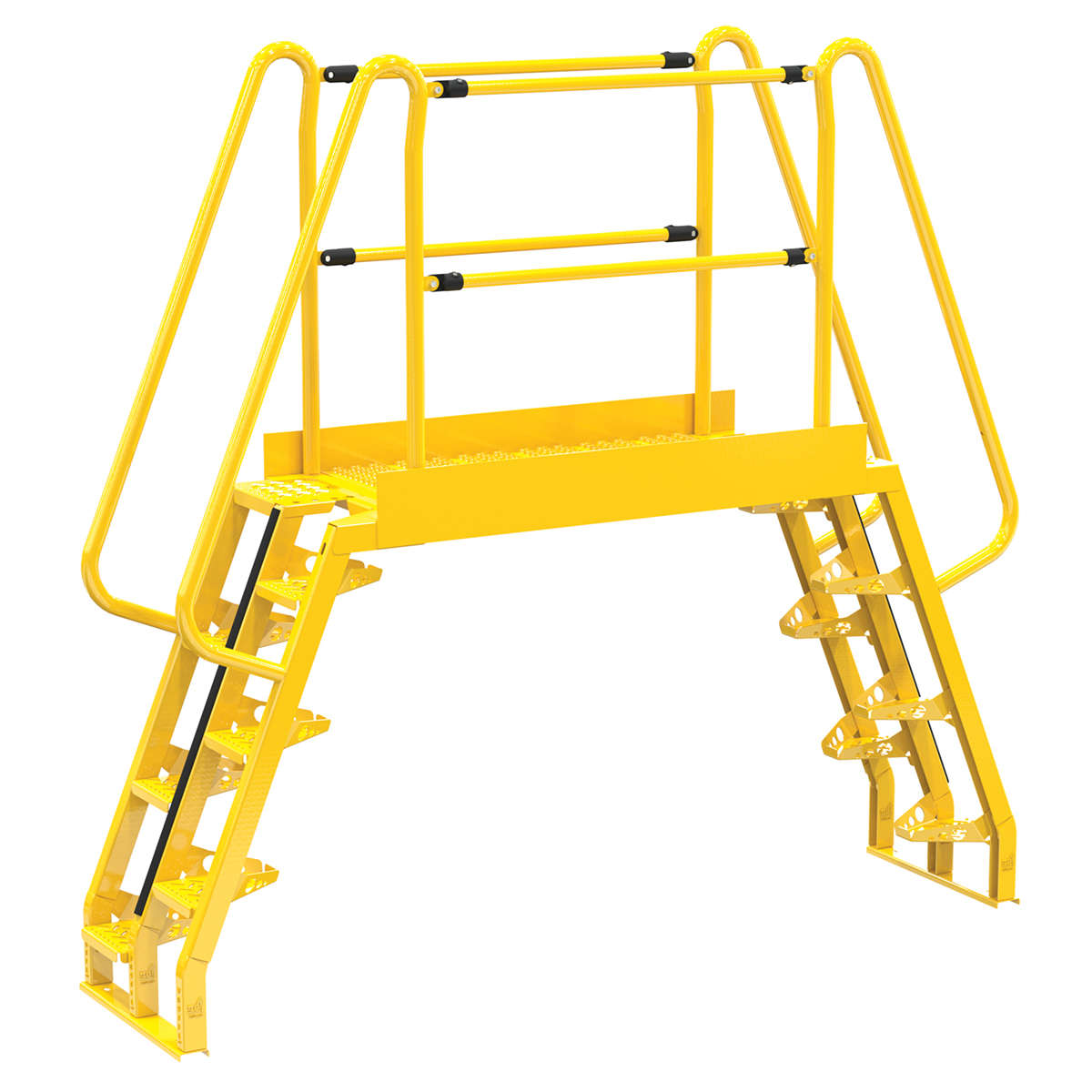

COLA-4-68-56		Steel Alternating Crossover Ladder 14 Step 68 Degrees 97 In. x 91 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7	396

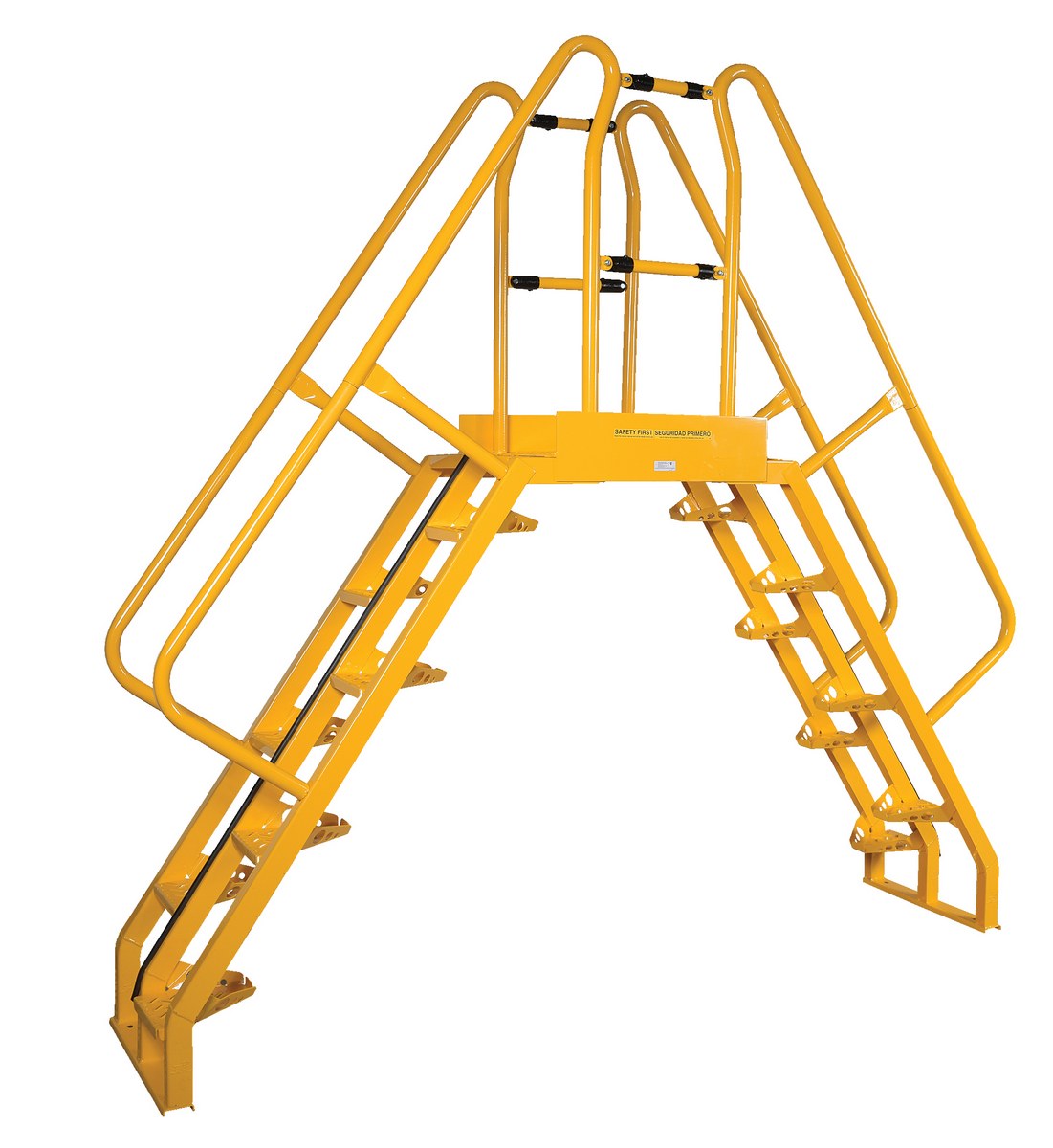

COLA-5-56-20		Steel Alternating Crossover Ladder 16 Step 56 Degrees 106 In. x 103 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	401

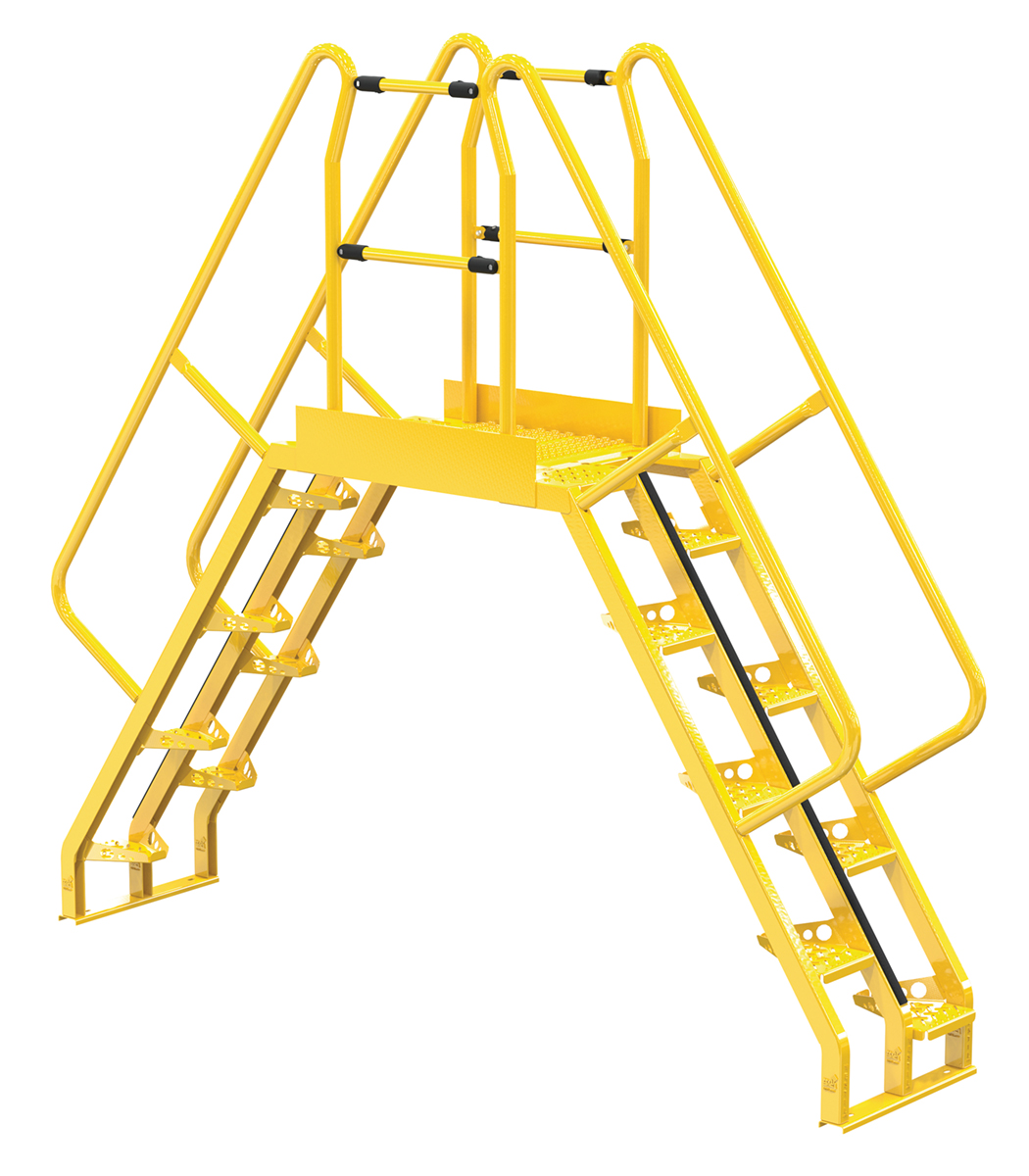

COLA-5-56-32		Steel Alternating Crossover Ladder 16 Step 56 Degrees 113 In. x 103 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	413

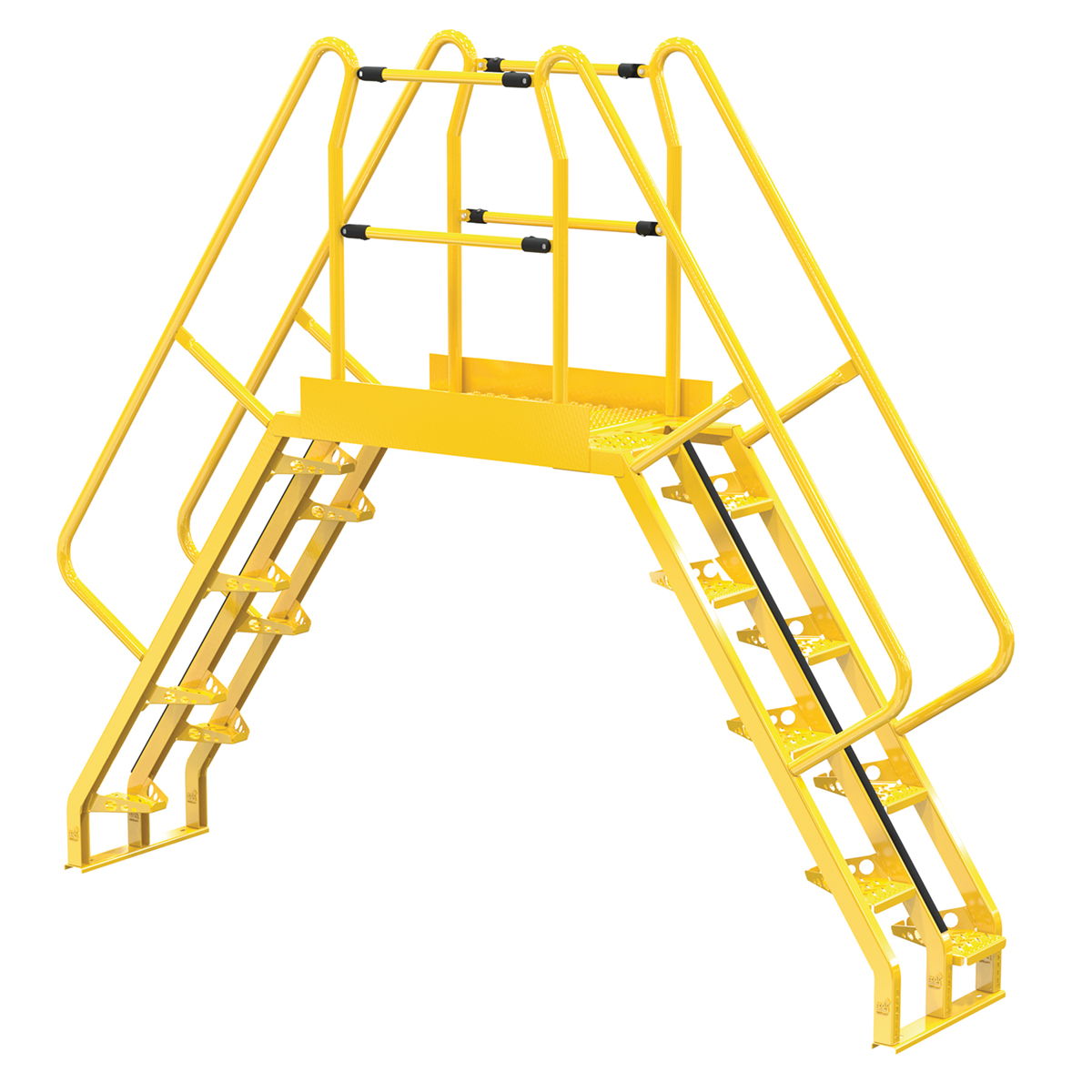

COLA-5-56-44		Steel Alternating Crossover Ladder 16 Step 56 Degrees 120 In. x 103 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	418

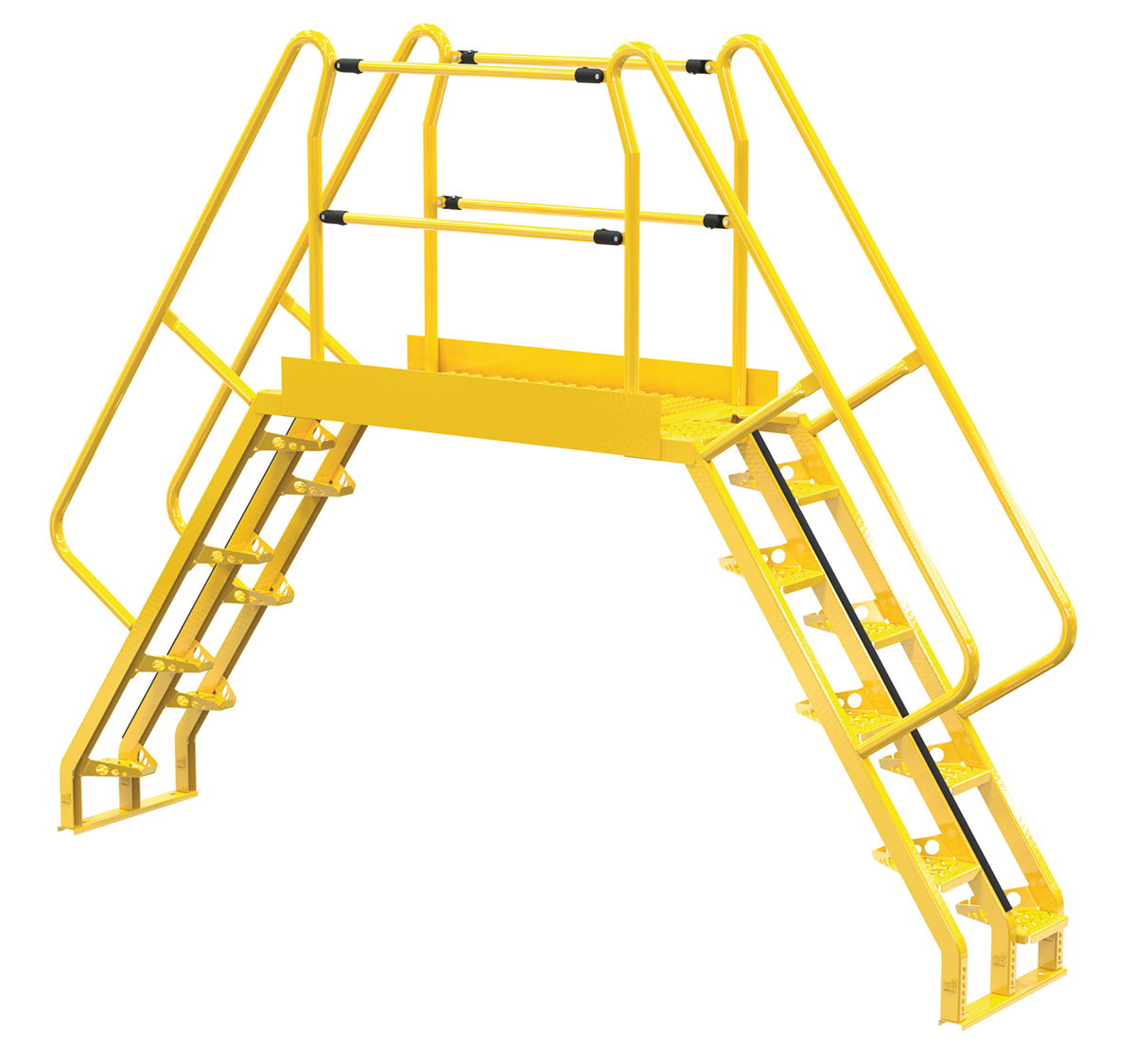

COLA-5-56-56		Steel Alternating Crossover Ladder 16 Step 56 Degrees 134 In. x 103 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	424

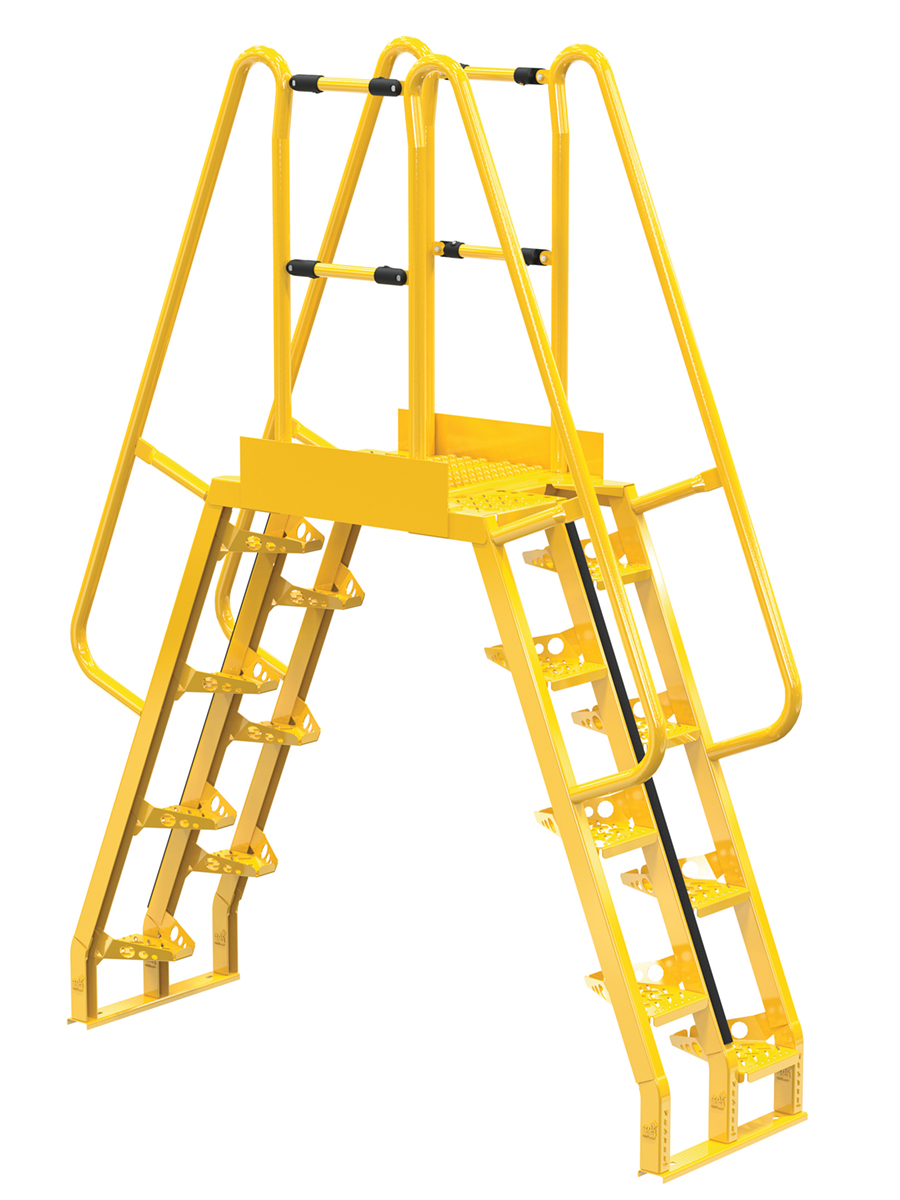

COLA-5-68-20		Steel Alternating Crossover Ladder 16 Step 68 Degrees 78 In. x 102 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	363

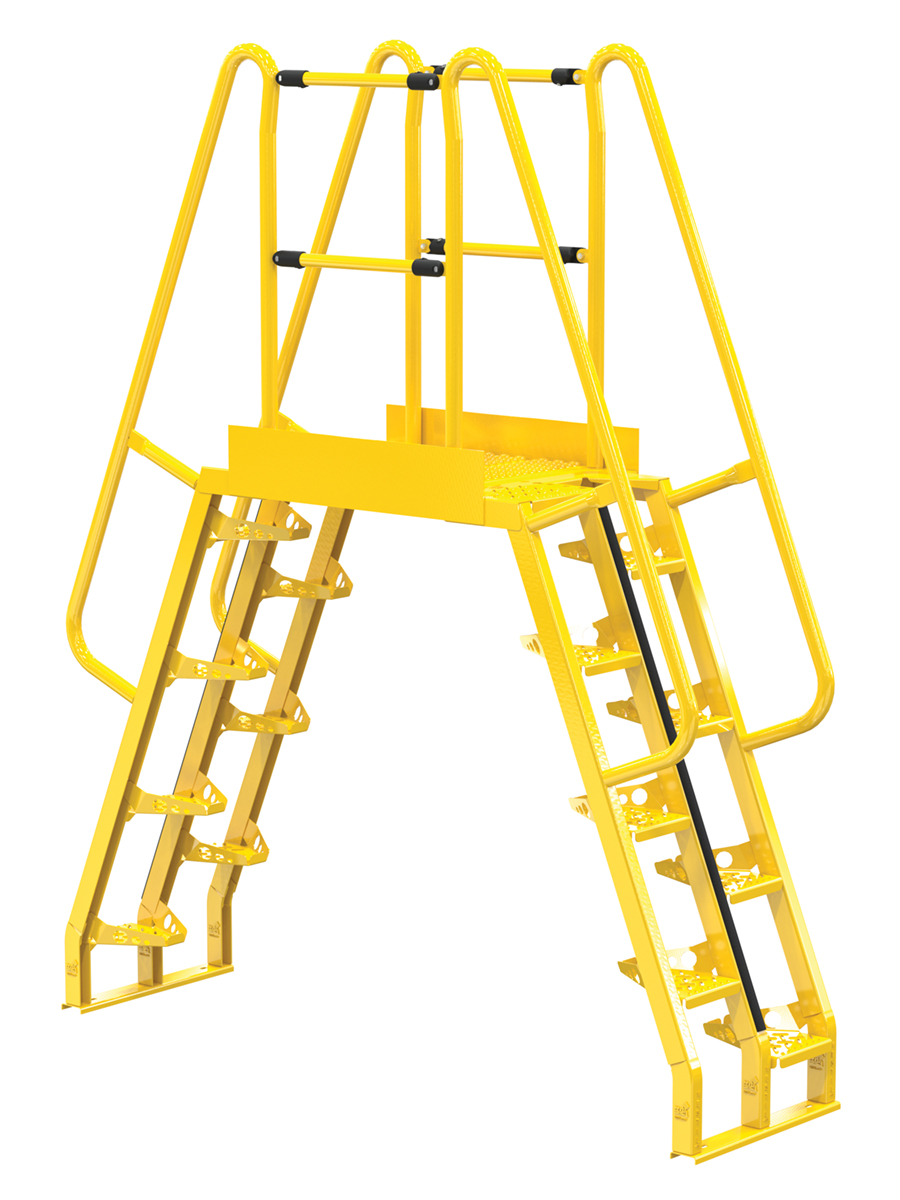

COLA-5-68-32		Steel Alternating Crossover Ladder 16 Step 68 Degrees 85 In. x 102 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	387

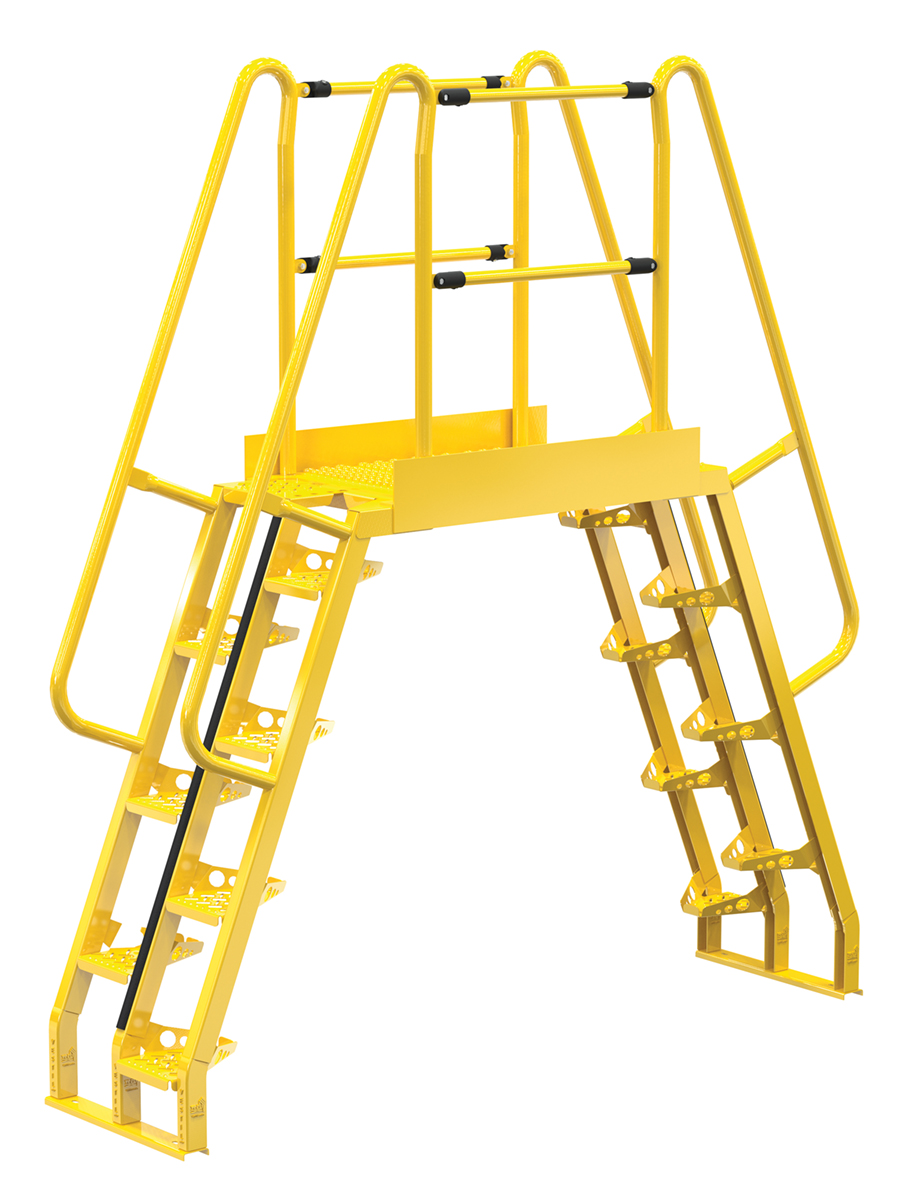

COLA-5-68-44		Steel Alternating Crossover Ladder 16 Step 68 Degrees 92 In. x 102 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	396

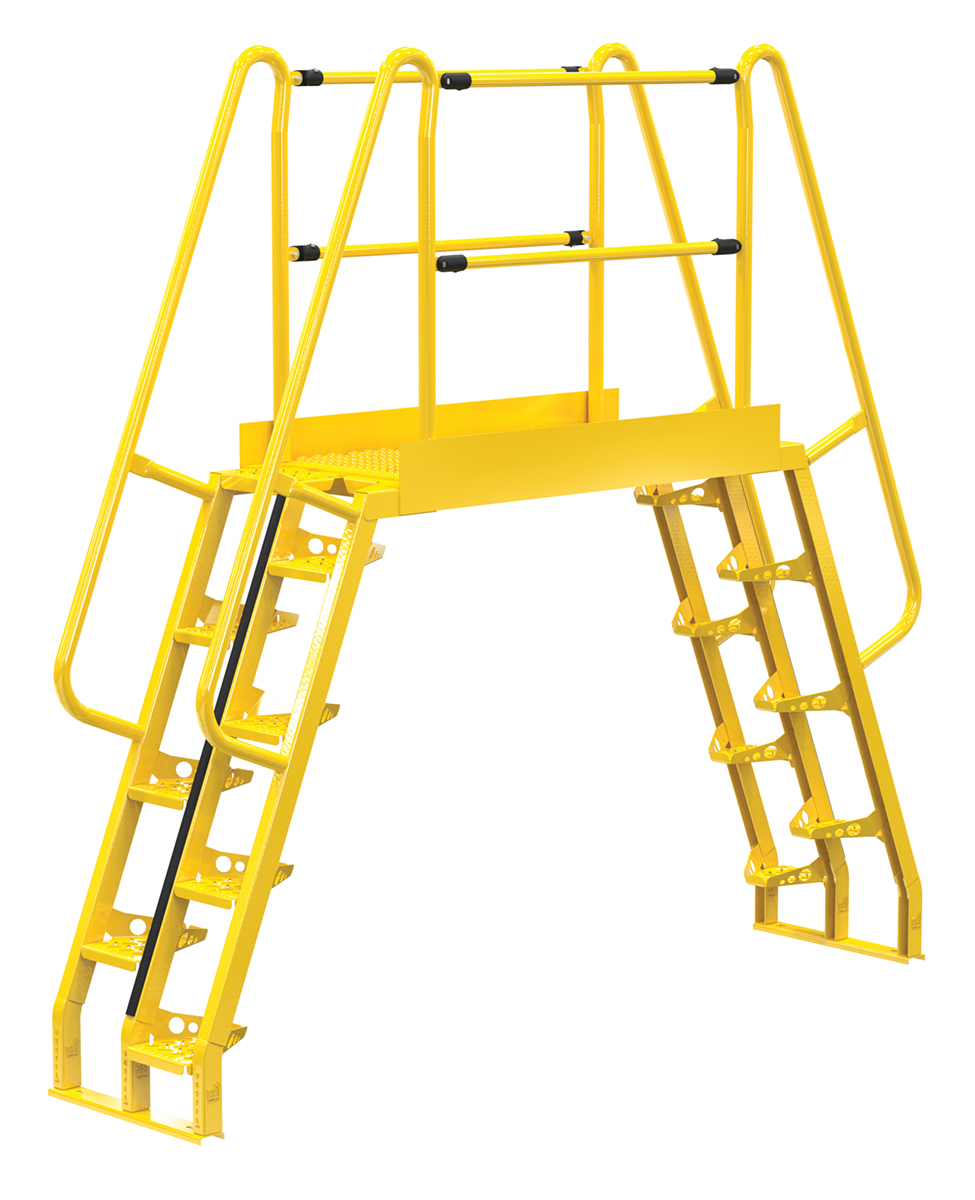

COLA-5-68-56		Steel Alternating Crossover Ladder 16 Step 68 Degrees 106 In. x 102 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 8	430

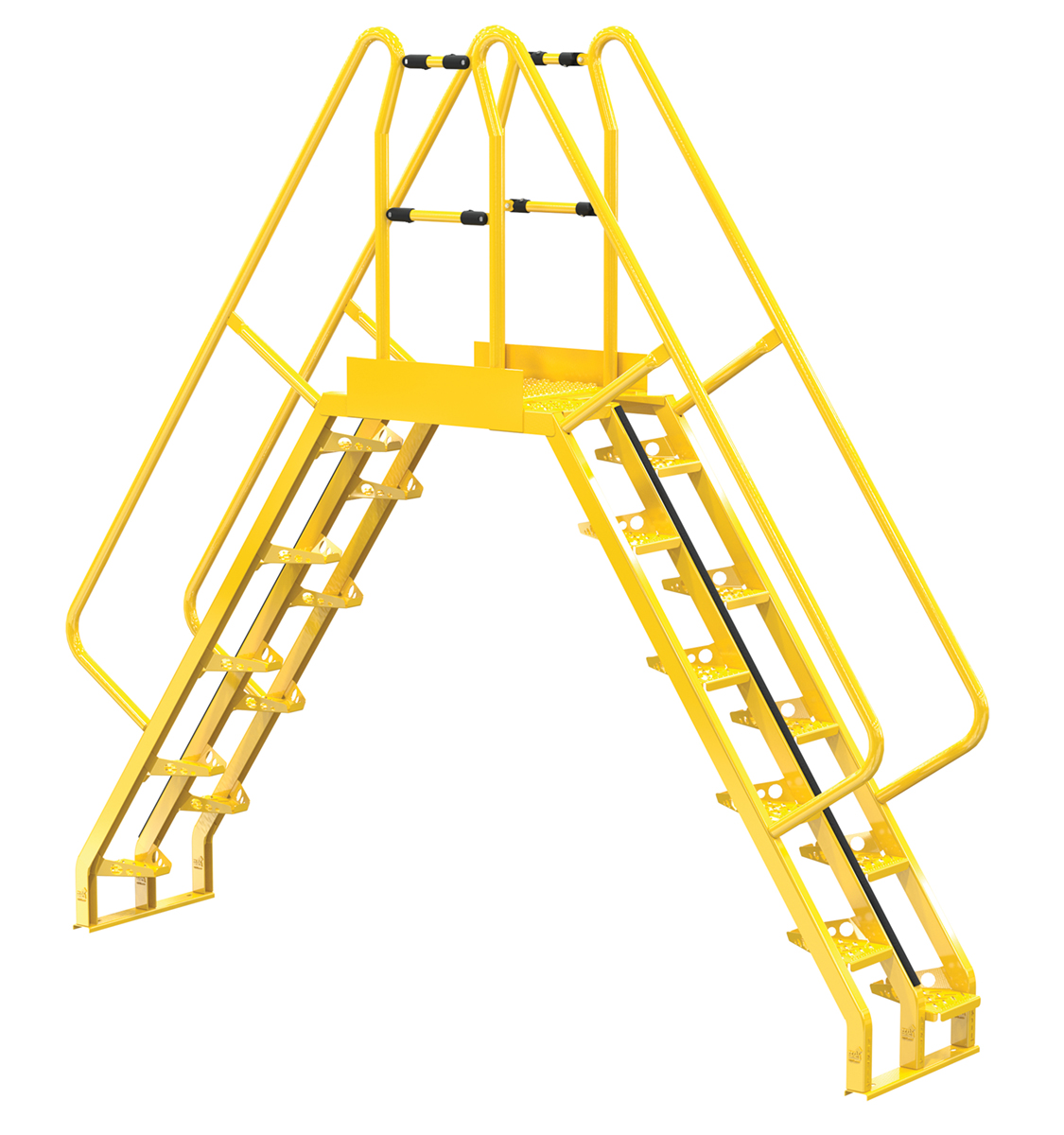

COLA-6-56-20		Steel Alternating Crossover Ladder 20 Step 56 Degrees 122 In. x 115 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	427

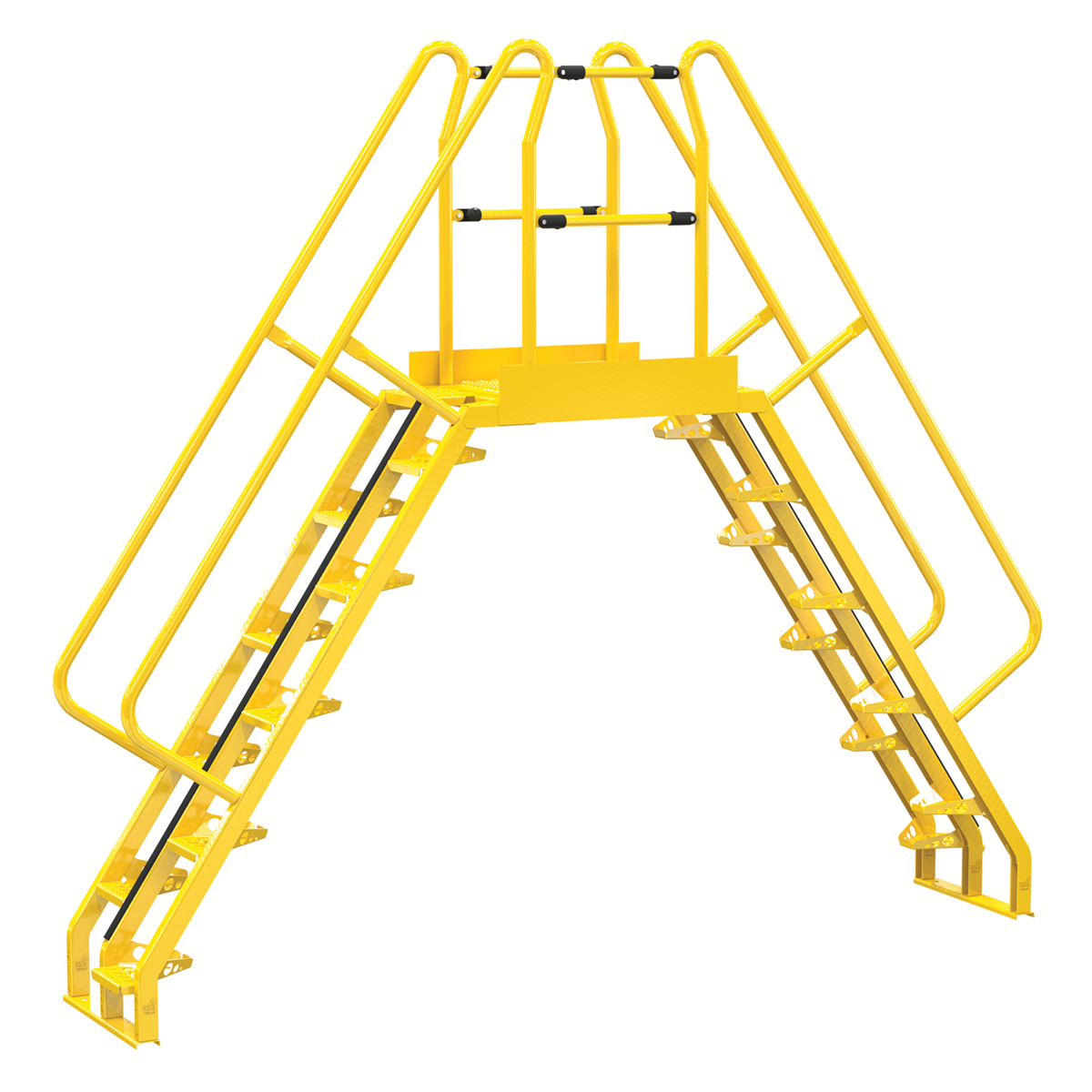

COLA-6-56-32		Steel Alternating Crossover Ladder 20 Step 56 Degrees 129 In. x 115 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	429

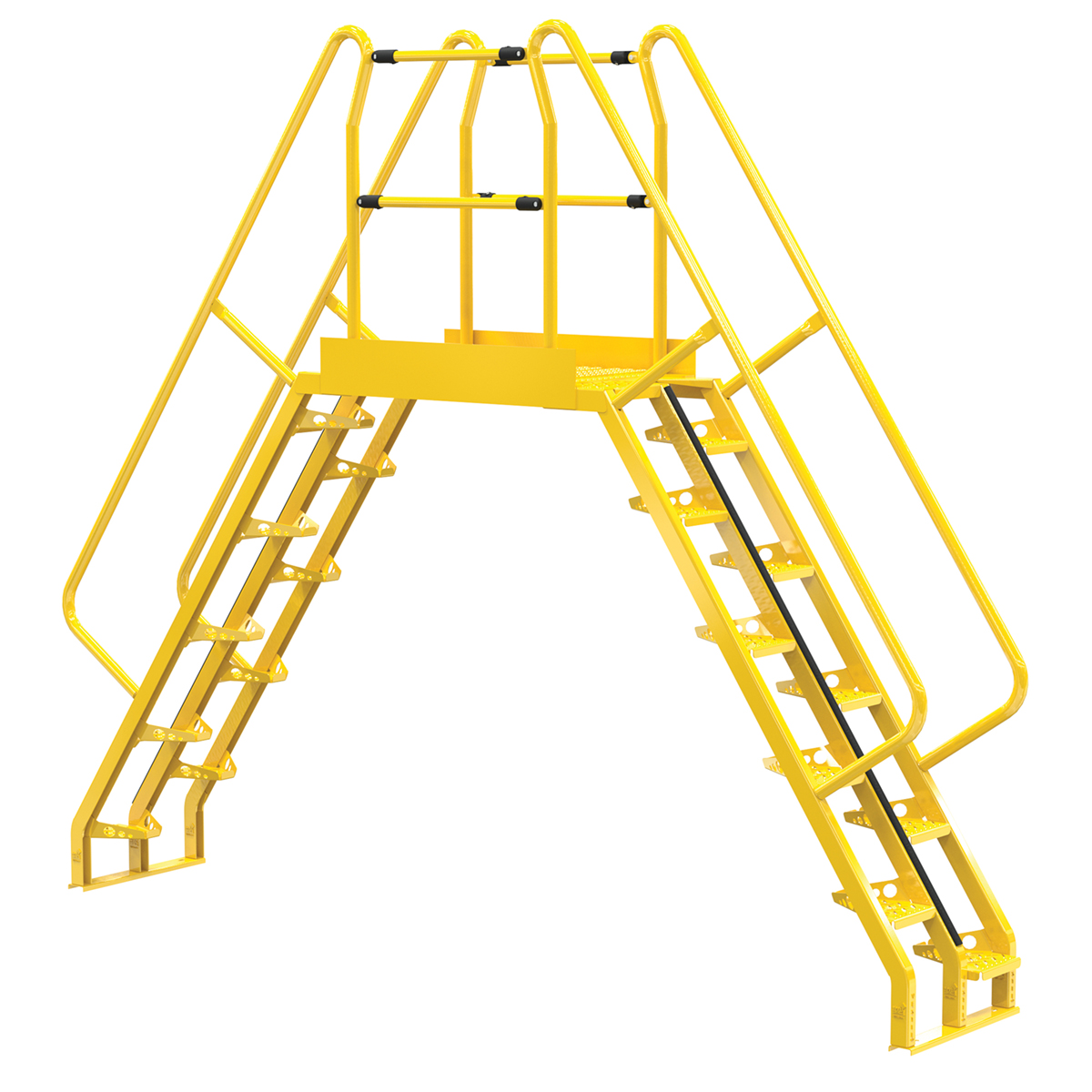

COLA-6-56-44		Steel Alternating Crossover Ladder 20 Step 56 Degrees 136 In. x 115 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	462

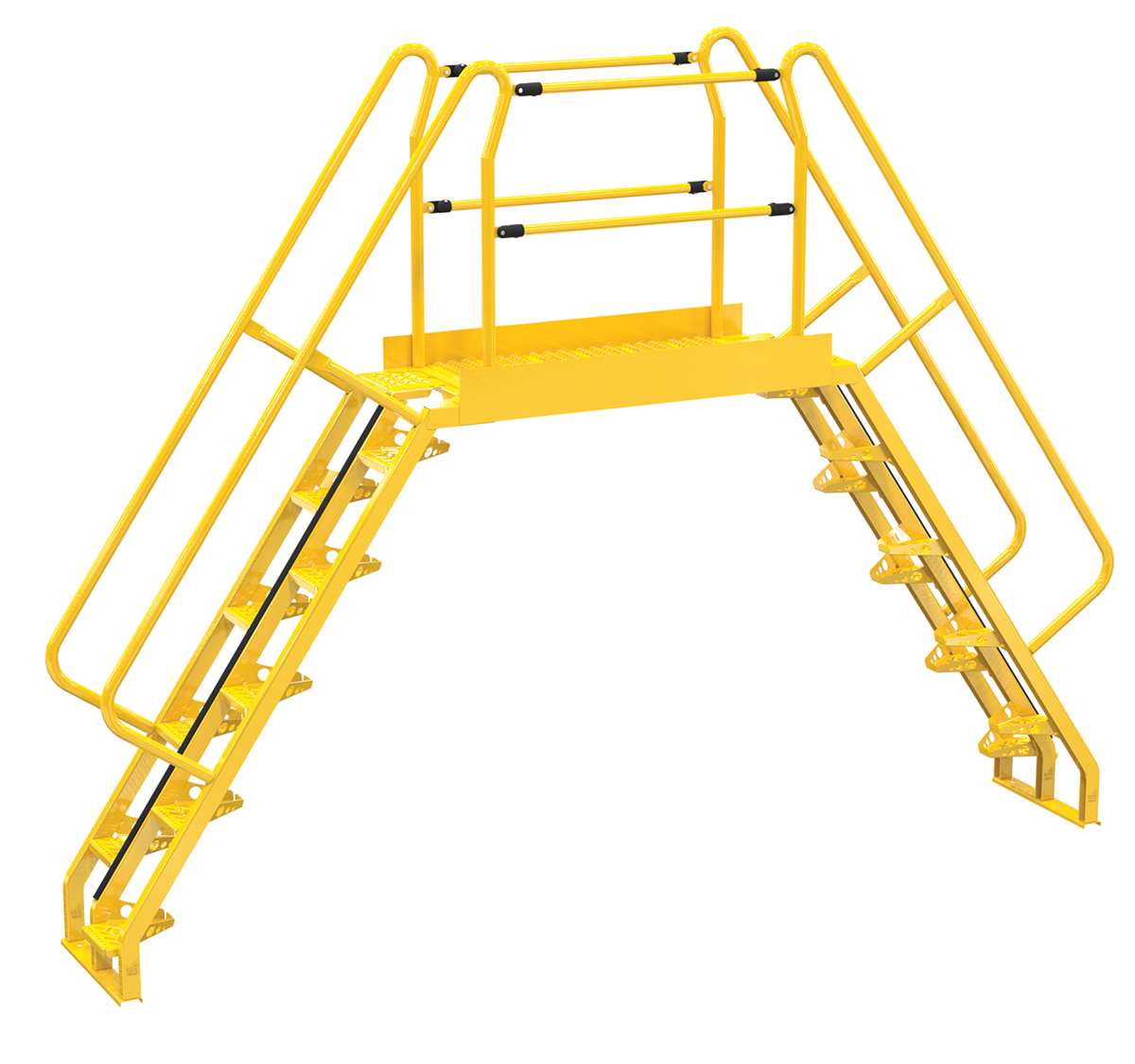

COLA-6-56-56		Steel Alternating Crossover Ladder 20 Step 56 Degrees 150 In. x 115 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	495

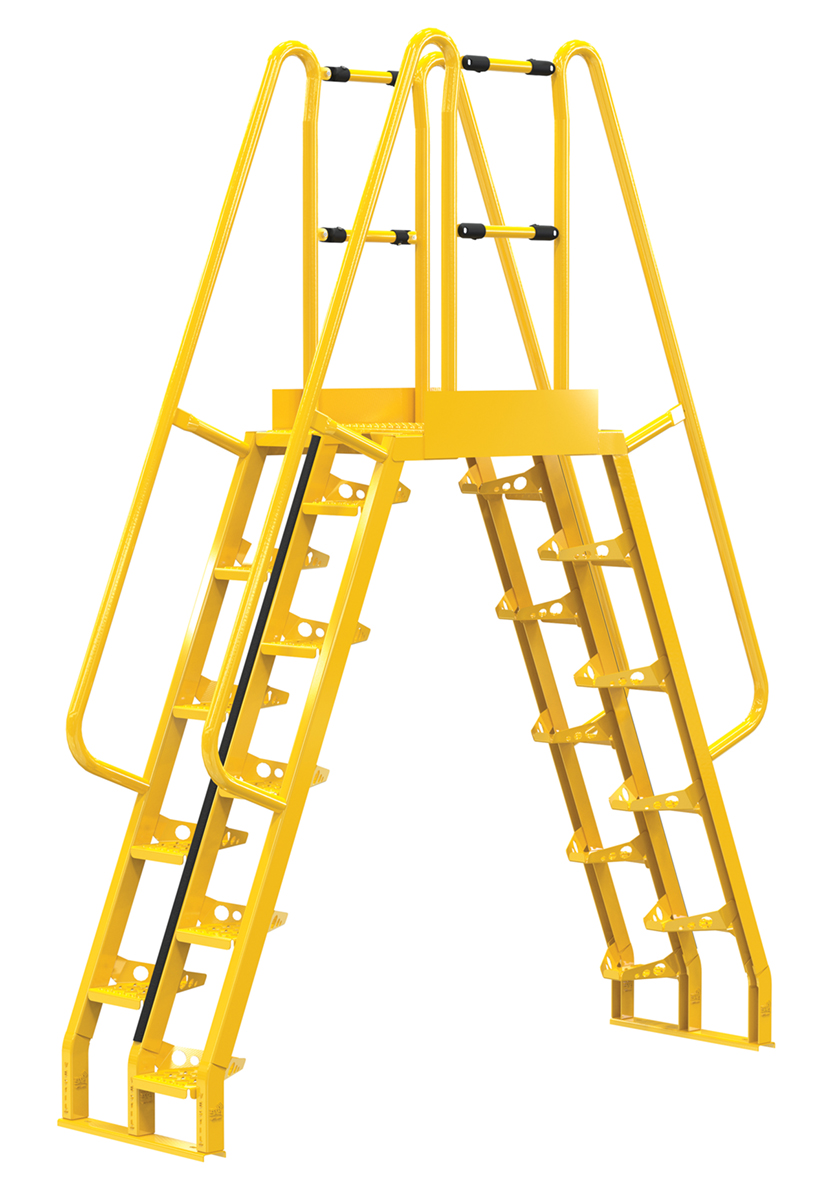

COLA-6-68-20		Steel Alternating Crossover Ladder 20 Step 68 Degrees 78 In. x 114 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	402

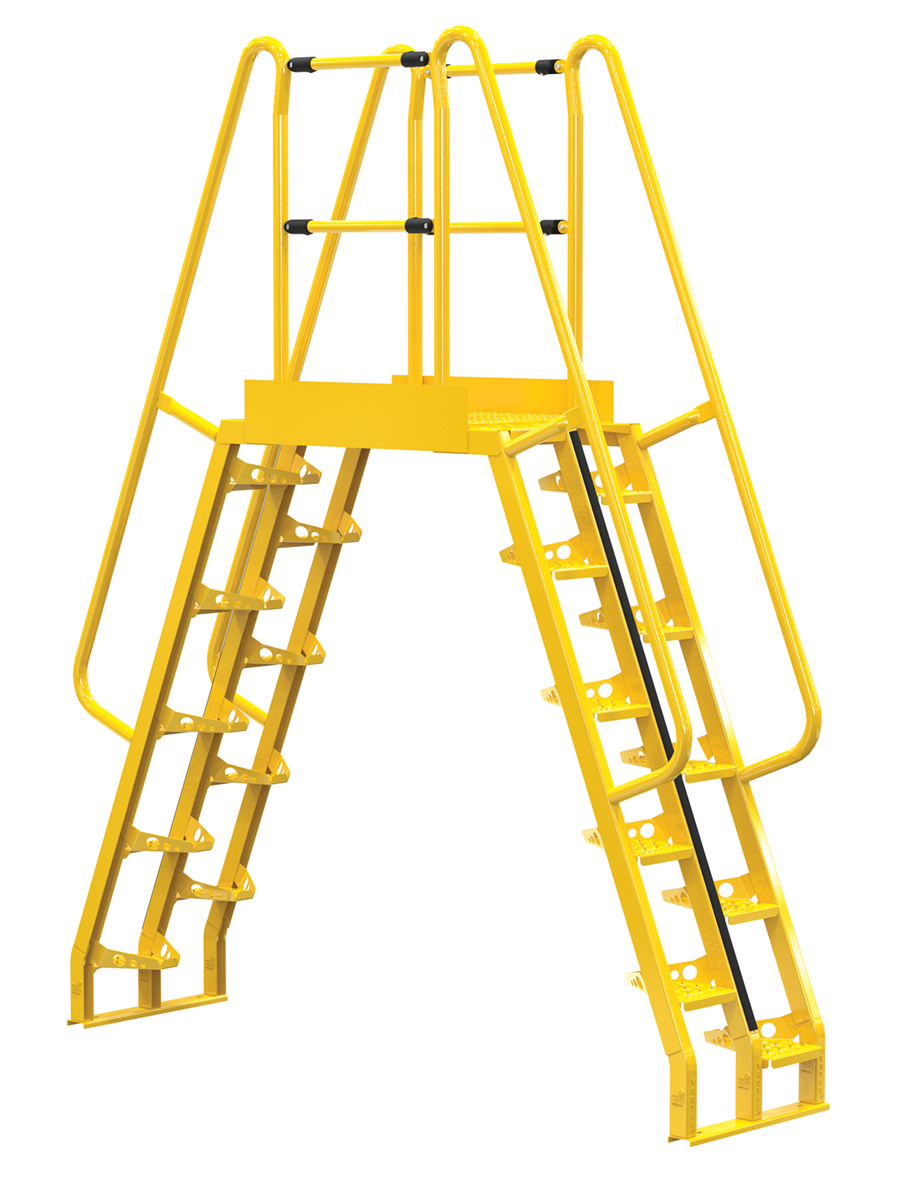

COLA-6-68-32		Steel Alternating Crossover Ladder 20 Step 68 Degrees 95 In. x 114 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	413

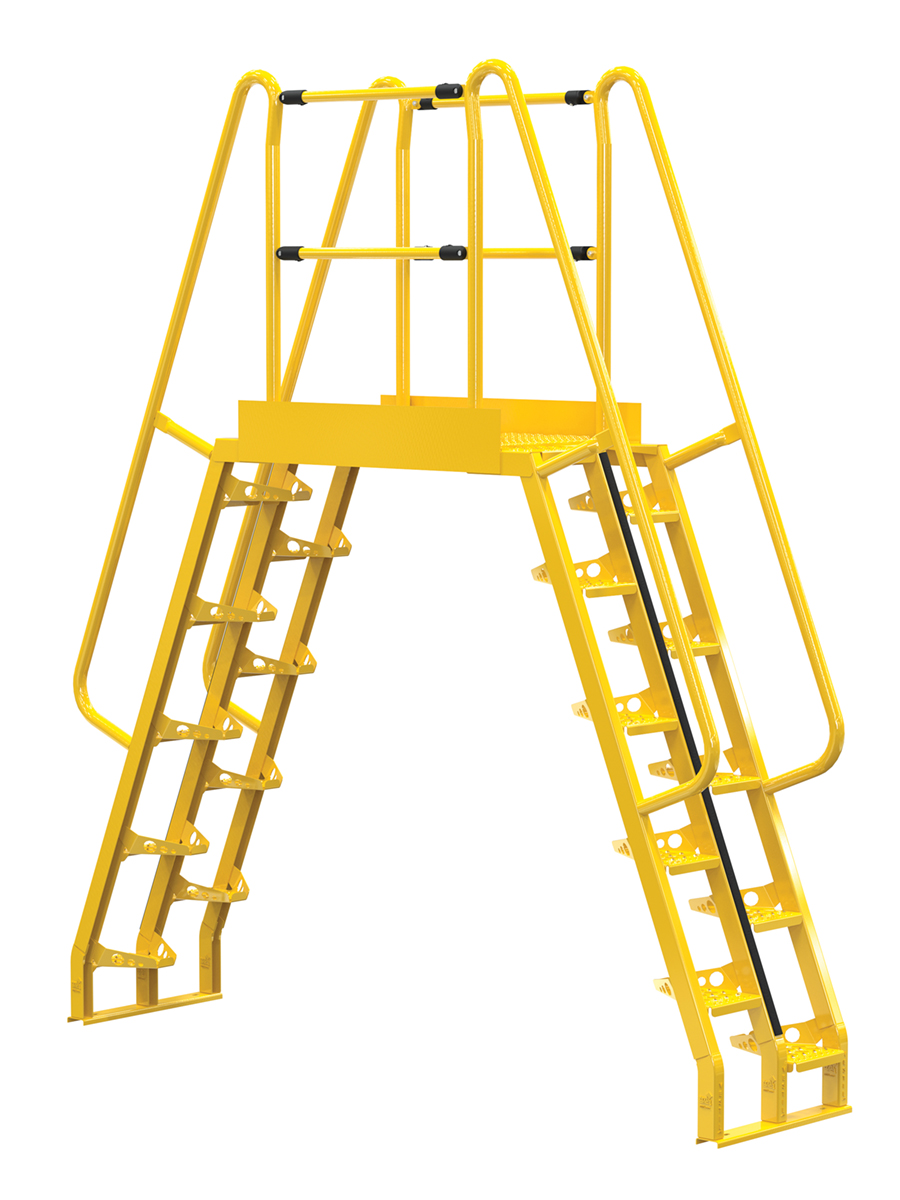

COLA-6-68-44		Steel Alternating Crossover Ladder 20 Step 68 Degrees 102 In. x 114 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	431

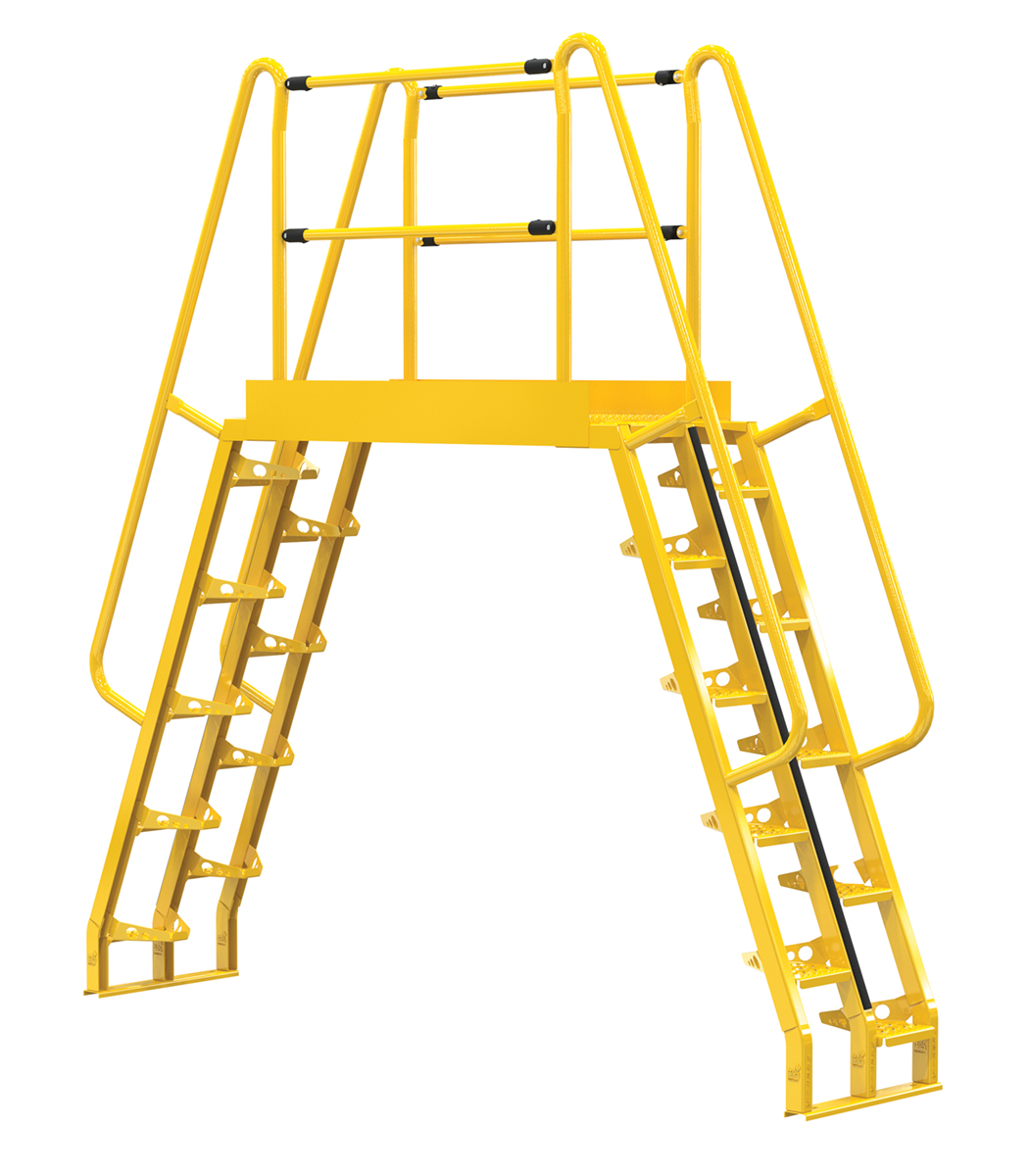

COLA-6-68-56		Steel Alternating Crossover Ladder 20 Step 68 Degrees 116 In. x 114 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 10	464

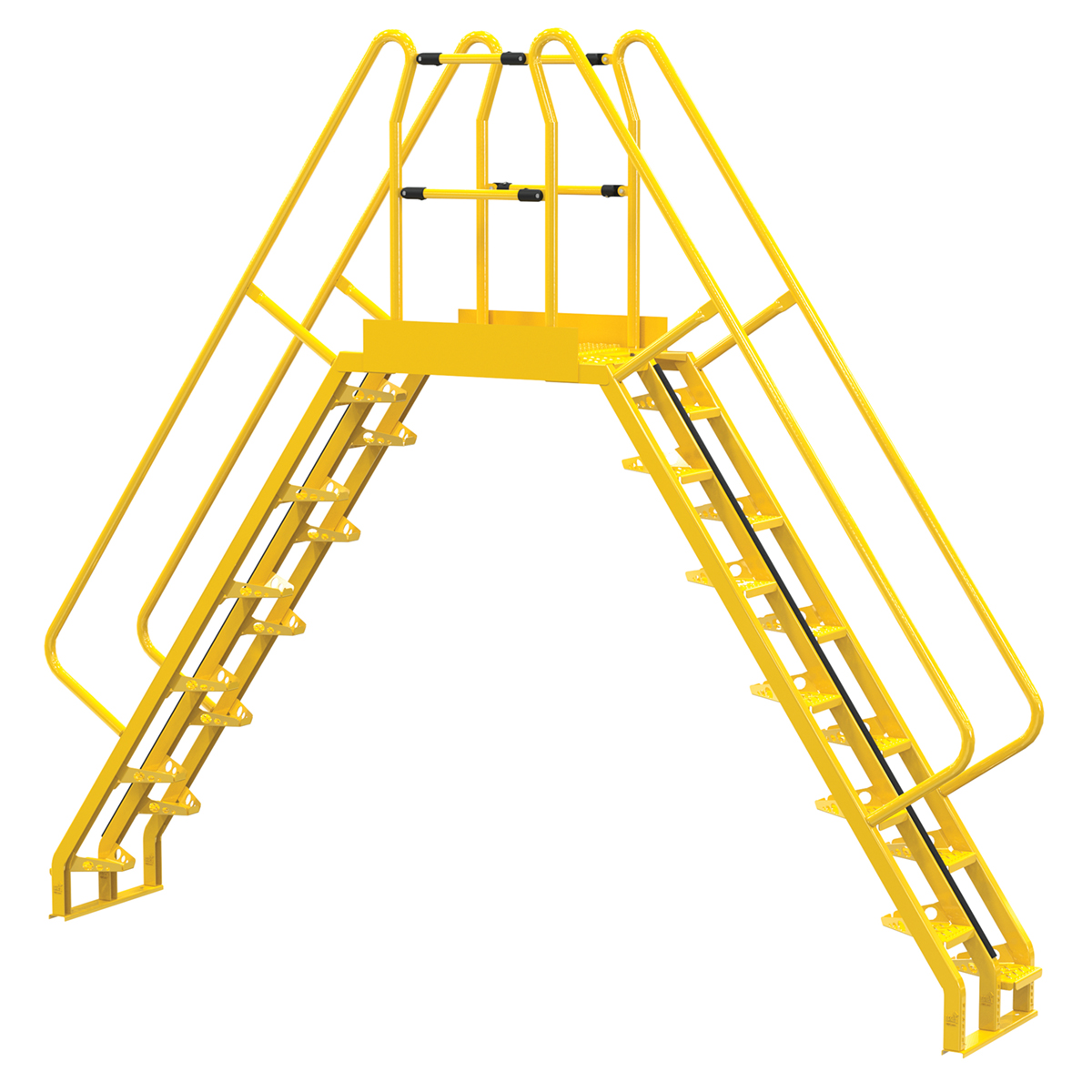

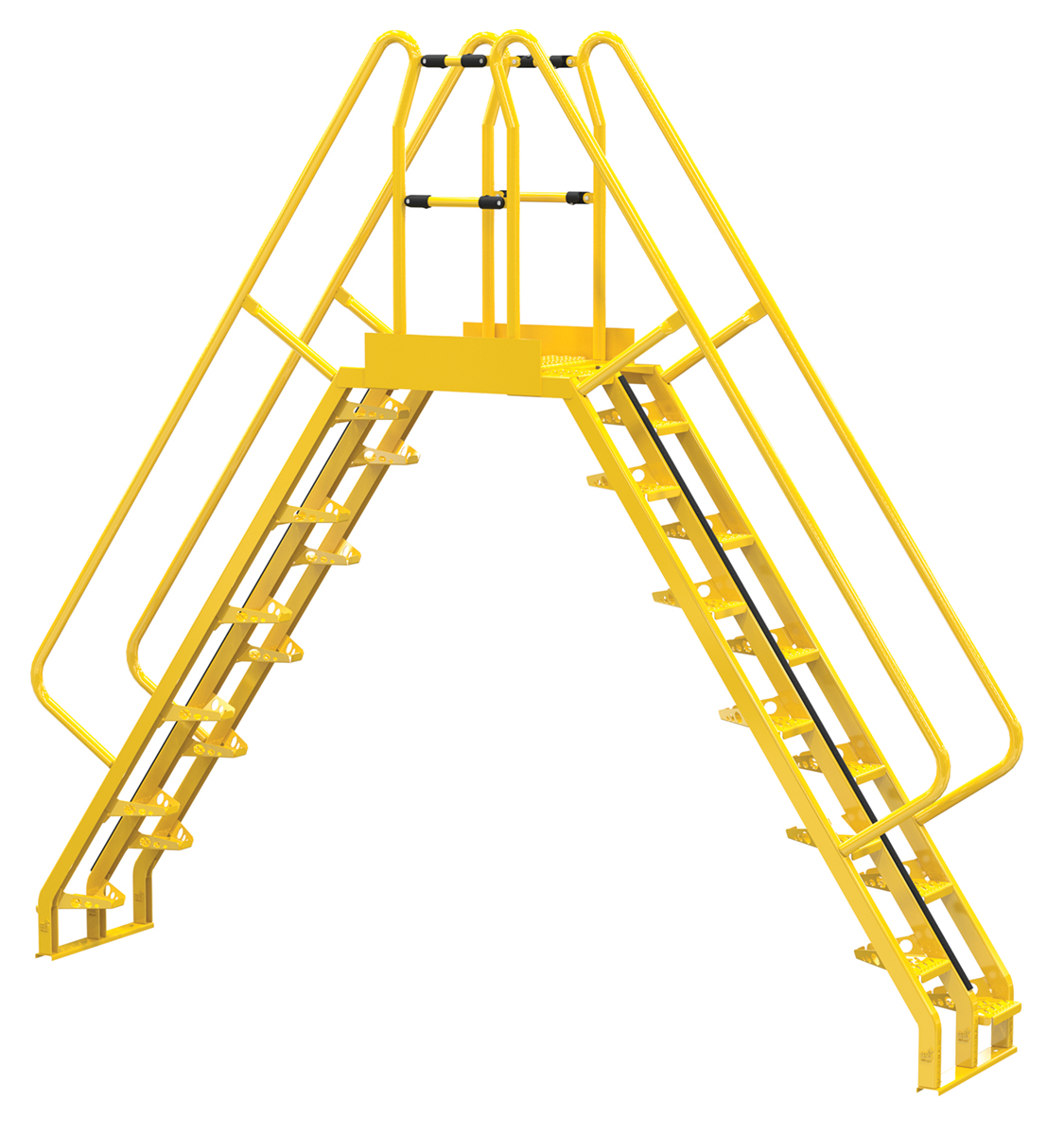

COLA-7-56-20		Steel Alternating Crossover Ladder 24 Step 56 Degrees 140 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	433
COLA-7-56-32		Steel Alternating Crossover Ladder 24 Step 56 Degrees 147 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	466

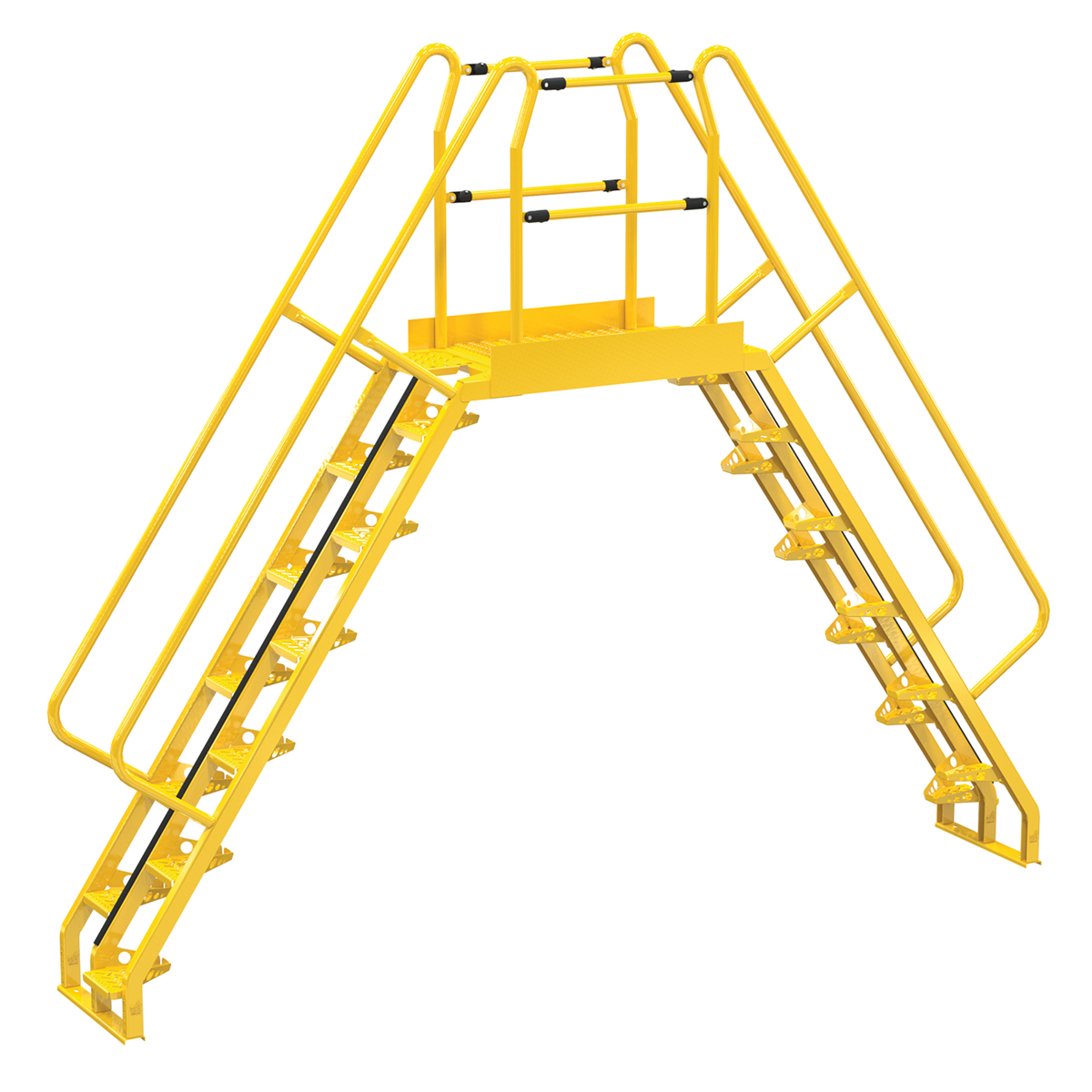

COLA-7-56-44		Steel Alternating Crossover Ladder 24 Step 56 Degrees 154 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	499

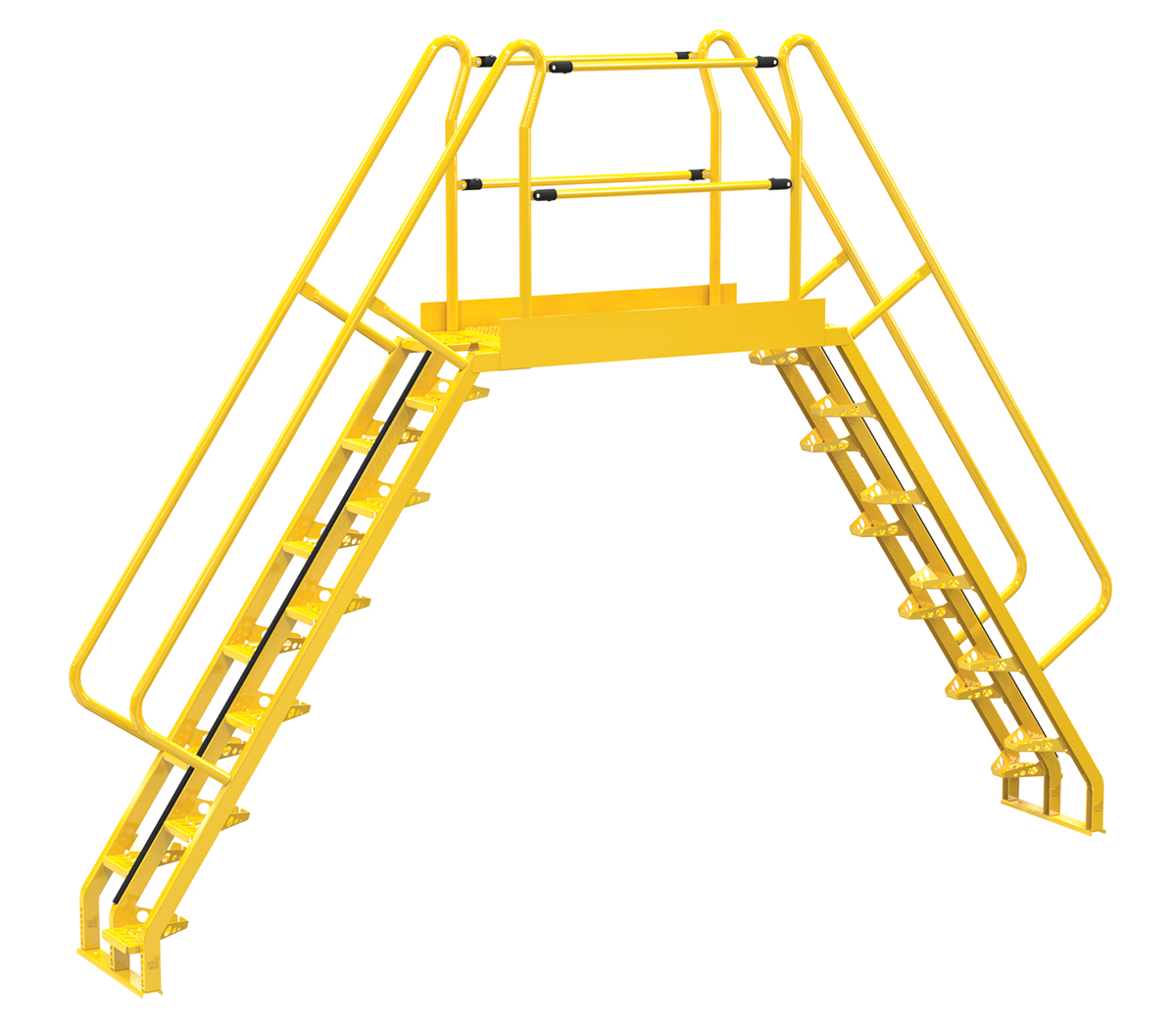

COLA-7-56-56		Steel Alternating Crossover Ladder 24 Step 56 Degrees 168 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	532

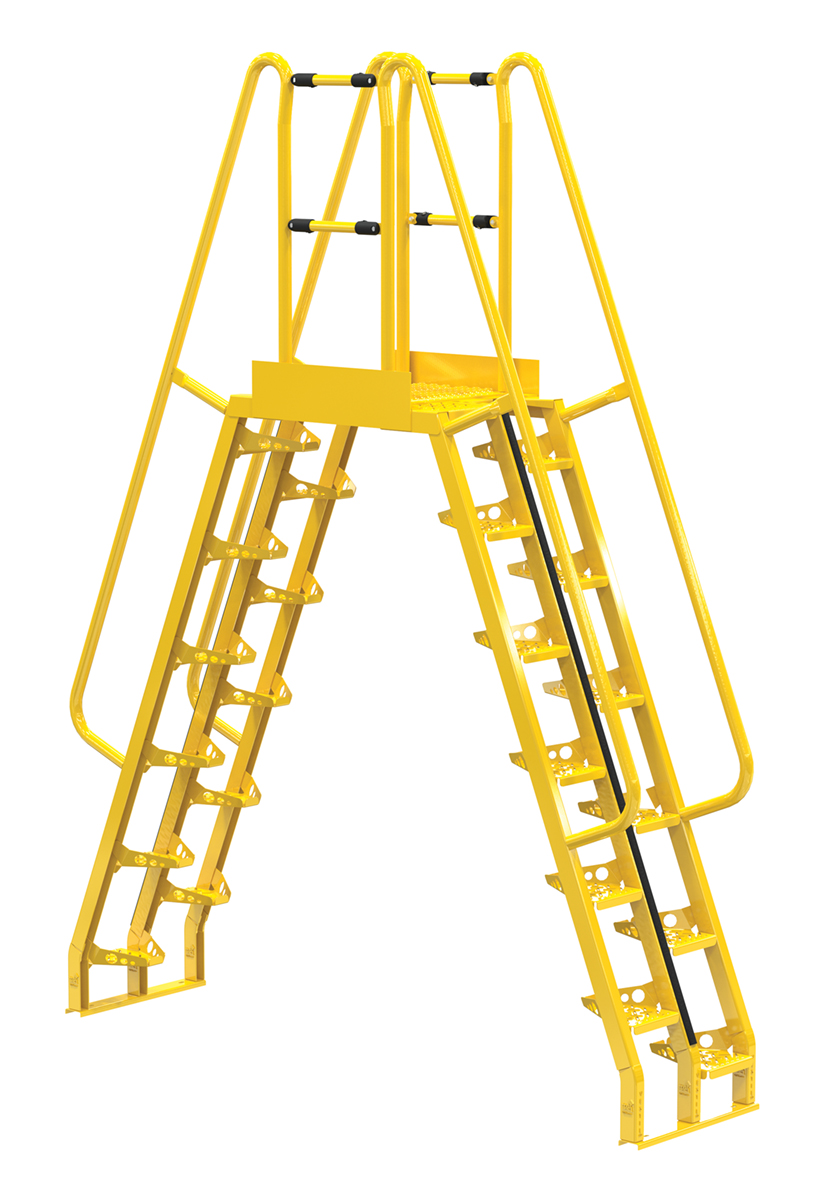

COLA-7-68-20		Steel Alternating Crossover Ladder 24 Step 68 Degrees 98 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	400

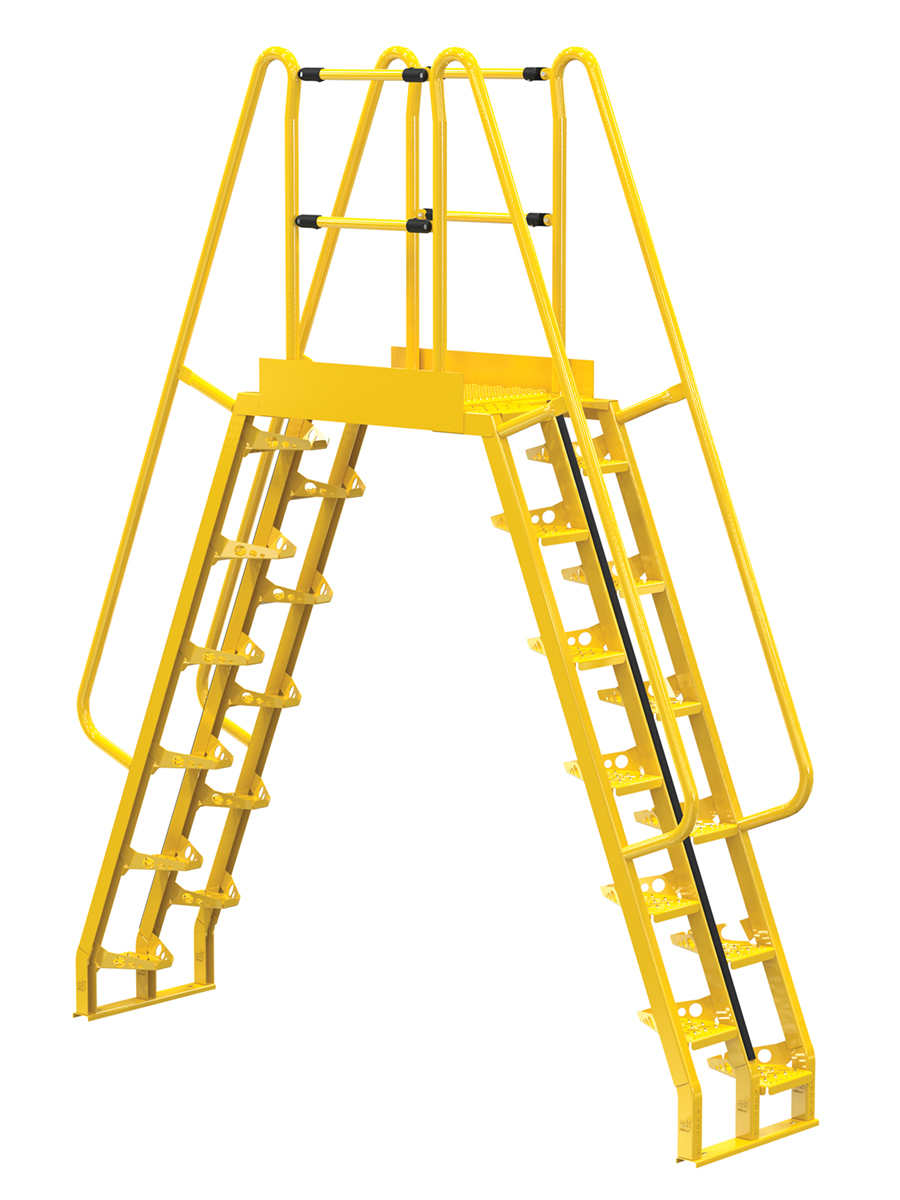

COLA-7-68-32		Steel Alternating Crossover Ladder 24 Step 68 Degrees 105 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	444

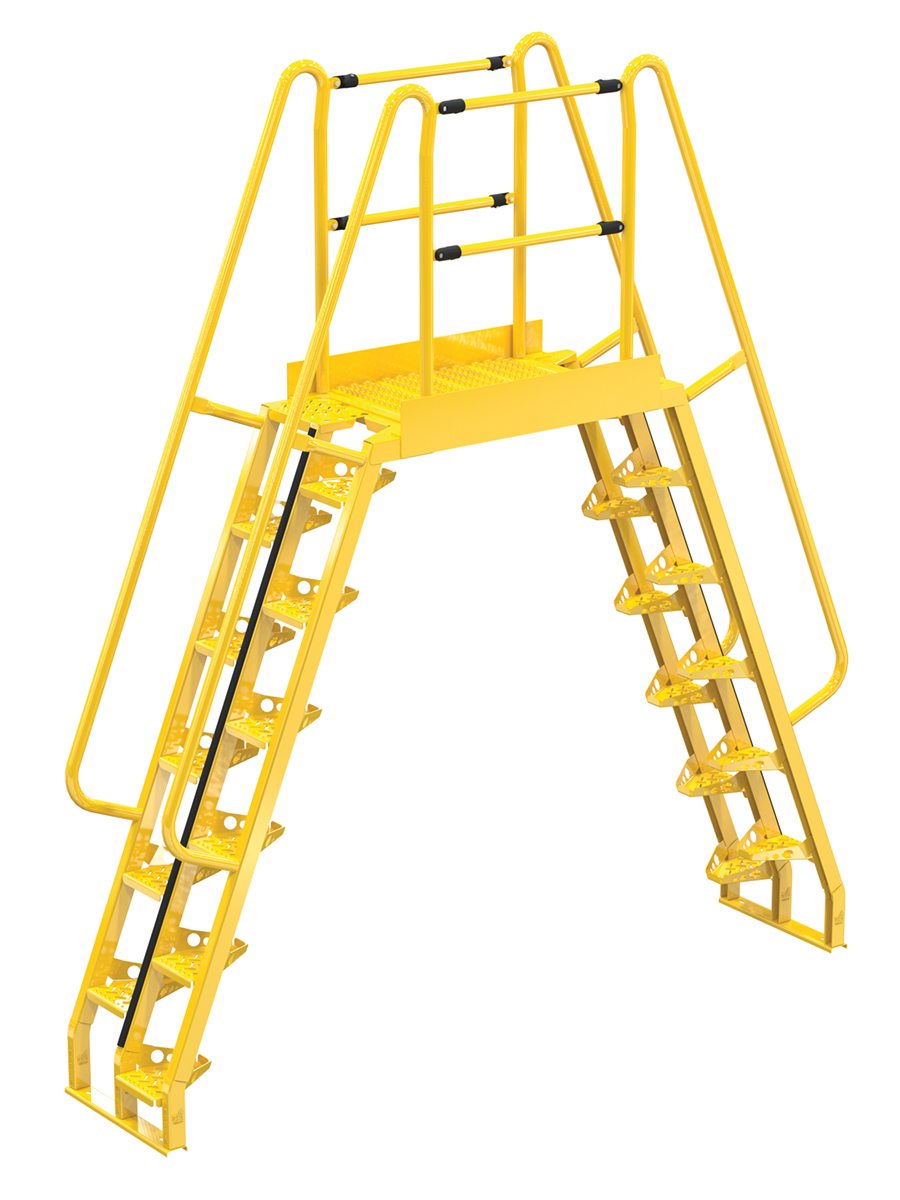

COLA-7-68-44		Steel Alternating Crossover Ladder 24 Step 68 Degrees 112 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	475

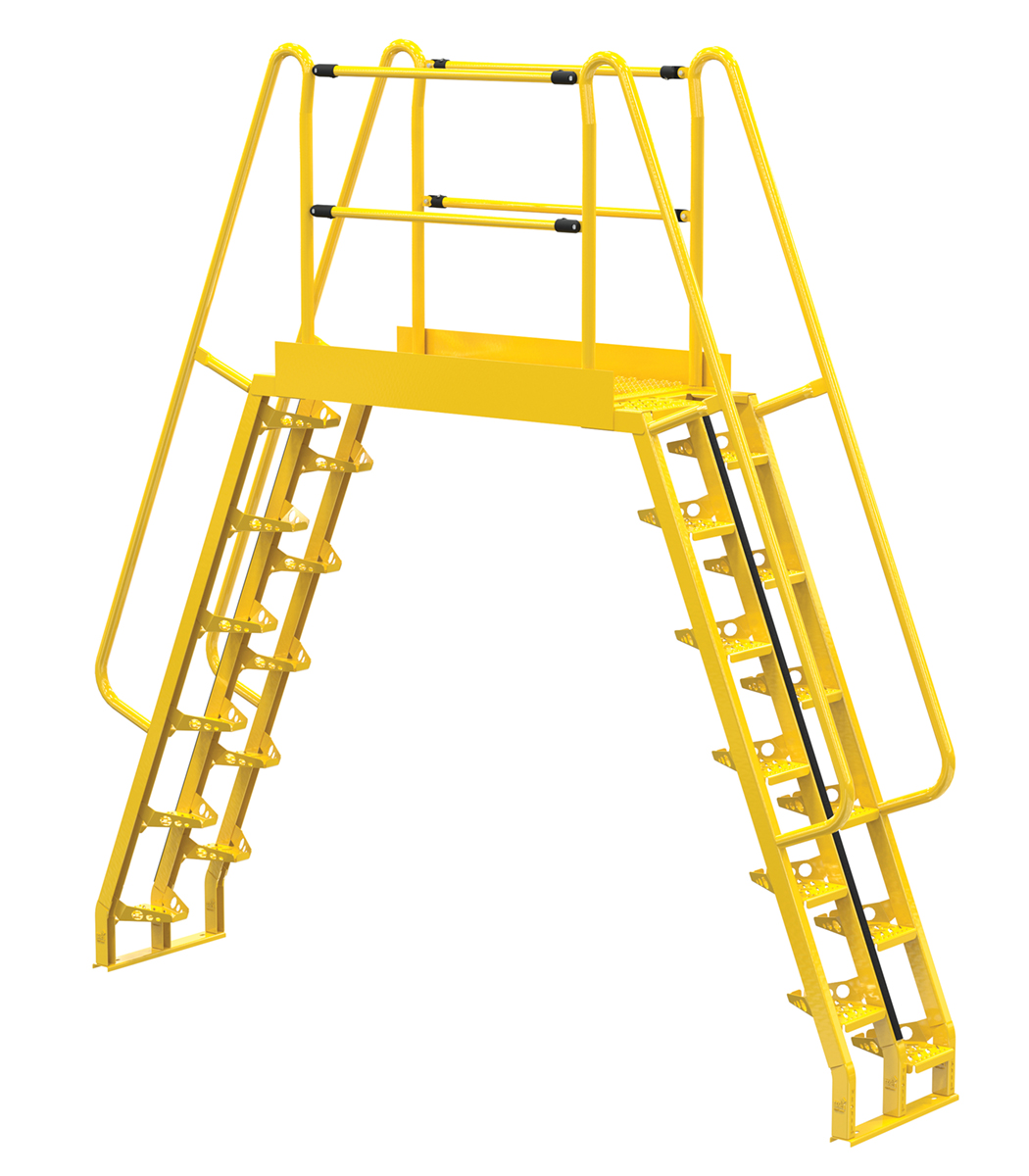

COLA-7-68-56		Steel Alternating Crossover Ladder 24 Step 68 Degrees 126 In. x 127 In. 350 Lb. Capacity Yellow	Uniform Capacity (lb.): 350 Number of Steps on Each Side: 12	499
