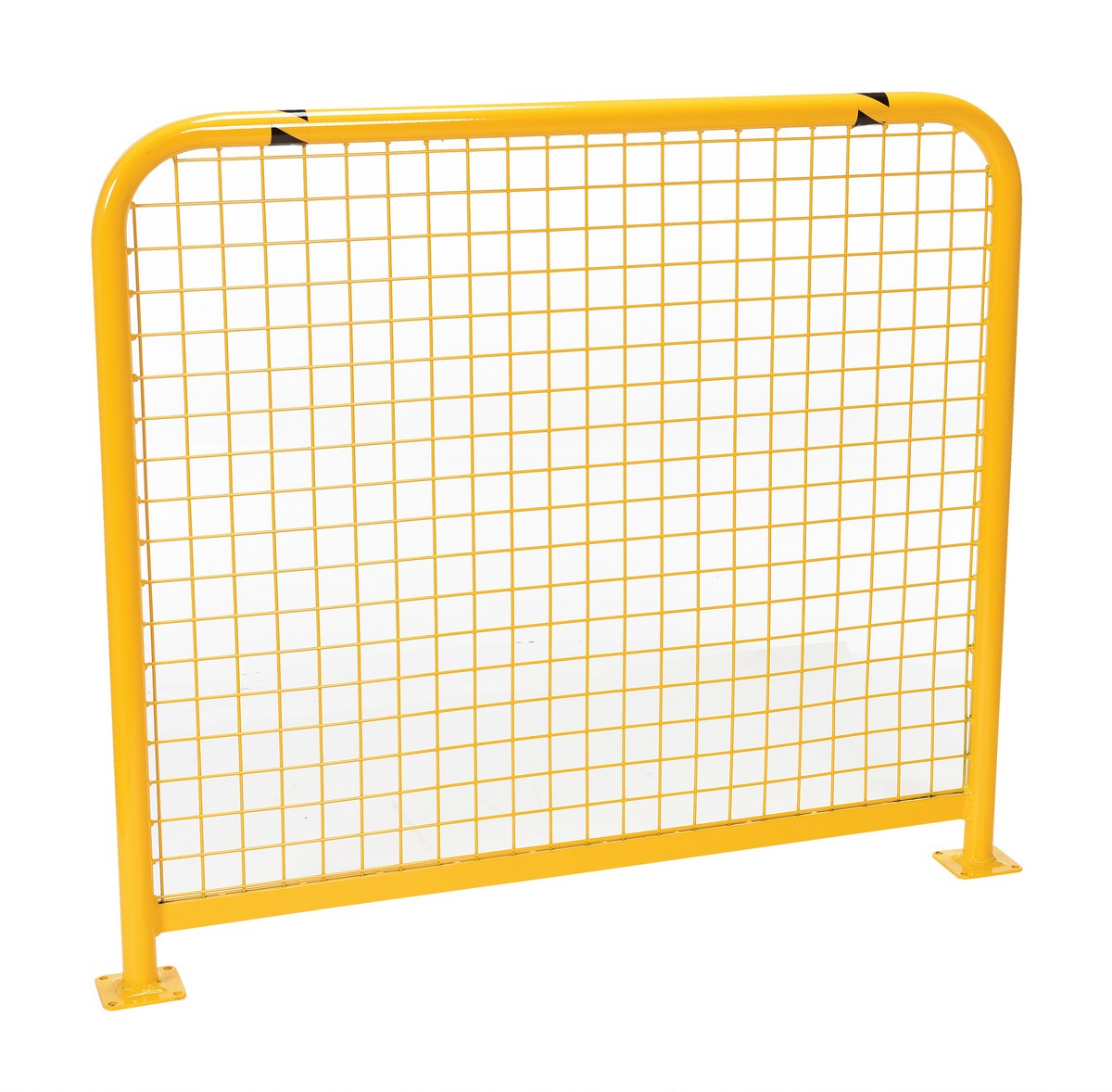

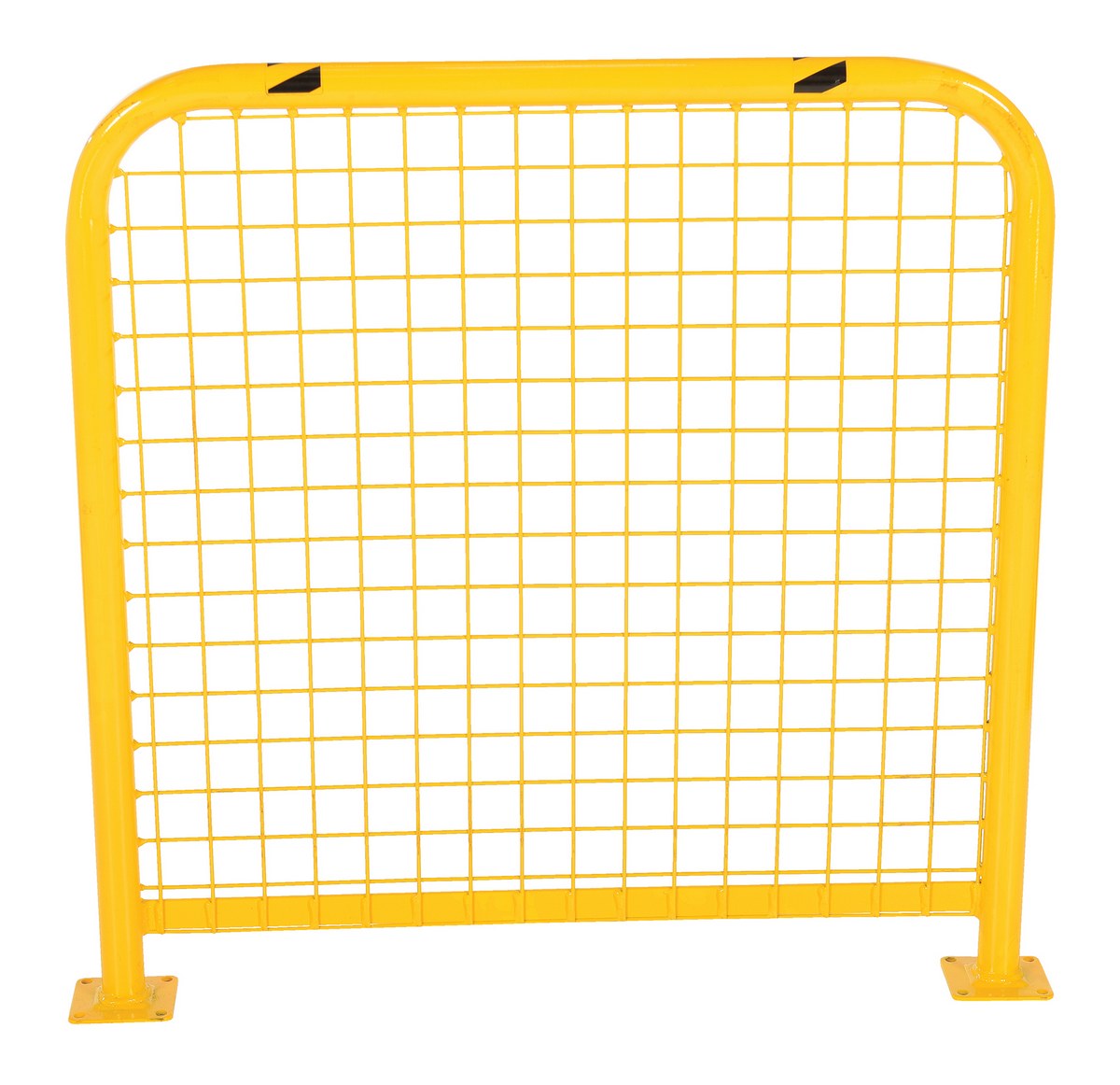

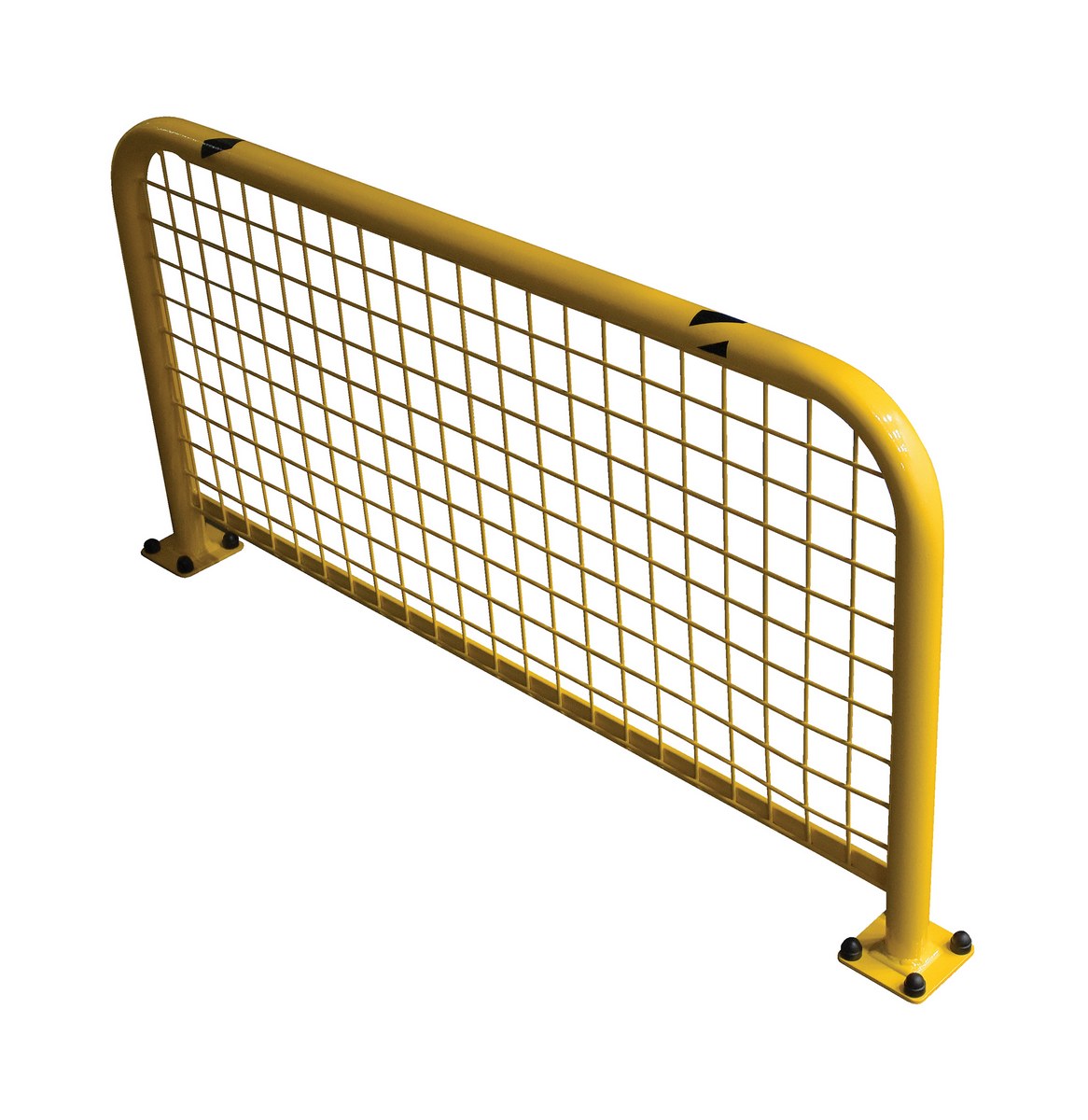

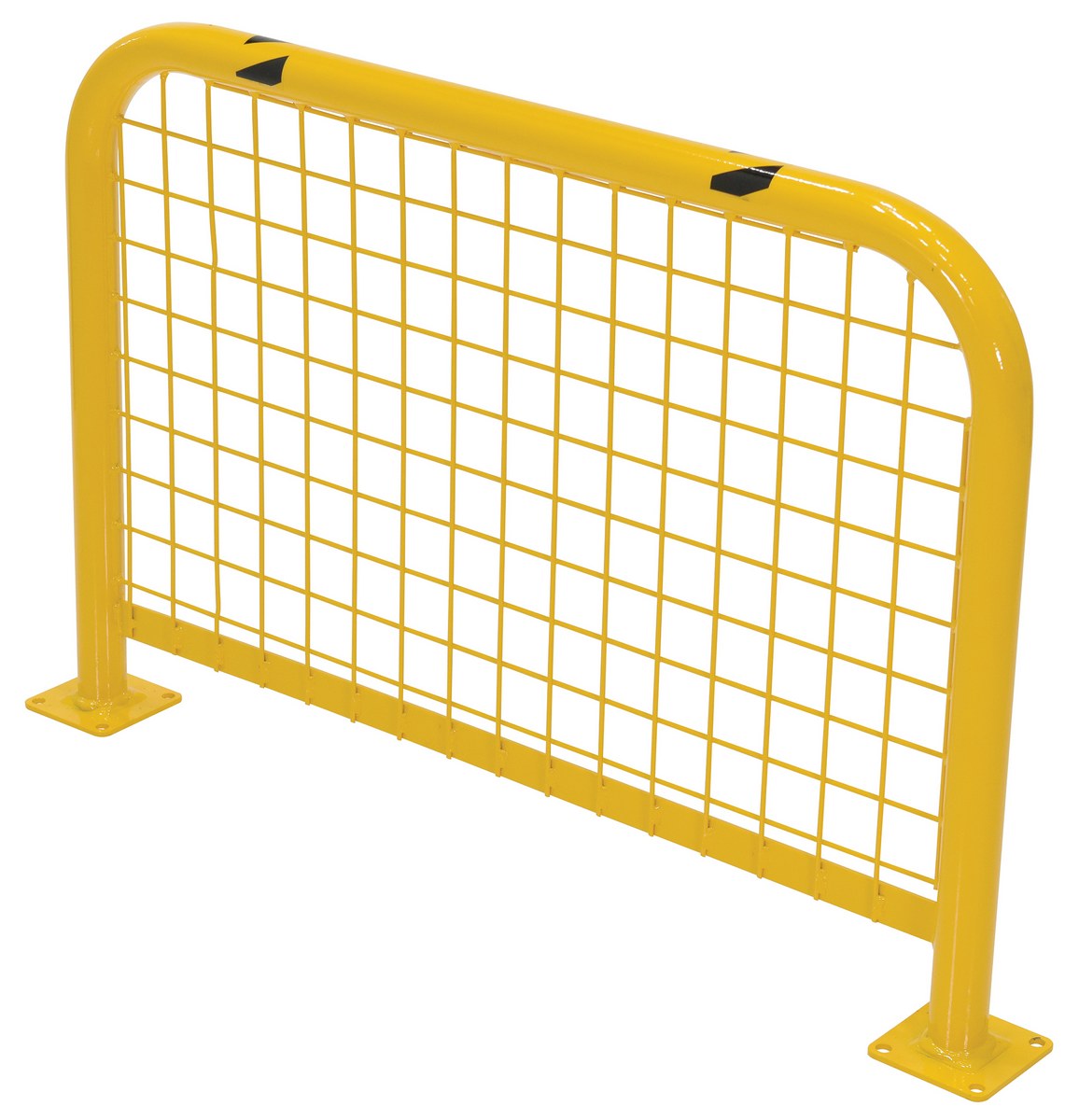

High Profile Machinery Guards with Welded Mesh

SERIES: HPRO-M

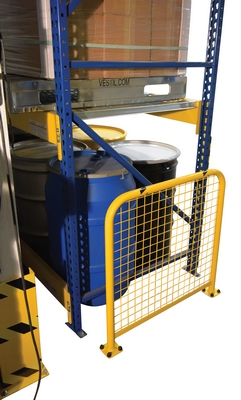

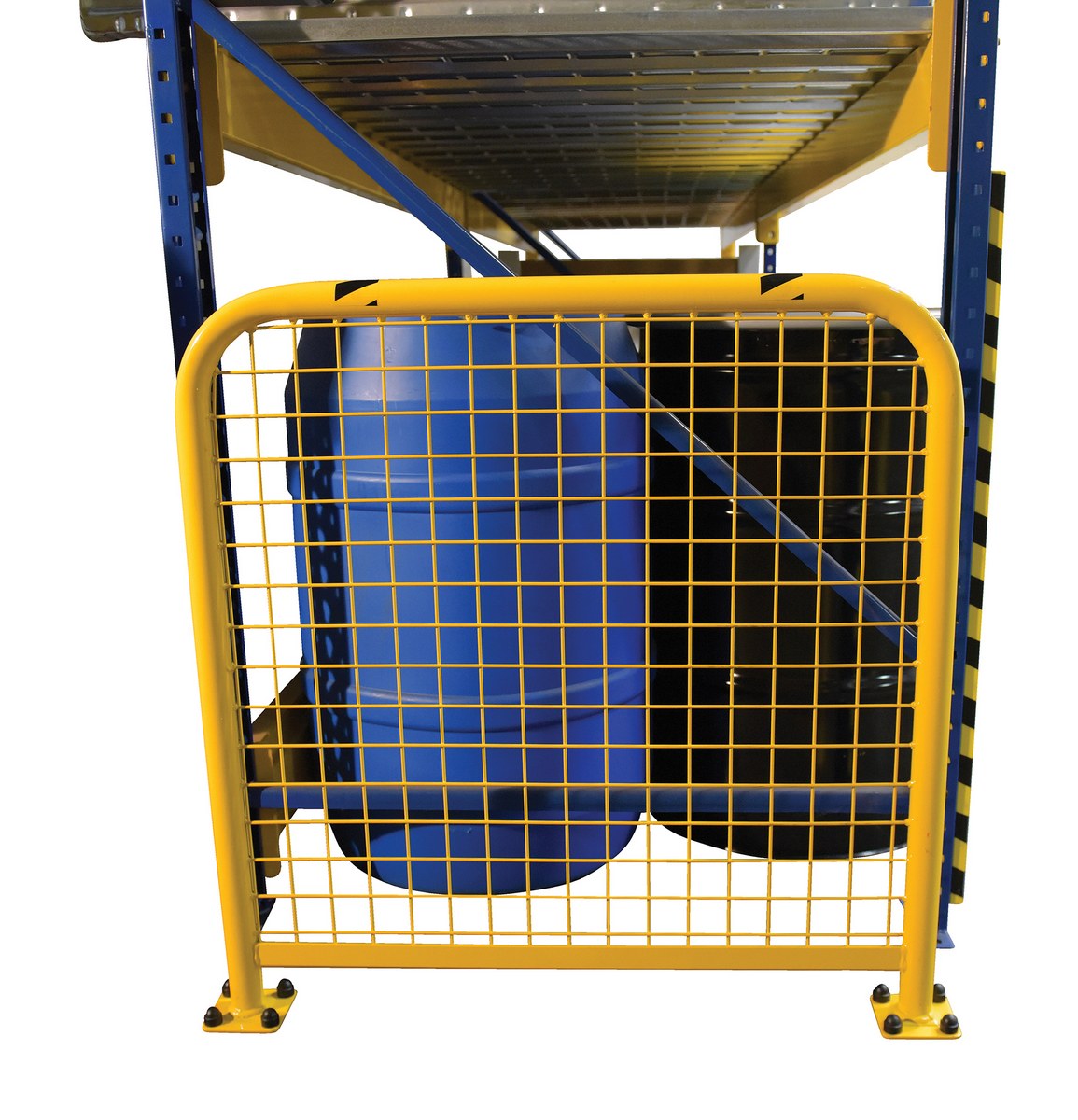

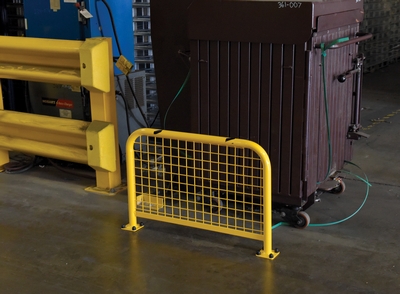

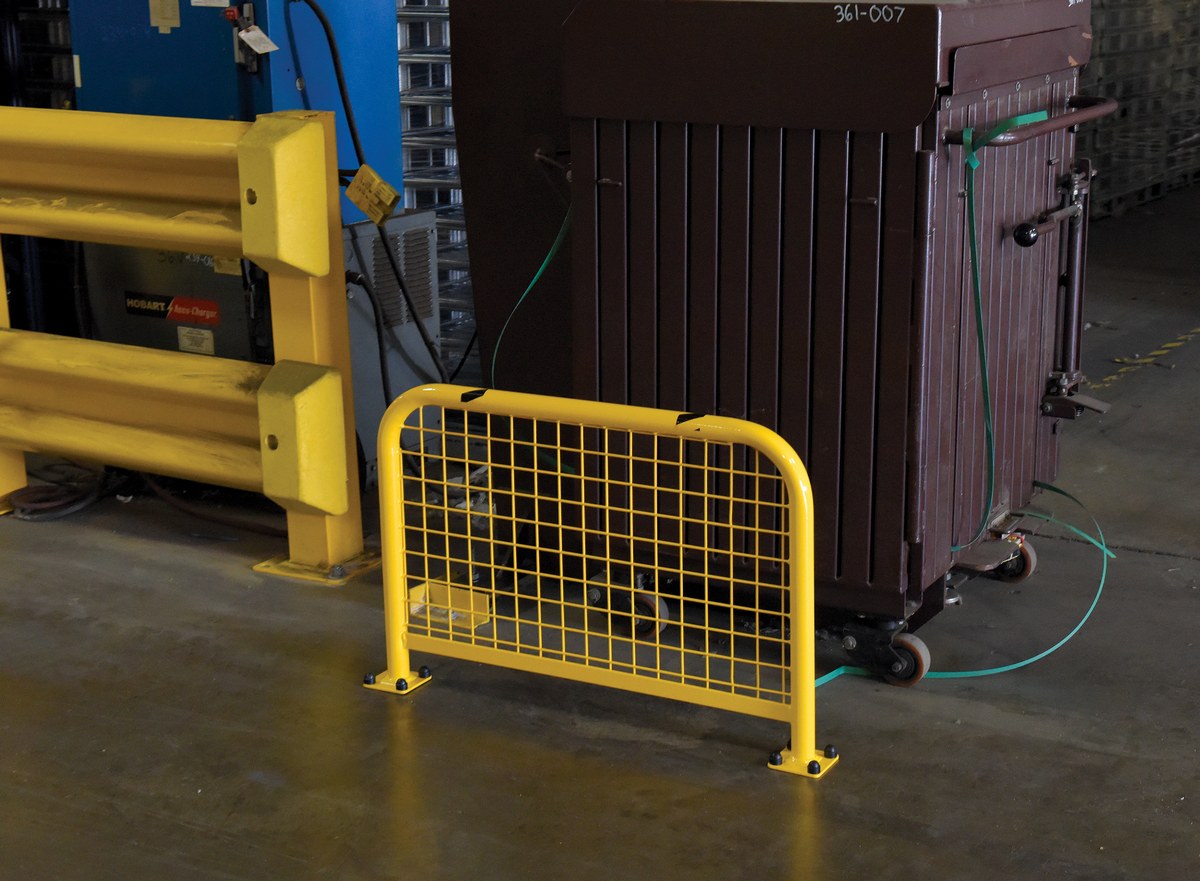

The High Profile Machinery Guard is ideal for manufacturing and distribution facilities. The unit is constructed of 7 gauge welded steel wire mesh inserts with a baked in powder coat finish for for visibility and long lasting durability. The welded mesh inside design allows for products to be protected, while still being visible. To use, place the unit in front of the selected product and attach to surface. Hardware is available separately.

Bright yellow color for high visibility
Powder coated for a smooth surface

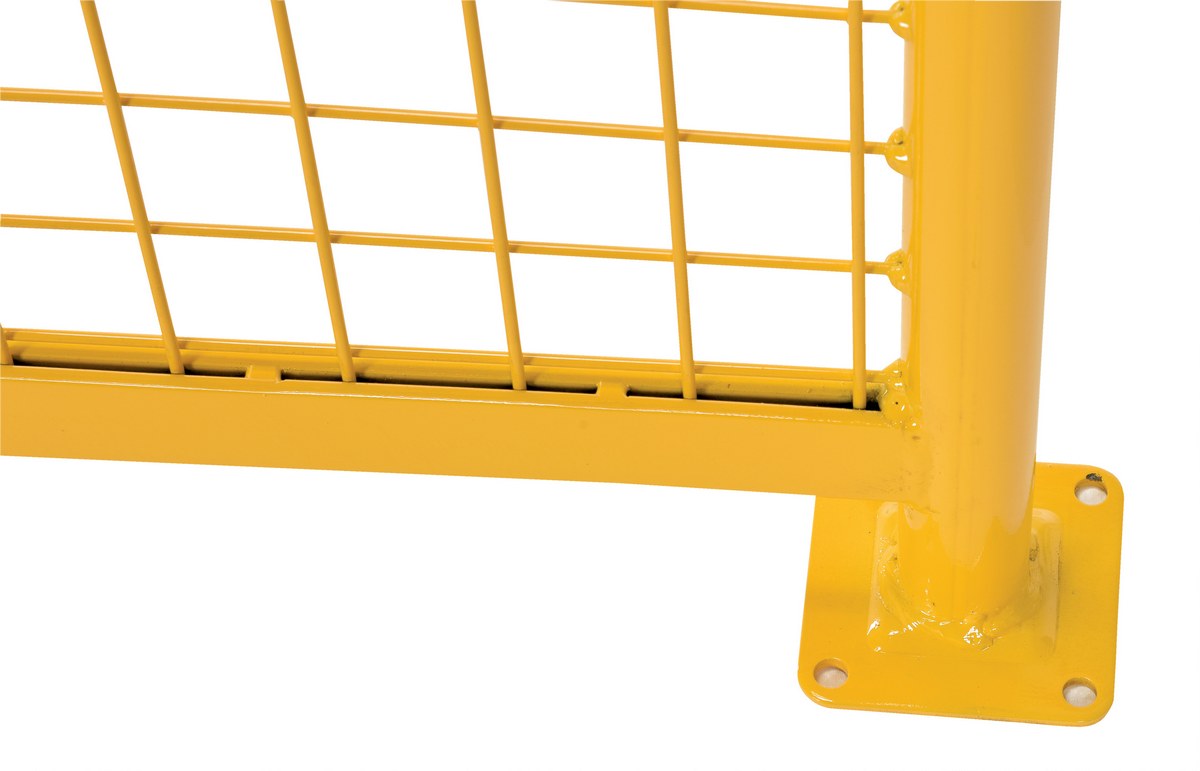

Pre-drilled mounting holes for simple installation
Mesh inserts protect from unnecessary damage

Bright yellow color for high visibility
Powder coated for a smooth surface
Pre-drilled mounting holes for simple installation
Mesh inserts protect from unnecessary damage

Other Machinery Guards

Polyethylene Ultra I-Beam Protector

Modular Guard Systems

Low Profile Machinery Guards

Hexagonal Column Guards

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

HPRO-M-48-36-2

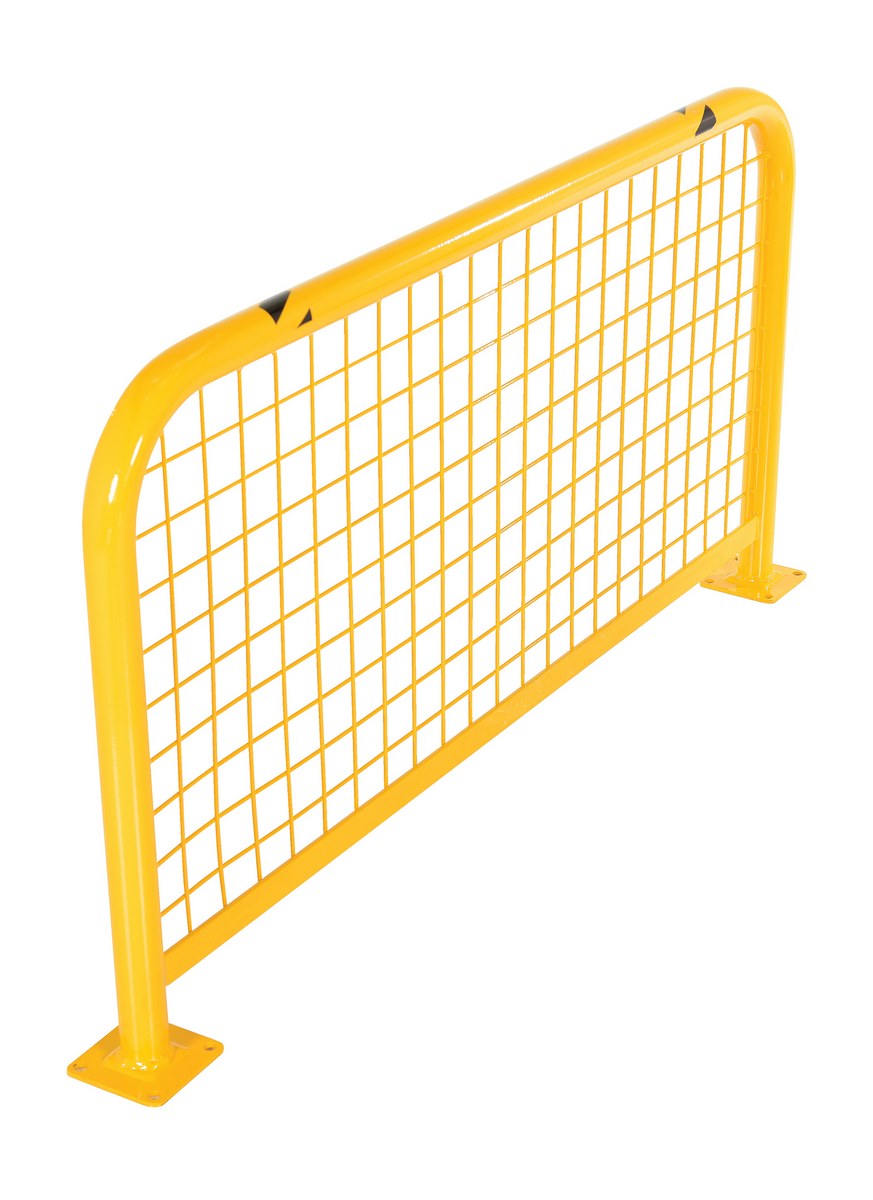

HPRO-M-48-24-2

HPRO-M-36-24-4

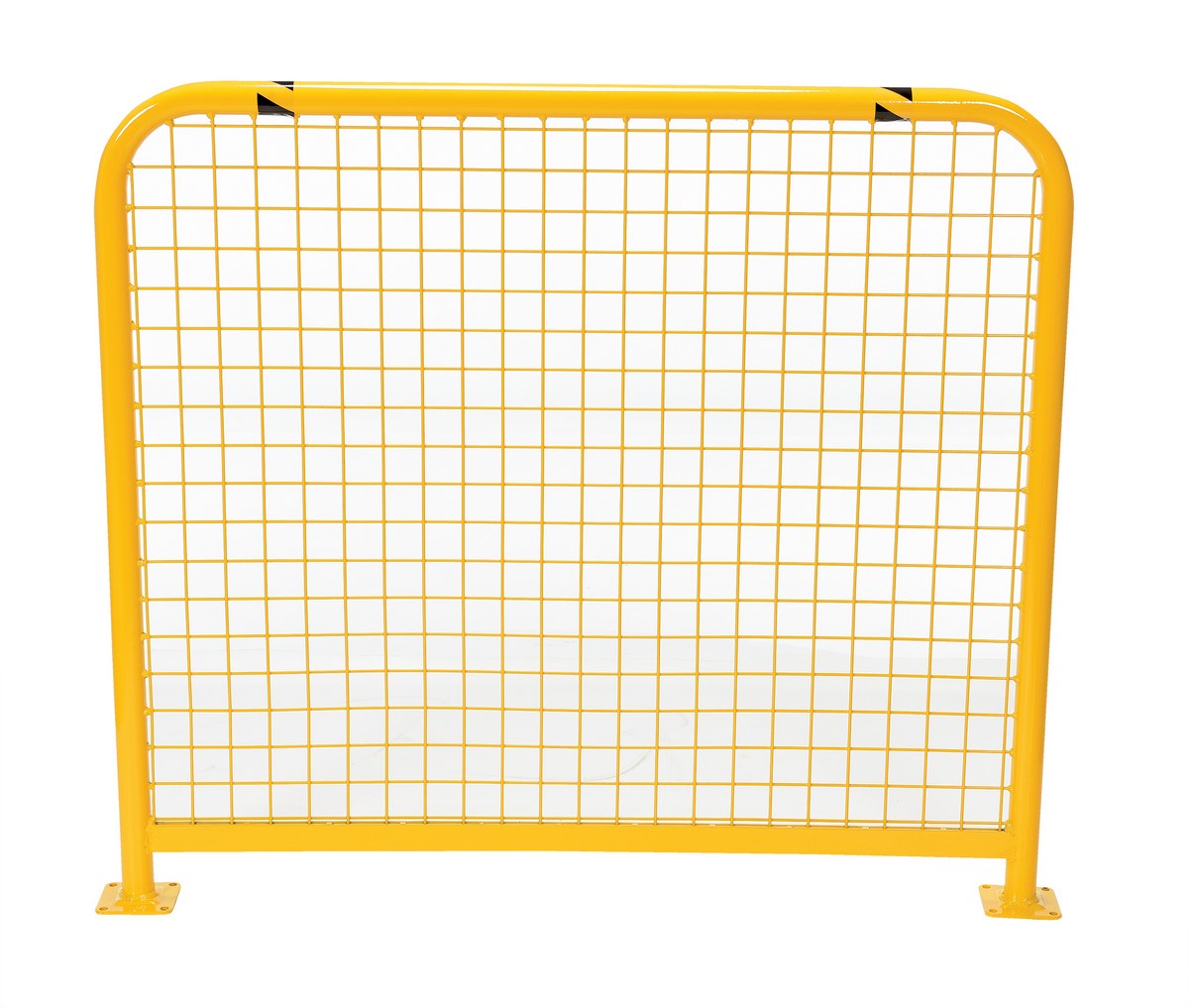

HPRO-M-48-42-2

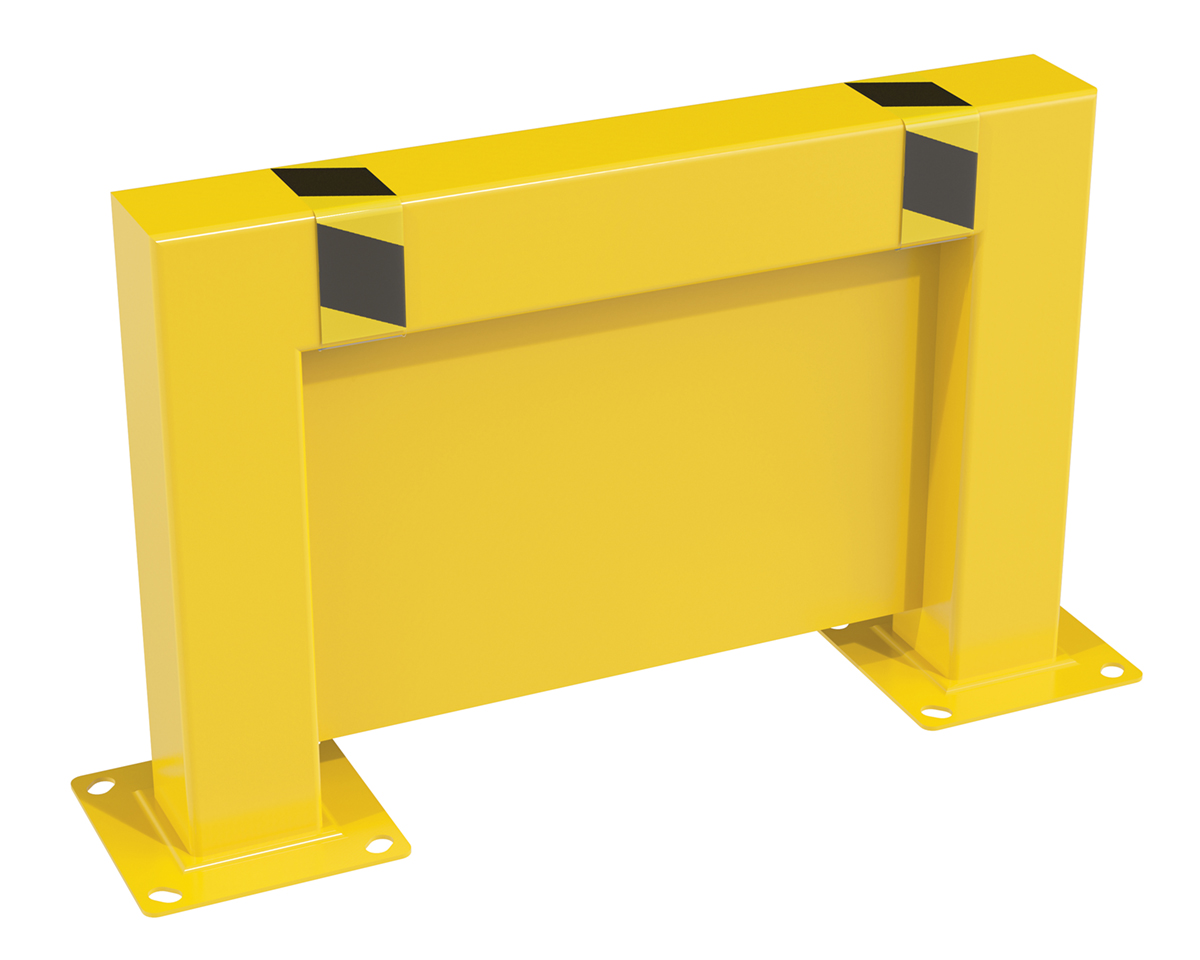

HPRO-SD-SQ-36-24-5

HPRO-SD-36-24-4

HPRO-M-36-42-2

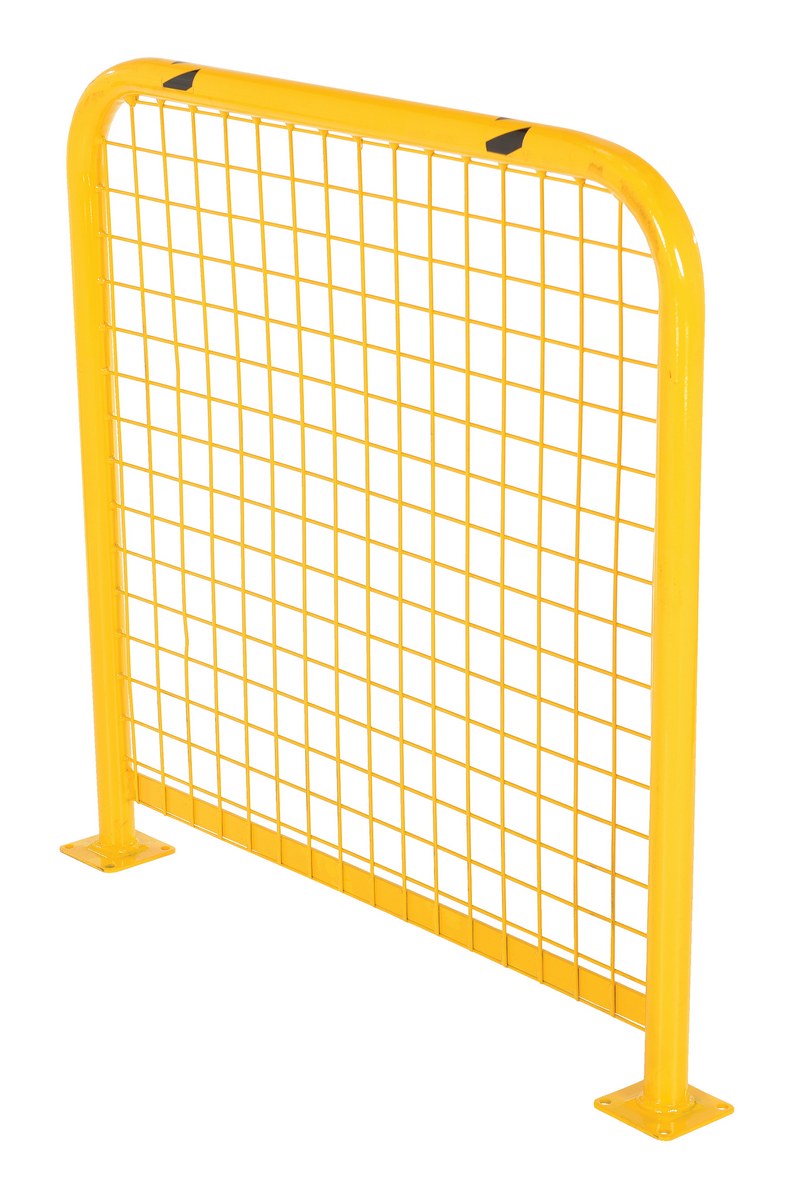

HPRO-M-36-36-2

HPRO-M-SQ-36-24-5

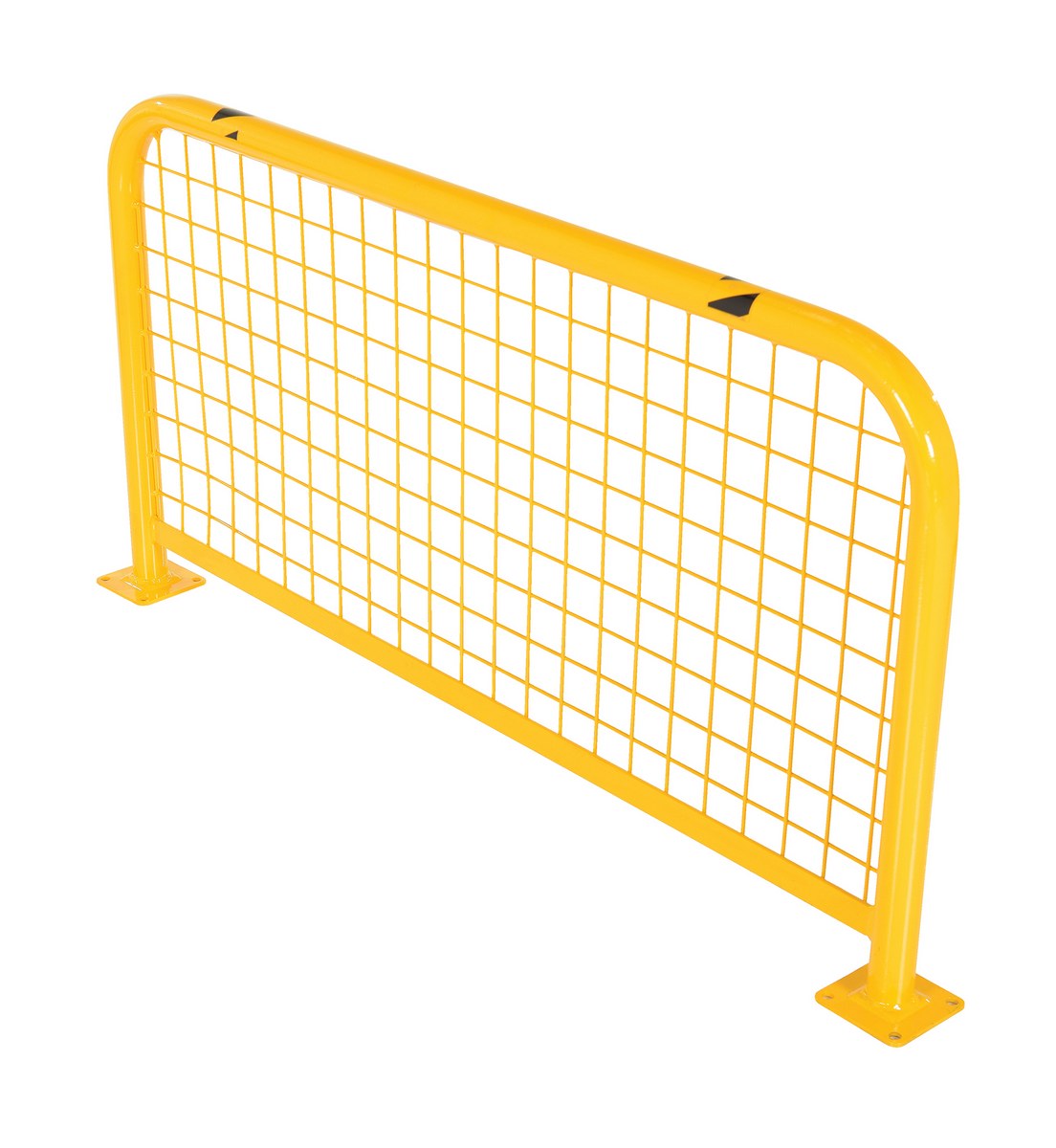

HPRO-M-48-24-2

HPRO-M-48-42-2

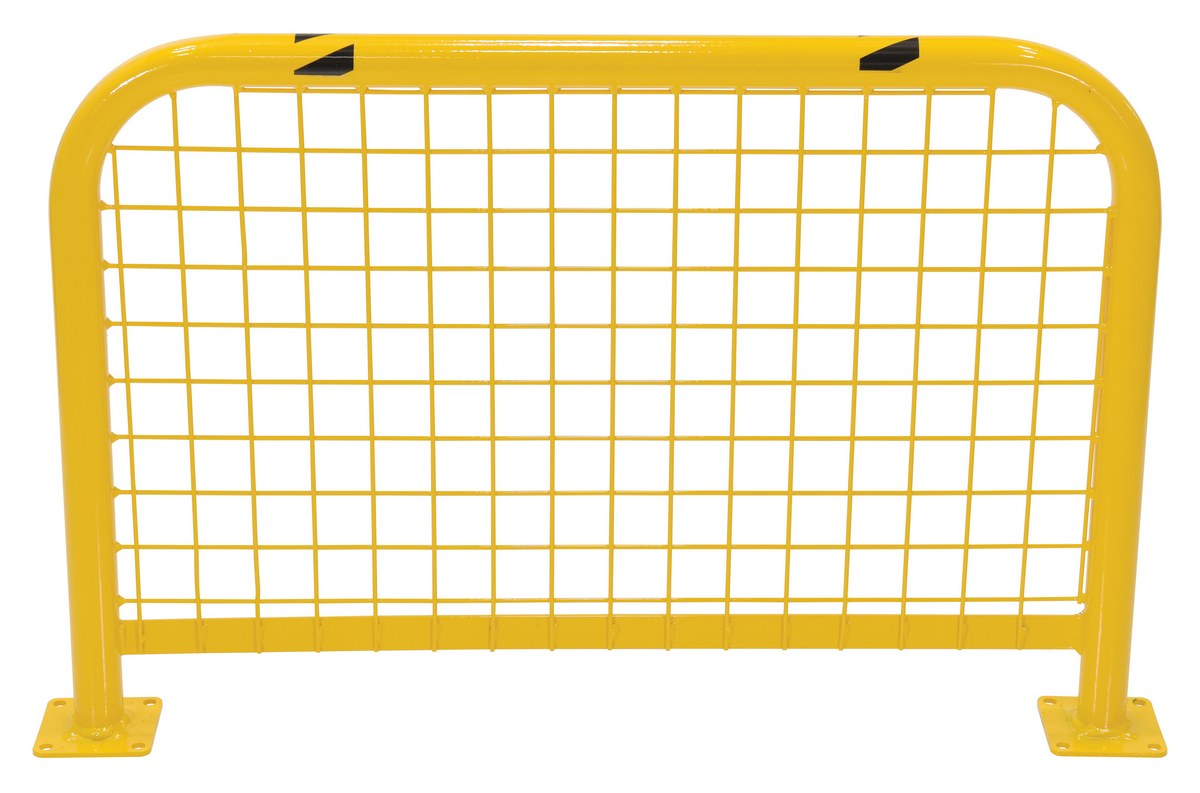

HPRO-M-36-24-2

HPRO-M-36-36-2

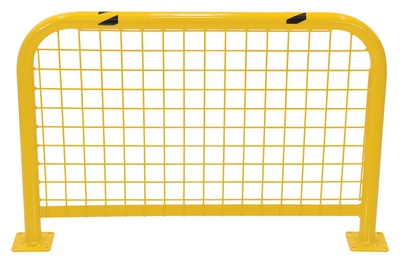

HPRO-M-36-24-2

HPRO-M-48-42-2

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)

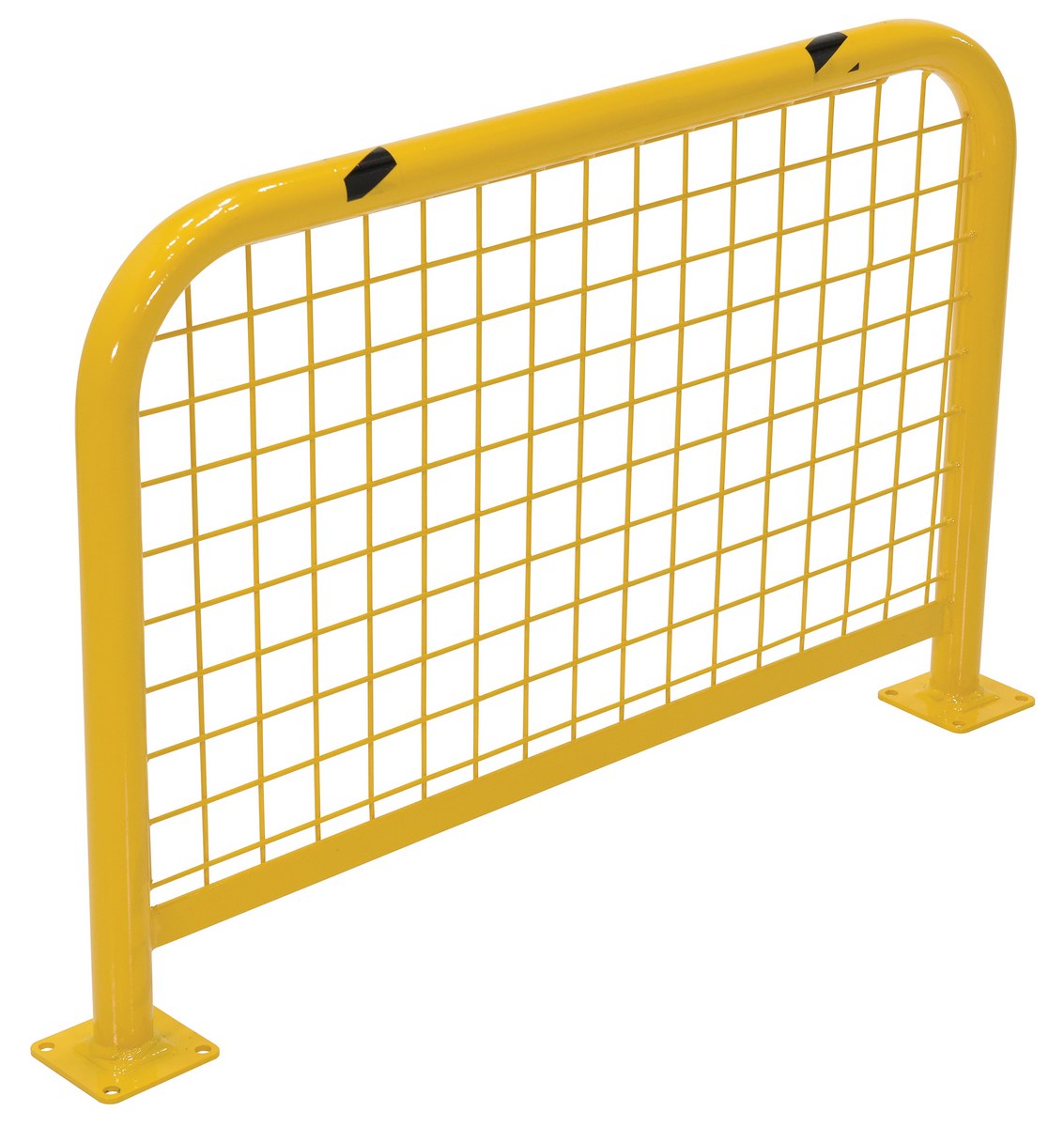

HPRO-M-36-24-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 24 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 36	20

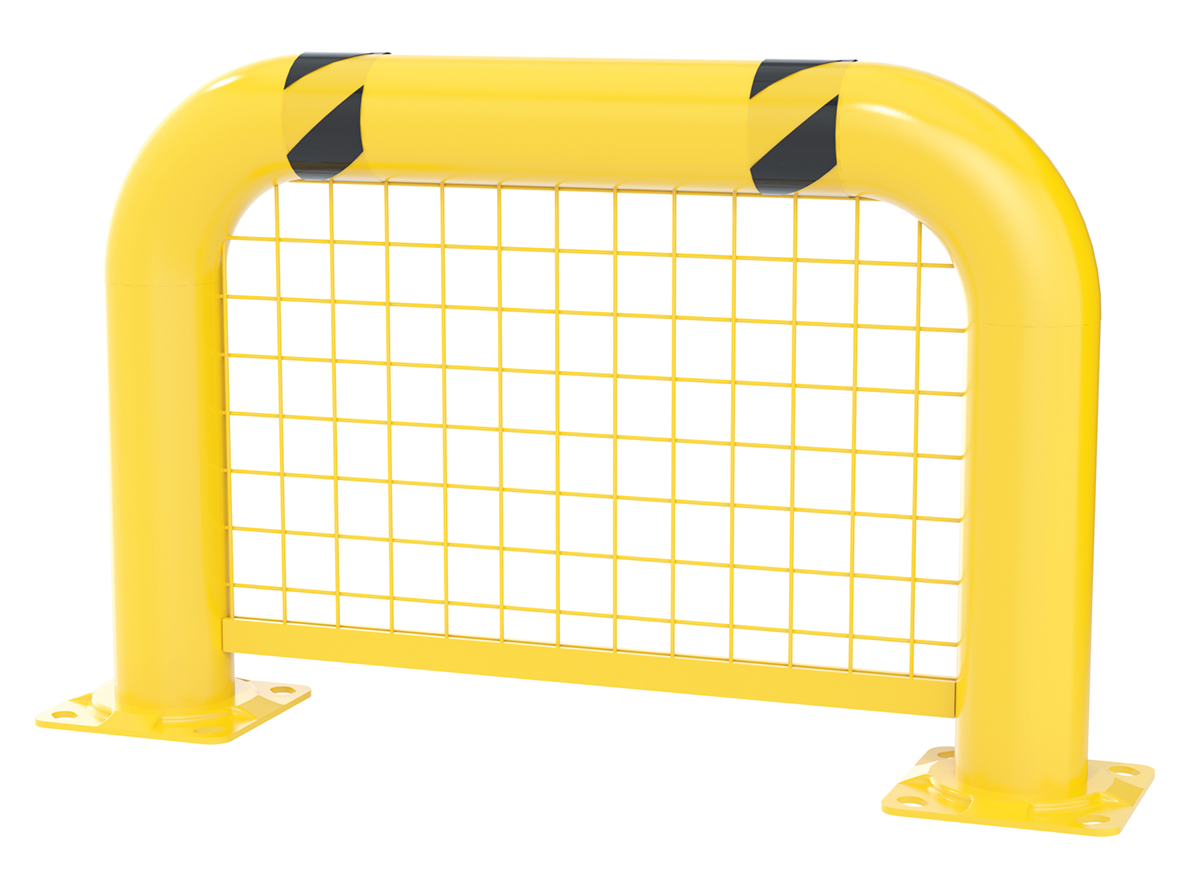

HPRO-M-36-24-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 24 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	90
HPRO-M-36-36-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 36 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 36	26
HPRO-M-36-36-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 36 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	100

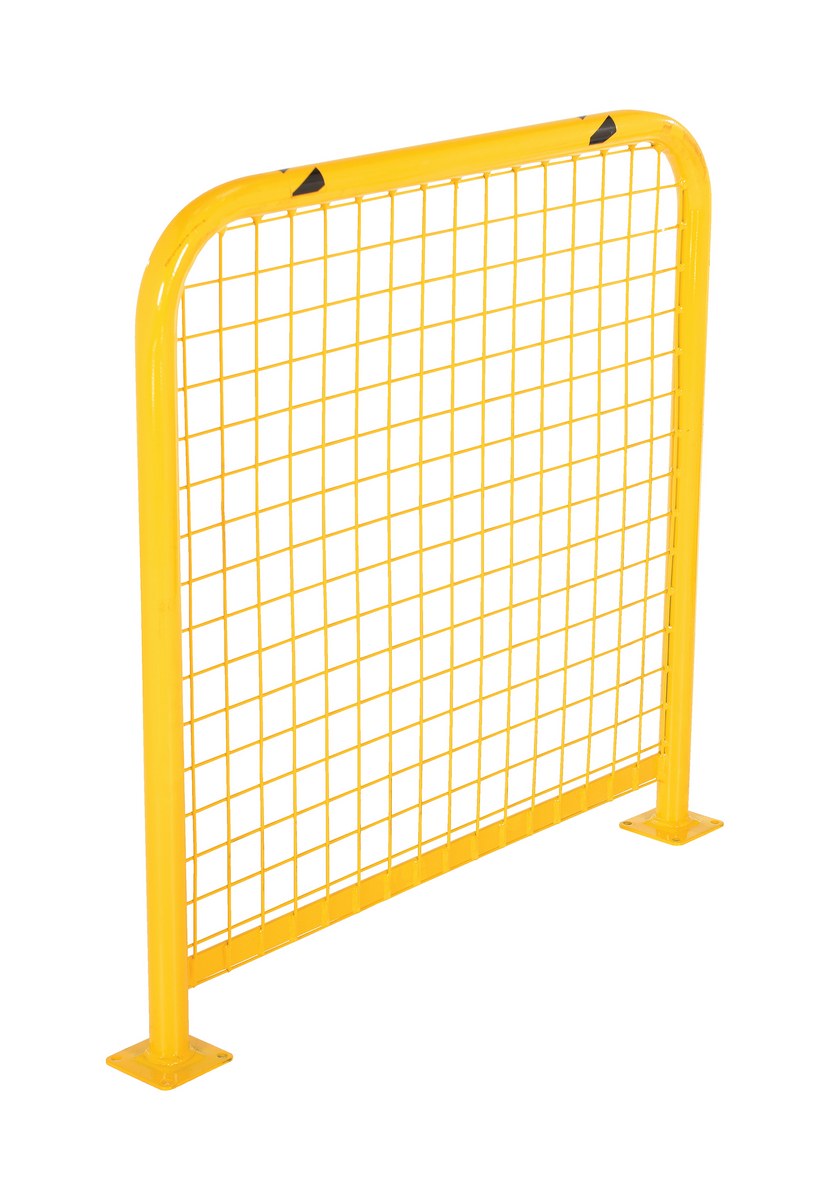

HPRO-M-36-42-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 42 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 36	35
HPRO-M-36-42-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 36 In. x 42 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	111
HPRO-M-48-24-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 24 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 48	24
HPRO-M-48-24-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 24 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	94
HPRO-M-48-36-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 36 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 48	28
HPRO-M-48-36-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 36 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	107

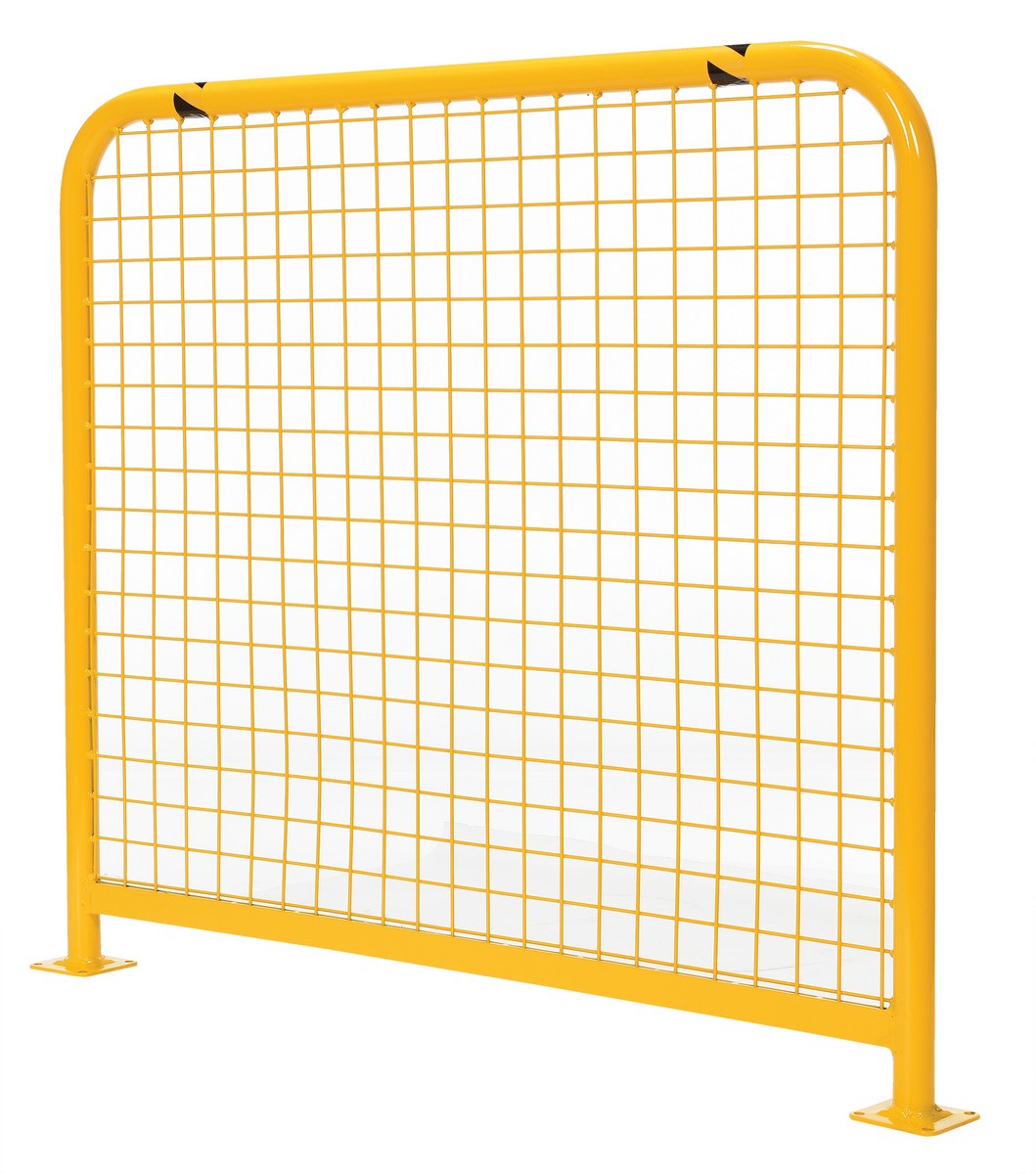

HPRO-M-48-42-2	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 48 In. x 2 In. Yellow	Guard Diameter (in.): 1-11/16 Guard Length (in.): 48	37
HPRO-M-48-42-4	90 Days Limited Warranty	Steel High Profile Machinery Guard with Welded Mesh Middle 48 In. x 48 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	120
HPRO-M-SQ-36-24-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 36 In. x 24 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	128
HPRO-M-SQ-36-36-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 36 In. x 36 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	152
HPRO-M-SQ-36-42-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 36 In. x 42 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	164
HPRO-M-SQ-48-24-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 48 In. x 24 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	140
HPRO-M-SQ-48-36-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 48 In. x 36 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	151
HPRO-M-SQ-48-42-5	90 Days Limited Warranty	Steel Square High Profile Machinery Guard with Welded Mesh Middle 48 In. x 42 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	176

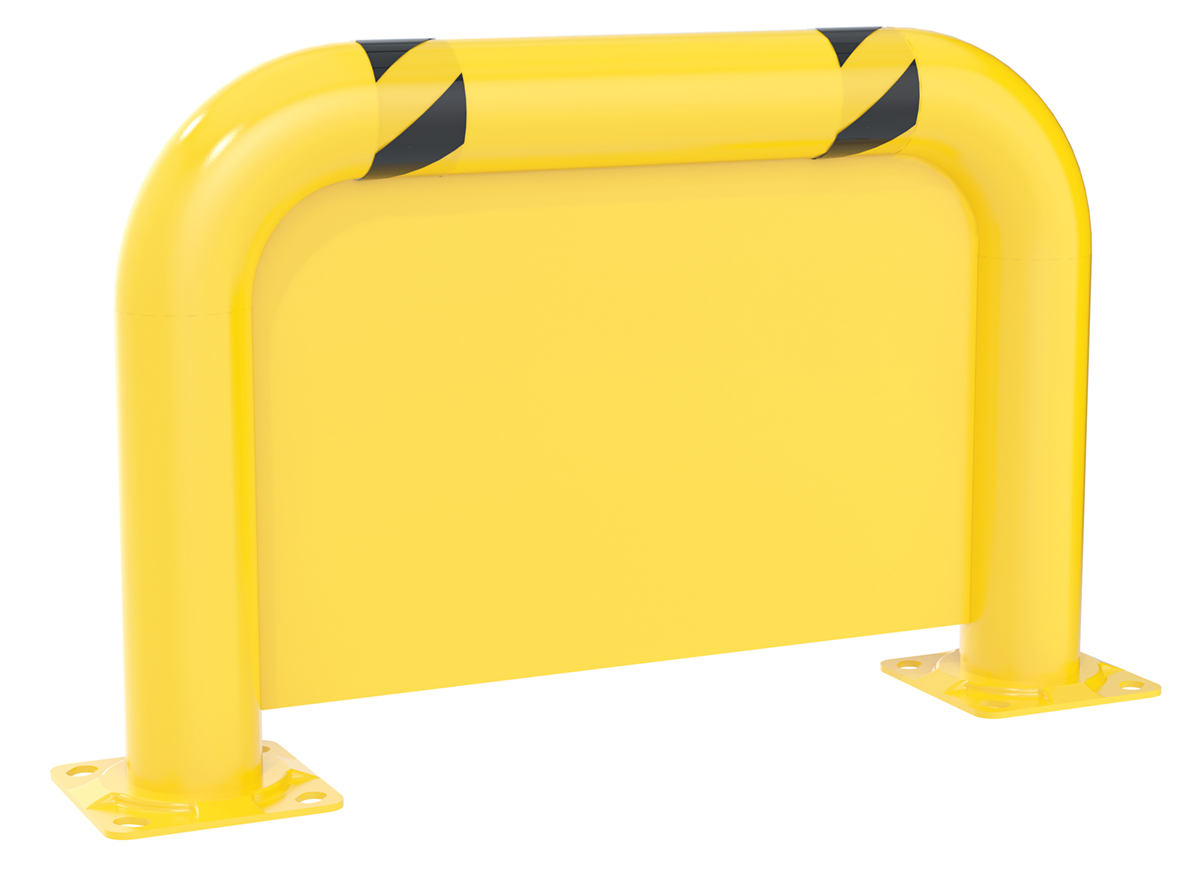

HPRO-SD-36-24-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 36 In. x 24 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	104
HPRO-SD-36-36-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 36 In. x 36 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	128
HPRO-SD-36-42-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 36 In. x 42 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	146
HPRO-SD-48-24-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 48 In. x 24 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	117
HPRO-SD-48-36-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 48 In. x 36 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	148
HPRO-SD-48-42-4	90 Days Limited Warranty	Steel High Profile Machinery and Rack Guard with Solid Middle 48 In. x 42 In. x 4 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	171
HPRO-SD-SQ-36-24-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 36 In. x 24 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	140
HPRO-SD-SQ-36-36-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 36 In. x 36 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	178
HPRO-SD-SQ-36-42-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 36 In. x 42 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	196
HPRO-SD-SQ-48-24-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 48 In. x 24 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	160
HPRO-SD-SQ-48-36-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 48 In. x 36 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	190
HPRO-SD-SQ-48-42-5	90 Days Limited Warranty	Steel Square High Profile Machinery and Rack Guard with Solid Middle 48 In. x 42 In. x 5 In. Yellow	Base Plate Widty (in.): 10 Base Plate Length (in.): 10	224

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HPRO-M-36-24-2

Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Length (in.): 36
Guard Diameter (in.): 1-11/16
Guard Length (in.): 36
