model: CBH-32


SERIES: CB,EB,CL,CH,CBH
Cargo Bars
  • Keep trailer contents in place -- eliminate damaged goods

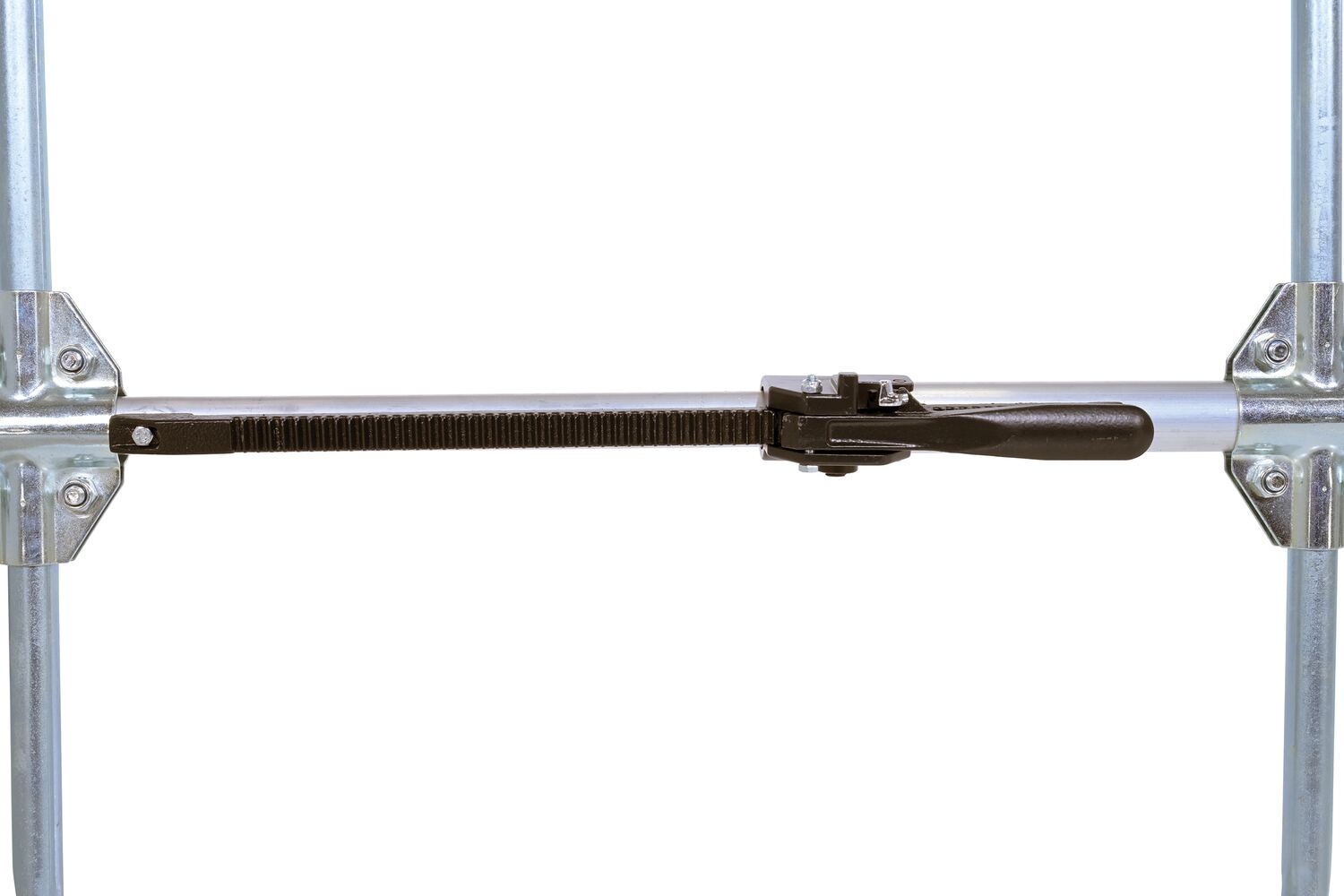

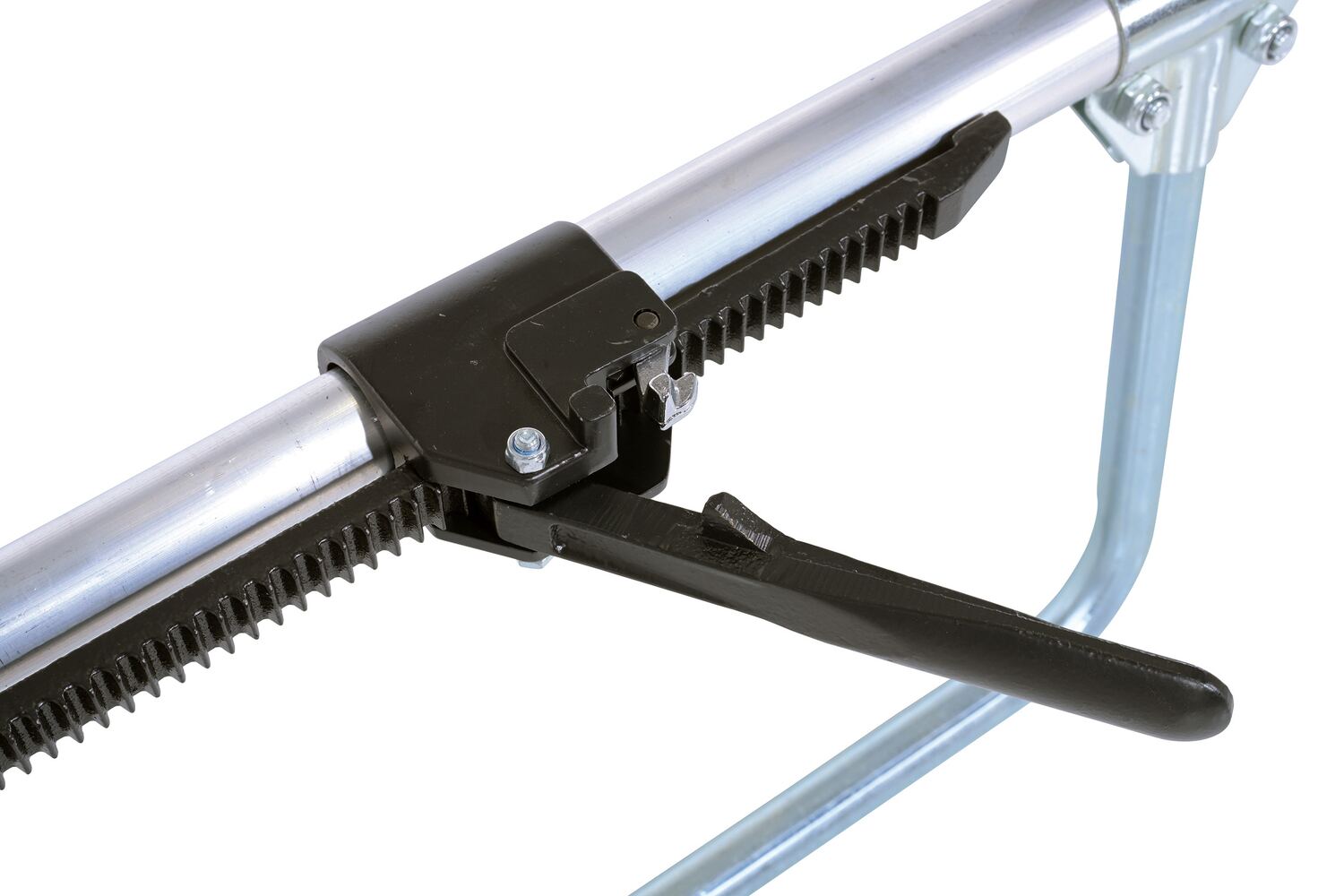

  • Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. 14 gauge wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18 and CBH-32. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Cargo Bars
Model Image PDF's Description Service
Range
Wt.
(lbs.)

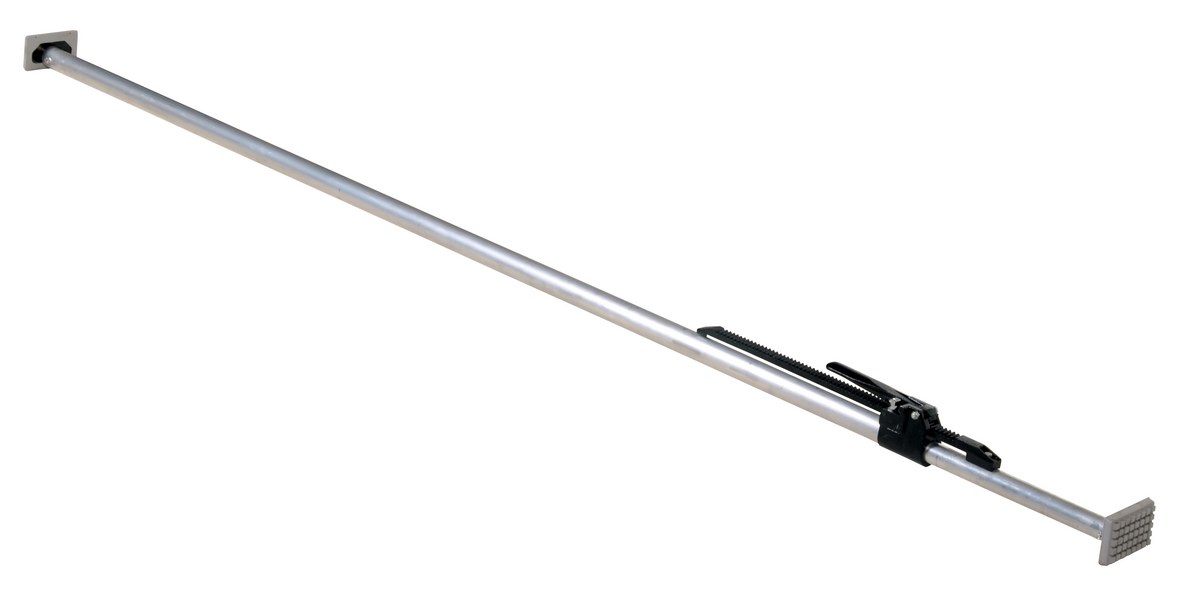

CB-5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Aluminum (Round Tube) 88" To 103" 8

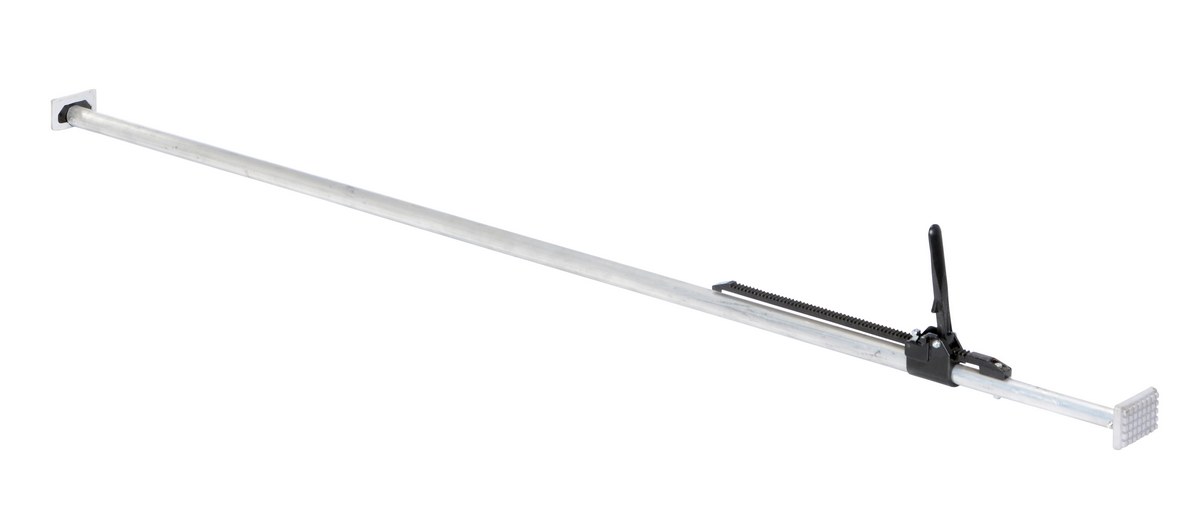

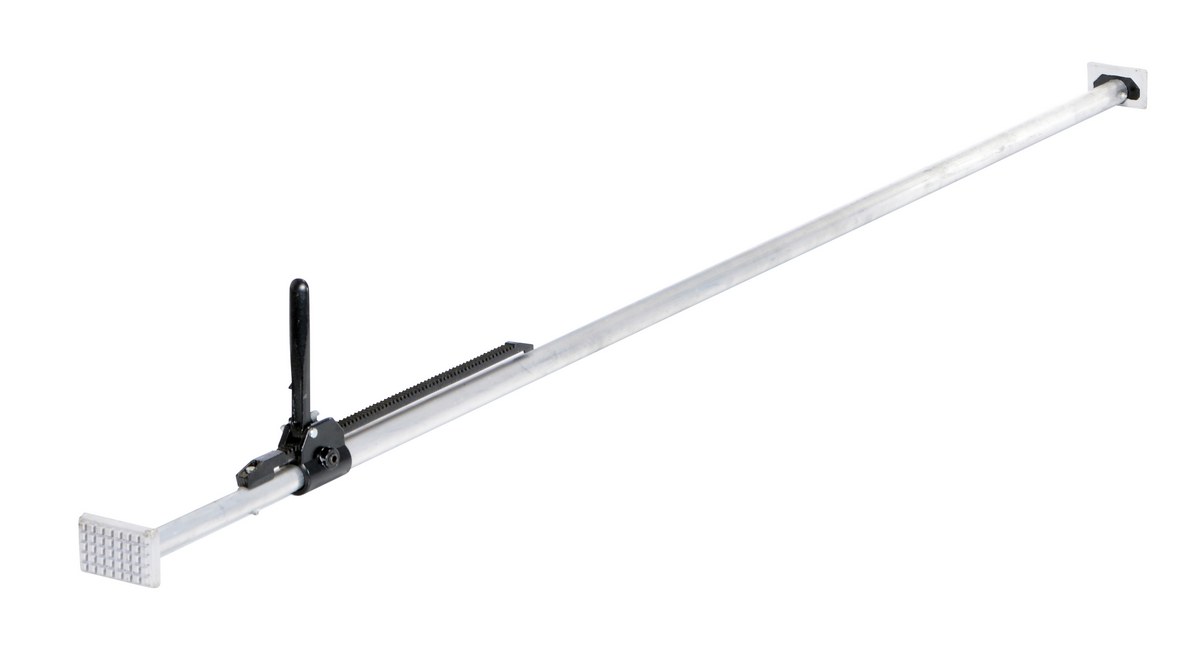

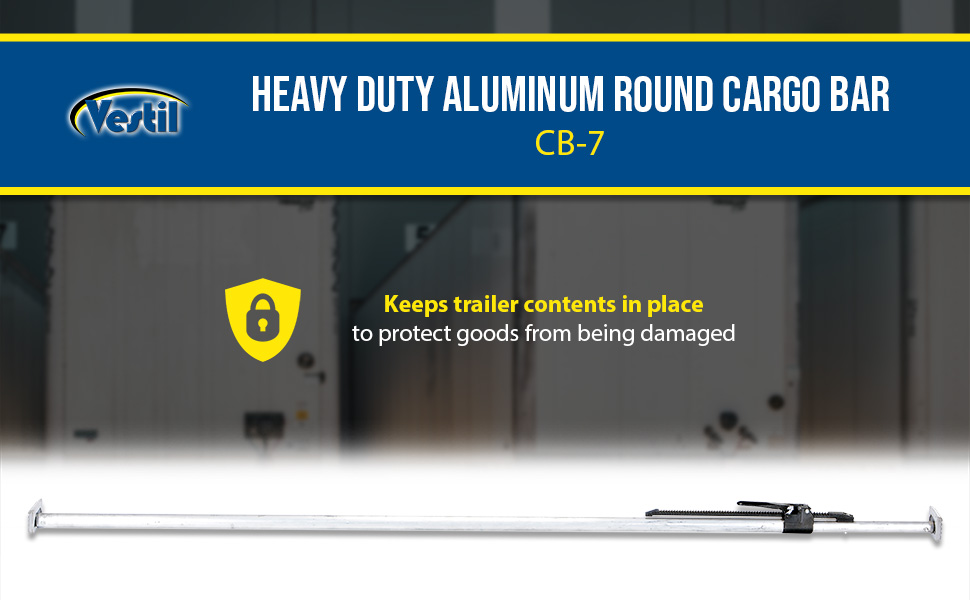

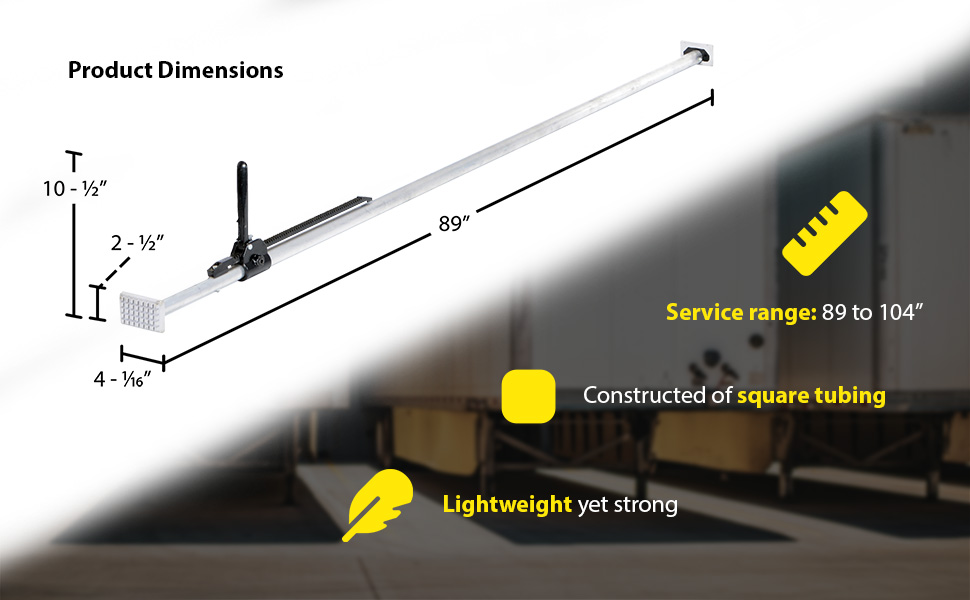

CB-7 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Aluminum Heavy-Duty (Round Tube) 89" To 104" 9

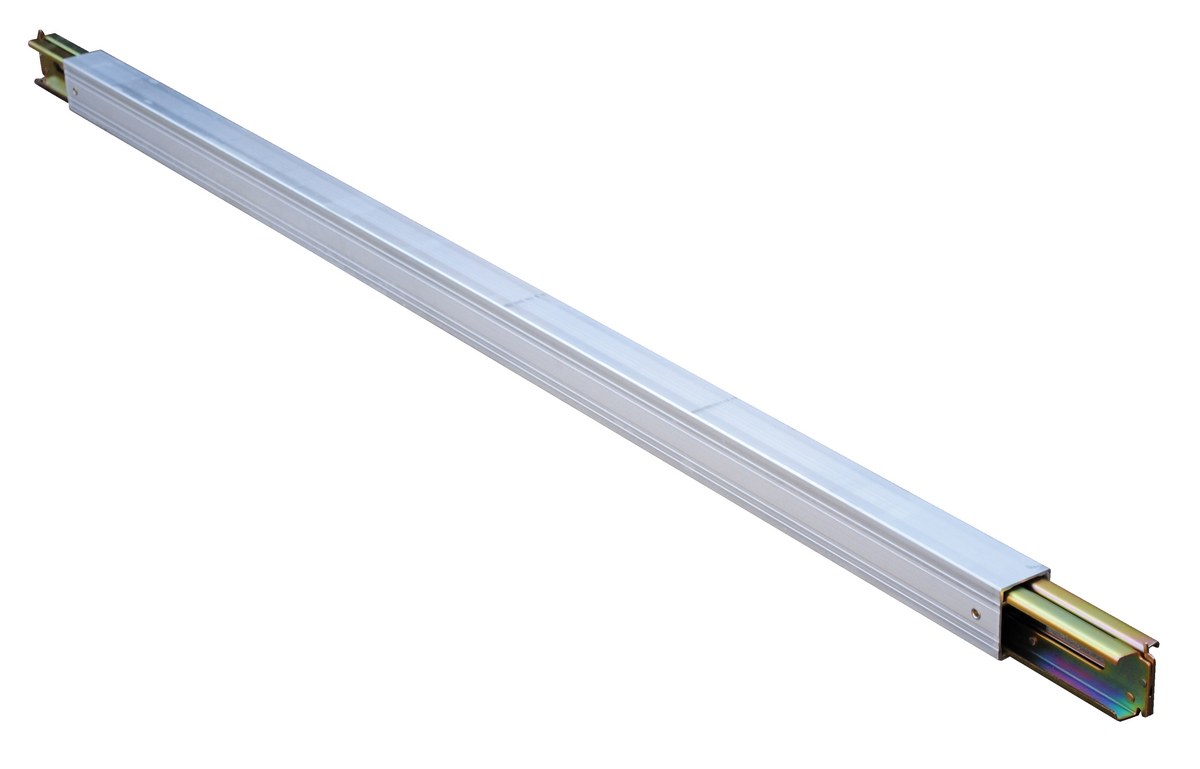

EB-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Aluminum (E-Track) 85" to 96" 19

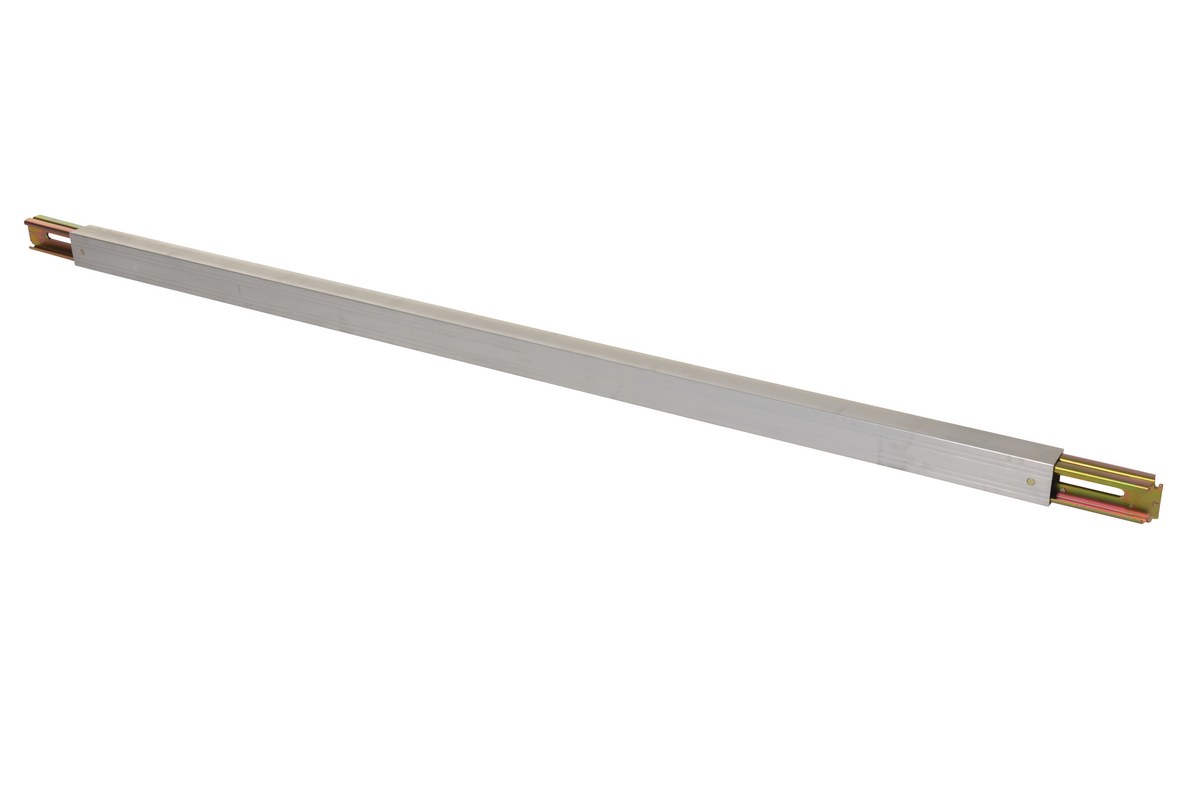

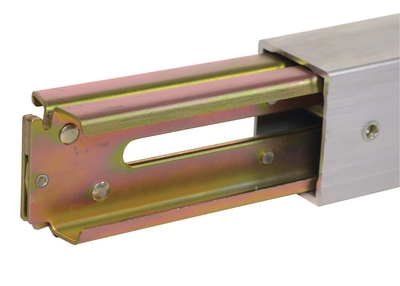

EB-102 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Aluminum (E-Track) 92" to 102" 21

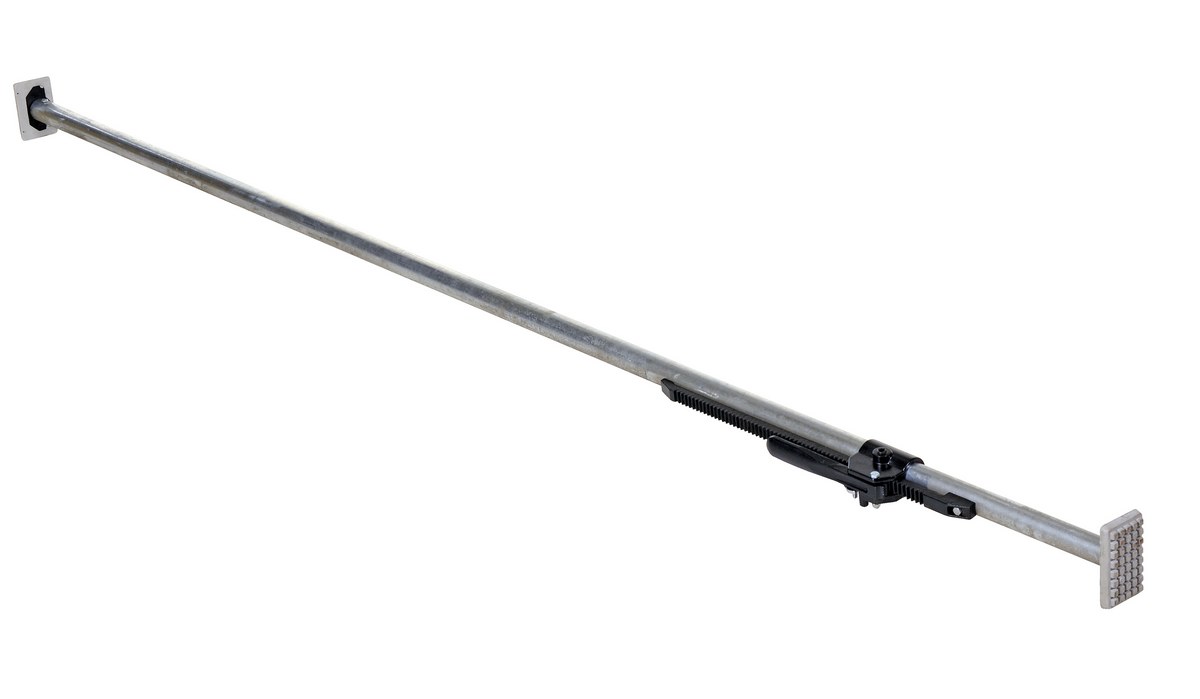

CB-7-S Warranty PDFCompliance Certificate One Piece Steel (Round Tube) 89" to 104" 12

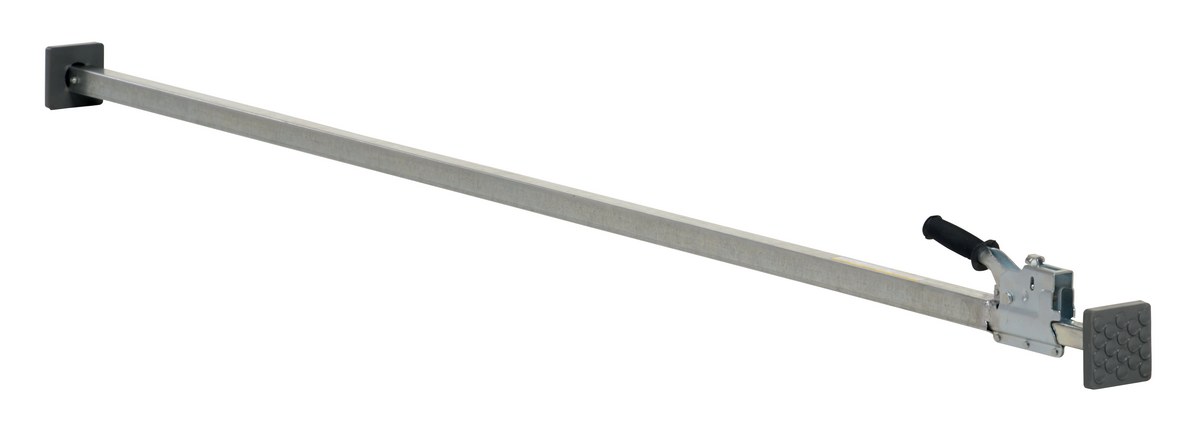

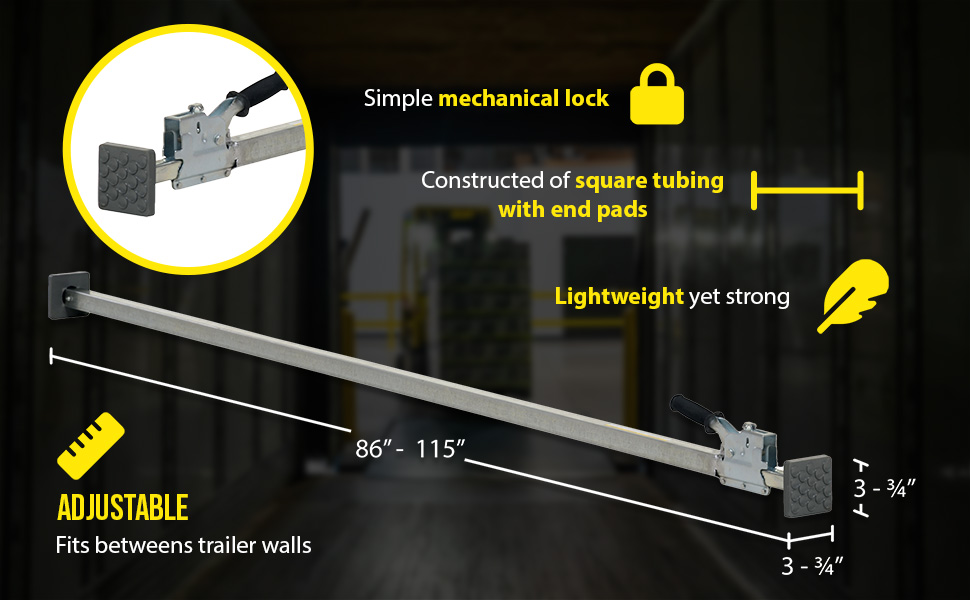

CL-15 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Steel 87" to 119" 15

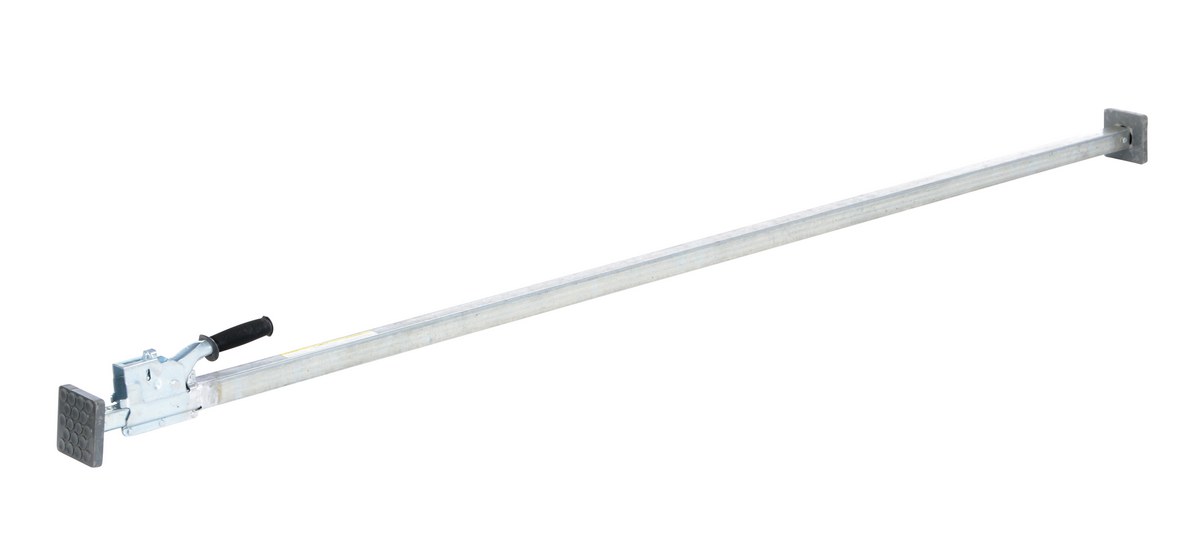

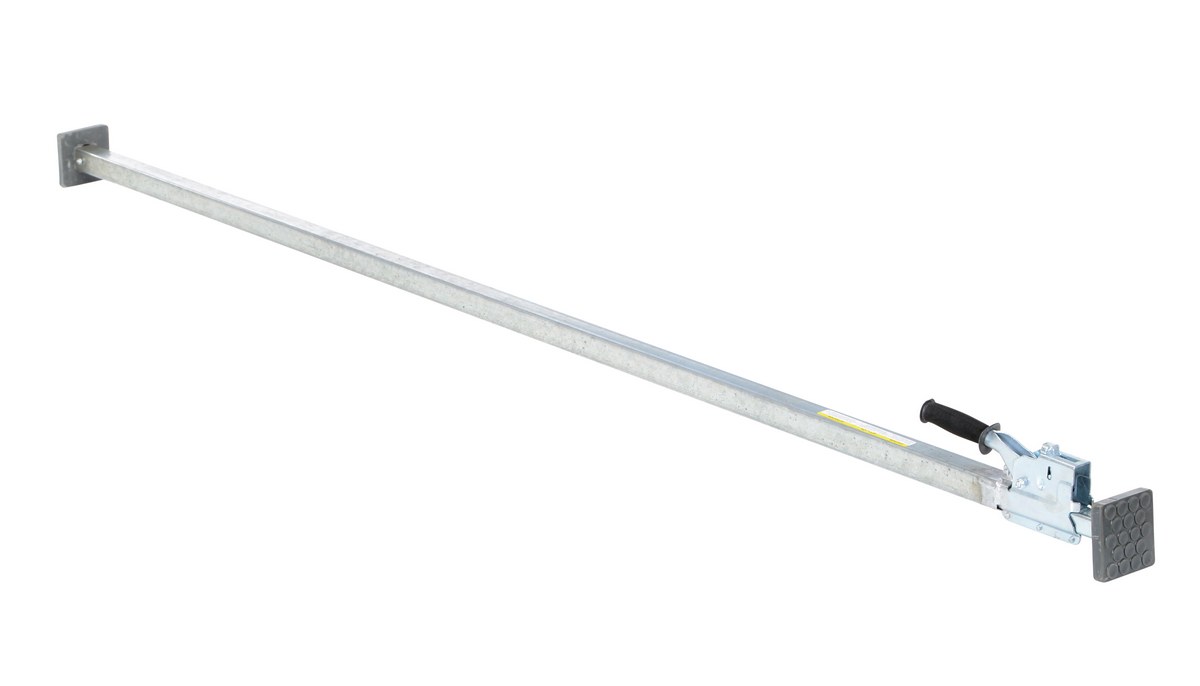

CL-16 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate One Piece Steel Galvanized 87" to 119" 15

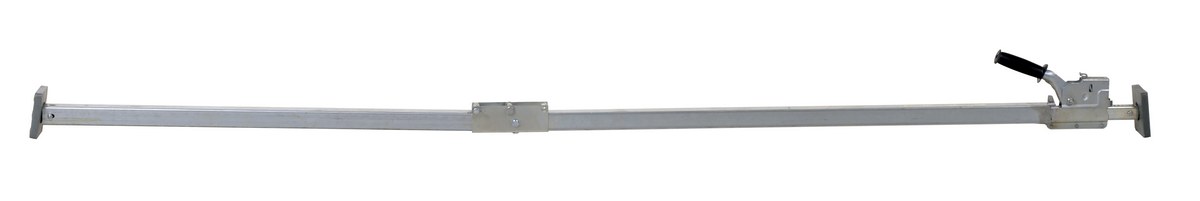

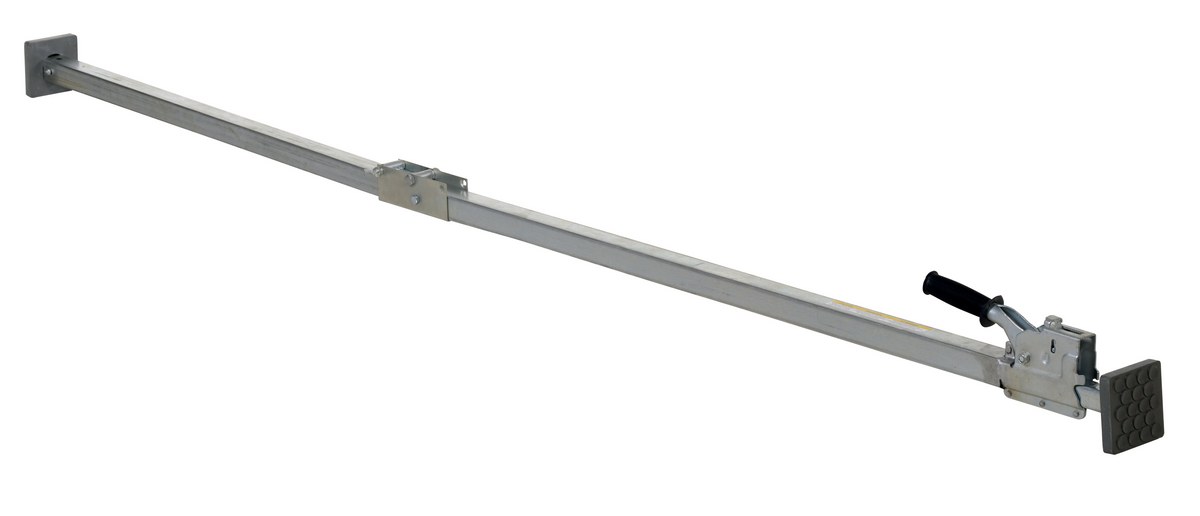

CL-17 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Two Piece Steel Folding Galvanized 88" to 116" 17

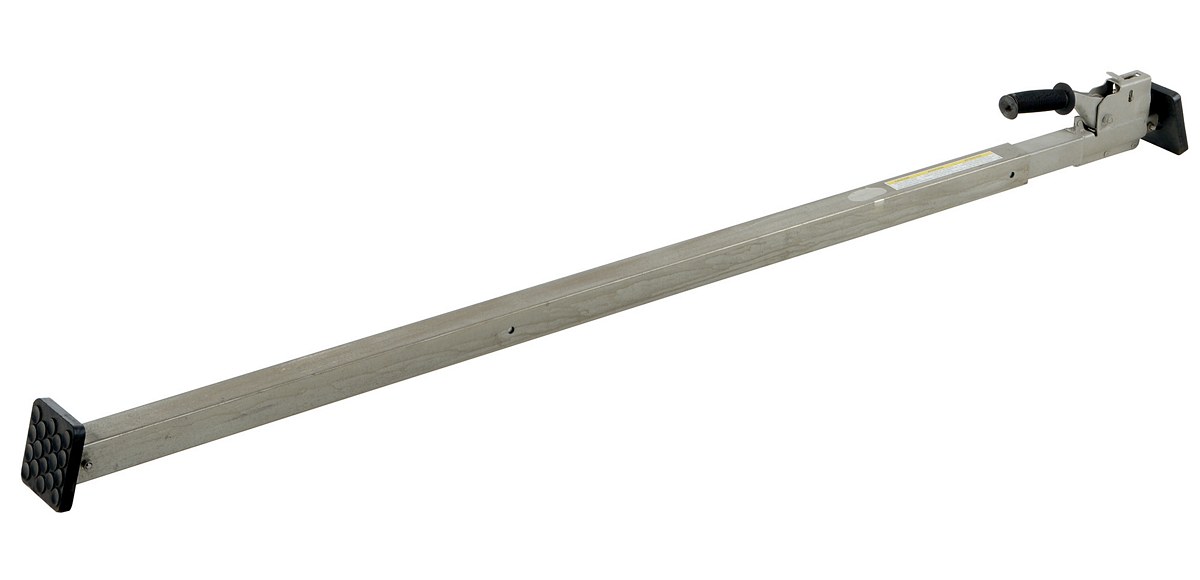

CL-18 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Two Piece Steel Telescopic Galvanized 90-3/8" to 139-9/16" 24

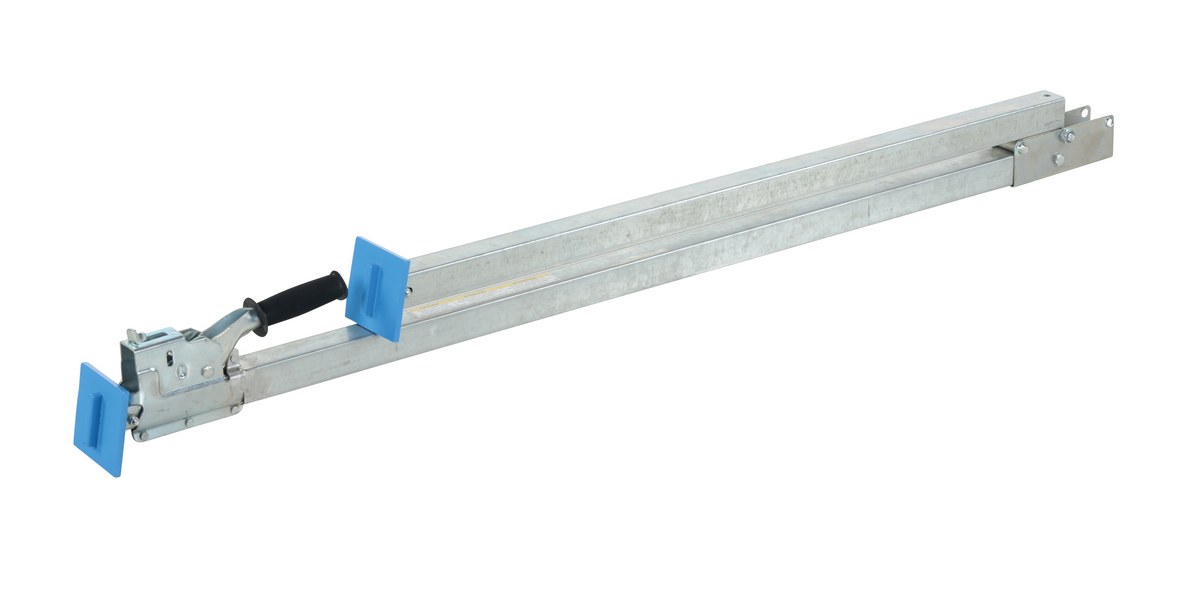

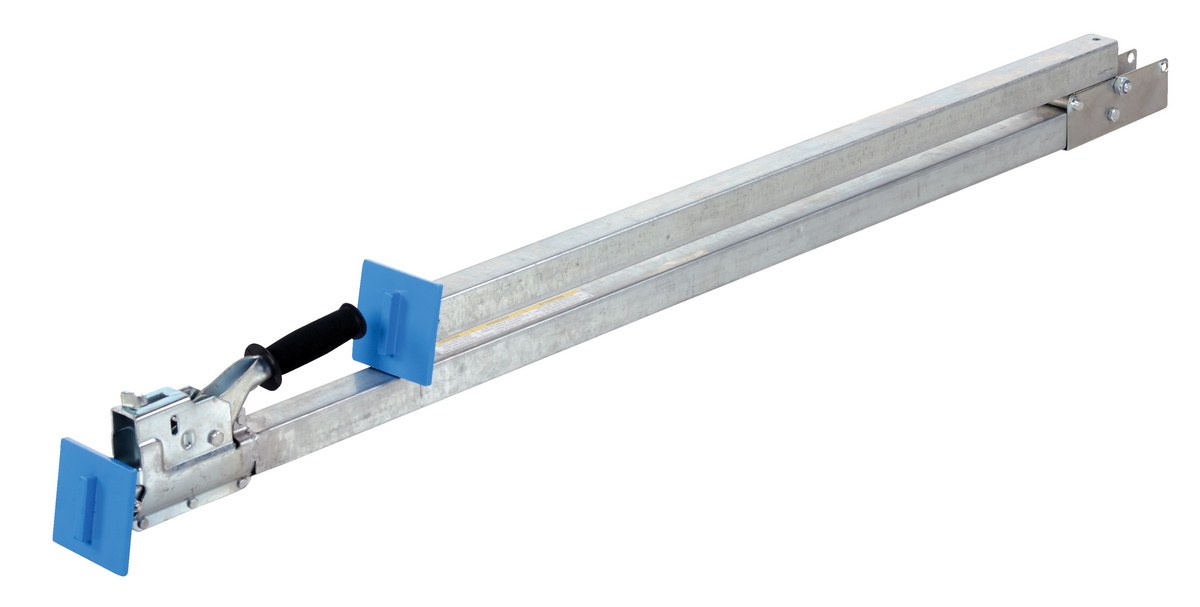

CL-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 piece steel E & A Track (Folding) 87" to 116" 18

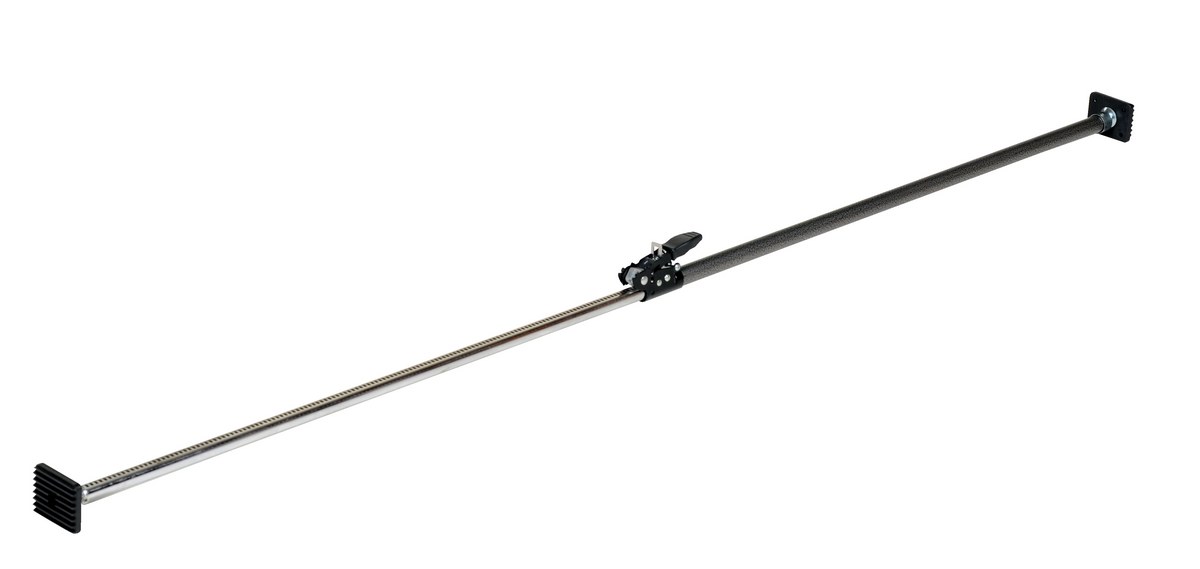

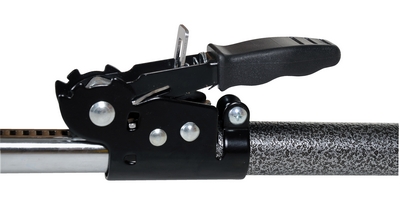

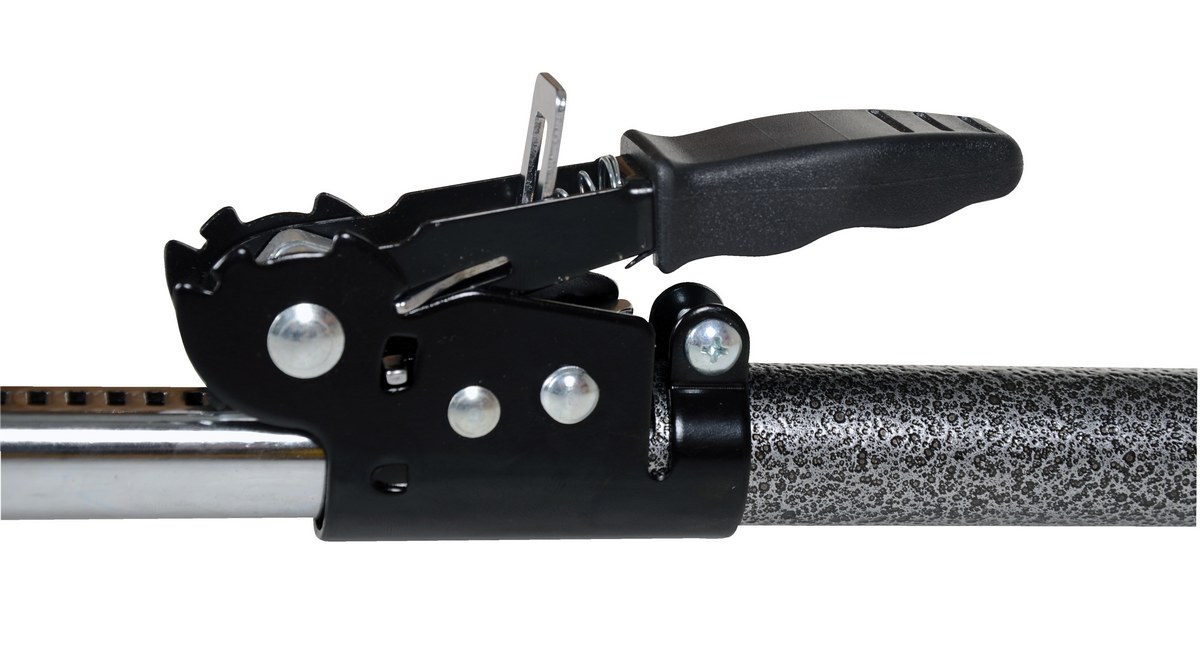

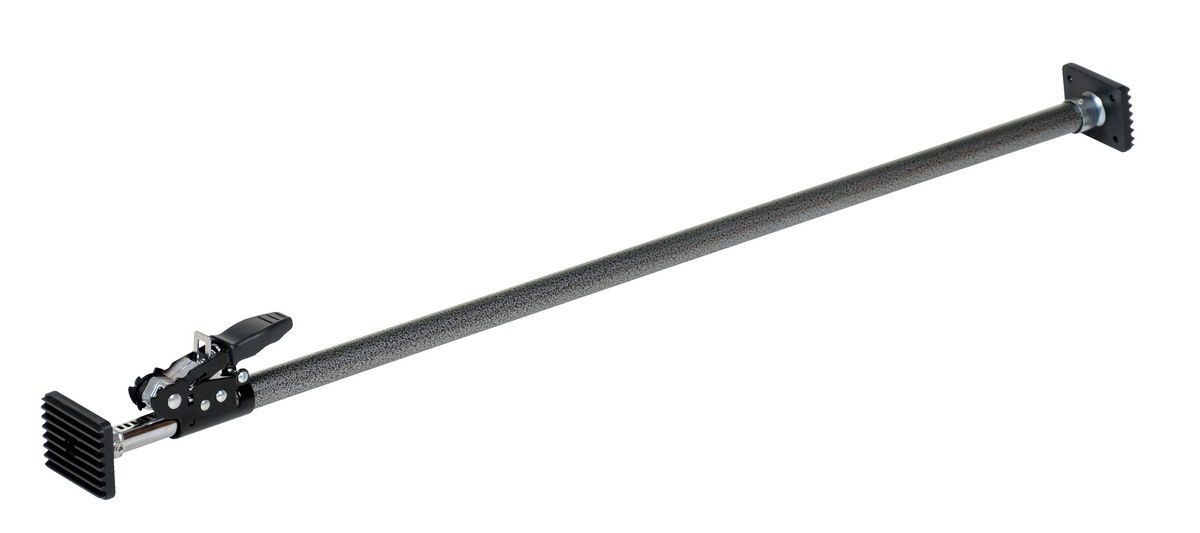

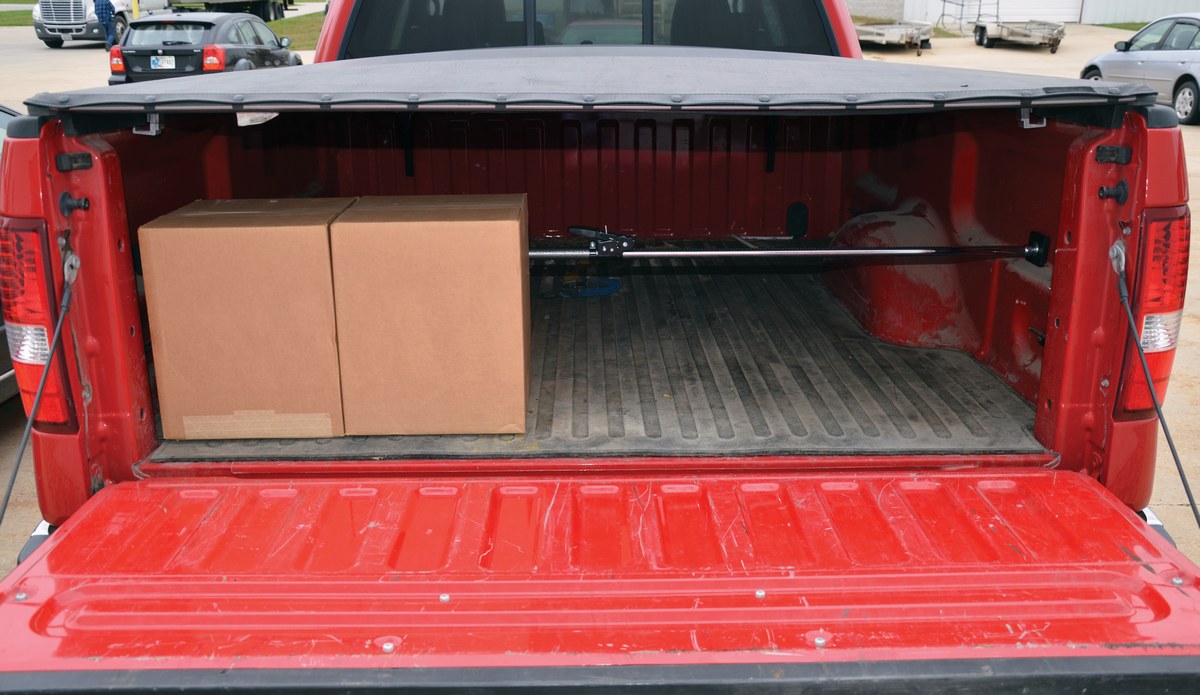

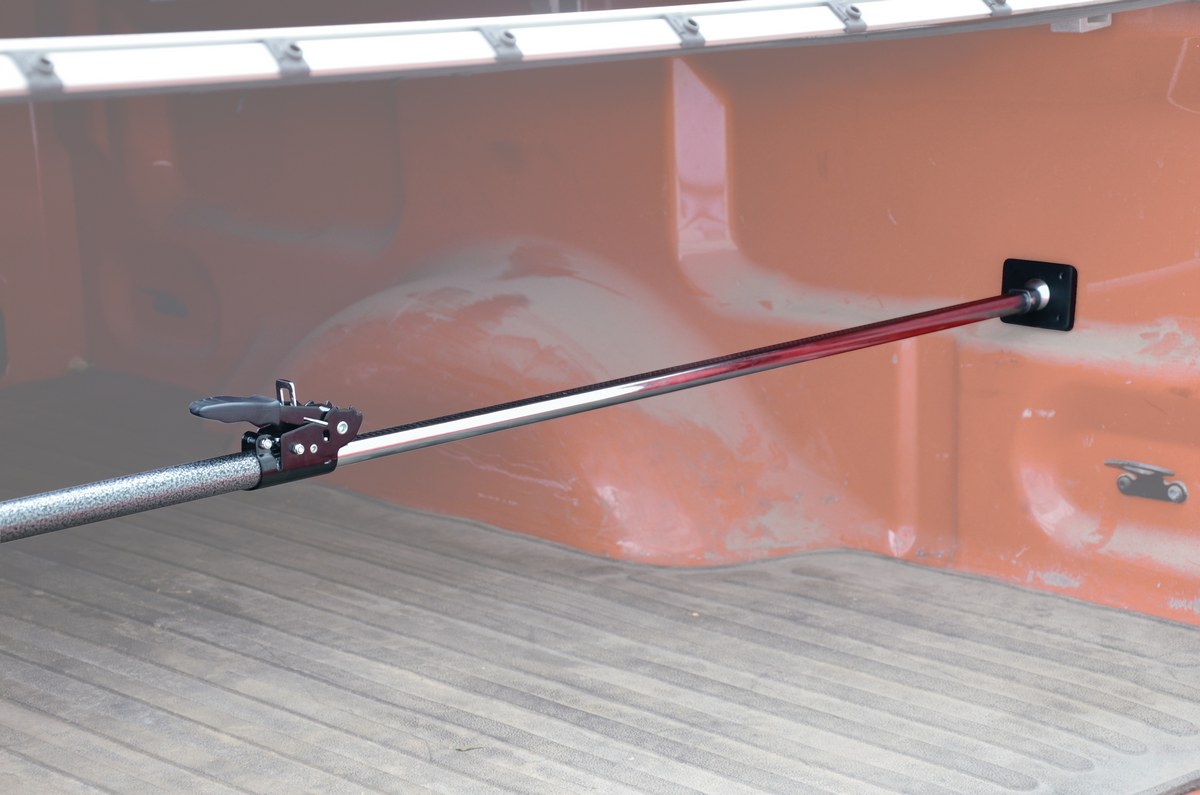

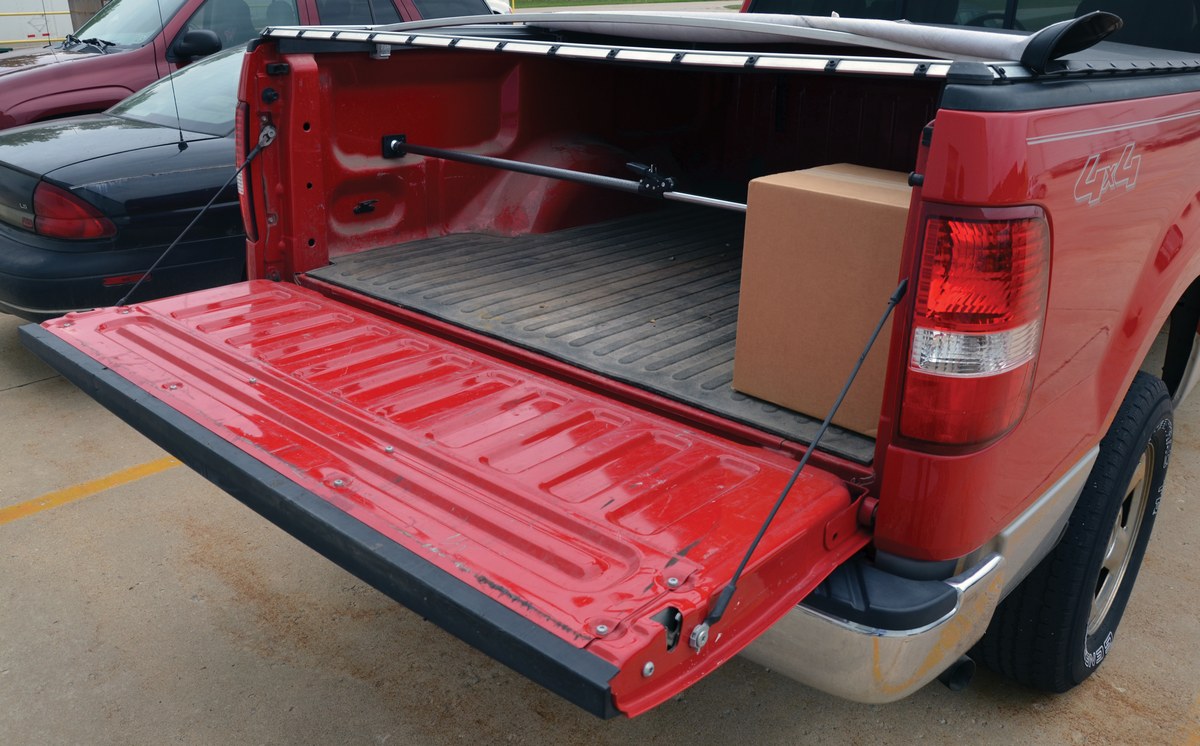

CB-PU-3 Warranty PDFCompliance Certificate One Piece Steel Trucks/Vans (round tube) 40"to 70" 5

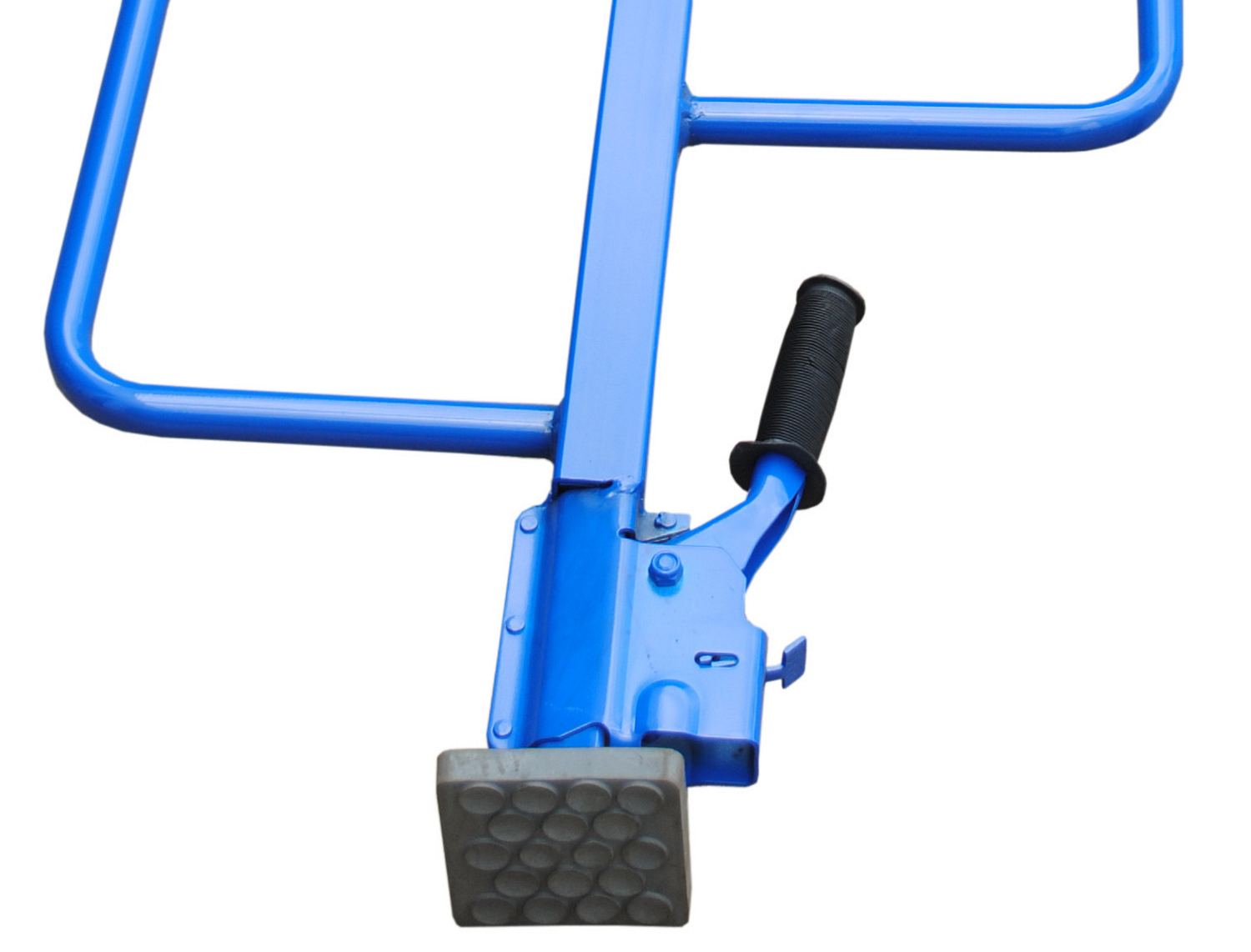

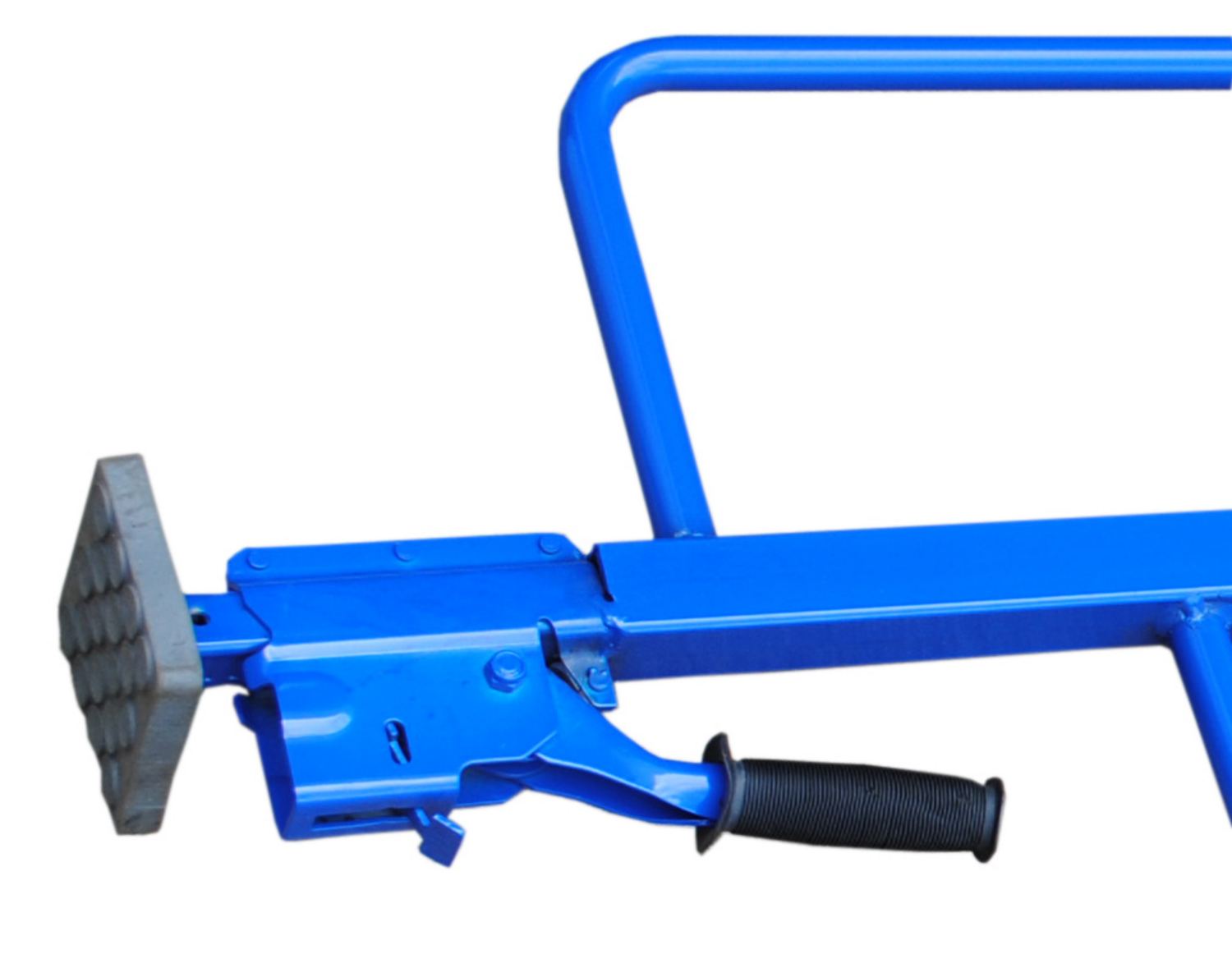

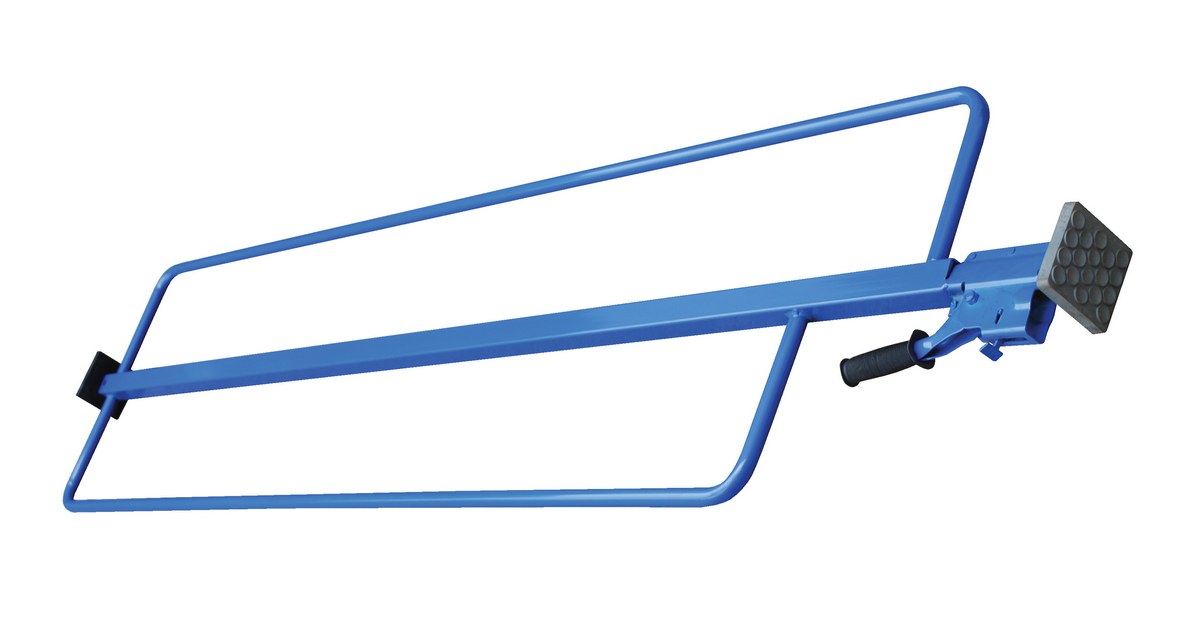

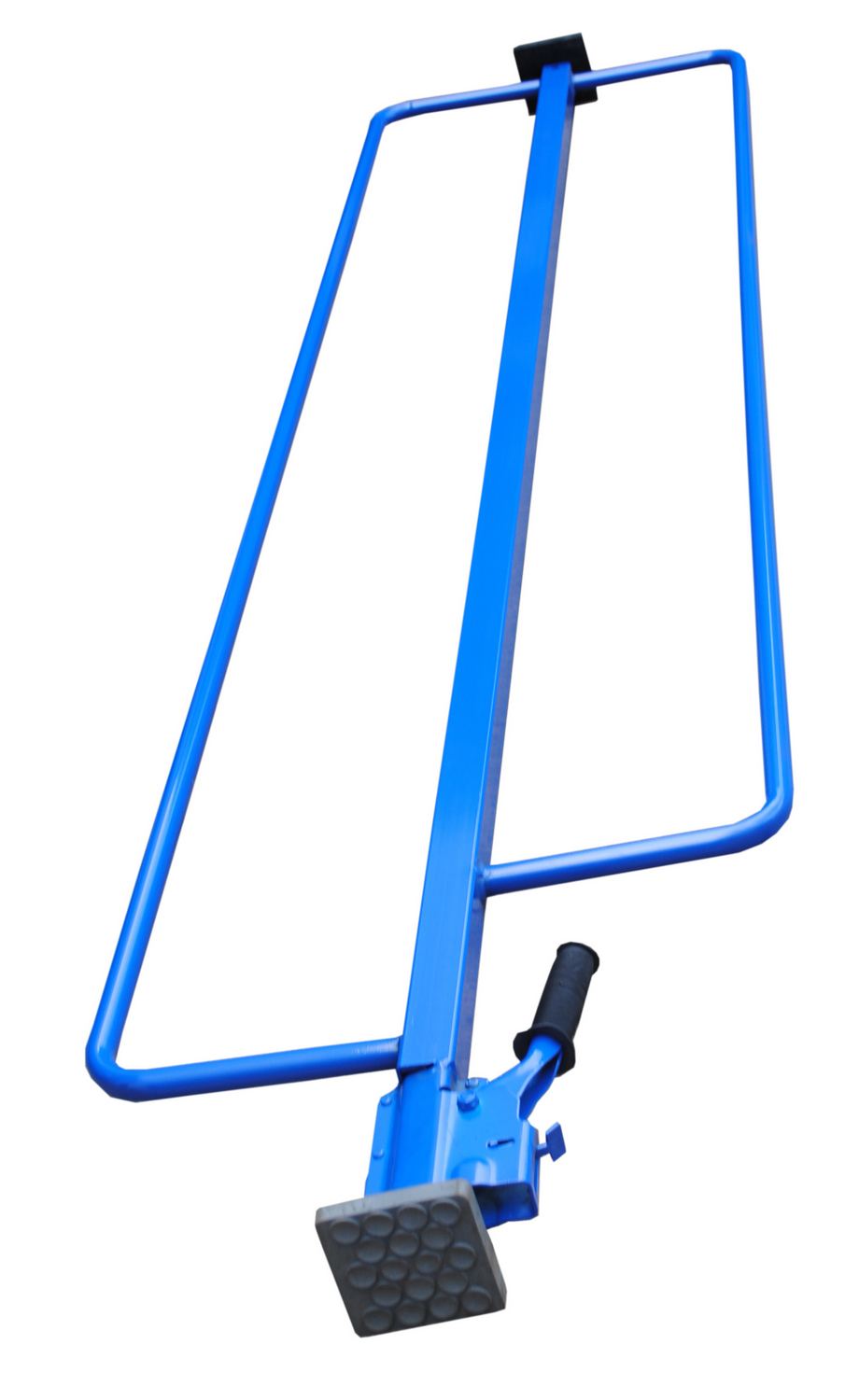

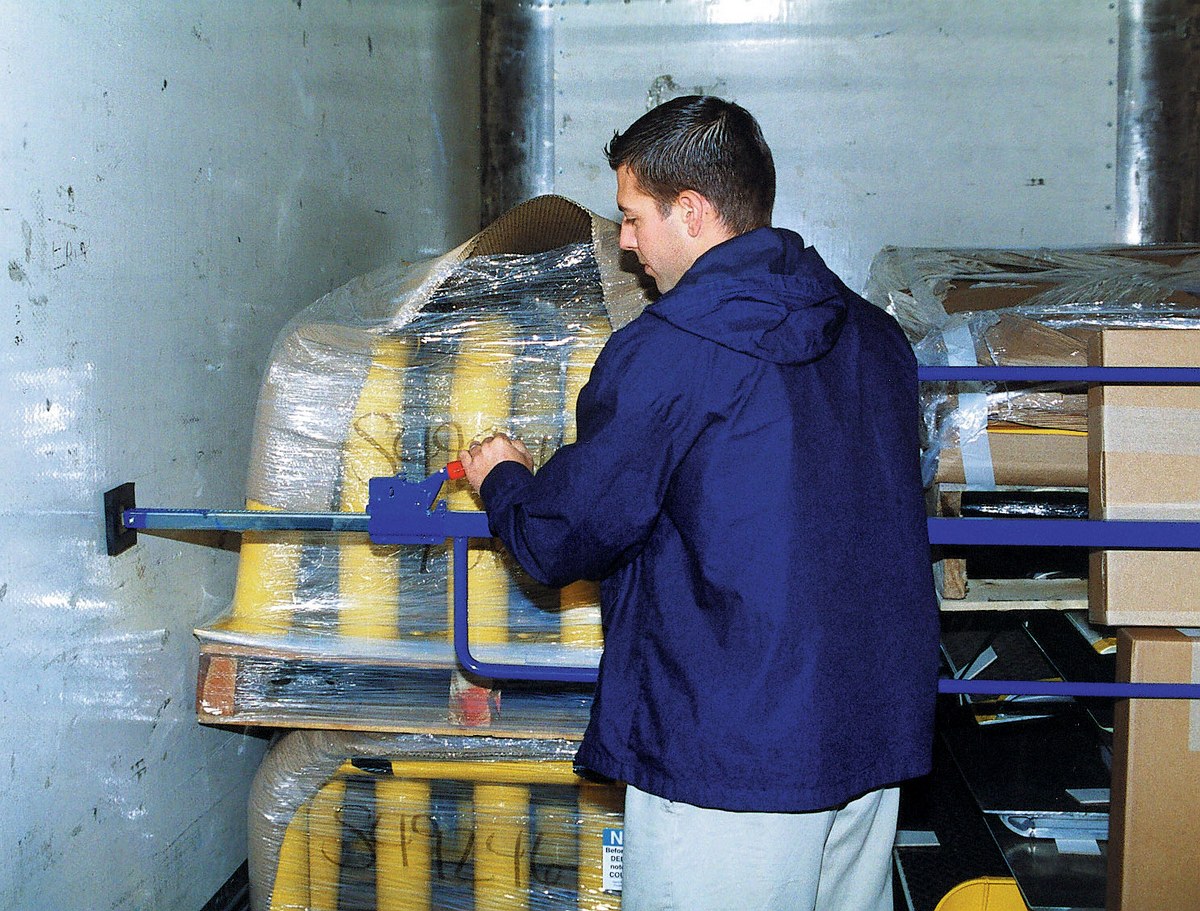

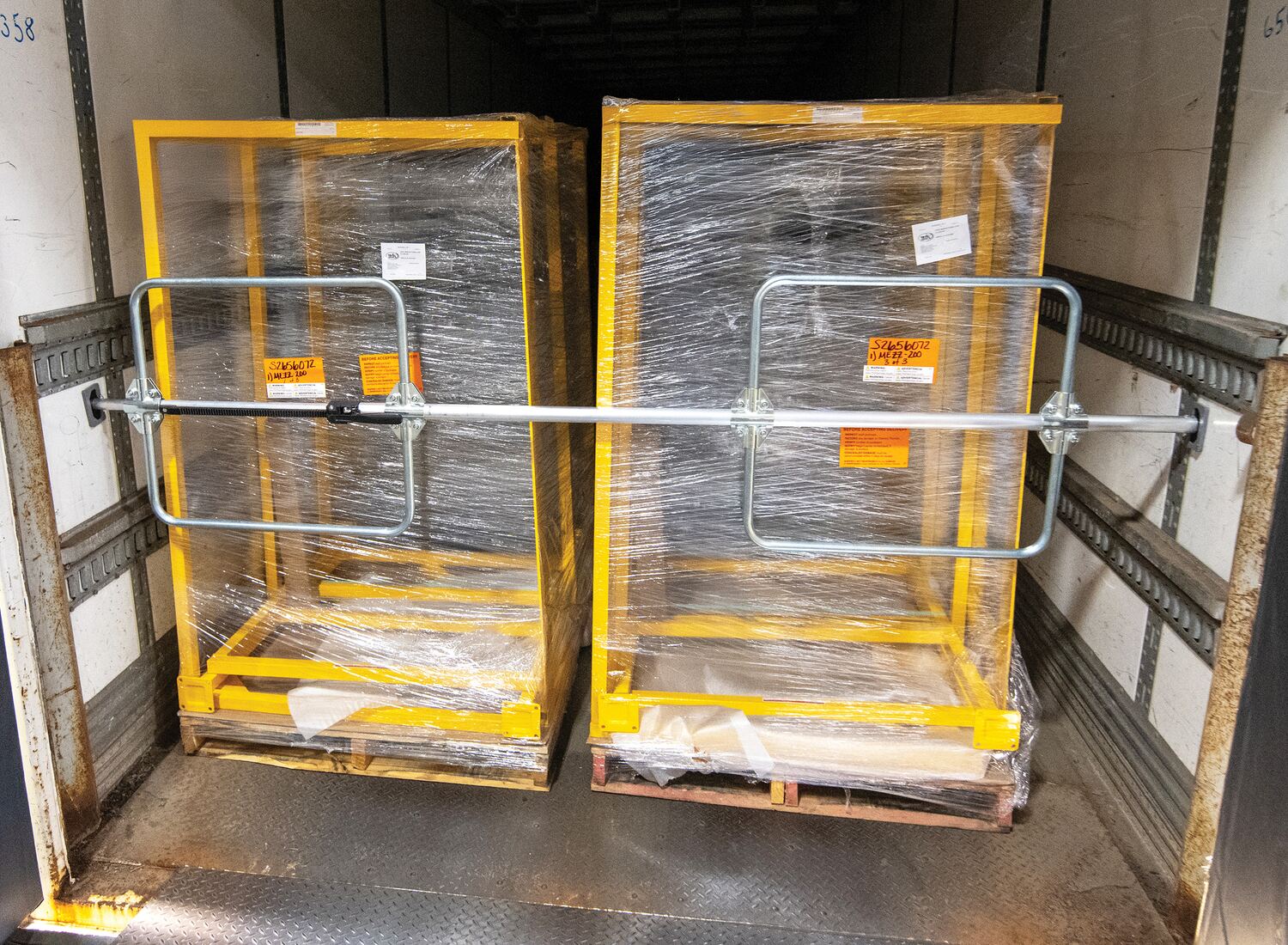

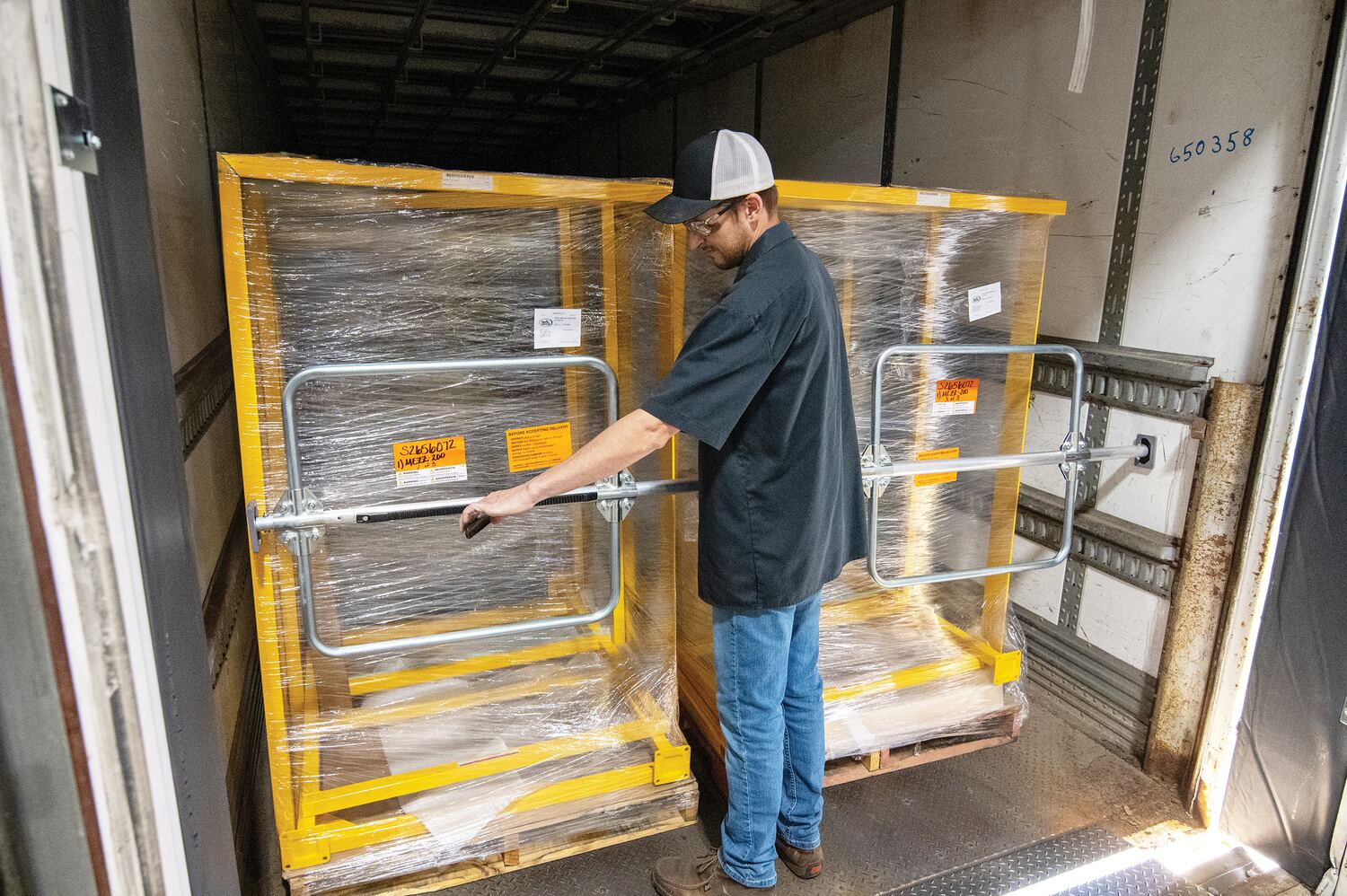

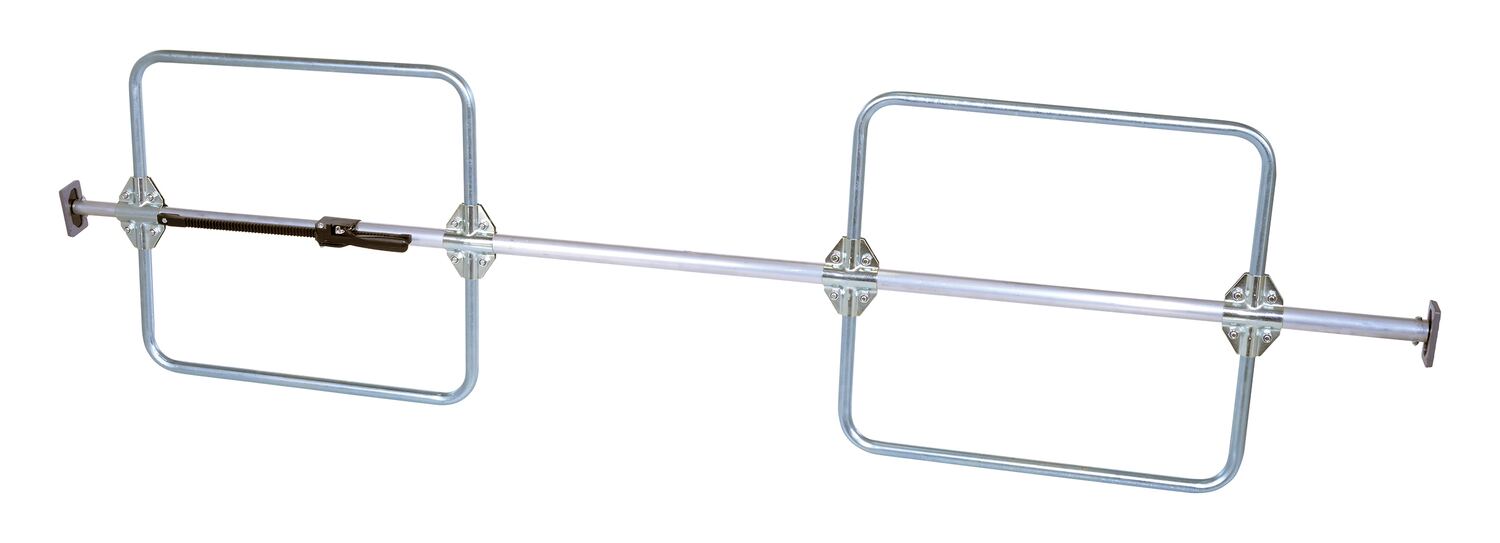

CBH-32 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 Piece steel w/Full Hoops 86-3/4" to 115-3/4" 28

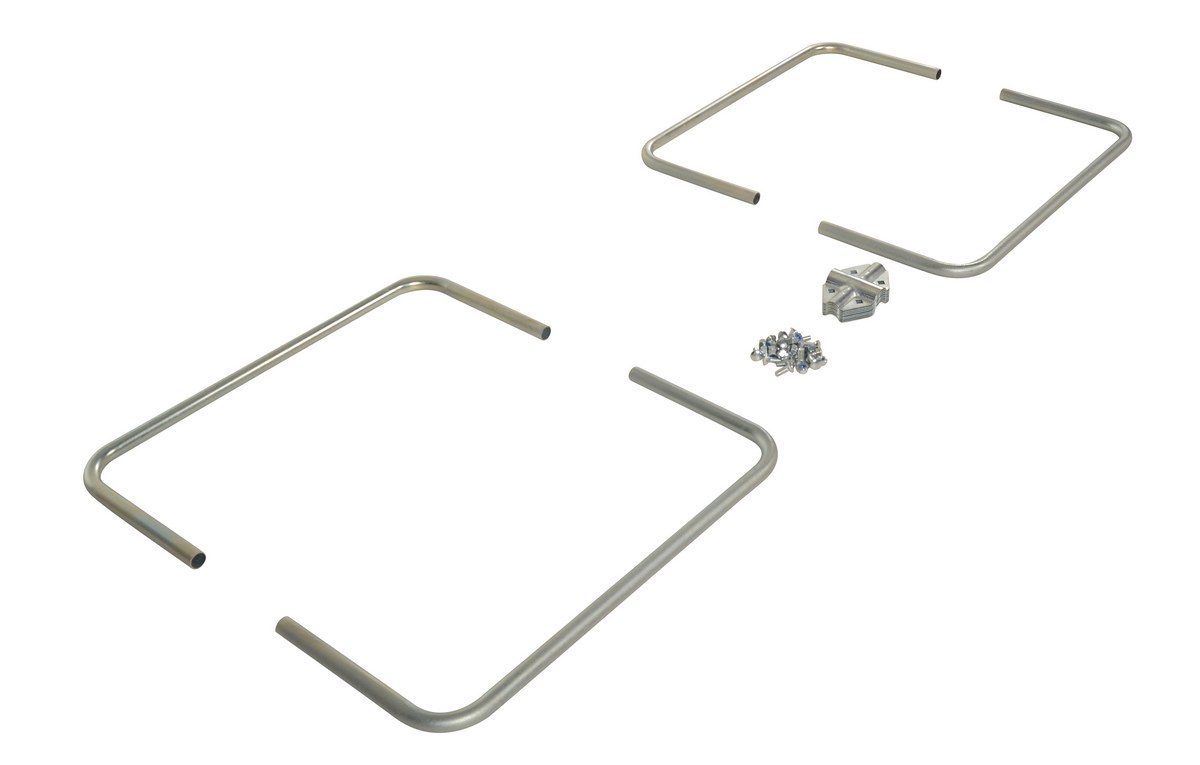

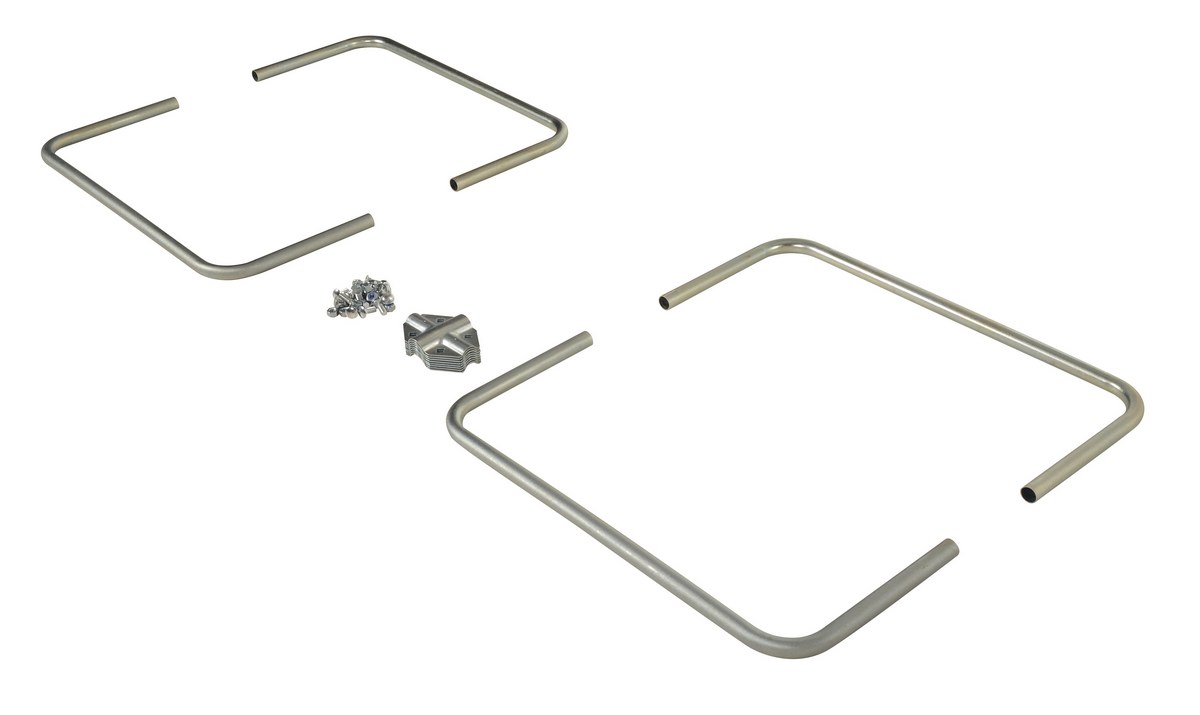

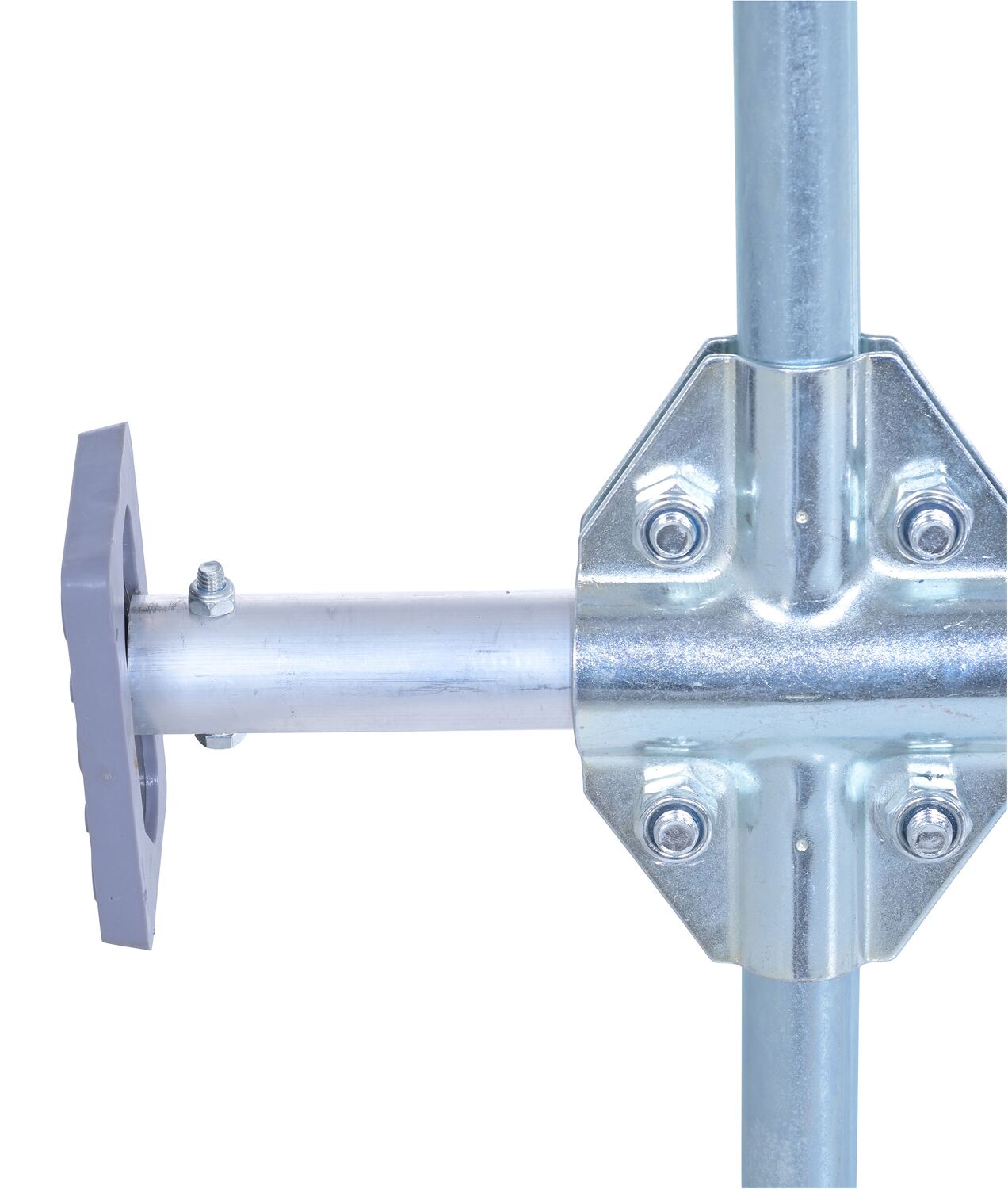

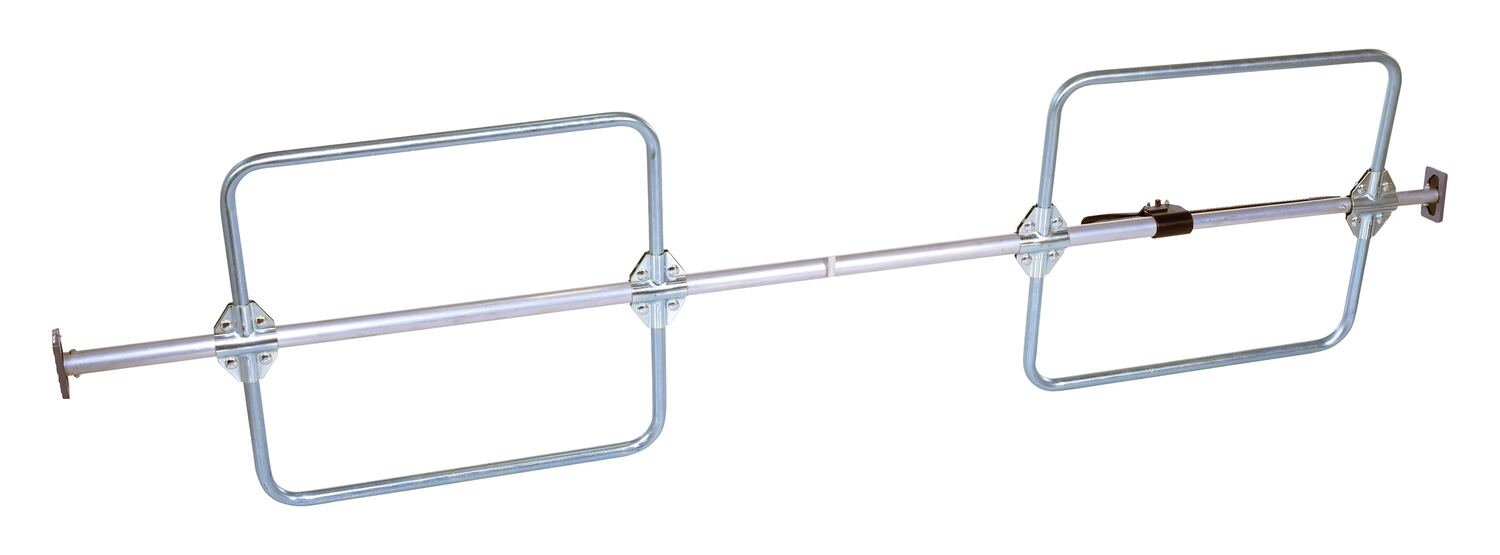

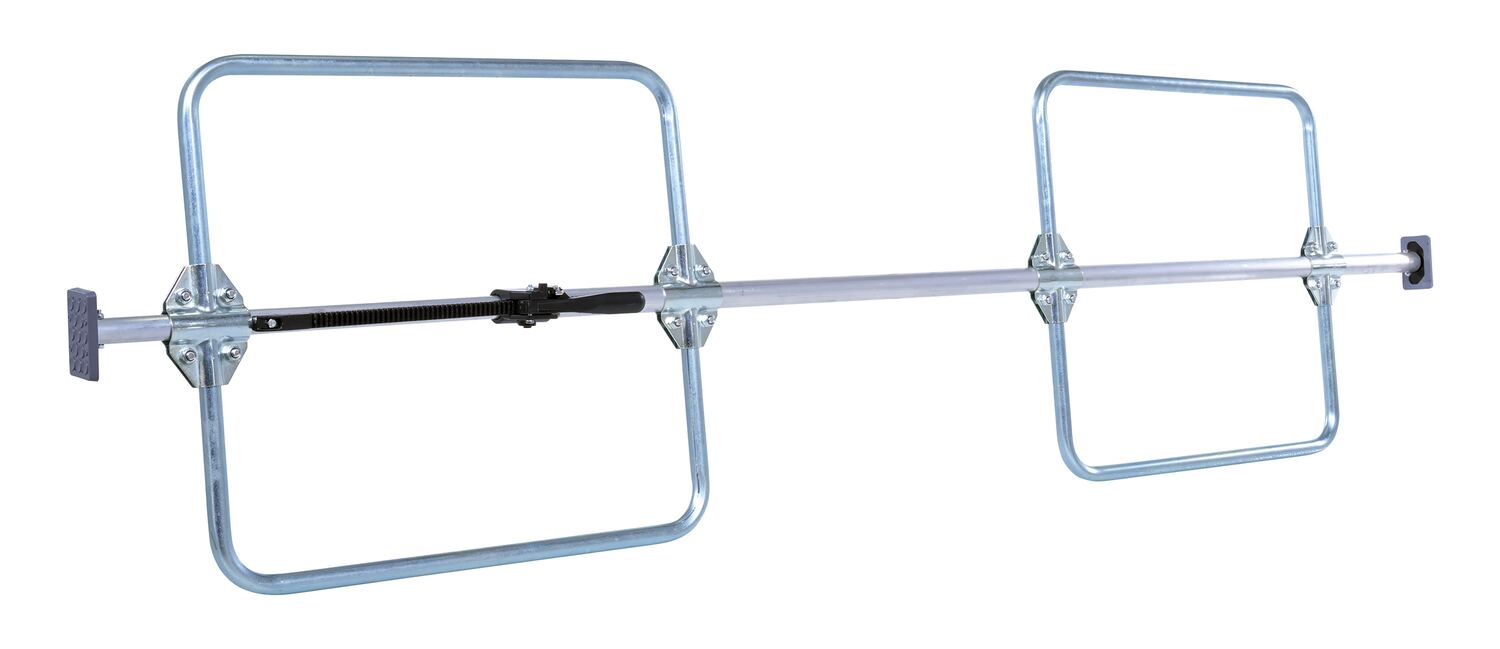

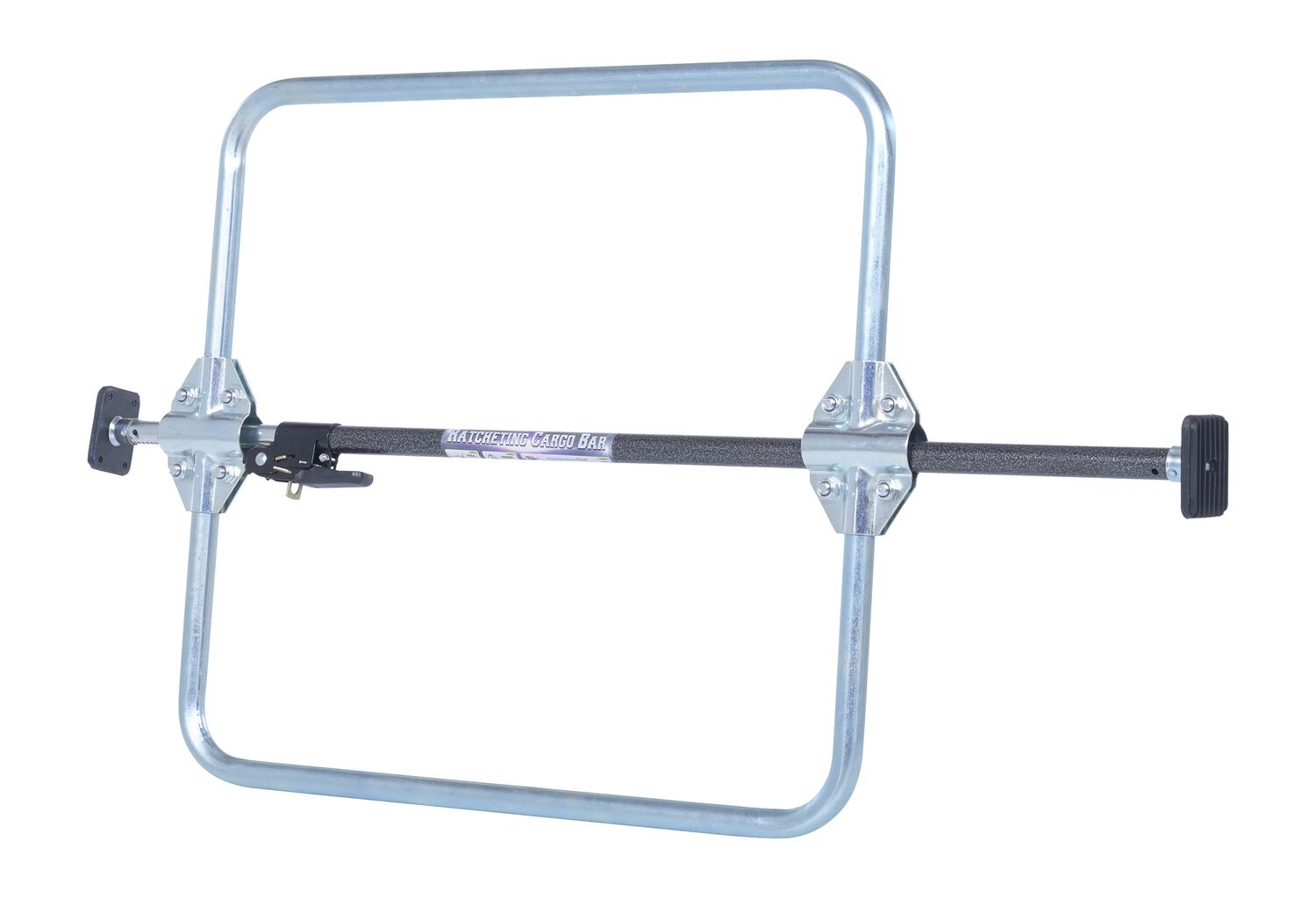

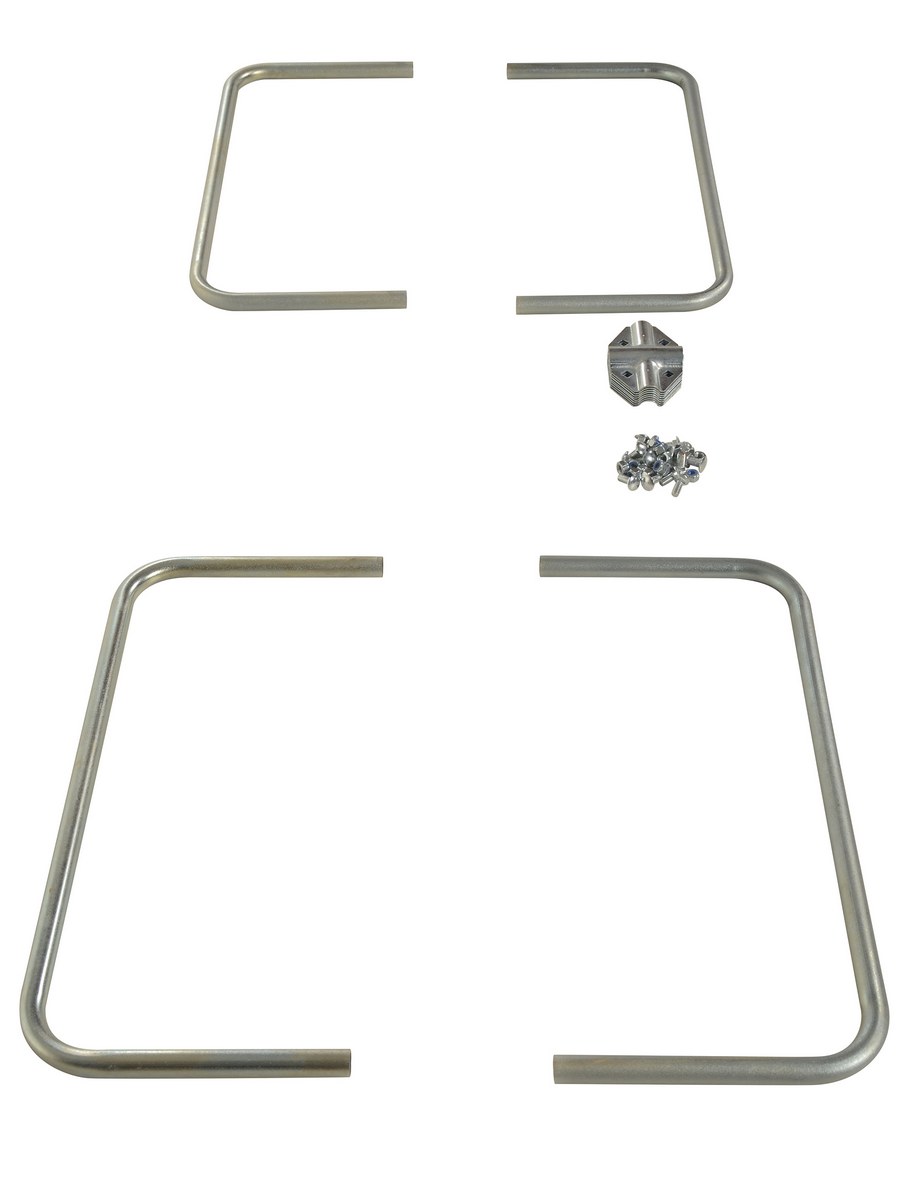

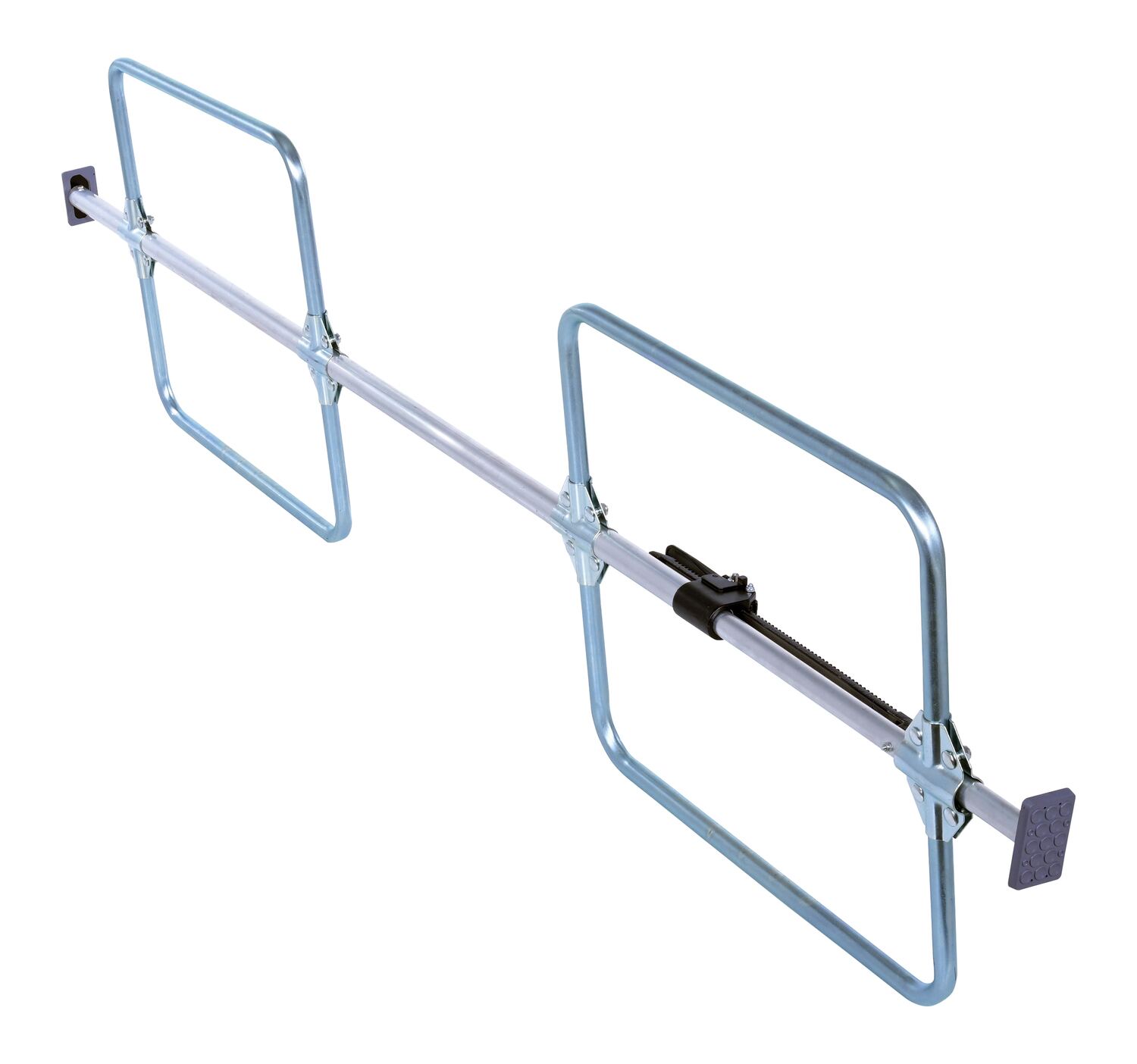

CH-7 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Galvanized Hoops For CB Series Only 30-1/2"W x 23-1/8"H 16

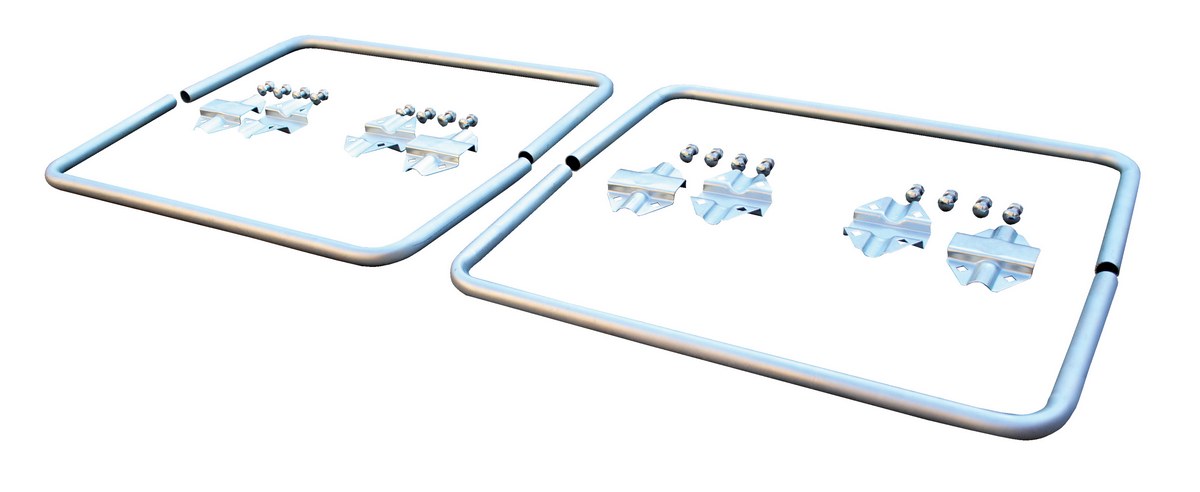

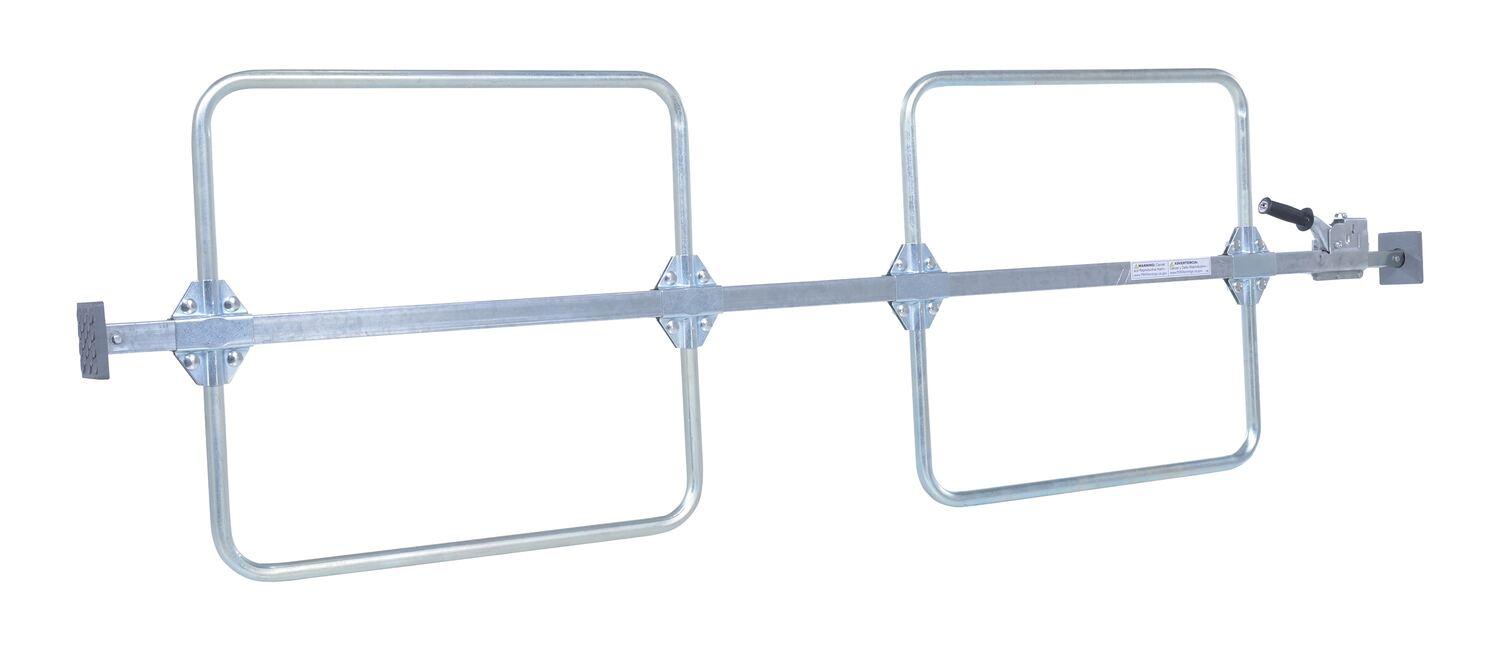

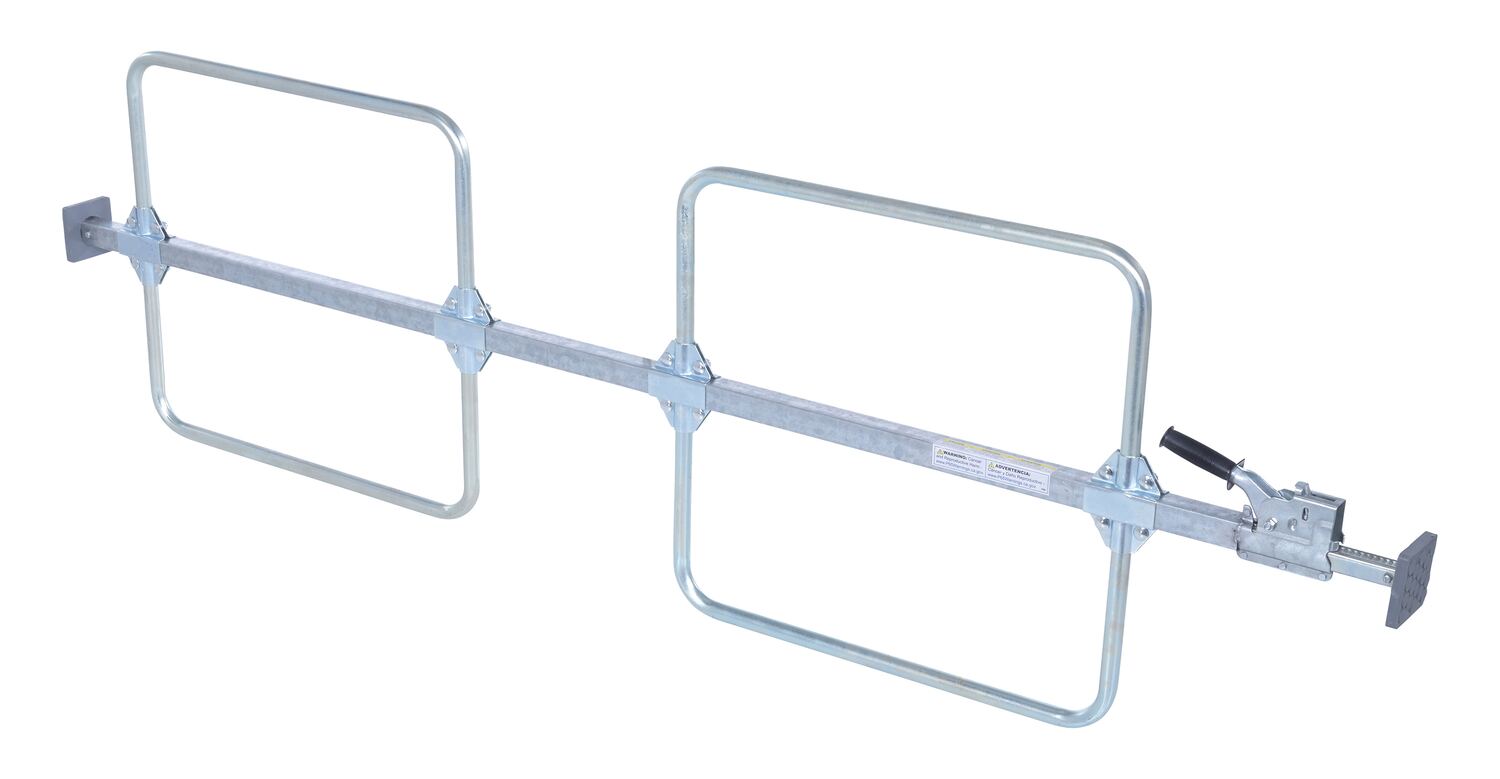

CH-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Galvanized Hoops For CL Series Only 31"W x 24-1/2"H 15

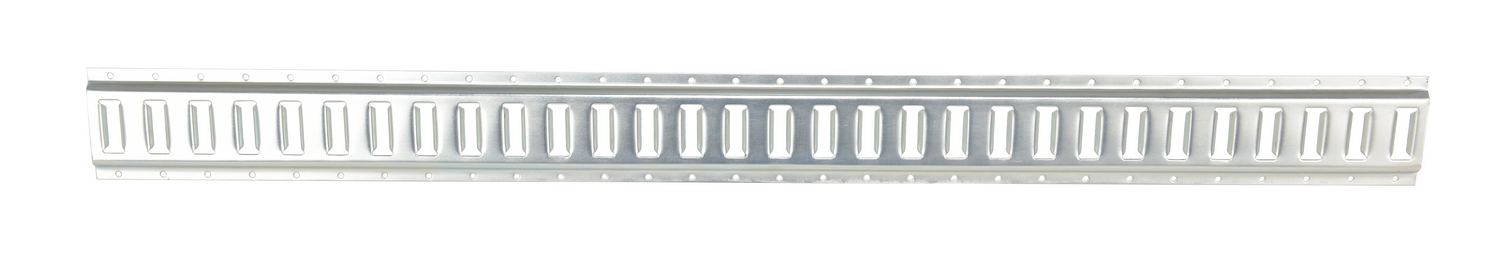

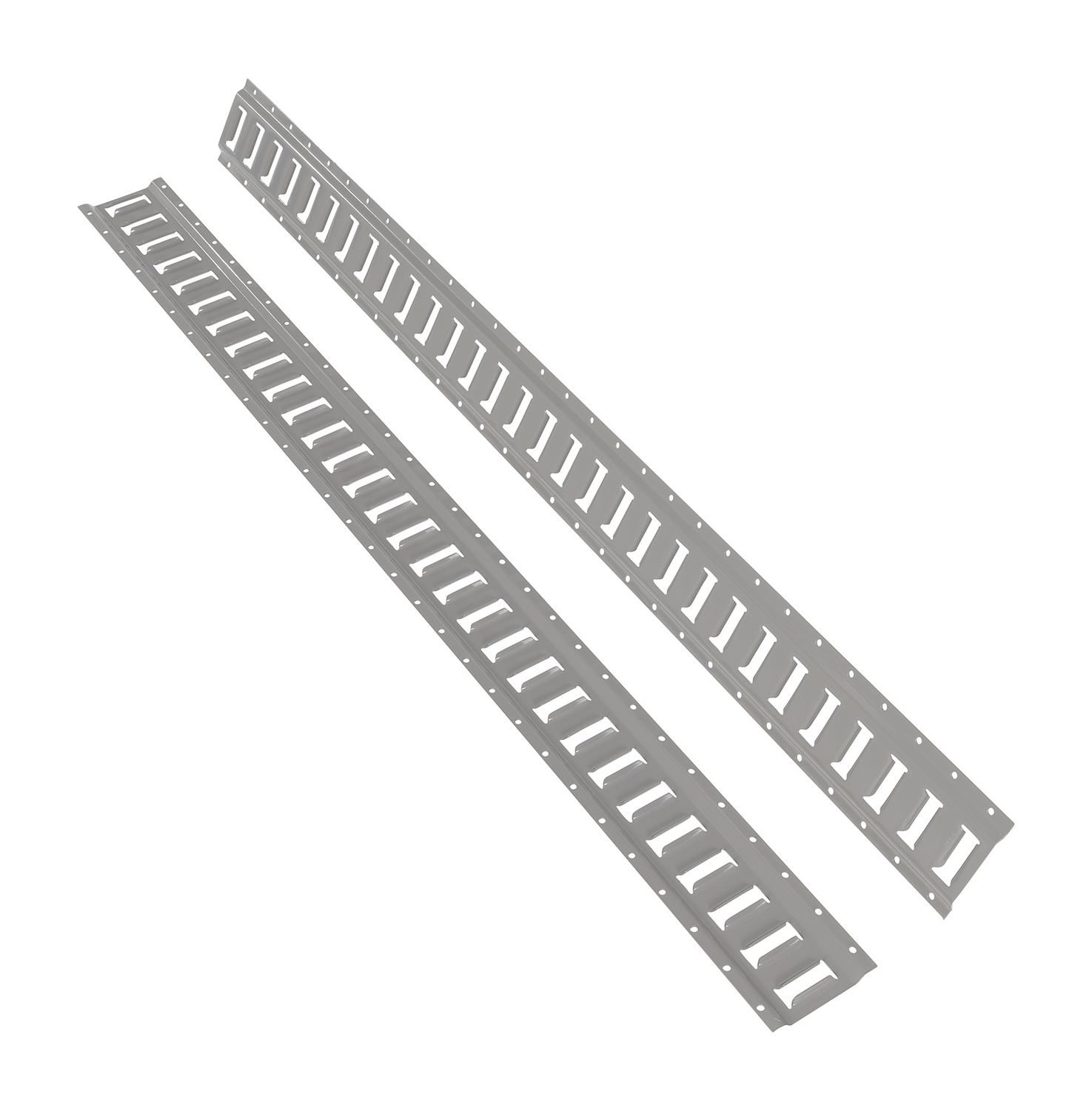

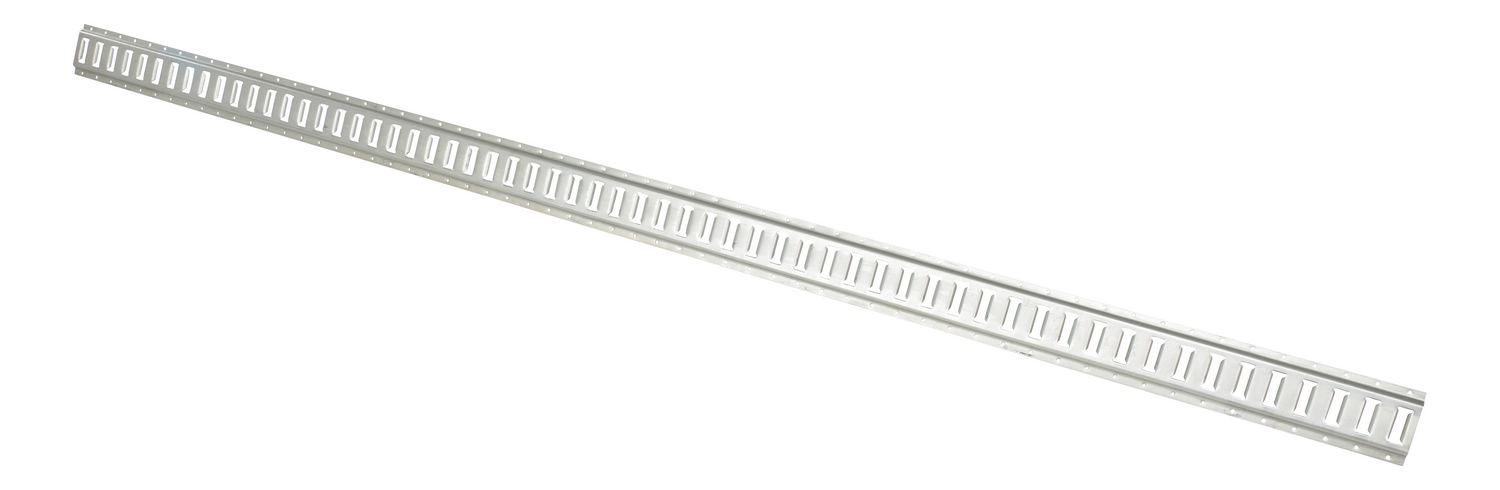

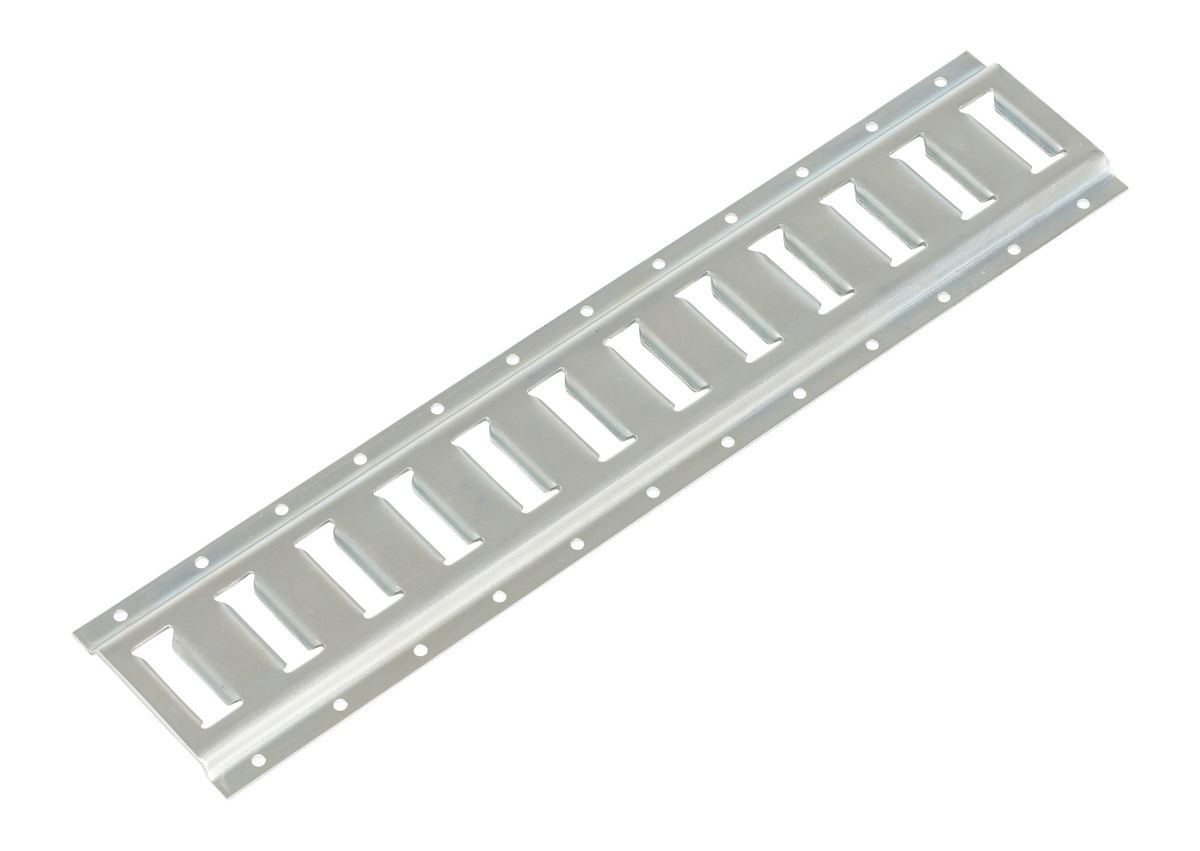

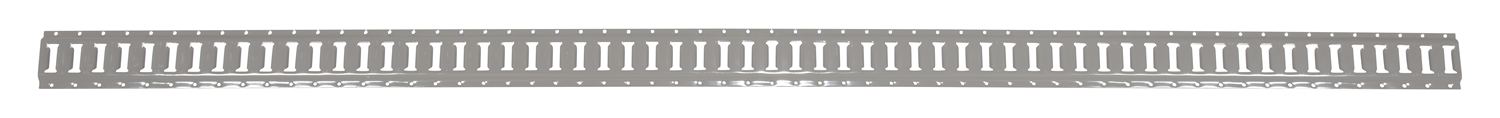

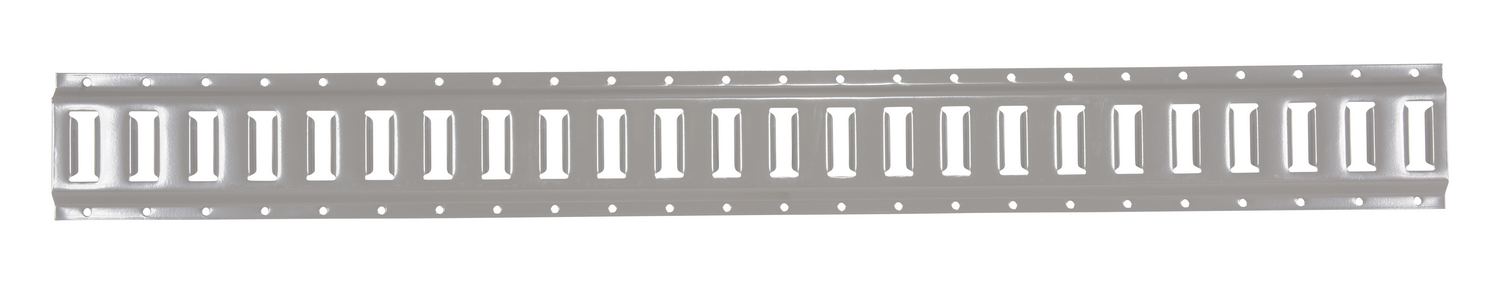

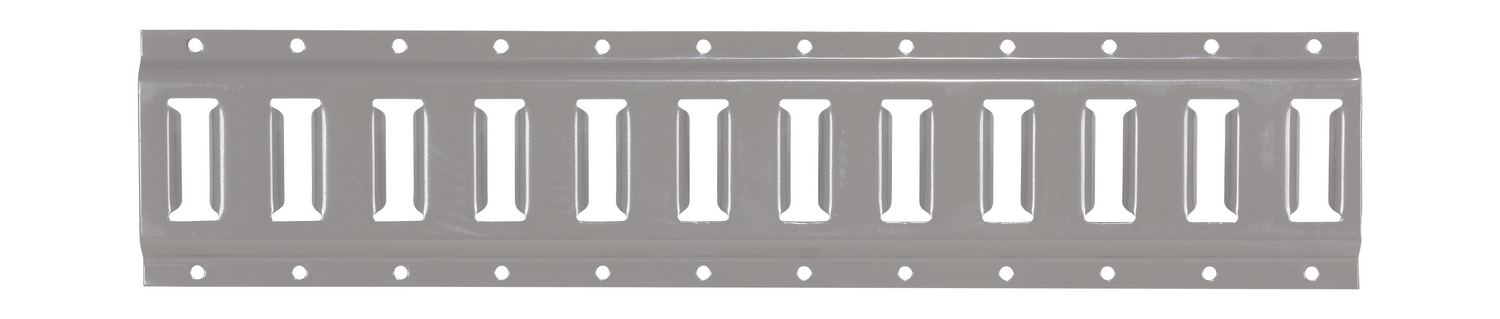

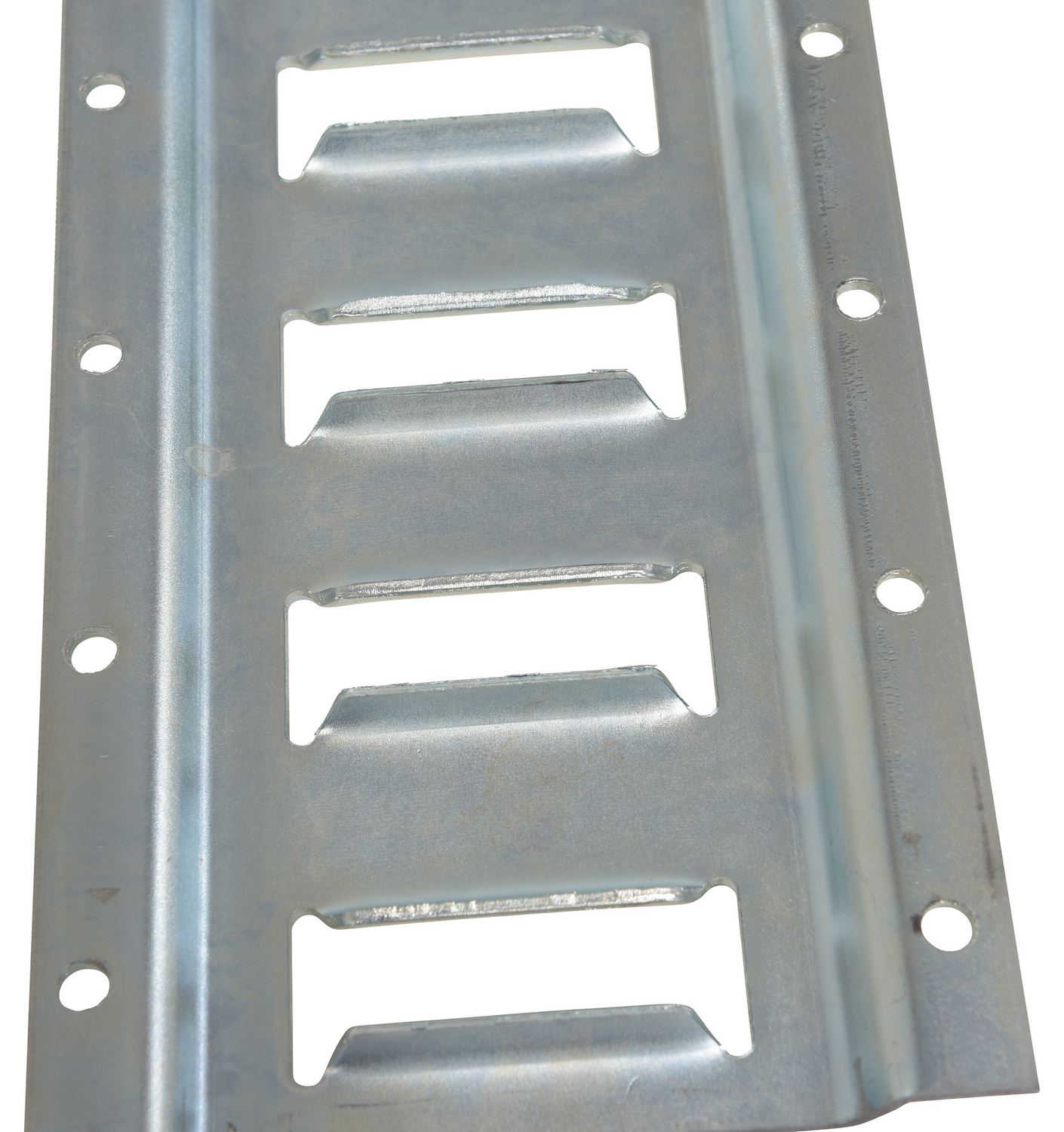

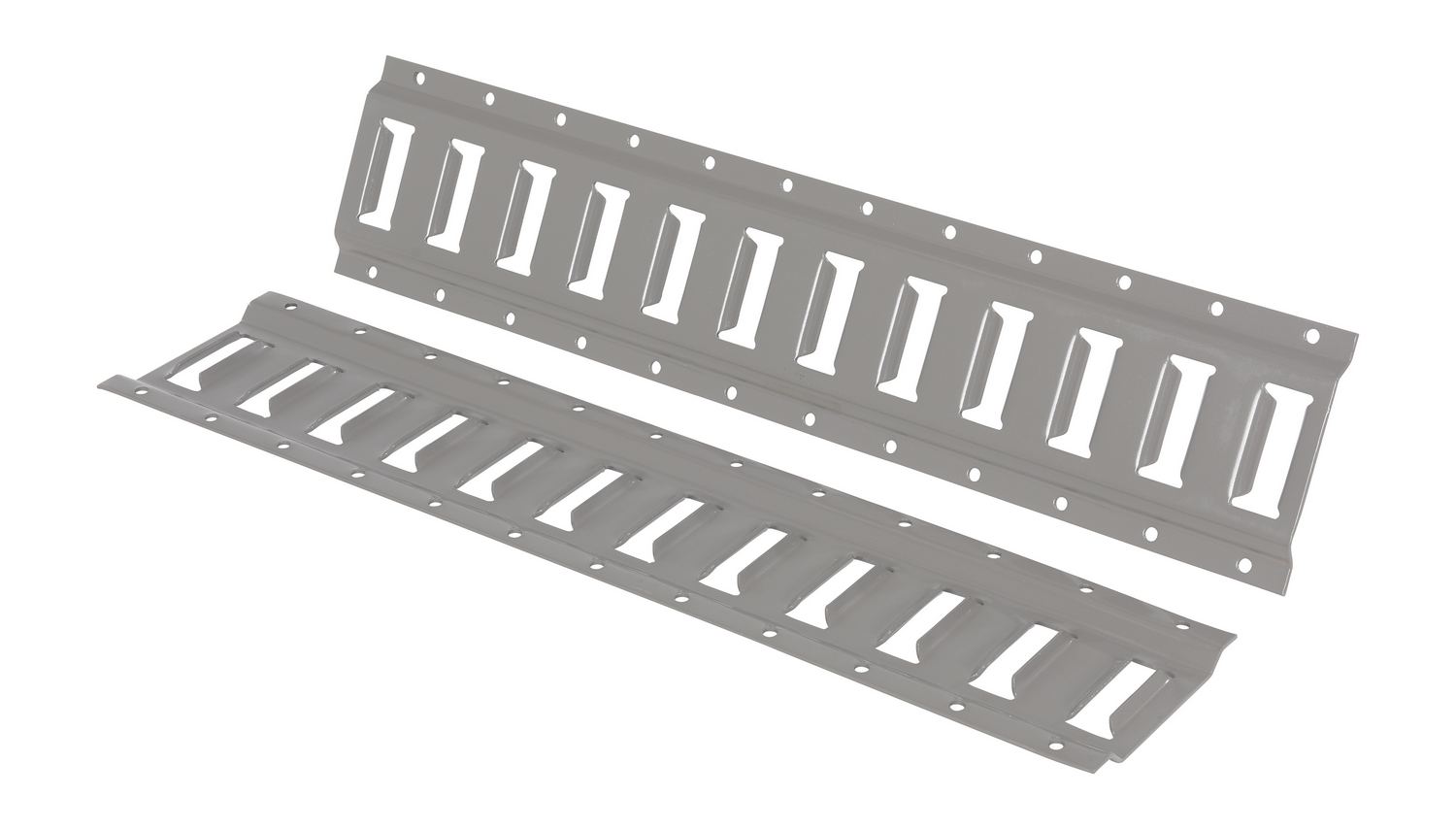

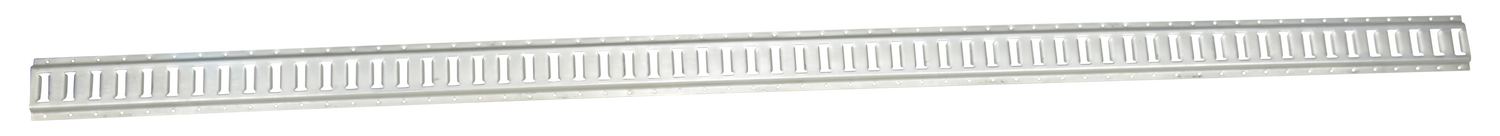

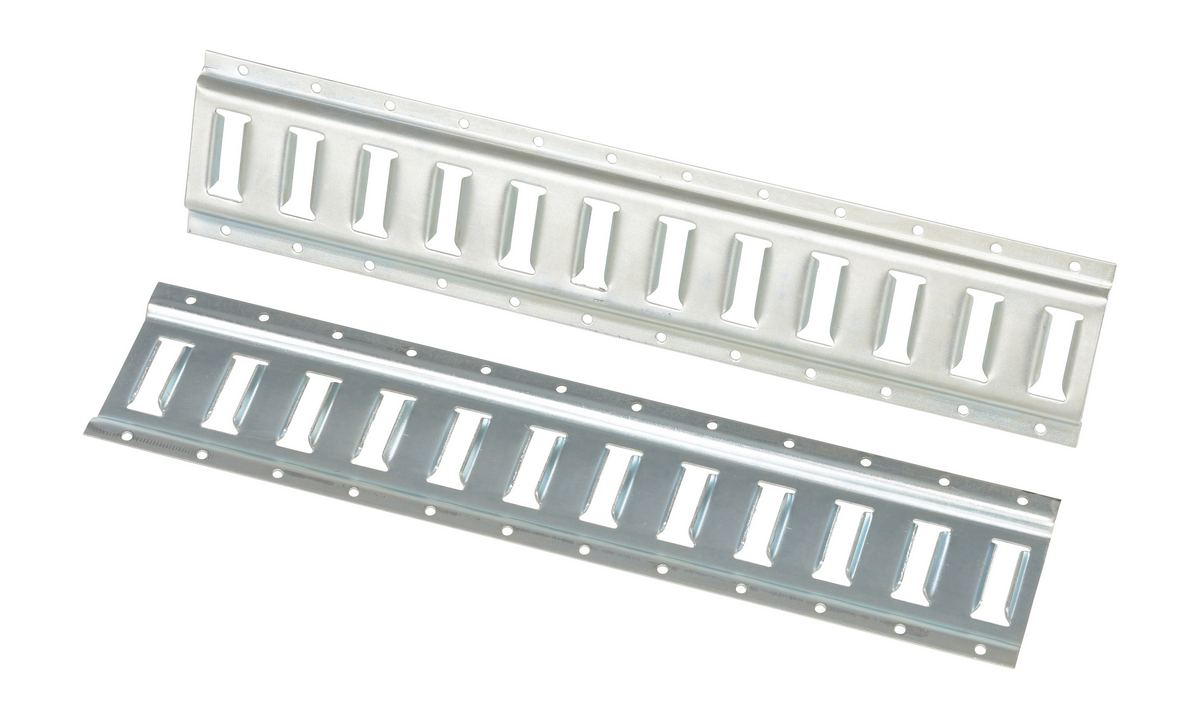

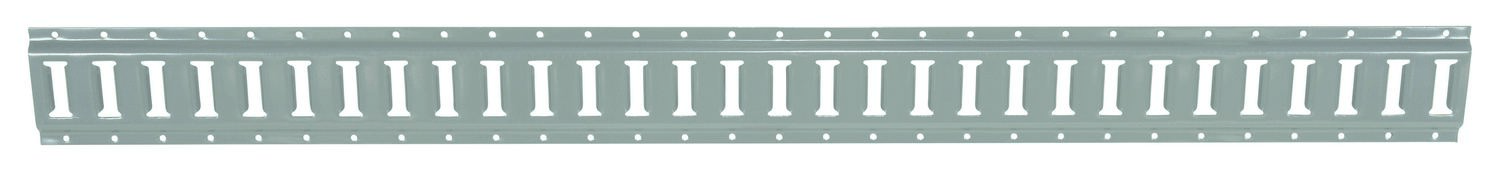

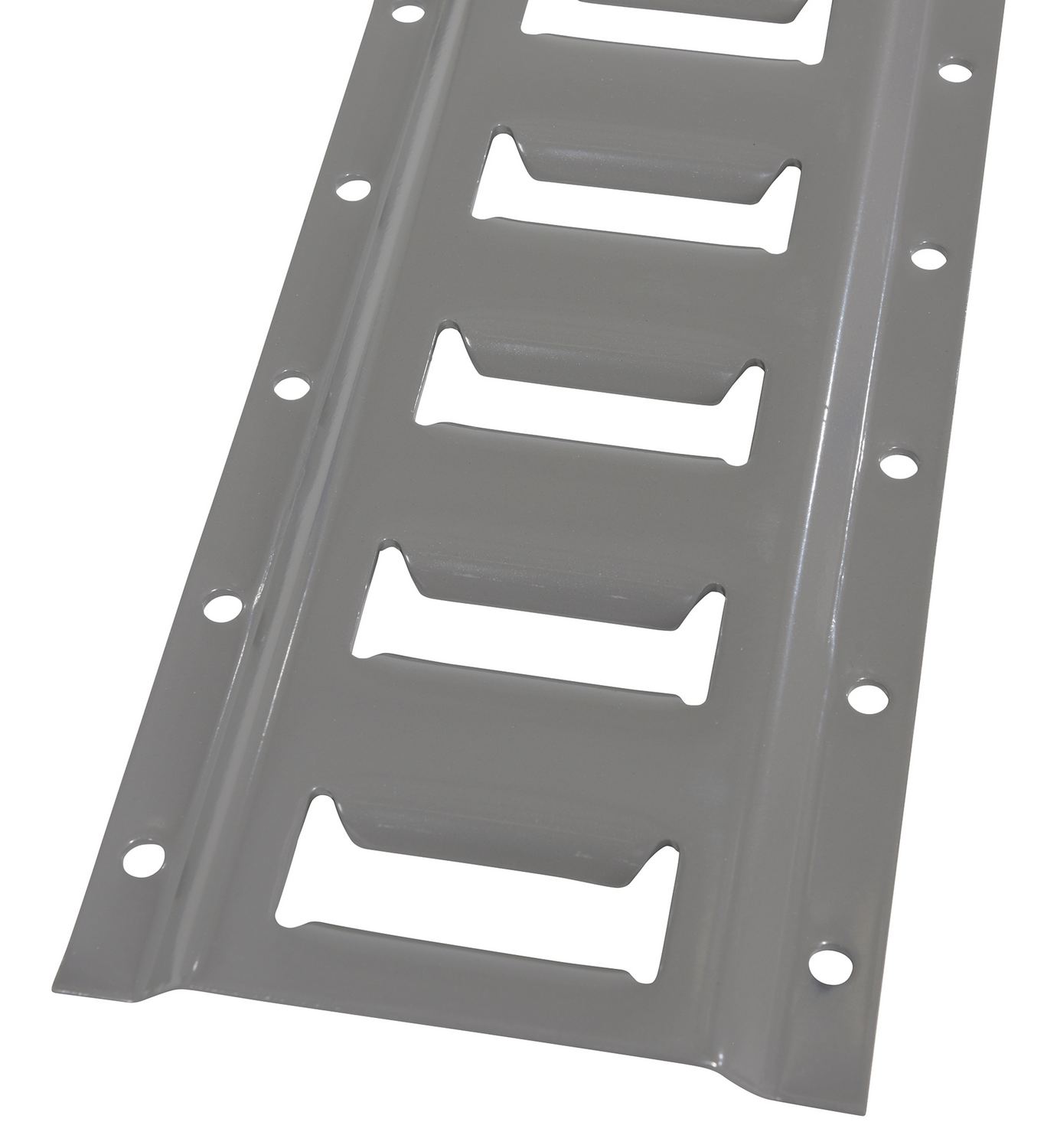

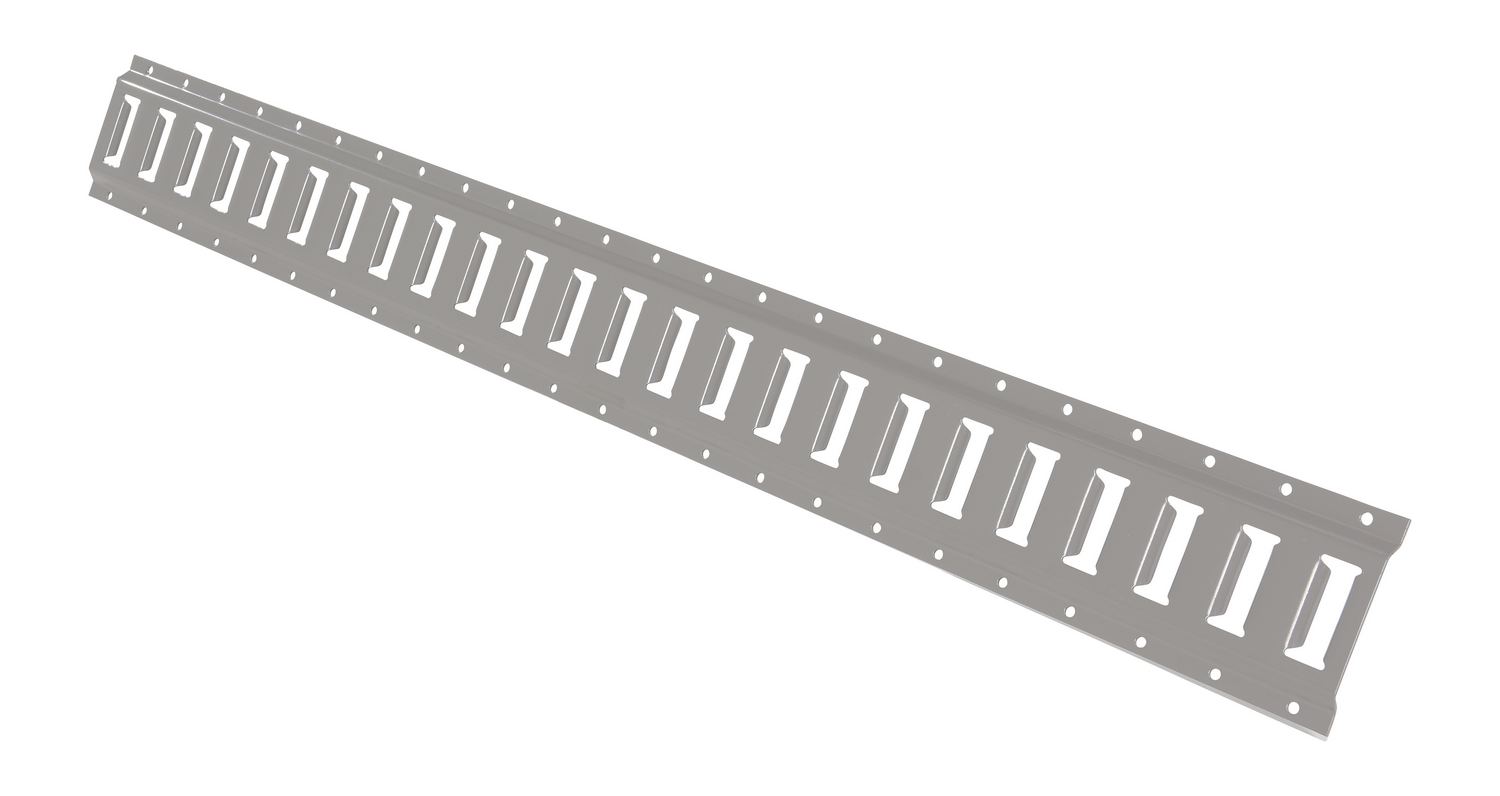

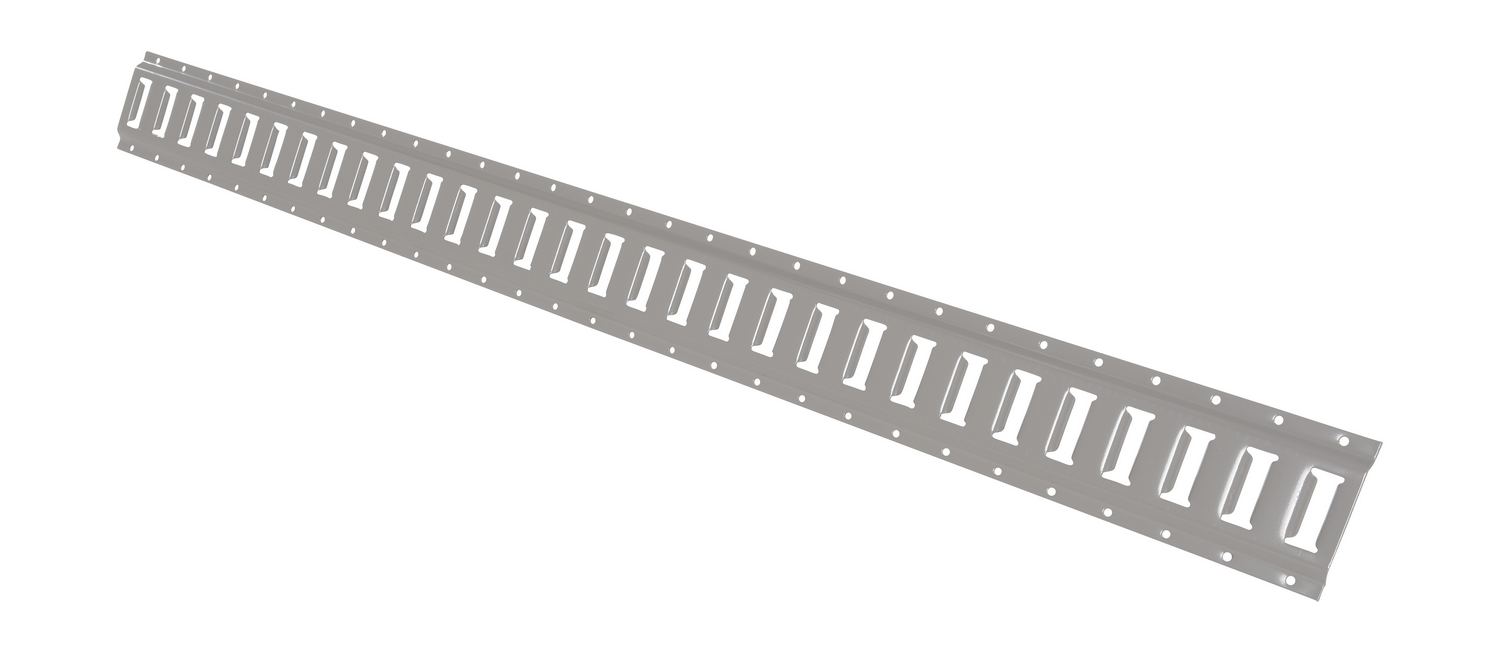

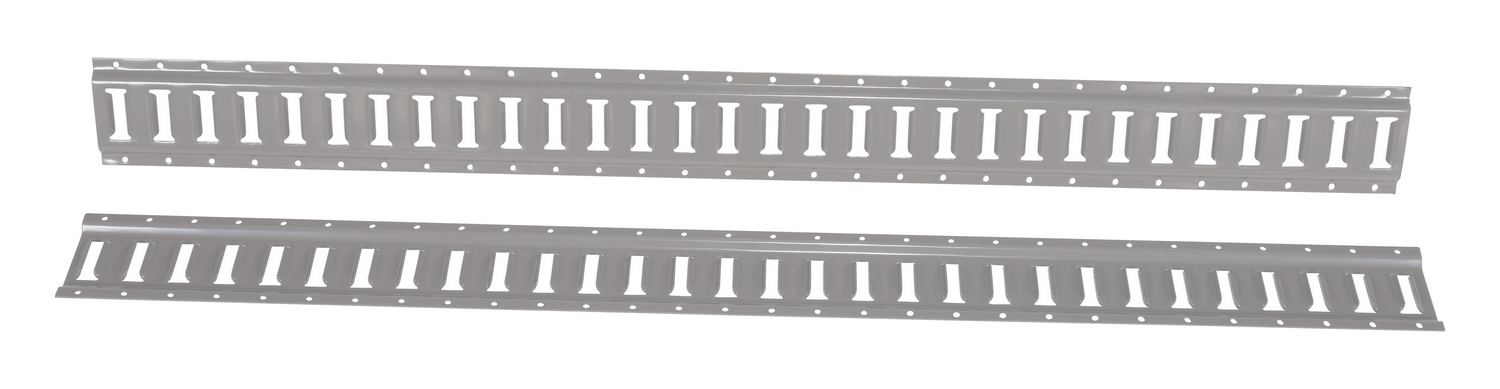

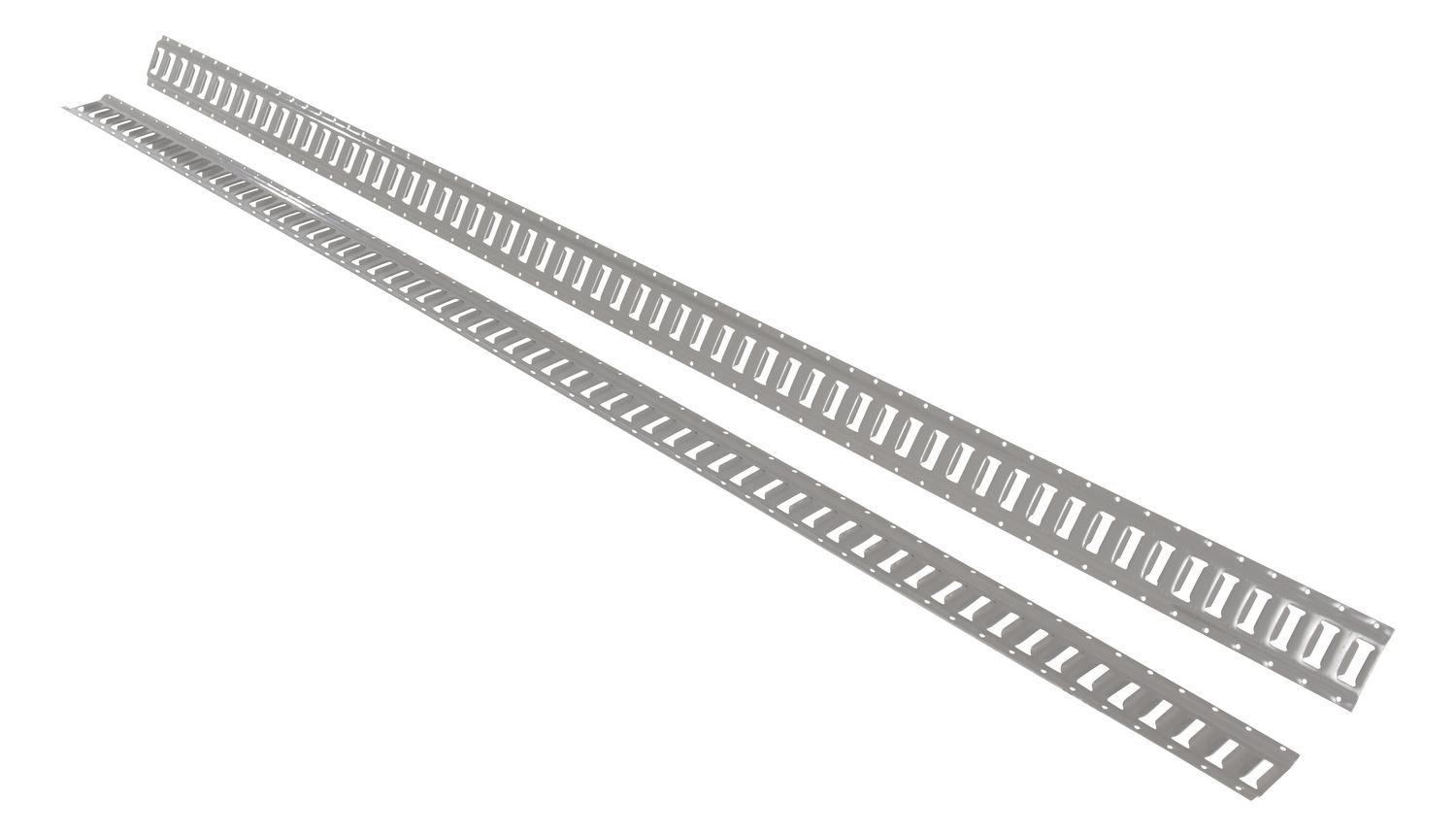

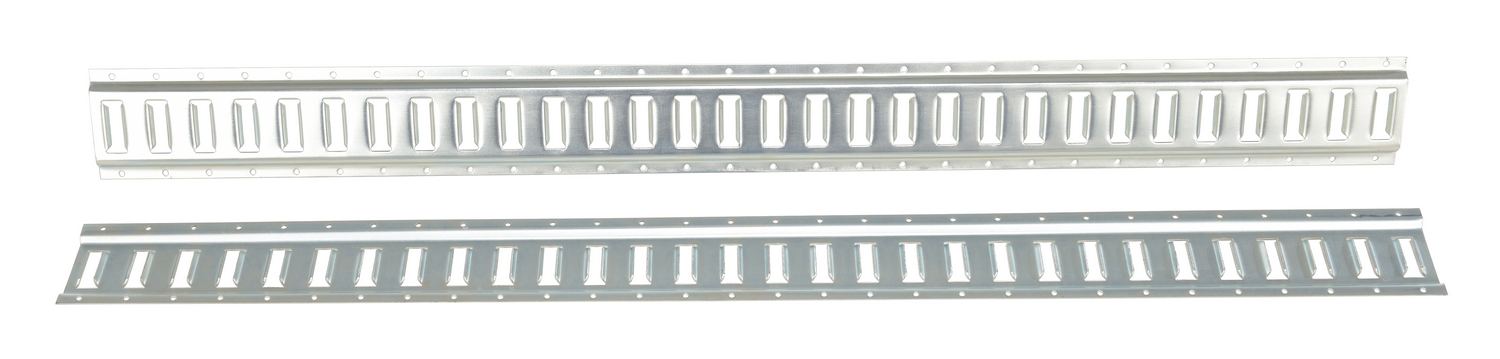

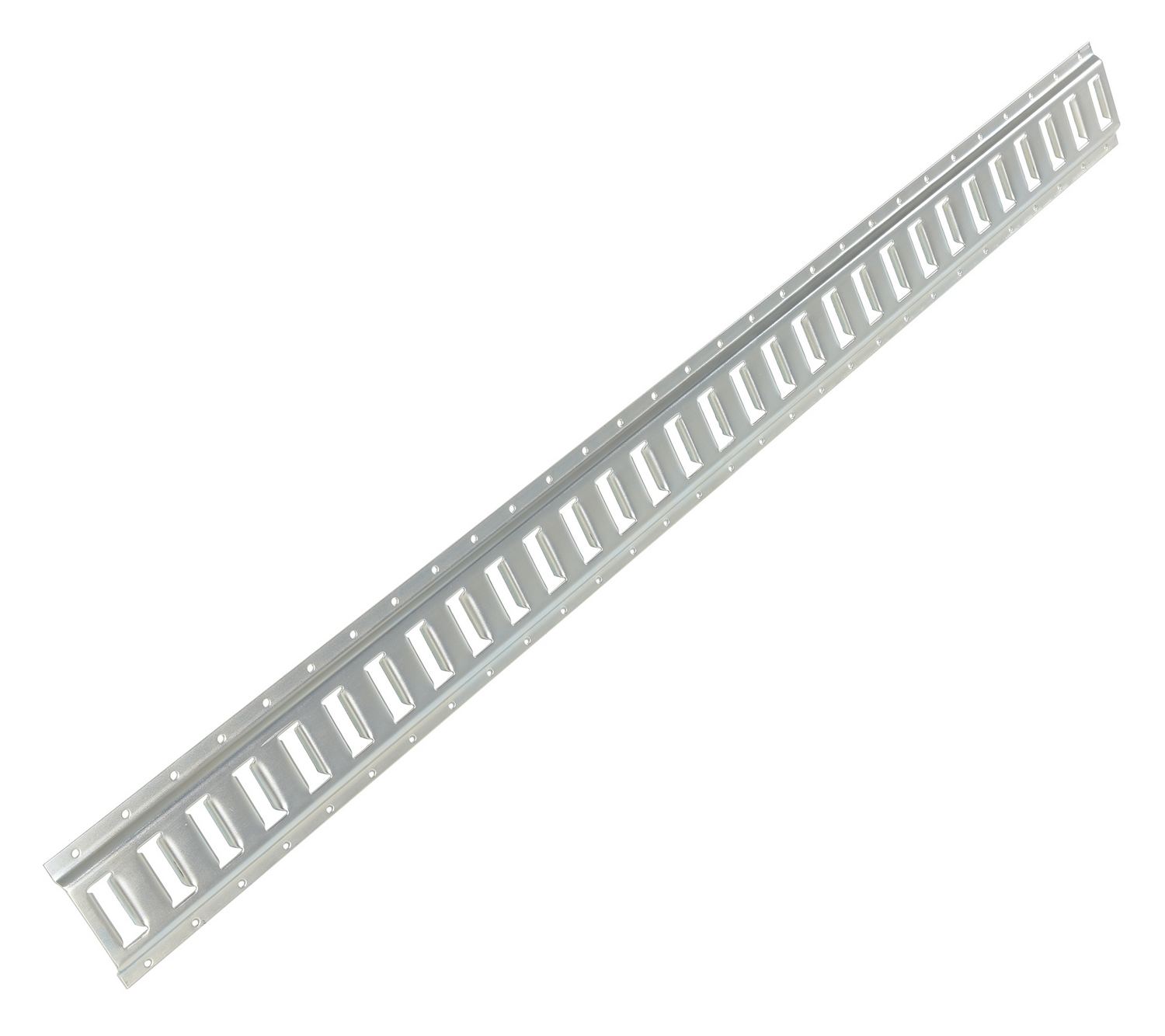

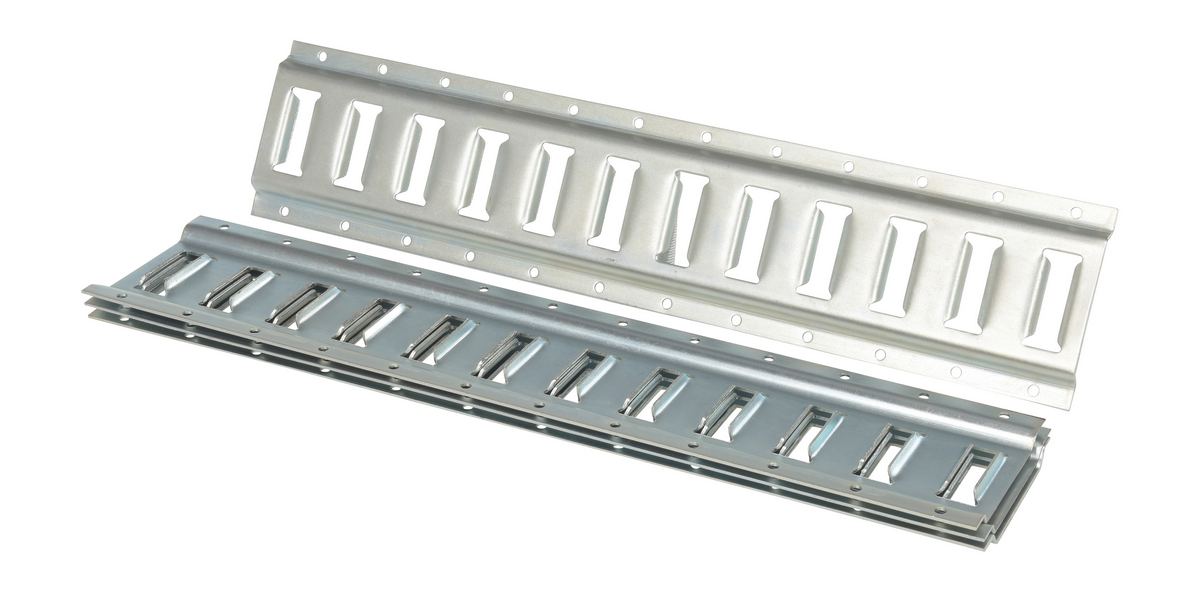

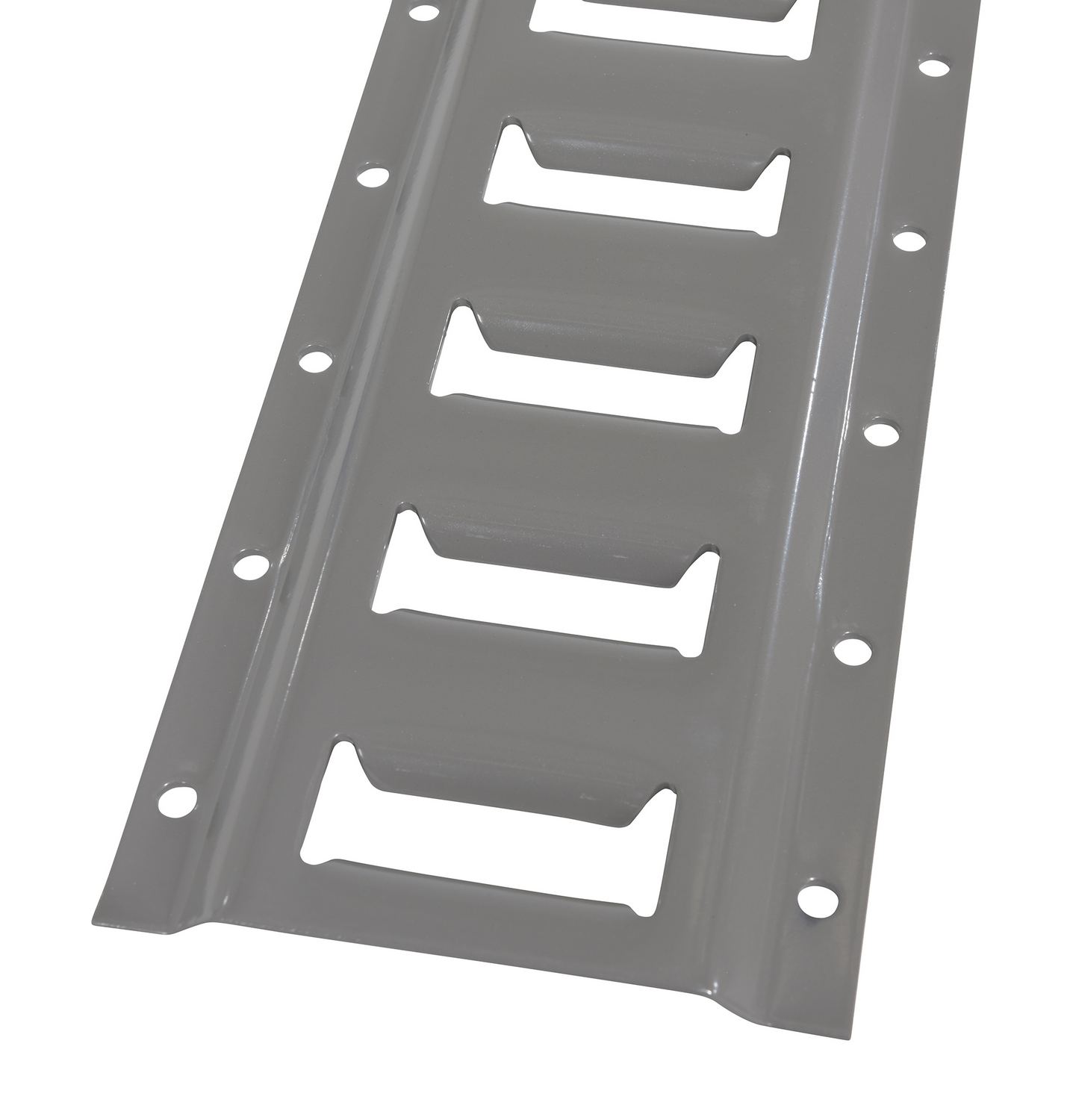

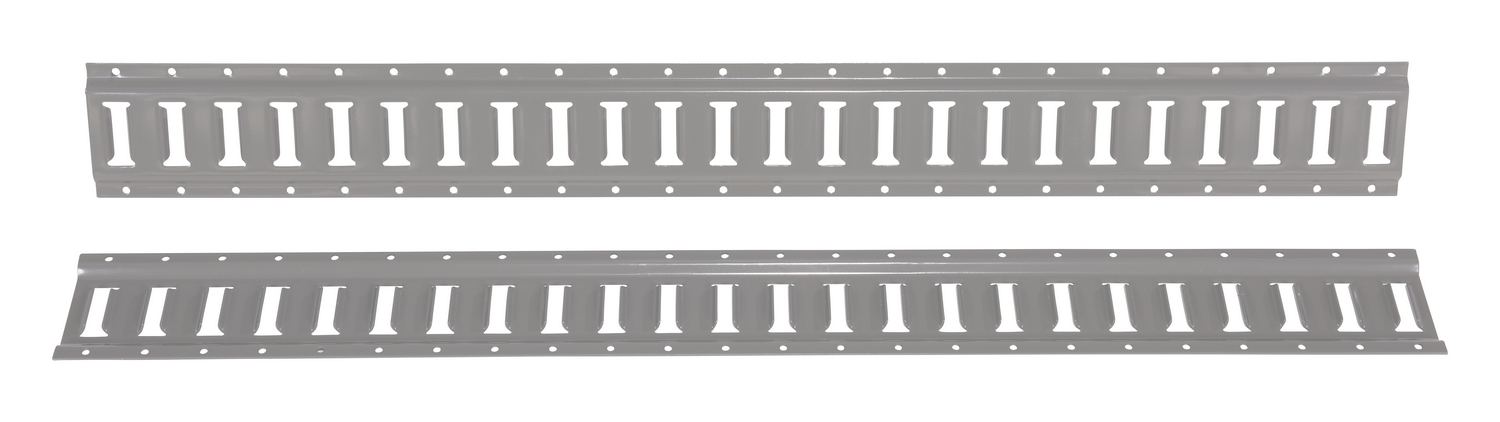

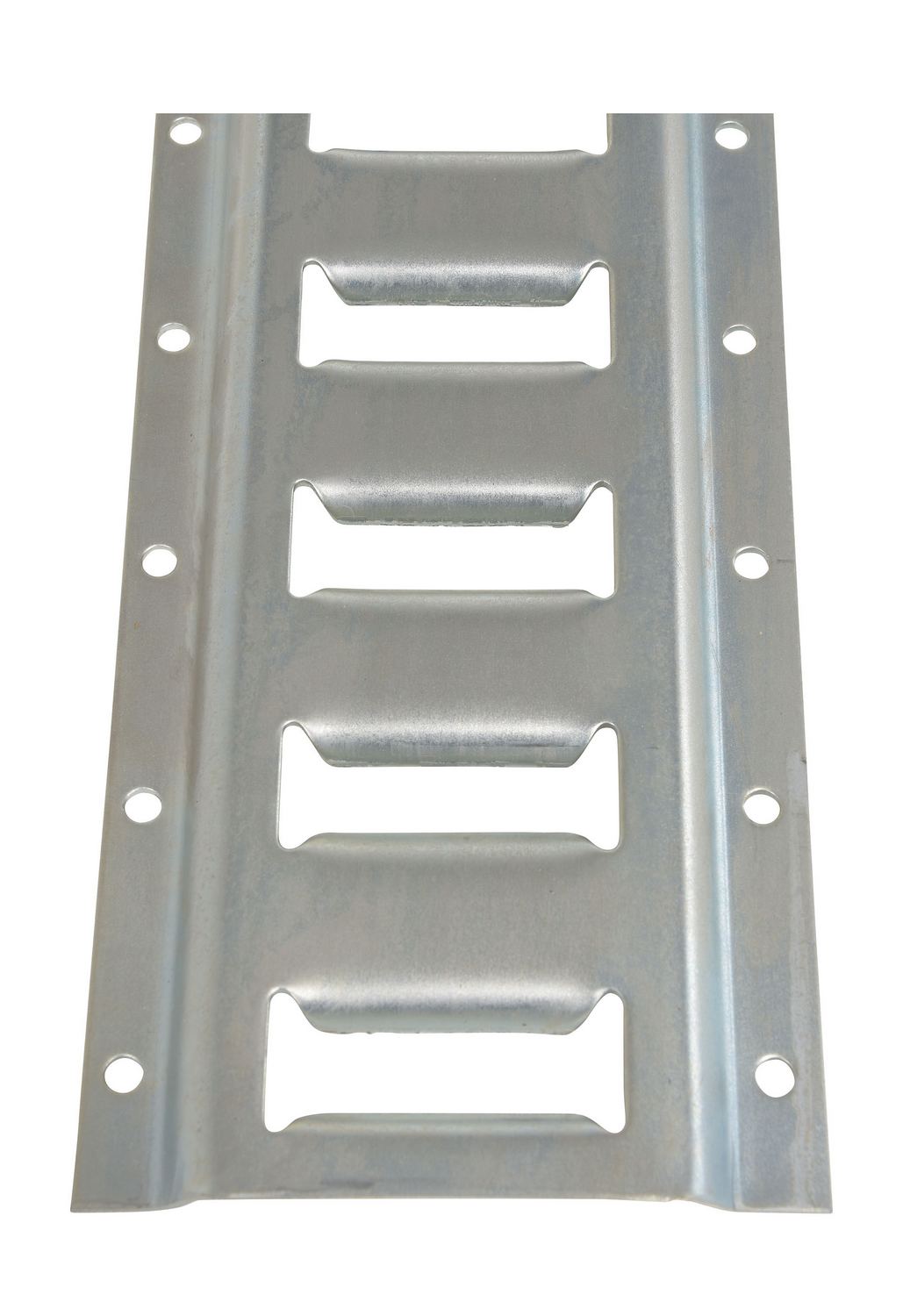

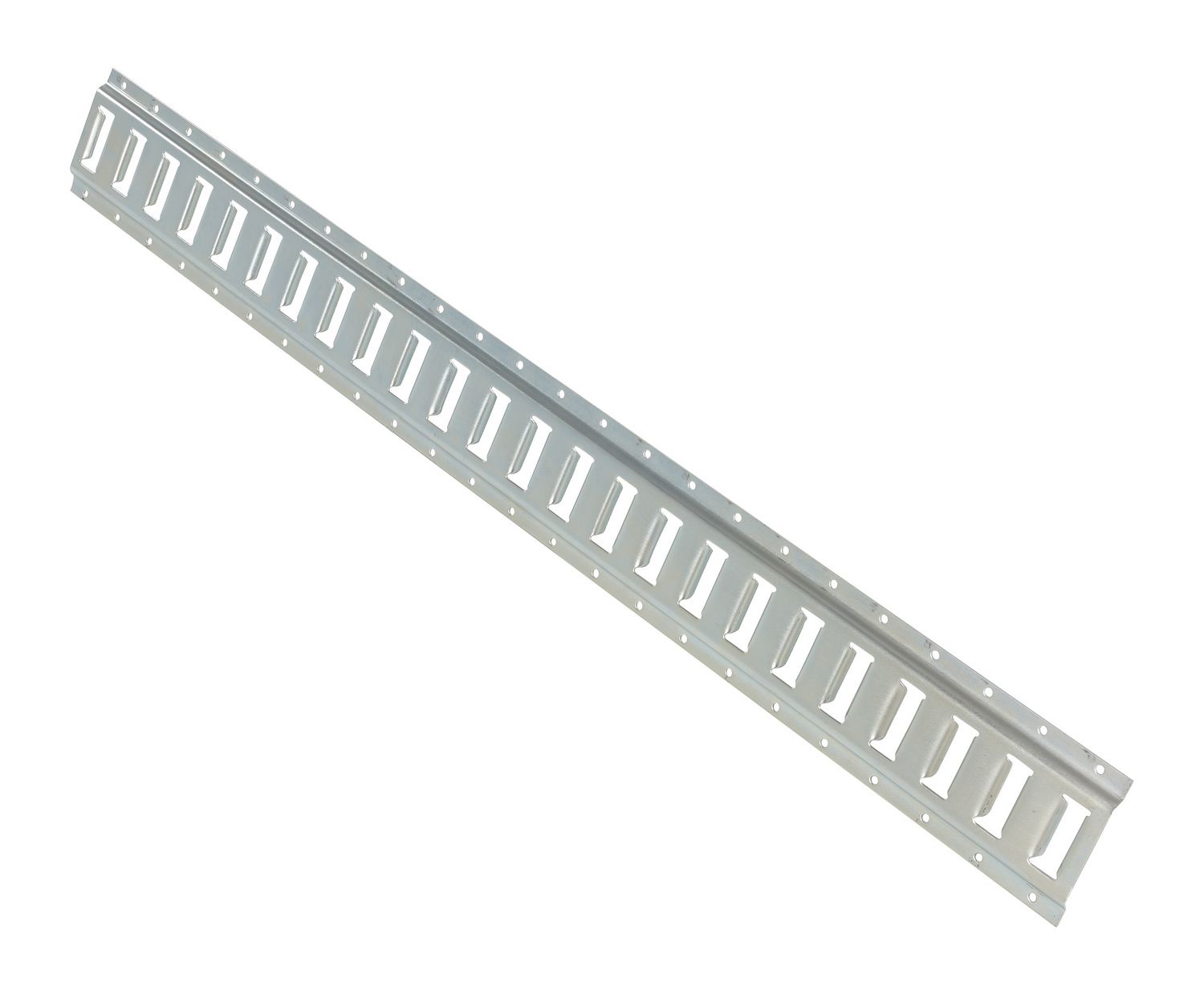

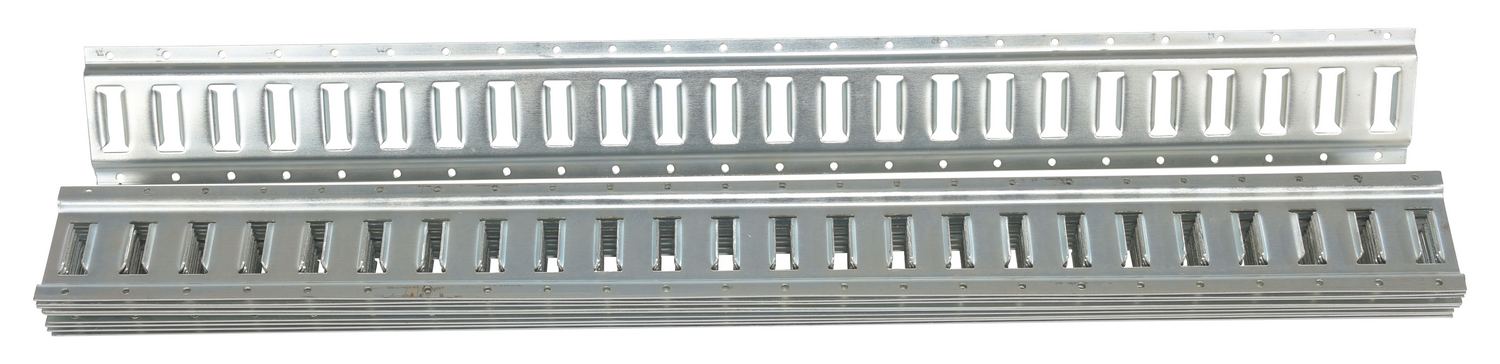

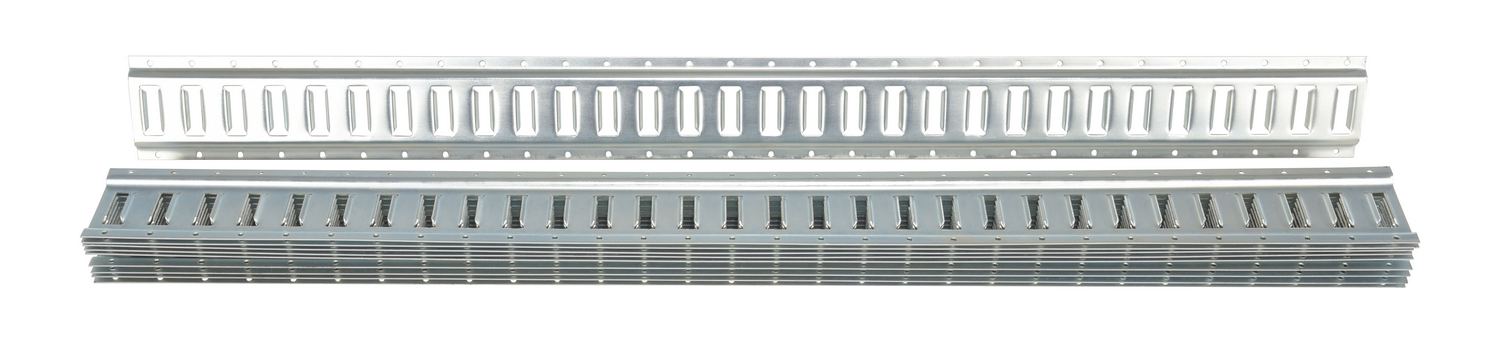

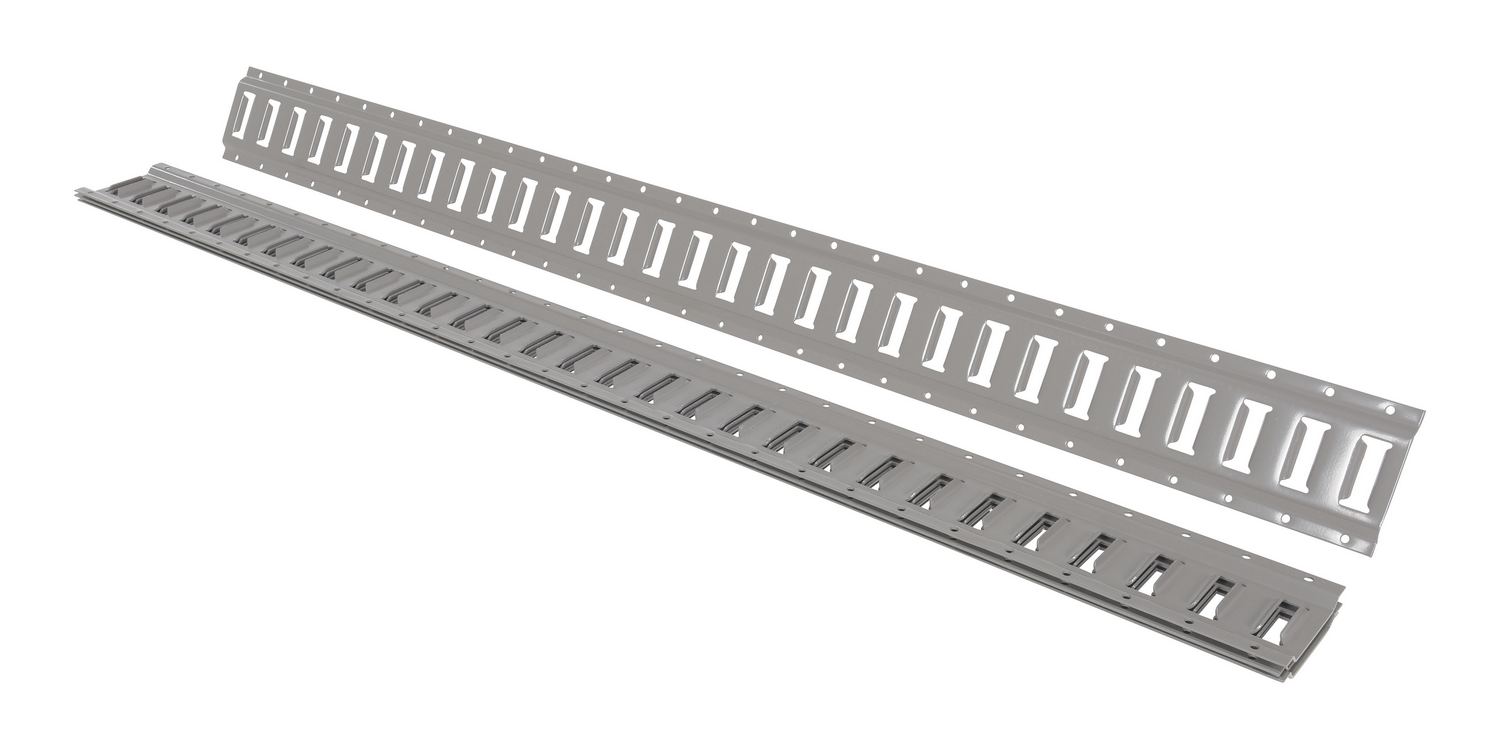

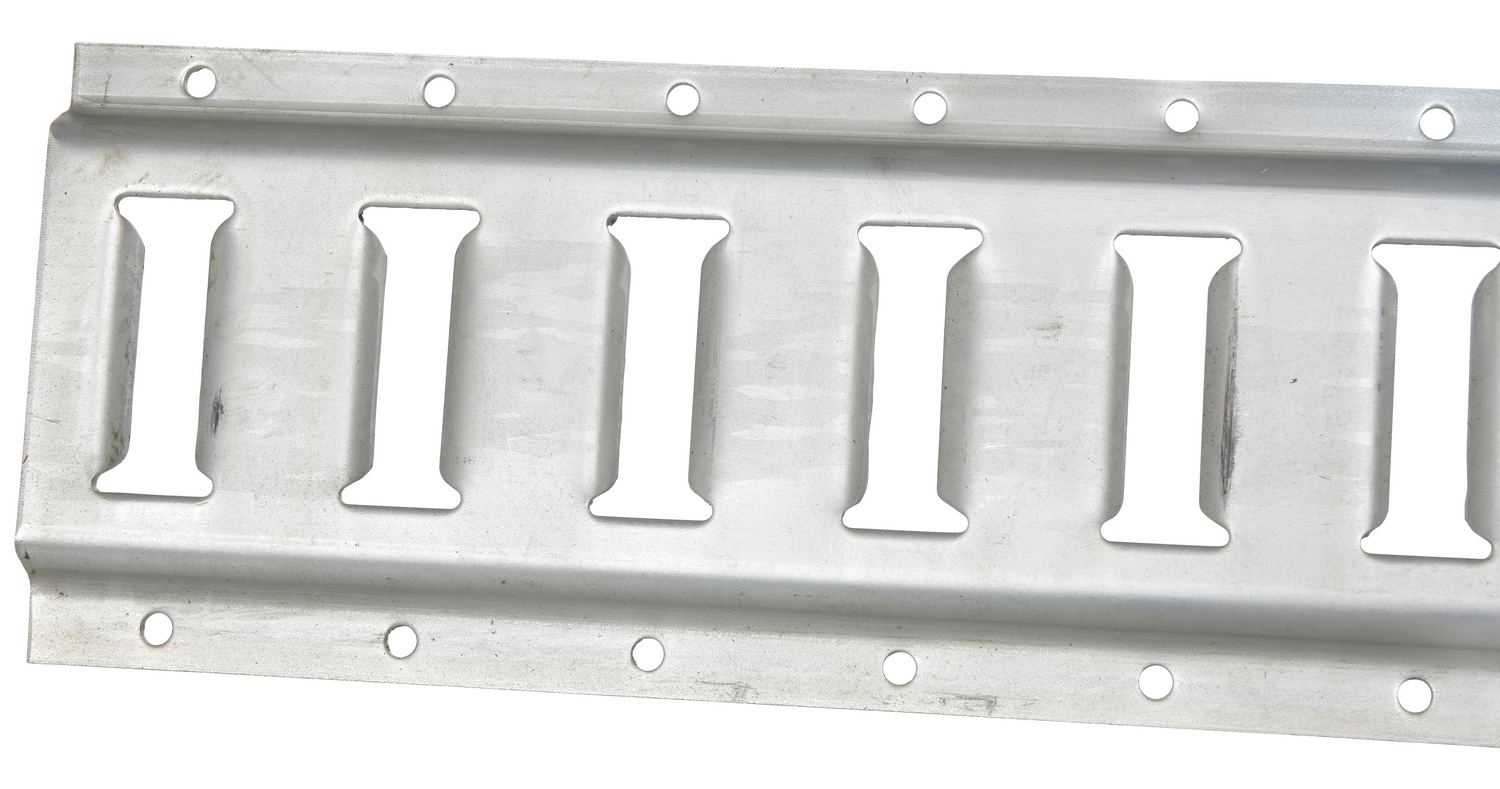

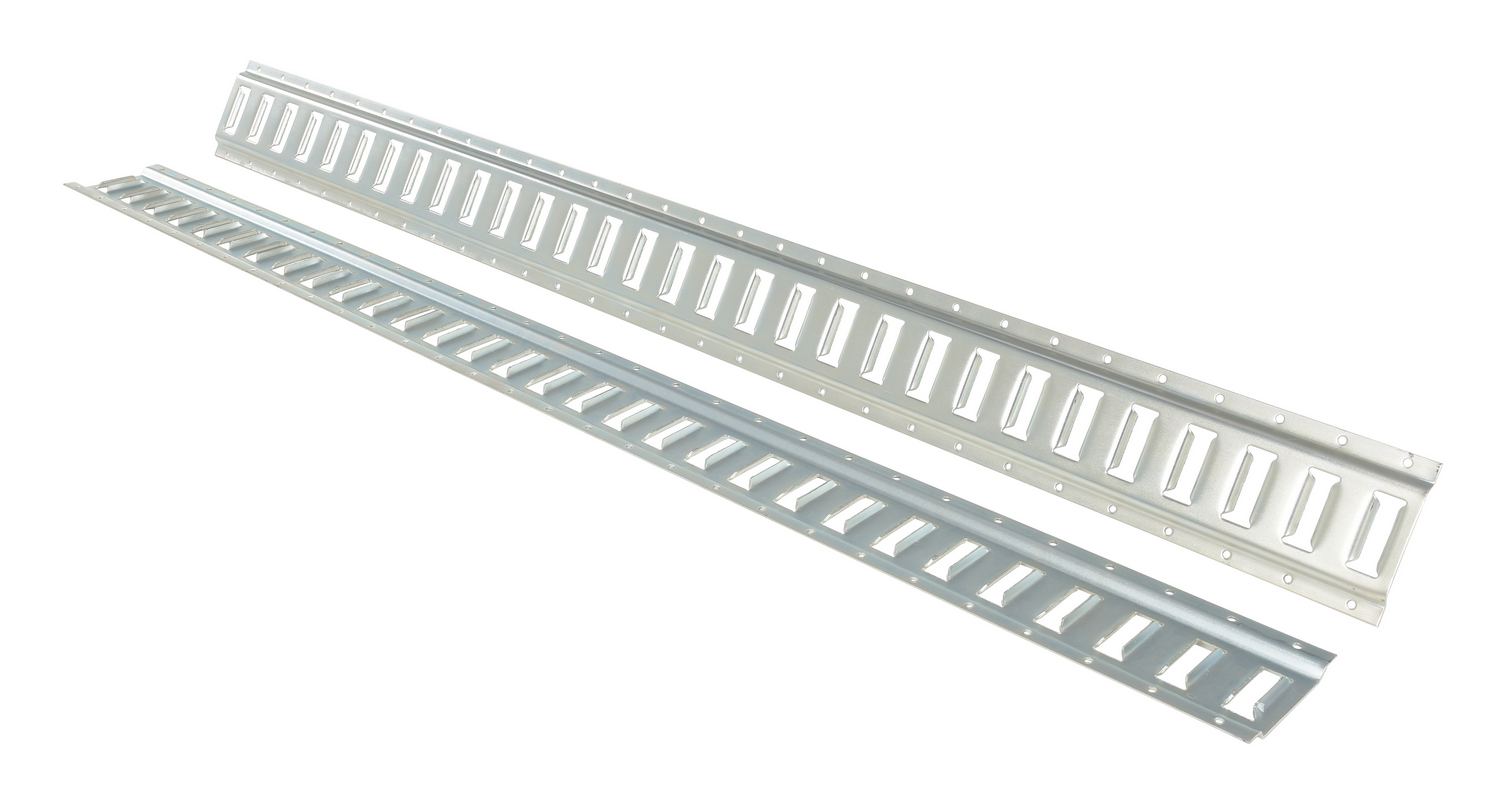

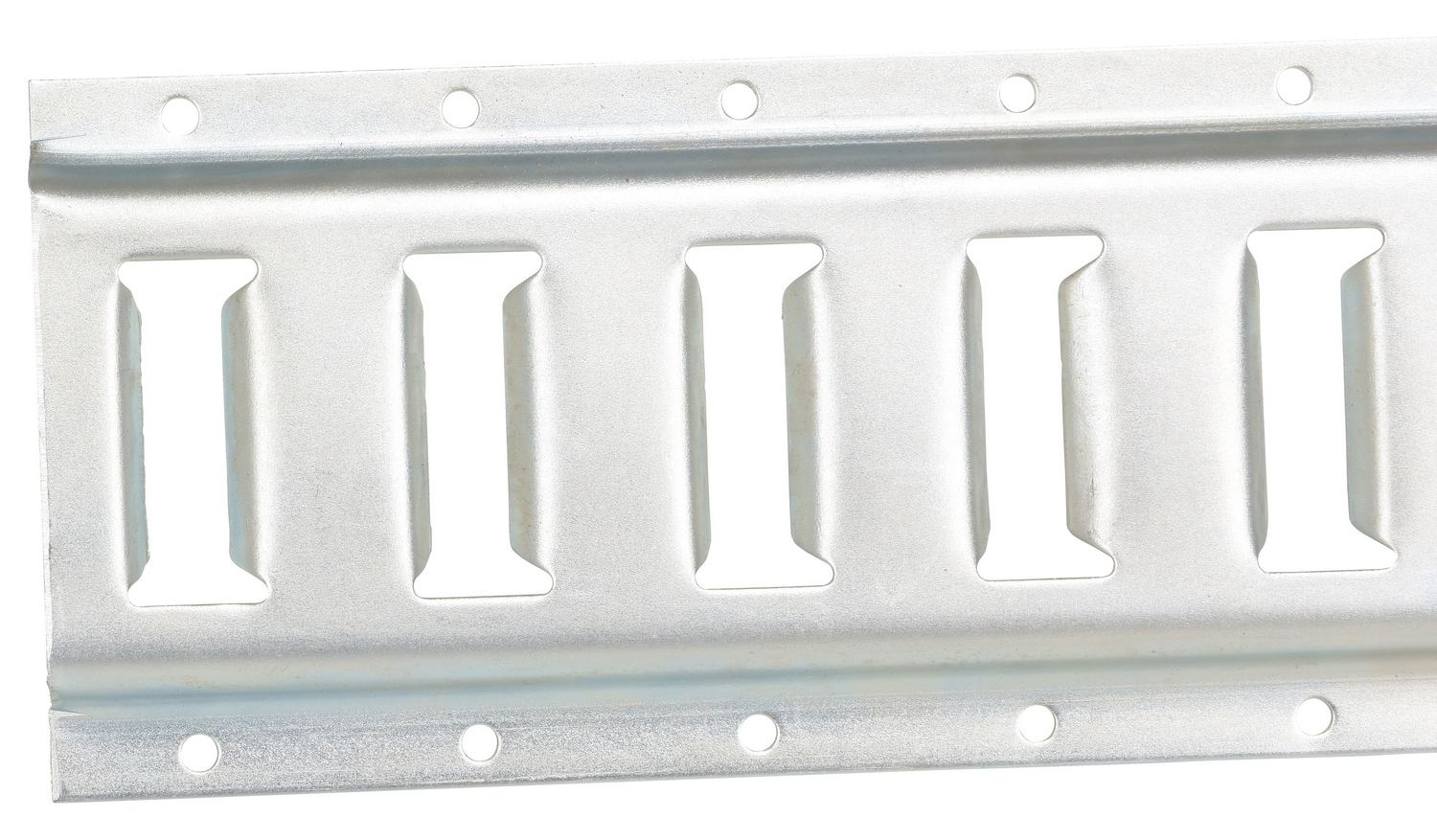

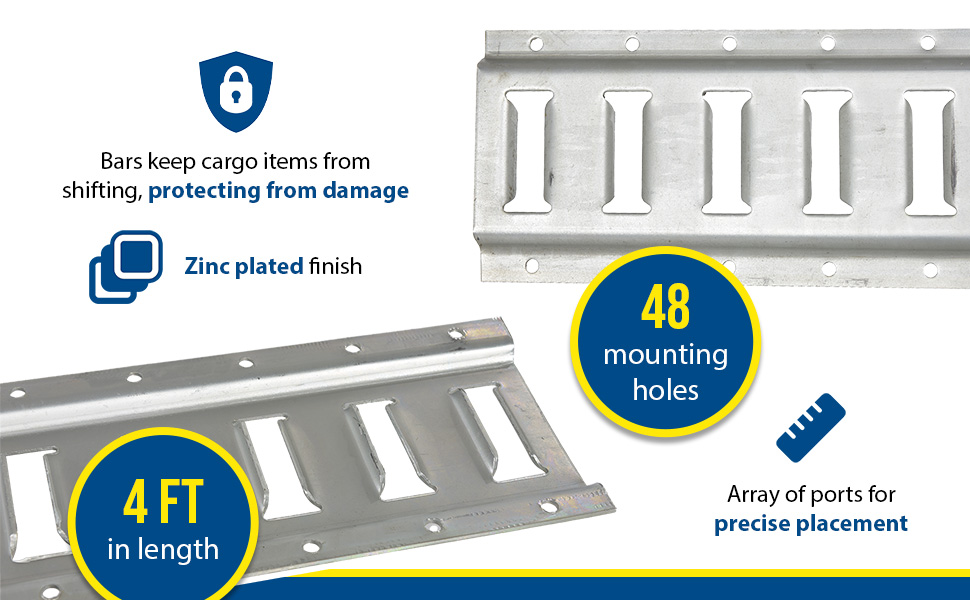

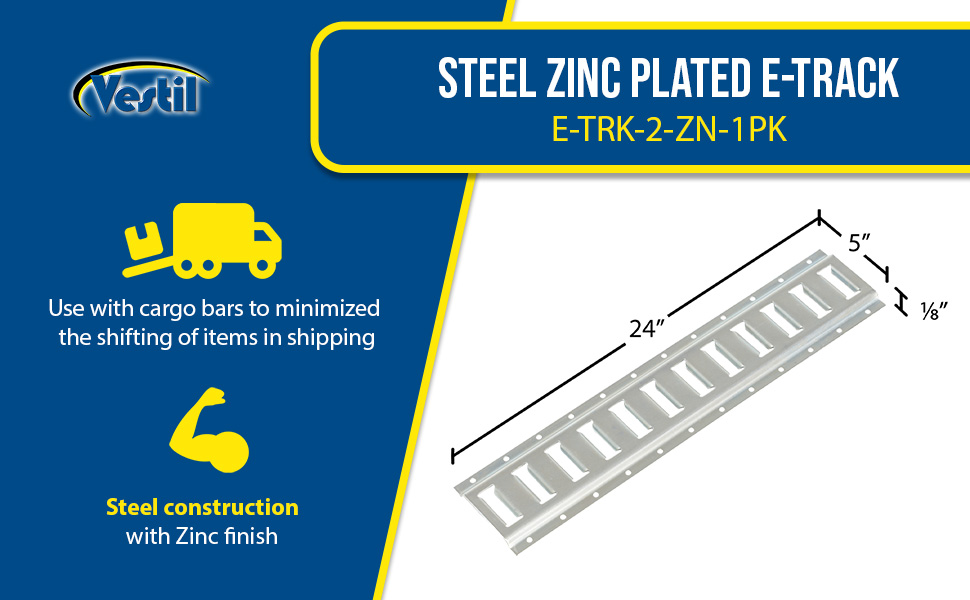

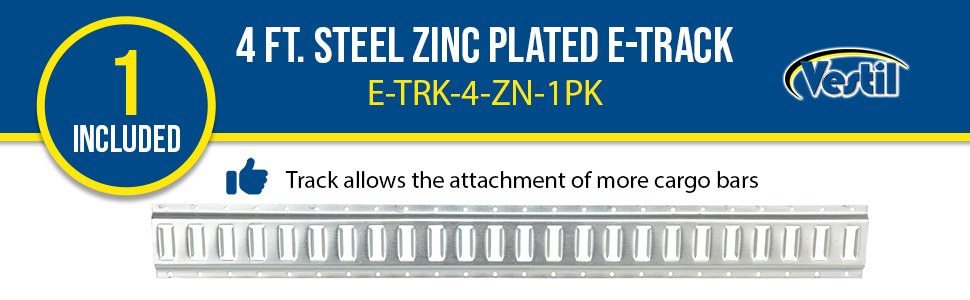

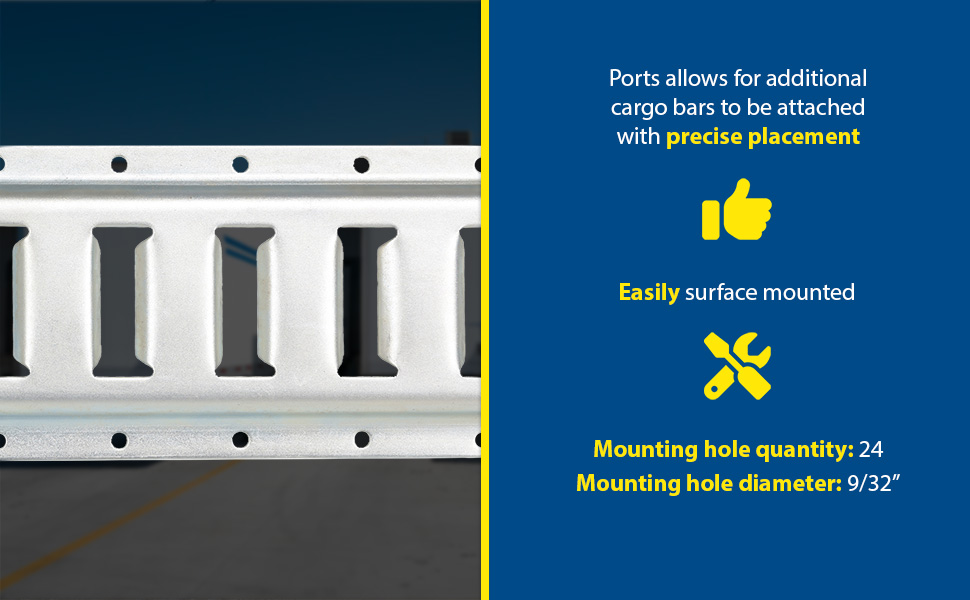

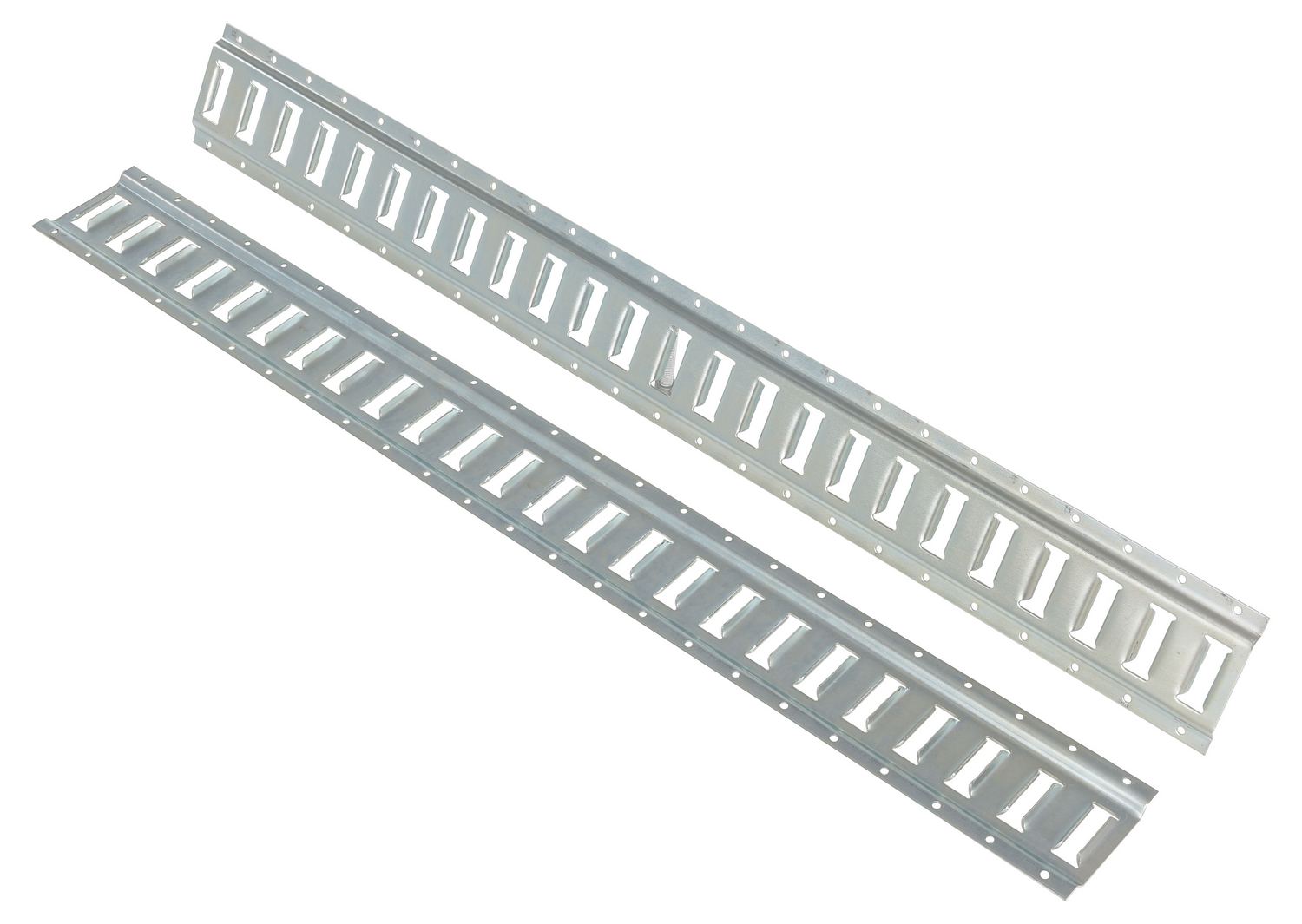

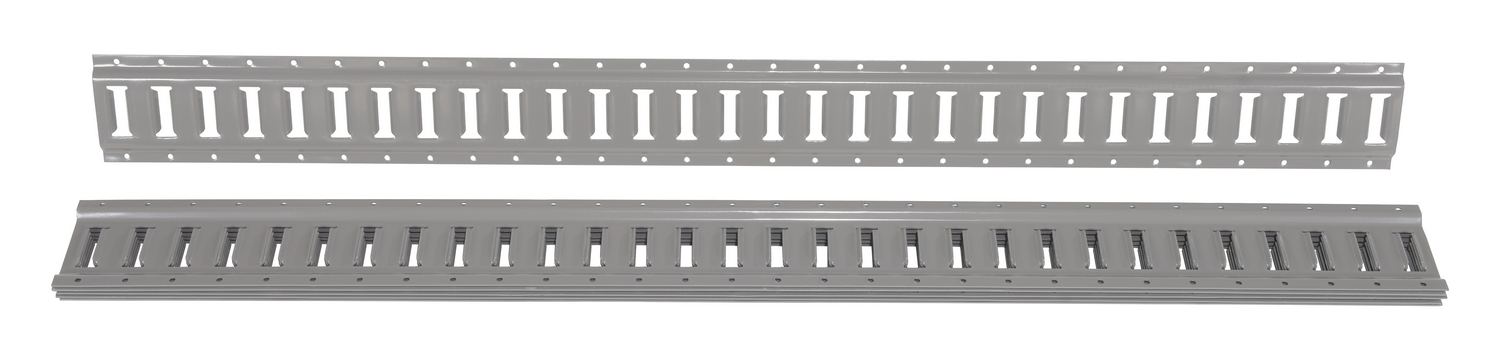

E-TRACK Warranty PDFCompliance Certificate Steel section of E-Track for trailers 10' Long 16

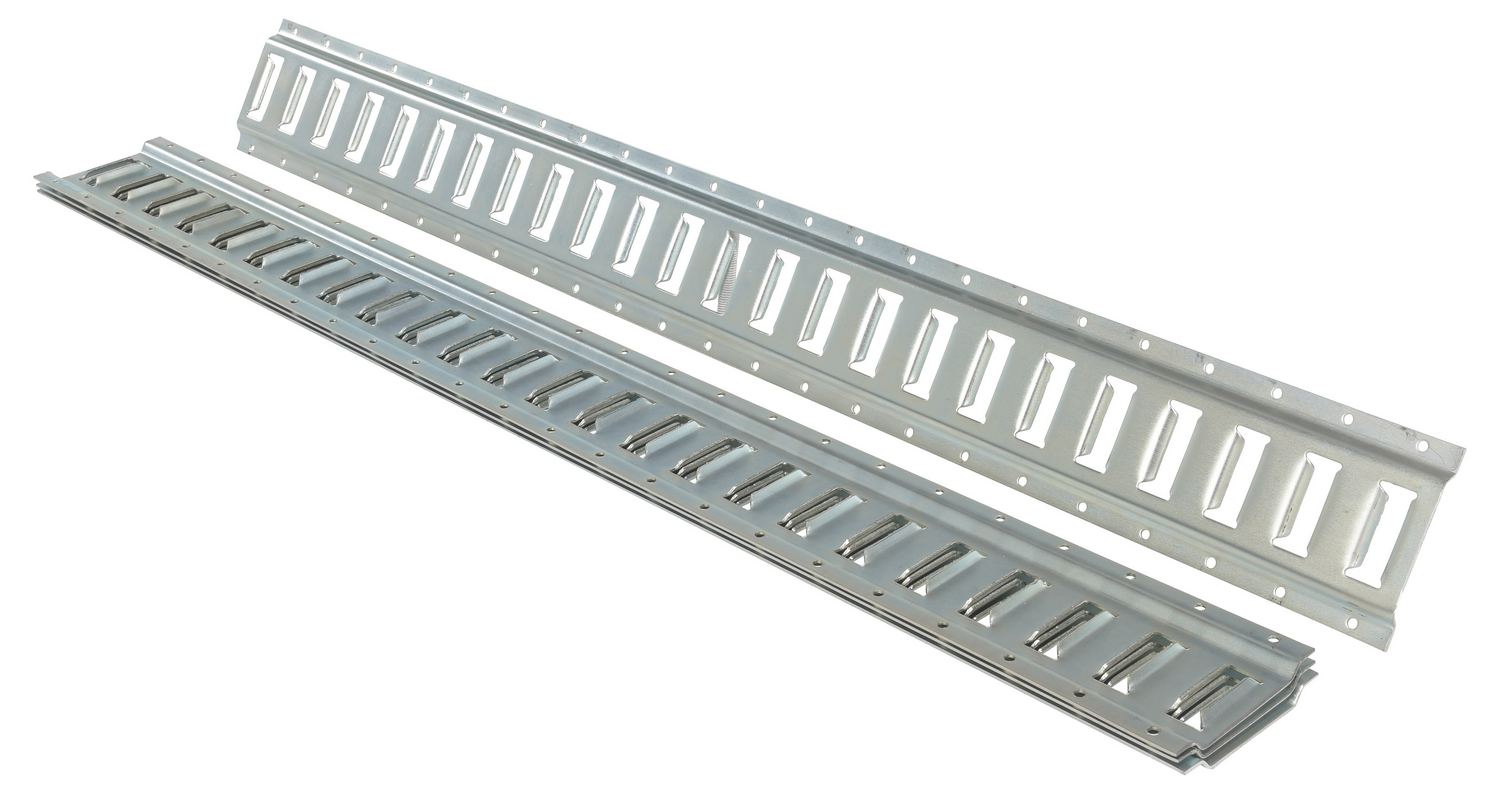

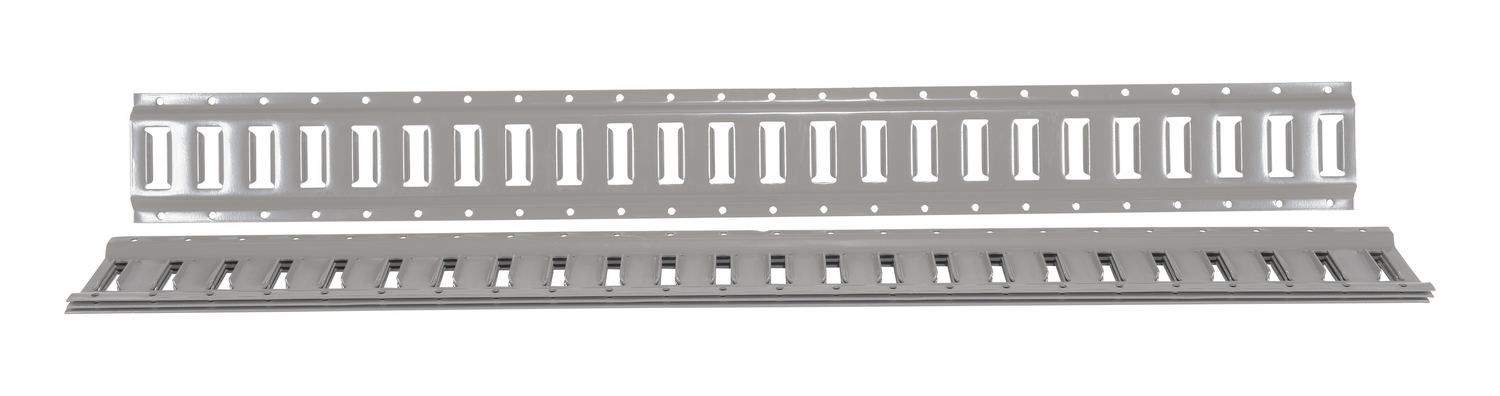

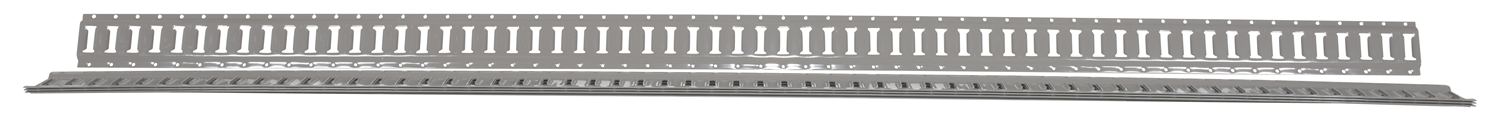

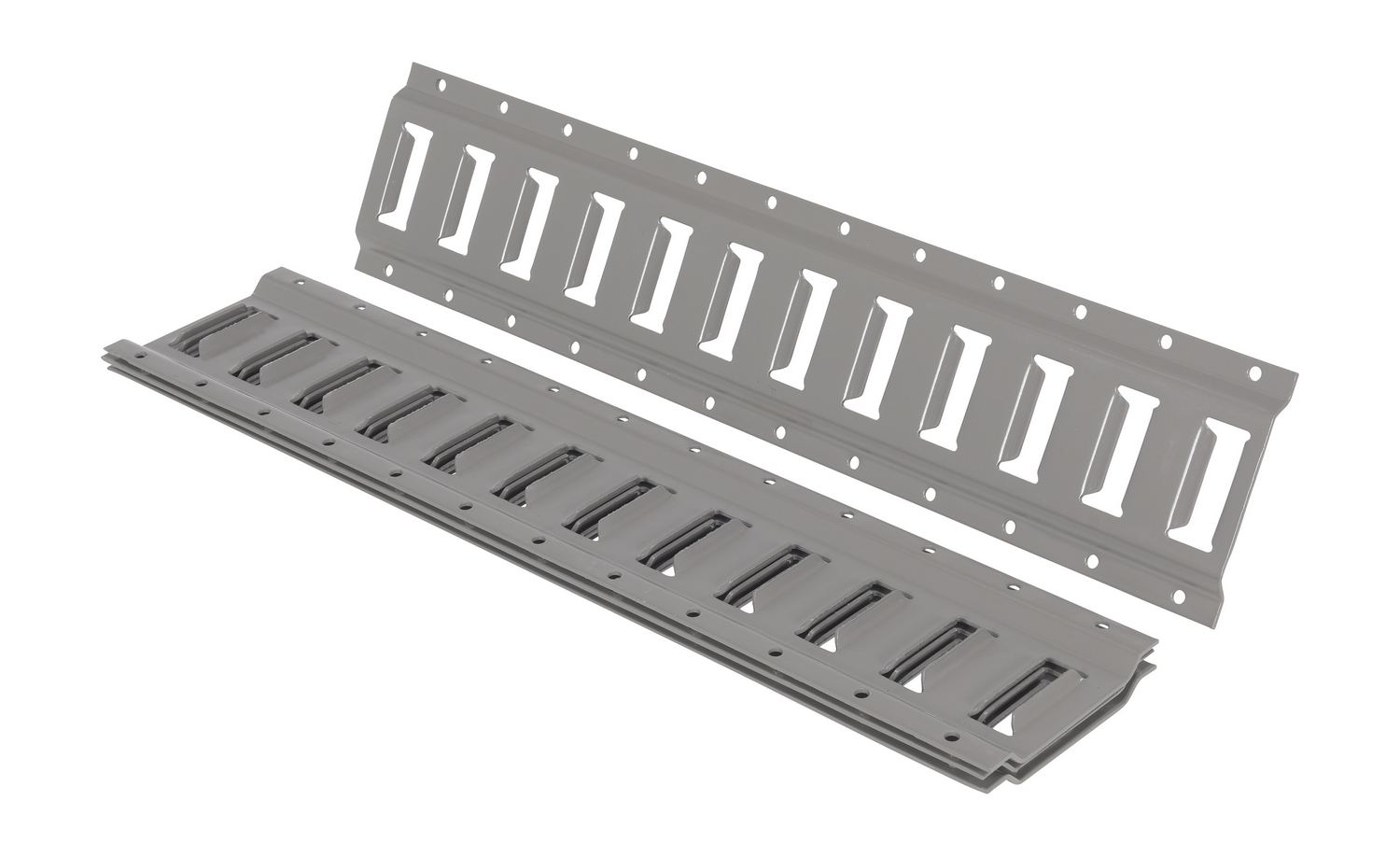

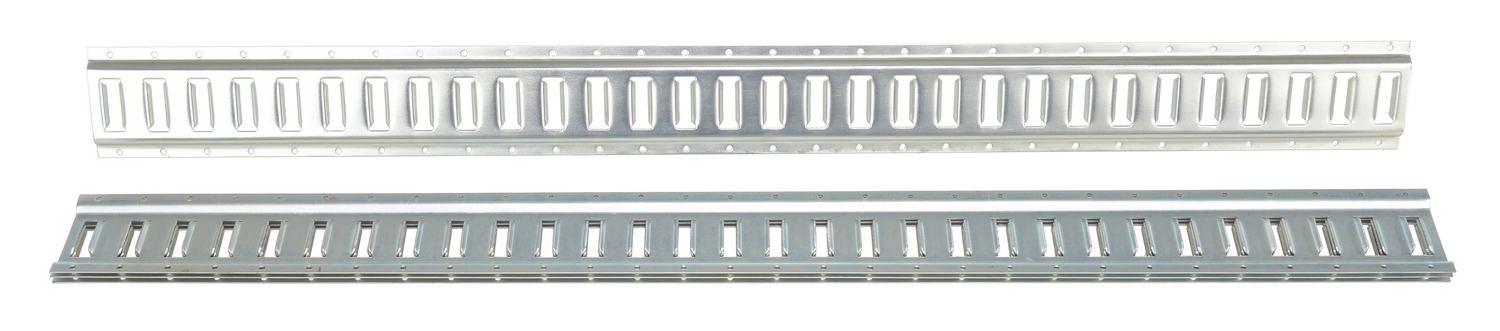

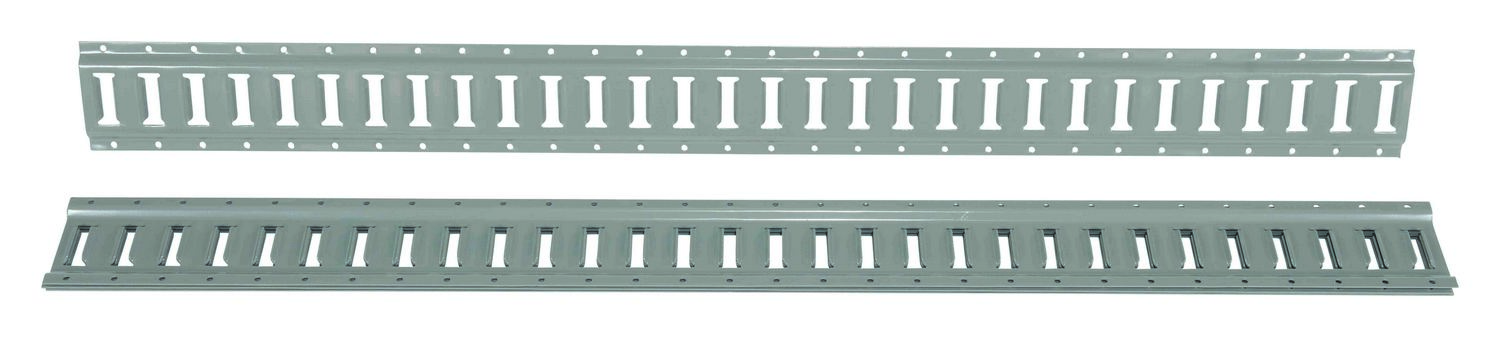

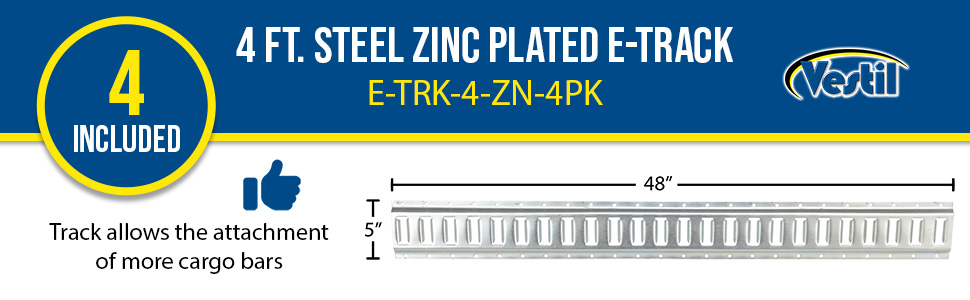

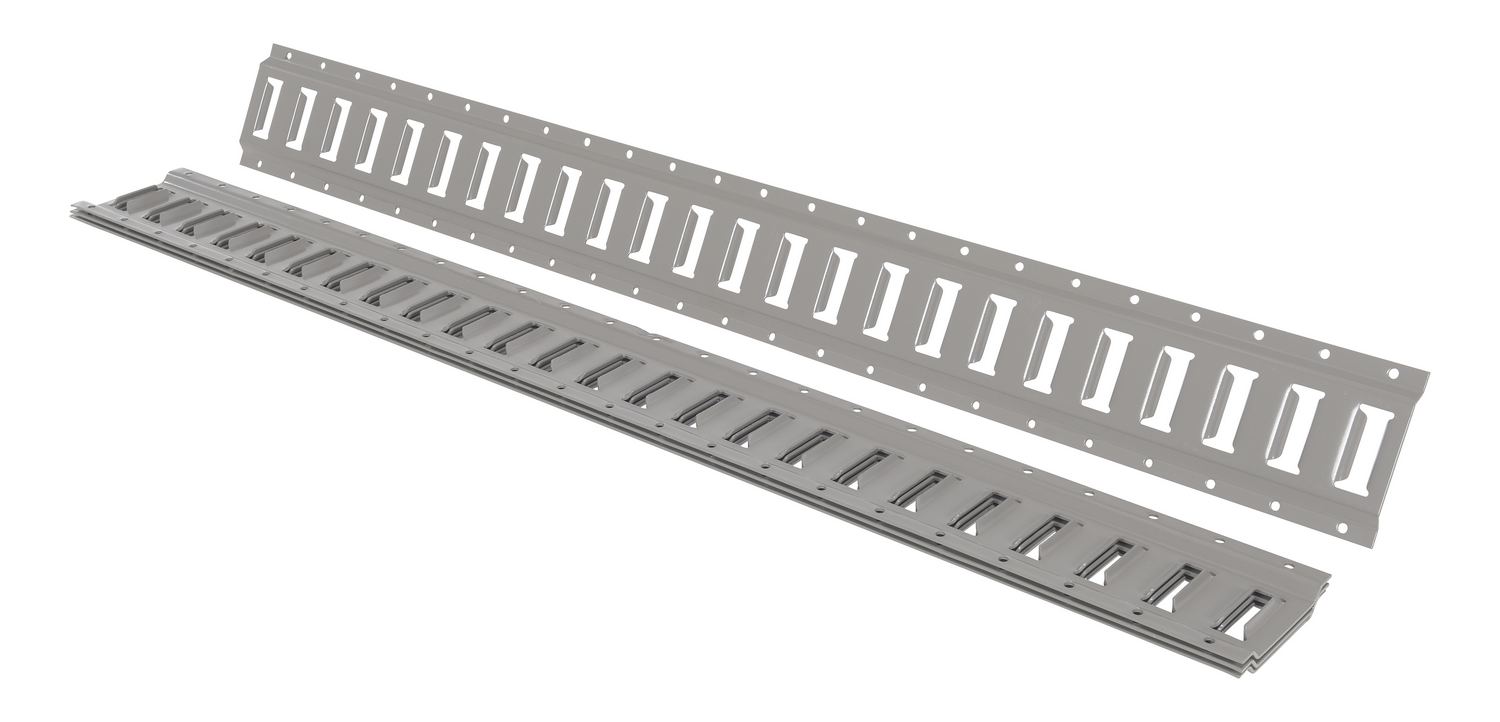

E-TRACK-4PK - Warranty PDF Steel section of E-Track for trailers - 4 Pack 10' Long 106

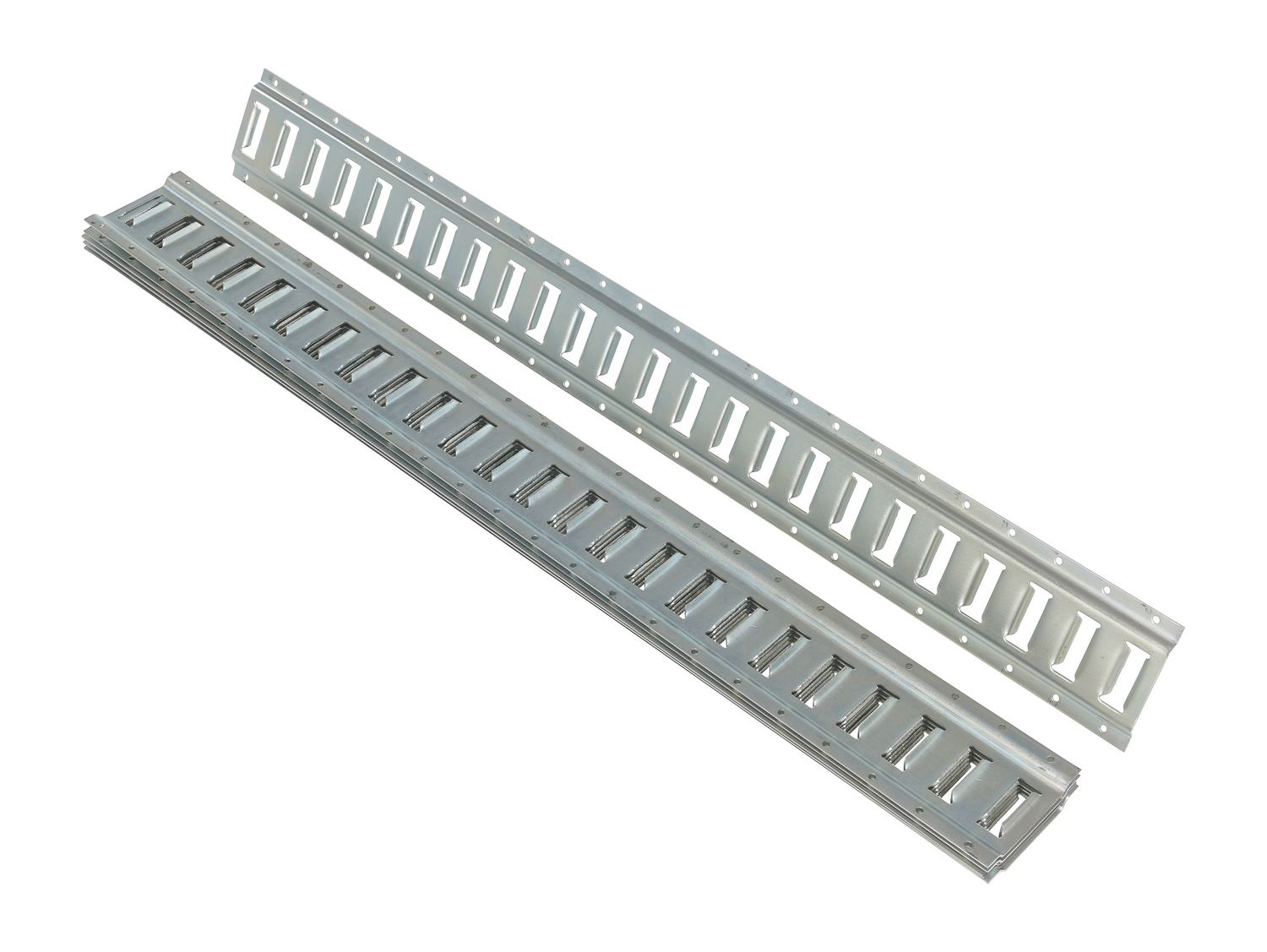

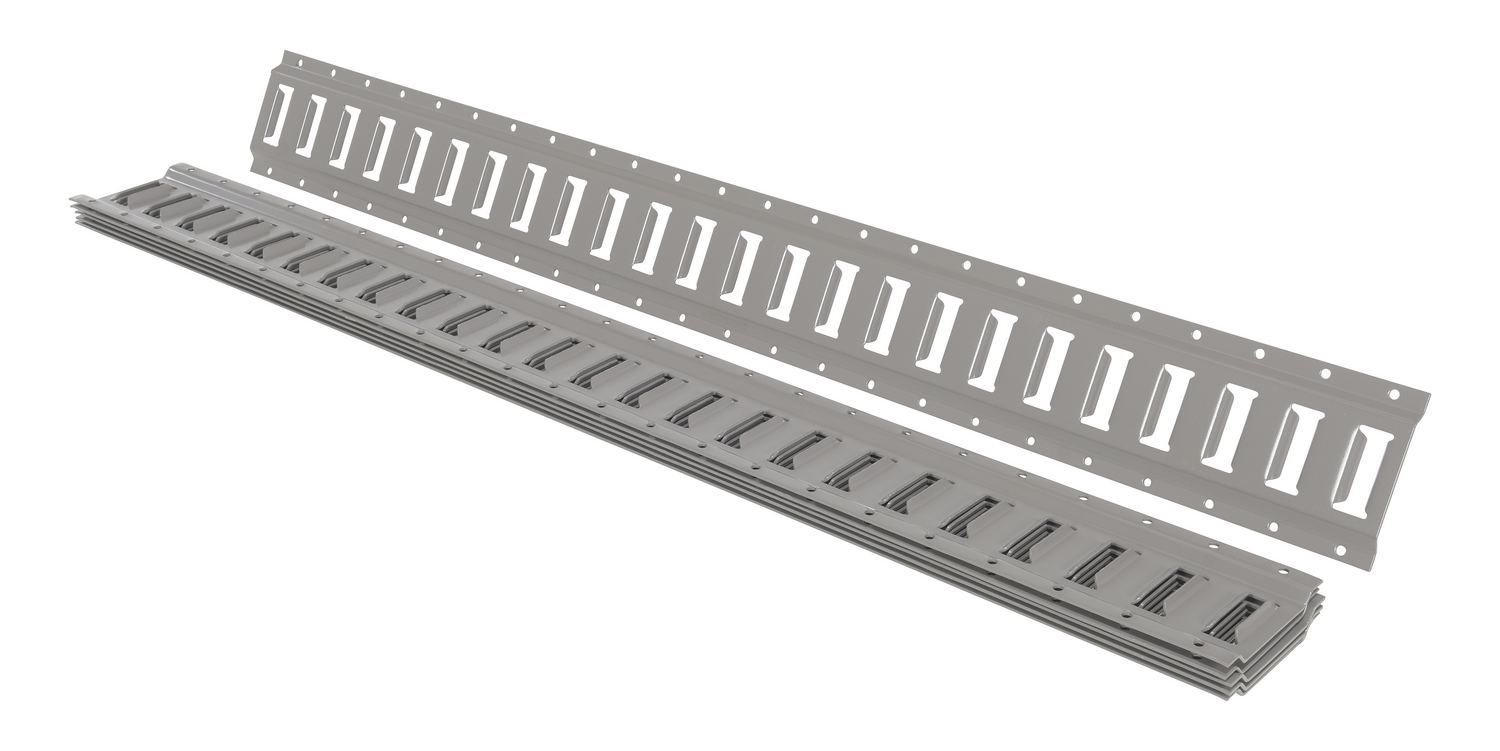

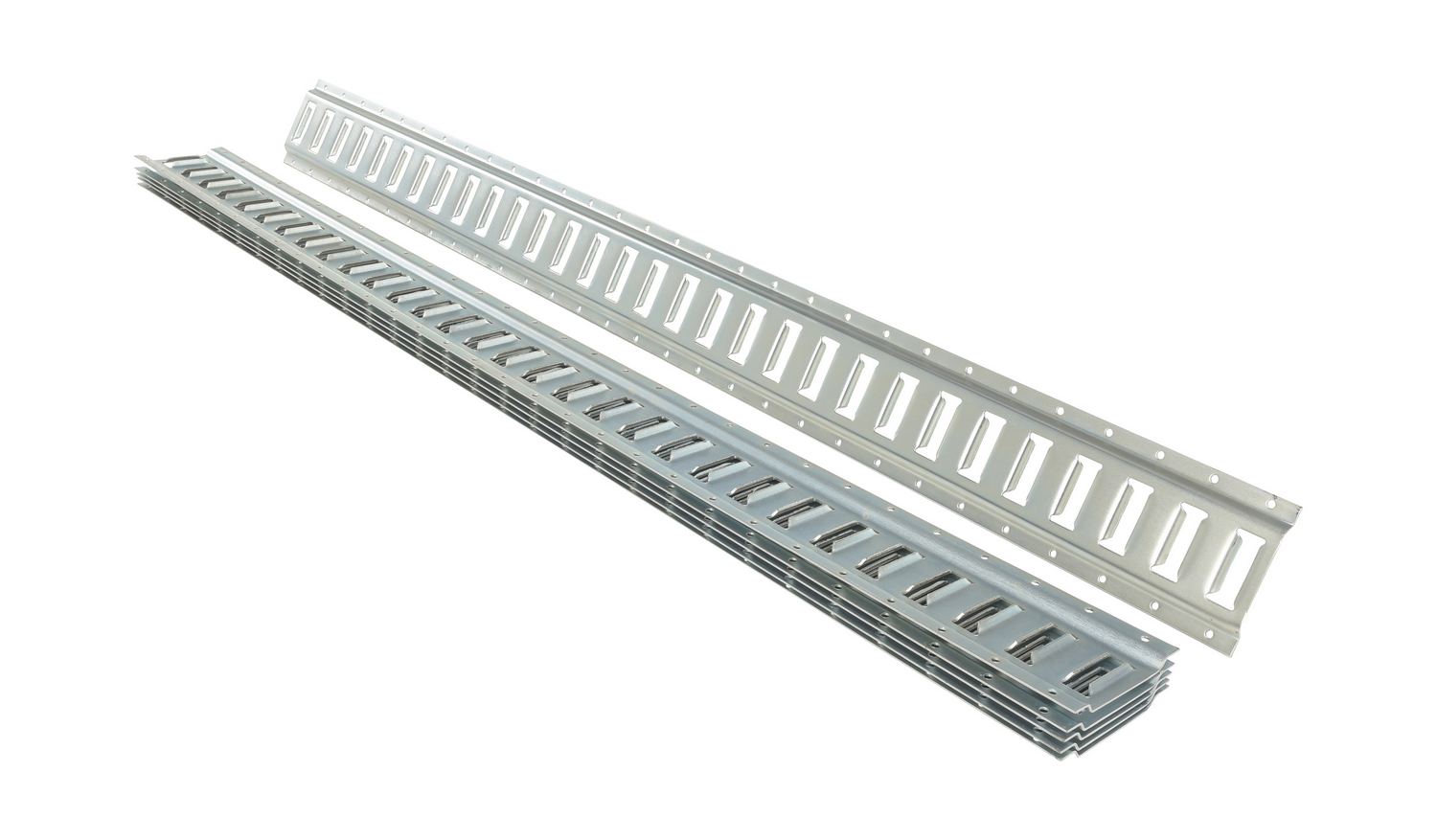

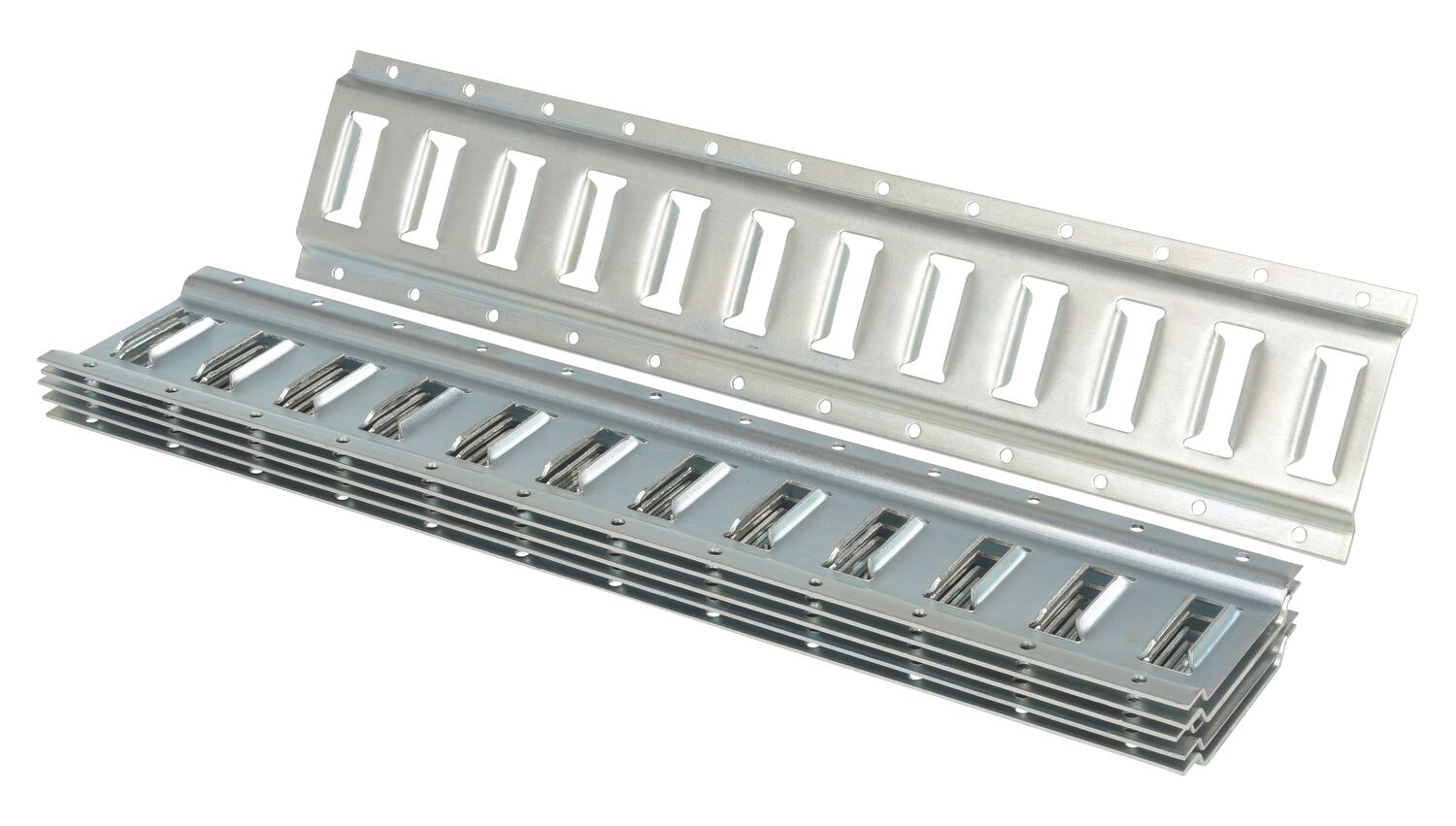

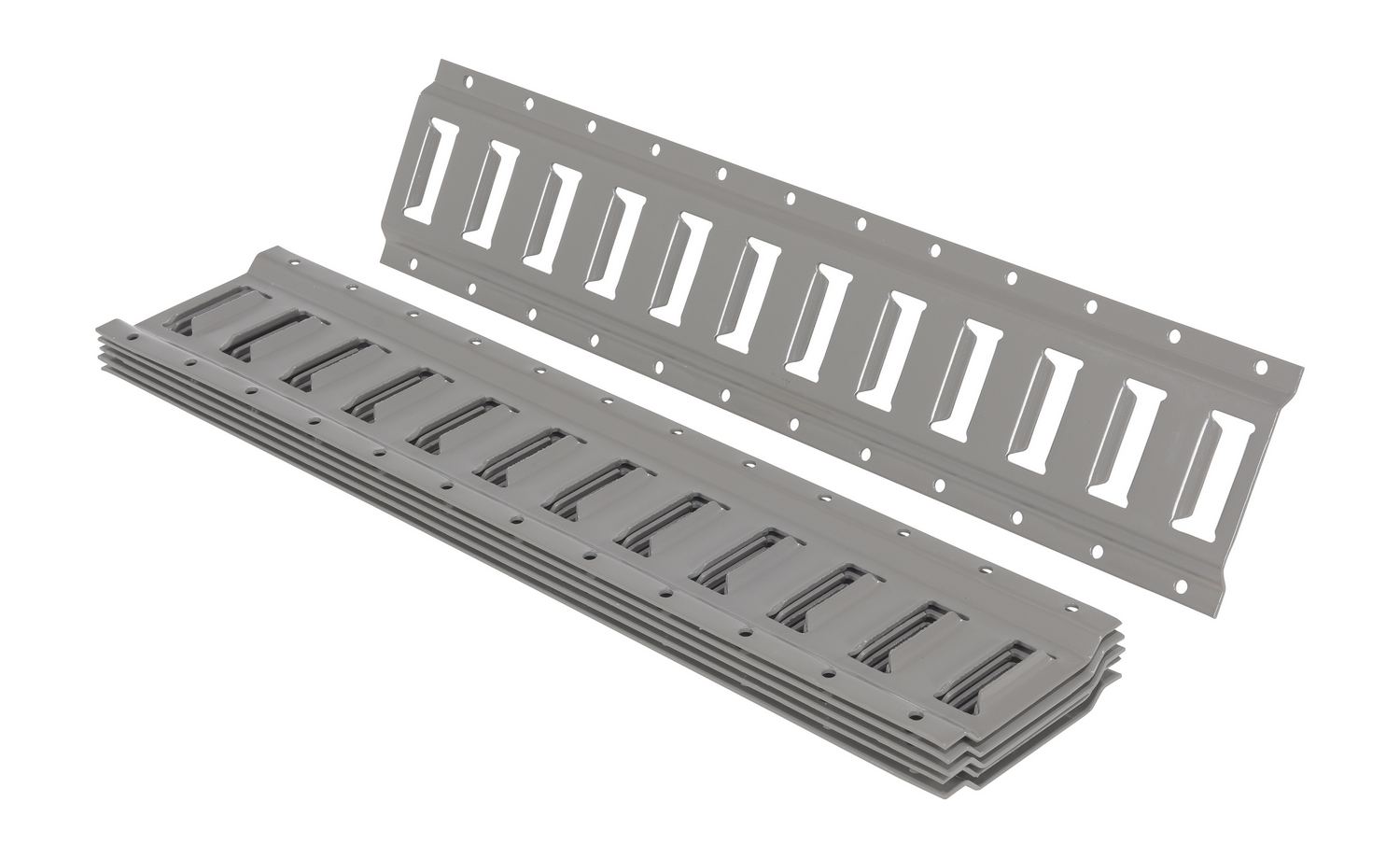

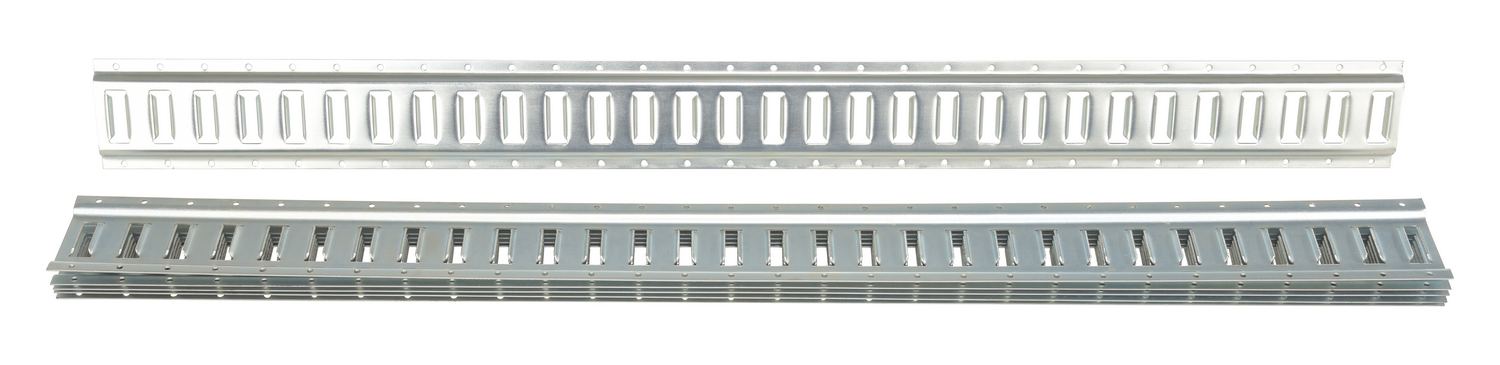

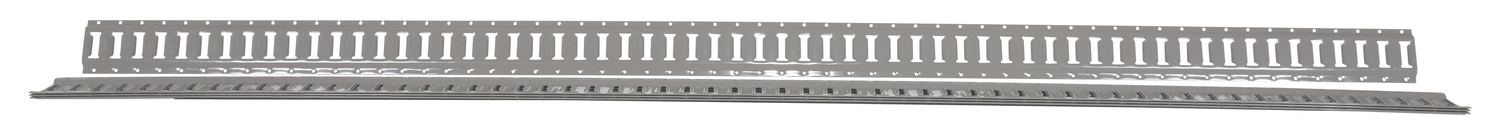

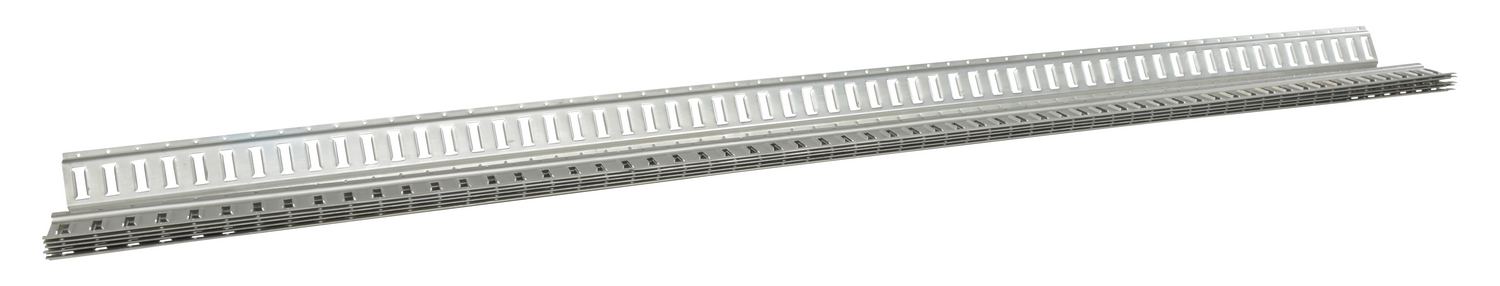

E-TRACK-6PK - Warranty PDF Steel section of E-Track for trailers - 6 Pack 10' Long 140

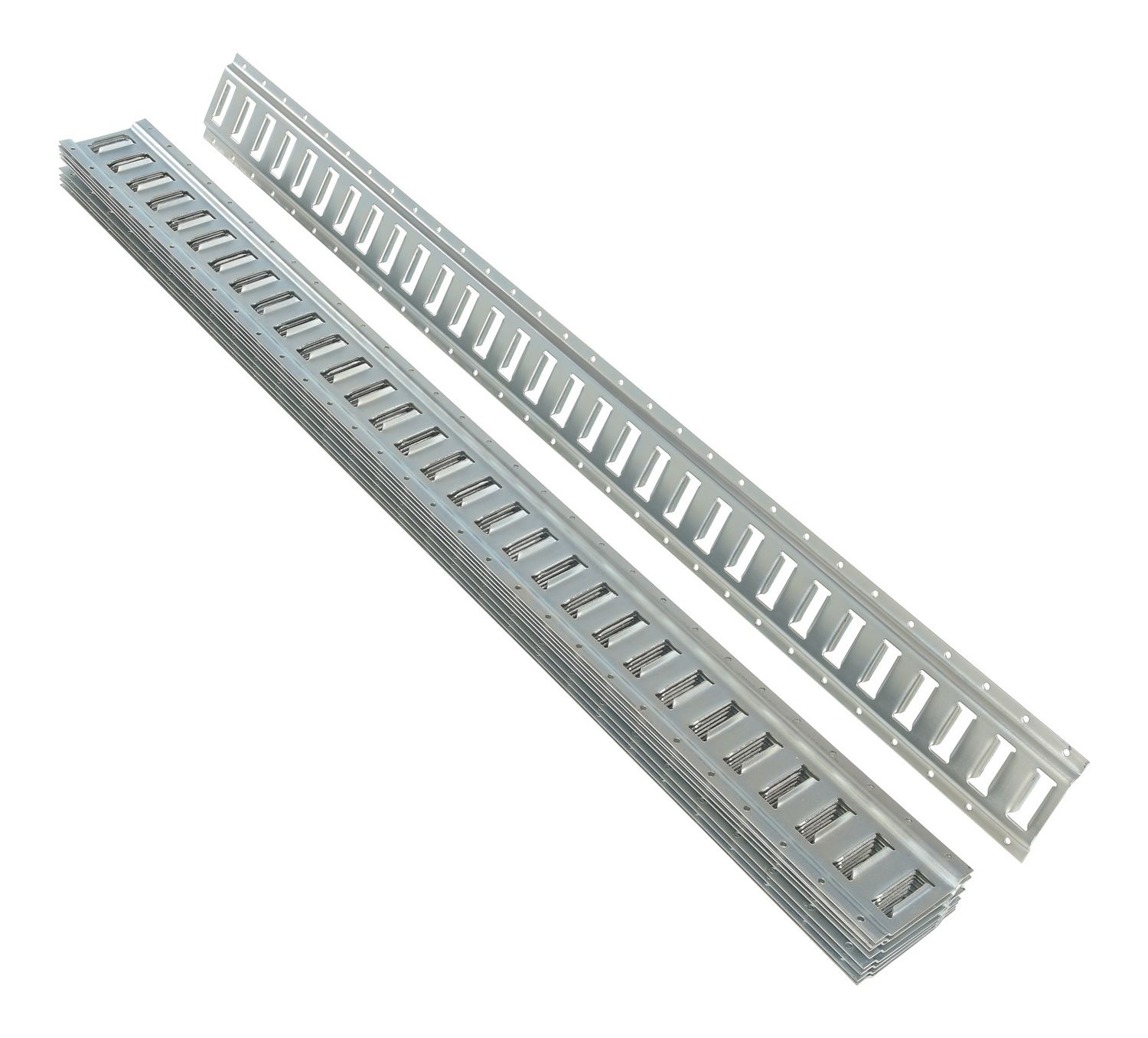

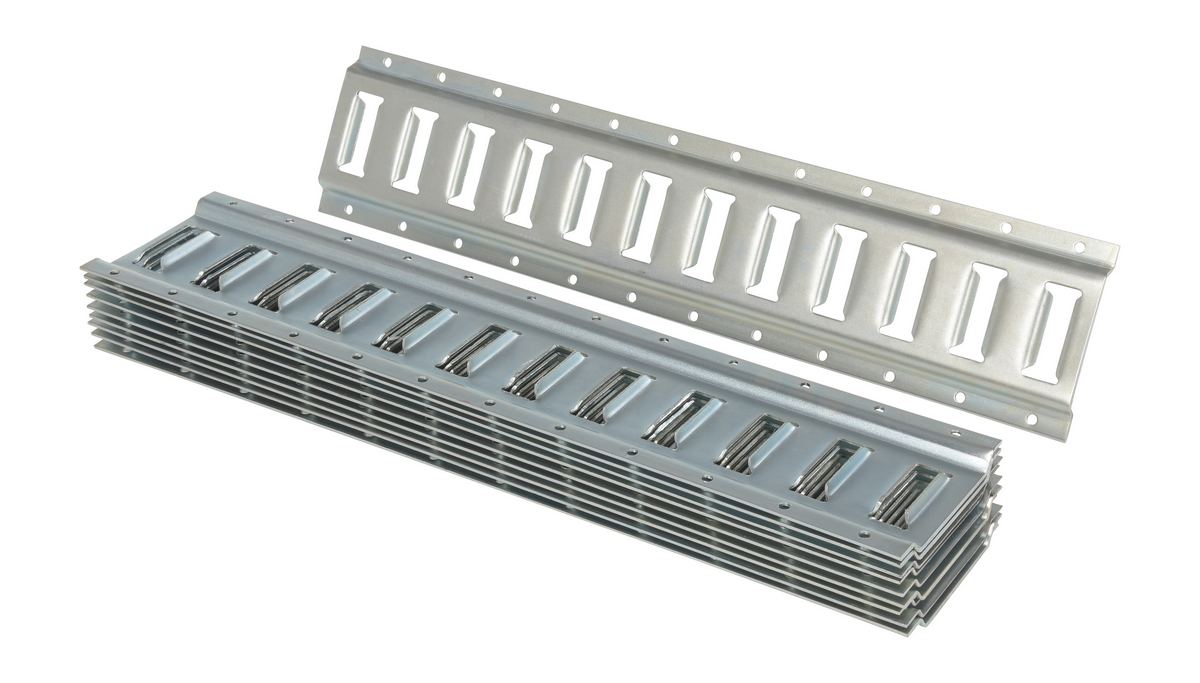

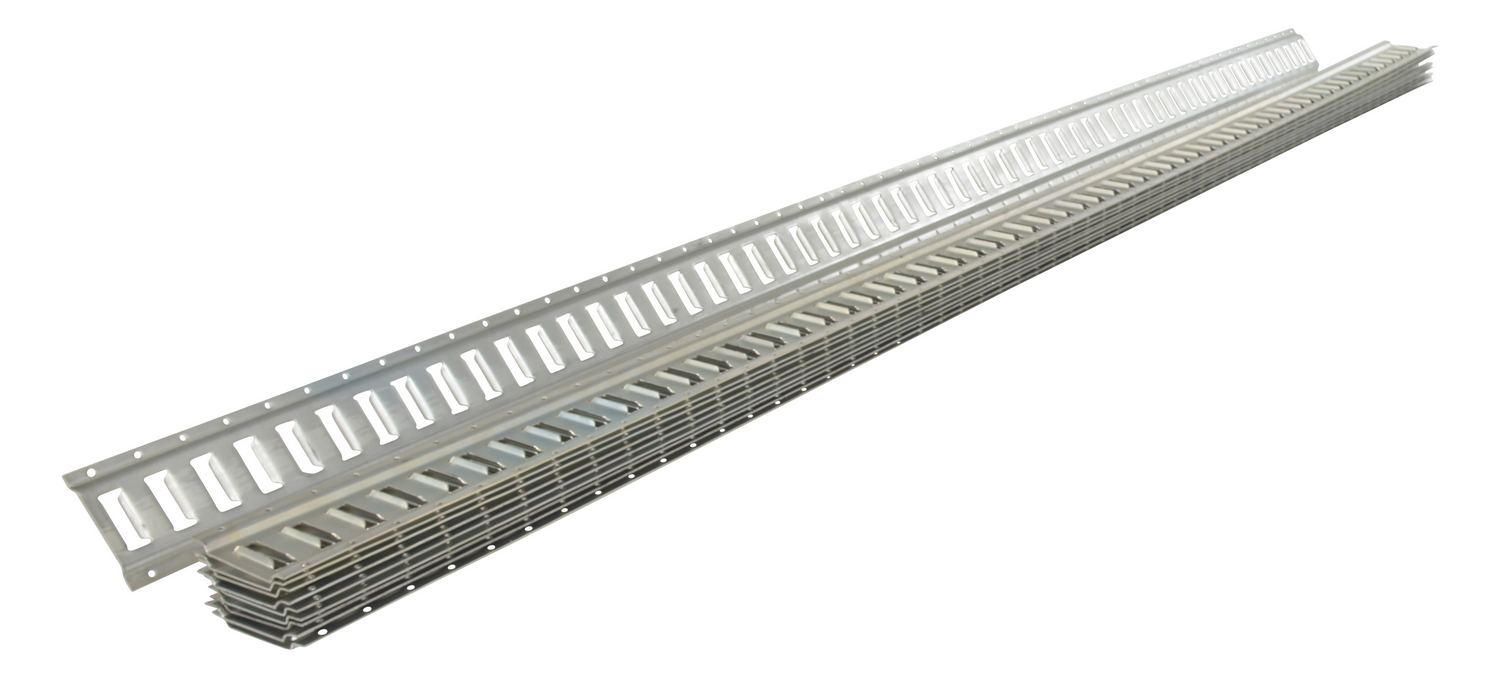

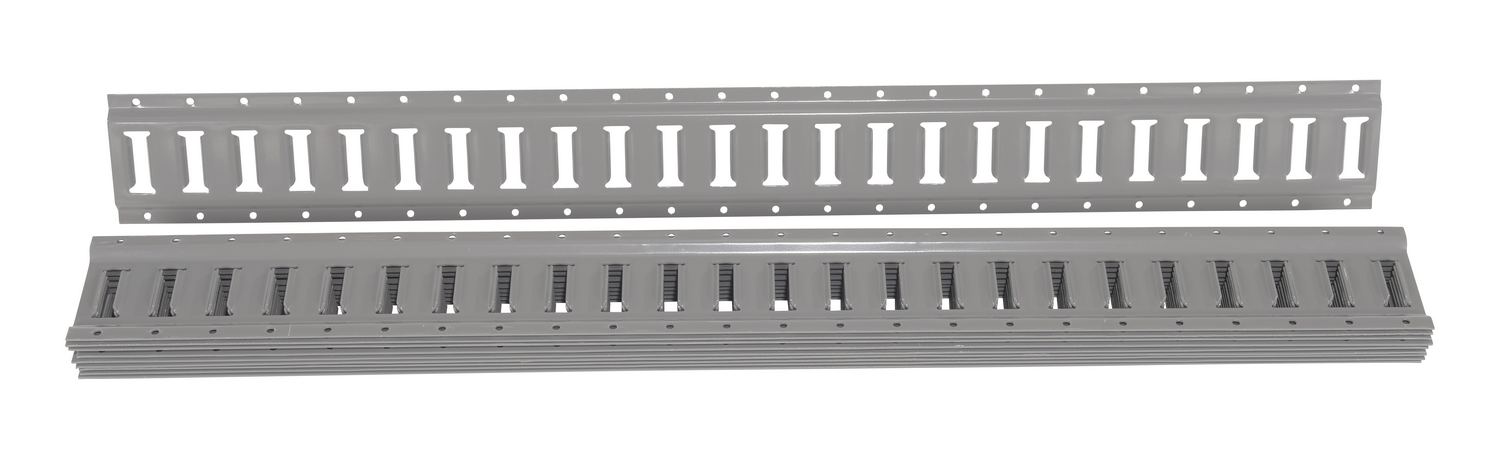

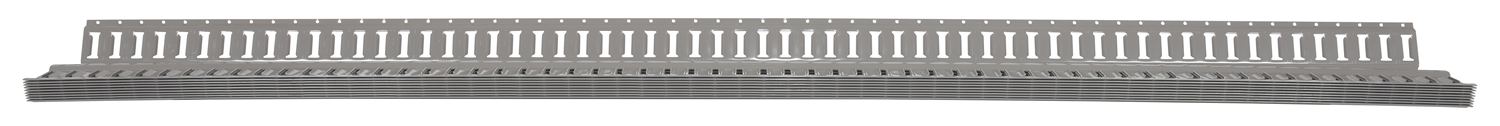

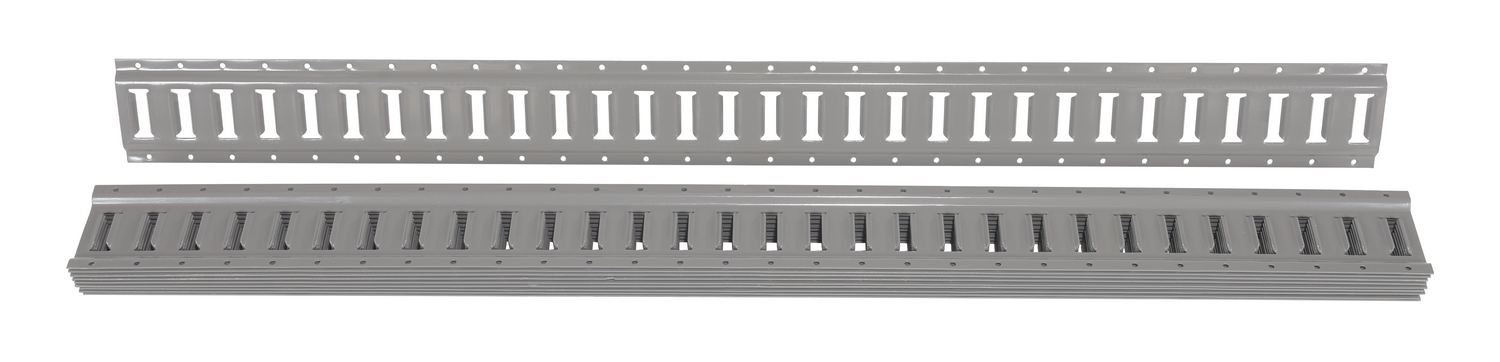

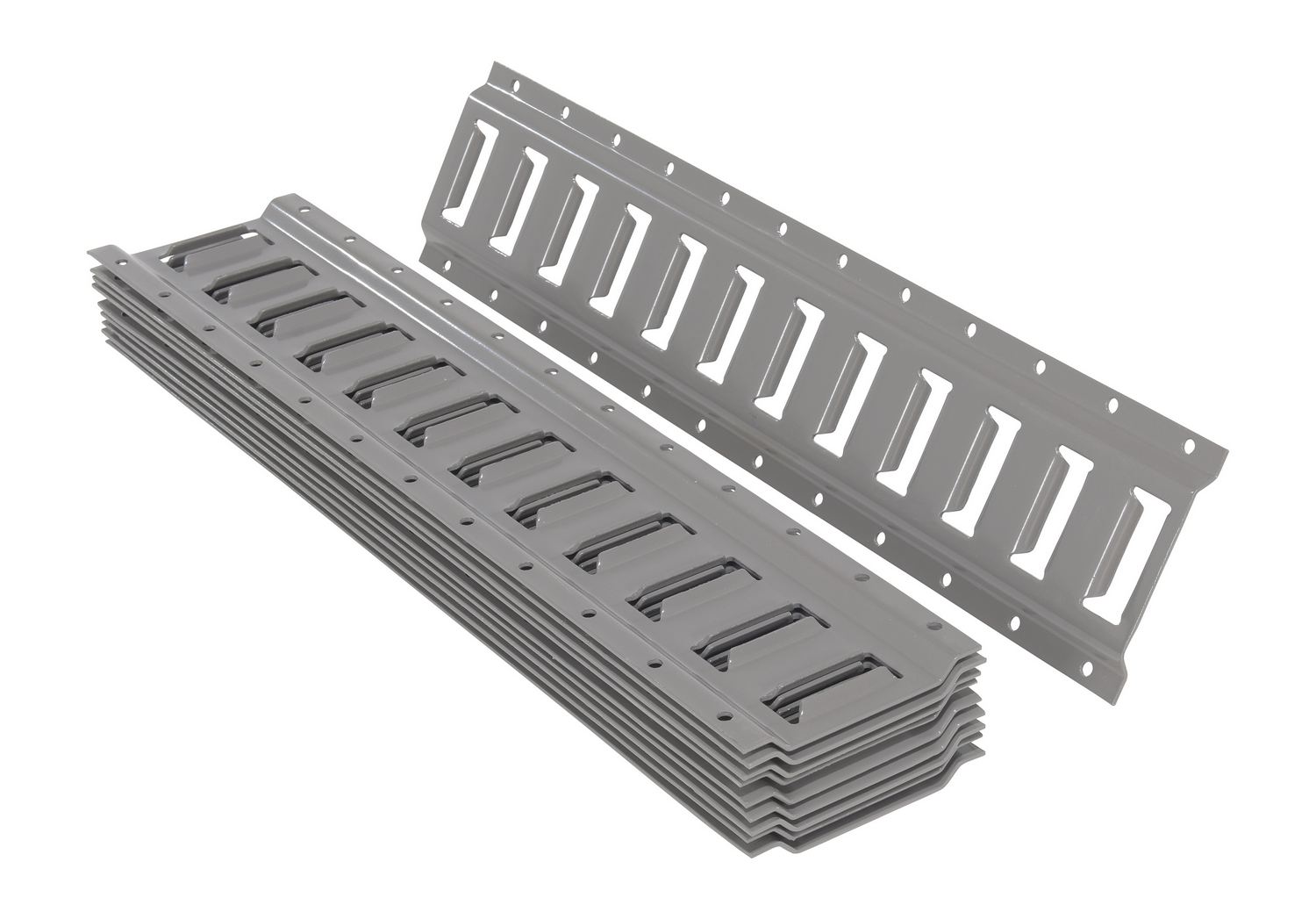

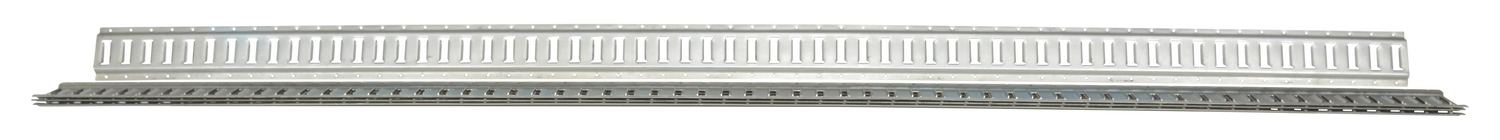

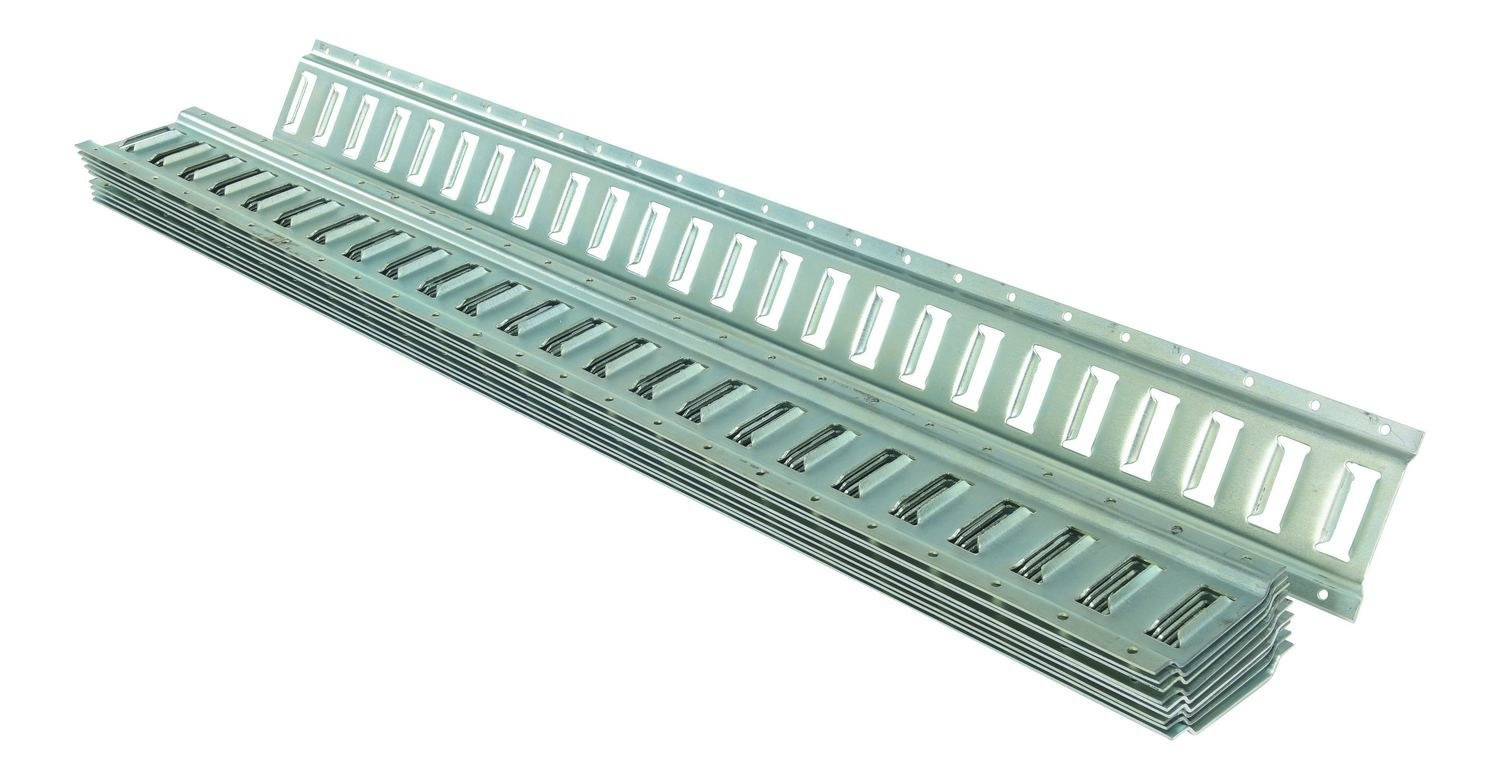

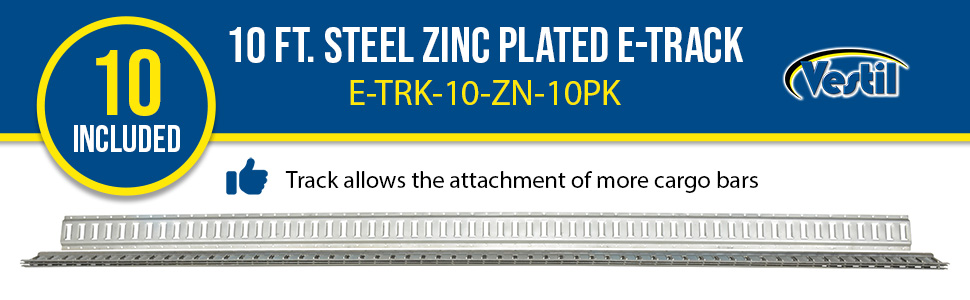

E-TRACK-10PK - Warranty PDF Steel section of E-Track for trailers - 10 Pack 10' Long 208

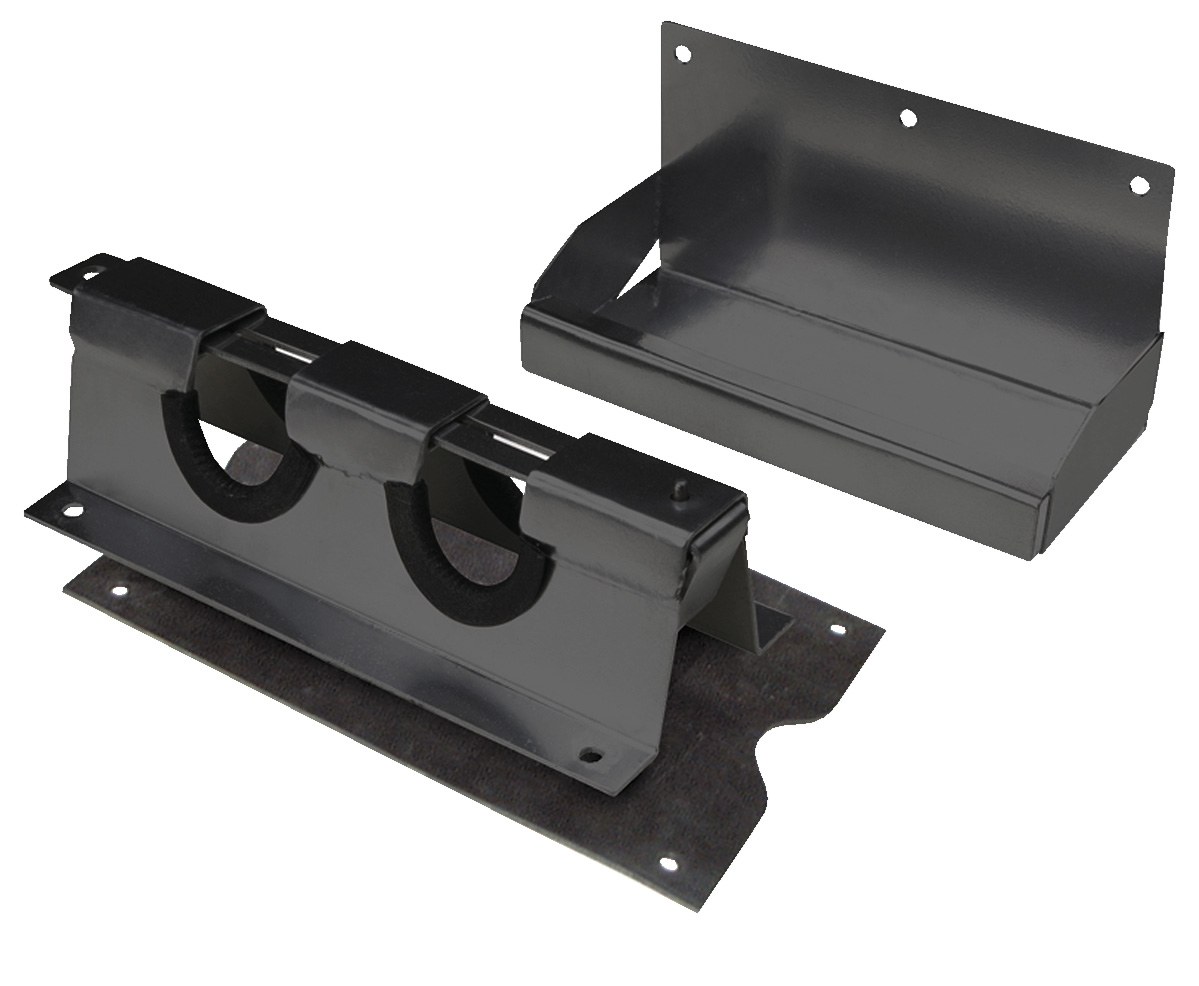

CB-HLDR icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Cargo Bar Holder -- 7

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Model PDFs Description Wt.
(lbs)
CB-HLDR icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Cargo Bar Holder 7
