Manual Drum Deheaders
SERIES: DD

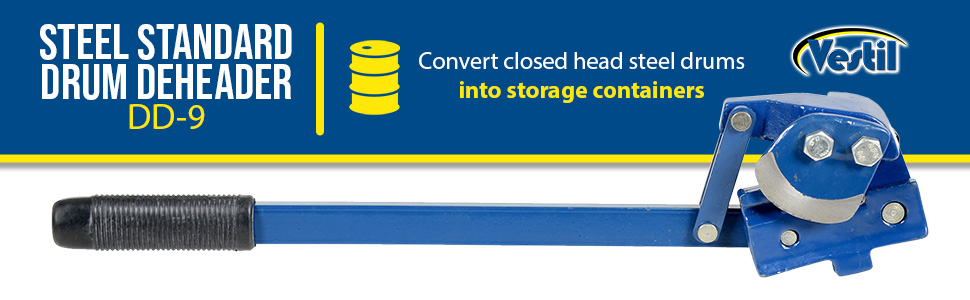

Convert your closed head steel drums into storage containers with our Drum Deheaders.

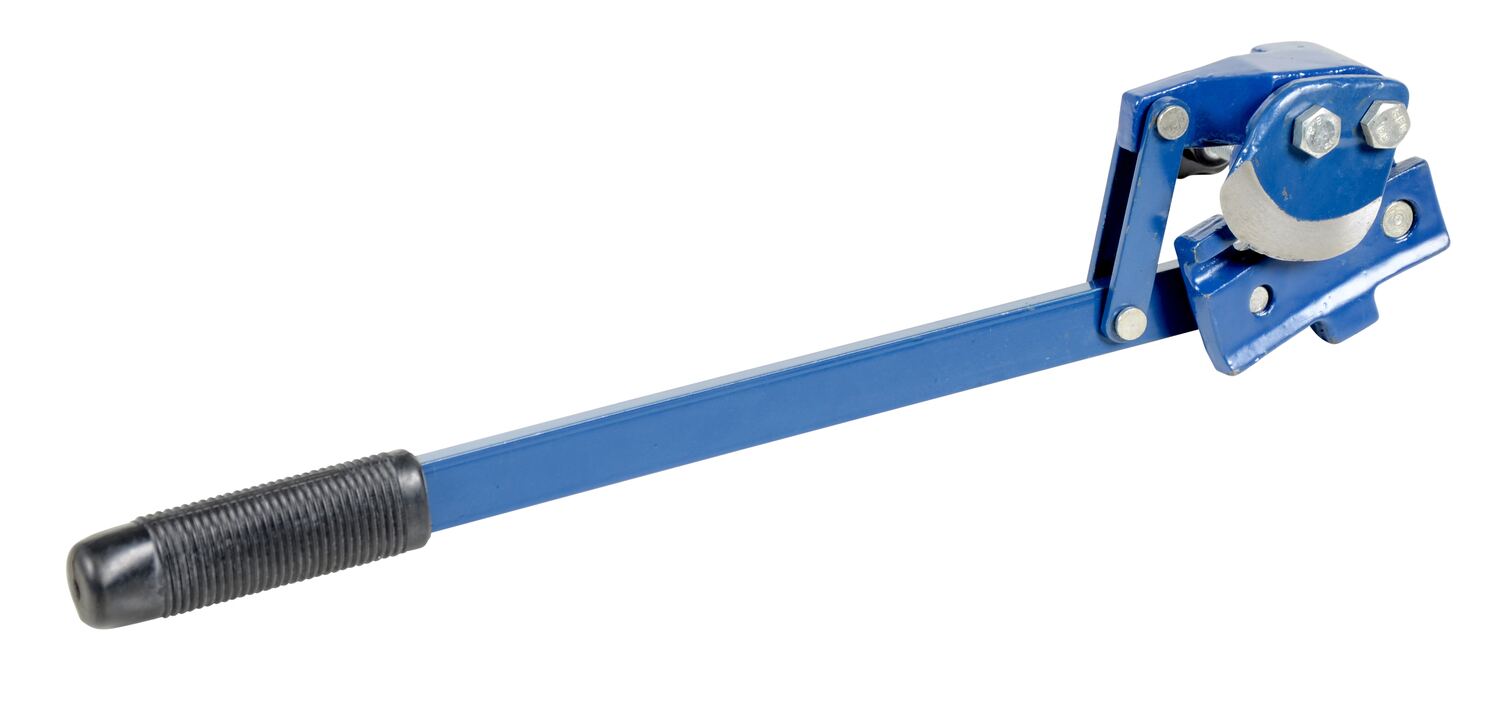

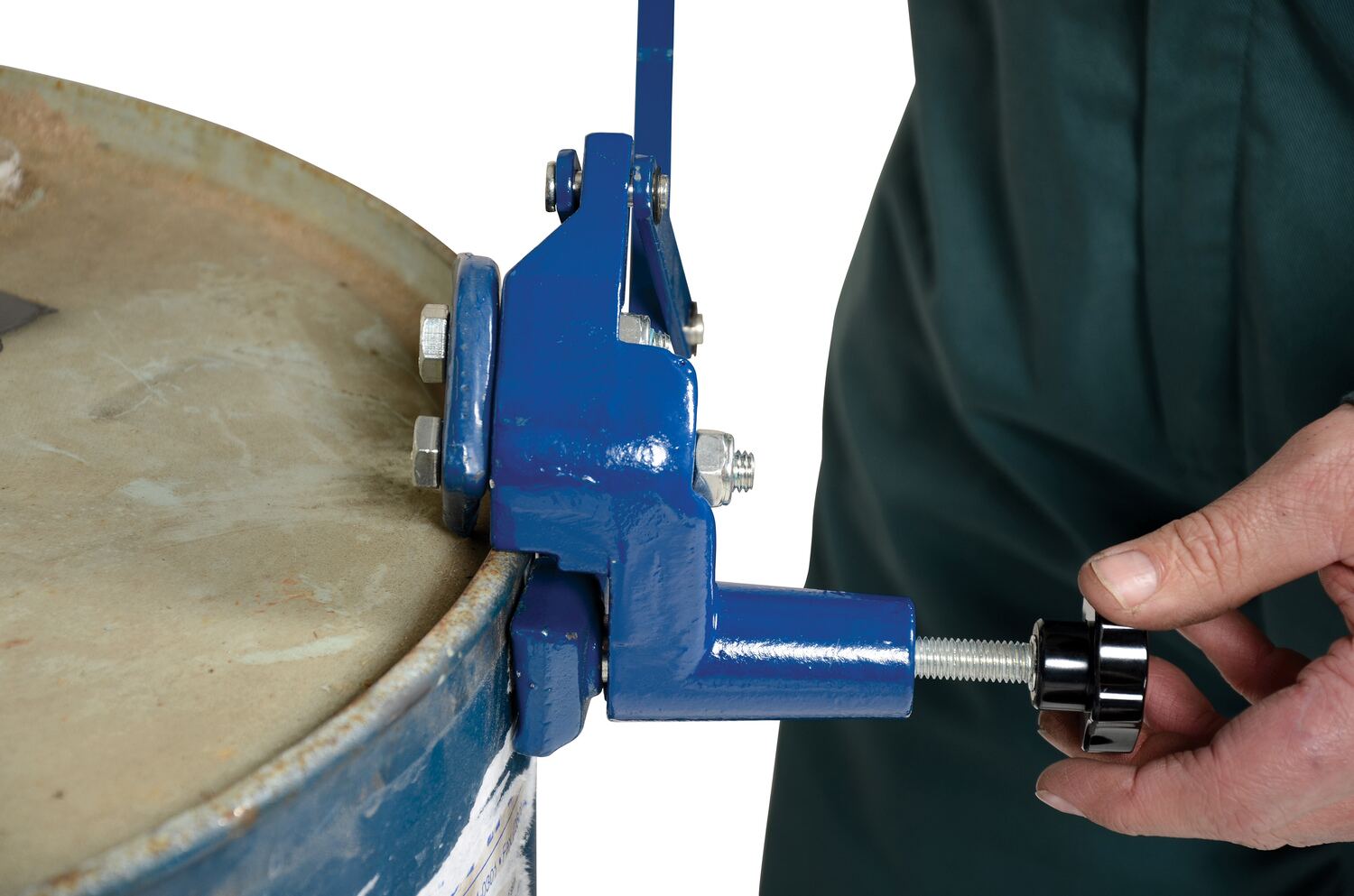

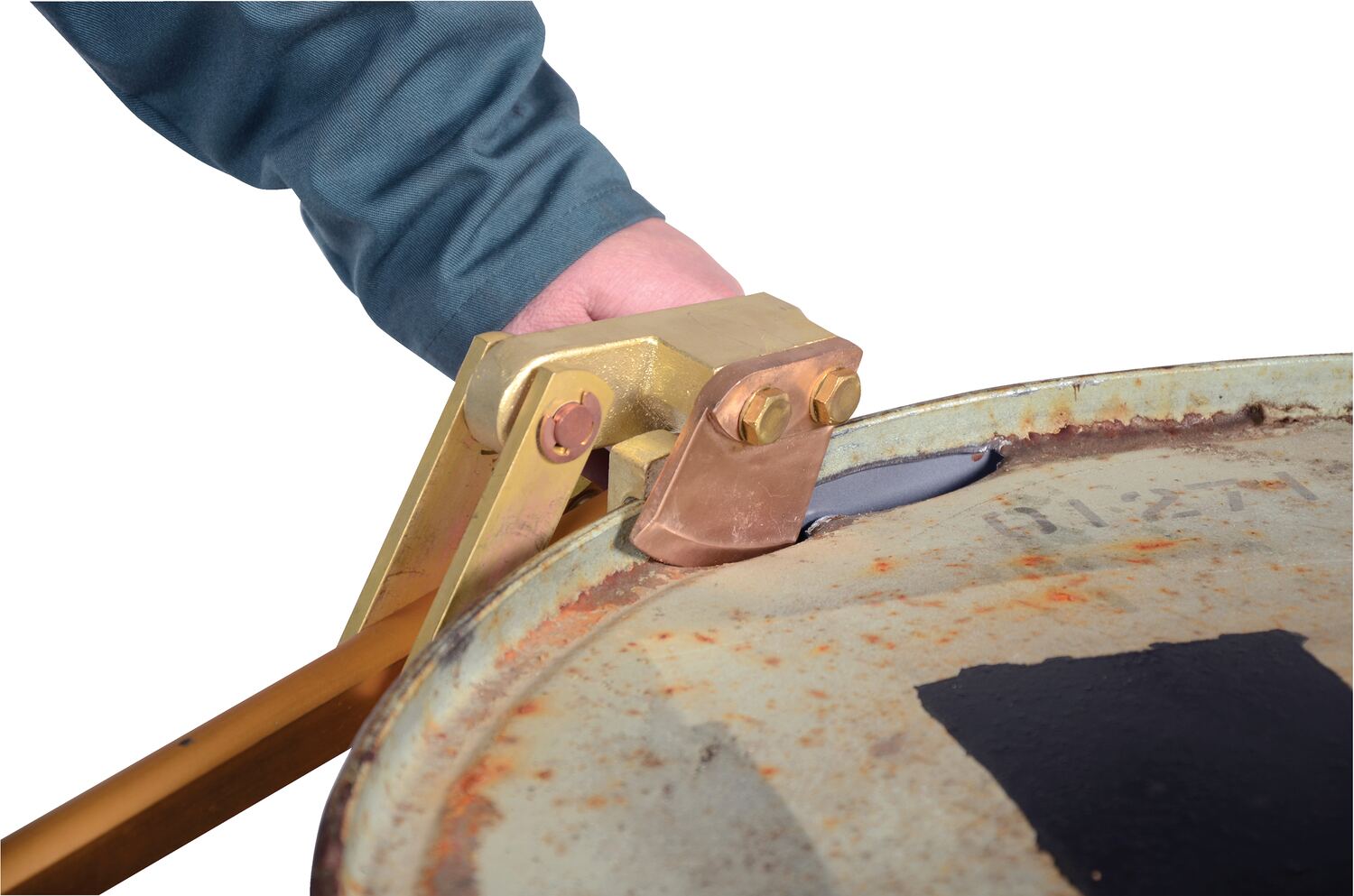

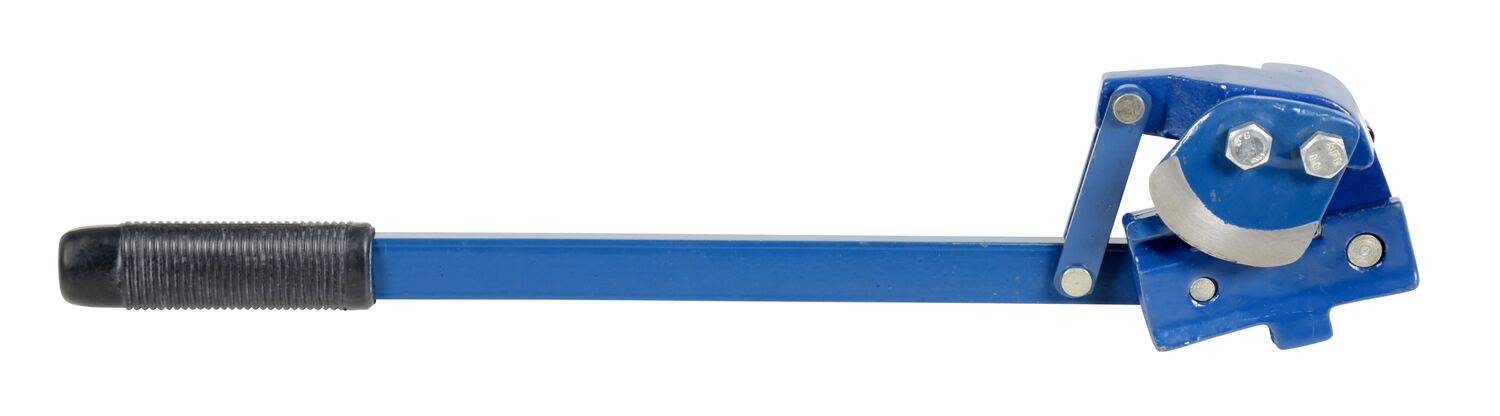

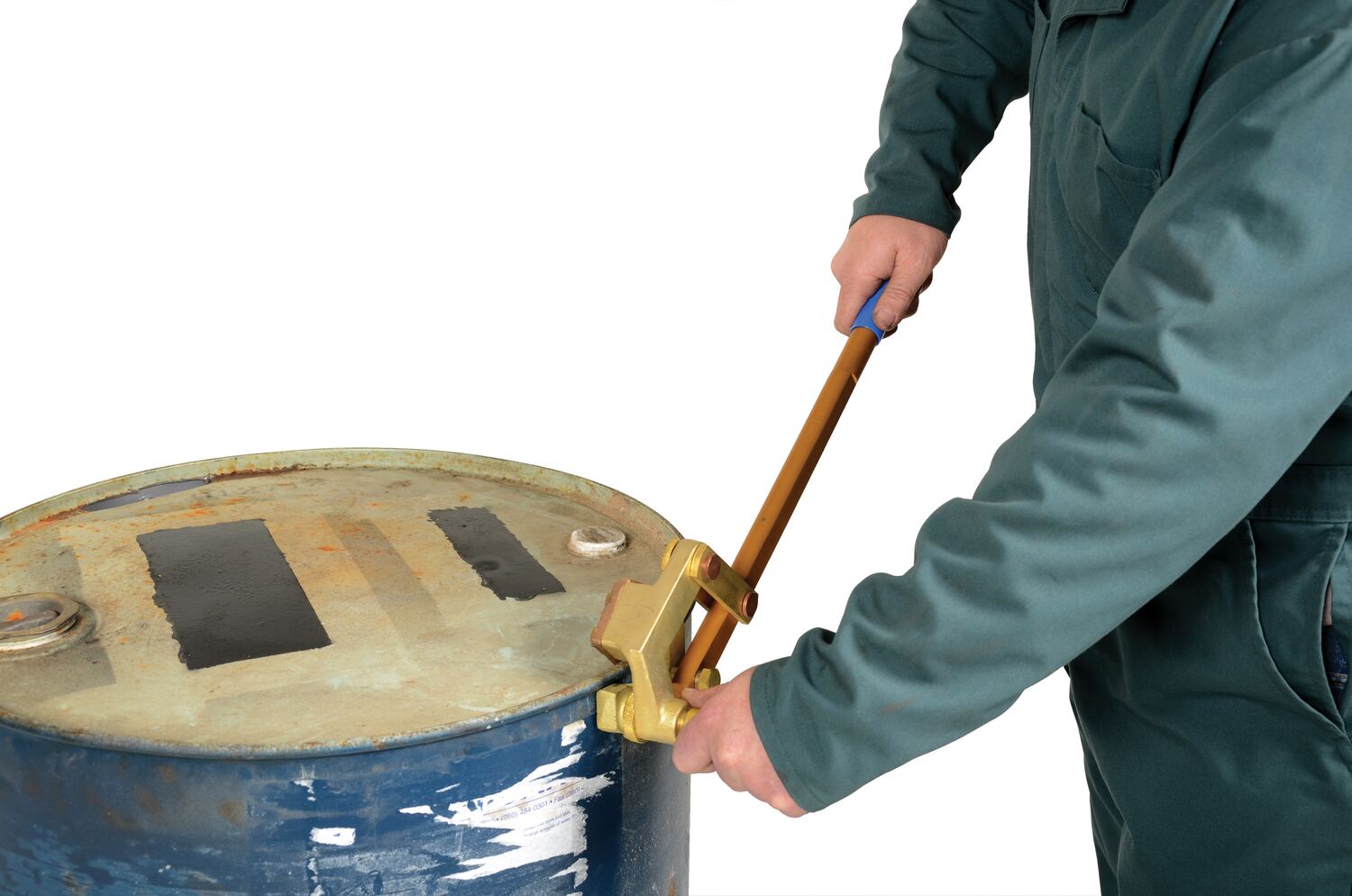

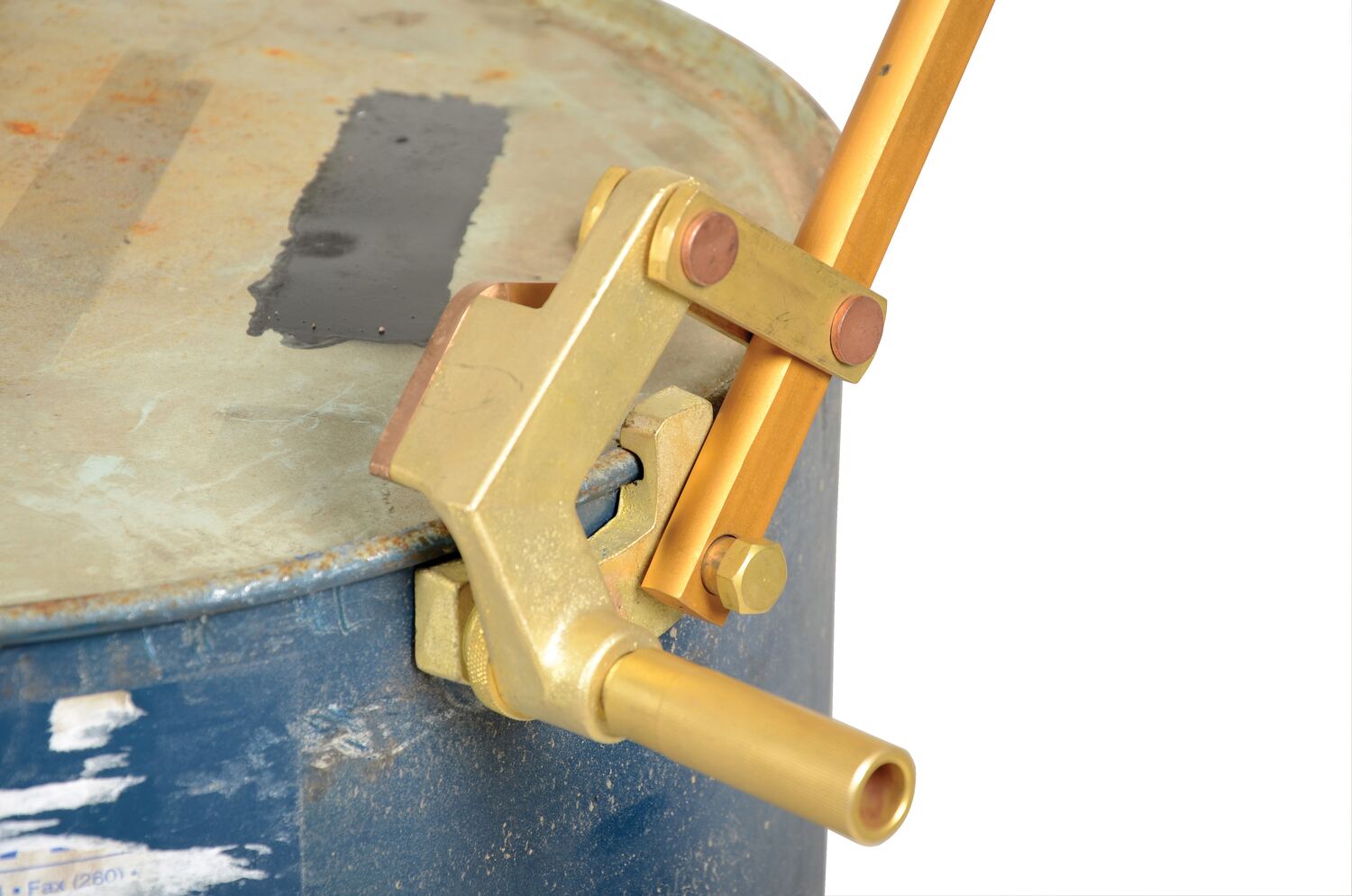

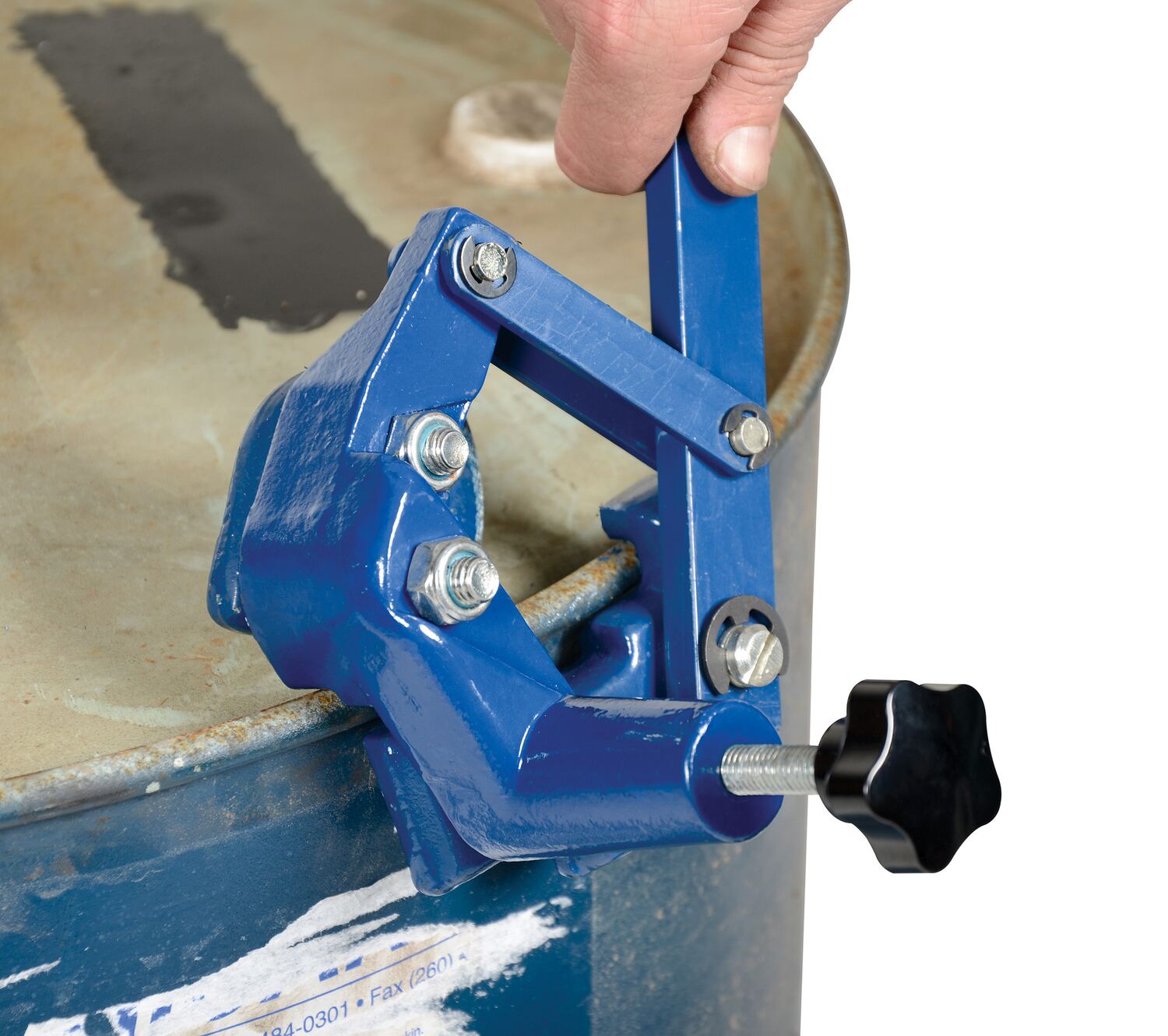

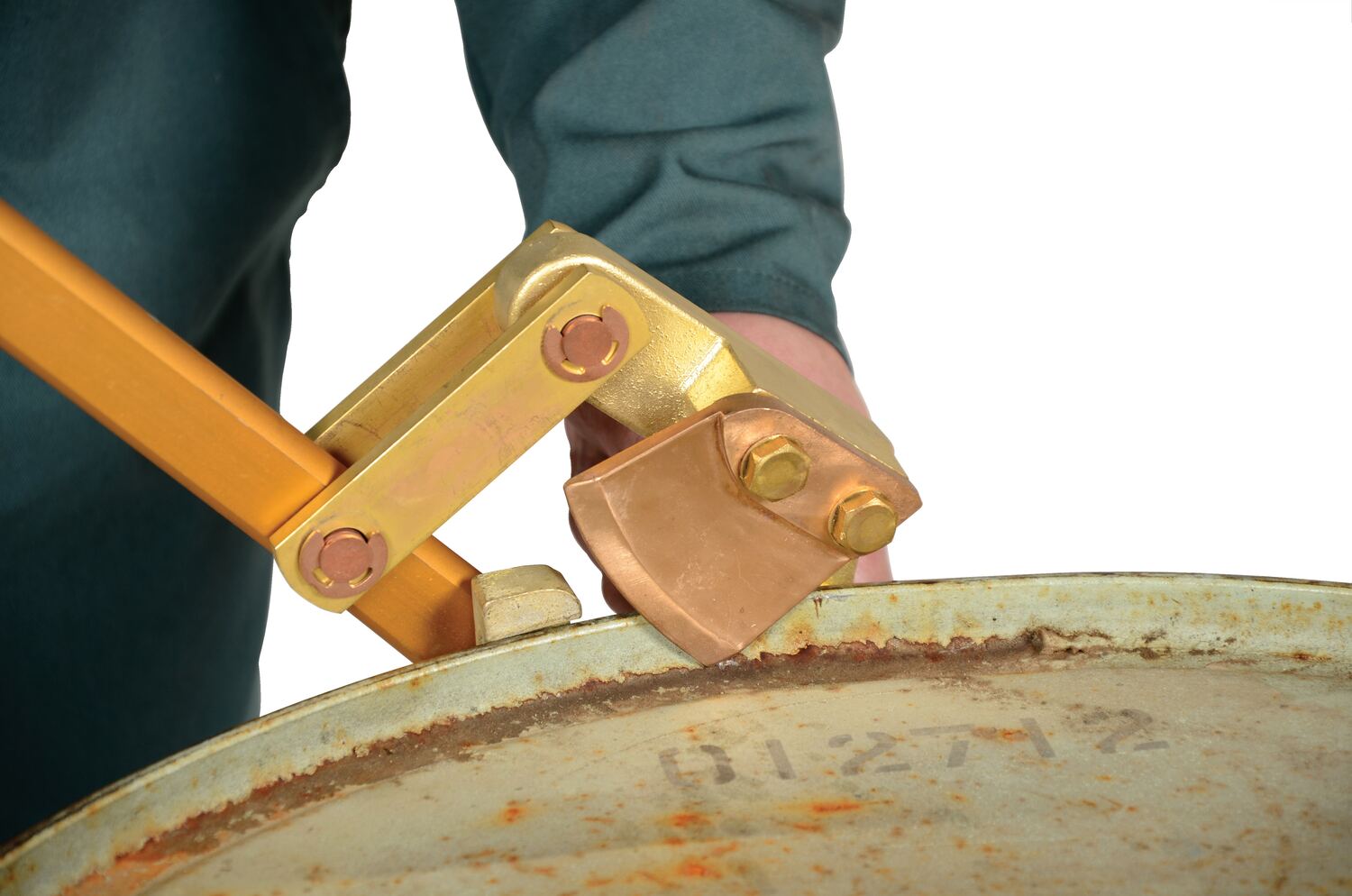

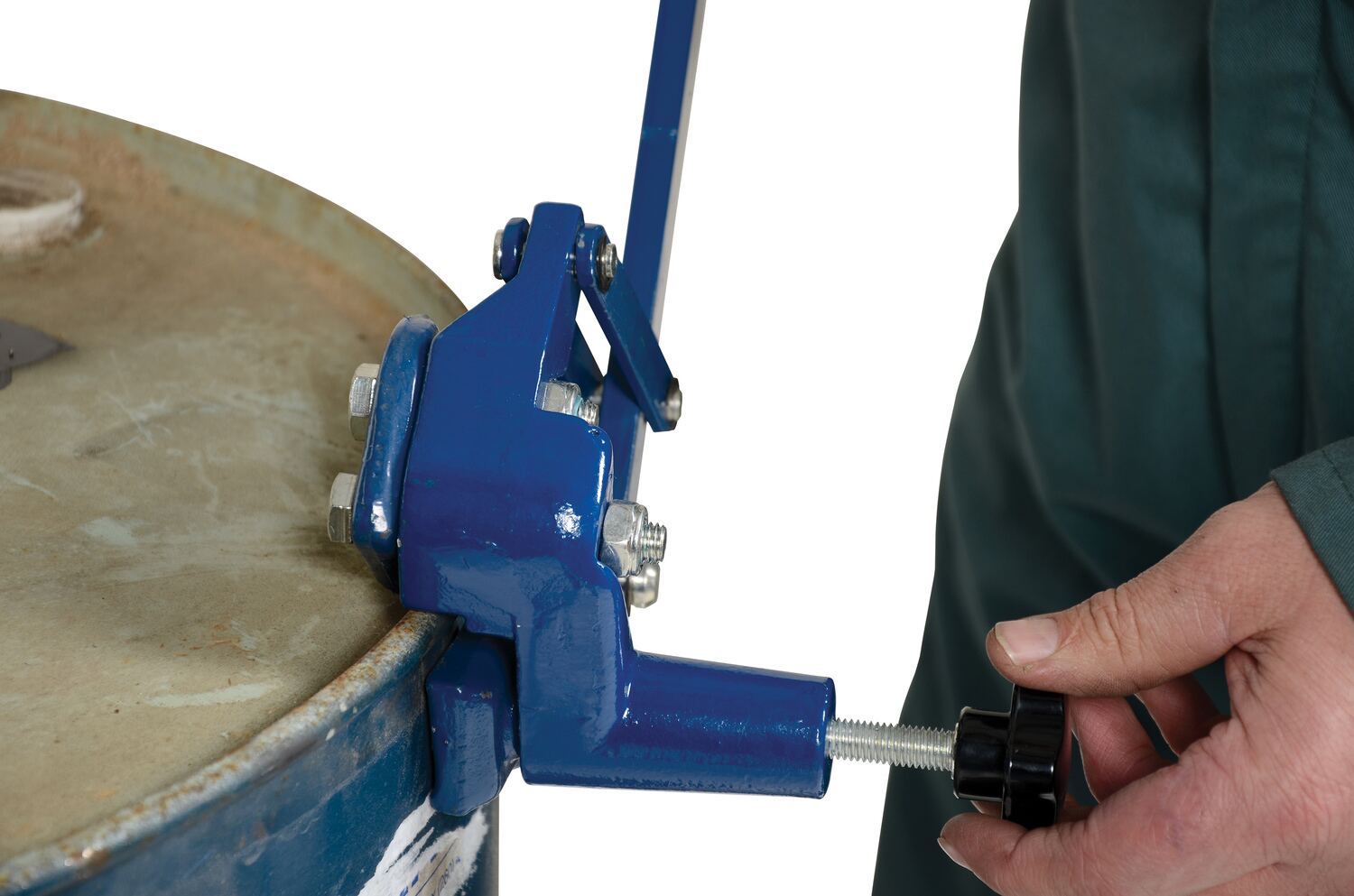

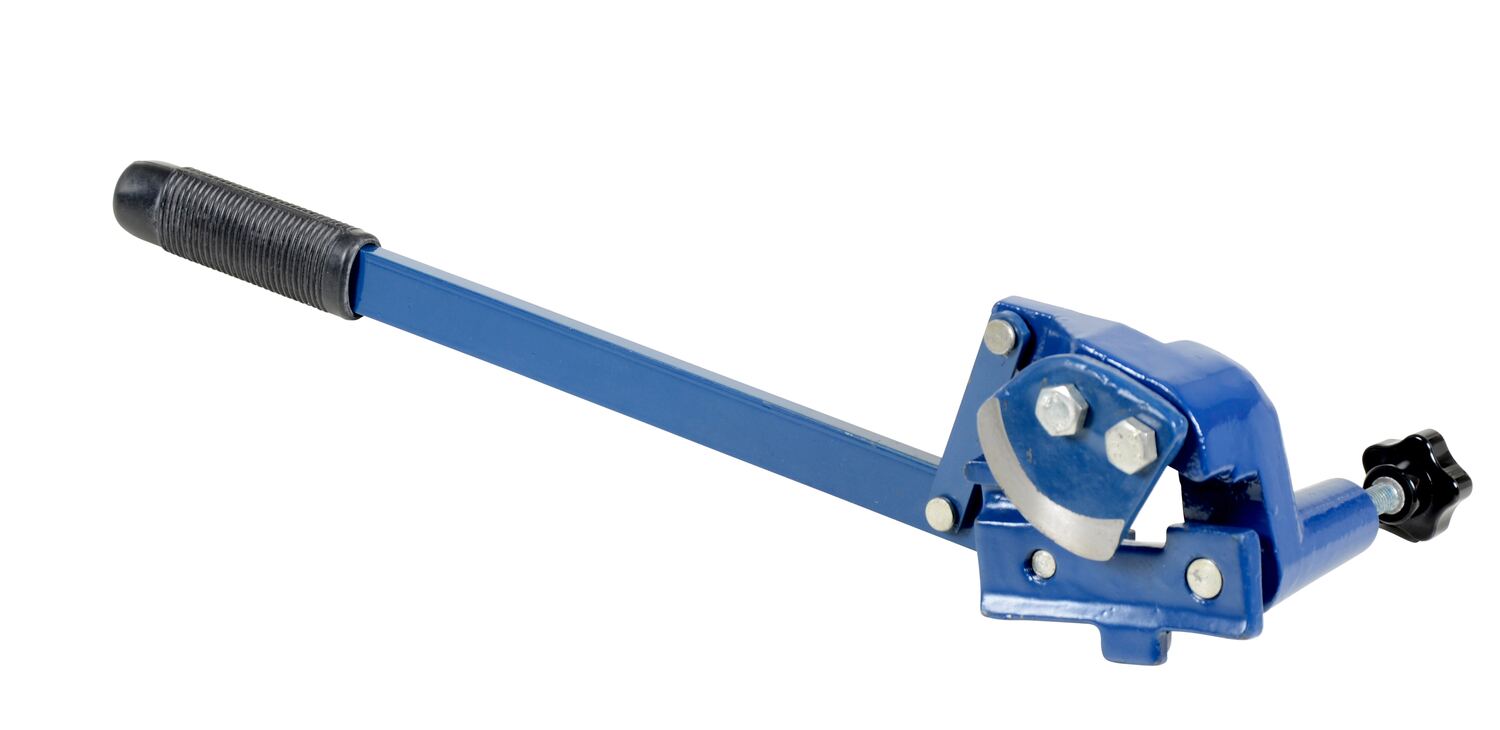

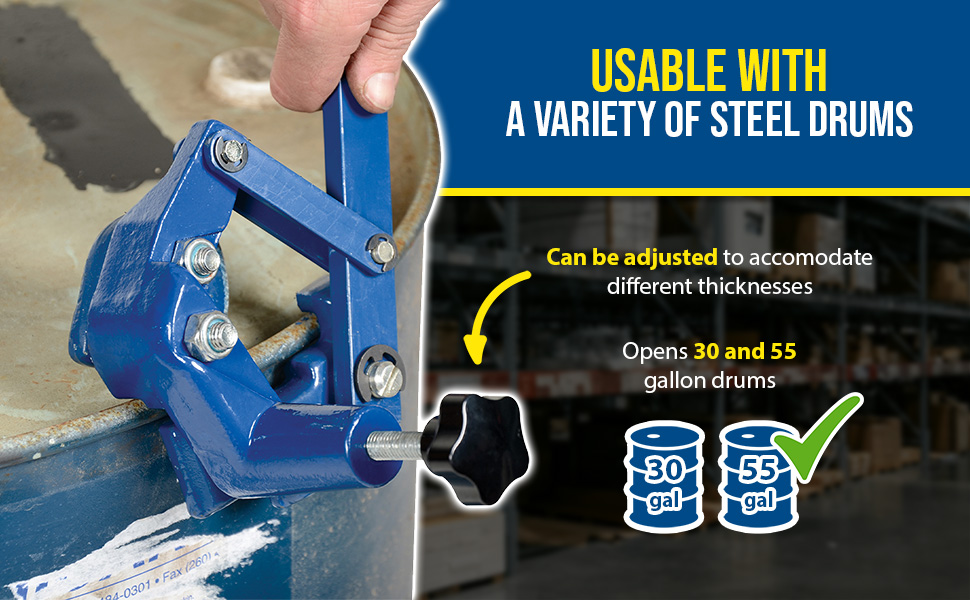

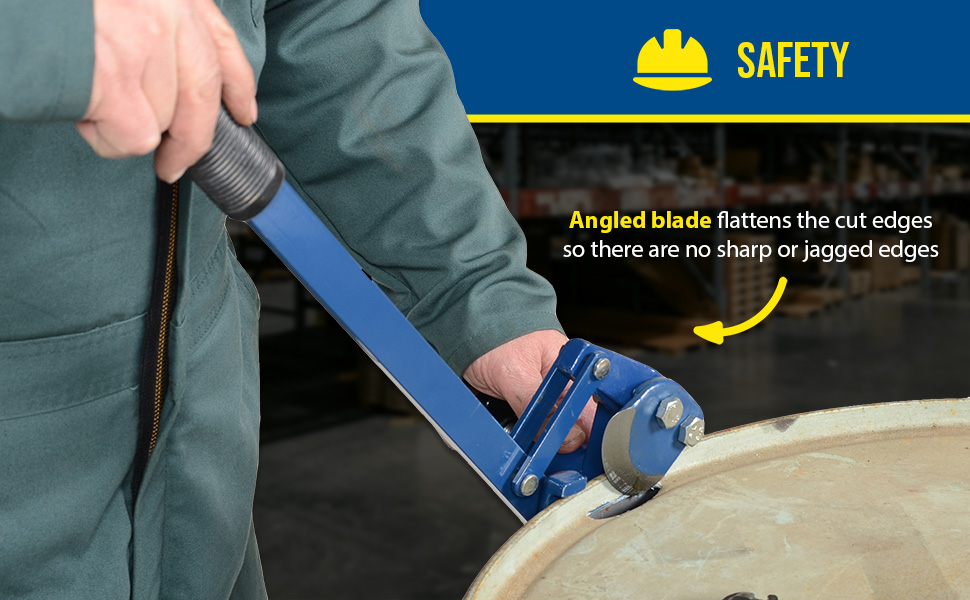

The DD-9 and DD-9-NS can be adjusted to open steel drums with different thicknesses. The blade is angled for maximum penetration and flattens the cut edge so there are no sharp or jagged edges. Replacement blades available. Model DD-9-NS features a bronze, spark resistant alloy.

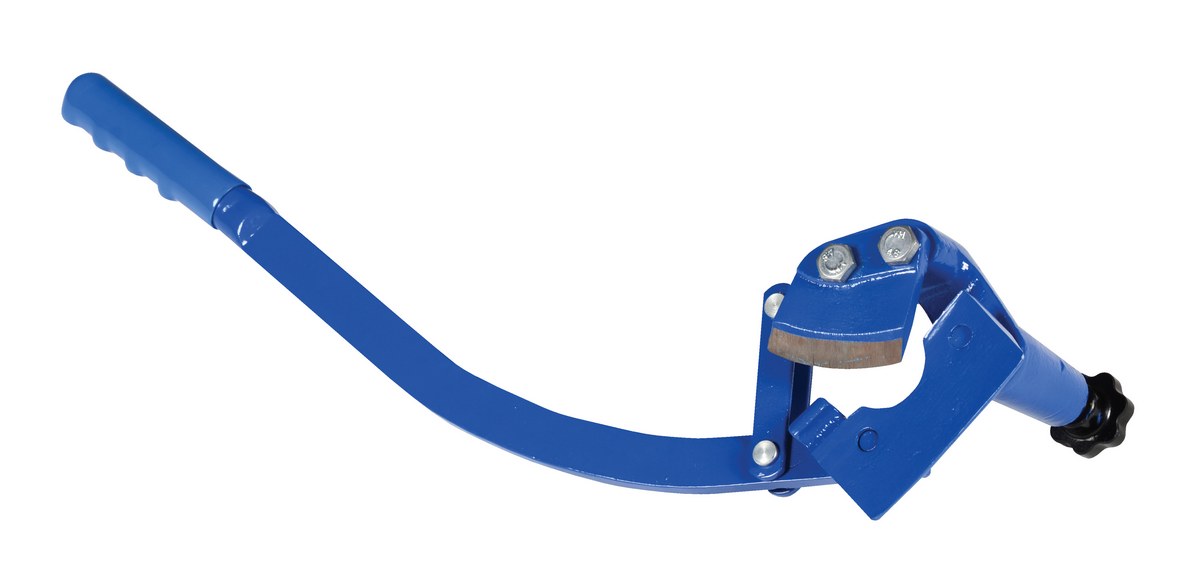

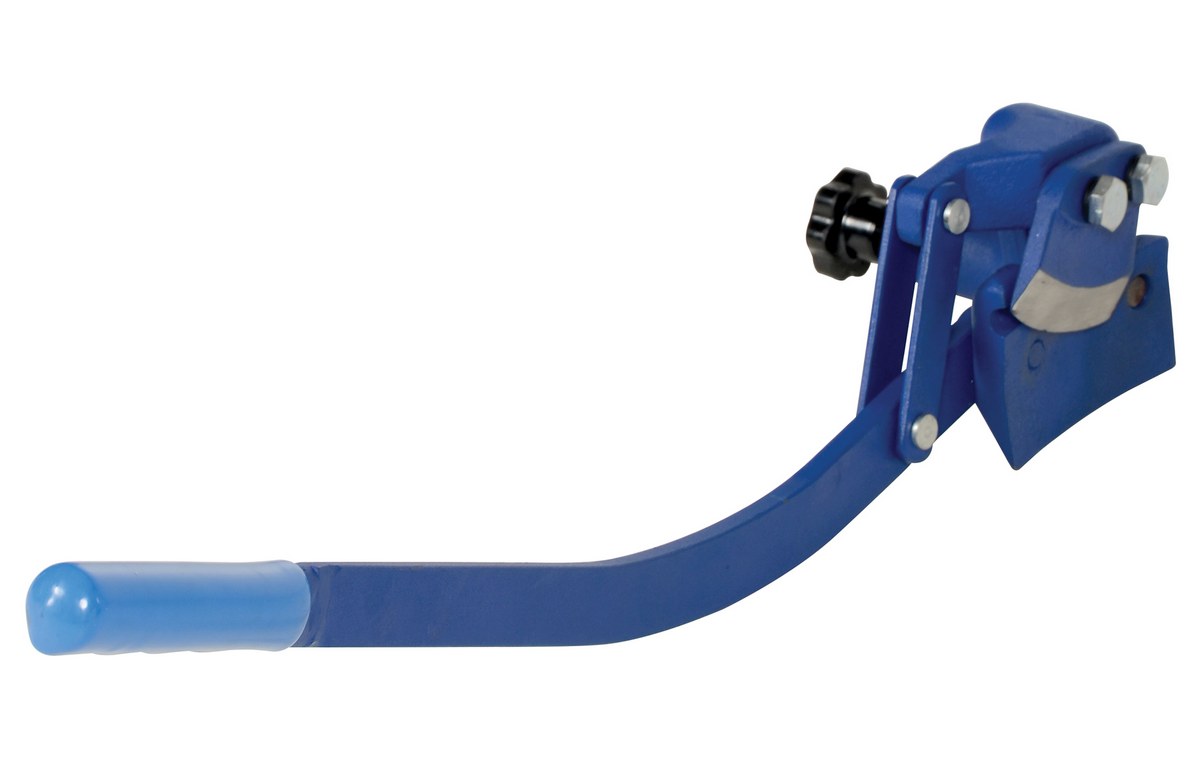

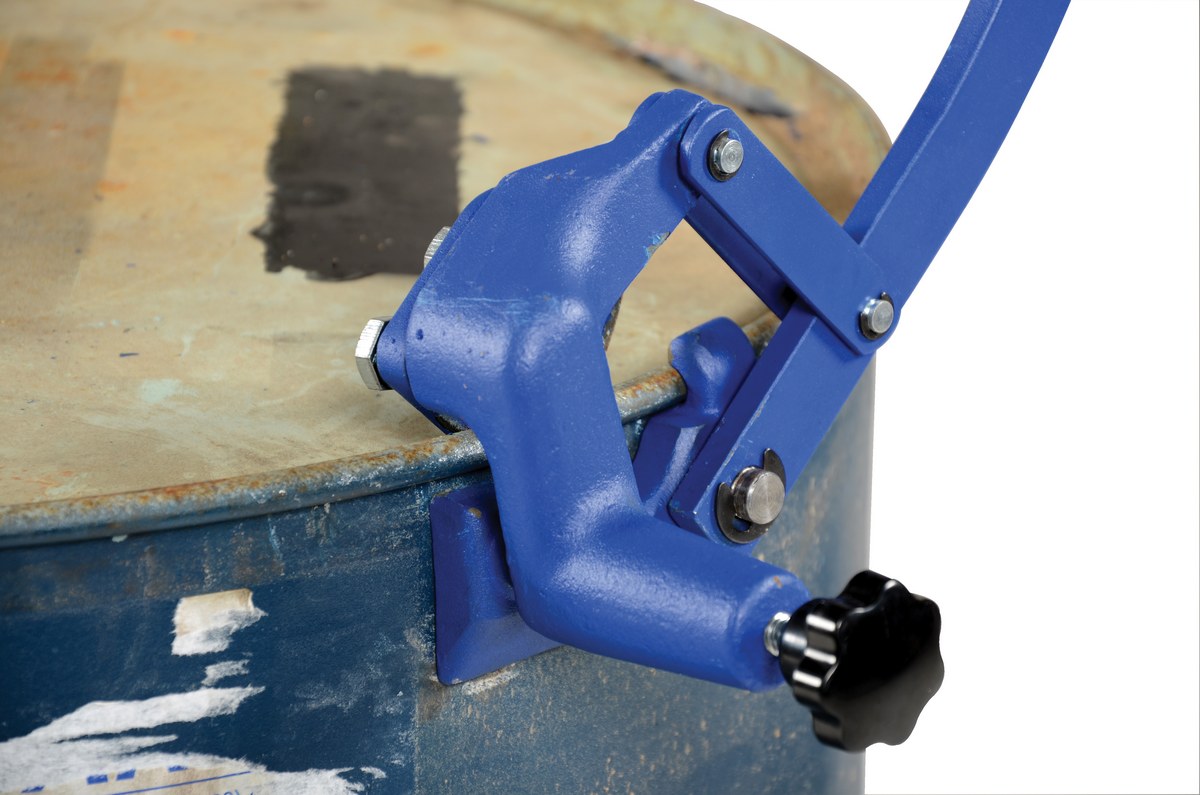

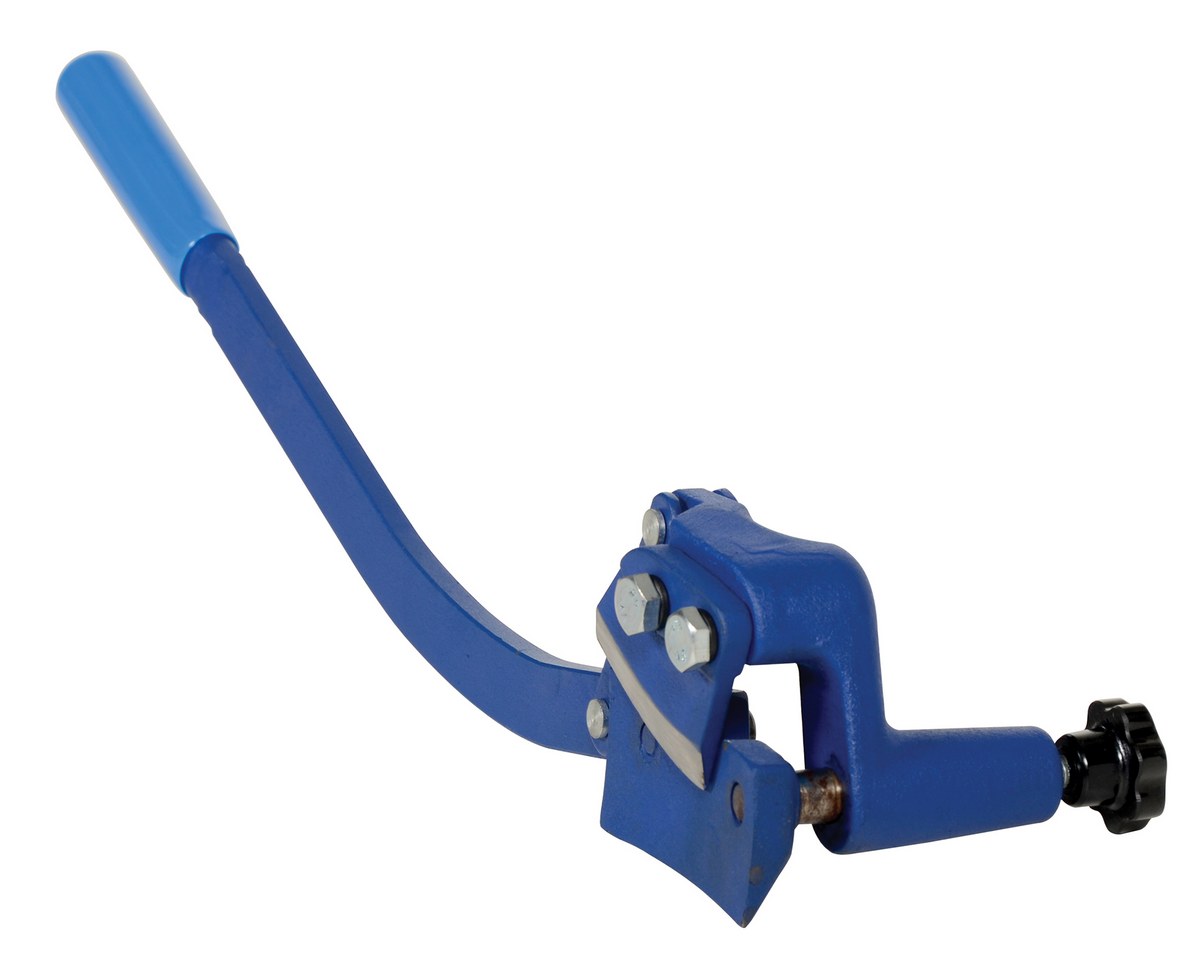

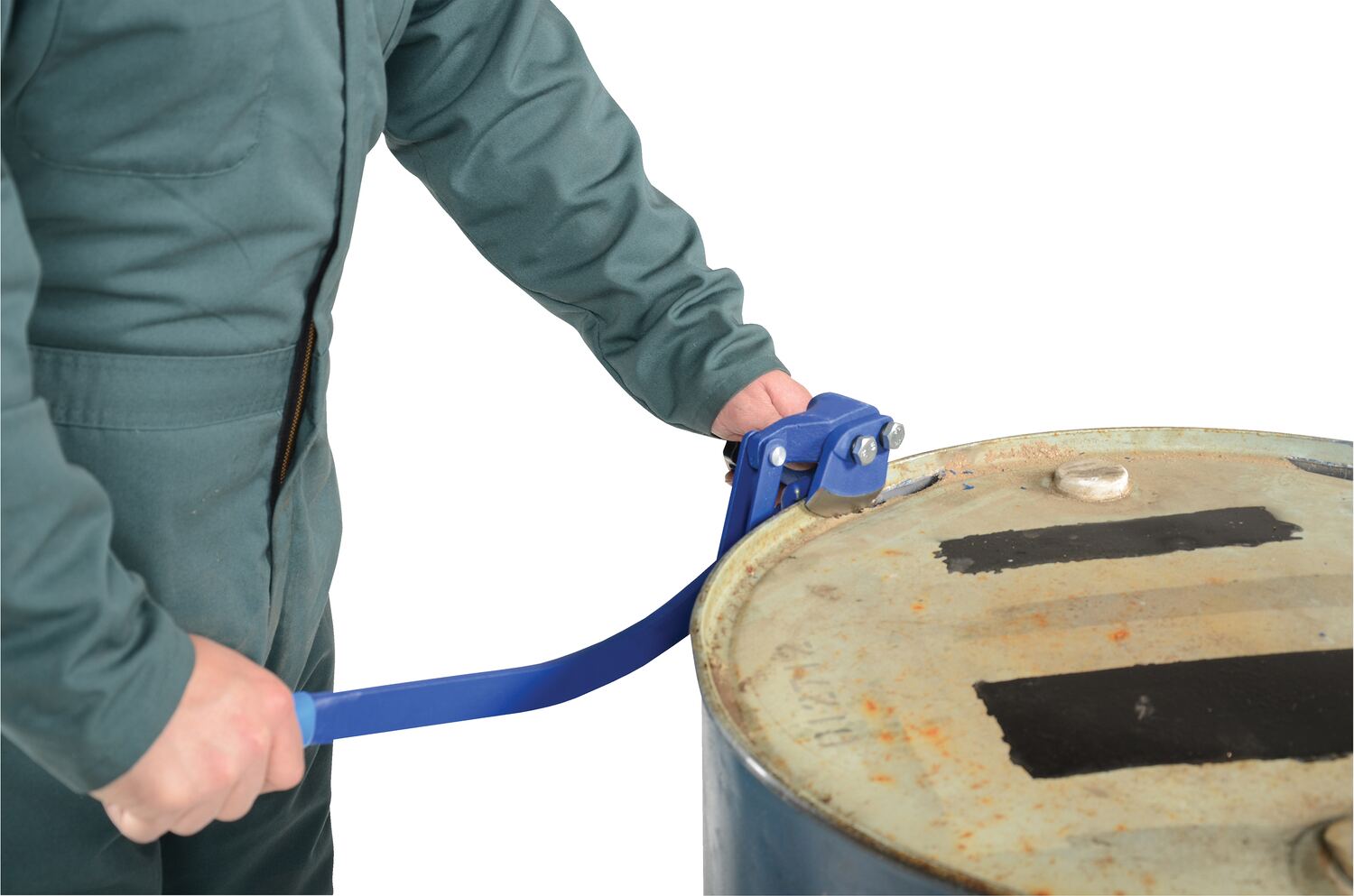

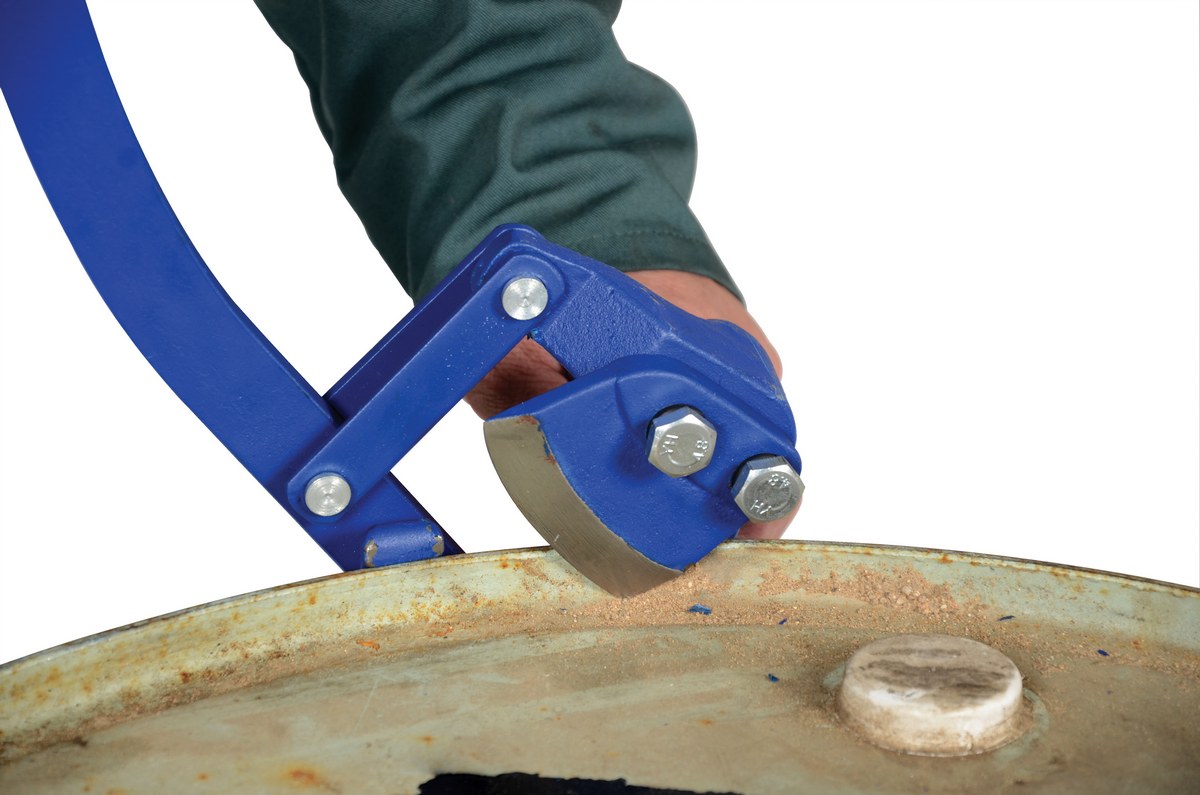

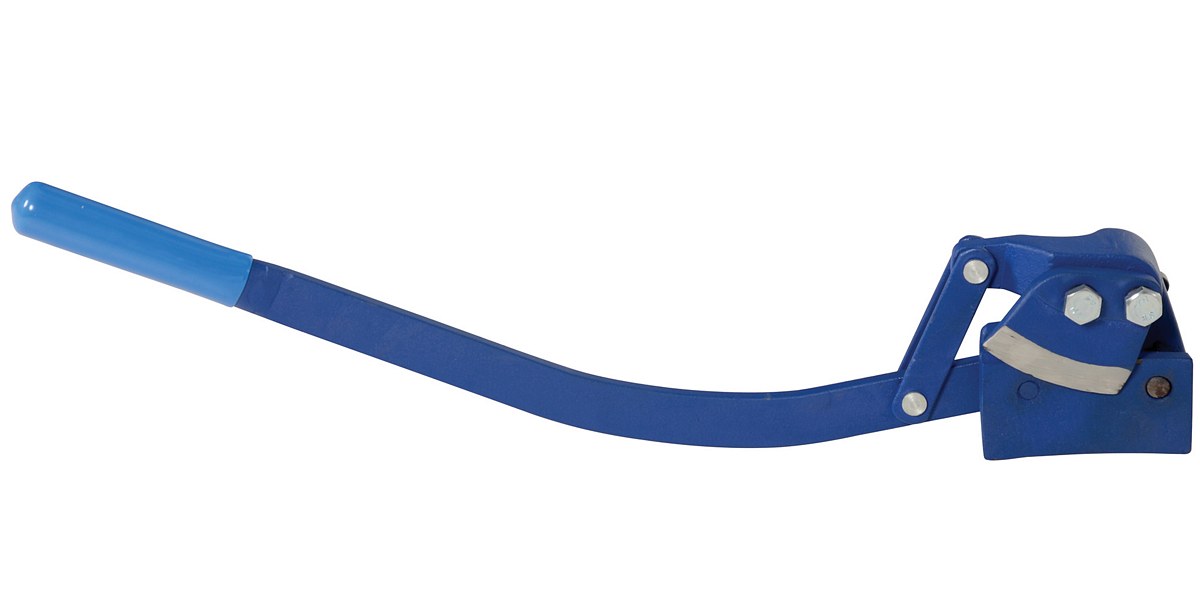

Model DD-10 features an ergonomic handle allowing smoother operation to cut drum.

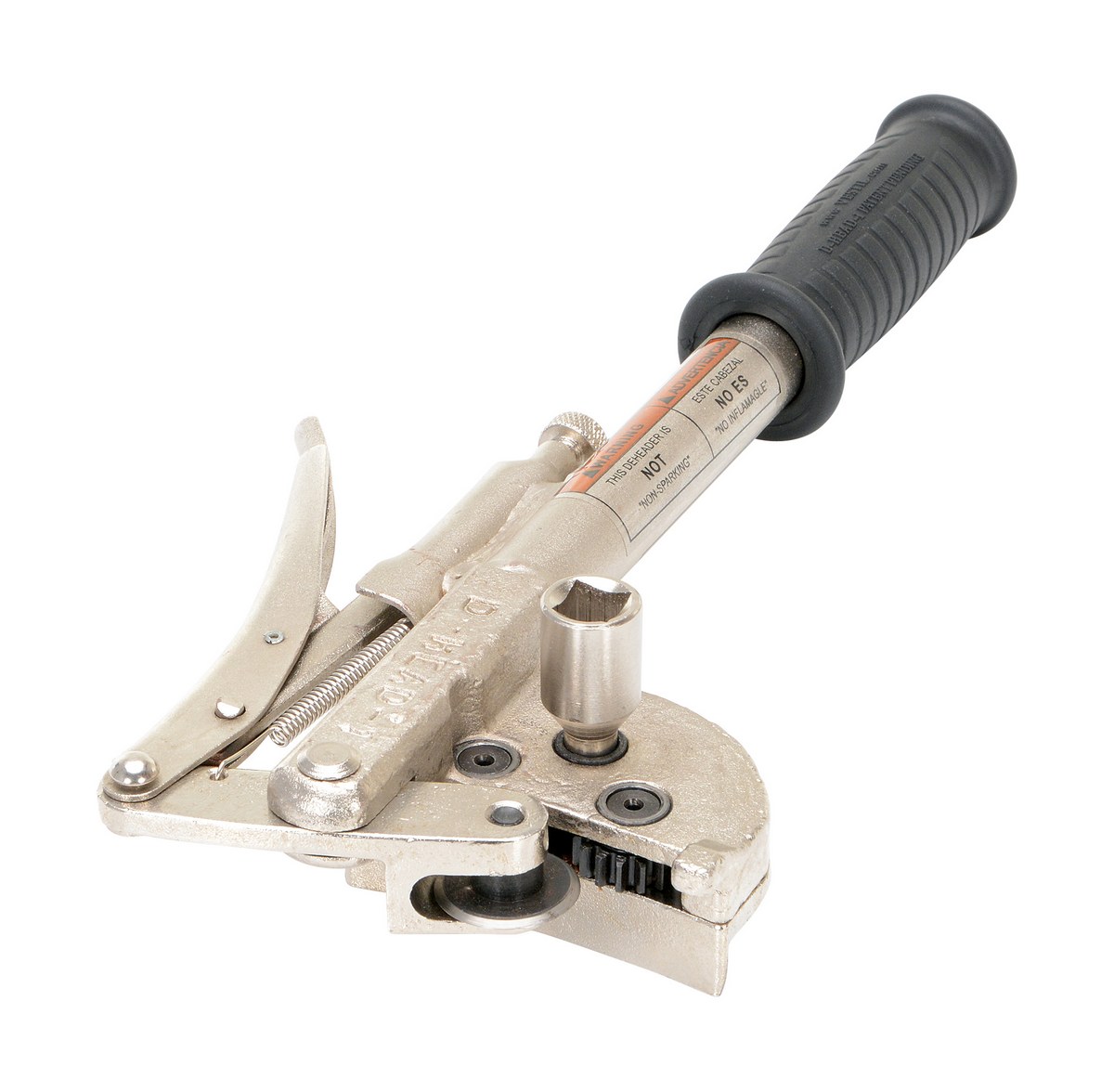

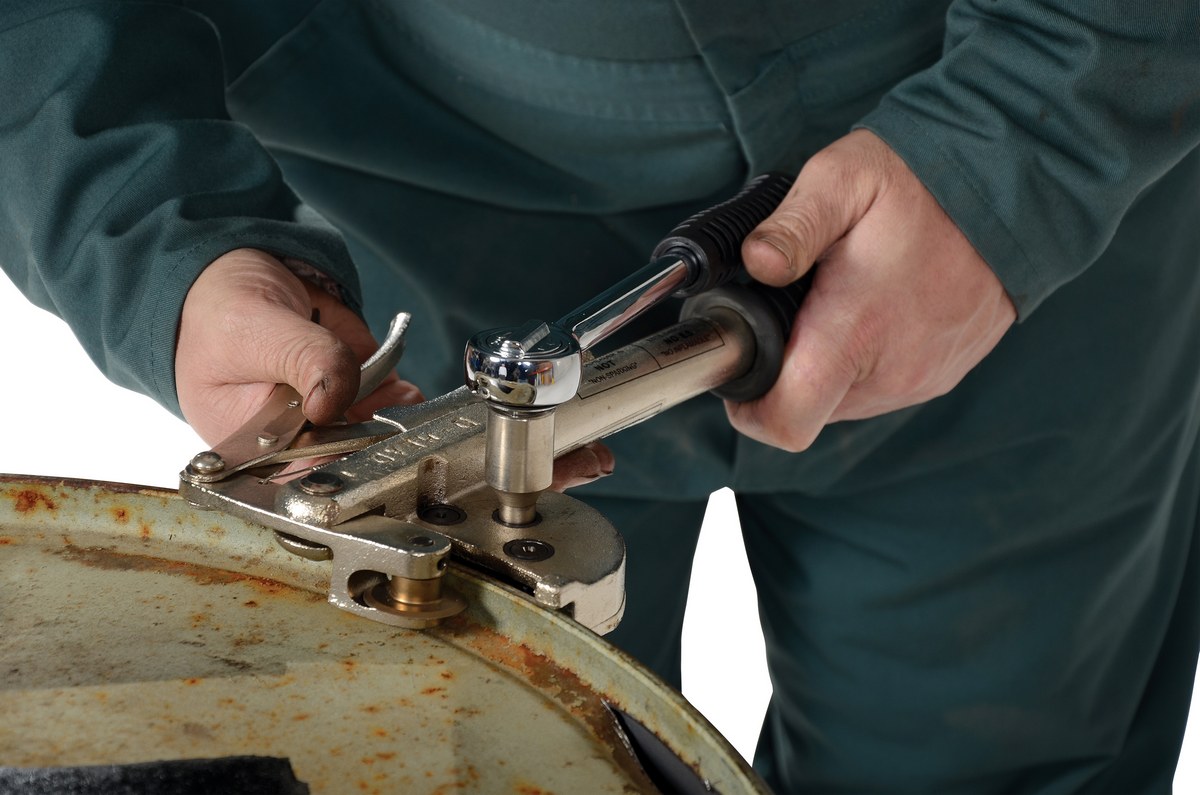

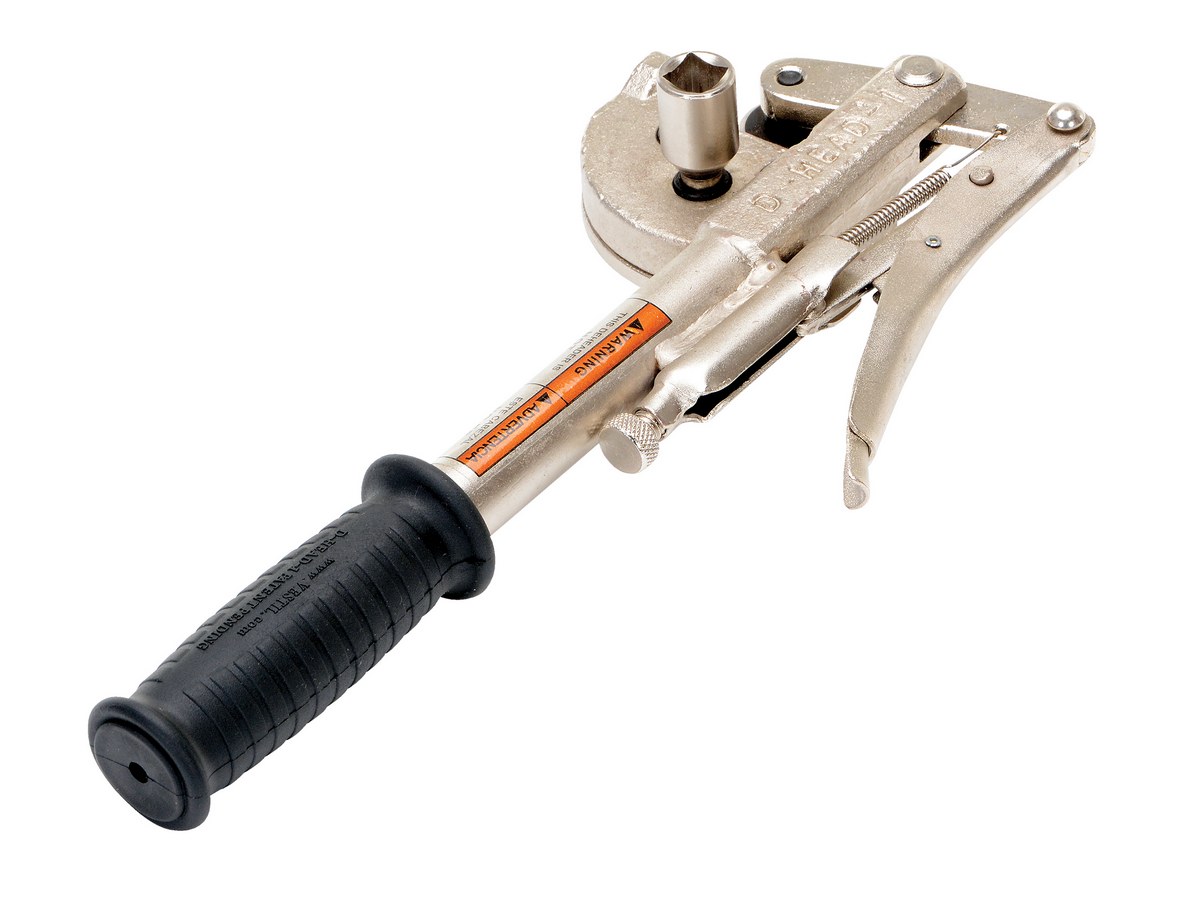

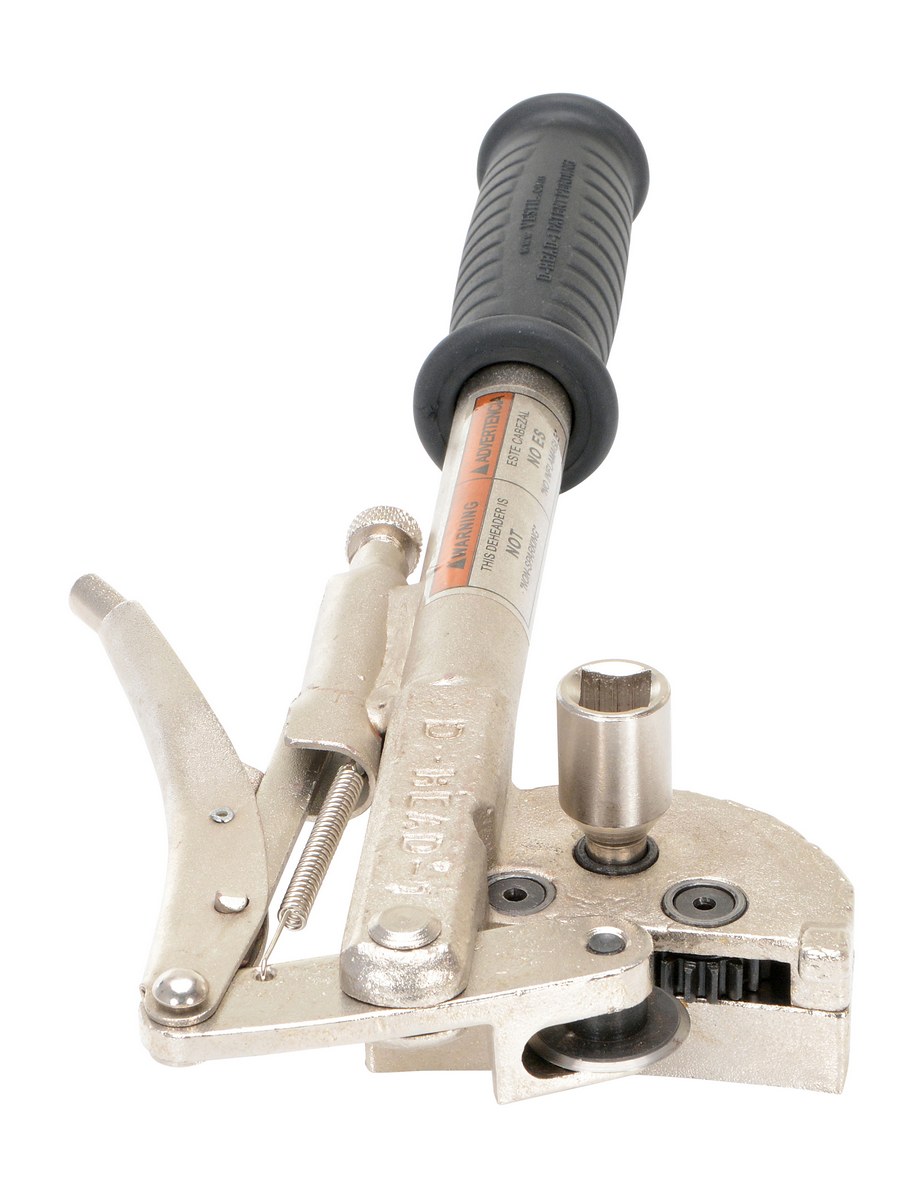

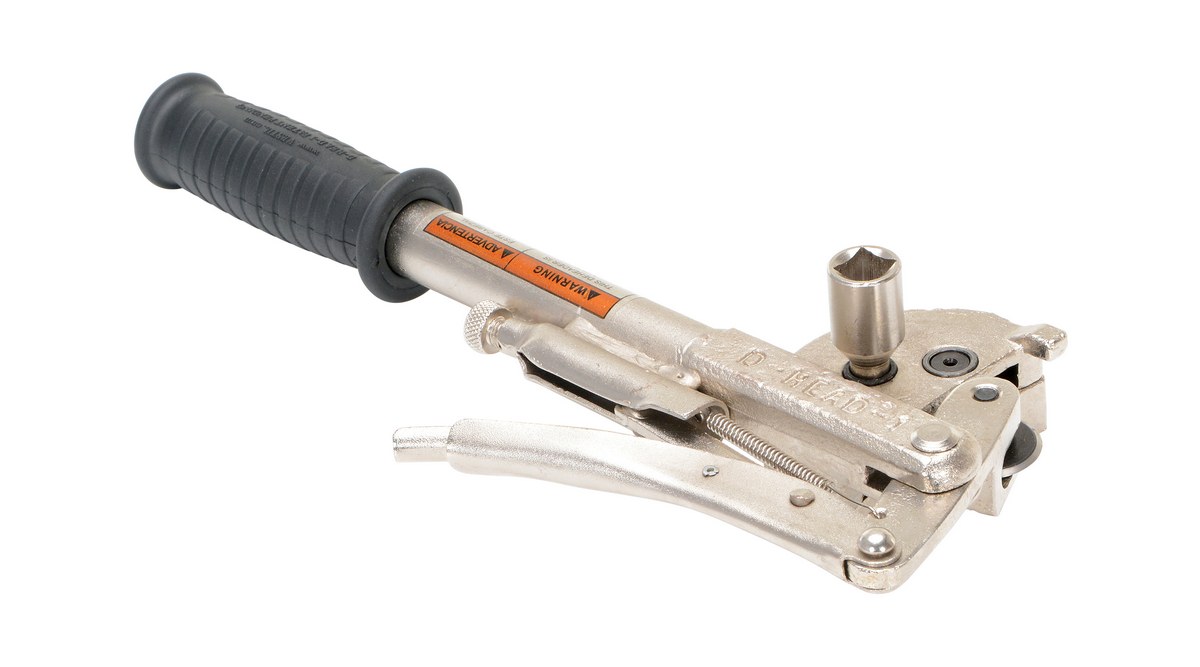

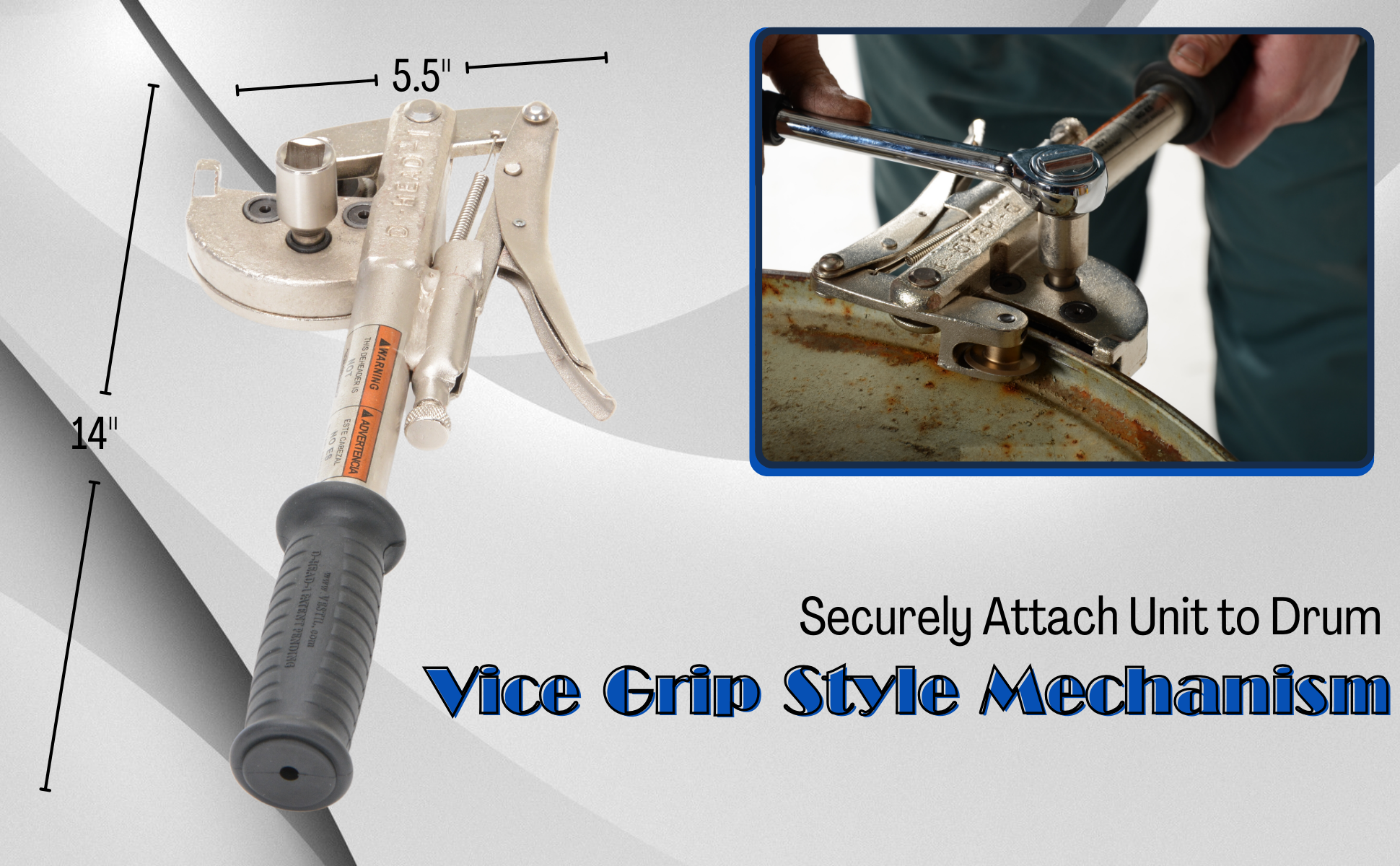

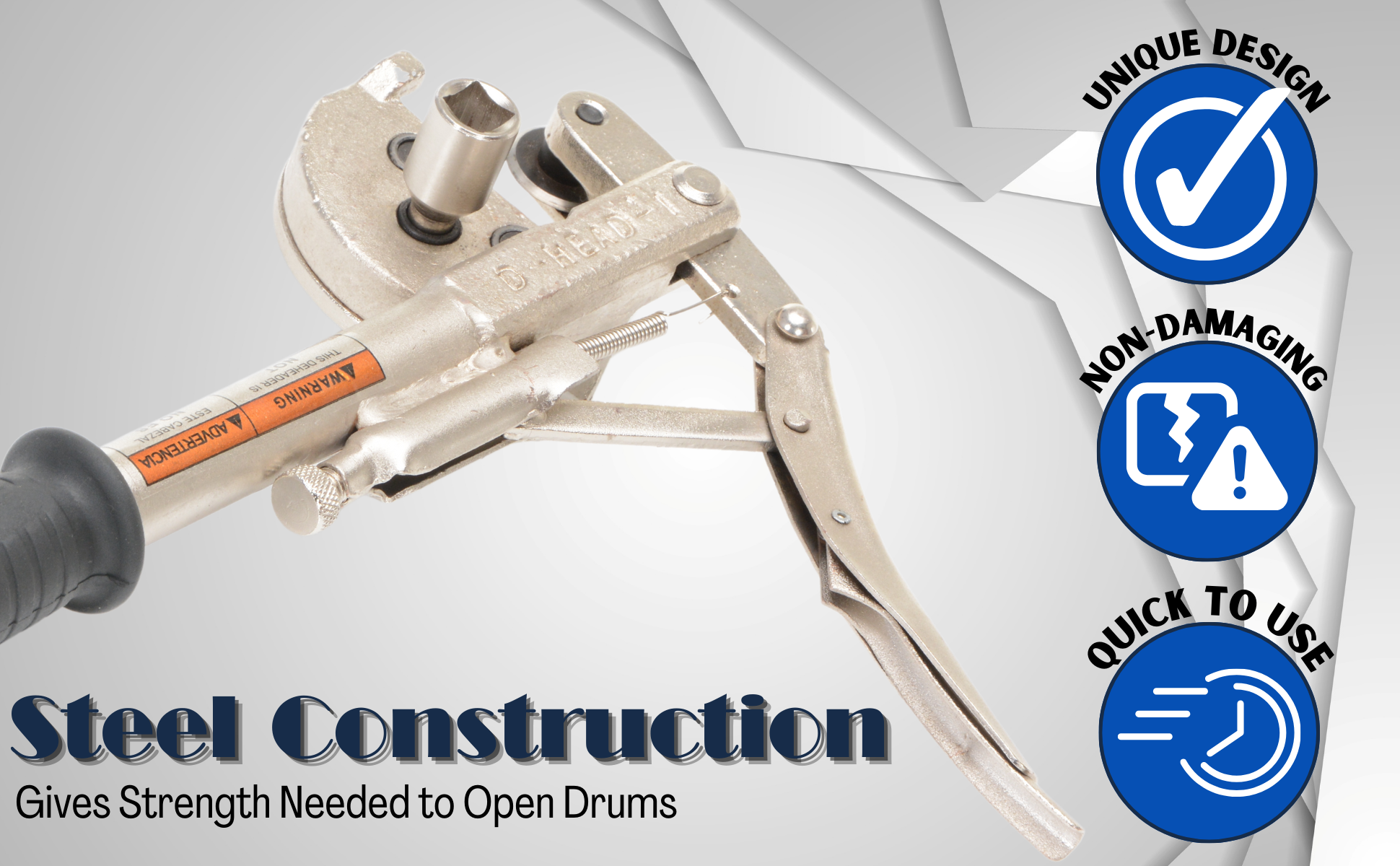

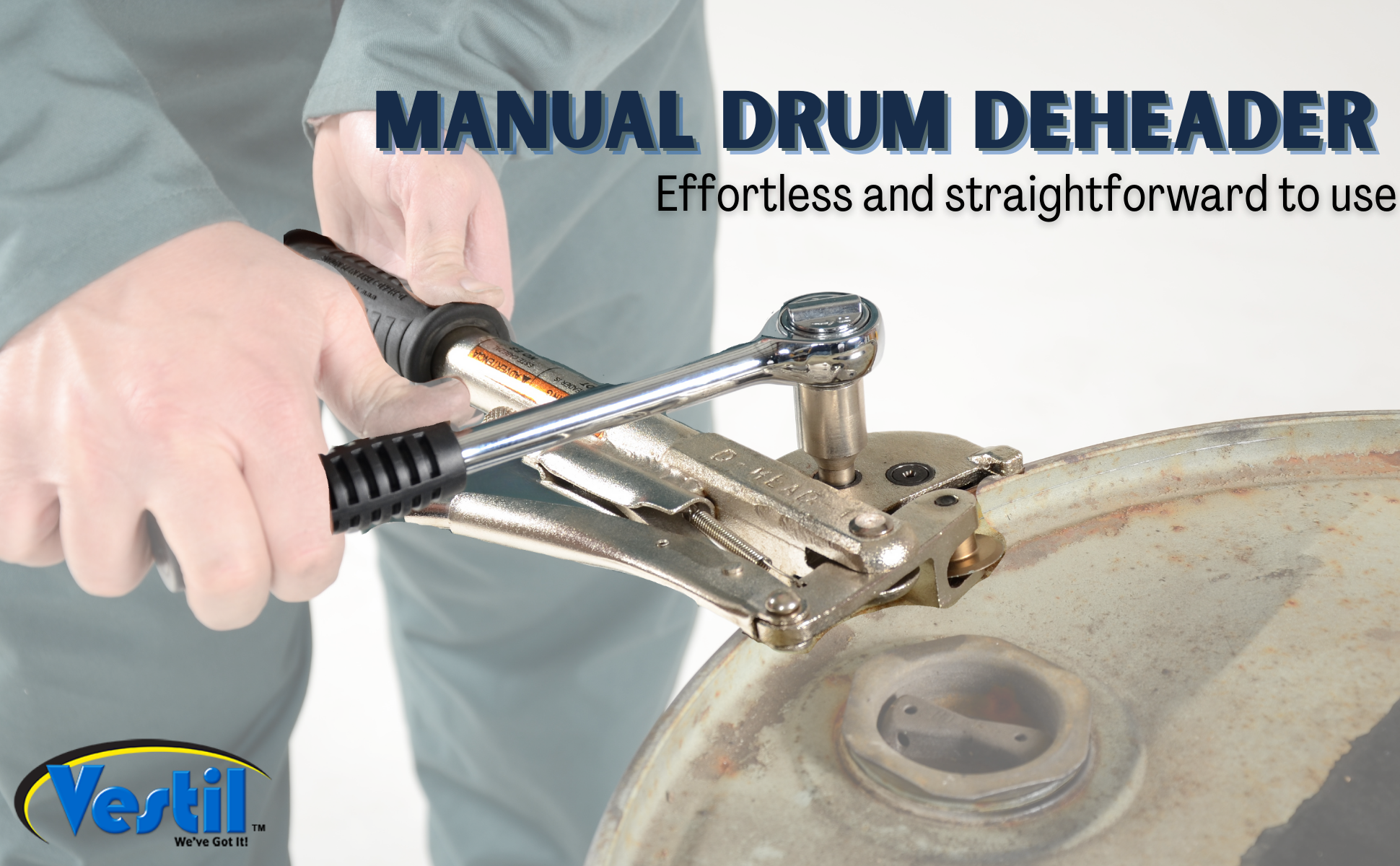

Quickly remove the head of a steel drum with our Express-Open Drum Deheader. Unique design, model D-HEAD-1, is similar to a household can-opener and is very easy to use. Includes vice-grip style mechanism for securely attaching unit to drum. Inside cutting blade does not leave a sharp edge on the drum. ONLY use either a 1/2" manual ratchet wrench or electric drill to operate the deheader ratchet (ratchet drive not included).

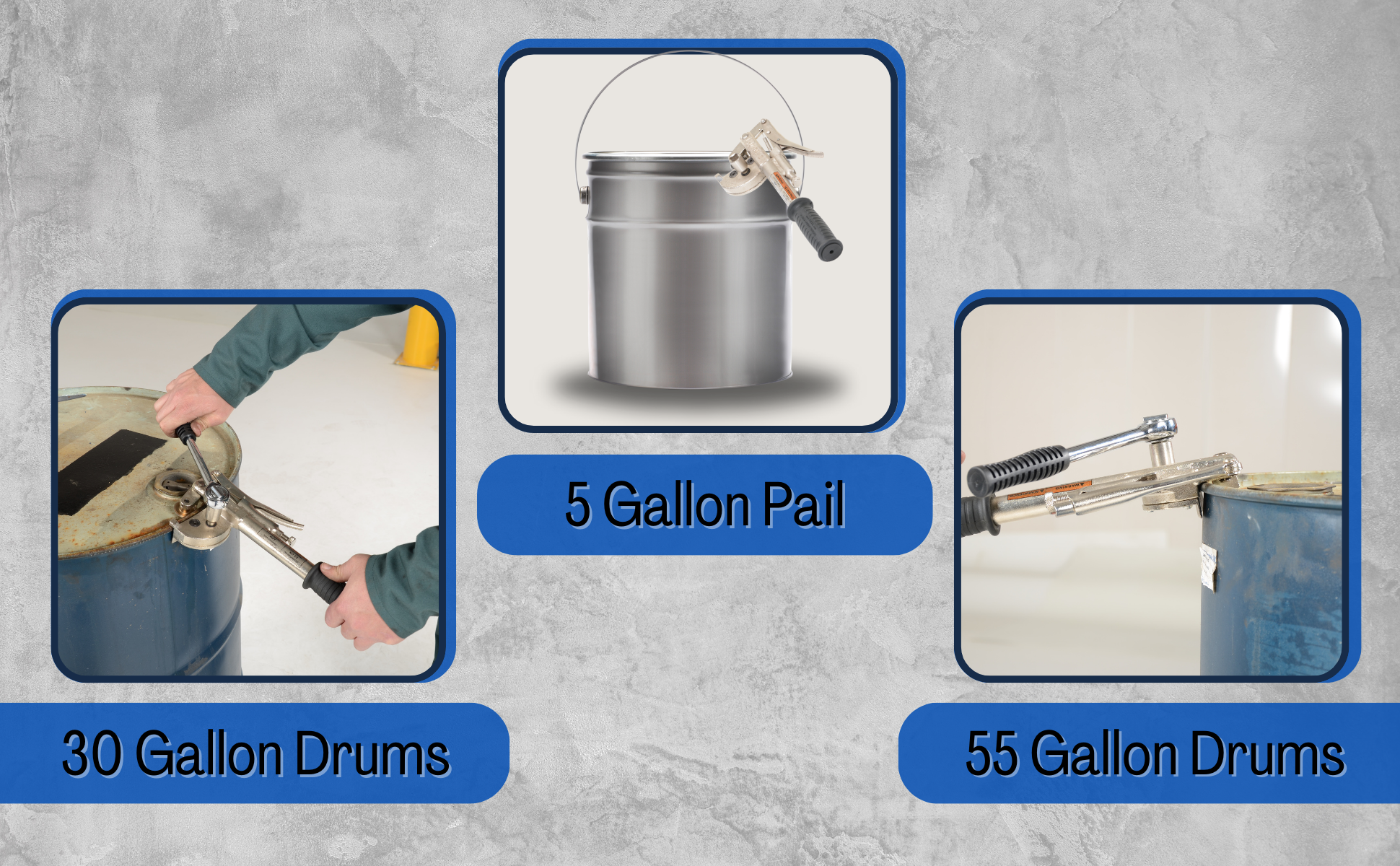

WARNING: Improper use of this drum deheader might result in personal injury or damage to the deheader. DO NOT use a pneumatic or electric impact wrench to operate the deheader ratchet. Replacement blades available separately, model D-HEAD-B. Both styles open 30 and 55 gallon steel drums and 5 gallon pails.

Convert your closed head steel drums into storage containers with our Drum Deheaders.

The DD-9 and DD-9-NS can be adjusted to open steel drums with different thicknesses. The blade is angled for maximum penetration and flattens the cut edge so there are no sharp or jagged edges. Replacement blades available. Model DD-9-NS features a bronze, spark resistant alloy.

Model DD-10 features an ergonomic handle allowing smoother operation to cut drum.

Quickly remove the head of a steel drum with our Express-Open Drum Deheader. Unique design, model D-HEAD-1, is similar to a household can-opener and is very easy to use. Includes vice-grip style mechanism for securely attaching unit to drum. Inside cutting blade does not leave a sharp edge on the drum. ONLY use either a 1/2" manual ratchet wrench or electric drill to operate the deheader ratchet (ratchet drive not included).

WARNING: Improper use of this drum deheader might result in personal injury or damage to the deheader. DO NOT use a pneumatic or electric impact wrench to operate the deheader ratchet. Replacement blades available separately, model D-HEAD-B. Both styles open 30 and 55 gallon steel drums and 5 gallon pails.

Other Drum Deheaders

 Manual Drum Deheaders

Additional Models In This Family
view entire Image Gallery

DD-9-NS

DD-9-NS

DDB-1

DDB-1

DD-9-NS

DD-9-NS

DD-9

DD-9

DD-10

DD-10

D-HEAD-1

D-HEAD-1

D-HEAD-1

D-HEAD-1

DDB-1

DDB-1

DD-10

DD-10

DD-10

DD-10

DD-10

DD-10

DDB-1

DDB-1

DD-10

DD-10

DD-10

DD-10

DDB-2

DDB-2

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
D-HEAD-1 D-HEAD-130 Days Limited WarrantySteel Manual Drum De Header Express Open 3 In. x 5-1/2 In. x 14 In. SilverOpens Drums (gal.): 30 and 55
Opens Pails (gal.): 5		4
DD-10 DD-1030 Days Limited WarrantySteel Manual Drum De Header with Blade 21 In. x 6-1/2 In. x 5-1/4 In. BlueOpens Drums (gal.): 30 and 55
Opens Pails (gal.): 5		8

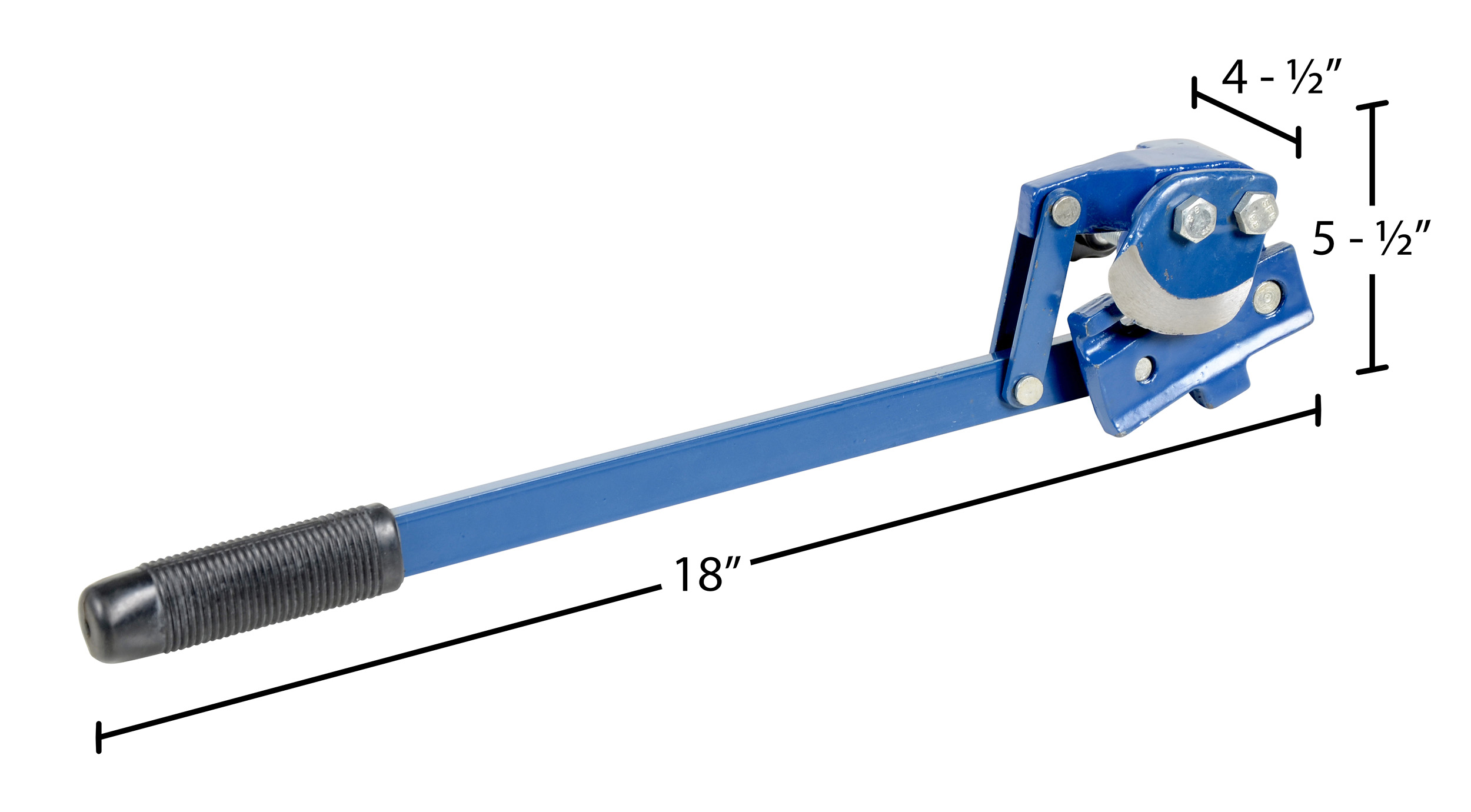

DD-9 DD-930 Days Limited WarrantySteel Standard Drum De Header 4-1/2 In. x 18 In. x 5-1/2 In. BlueOpens Drums (gal.): 30 and 55
Handle Length (in.): 15		8

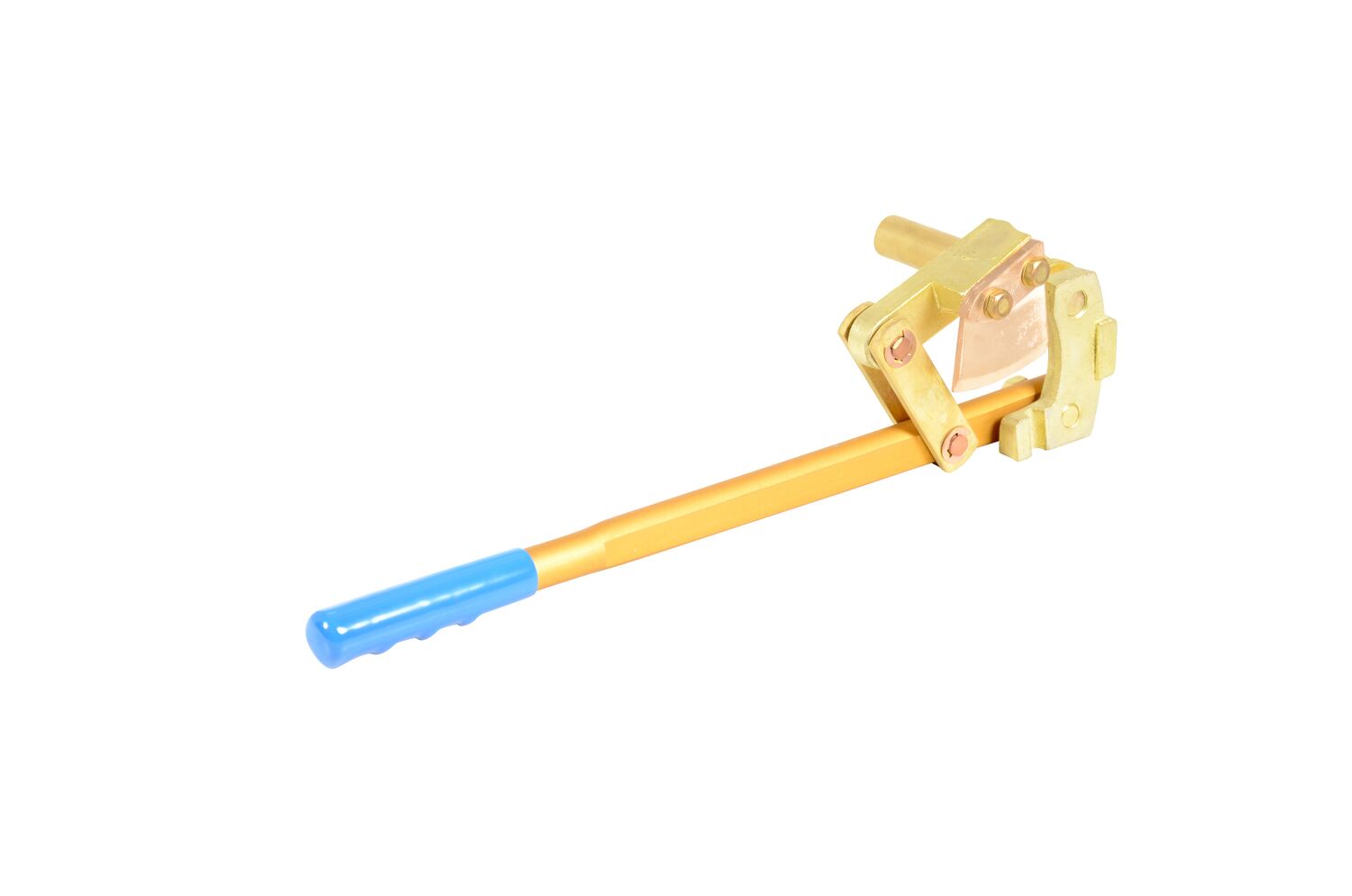

DD-9-NS DD-9-NS30 Days Limited WarrantyBronze Manual Drum De Header Non Sparking 21 In. x 6 In. x 4 In. BronzeOpens Drums (gal.): 30 and 55
7

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

D-HEAD-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55
Opens Pails (gal.): 5
Opens Drums (gal.): 30 and 55
Opens Pails (gal.): 5

DD-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55
Opens Pails (gal.): 5
Opens Drums (gal.): 30 and 55
Opens Pails (gal.): 5

DD-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55
Handle Length (in.): 15
Opens Drums (gal.): 30 and 55
Handle Length (in.): 15

DD-9-NS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55

Opens Drums (gal.): 30 and 55

For More Details of the Option Click the Red Model Button

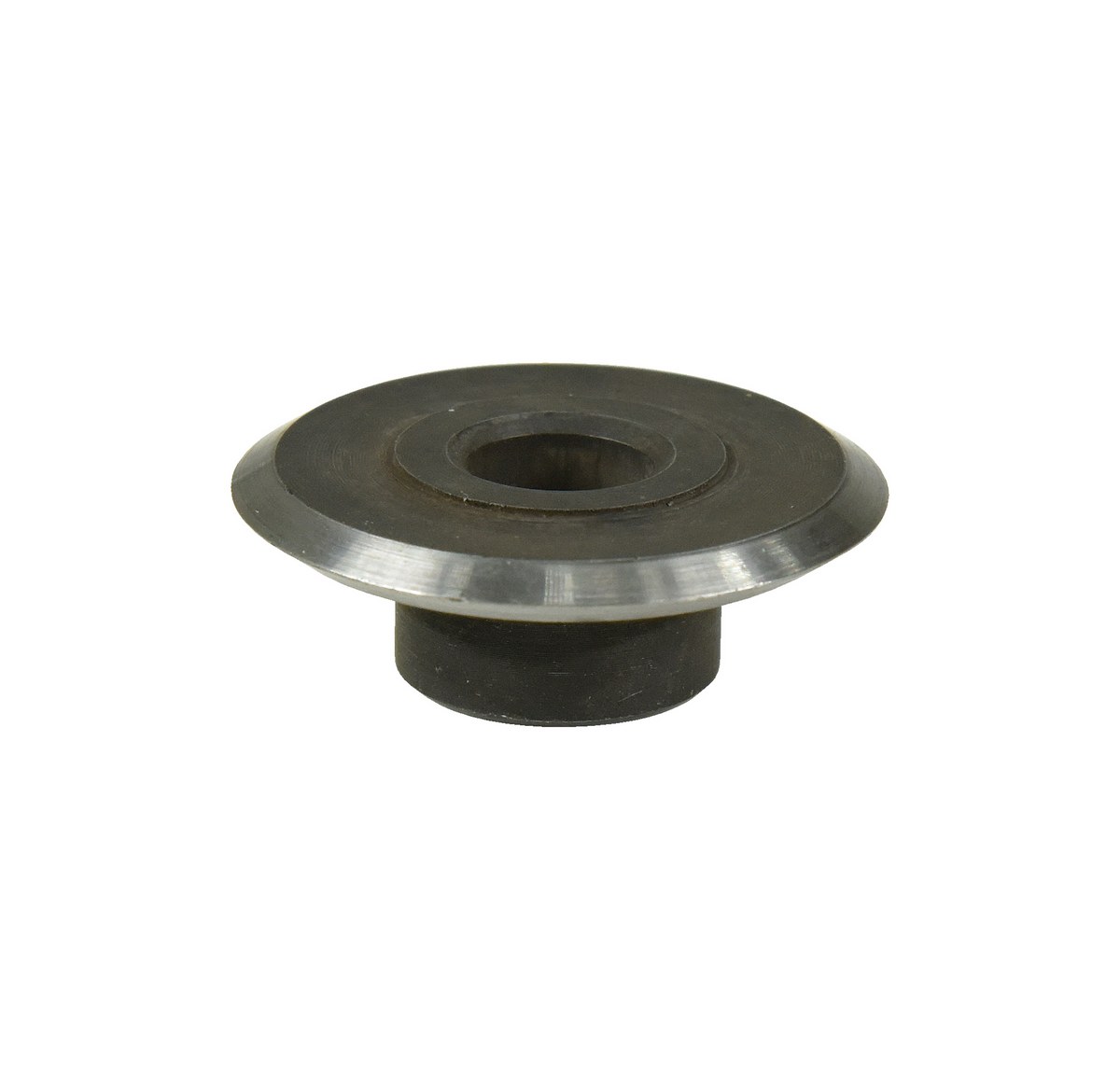

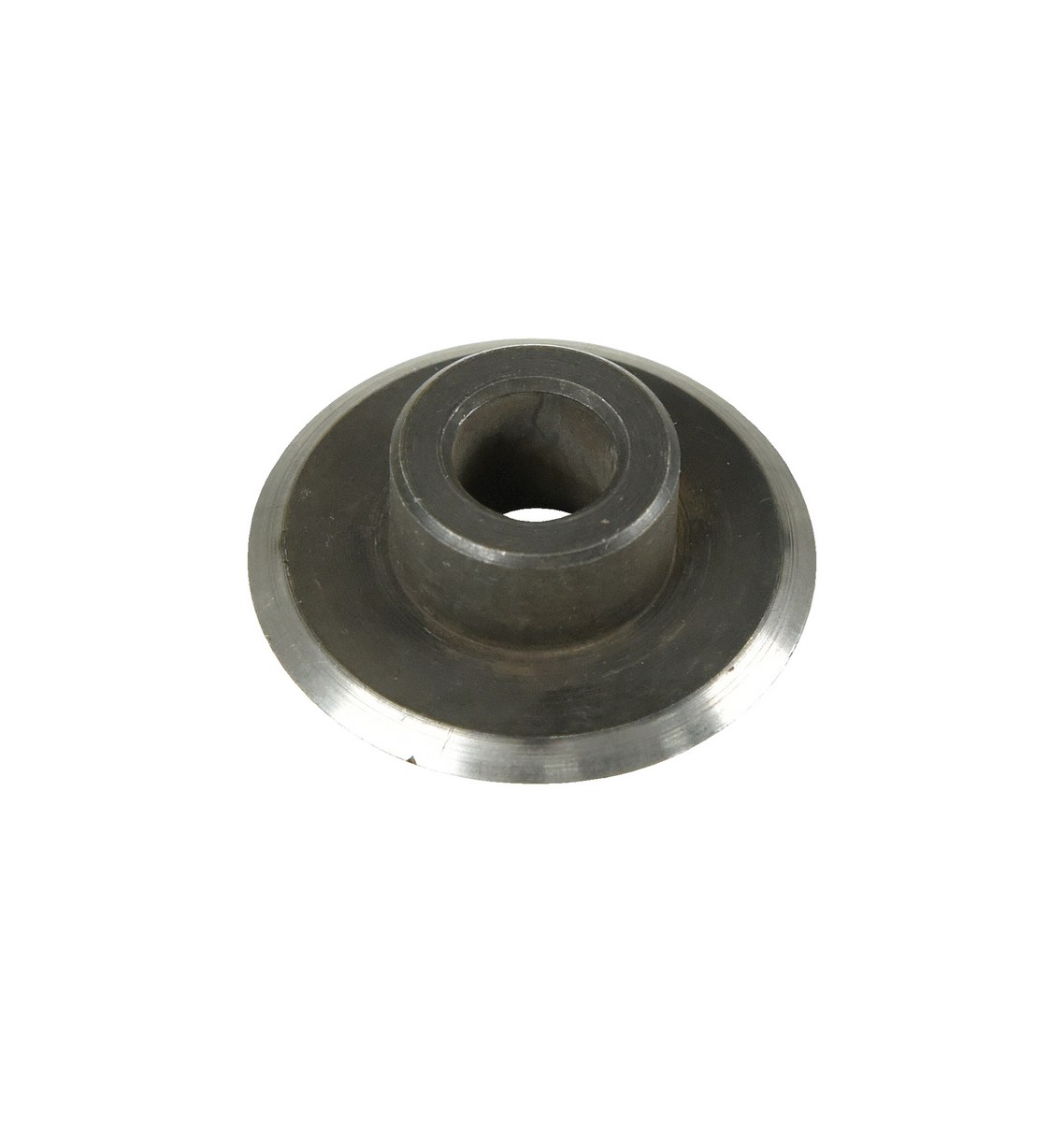

D-HEAD-B D-HEAD-B30 Days Limited WarrantyManual Drum De Header Replacement Blade 1-1/4 In. x 1-1/4 In. x 1/2 In. For D-Head-1 SilverDiameter (in.): 1-1/4
1

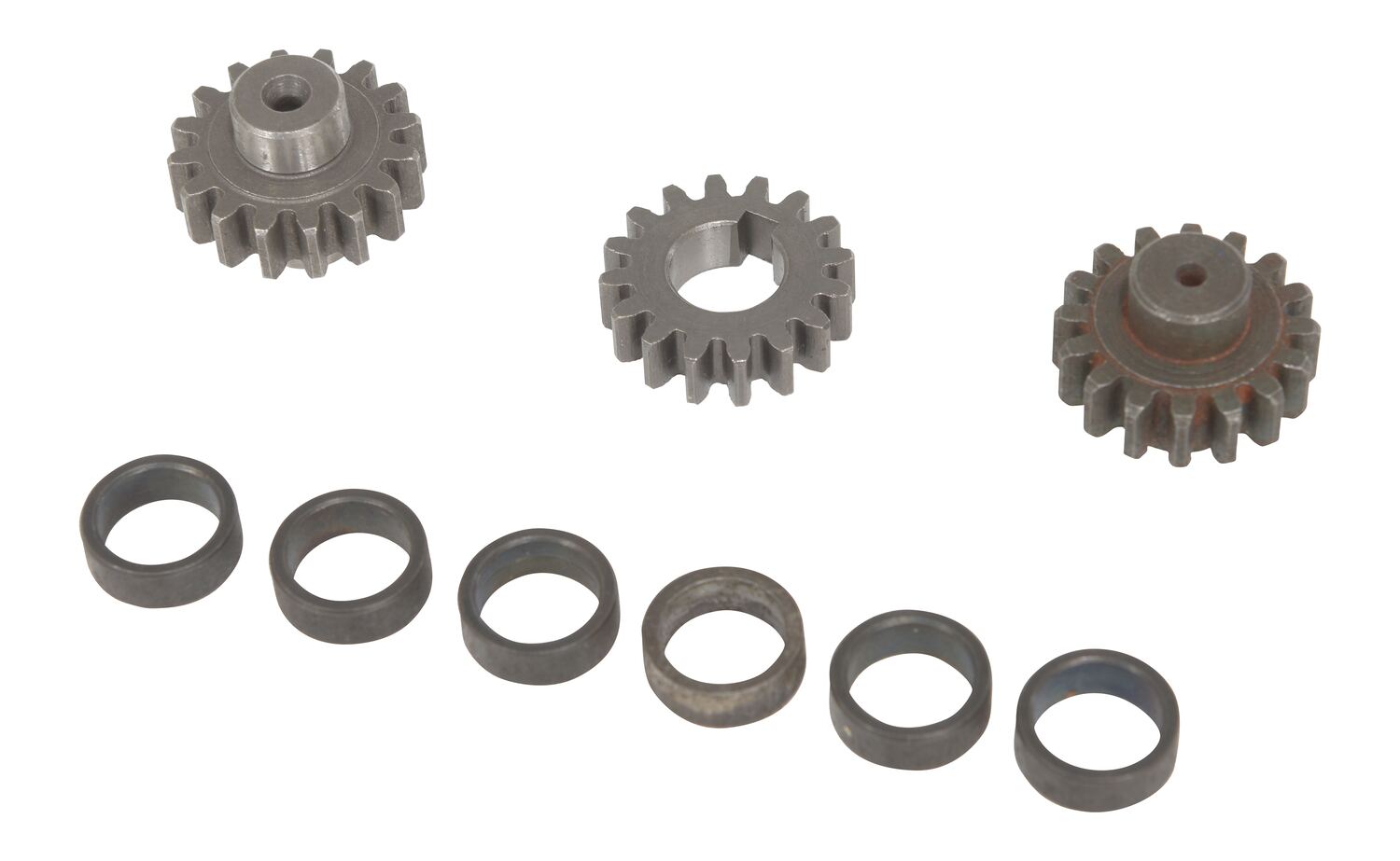

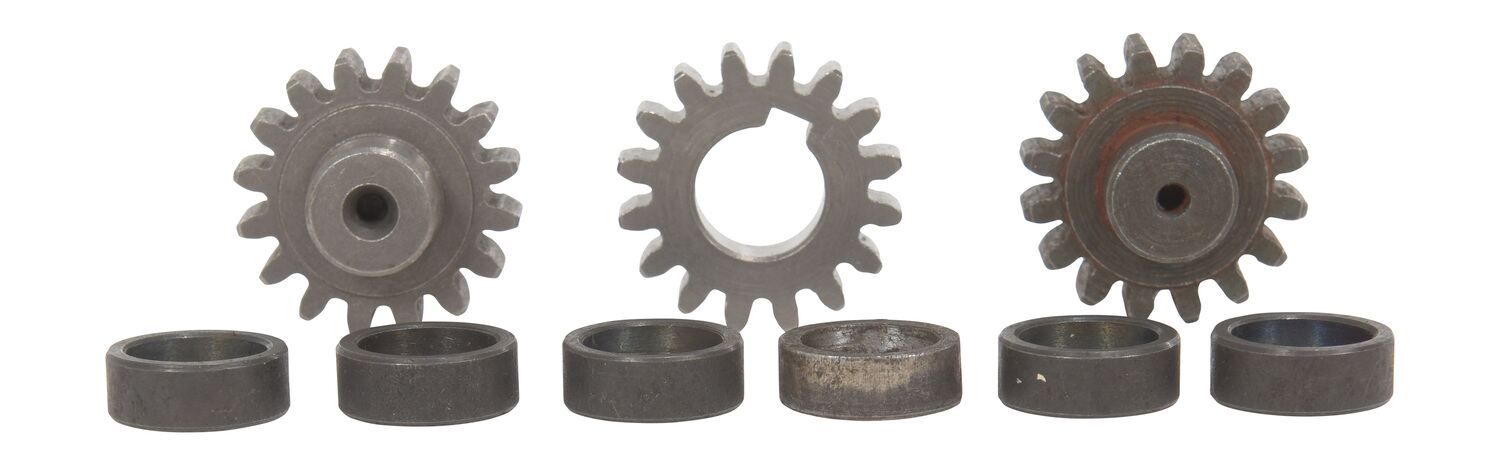

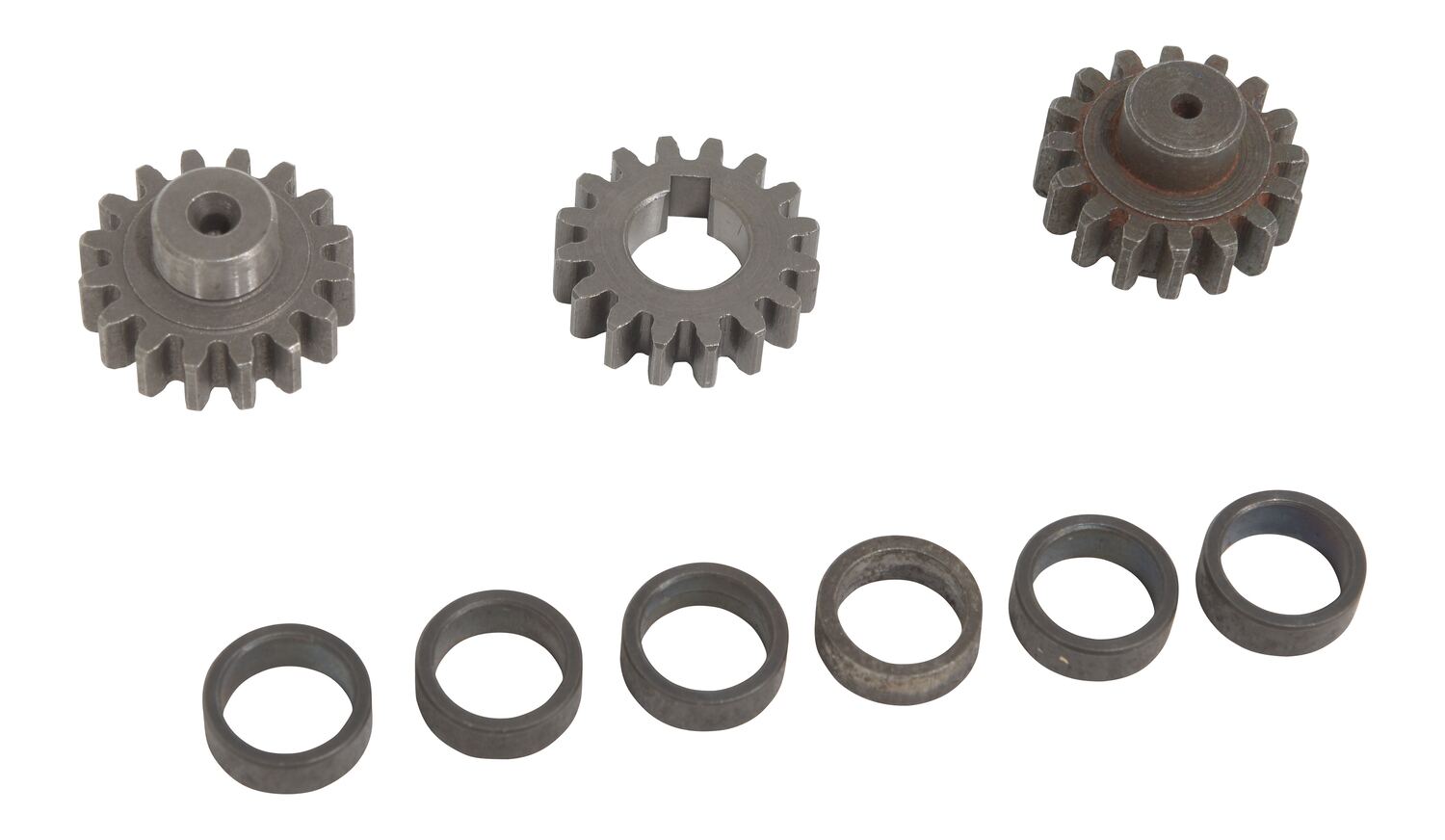

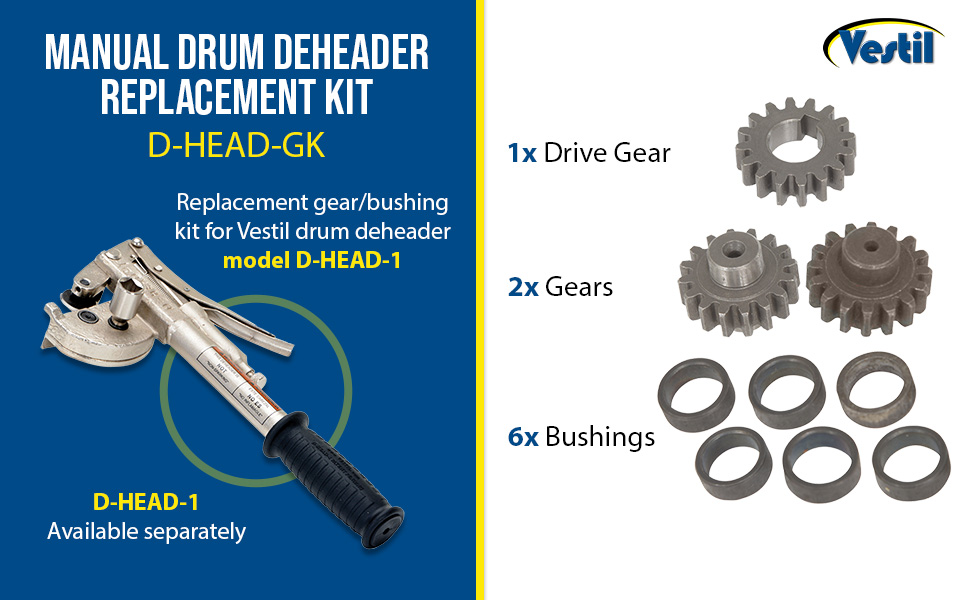

D-HEAD-GK D-HEAD-GK30 Days Limited WarrantySteel Manual Drum De Header Replacement Gear/Bushing Kit For D-Head-1 BlackKit Includes: (1) Drive Gear, (2) Gears, (6) Bushings
1

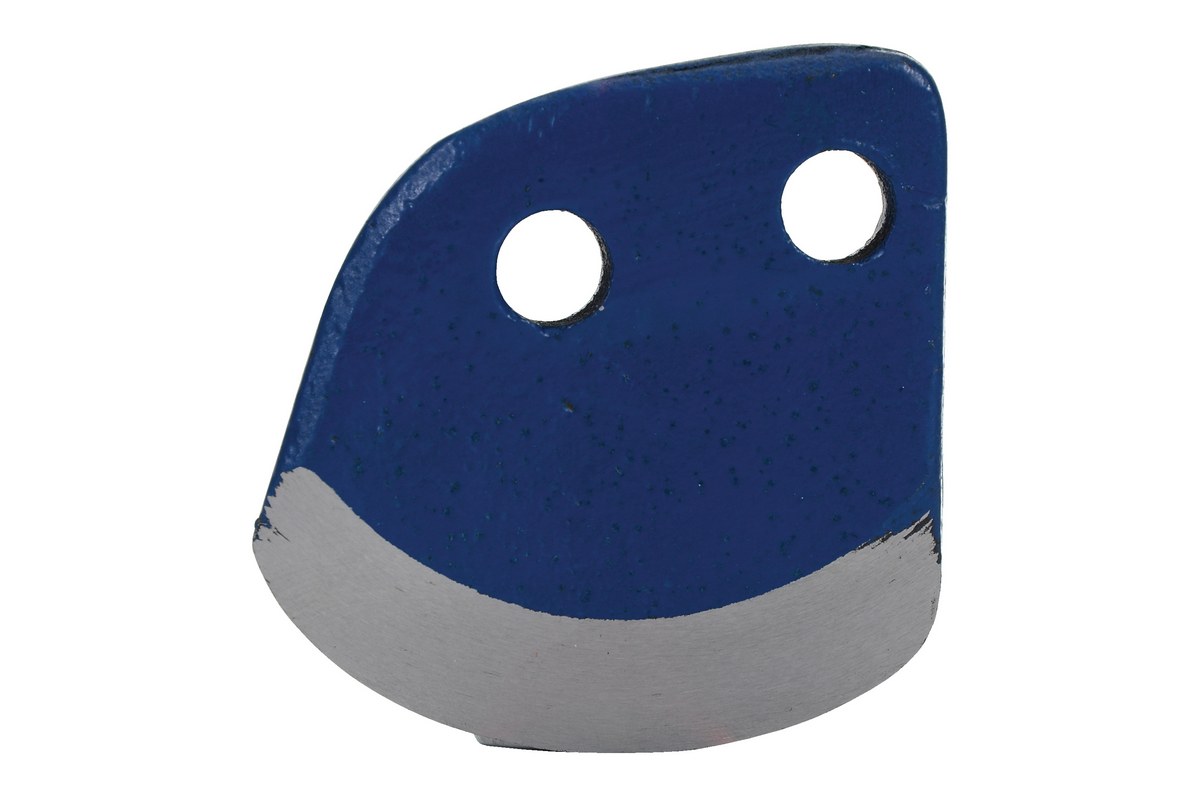

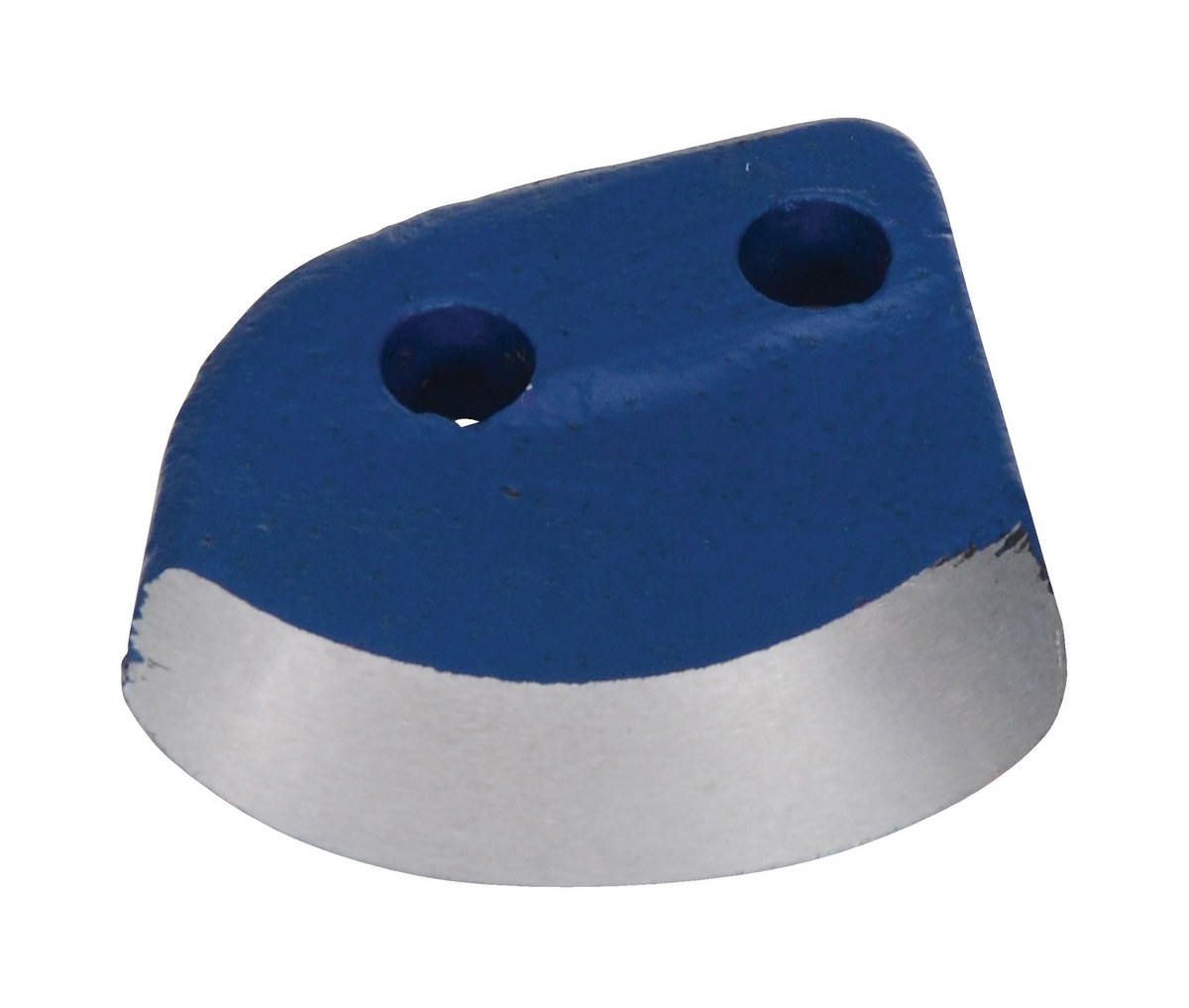

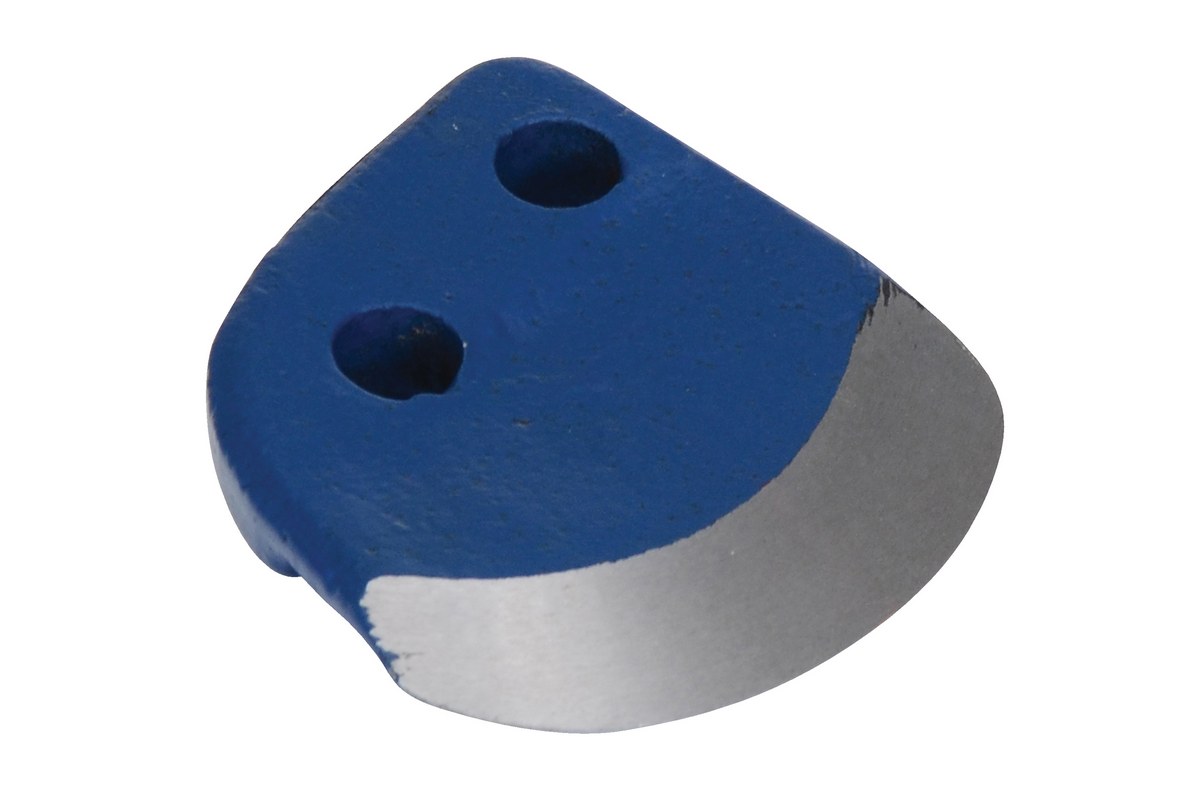

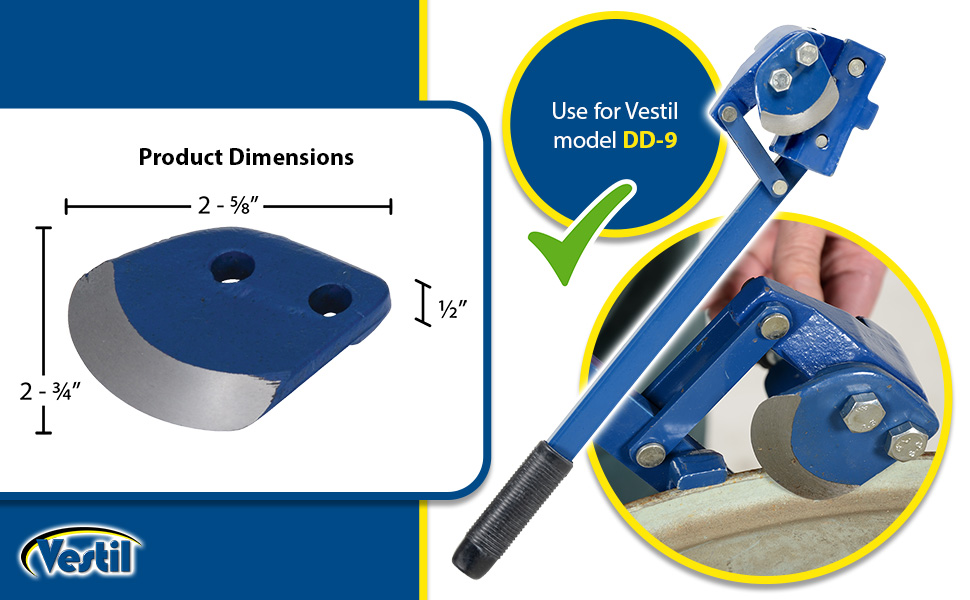

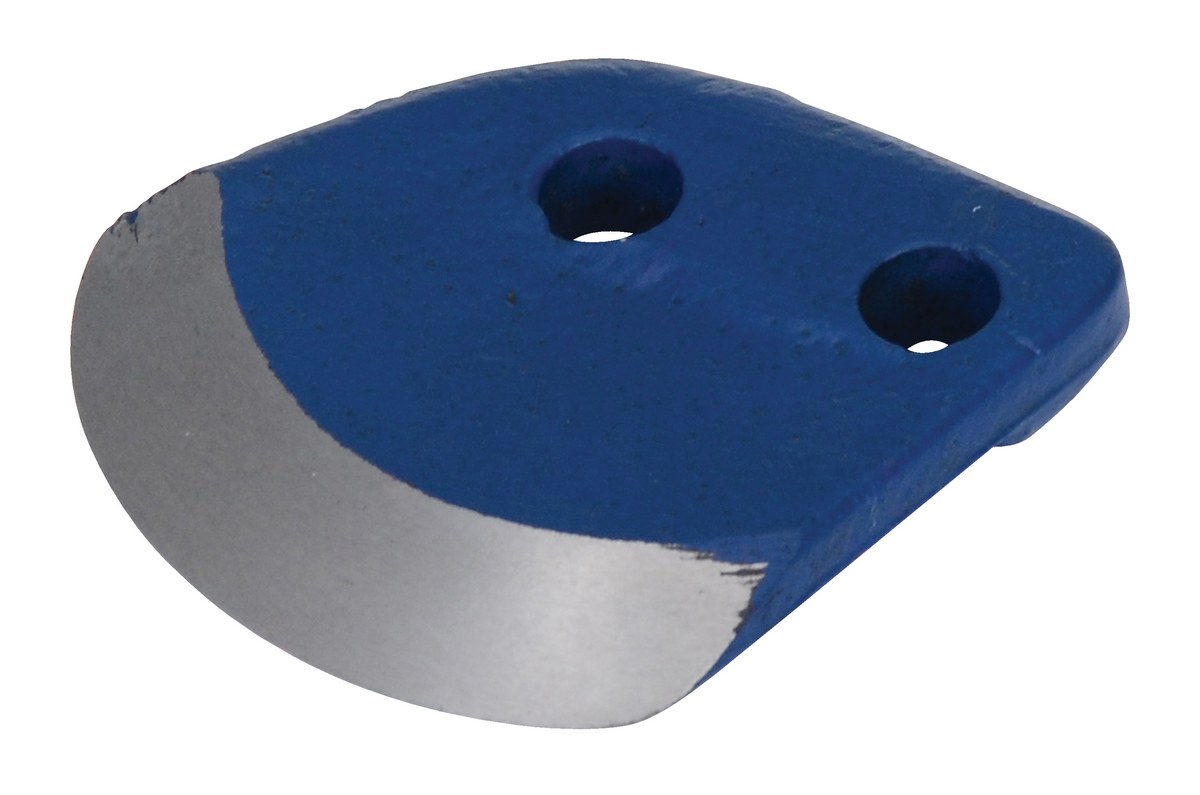

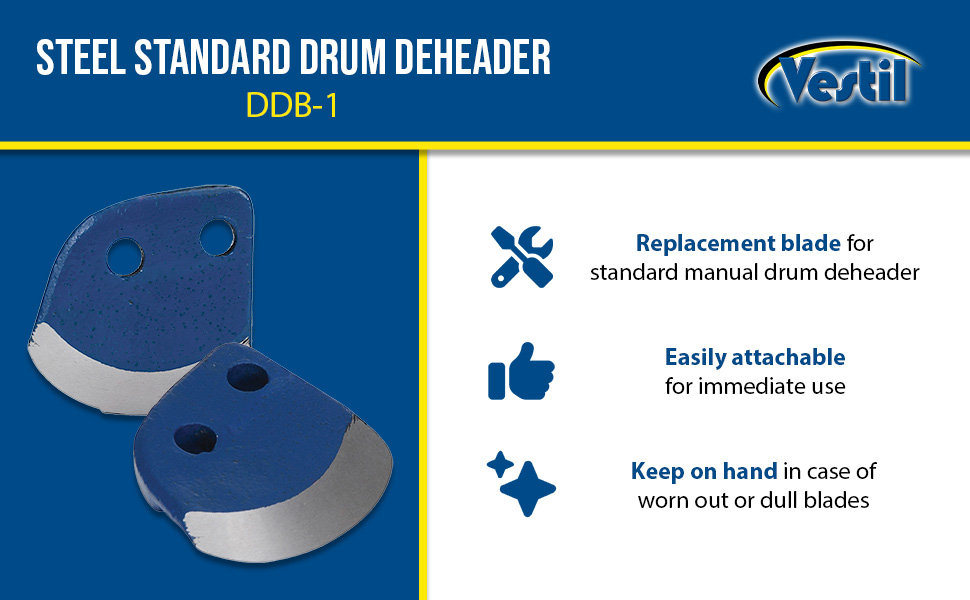

DDB-1 DDB-130 Days Limited WarrantySteel Replacement Blade for Standard Drum De Header 2-3/4 In. x 2-5/8 In. x 1/2 In. BlueBlade Type: Replacement Blade
Progressive Blade Tooth Spacing: No		2

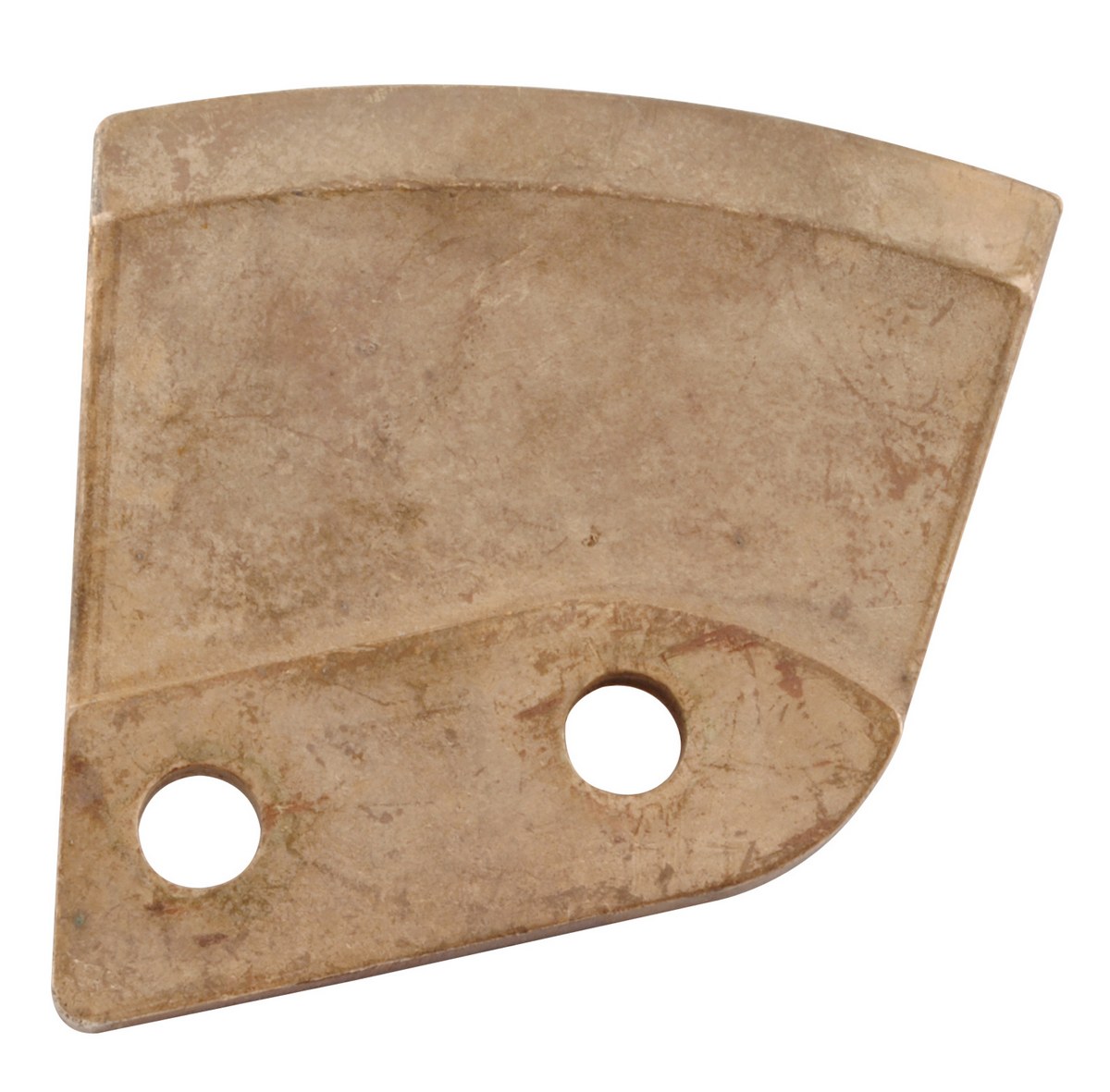

DDB-1-NS DDB-1-NS30 Days Limited WarrantyBrass Replacement Blade for Non Sparking Drum De Header 2-5/8 In. x 2-1/2 In. x 3/8 In. BronzeBlade Type: Replacement Blade
Progressive Blade Tooth Spacing: No		2

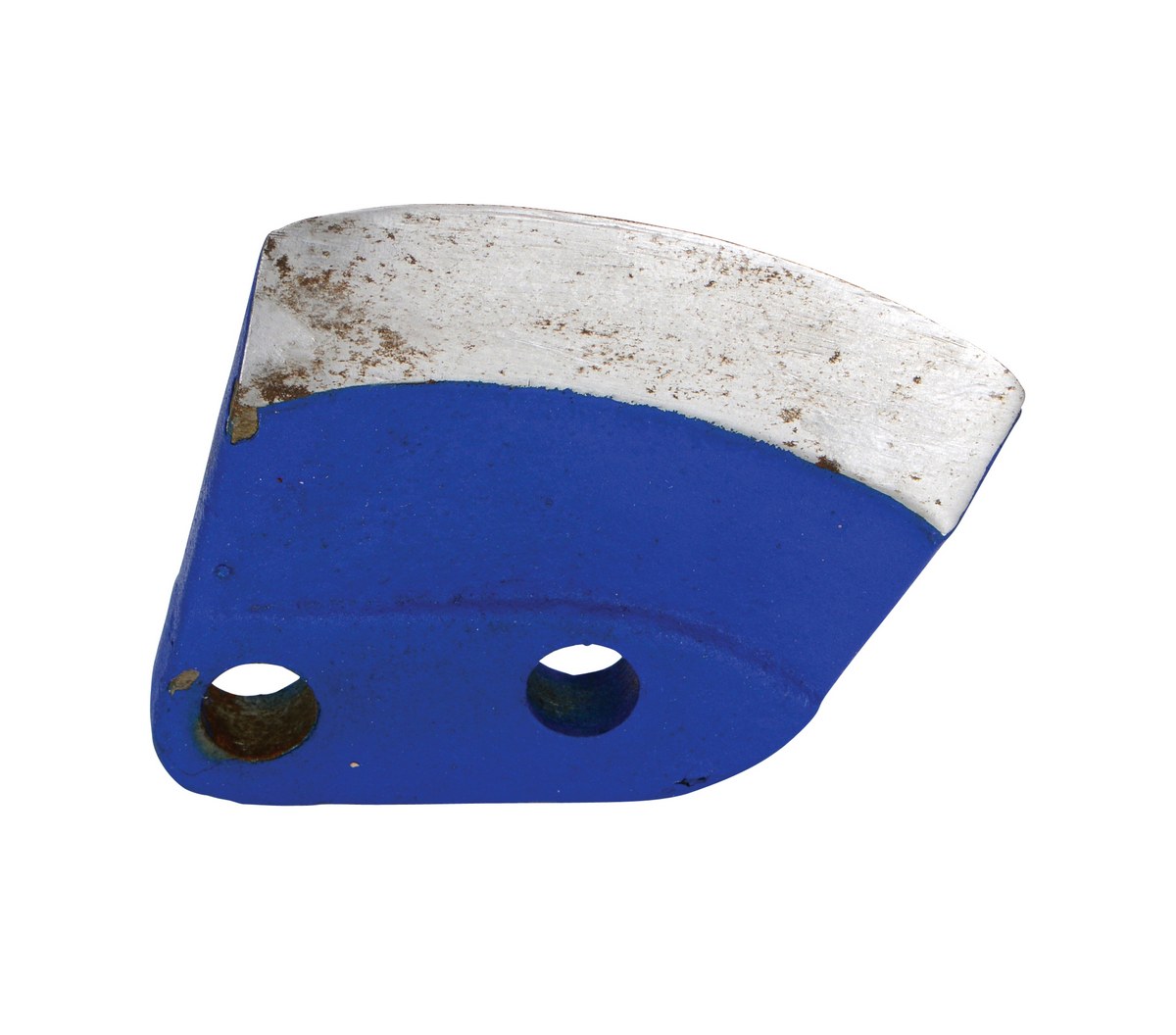

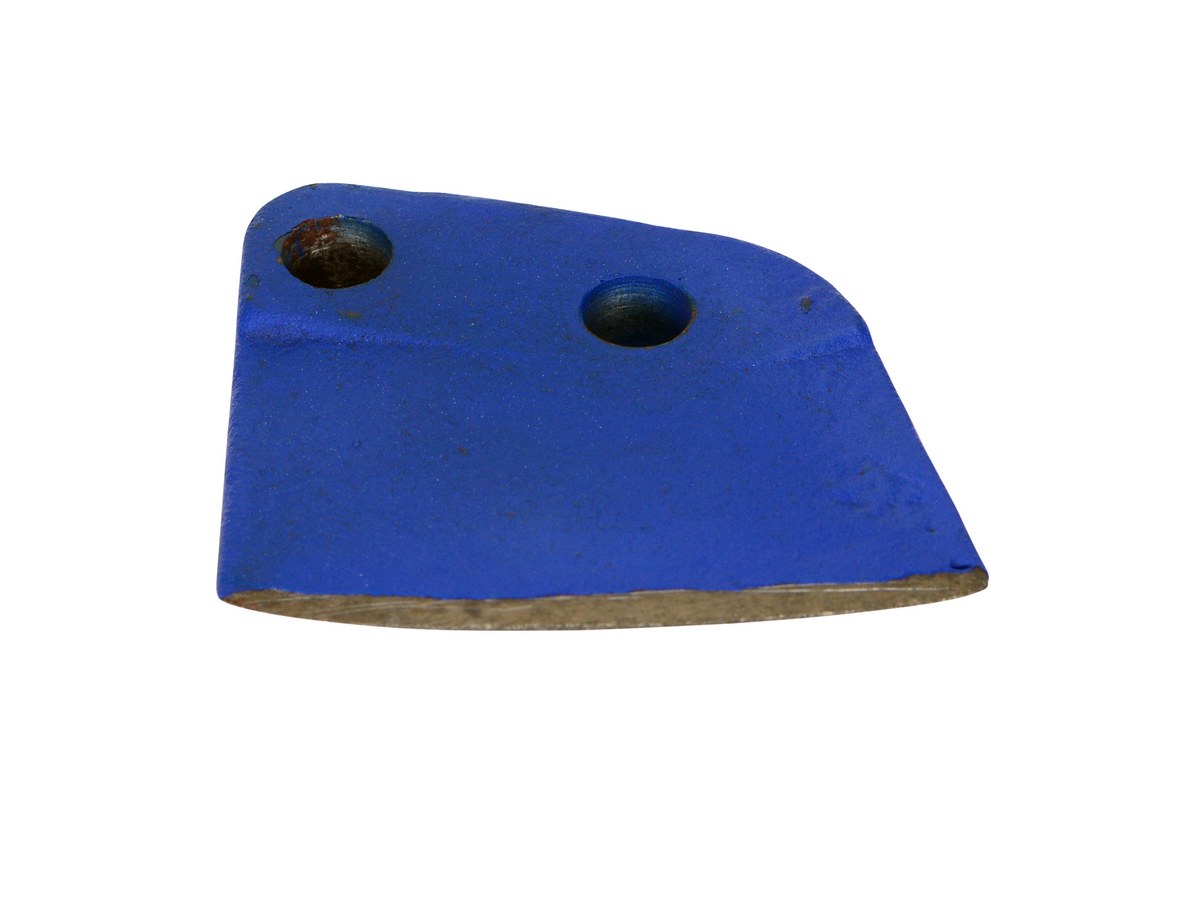

DDB-2 DDB-230 Days Limited WarrantySteel Replacement Blade for Manual Drum De Header 2-7/8 In. x 2-1/2 In. x 3/8 In. BlueBlade Type: Replacement Blade
Progressive Blade Tooth Spacing: No		2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Manual Drum Deheaders PDF's will open in a new window when clicked.

Manuals


DD-9, DD-9-NS, DD-10
Owners Manual

D-HEAD
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


D-HEAD-1

D-HEAD-GK

DD-10

DD-9

DD-9-NS

DDB-1-NS

DDB-2

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Manual Drum Deheaders Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

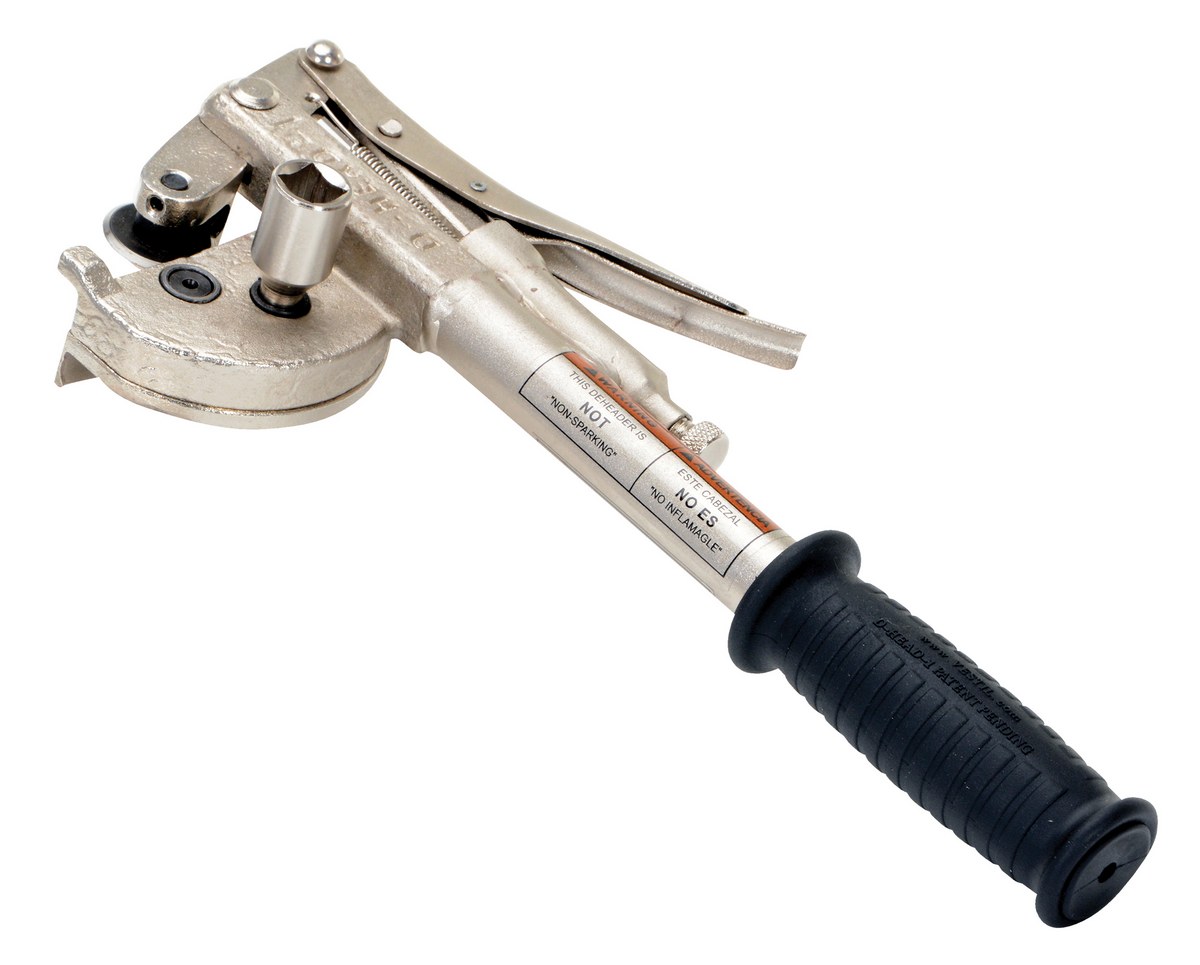

Q: Is the model D-HEAD-1 "Non-Sparking" or not Non-sparking?

A: NOT "Non-Sparking".
