model: B-1213-4PF


SERIES: B,T,L
Specialty Molded Dock Bumpers

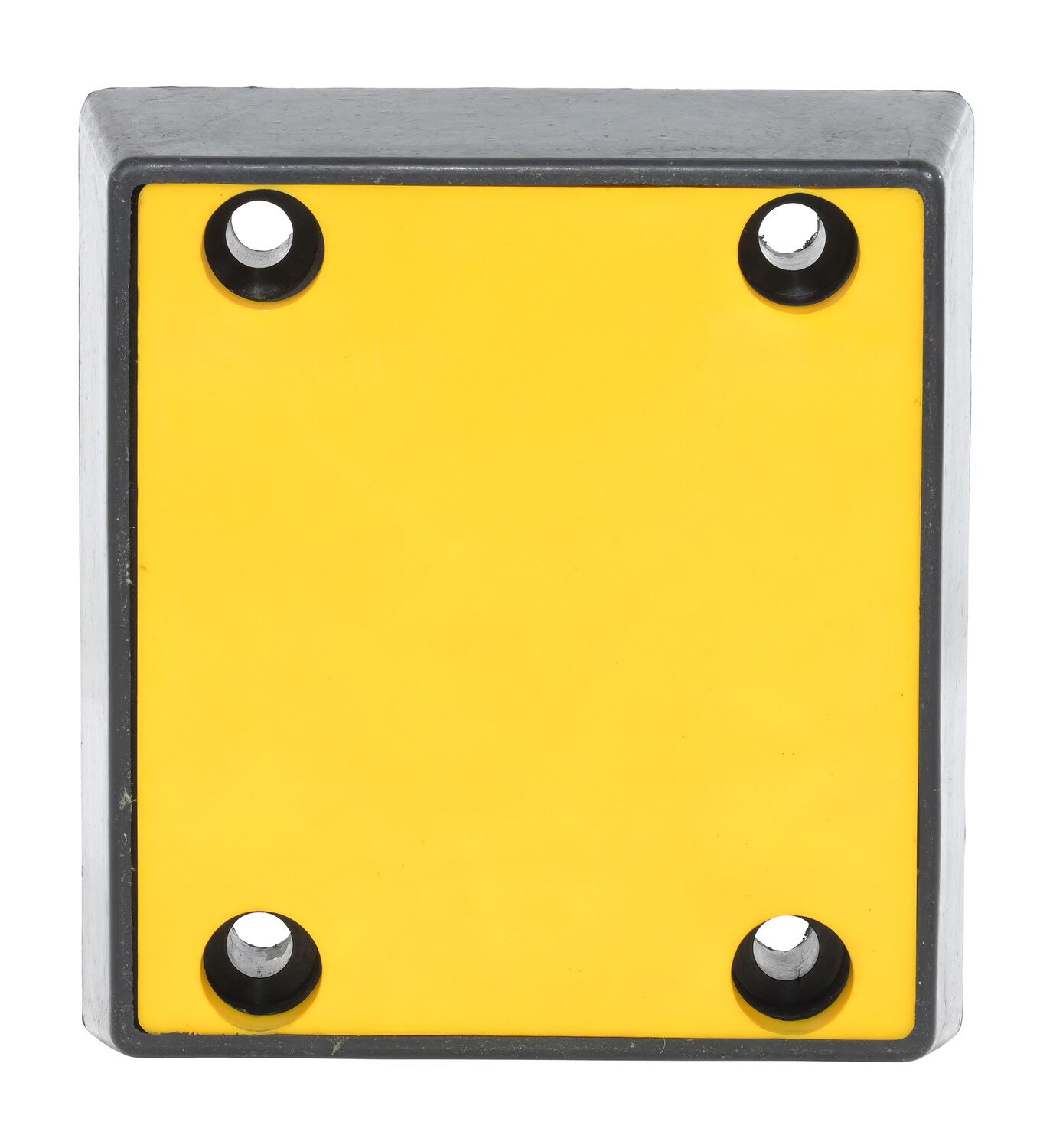

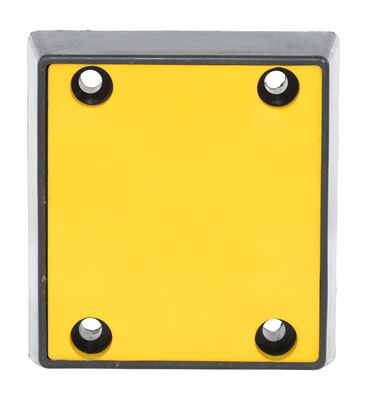

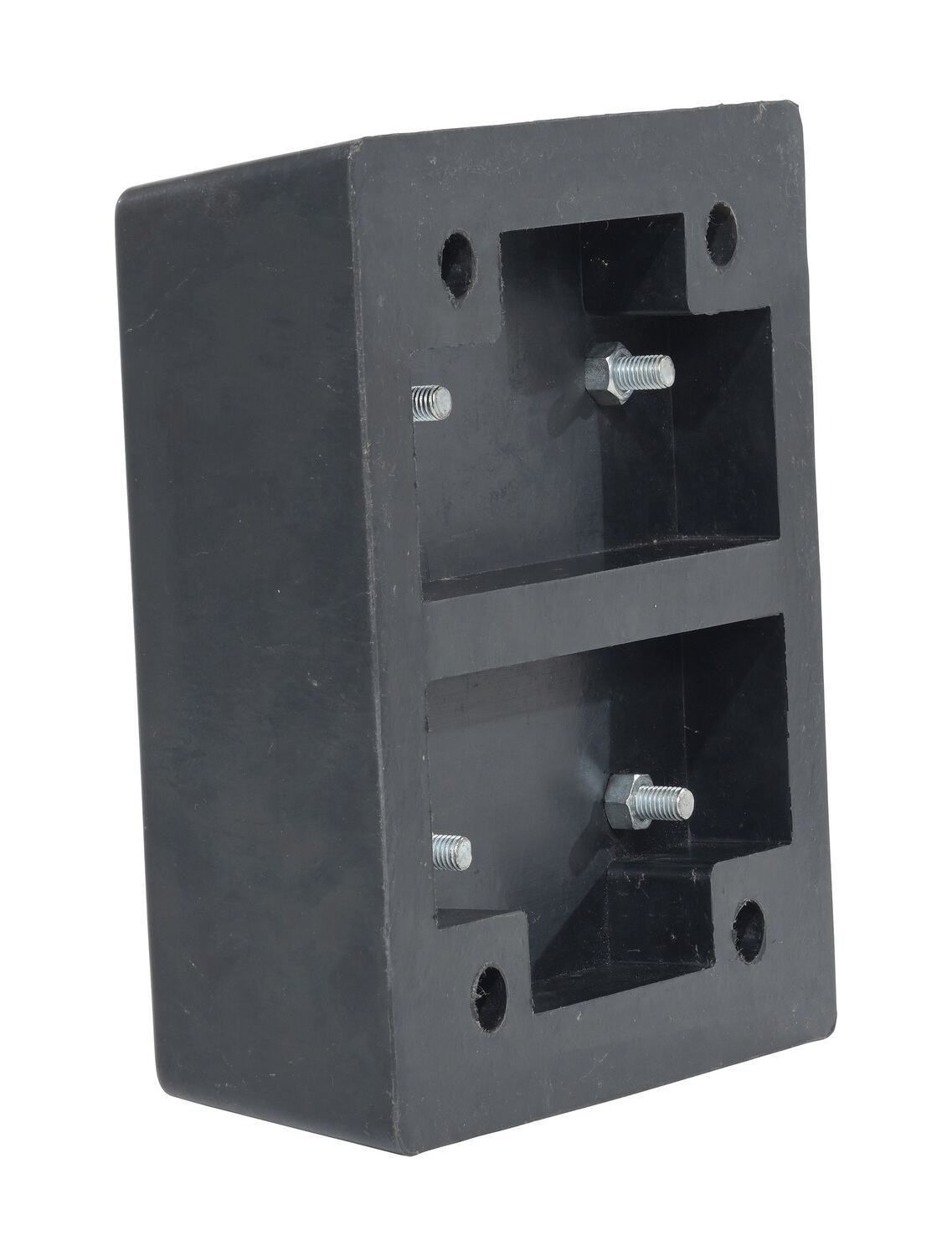

Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two piece construction fully assembled and ready for installation. Installation hardware sold separately.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Specialty Molded Bumpers
PDF Model Overall
Size
(WxHxP)
# of Holes
& Size
Wt.
(lbs)

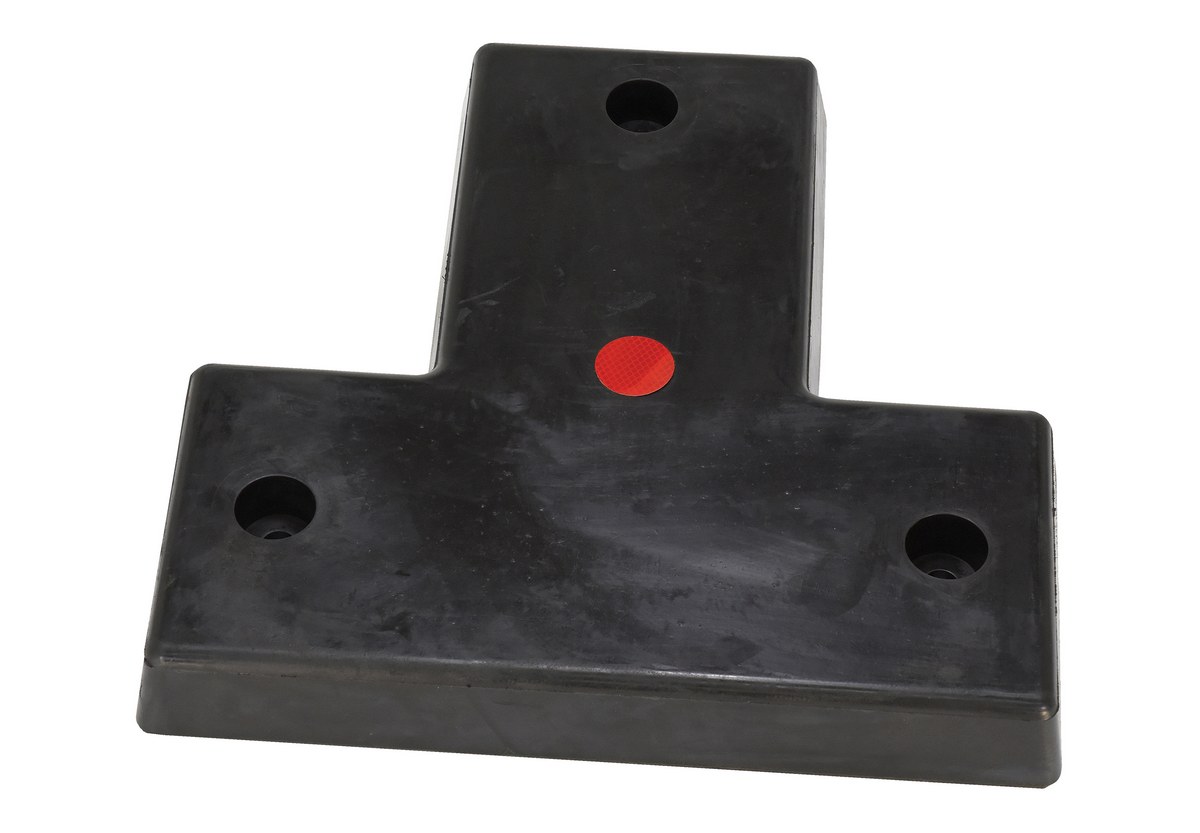

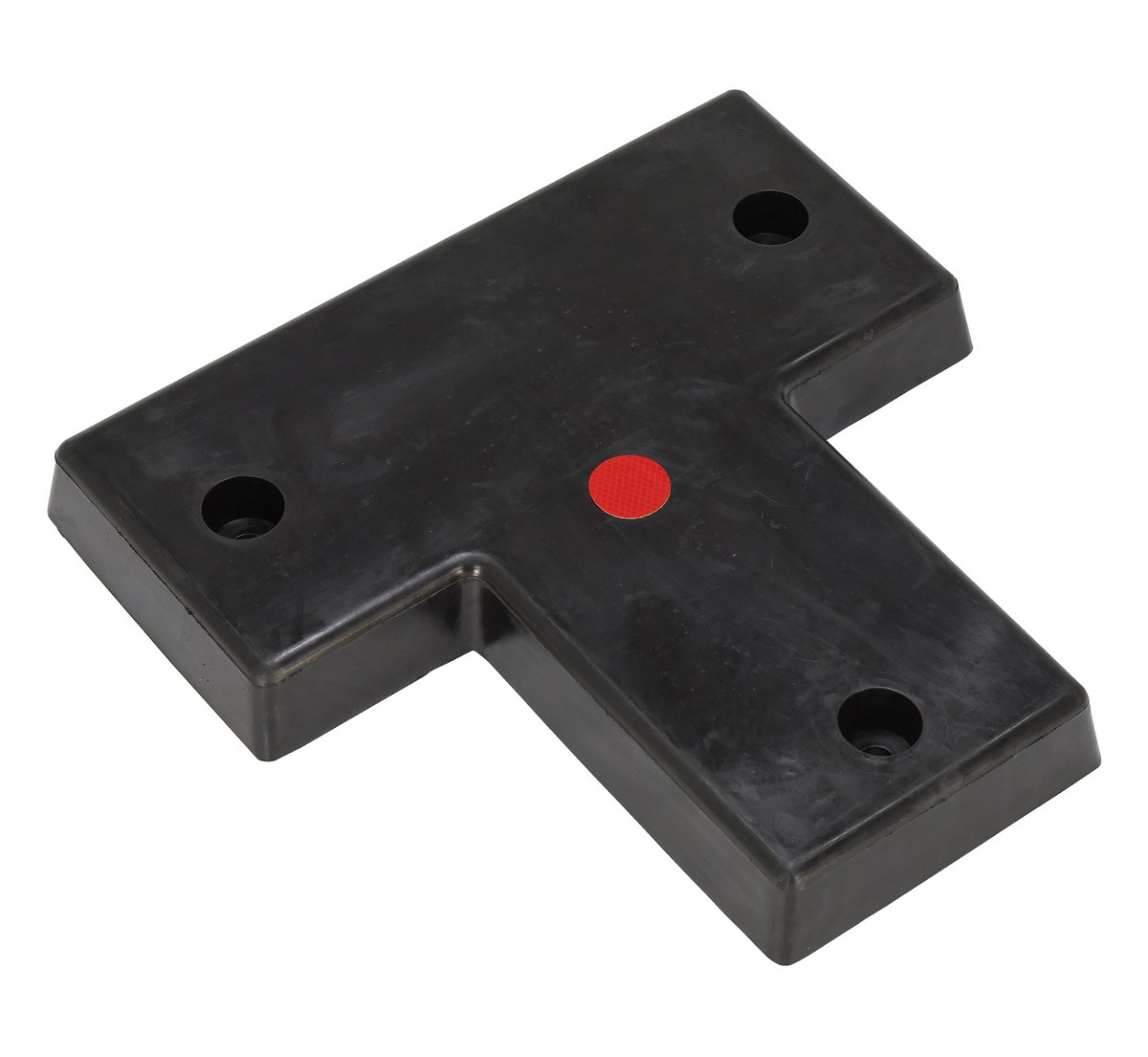

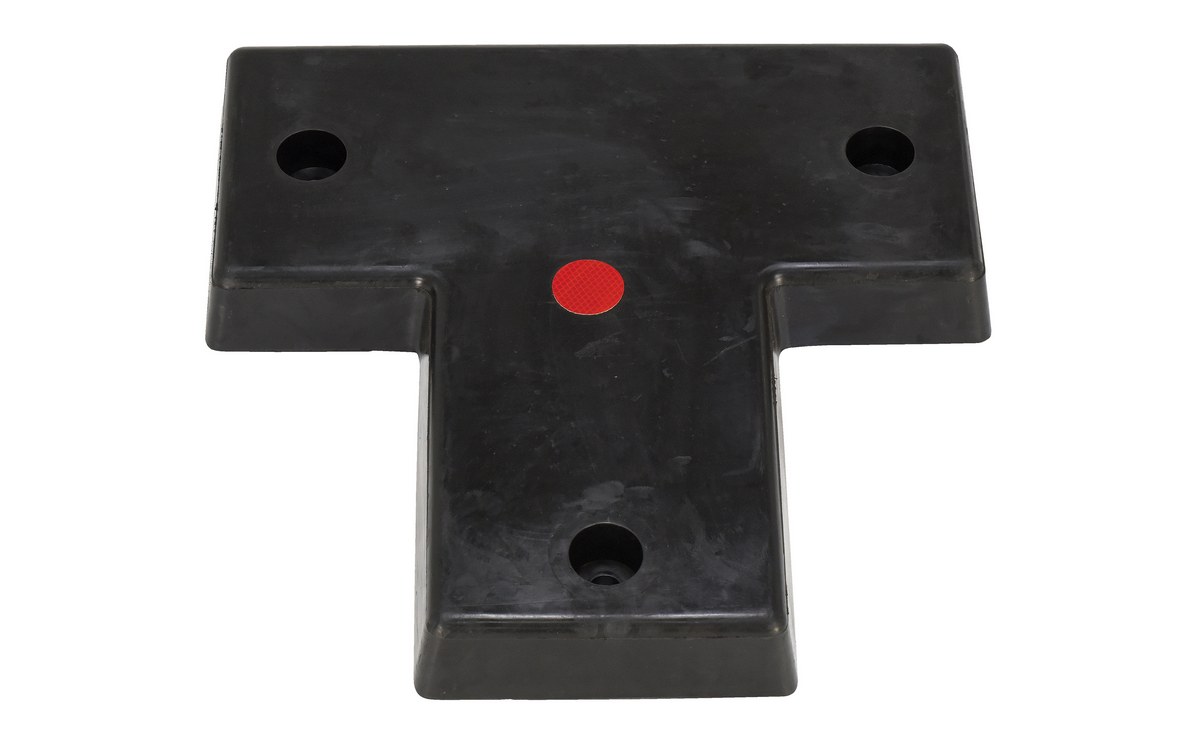

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate T-22 22"W x 22"H x 3"P 3, 3/4" 44

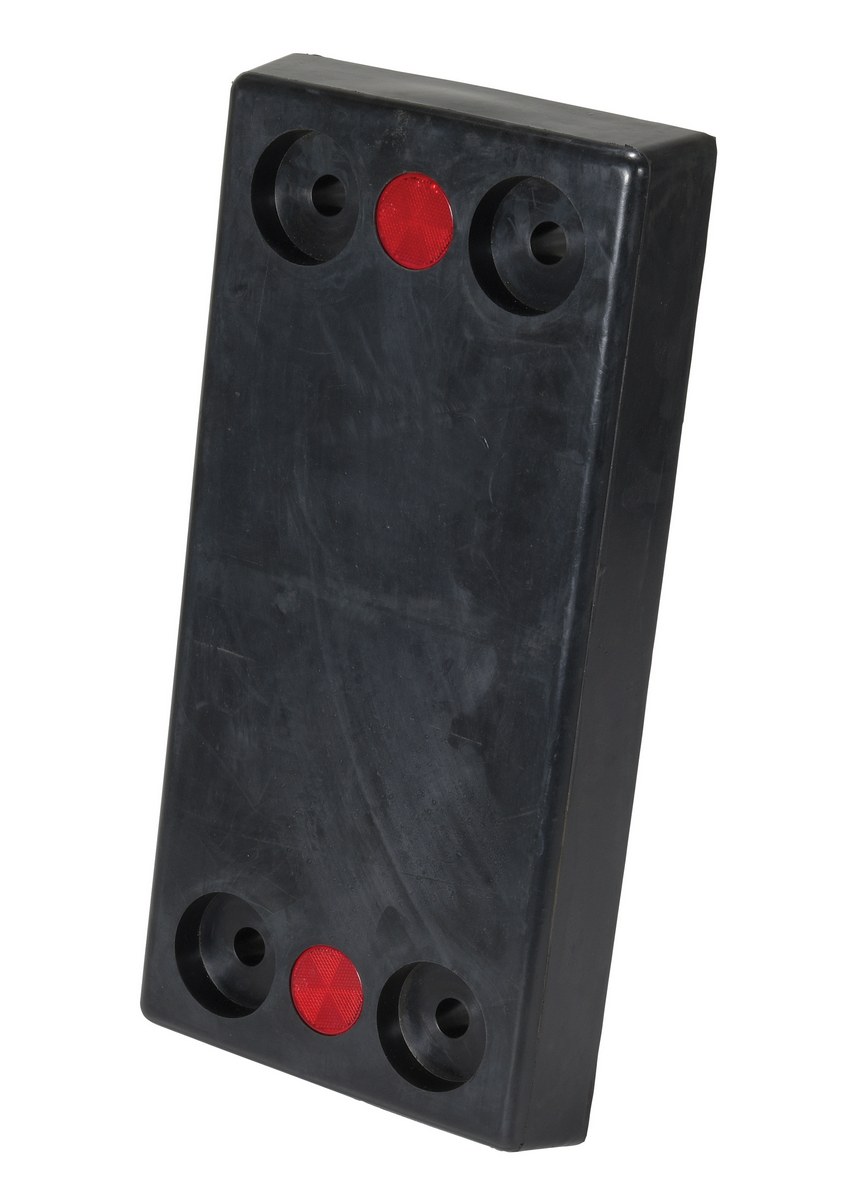

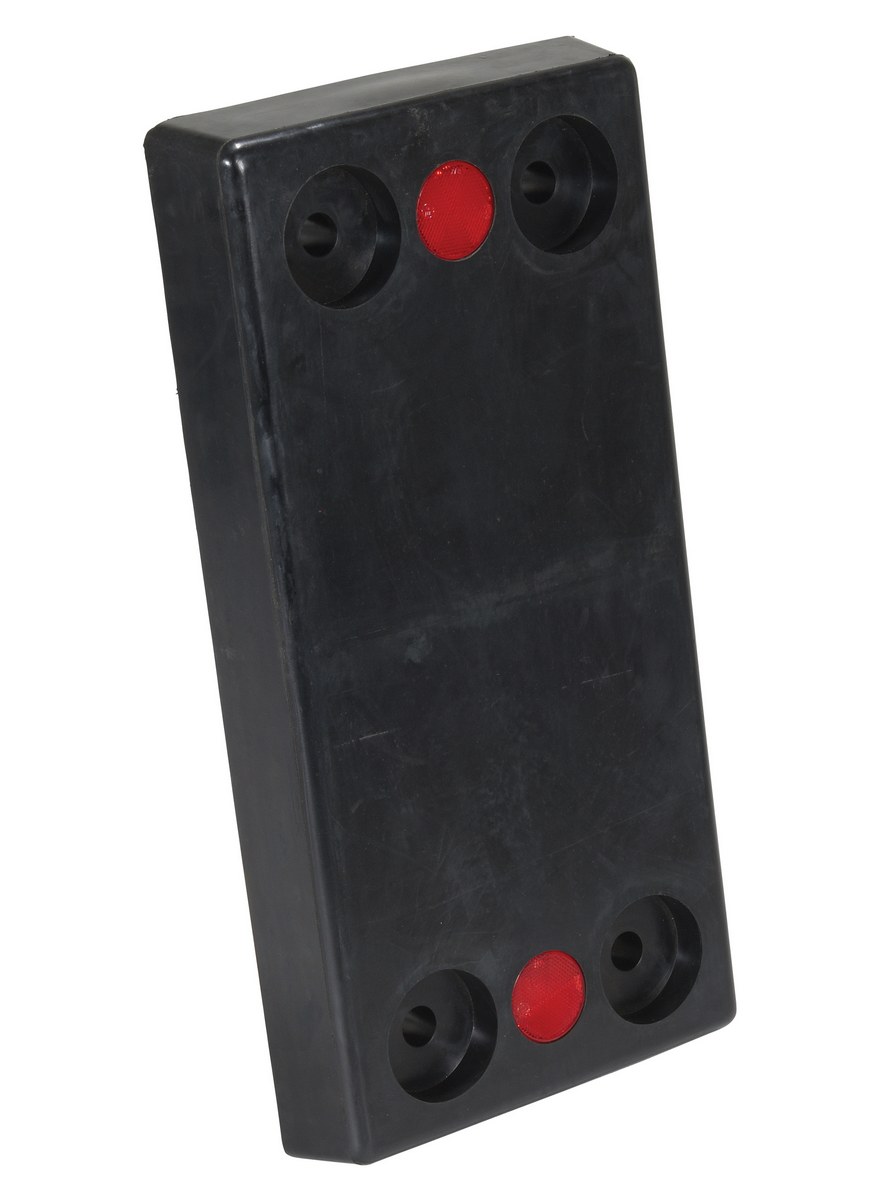

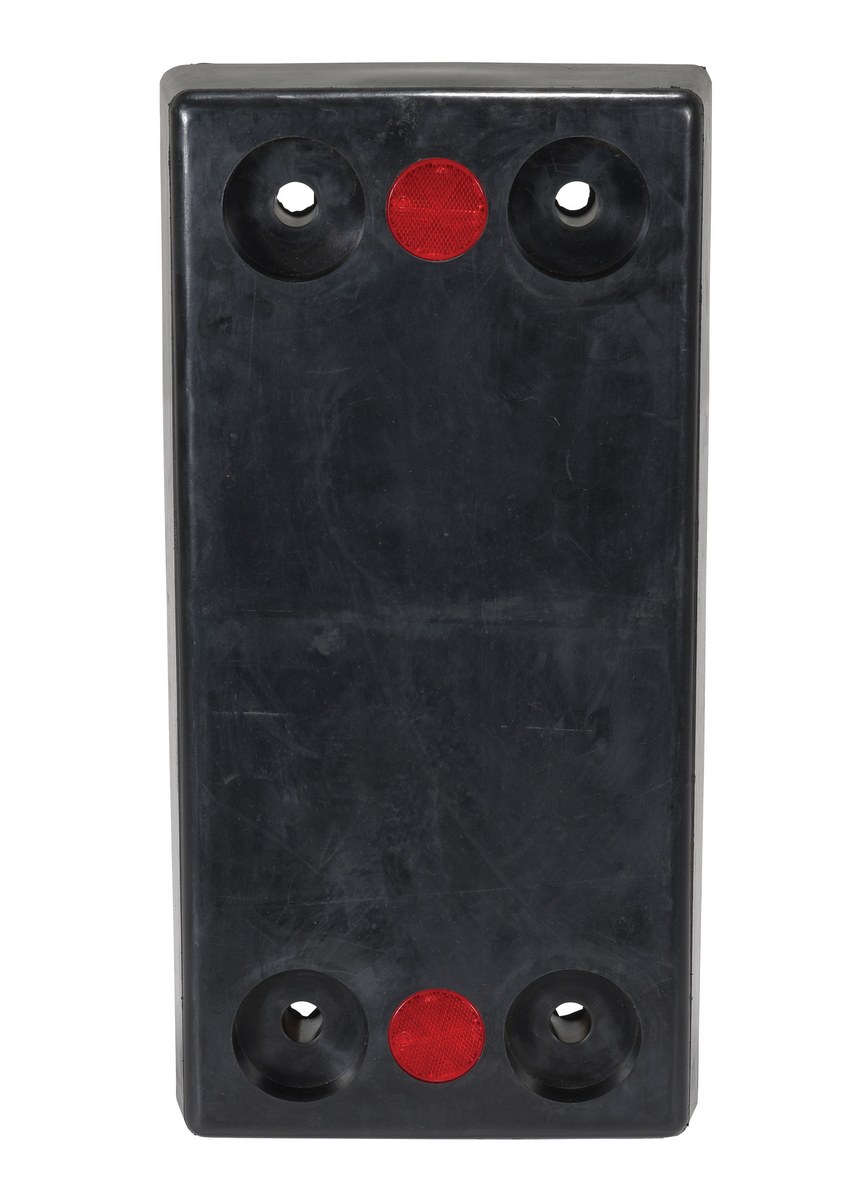

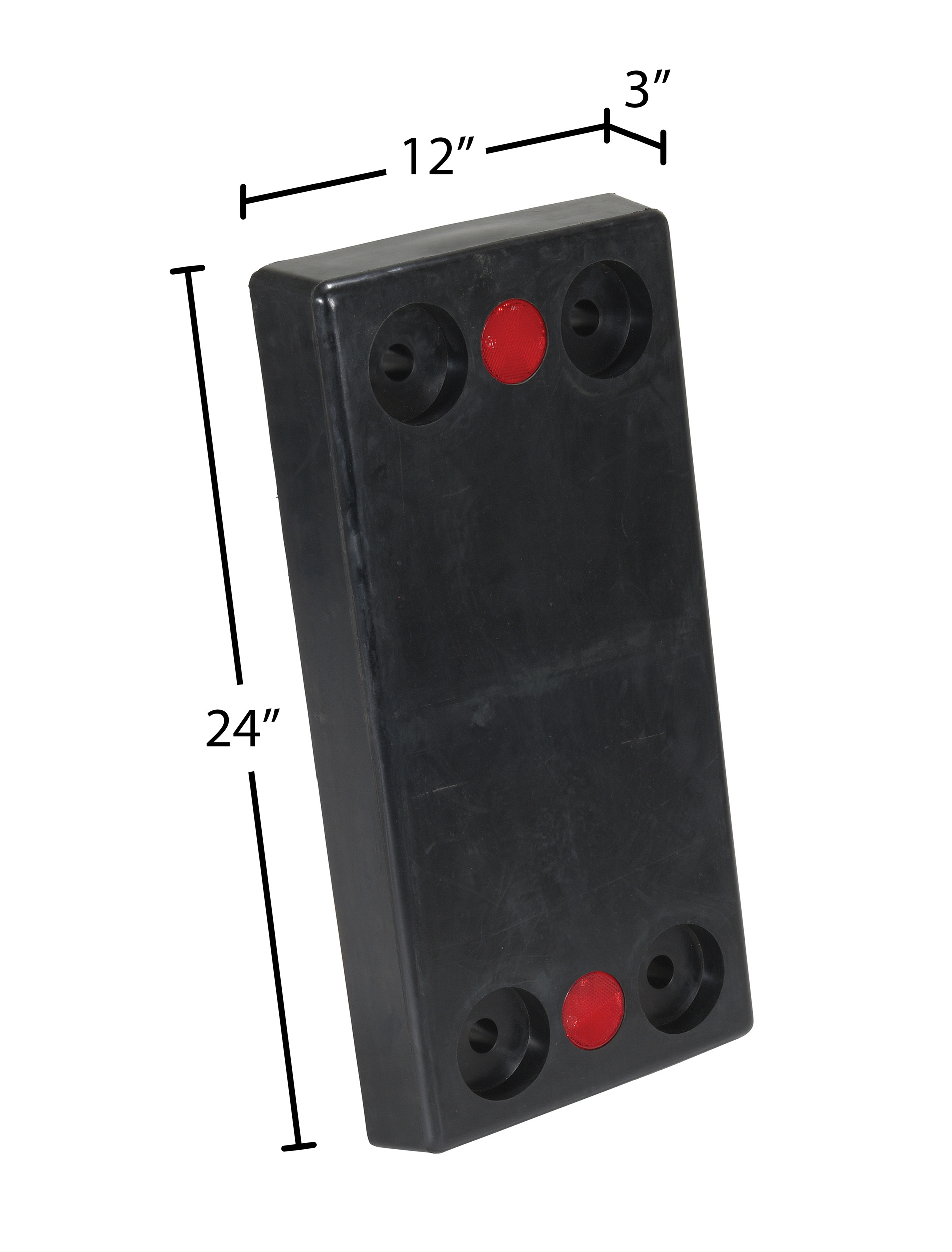

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-1224-3 24"W x 12"H x 3"P 4, 3/4" 34

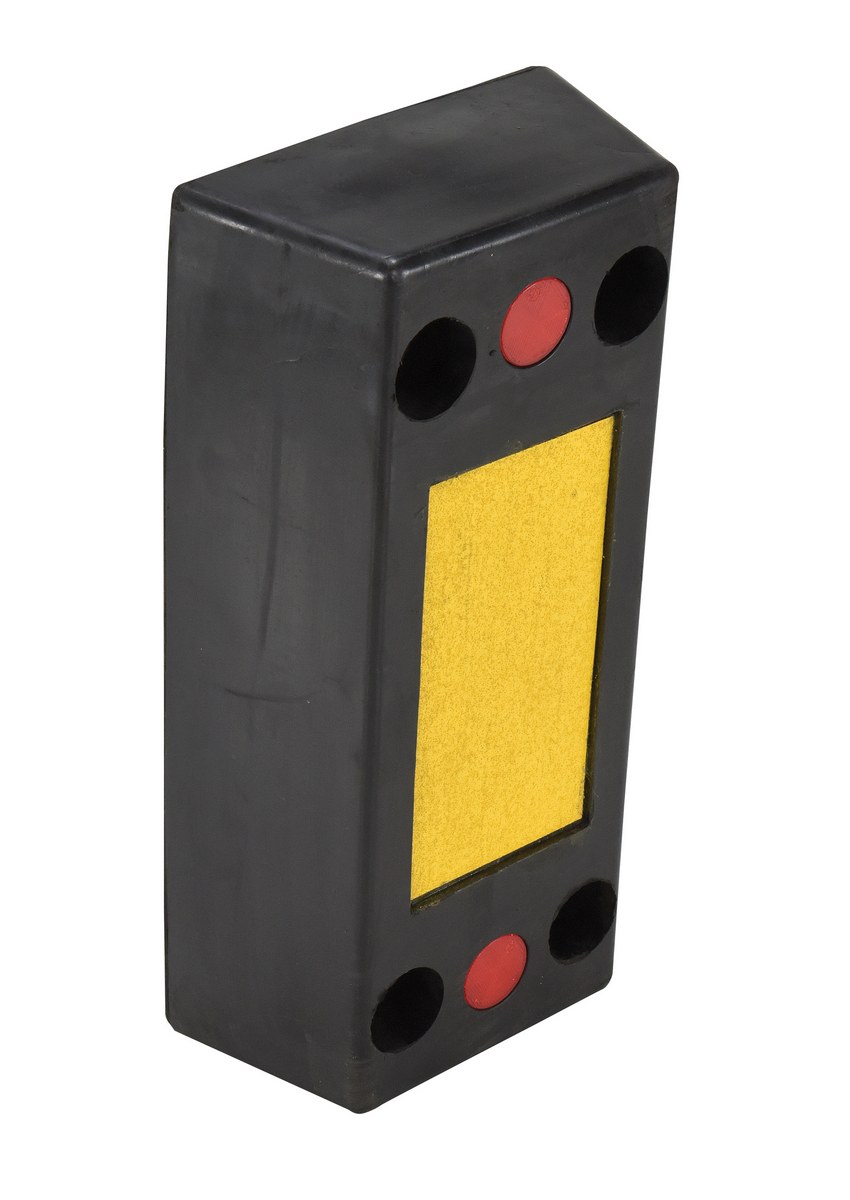

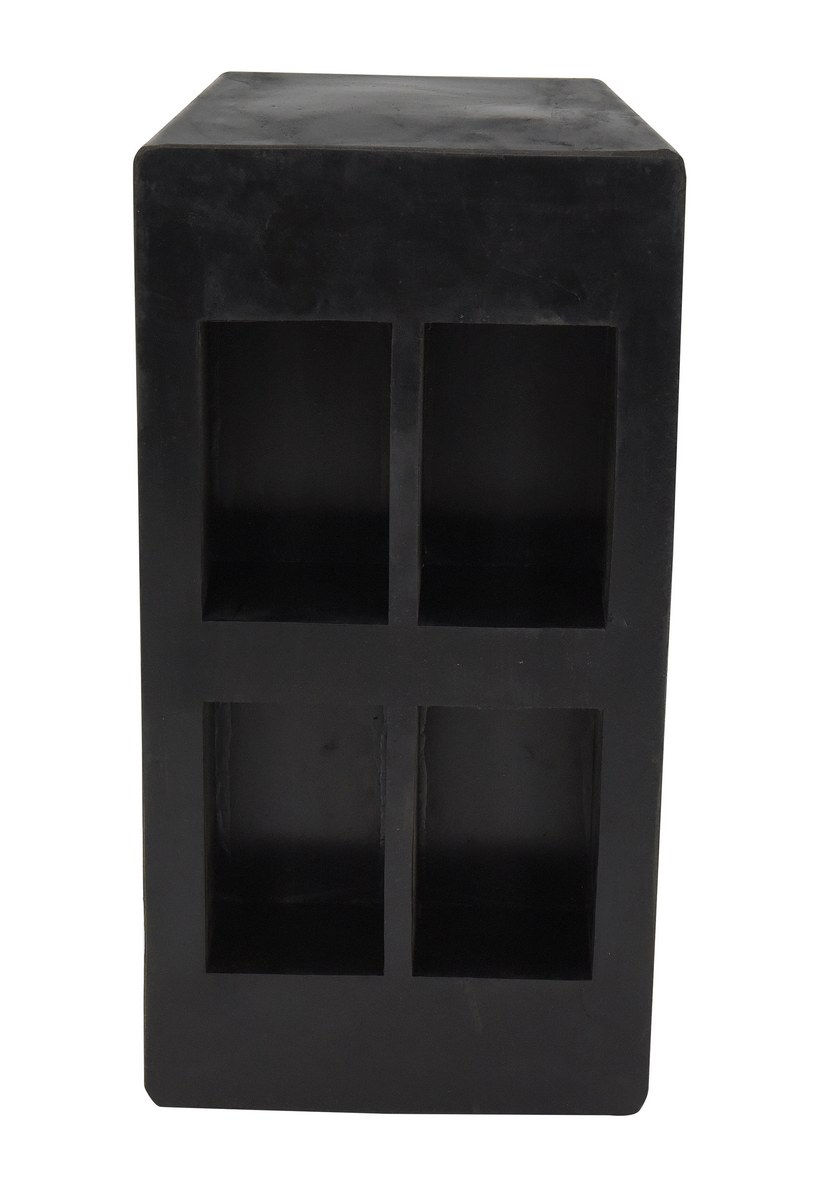

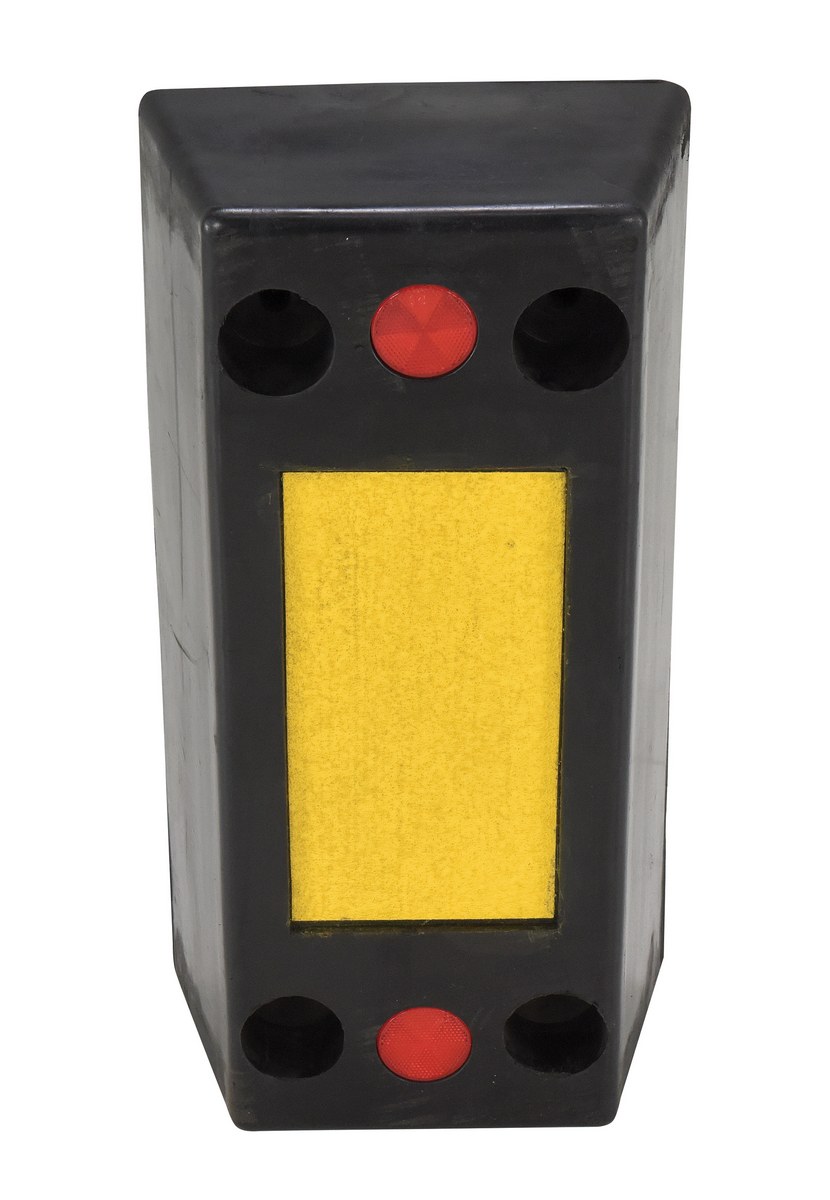

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-1224-6 24"W x 12"H x 6"P 4, 3/4" 57

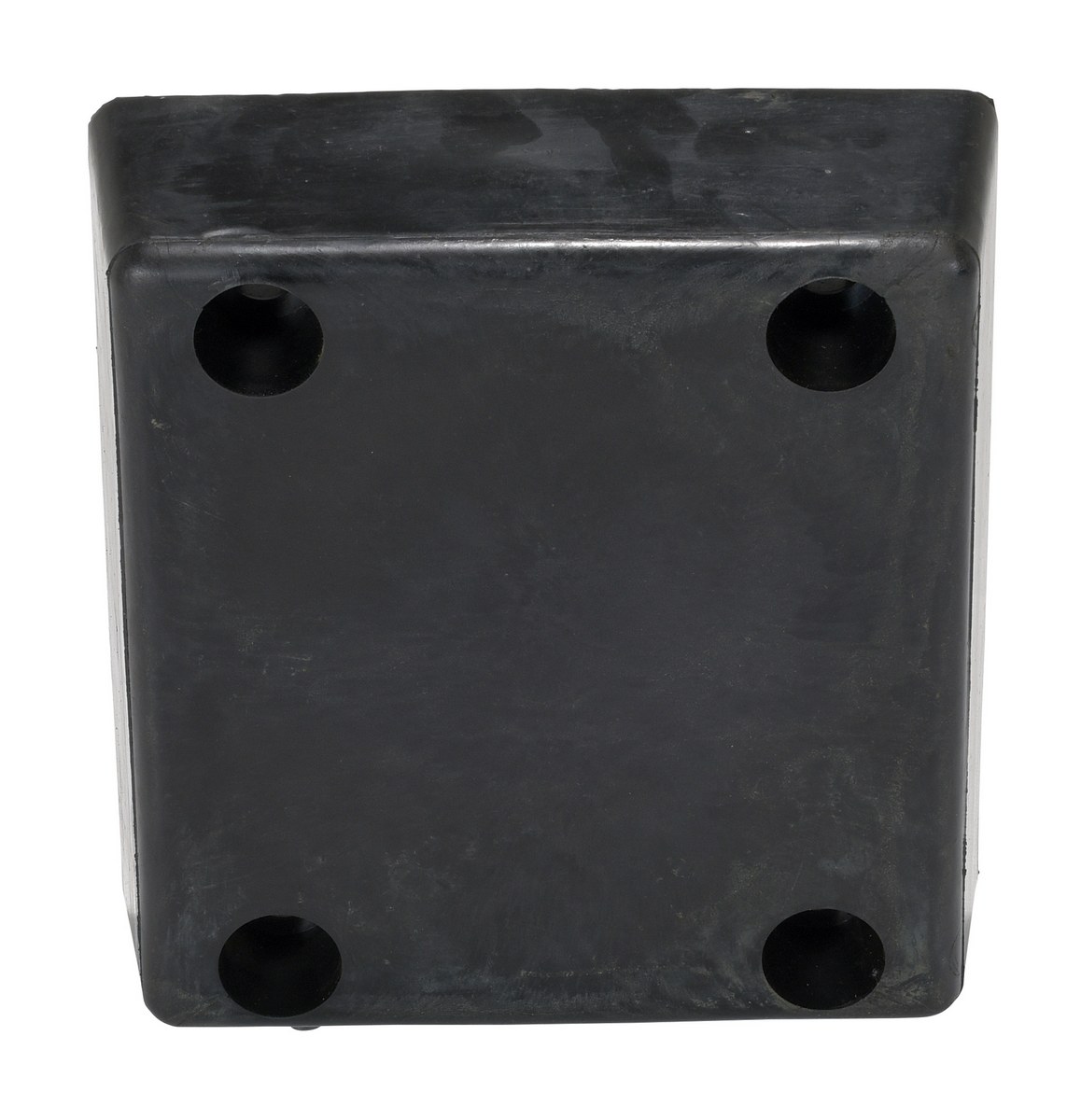

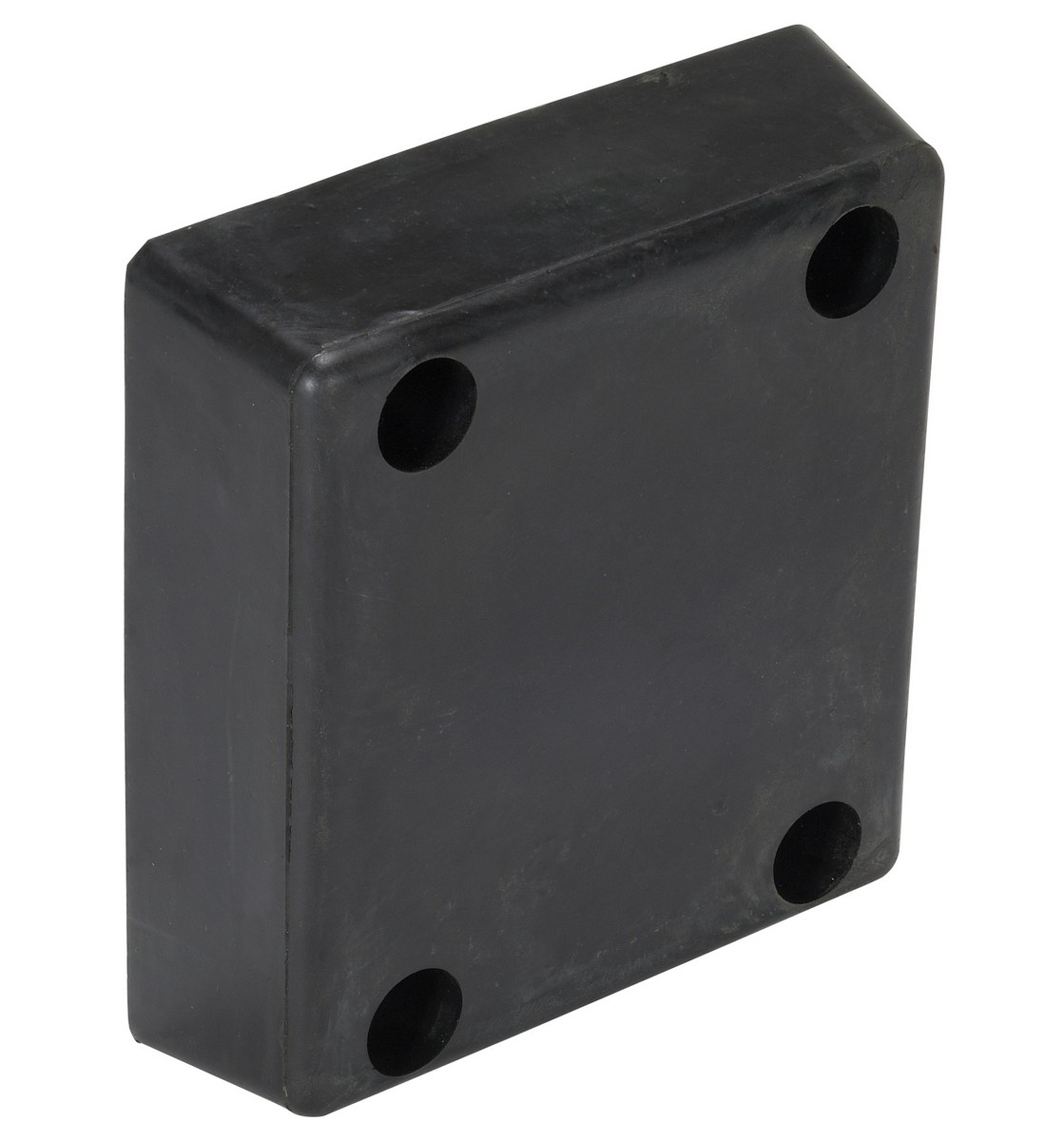

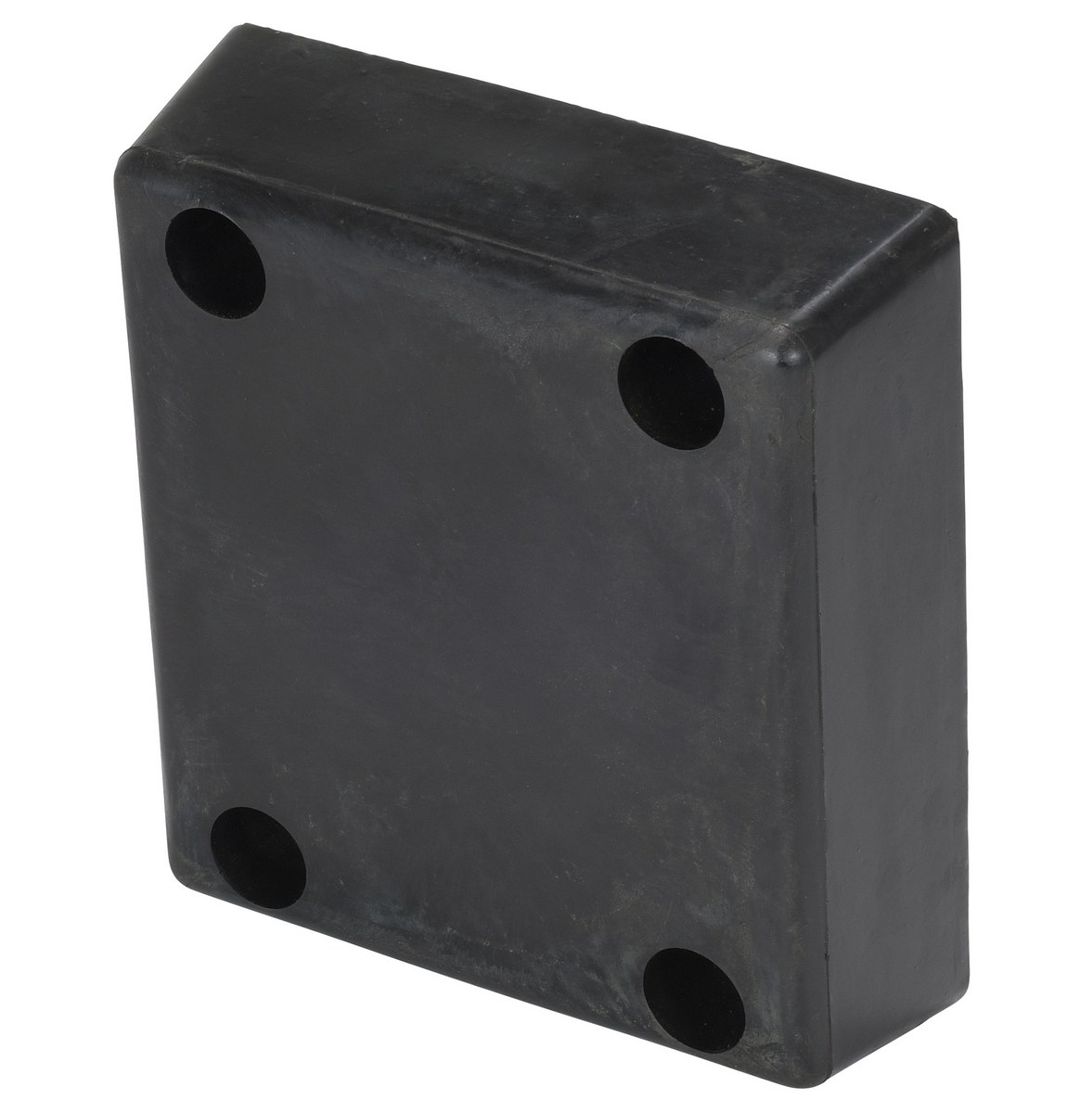

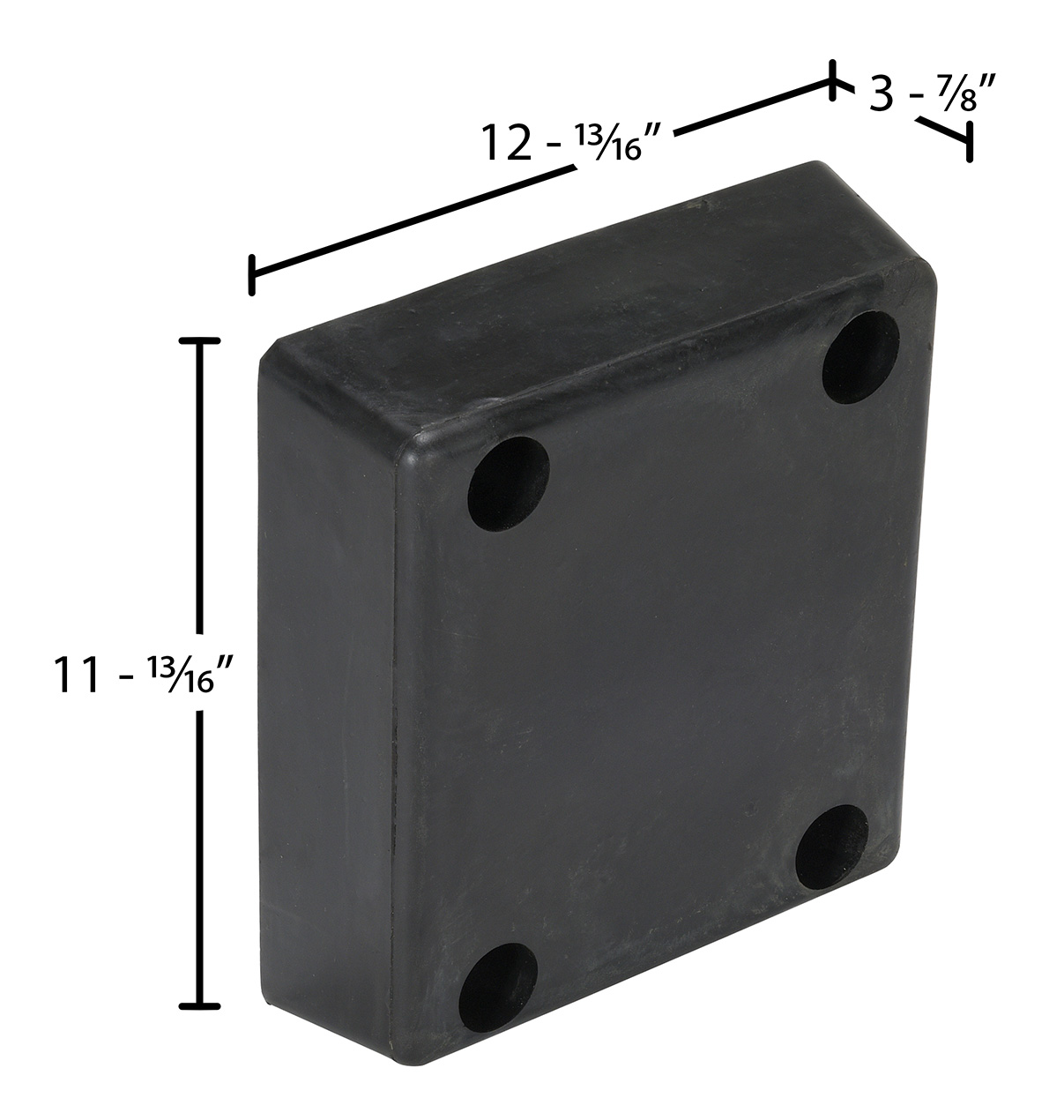

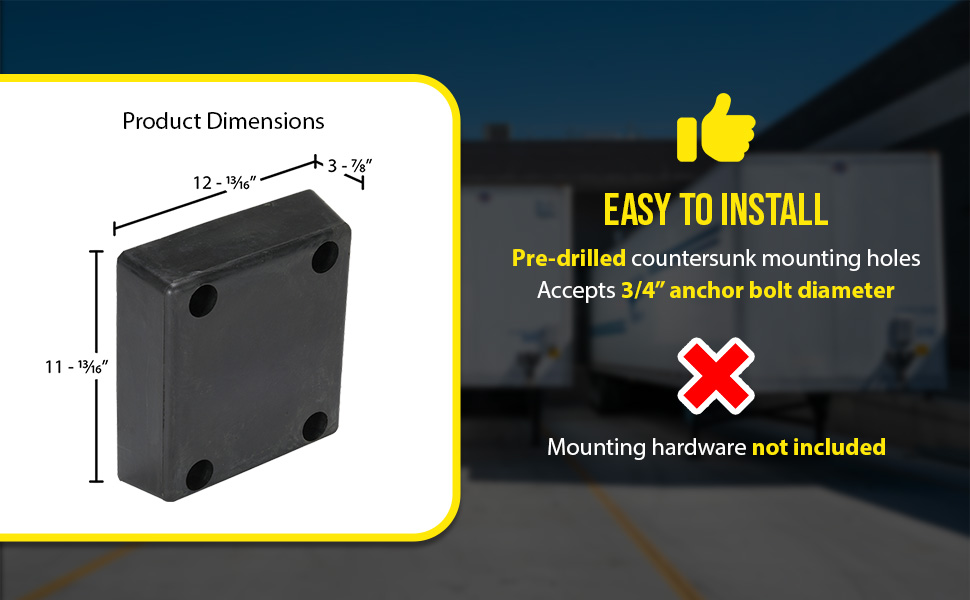

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-1213-4 12"W x 13"H x 4"P 4, 3/4" 24

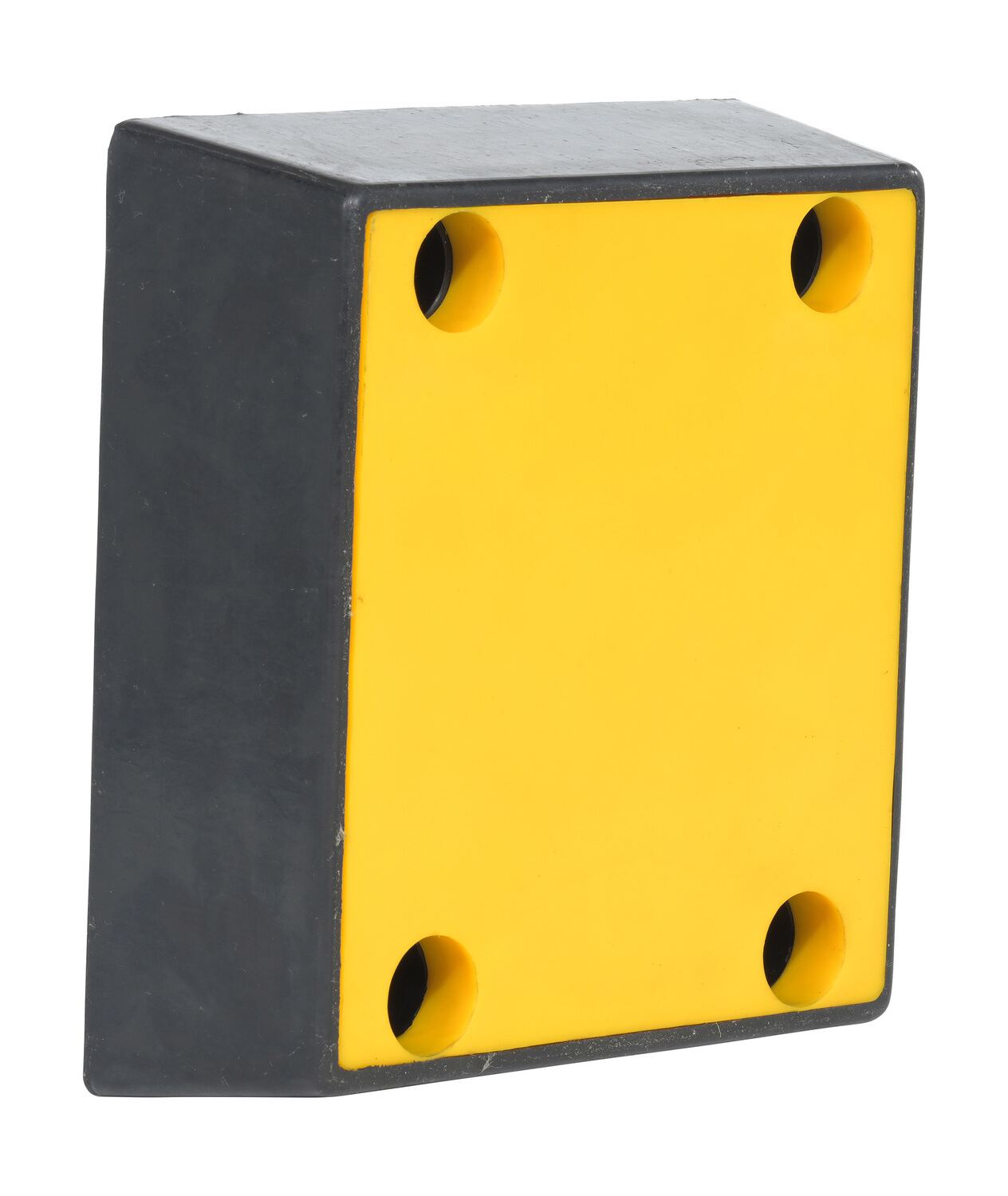

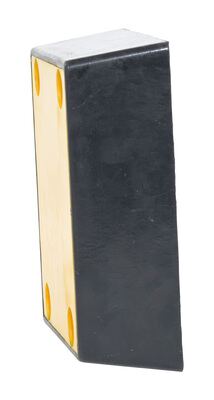

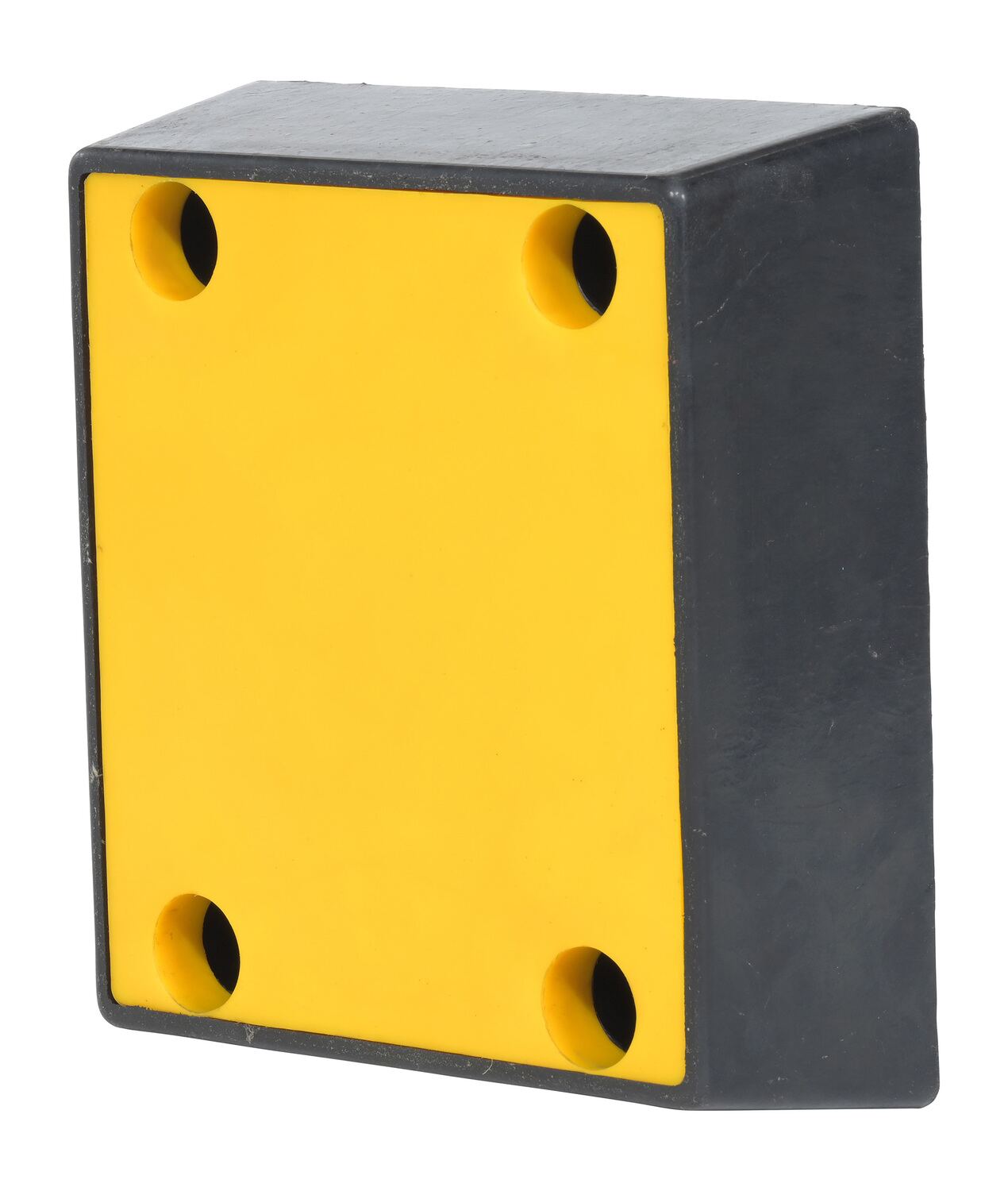

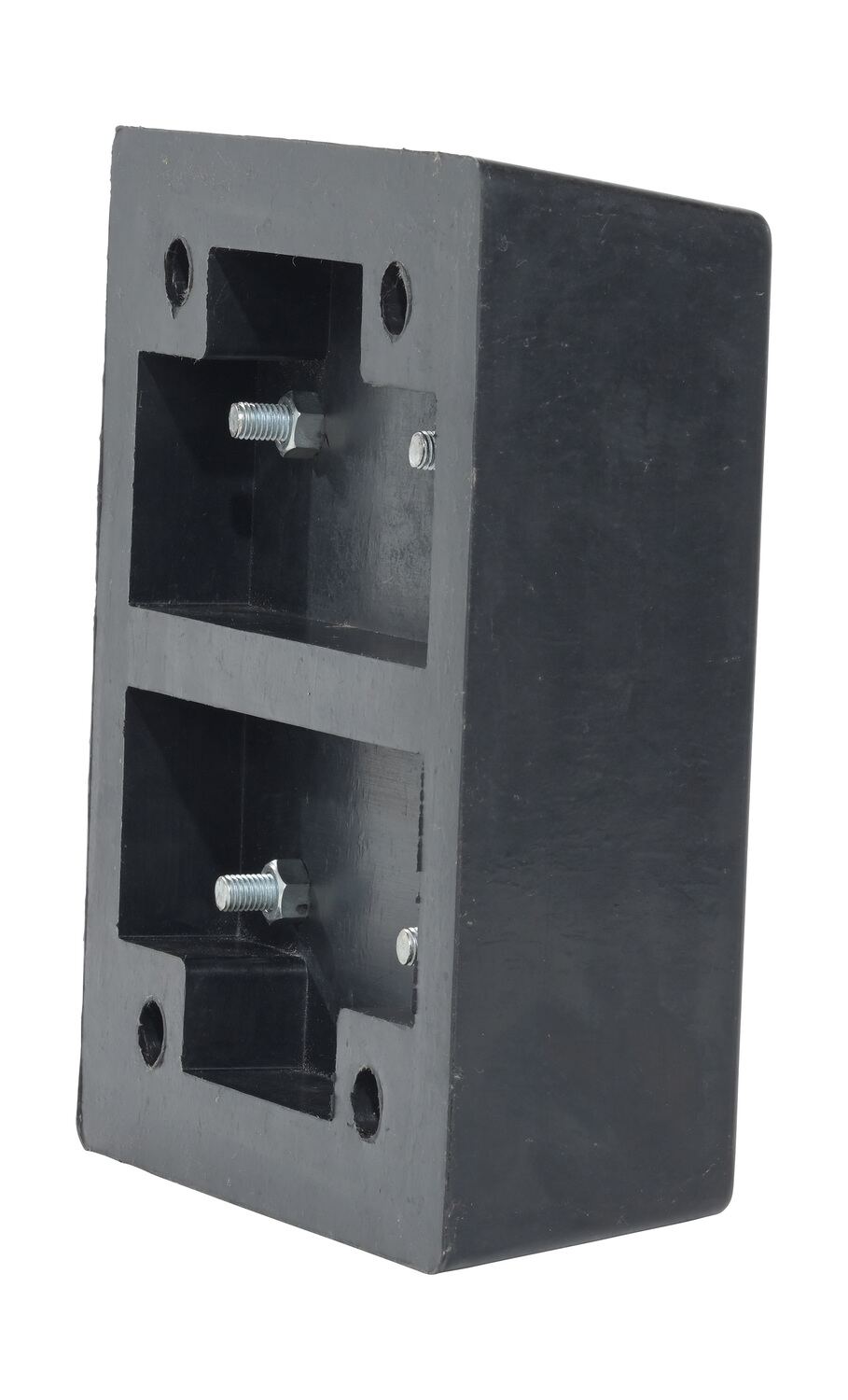

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-1213-4PF 12"W x 13"H x 4"P (Plastic Face Molded Bumper) 4, 3/4" 24

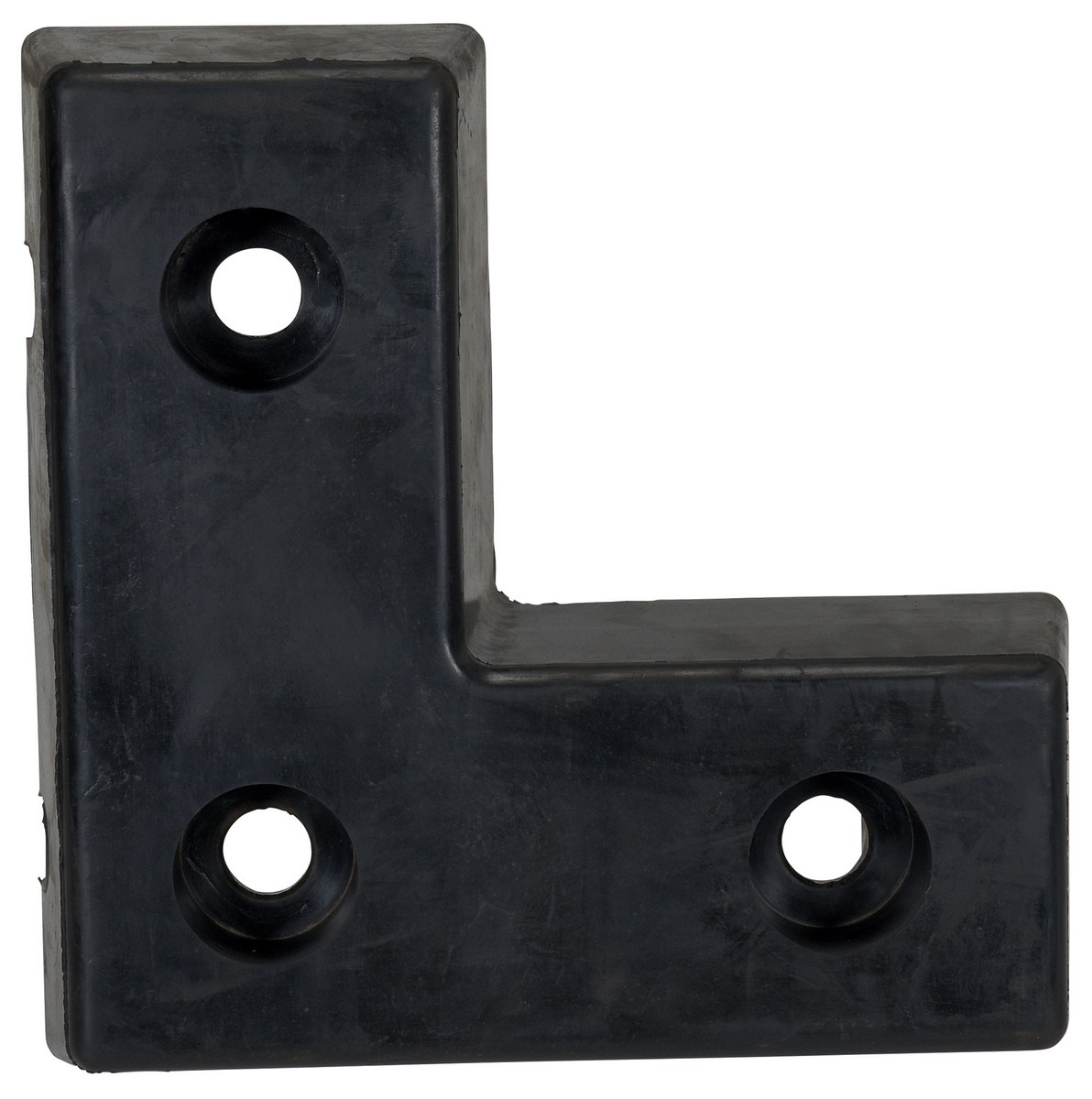

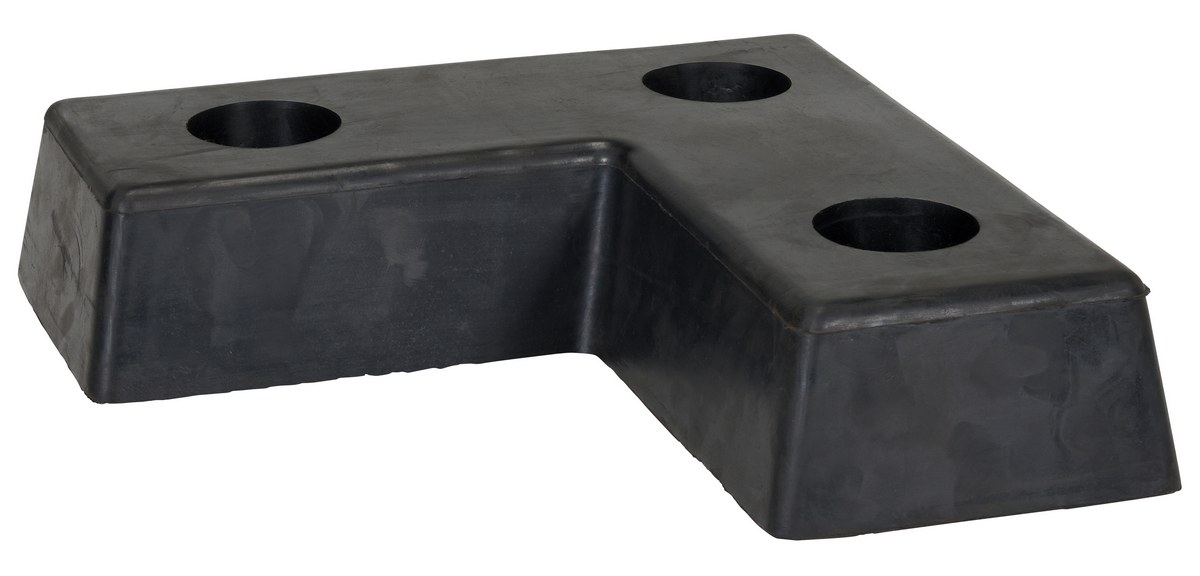

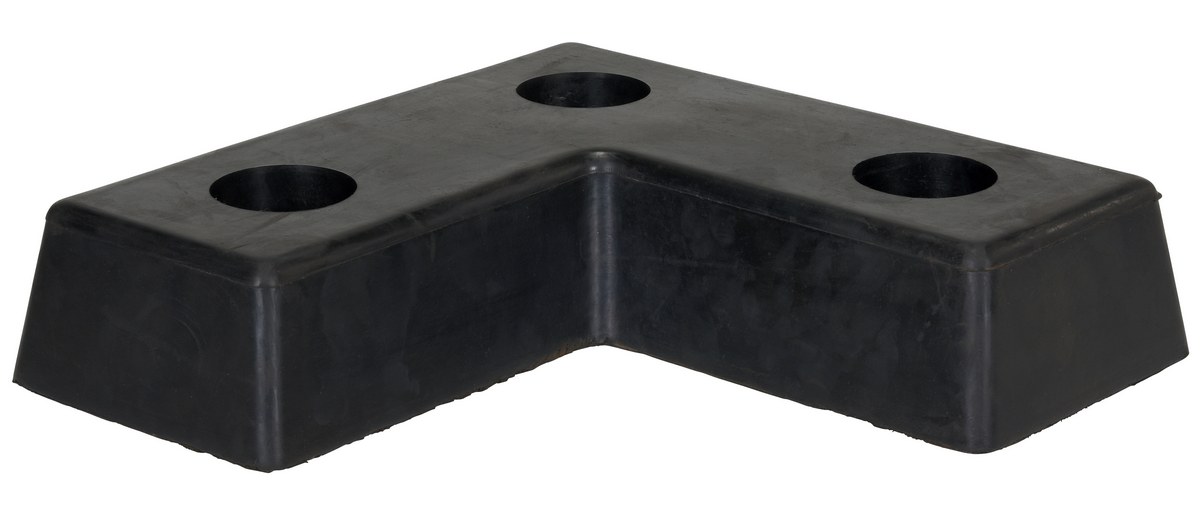

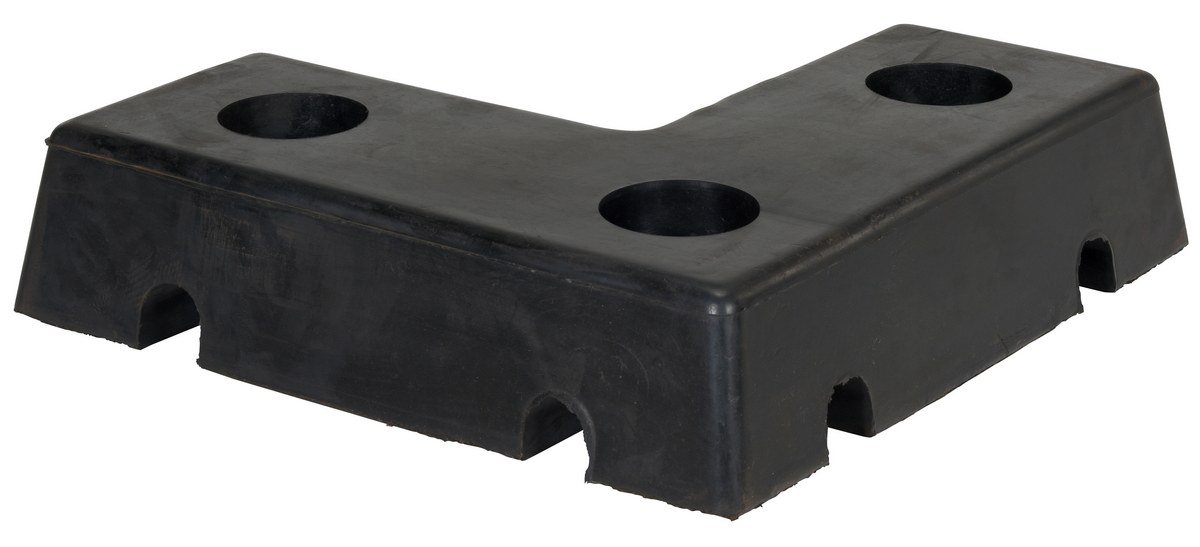

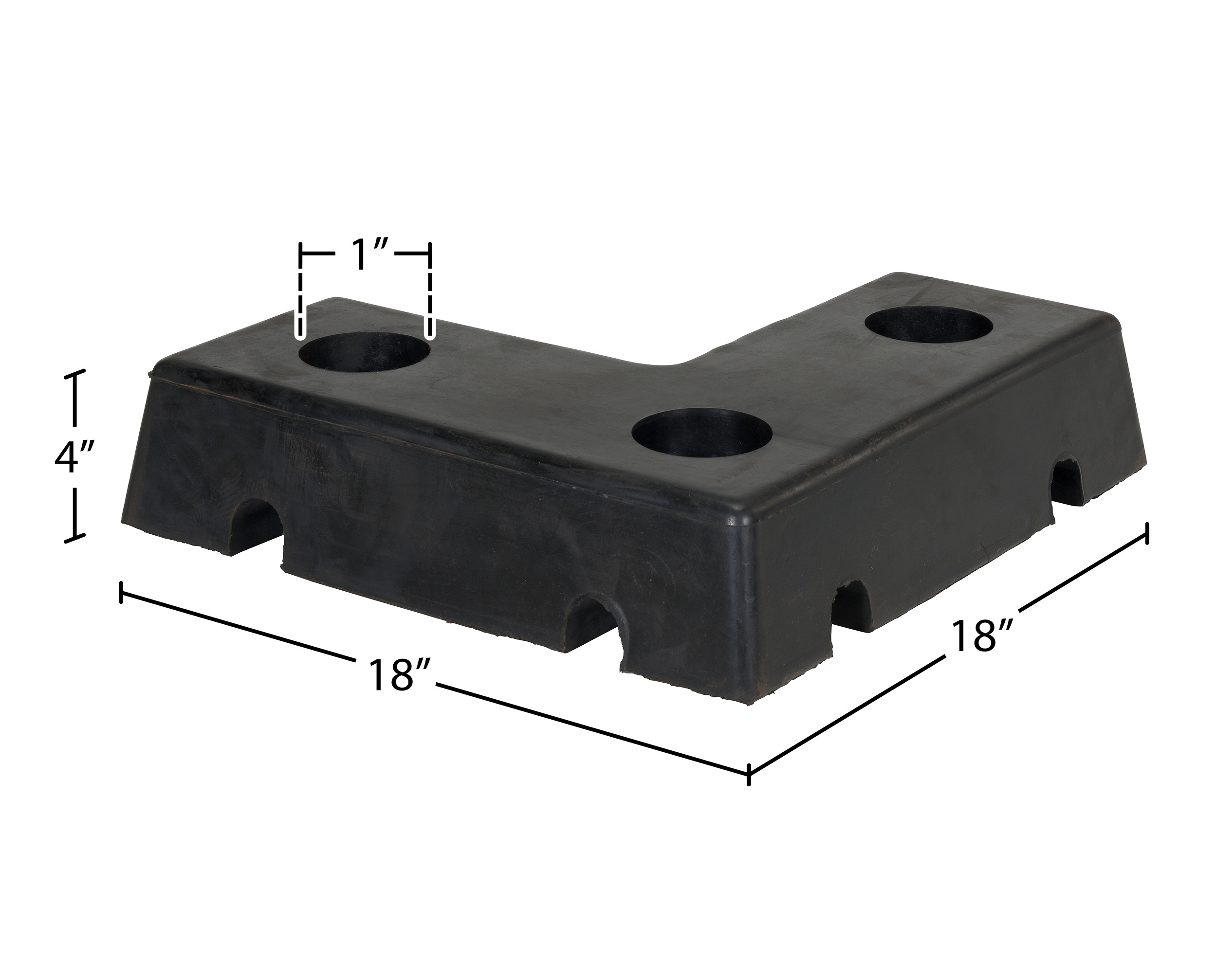

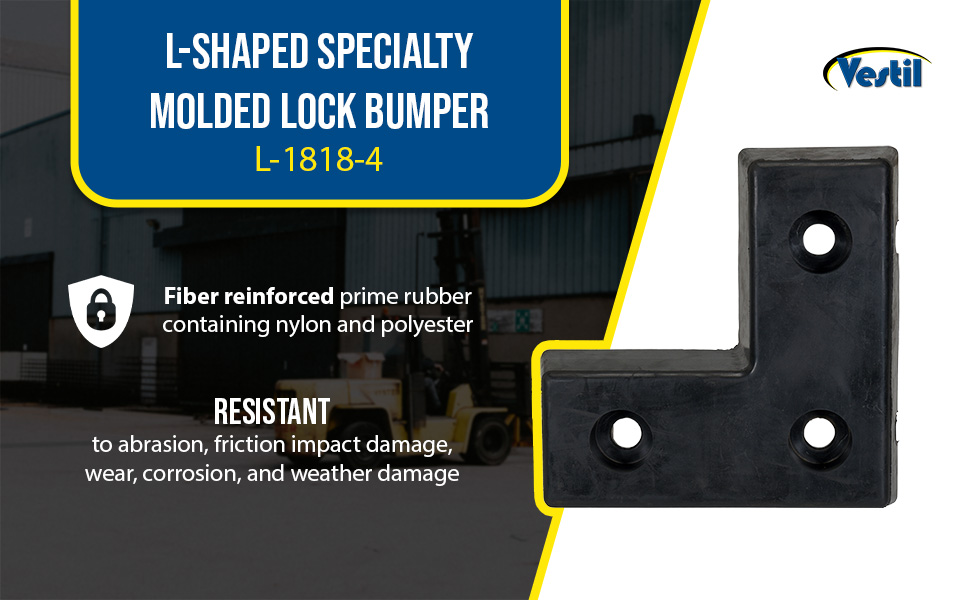

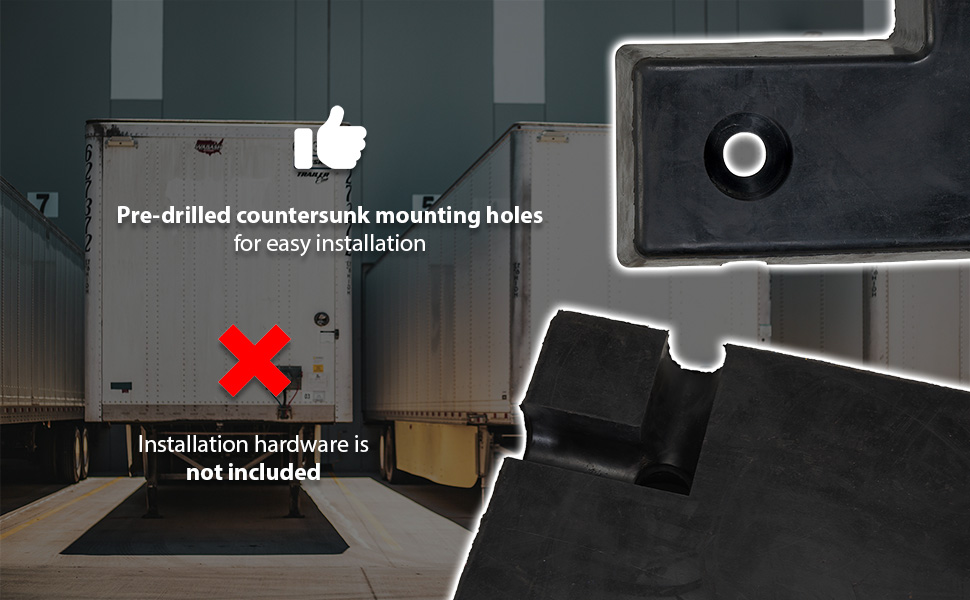

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate L-1818-4 18"W x 18"H x 4"P (L-Shaped Molded Rubber) 3, 1" 36

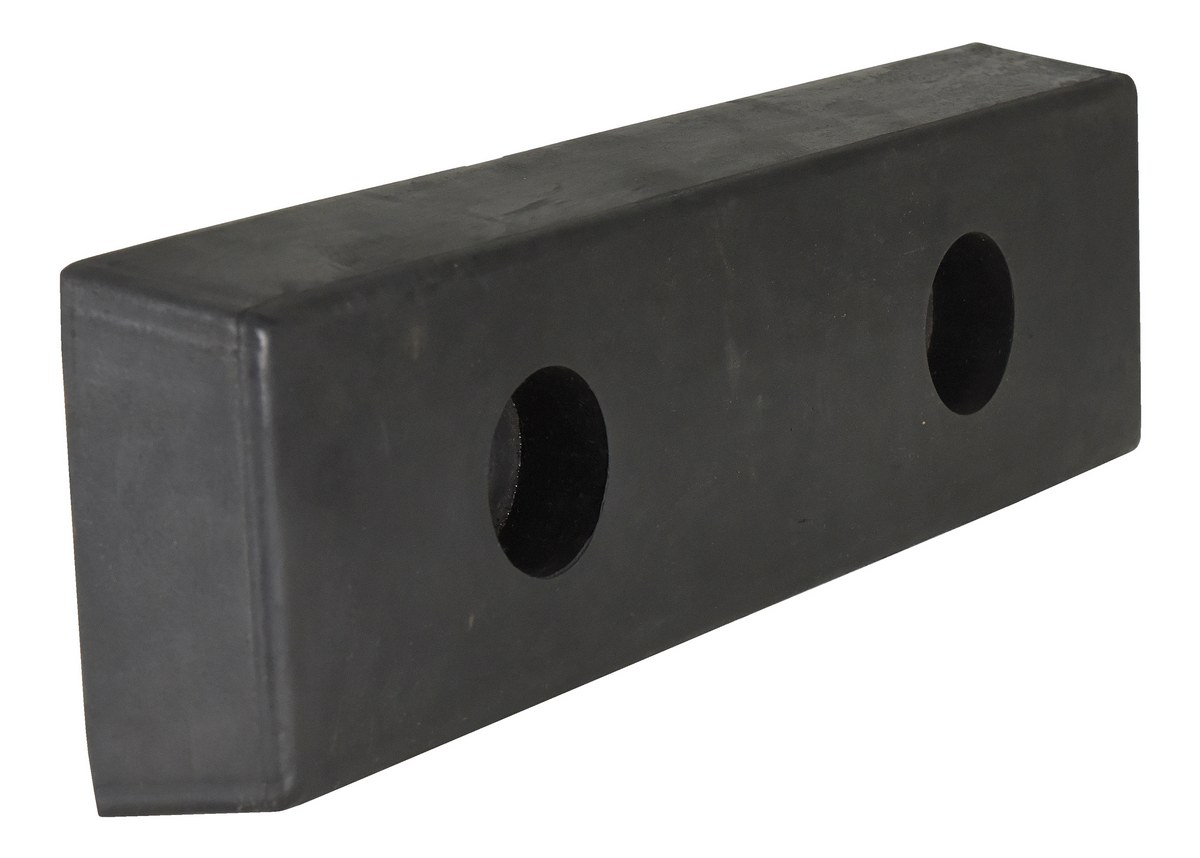

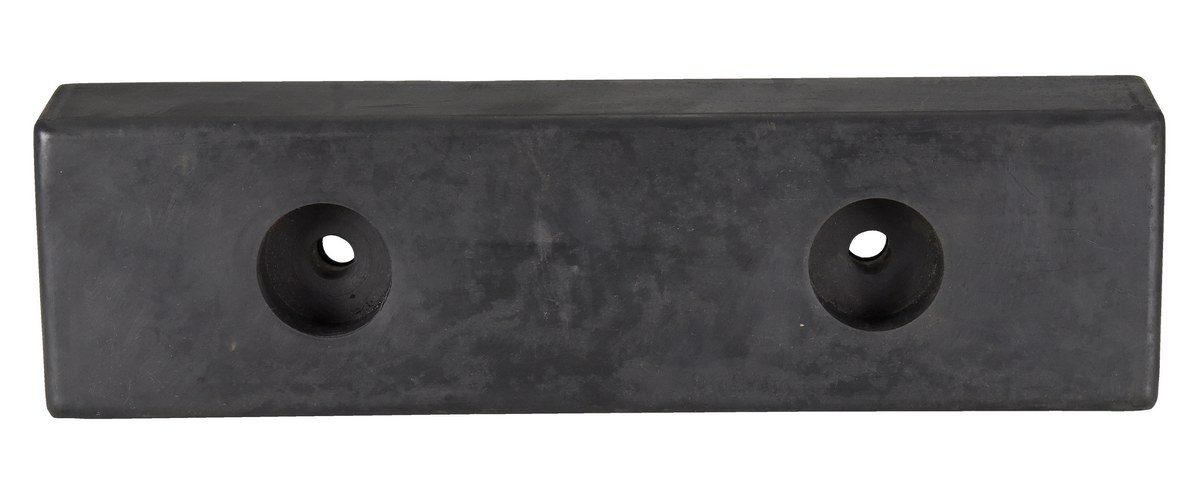

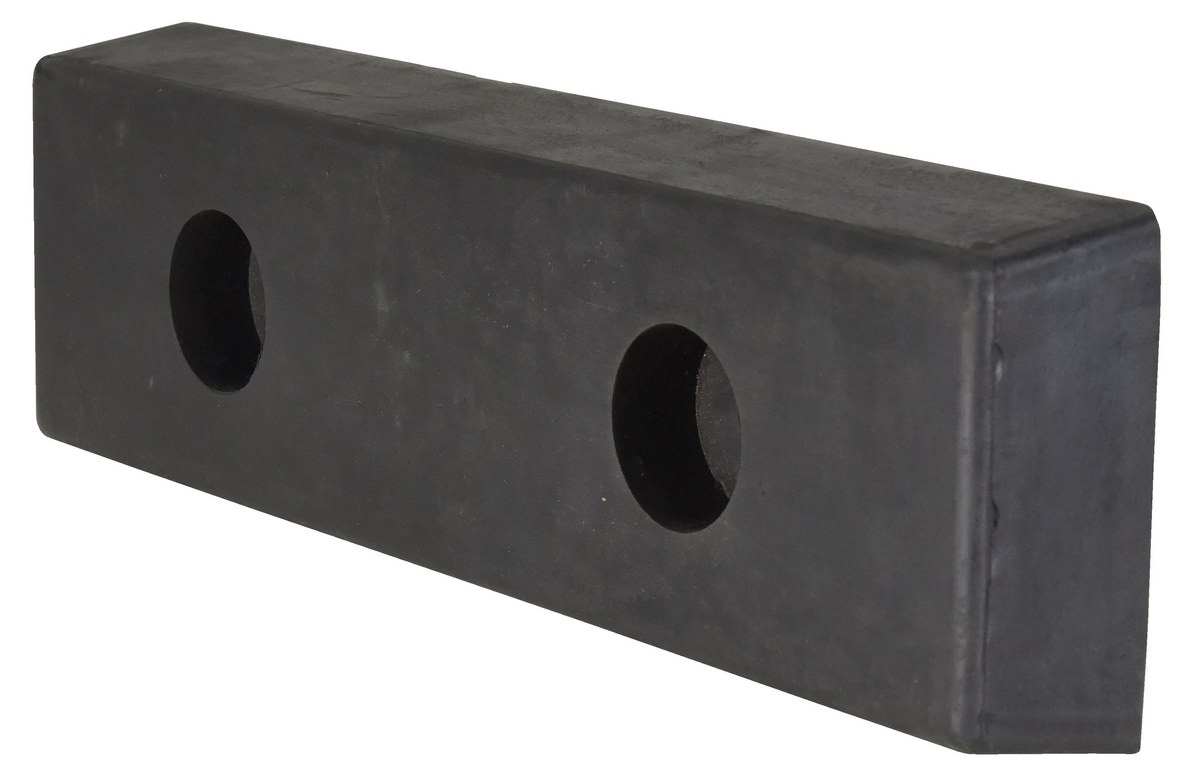

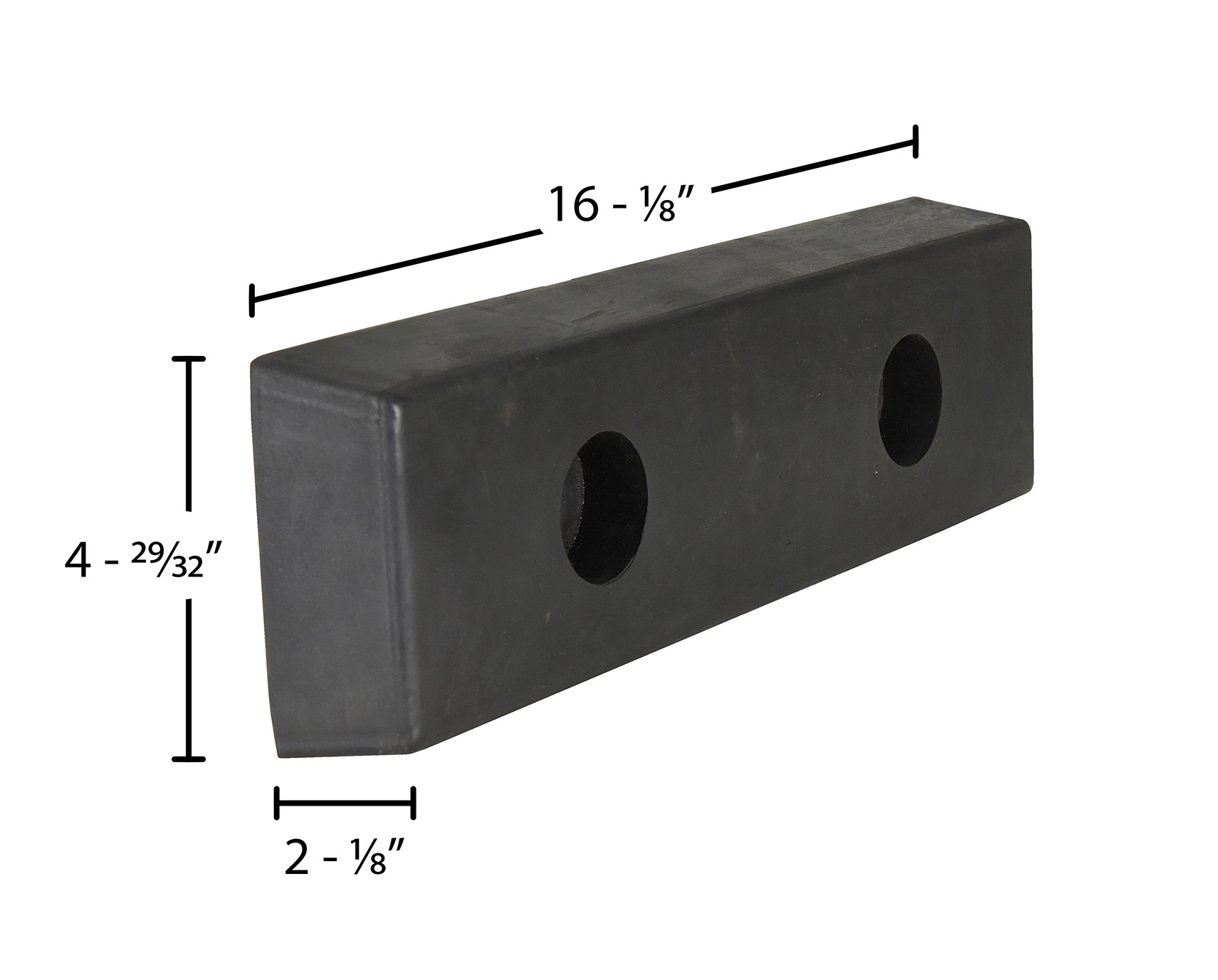

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-516 16"W x 5"H x 2"P 2, 5/8" 8

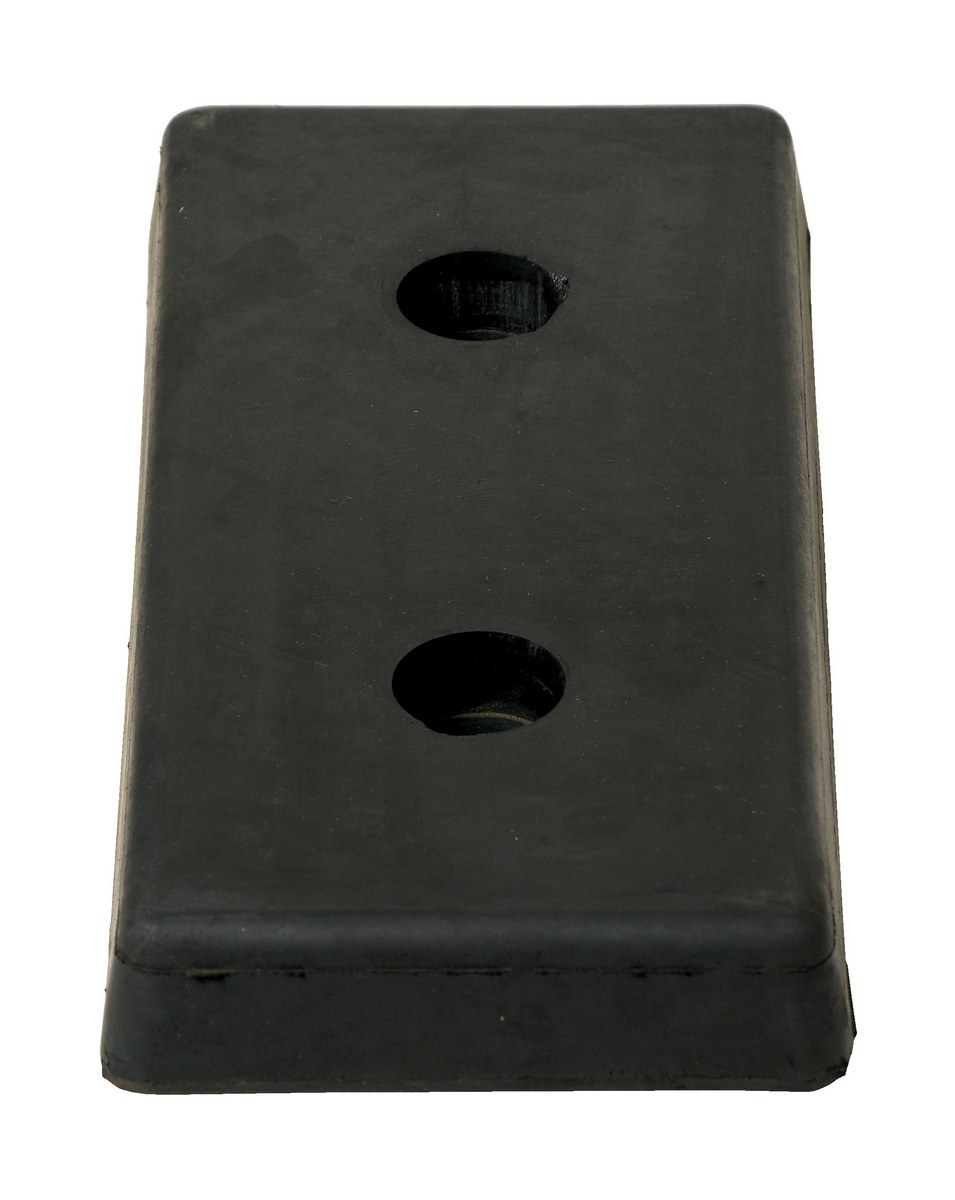

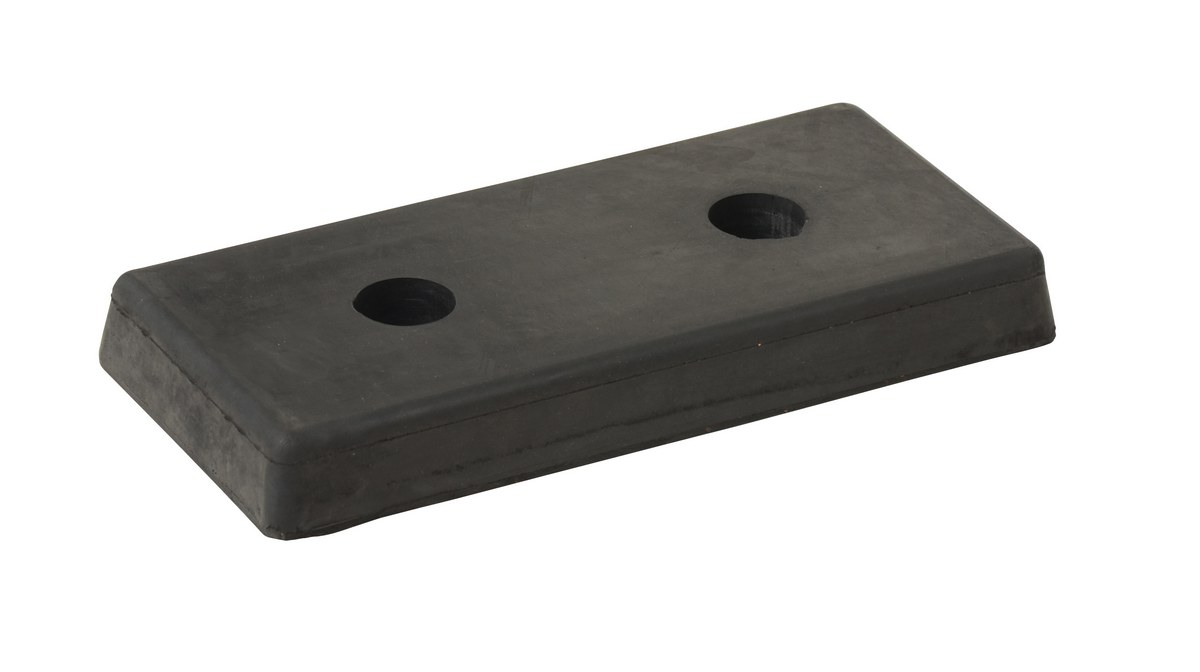

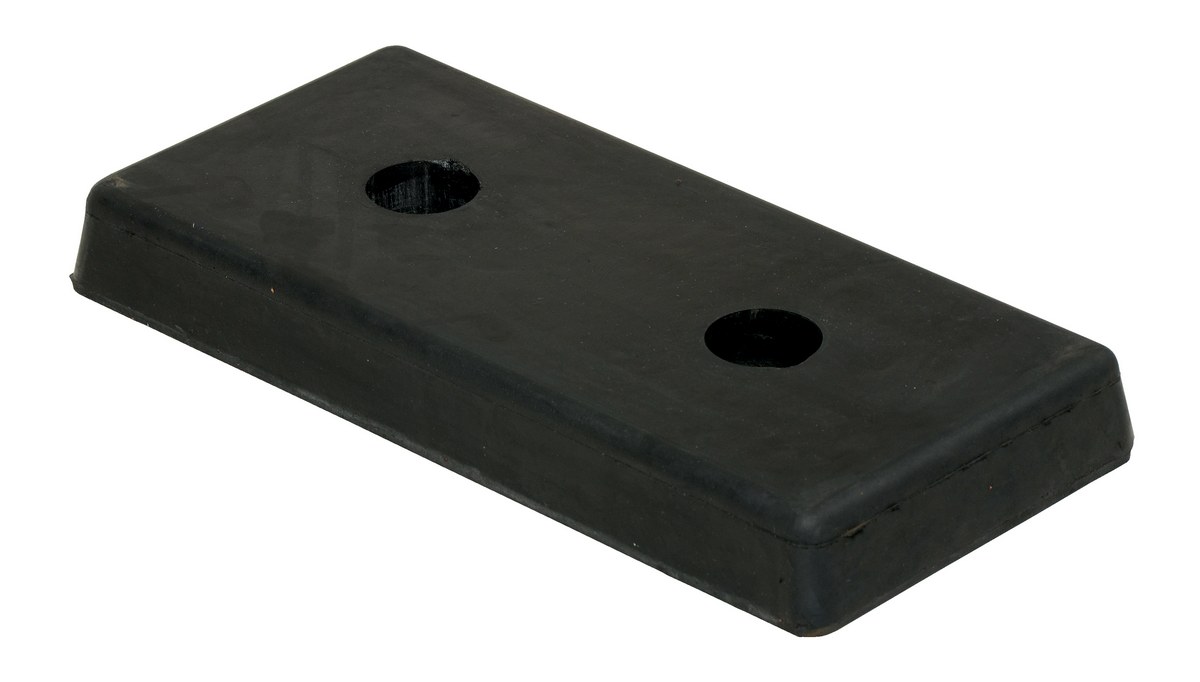

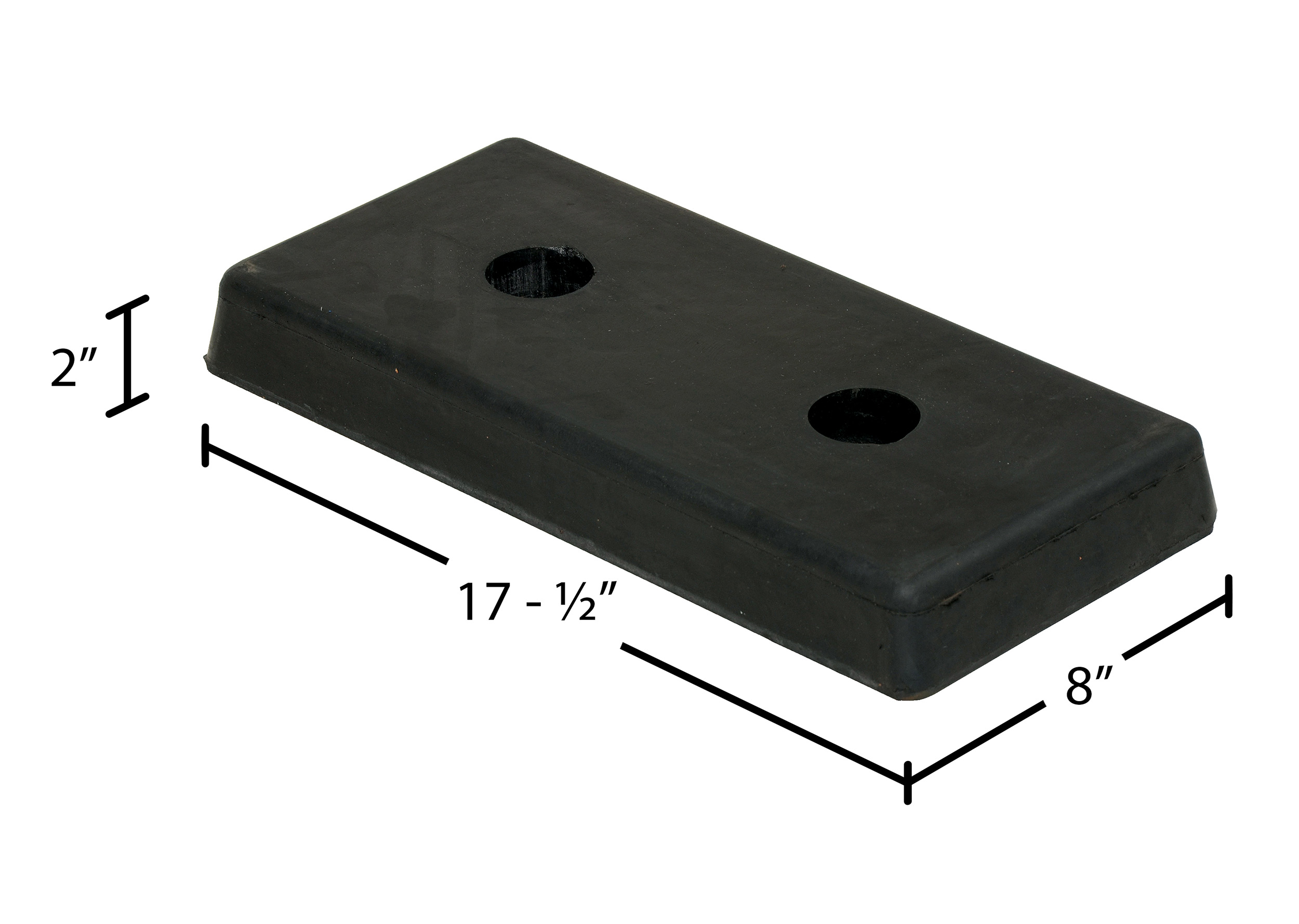

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-818 18"W x 8"H x 2"P 2, 5/8" 16

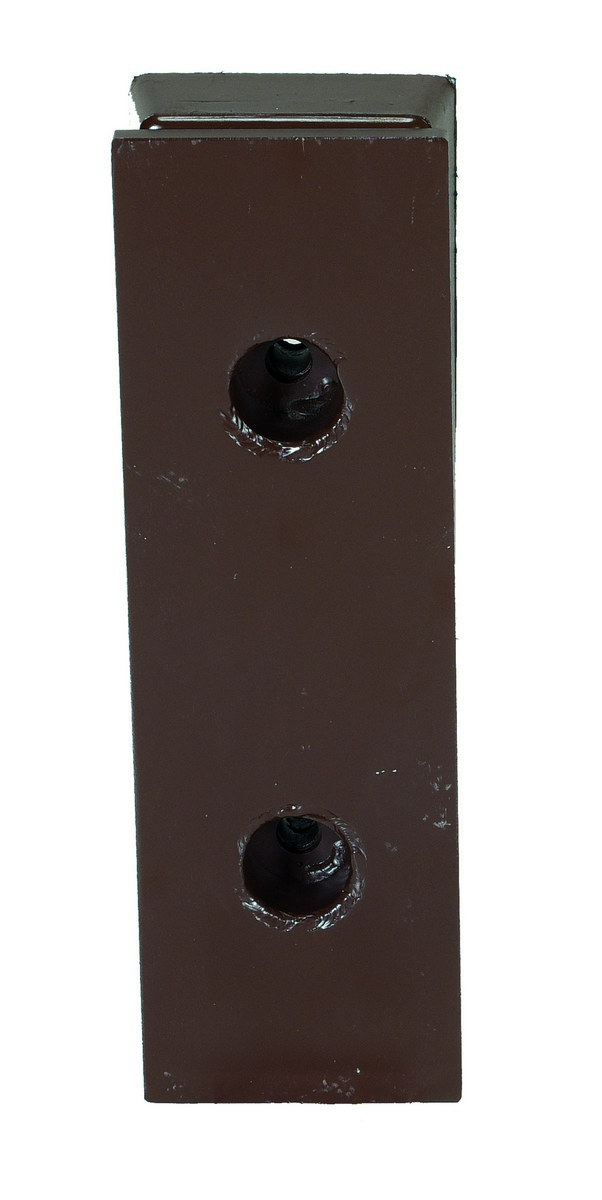

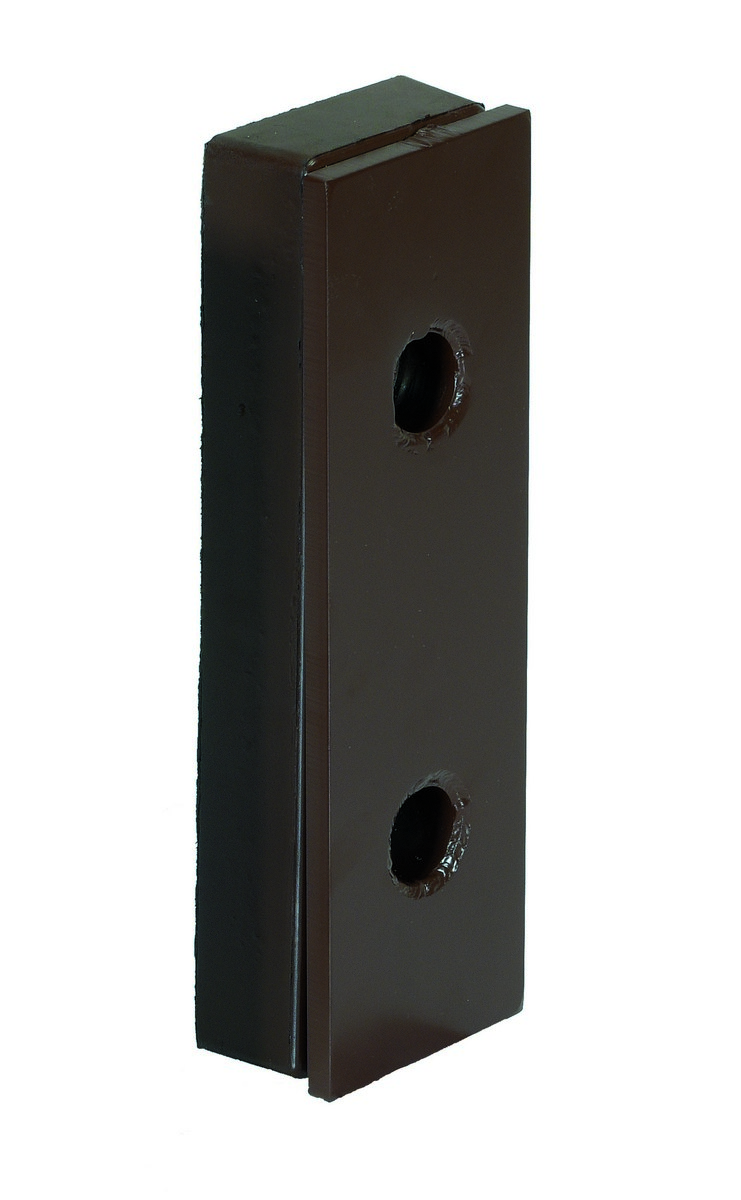

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-516-SF 16"Wx5"Hx2-1/2"P (Steel Faced Molded Bumper) 2, 3/4" 21

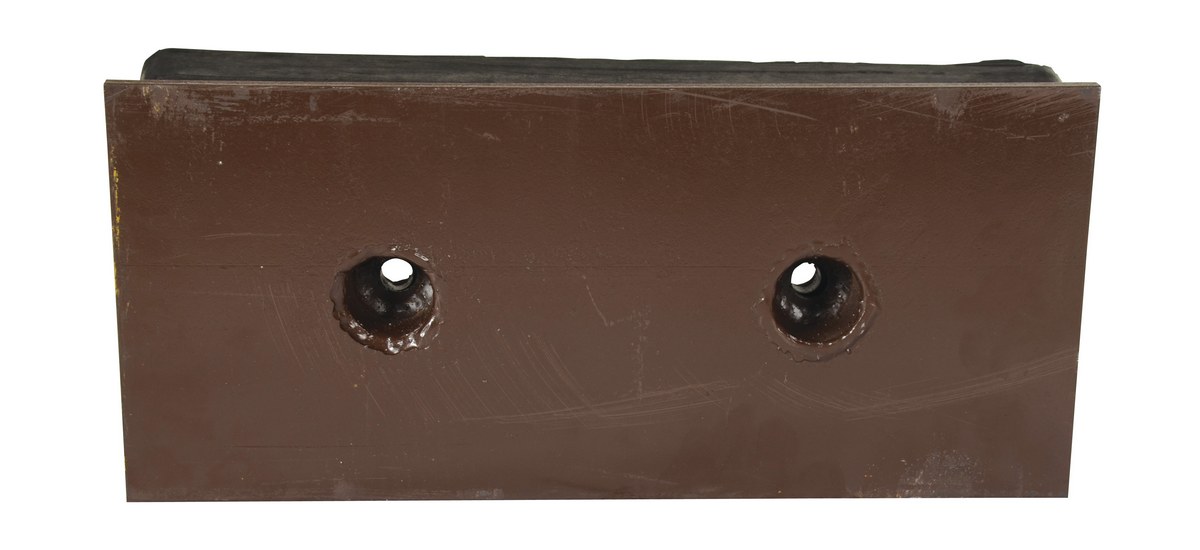

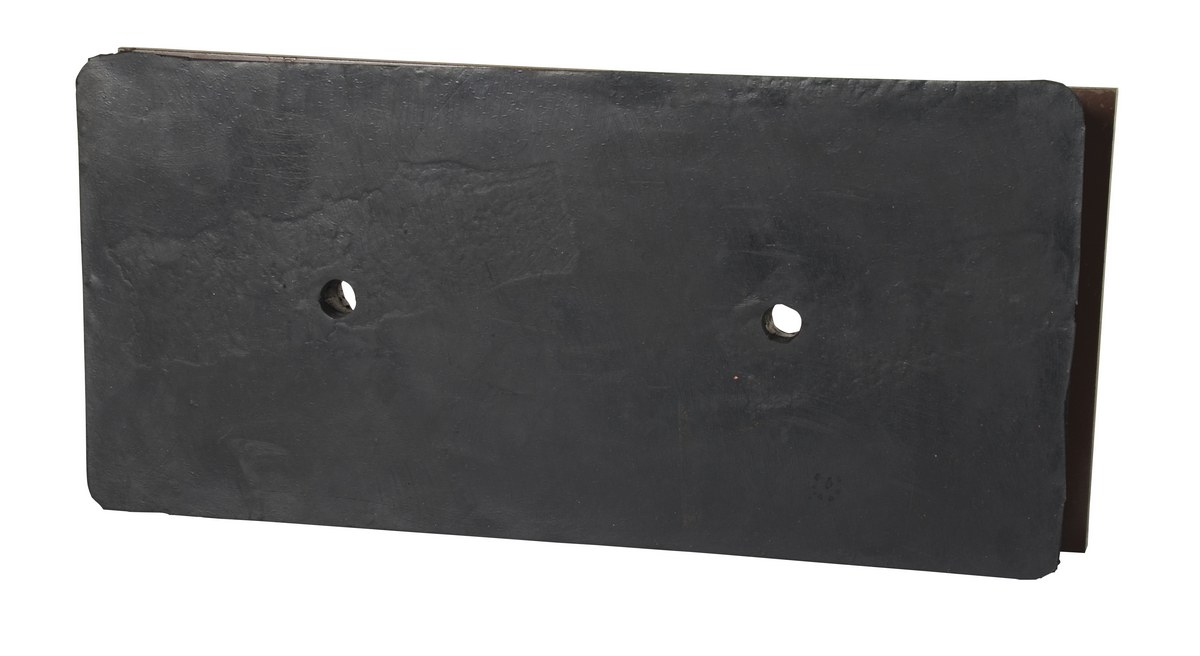

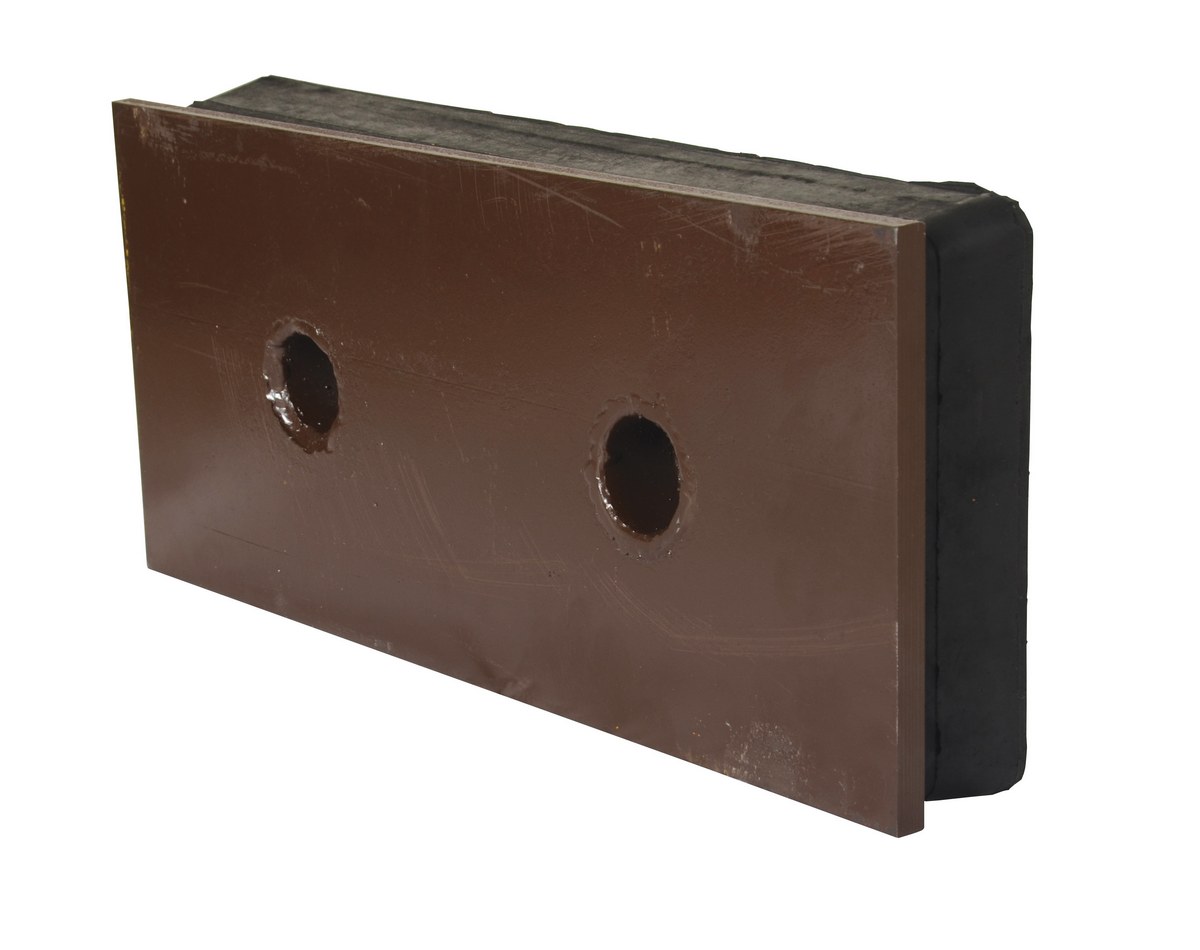

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate B-818-SF 18"Wx8"Hx2-1/2"P (Steel Faced Molded Bumper) 2, 3/4" 35
Anchor Bolts Hardware for Concrete Installation
Model Quantity & Size -- Wt.
(lbs)
AS-346 (1) 3/4" x 6" -- 1
AS-346-4PK (4) 3/4"x 6" -- 4
AS-584 (1) 5/8" x 4" -- 1
AS-584-4PK (4) 5/8" x 4" -- 4
