model AFSR-3672

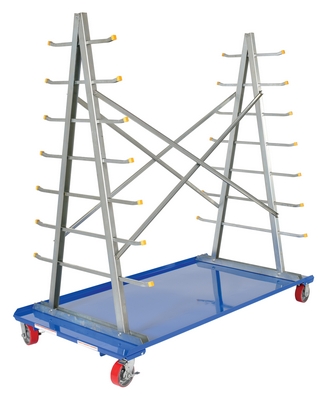

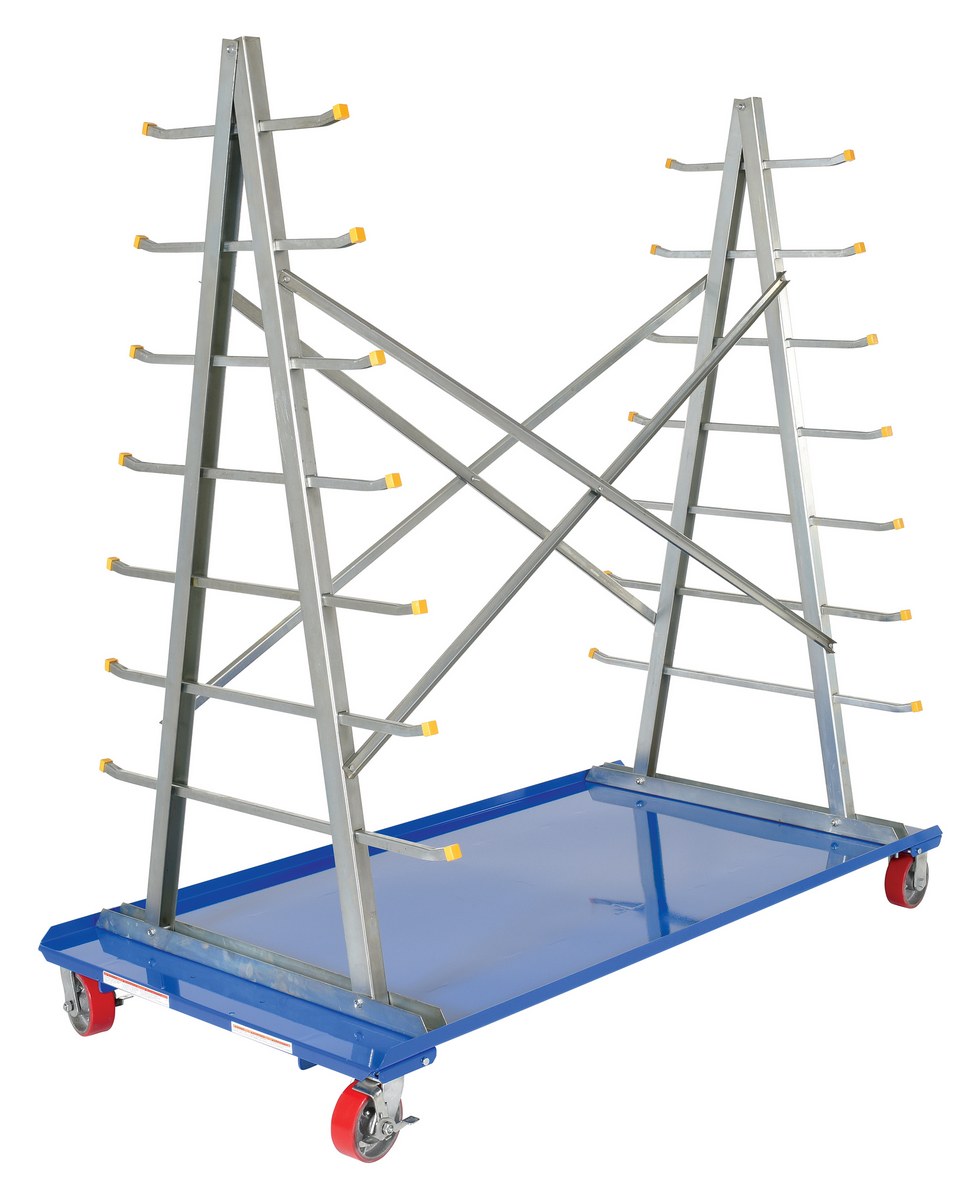

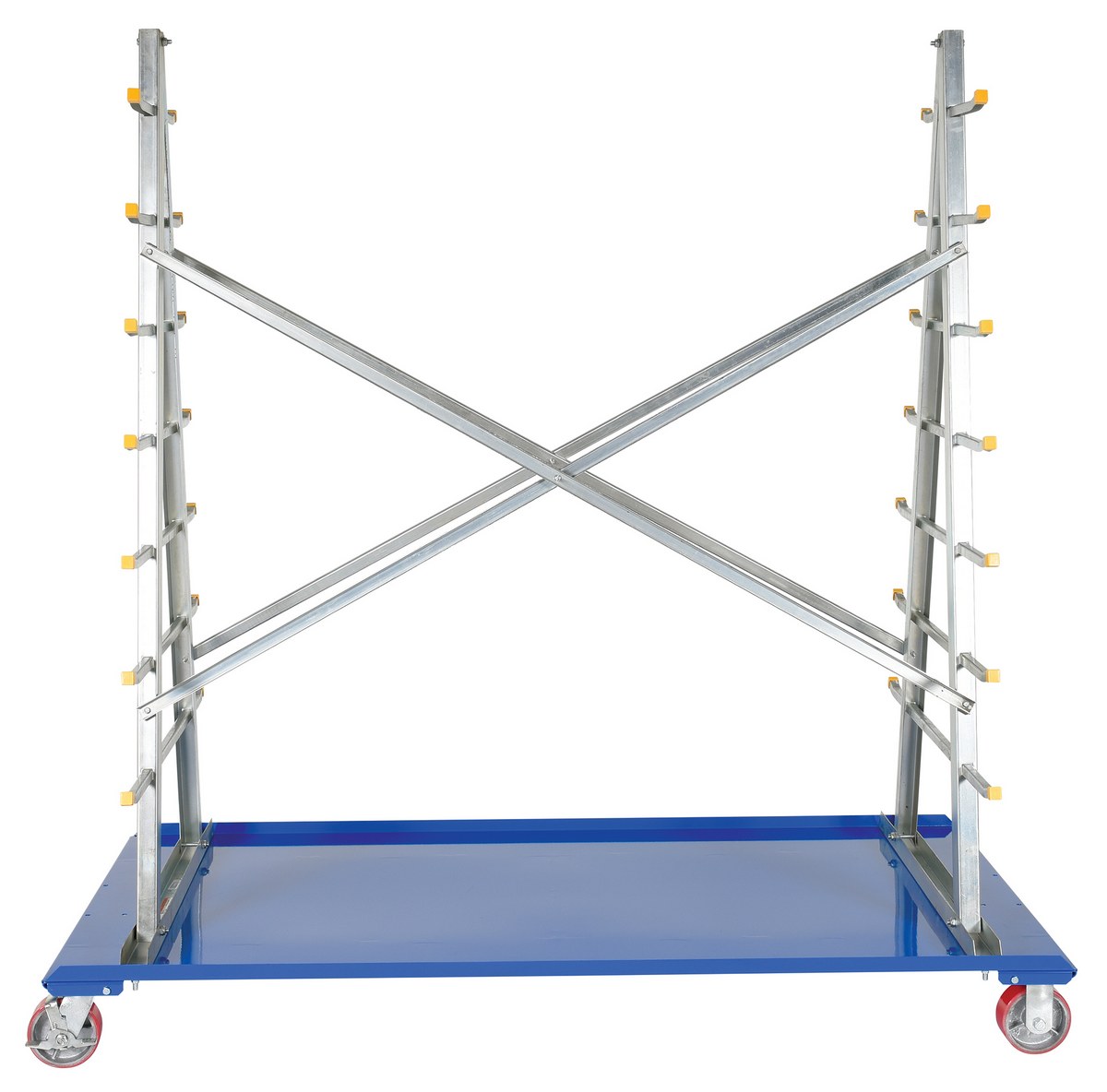

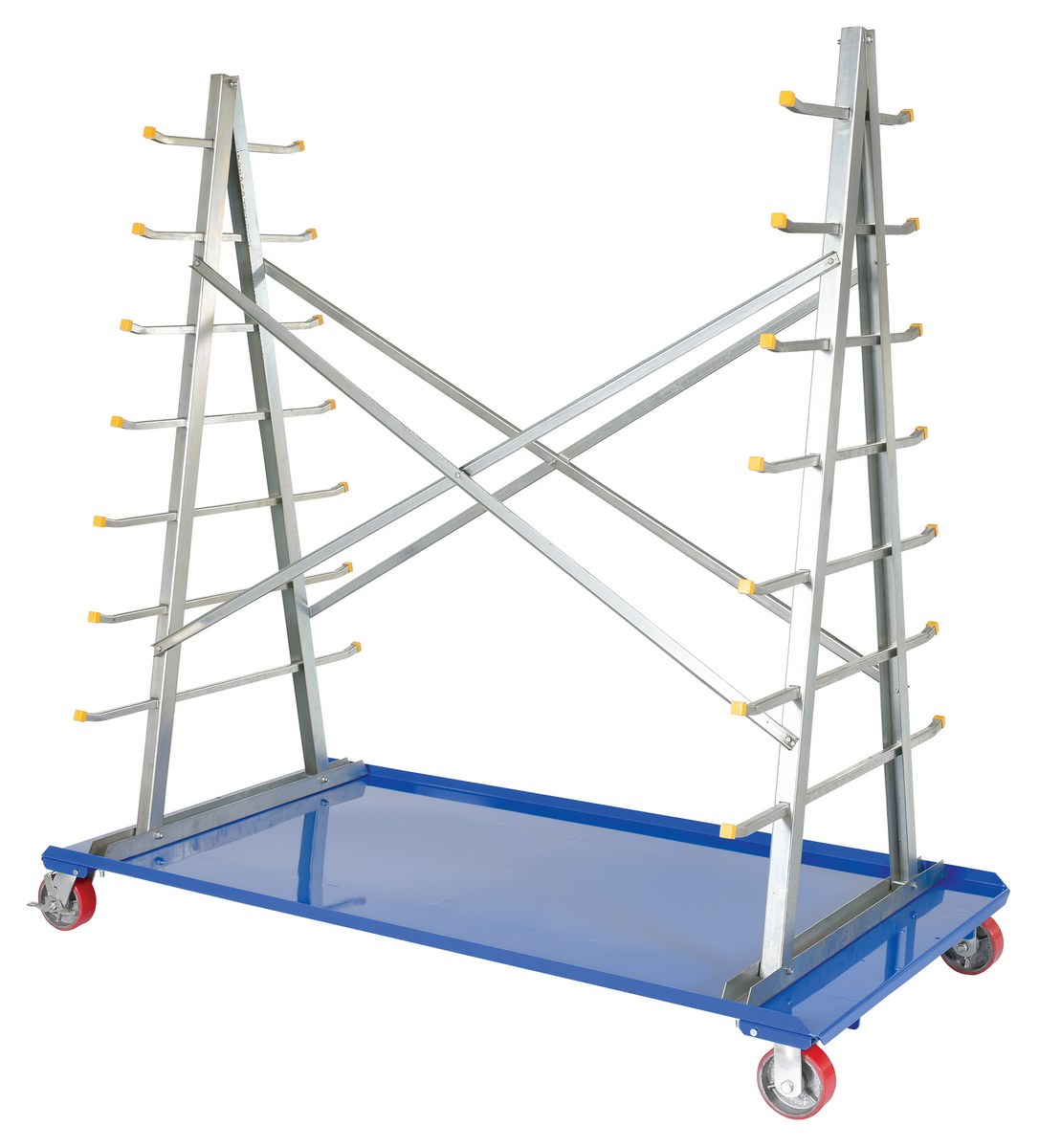

A-Frame Storage Cart

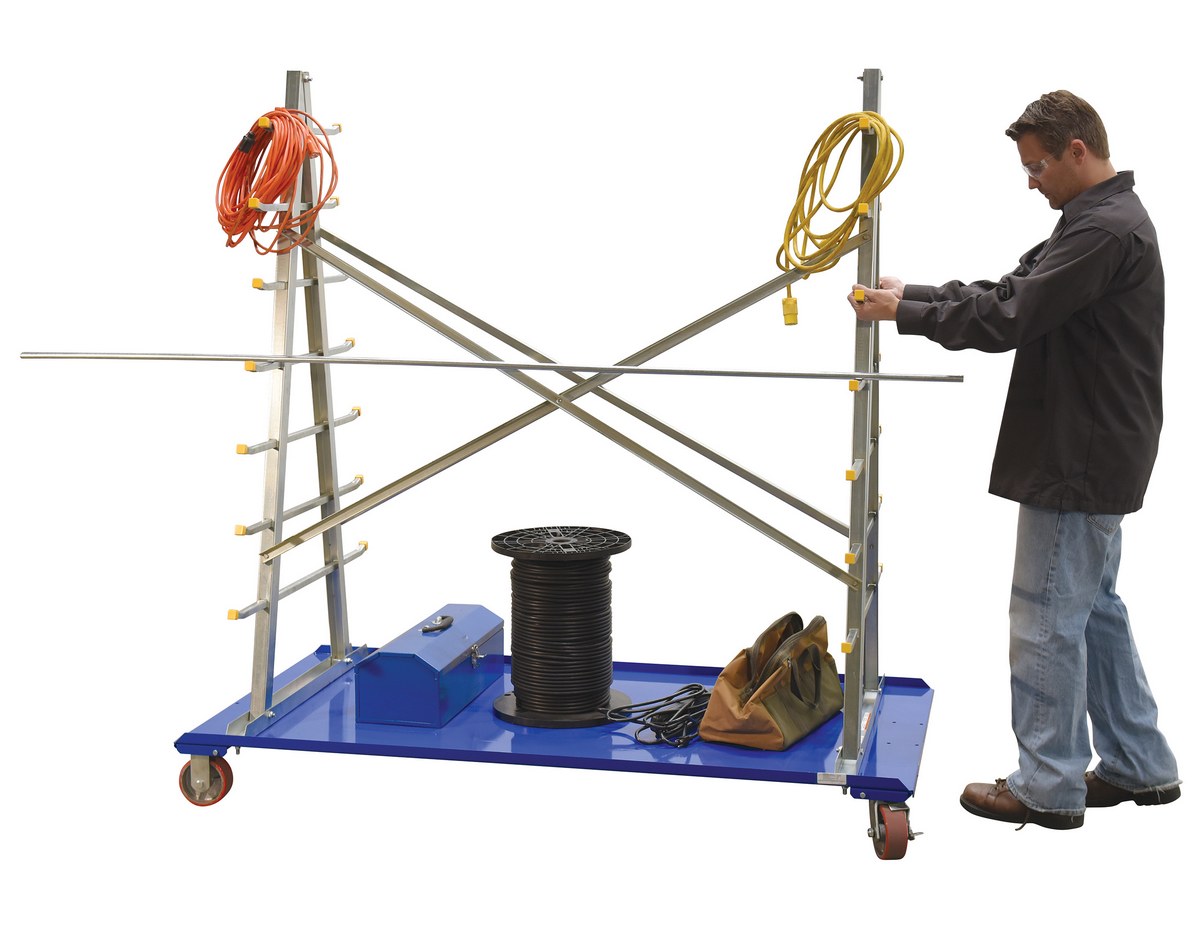

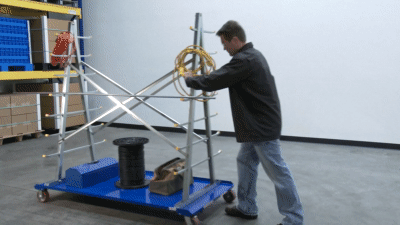

The portable A-Frame Cart with storage rack is ideal for storage and transporting pipe, conduit and other types of bar material. Storage arms extend 12" beyond frame with a clearance of 7-1/4" between arms. Unit rolls on (2) rigid and (2) swivel 5" poly-on-steel casters with brakes. Base is powder coat blue while the storage rack is zinc plated.

Standard Features:

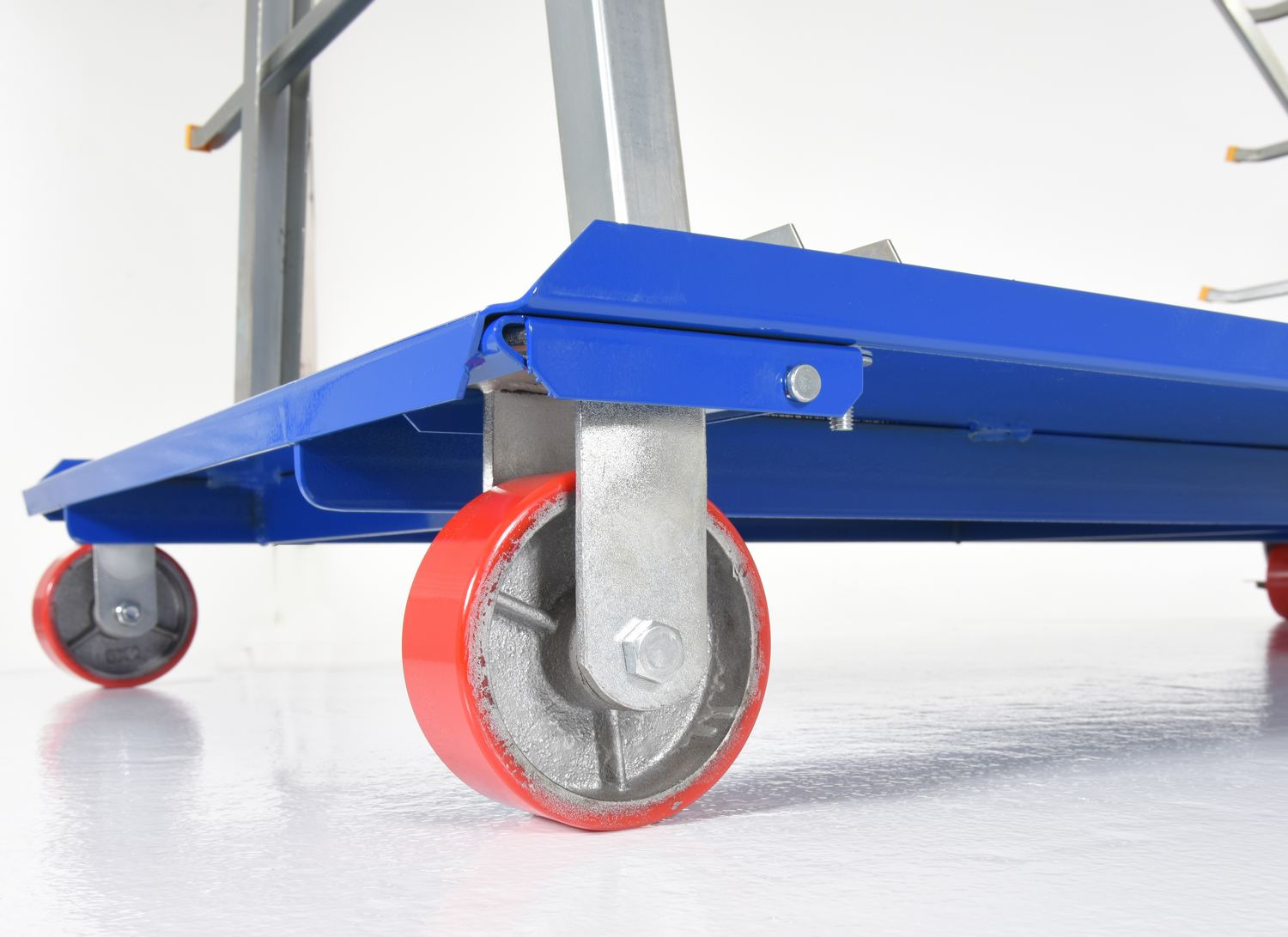

  • Portable with two rigid & two swivel 5" poly-on-steel casters

  • Overall deck size is 36-3/4"W x 72"L

  • Storage rack is 72-1/2"H with 8 storage levels

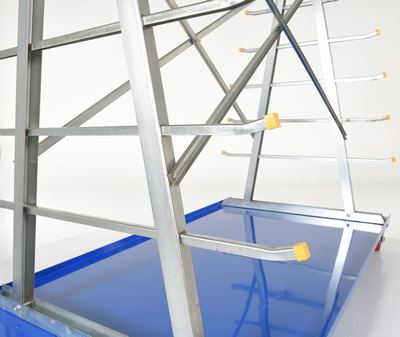

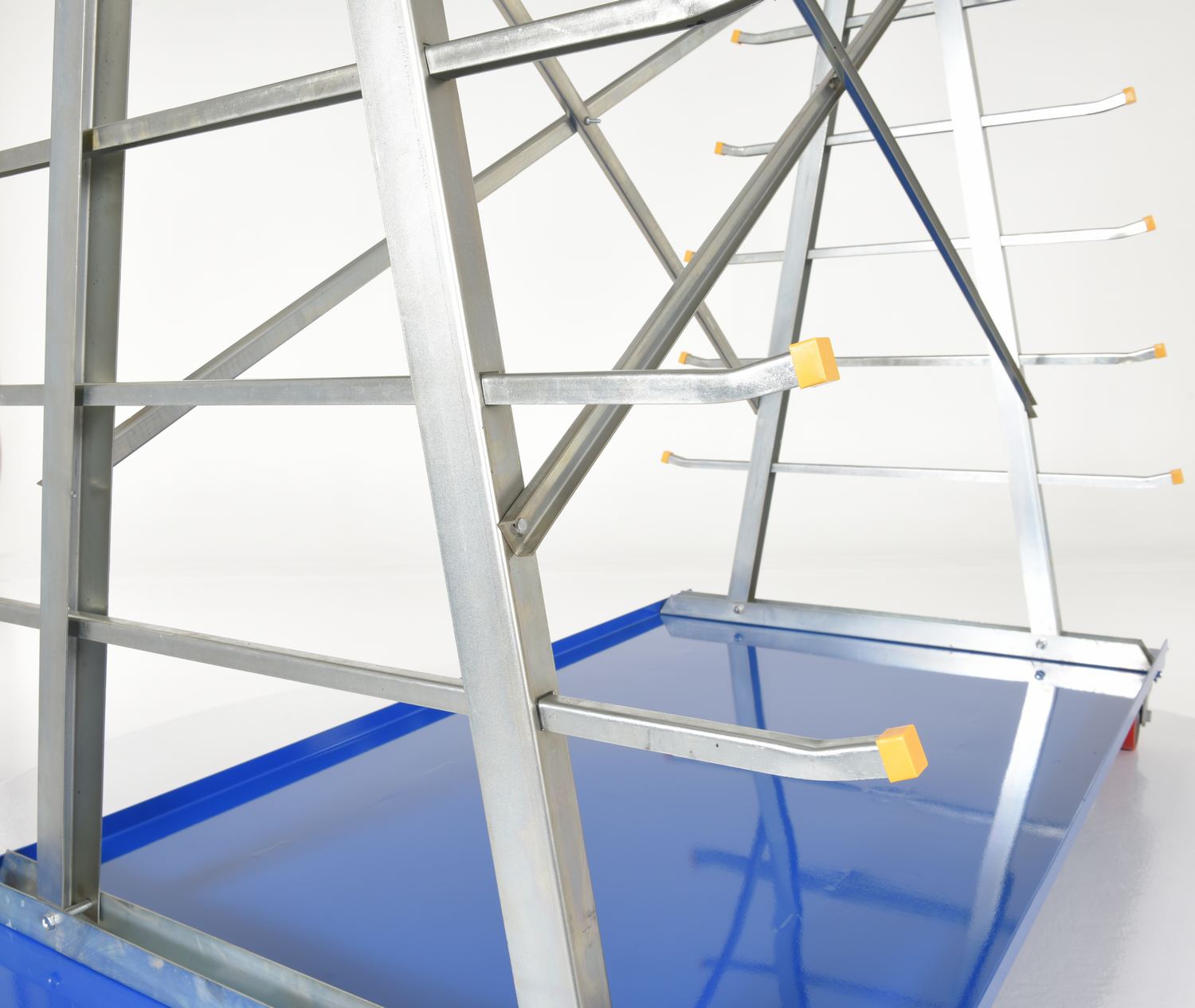

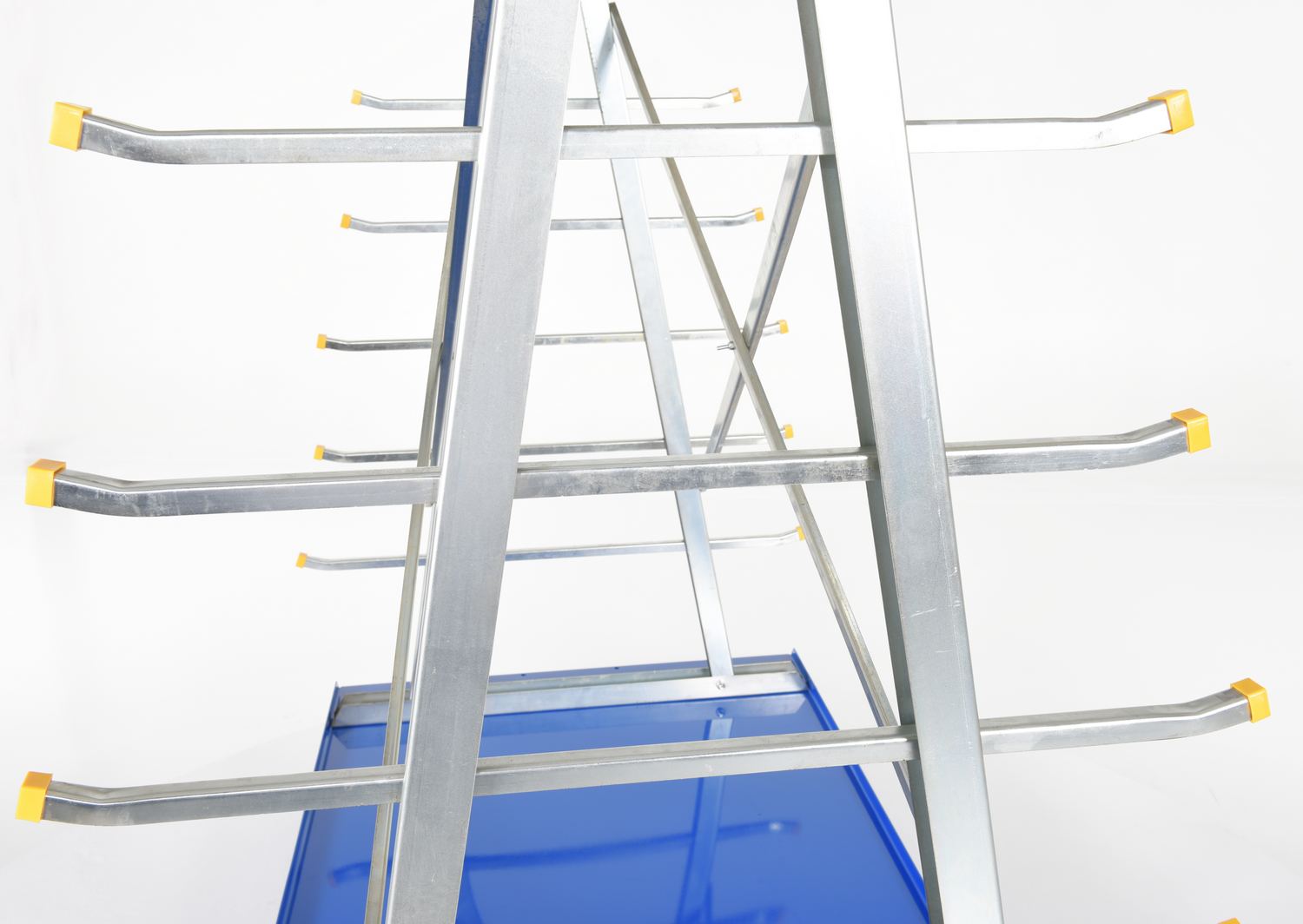

  • Storage arms extend 12" beyond frame

  • Distance between storage arms is 7-1/4"

  • Maximum capacity is 2000 lbs.

  • Base is powder coated blue

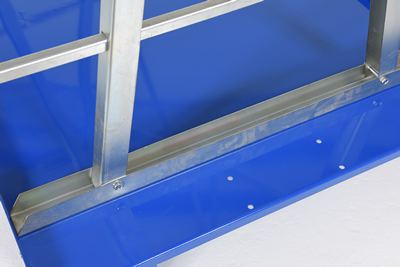

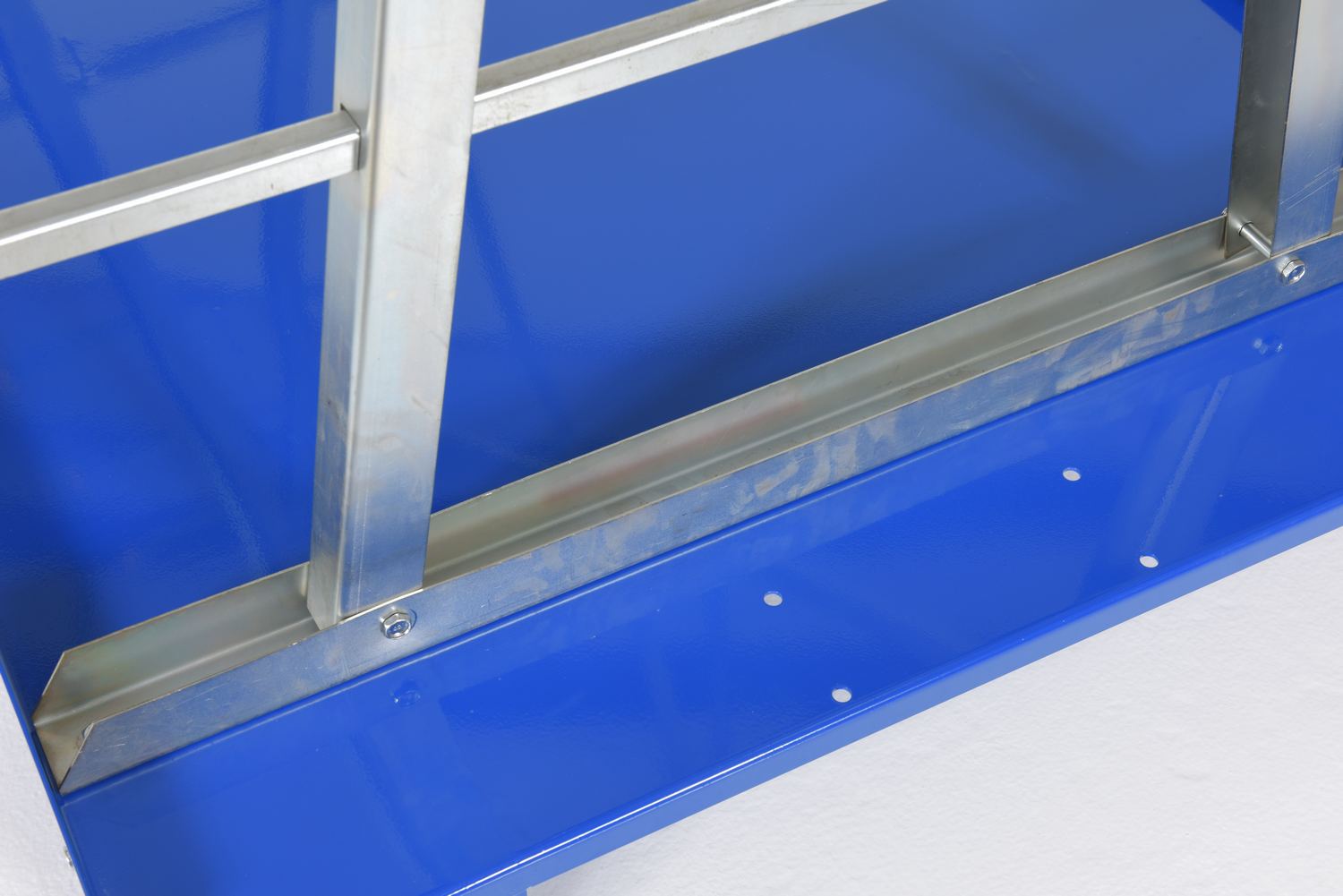

  • Storage rack is zinc-plated

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

A-Frame Rack Cart
Model PDFs Deck Size
Uniform Static
Capacity (lbs)
AFSR-3672 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36-3/4"x72" 2,000 245

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details

PDF's will open in a new window when clicked.

Owner's Manuals

No Owners Manuals For This Product.

Survey Sheets

* No Survey Sheets For This Product.

Approval Drawings


Testing Certificates


Other PDF's

* No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products


No Options for this product at this time. Please Check back.

Questions & Answers

Q: What is the capacity of the arms on the AFSR-3672?

A: The capacity of the arm is 70lbs. each. Each storage bay can accommodate up to 140 lbs. The load must be evenly distributed.
