SERIES: ROL


Foldable/Nestable Roller Containers

Provides convenient portability between work cells or for delivery or distribution of goods. All welded steel construction. Units roll smoothly on casters. To figure individual uniform shelf capacity divide the number of shelves by total capacity.

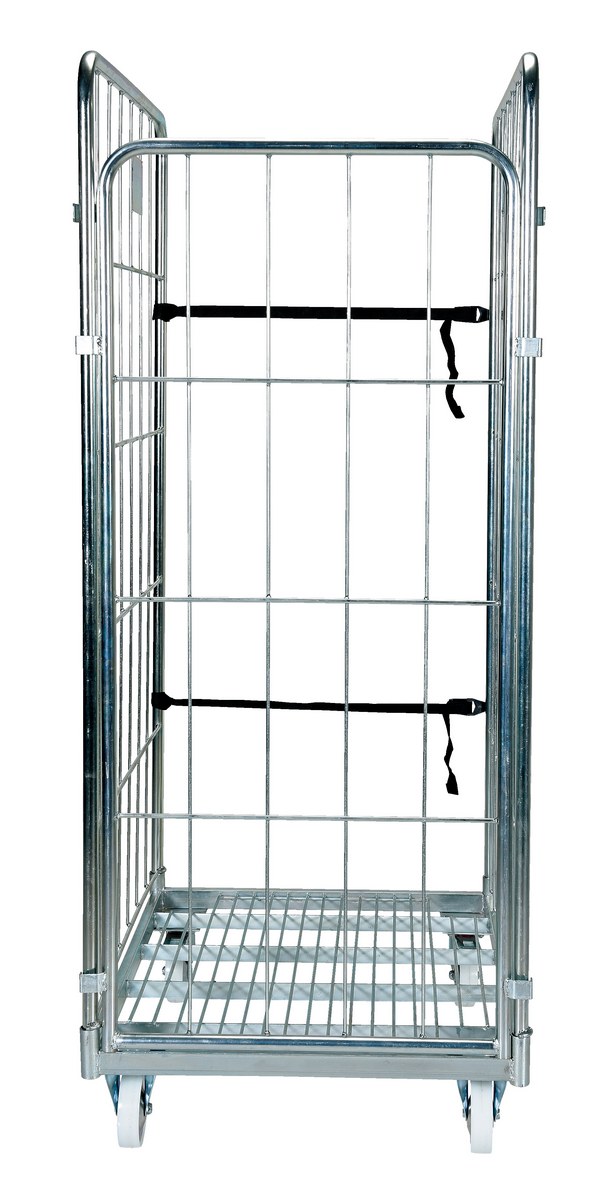

Model ROL-80 includes a single base and (3) three removable sides that can be easily disassembled.

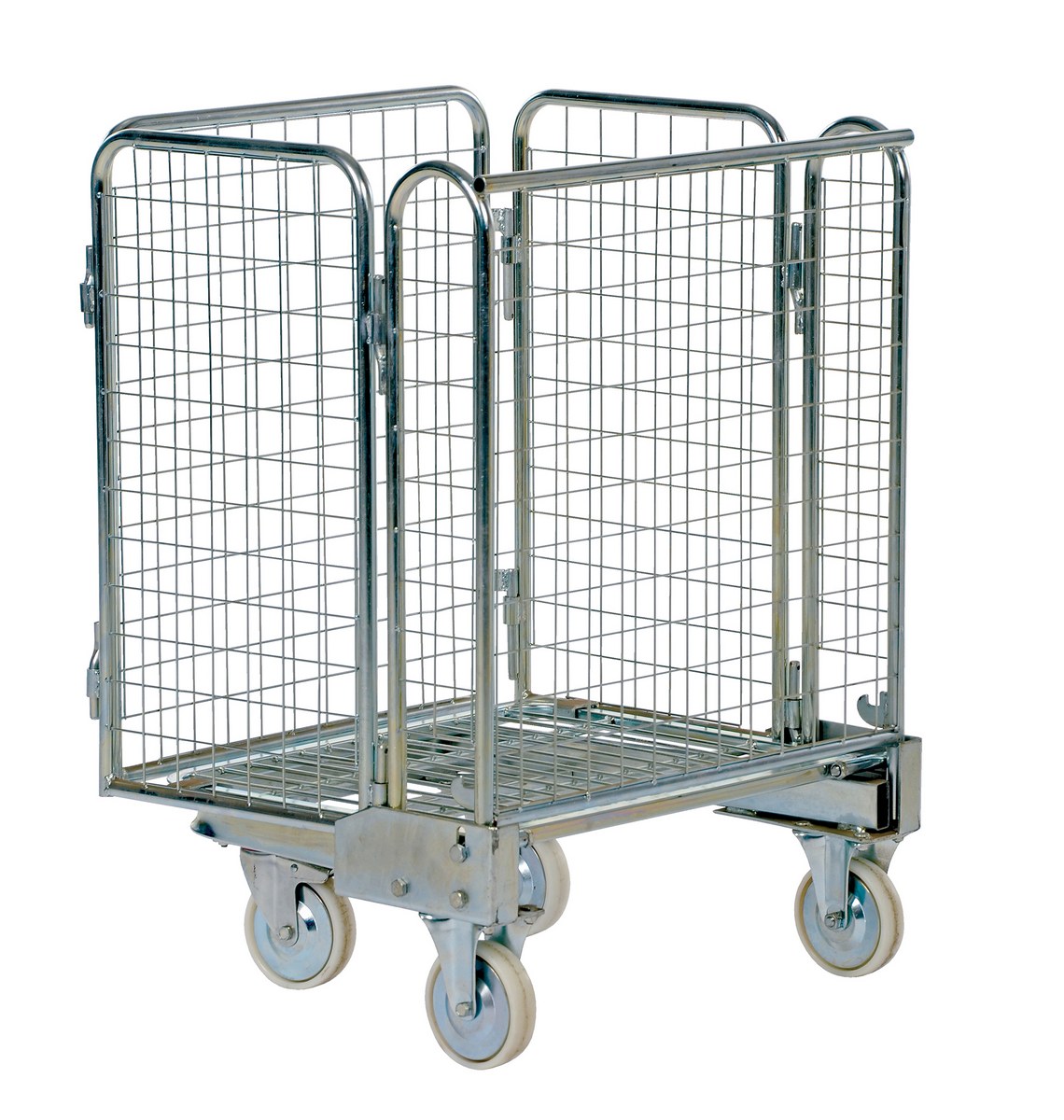

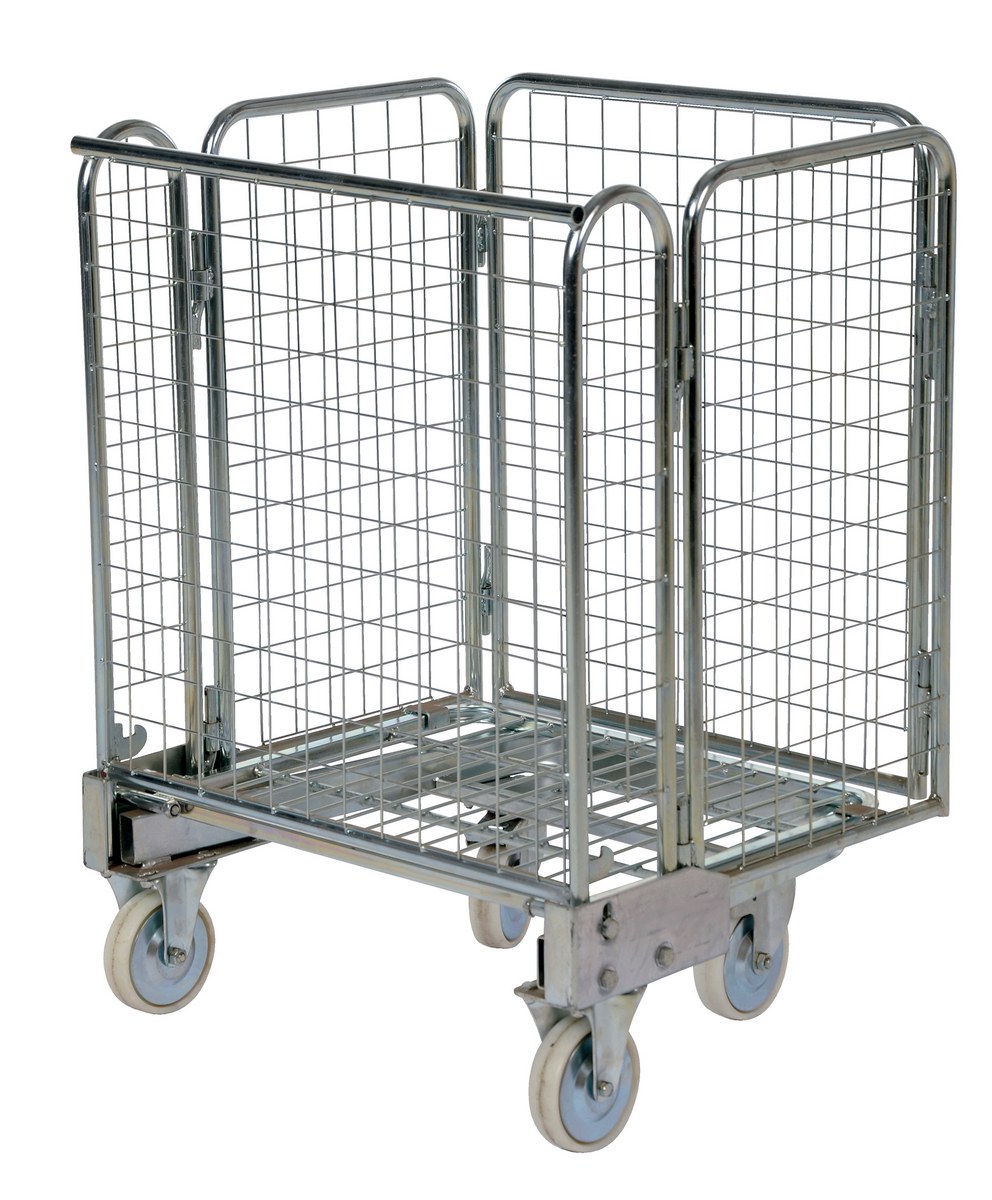

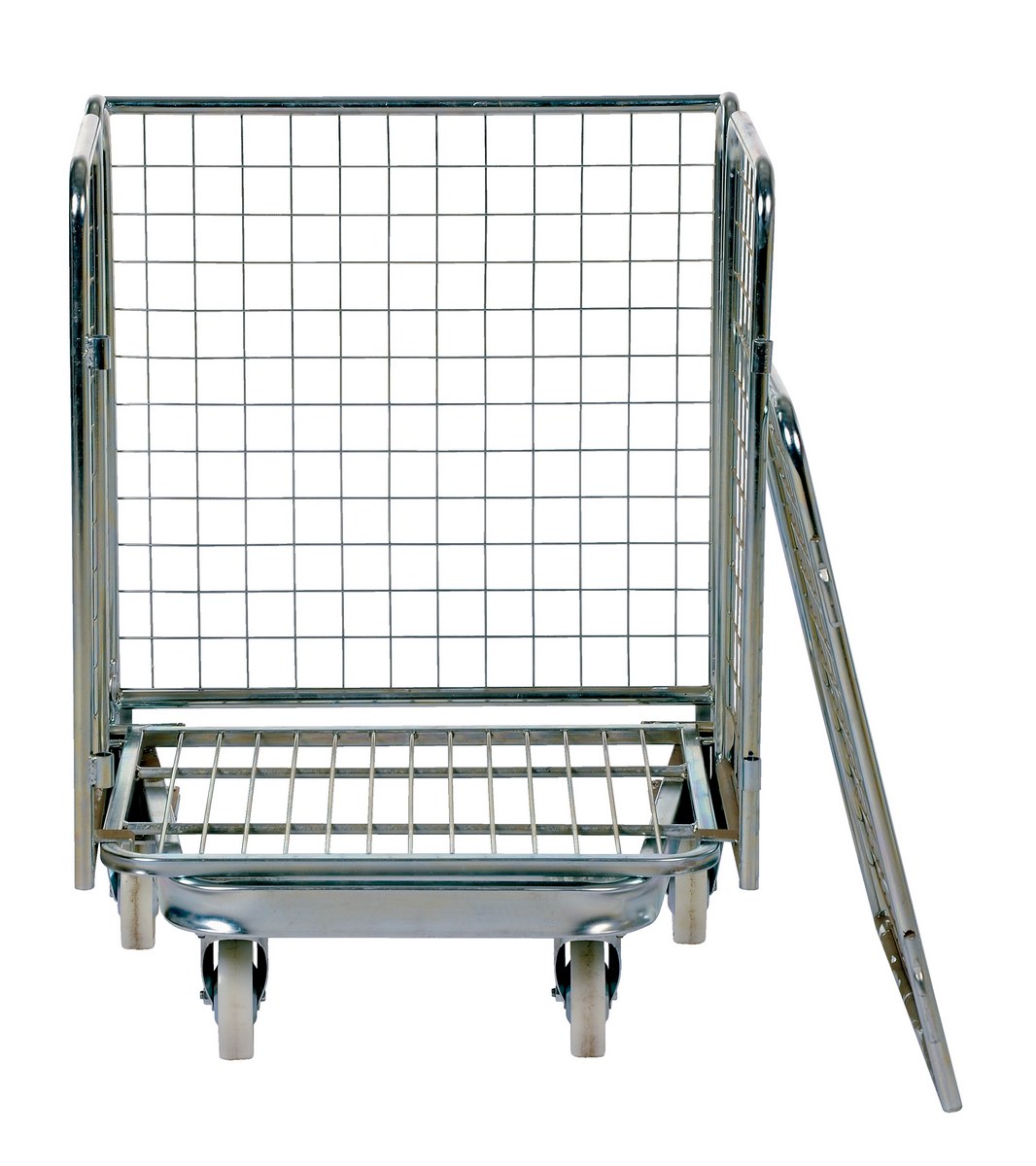

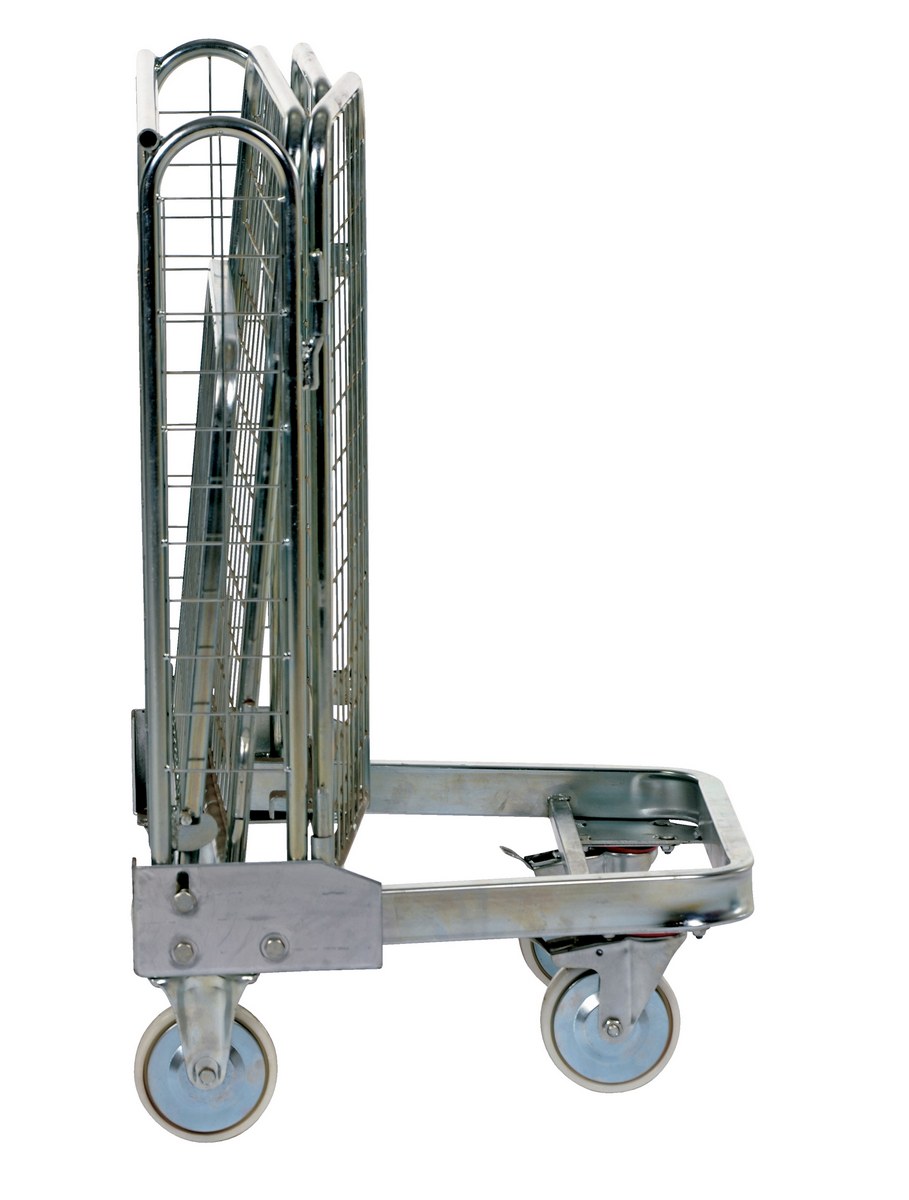

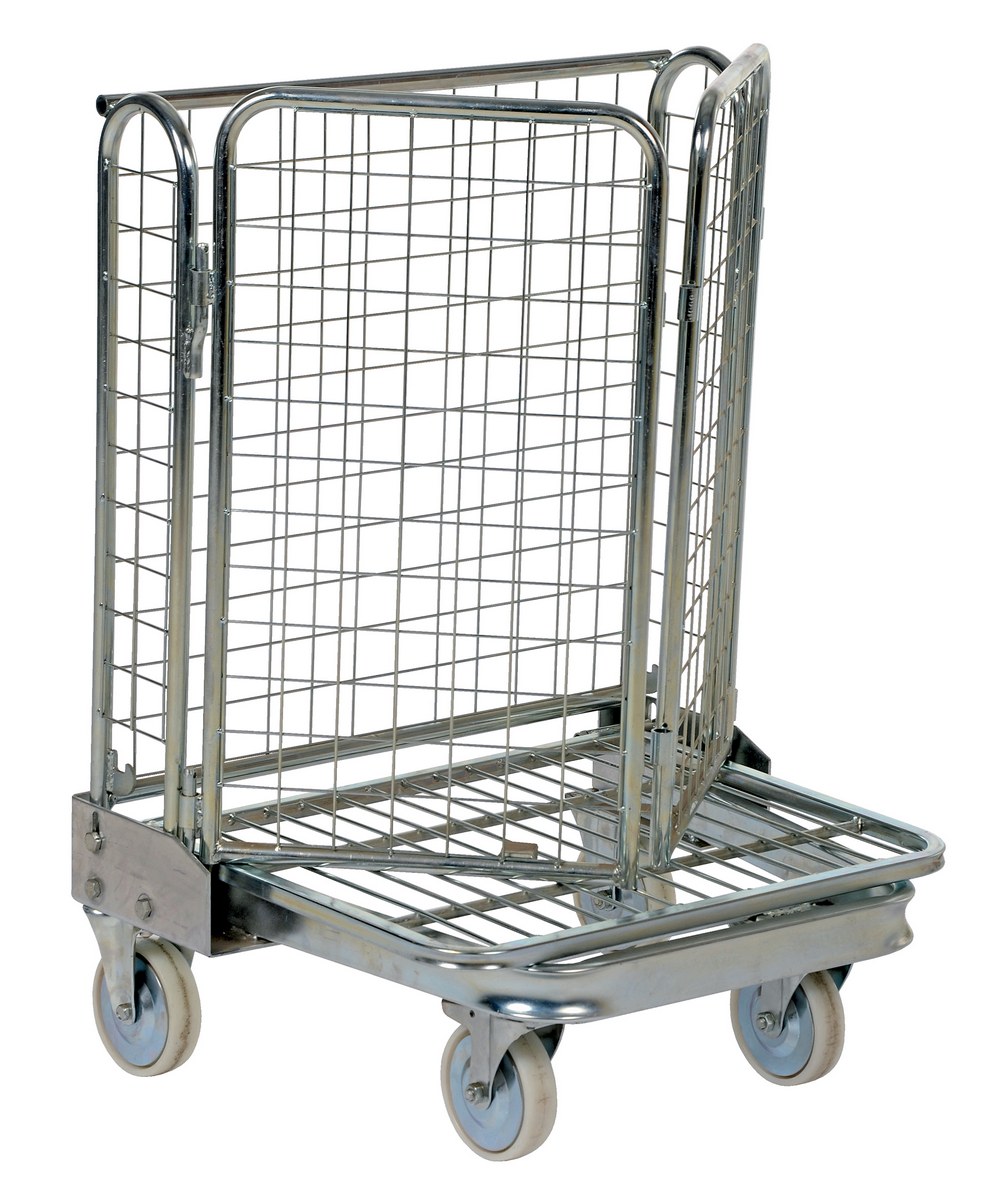

ROL-55

model ROL-55

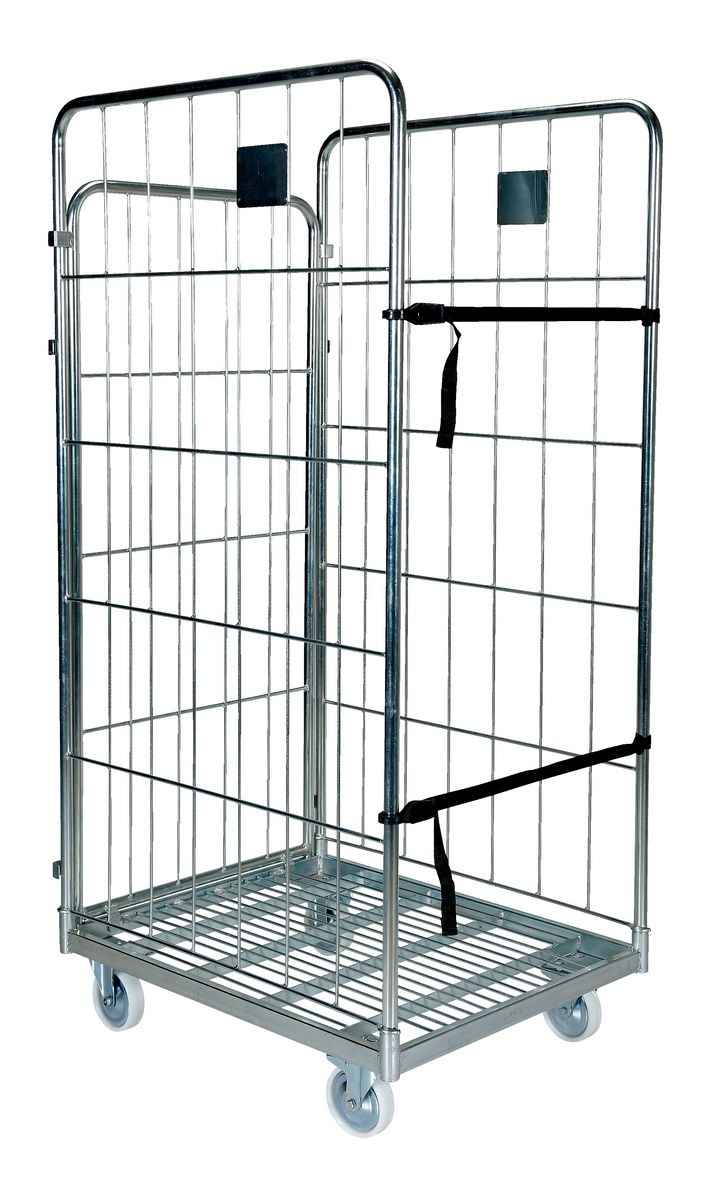

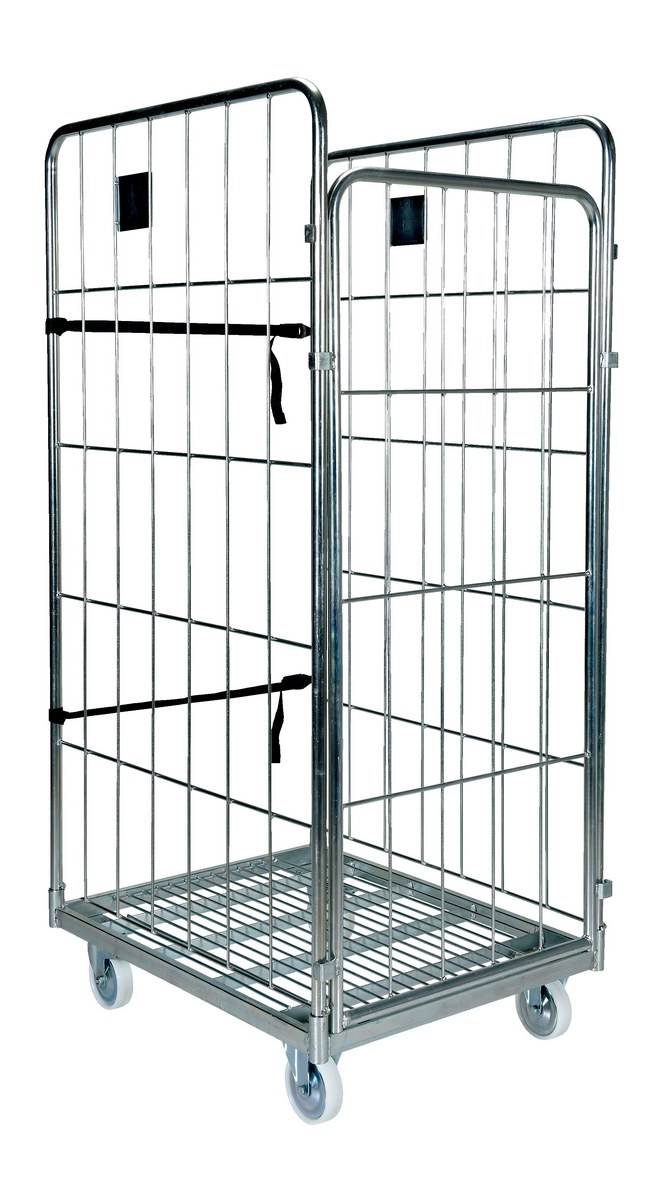

ROL-80

model ROL-80

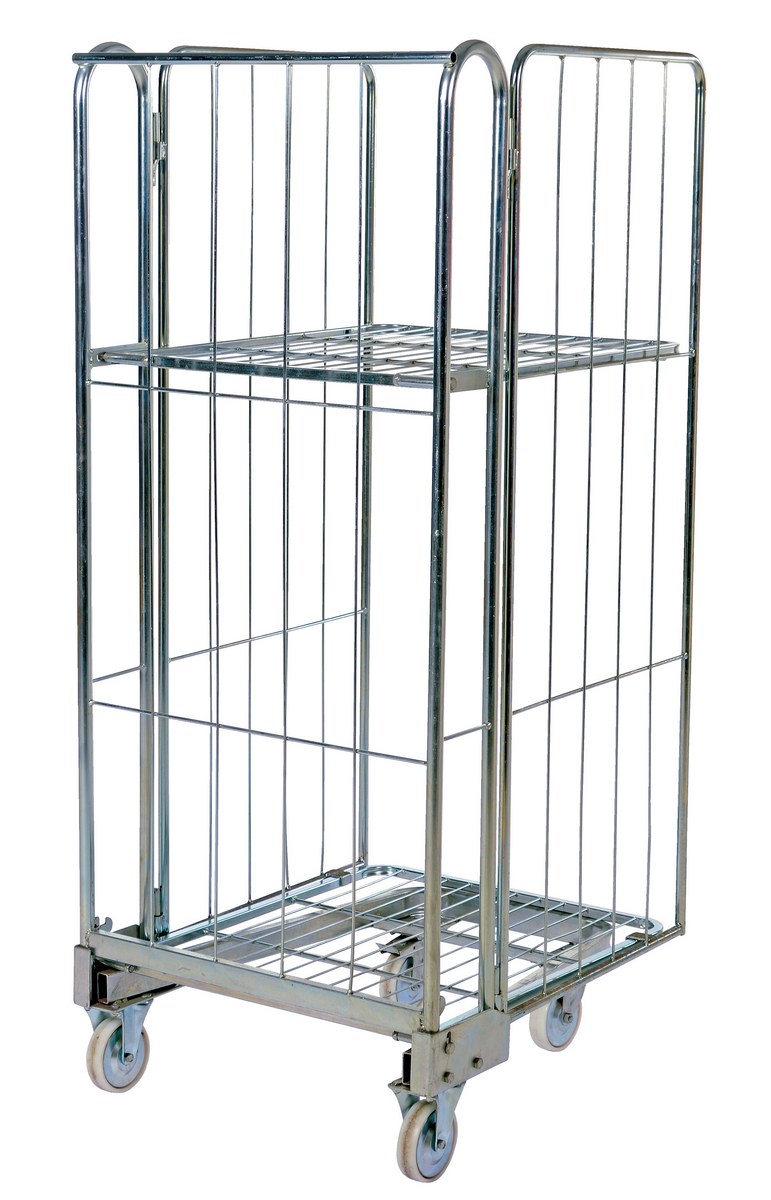

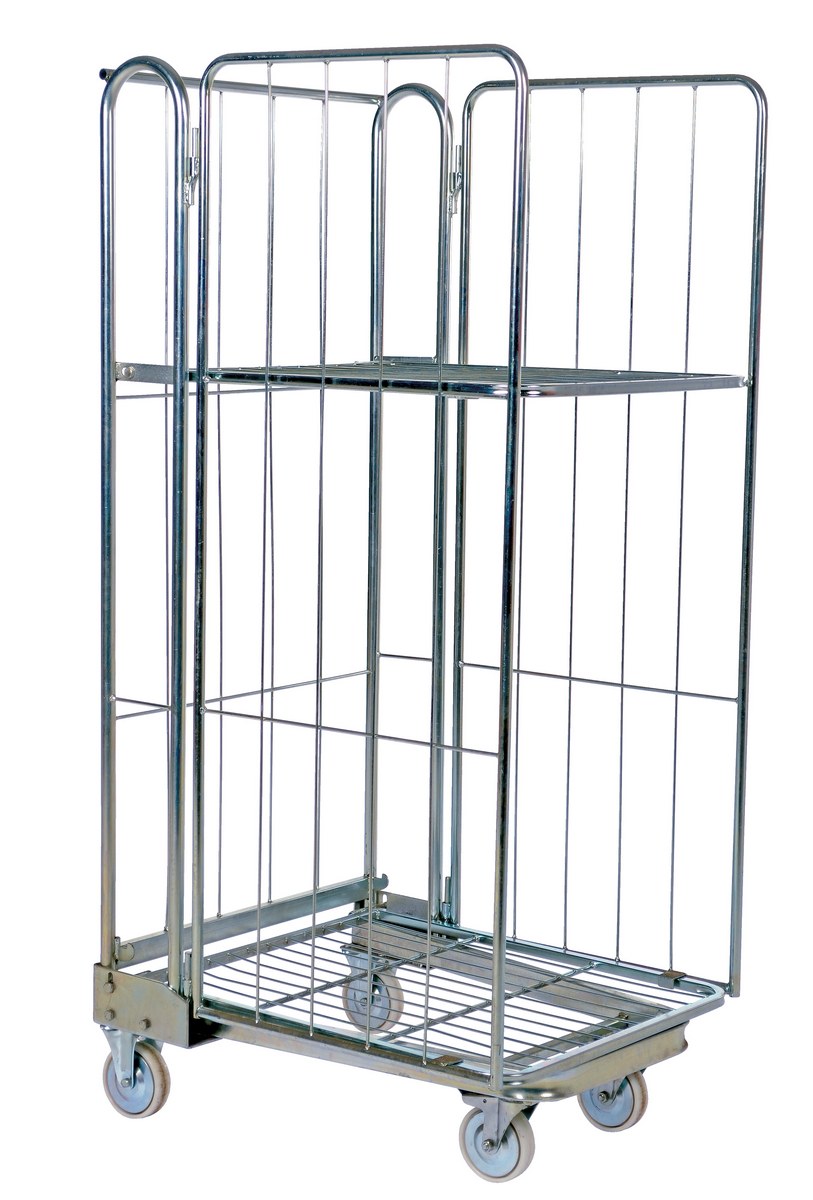

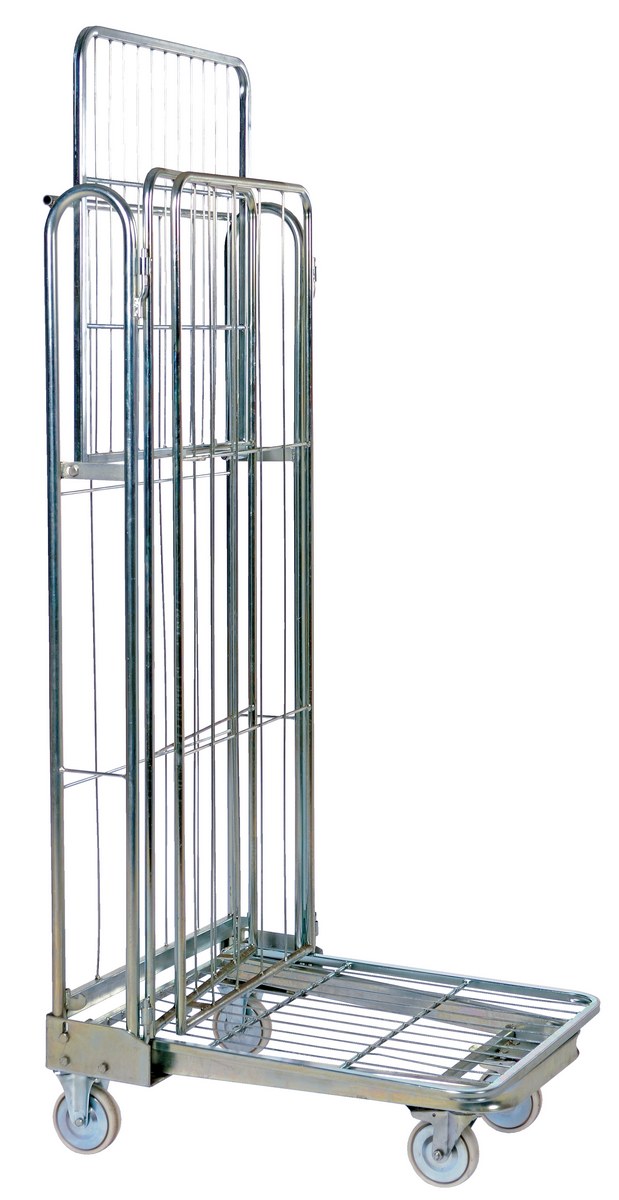

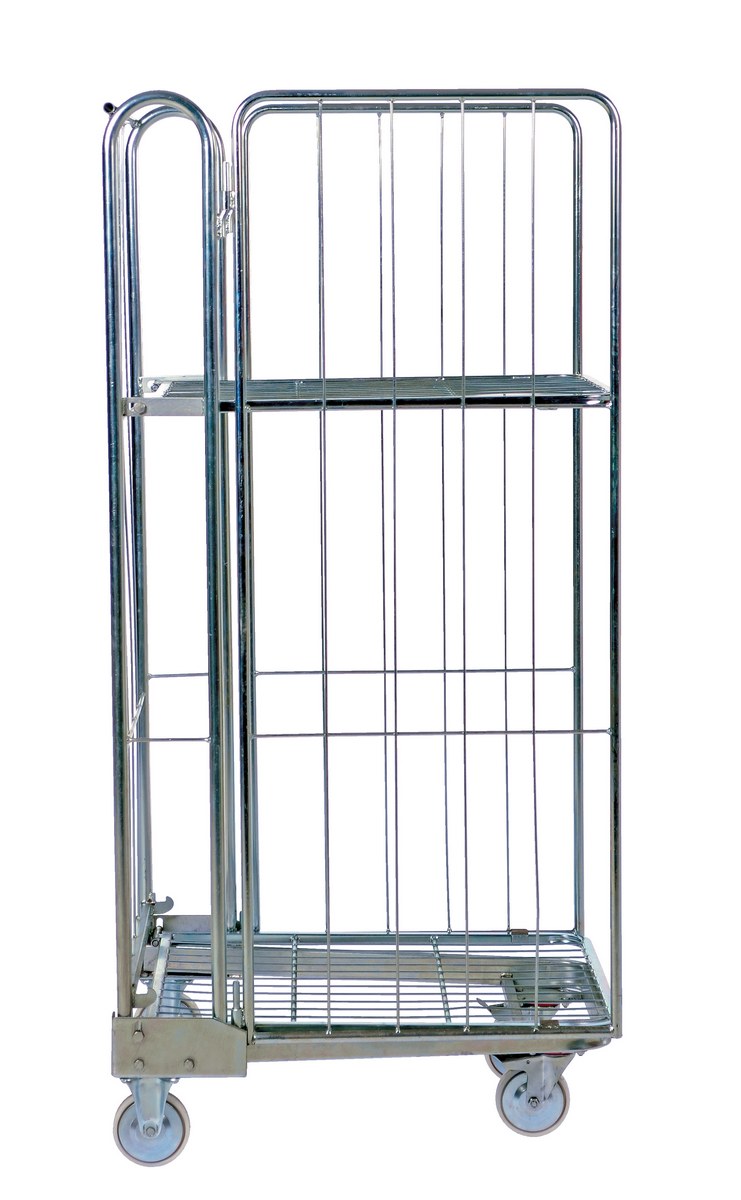

ROL-85

model ROL-85

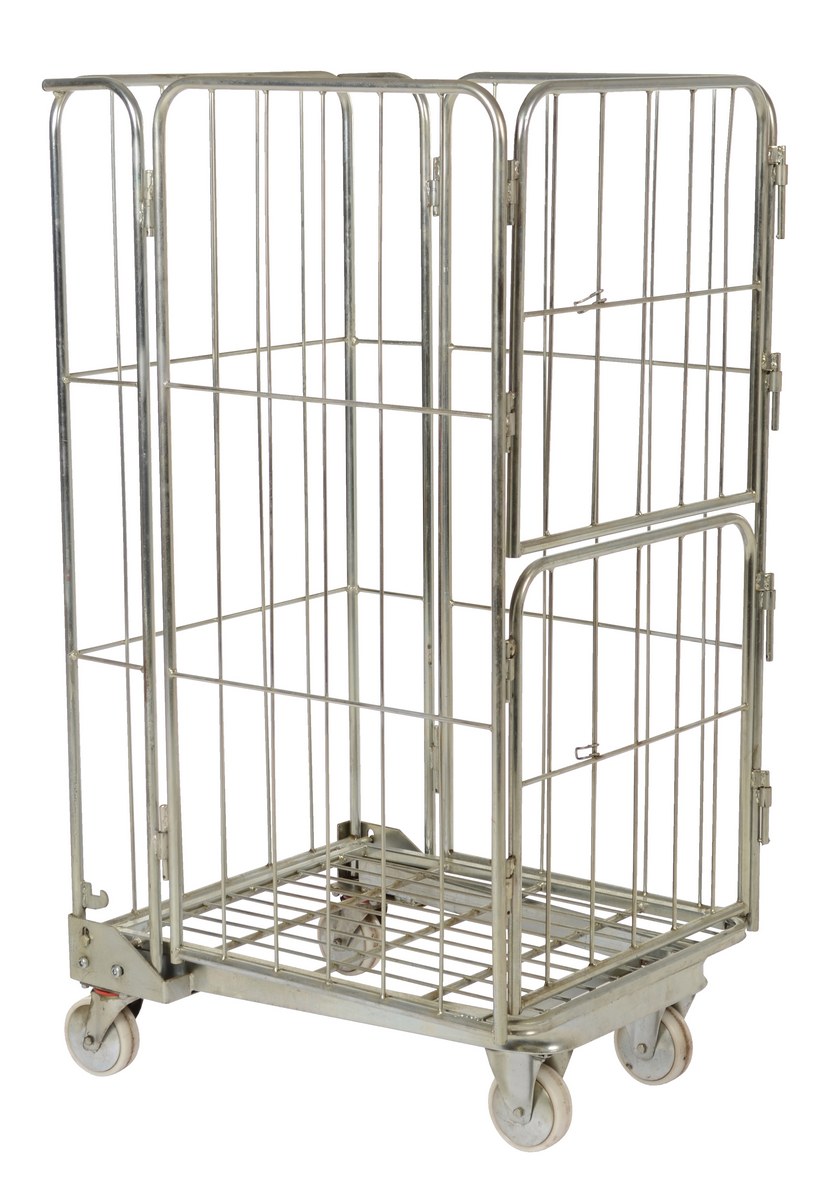

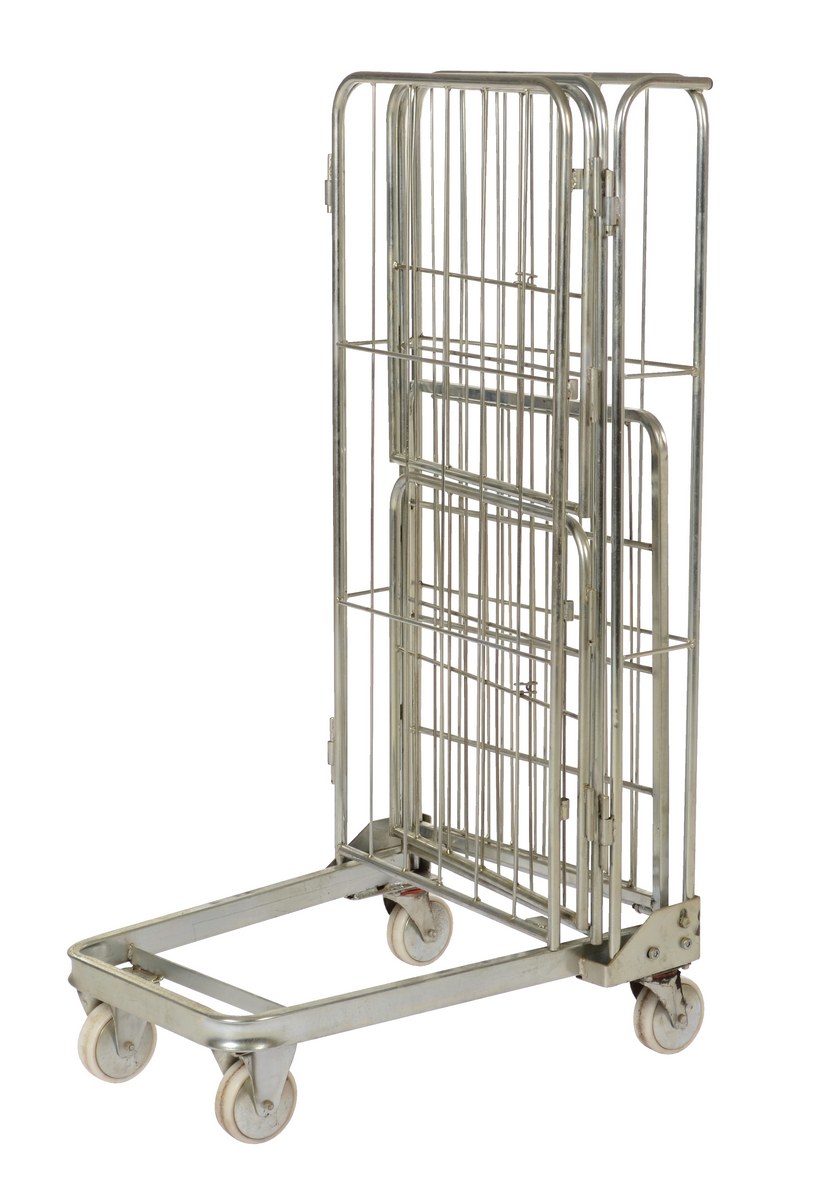

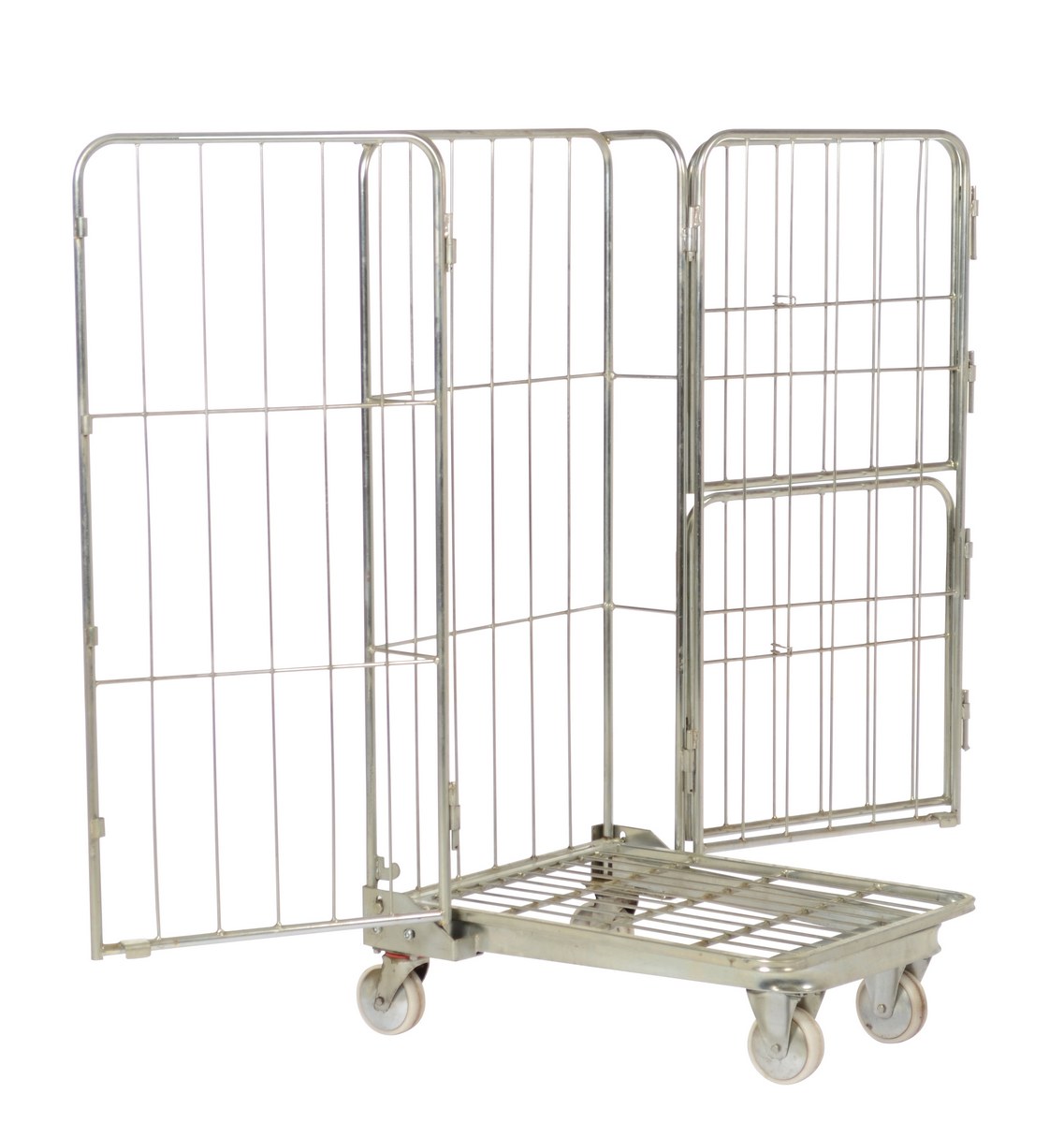

ROL-95

model ROL-95

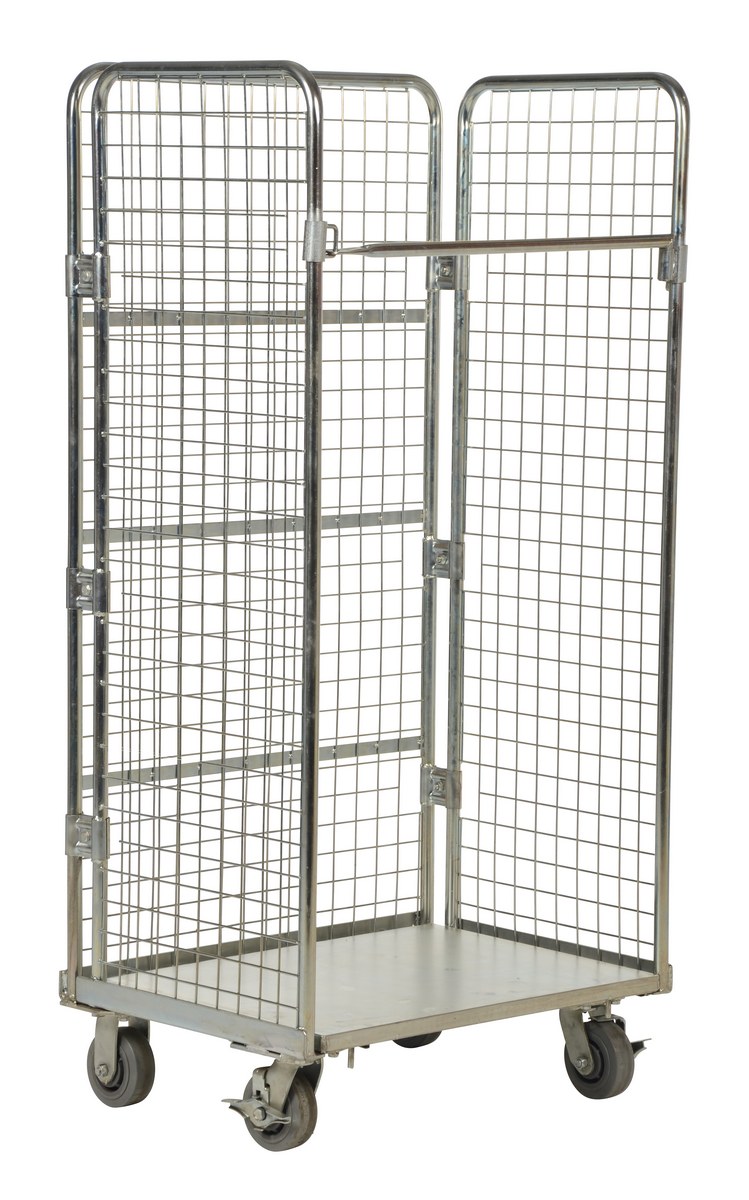

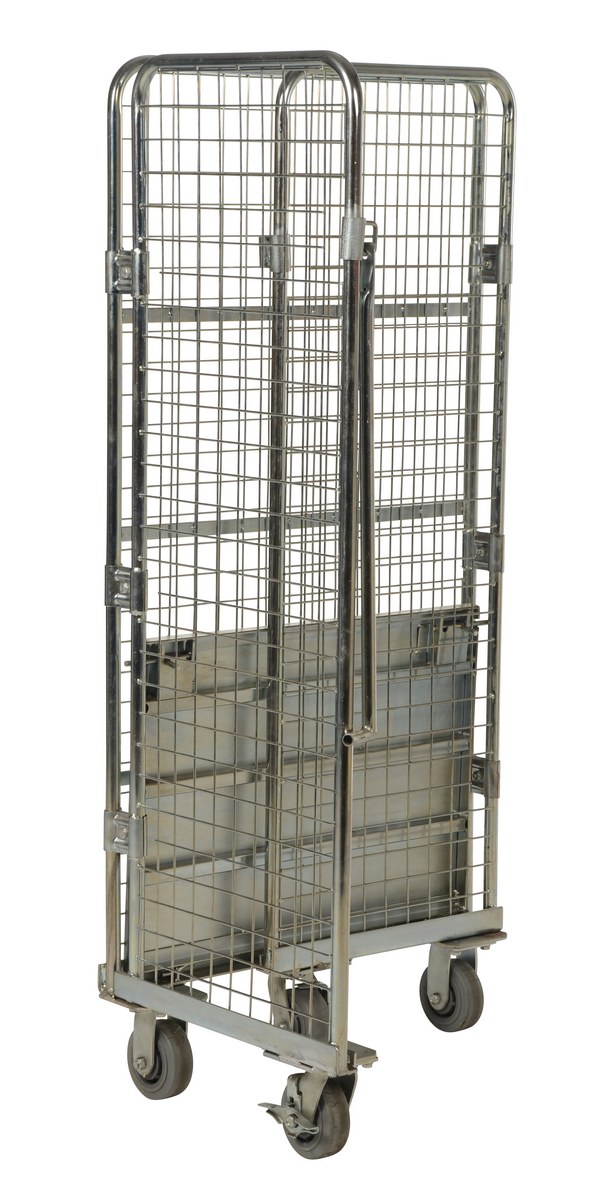

ROL-120

model ROL-120

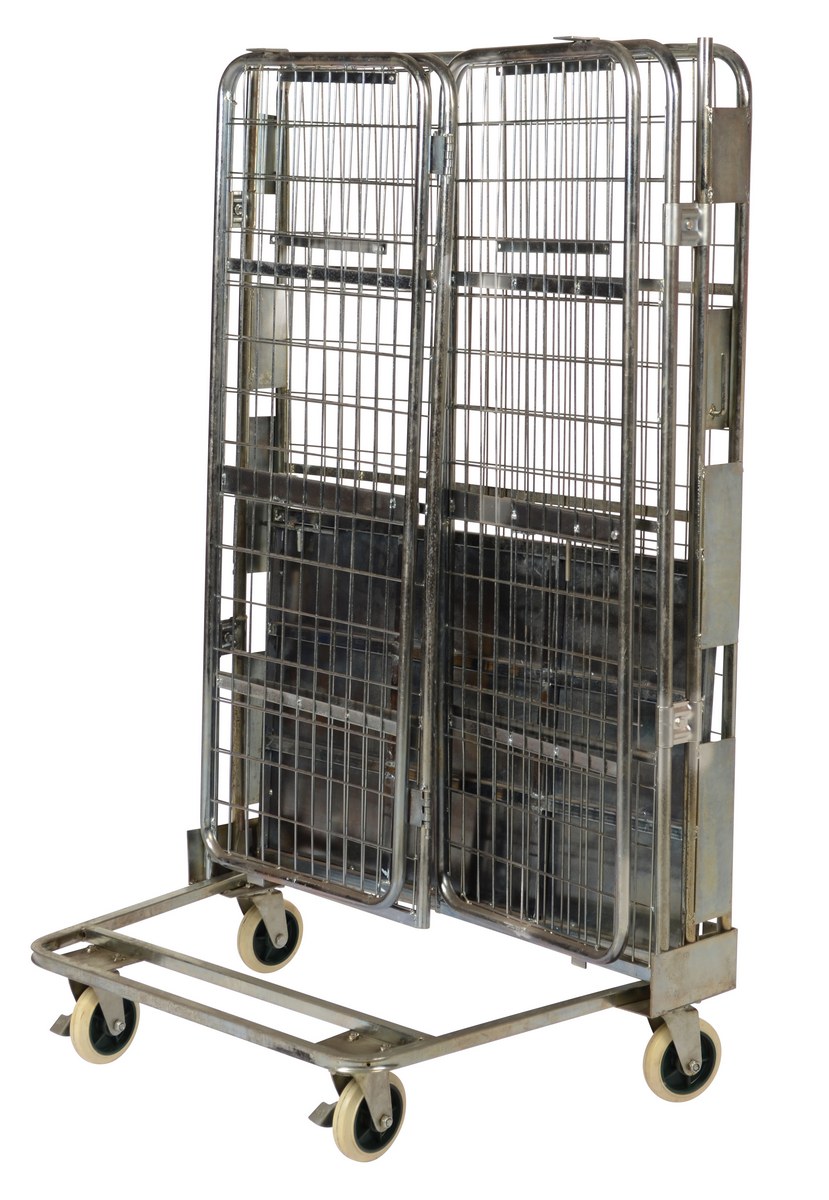

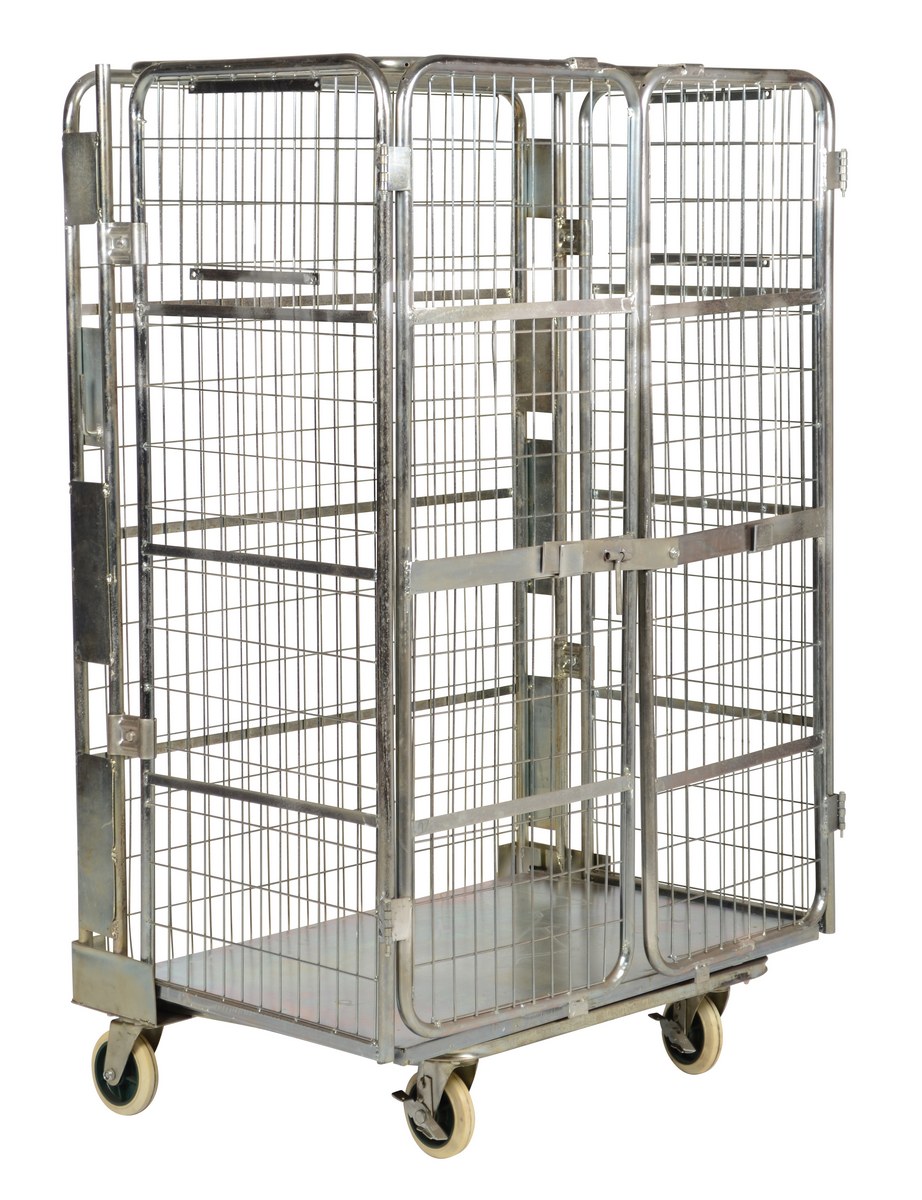

ROL-185

model ROL-185

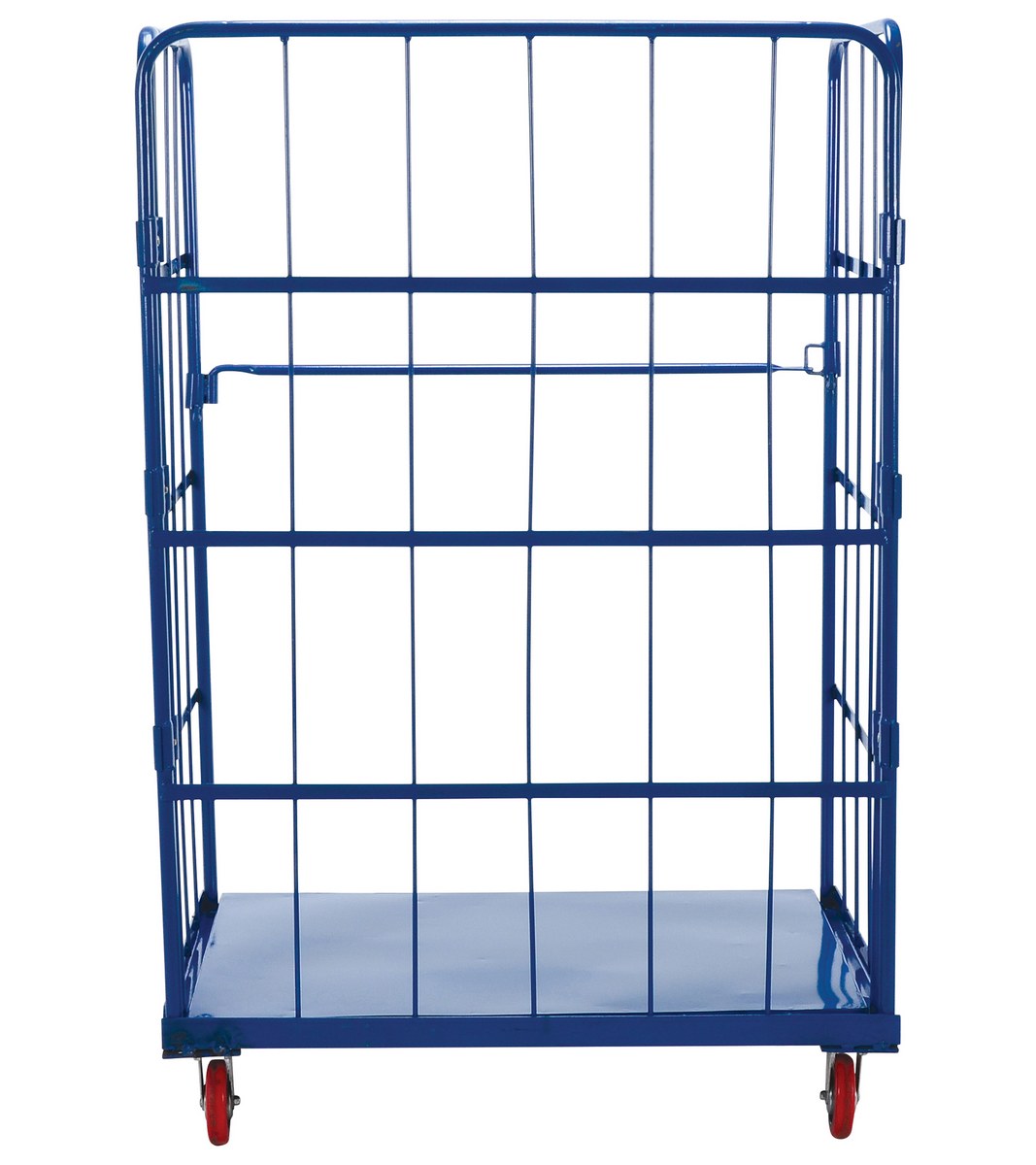

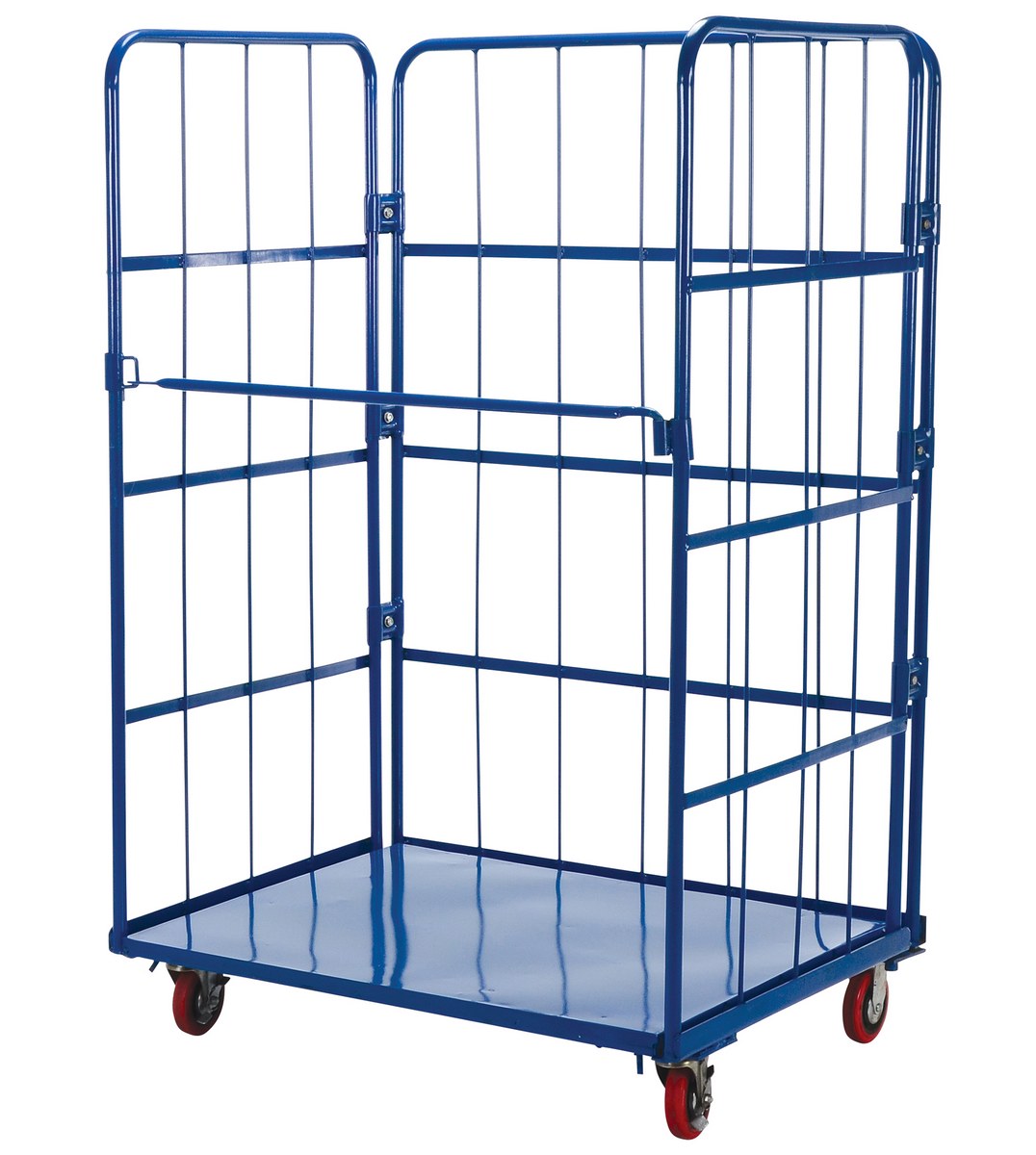

ROL-3143-1

model ROL-3143-1

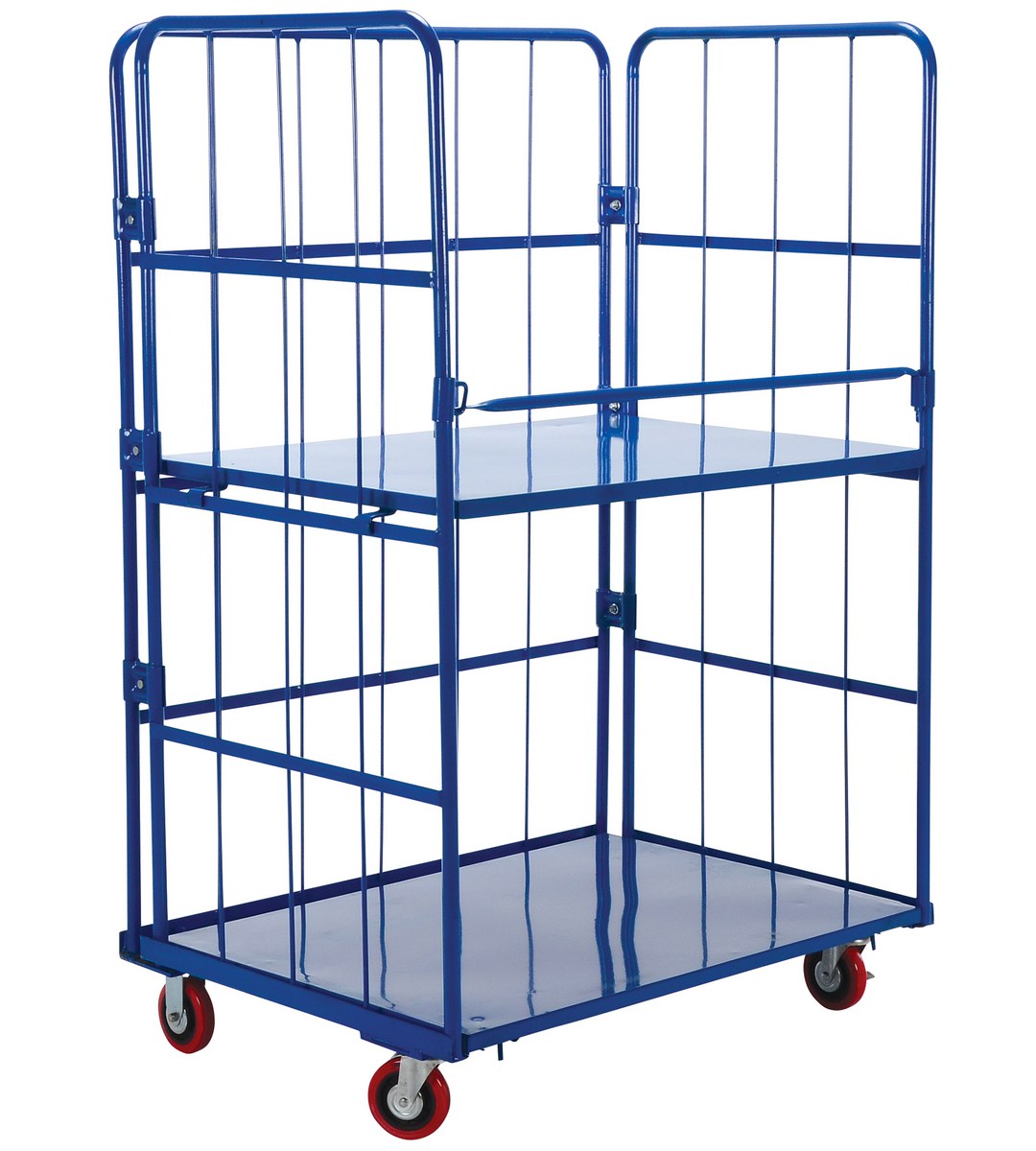

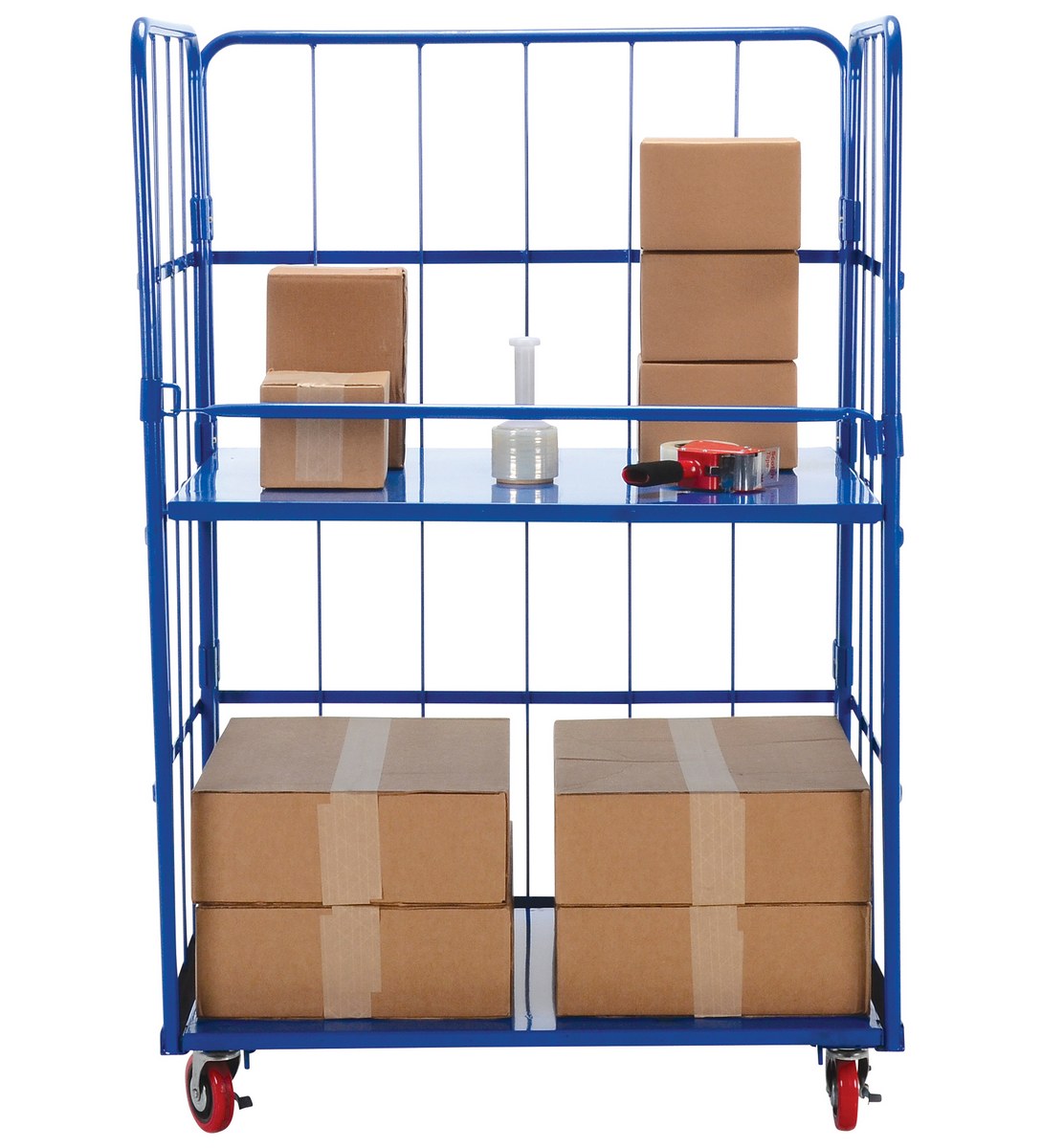

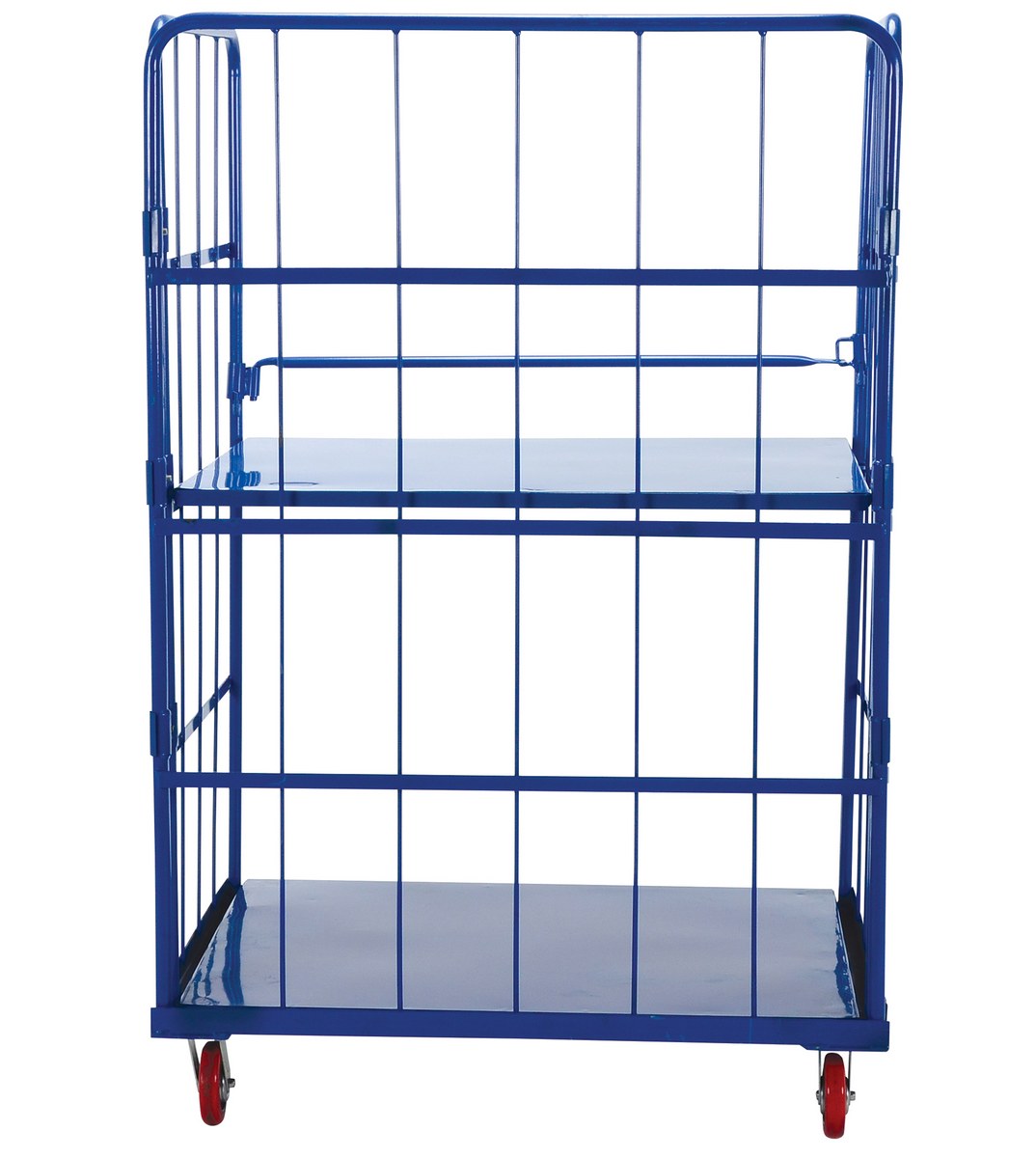

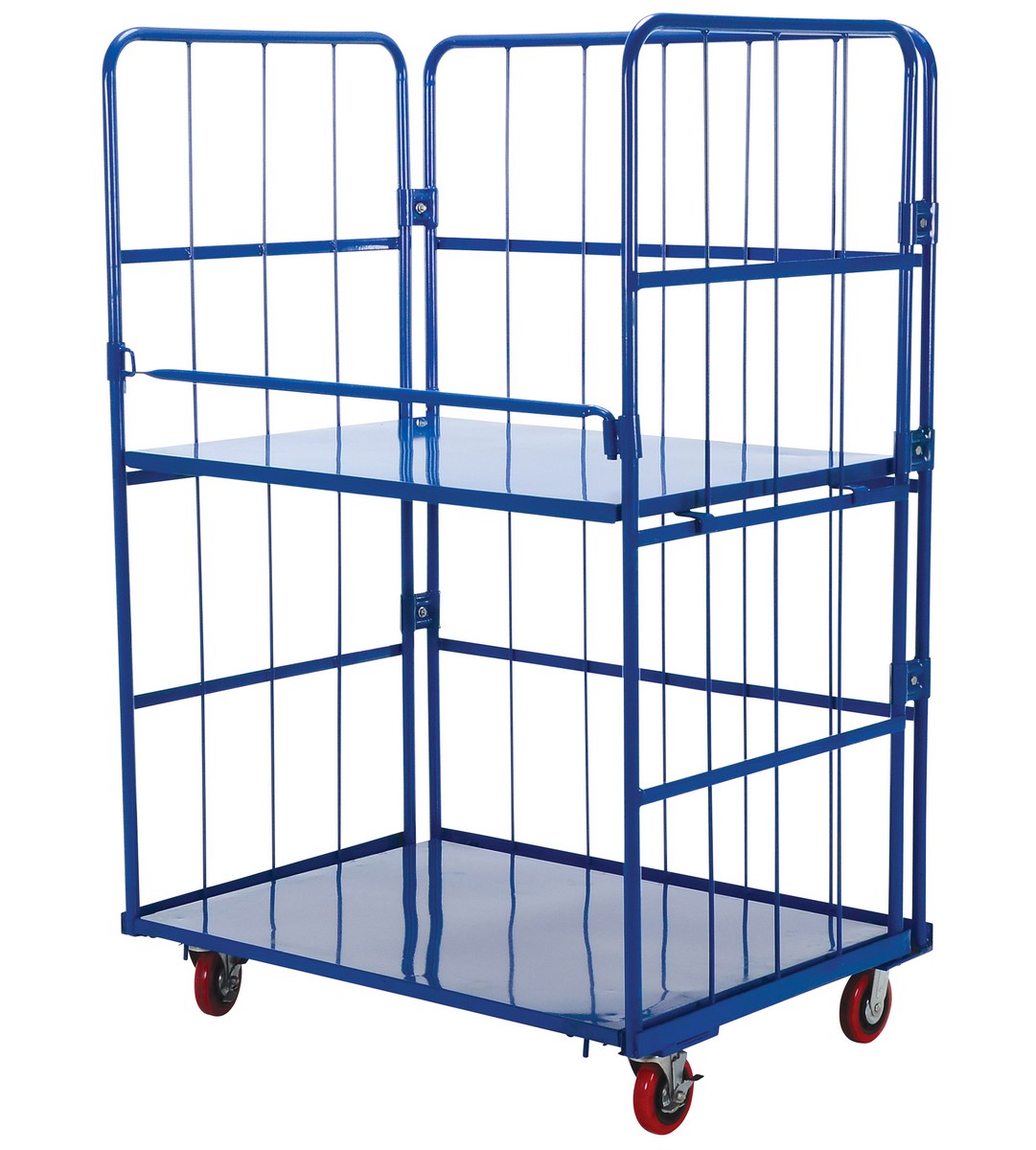

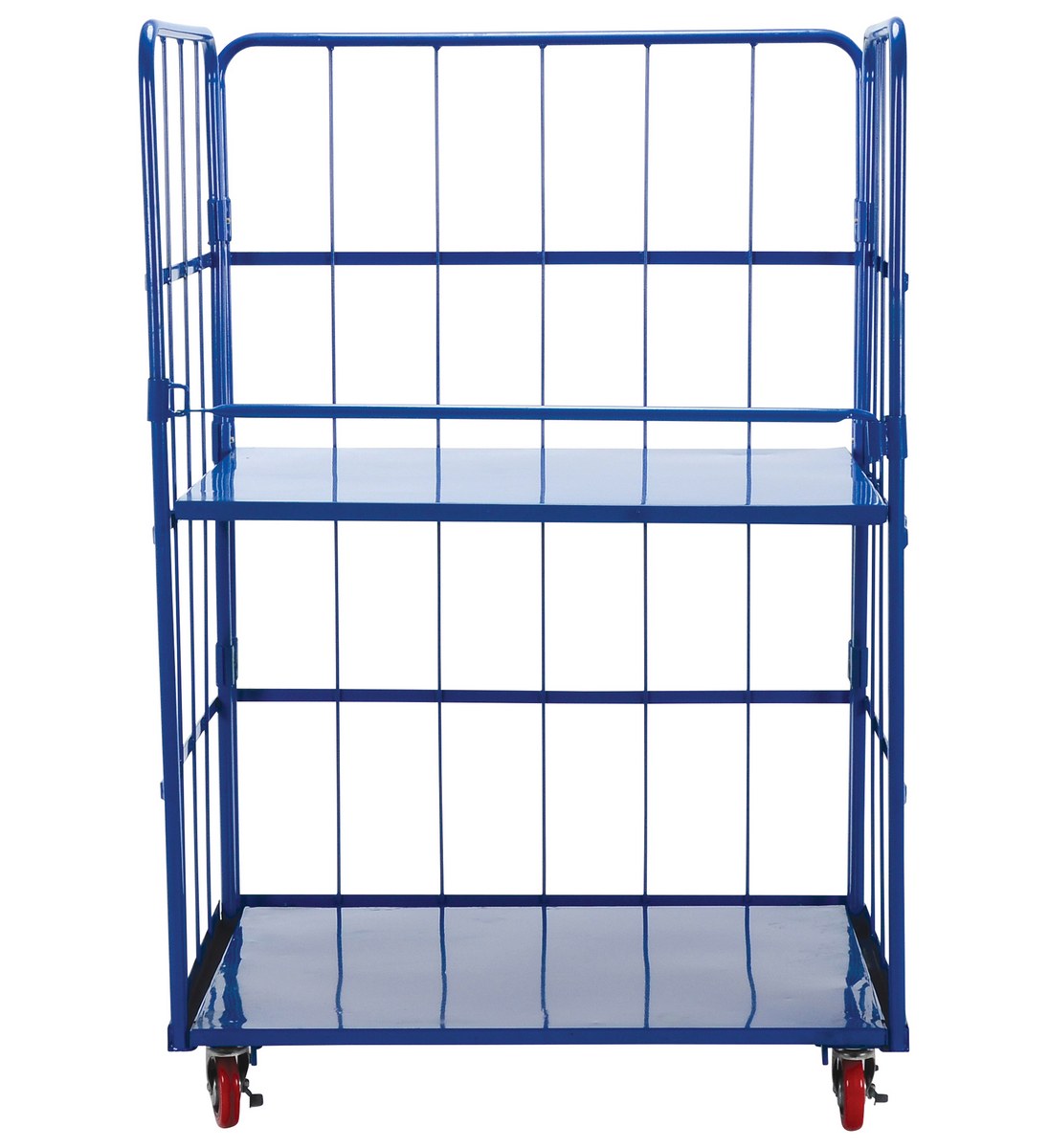

ROL-3143-2

model ROL-3143-2


Click a tab for more information. + Indicates items available under that tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Foldable/Nestable Roller Trucks
Model PDFs # Of
Shelves
Overall Size
(WxDxH)
Mesh
Openings
Total
Capacity
(lbs)
Wt.
(lbs)

Blue Painted Finish

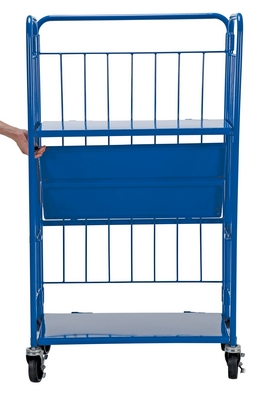

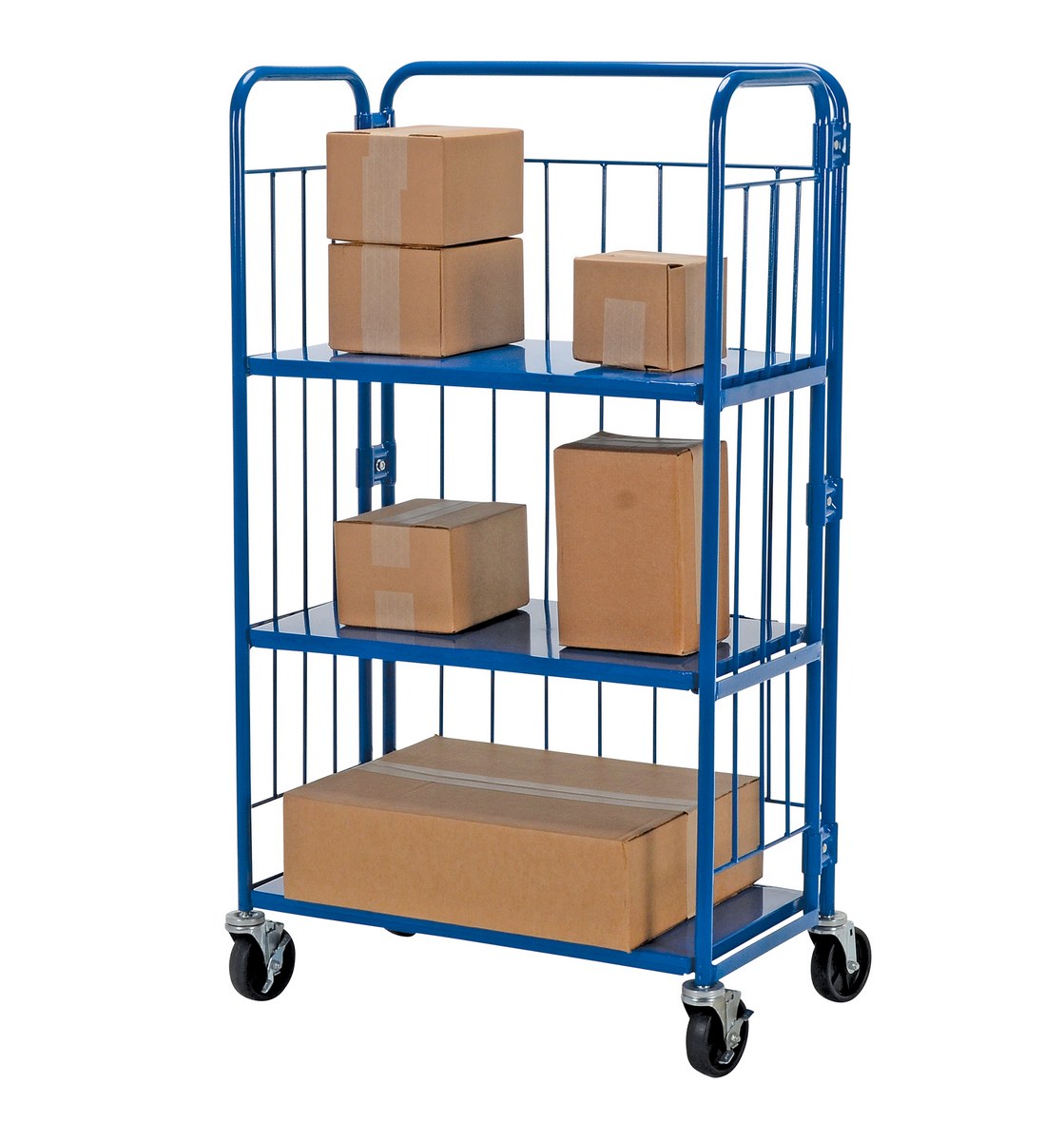

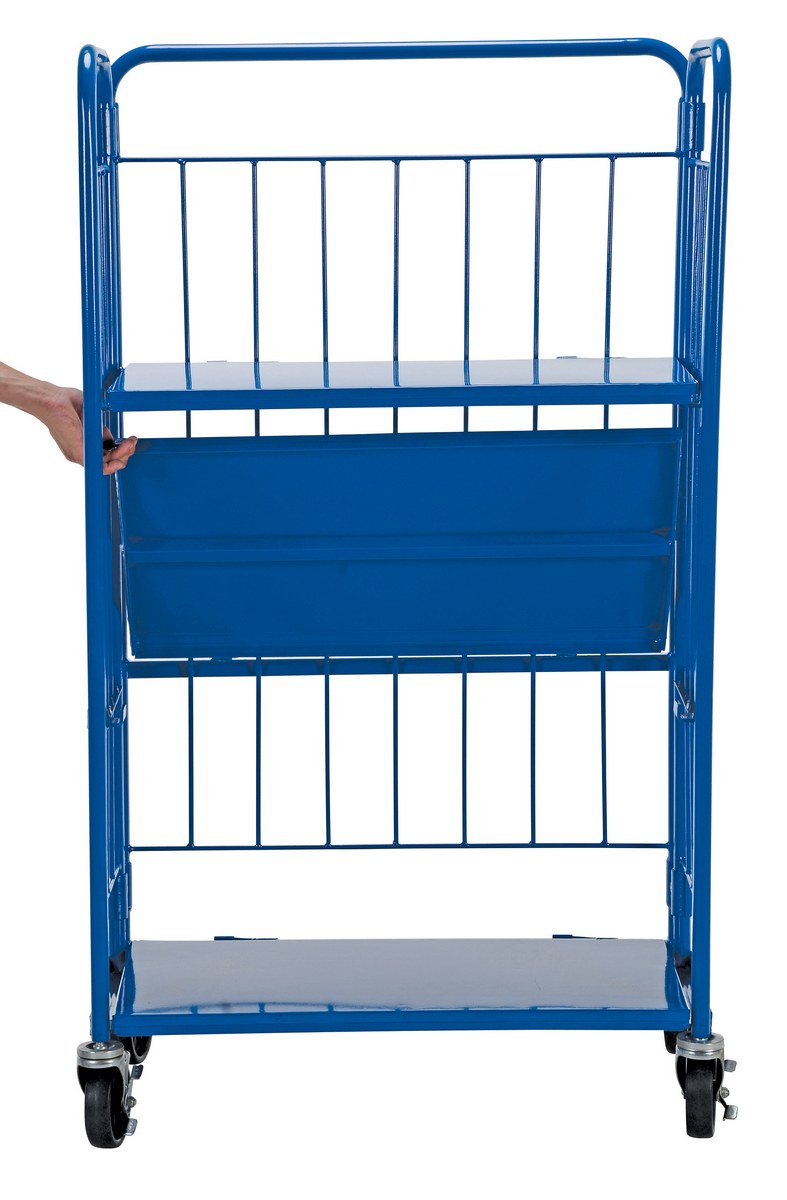

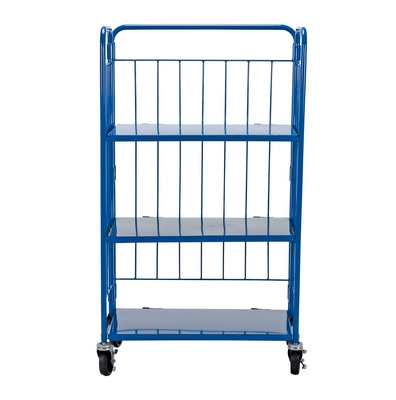

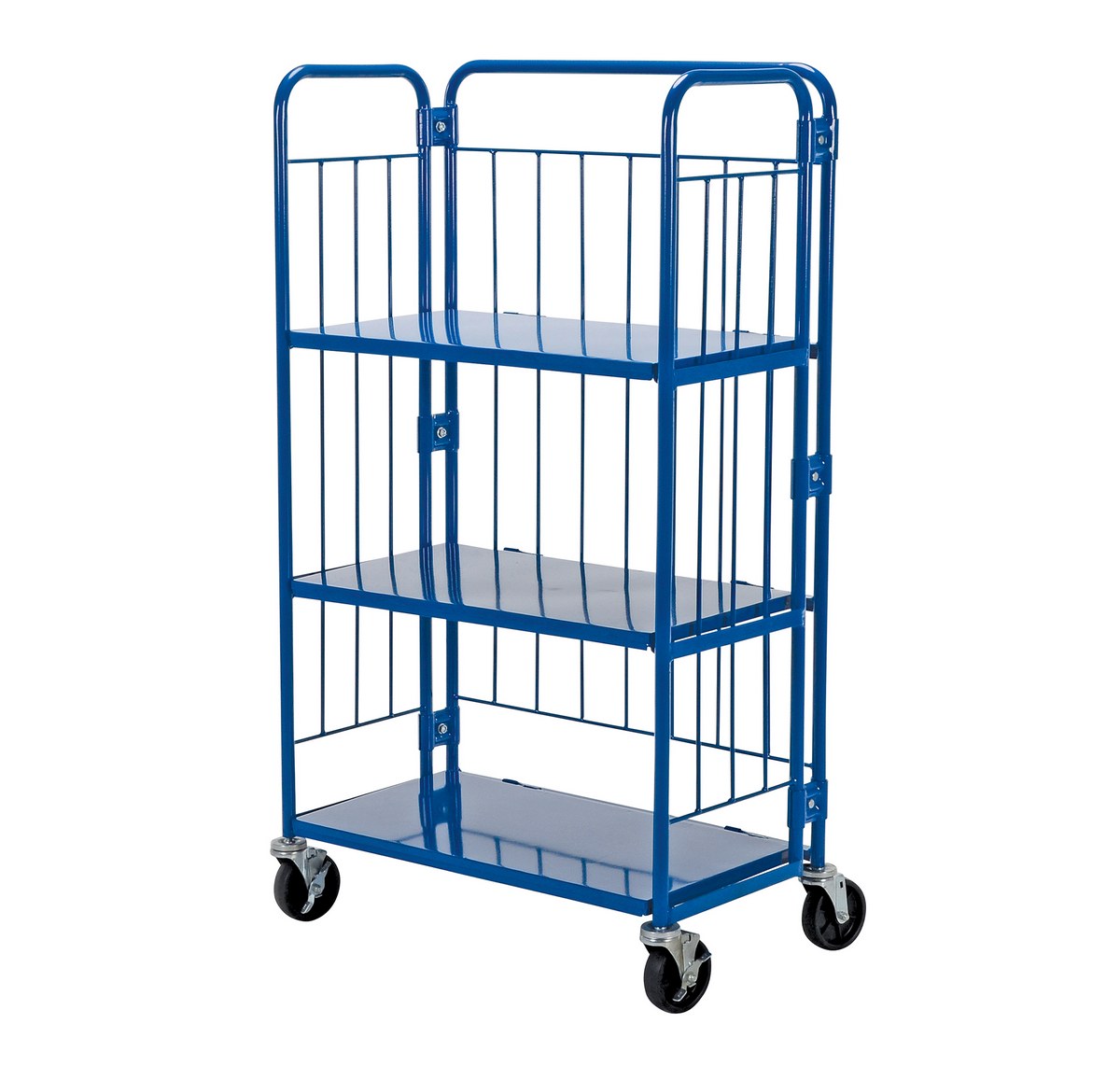

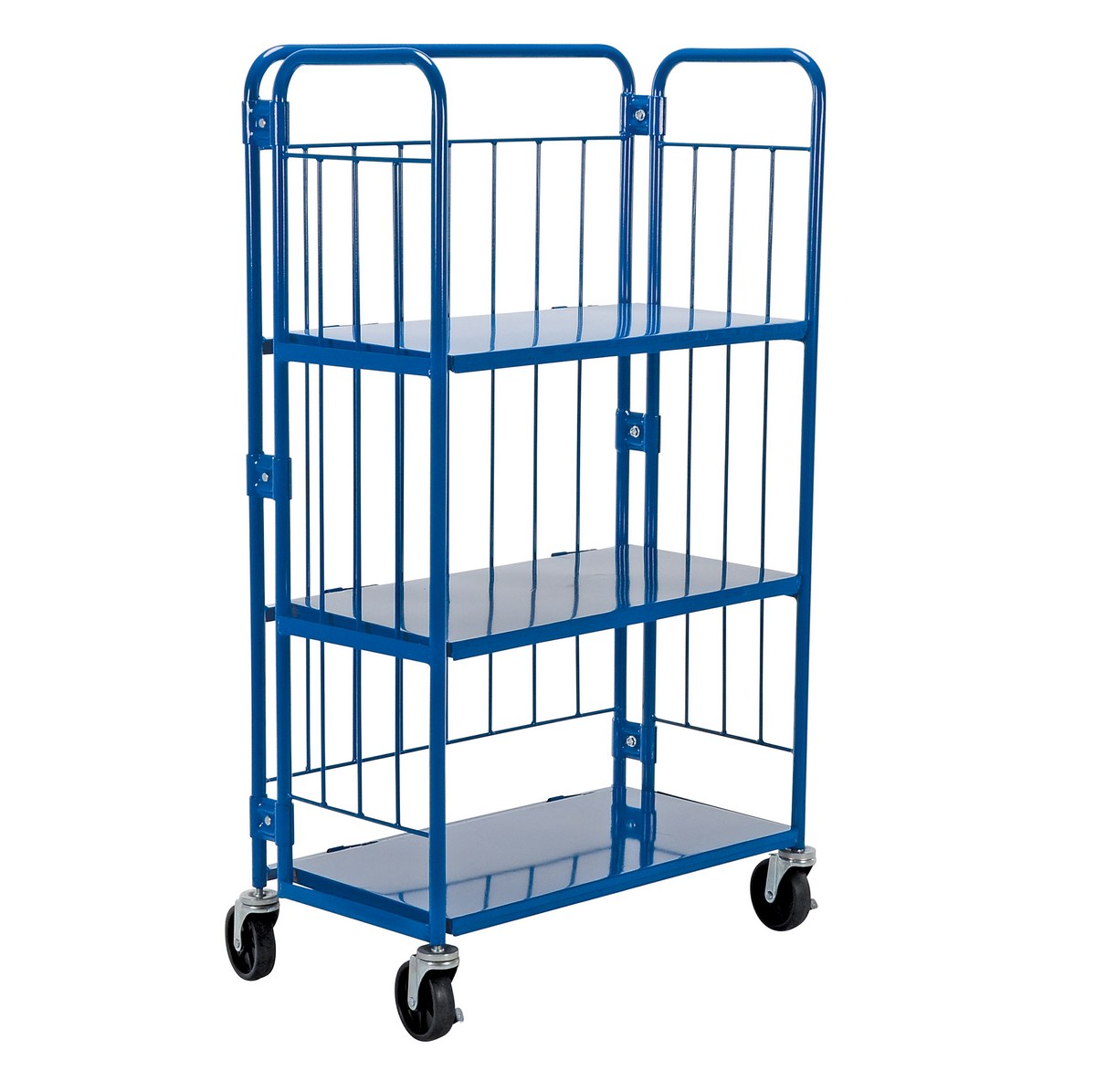

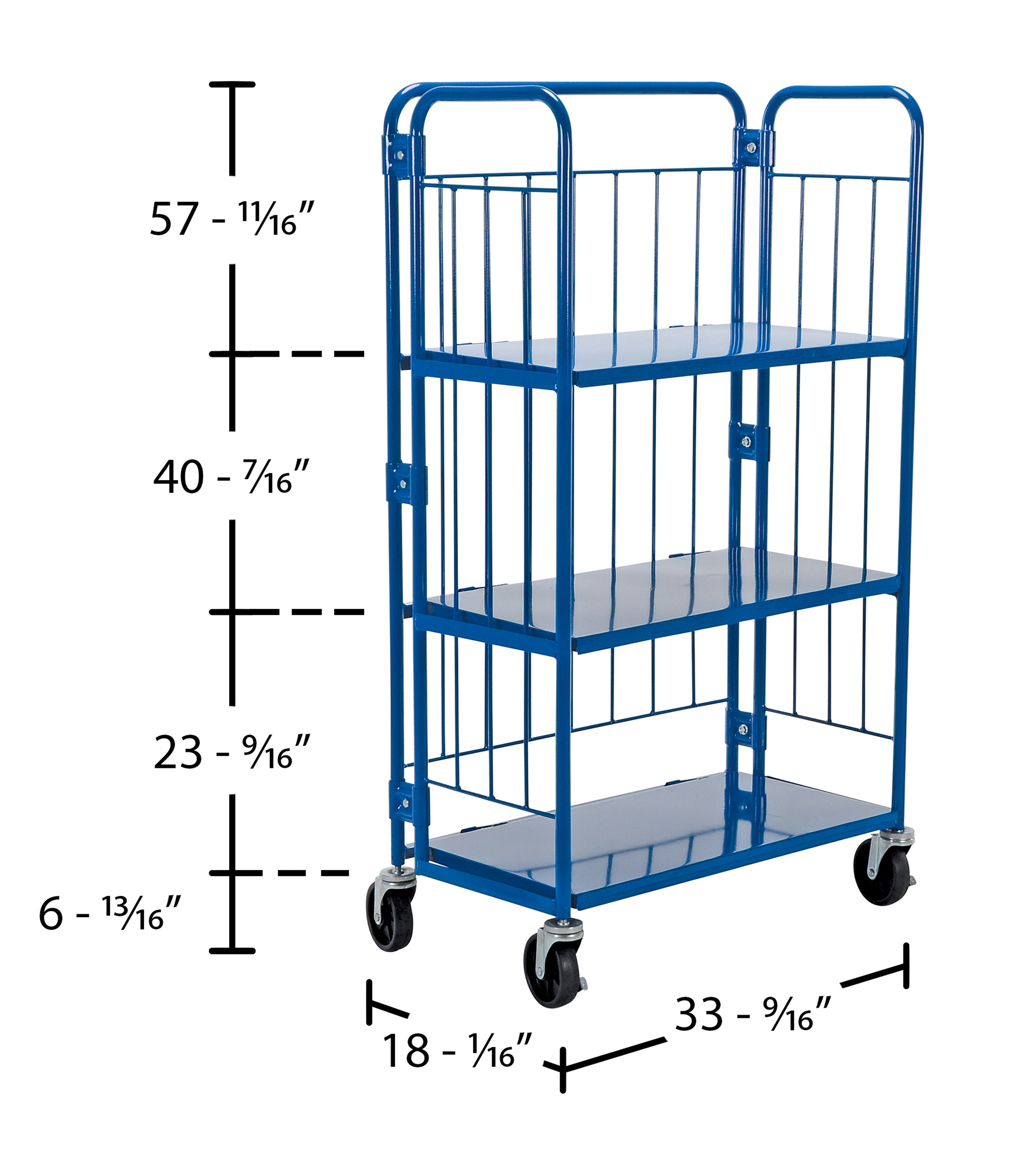

ROL-1834-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 34"x18"x59" 3-1/4"x11" 990 116
ROL-3143-2 Warranty PDFCompliance Certificate 2 43-5/8"x 31-1/4"x 65-1/2" 13-3/8"x6-1/4" 1,100 160
ROL-3143-1 Warranty PDFCompliance Certificate 1 43-5/8"x31-1/4"x 65-1/2" 13-3/8"x6-1/4" 880 135
Galvanized Finish
ROL-55 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 26-1/4"x23-3/8"x35-5/8" 2"x1-7/8" 660 60
ROL-80 Warranty PDFCompliance Certificate 1 28-1/4"x 35-1/4"x 69-1/2" 12-1/2"x4" 660 103
ROL-85 Warranty PDFCompliance Certificate 2 27-1/2"x32"x68-1/4" 18-1/2"x4-1/8" 660 120
ROL-95 Warranty PDFCompliance Certificate 1 26-3/8"x32"x59" 15-3/4"x3-3/4" 660 125
ROL-185 Warranty PDFCompliance Certificate 1 43-1/2"x30"x69" 2-1/2"x1-1/2" 660 196
ROL-120 Warranty PDFCompliance Certificate 1 24"x 32-1/4"x66" 1-3/4"x1-3/4" 880 156

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
