Product Family Overview


Back Guards for Pallet Rack
SERIES: RBG

Contain and minimize the potential hazard of falling items with Pallet Rack Back Guards. Modular sized panels mount directly to pallet rack system which installs quickly and provides safety. System is made of 2"x2"x 10 gauge steel welded wire mesh, welded into a 1-1/4" x 1-1/4" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers and have the option of flush mount or offset brackets to allow for panels that overhang the beams.

  • The RackBack panel bolts directly to your existing pallet rack uprights creating a sturdy barrier
  • Between inventory and dangerous spills in order to protect personnel and contain inventory
  • Netting style backing is easy to install and makes sure nothing can fall if a pallet breaks
  • "Above the top" mounting allows panels to extend above top rack beam

Contain and minimize the potential hazard of falling items with Pallet Rack Back Guards. Modular sized panels mount directly to pallet rack system which installs quickly and provides safety. System is made of 2"x2"x 10 gauge steel welded wire mesh, welded into a 1-1/4" x 1-1/4" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers and have the option of flush mount or offset brackets to allow for panels that overhang the beams.

  • The RackBack panel bolts directly to your existing pallet rack uprights creating a sturdy barrier
  • Between inventory and dangerous spills in order to protect personnel and contain inventory
  • Netting style backing is easy to install and makes sure nothing can fall if a pallet breaks
  • "Above the top" mounting allows panels to extend above top rack beam

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
RBG-104 RBG-1041 Year Limited WarrantySteel Welded Wire Panel 120 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
102
RBG-105 RBG-1051 Year Limited WarrantySteel Welded Wire Panel 120 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
111

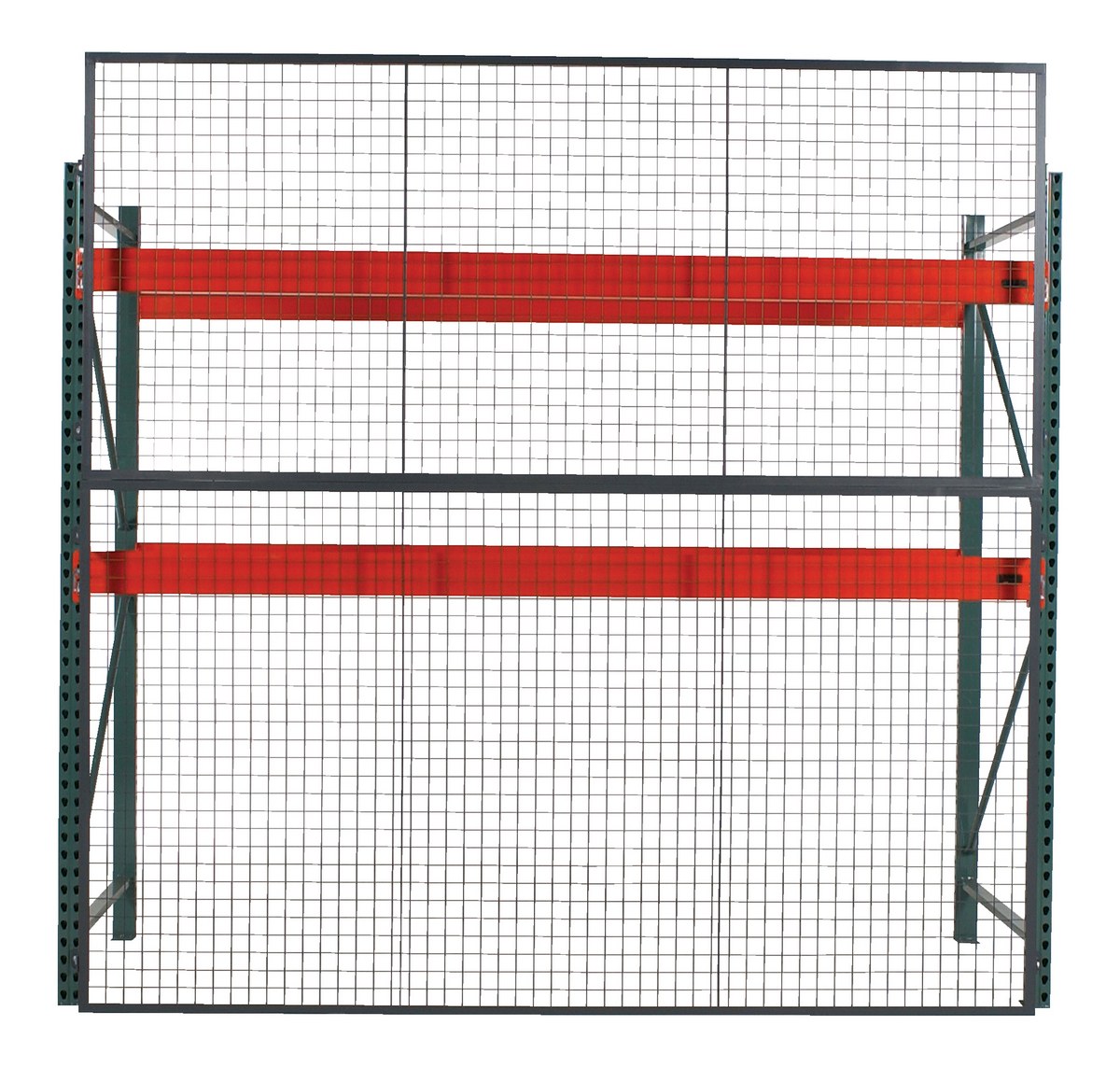

RBG-124 RBG-1241 Year Limited WarrantySteel Welded Wire Panel 144 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
115
RBG-125 RBG-1251 Year Limited WarrantySteel Welded Wire Panel 144 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
125
RBG-1FMC RBG-1FMC1 Year Limited WarrantySteel Flush Mount Clips for Teardrop Uprights 1-1/4 In. x 1-1/4 In. x 1-1/4 In. Quantity of 4 GrayPackage Quantity: 4
3

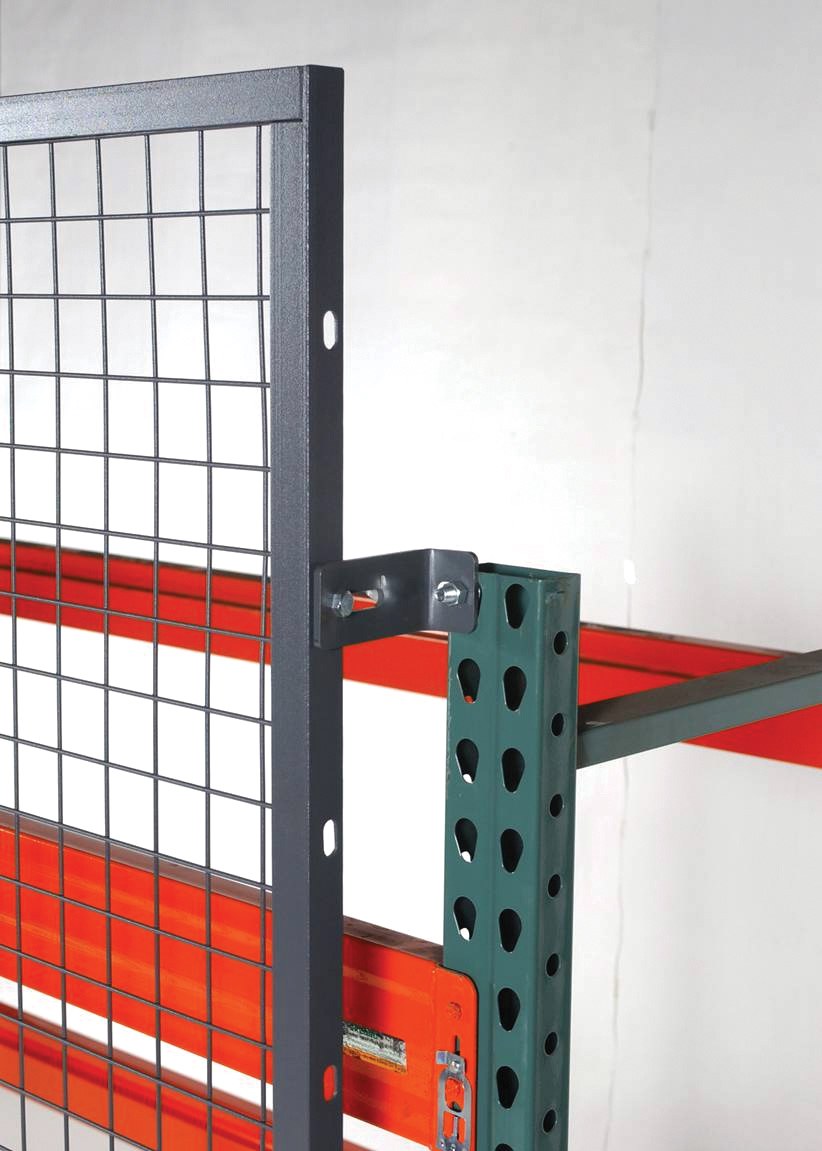

RBG-43-OC RBG-43-OC1 Year Limited WarrantySteel 1 to 3 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 4-1/2 In. x 2 In. Quantity of 4 GrayPackage Quantity: 4
Offset Range (in.): 1 to 3
5

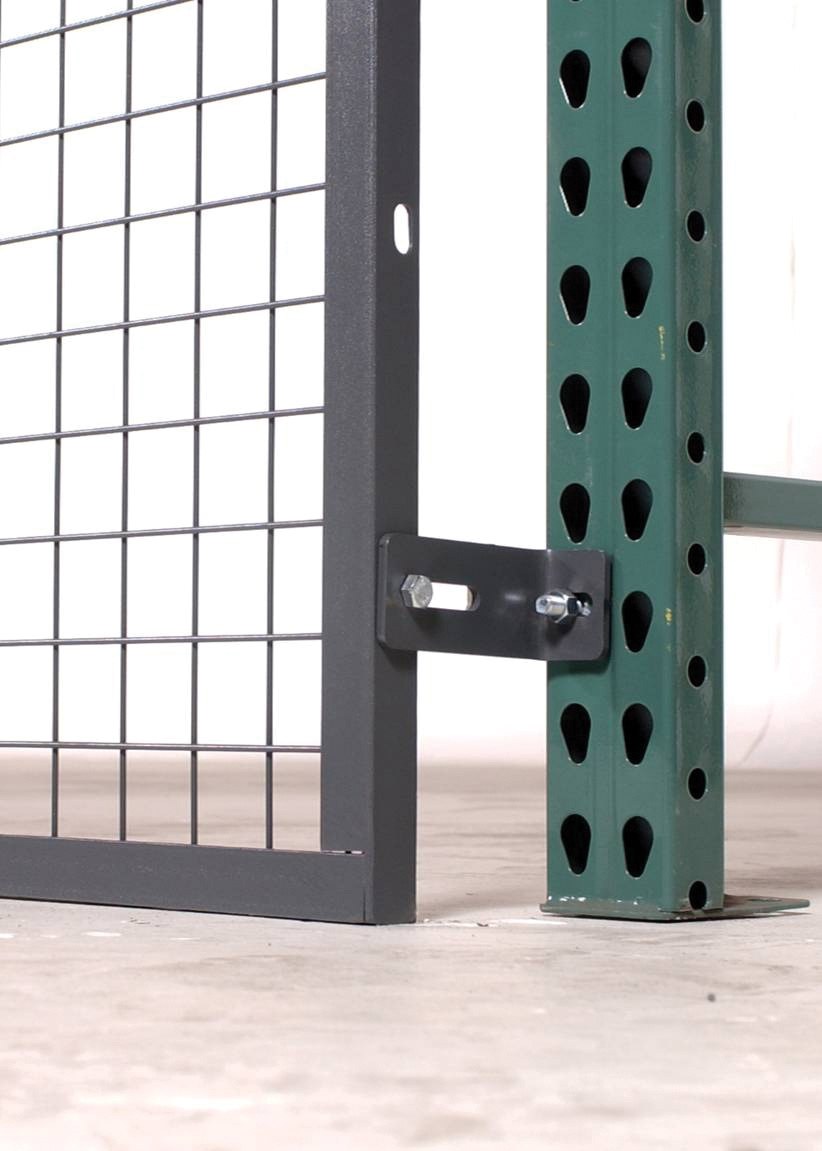

RBG-46-OC RBG-46-OC1 Year Limited WarrantySteel 4 to 6 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 7-1/4 In. x 2 In. Quantity of 4 GrayPackage Quantity: 4
Offset Range (in.): 4 to 6
6
RBG-84 RBG-841 Year Limited WarrantySteel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
79

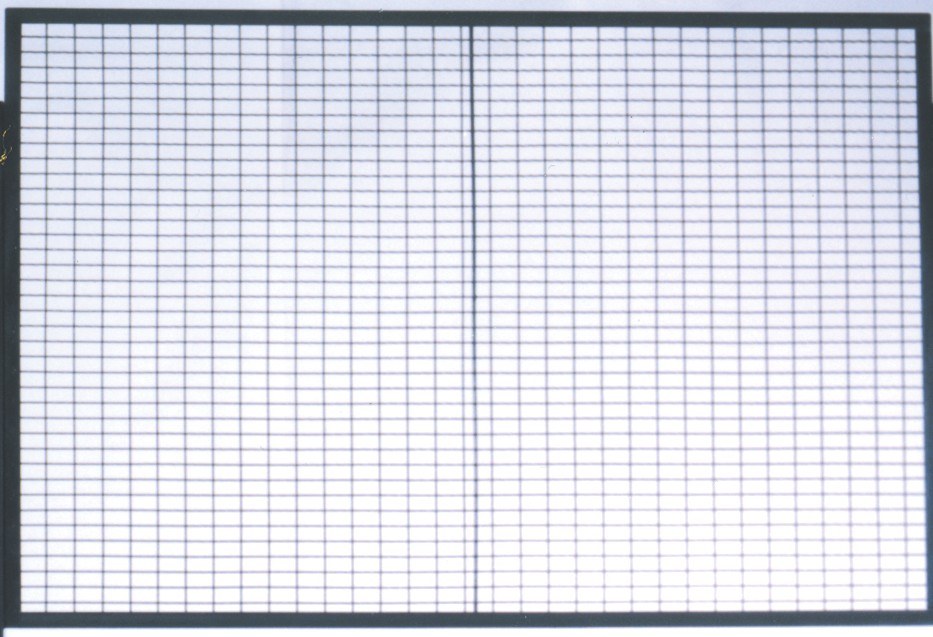

RBG-85 RBG-851 Year Limited WarrantySteel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
85
RBG-94 RBG-941 Year Limited WarrantySteel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
99

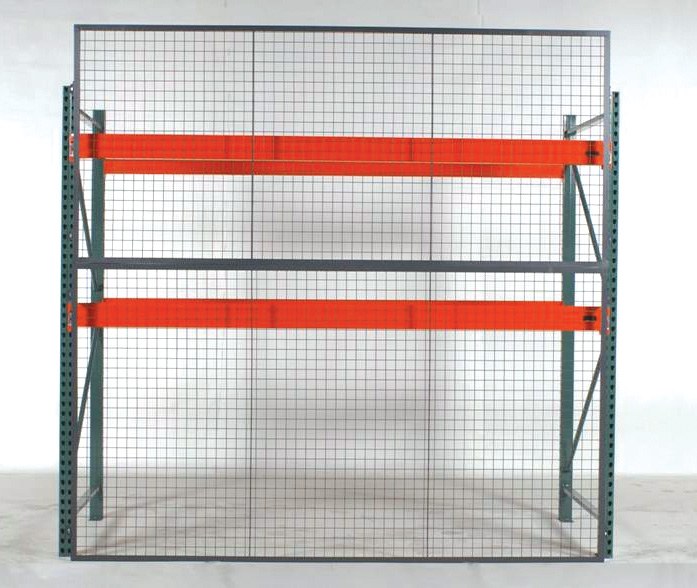

RBG-95 RBG-951 Year Limited WarrantySteel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
107

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

RBG-104
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-105
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-124
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-1FMC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Package Quantity: 4

Package Quantity: 4

RBG-43-OC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Package Quantity: 4
Offset Range (in.): 1 to 3
Package Quantity: 4
Offset Range (in.): 1 to 3

RBG-46-OC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Package Quantity: 4
Offset Range (in.): 4 to 6
Package Quantity: 4
Offset Range (in.): 4 to 6

RBG-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-85
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-94
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

RBG-95
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10
Mesh square dimension (in.): 2 x 2
Welded wire gauge: 10

Back Guards for Pallet Rack PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Back Guards for Pallet Rack




Contain and minimize the potential hazard of falling items with Pallet Rack Back Guards. Modular sized panels mount directly to pallet rack system which installs quickly and provides safety. System is made of 2"x2"x 10 gauge steel welded wire mesh, welded into a 1-1/4" x 1-1/4" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers and have the option of flush mount or offset brackets to allow for panels that overhang the beams.

  • The RackBack panel bolts directly to your existing pallet rack uprights creating a sturdy barrier
  • Between inventory and dangerous spills in order to protect personnel and contain inventory
  • Netting style backing is easy to install and makes sure nothing can fall if a pallet breaks
  • "Above the top" mounting allows panels to extend above top rack beam


Model # Description Attributes Net Wt.
(lbs)
RBG-104 RBG-104Steel Welded Wire Panel 120 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
102
RBG-105 RBG-105Steel Welded Wire Panel 120 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
111
RBG-124 RBG-124Steel Welded Wire Panel 144 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
115
RBG-125 RBG-125Steel Welded Wire Panel 144 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
125
RBG-1FMC RBG-1FMCSteel Flush Mount Clips for Teardrop Uprights 1-1/4 In. x 1-1/4 In. x 1-1/4 In. Quantity of 4 GrayPackage Quantity: 4
3
RBG-43-OC RBG-43-OCSteel 1 to 3 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 4-1/2 In. x 2 In. Quantity of 4 GrayPackage Quantity: 4
Offset Range (in.): 1 to 3
5
RBG-46-OC RBG-46-OCSteel 4 to 6 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 7-1/4 In. x 2 In. Quantity of 4 GrayPackage Quantity: 4
Offset Range (in.): 4 to 6
6
RBG-84 RBG-84Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
79
RBG-85 RBG-85Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
85
RBG-94 RBG-94Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 48 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
99
RBG-95 RBG-95Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 60 In. GrayMesh square dimension (in.): 2 x 2
Welded wire gauge: 10
107
