Click Image to Enlarge

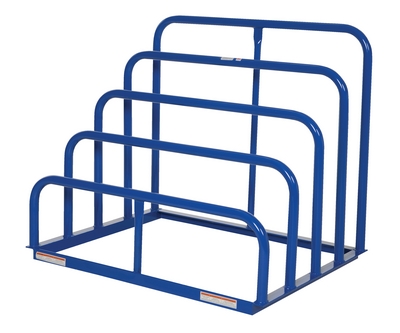

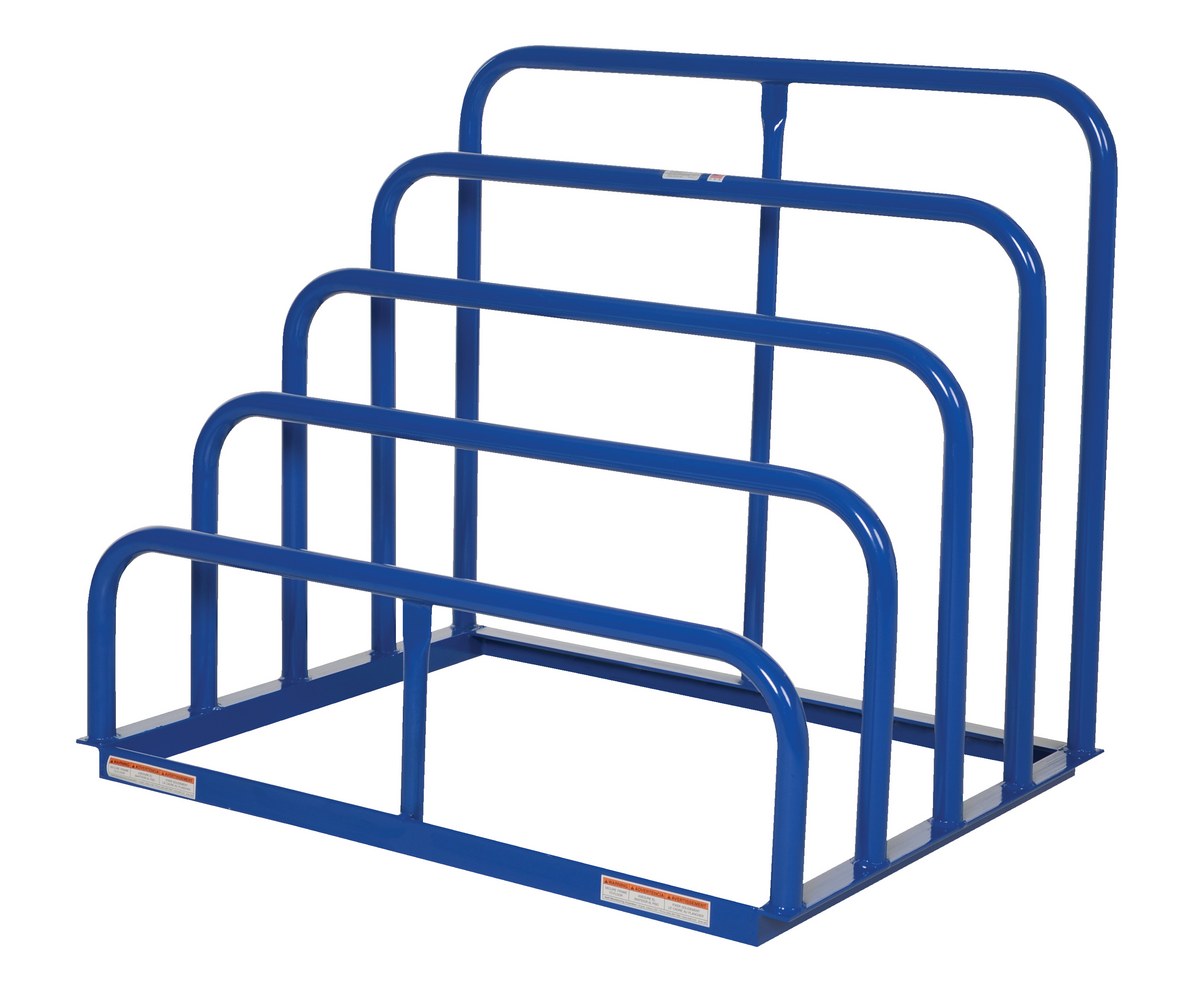

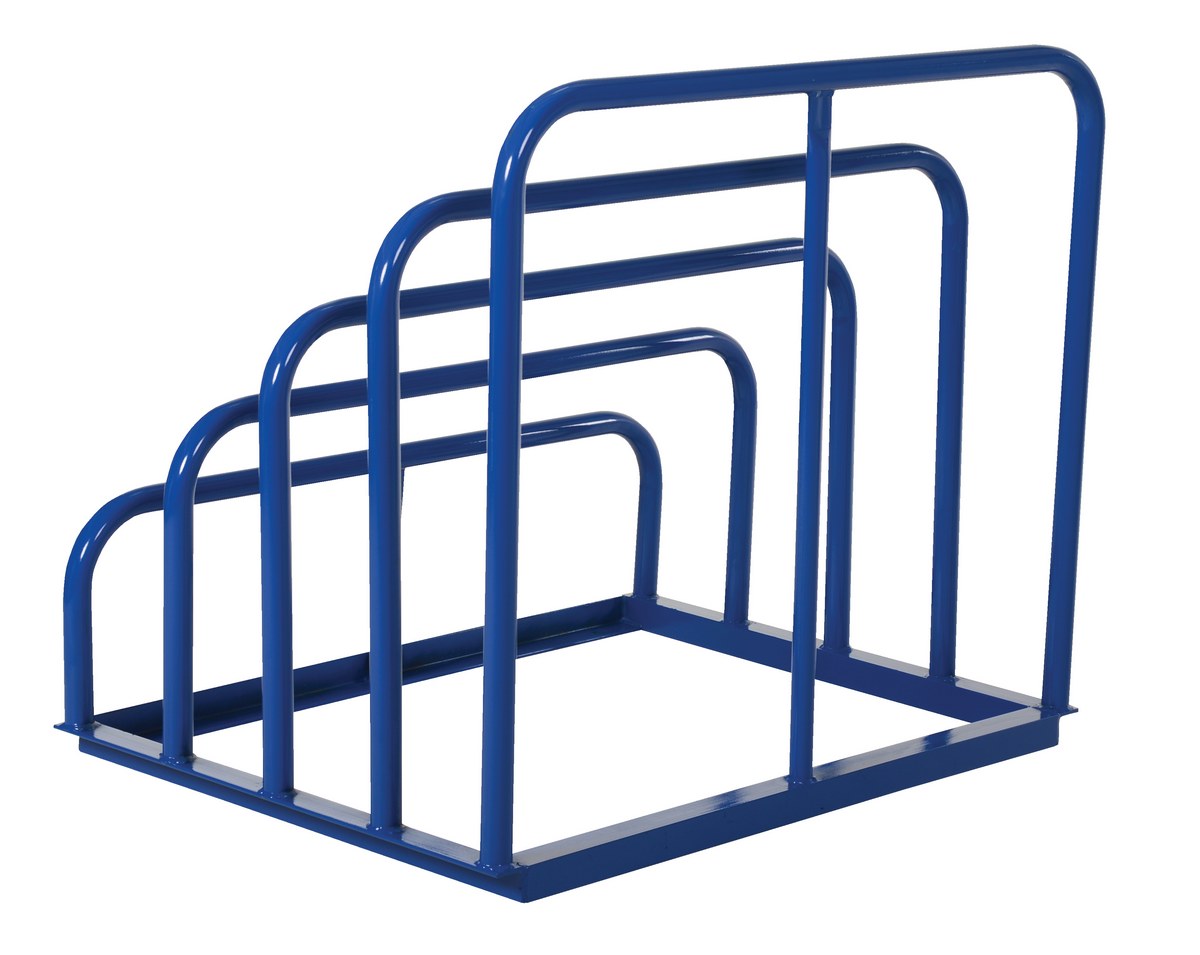

model: VHSR-4

SERIES: VHSR
Variable Height Sheet Racks

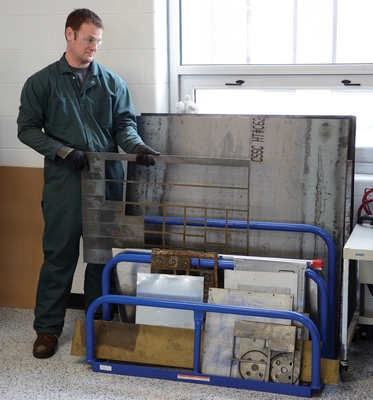

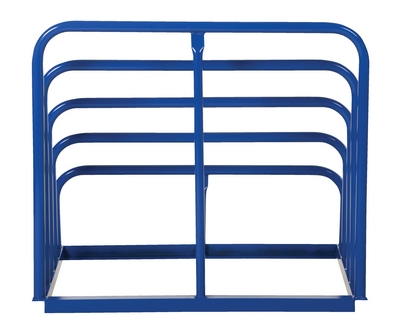

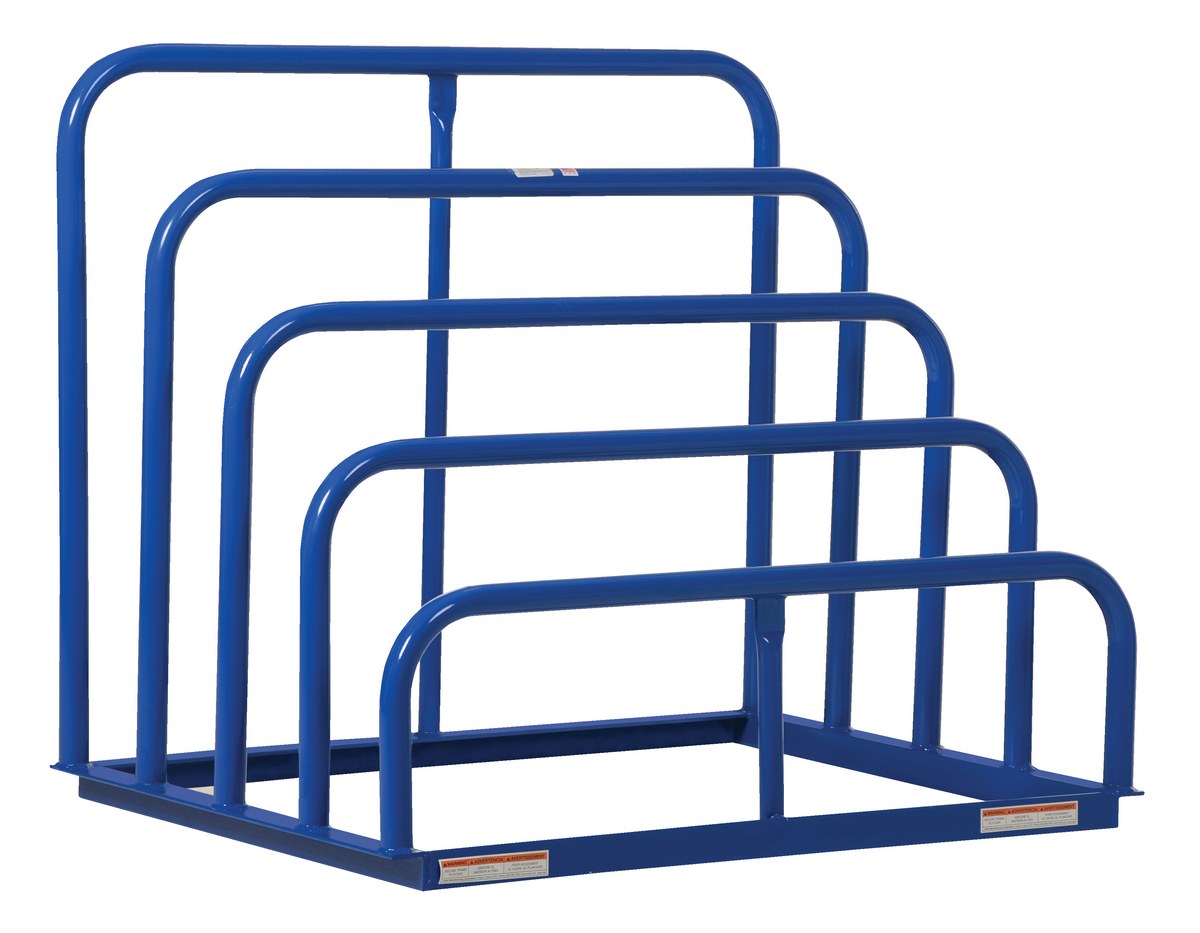

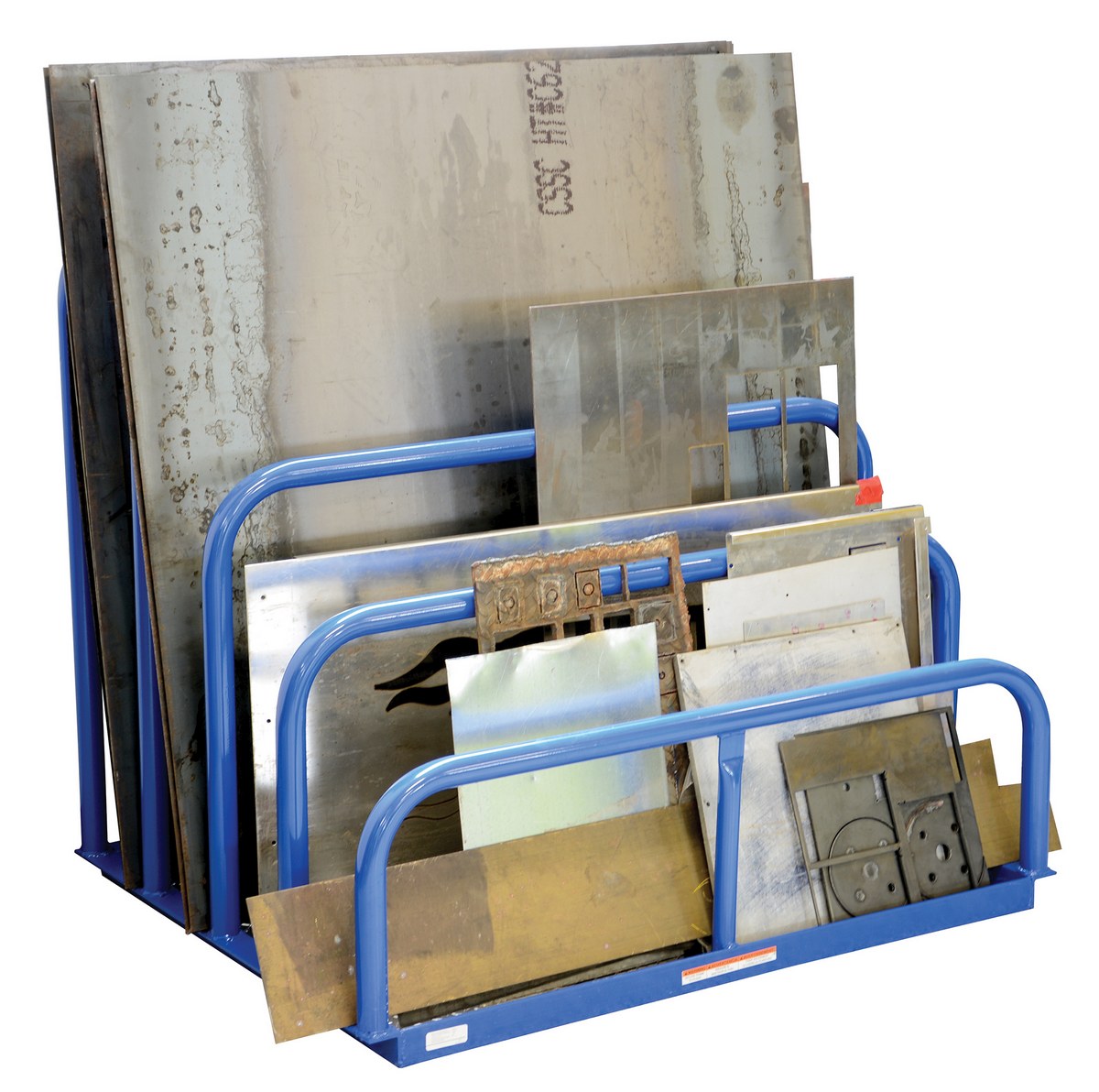

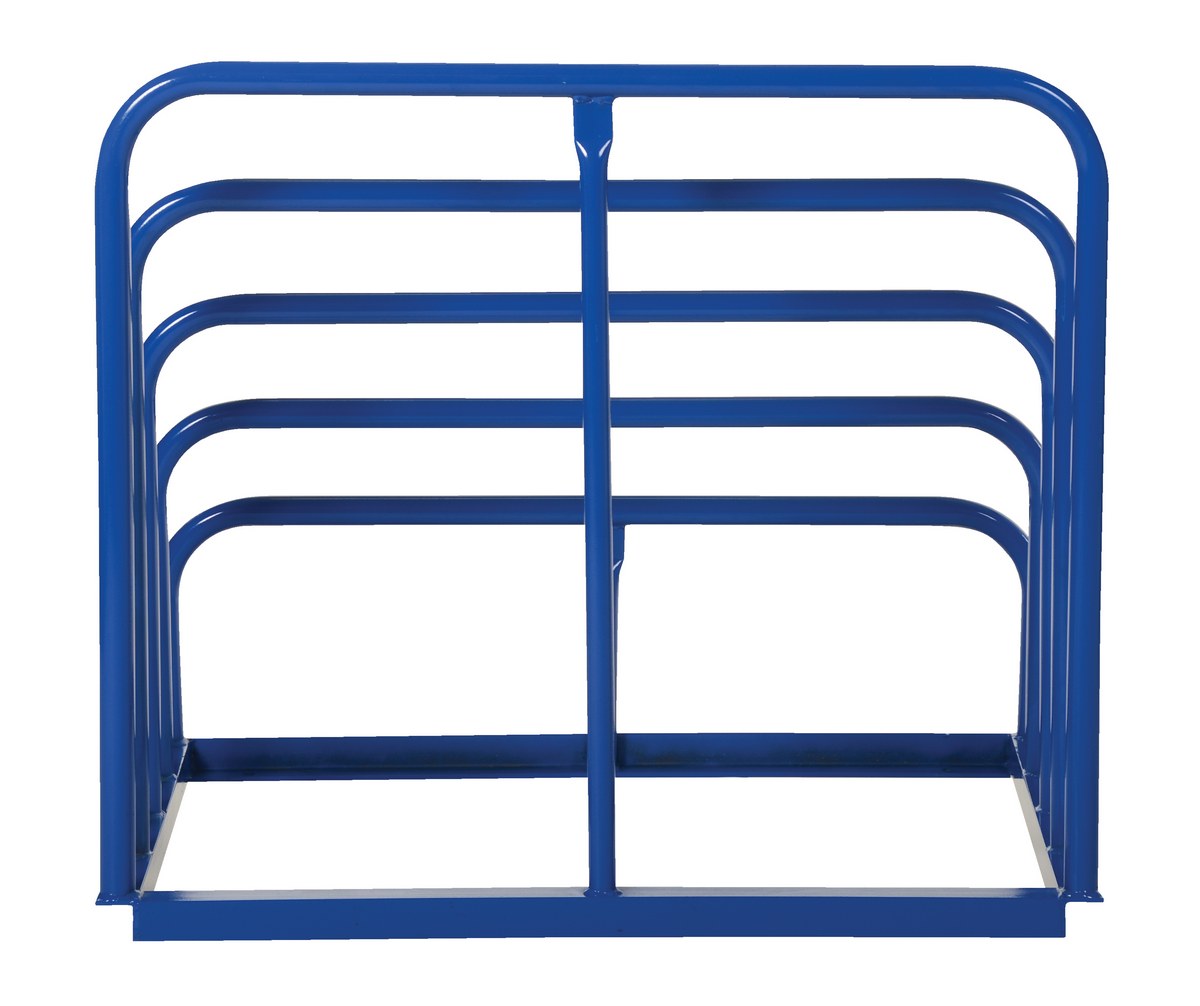

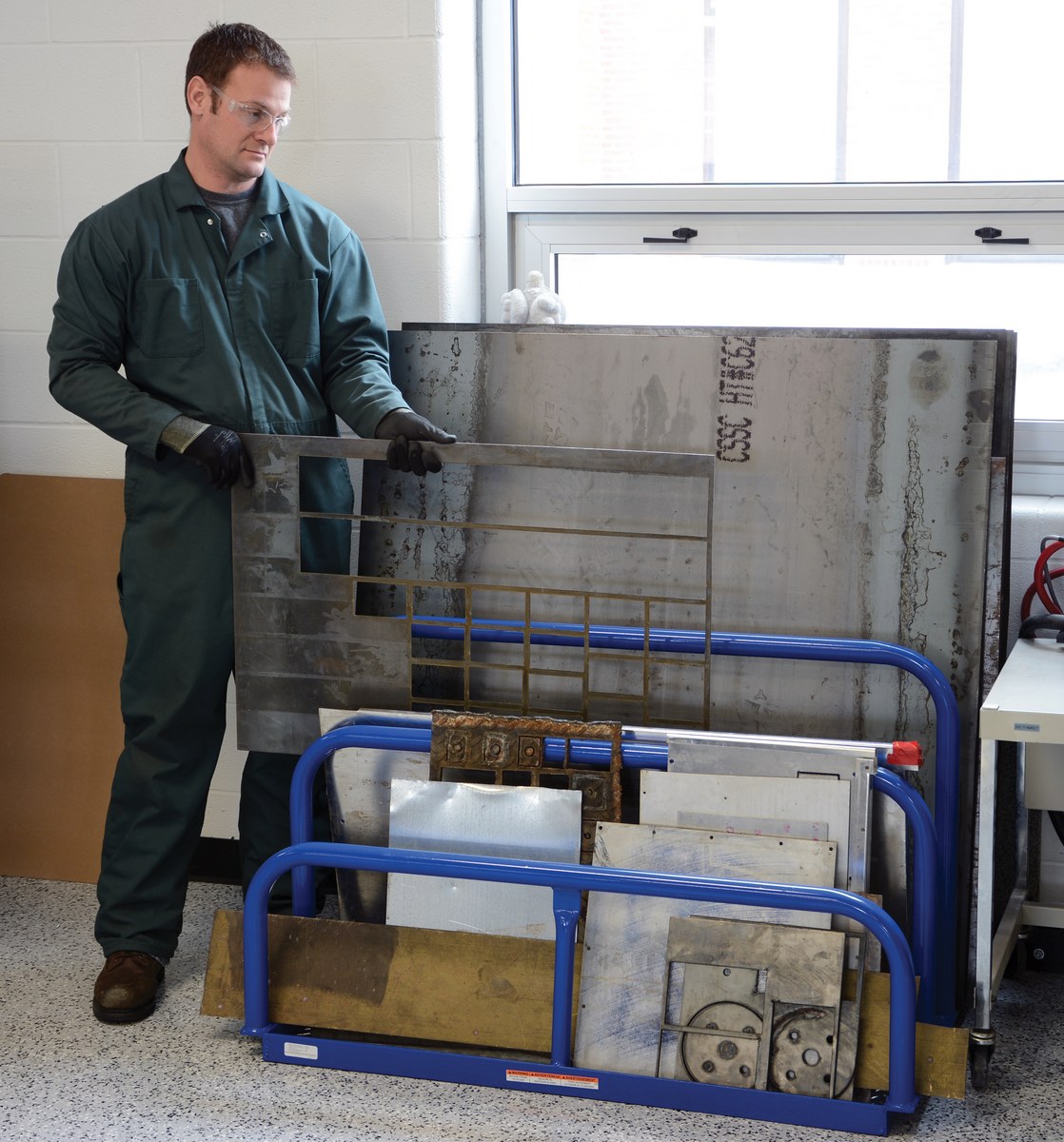

Store various sizes of sheet goods in the vertical position for easy viewing of stock. These sheet racks are perfect for use with multiple sizes of material. Four bays with different heights to increase visibility of stored materials. Available in all welded steel construction, model VHSR-4 and VHSR-8, or bolt together construction, model VHSR-4B. Bolt together units feature adjustable-width uprights. Capacity per bay is 1,500 lbs. Unit is supplied with lag down points. Baked in powder coat finish for added toughness.

The knock-down sheet rack, model number VHSR-4BA-KD ships at a lower freight class averaging 50% savings versus the welded model number VHSR-4.

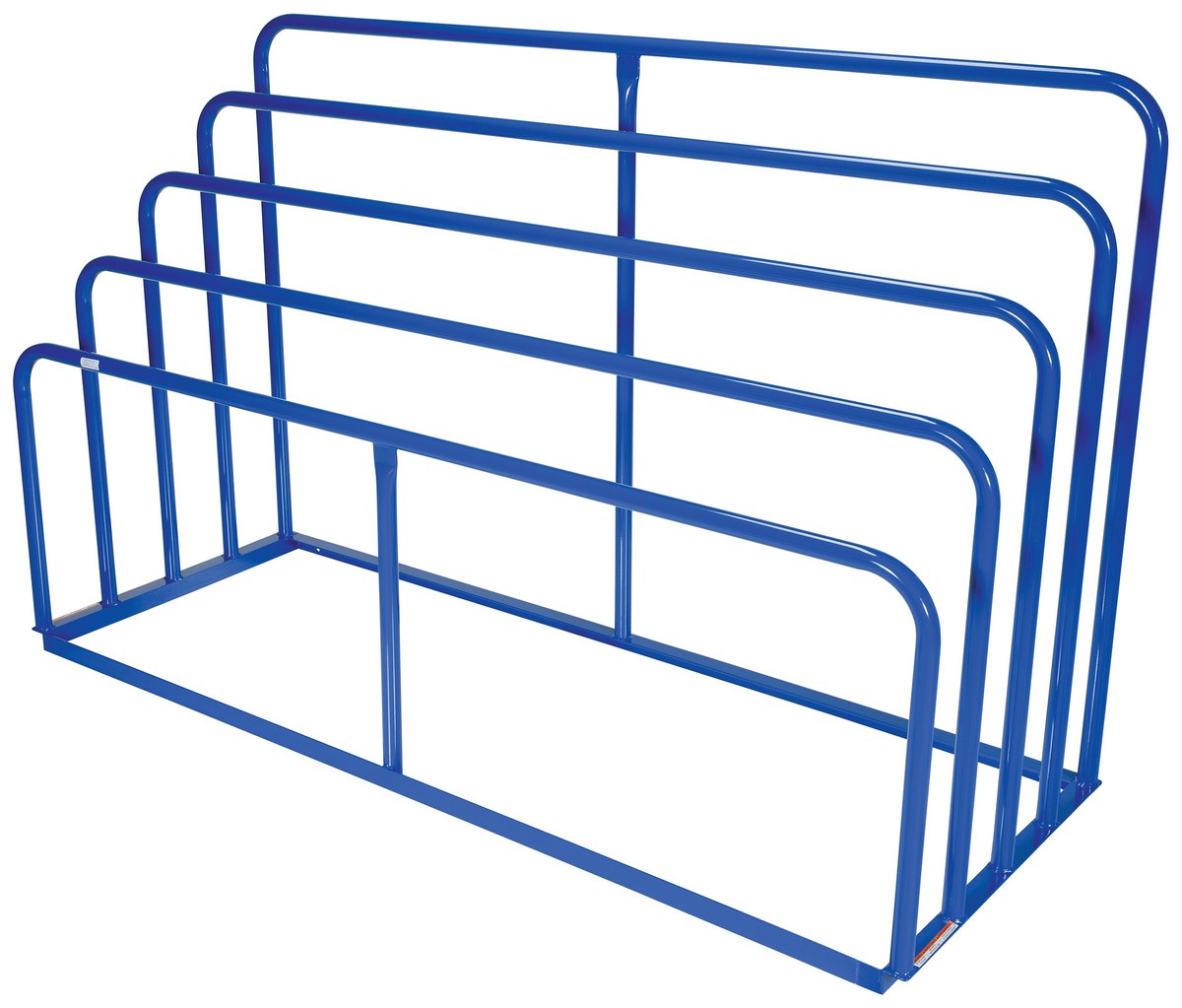

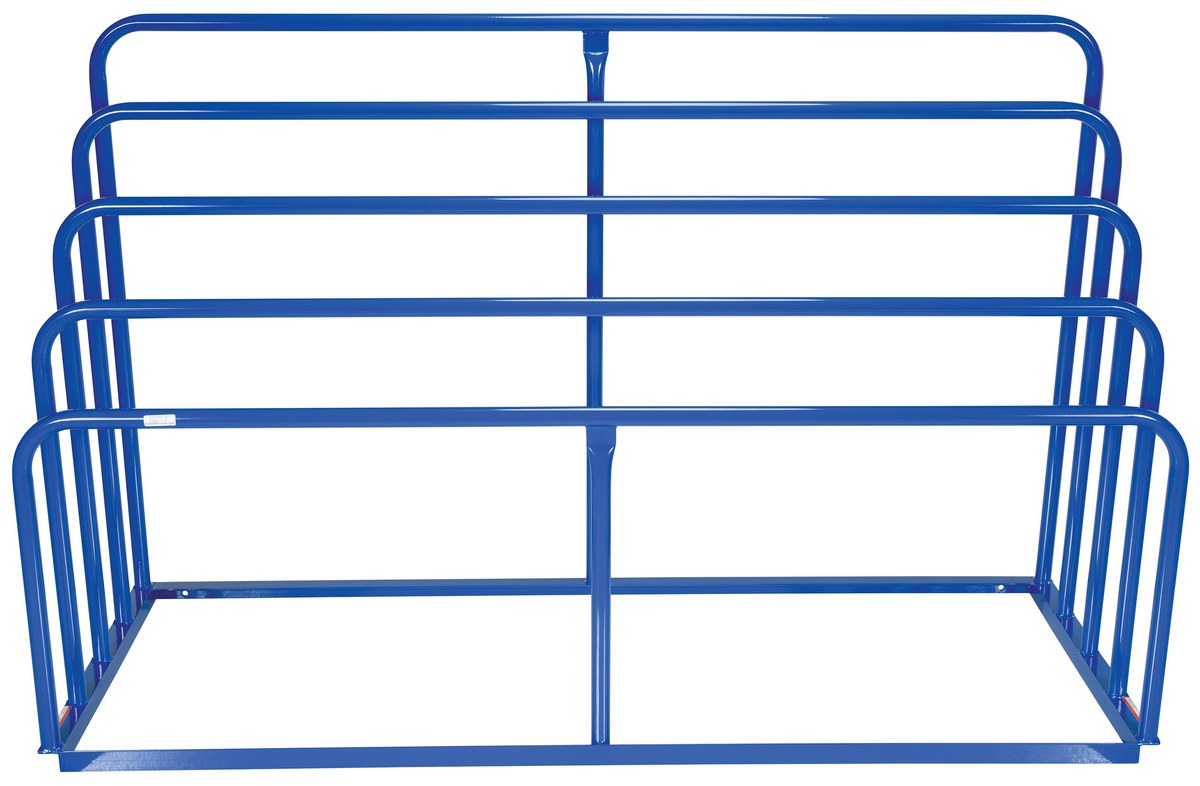

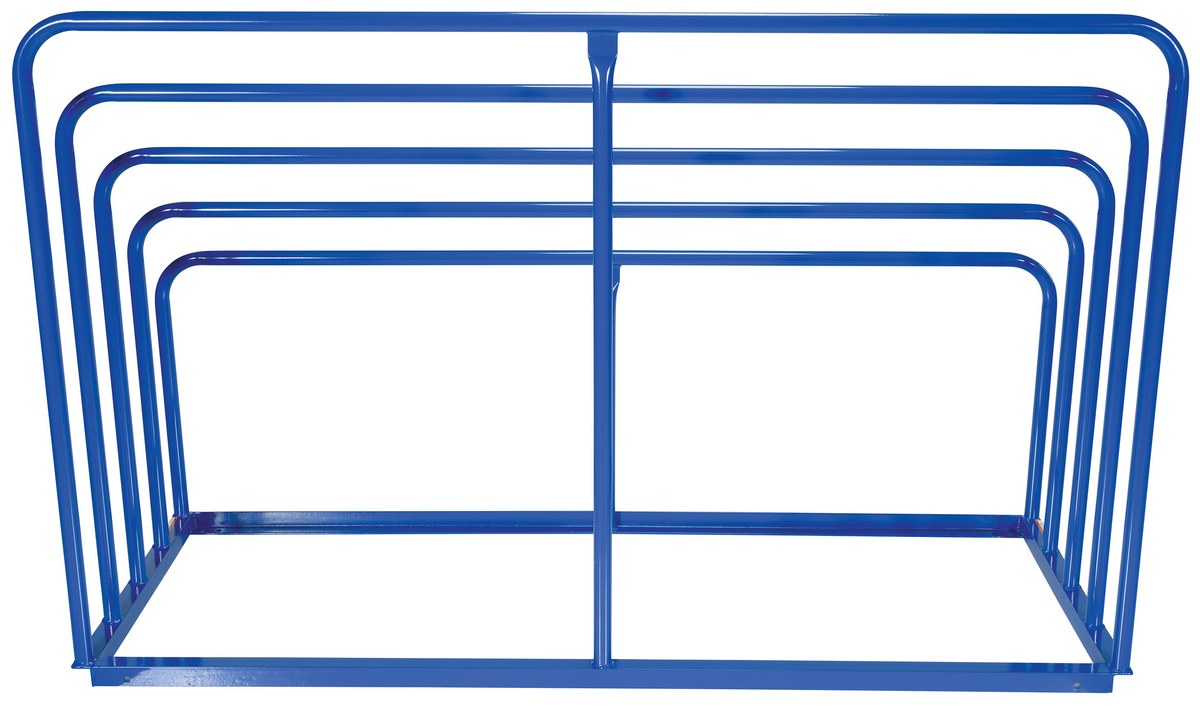

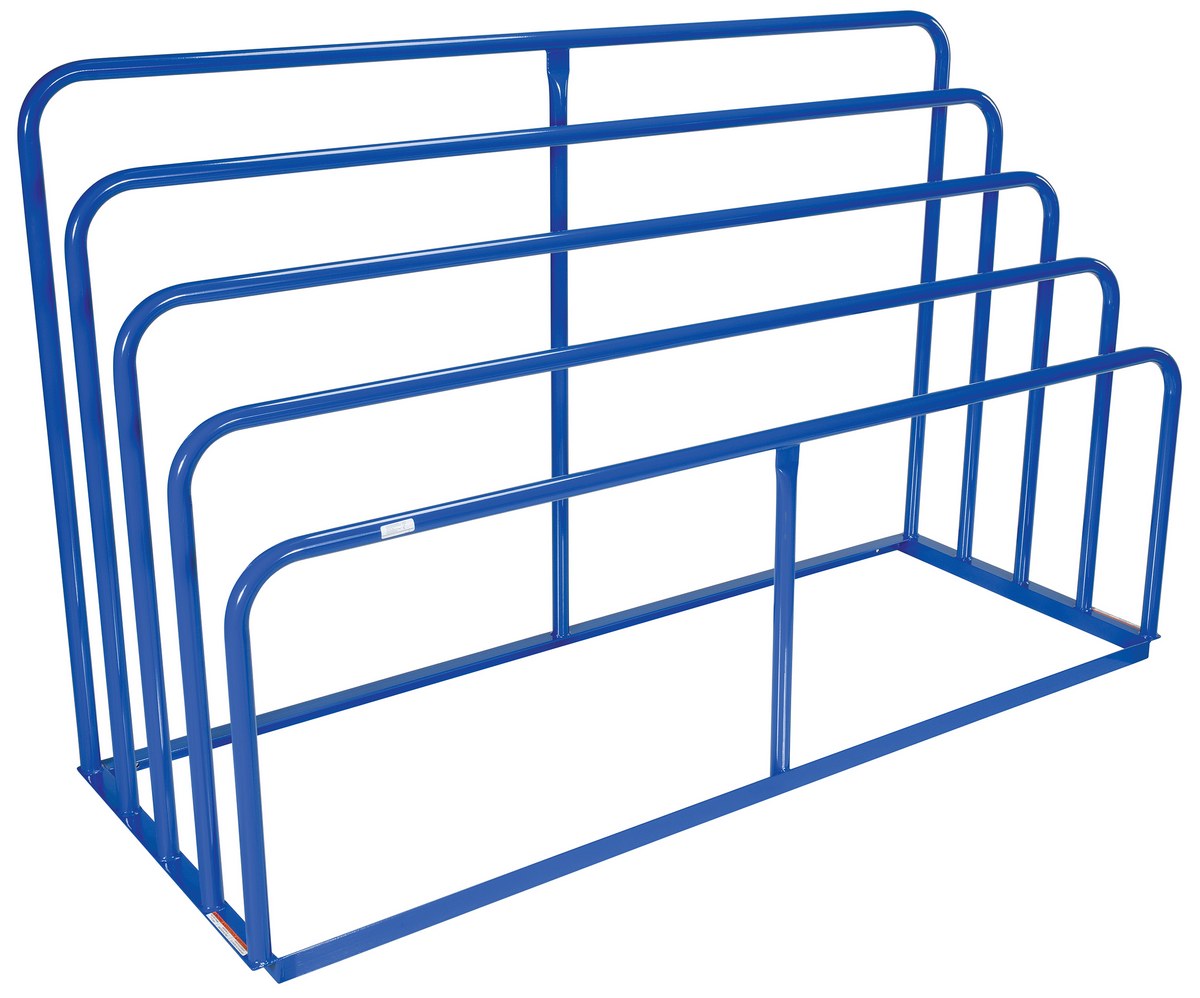

VHSR-8

model VHSR-8

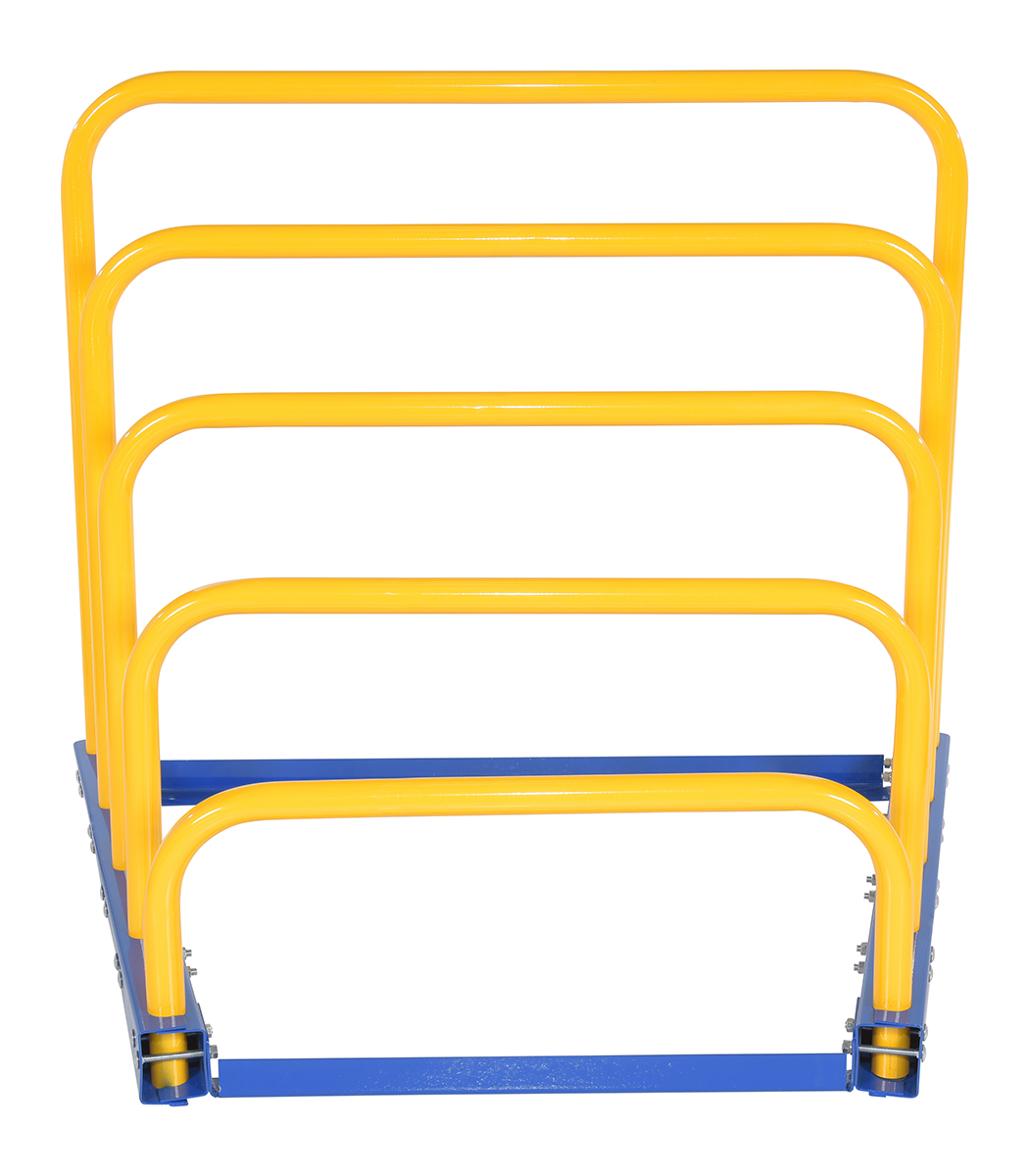

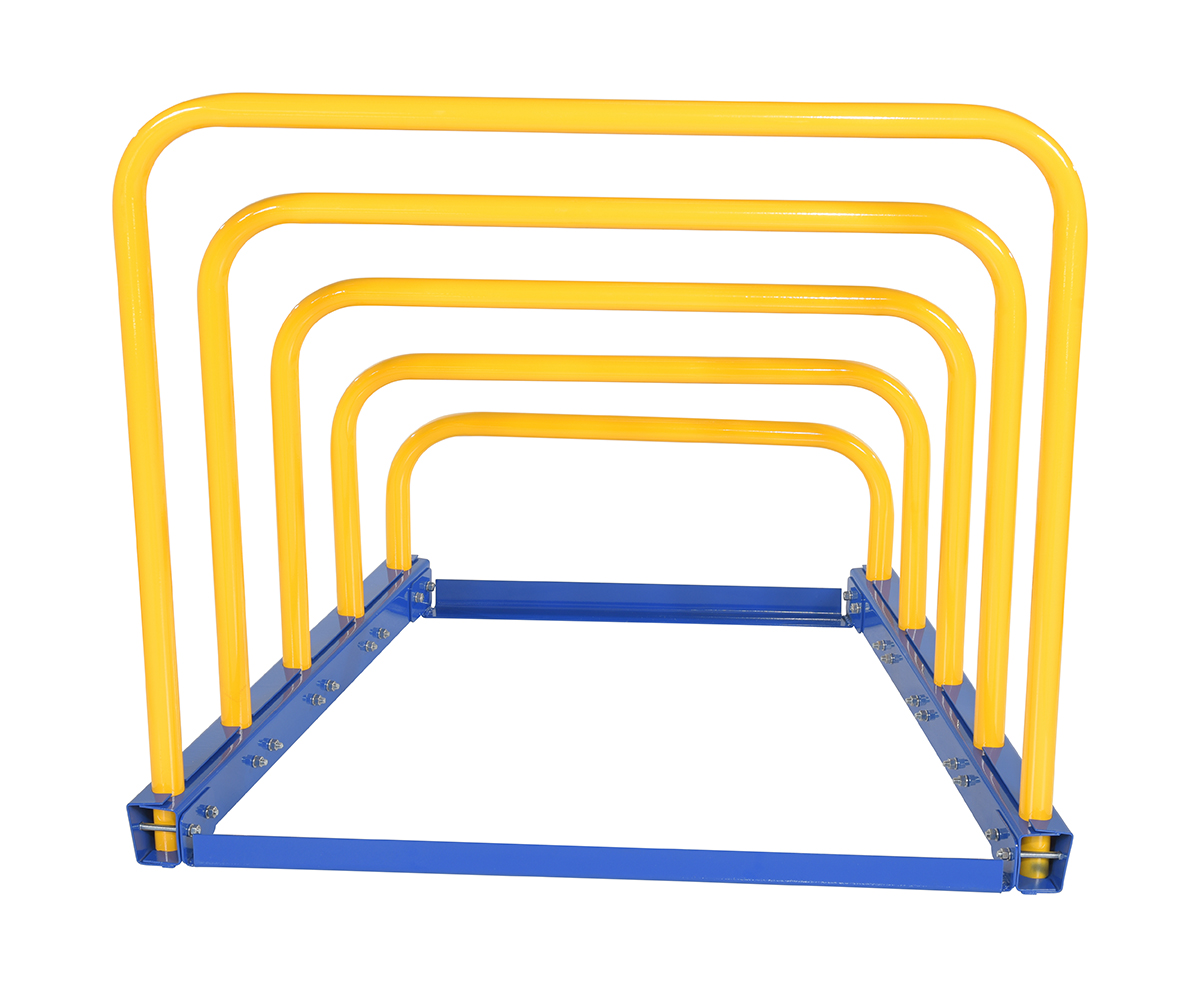

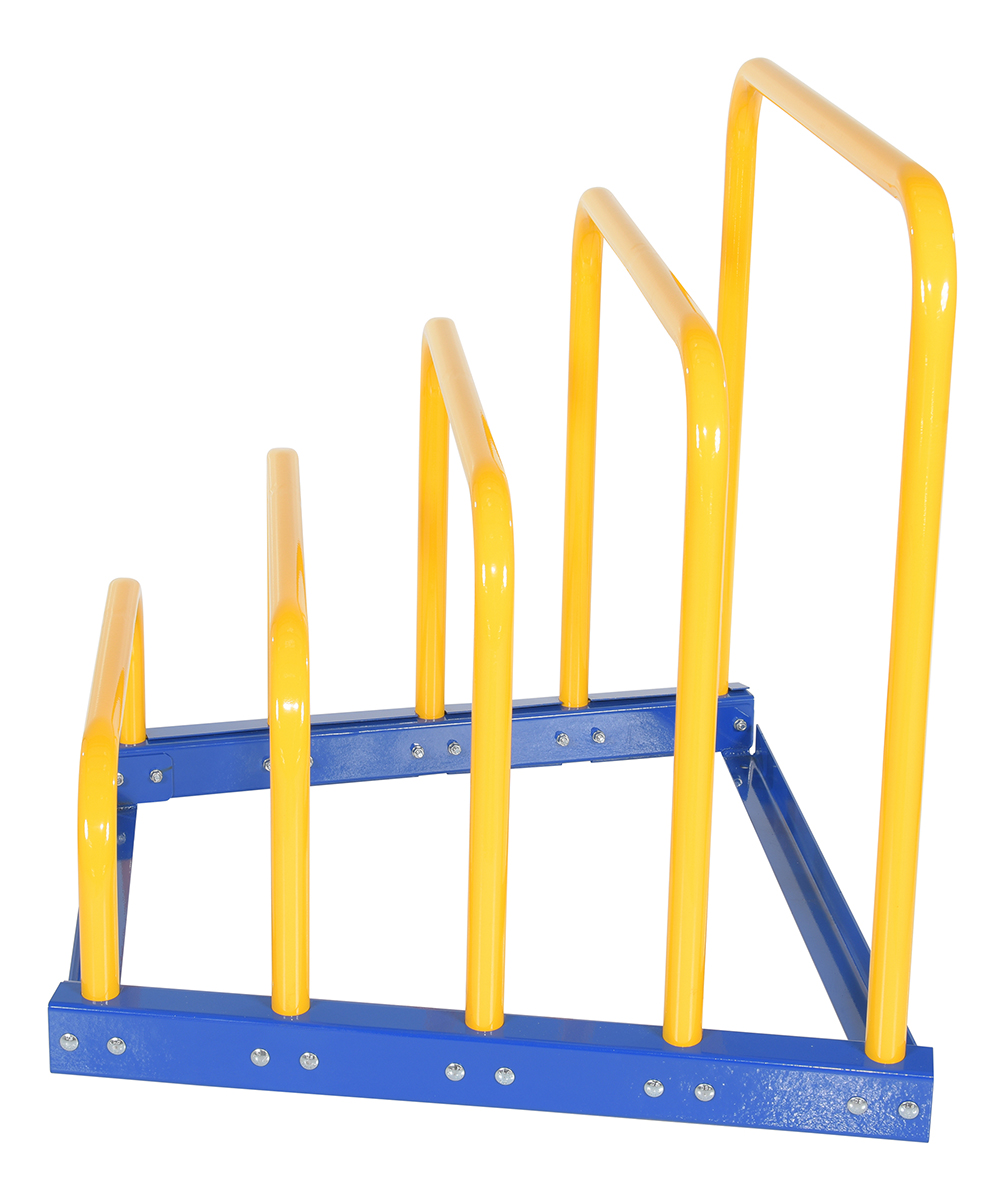

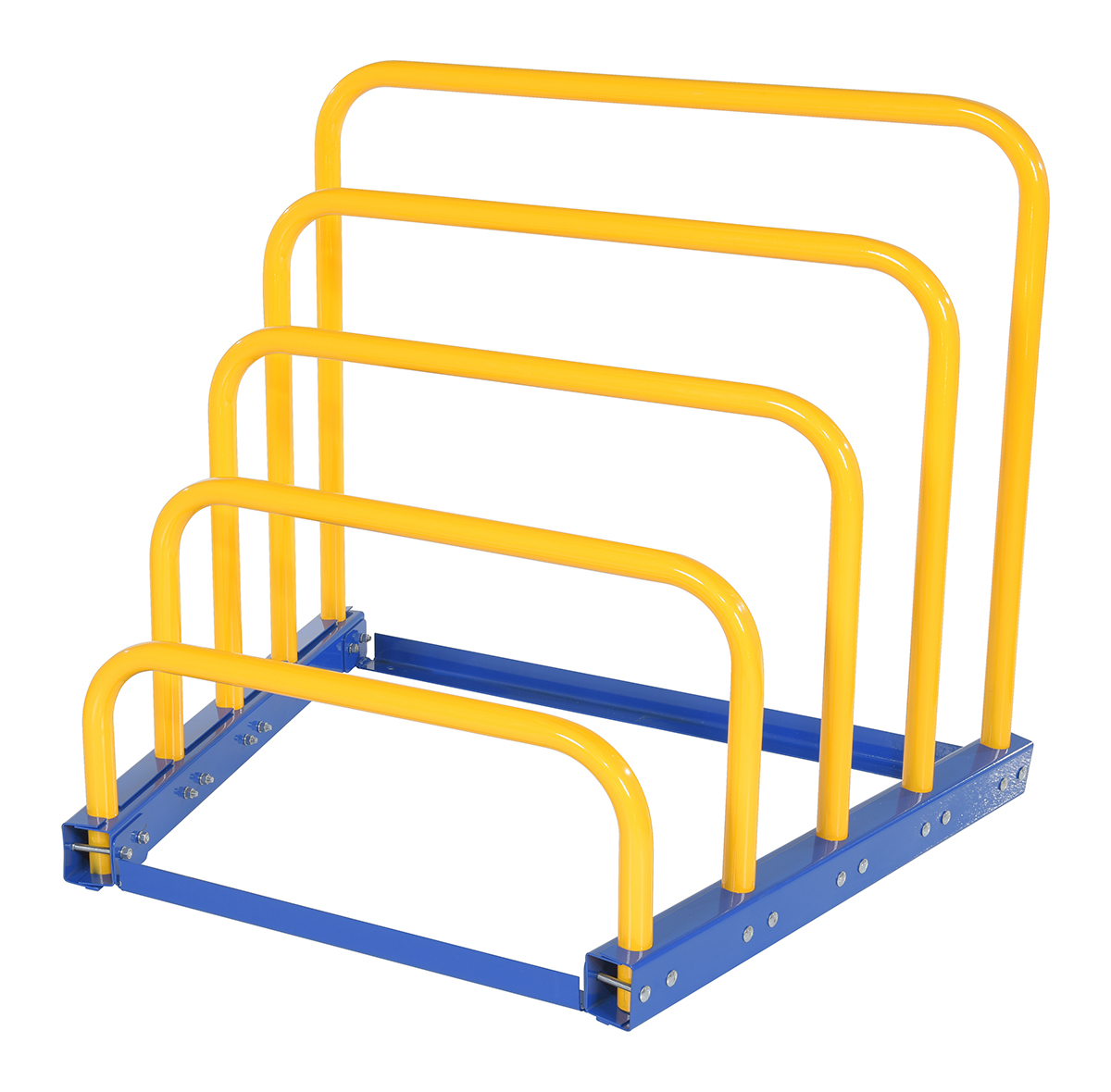

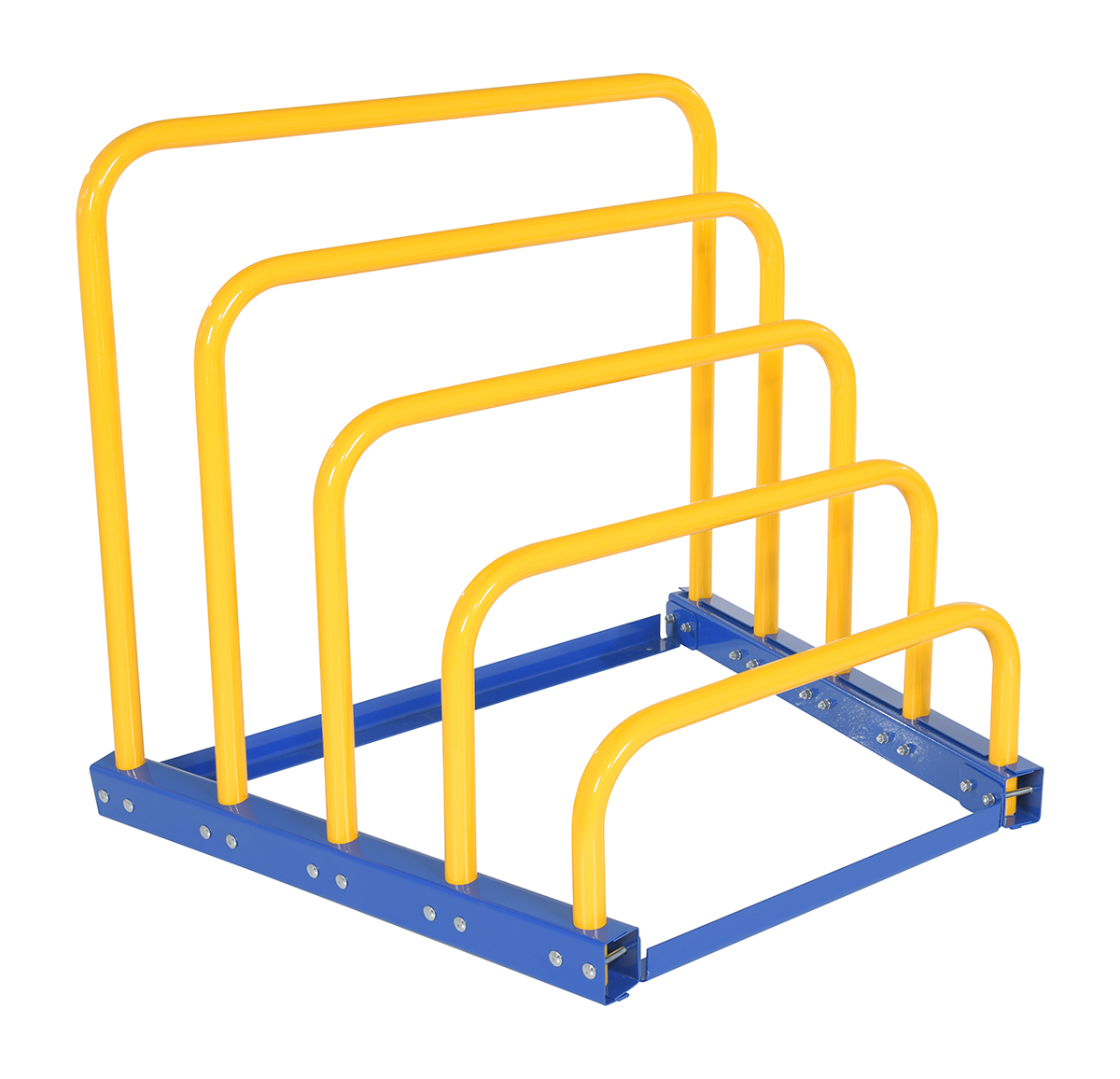

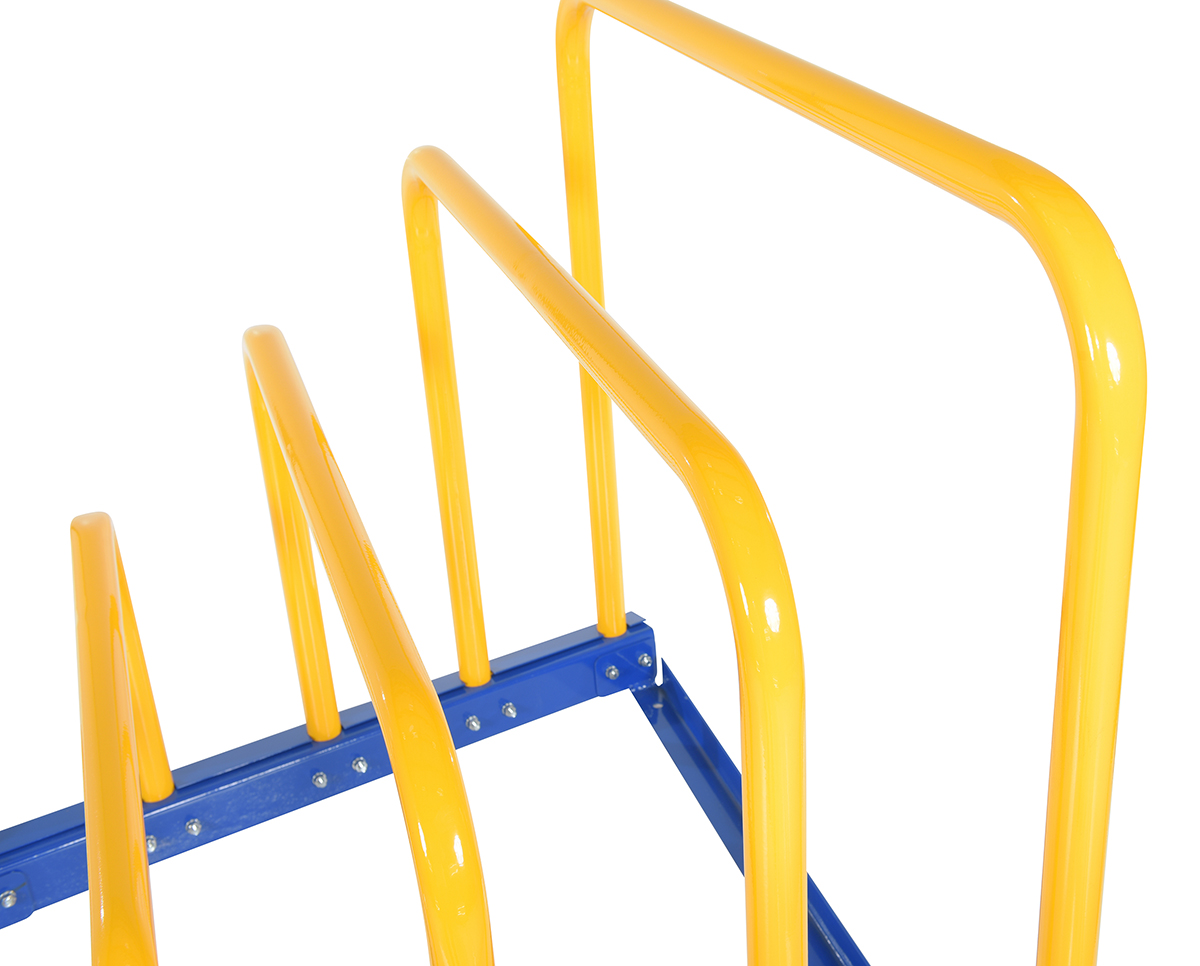

VHSR-4BA-KD

model VHSR-4BA-KD


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Variable Height Sheet Rack

Model Image PDF Overall Size
(WxDxH)
Number
of Bays
Distance
Between Bays
Wt.
(lbs)
VHSR-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 47-3/8"x36"x41-3/4" 4 6-7/8" 154
VHSR-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 96"x36"x60" 4 6-7/8" 268
VHSR-4BA-KD icon_approvaldrawings.jpgWarranty PDF 37-15/16"x48-7/8"x39-3/4" 4 6-11/16" 160
AS-124-4PK - Anchor bolts for concrete (4) 1/2"x4" 4

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

VHSR-4

VHSR-4

VHSR-4BA-KD

VHSR-4BA-KD

VHSR-8

VHSR-8






Variable Height Sheet Racks PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

VHSR-4
VHSR-8
VHSR-4BA-KD

Testing Certificates

VHSR-4
VHSR-4BA-KD
VHSR-8

Other PDF's

No "Other PDFs" For This Product...
