model: NEST-F-4848


SERIES: NEST
Internestable Portable Stackable Rack Systems

Unique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request.

Unique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request.

Other Various Racking

Cantilever Rack Kits

Cantilever Rack Kits

Galvanized Cantilever Rack Kits

Galvanized Cantilever Rack Kits

Standard-Duty Cantilever Racking

Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Heavy-Duty Cantilever Racking

Heavy-Duty Cantilever Racking

Share This Page

POST-24

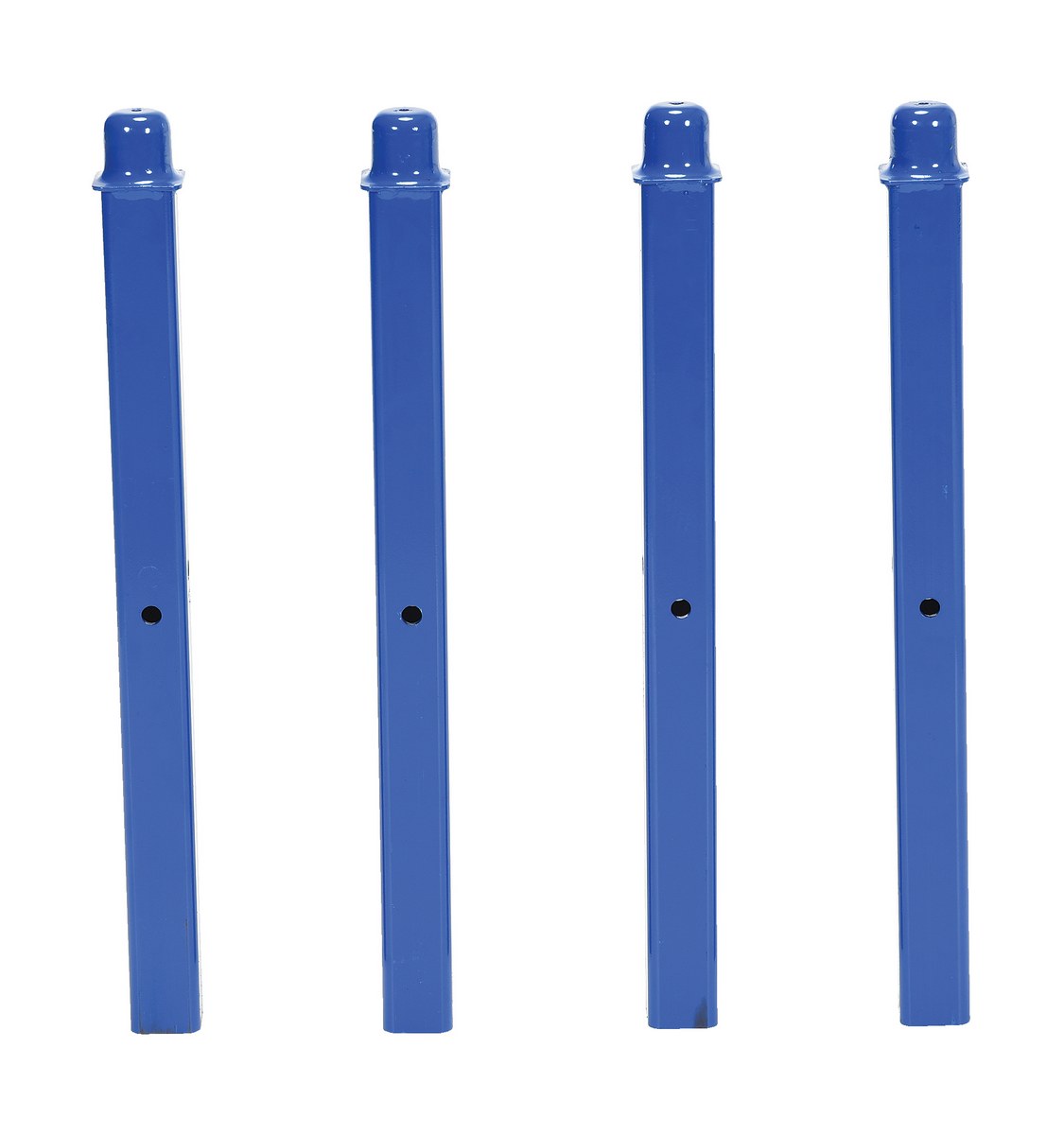

model POST-24

POST-36

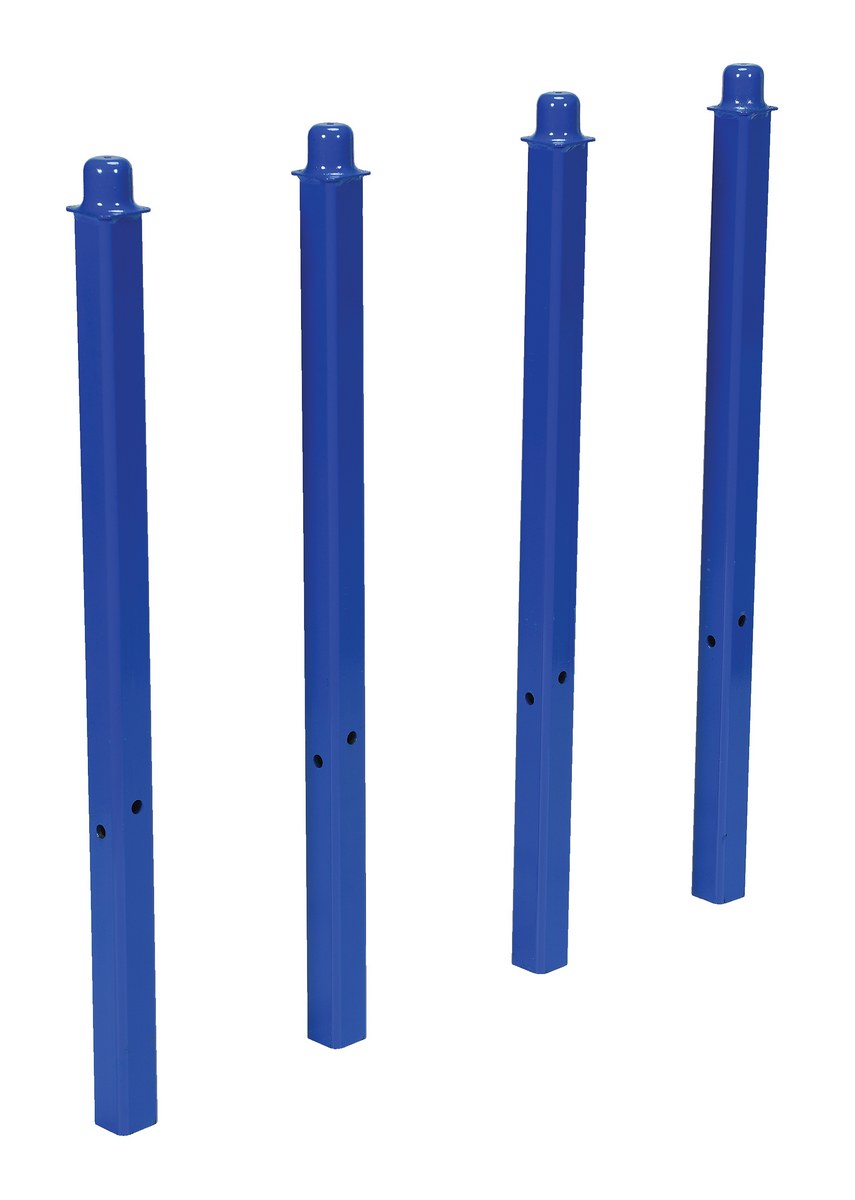

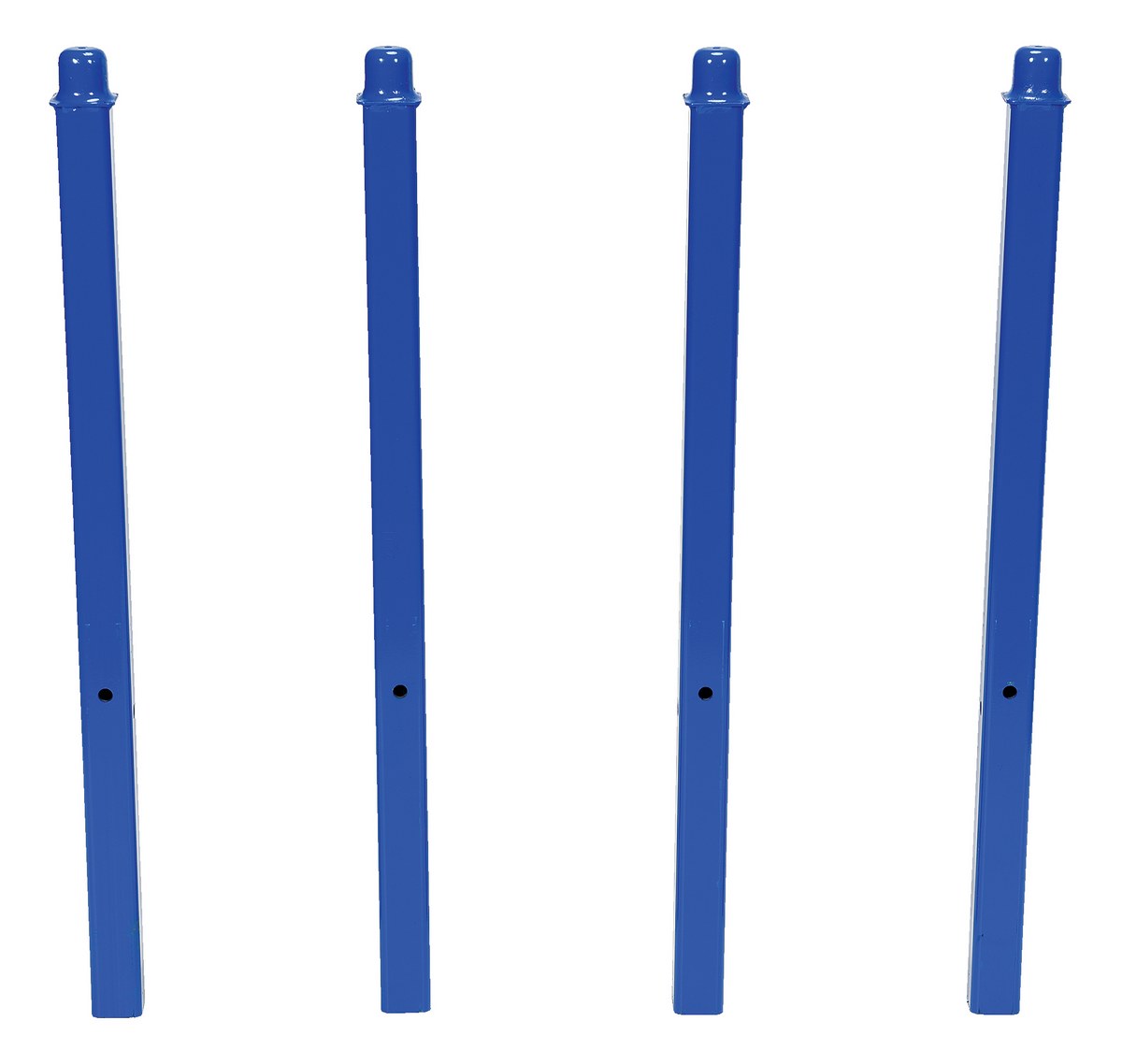

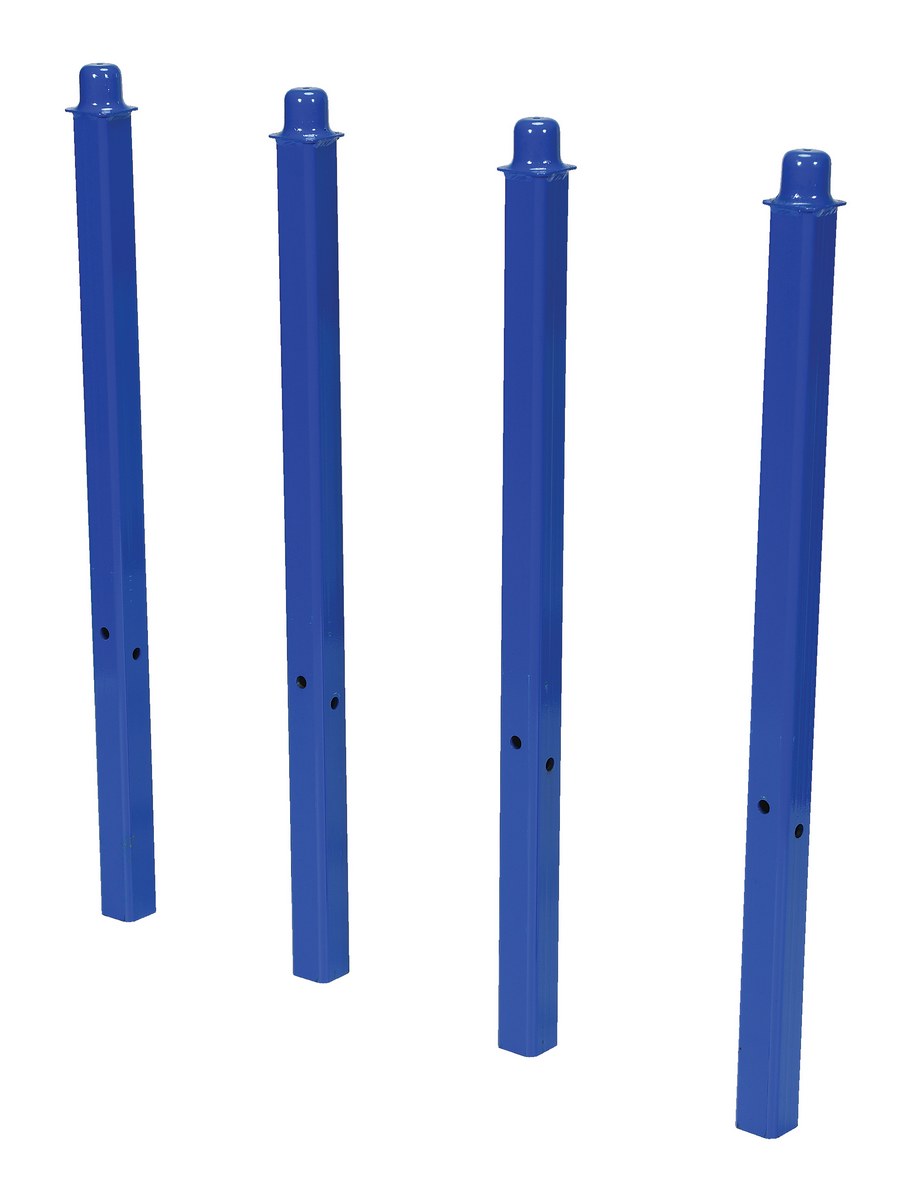

model POST-36

POST-48

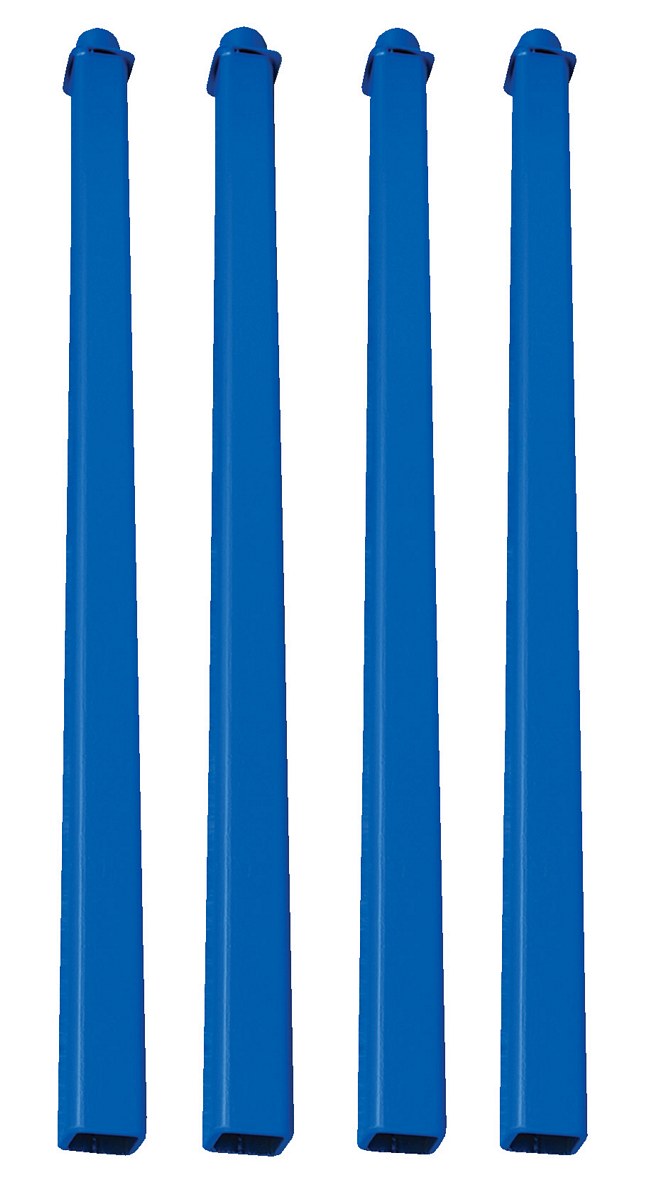

model POST-48

BASE-4848

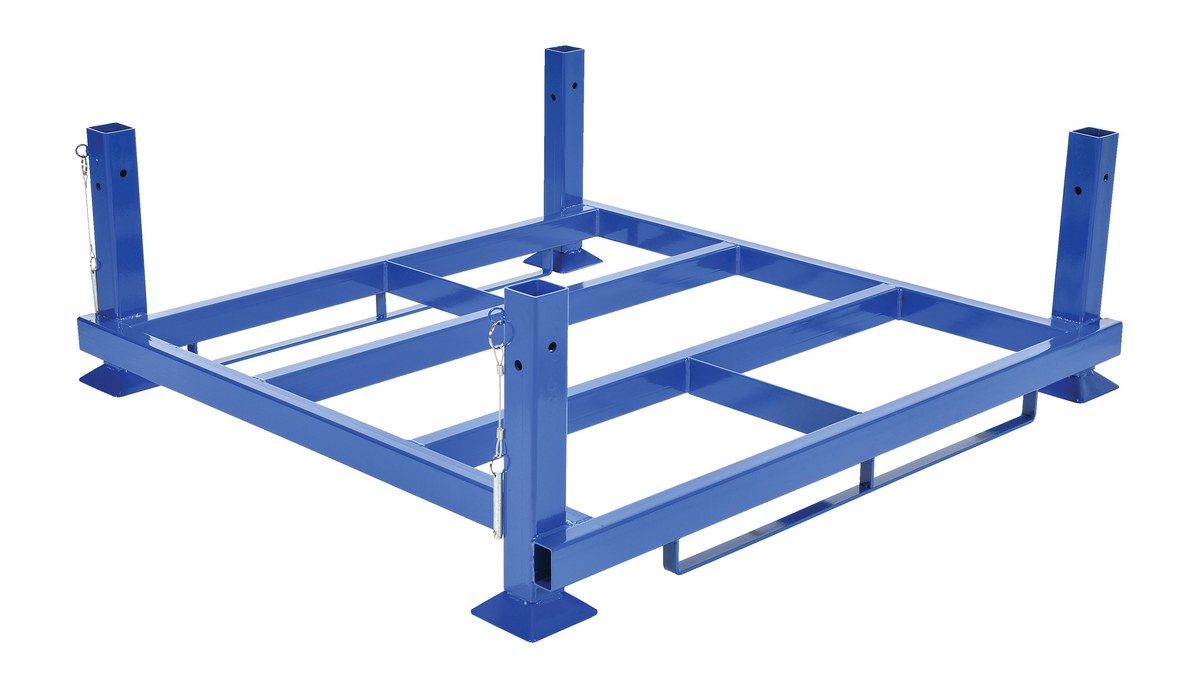

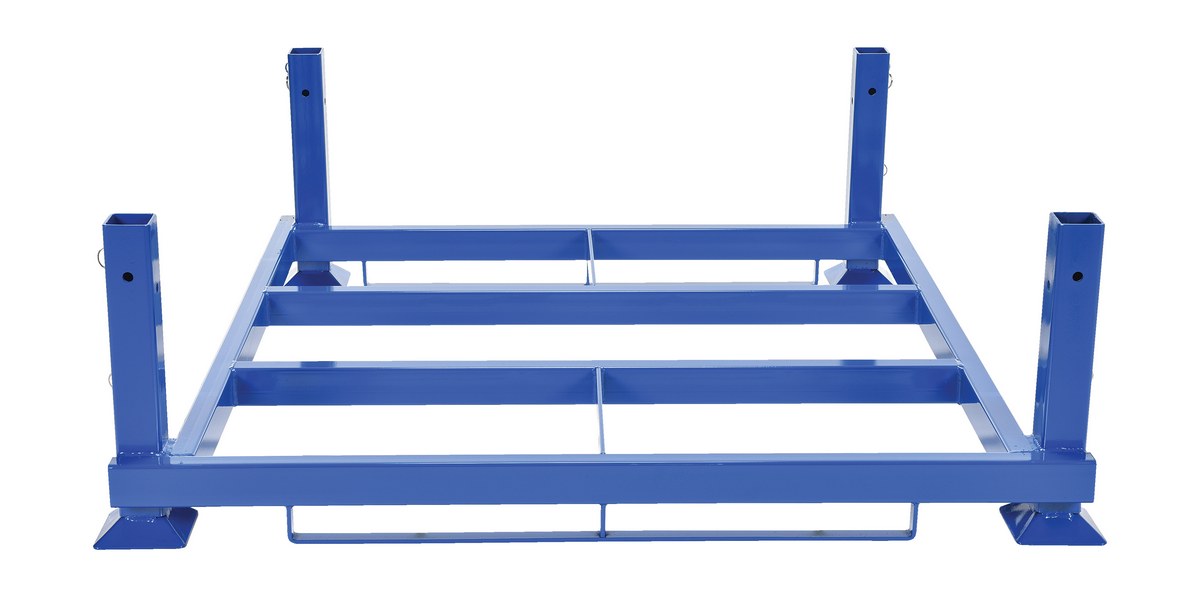

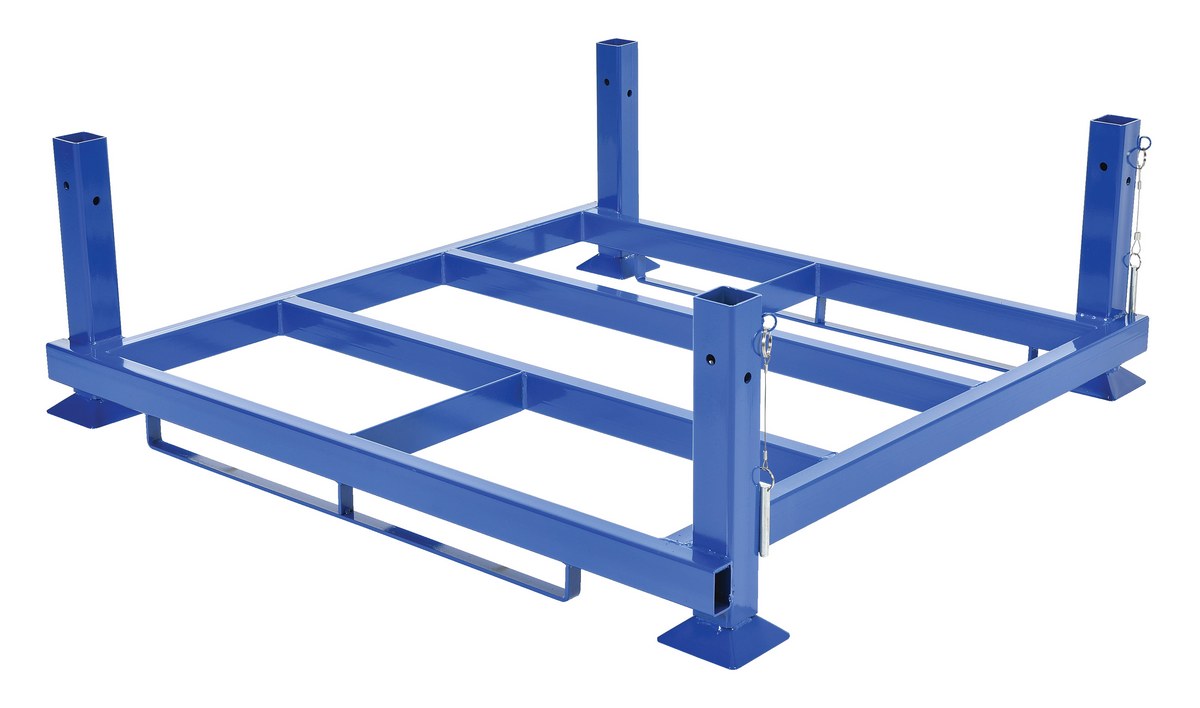

model BASE-4848

BASE-6048

model BASE-6048




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

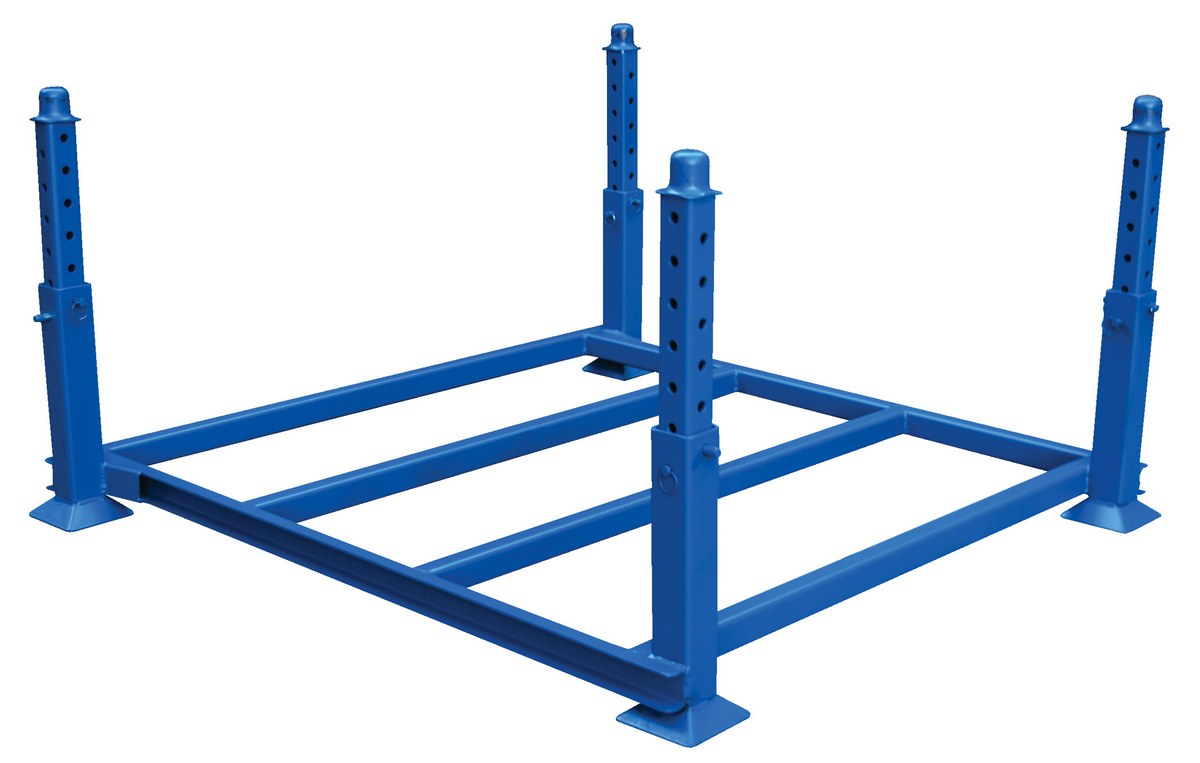

Portable Stackable Rack Systems with Adjustable & Fixed Posts

Non-Removable Adjustable Posts 29-3/16"-35-3/16"H in 1" Increments

Model PDFs Usable Size
(WxL)
Overall Size
(WxL)
Wt.
(lbs)
NEST-F-4848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 55-1/2"x51-3/4" 263
NEST-F-6048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x48" 67-1/2"x51-3/4" 399

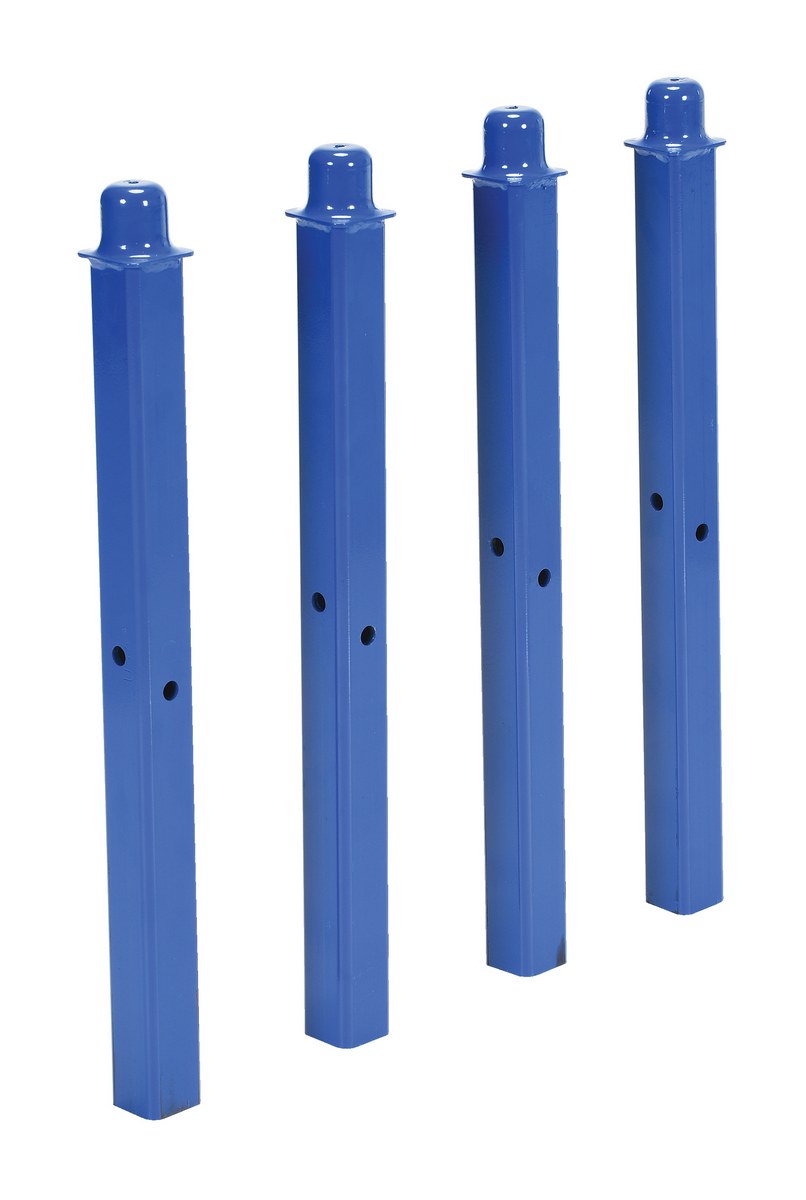

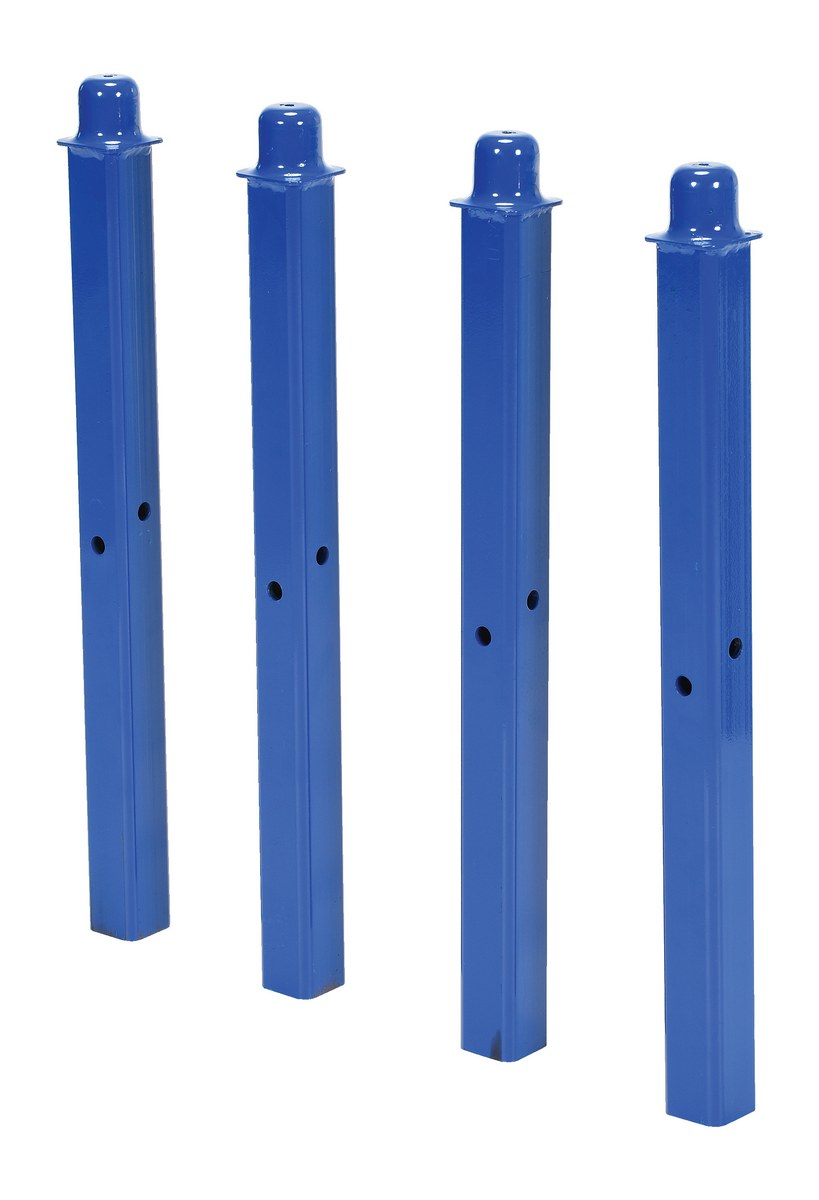

Fixed Height Removable Posts (Set of Four)

Model PDFs Length Quantity
Per Box
Wt.
(lbs)
POST-24 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24-5/8" 4 60
POST-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36-5/8" 4 62
POST-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48-5/8" 4 72

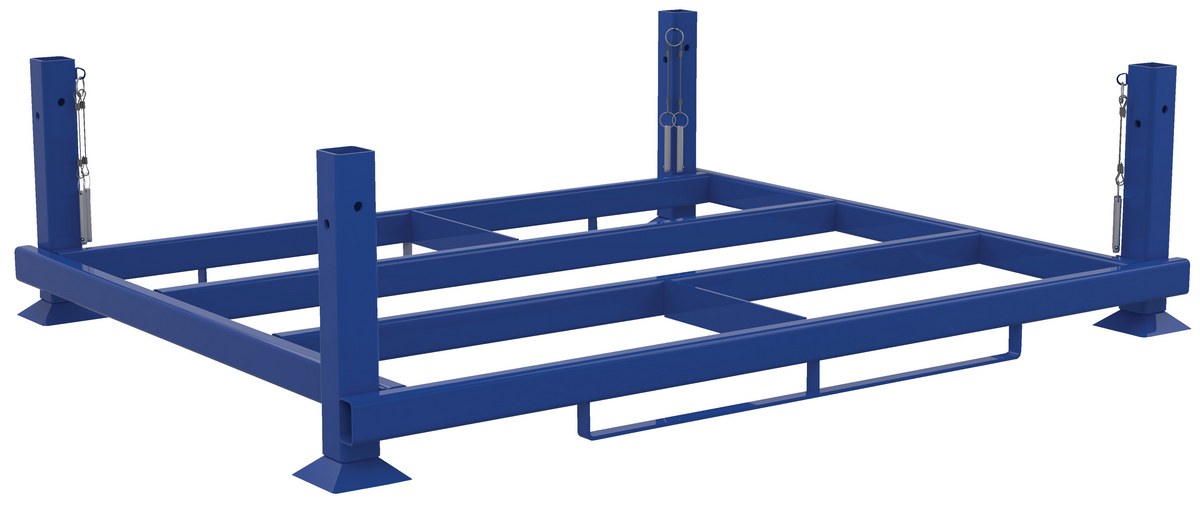

Base Only

Model PDFs Usable Size
(WxL)
Overall Size
(WxL)
Wt.
(lbs)
BASE-4848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 55-1/2"x51-3/4" 90
BASE-6048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x48" 67-1/2"x51-3/4" 113

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

BASE-4848

BASE-4848

BASE-6048

BASE-6048

NEST-F-4848

NEST-F-4848

NEST-F-6048

NEST-F-6048

POST-24

POST-24

POST-36

POST-36

POST-48

POST-48






Internestable Portable Stackable Rack Systems PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

BASE-4848
BASE-6048
NEST-F-4848
NEST-F-6048
POST-24
POST-36
POST-48

Testing Certificates

POST-48
POST-36
POST-24
NEST-F-6048
NEST-F-4848
BASE-6048
BASE-4848

Other PDF's

No "Other PDFs" For This Product...
