Product Family Overview

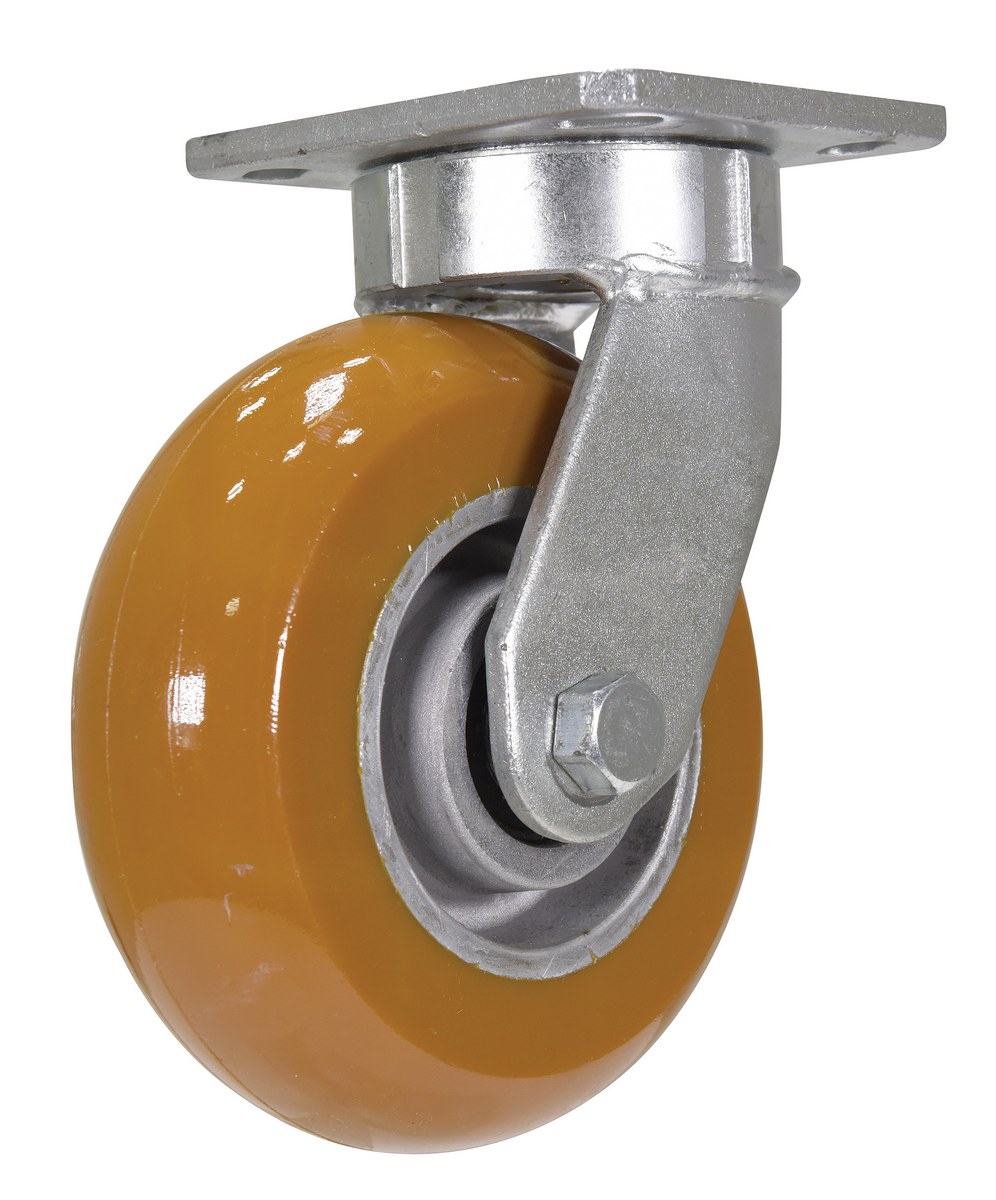

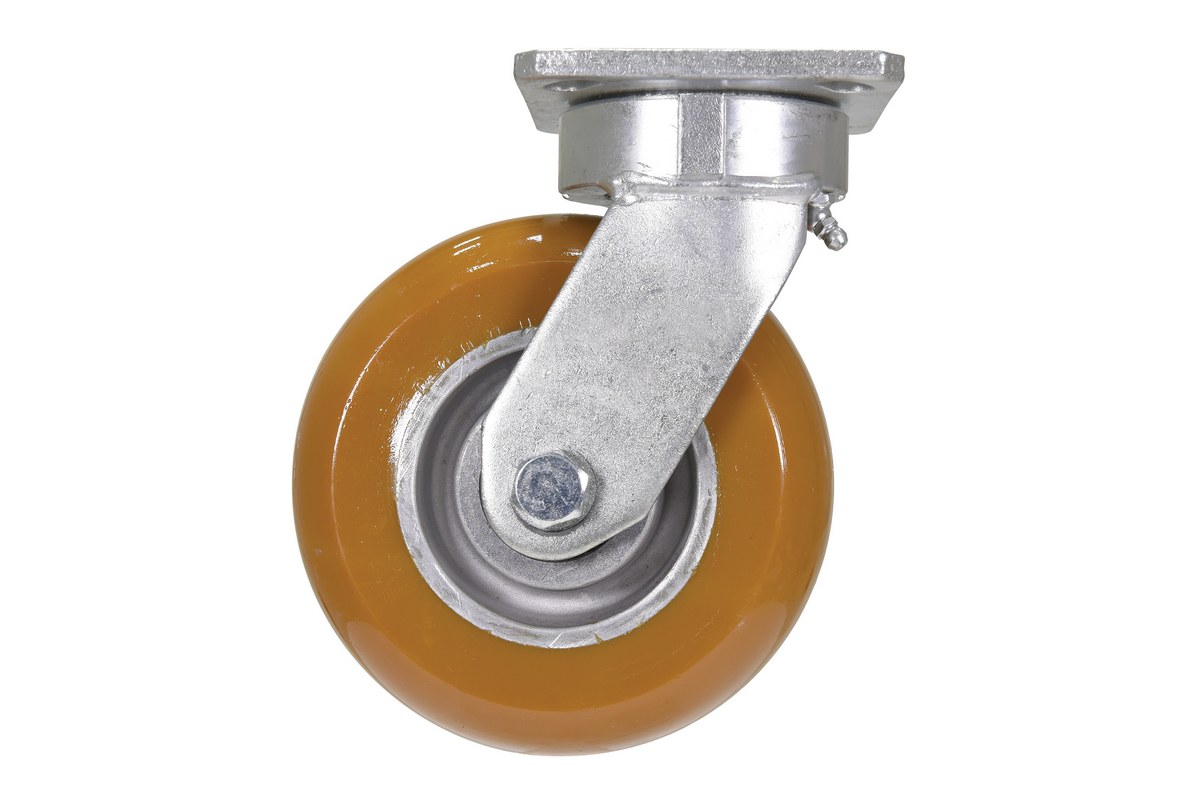

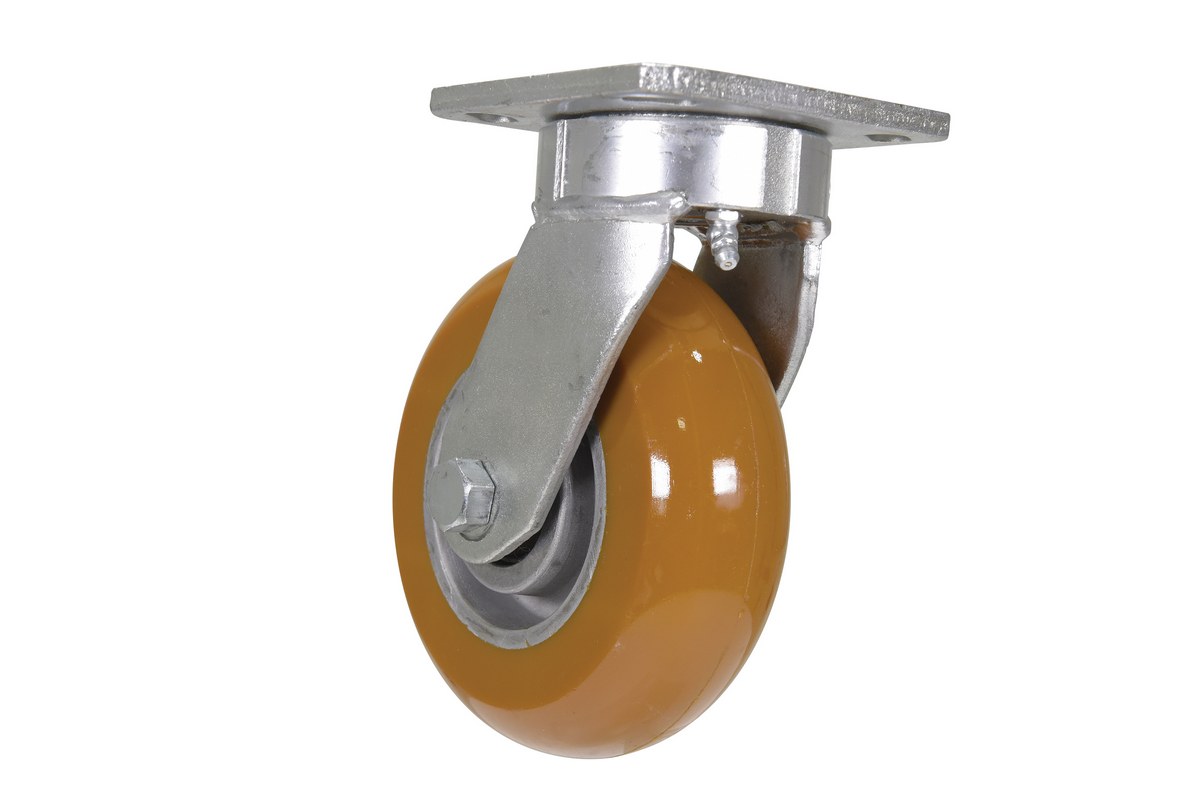

High-Quality Polyurethane-Elastomer Casters
SERIES: CST-JKING-UL

Made of proprietary polyurethane-elastomer that allows tread to retain its shape, reject debris, and increase its stored energy to boost ergonomic performance. This superior caster is designed to reduce the force exerted to turn or start rolling, even when all wheels are not parallel. It also features neoprene sealed precision ball bearings and hardened raceways, providing a smooth rotation with less effort. Caramel tread color. 83+/-5 Shore A. Wheel core is constructed of aluminum. Made in the USA*.


  • Kingpinless
  • 100% Mechanical Bond to Core
  • Reduce Push/Pull Effort Up to 50%
  • Non-Marking
  • Sealed Neoprene Precision Ball Bearing
  • Noise Reduction
  • Polyurethane Tread is Nearly 2" Thick
  • Thicker, Heavier Duty Core for Long Lasting Durability
  • Bearings are Off-Set for Greater Ergonomics and Load Distribution
  • Crown Tread Reduces Push/Pull Effort
  • Thicker Top Hat Bushings for Extended Life

Made of proprietary polyurethane-elastomer that allows tread to retain its shape, reject debris, and increase its stored energy to boost ergonomic performance. This superior caster is designed to reduce the force exerted to turn or start rolling, even when all wheels are not parallel. It also features neoprene sealed precision ball bearings and hardened raceways, providing a smooth rotation with less effort. Caramel tread color. 83+/-5 Shore A. Wheel core is constructed of aluminum. Made in the USA*.


  • Kingpinless
  • 100% Mechanical Bond to Core
  • Reduce Push/Pull Effort Up to 50%
  • Non-Marking
  • Sealed Neoprene Precision Ball Bearing
  • Noise Reduction
  • Polyurethane Tread is Nearly 2" Thick
  • Thicker, Heavier Duty Core for Long Lasting Durability
  • Bearings are Off-Set for Greater Ergonomics and Load Distribution
  • Crown Tread Reduces Push/Pull Effort
  • Thicker Top Hat Bushings for Extended Life

Additional Models In This Family

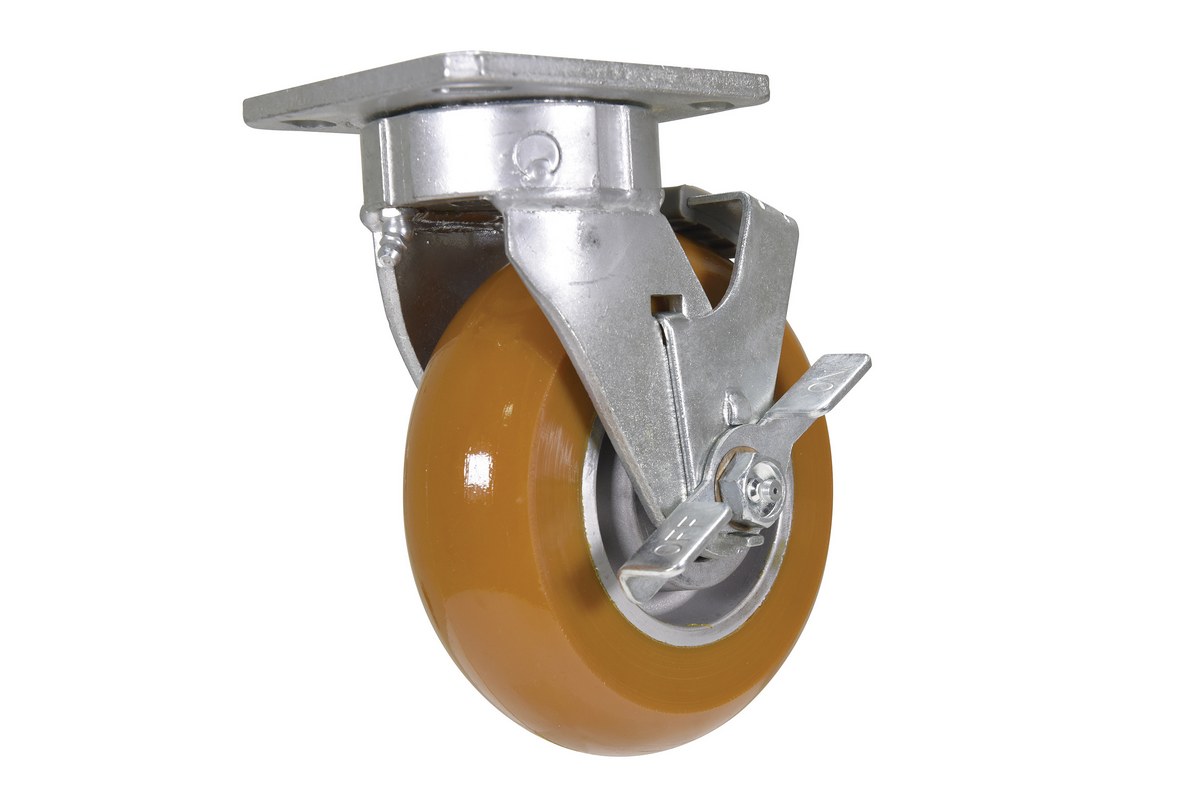

CST-JKING-6X2UL-SWB

model CST-JKING-6X2UL-SWB

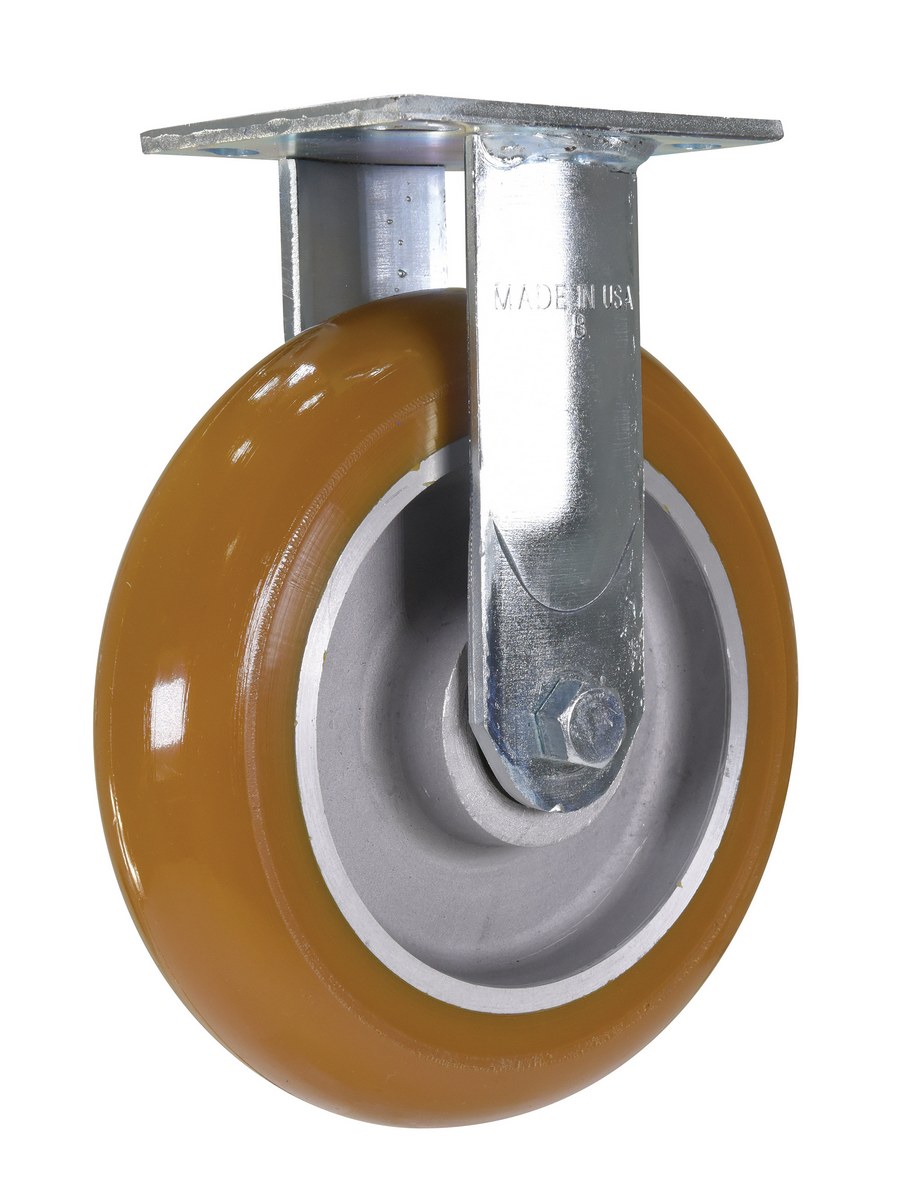

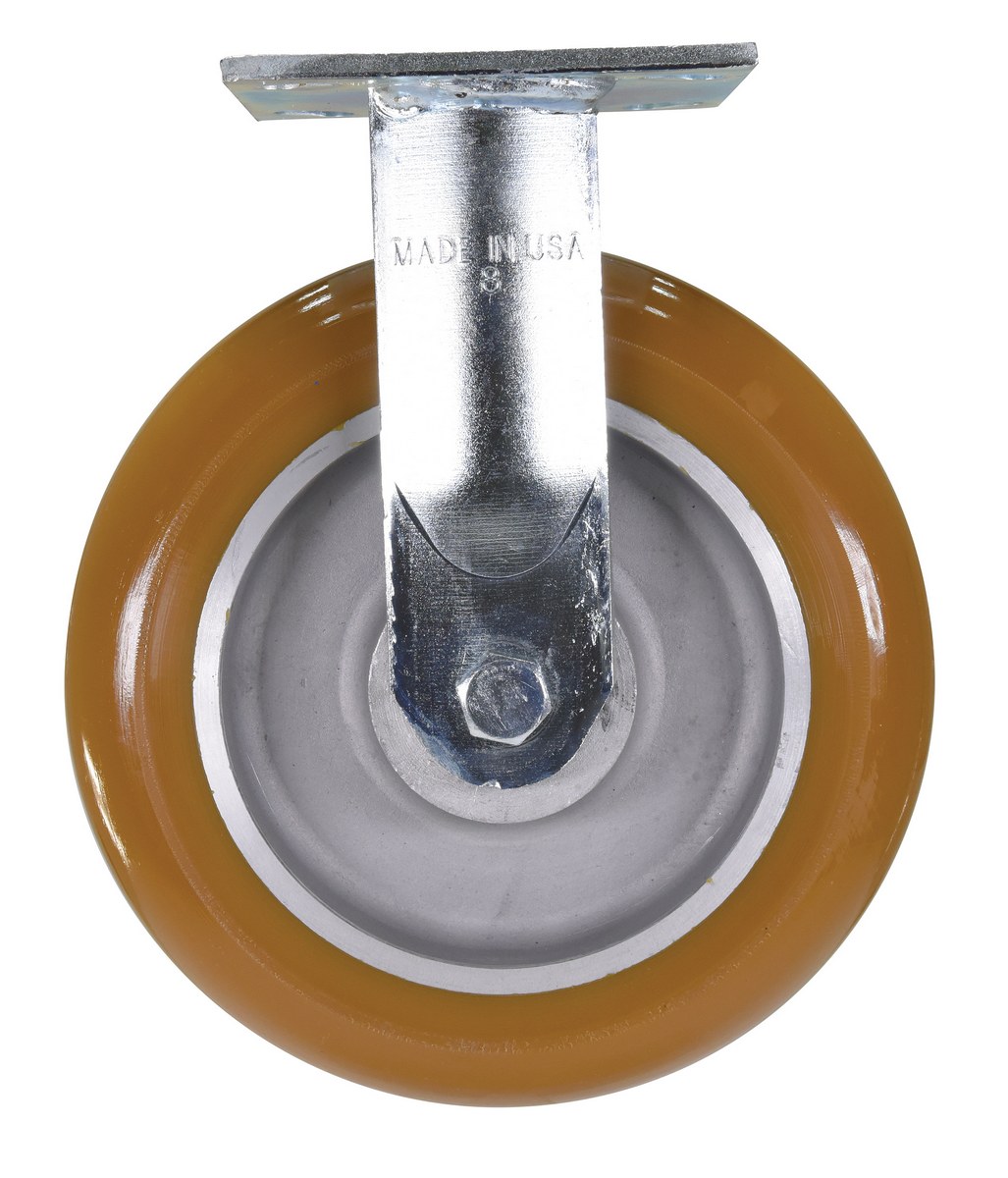

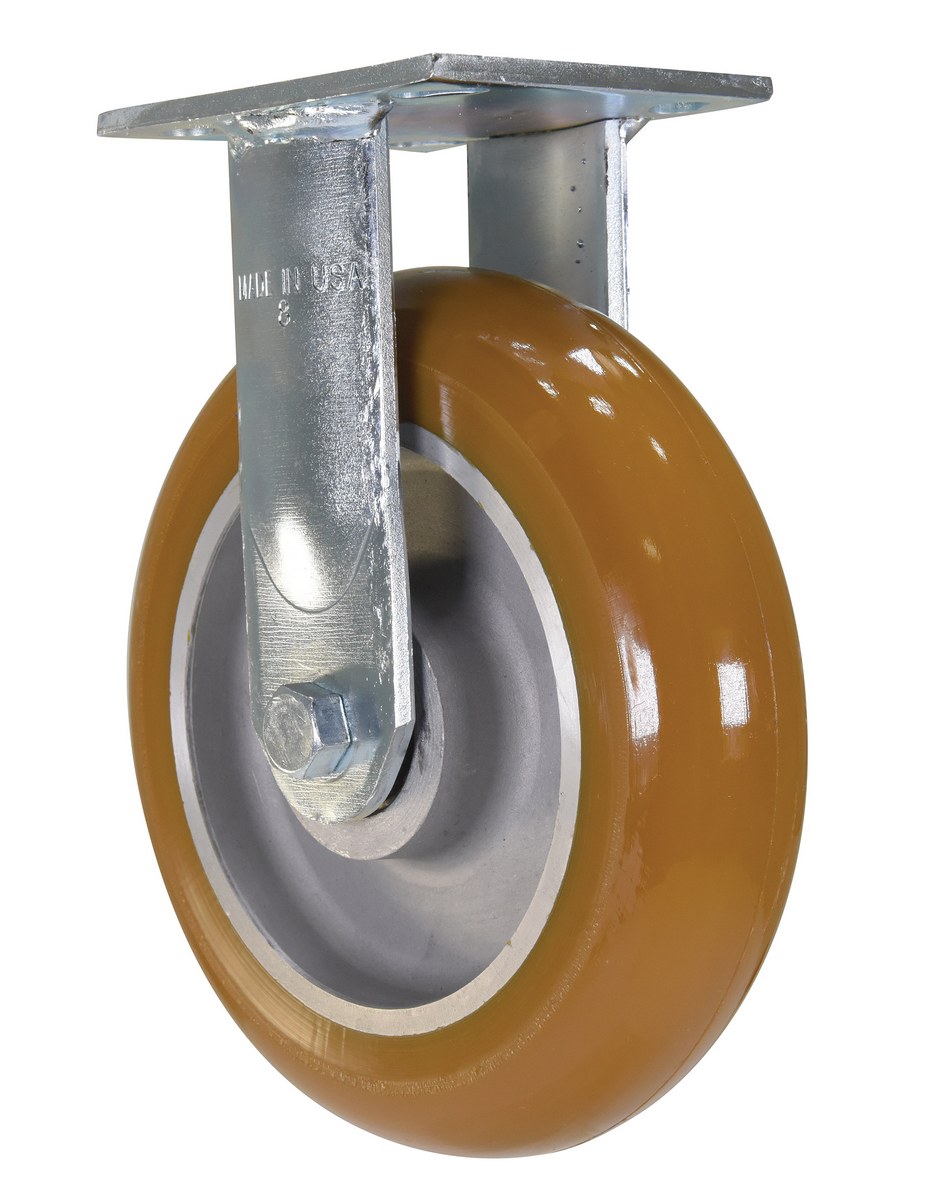

CST-JKING-8X2UL-R

model CST-JKING-8X2UL-R

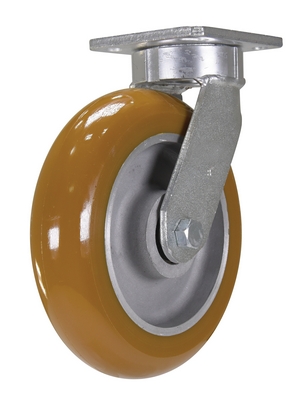

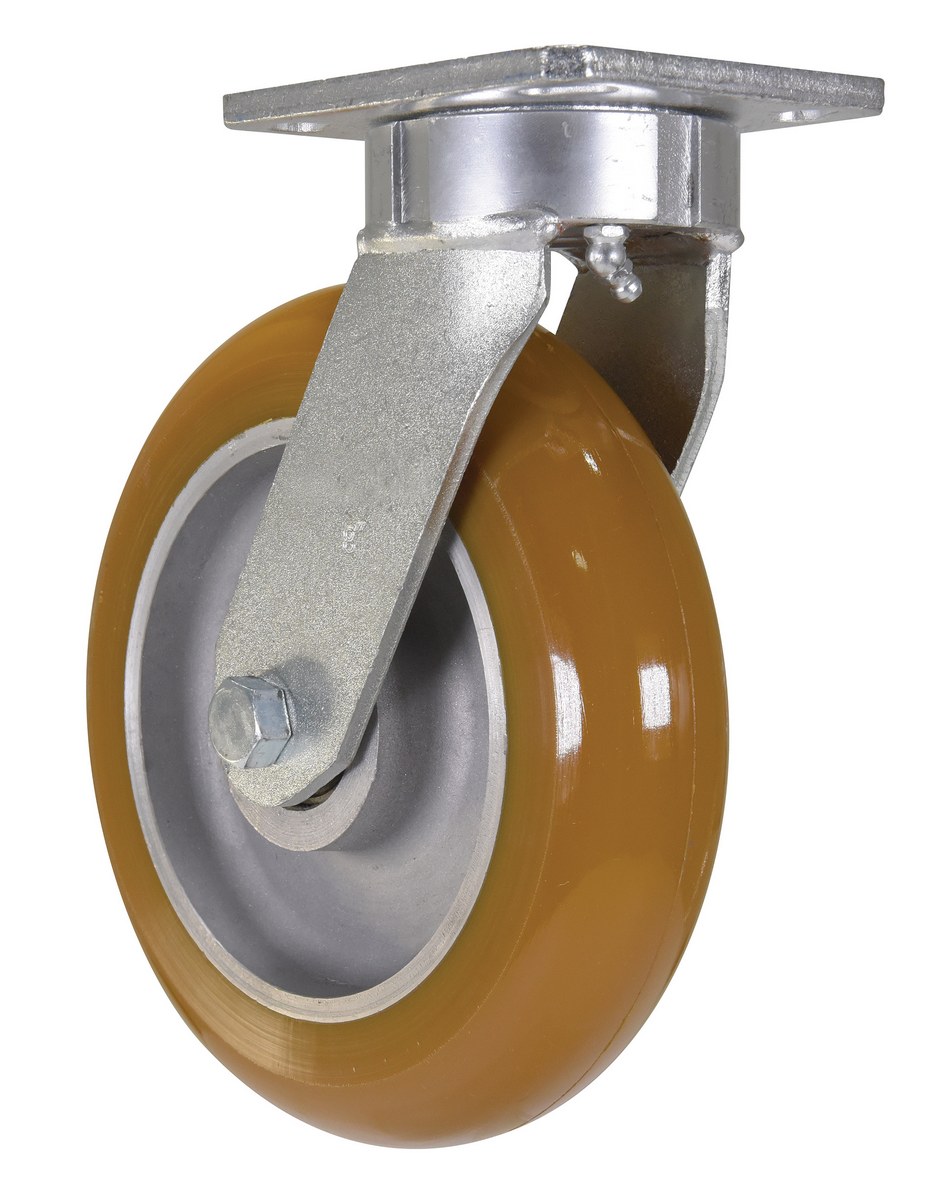

CST-JKING-8X2UL-S

model CST-JKING-8X2UL-S

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

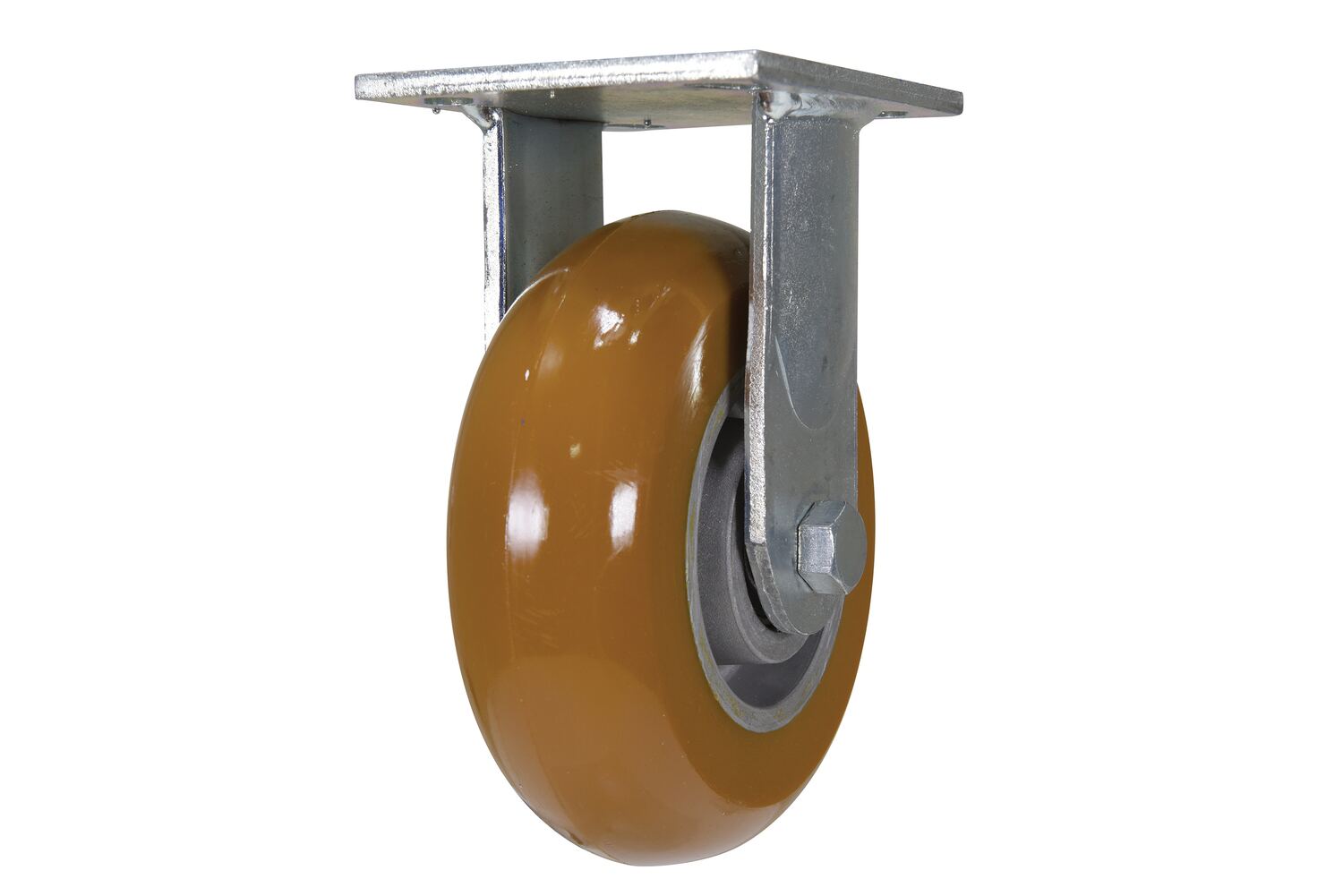

CST-JKING-6X2UL-R CST-JKING-6X2UL-R3 YEARS Limited Warranty6 x 2RIGID12007-1/2 4 x 4-1/25.55
CST-JKING-8X2UL-R CST-JKING-8X2UL-R3 YEARS Limited Warranty8 x 2RIGID150010-1/8" 4 x 4-1/27
CST-JKING-6X2UL-S CST-JKING-6X2UL-S3 YEARS Limited Warranty6 x 2SWIVEL12007-1/2 4 x 4-1/27.3
CST-JKING-8X2UL-S CST-JKING-8X2UL-S3 YEARS Limited Warranty8 x 2SWIVEL150010-1/8 4 x 4-1/28.5
CST-JKING-6X2UL-SWB CST-JKING-6X2UL-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE12007-1/2 4 x 4-1/26.65

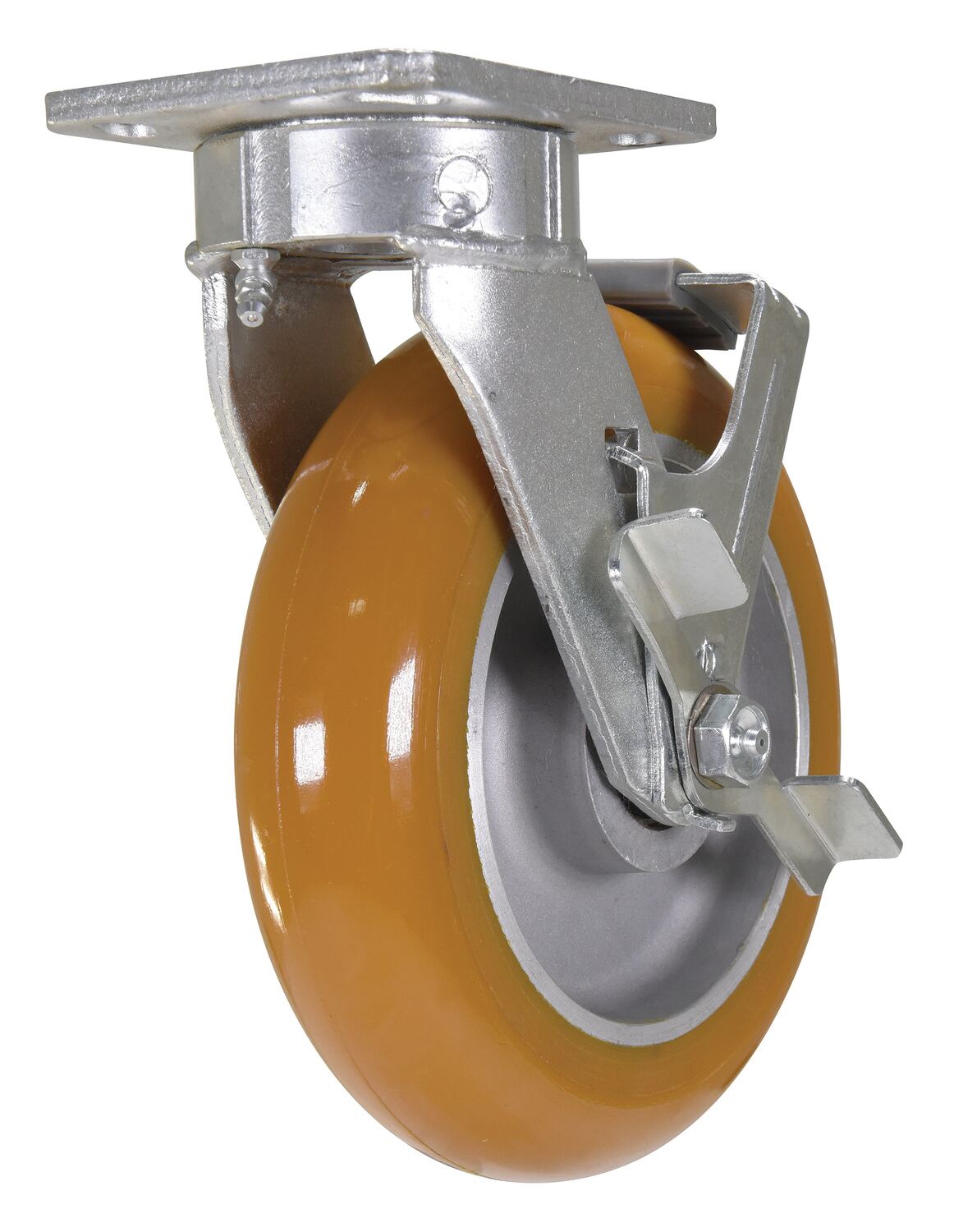

CST-JKING-8X2UL-SWB CST-JKING-8X2UL-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE150010-1/8 4 x 4-1/29-1/2

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


High-Quality Polyurethane-Elastomer Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-JKING-6X2UL-R

CST-JKING-6X2UL-S

CST-JKING-6X2UL-SWB

CST-JKING-8X2UL-R

CST-JKING-8X2UL-S

CST-JKING-8X2UL-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
