Thermoplastic Rubber Casters

- - - -

Description
Model Chart
PDF's
Image Gallery

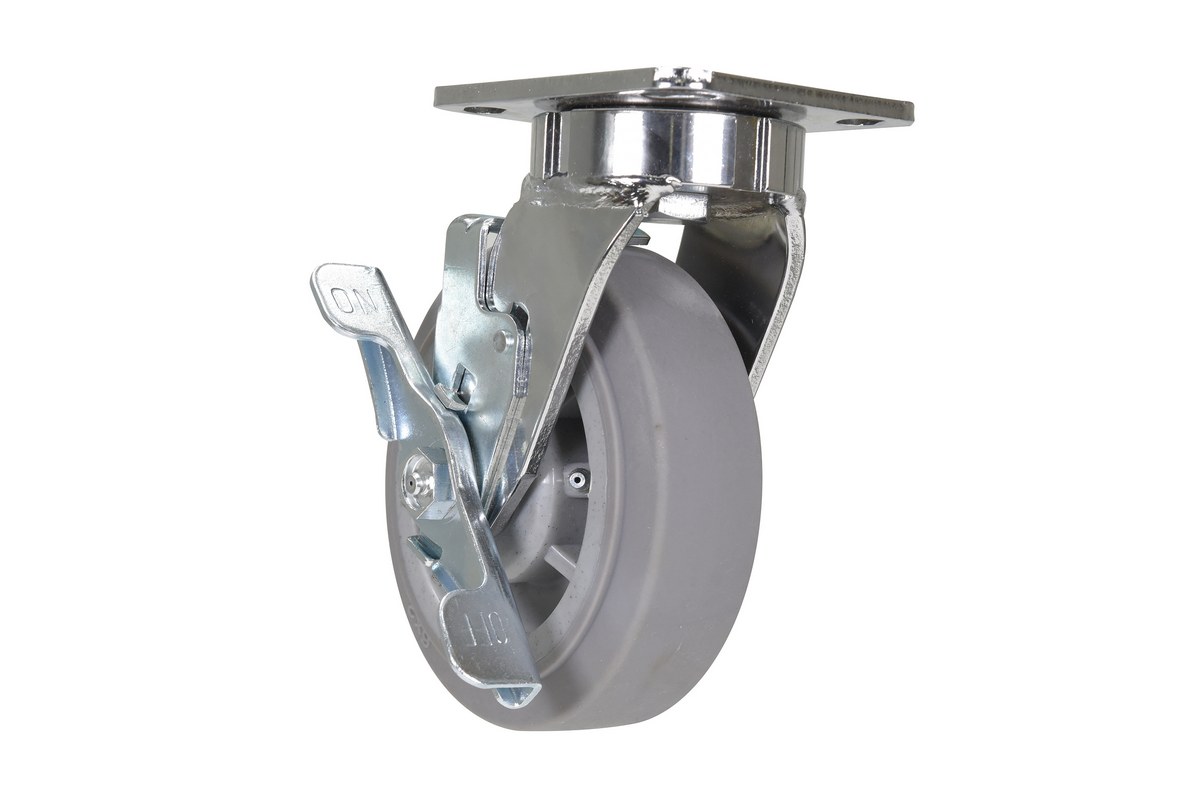

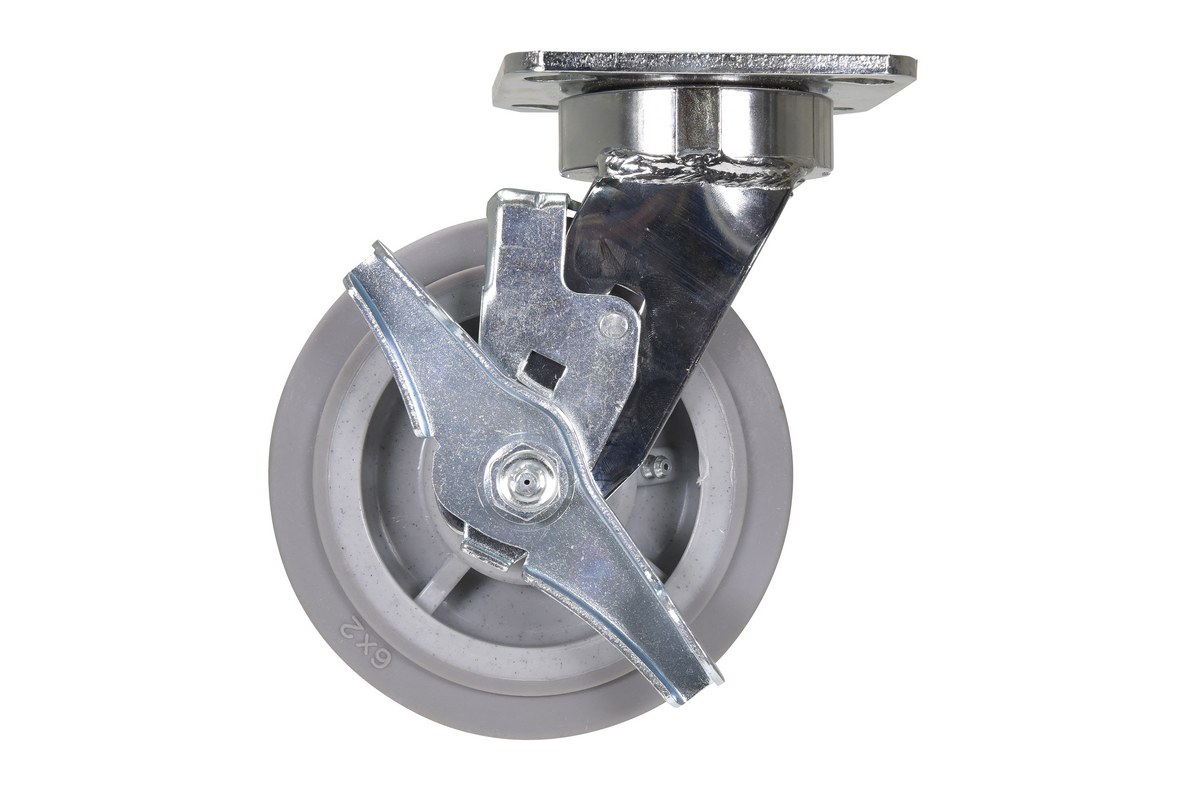

CST-FC47-6X2DK-SWB_A.jpg CST-FC47-6X2DK-SWB_B.jpg CST-FC47-6X2DK-SWB_C.jpg
Thermoplastic Rubber Casters

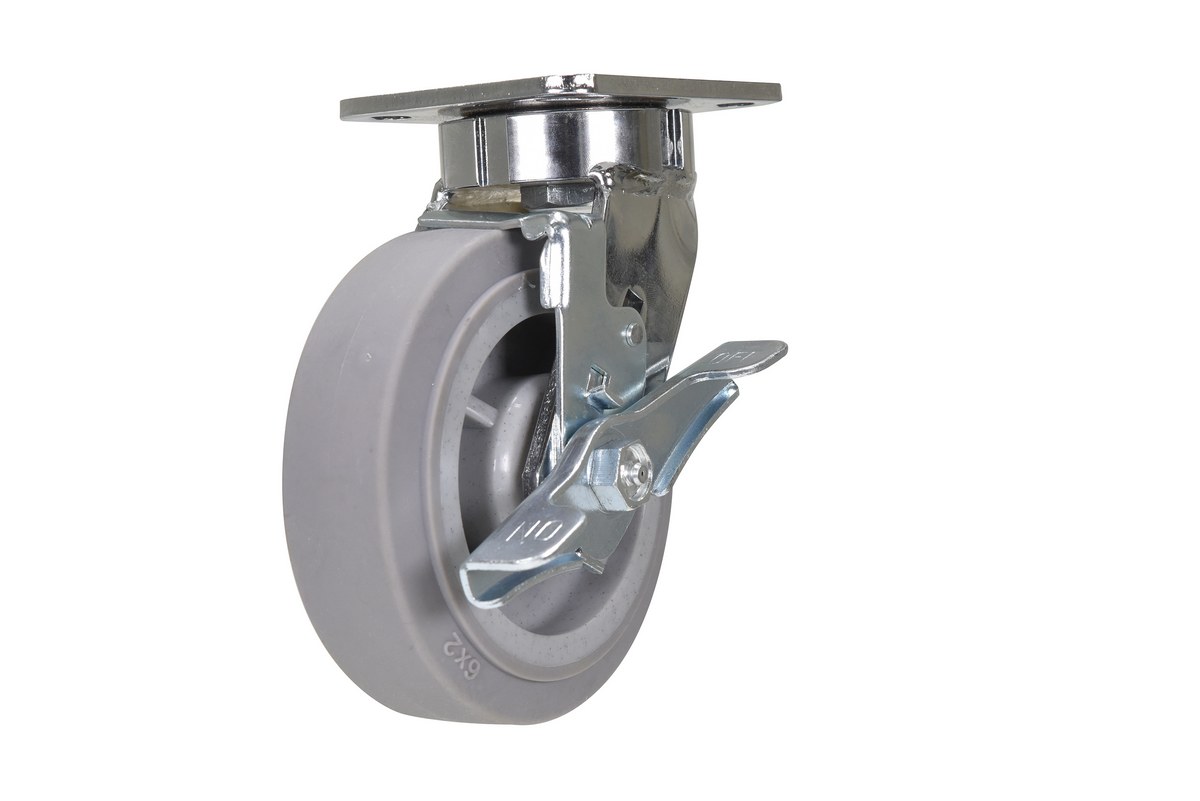

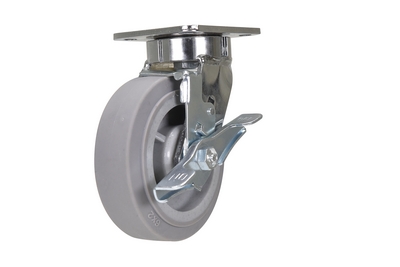

model: CST-FC47-6X2DK-SWB



Featured Casters & Wheels


Polyurethane (SI) Casters
Foam Filled Wheel
Polyurethane On Poly Casters
Polyurethane Casters
Ductile Steel V-Groove Casters
Poly On Poly Casters (Orange)
High-Quality Polyurethane-Elastomer Casters
Glass Filled Nylon (RX)
Cast Iron Casters
model chart

Product Family Overview

Print Friendly
Thermoplastic Rubber Casters
SERIES: CST-FC47-DK

Made of high-tech thermoplastic rubber, TPR (DK). Tread has been matched with a double precision rigging that offers one of the smoothest rotations in the industry. Swivel sports a high-class three layered finish: brass, nickel, and chrome. Rigid comes standard in zinc. Gray tread color. 65 Shore A. Wheel core is constructed of polyolefin.

img7.gifMaintenance Freeimg9.gif

  • Double Precision Raceway - for exceptional ergonomic performance
  • Chrome Plated Finish
  • Non-Marking
  • Resistant to most solvents
  • Precision Ball Bearings

Made of high-tech thermoplastic rubber, TPR (DK). Tread has been matched with a double precision rigging that offers one of the smoothest rotations in the industry. Swivel sports a high-class three layered finish: brass, nickel, and chrome. Rigid comes standard in zinc. Gray tread color. 65 Shore A. Wheel core is constructed of polyolefin.

img7.gifMaintenance Freeimg9.gif

  • Double Precision Raceway - for exceptional ergonomic performance
  • Chrome Plated Finish
  • Non-Marking
  • Resistant to most solvents
  • Precision Ball Bearings

Other Best Casters

 Glass Filled Nylon (RX) High Quality Non-Marking Thermoplastic Polyurethane High Capacity Non-Marking Glass Filled Nylon Casters Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters

Additional Models In This Family
view entire Image Gallery

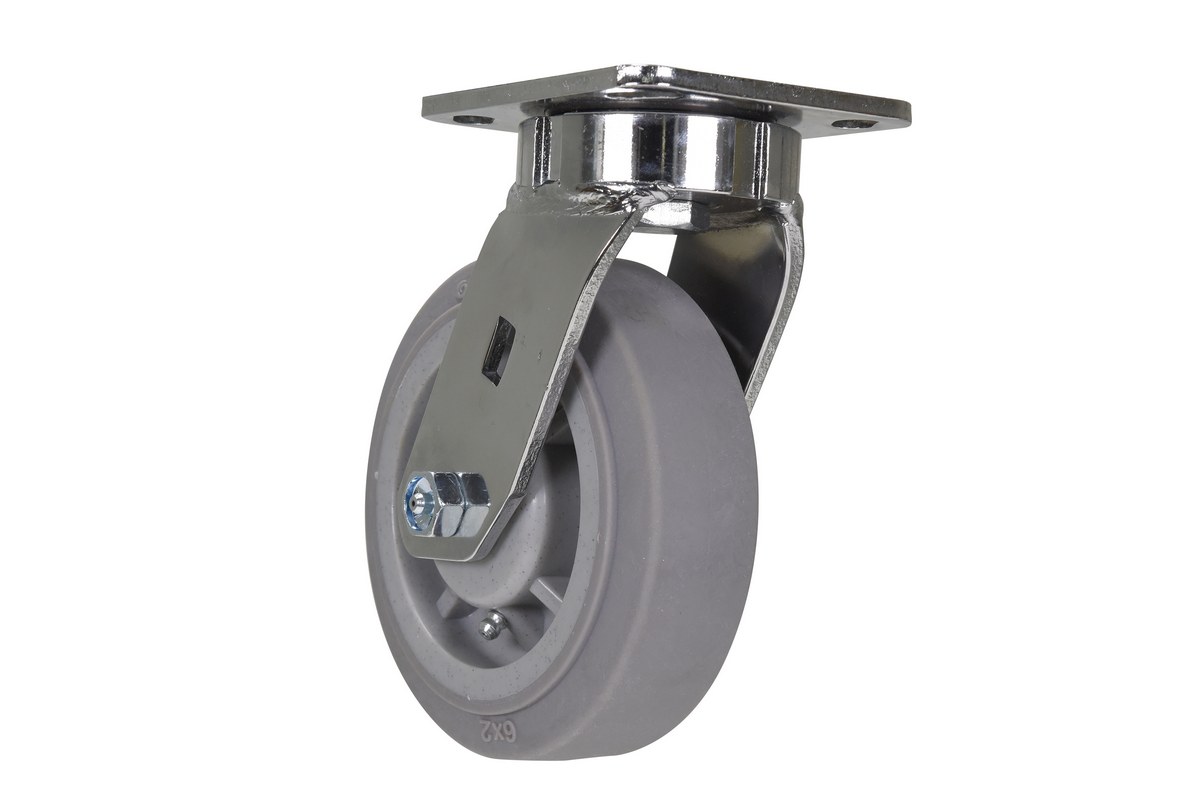

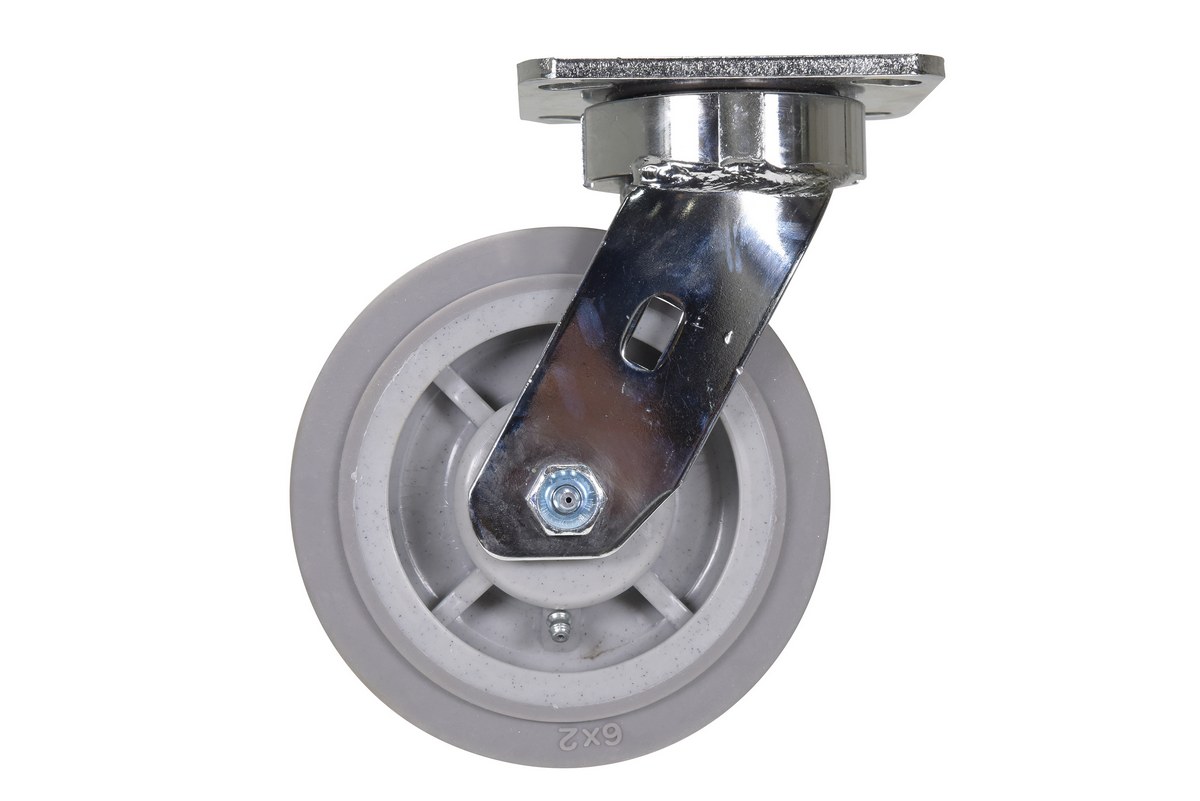

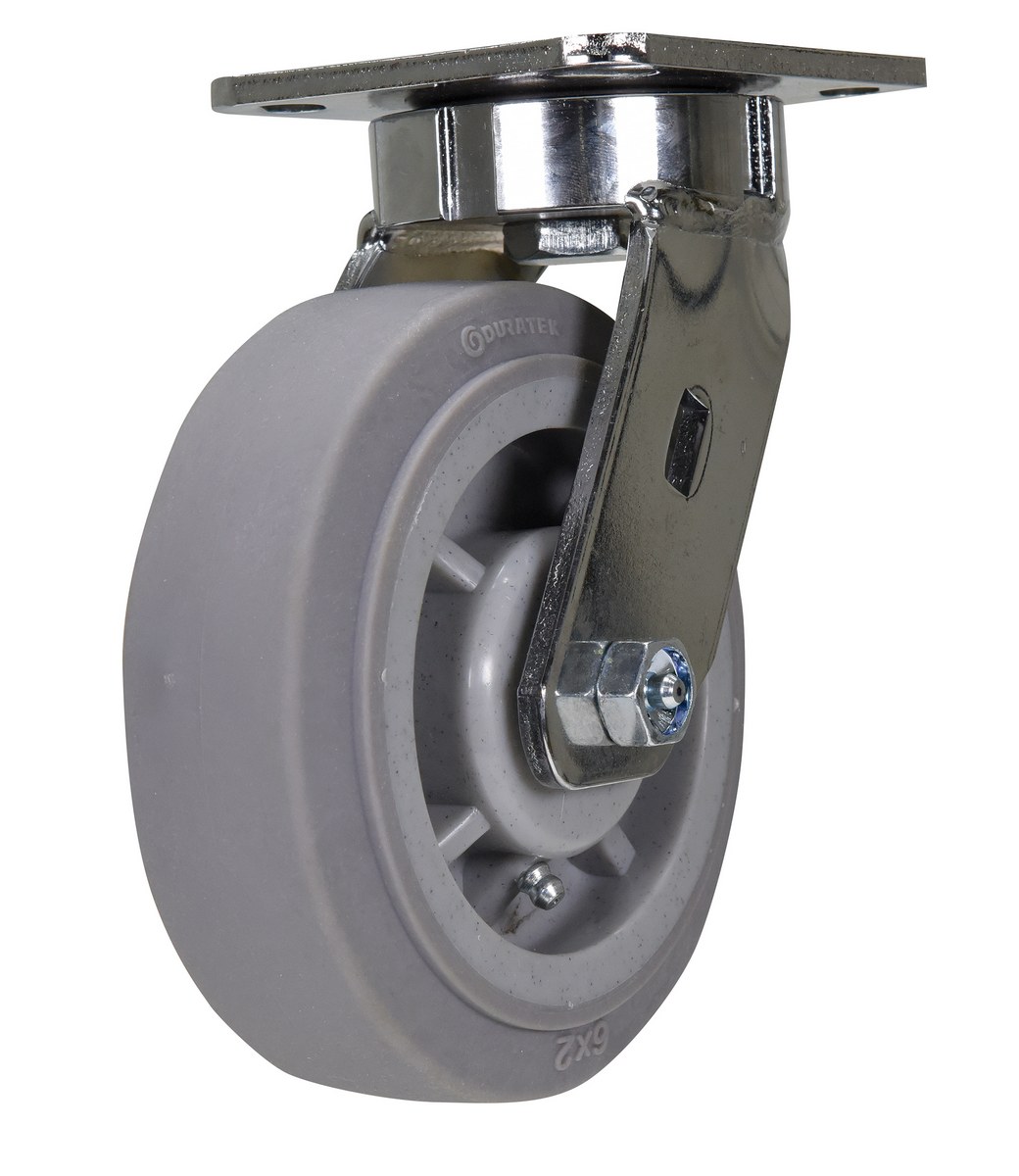

CST-FC47-6X2DK-S

model CST-FC47-6X2DK-S

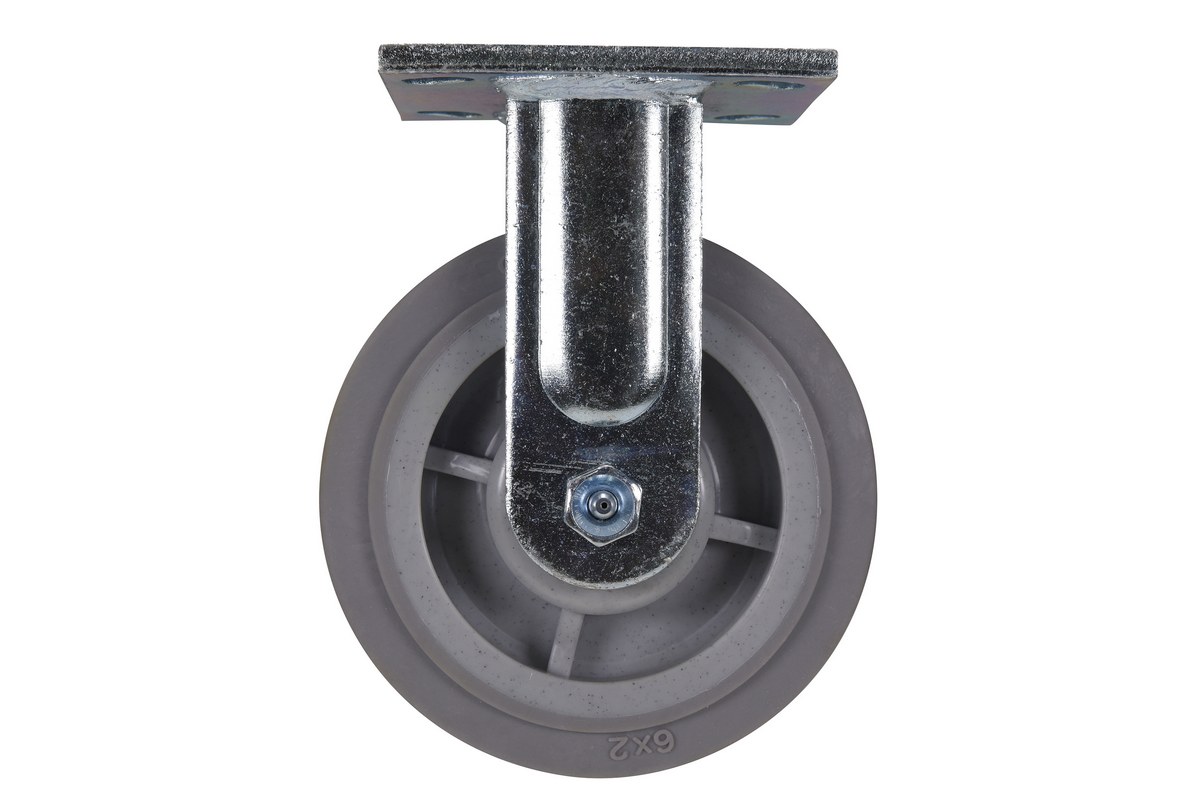

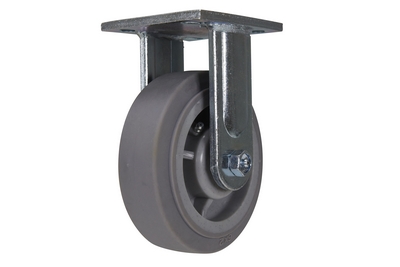

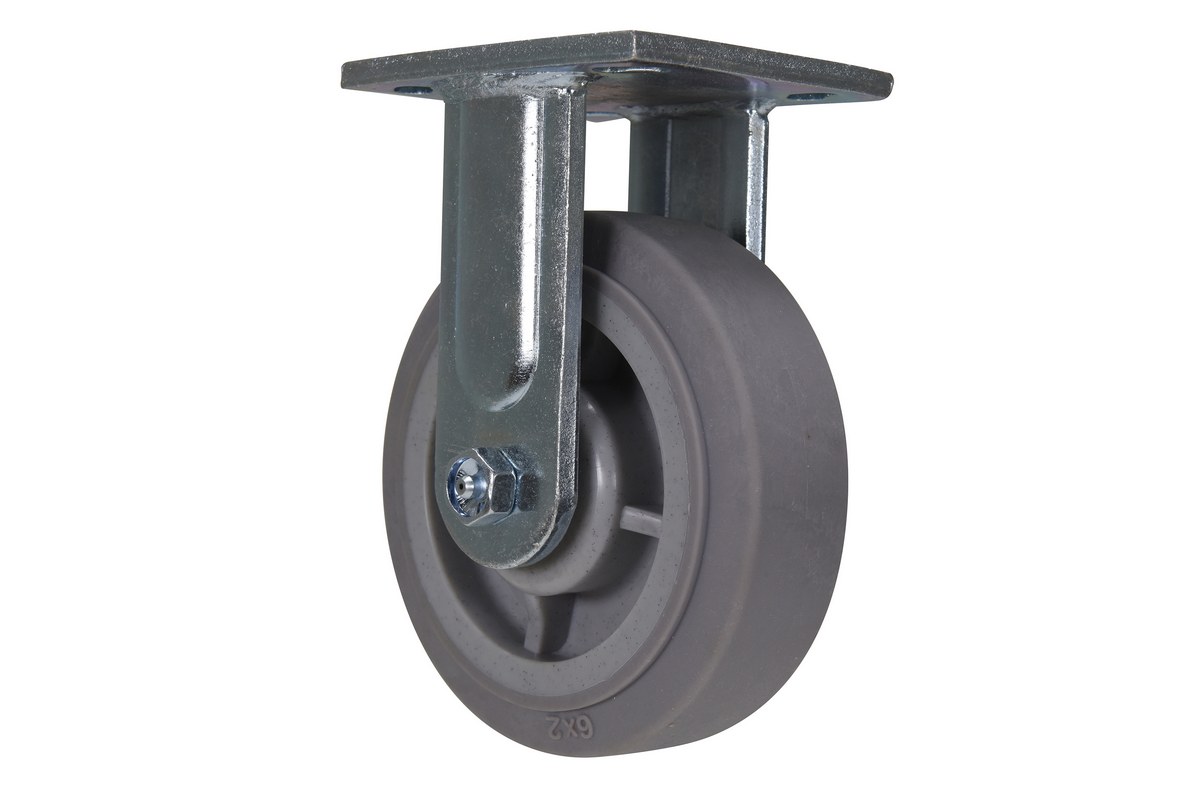

CST-FC47-6X2DK-R

model CST-FC47-6X2DK-R

model chart
How To Order
Share:

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size		 Type Capacity
(lbs.)		 Overall
Height		 Top Plate
Size		 Net Wt.
(lbs)
CST-FC47-6X2DK-R CST-FC47-6X2DK-R3 YEARS Limited Warranty6 x 2RIGID6007-1/2 4 x 4-1/24.85

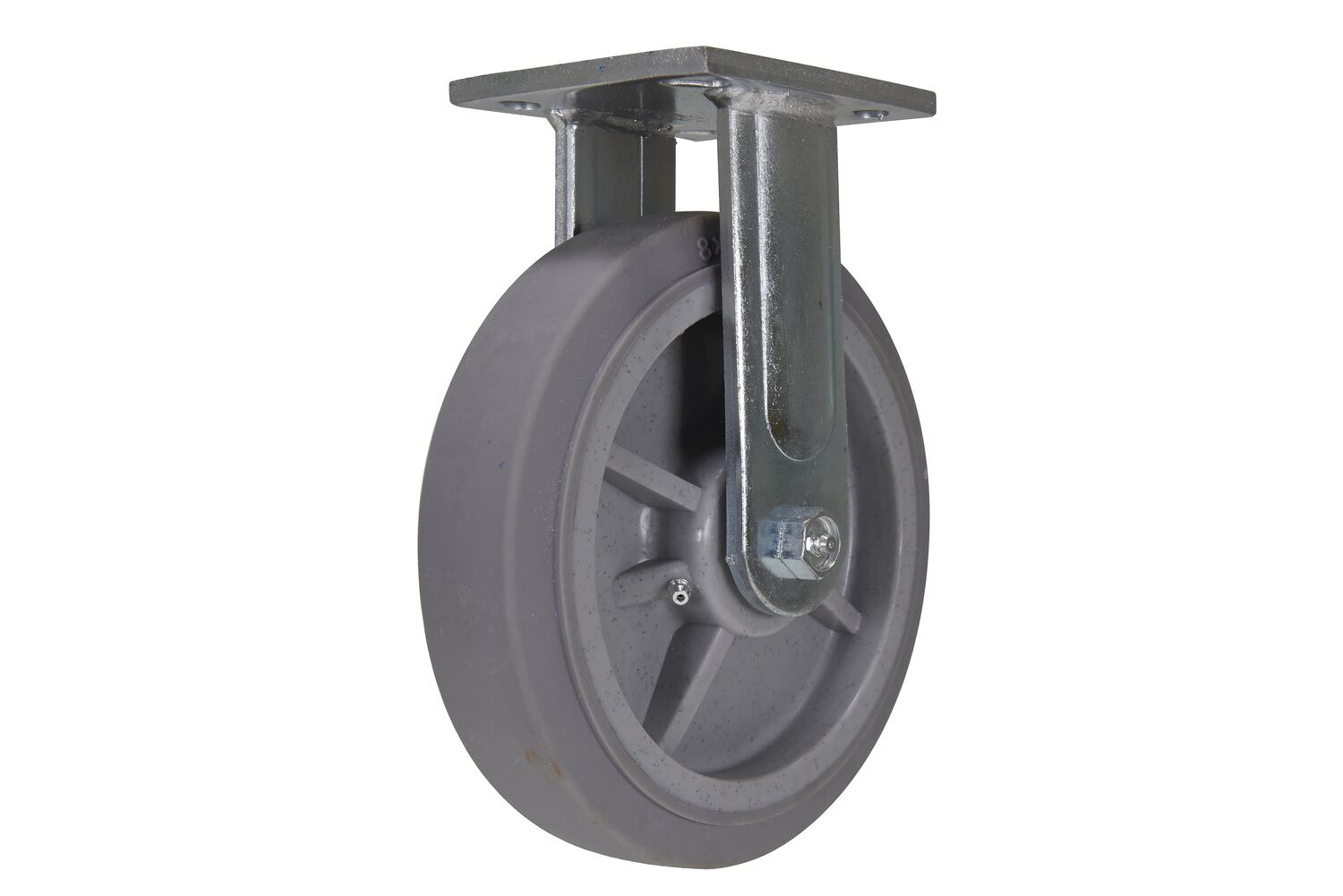

CST-FC47-8X2DK-R CST-FC47-8X2DK-R3 YEARS Limited Warranty8 x 2RIGID6759-1/2 4 x 4-1/25.85
CST-FC47-6X2DK-S CST-FC47-6X2DK-S3 YEARS Limited Warranty6 x 2SWIVEL6007-1/2 4 x 4-1/25.49

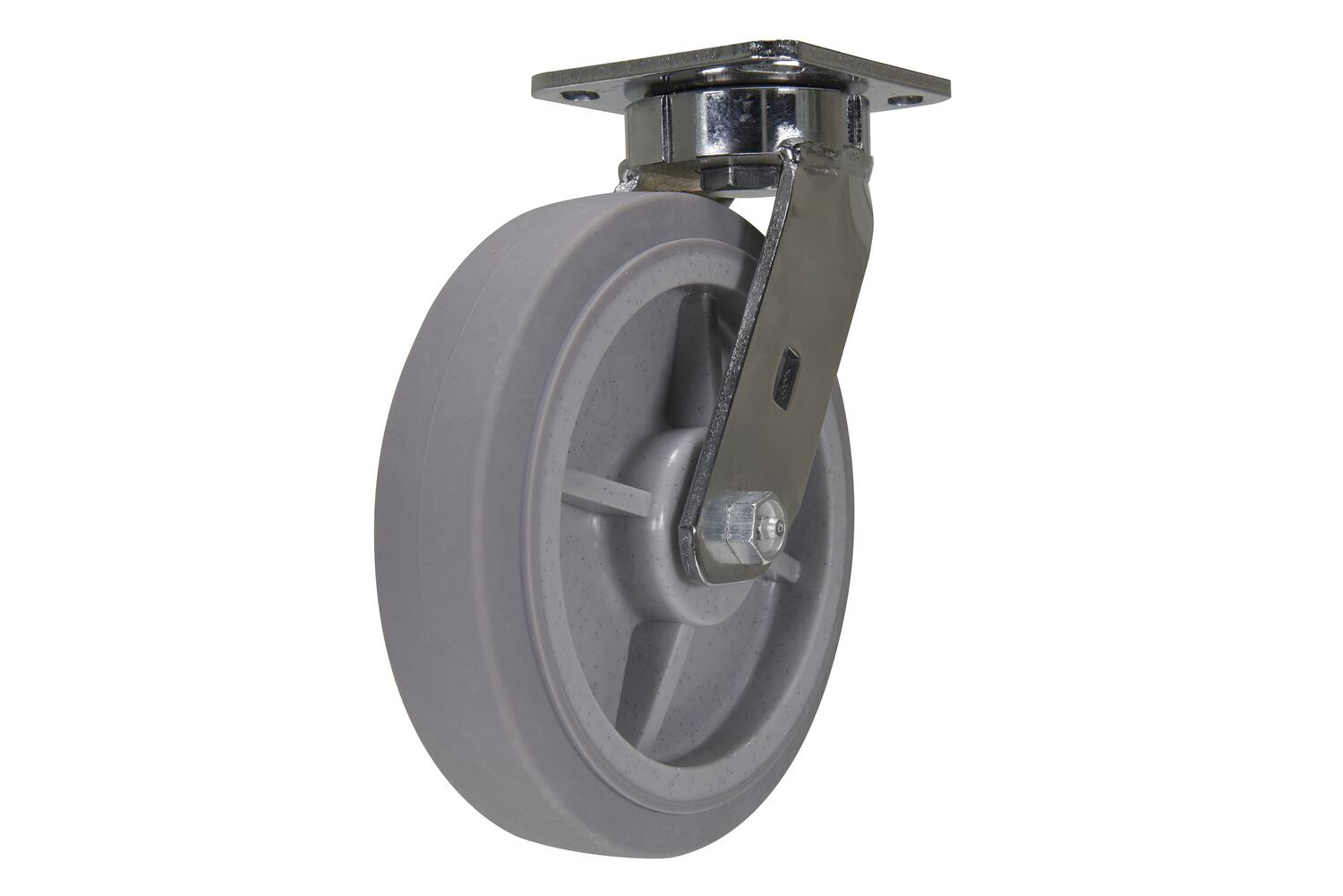

CST-FC47-8X2DK-S CST-FC47-8X2DK-S3 YEARS Limited Warranty8 x 2SWIVEL6759-1/2 4 x 4-1/26.45
CST-FC47-6X2DK-SWB CST-FC47-6X2DK-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE6007-1/2 4 x 4-1/26.04

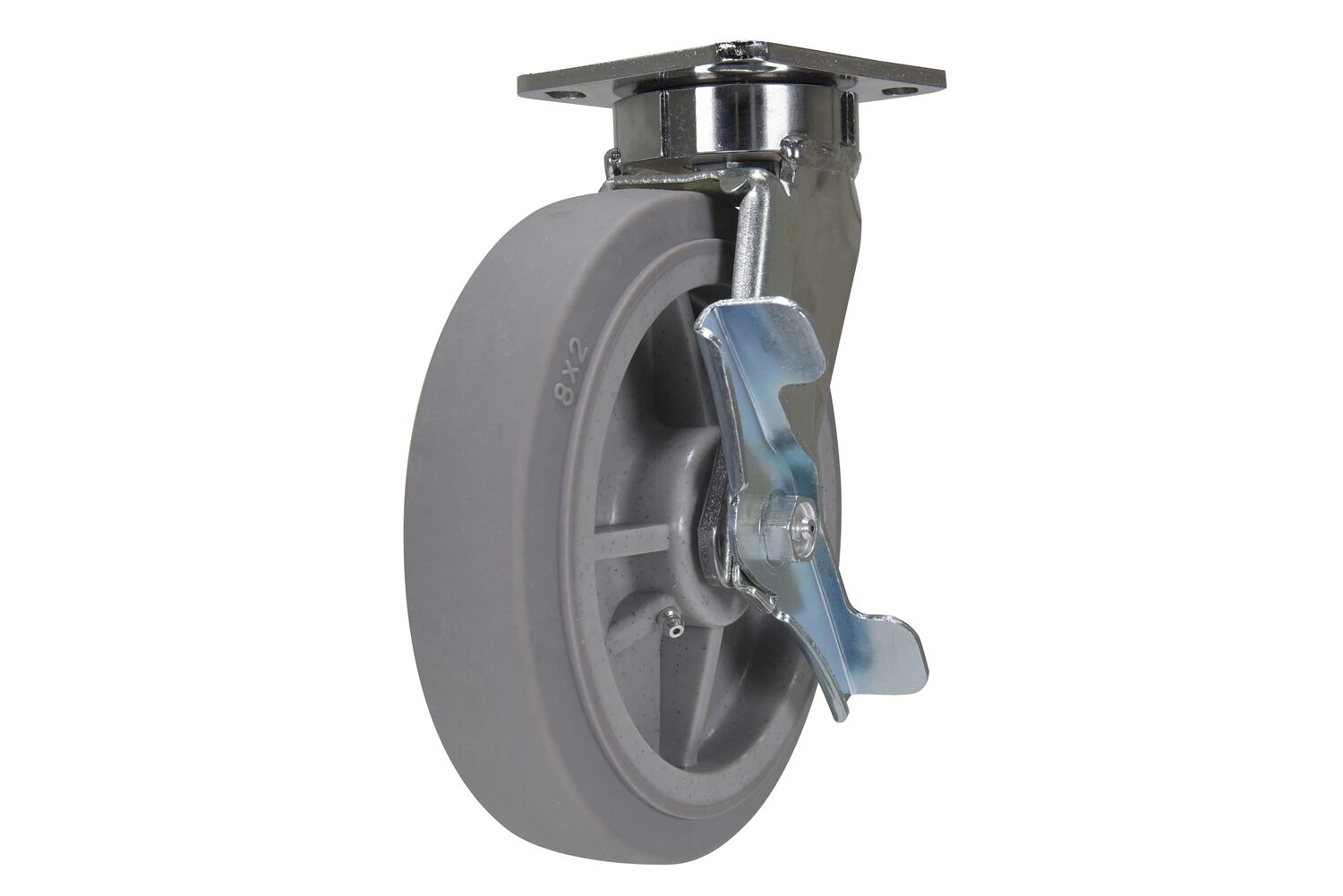

CST-FC47-8X2DK-SWB CST-FC47-8X2DK-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE6759-1/2 4 x 4-1/26.95

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Thermoplastic Rubber Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-FC47-6X2DK-R

CST-FC47-6X2DK-S

CST-FC47-6X2DK-SWB

CST-FC47-8X2DK-R

CST-FC47-8X2DK-S

CST-FC47-8X2DK-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
