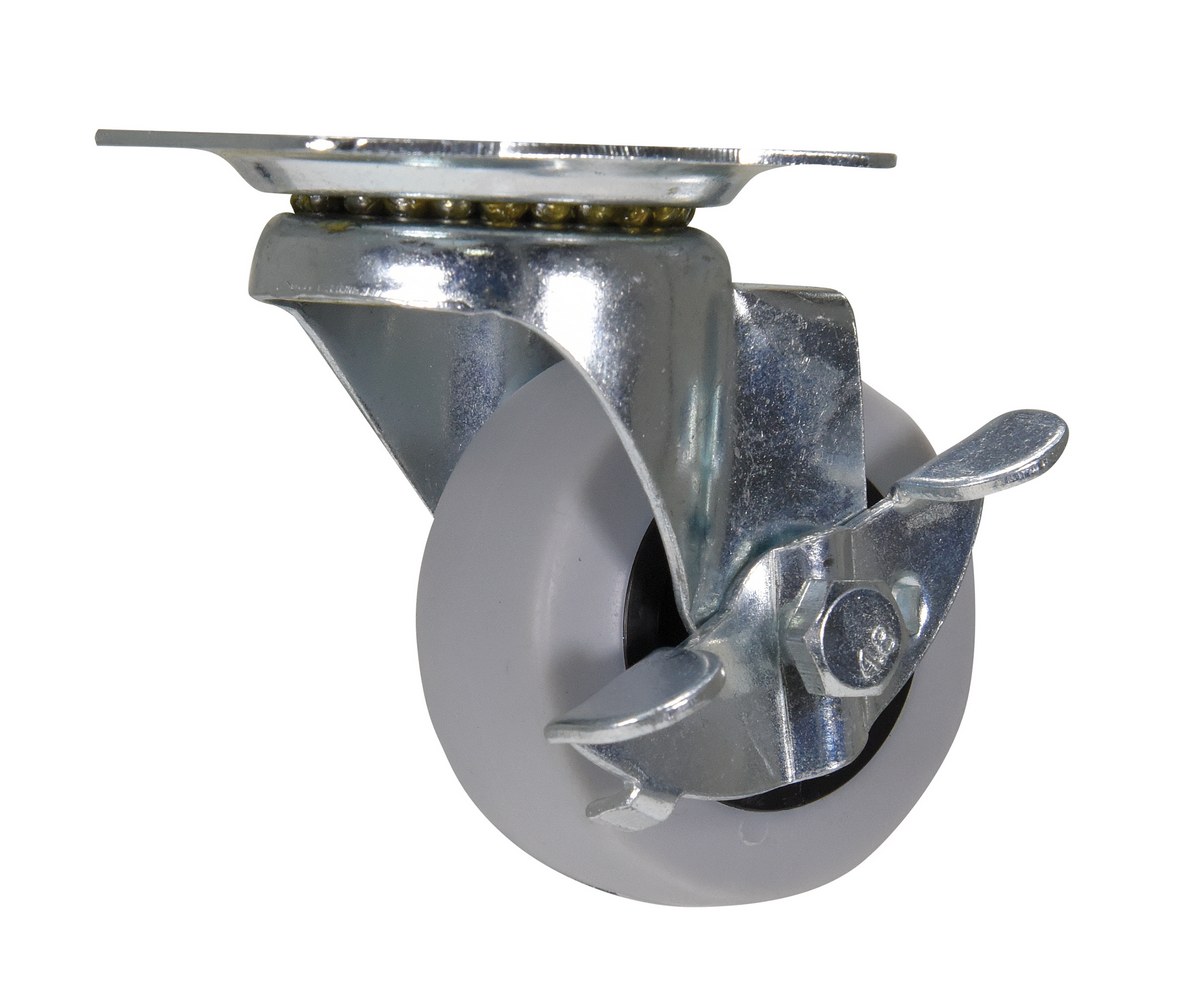

CST-B23-2X1TPR-SWB
model CST-B23-2X1TPR-SWB
CST-B23-2X1TPR-SWB
model CST-B23-2X1TPR-SWB
SERIES: CST-B23-TPR


Thermoplastic Polyurethane Rubber Casters

Thermoplastic polyurethane rubber casters provide low resistance when maneuvering with heavy loads. Resistant to chemicals, acids, bases, alcohol, salts, and steam. Gray tread color. Wheel core is constructed of polypropylene. CST-B23 90 +/-5 Shore A / CST-B28 85 +/-5 Shore A. Made in China.

* Resistant to chemical, acids, bases, alcohol, salts, & The Steam

* Hardened Bearing Raceway

* Anti-Corrosive & Rust Resistant Zinc Plate Finish

* Precision Ball Bearing

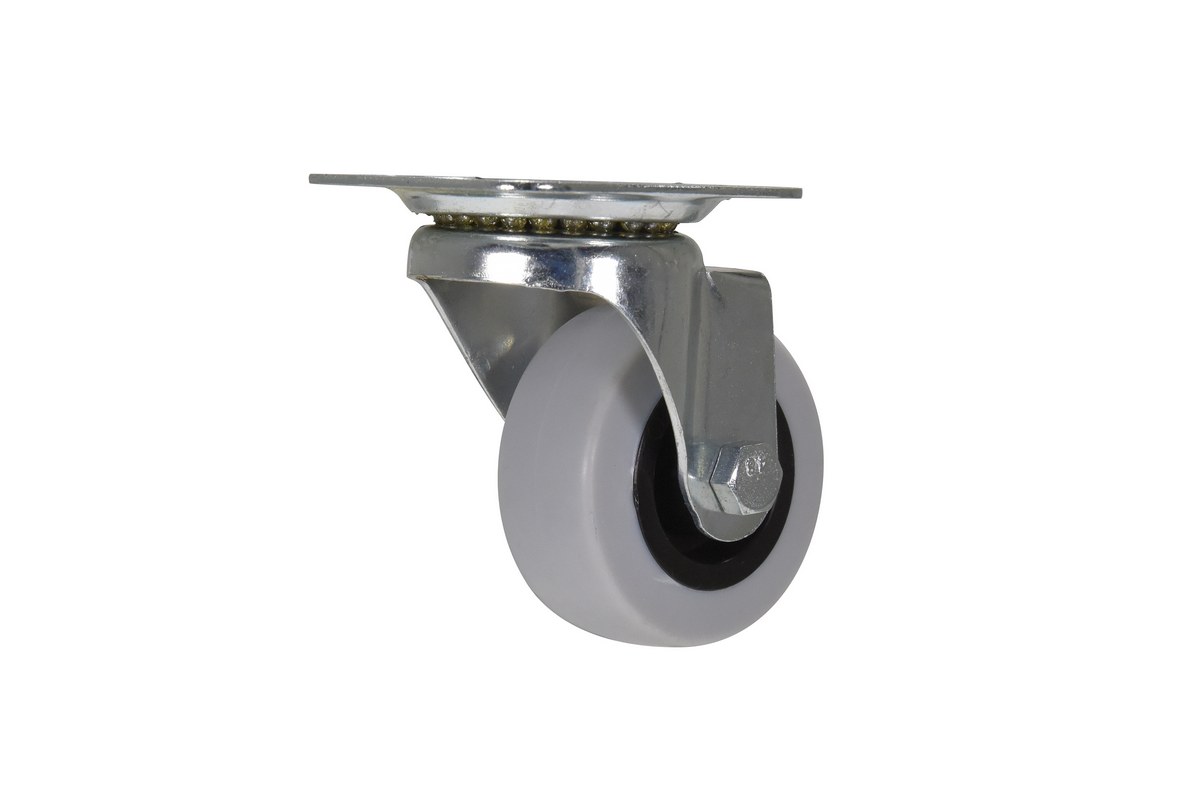

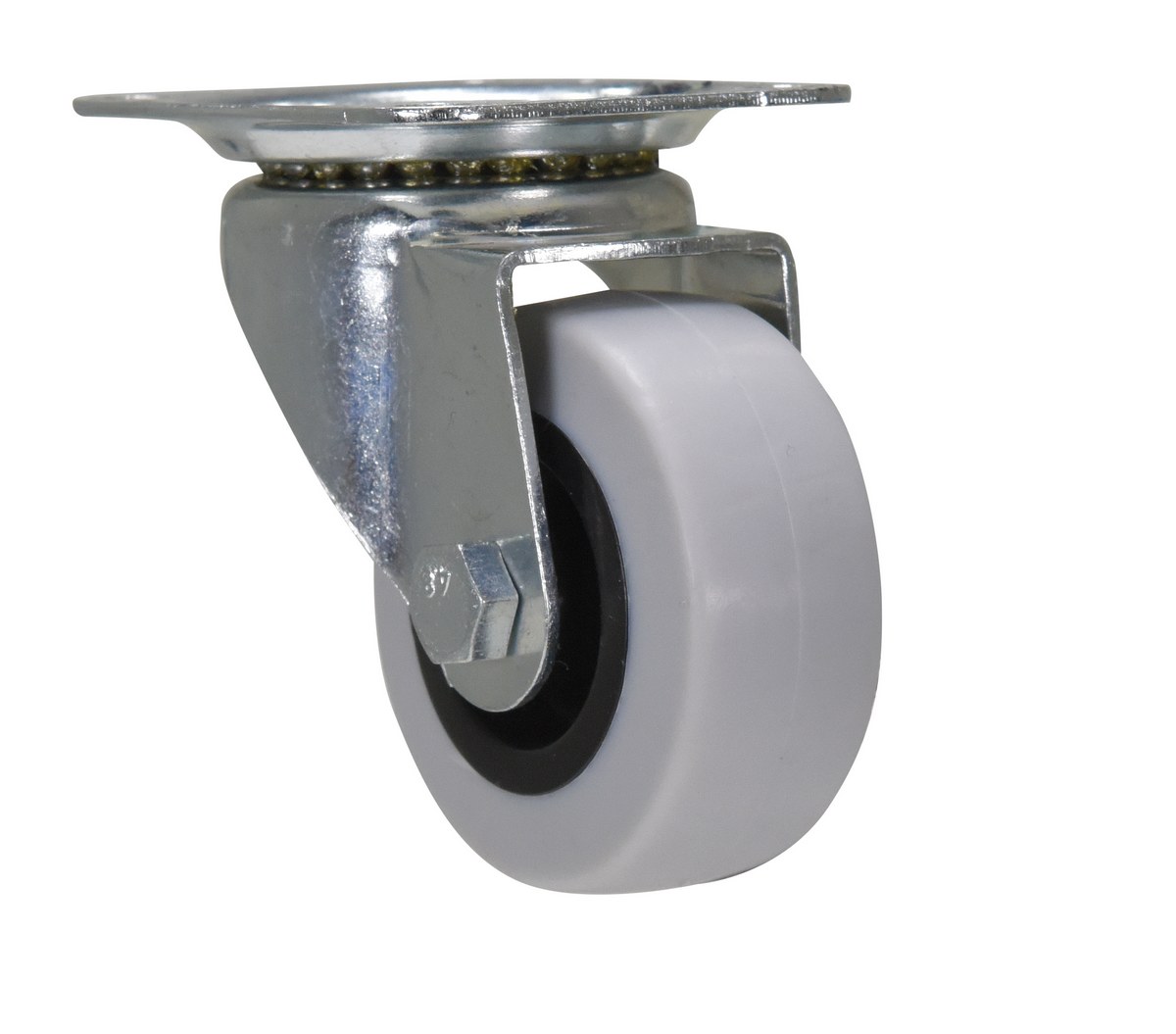

CST-B23-2X1TPR-S

model CST-B23-2X1TPR-S

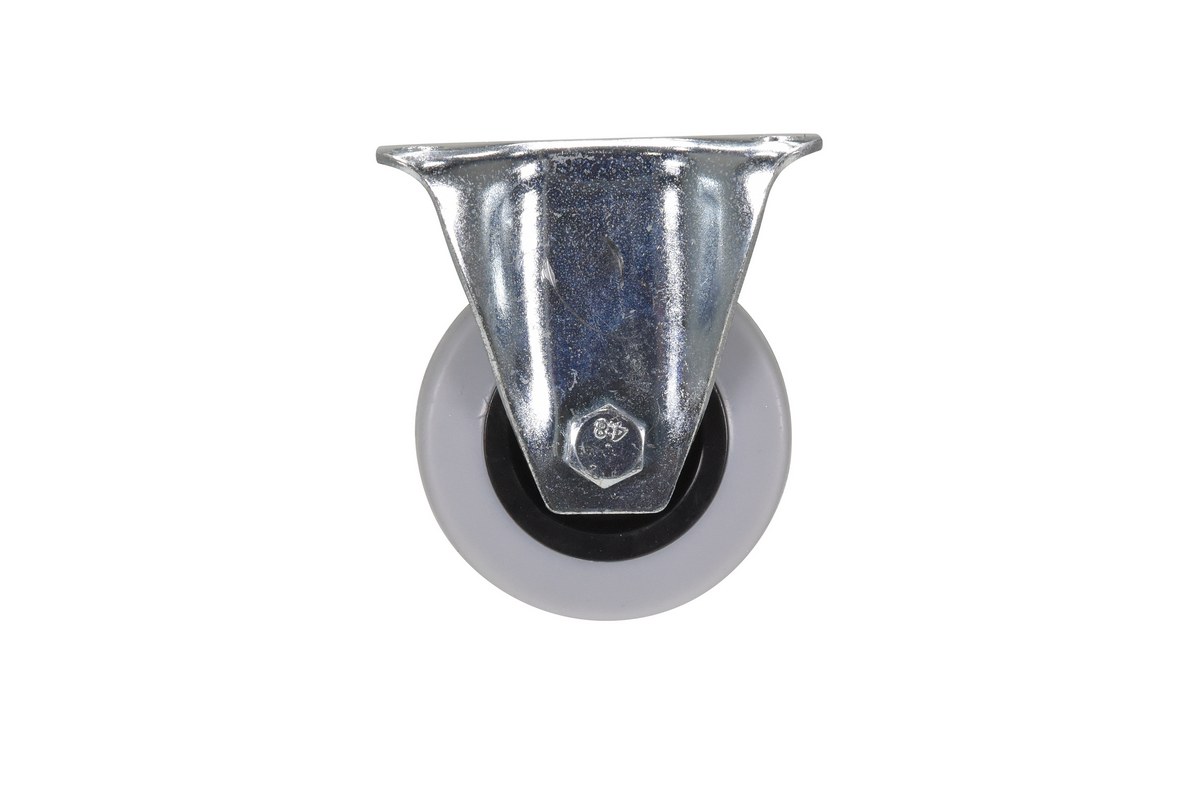

CST-B23-2X1TPR-R

model CST-B23-2X1TPR-R

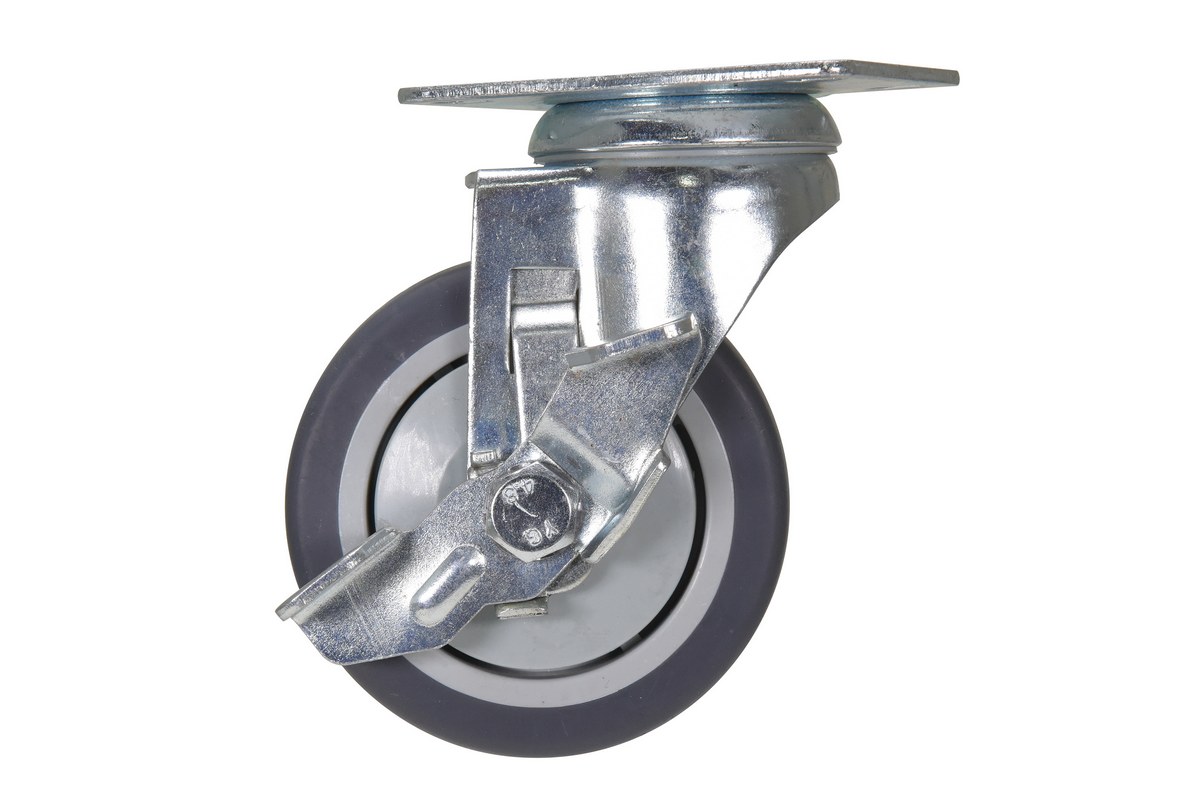

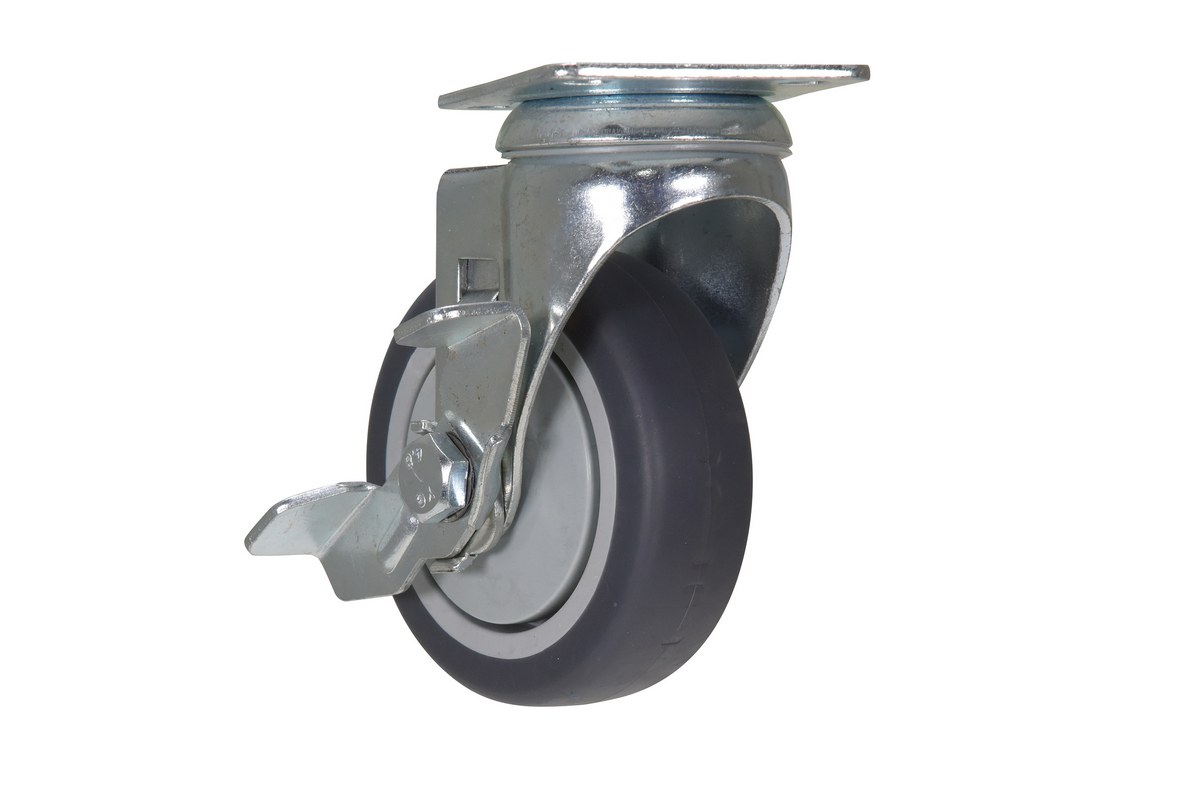

CST-B28-4X1TPR-SWB

model CST-B28-4X1TPR-SWB

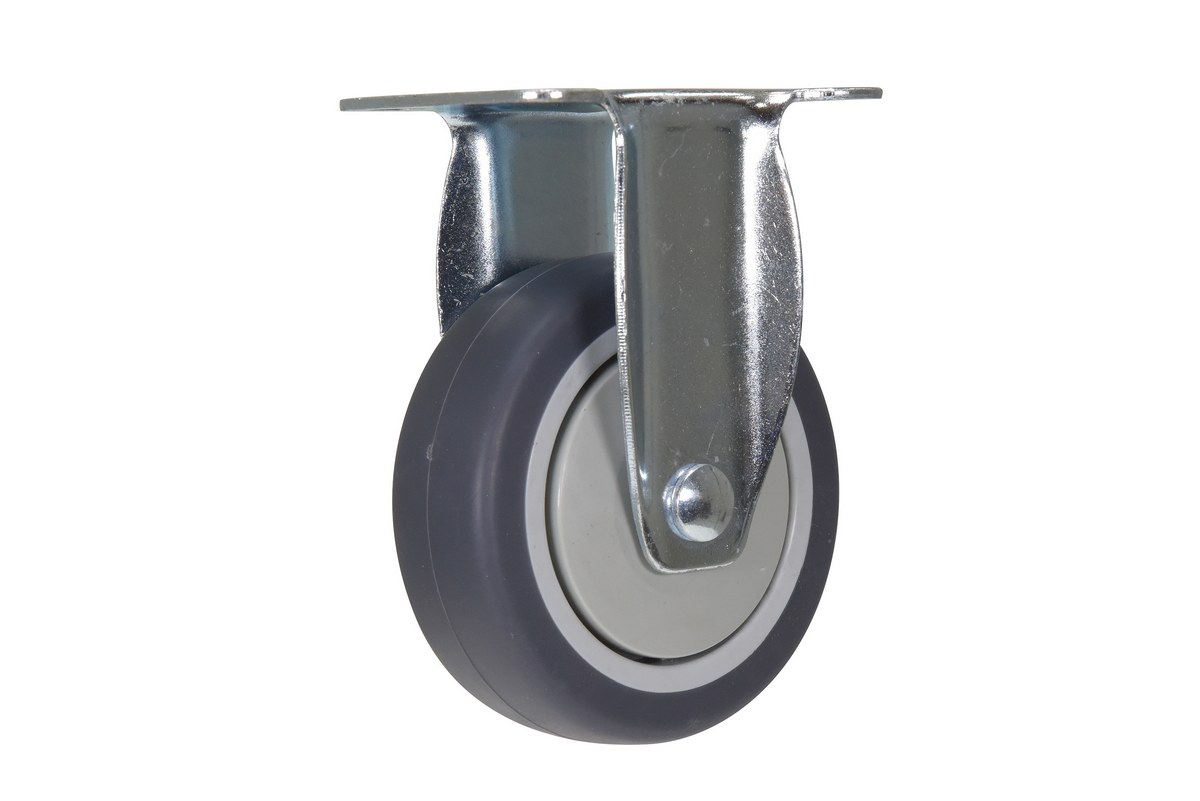

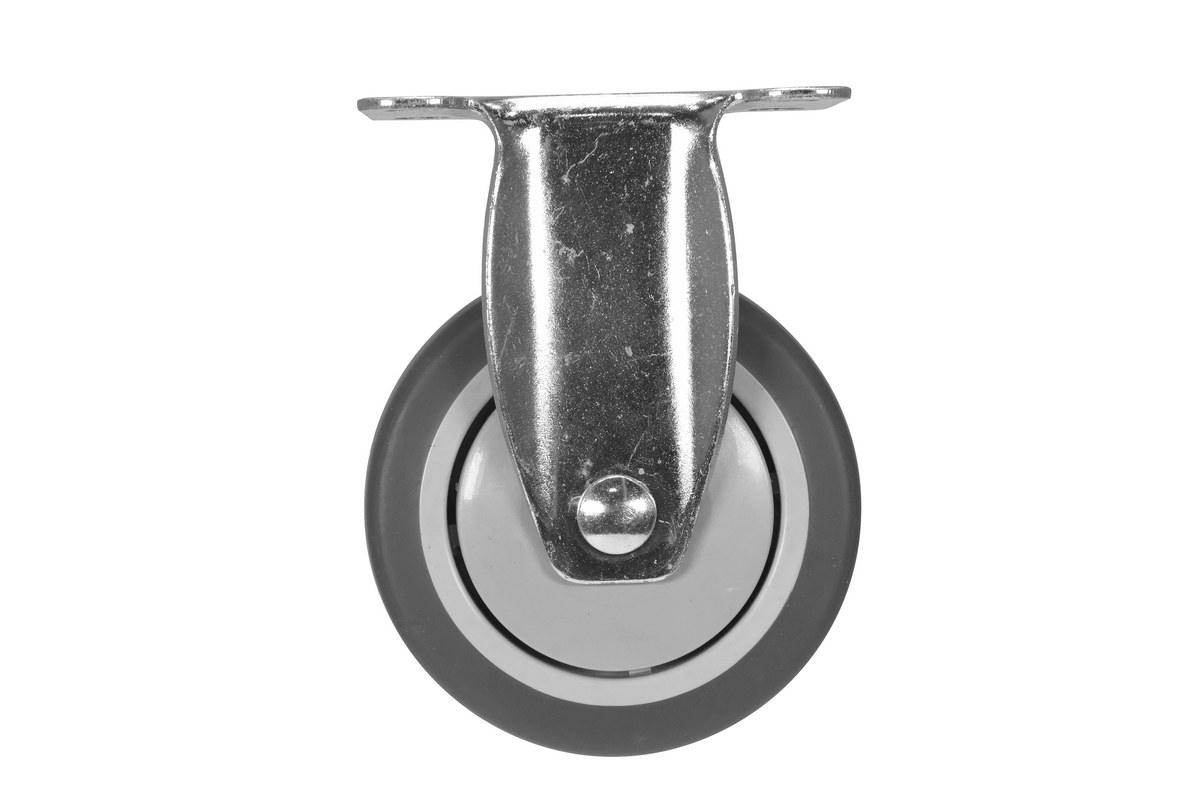

CST-B28-4X1TPR-R

model CST-B28-4X1TPR-R

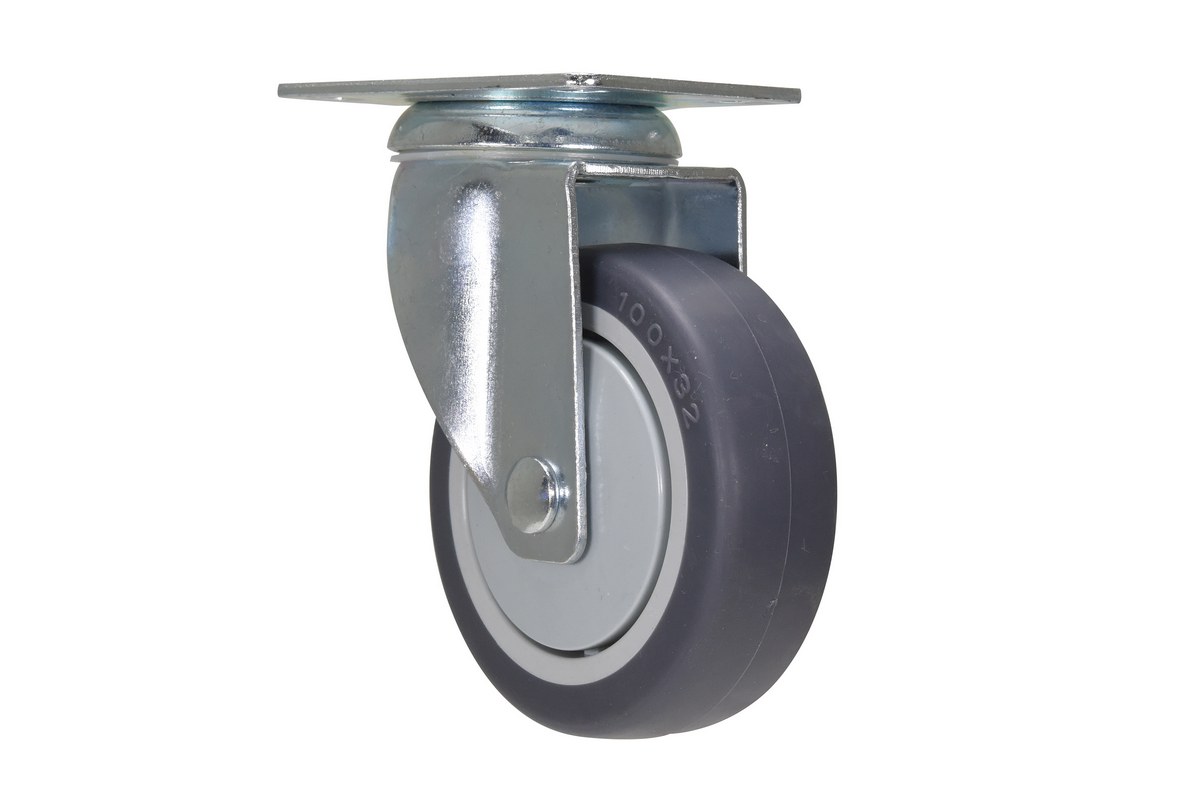

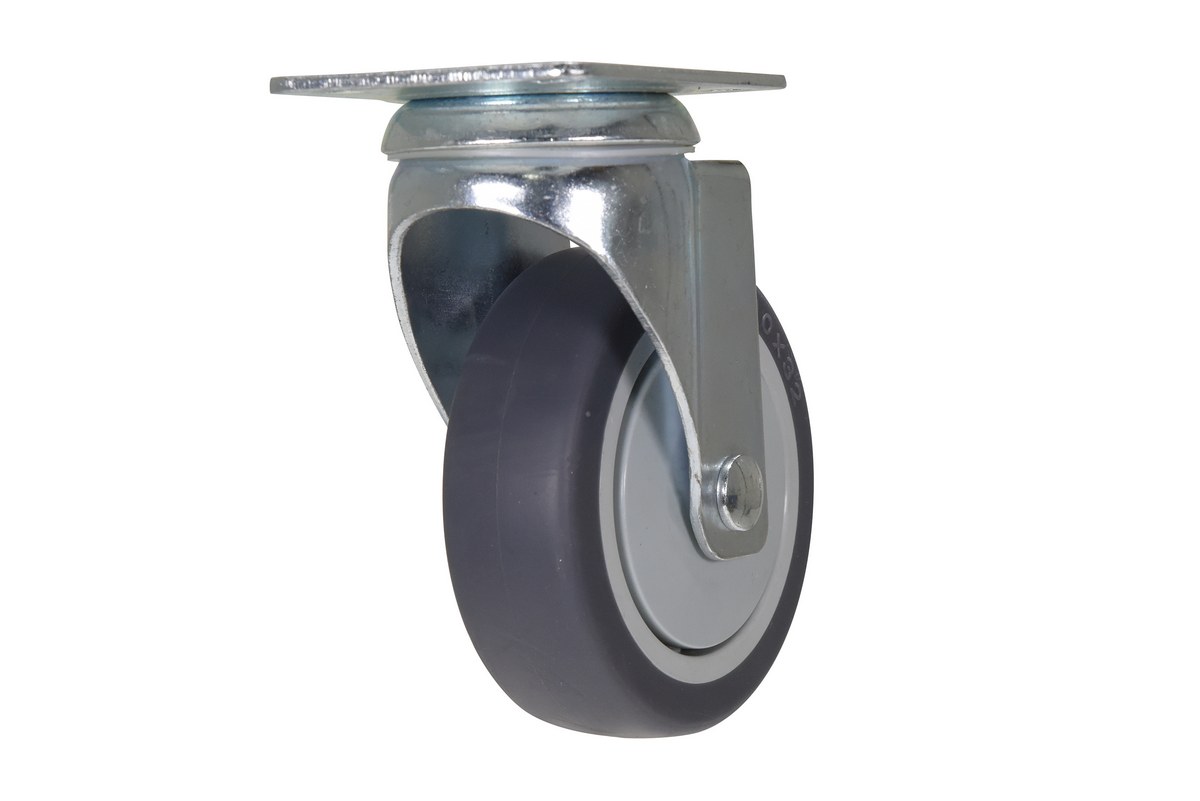

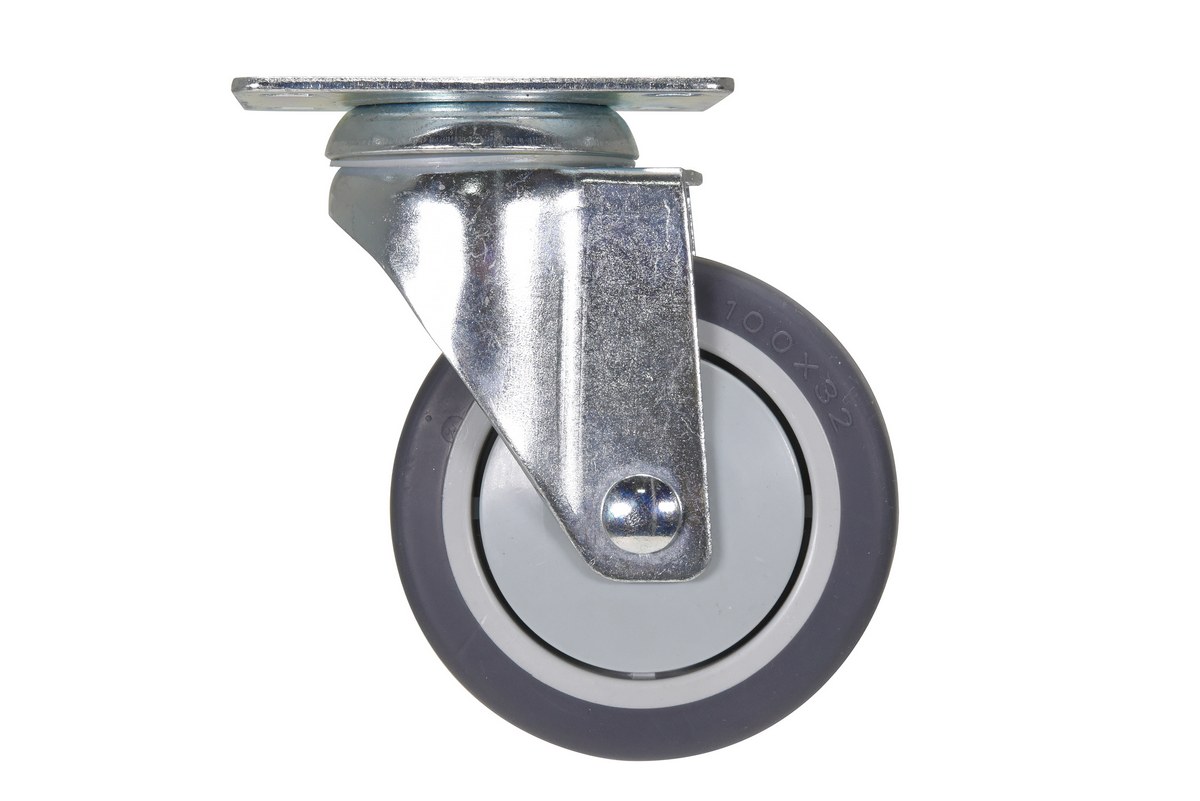

CST-B28-4X1TPR-S

model CST-B28-4X1TPR-S




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Thermoplastic Polyurethane Rubber
Model PDFs Caster
Size
Capacity
(lbs)
Overall
Height
Top Plate
Size
Raceway Type Wt.
(lbs)
Swivel Casters
CST-B23-2X1TPR-S - 2"x4/5" 77 2-5/8" 1-7/8"x2-1/4" Double 0.34
CST-B28-4X1TPR-S - 4"x1-1/4" 220 5-1/4" 2-5/8"x3-3/4" Double 1.69

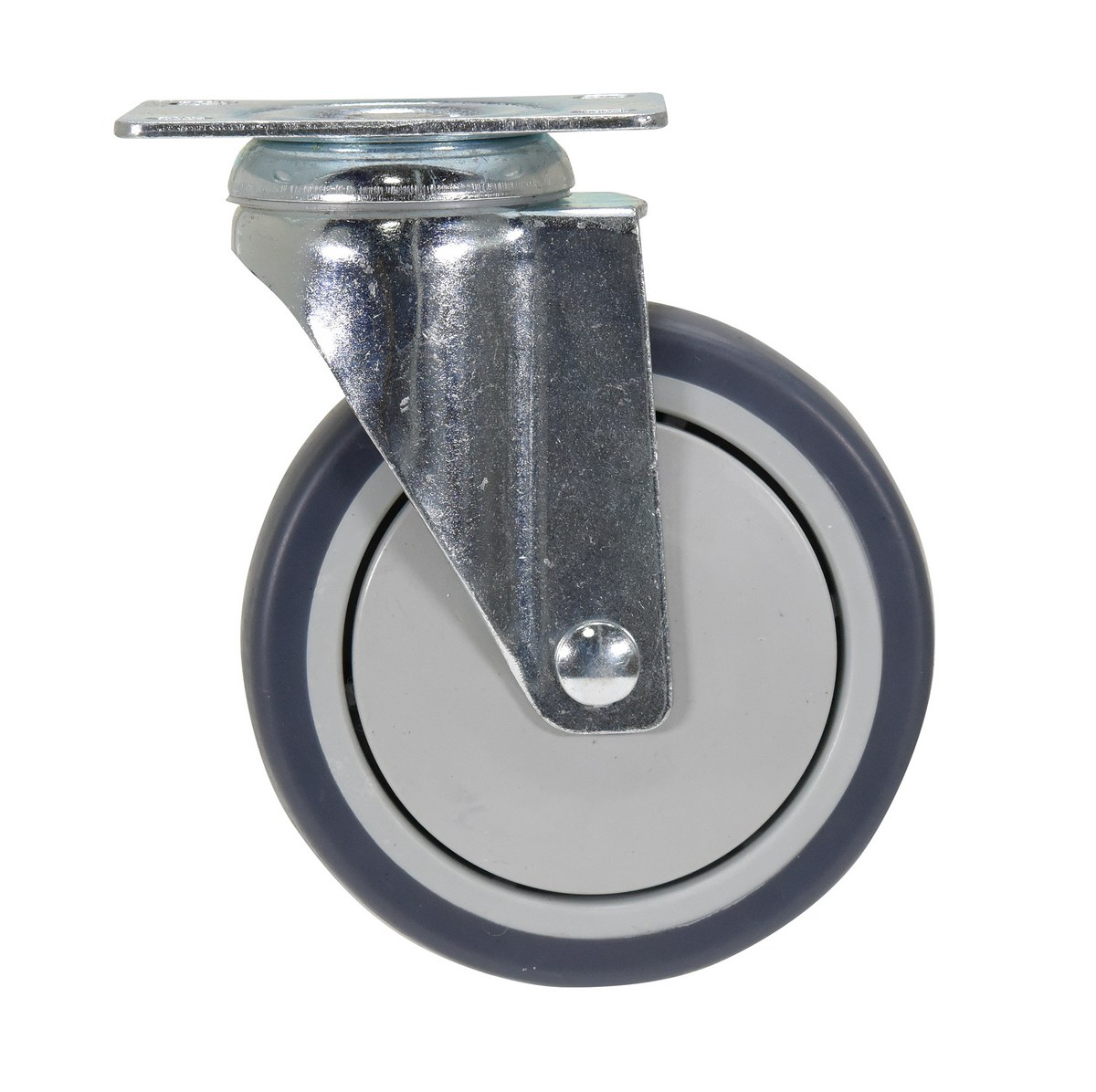

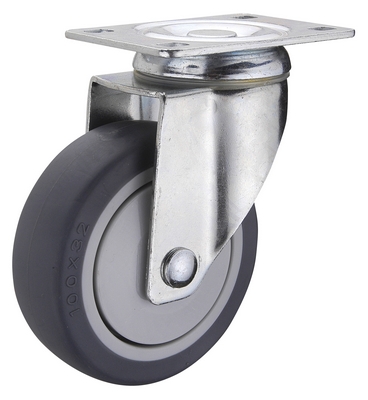

CST-B28-5X1TPR-S - 5"x1-1/4" 308 6-1/4" 2-16/25"x3-3/4" Double 1.92
Rigid Casters

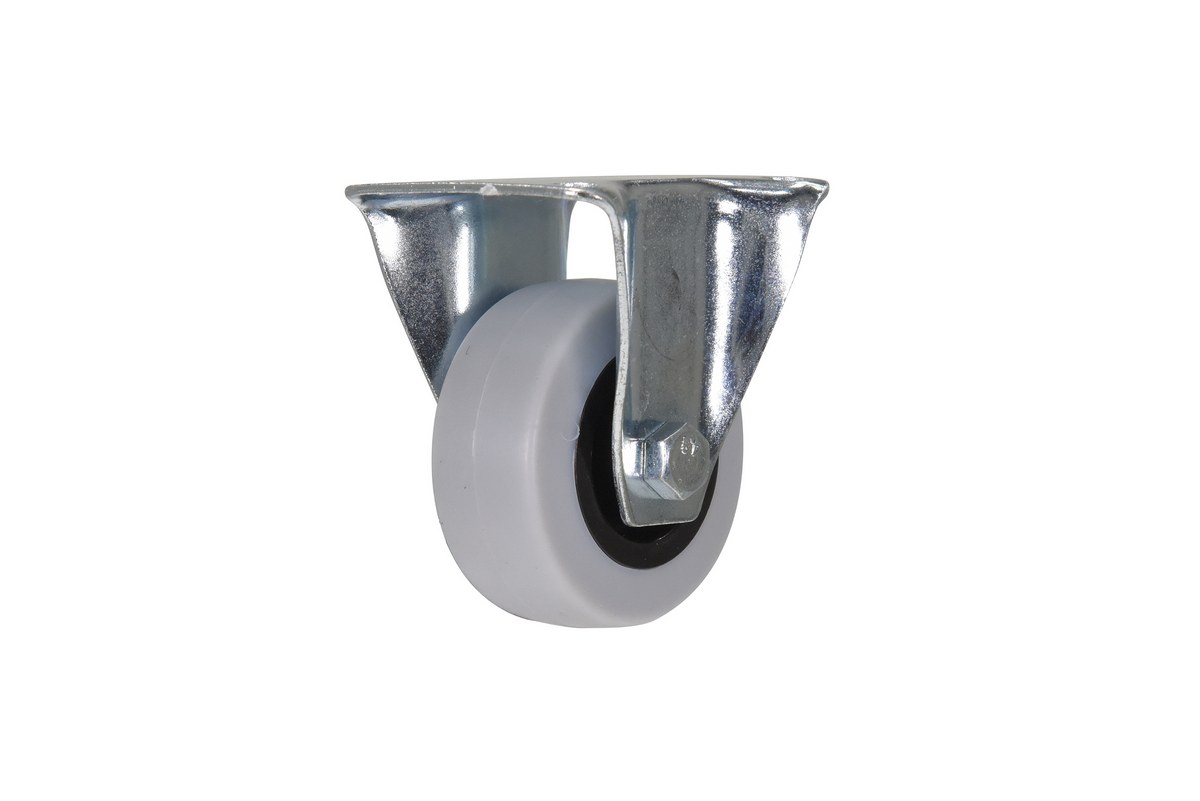

CST-B23-2X1TPR-R - 2"x4/5" 77 2-5/8" 1-7/8"x2-1/4" - 0.23
CST-B28-4X1TPR-R - 4"x1-1/4" 220 5-1/4" 2-5/8"x3-3/4" - 1.18

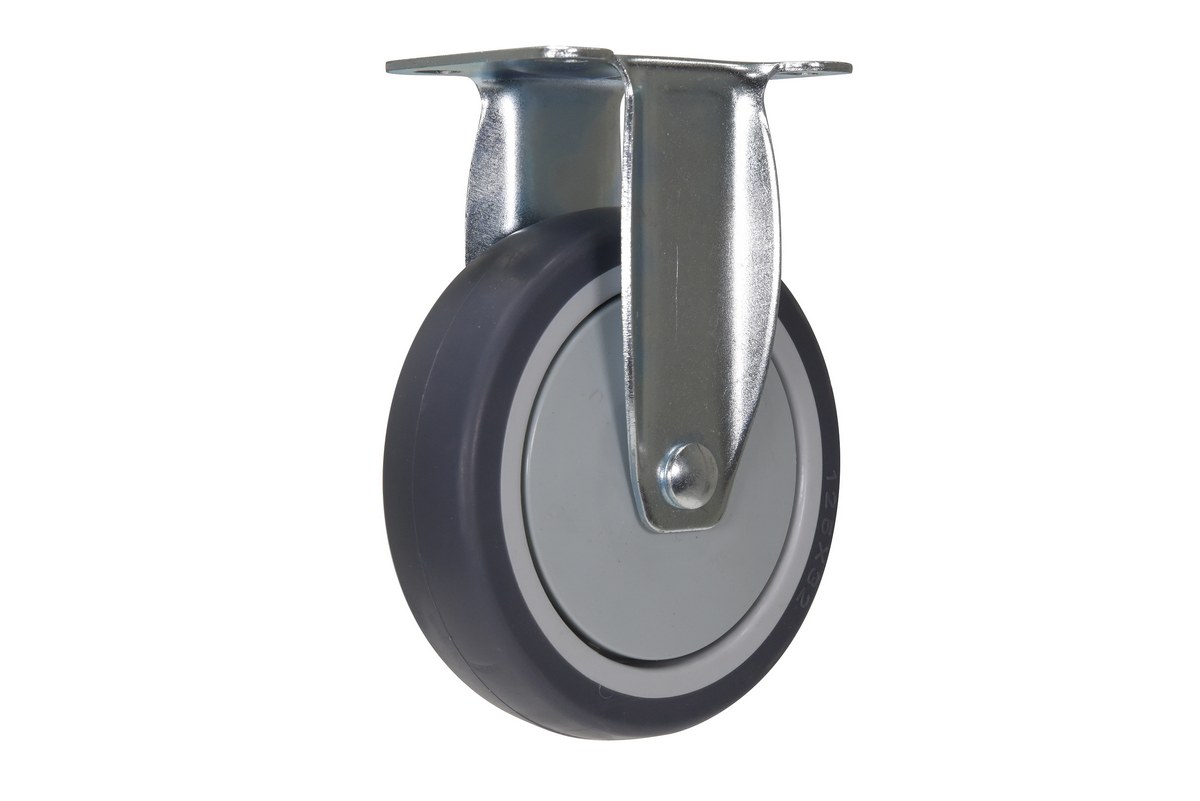

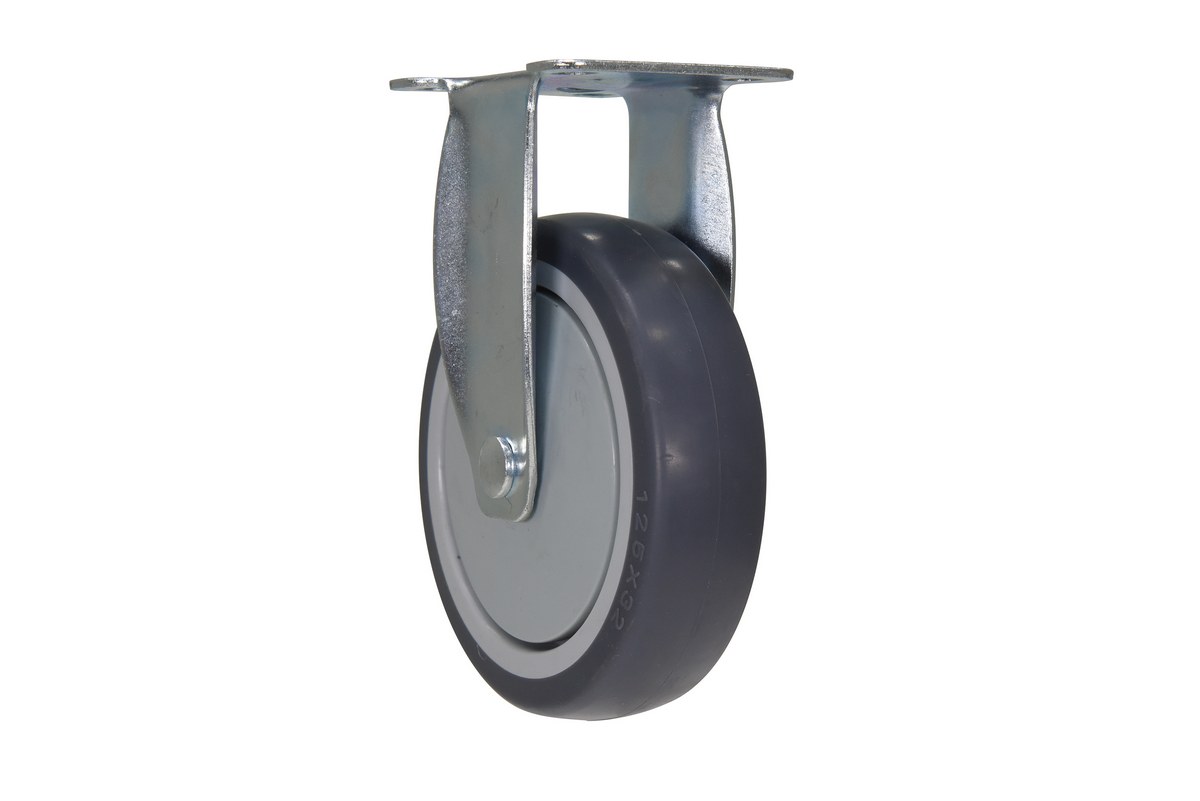

CST-B28-5X1TPR-R - 5"x1-1/4" 308 6-1/4" 2-16/25"x3-3/4" - 1.34
Swivel Caster With Brake

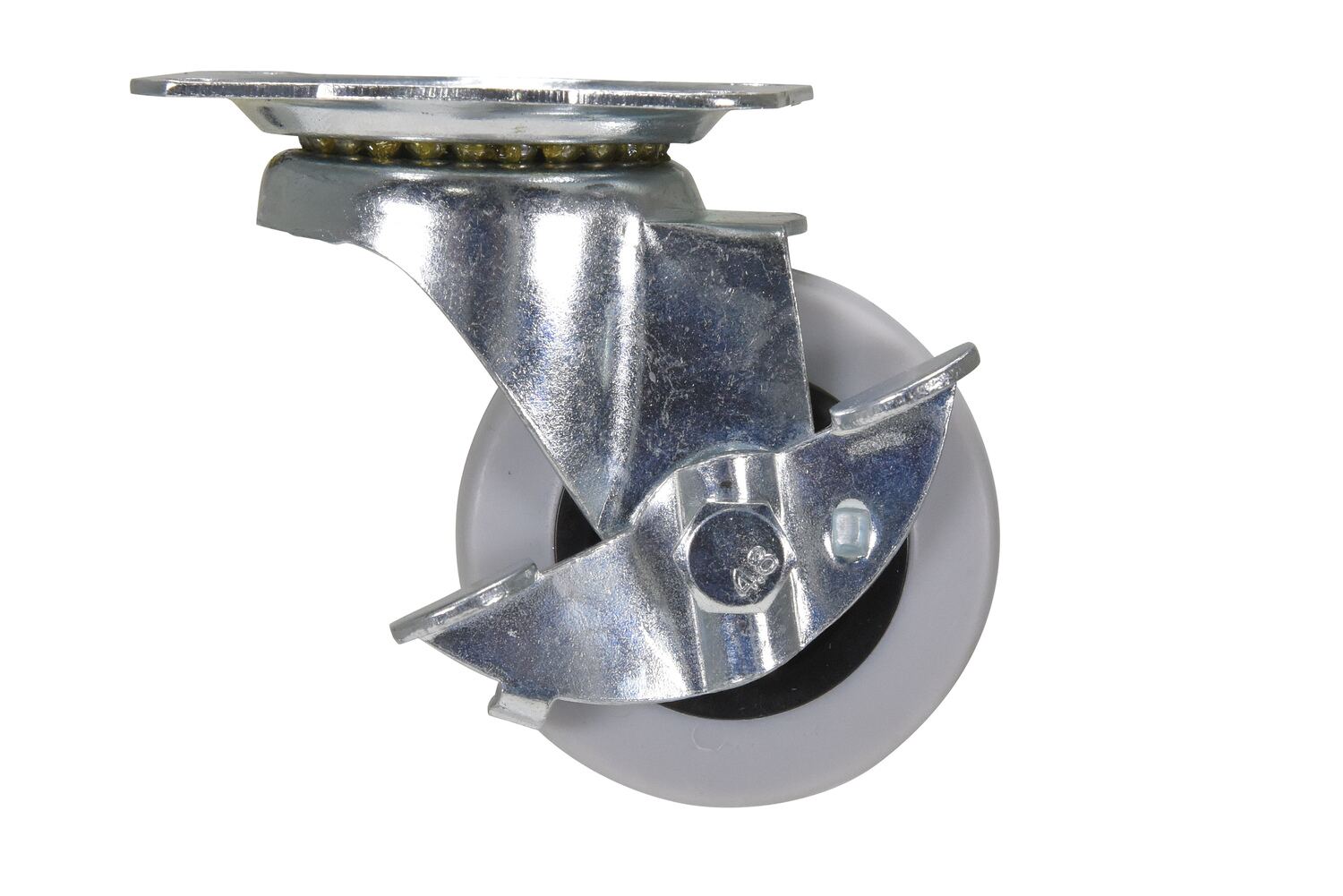

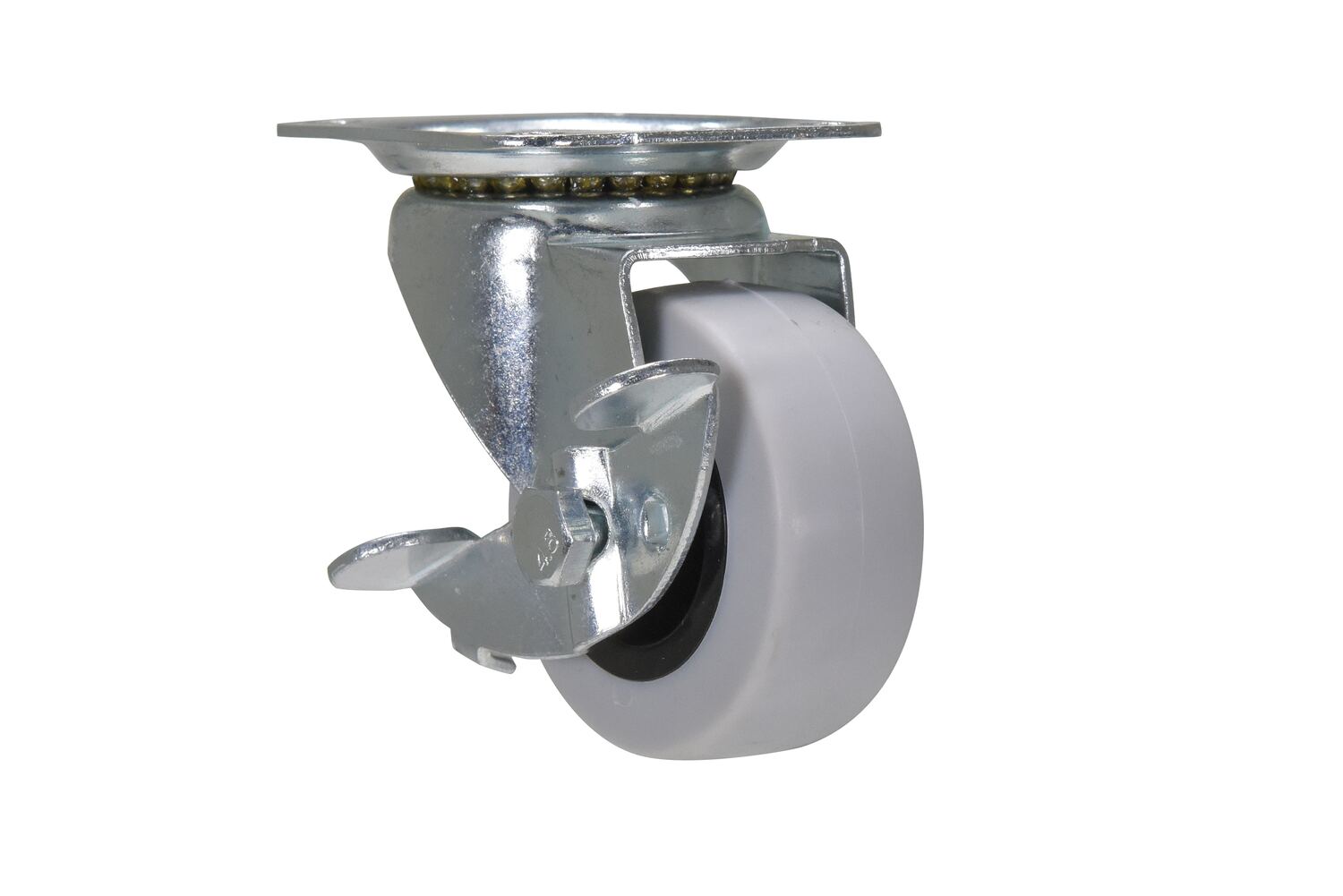

CST-B23-2X1TPR-SWB* - 2"x4/5" 77 2-5/8" 1-7/8"x2-1/4" Double 0.37

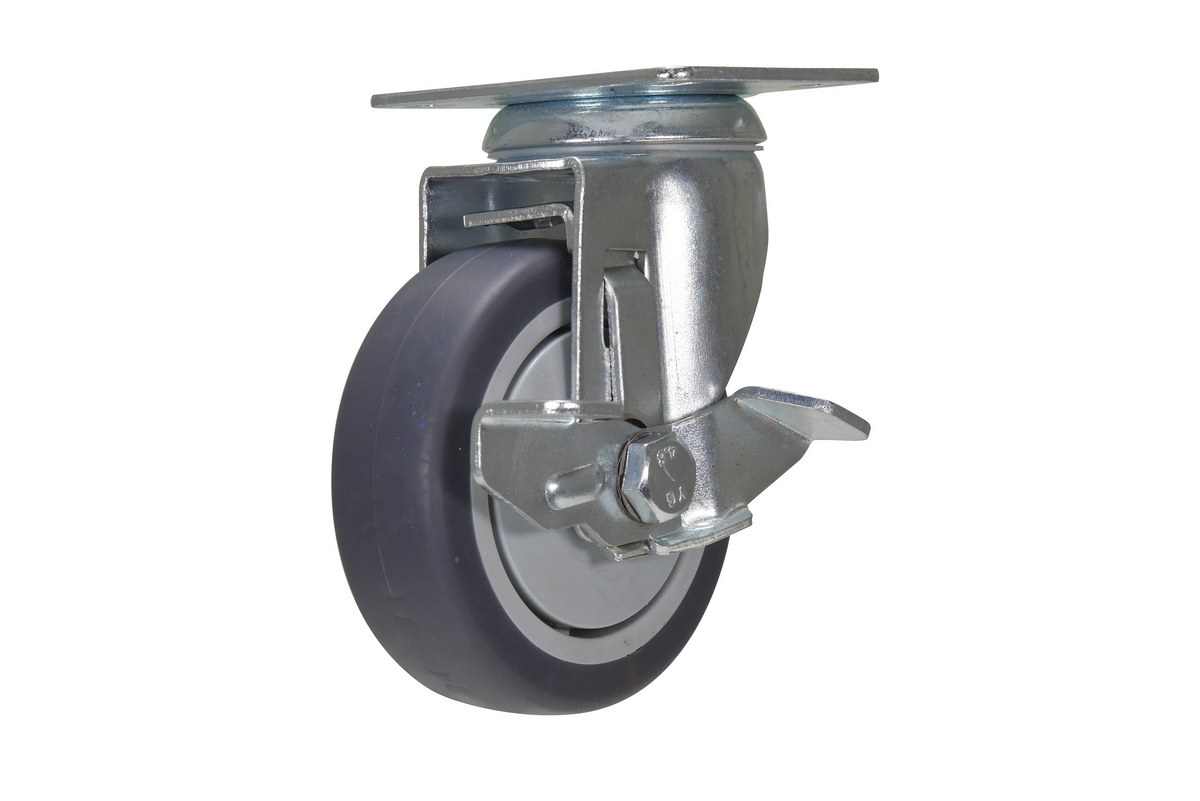

CST-B28-4X1TPR-SWB - 4"x1-1/4" 220 5-1/4" 2-5/8"x3-3/4" Double 1.91

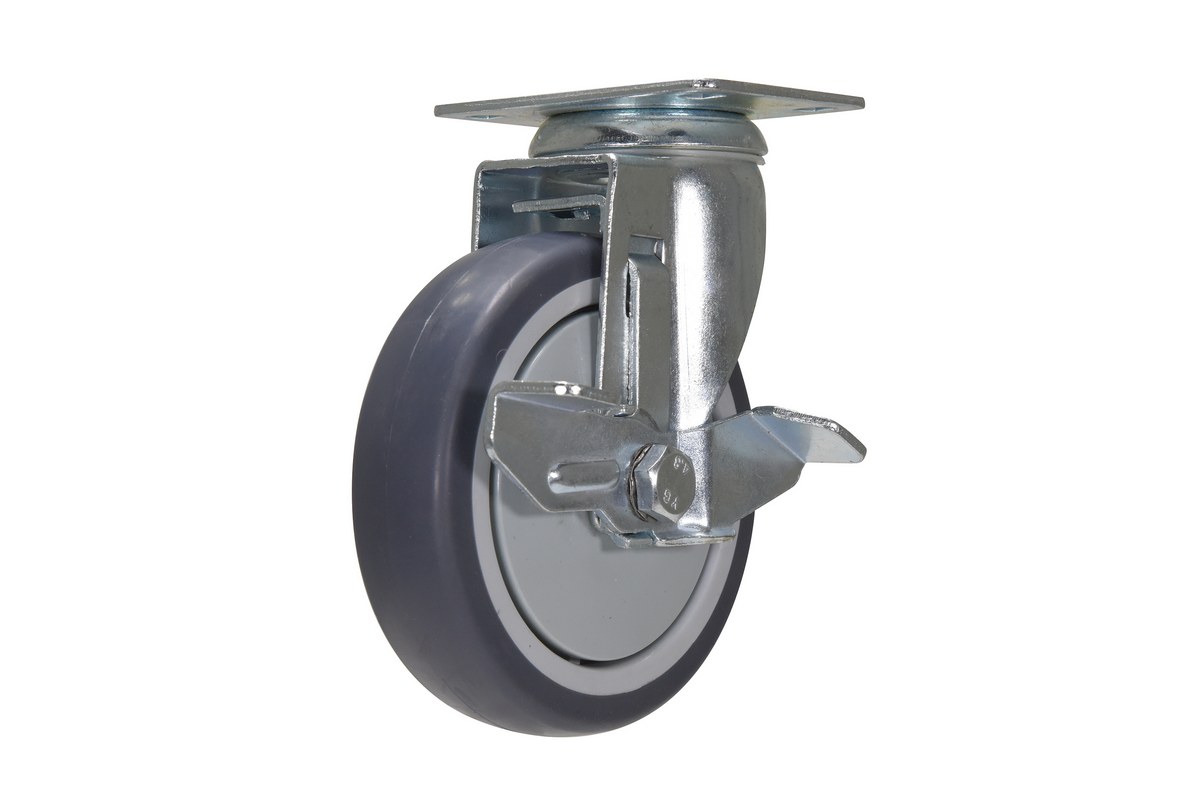

CST-B28-5X1TPR-SWB - 5"x1-1/4" 308 6-1/4" 2-16/25"x3-3/4" Double 2.20
* Plain Bore
CST-B28 Models have a bearing dust cover seal

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CST-B23-2X1TPR-R

CST-B23-2X1TPR-R

CST-B23-2X1TPR-S

CST-B23-2X1TPR-S

CST-B23-2X1TPR-SWB

CST-B23-2X1TPR-SWB

CST-B28-4X1TPR-R

CST-B28-4X1TPR-R

CST-B28-4X1TPR-S

CST-B28-4X1TPR-S

CST-B28-4X1TPR-SWB

CST-B28-4X1TPR-SWB

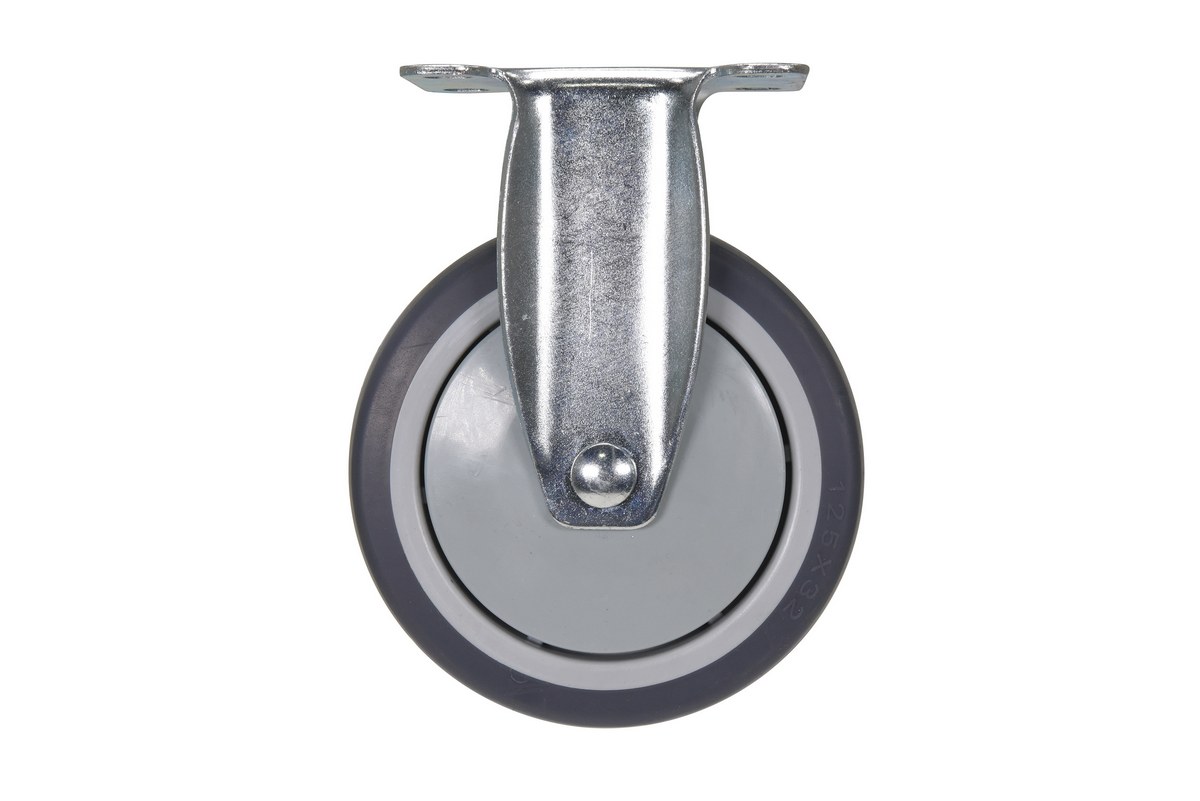

CST-B28-5X1TPR-R

CST-B28-5X1TPR-R

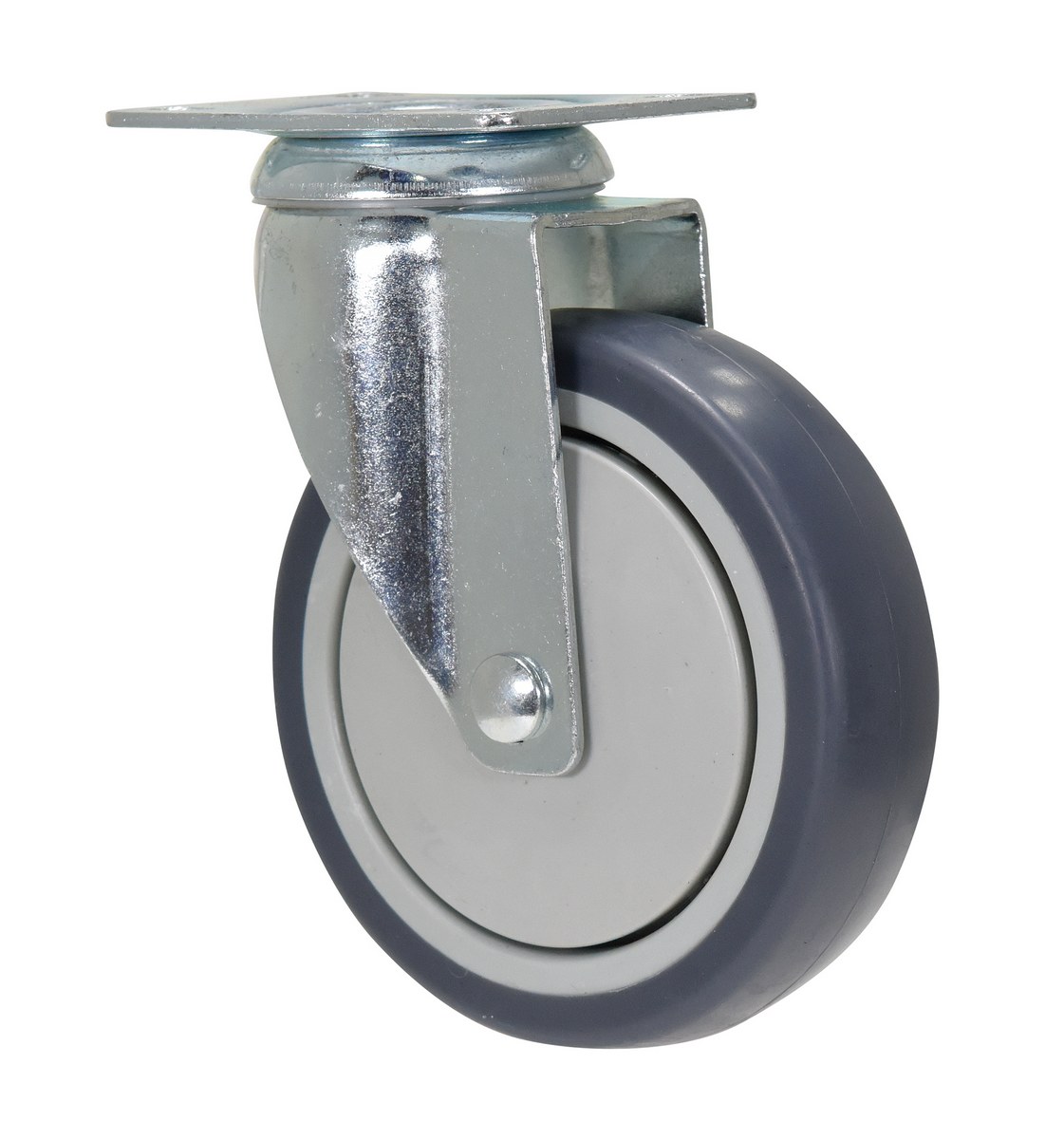

CST-B28-5X1TPR-S

CST-B28-5X1TPR-S

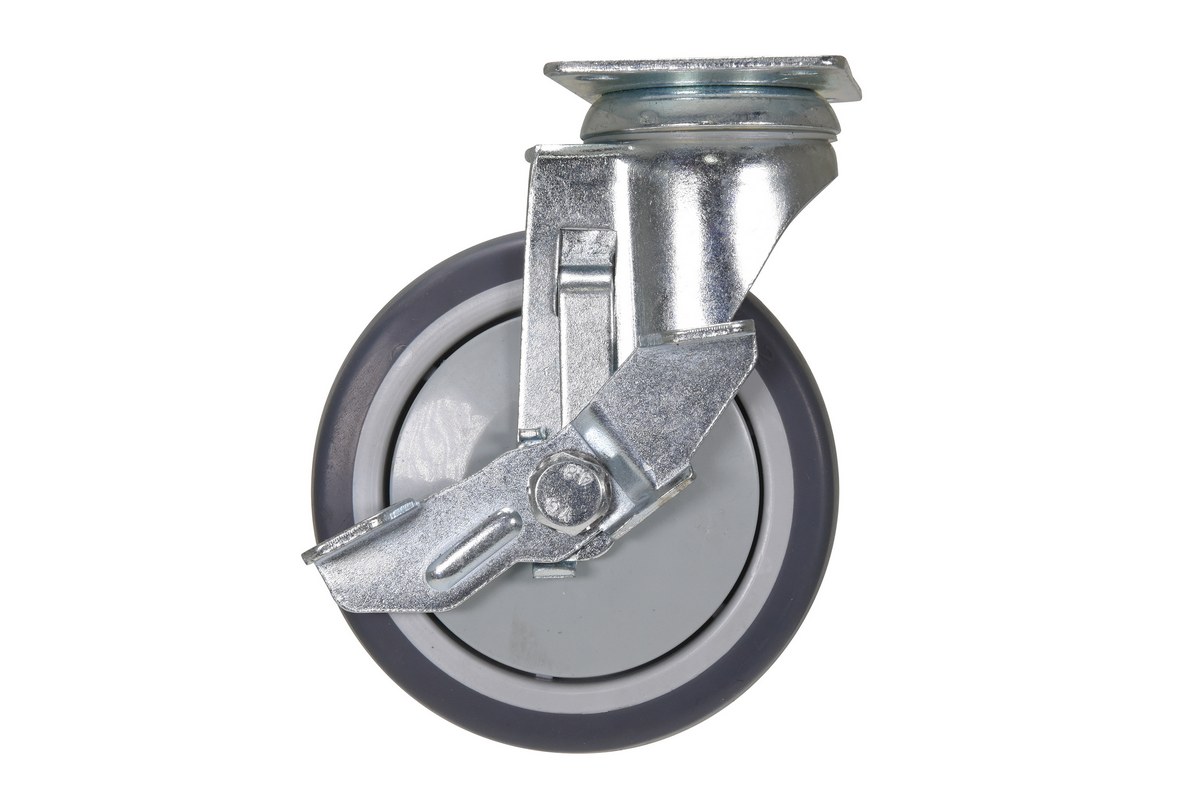

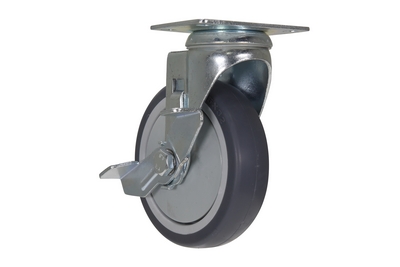

CST-B28-5X1TPR-SWB
