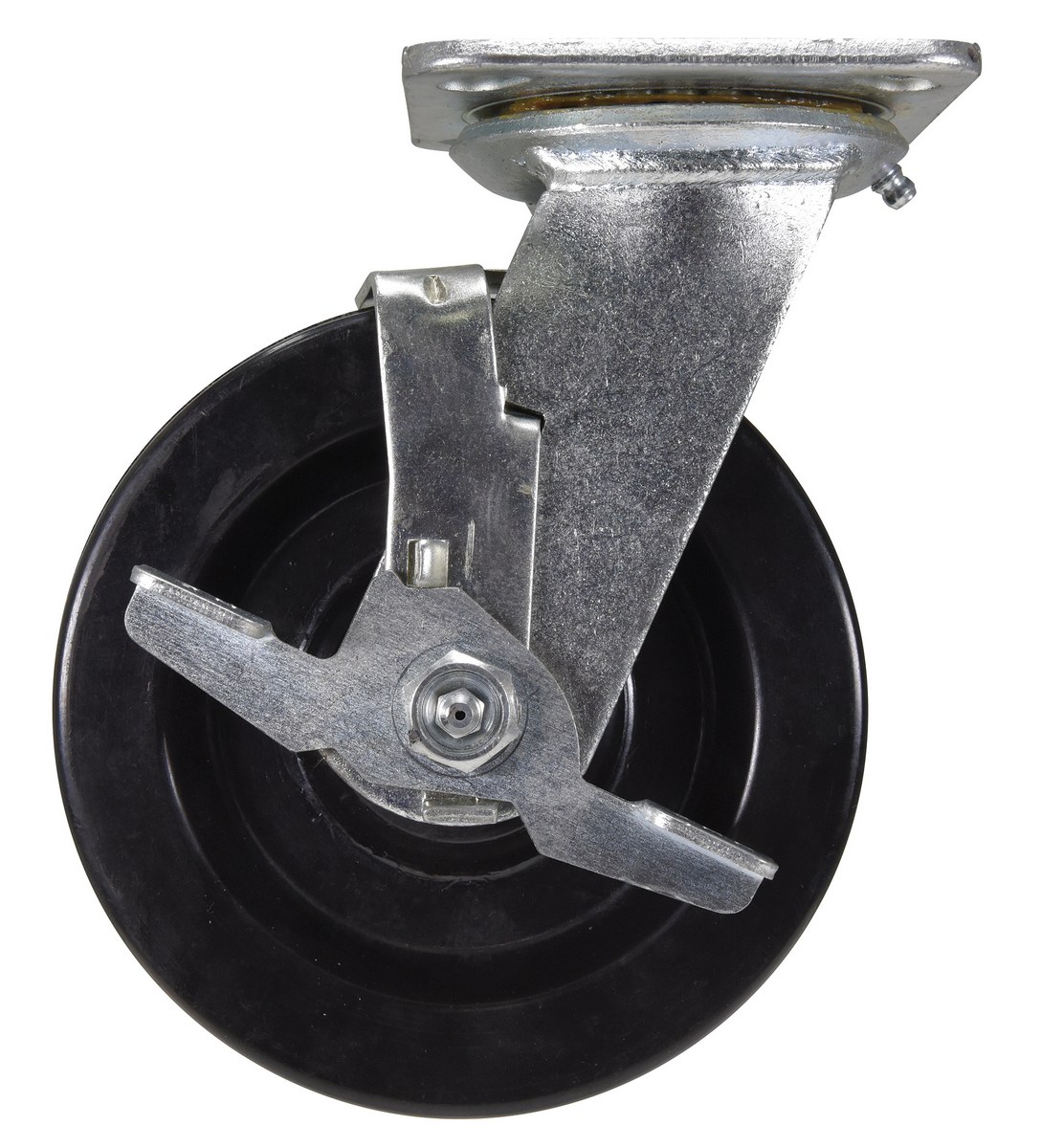

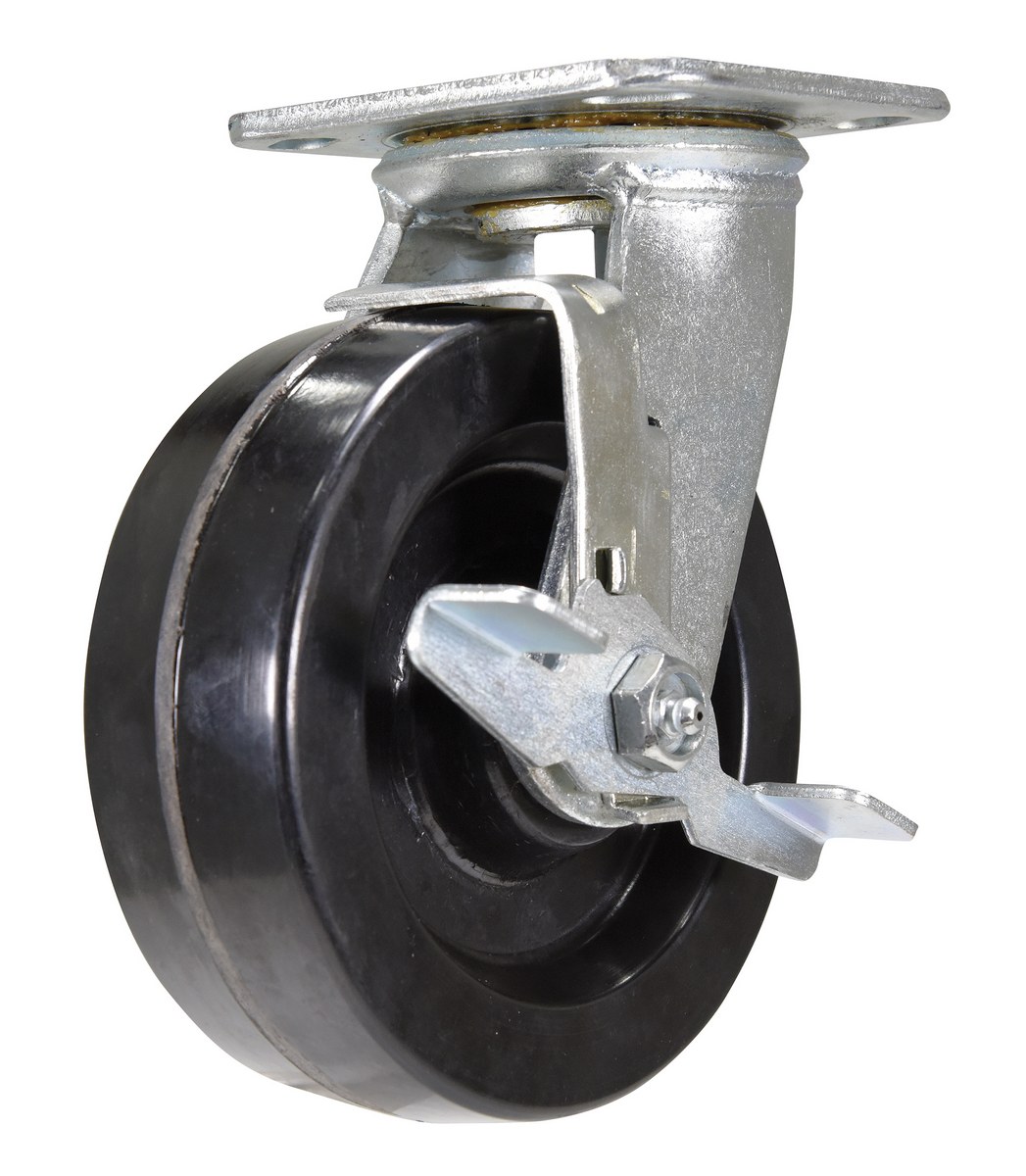

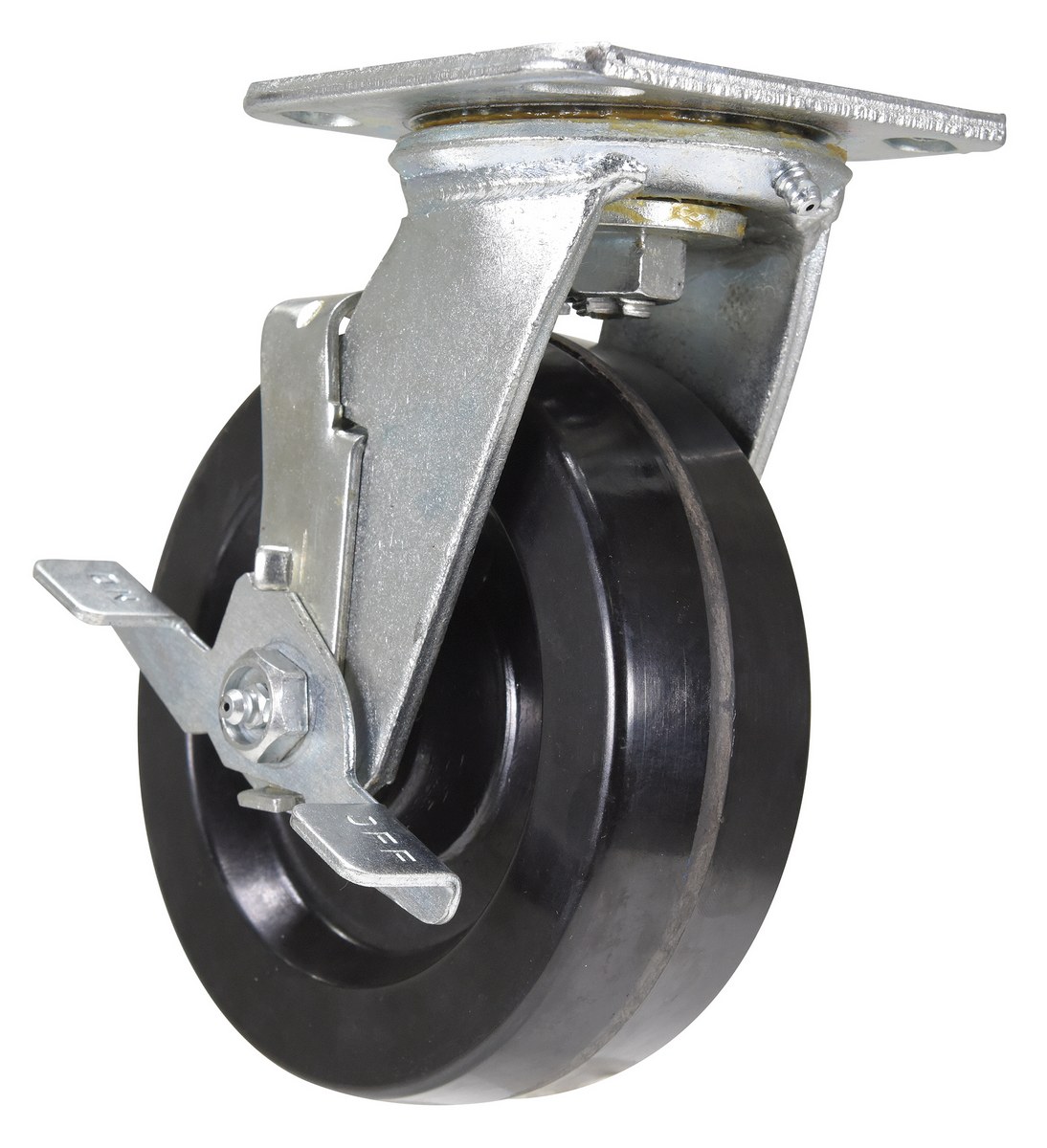

model CST-D-6X2PH-SWB
SERIES: CST-D-PH


Phenolic Casters

Phenolic wheels have a high resistance to impact, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. Made in China.

*Ideal for Heavy Duty Equipment

*Ideal for Industrial, Commercial and Warehouse Use

*Resistant to Water, Oil, and Grease

* Hardened Bearing Raceway

* Anti-Corrosive Paint Finish

*Double Welds on Indside & Outside of Fork Mounts

*Roller Bearing

*CST-D-6X2PH-S has Swivel Rig Zerk Fitting

*CST-D-6X2PH-SWB has Swivel Rig Zerk Fitting and Axle Wheel Zerk Fitting


CST-D-6X2PH-S

model CST-D-6X2PH-S

CST-D-6X2PH-R

model CST-D-6X2PH-R

CST-PH-F-8-3-R

model CST-PH-F-8-3-R

CST-PH-F-8-3-S

model CST-PH-F-8-3-S

CST-PH-F-8-3-S-4PSL

model CST-PH-F-8-3-S-4PSL




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Phenolic
Model PDFs Caster
Size
Capacity
(lbs)
Overall
Height
Top Plate
Size

Raceway Type

Wt.
(lbs)
Swivel Casters
CST-D-6X2PH-S - 6"x2" 1,200 7-1/2" 4"x4-1/2" Double 6.0
CST-PH-F-8/3-S - 8"x3" 2,500 10-1/2" 4-1/2"x6-1/4" Double 14
Rigid Casters
CST-D-6X2PH-R - 6"x2" 1,200 7-1/2" 4"x4-1/2" - 5.15
CST-PH-F-8/3-R - 8"x3" 2,500 10-1/2" 4-1/2"x6-1/4" - 14
Swivel Caster With Brake
CST-D-6X2PH-SWB - 6"x2" 1,200 7-1/2" 4"x4-1/2" Double 6.4
CST-PH-F-8/3-SWB - 8"x3" 2,500 10-1/2" 4-1/2"x6-1/4" Double 17

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CST-D-6X2PH-R

CST-D-6X2PH-R

CST-D-6X2PH-S

CST-D-6X2PH-S

CST-D-6X2PH-SWB

CST-D-6X2PH-SWB

CST-PH-F-8/3-R

CST-PH-F-8/3-R

CST-PH-F-8/3-S

CST-PH-F-8/3-S

CST-PH-F-8/3-S-4PSL

CST-PH-F-8/3-S-4PSL






PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

* No Approval Drawings For This Product

Testing Certificates

CST-D-6X2PH-R
CST-D-6X2PH-S
CST-D-6X2PH-SWB

Other PDF's

* No "Other PDFs" For This Product...
