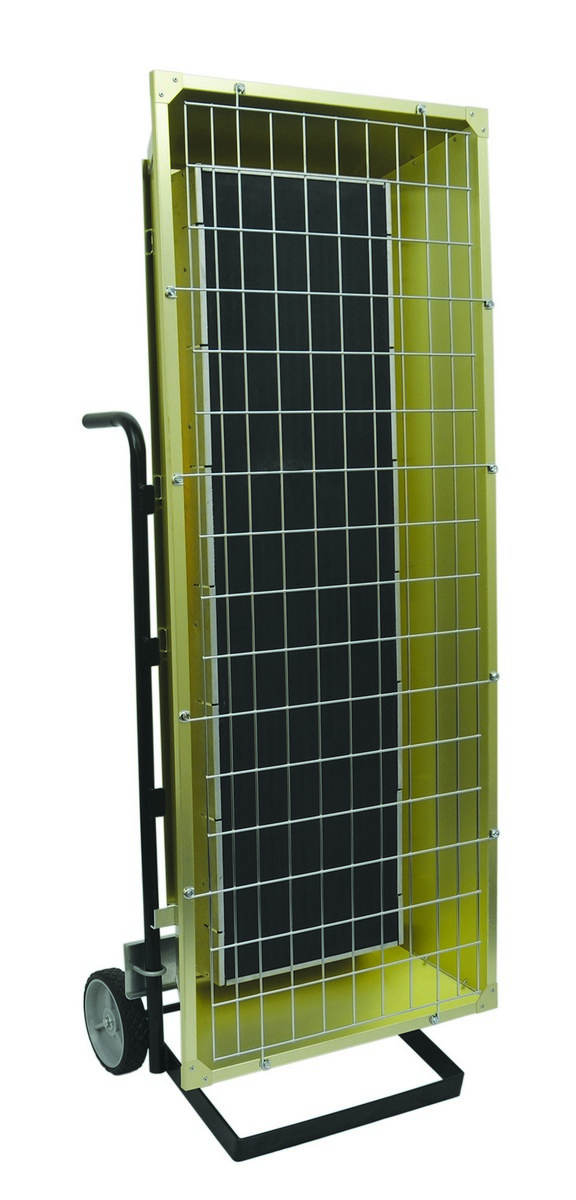

VFSP-9524-3
model VFSP-9524-3
SERIES: VFSP

Portable Electric Infrared Heaters


1-PHASE STANDARD

Provide instant, odor-free heat for indoor and semi-protected outdoor workstations and warehouse areas. Economical electric infrared heat warms only persons and objects, not the air volume. Durable heavy duty flat panel emitter heating elements are designed for a variety of applications using no glass materials. All models have gold anodized aluminum reflectors, terminal box, protective wire screens, and reinforced front edge and corner construction. Heaters can be adjusted on the hand cat to operate in a horizontal or vertical position for maximizing the infrared heating pattern. Carts consists of a rugged steel design and are equipped with 6" rubber wheels, twin hand grips. Heaters are factory wired for three phase, but can be converted to single phase for most units.


VFSP-4324-3

model VFSP-4324-3

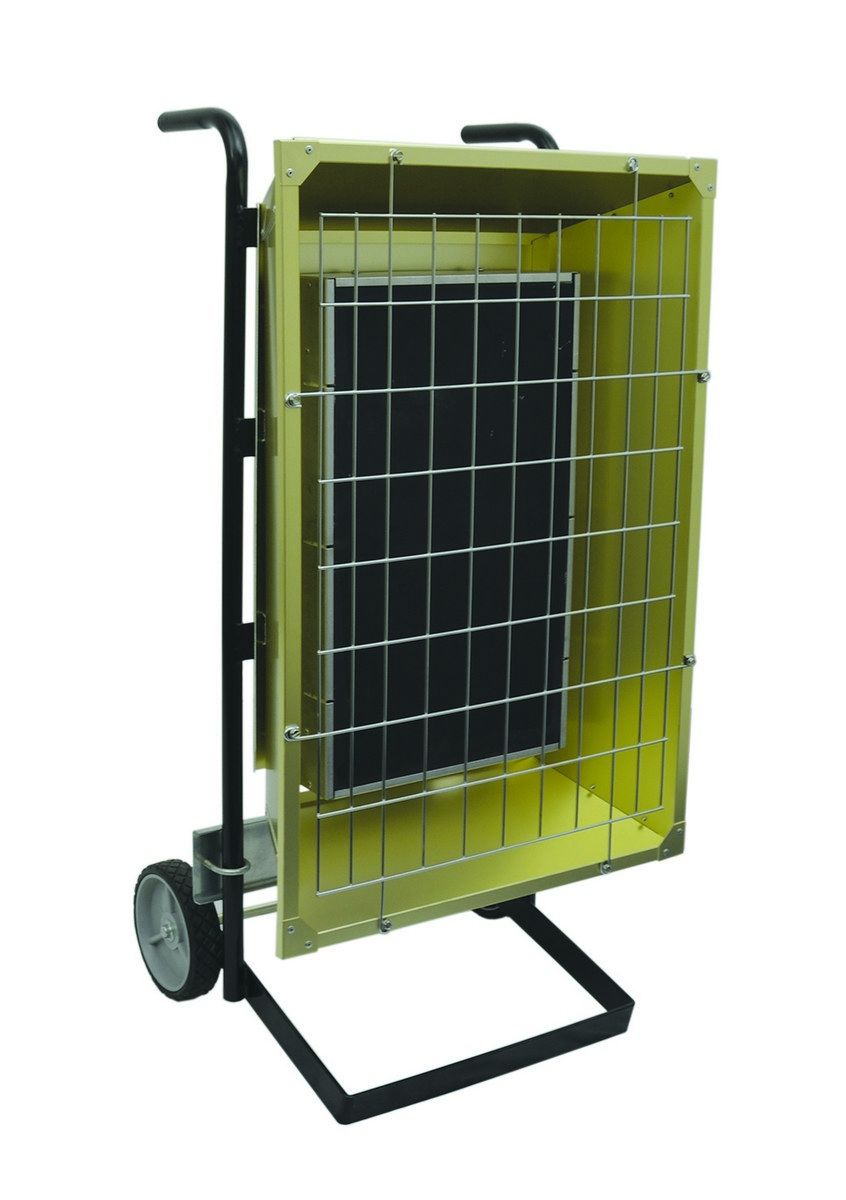

VFSP-4348-3

model VFSP-4348-3

VFSP-9548-3

model VFSP-9548-3

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Portable Electric Infrared Heaters
Model PDF Watts BTU's Volts Phase Amps Wt.
(lbs)
VFSP-4324-3 Warranty PDF 4300 14,672 240 3 10.36 41
VFSP-4348-3 Warranty PDF 4300 14,672 480 3 5.18 41
VFSP-9524-3 Warranty PDF 9500 32,415 240 3 22.89 58
VFSP-9548-3 Warranty PDF 9500 32,415 480 3 11.44 58

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

VFSP-4324-3
VFSP-4348-3
VFSP-9524-3
VFSP-9548-3

Other PDF's

No "Other PDFs" For This Product...
