PES-1024-1
model PES-1024-1
SERIES: PES


Portable Electric Salamanders

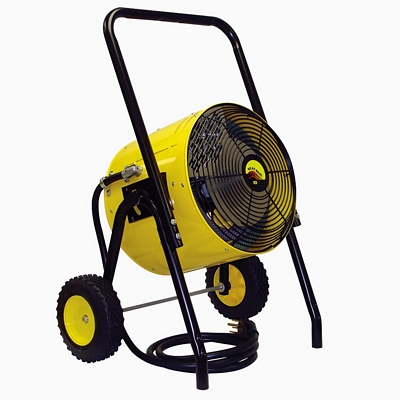

The Portable Electric Salamander is the perfect odorless, flameless electric alternative to propane and kerosene space heaters. Safety yellow heater enclosure with safety screens on both air intake and output openings. These units include long-life finned tubular heating elements, thermostat adjustment from 40 to 100 degree Fahrenheit, and fan only operating feature. Includes access panel for direct wiring connections and 10" wheels and handle for easy portability over all surface types. Model PES-1024-1 is pre-wired with 10' cable and straight blade range plug.


PES-1520-3

model PES-1520-3

PES-1524-3

model PES-1524-3

PES-124-SO

model PES-124-SO

PES-3048-3

model PES-3048-3

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Portable Electric Salamander
Model PDF Overall
Dimensions
(HxWxD)
KW
Amps
Volts
Phase
Temp
Rise
Wt.
(lbs)
PES-1520-3 Warranty PDF 39"x23.25"x18" 15/42 208/3 45 65
PES-1524-1 Warranty PDF 39"x23.25"x18" 15/63 240/1 45 69
PES-1524-3 Warranty PDF 39"x23.25"x18" 15/36 240/3 45 65
PES-1548-3 Warranty PDF 39"x23.25"x18" 15/18 480/3 45 65

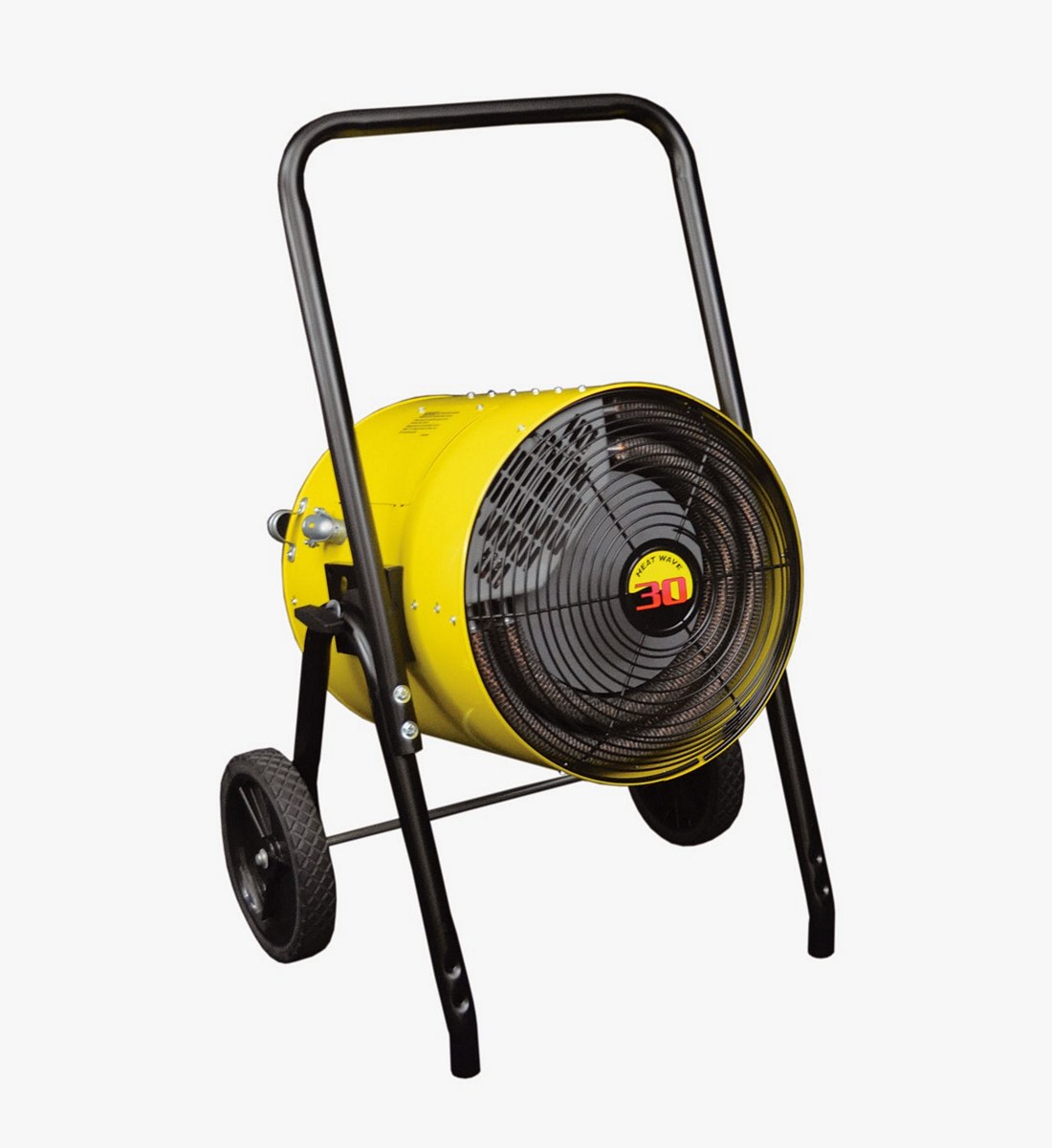

PES-3048-3 Warranty PDF 39"x23.25"x18" 30/36 480/3 90 83
PES-1024-1* Warranty PDF 39"x23.25"x18" 10/42 240/1 30 60
Optional 25 Foot Cord With Plug
Model Cable
Type
Use with
Model

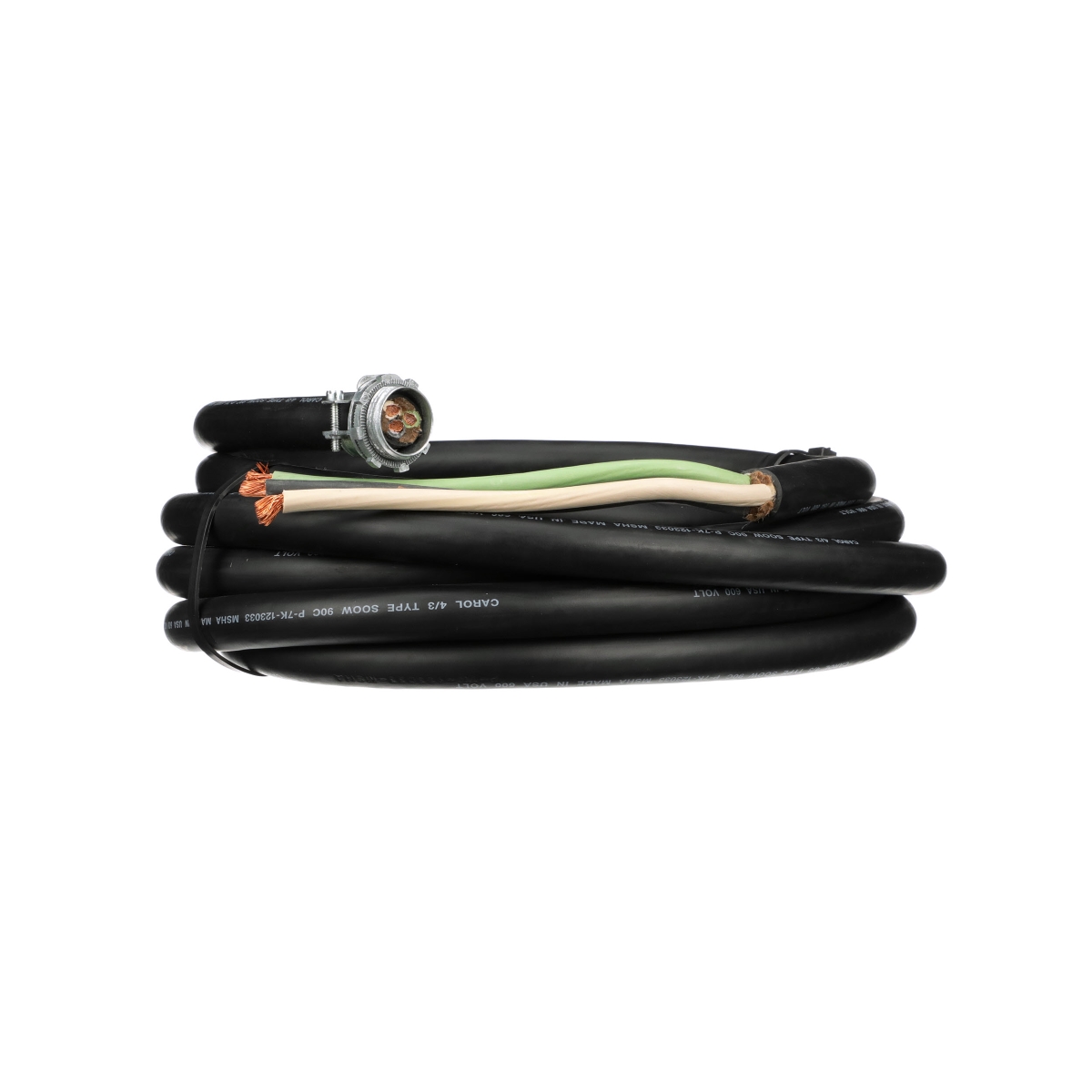

PES-43-SO Warranty PDF 4/3 SO, Power Cord PES-1524-1

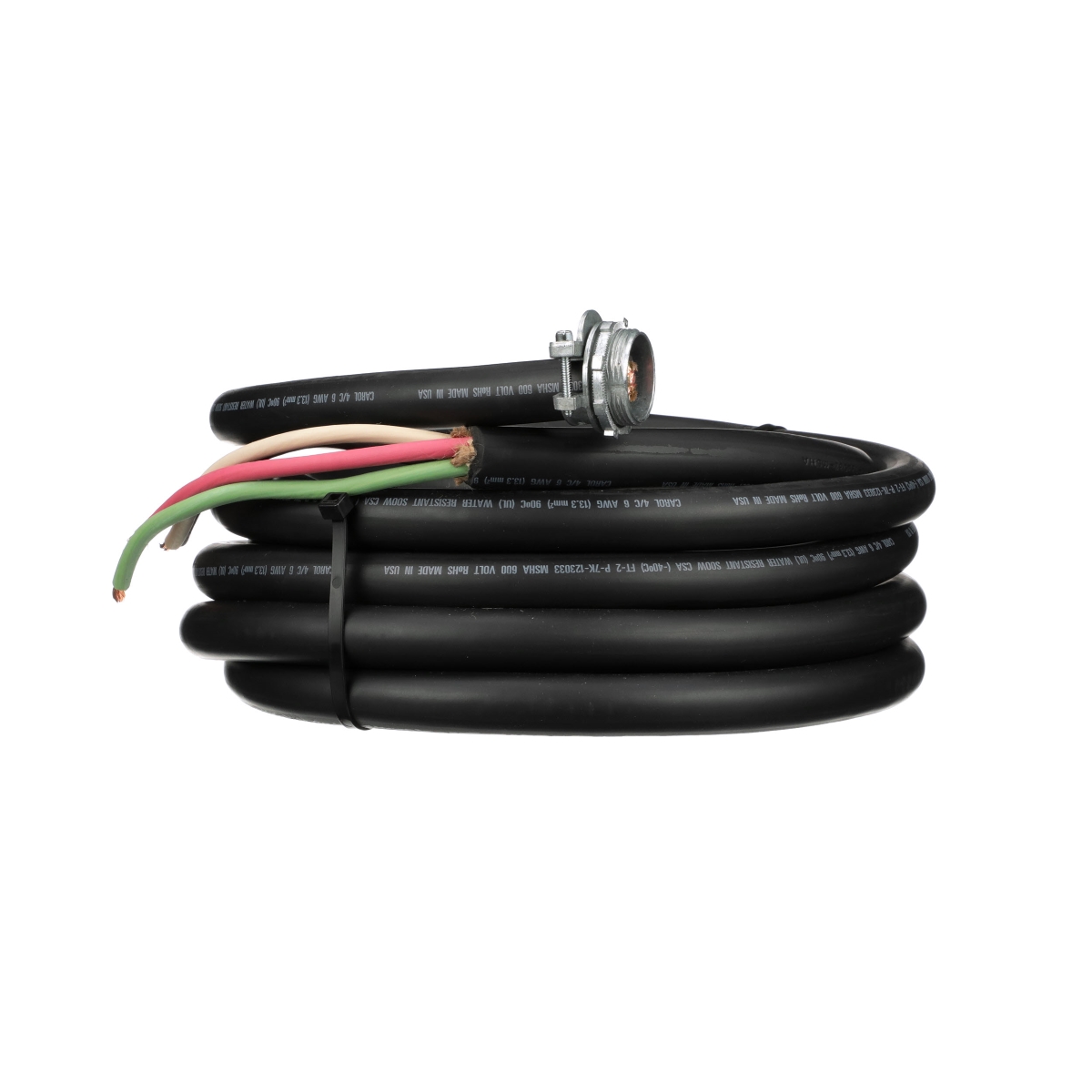

PES-64-SO Warranty PDF6/4 SO, Power Cord PES-1520-3, PES-1524-3, PES-3048-3

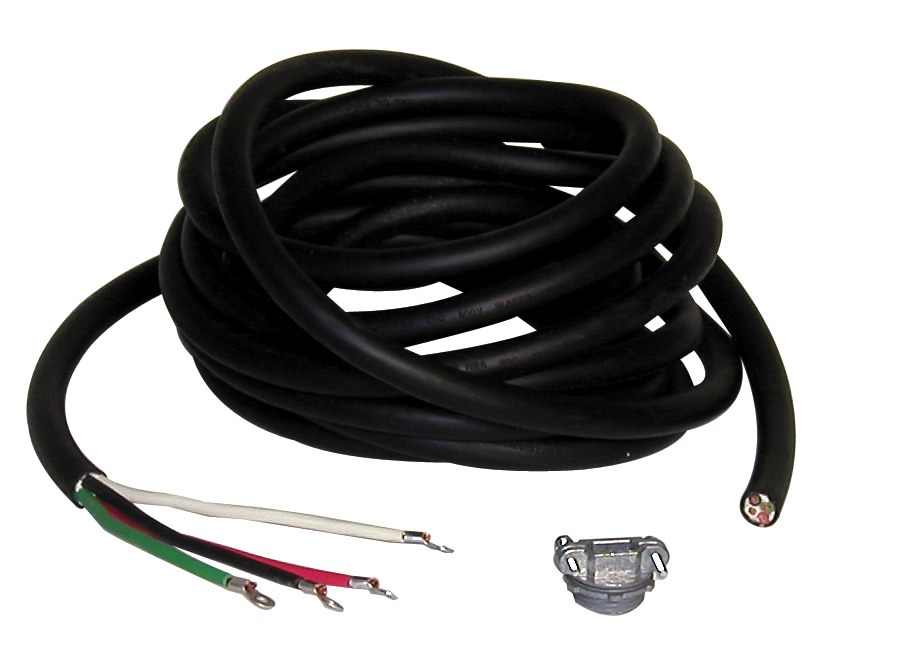

PES-124-SO Warranty PDF 12/4 SO, Power Cord PES-1548-3
