Product Family Overview


Fork Extensions with Rear Spacers
SERIES: FE

Provide the extra support needed to lift long or large objects with a fork truck using a pair of Fork Extensions. Welded steel construction with cast steel tips. Steel rear spacers prevent fork extensions from sliding off forks during use. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. The rear spacer makes loading pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. Provides the needed extra length when standard forks can't reach product All steel construction provides long lasting reliable use Each extension includes warning and operating stickers for worker safety Includes rear spacer for increase loading ability.

To be used with class 2 and class 3 forks only.

Standard Fork Extensions | High Strength Fork Extensions

Provide the extra support needed to lift long or large objects with a fork truck using a pair of Fork Extensions. Welded steel construction with cast steel tips. Steel rear spacers prevent fork extensions from sliding off forks during use. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. The rear spacer makes loading pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. Provides the needed extra length when standard forks can't reach product All steel construction provides long lasting reliable use Each extension includes warning and operating stickers for worker safety Includes rear spacer for increase loading ability.

To be used with class 2 and class 3 forks only.

Standard Fork Extensions | High Strength Fork Extensions

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

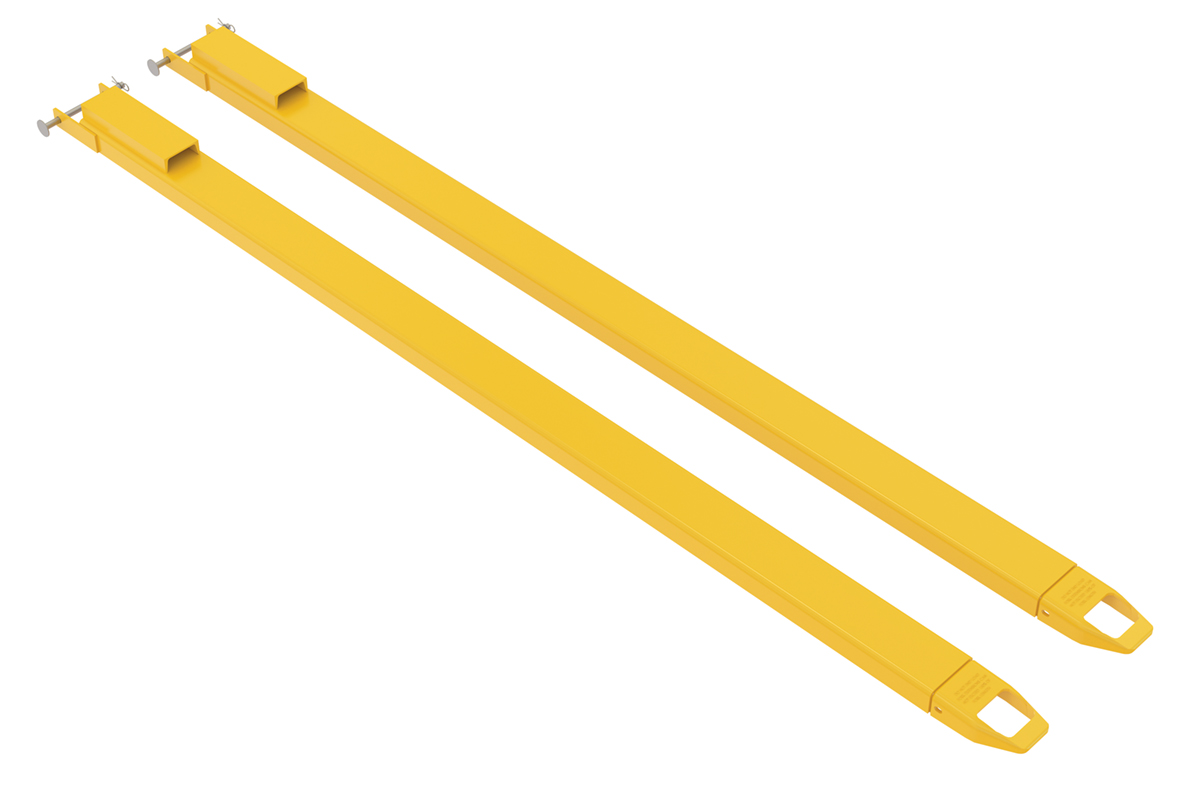

FE-4-108-P-RS FE-4-108-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 4 In. x 108 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
213

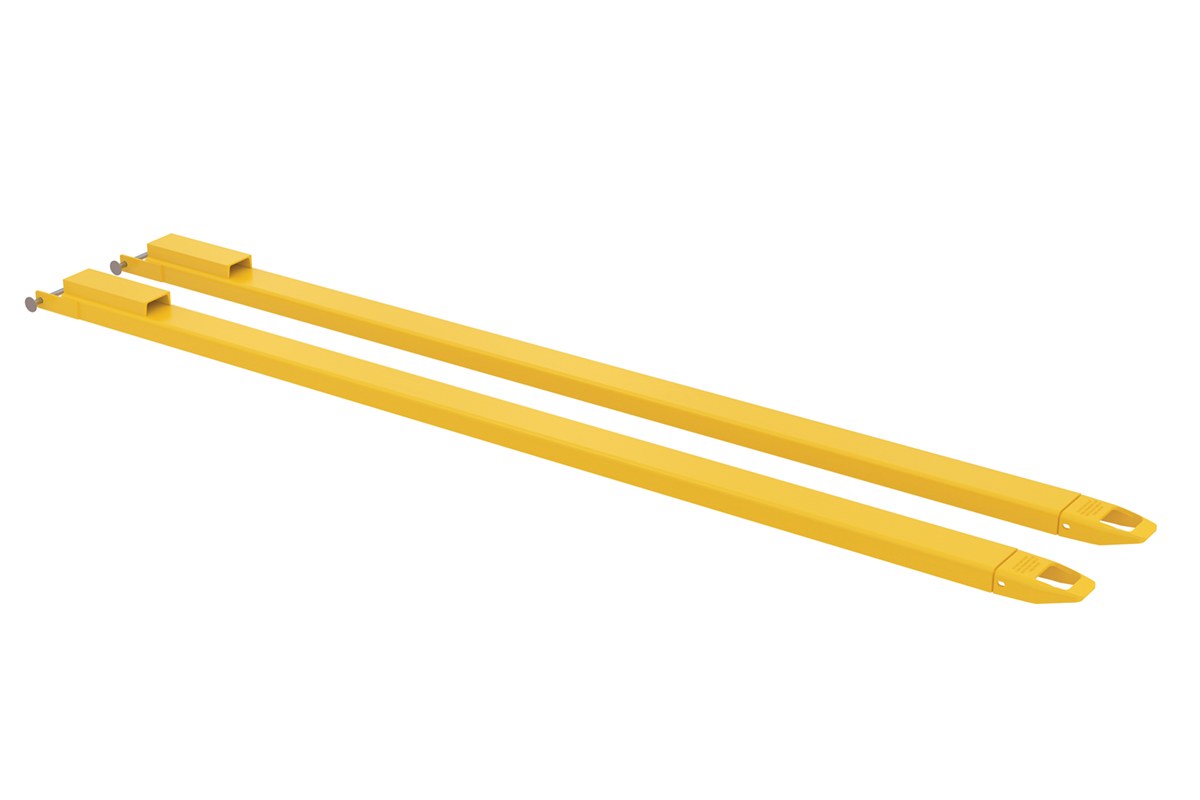

FE-4-120-P-RS FE-4-120-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 4 In. x 120 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
232
FE-4-48-RS FE-4-48-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 4 In. x 48 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
45

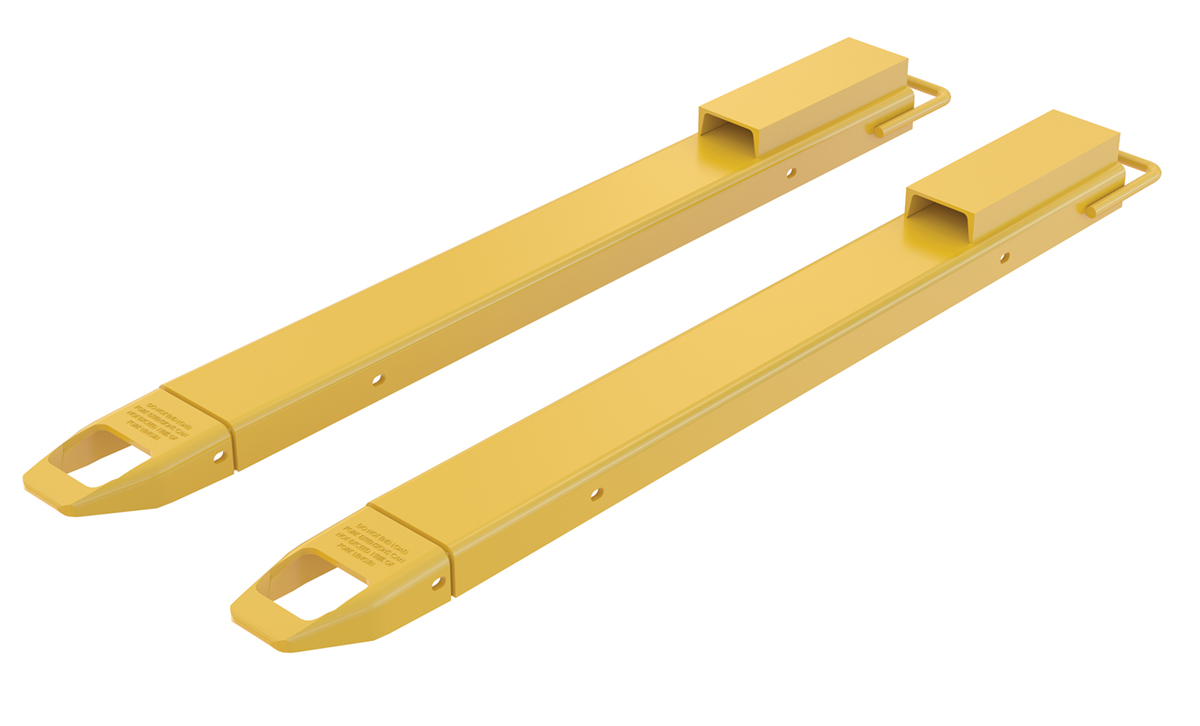

FE-4-54-RS FE-4-54-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 54 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
48

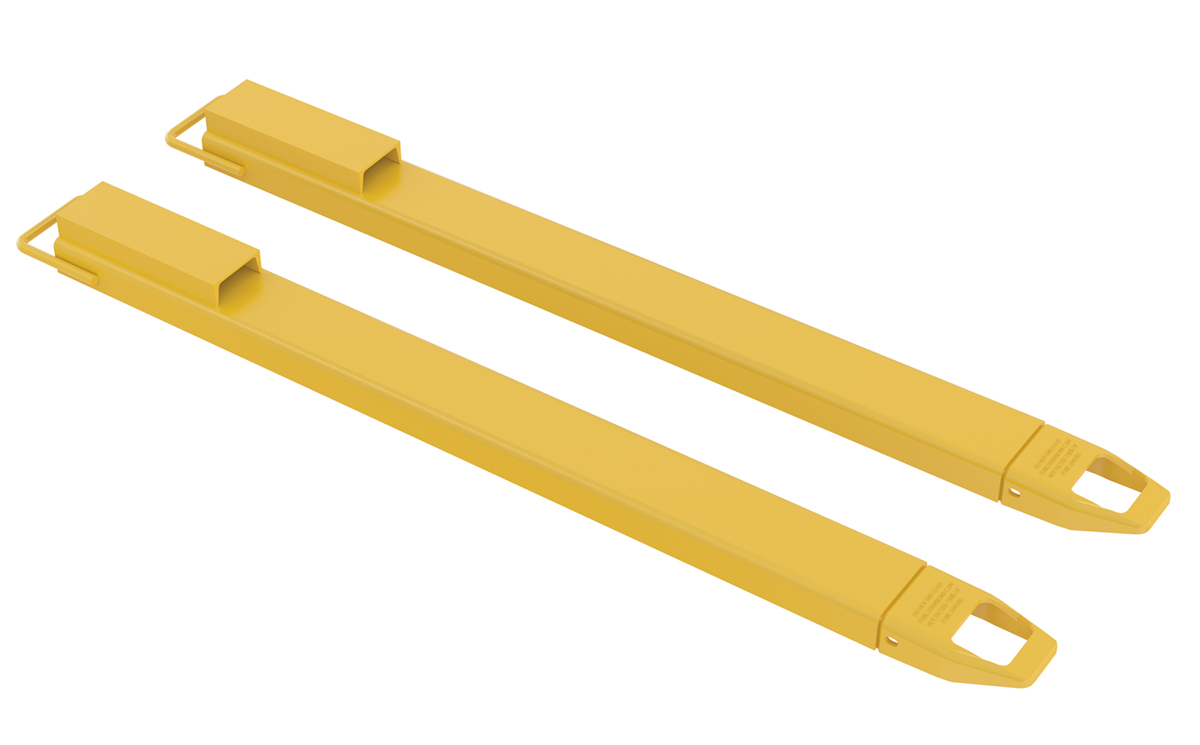

FE-4-63-RS FE-4-63-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 63 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
55

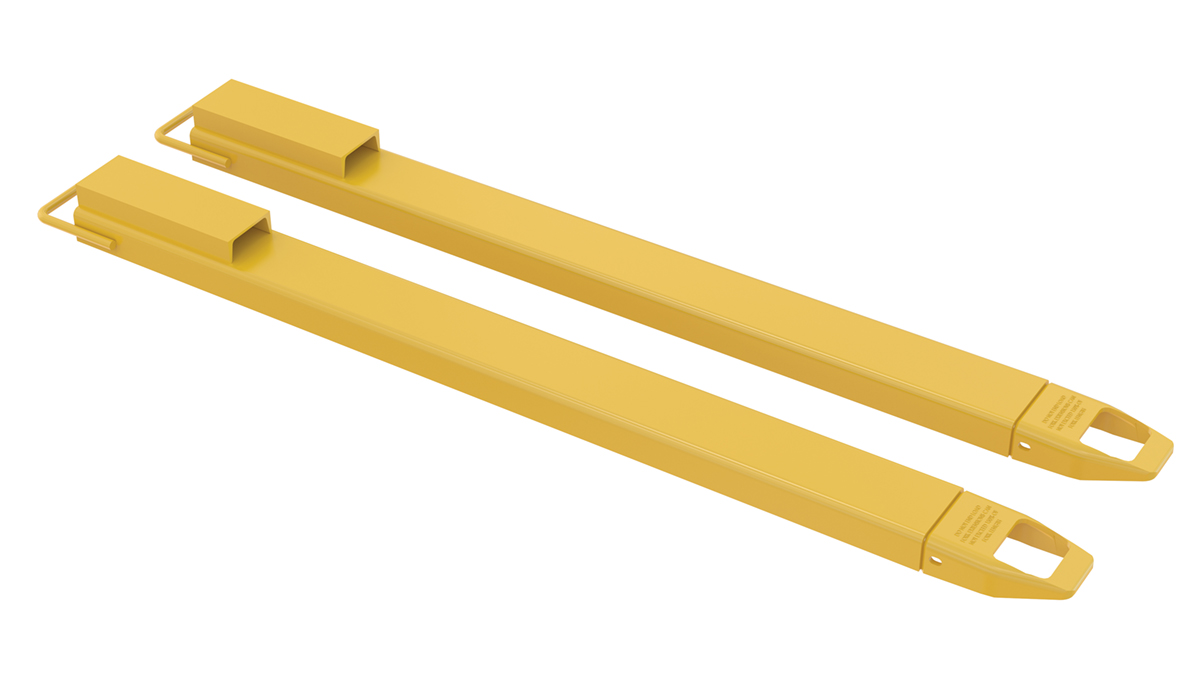

FE-4-66-RS FE-4-66-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 66 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
58
FE-4-72-RS FE-4-72-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 72 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
63

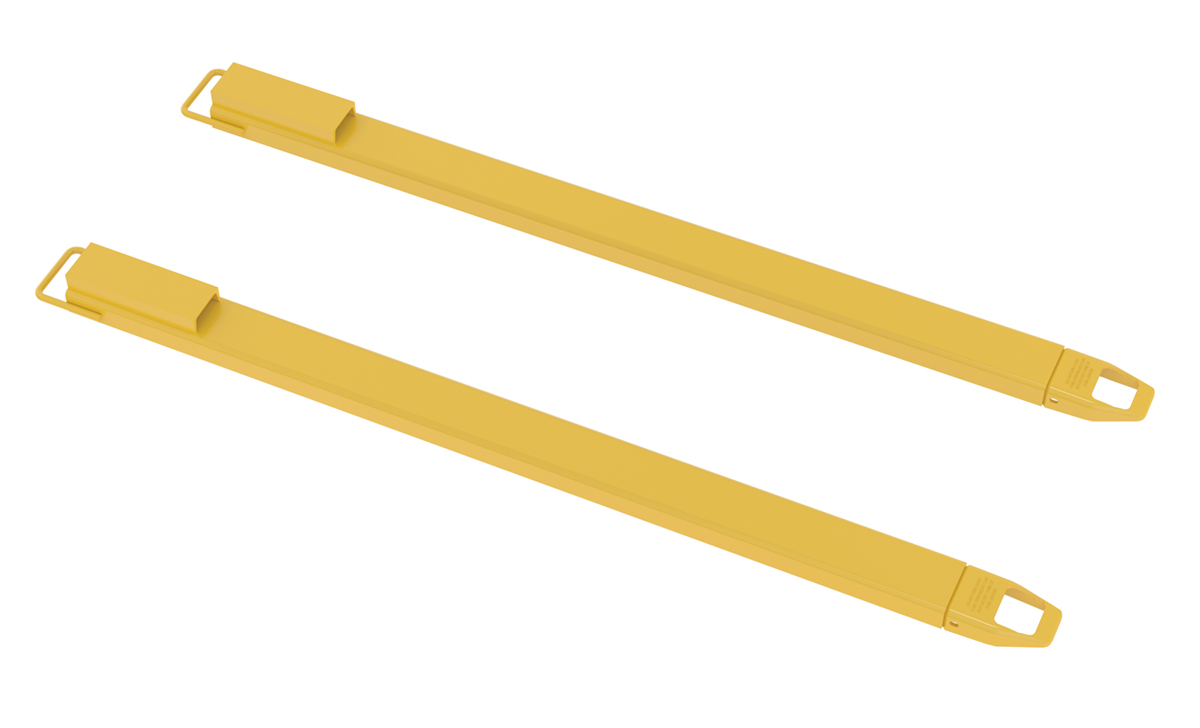

FE-4-84-RS FE-4-84-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 84 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
145

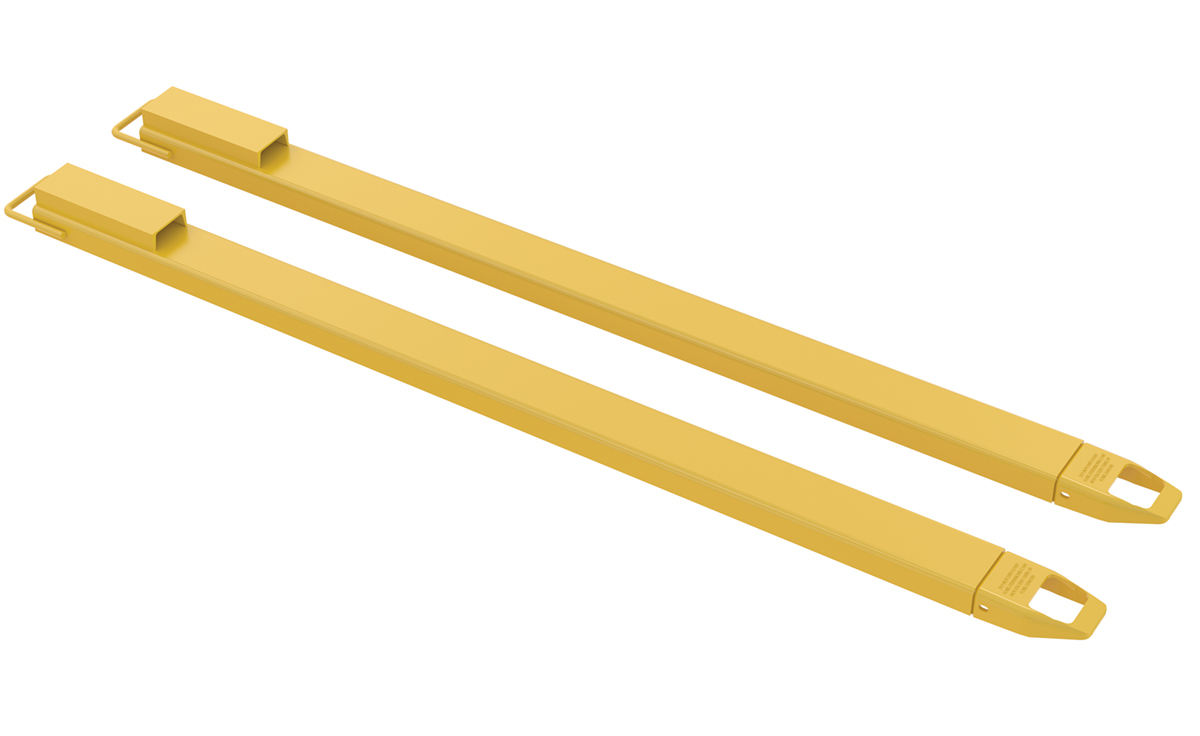

FE-4-90-RS FE-4-90-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 90 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
183

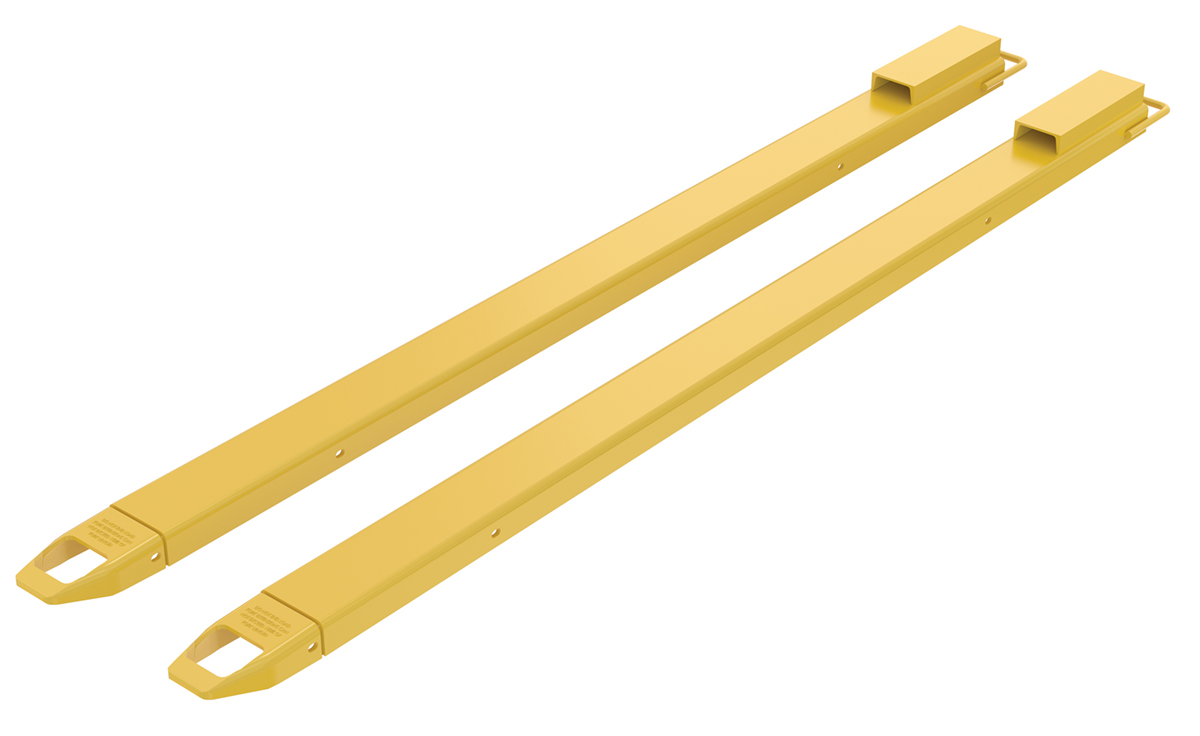

FE-4-96-RS FE-4-96-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacer 4 In. x 96 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
193
FE-5-108-P-RS FE-5-108-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 5 In. x 108 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
237

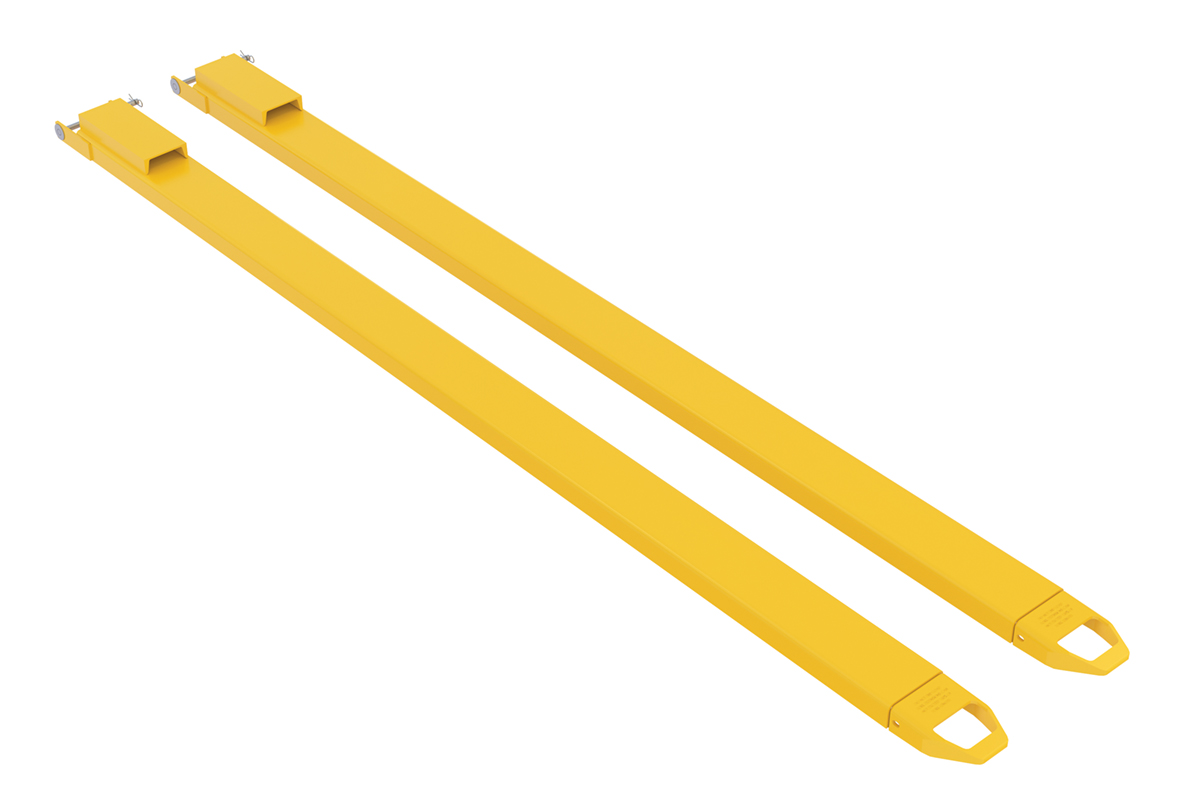

FE-5-120-P-RS FE-5-120-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 5 In. x 120 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
258
FE-5-48-RS FE-5-48-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 4 In. x 48 In. 4000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
51

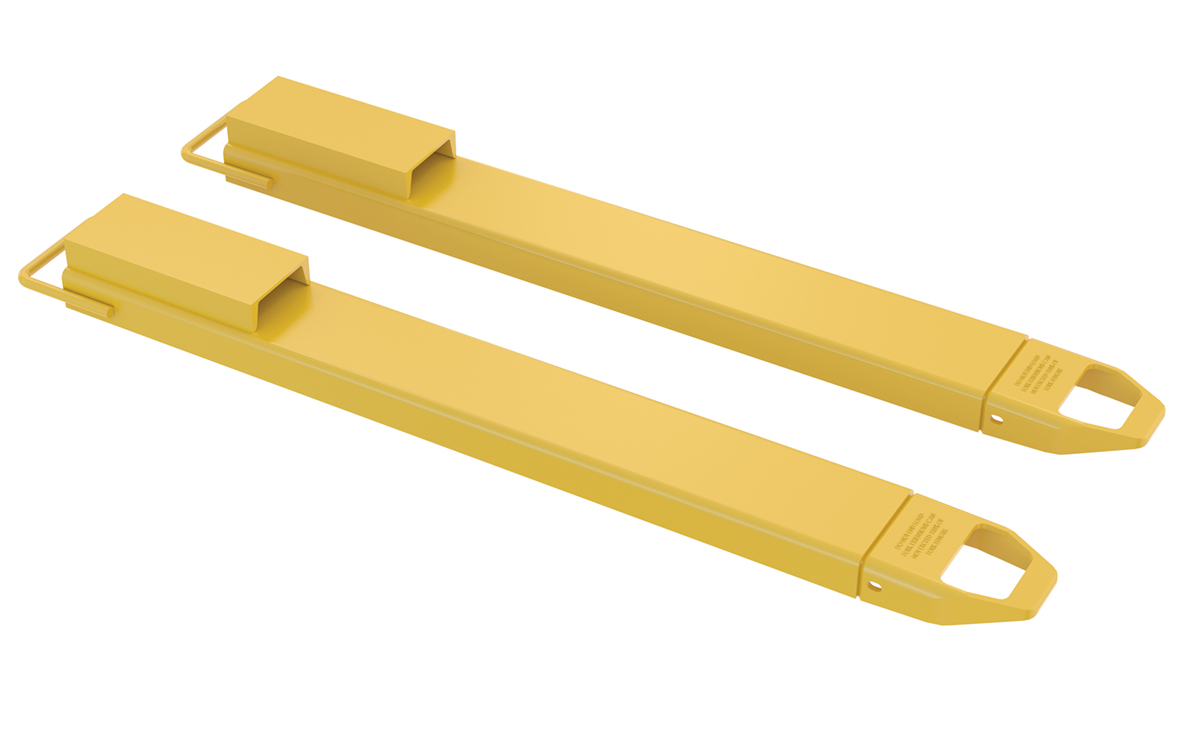

FE-5-54-RS FE-5-54-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 54 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
56

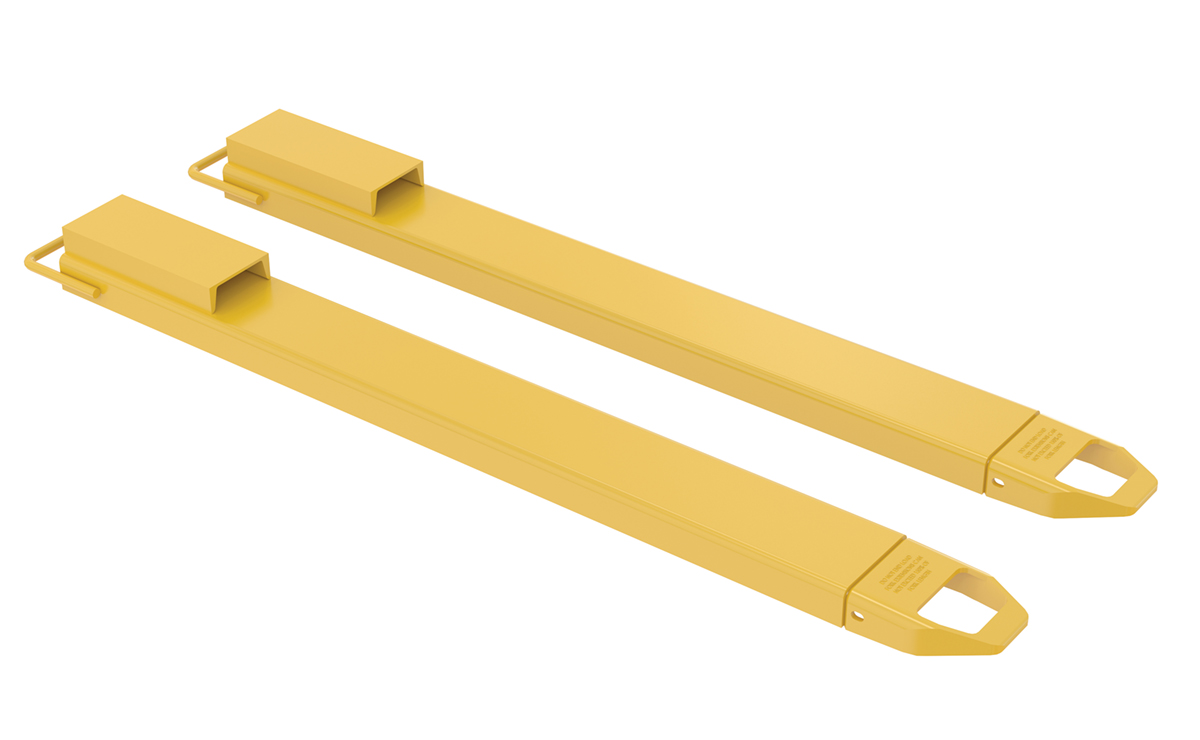

FE-5-63-RS FE-5-63-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 63 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
64

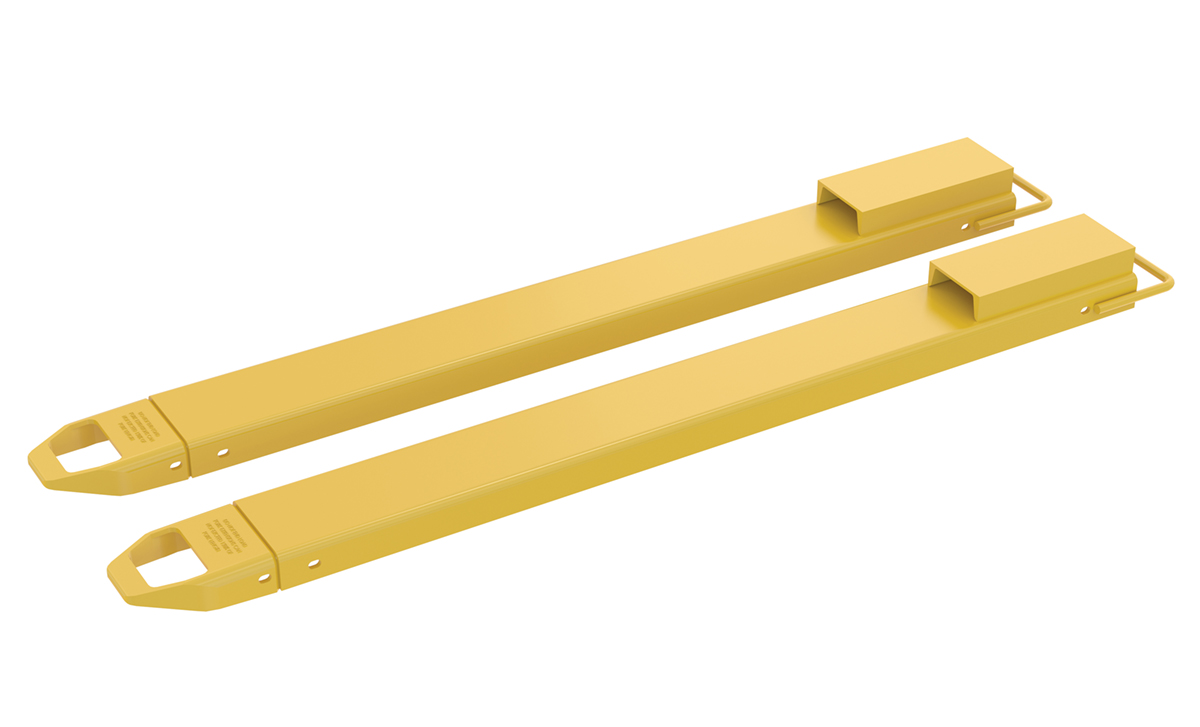

FE-5-66-RS FE-5-66-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 66 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
66

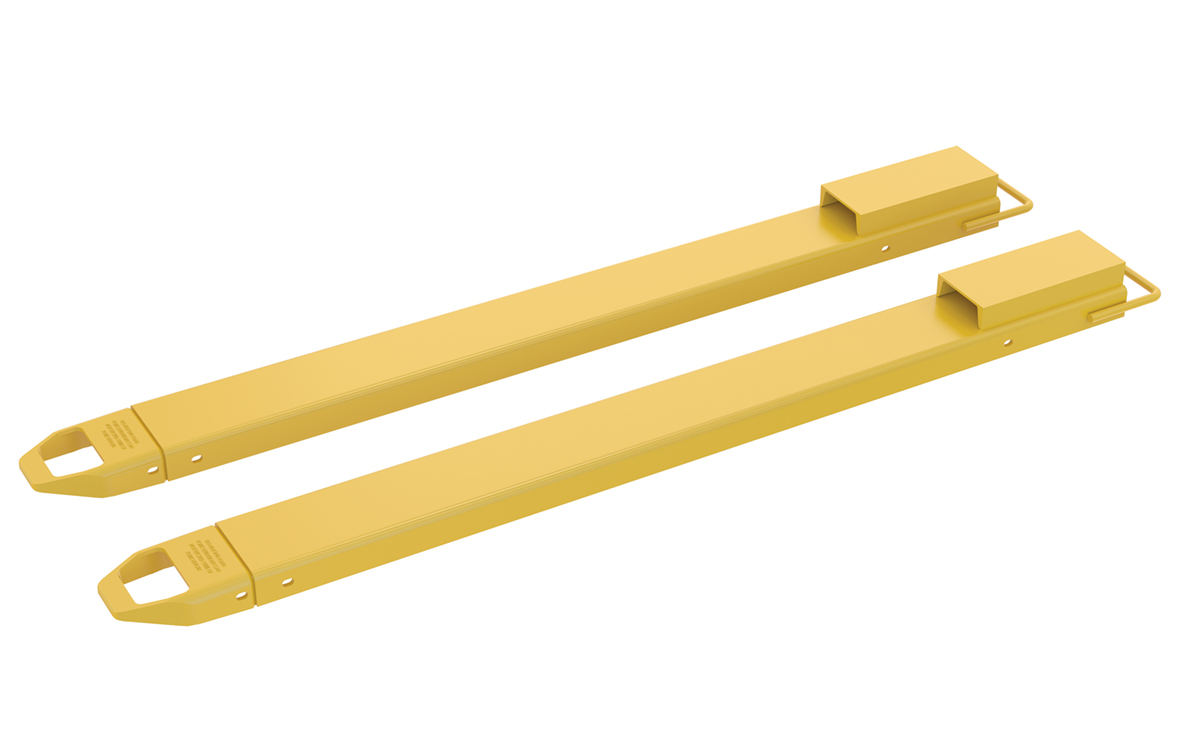

FE-5-72-RS FE-5-72-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 72 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
72

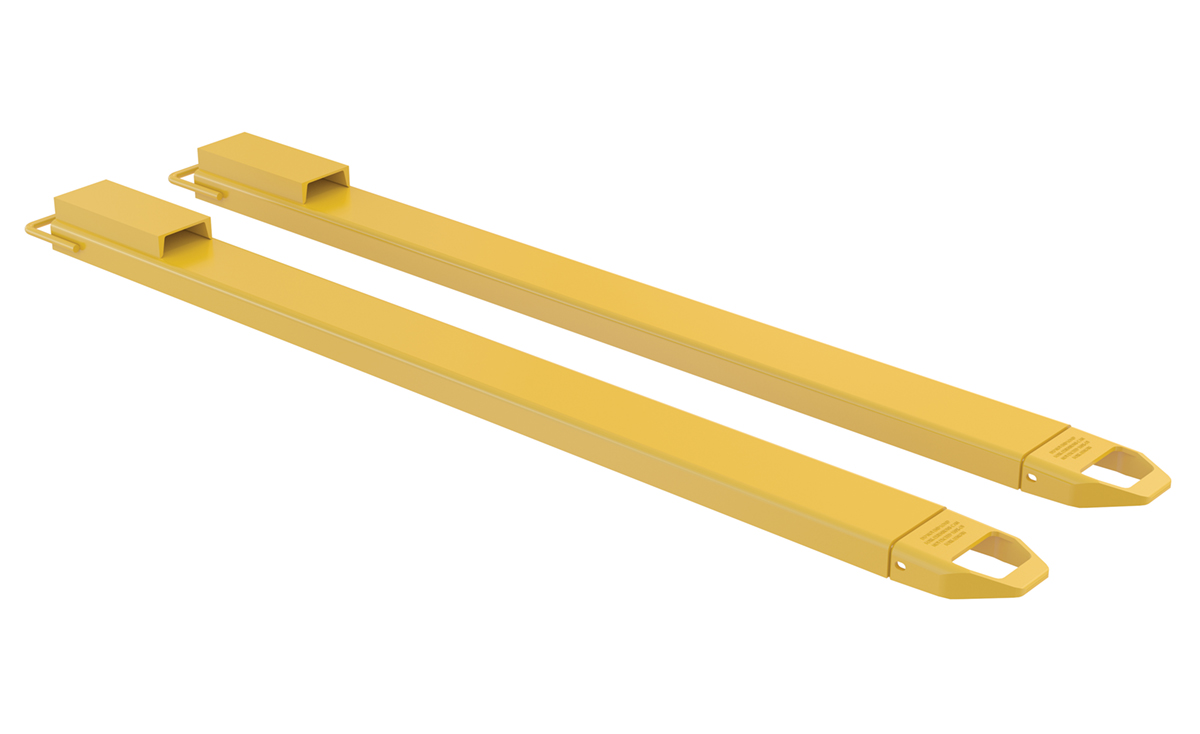

FE-5-84-RS FE-5-84-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 84 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
193

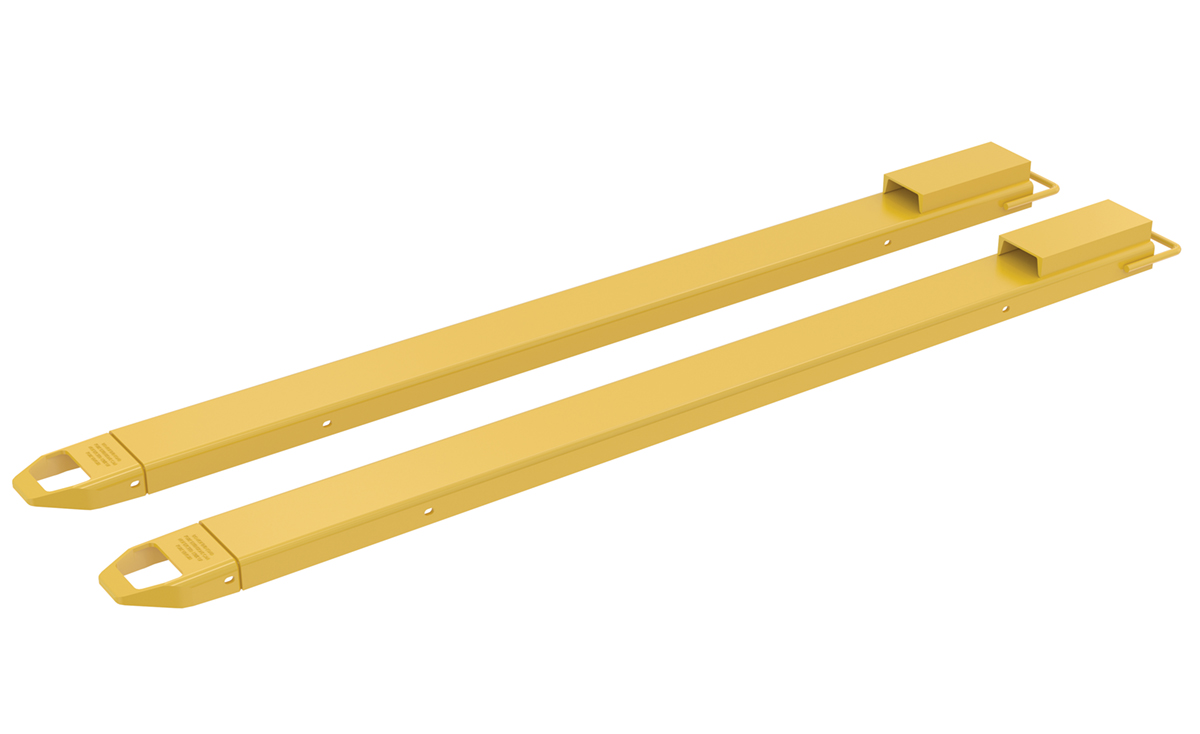

FE-5-90-RS FE-5-90-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 90 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
203
FE-5-96-RS FE-5-96-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 5 In. x 96 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
214

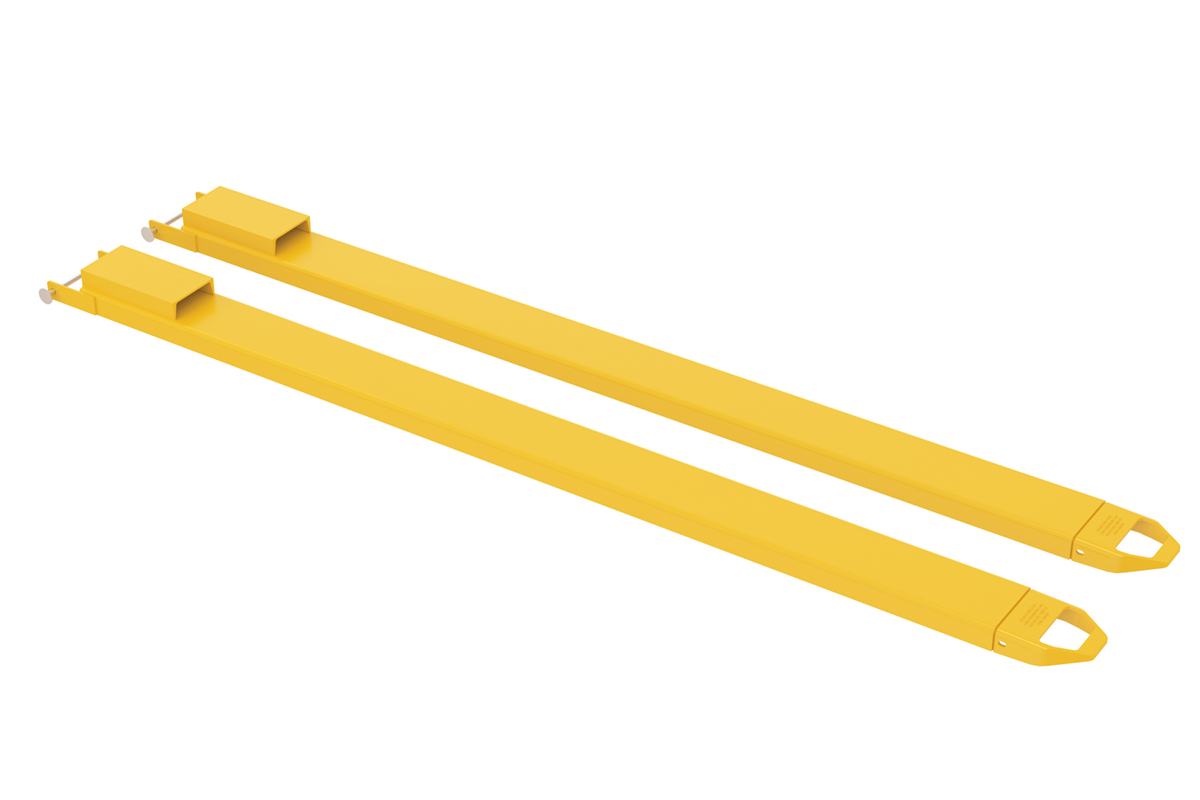

FE-6-108-P-RS FE-6-108-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 6 In. x 108 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
256

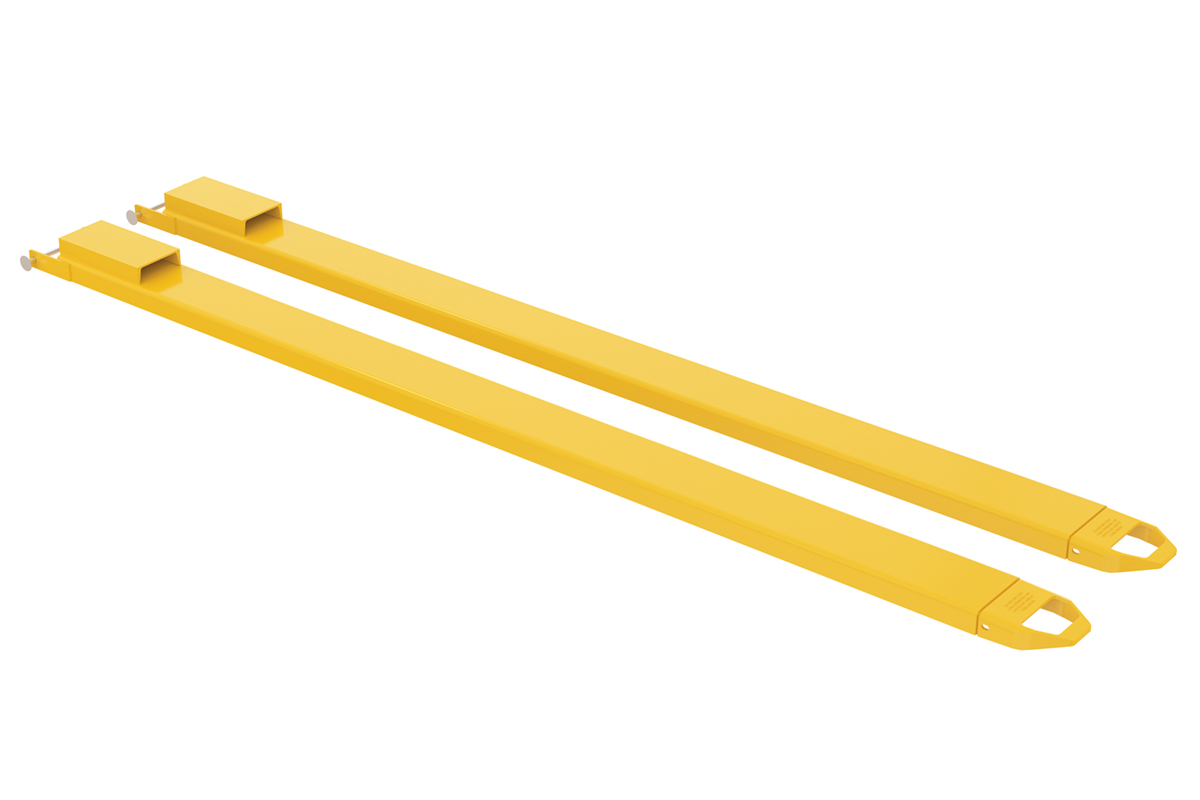

FE-6-120-P-RS FE-6-120-P-RS90 Days Limited WarrantySteel Pin Style Fork Extensions with Rear Spacers 6 In. x 120 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
279

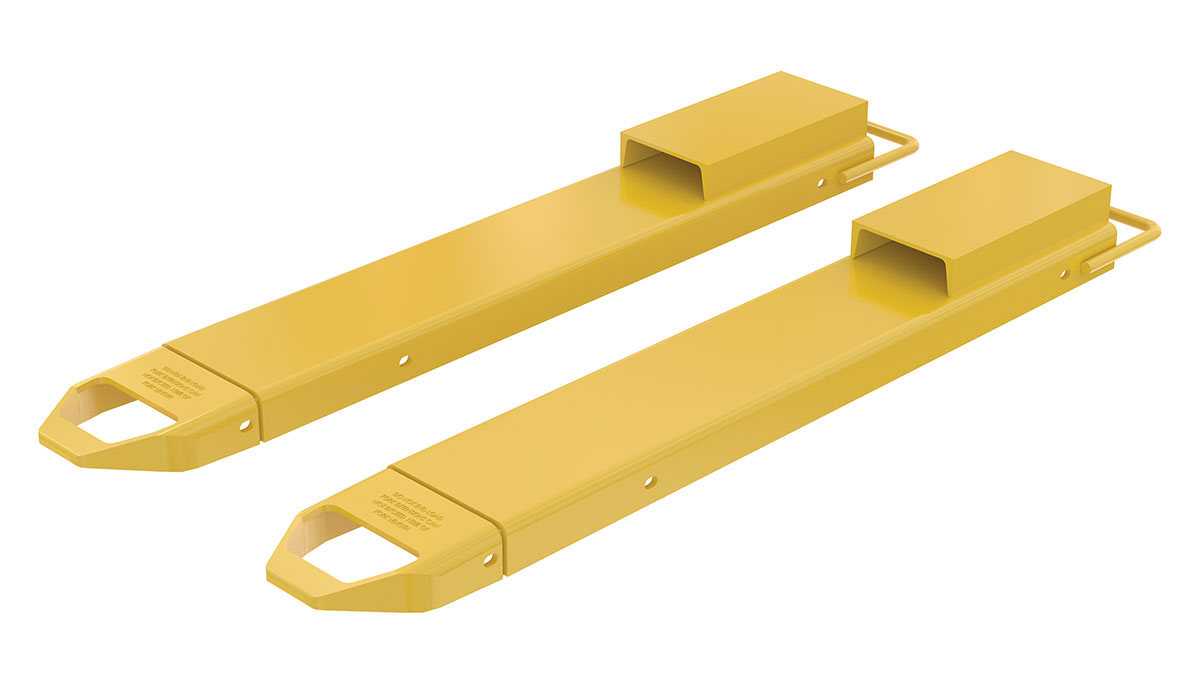

FE-6-48-RS FE-6-48-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 48 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
55

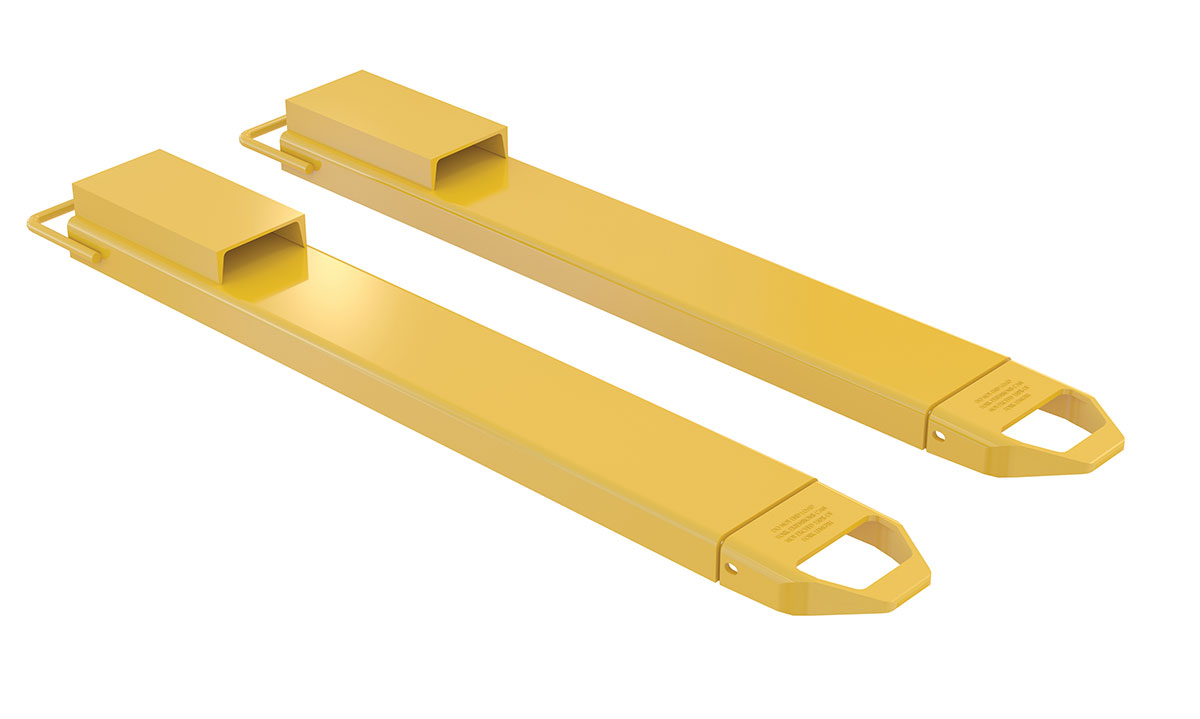

FE-6-54-RS FE-6-54-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 54 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
61

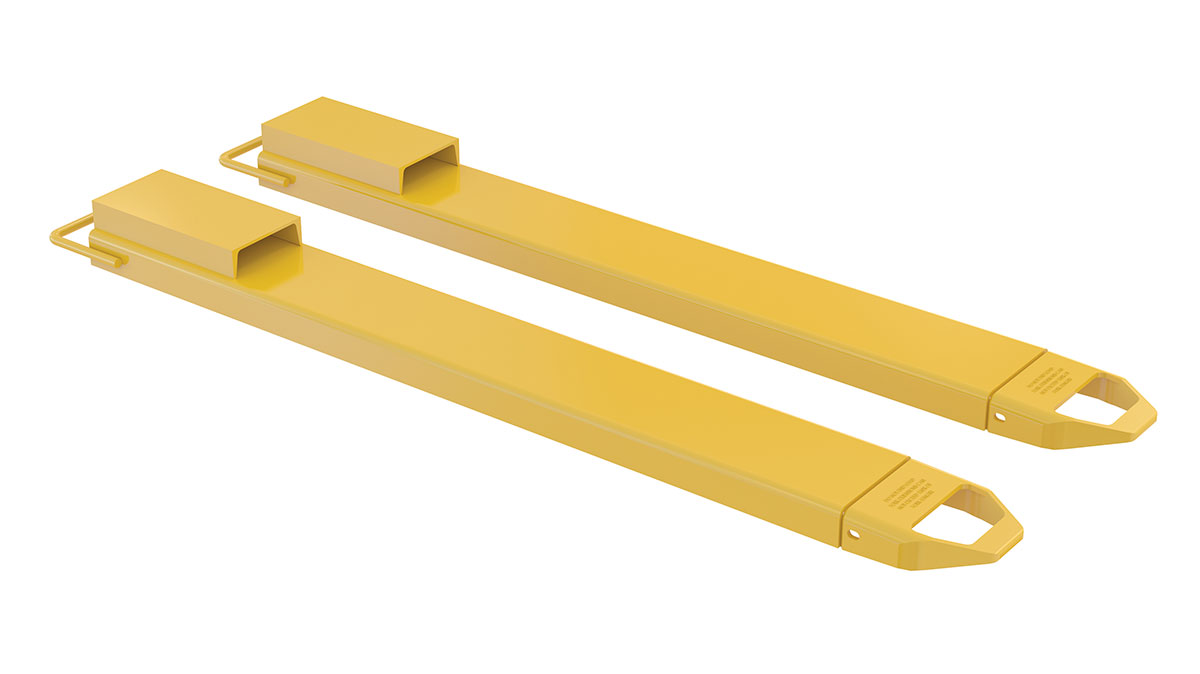

FE-6-63-RS FE-6-63-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 63 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
139
FE-6-66-RS FE-6-66-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 66 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
145

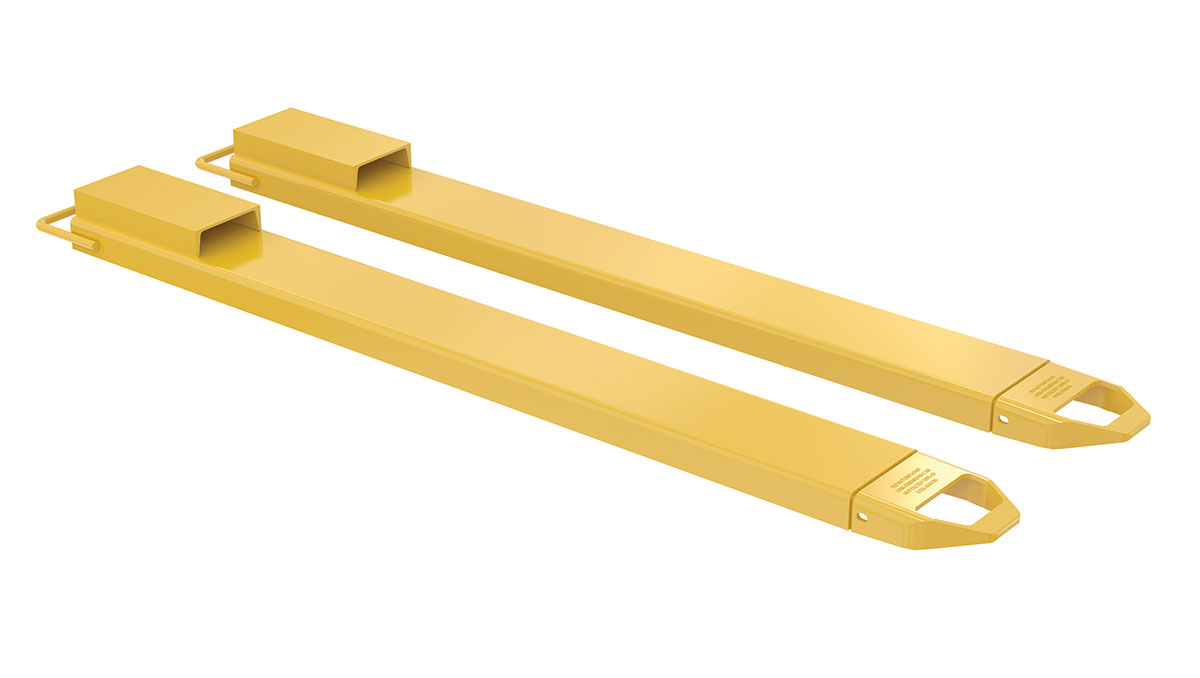

FE-6-72-RS FE-6-72-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 72 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
78

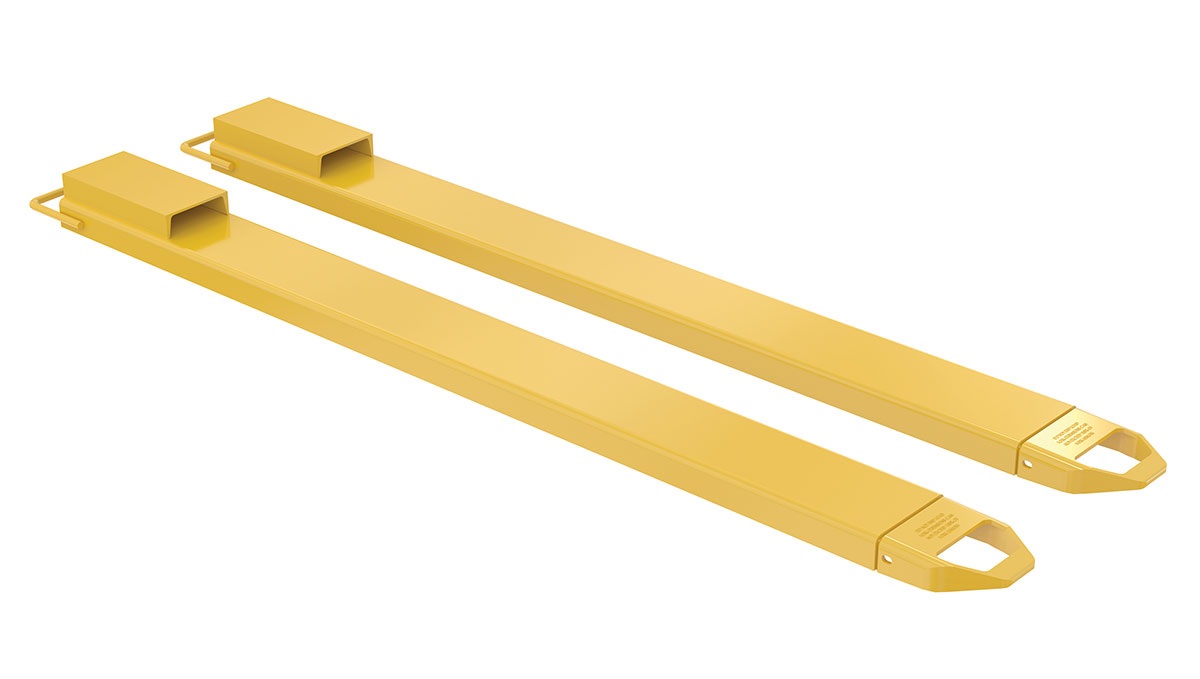

FE-6-84-RS FE-6-84-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 84 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
209

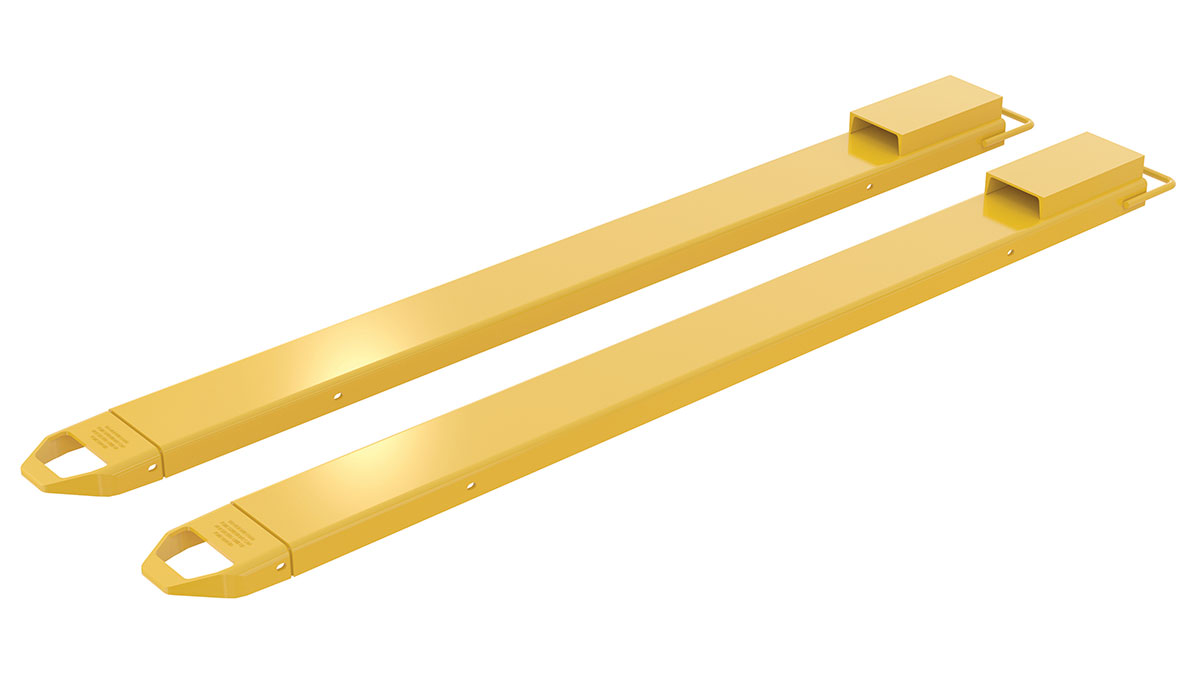

FE-6-90-RS FE-6-90-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 90 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
220

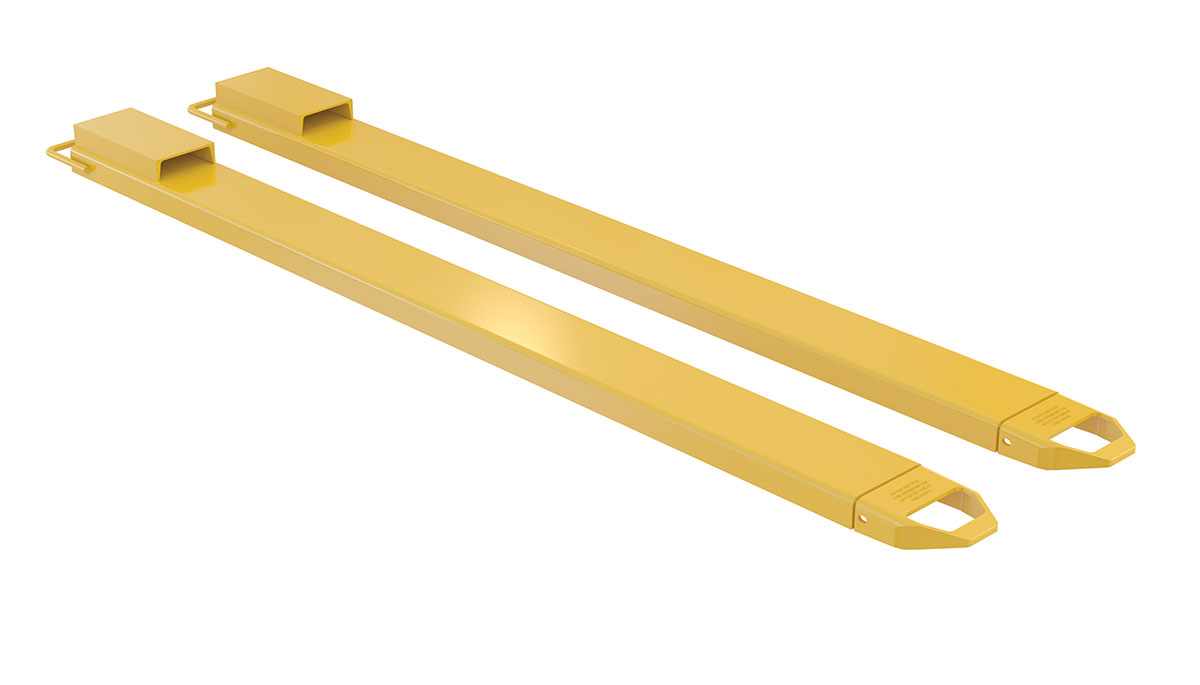

FE-6-96-RS FE-6-96-RS90 Days Limited WarrantySteel Fork Extensions with Rear Spacers 6 In. x 96 In. 4,000 Lb. Capacity YellowUniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
231

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

FE-4-108-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96

FE-4-120-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108

FE-4-48-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36

FE-4-54-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42

FE-4-63-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51

FE-4-66-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54

FE-4-72-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60

FE-4-84-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72

FE-4-90-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78

FE-4-96-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84

FE-5-108-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96

FE-5-120-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108

FE-5-48-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36

FE-5-54-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42

FE-5-63-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51

FE-5-66-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54

FE-5-72-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60

FE-5-84-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72

FE-5-90-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78

FE-5-96-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84

FE-6-108-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 96

FE-6-120-P-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 108

FE-6-48-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 36

FE-6-54-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 42

FE-6-63-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 51

FE-6-66-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 54

FE-6-72-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 60

FE-6-84-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72

FE-6-90-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78
Uniform Capacity Per Pair (lb.): 4000
Usable Length (in.): 78

FE-6-96-RS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84
Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 84


Fork Extensions with Rear Spacers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FE-4-48-RS

FE-4-54-RS

FE-4-63-RS

FE-4-66-RS

FE-4-72-RS

FE-4-84-RS

FE-4-90-RS

FE-4-96-RS

FE-4-108-P-RS

FE-4-120-P-RS

FE-5-48-RS

FE-5-54-RS

FE-5-63-RS

FE-5-66-RS

FE-5-72-RS

FE-5-84-RS

FE-5-90-RS

FE-5-96-RS

FE-5-108-P-RS

FE-5-120-P-RS

FE-6-48-RS

FE-6-54-RS

FE-6-63-RS

FE-6-66-RS

FE-6-72-RS

FE-6-84-RS

FE-6-90-RS

FE-6-96-RS

FE-6-108-P-RS

FE-6-120-P-RS

SDS Sheets

Hydraulic Oil SDS Sheet for: FE-4-108-P-RS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products



Q: Are the fork extensions sold in a pair?

A: Yes, the fork extensions are sold in pairs.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Extensions with Rear Spacers




Provide the extra support needed to lift long or large objects with a fork truck using a pair of Fork Extensions. Welded steel construction with cast steel tips. Steel rear spacers prevent fork extensions from sliding off forks during use. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. The rear spacer makes loading pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. Provides the needed extra length when standard forks can't reach product All steel construction provides long lasting reliable use Each extension includes warning and operating stickers for worker safety Includes rear spacer for increase loading ability.

To be used with class 2 and class 3 forks only.

Standard Fork Extensions | High Strength Fork Extensions


Fork Extensions with Rear Spacers
Model Image PDF Accommodates
Fork Width
Inside
Width
Usable Length Maximum
Fork Thickness
Wt.
(lbs.) Pair
FE-4-48-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 48" 2" 90
FE-4-54-RS Warranty PDF 4" 4-1/2" 54" 2" 96
FE-4-63-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 63" 2" 111
FE-4-66-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 66" 2" 116
FE-4-72-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 72" 2" 125
FE-4-84-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 84" 2" 144
FE-4-90-RS Warranty PDF 4" 4-1/2" 90" 2" 183
FE-4-96-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 96" 2" 183
FE-4-108-P-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 108" 2" 184
FE-4-120-P-RS icon_approvaldrawings.jpgWarranty PDF 4" 4-1/2" 120" 2" 203
FE-5-48-RS Warranty PDF 5" 5-1/2" 48" 2" 101
FE-5-54-RS Warranty PDF 5" 5-1/2" 54" 2" 111
FE-5-63-RS Warranty PDF 5" 5-1/2" 63" 2" 127
FE-5-66-RS Warranty PDF 5" 5-1/2" 66" 2" 132
FE-5-72-RS Warranty PDF 5" 5-1/2" 72" 2" 143
FE-5-84-RS Warranty PDF 5" 5-1/2" 84" 2" 164
FE-5-90-RS Warranty PDF 5" 5-1/2" 90" 2" 203
FE-5-96-RS Warranty PDF 5" 5-1/2" 96" 2" 185
FE-5-108-P-RS Warranty PDF 5" 5-1/2" 108" 2-1/2" 208
FE-5-120-P-RS Warranty PDF 5" 5-1/2" 120" 2-1/2" 228
FE-6-48-RS Warranty PDF 6" 6-1/2" 48" 2-1/2" 127
FE-6-54-RS Warranty PDF 6" 6-1/2" 54" 2-1/2" 130
FE-6-63-RS Warranty PDF 6" 6-1/2" 63" 2-1/2" 139
FE-6-66-RS Warranty PDF 6" 6-1/2" 66" 2-1/2" 145
FE-6-72-RS Warranty PDF 6" 6-1/2" 72" 2-1/2" 156
FE-6-84-RS Warranty PDF 6" 6-1/2" 84" 2-1/2" 179
FE-6-90-RS Warranty PDF 6" 6-1/2" 90" 2-1/2" 220
FE-6-96-RS Warranty PDF 6" 6-1/2" 96" 2-1/2" 202
FE-6-108-P-RS Warranty PDF 6" 6-1/2" 108" 2-1/2" 227
FE-6-120-P-RS Warranty PDF 6" 6-1/2" 120" 2-1/2" 250


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
