SERIES: CST-HLD


Upgraded Glass Filled Nylon, Light Duty (ROLLX) Casters

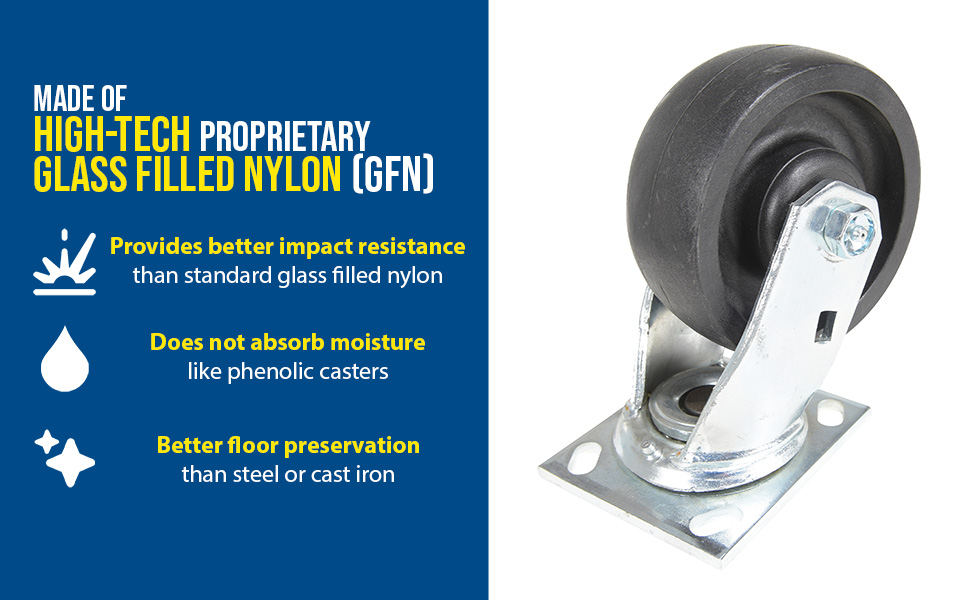

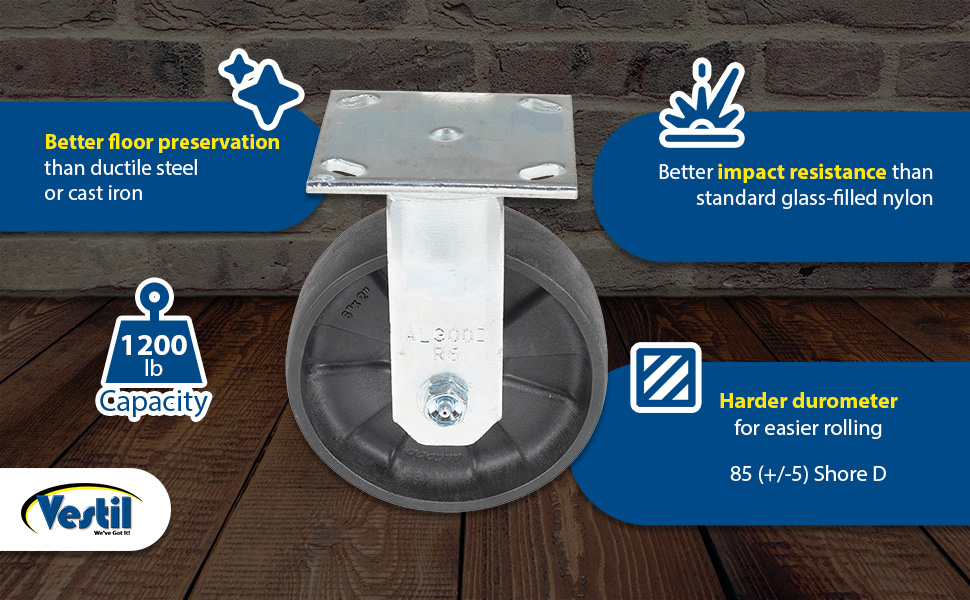

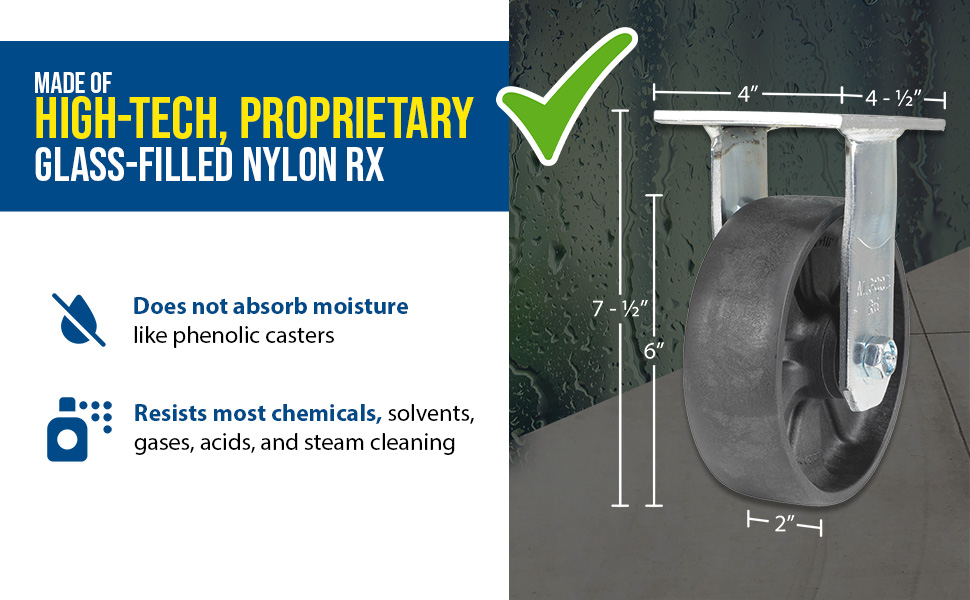

Made of high-tech proprietary glass filled nylon (ROLLX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon.


  • Non-Marking
  • Absorbs Impact
  • Moisture Resistant
  • Harder Durometer Allows For Easier Rollability
  • Enviromentally Friendly
  • Ball Bearing

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Upgraded Glass Filled Nylon, Light Duty (ROLLX) Casters
Model Caster
Size
Capacity Overall
Height
Top Plate
Size
Wt
(lbs)

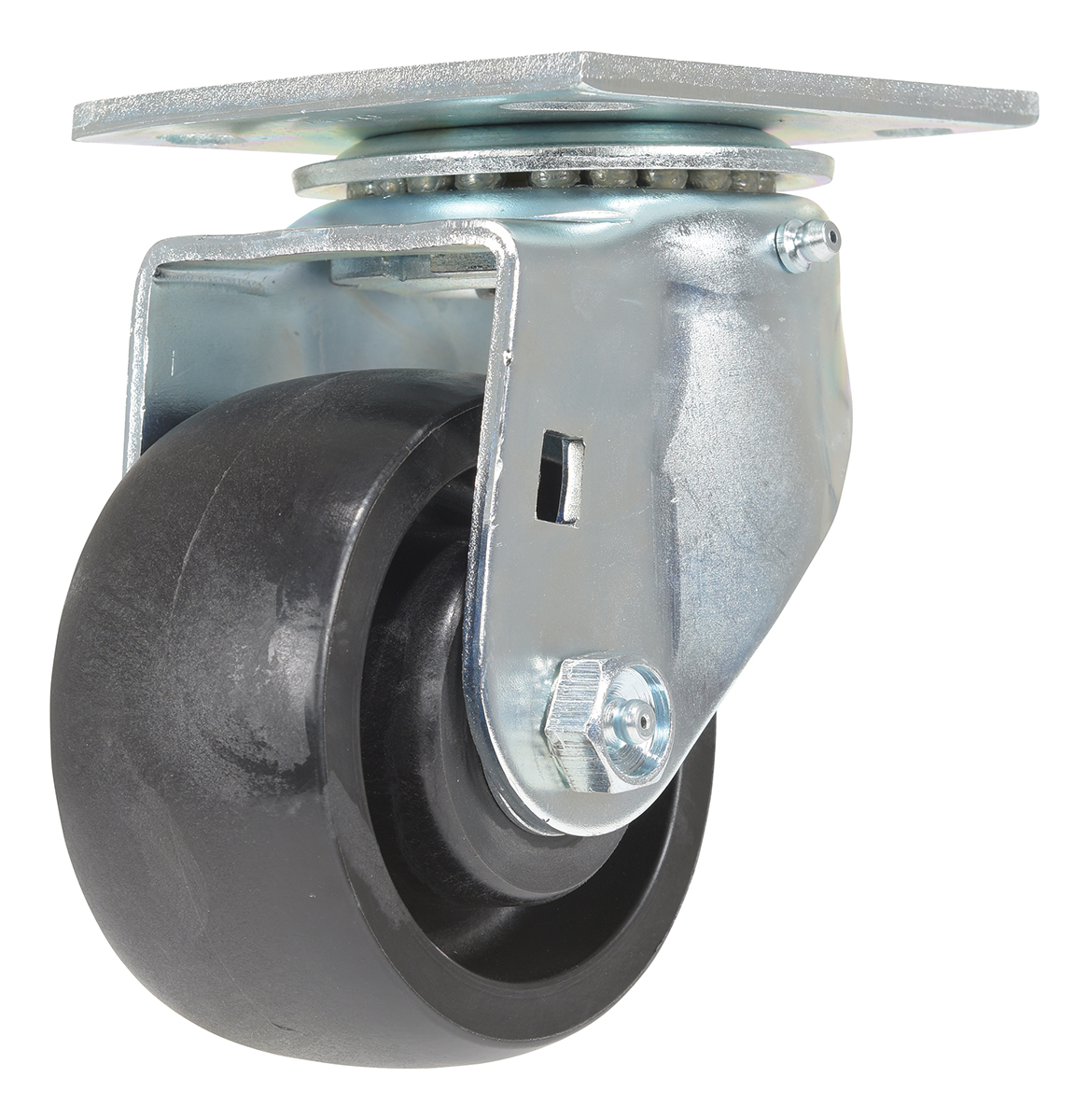

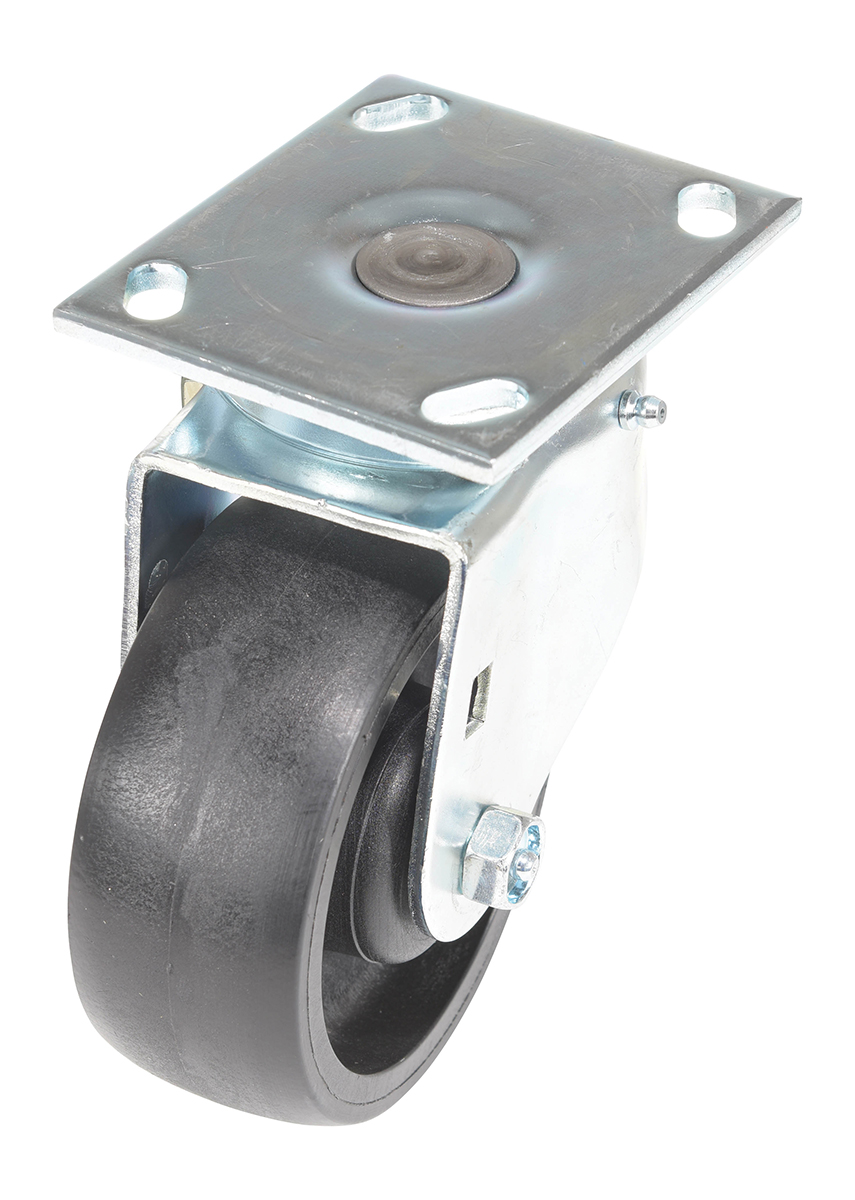

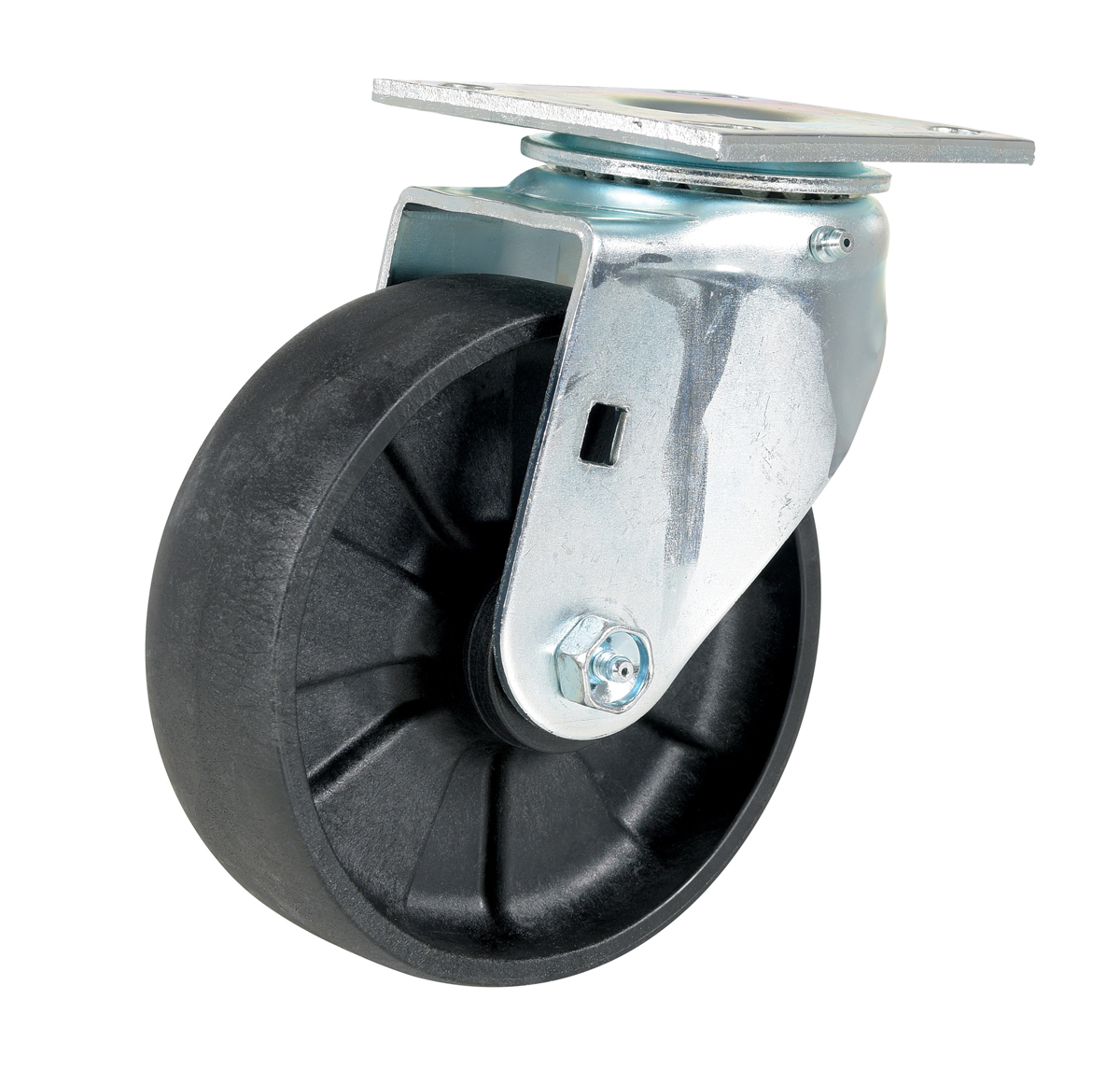

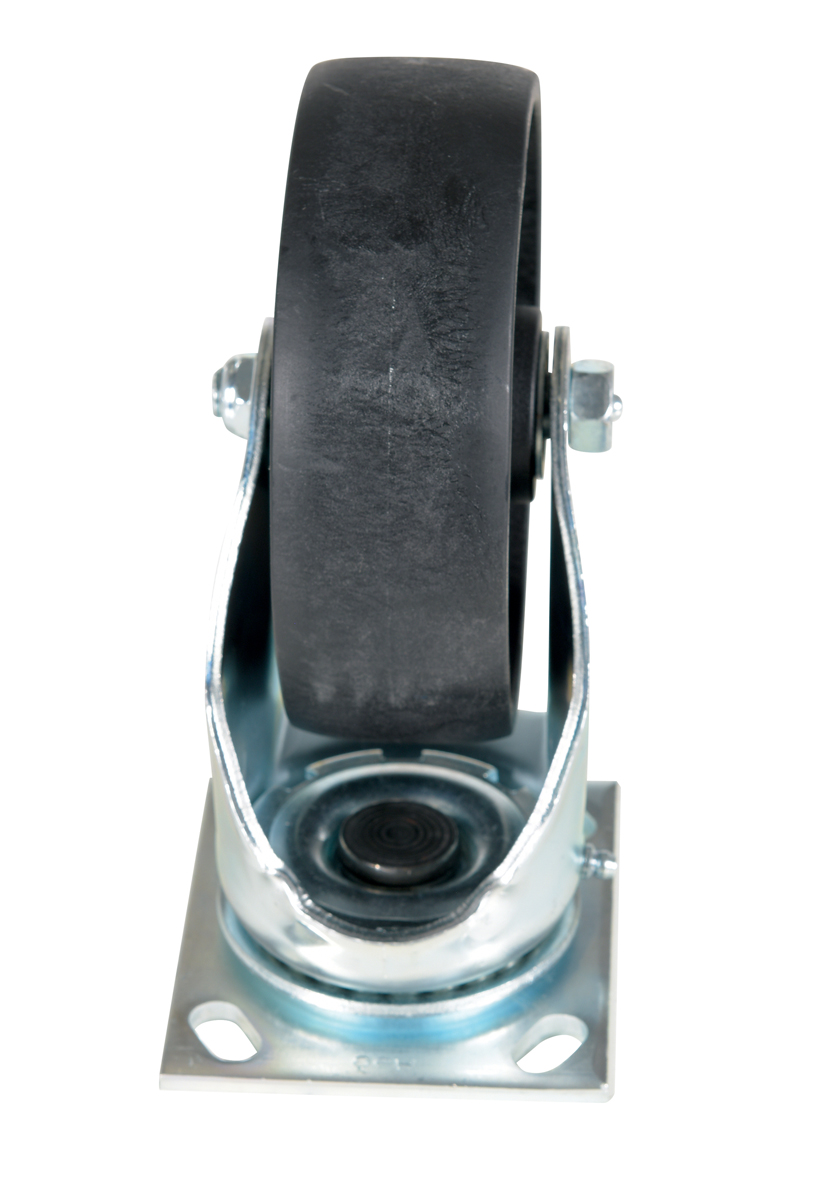

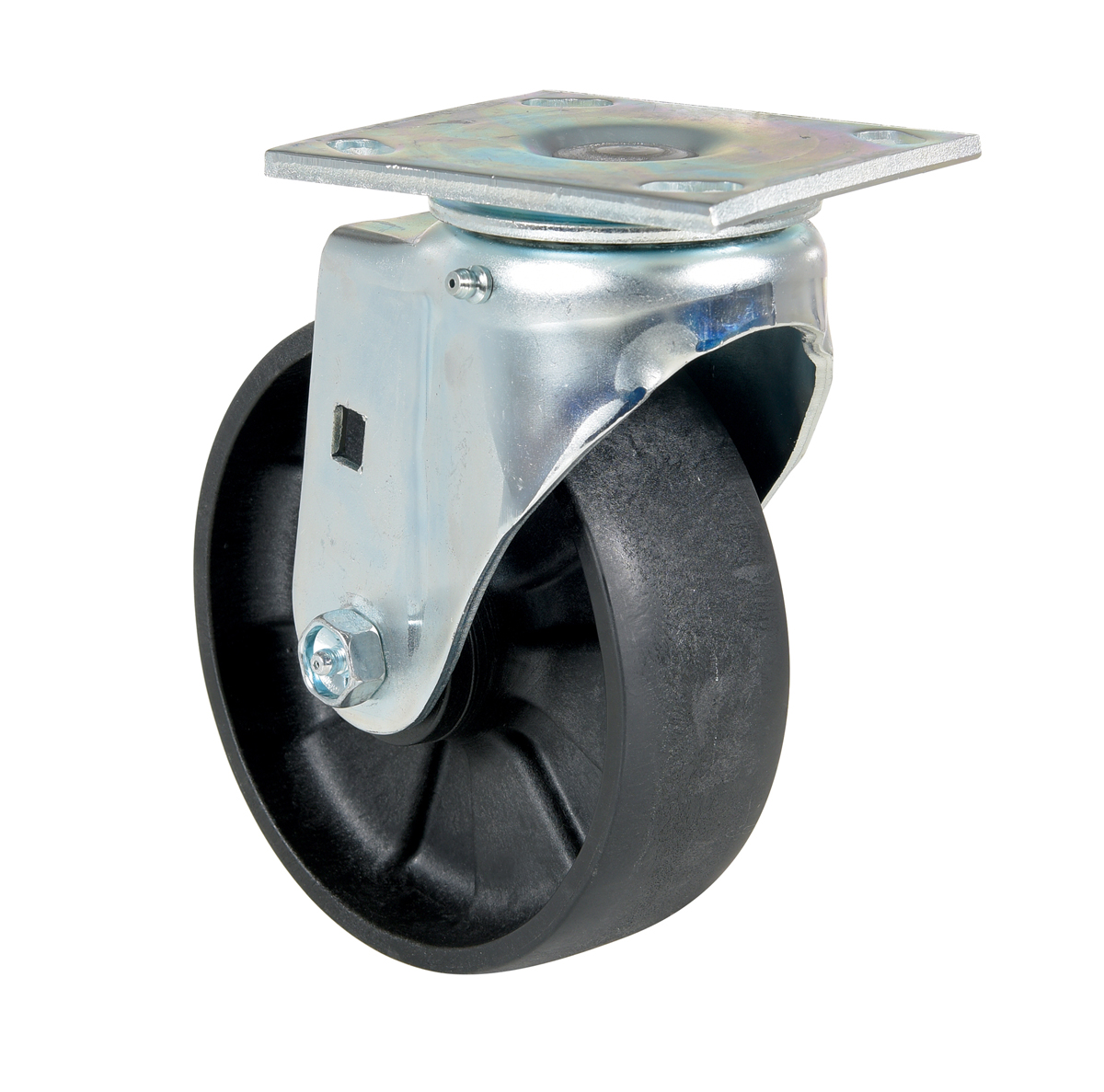

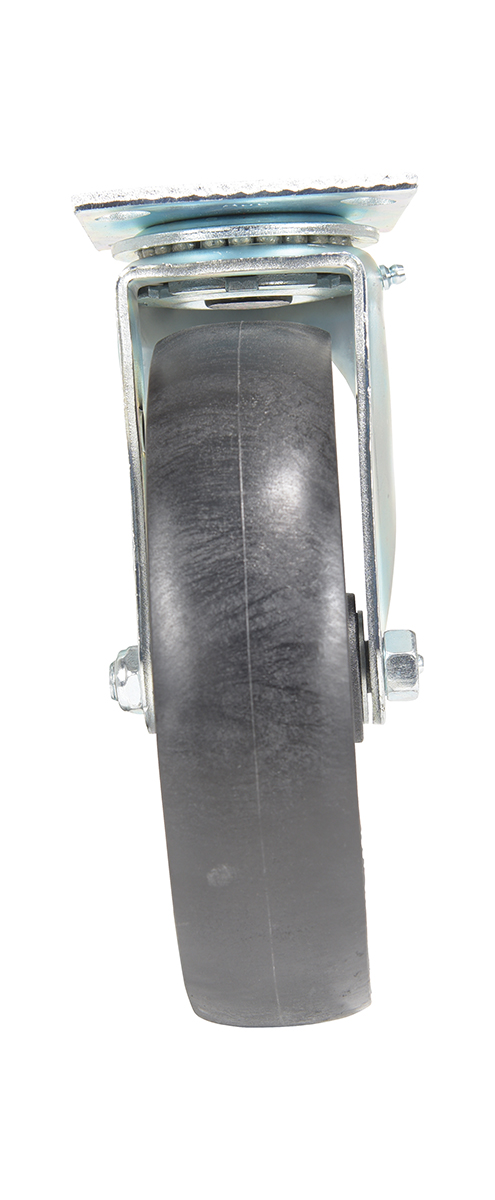

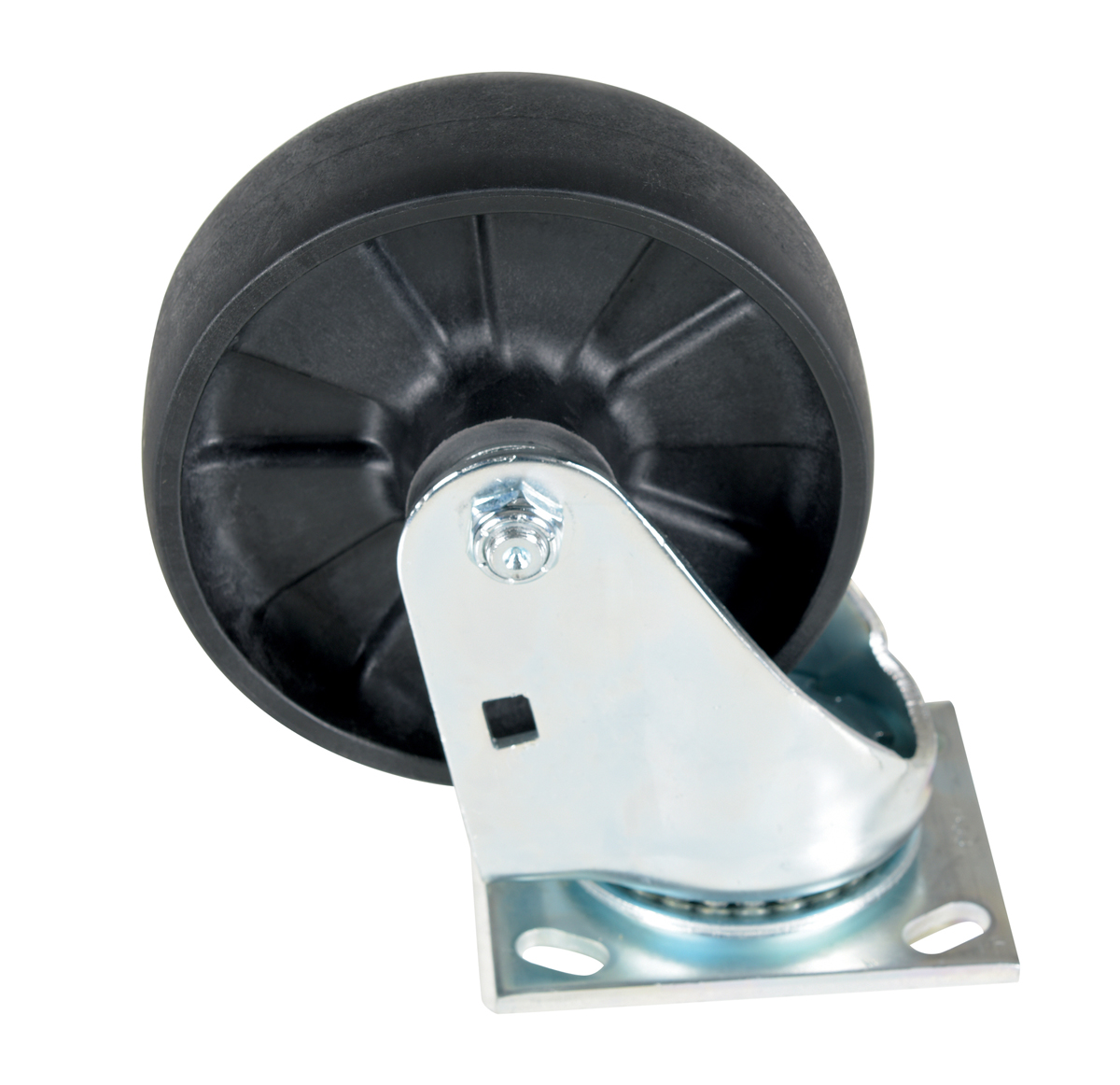

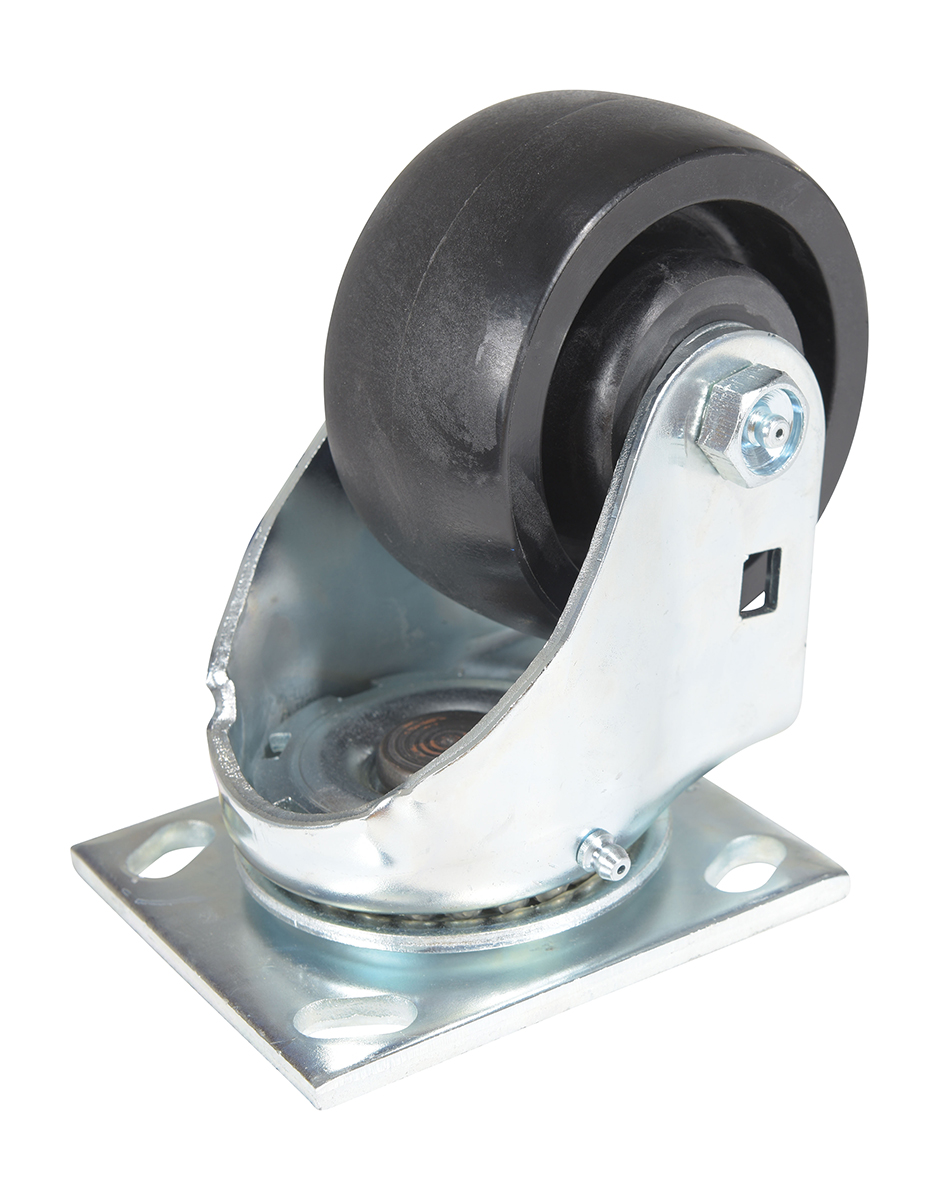

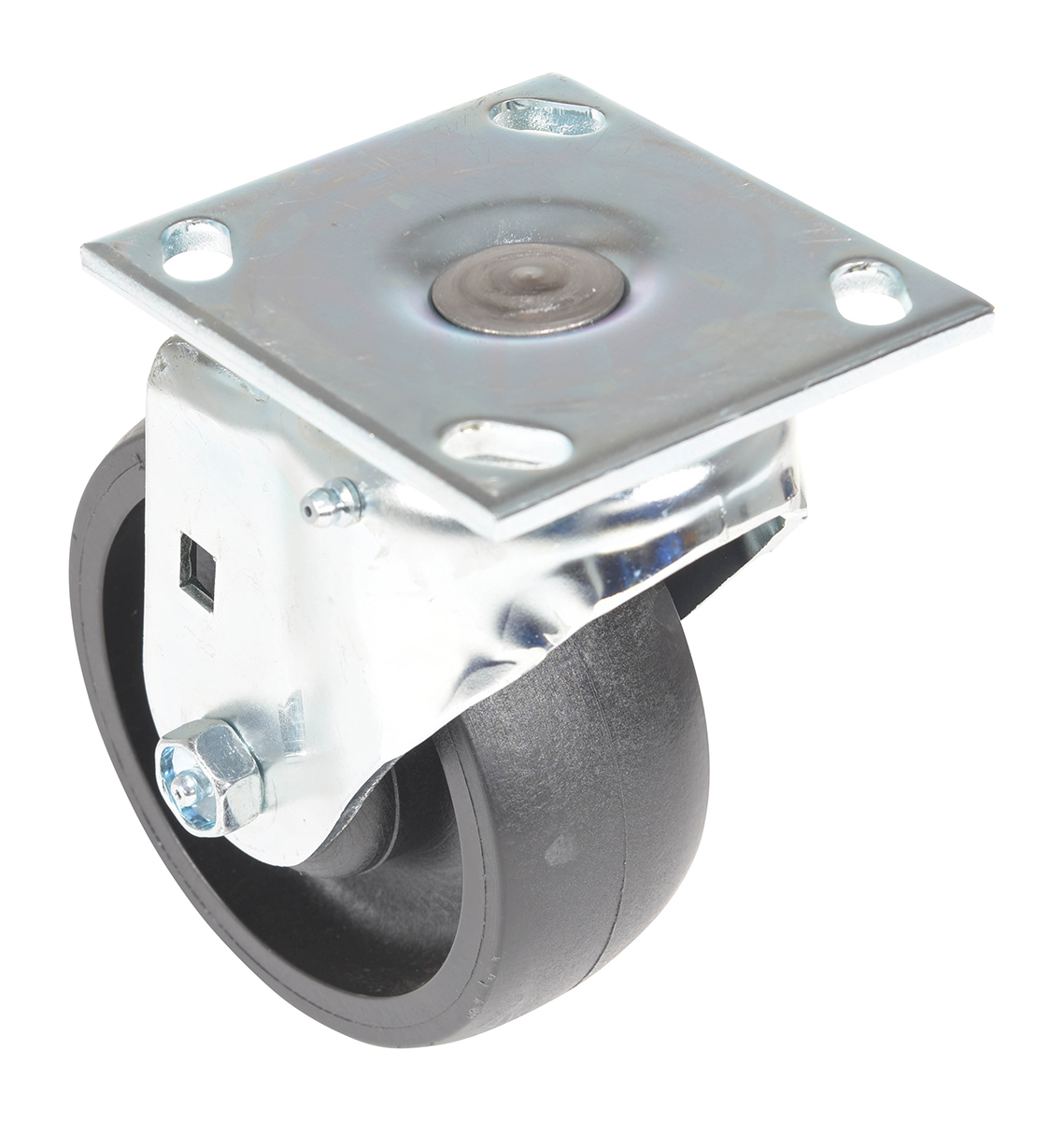

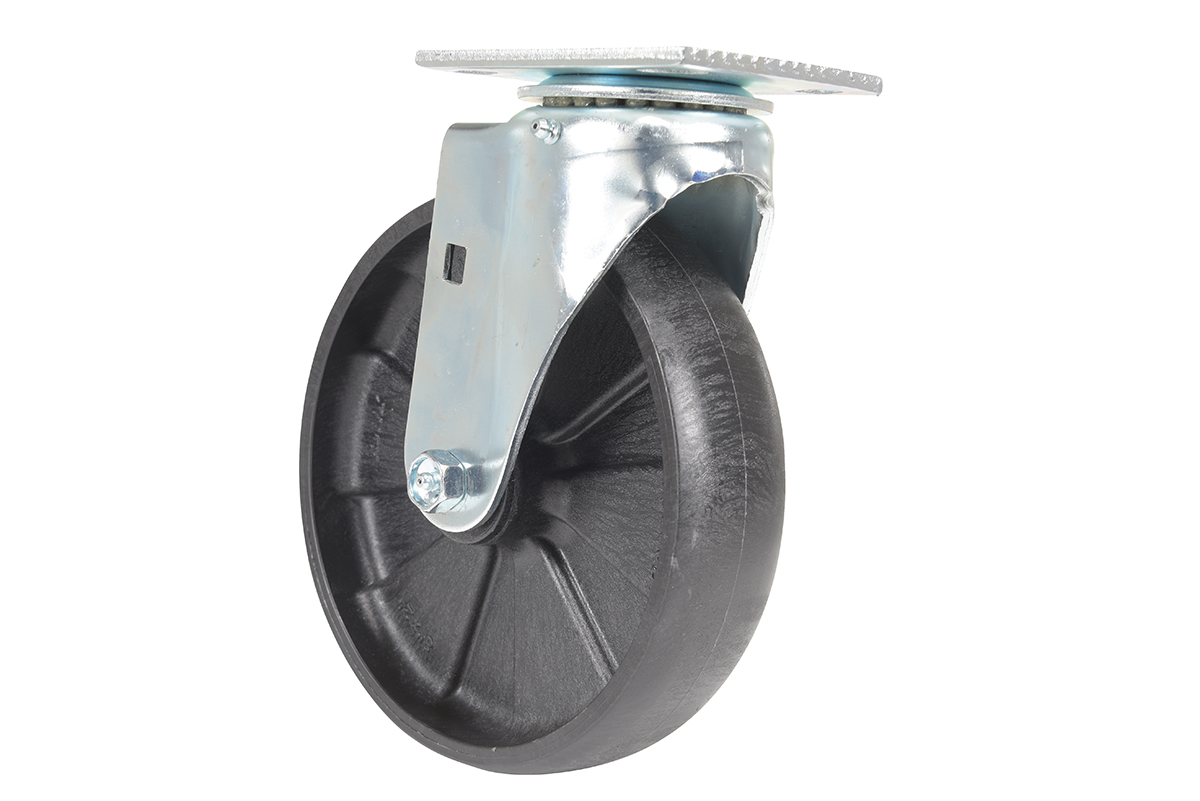

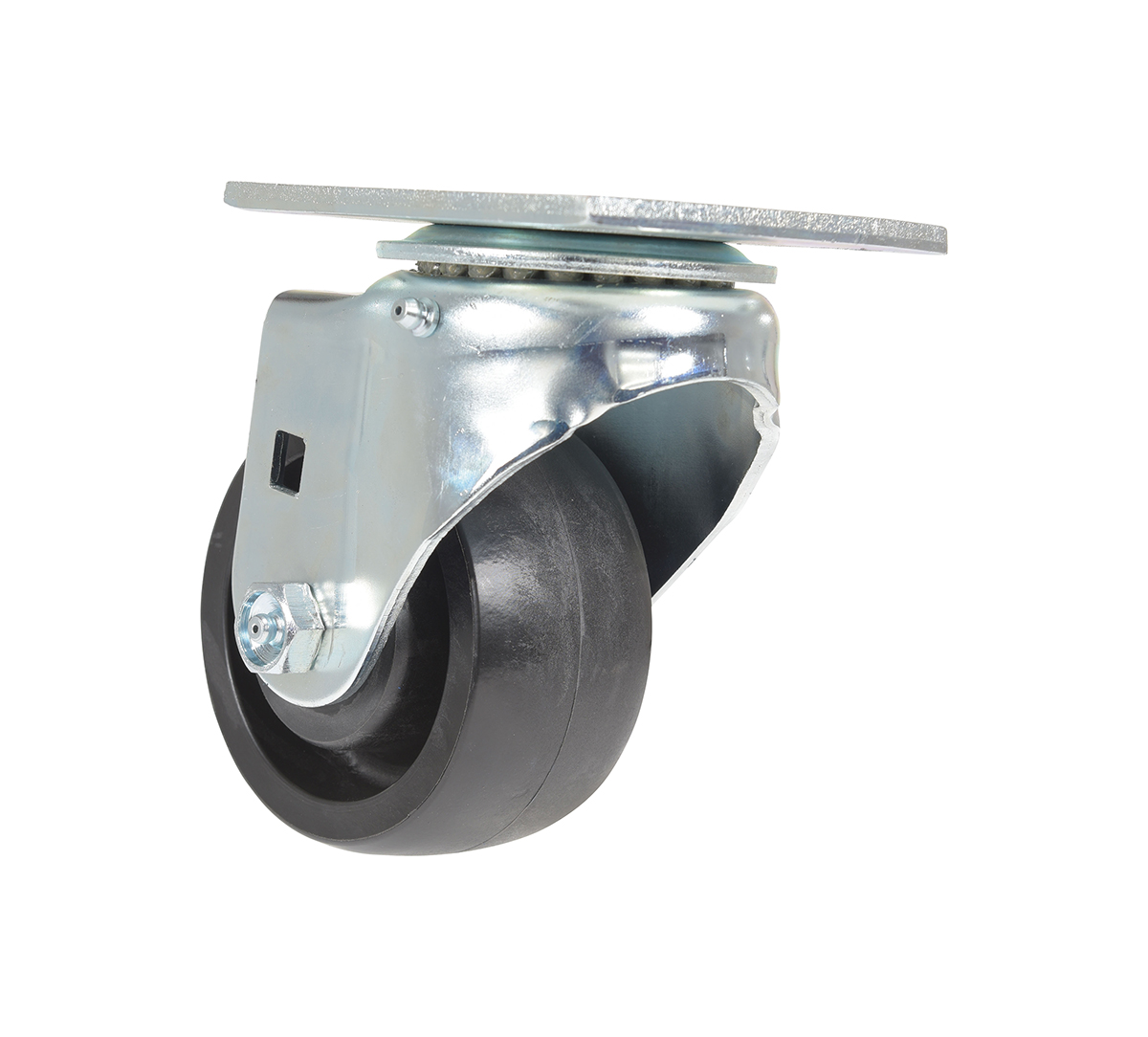

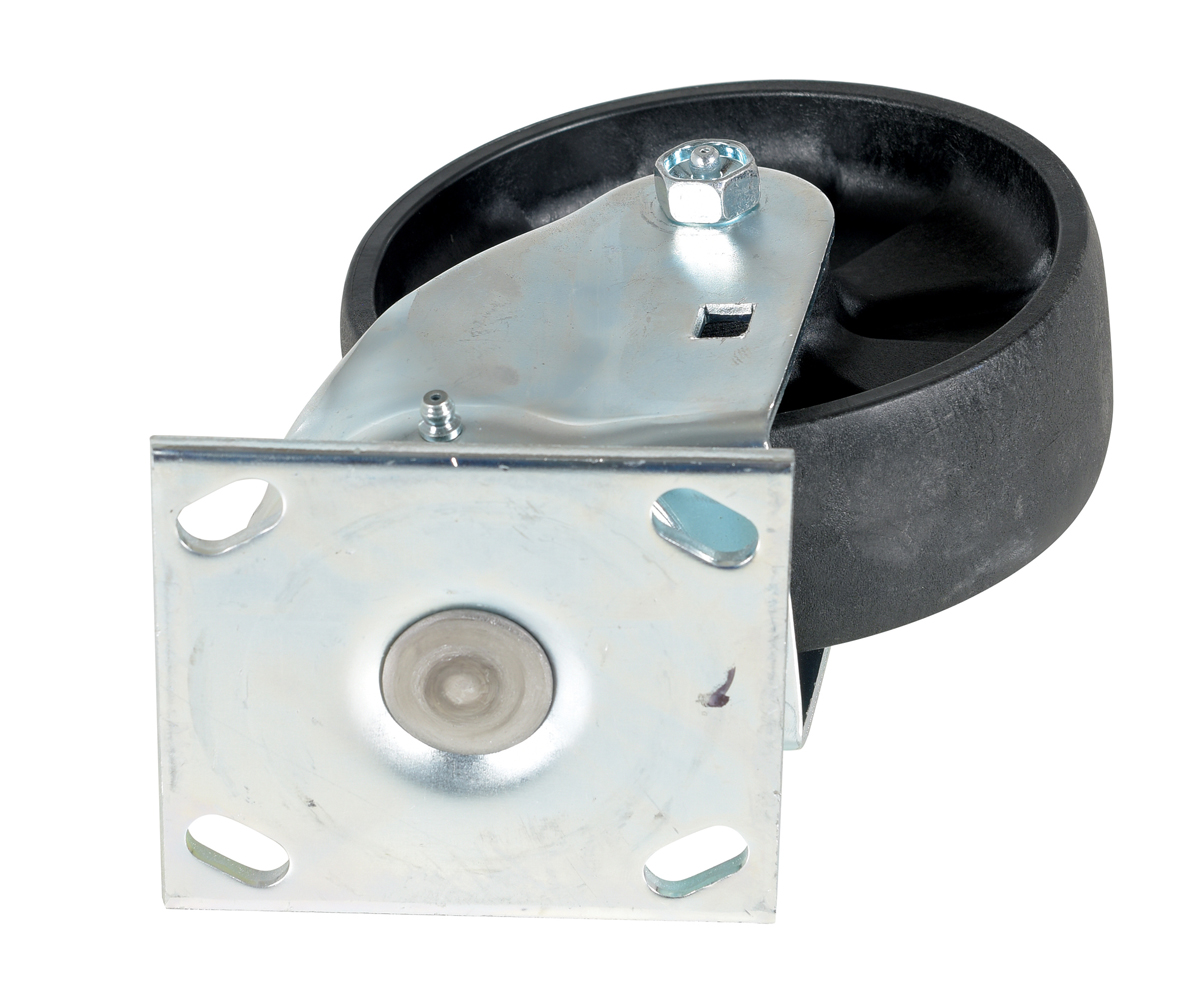

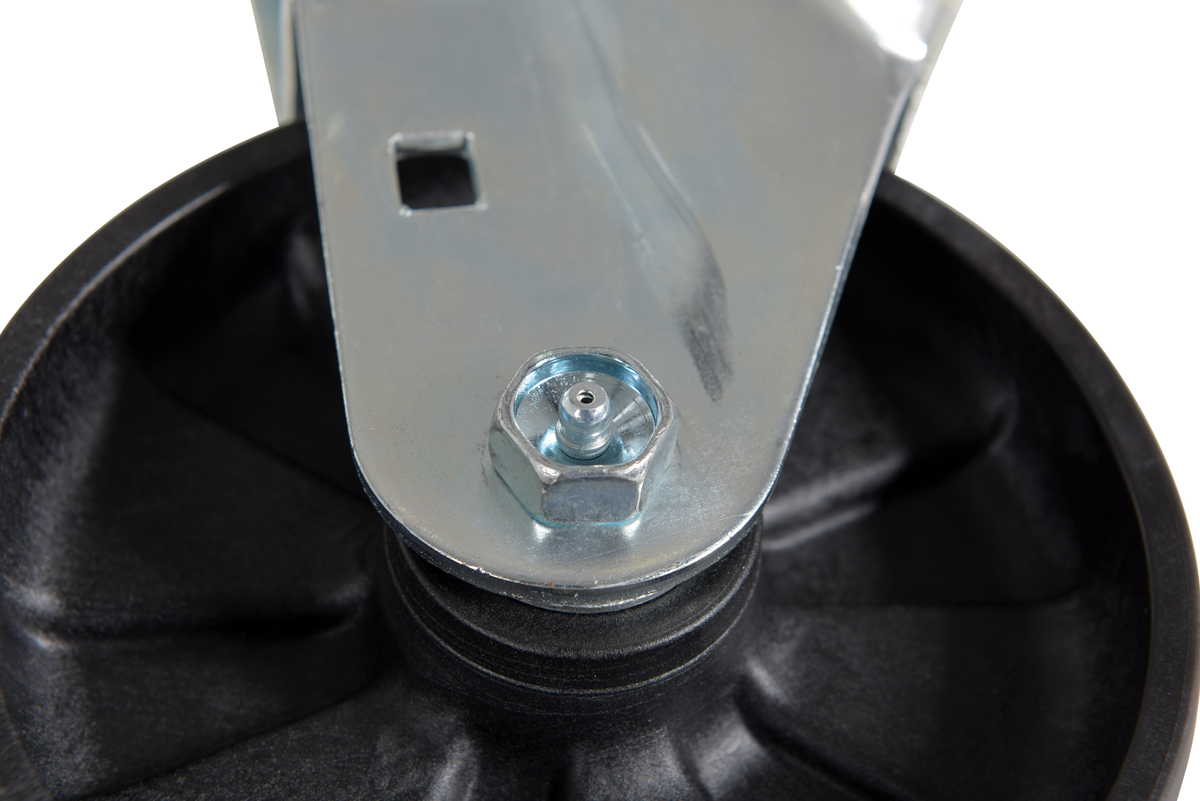

SWIVEL CASTERS
CST-HLD-4X2GFN-S 4"x2" 1,200 lb. 5-3/4" 4"x4-1/2" 4.68

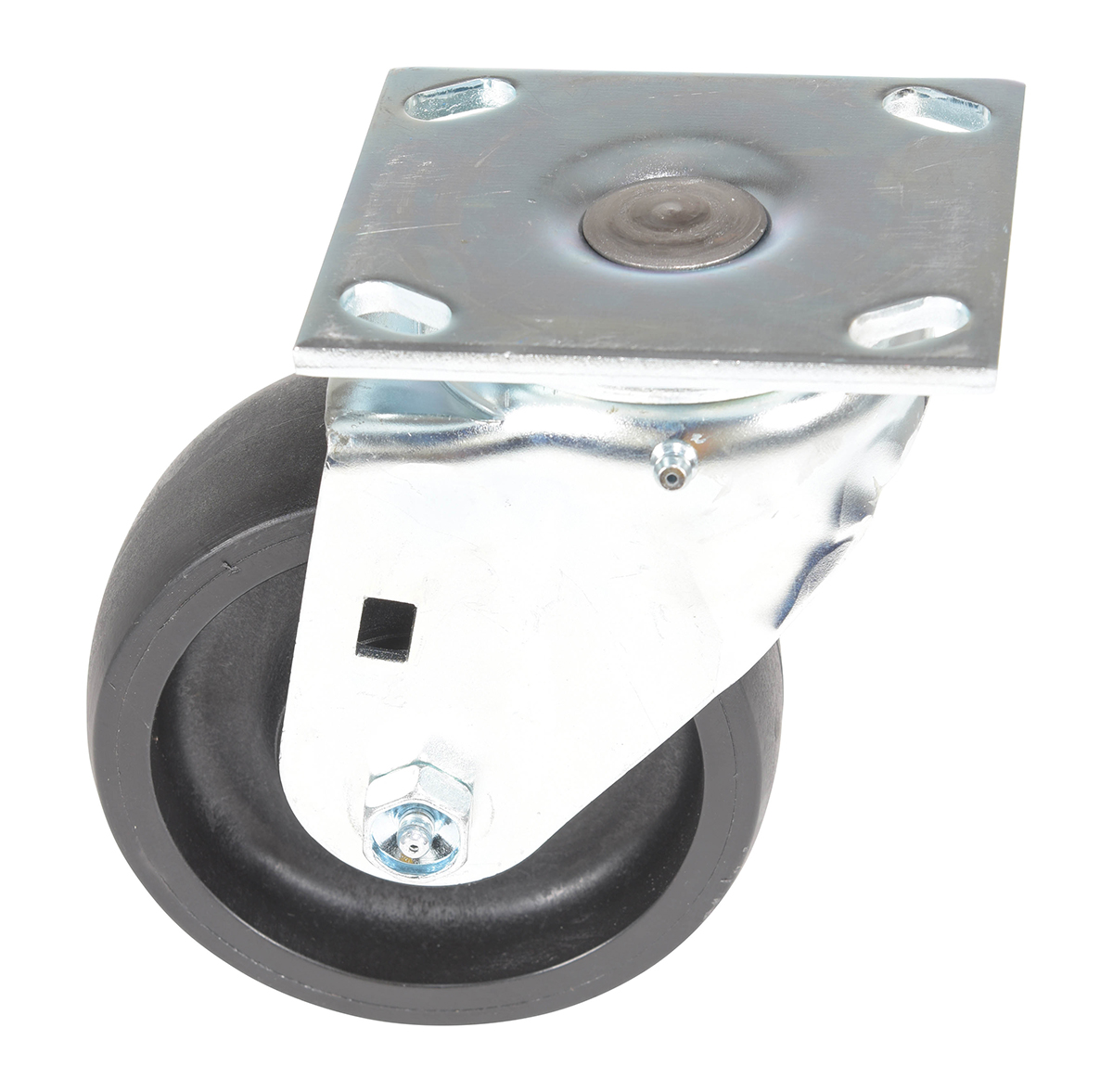

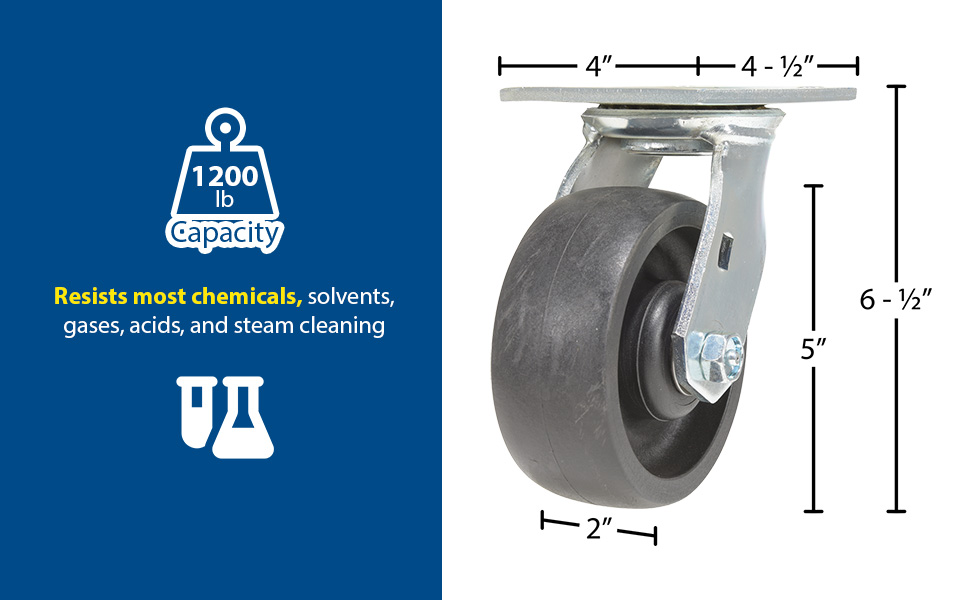

CST-HLD-5X2GFN-S 5"x2" 1,200 lb. 6-1/2" 4"x4-1/2" 5.03
CST-HLD-6X2GFN-S 6"x2" 1,200 lb. 7-1/2" 4"x4-1/2" 5

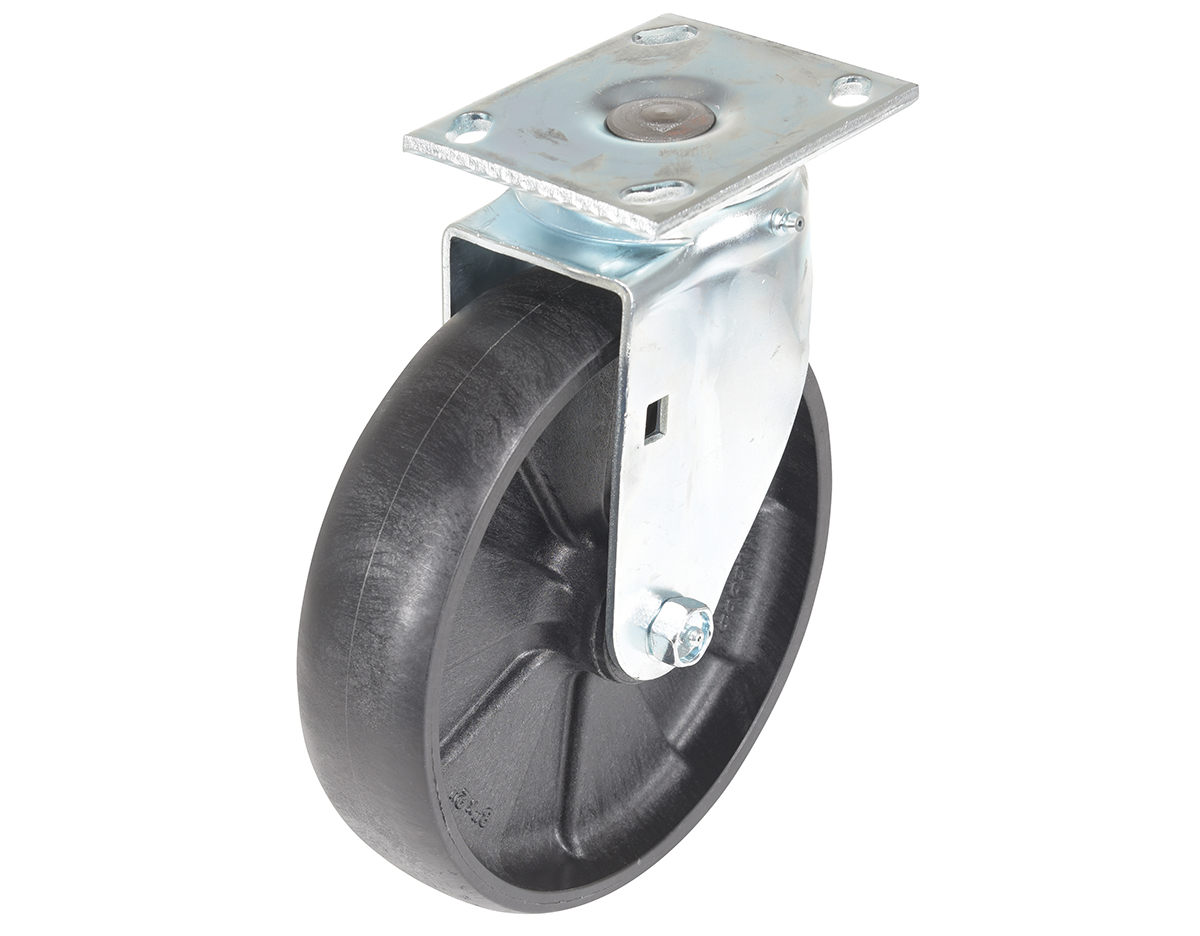

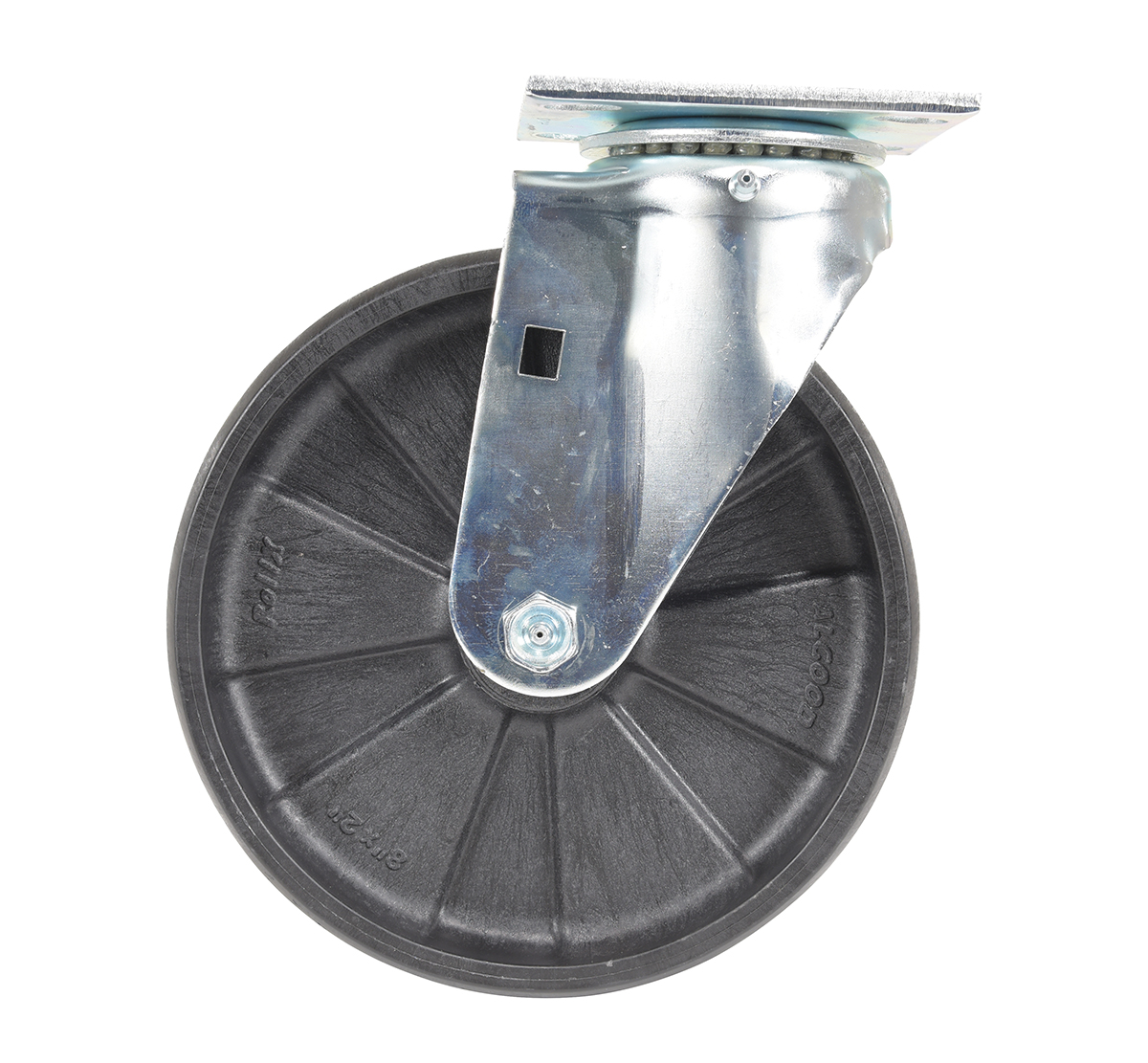

CST-HLD-8X2GFN-S 8"x2" 1,200 lb. 9-1/2" 4"x4-1/2" 5.97

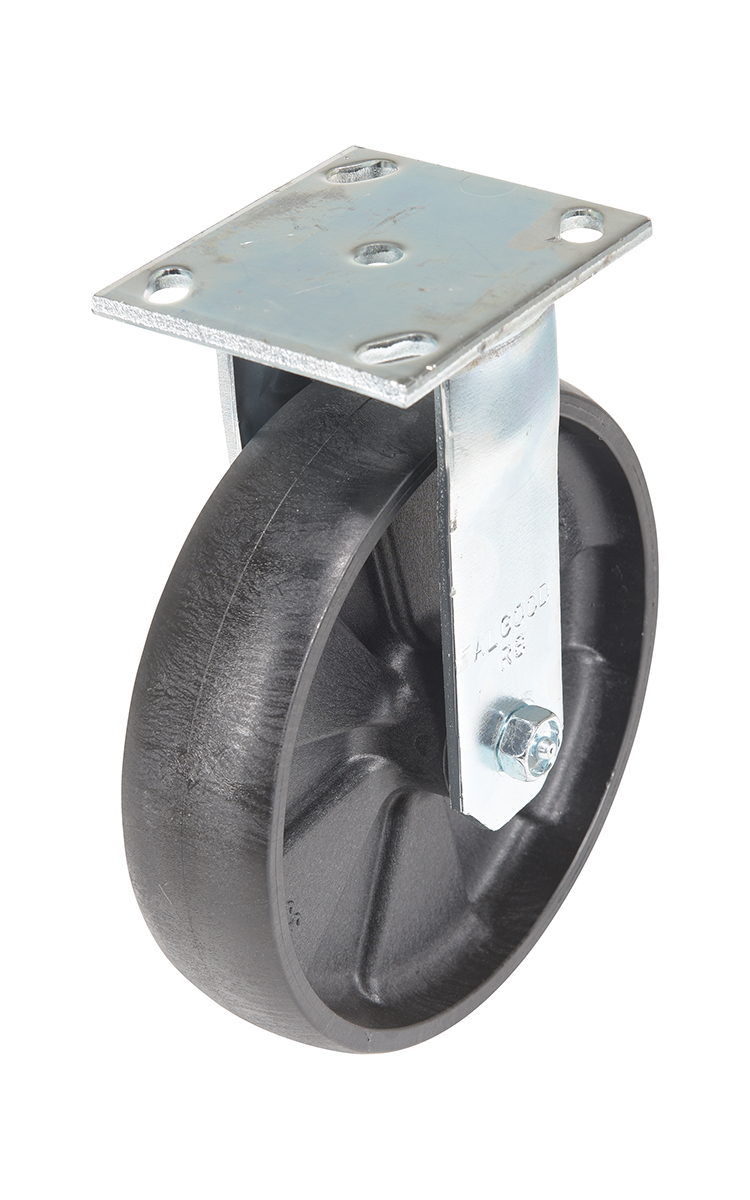

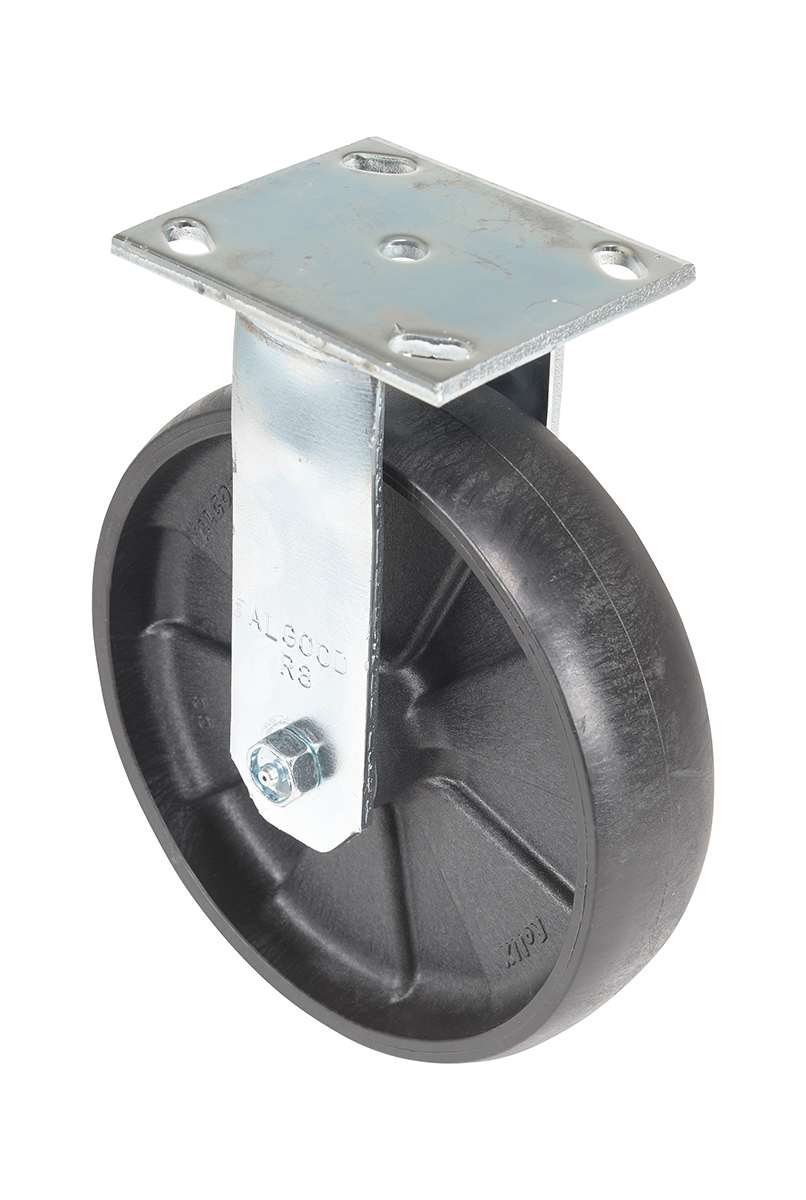

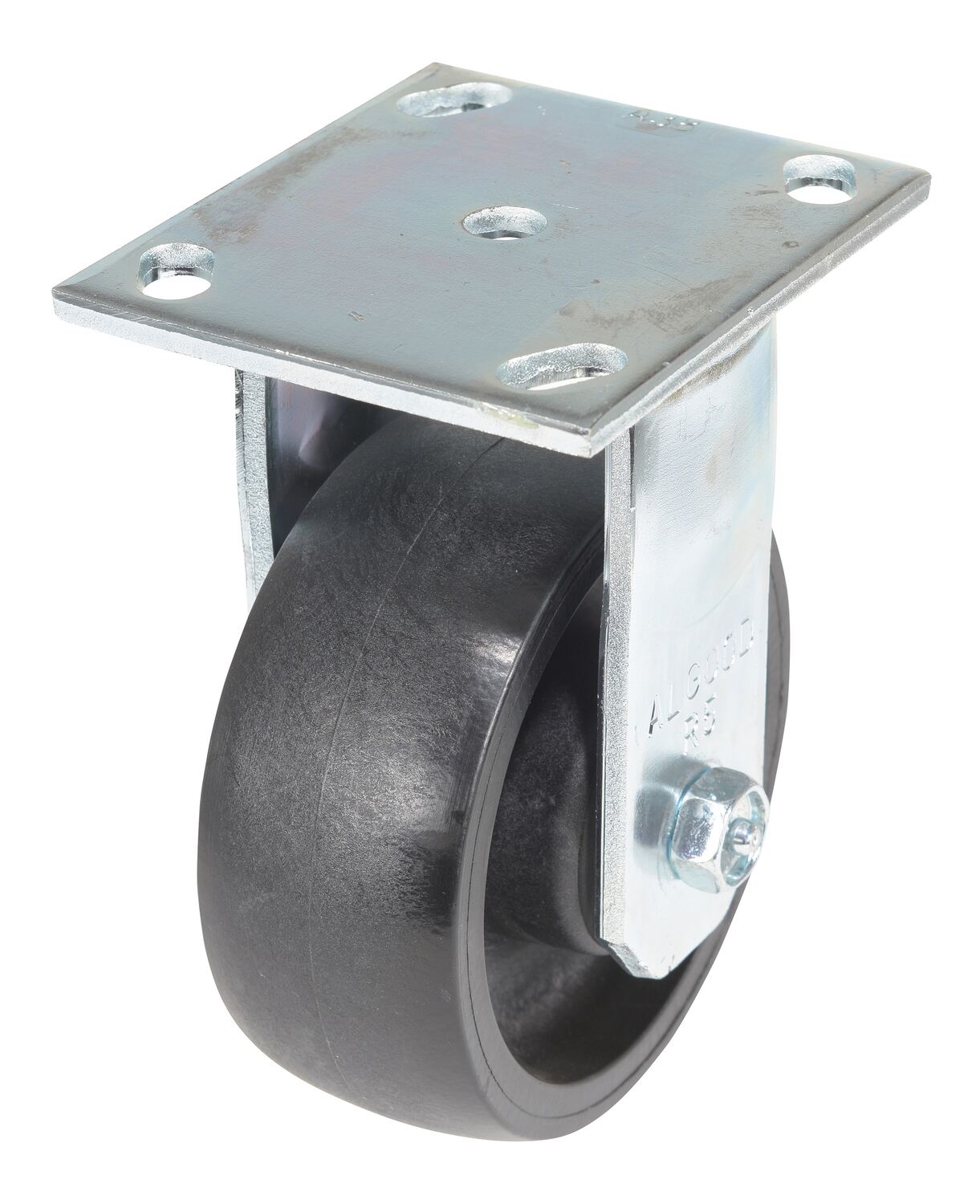

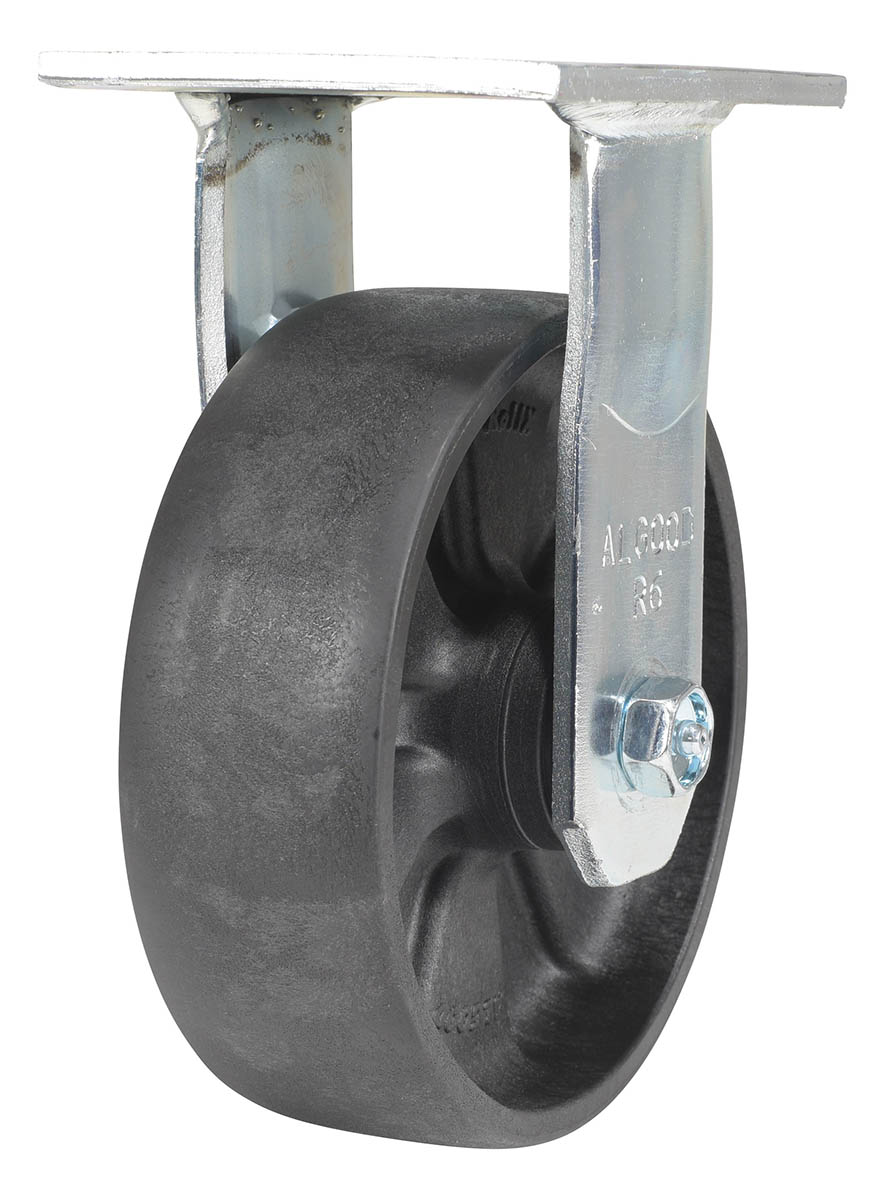

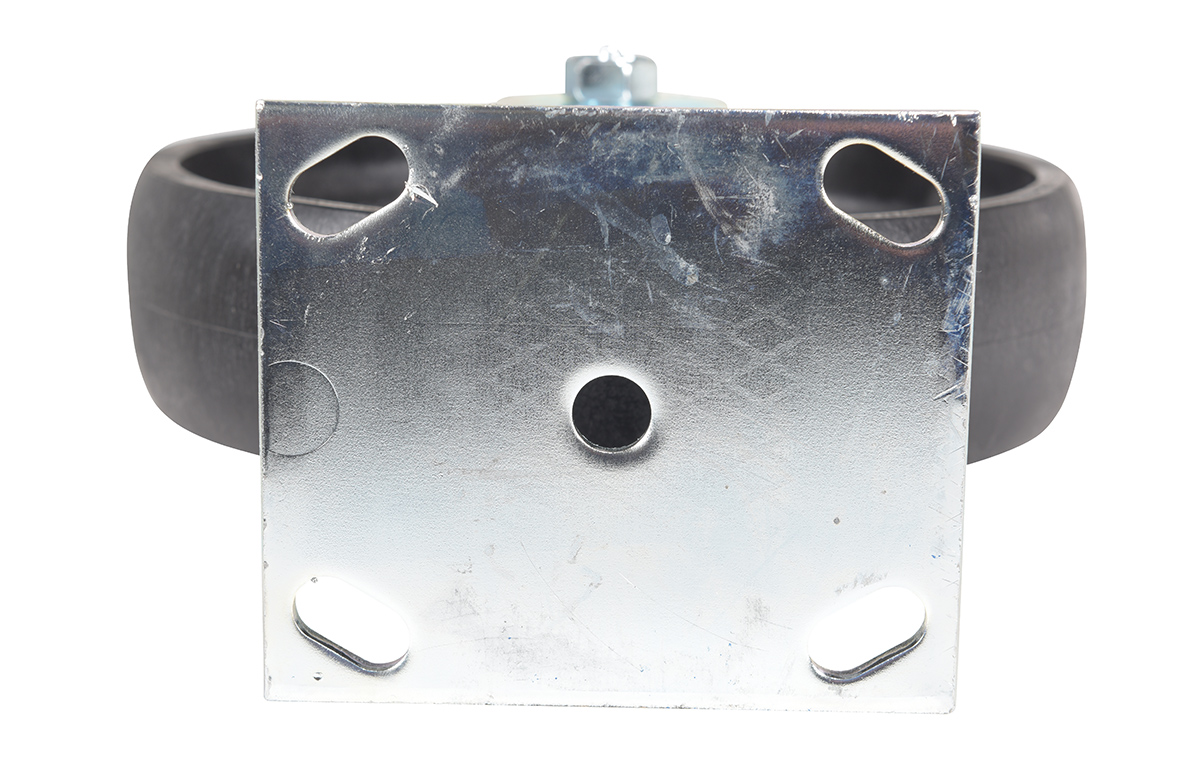

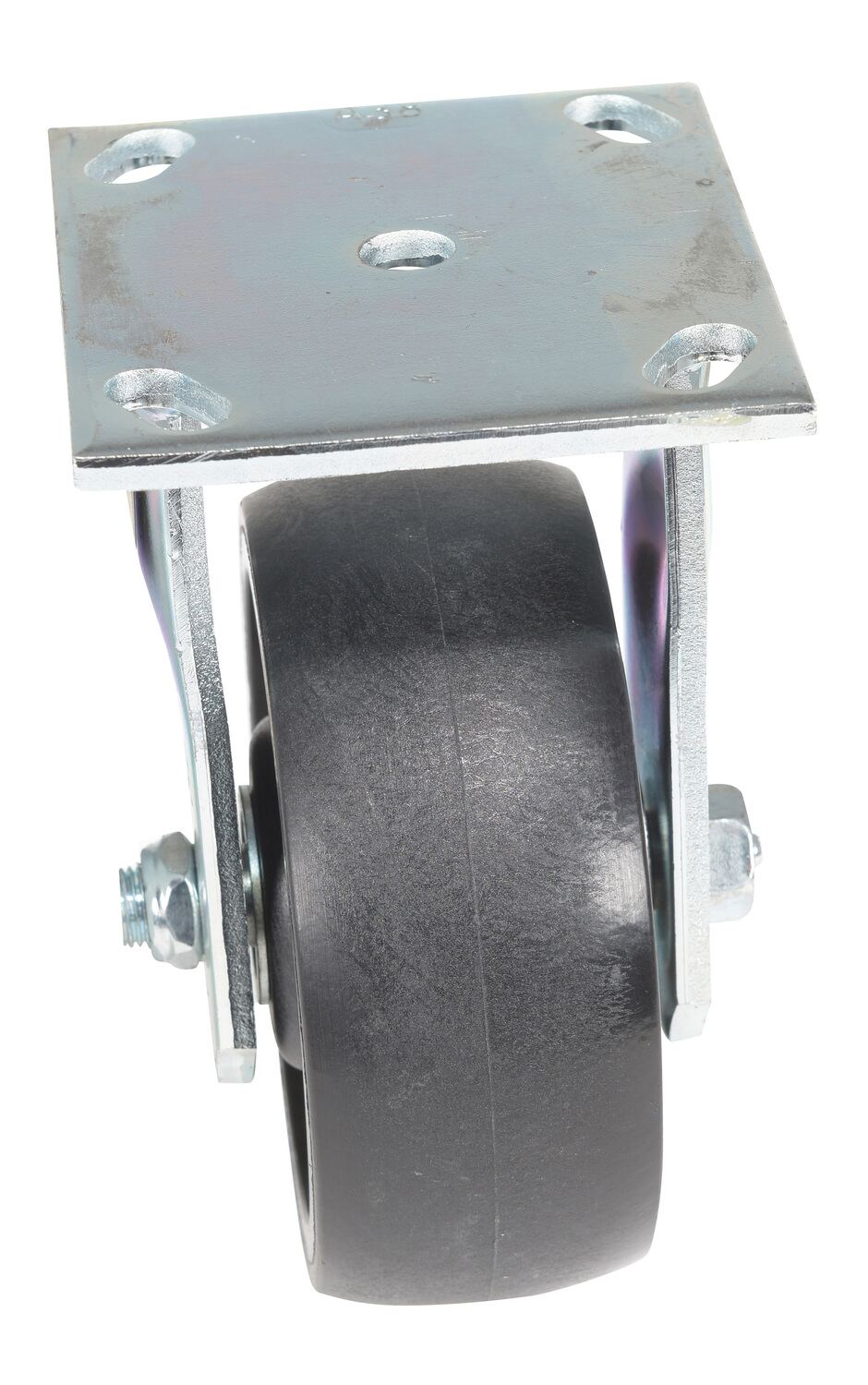

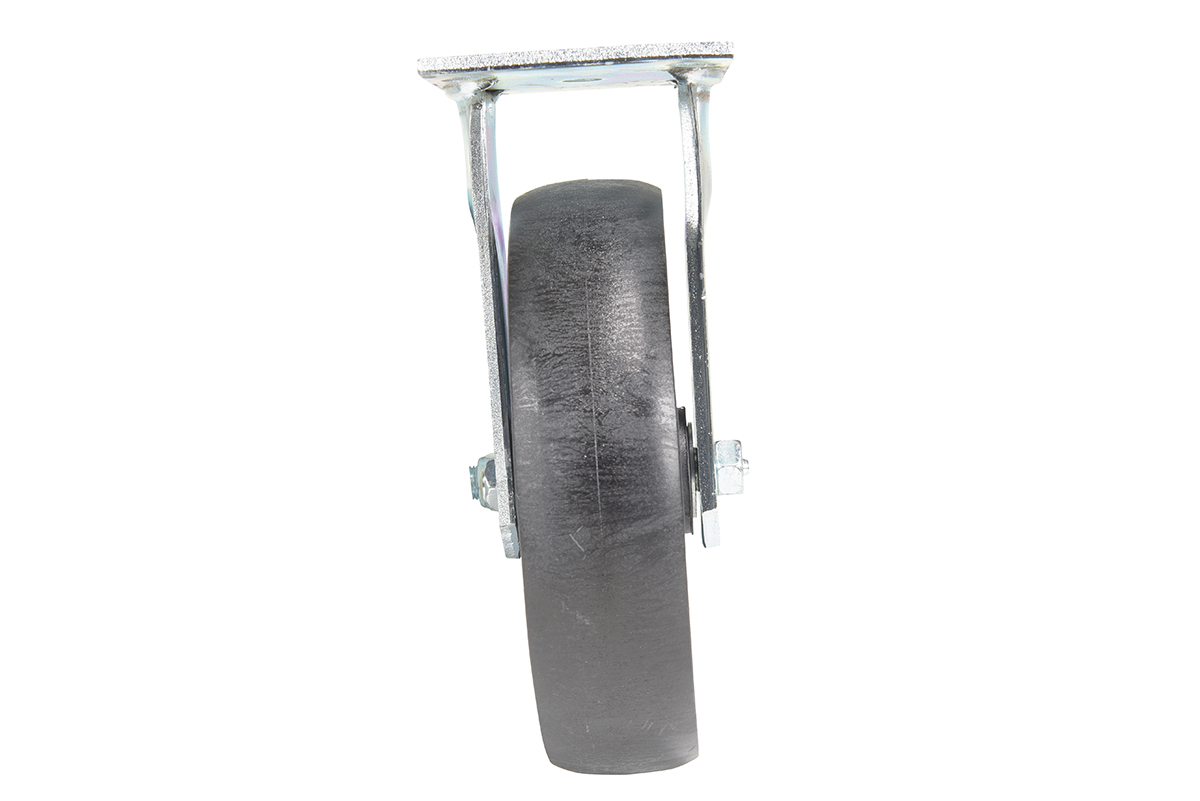

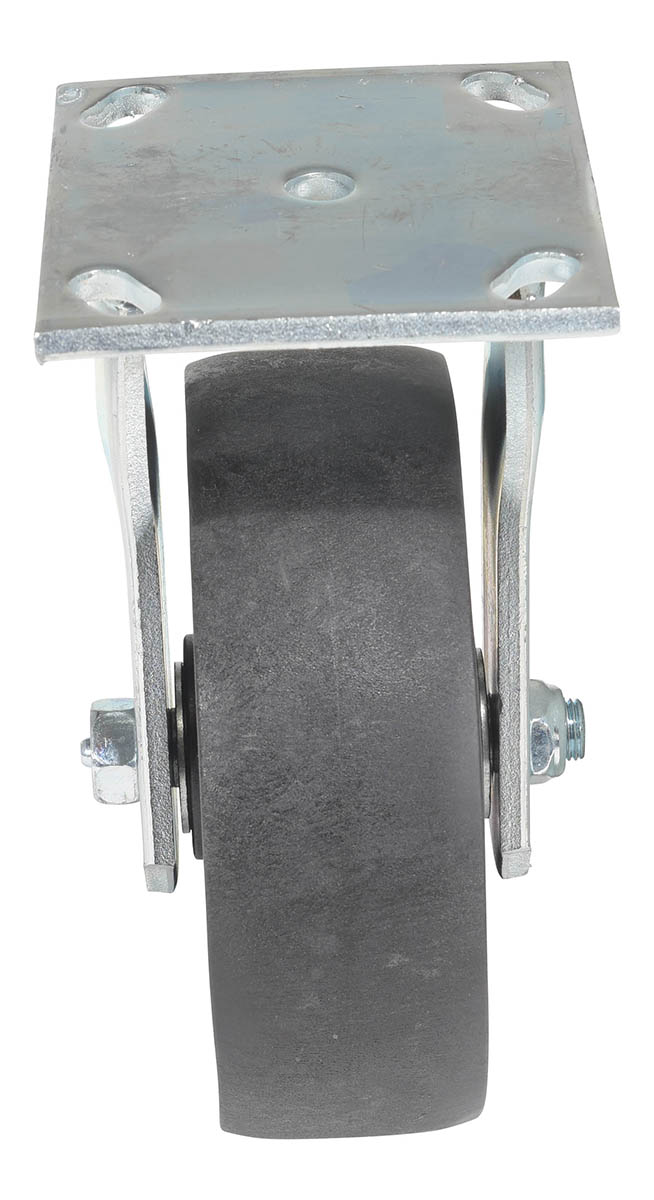

RIGID CASTERS

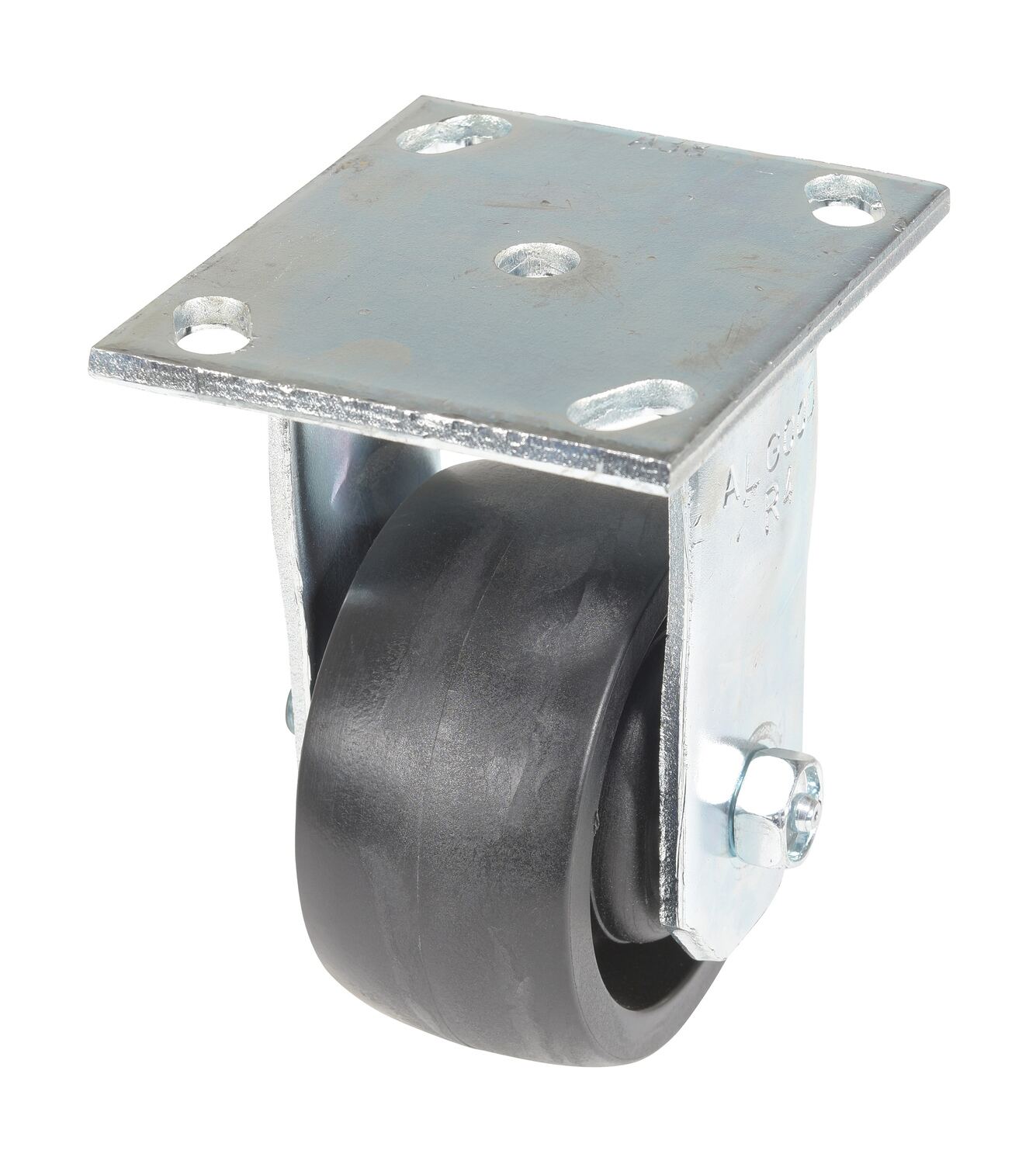

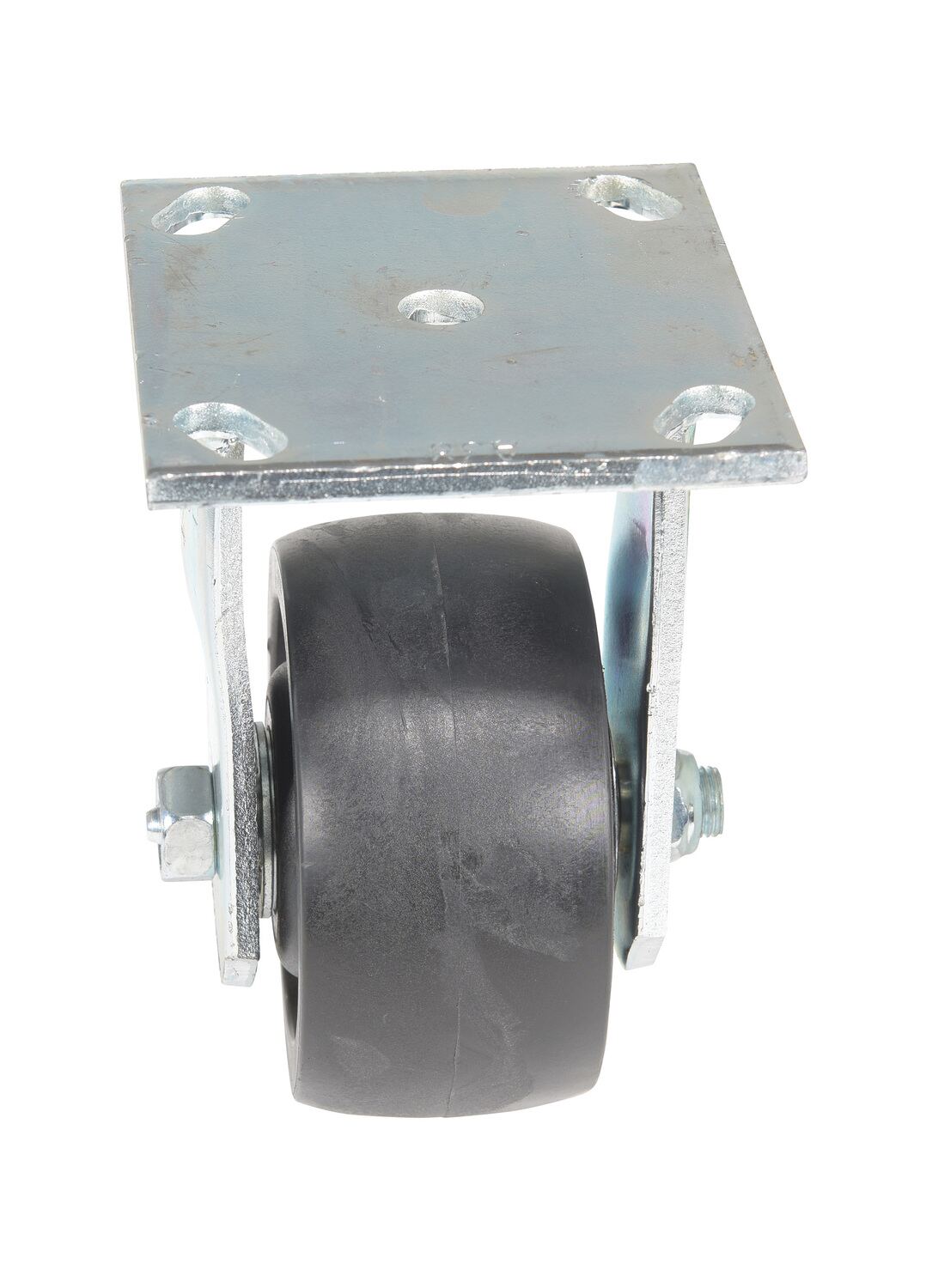

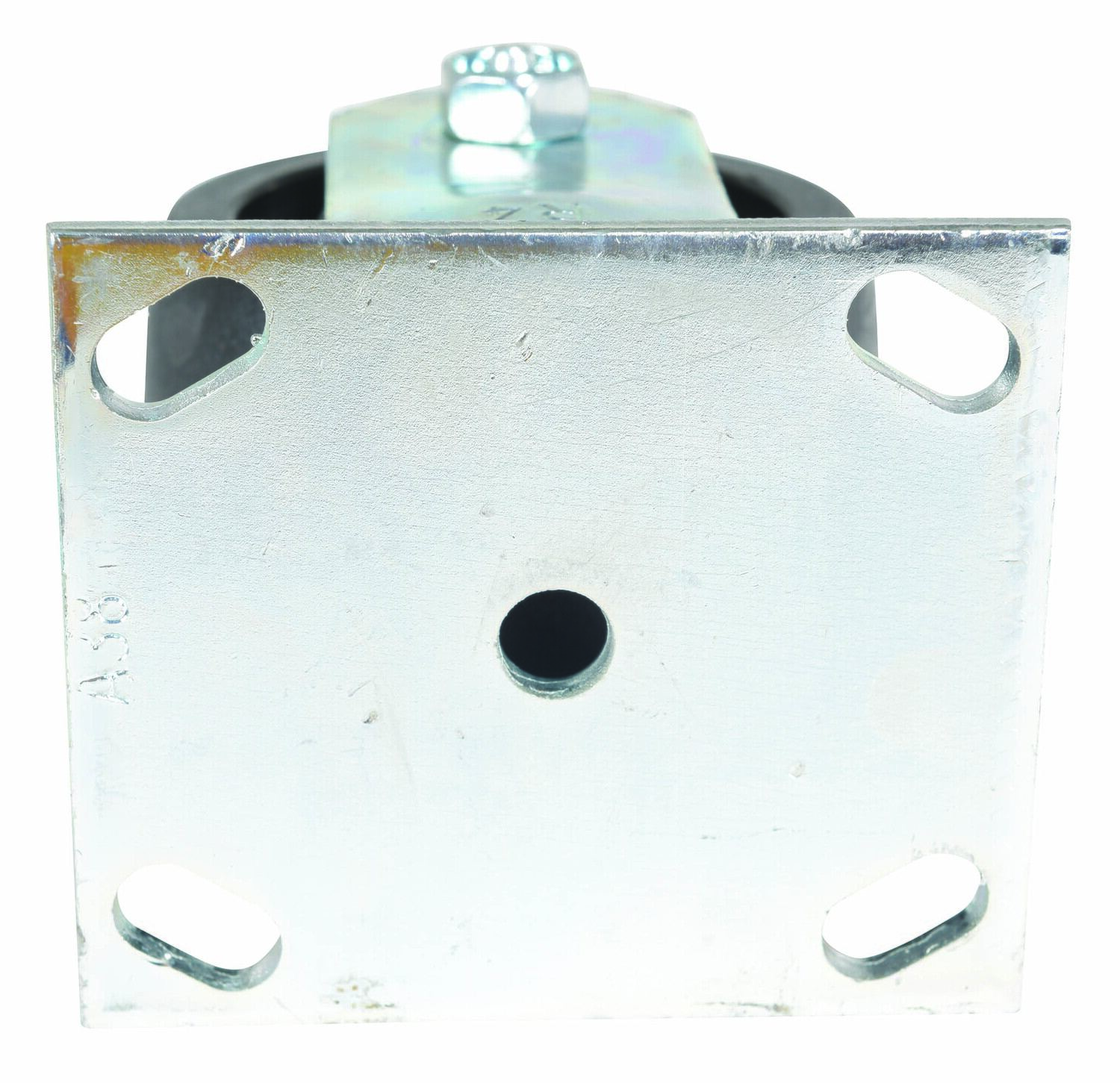

CST-HLD-4X2GFN-R 4"x2" 1,200 lb. 5-3/4" 4"x4-1/2" 3.56

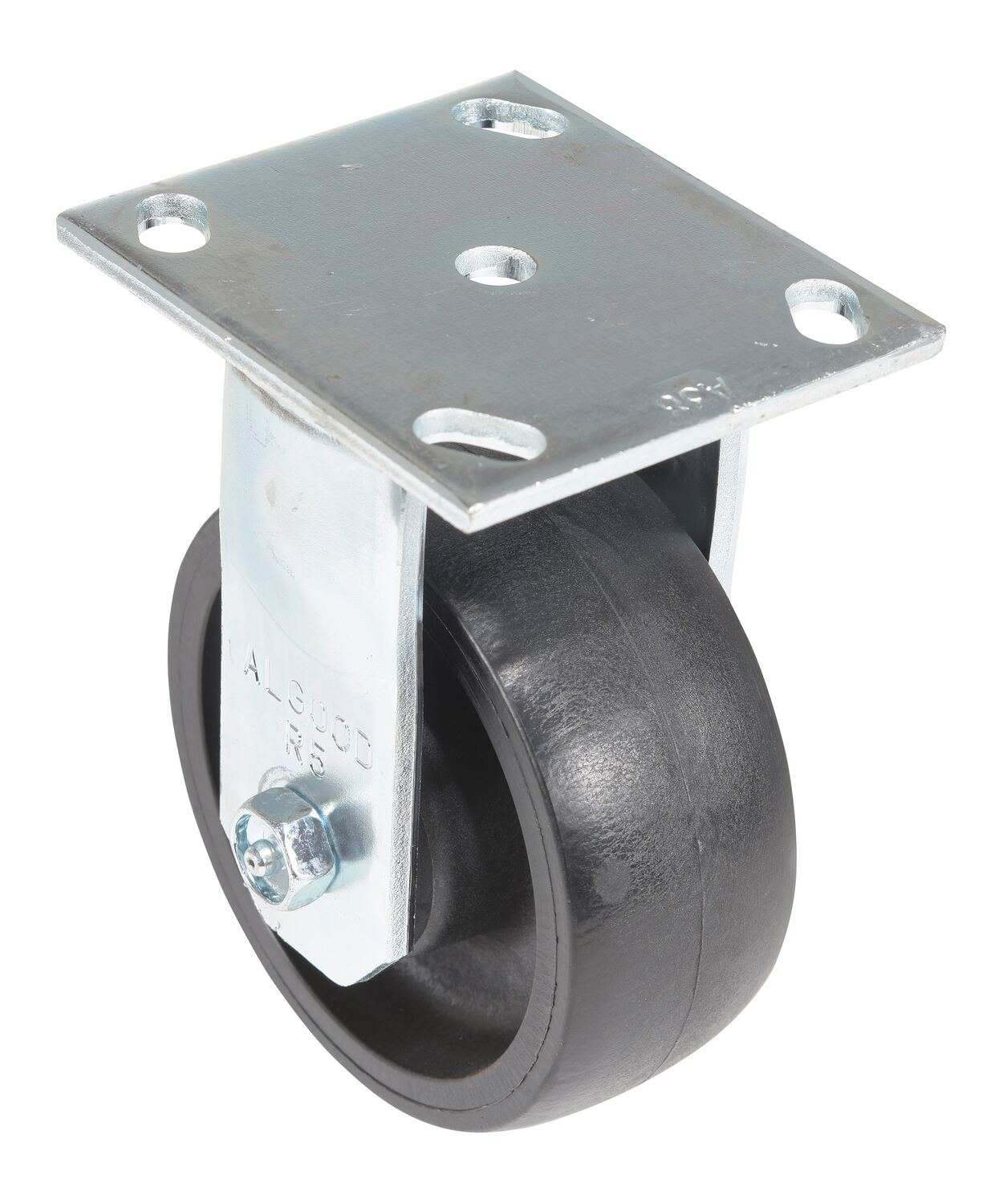

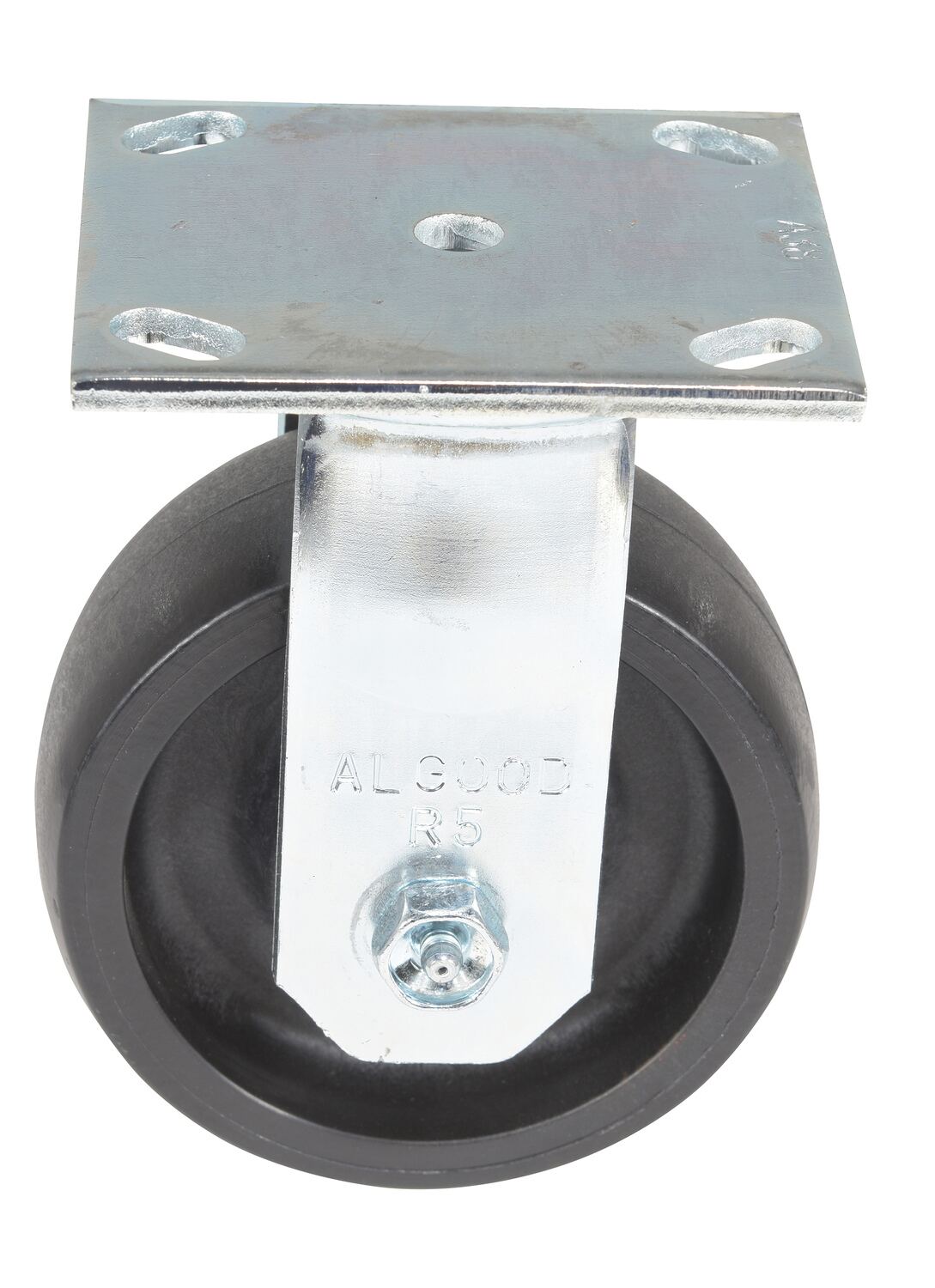

CST-HLD-5X2GFN-R 5"x2" 1,200 lb. 6-1/2" 4"x4-1/2" 3.96

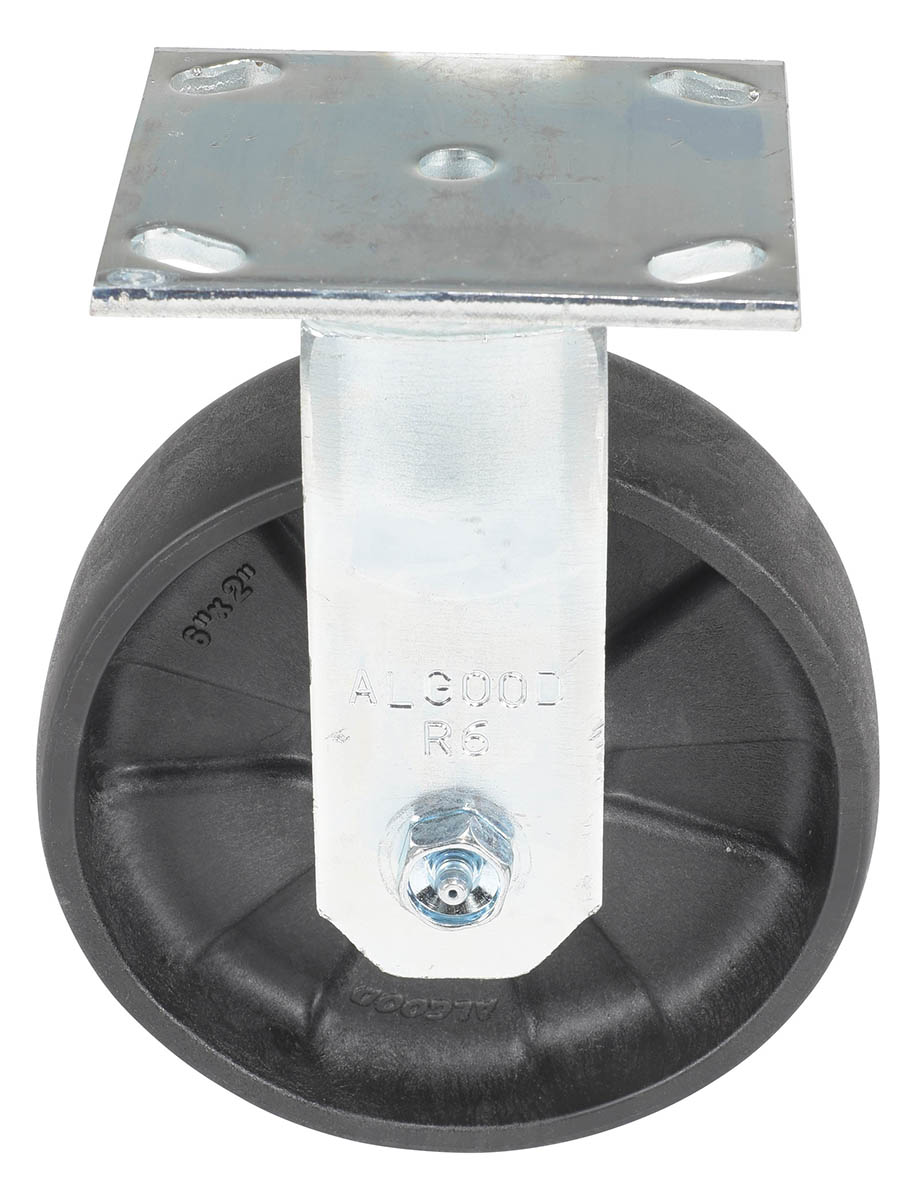

CST-HLD-6X2GFN-R 6"x2" 1,200 lb. 7-1/2" 4"x4-1/2" 4.02

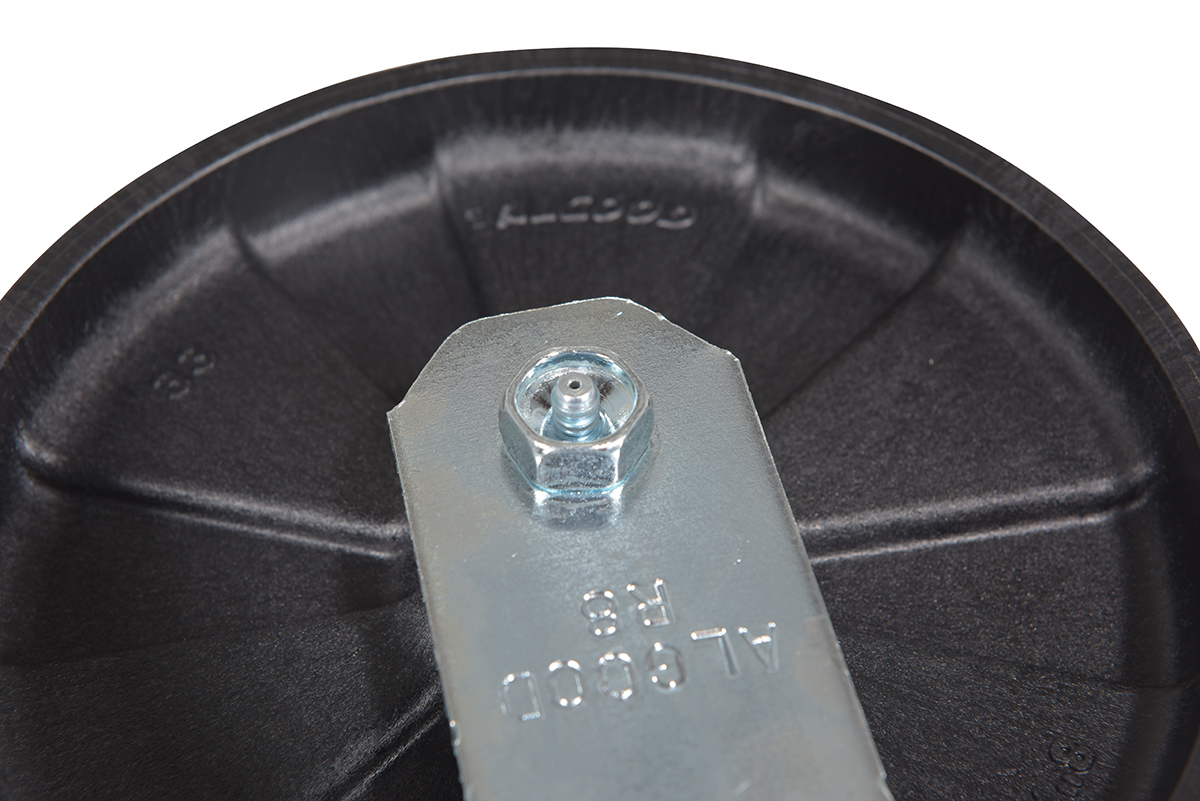

CST-HLD-8X2GFN-R 8"x2" 1,200 lb. 9-1/2" 4"x4-1/2" 4.9

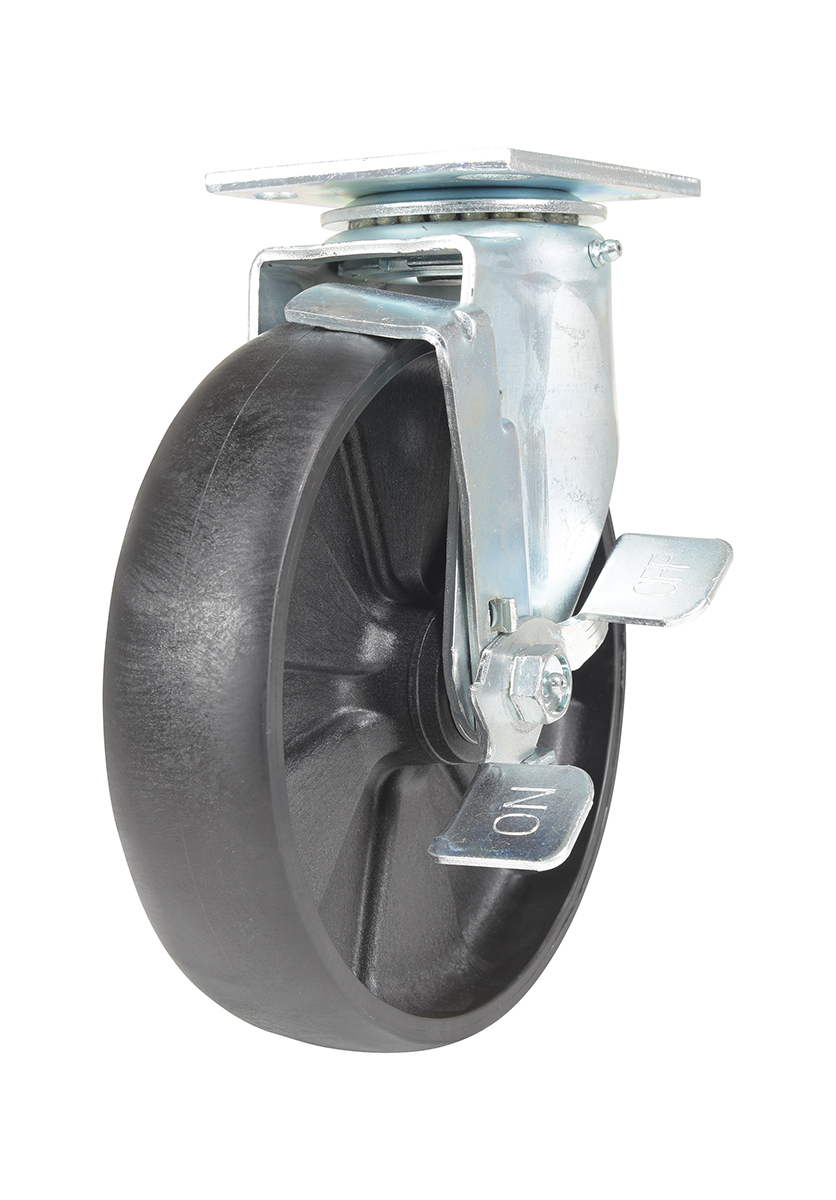

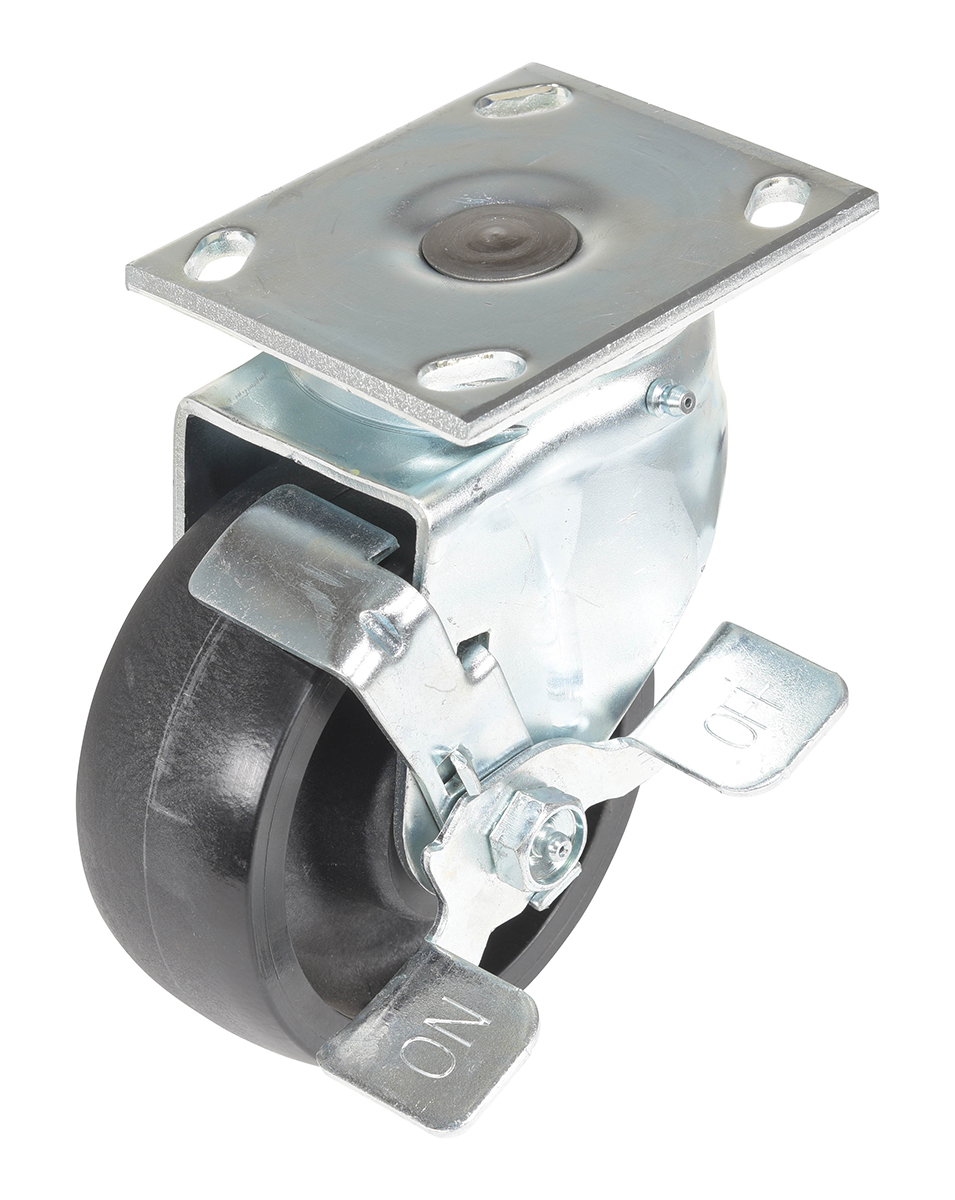

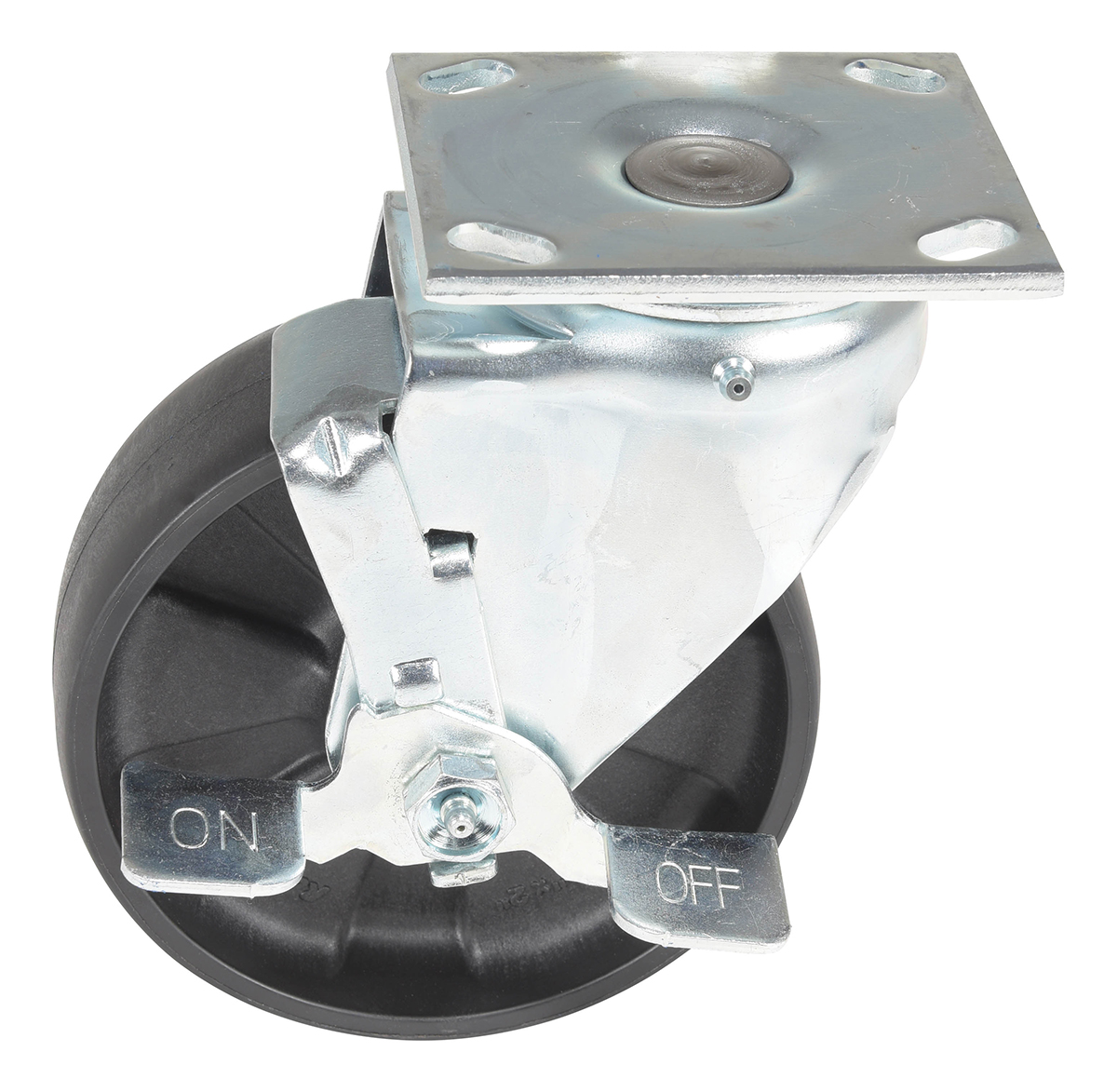

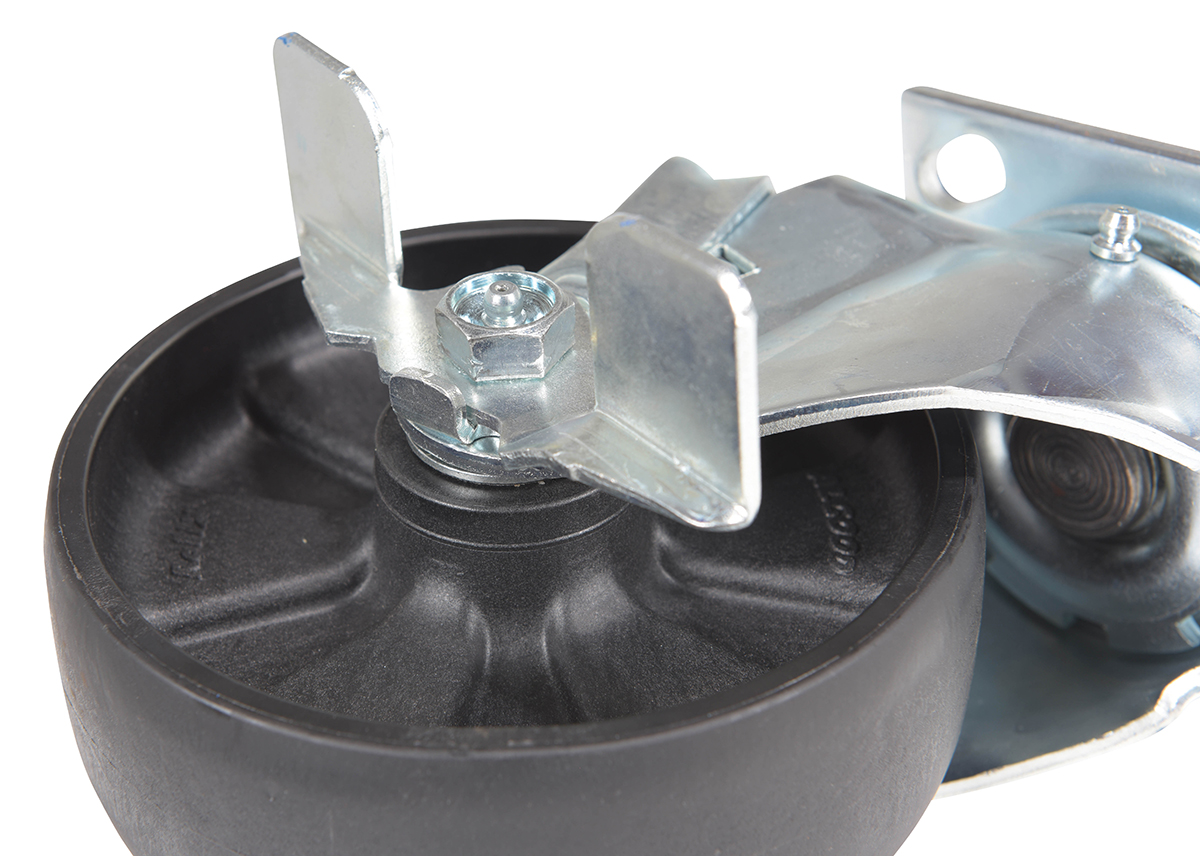

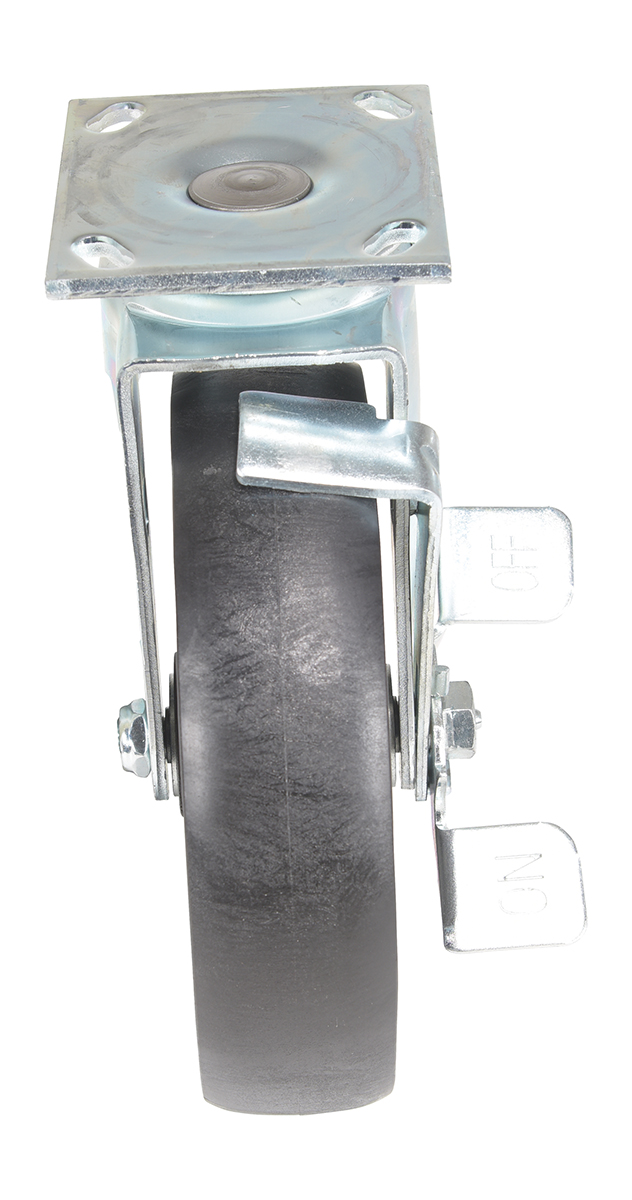

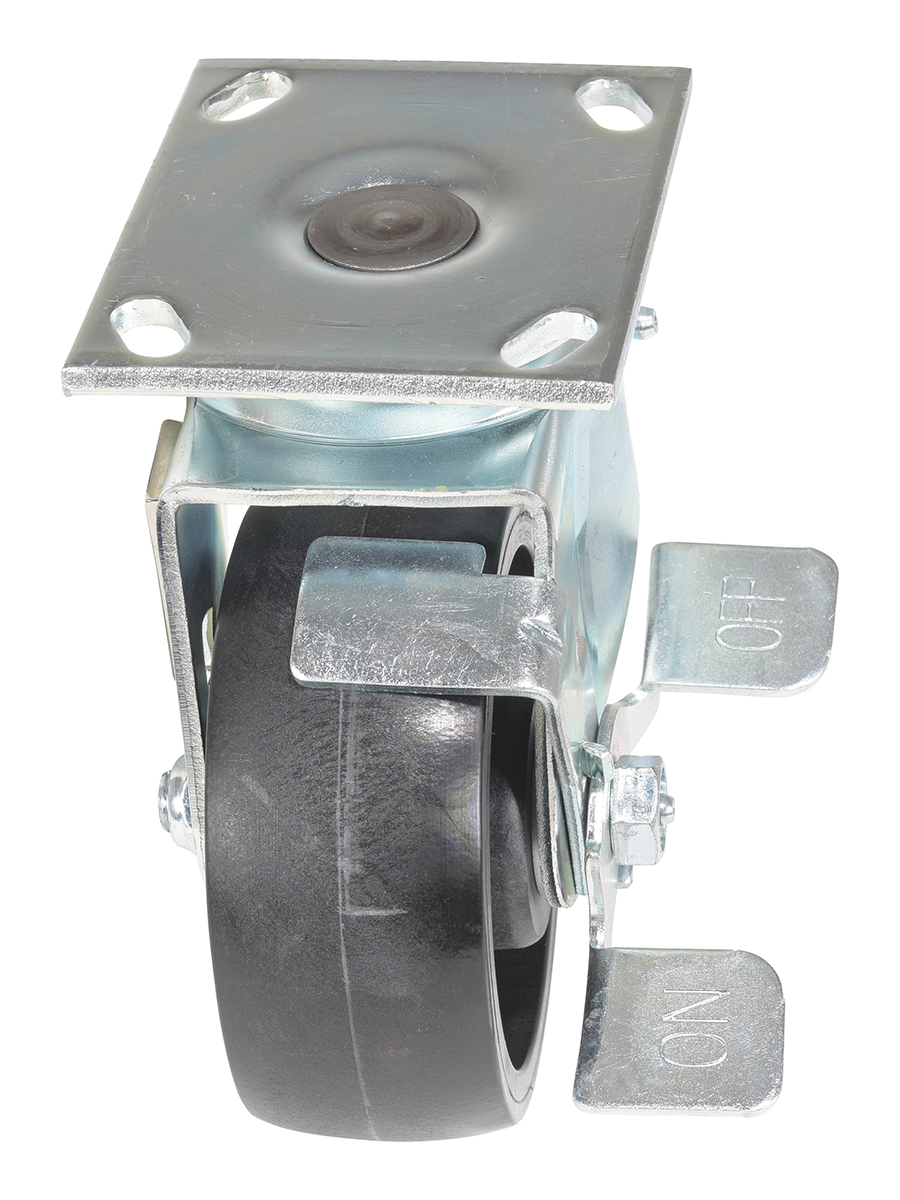

SWIVEL CASTERS WITH BRAKE

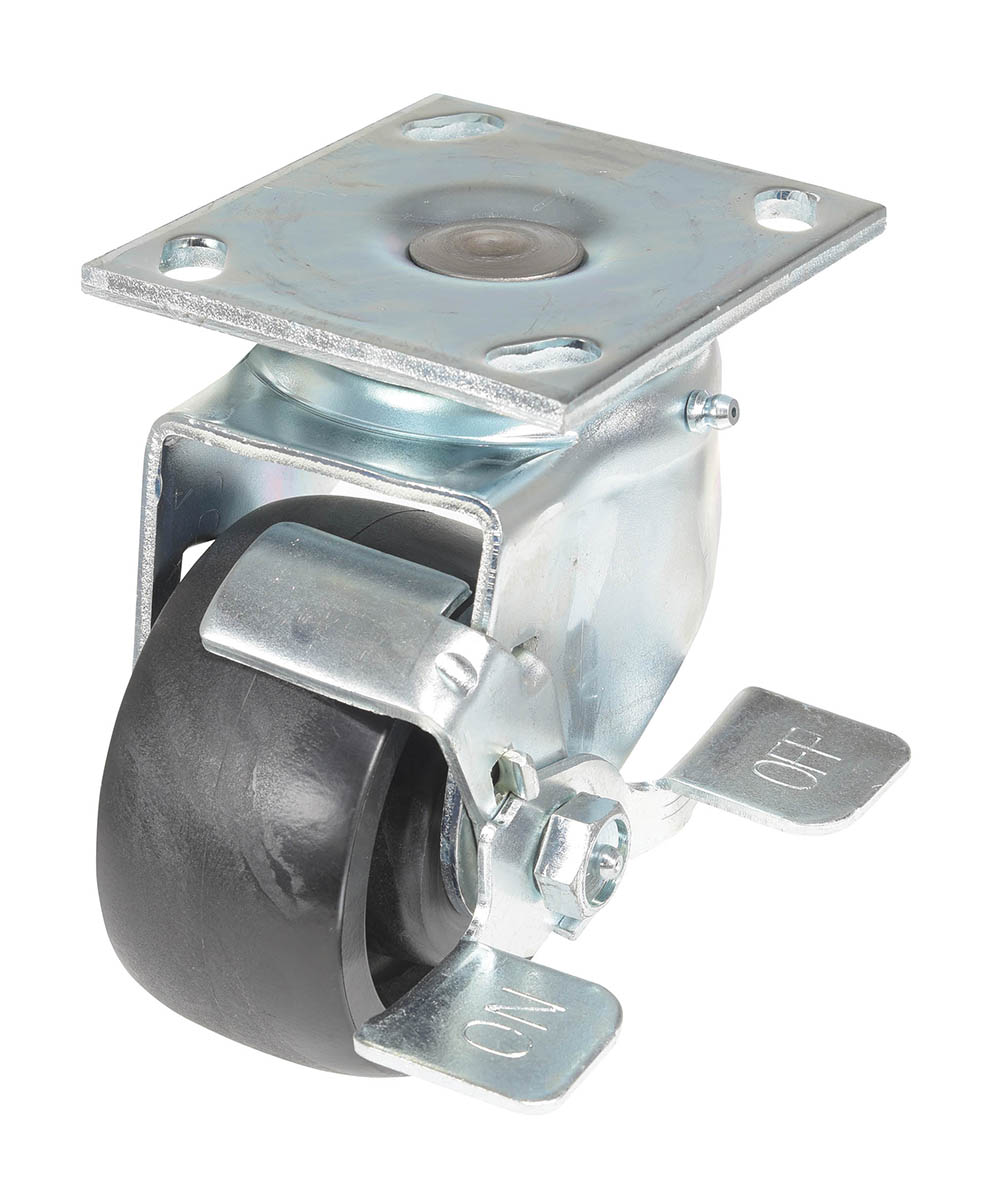

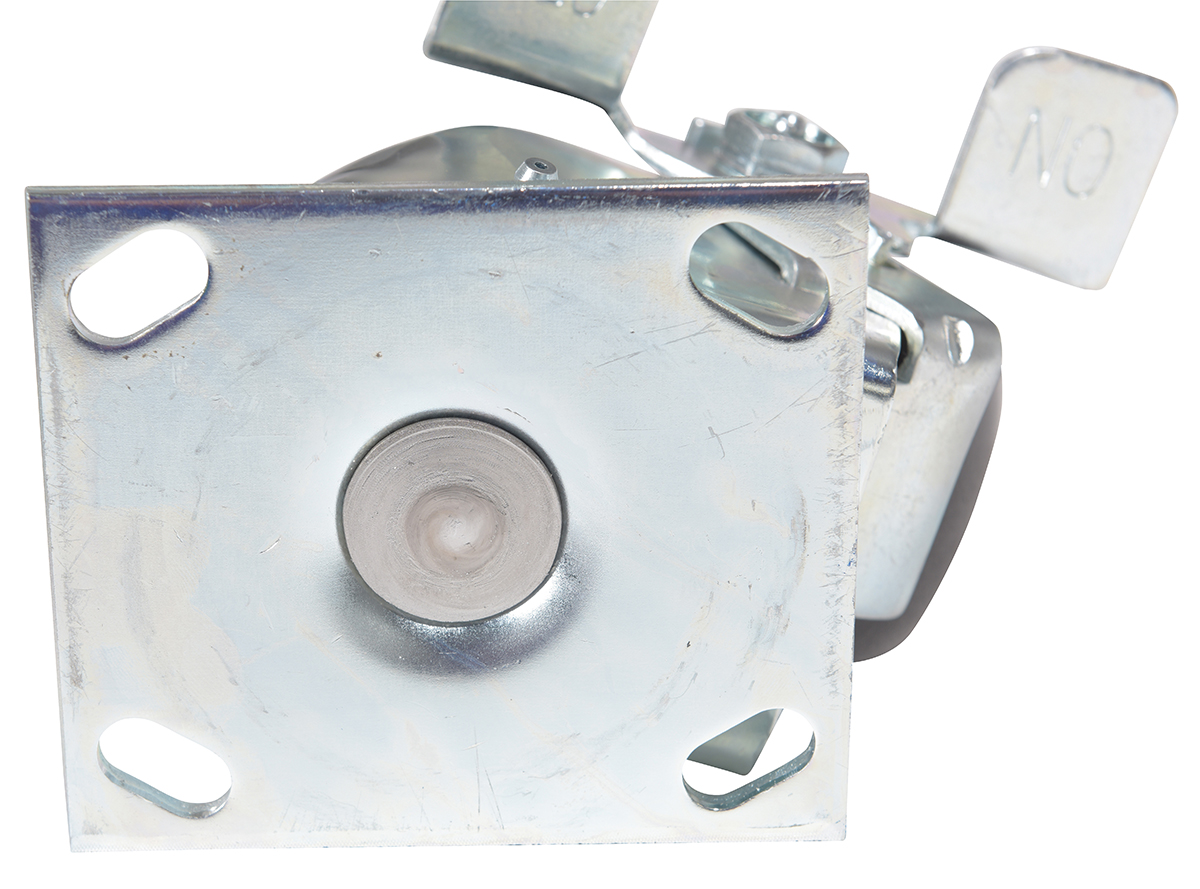

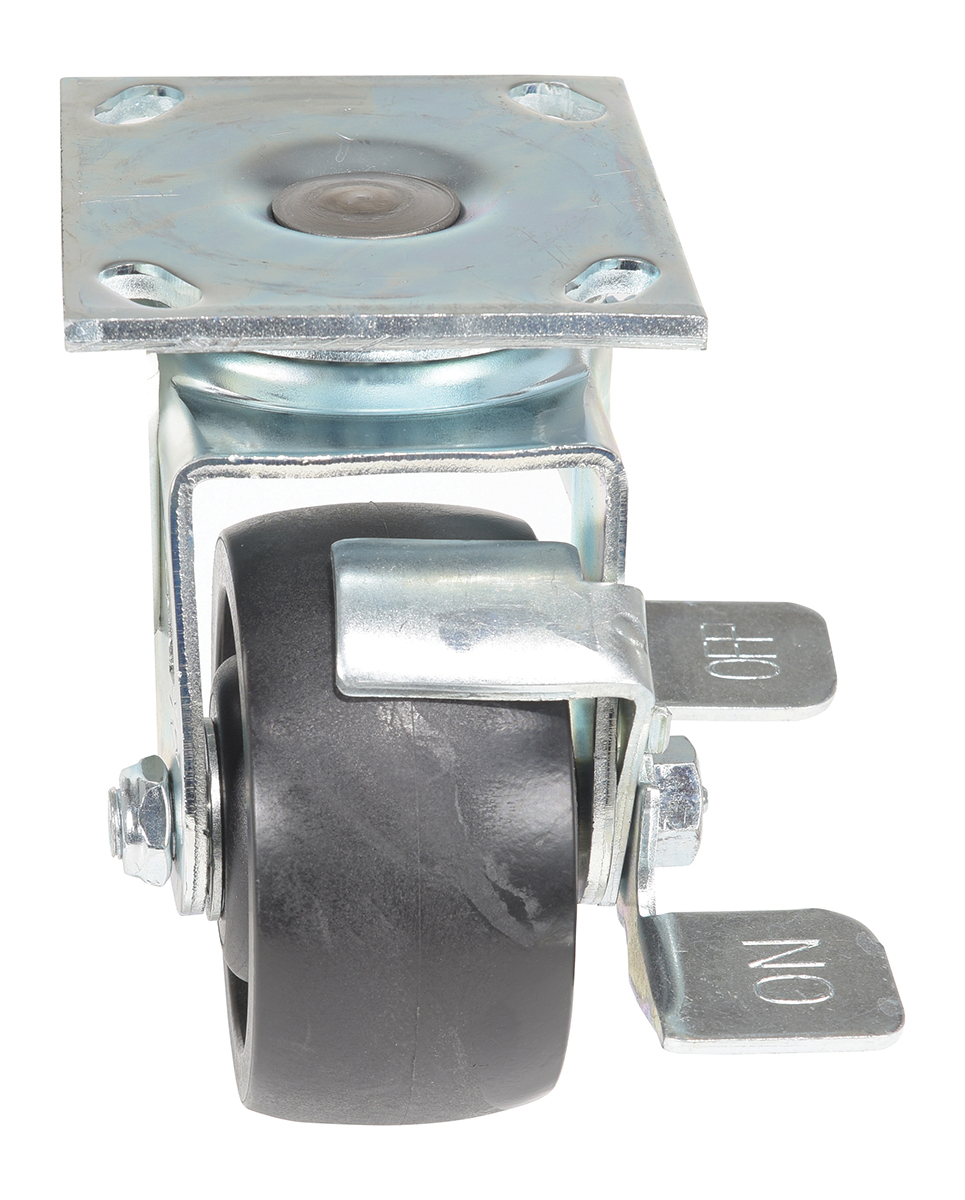

CST-HLD-4X2GFN-SWB 4"x2" 1,200 lb. 5-3/4" 4"x4-1/2" 5.06

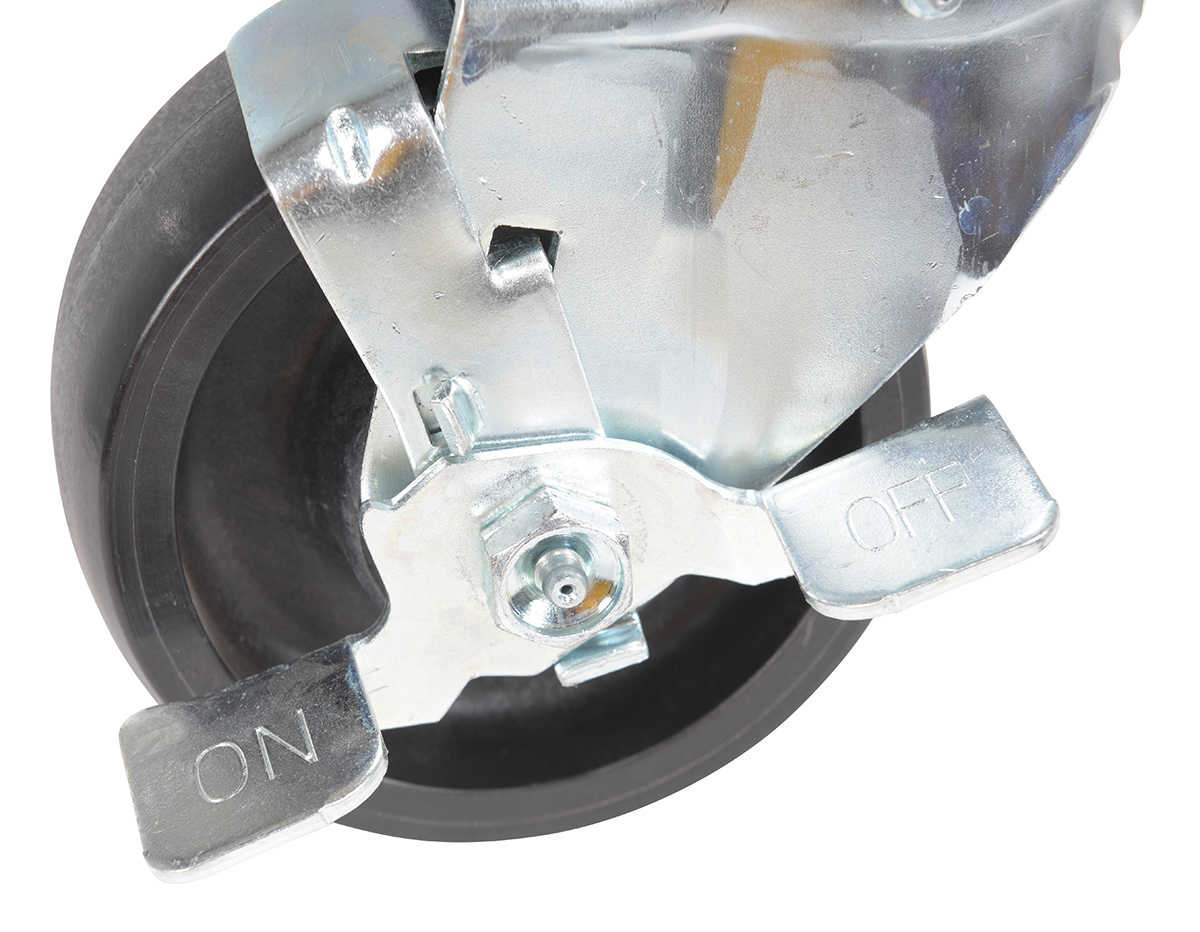

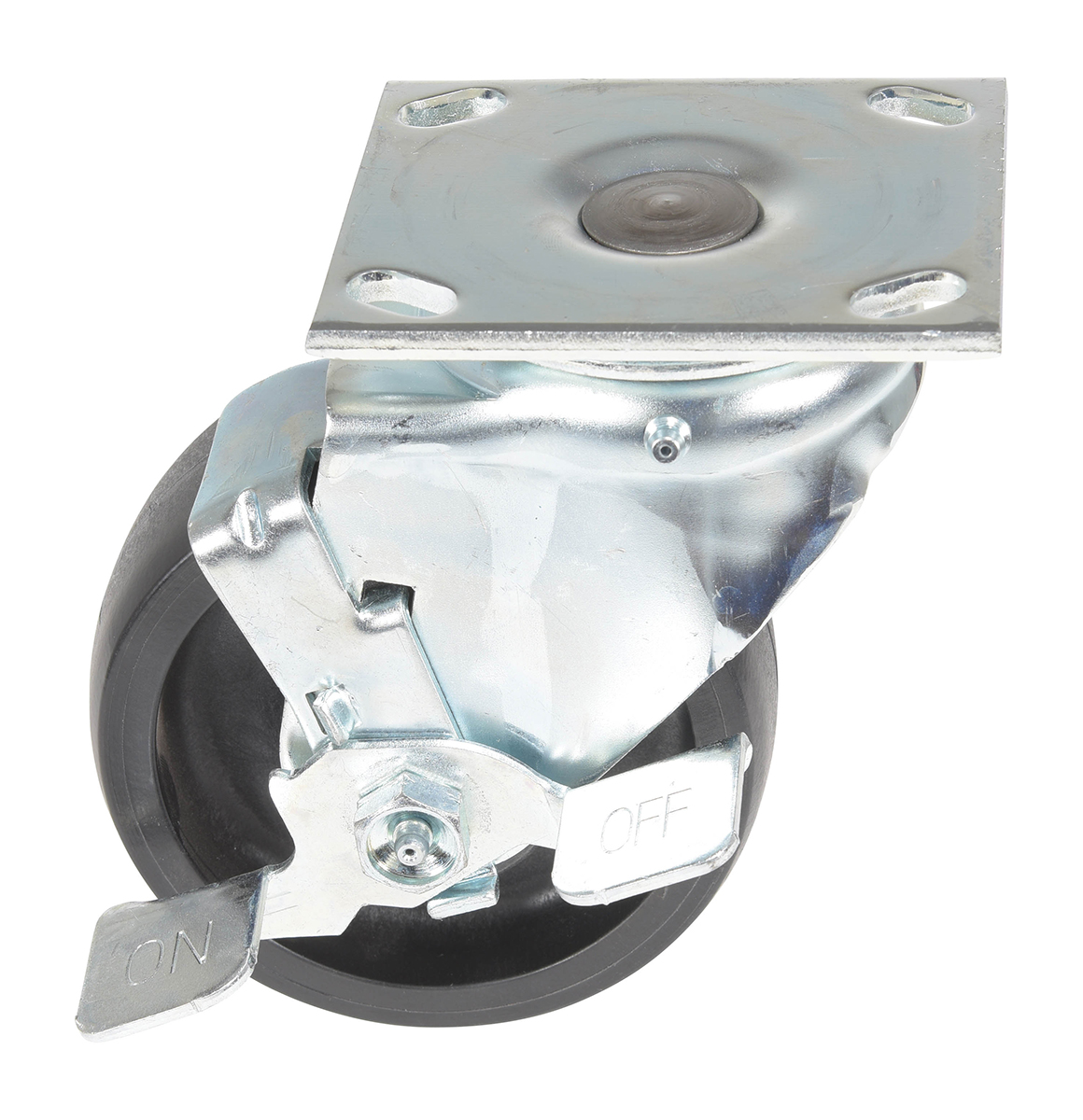

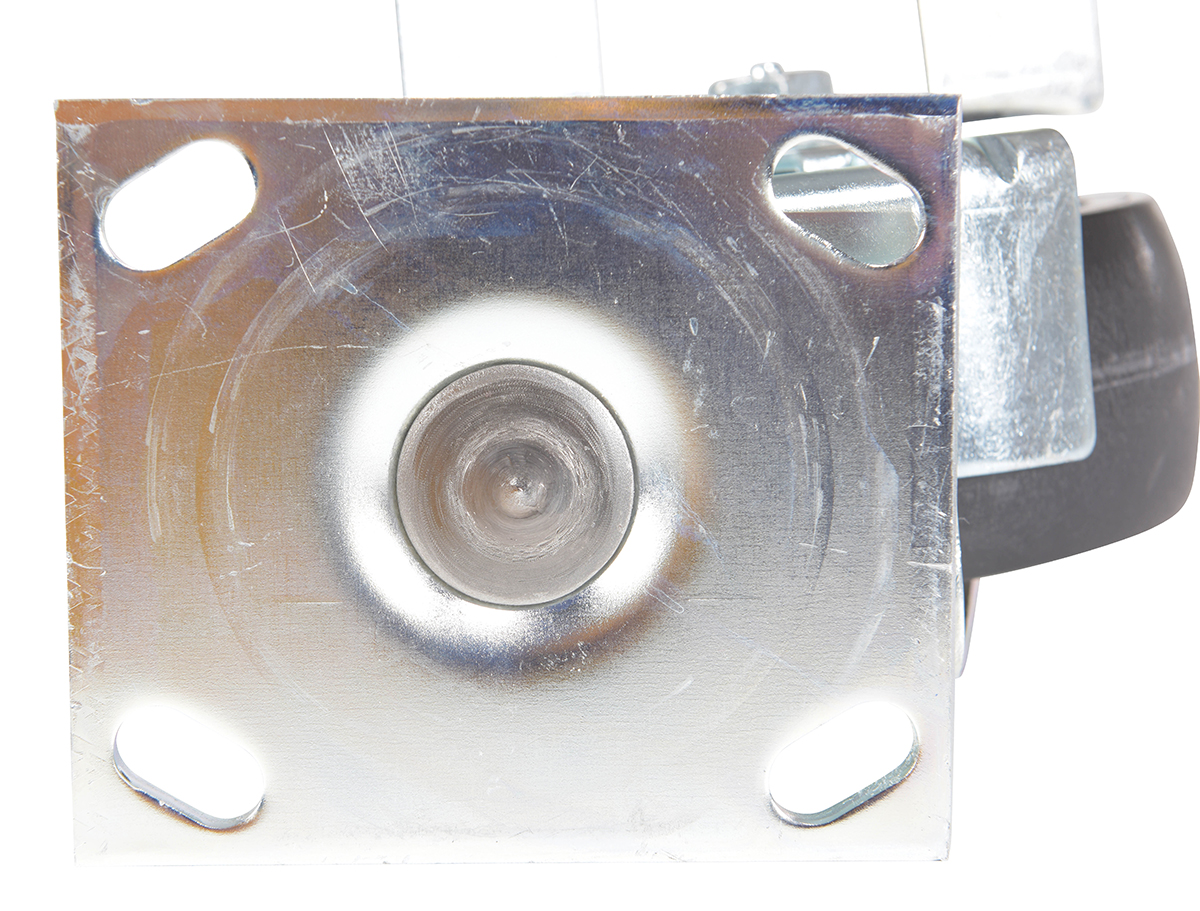

CST-HLD-5X2GFN-SWB 5"x2" 1,200 lb. 6-1/2" 4"x4-1/2" 5.42

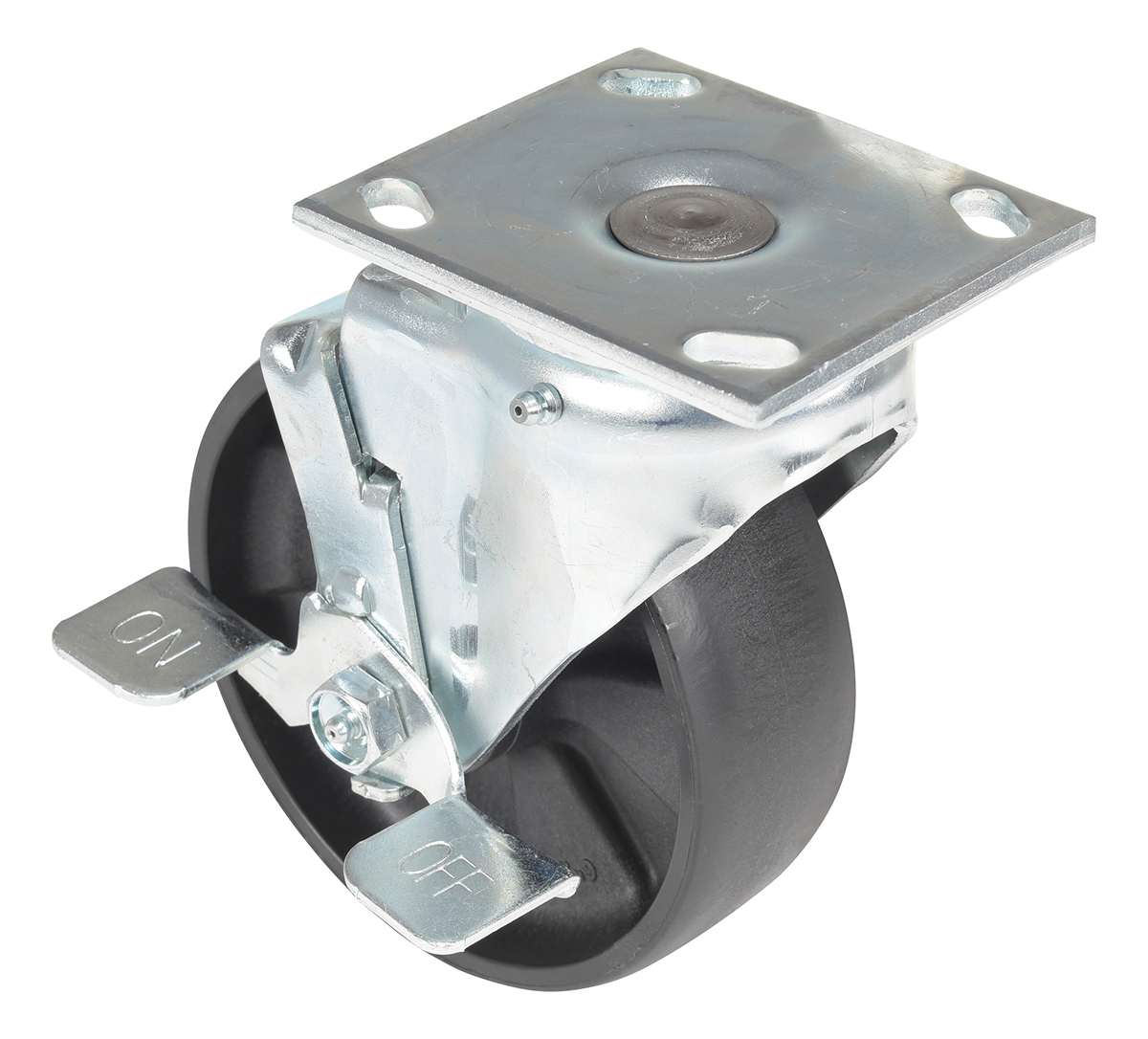

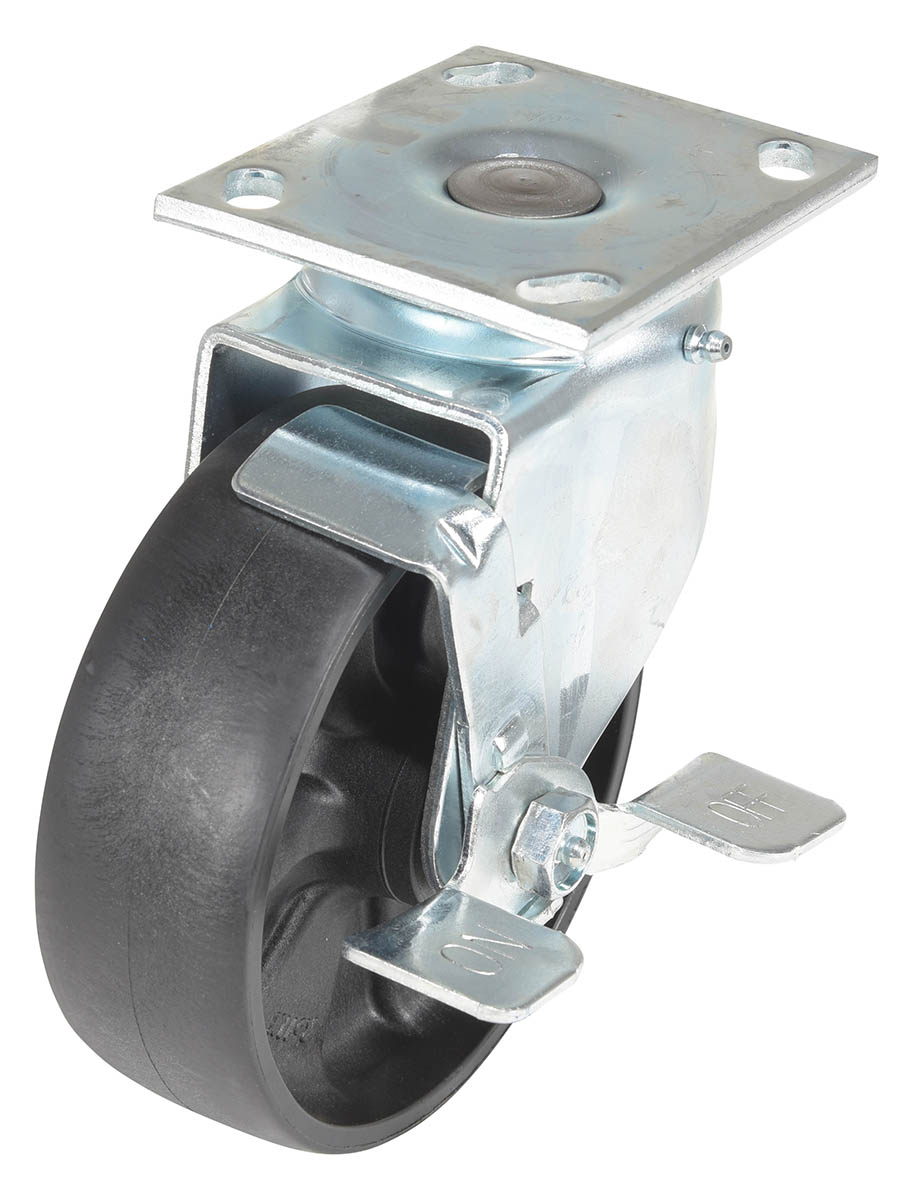

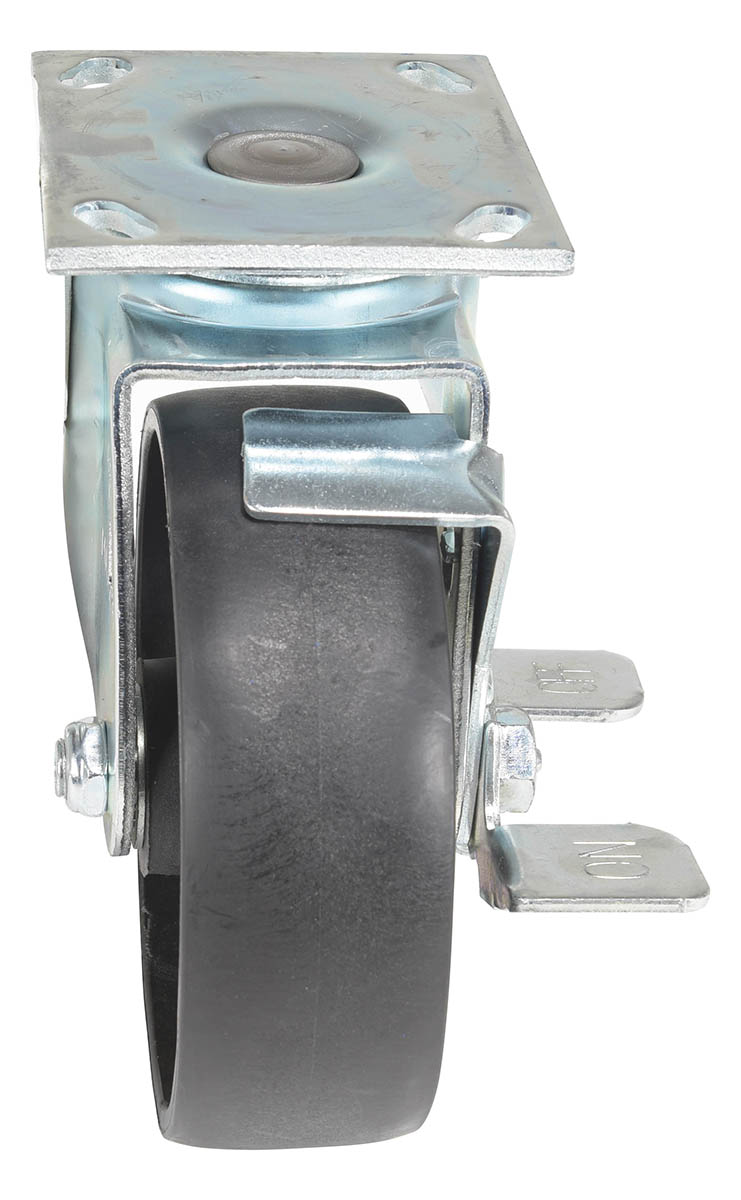

CST-HLD-6X2GFN-SWB 6"x2" 1,200 lb. 7-1/2" 4"x4-1/2" 5.54

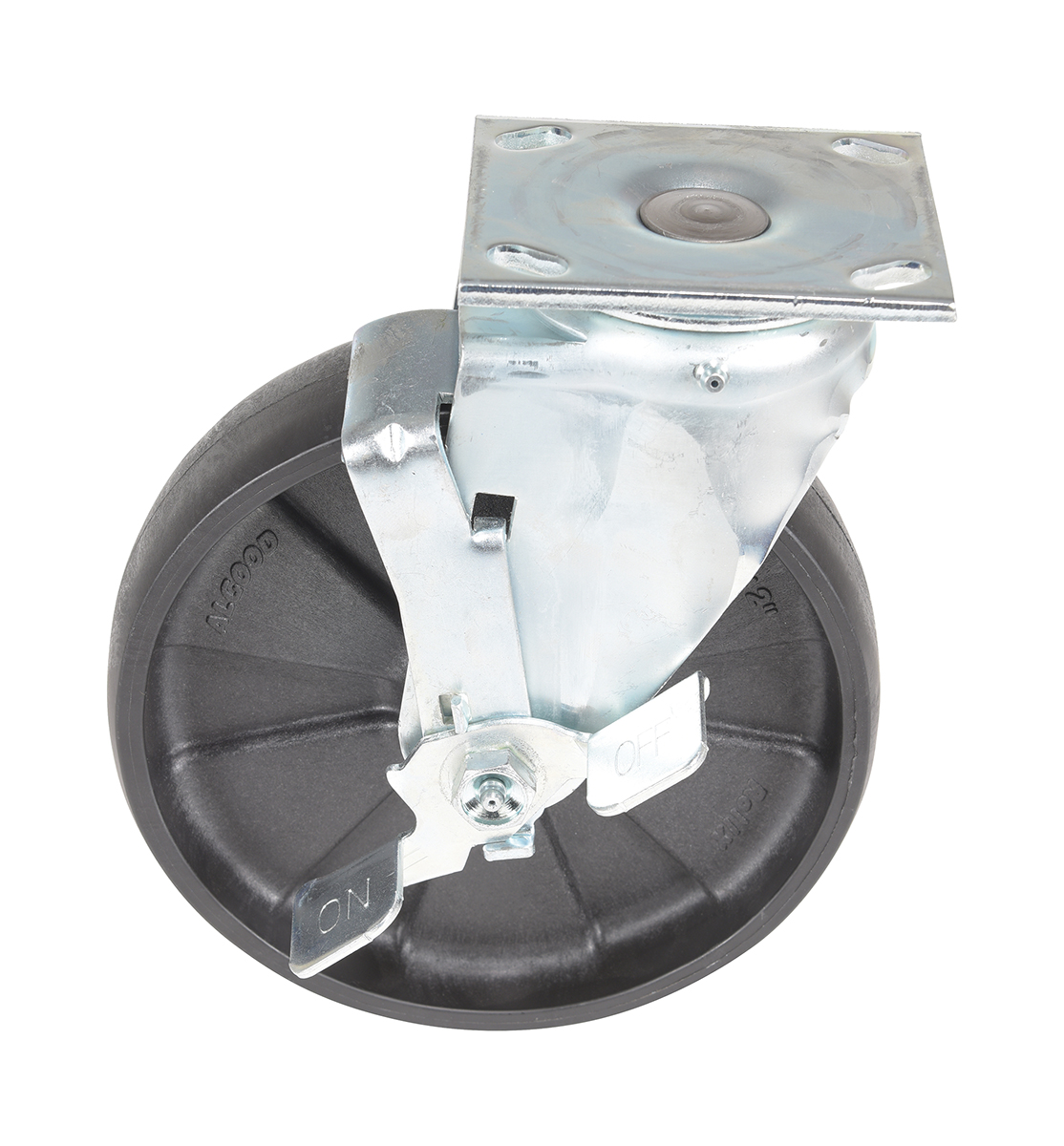

CST-HLD-8X2GFN-SWB 8"x2" 1,200 lb. 9-1/2" 4"x4-1/2" 6.41

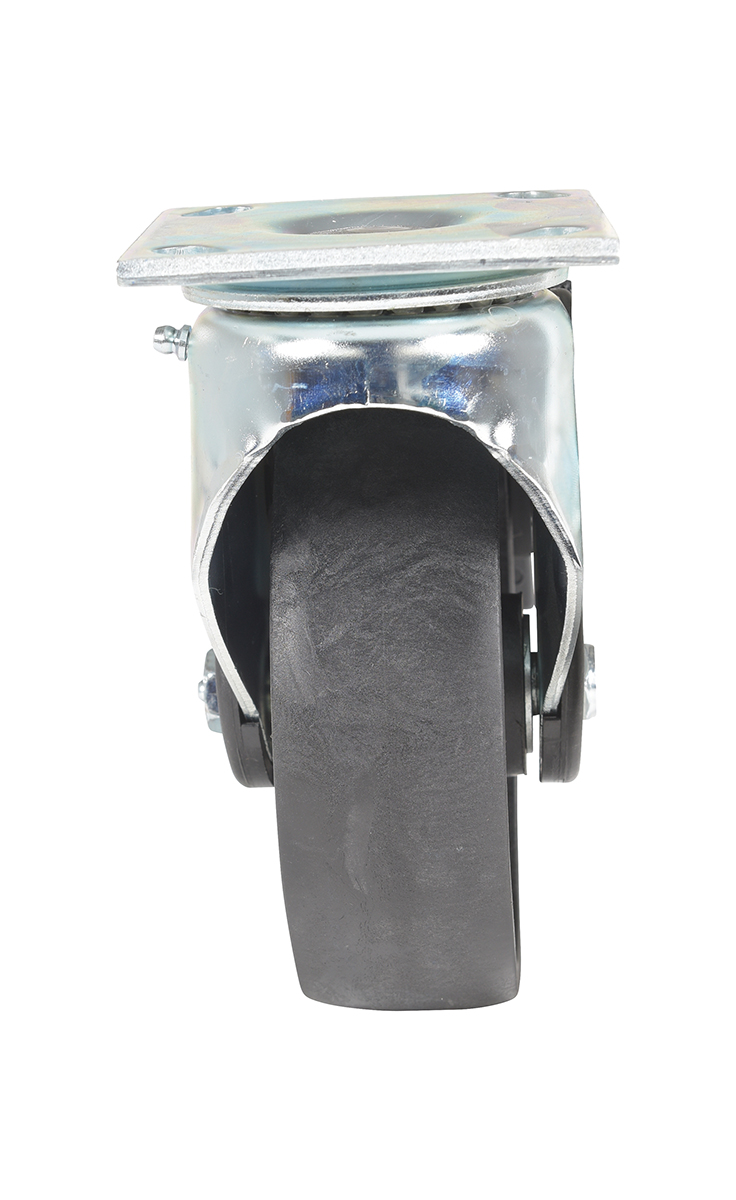

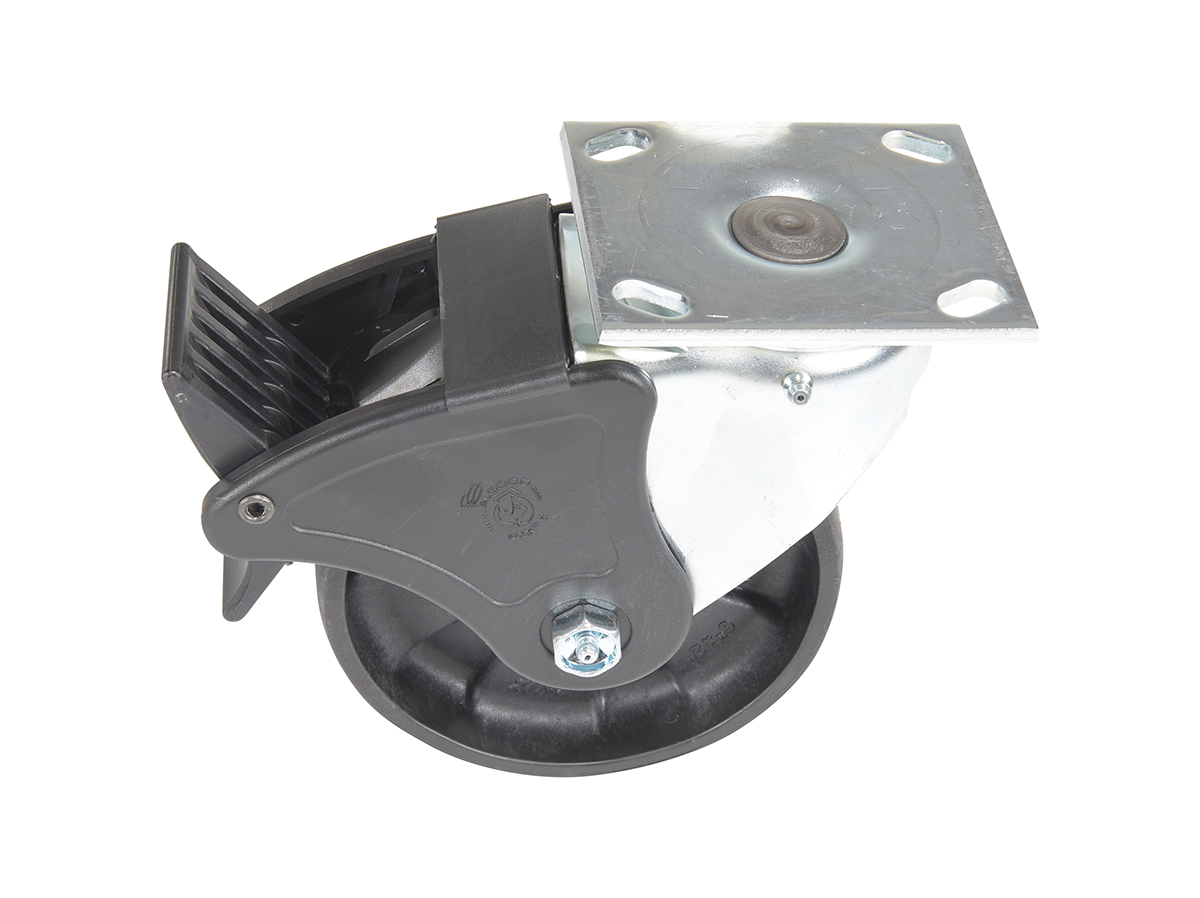

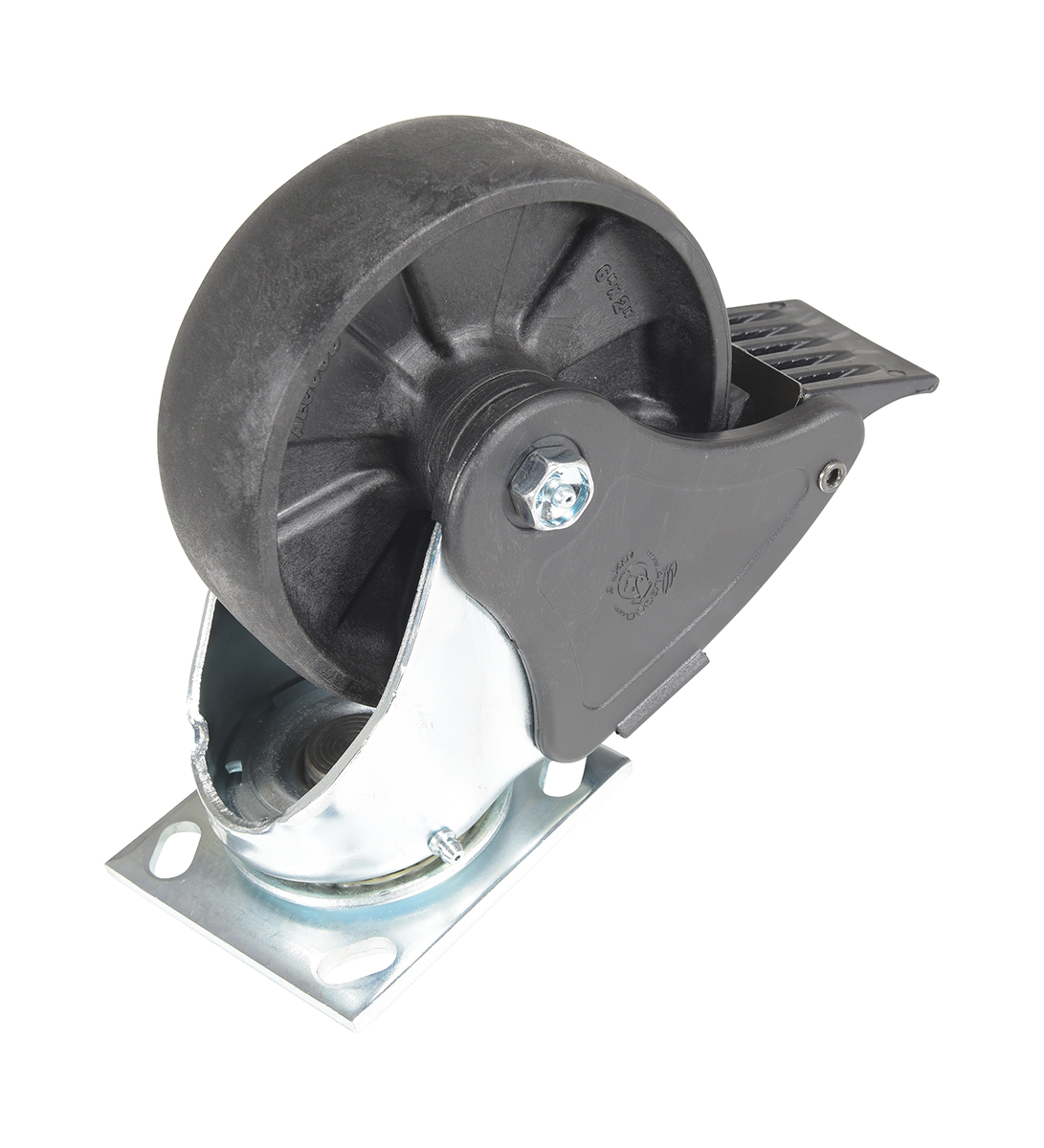

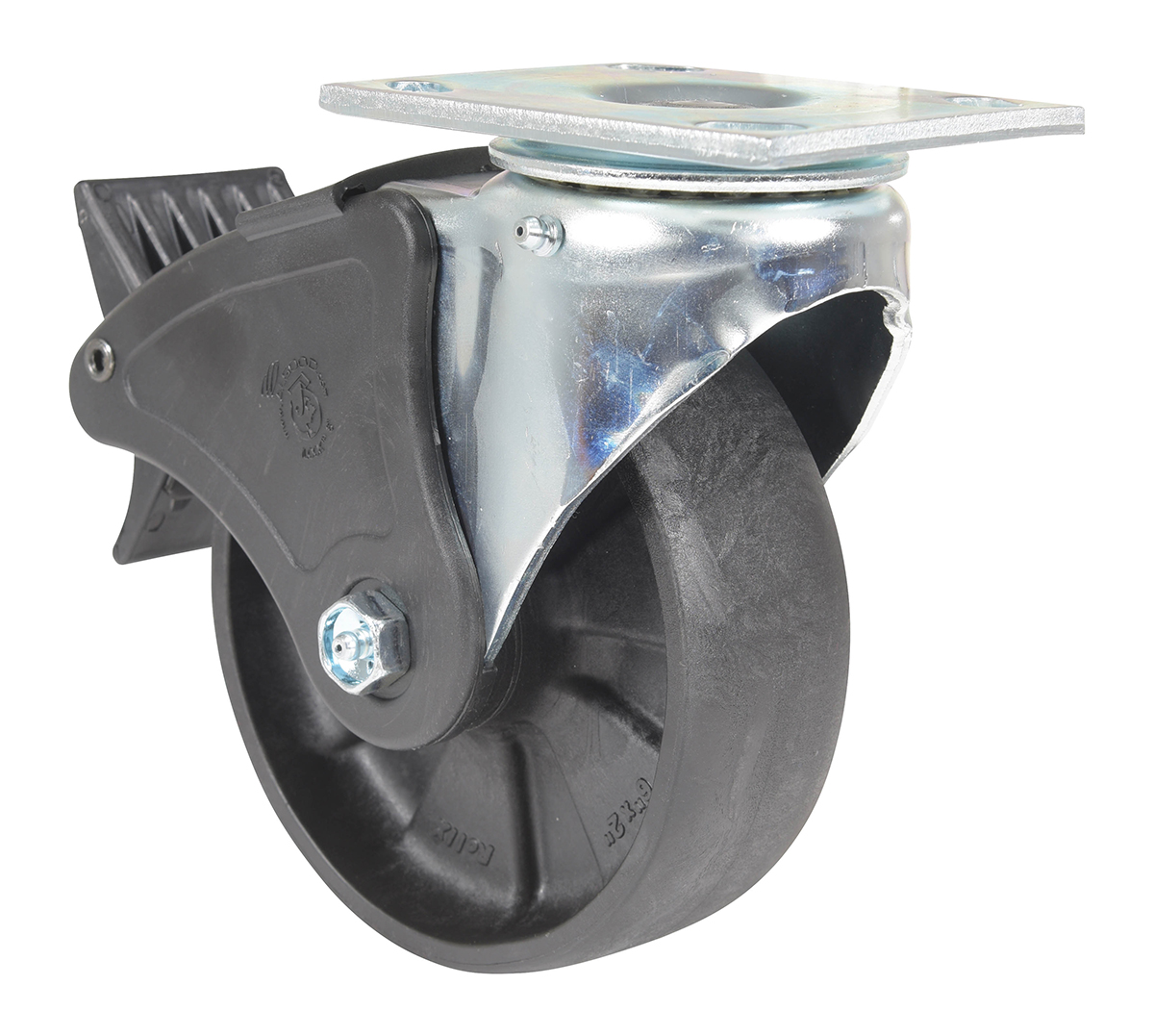

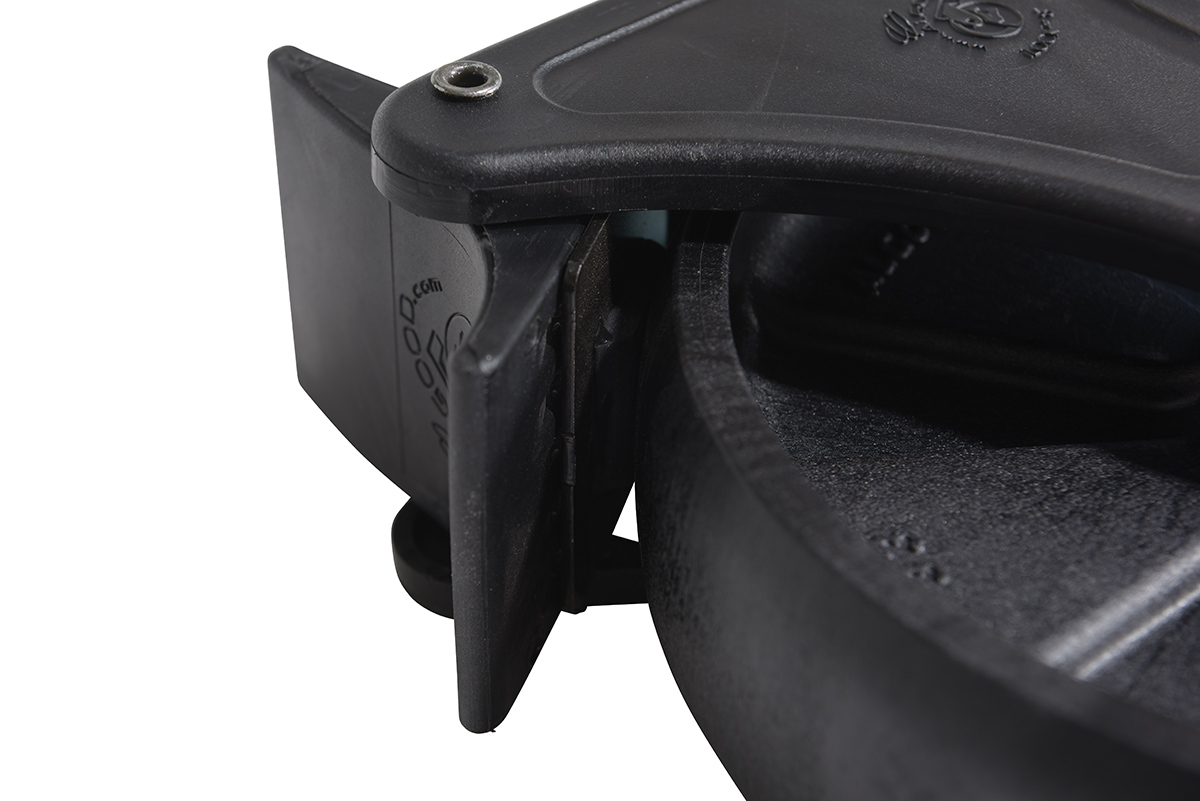

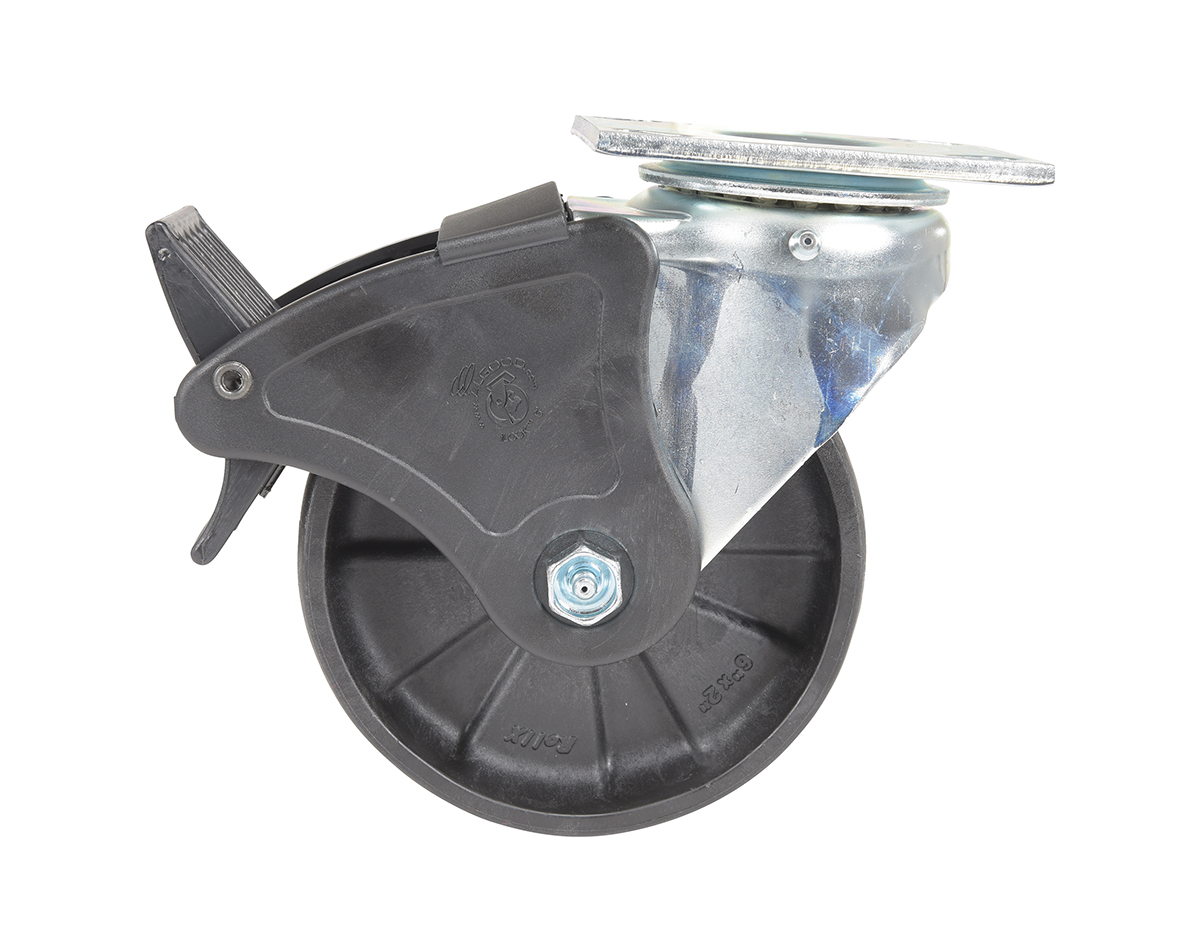

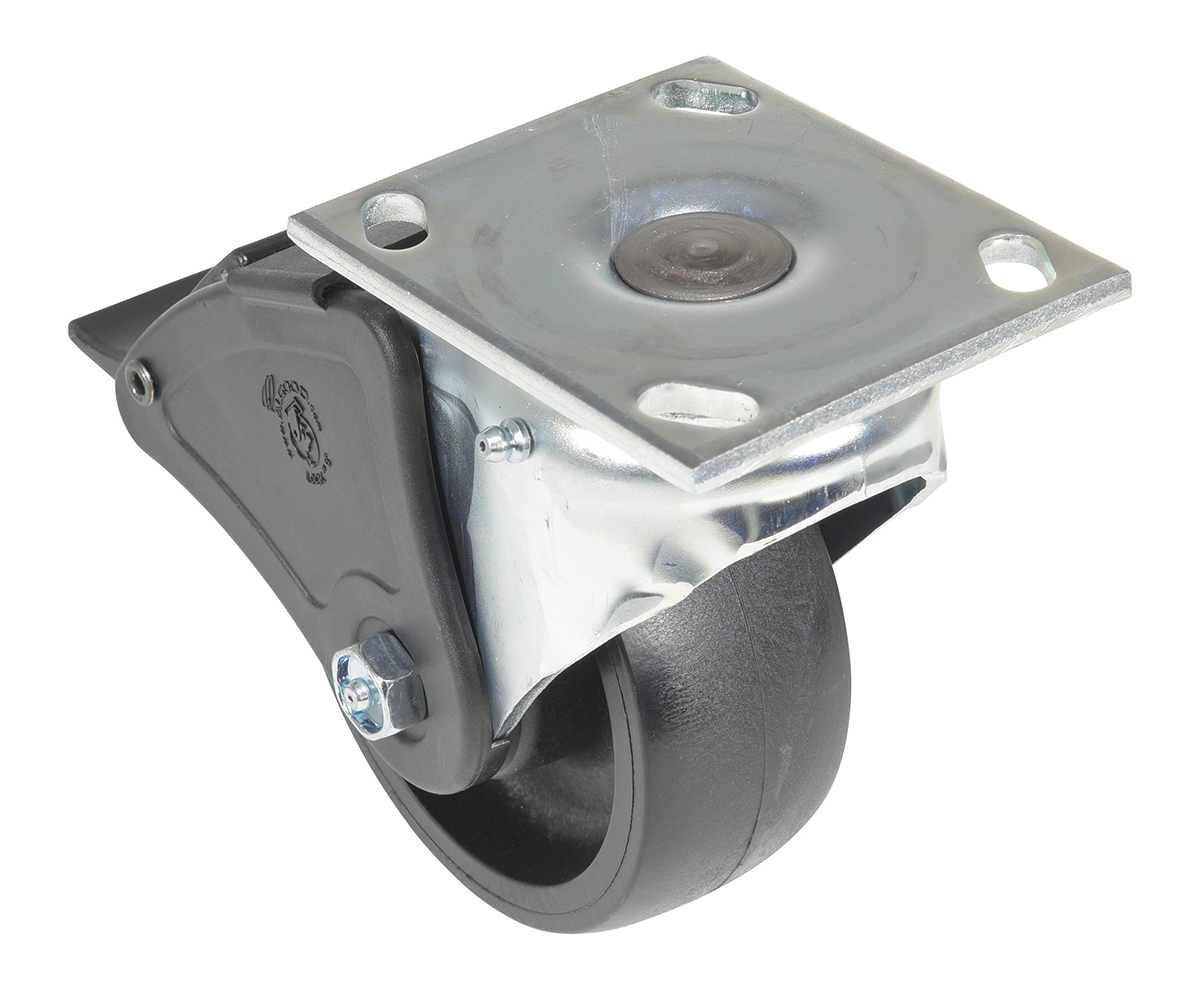

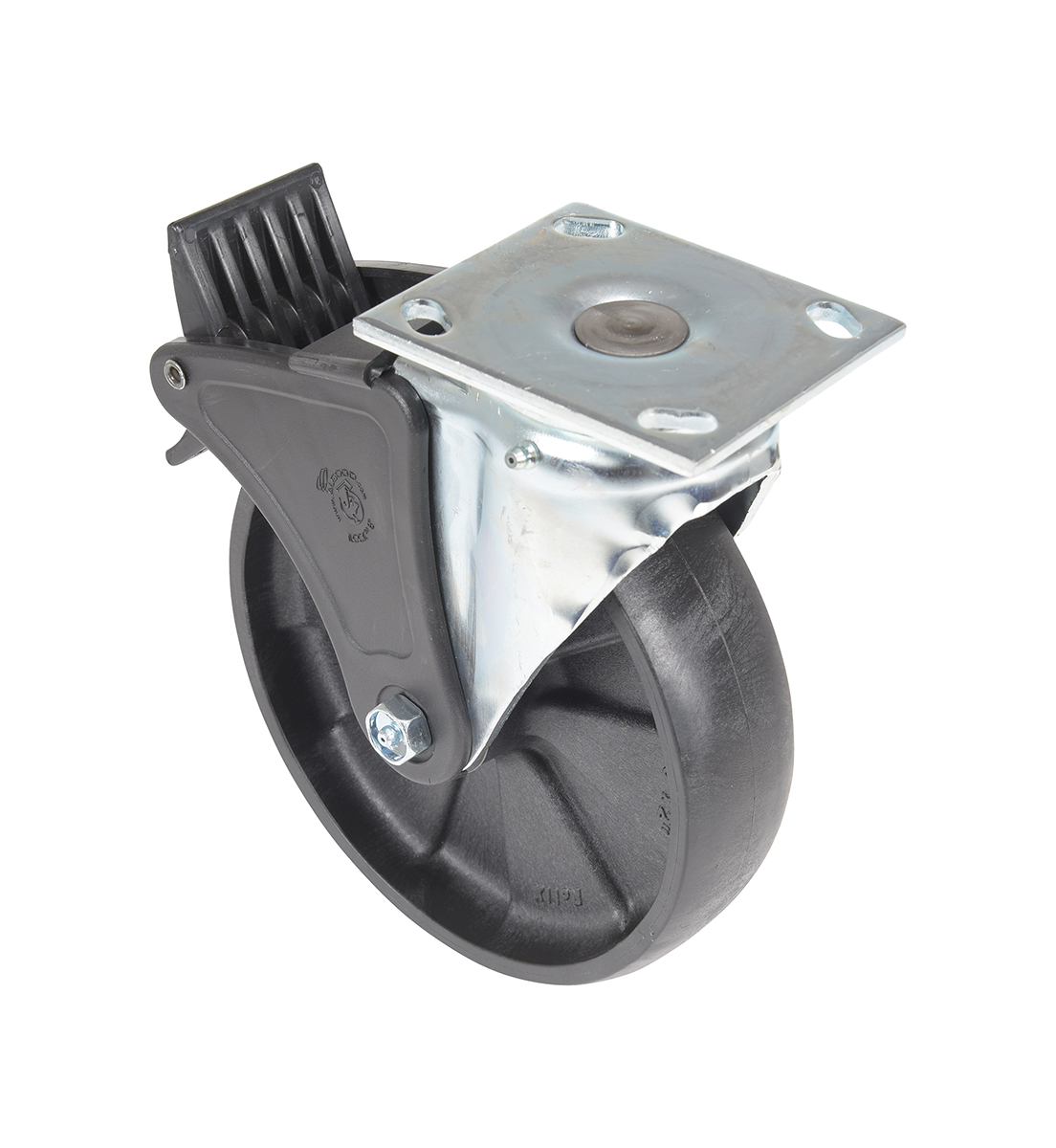

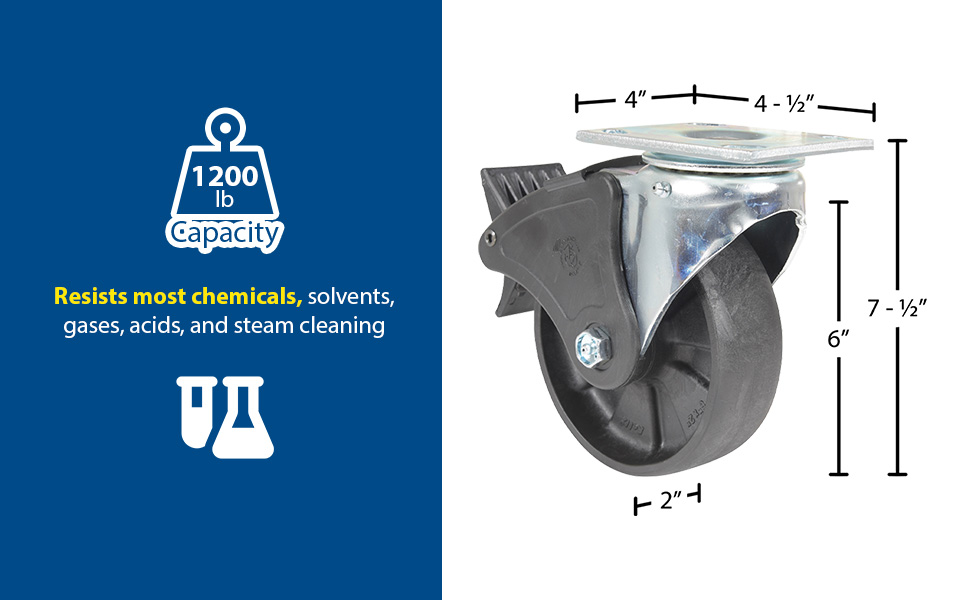

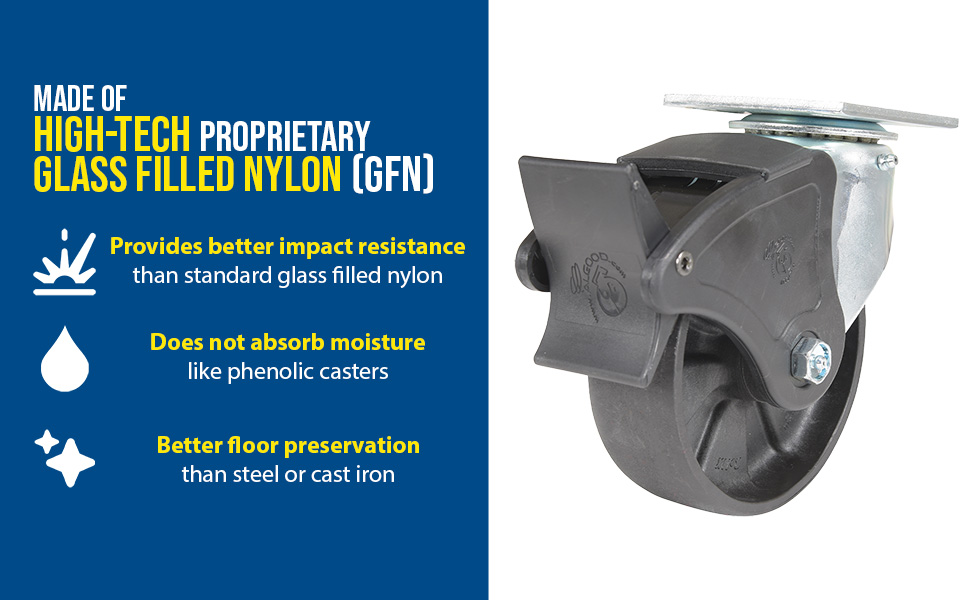

SWIVEL CASTERS WITH TOTAL BRAKE

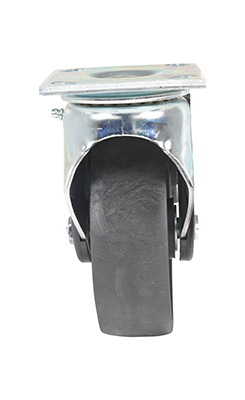

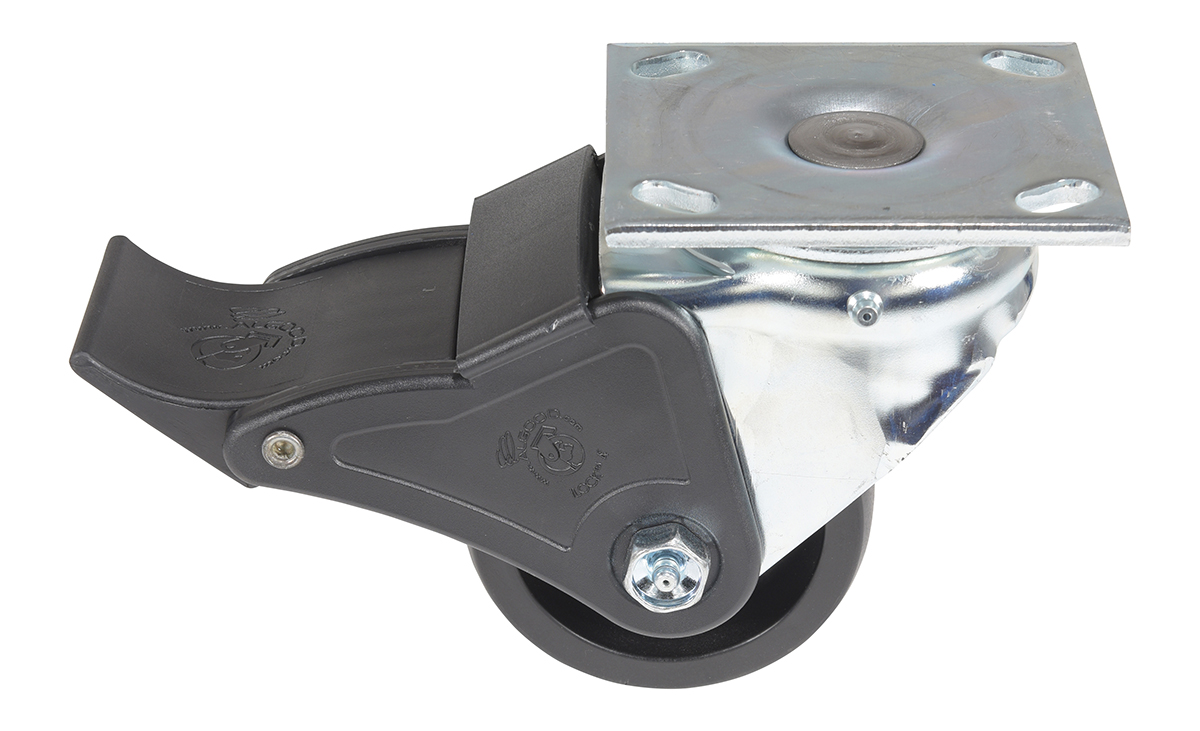

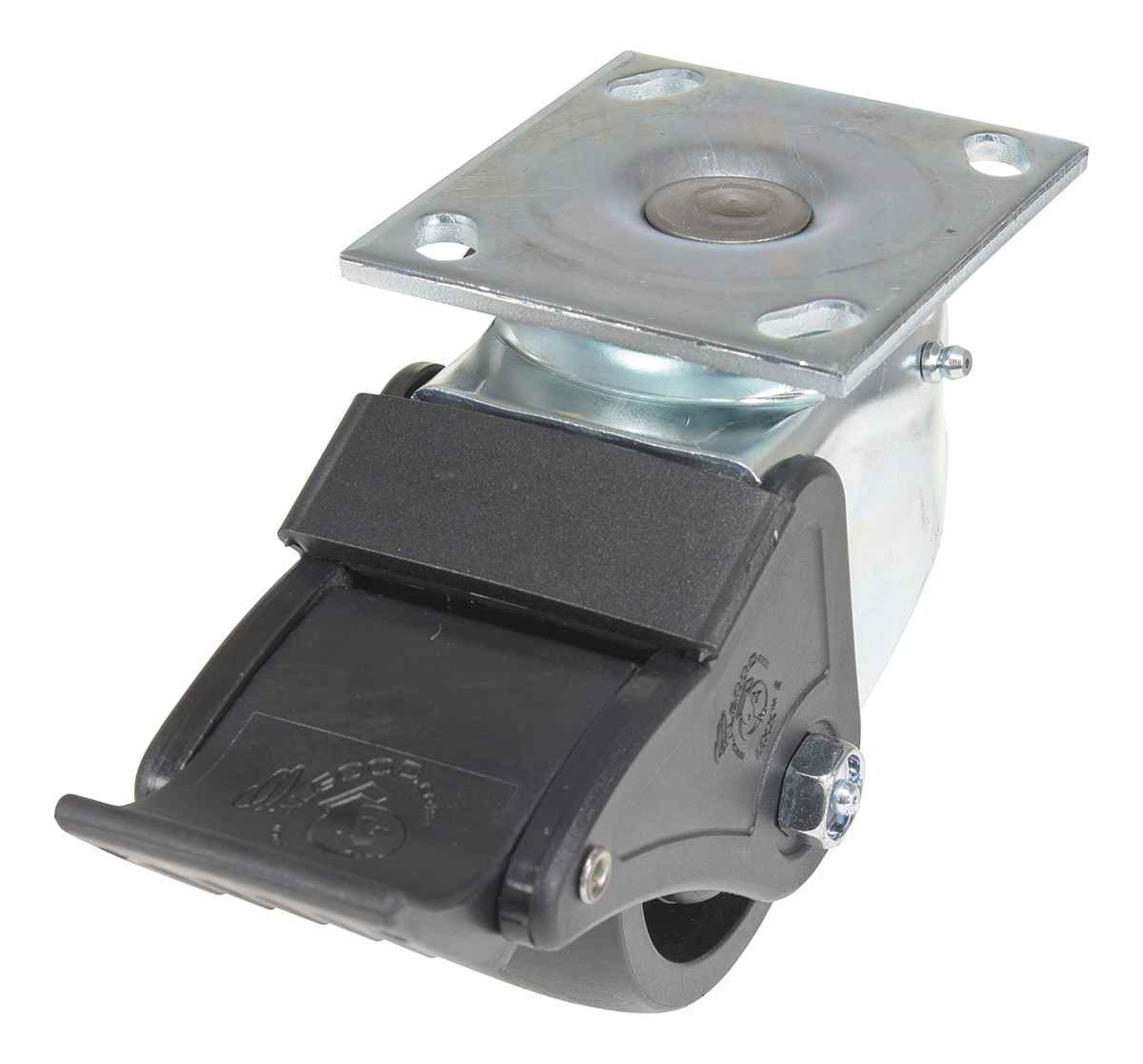

CST-HLD-4X2GFN-SWTB1 4"x2" 1,200 lb. 5-3/4" 4"x4-1/2" 5.34

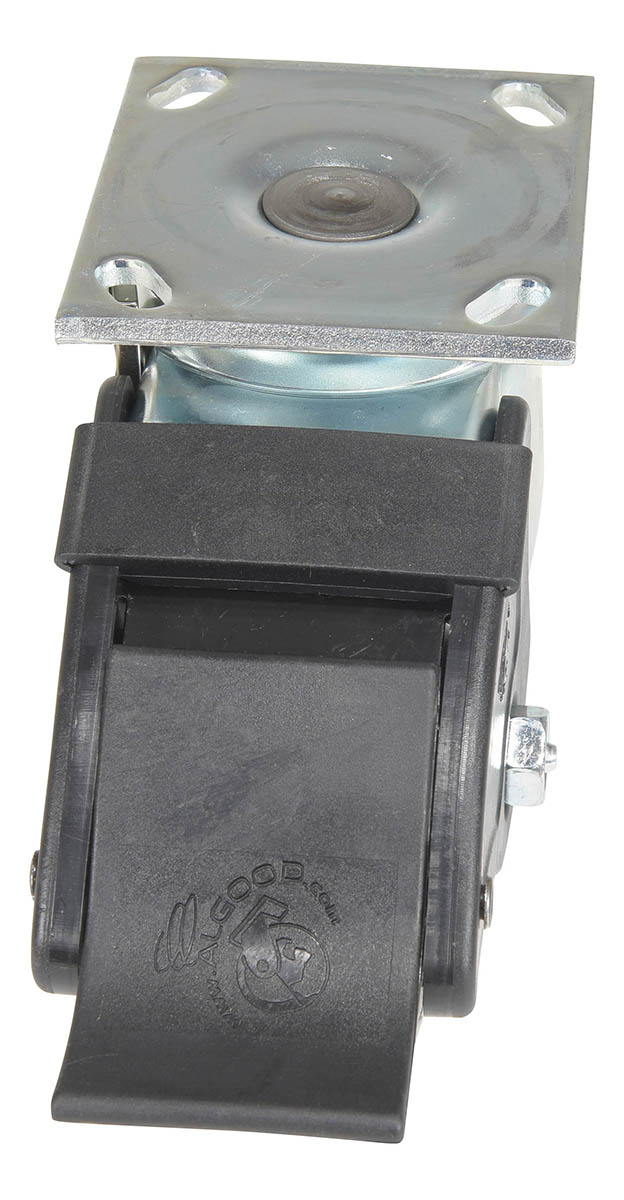

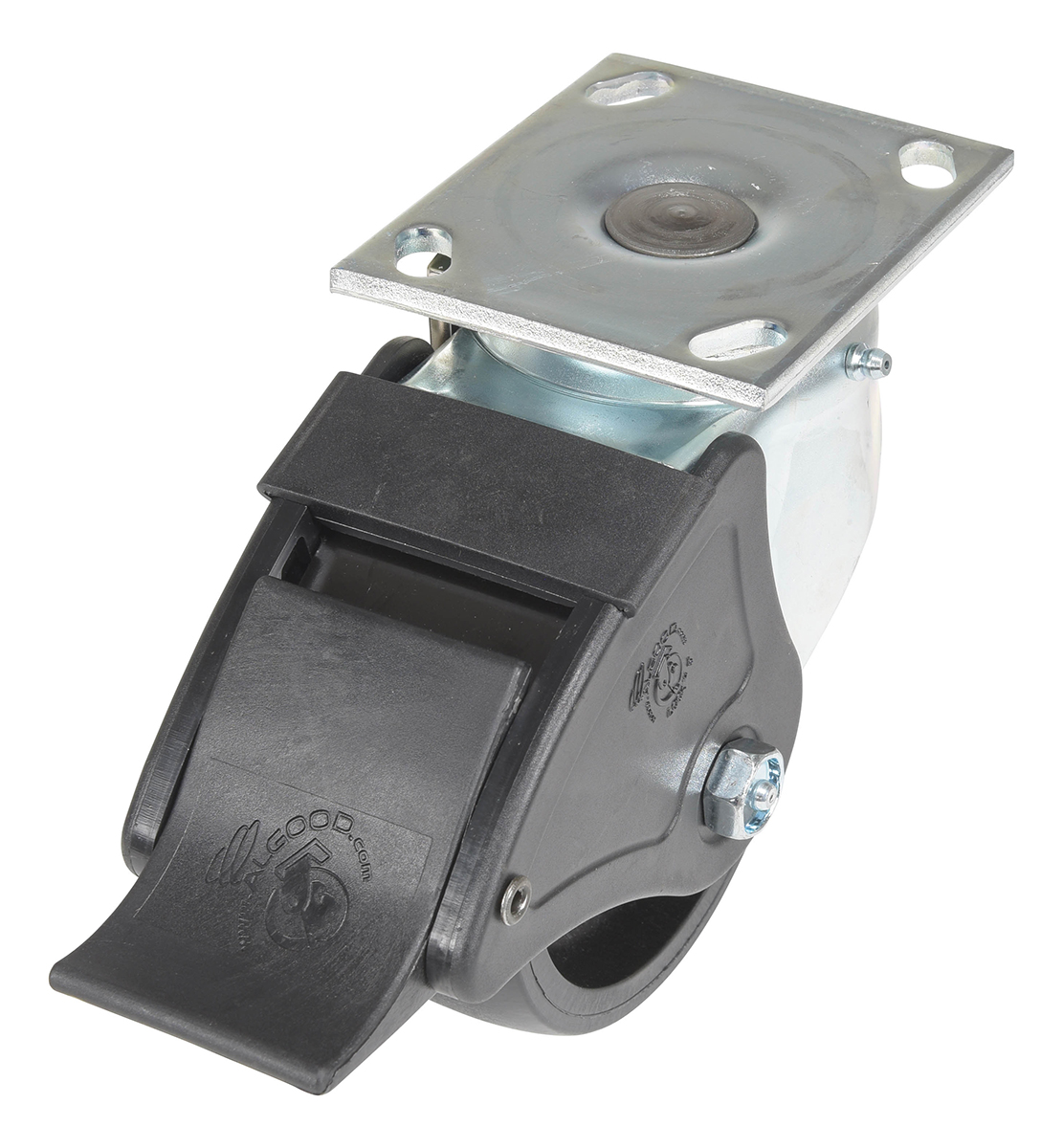

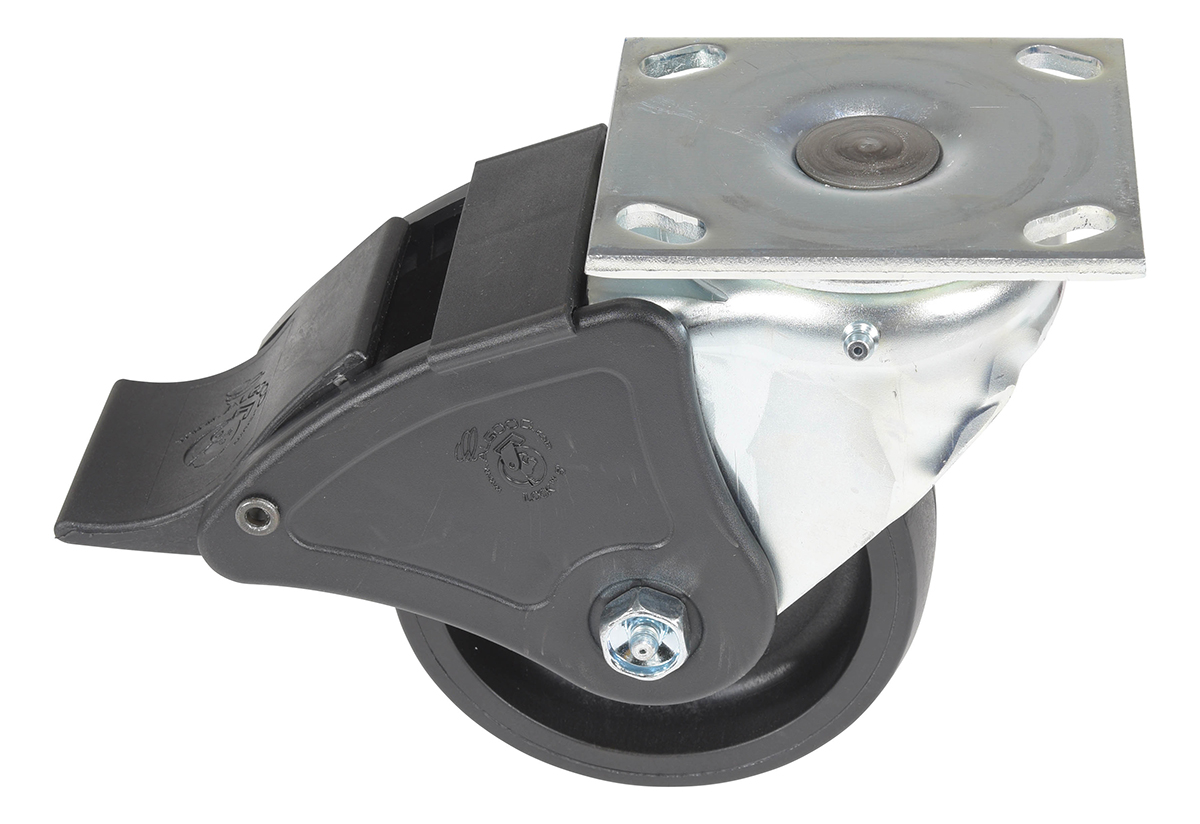

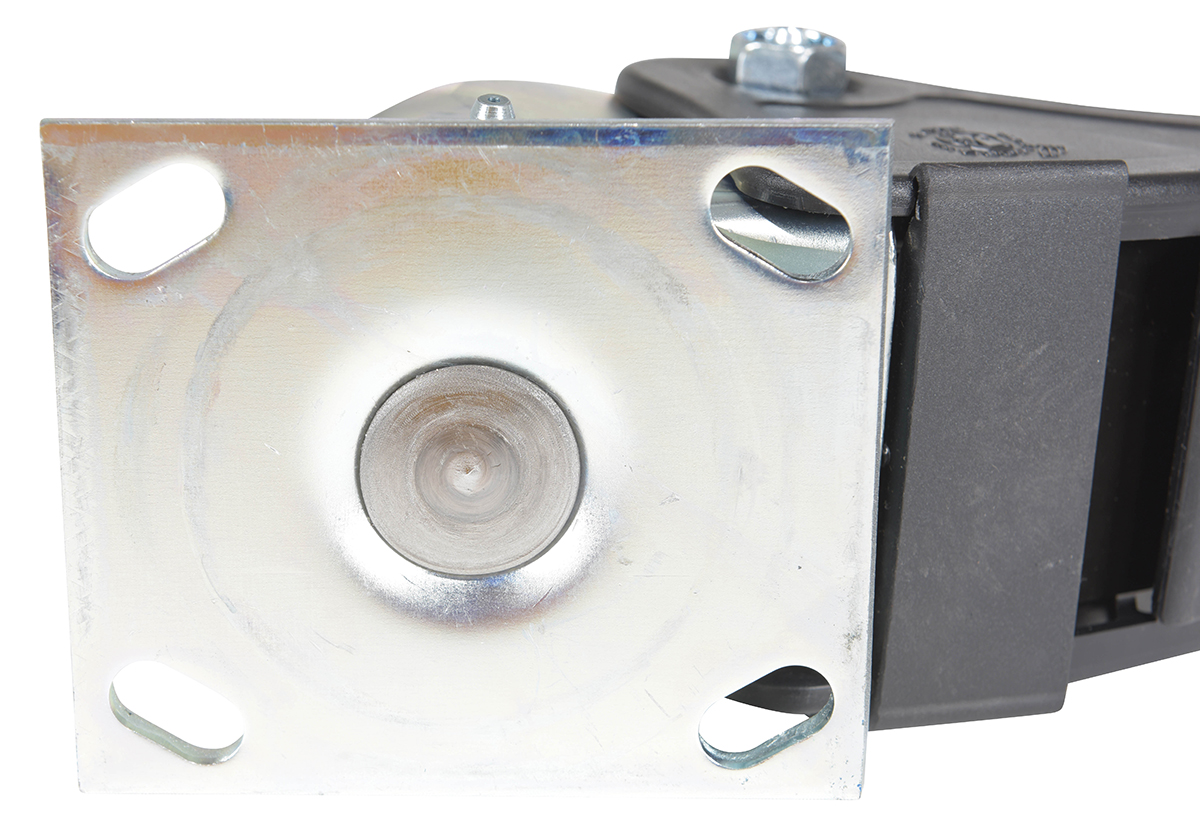

CST-HLD-5X2GFN-SWTB1 5"x2" 1,200 lb. 6-1/2" 4"x4-1/2" 5.73

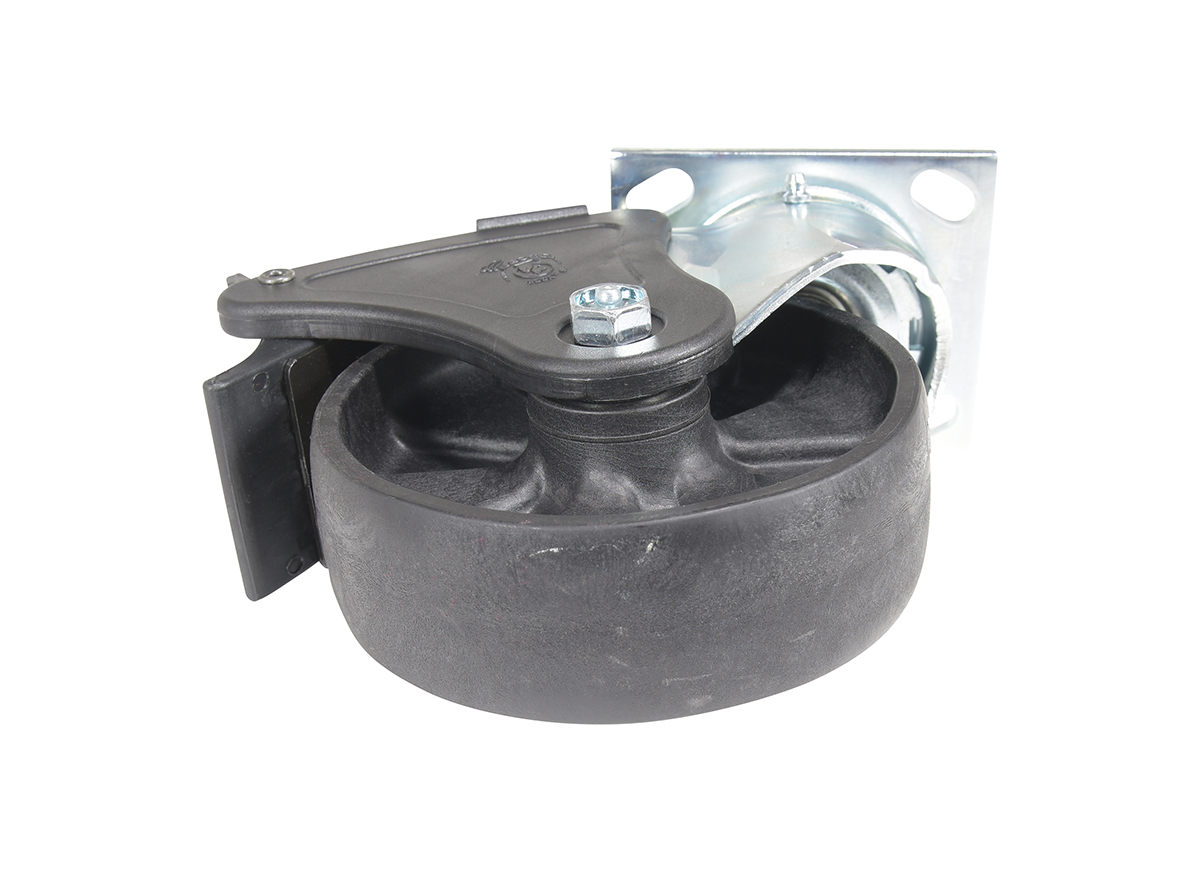

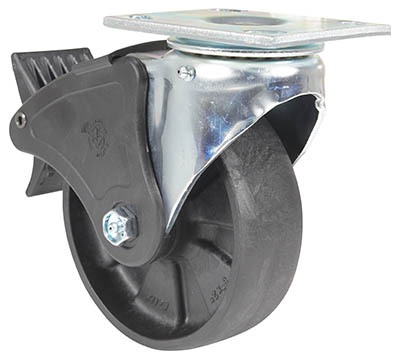

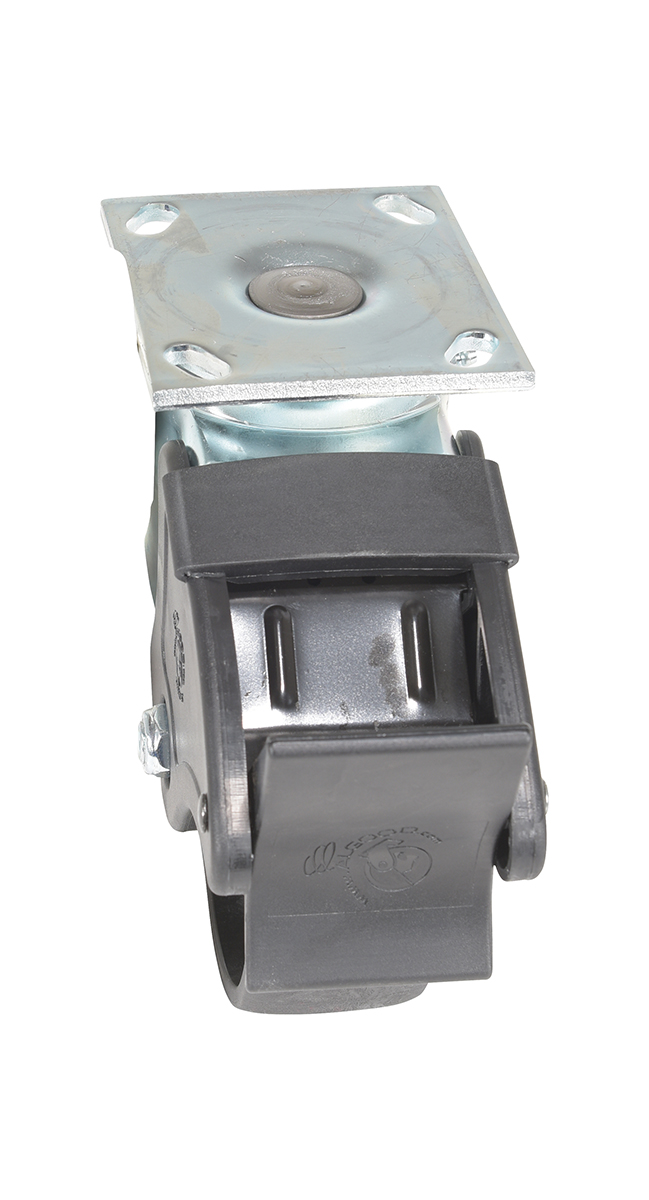

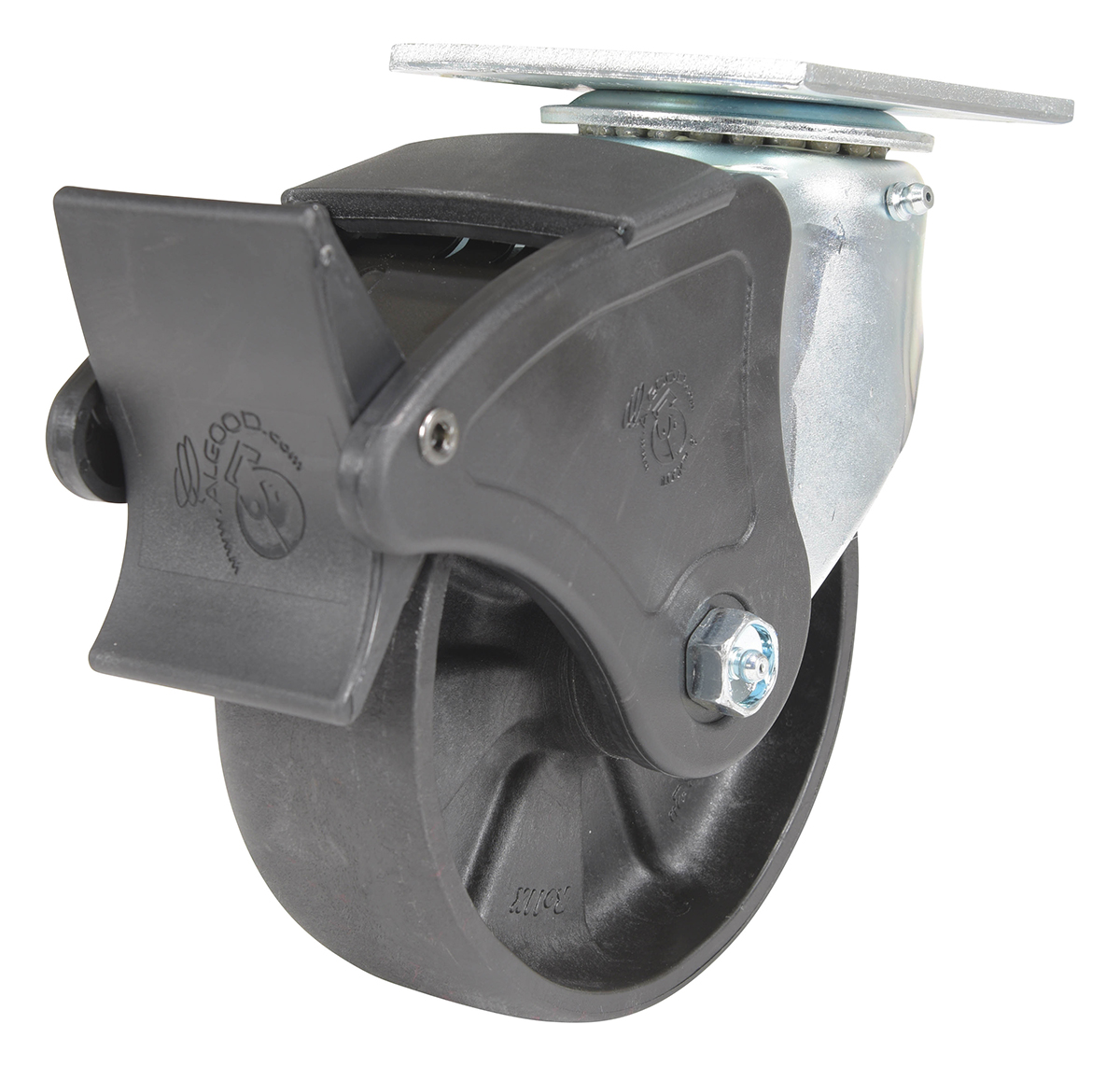

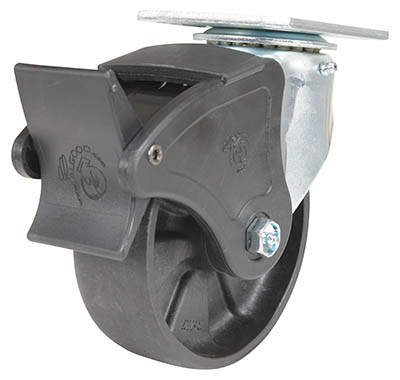

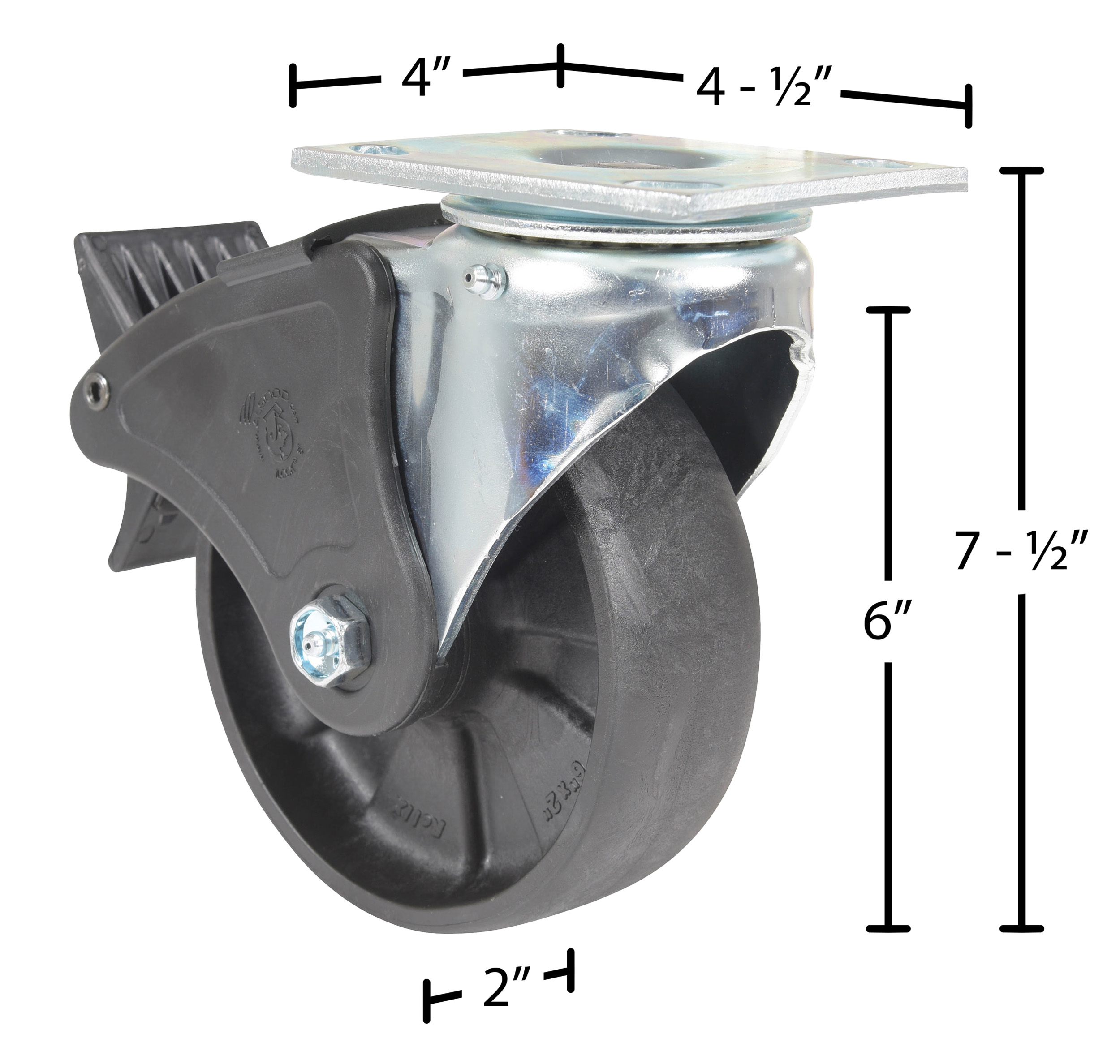

CST-HLD-6X2GFN-SWTB1 6"x2" 1,200 lb. 7-1/2" 4"x4-1/2" 5.83

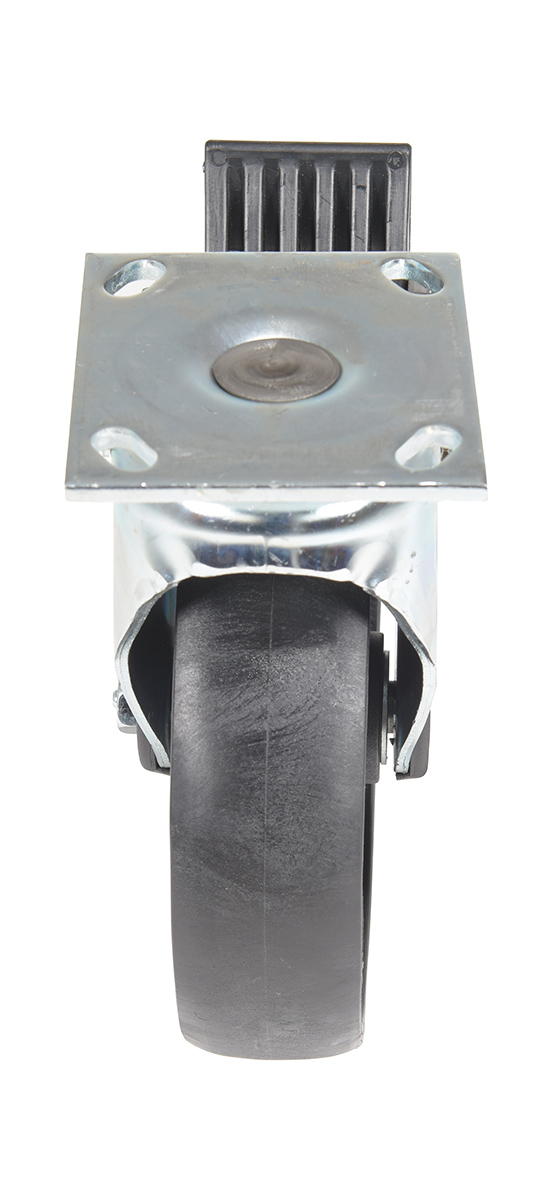

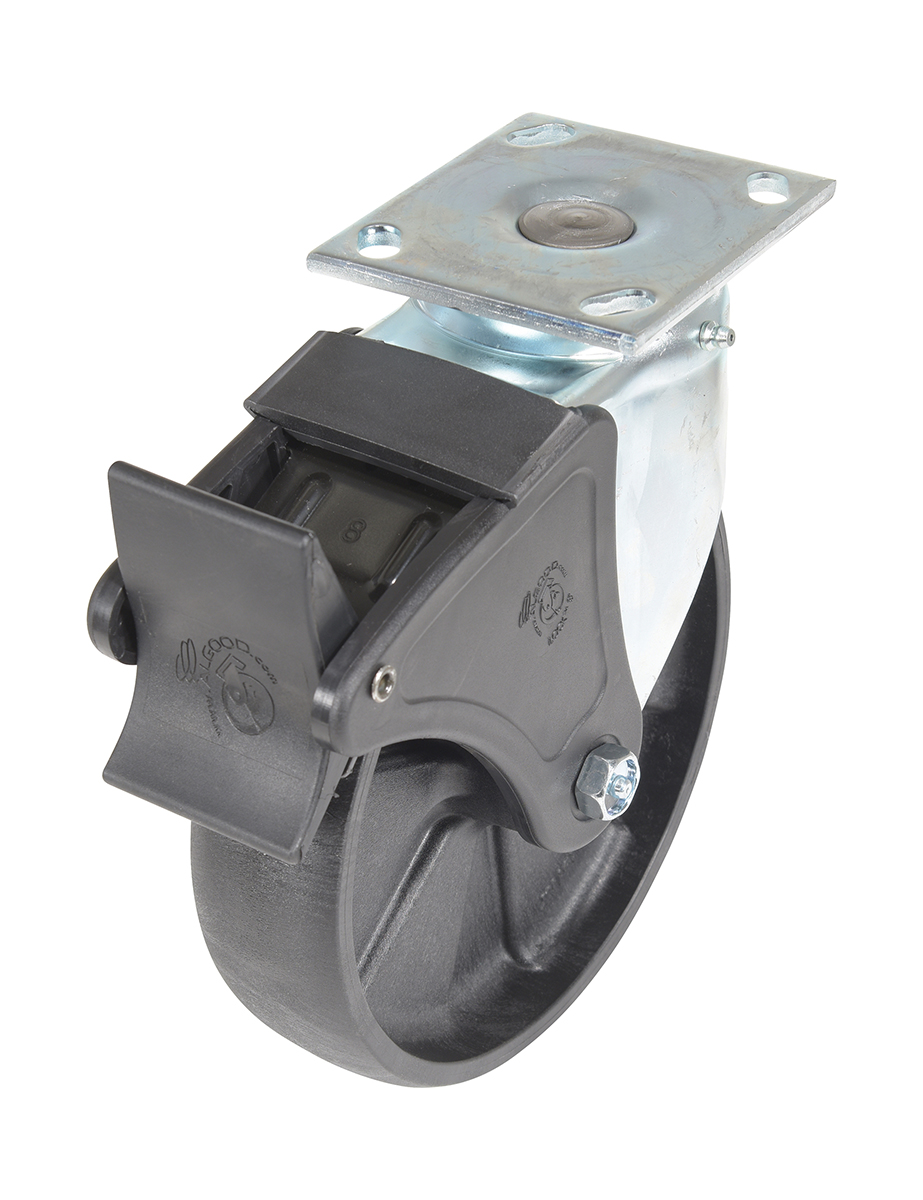

CST-HLD-8X2GFN-SWTB1 8"x2" 1,200 lb. 9-1/2" 4"x4-1/2" 6.71
