Click Image to Enlarge

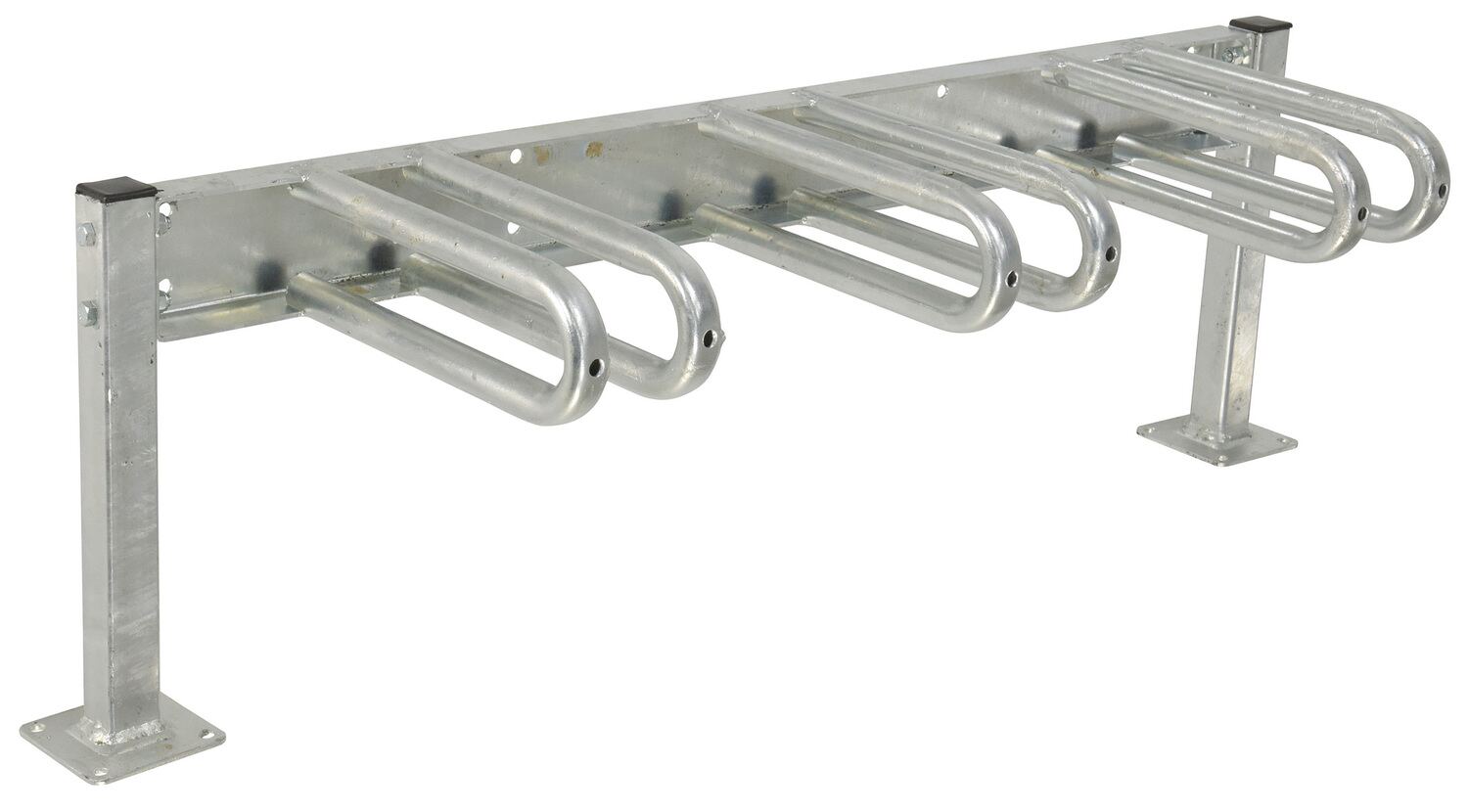

model: BR-M3S-BK


SERIES: BR
Bicycle Racks

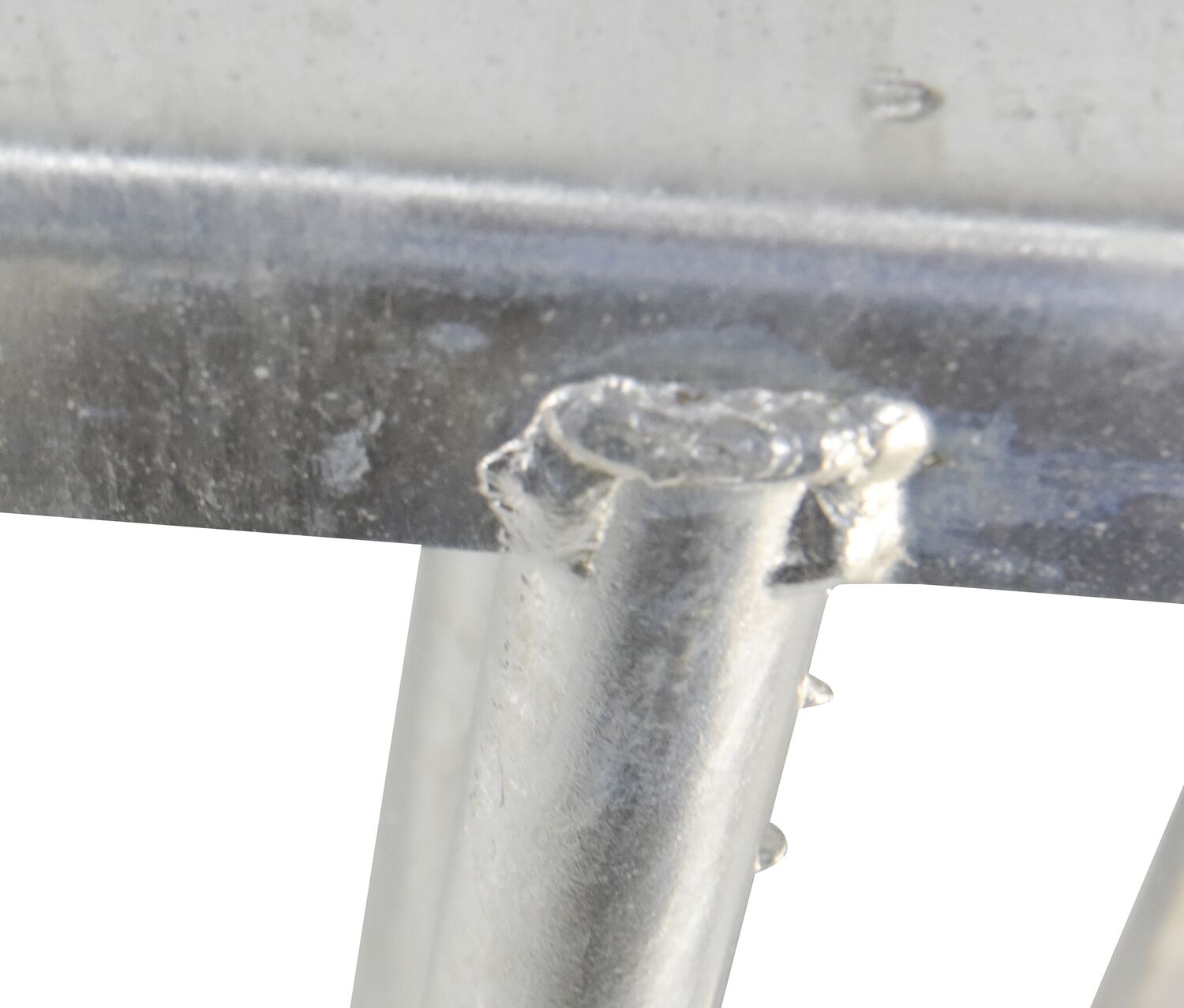

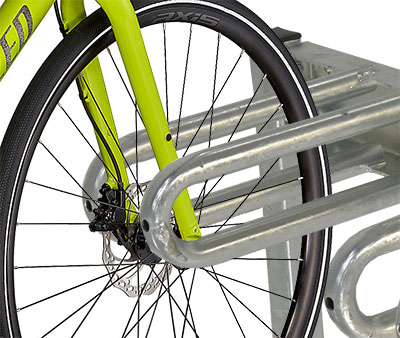

Our Bicycle Racks make it easy to store bikes where space is at a premium. Welded steel units feature eight (8) mounting flanges with pre-drilled 7/16" holes for easy mounting with the exception of series BR-GL. Series BR-GL has two (2) mounting holes that are 3/4" diameter. Hardware is sold separately. Racks are shipped fully-assembled and ready to use. Available in a powder coat black or galvanized finish. Other powder coat finishes are available. Please contact factory.





Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Bicycle Rack
Model PDF's Bike Capacity Mounting
Style
Mounting Hole Diameter Mounting
Holes
Overall
Size
Wt.
(lbs)
Black Powder Coat Finish
BR-L2-BK icon_approvaldrawings.jpgWarranty PDF 5 Ground 7/16" 8 4" W x 31"L x 36"H 25
BR-L3-BK icon_approvaldrawings.jpgWarranty PDF 7 Ground 7/16" 8 4"W x 49"Lx36"H 36

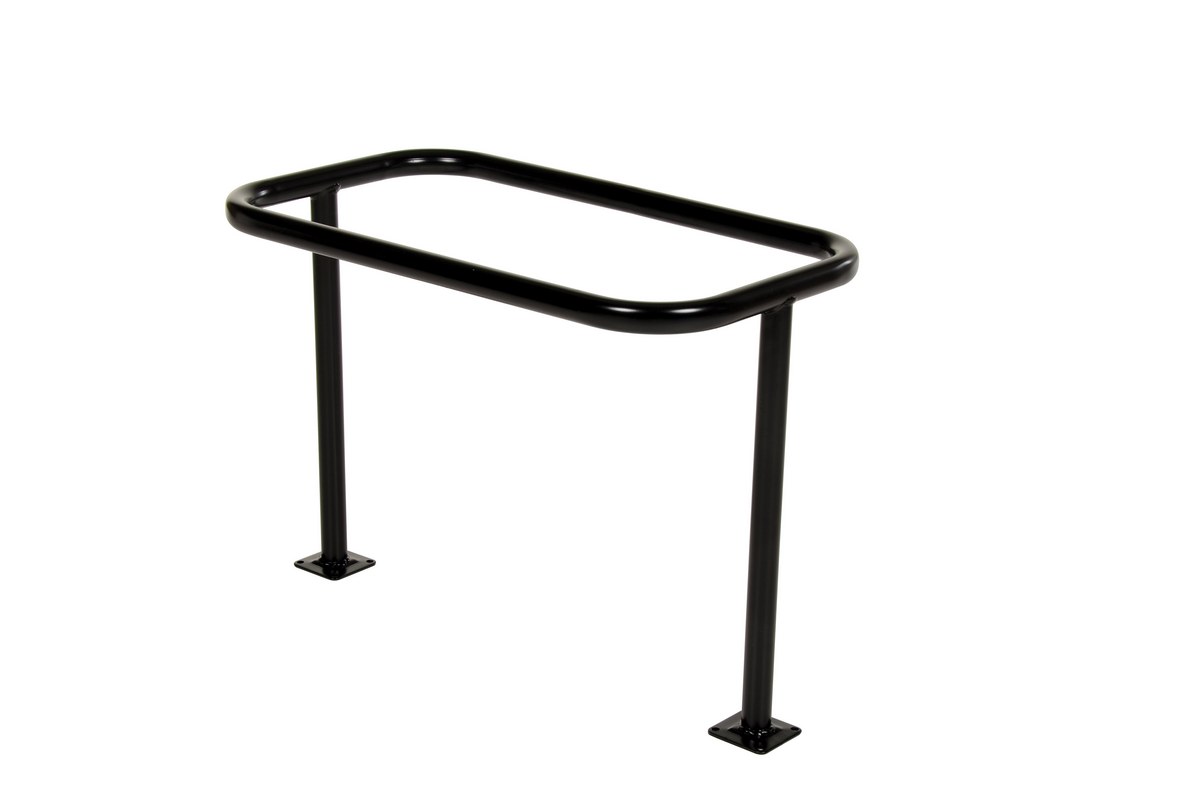

BR-ST-BK icon_approvaldrawings.jpgWarranty PDF 2 Ground 7/16" 8 20"L x 38-5/16"W x 26-1/2"H 31

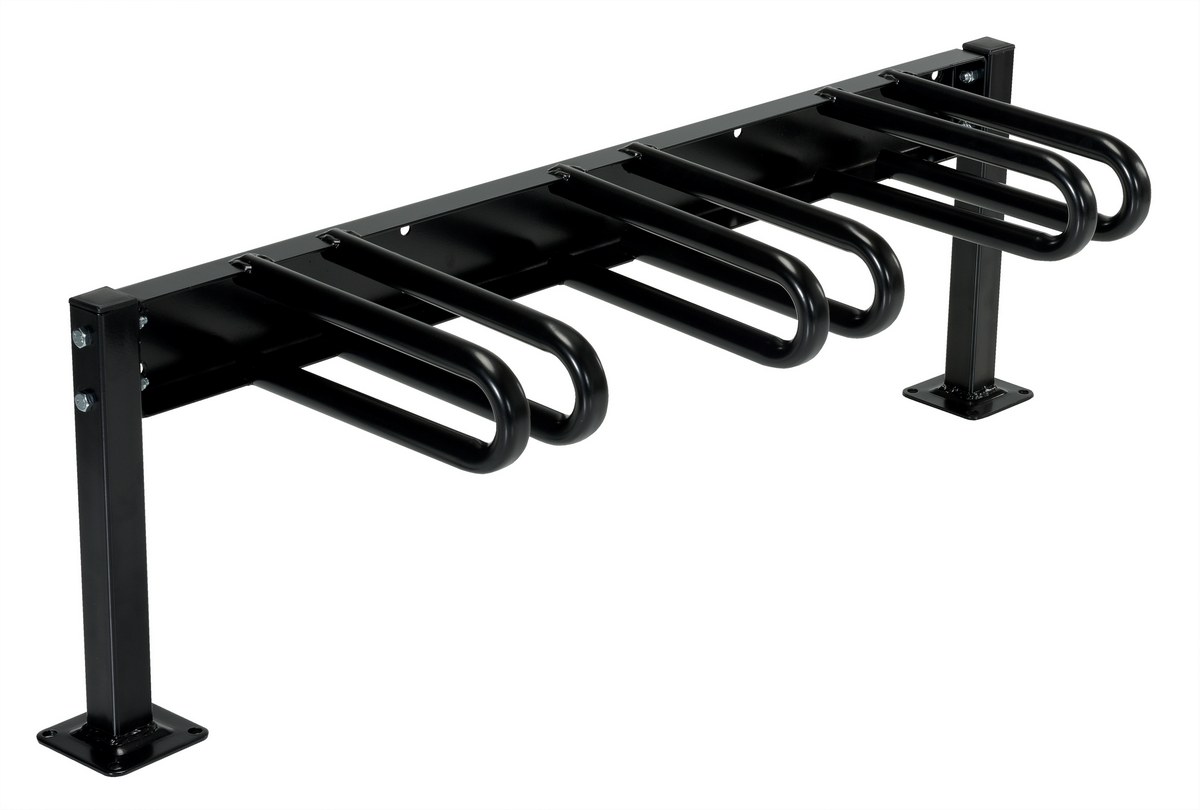

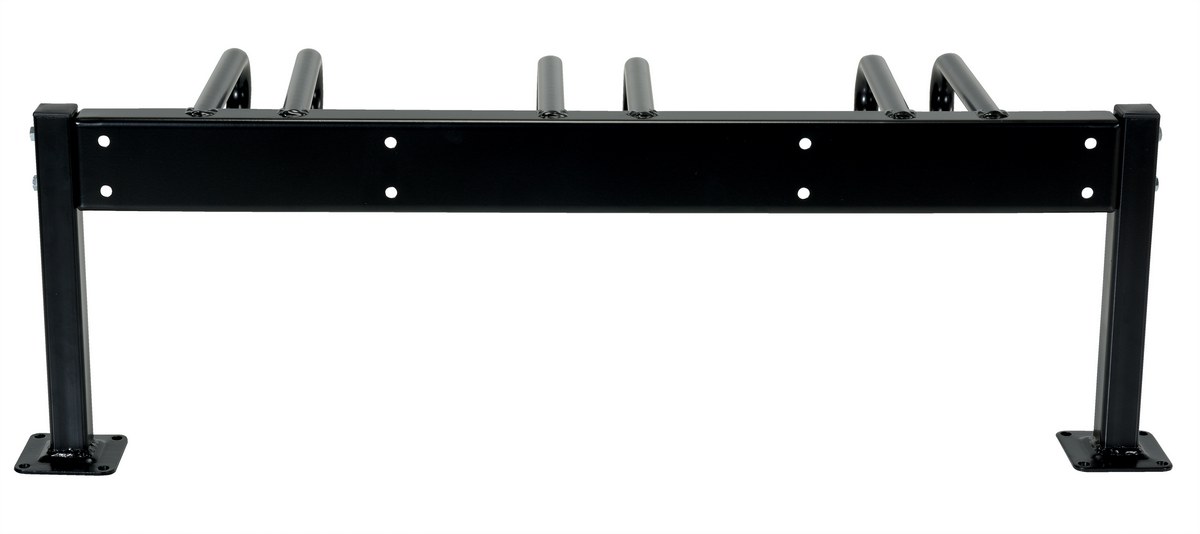

BR-M3S-BK icon_approvaldrawings.jpgWarranty PDF 3 Ground 7/16" 8 13-13/16"W x 45-7/8"L x 14-9/16"H 31

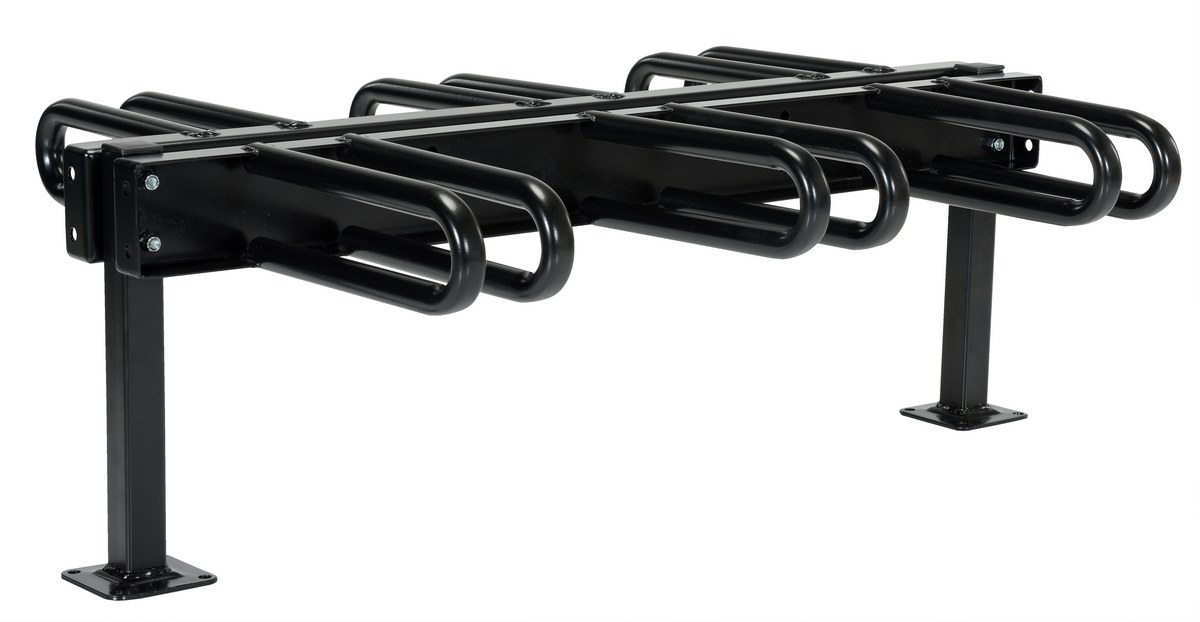

BR-M3D-BK icon_approvaldrawings.jpgWarranty PDF 6 Ground 7/16" 8 27-1/4"W x 42"Lx 14-9/16"H 53

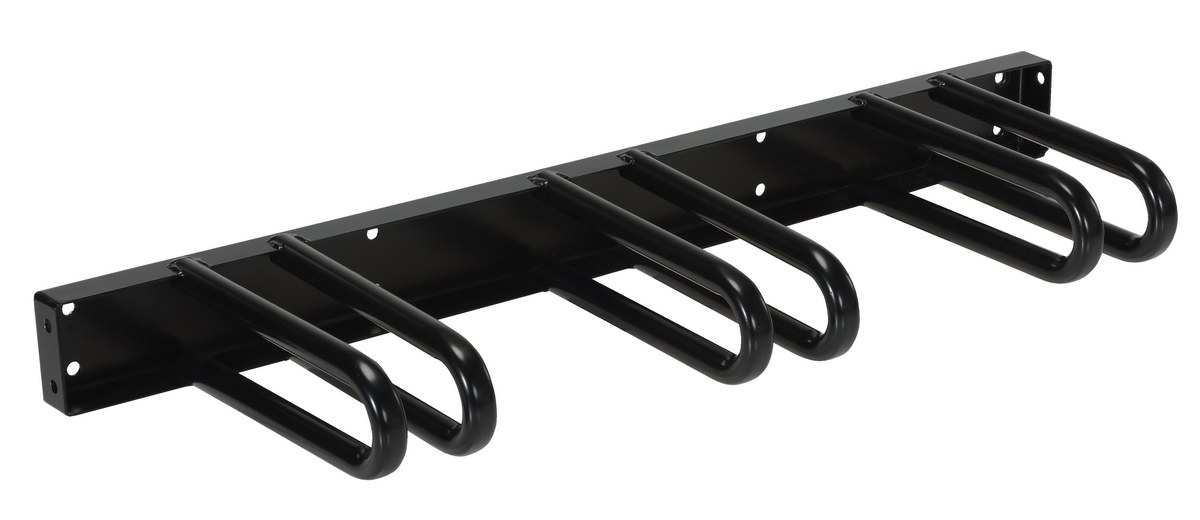

BR-M3S-W-BK icon_approvaldrawings.jpgWarranty PDF 3 Wall Flange 7/16" 8 12-7/8"W x 40-3/8"L x 4-1/16"H 23

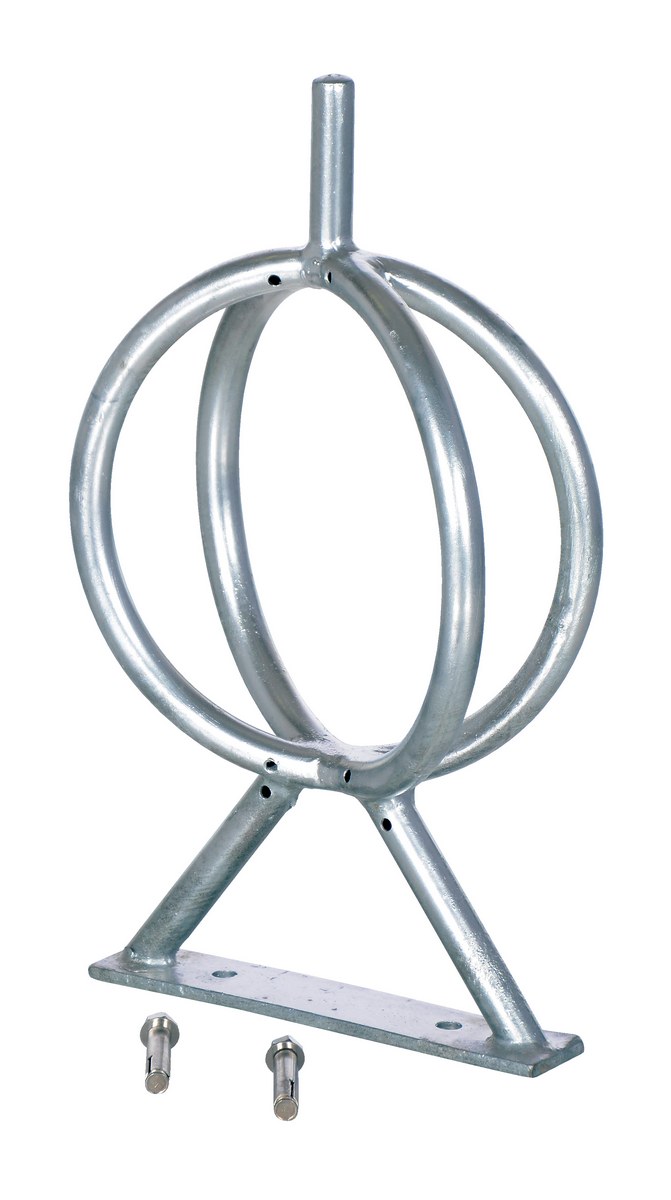

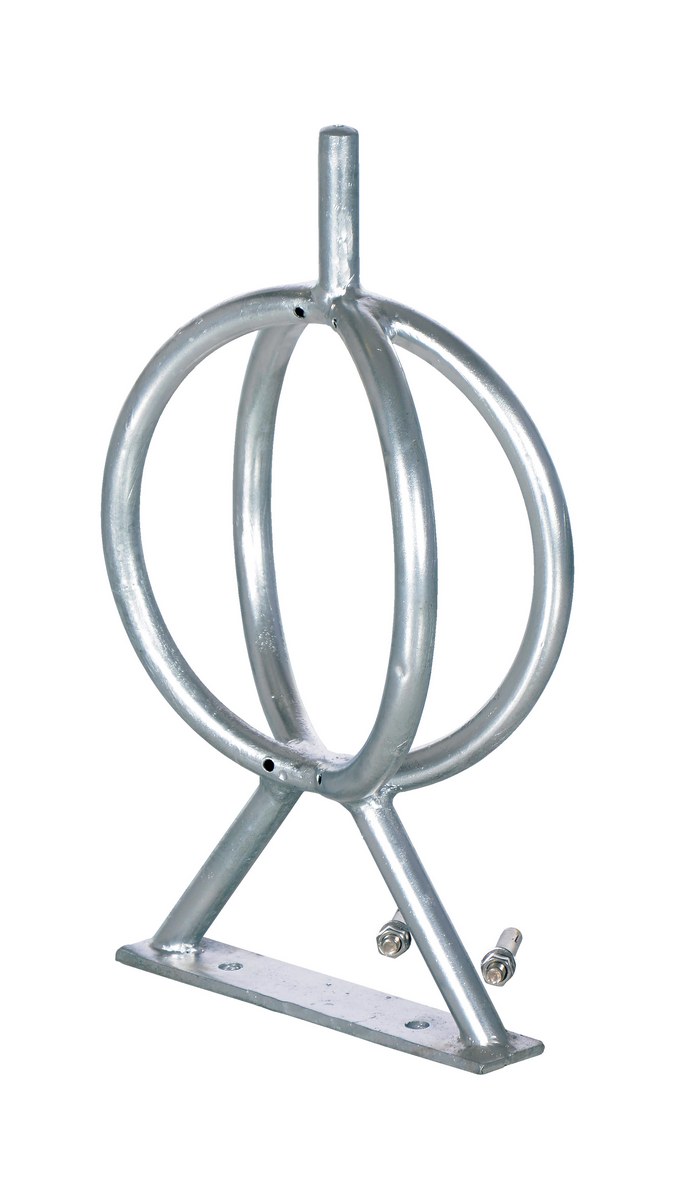

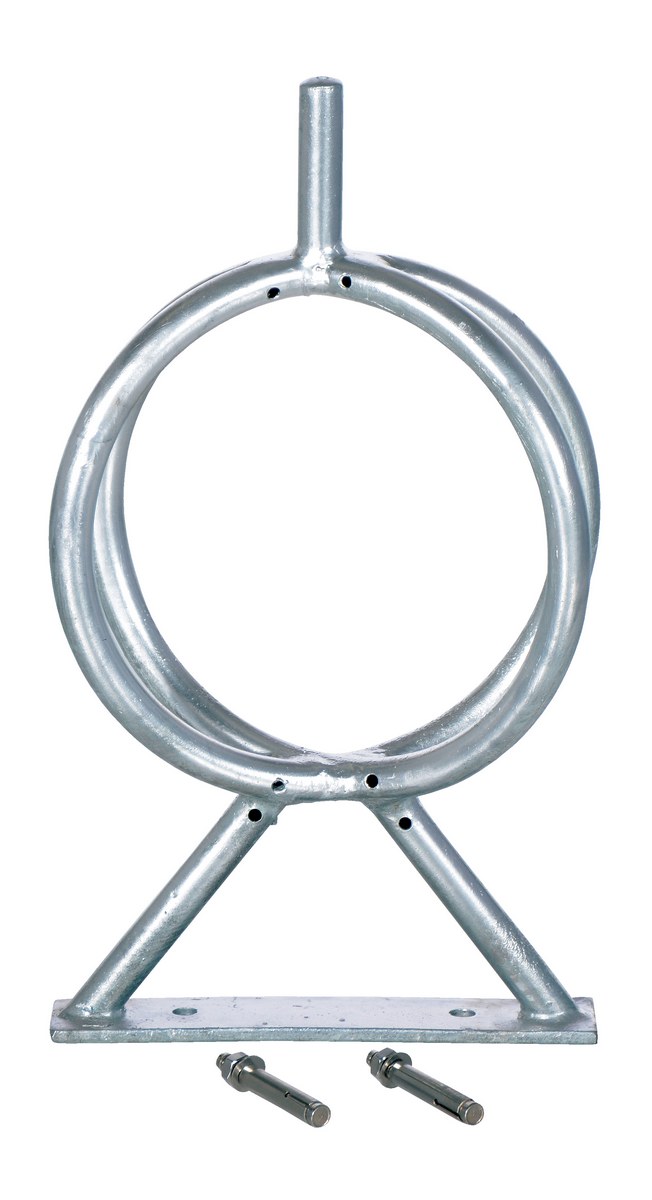

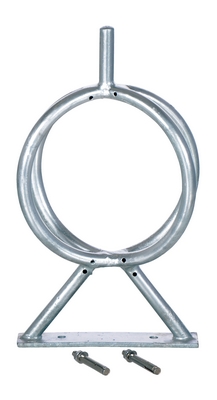

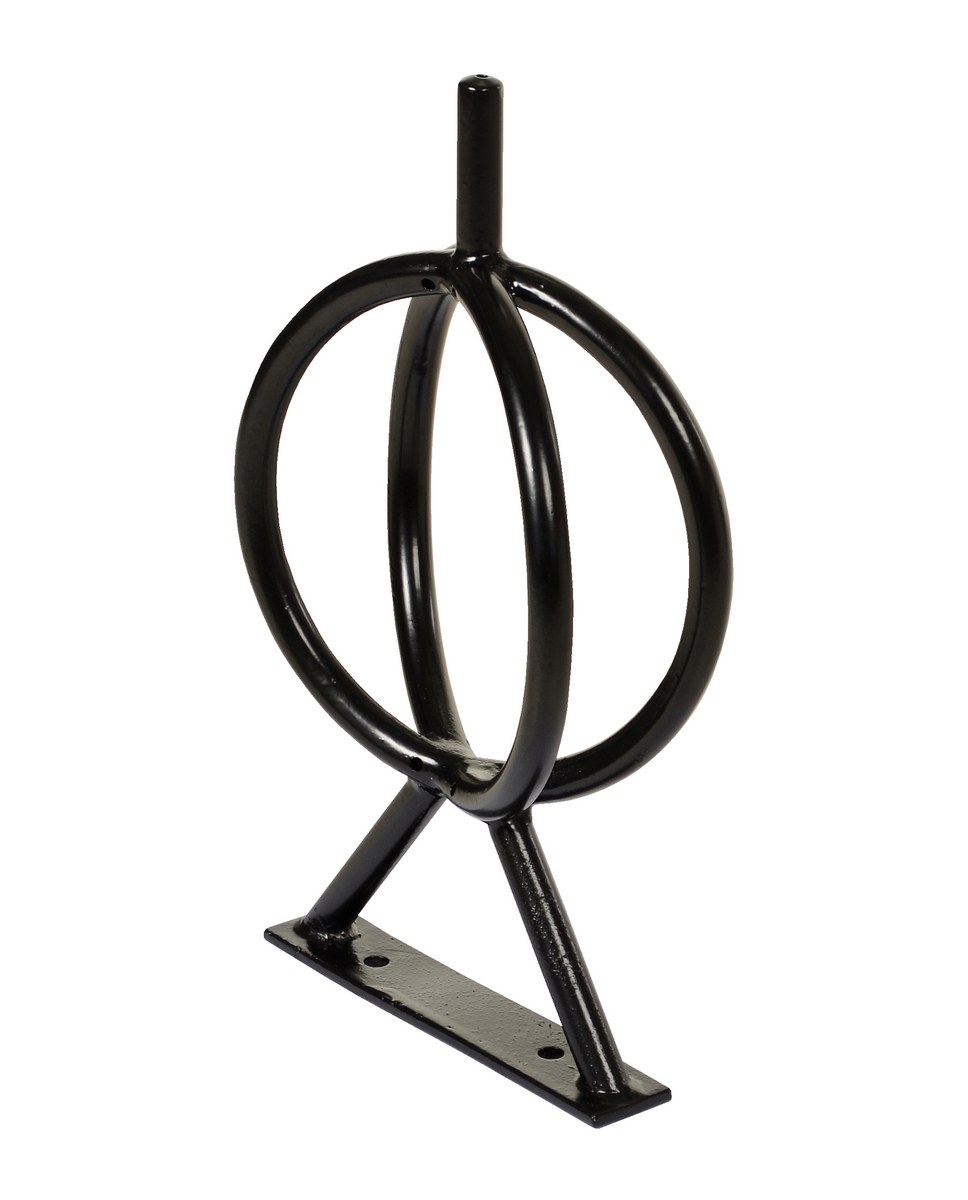

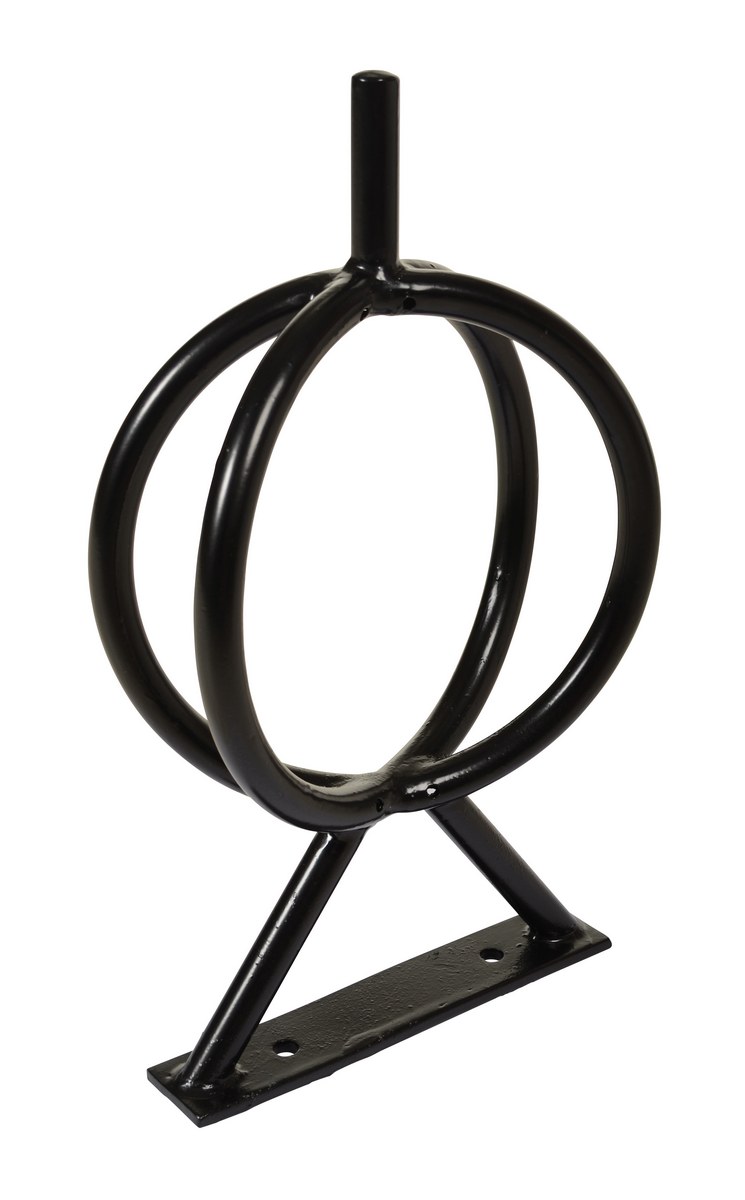

BR-GL-BK Warranty PDF 4 Ground 3/4" 2 5-5/16"W x 12-3/4"L x 22-1/2"H 22
Galvanized Finish
BR-L2-GAL icon_approvaldrawings.jpgWarranty PDF 5 Ground 7/16" 8 4" W x 31"L x 36"H 25
BR-L3-GAL icon_approvaldrawings.jpgWarranty PDF 7 Ground 7/16" 8 4"W x 49"Lx36"H 36

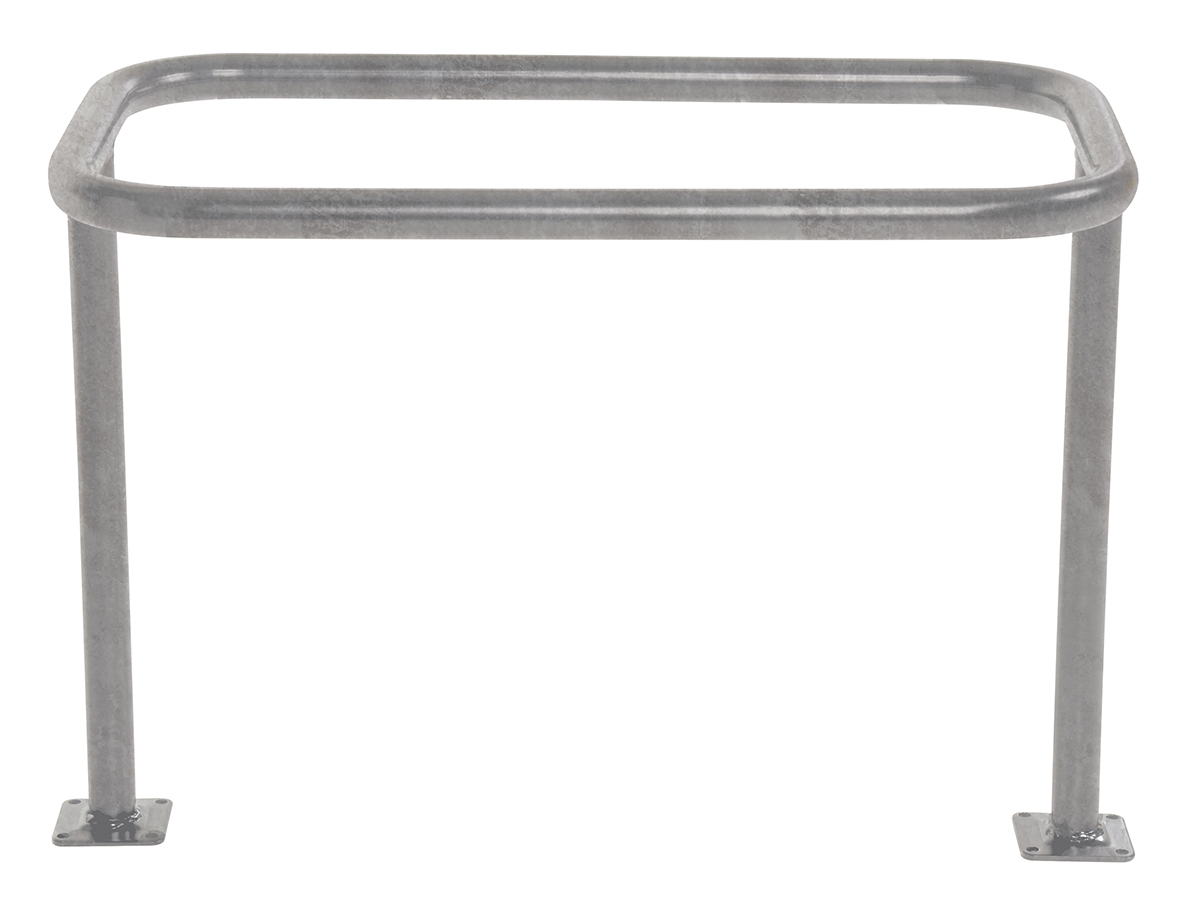

BR-ST-GAL Warranty PDF 2 Ground 7/16" 8 20"L x 38-5/16"W x 26-1/2"H 31

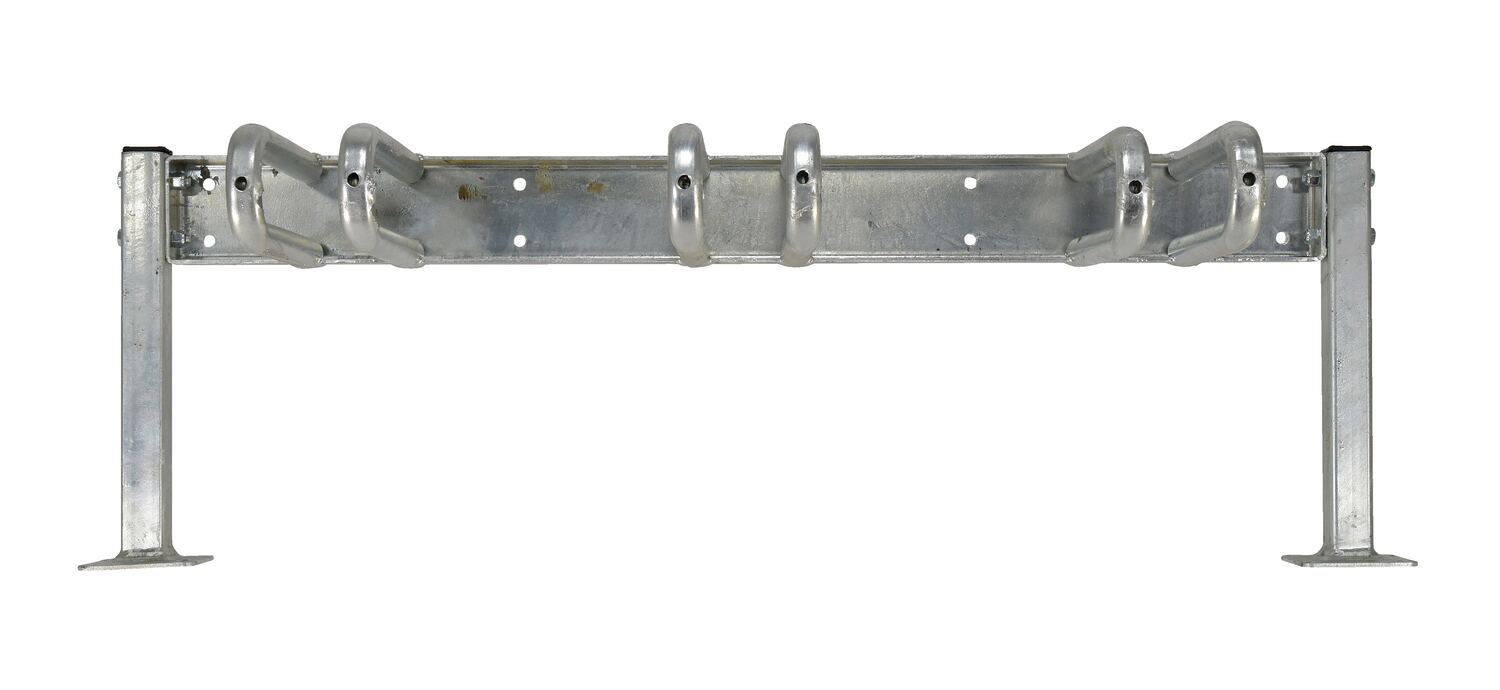

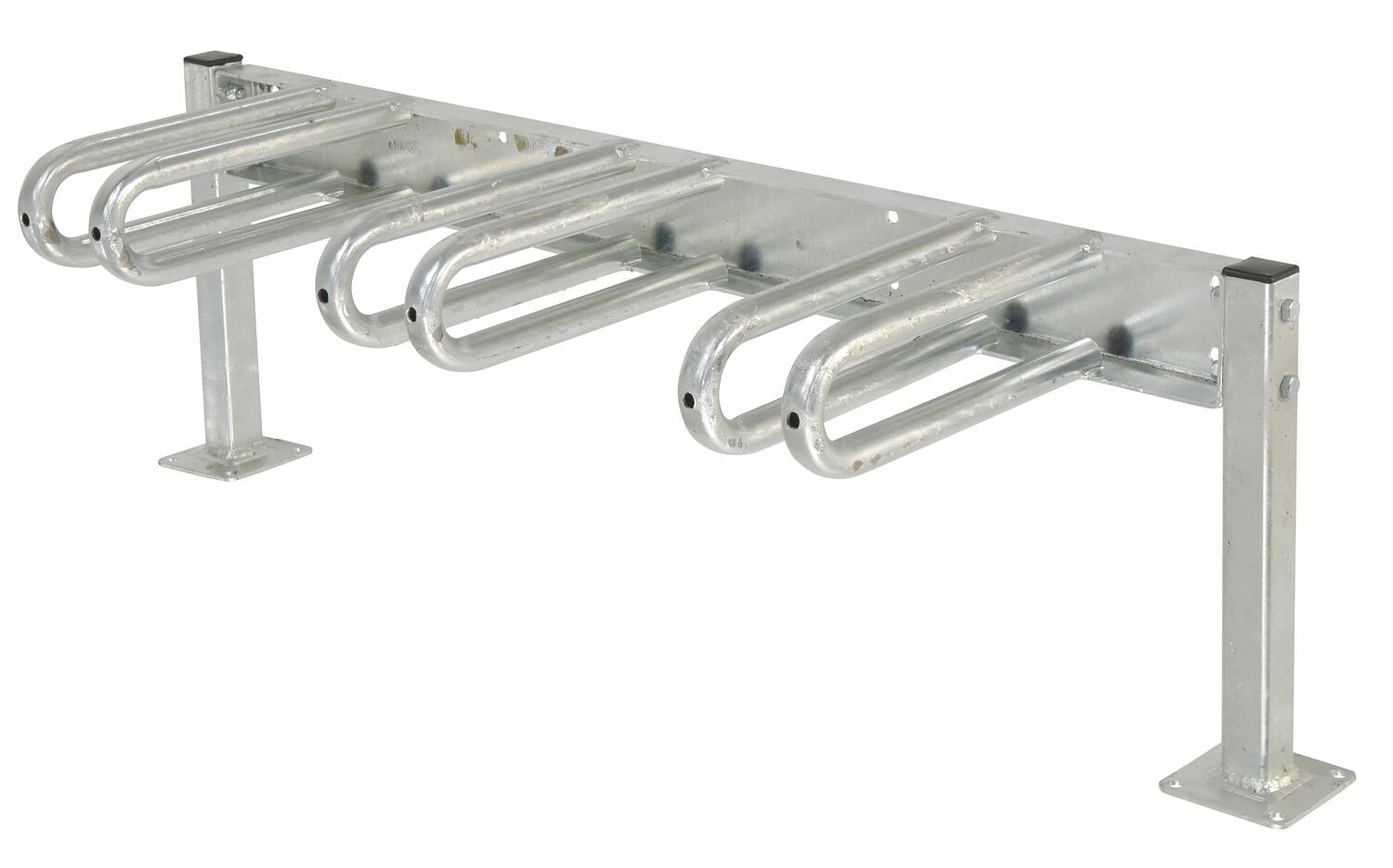

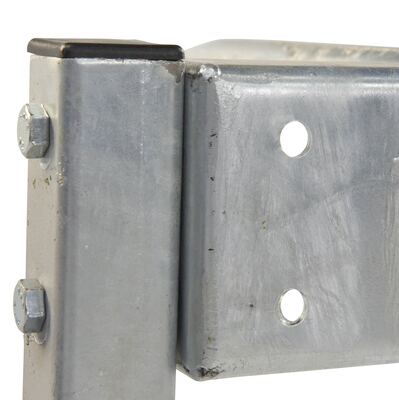

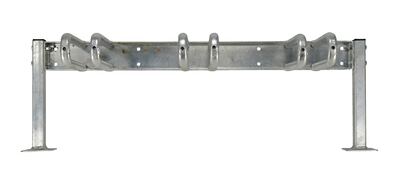

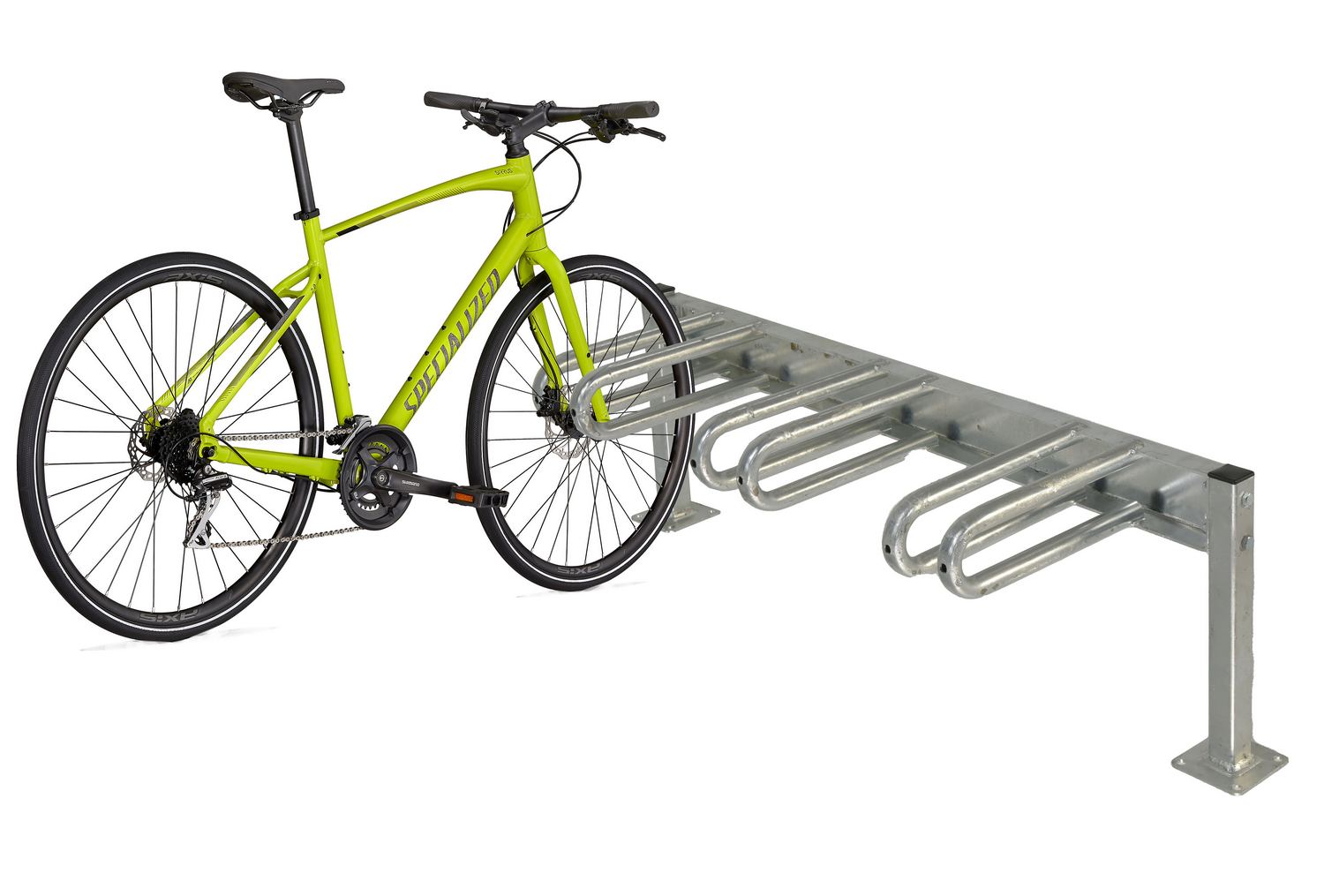

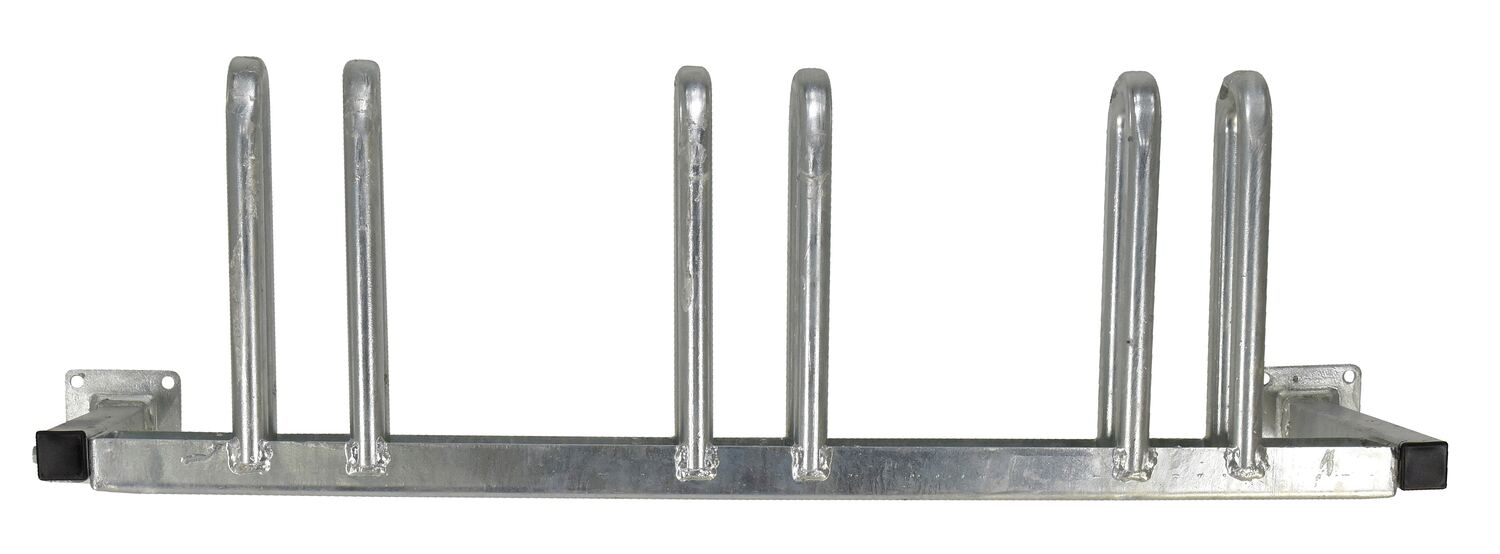

BR-M3S-GAL icon_approvaldrawings.jpgWarranty PDF 3 Ground 7/16" 8 13-13/16"W x 45-7/8"L x 14-9/16"H 31

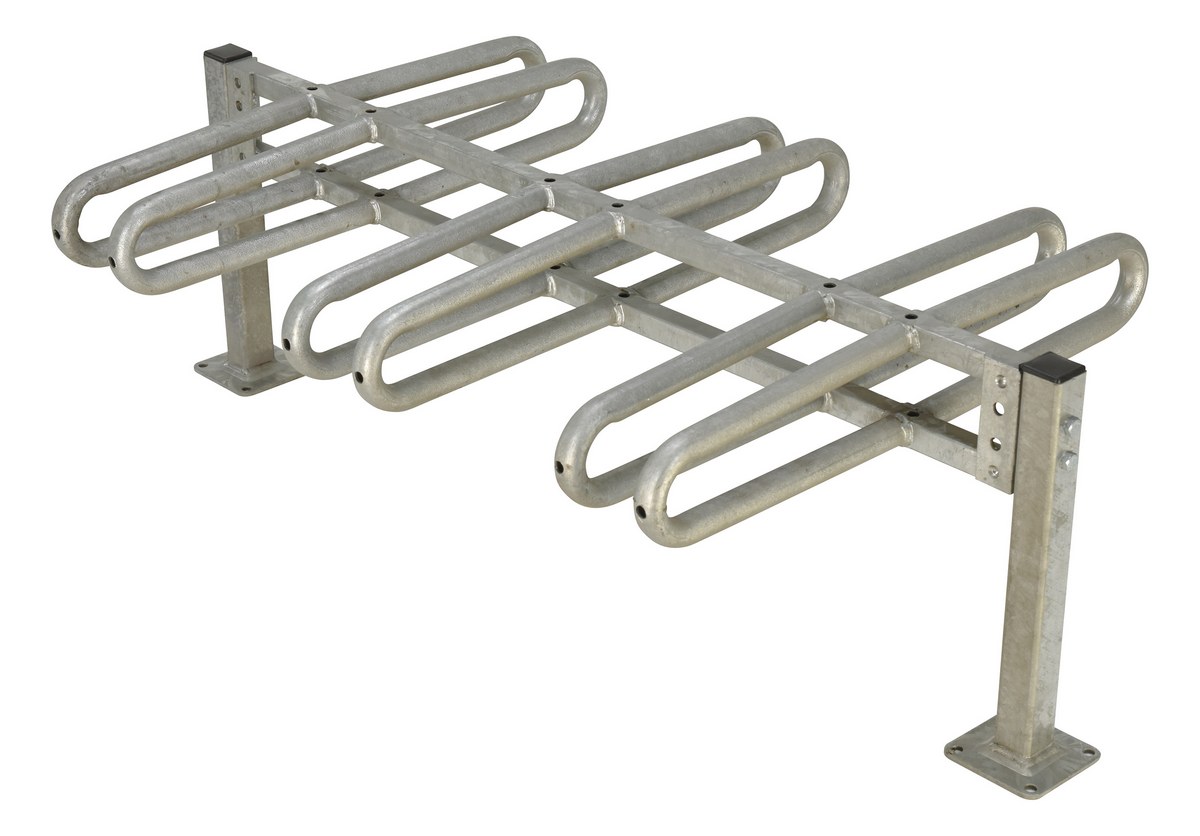

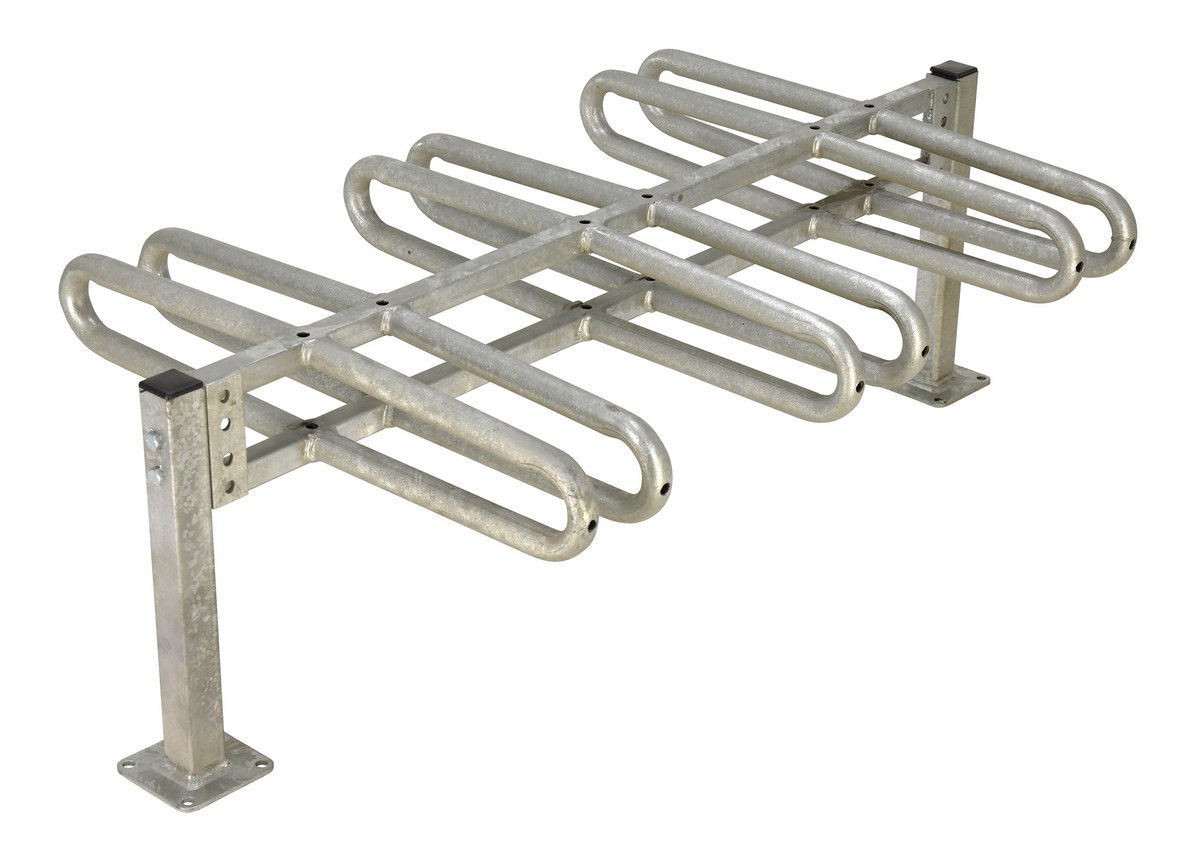

BR-M3D-GAL icon_approvaldrawings.jpgWarranty PDF 6 Ground 7/16" 8 27-1/4"W x 42"Lx 14-9/16"H 53

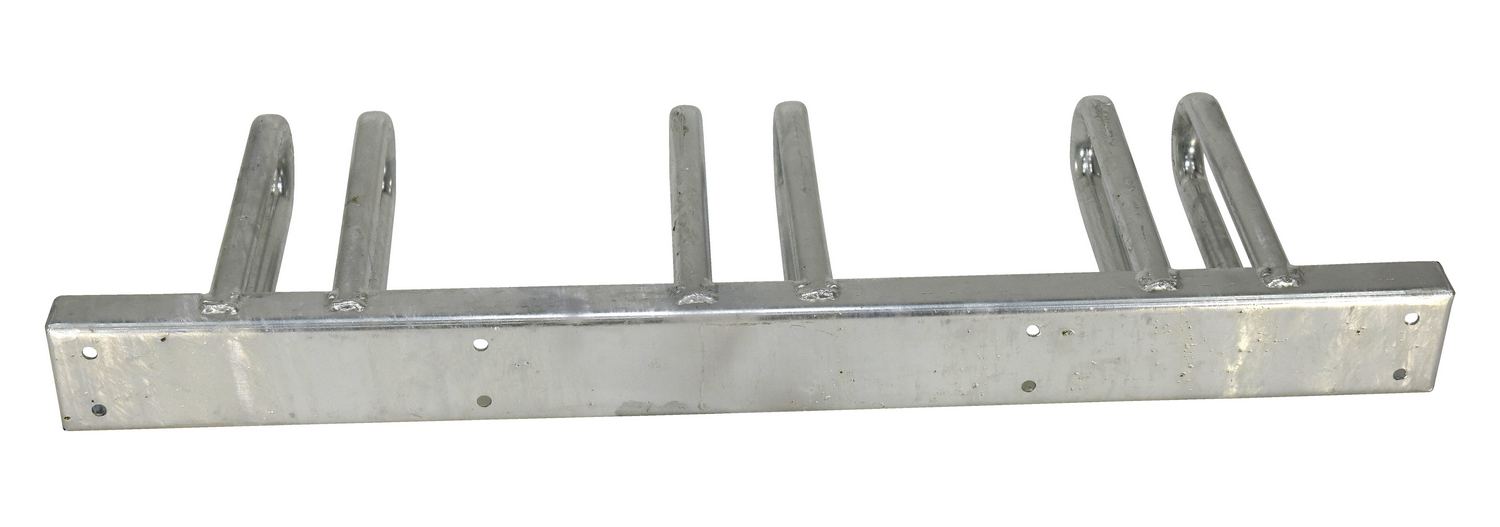

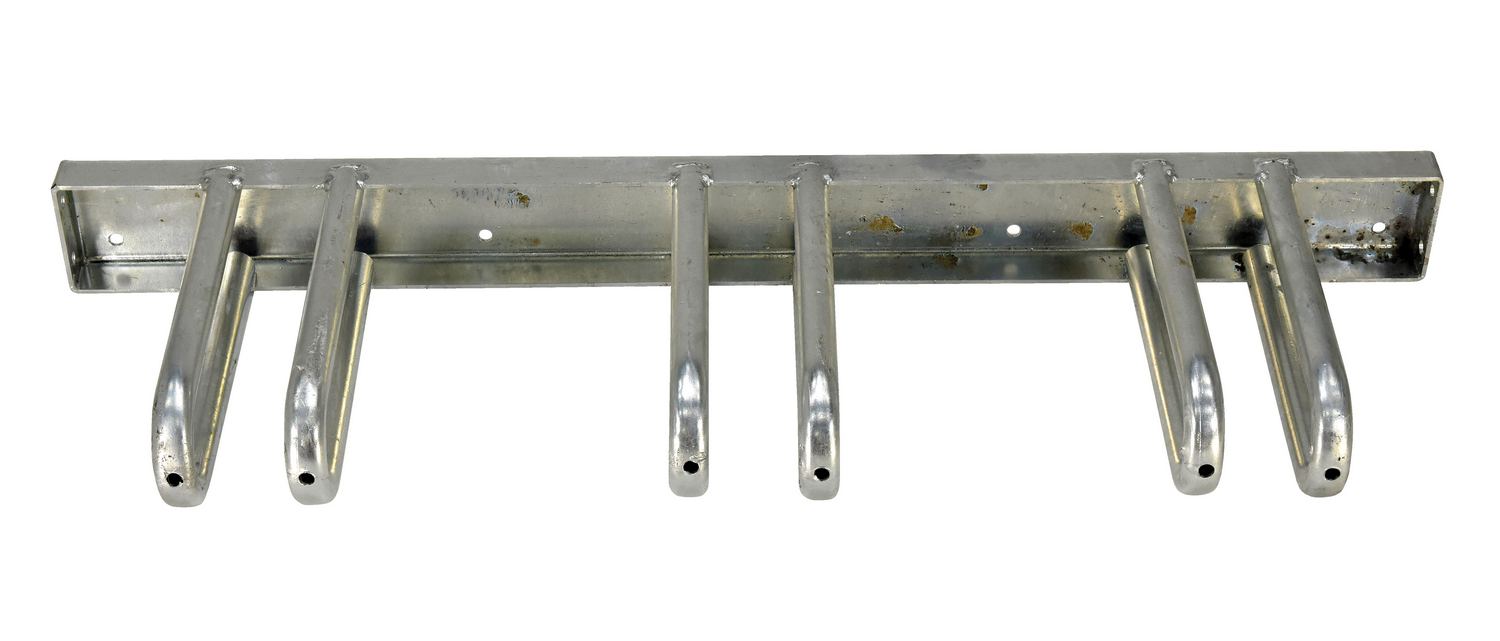

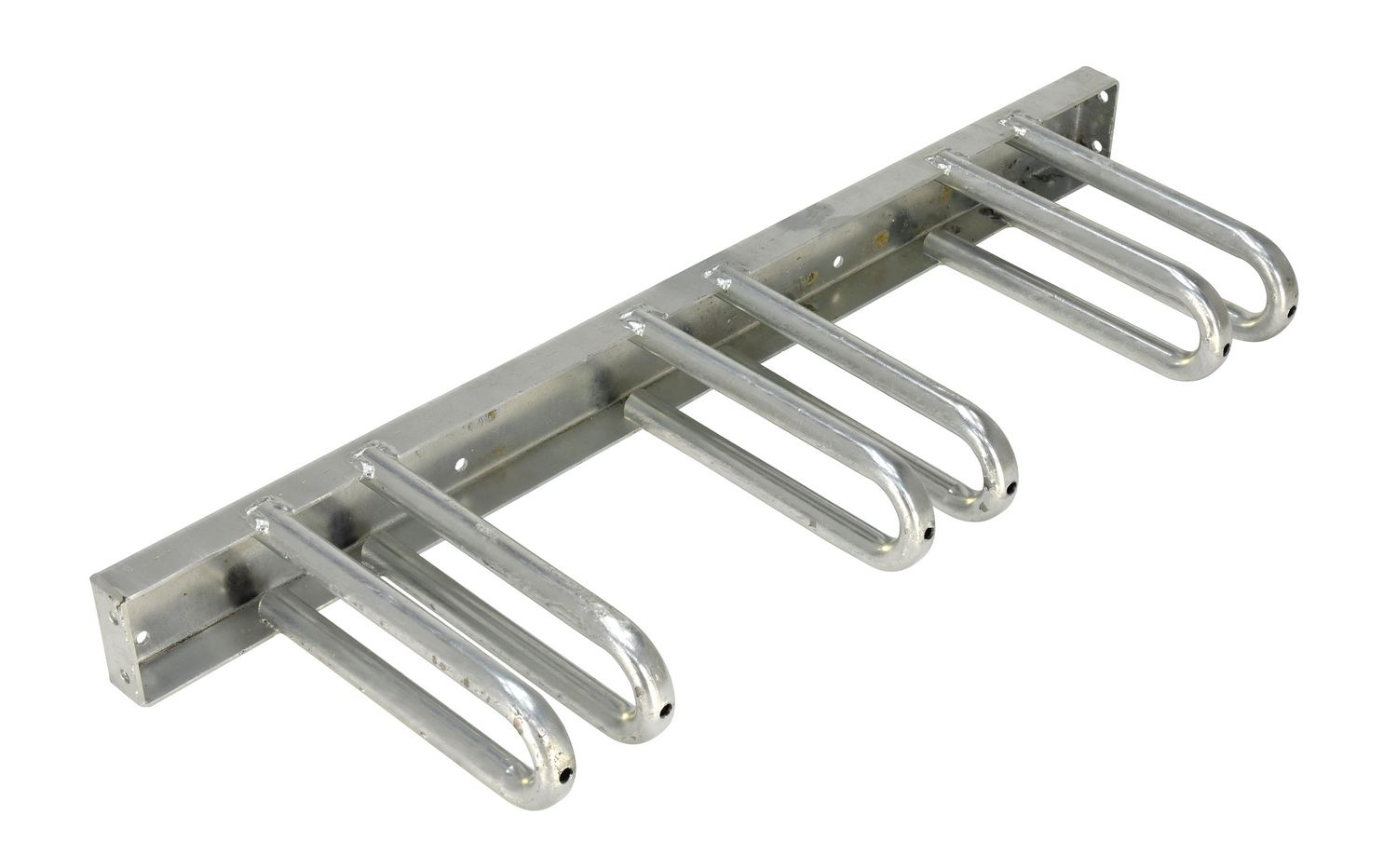

BR-M3S-W-GAL icon_approvaldrawings.jpgWarranty PDF 3 Wall 7/16" 8 12-7/8"W x 40-3/8"L x 4-1/16"H 23
BR-GL-G icon_approvaldrawings.jpgWarranty PDF 4 Ground 3/4" 2 5-5/16"Wx 12-3/4"L x 22-1/2"H 22
AS-383 3/8"x3"L Concrete Anchor (sold each) 2
AS-584 5/8"x4"L Concrete Anchor (sold each) 2

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
