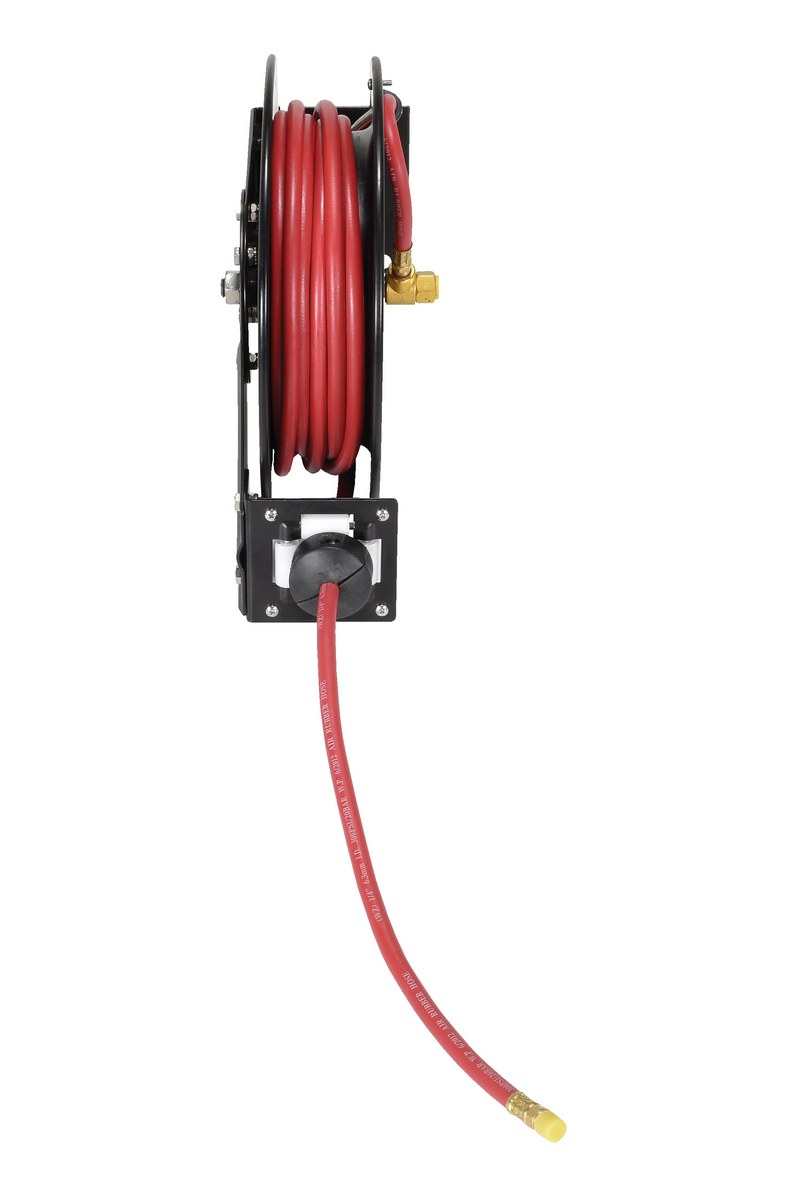

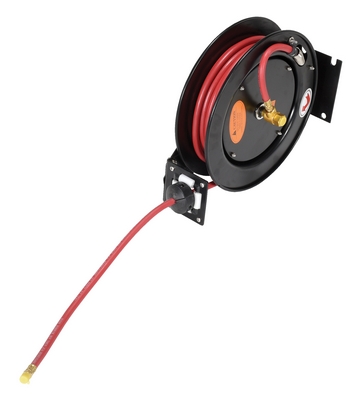

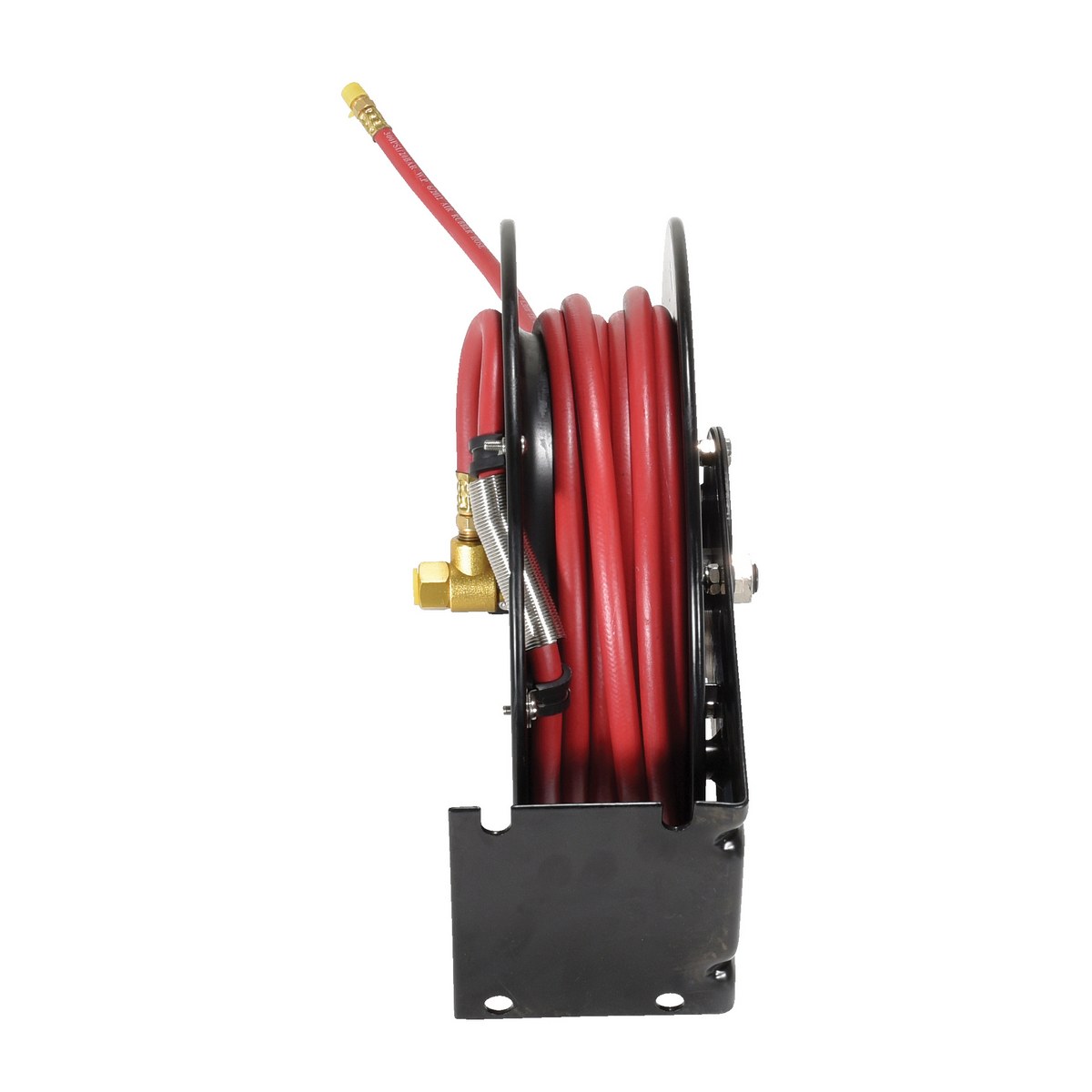

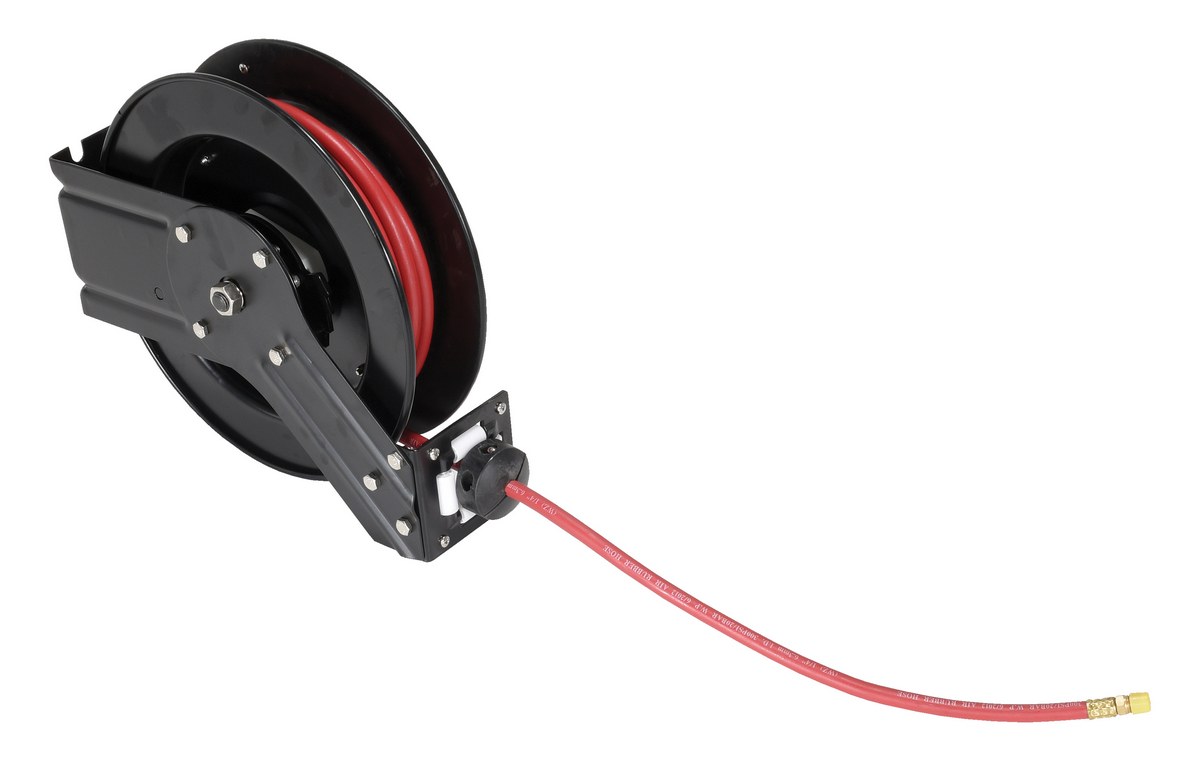

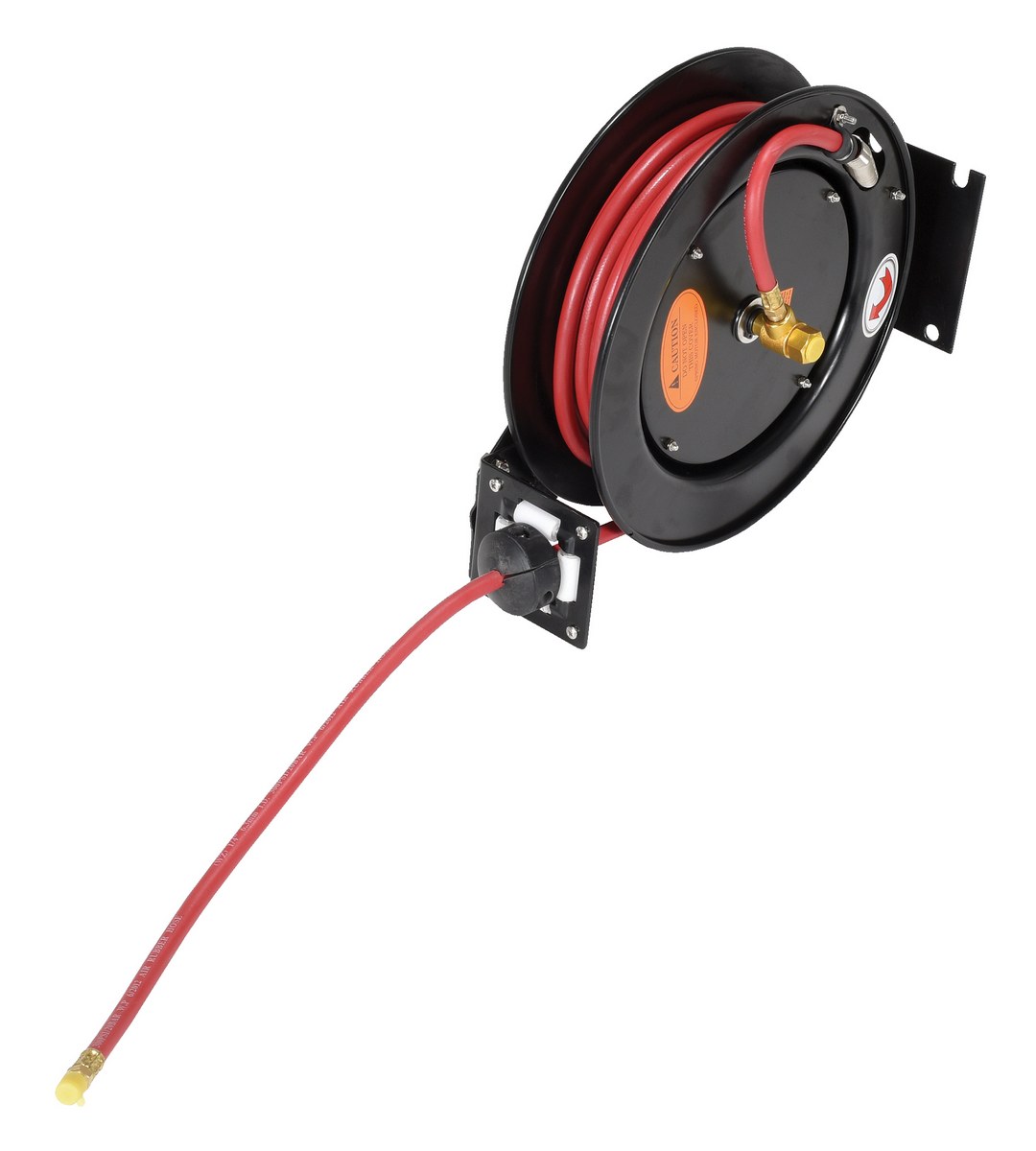

model: VHR-20-44


SERIES: VHR
Deluxe Spring Driven Low Pressure Hose Reels

Keep air hoses off the floor and out of the way. Minimize labor, save storage space, protect against trip hazards and damaged hoses. For use with air and water only. Solid steel construction with heavy duty brackets to resist hose pull. All reels have a full shaft and swivel to assure maximum product delivery. Maximum temperature is 150 degrees Farenheit. Maximum pressure is 300 psi / 21 bar. Includes self retracting hose.

Keep air hoses off the floor and out of the way. Minimize labor, save storage space, protect against trip hazards and damaged hoses. For use with air and water only. Solid steel construction with heavy duty brackets to resist hose pull. All reels have a full shaft and swivel to assure maximum product delivery. Maximum temperature is 150 degrees Farenheit. Maximum pressure is 300 psi / 21 bar. Includes self retracting hose.

Other Hose & Cable Reels

Electric Cord Reels

Electric Cord Reels

Retractable Cord Reels with Work Lights

Retractable Cord Reels with Work Lights

Tool Balancers

Tool Balancers

Share This Page

VHR-17-46

model VHR-17-46

VHR-25-46

model VHR-25-46

VHR-35-44

model VHR-35-44

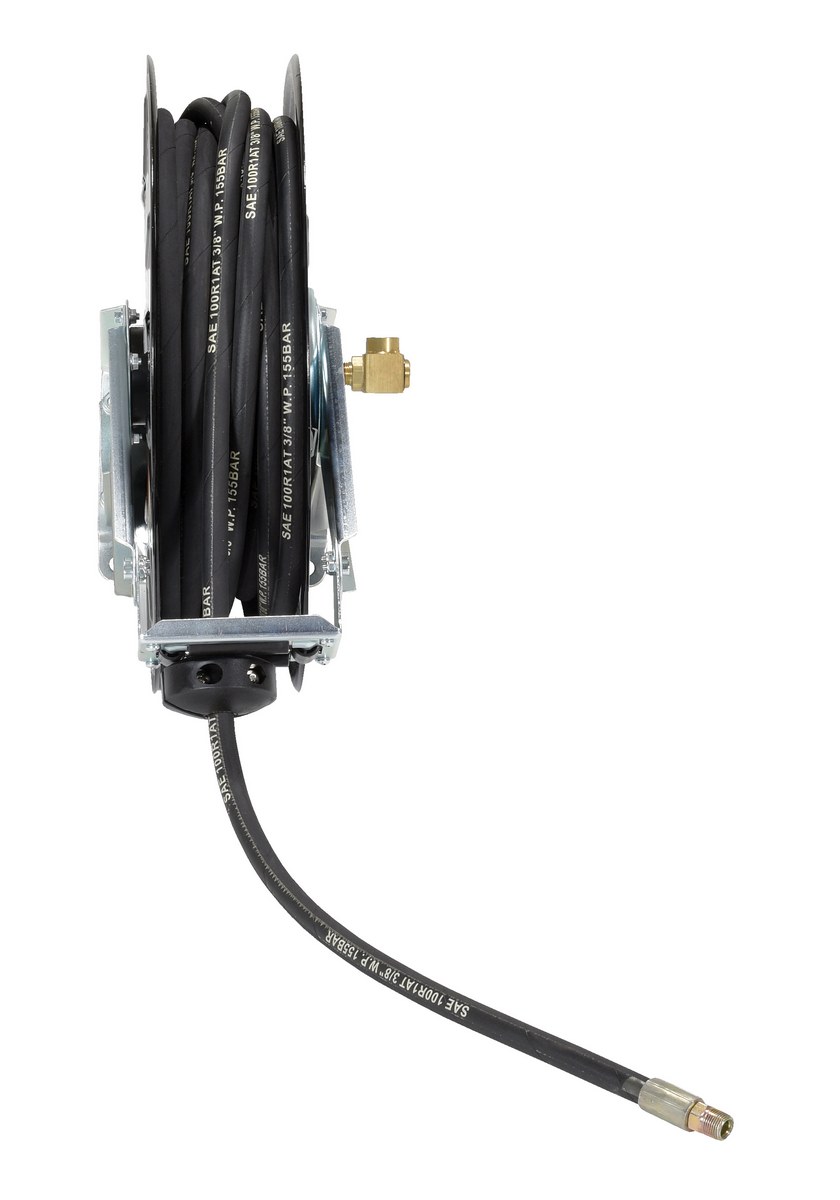

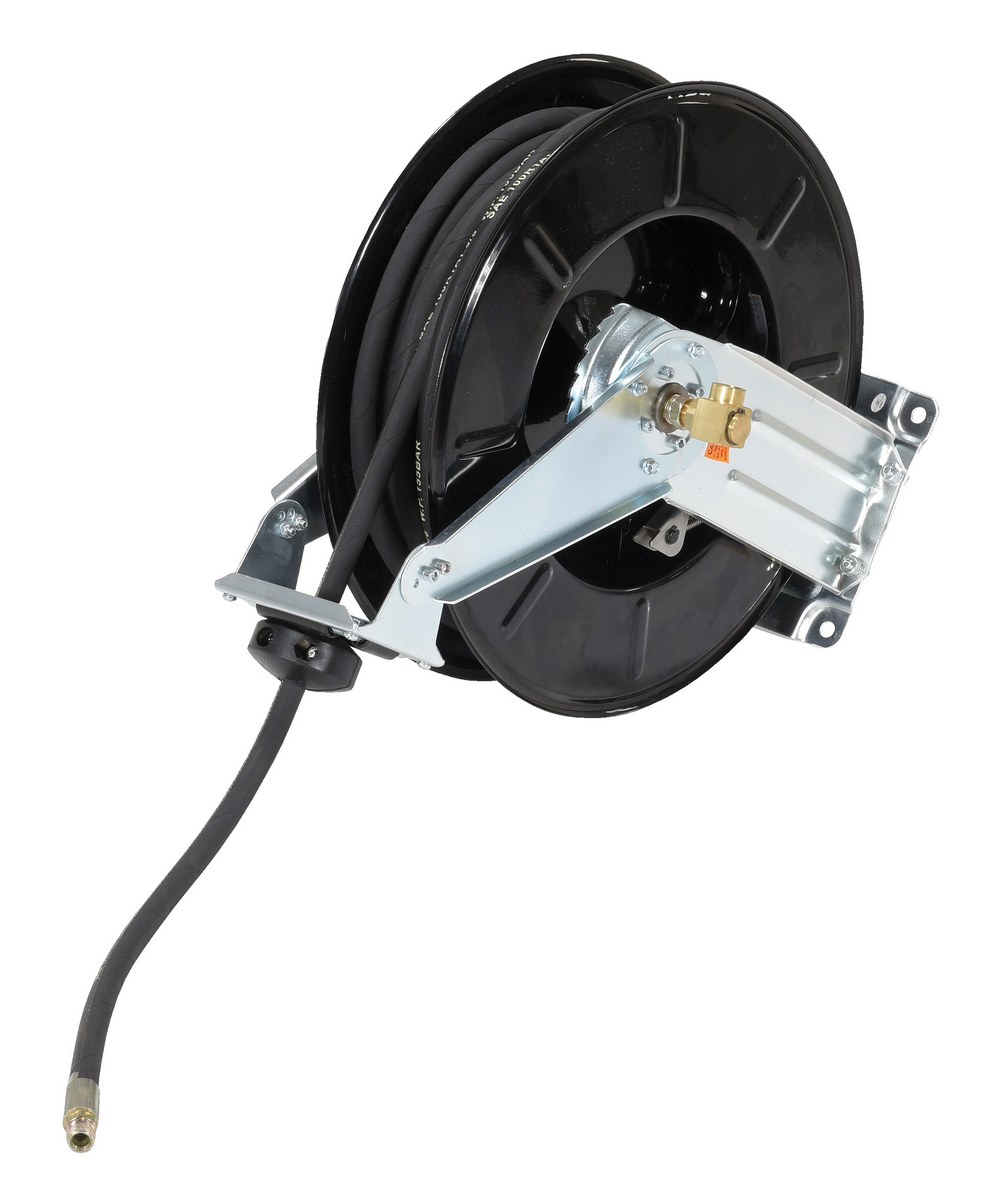

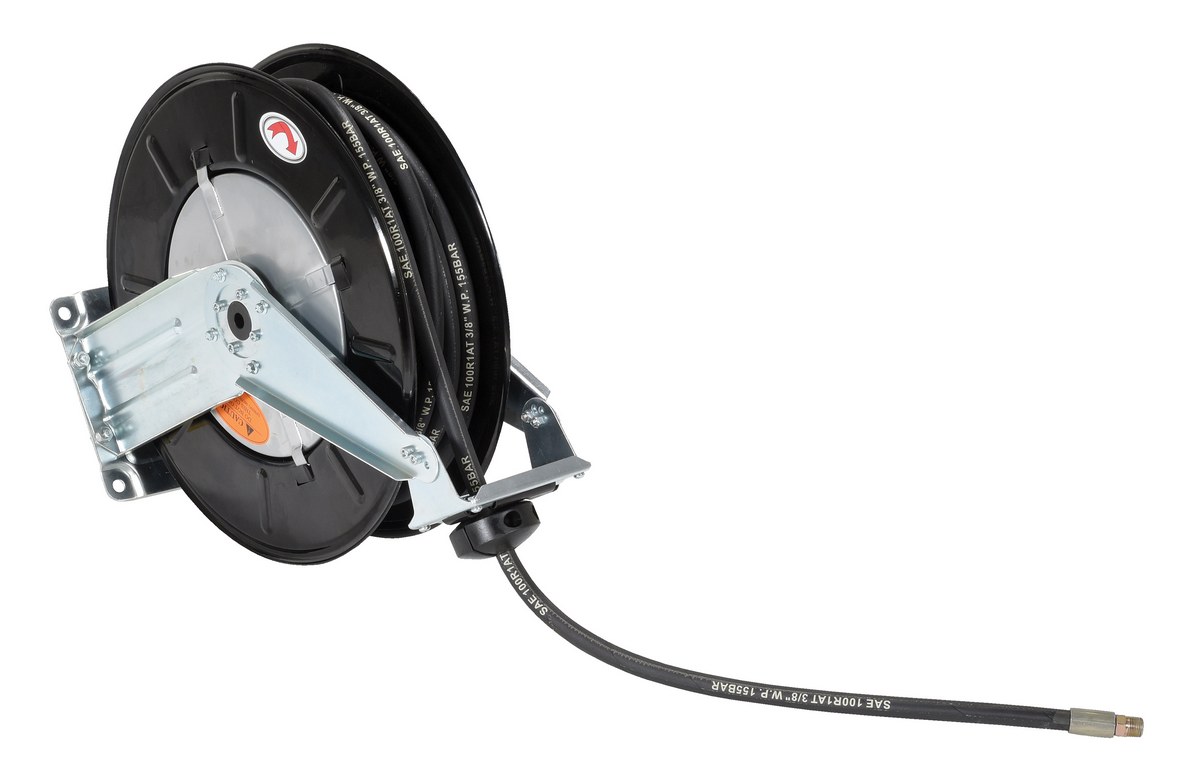

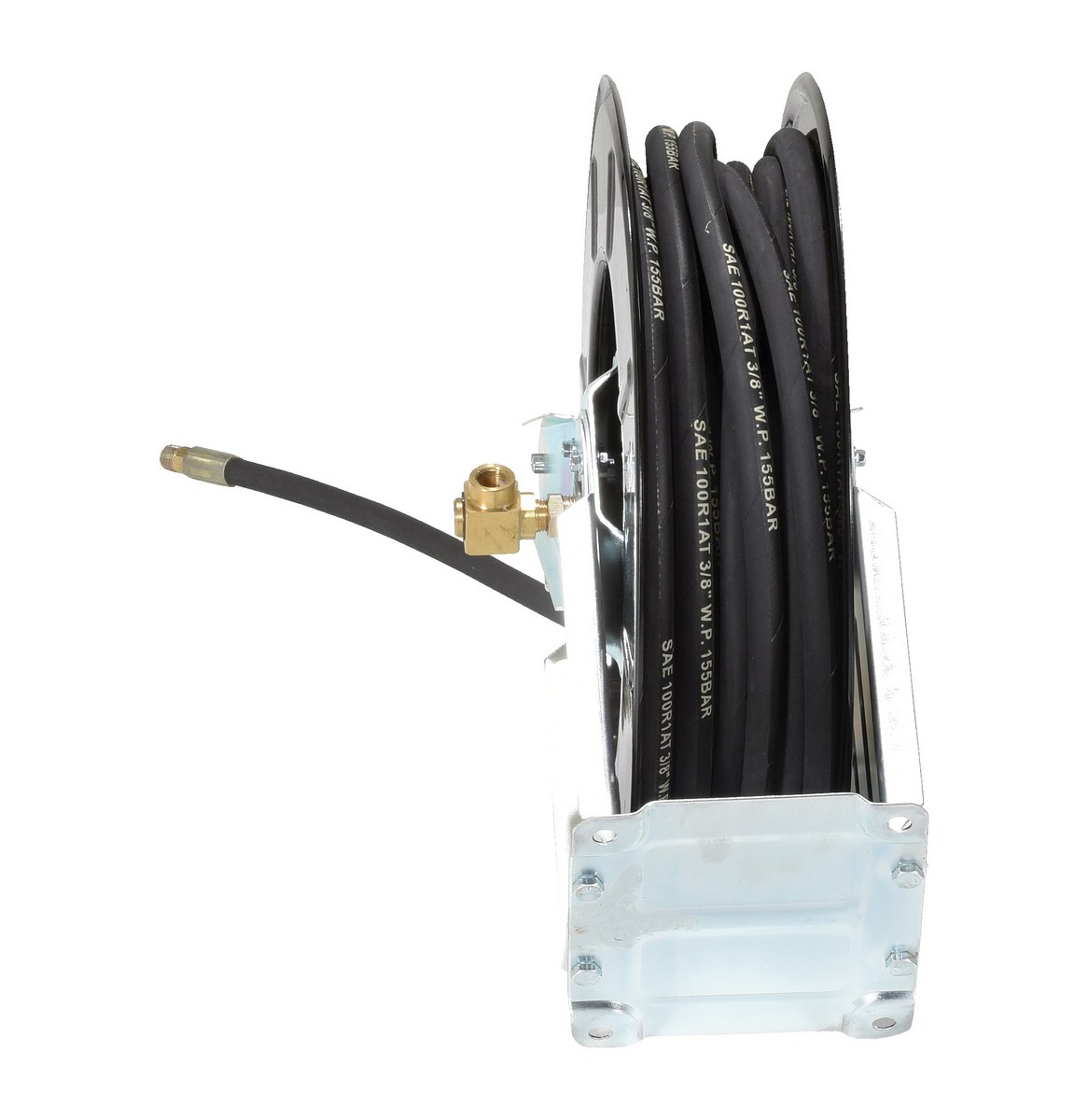

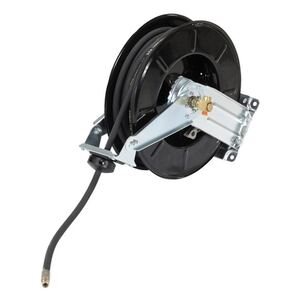

VHR-35-58

model VHR-35-58

VHR-50-56

model VHR-50-56

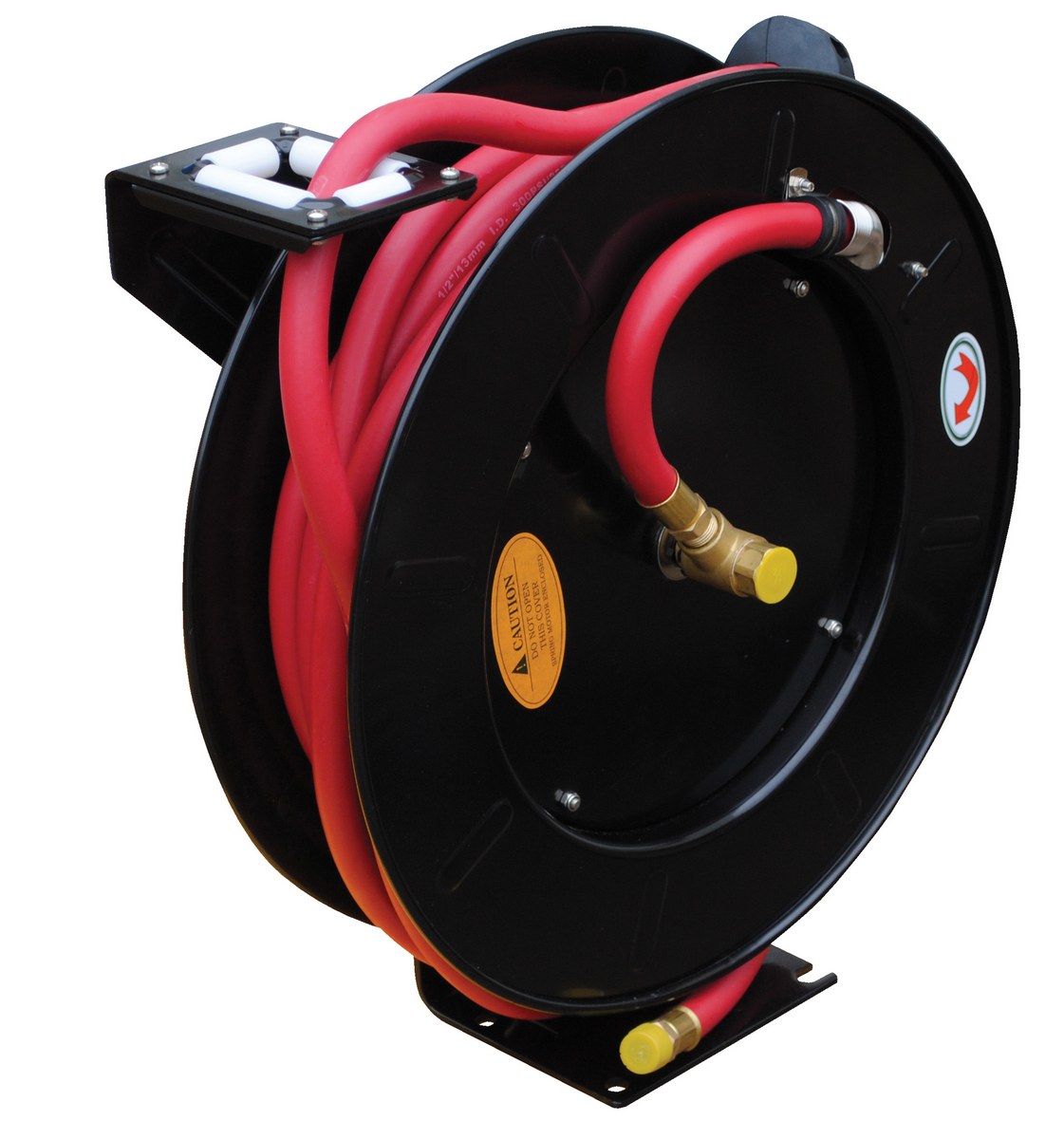

VHR-50-78

model VHR-50-78




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Spring Driven Low Pressure Hoses
Model Image Type PDFs Overall Size
(WxDxH)
Inside
Hose Dia.
Length
of Hose
Wt.
(lbs)
VHR-20-44 A Warranty PDF 6-1/4"x15"x15" 1/4" 20 Feet 19
VHR-35-44 A Warranty PDF 5-1/2"x12-1/2"x13" 1/4" 35 Feet 31
VHR-17-46 A Warranty PDF 6"x15"x15-1/2" 3/8" 17 Feet 31
VHR-25-46 A Warranty PDF 6-1/2"x14-3/4"x15-1/2" 3/8" 25 Feet 26
VHR-50-56 A Warranty PDF 7-1/2"x19-1/2"x20" 3/8" 50 Feet 43
VHR-35-58 A Warranty PDF 8"x19-1/4"x18" 1/2" 35 Feet 43
VHR-50-78 B Warranty PDF 8-1/4"x21"x19-3/4" 1/2" 50 Feet 55

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

VHR-17-46

VHR-17-46

VHR-20-44

VHR-20-44

VHR-25-46

VHR-25-46

VHR-35-44

VHR-35-44

VHR-35-58

VHR-35-58

VHR-50-56

VHR-50-56

VHR-50-78

VHR-50-78






Deluxe Spring Driven Low Pressure Hose Reels PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

VHR-50-78
VHR-50-56
VHR-35-58
VHR-35-44
VHR-25-46
VHR-20-44
VHR-17-46

Other PDF's

No "Other PDFs" For This Product...
