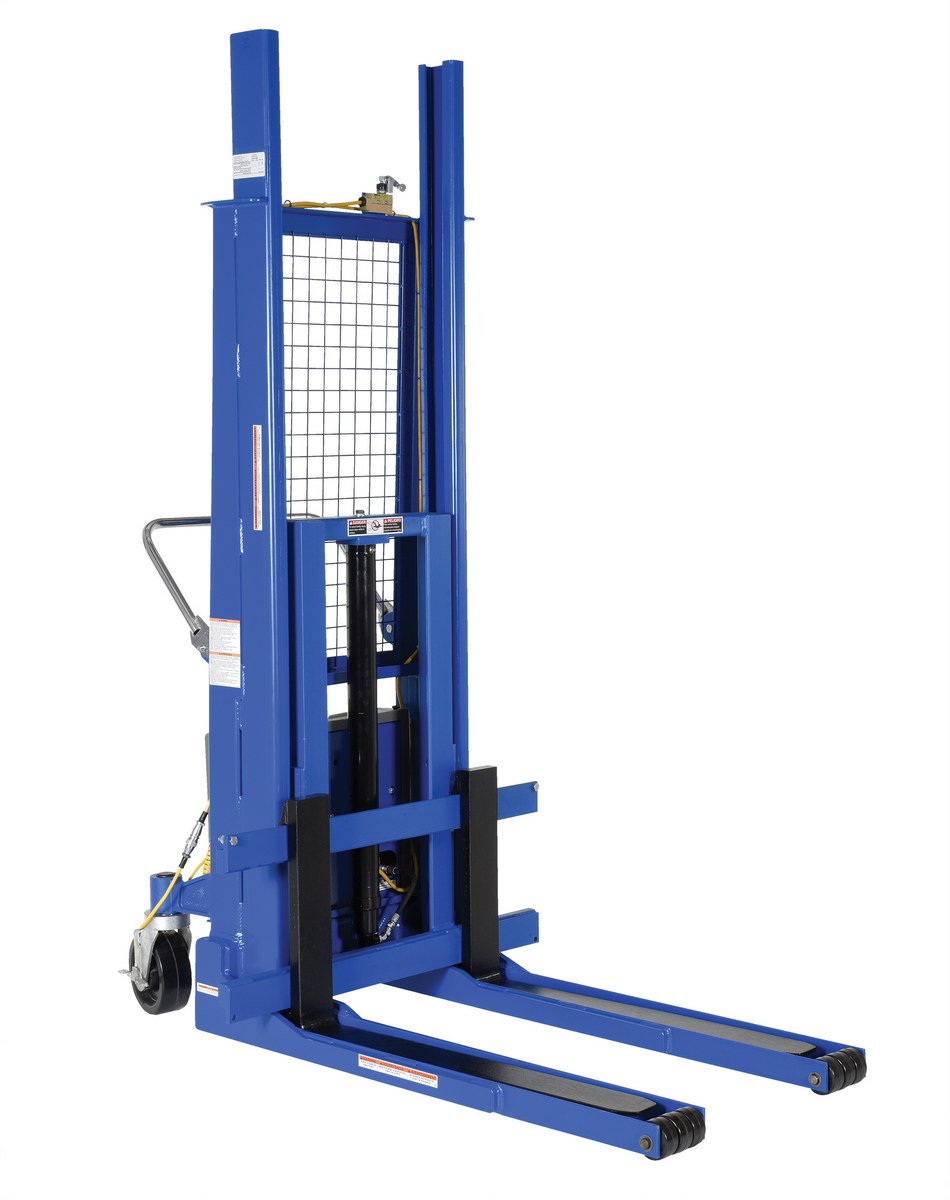

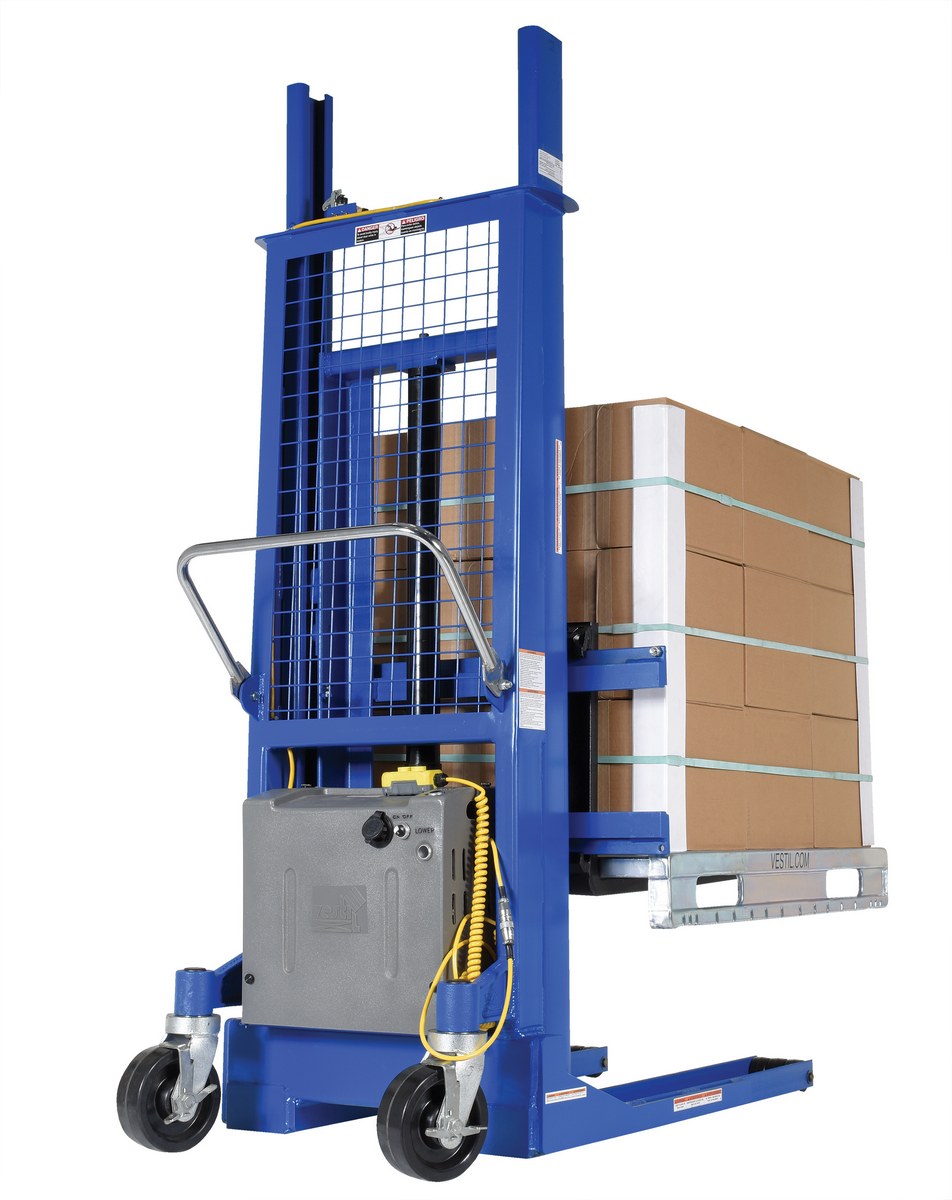

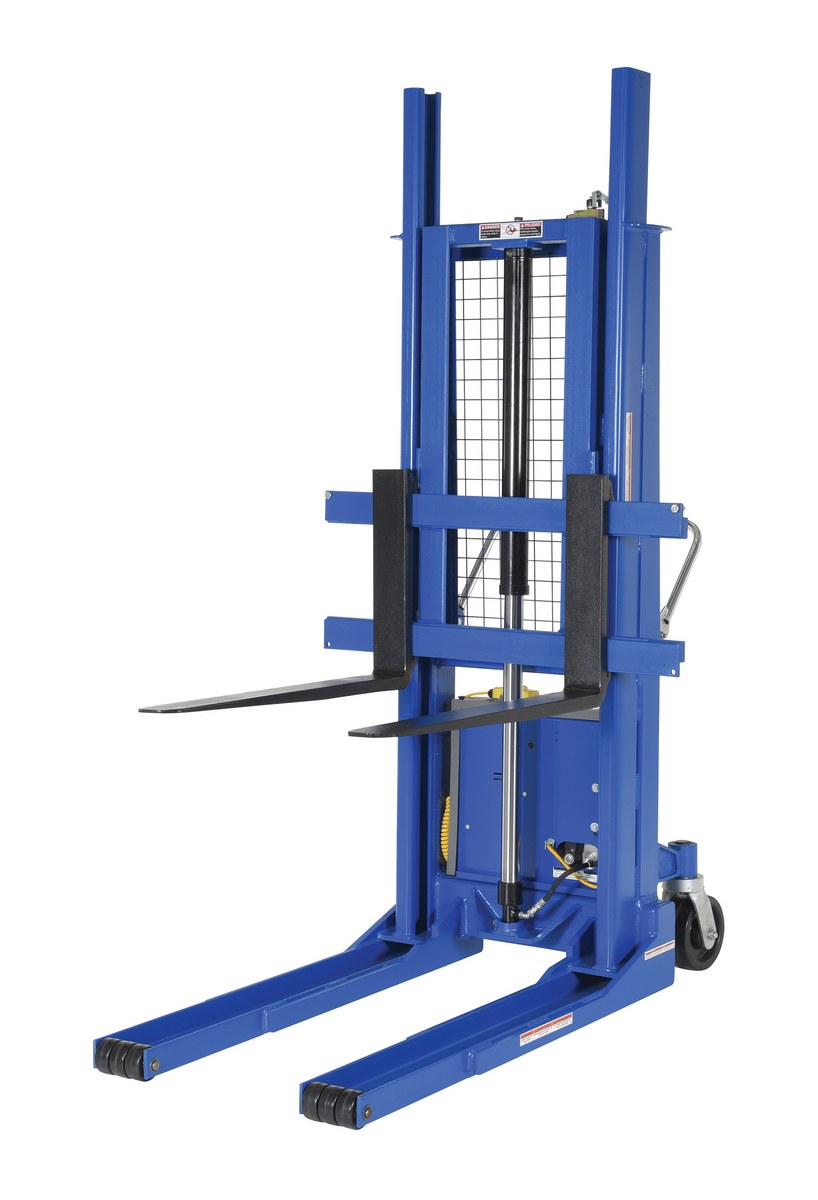

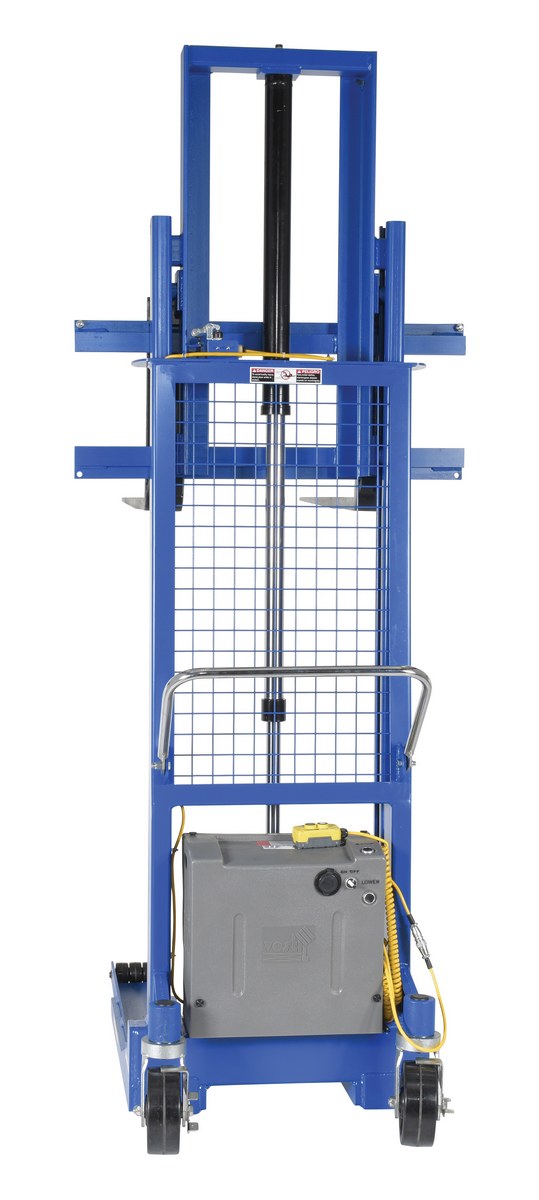

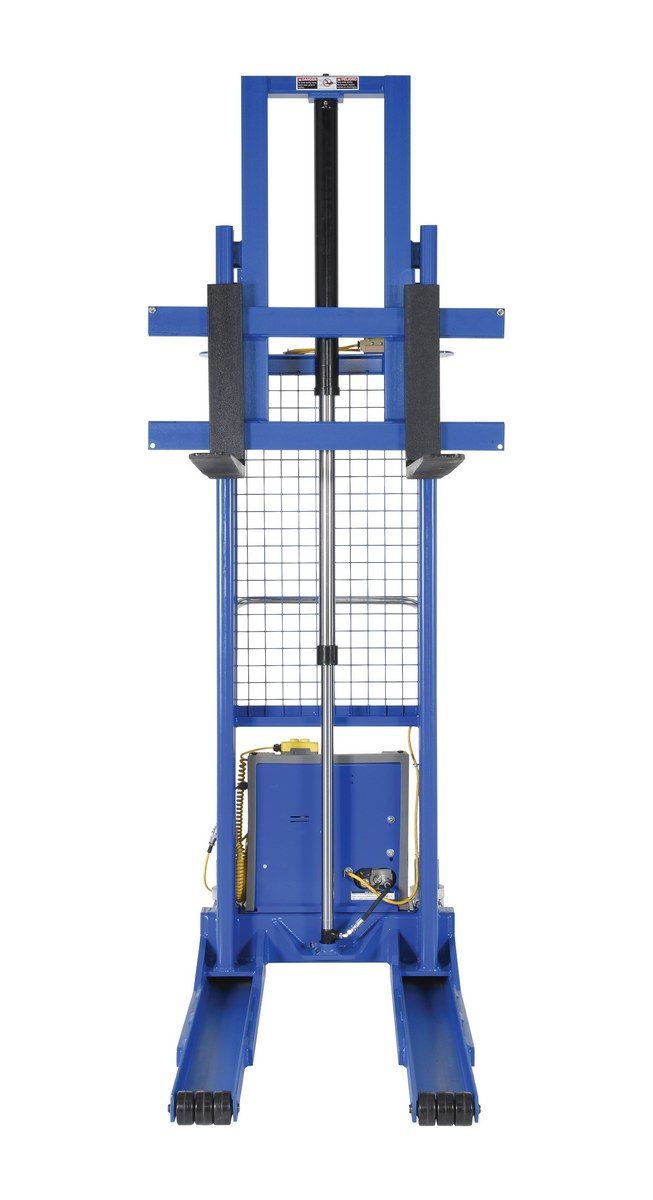

model: PMSS-60-AC

Featured Ergonomic Solutions

Hardware Kits

Wheel Nose Pallet Trucks

Electric Hydraulic Trash Can Dumpers

Partially Stainless Steel Hydraulic Elevating Carts

Tote Lifters

Versatile Quick Lifts

Radio Remote Control

Mechanical Post Tables

Add-A-Levels

Product Family Overview

Print Friendly

Basket & Skid Stackers

SERIES: PMSS

Transport open bottom pallets, skids, baskets, and crates with ease. Features an 18" horizontal load center and overall fork width of 26". Units roll smoothly on 8" x 3" swivel phenolic rear casters. Handle height is 40". DC powered units include one (1) 12V battery and an on-board charger. Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the PMSS-PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Transport open bottom pallets, skids, baskets, and crates with ease. Features an 18" horizontal load center and overall fork width of 26". Units roll smoothly on 8" x 3" swivel phenolic rear casters. Handle height is 40". DC powered units include one (1) 12V battery and an on-board charger. Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the PMSS-PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Other Stackers

Stackers with Powered Drive and Powered Lift

Stacker with Powered Lift

Manual & Electric Stackers (Pramac)

Powered Stacker with Power Drive, Power Lift, & Power Fork Reach

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

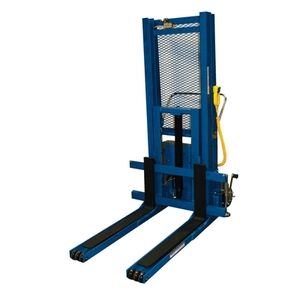

model PMSS-50-AC

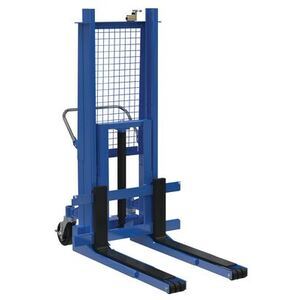

model PMSS-50-AIR

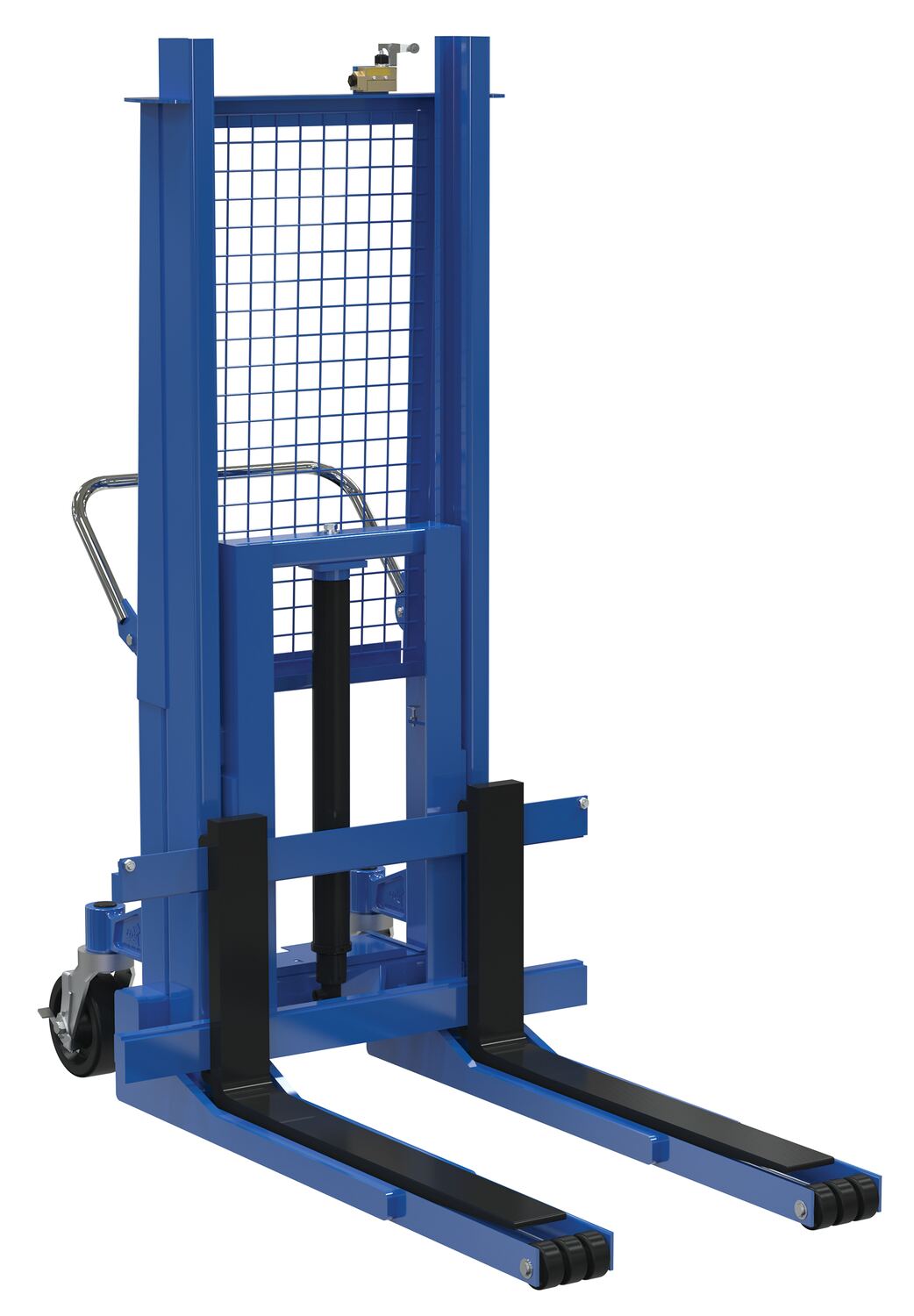

model PMSS-60-AIR

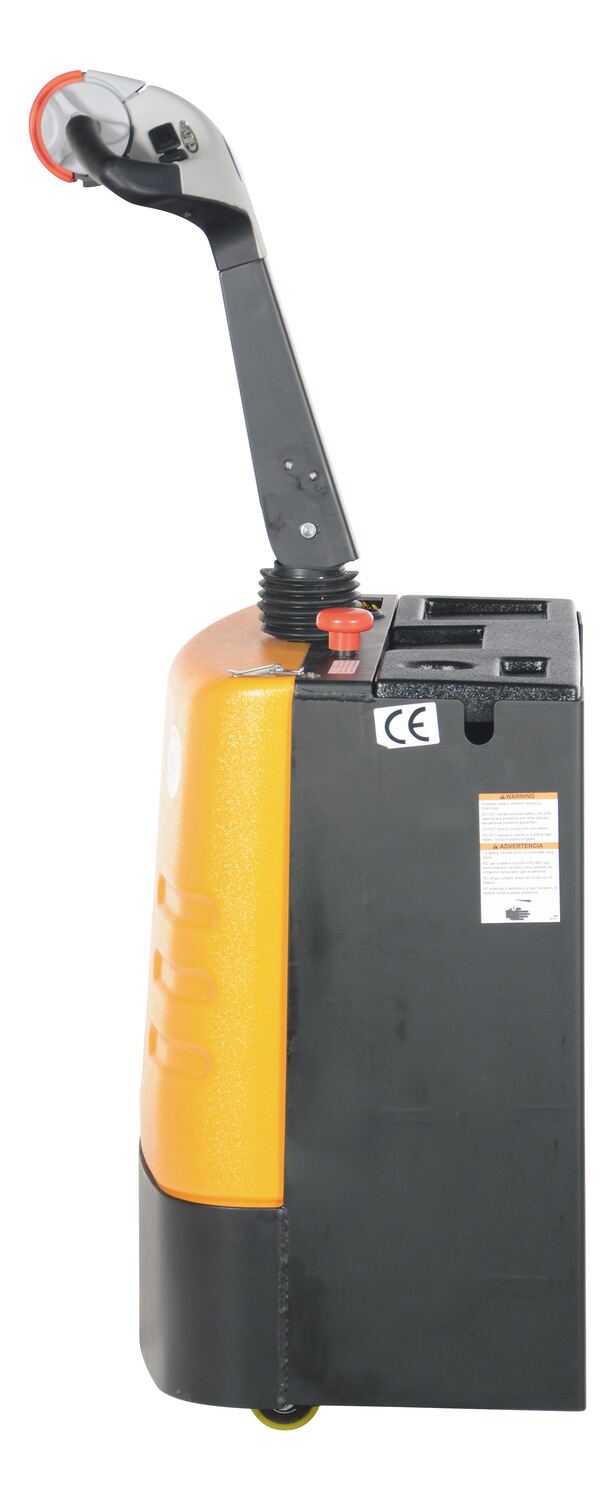

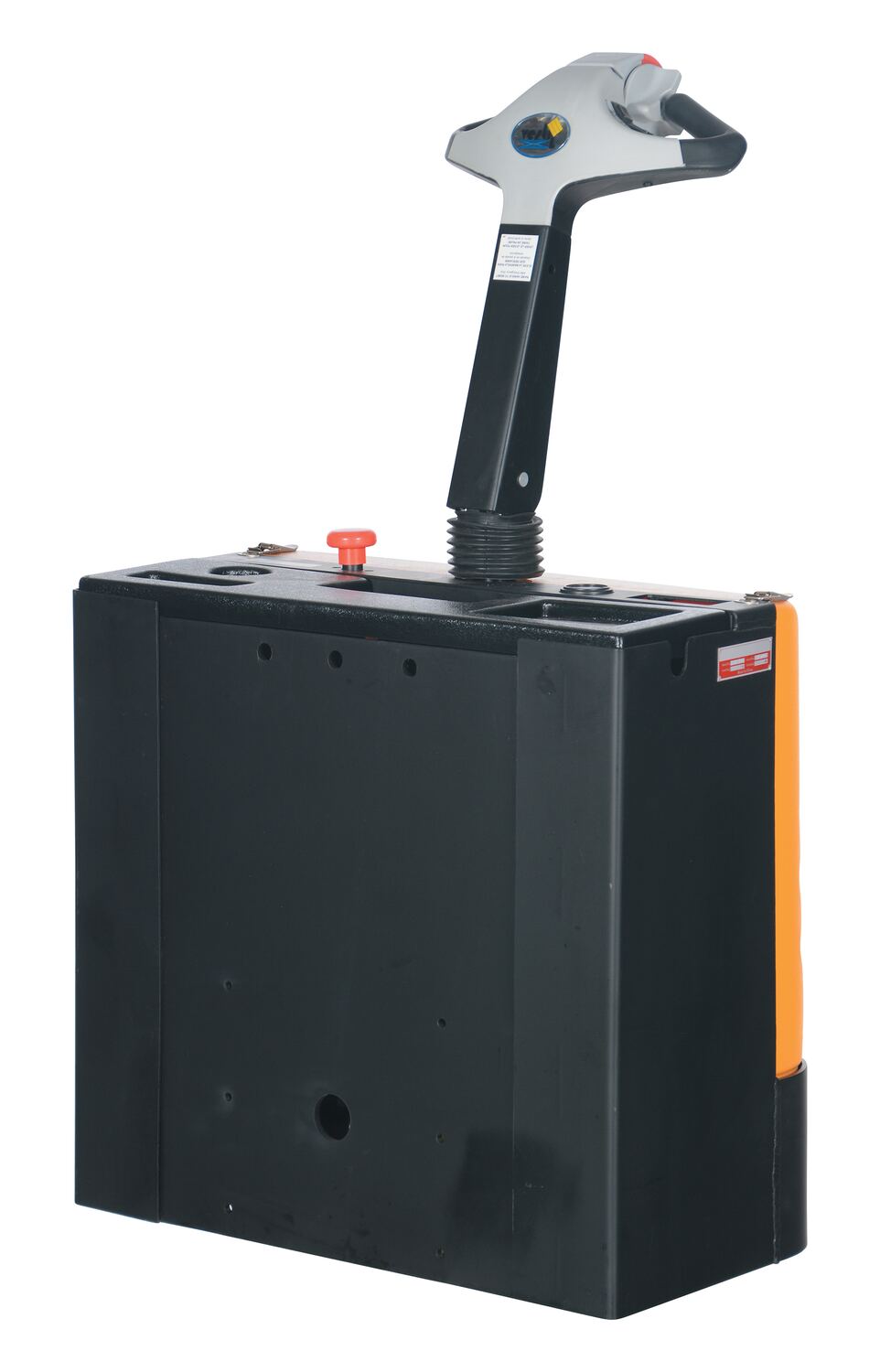

model PMSS-PTDS-E

Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

	Model #				Description	Attributes	Net Wt. (lbs)
	PMSS-50-AC			1 Year Limited Warranty	Steel Basket/Skid Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	989
	PMSS-50-AIR			1 Year Limited Warranty	Steel Basket/Skid Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	989

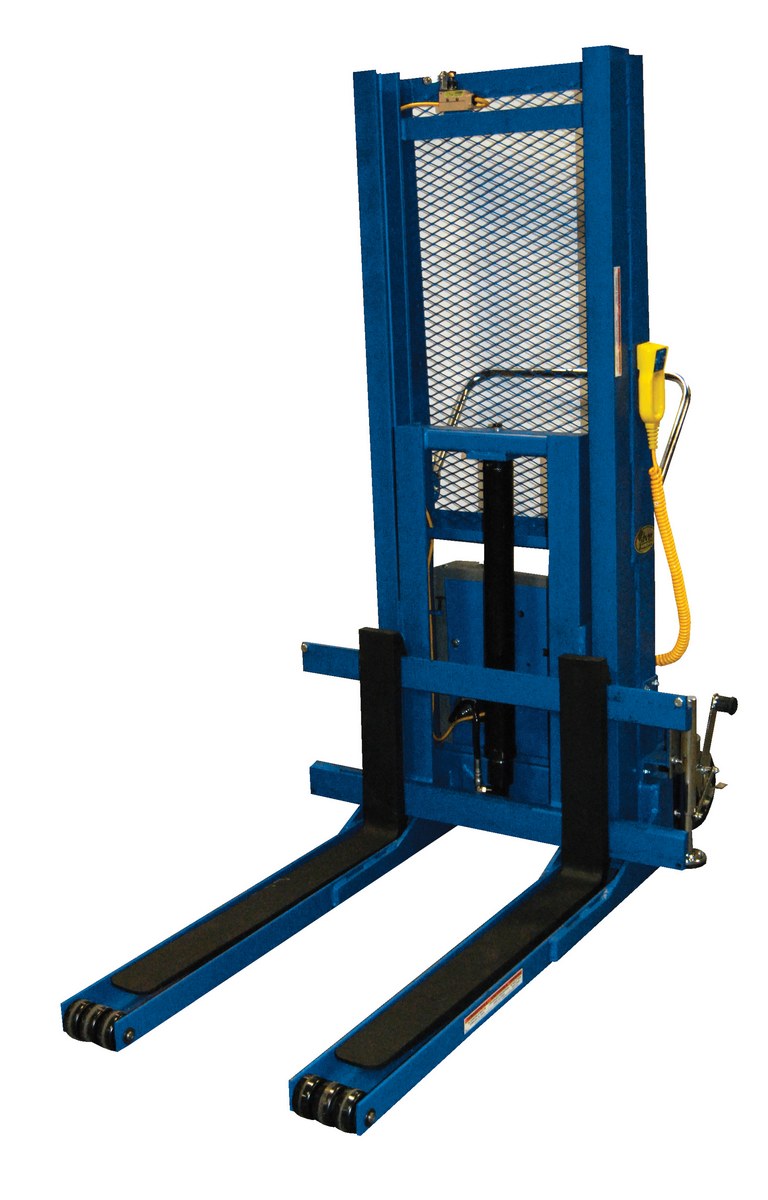

	PMSS-50-DC			1 Year Limited Warranty	Steel Basket/Skid Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1017
	PMSS-60-AC			1 Year Limited Warranty	Steel Basket/Skid Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1032
	PMSS-60-AIR			1 Year Limited Warranty	Steel Basket/Skid Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1078
	PMSS-60-DC			1 Year Limited Warranty	Steel Basket/Skid Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1040

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PMSS-50-AC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

PMSS-50-AIR

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

PMSS-50-DC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

PMSS-60-AC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

PMSS-60-AIR

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

PMSS-60-DC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Width (in.): 4
Uniform Capacity (lb.): 4000
Fork Width (in.): 4

For More Details of the Option Click the Red Model Button

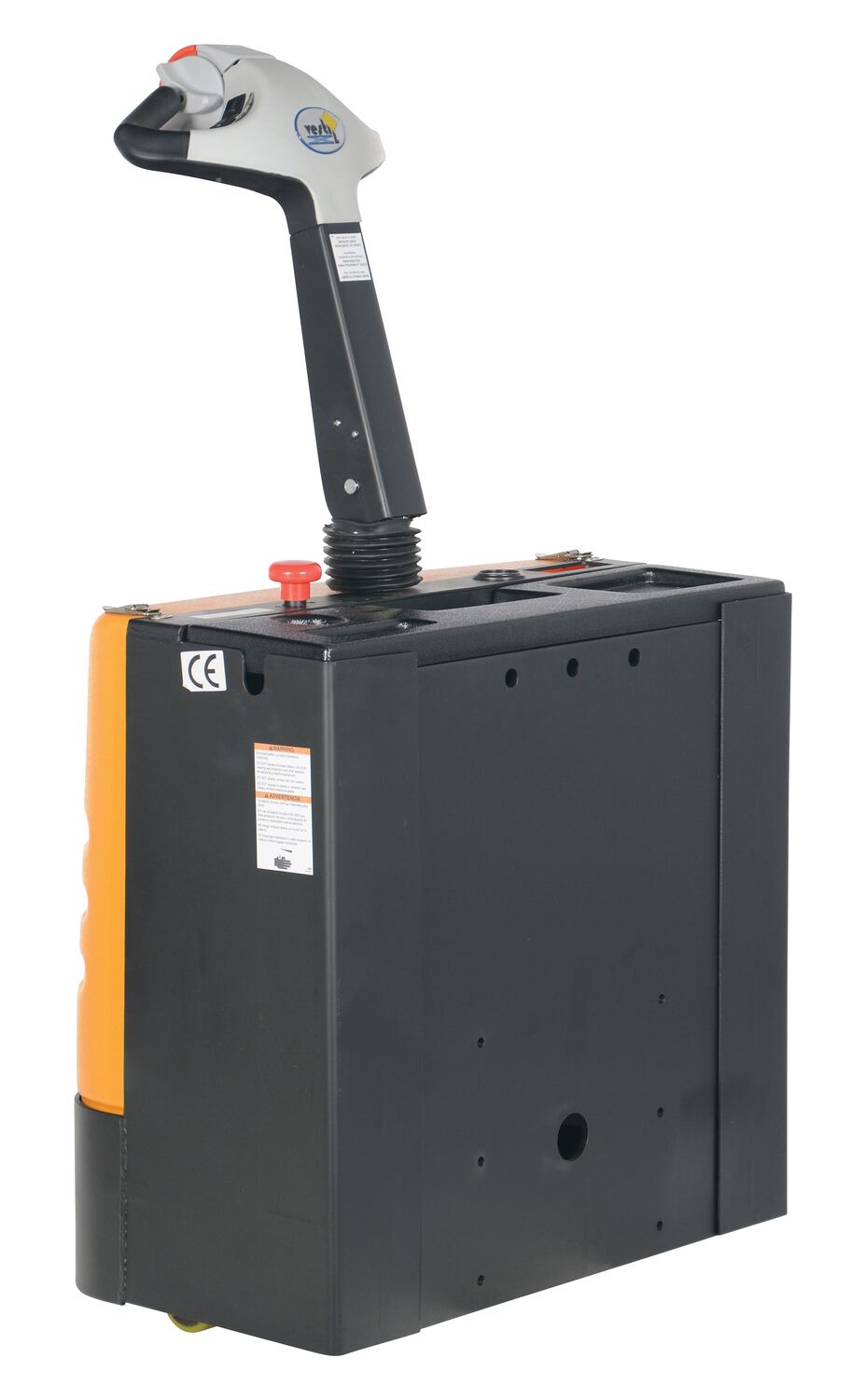

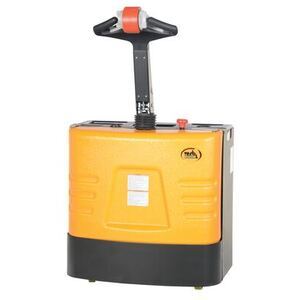

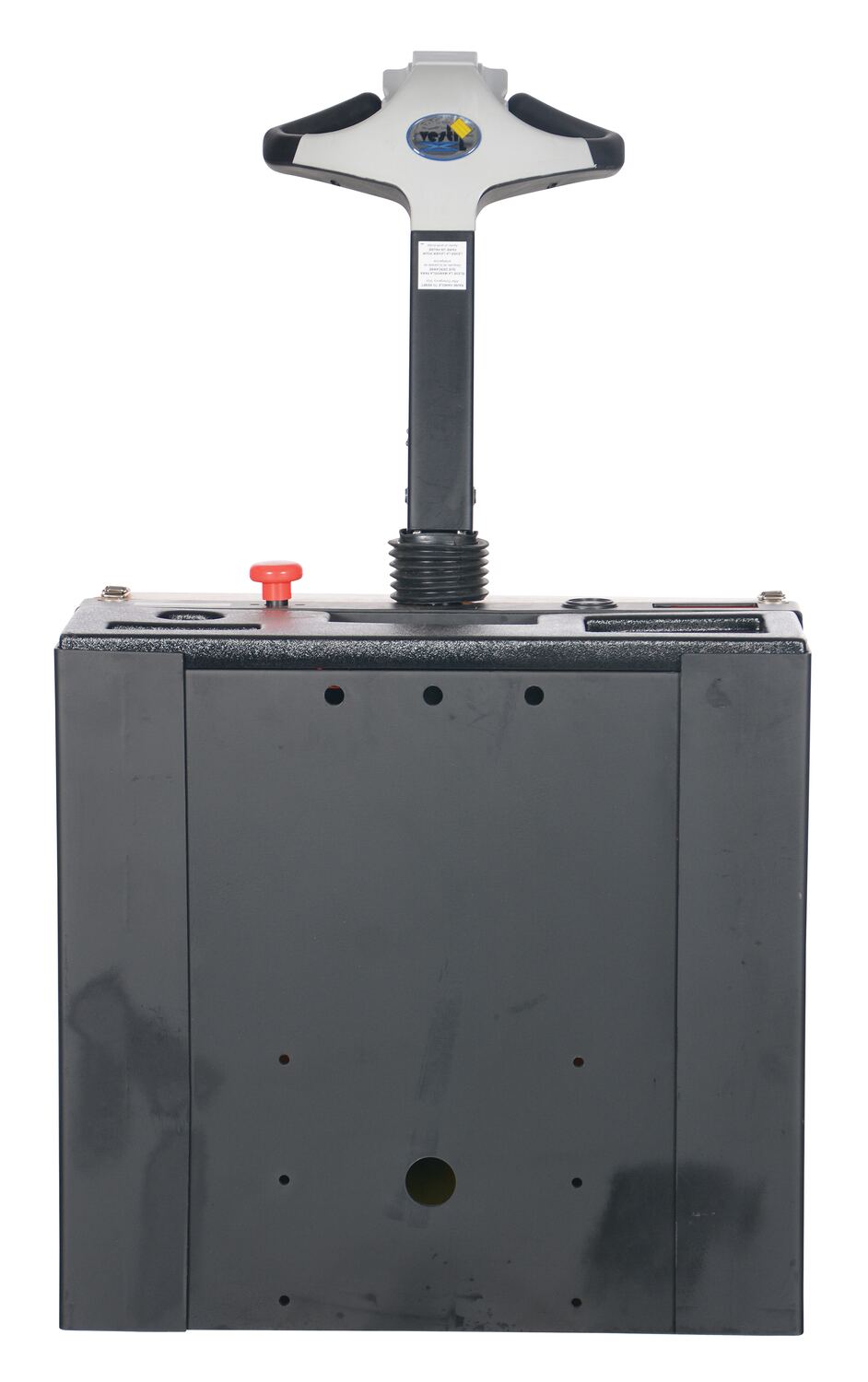

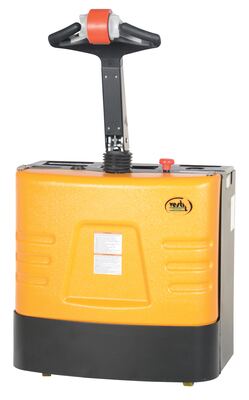

PMSS-PTDS-E			1 Year Limited Warranty	Factory Installed Power Traction Drive System For Basket/Skid Stacker Units Black / Yellow	Maximum Speed (mph.): 2.5 Power: 24V DC	317

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Basket & Skid Stackers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

PMSS-50-AIR

PMSS-60-AIR

Testing Certificates

PMSS-50-AC

PMSS-50-AIR

PMSS-50-DC

PMSS-60-AC

PMSS-60-AIR

PMSS-60-DC

PMSS-PTDS-E

SDS Sheets

Hydraulic Oil SDS Sheet for: PMSS-50-AC

Hydraulic Oil SDS Sheet for: PMSS-50-AIR

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMSS-50-DC

Hydraulic Oil SDS Sheet for: PMSS-50-DC

Hydraulic Oil SDS Sheet for: PMSS-60-AC

Hydraulic Oil SDS Sheet for: PMSS-60-AIR

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMSS-60-DC

Hydraulic Oil SDS Sheet for: PMSS-60-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMSS-PTDS-E

Hydraulic Oil SDS Sheet for: PMSS-PTDS-E

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

Print Friendly

Related or Similar Products:

Pallet Master/Servers

Product

Pallet Master/Servers

Counter-Balanced Pallet Master/Servers

Product

Counter-Balanced Pallet Master/Servers

Counter-Balanced Stackers

Product

Counter-Balanced Stackers

Manual & Electric Stackers

Product

Manual & Electric Stackers

Combination Hand Pump and Electric Stackers

Product

Combination Hand Pump and Electric Stackers

Narrow Mast Stackers with Powered Lift

Product

Narrow Mast Stackers with Powered Lift

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

Basket & Skid Stackers

Transport open bottom pallets, skids, baskets, and crates with ease. Features an 18" horizontal load center and overall fork width of 26". Units roll smoothly on 8" x 3" swivel phenolic rear casters. Handle height is 40". DC powered units include one (1) 12V battery and an on-board charger. Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the PMSS-PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Model #		Description	Attributes	Net Wt. (lbs)
PMSS-50-AC		Steel Basket/Skid Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	989
PMSS-50-AIR		Steel Basket/Skid Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	989
PMSS-50-DC		Steel Basket/Skid Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1017
PMSS-60-AC		Steel Basket/Skid Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1032
PMSS-60-AIR		Steel Basket/Skid Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1078
PMSS-60-DC		Steel Basket/Skid Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Width (in.): 4	1040
