Counter-Balanced Pallet Master/Servers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

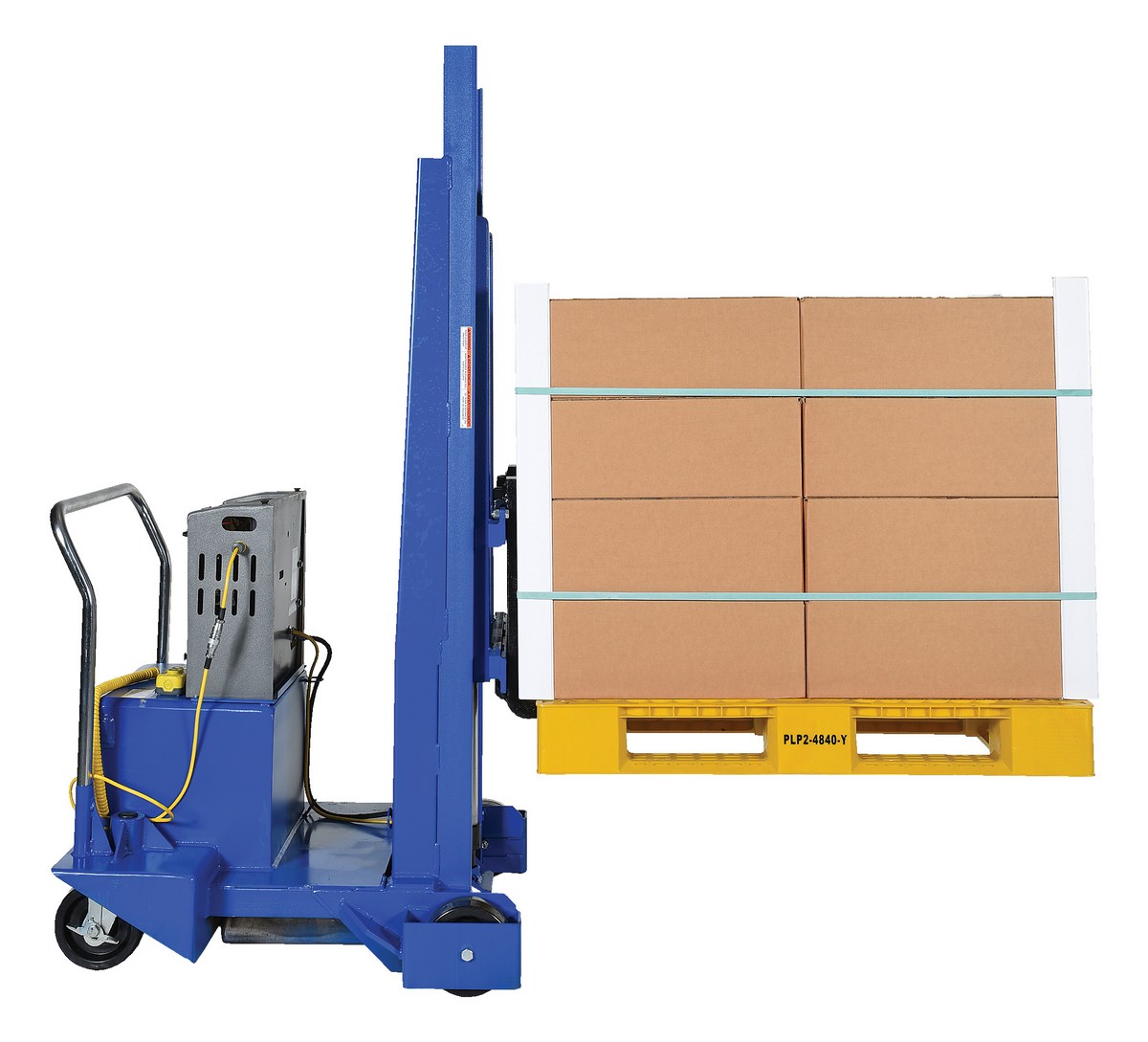

CB-PMPS-10-60-DC_E.jpg CB-PMPS-10-60-DC_A.jpg CB-PMPS-10-60-DC_B.jpg CB-PMPS-10-60-DC_C.jpg
Counter-Balanced Pallet Master/Servers

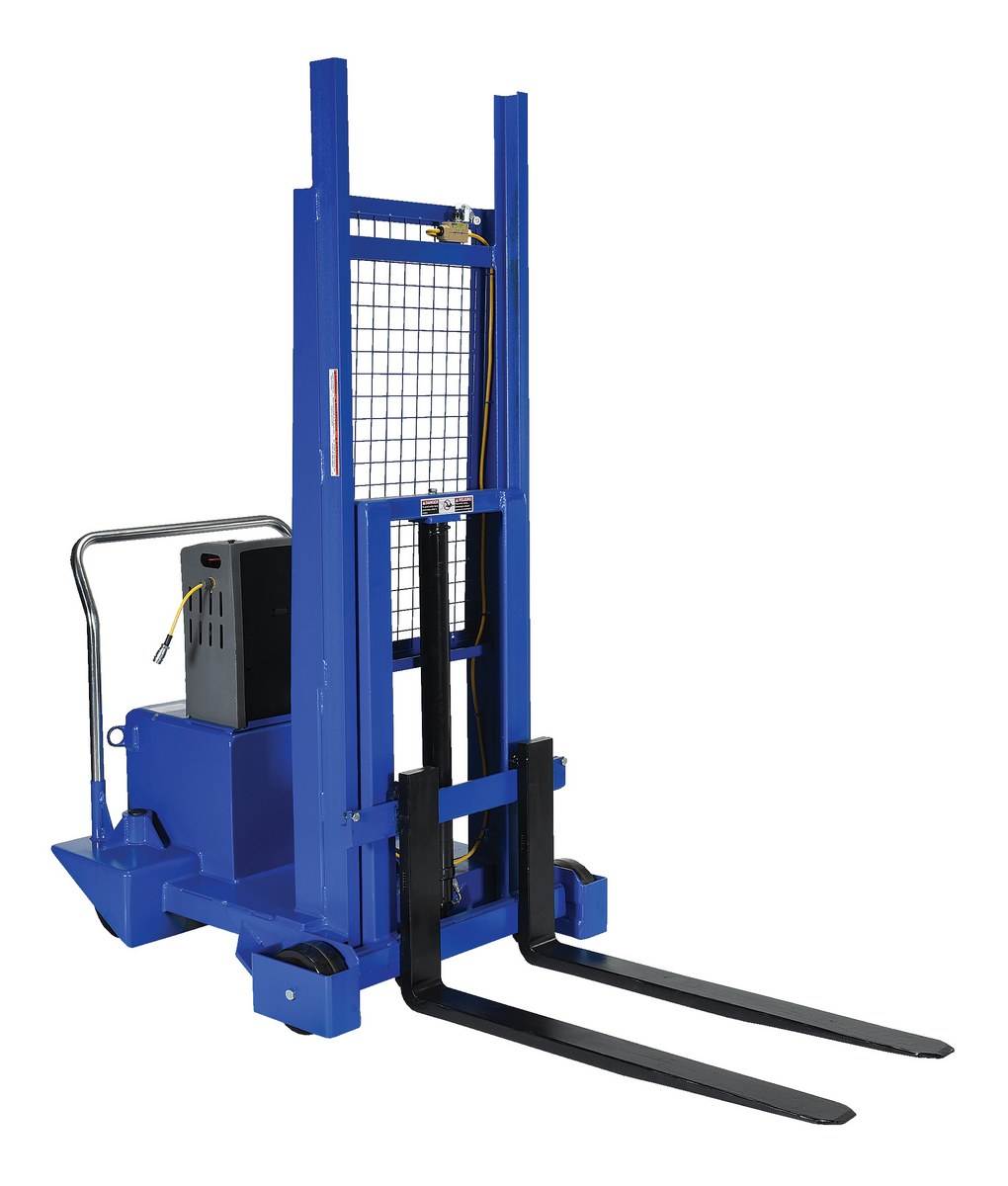

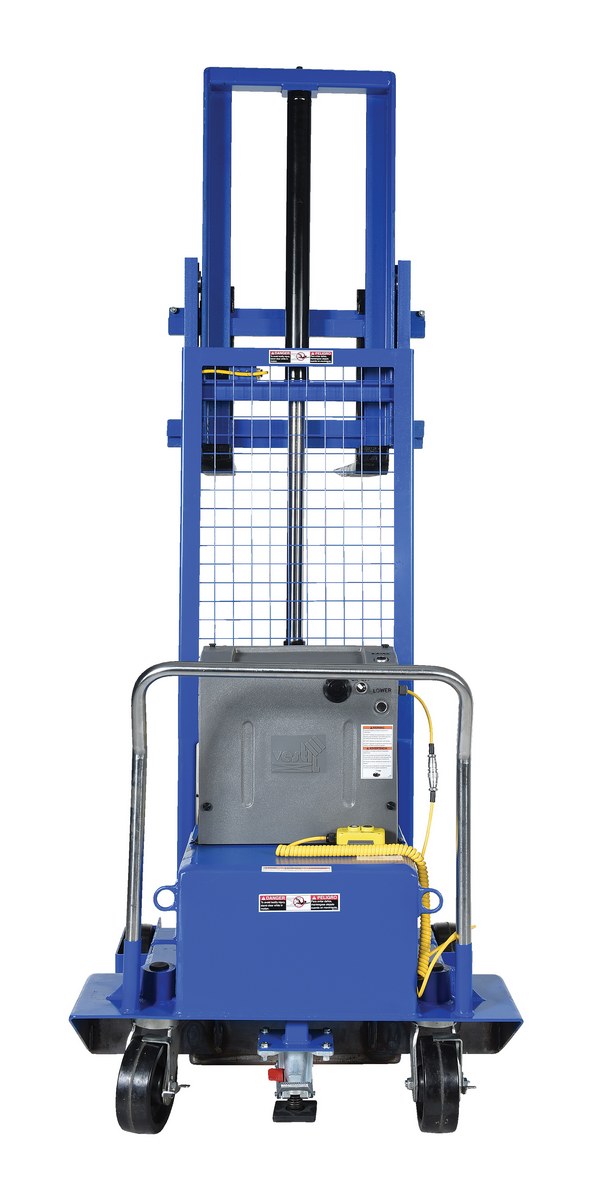

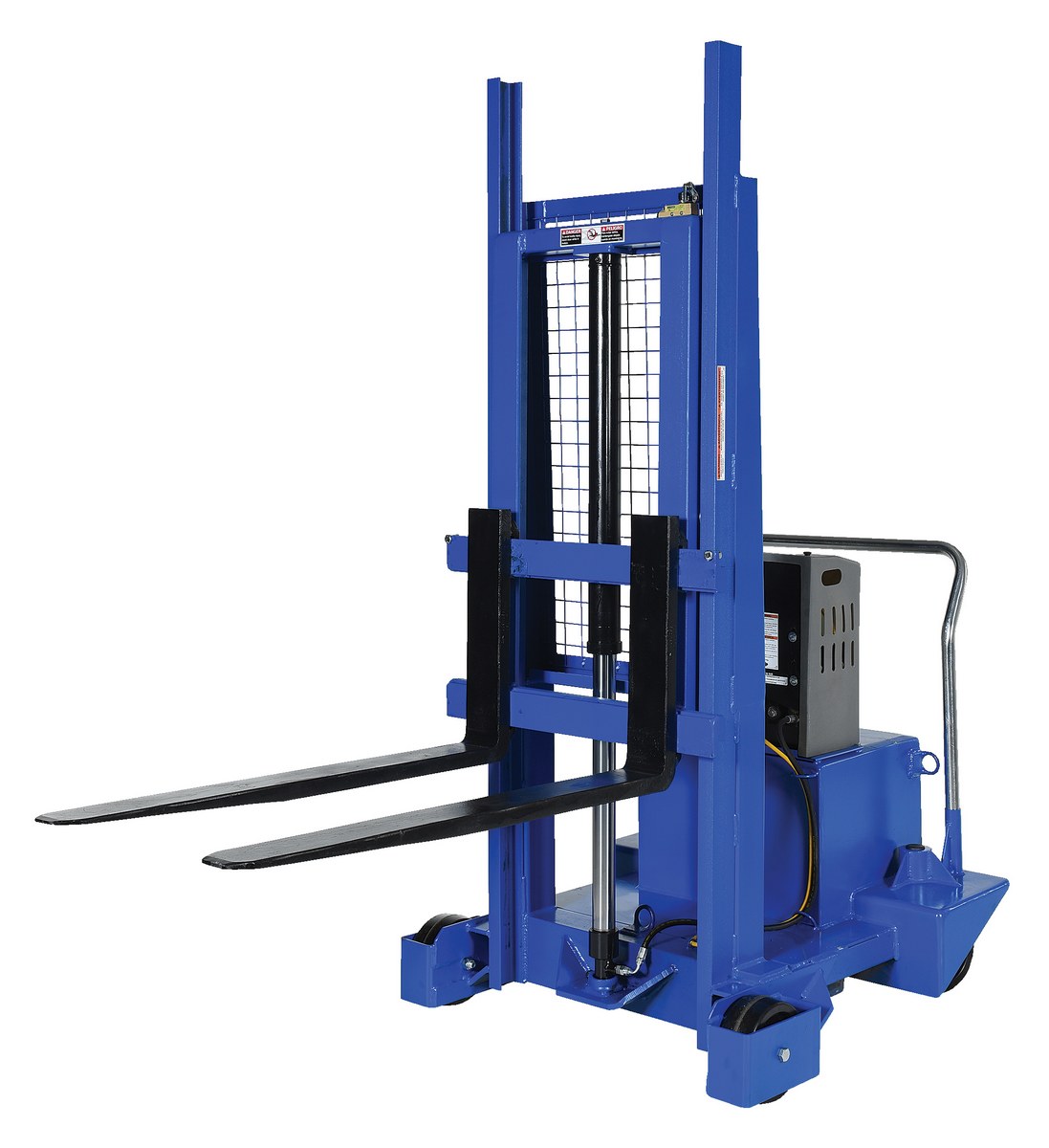

model: CB-PMPS-10-60-DC



Featured Ergonomic Solutions


DC Powered Tilt Master
Stainless Steel Scissor Carts
Portable Worksite Lift
Folding Arm Chair
Heater Tank Lift Truck
Fully Powered Electric Pallet Trucks
Worker Seats
Ground Tilter
Double Scissor Lift Tables
model chart

Product Family Overview

Print Friendly
Counter-Balanced Pallet Master/Servers
SERIES: CB-PMPS

Move pallets and skids from one workstation to another. Forks measure 4" wide by 36" long. Features an 18" horizontal load center and adjustable forks from 8" to 27". Units roll easily on 8" x 3" swivel phenolic rear casters. Floor lock standard. Handle height is 41-1/16."

Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the CM-PMPS-PTDS-E includes combination throttle / direction and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options available:

  • Suffix-AC is 115V, 1 Phase power with a push-button hand control.
  • Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charge indicator gauge.
  • Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control.

Move pallets and skids from one workstation to another. Forks measure 4" wide by 36" long. Features an 18" horizontal load center and adjustable forks from 8" to 27". Units roll easily on 8" x 3" swivel phenolic rear casters. Floor lock standard. Handle height is 41-1/16."

Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the CM-PMPS-PTDS-E includes combination throttle / direction and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options available:

  • Suffix-AC is 115V, 1 Phase power with a push-button hand control.
  • Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charge indicator gauge.
  • Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control.

Other Stackers

 Stacker with Powered Lift Counter-Balanced Powered Drive Lifts Basket & Skid Stackers Counter-Balanced Pallet Master/Servers

Additional Models In This Family
view entire Image Gallery

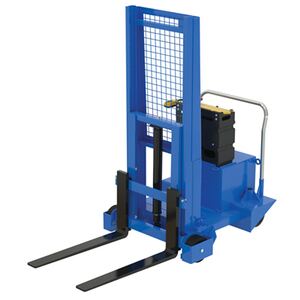

CB-PMPS-6-50-AC

model CB-PMPS-6-50-AC

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CB-PMPS-10-50-AC
CB-PMPS-10-50-AC1 Year Limited WarrantySteel AC Counter Balance Pallet Master/Server 50 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2616

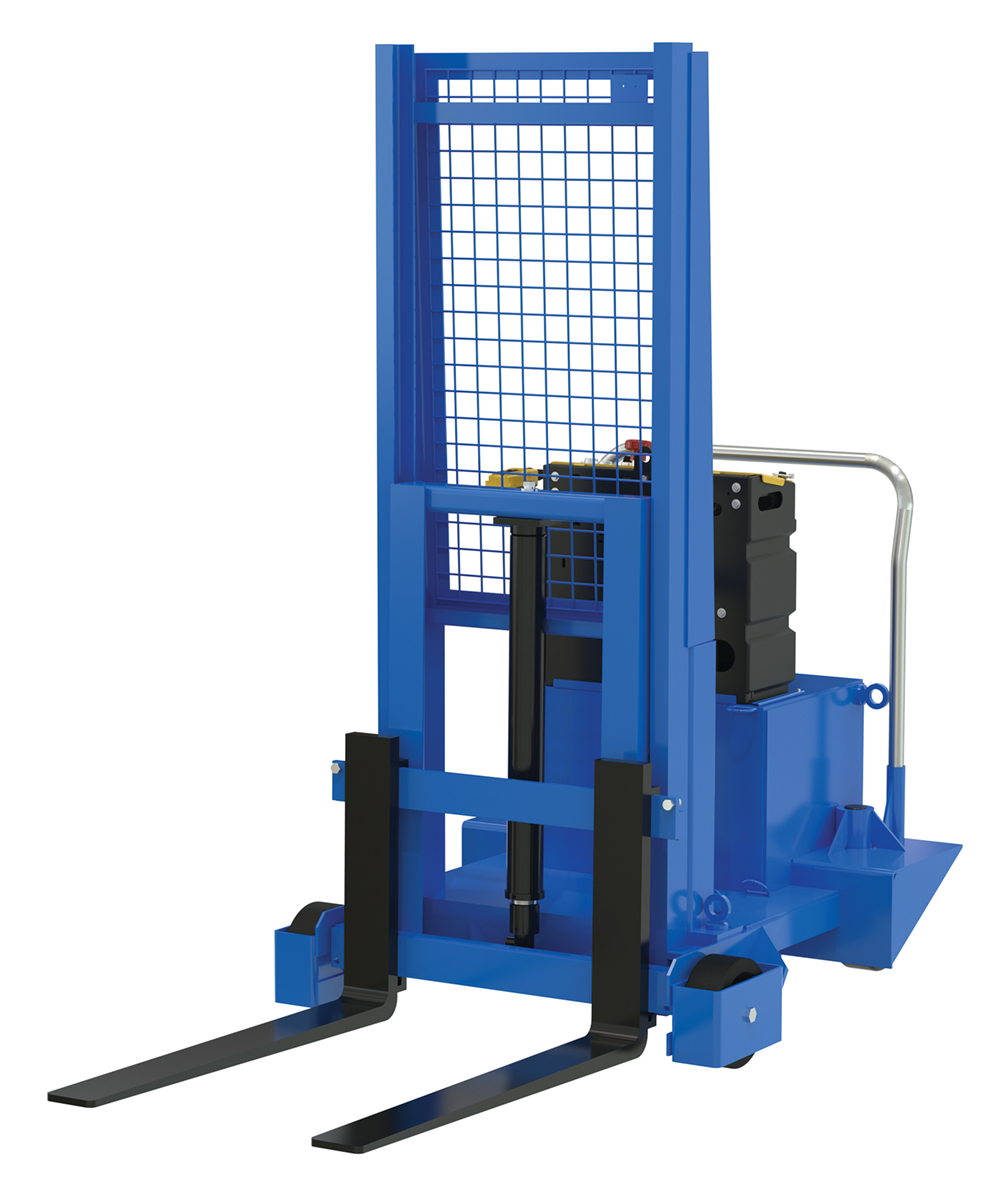

CB-PMPS-10-50-AIR
CB-PMPS-10-50-AIR1 Year Limited WarrantySteel Reciprocating Air Counter Balance Pallet Master/Server 50 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2830

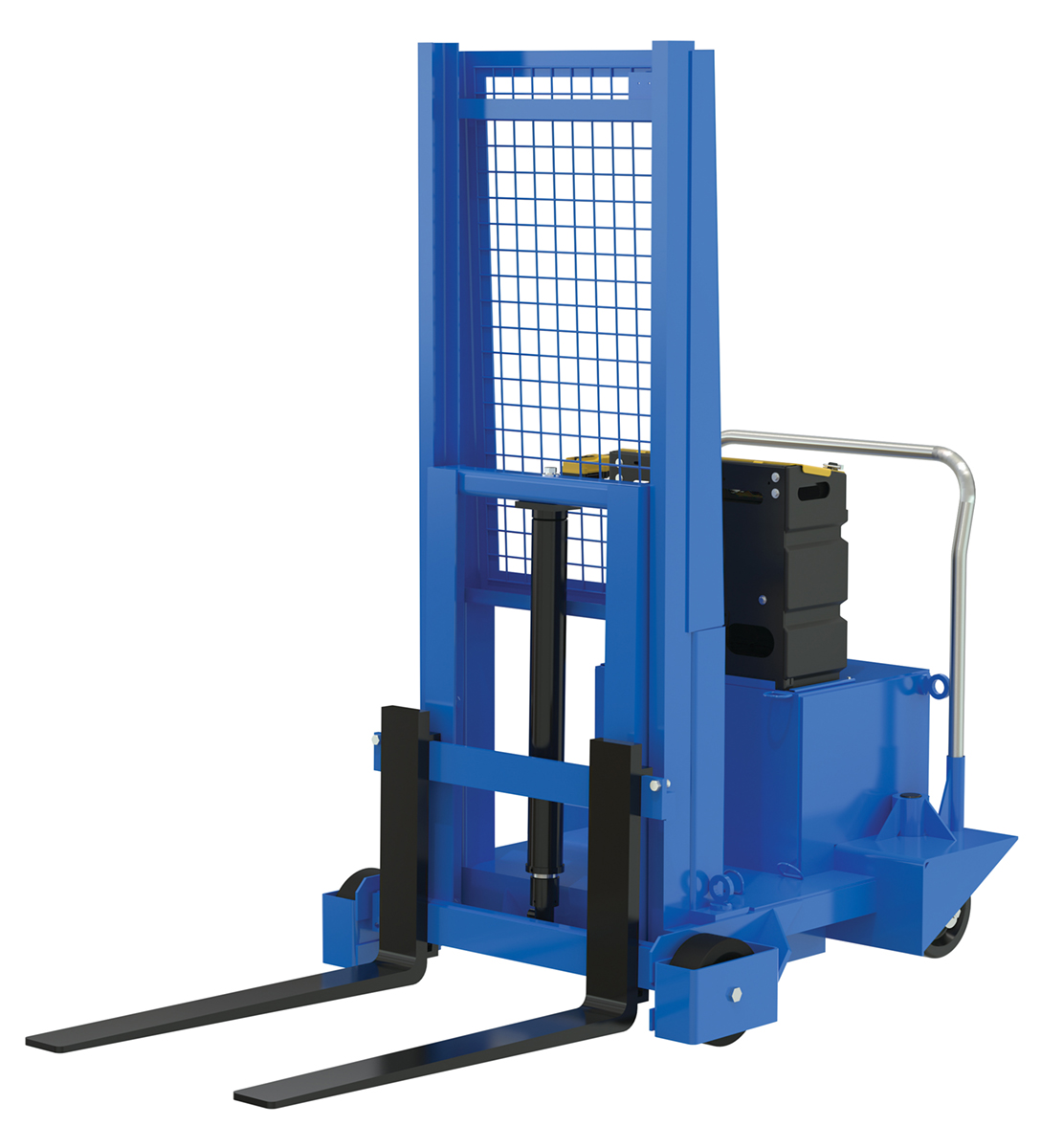

CB-PMPS-10-50-DC
CB-PMPS-10-50-DC1 Year Limited WarrantySteel DC Counter Balance Pallet Master/Server 50 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2493

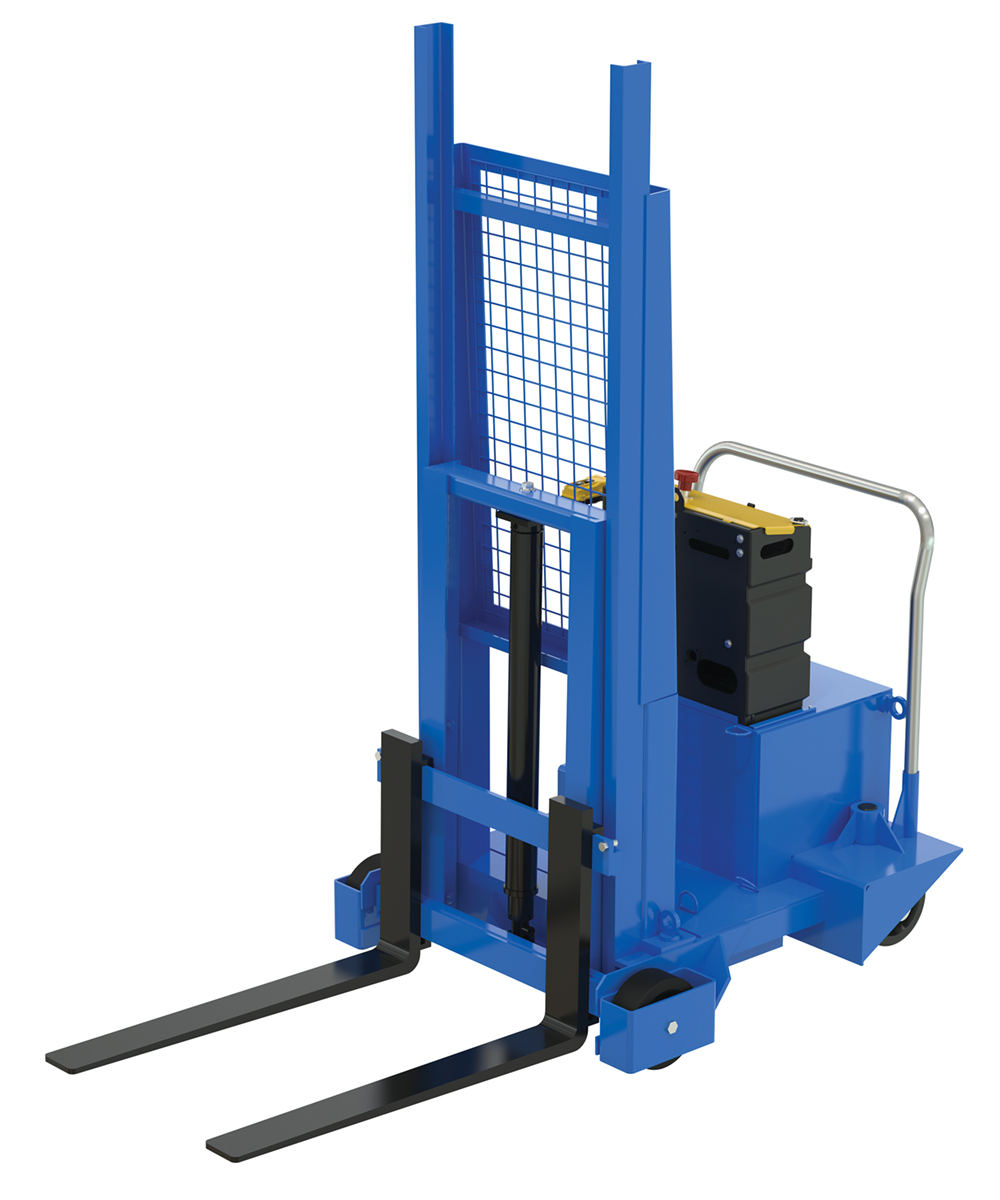

CB-PMPS-10-60-AC
CB-PMPS-10-60-AC1 Year Limited WarrantySteel AC Counter Balance Pallet Master/Server 60 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2880

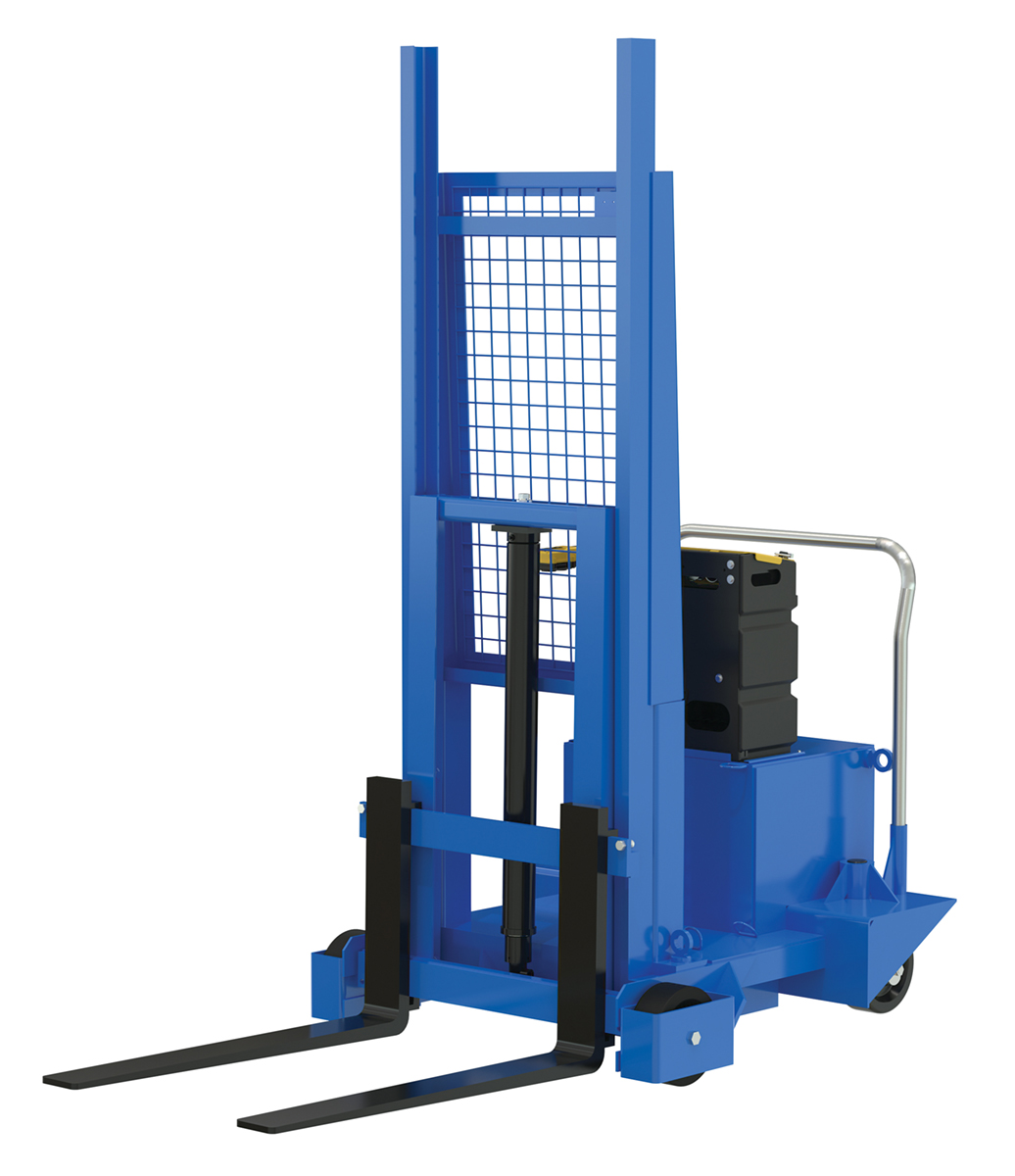

CB-PMPS-10-60-AIR
CB-PMPS-10-60-AIR1 Year Limited WarrantySteel Reciprocating Air Counter Balance Pallet Master/Server 60 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2864

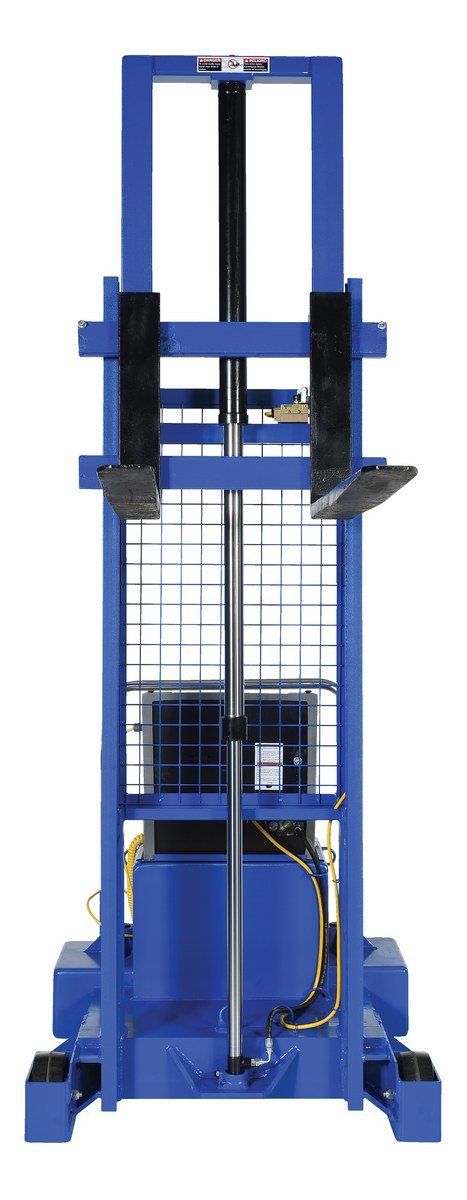

CB-PMPS-10-60-DC
CB-PMPS-10-60-DC1 Year Limited WarrantySteel DC Counter Balance Pallet Master/Server 60 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Fork Width (in.): 4		2583

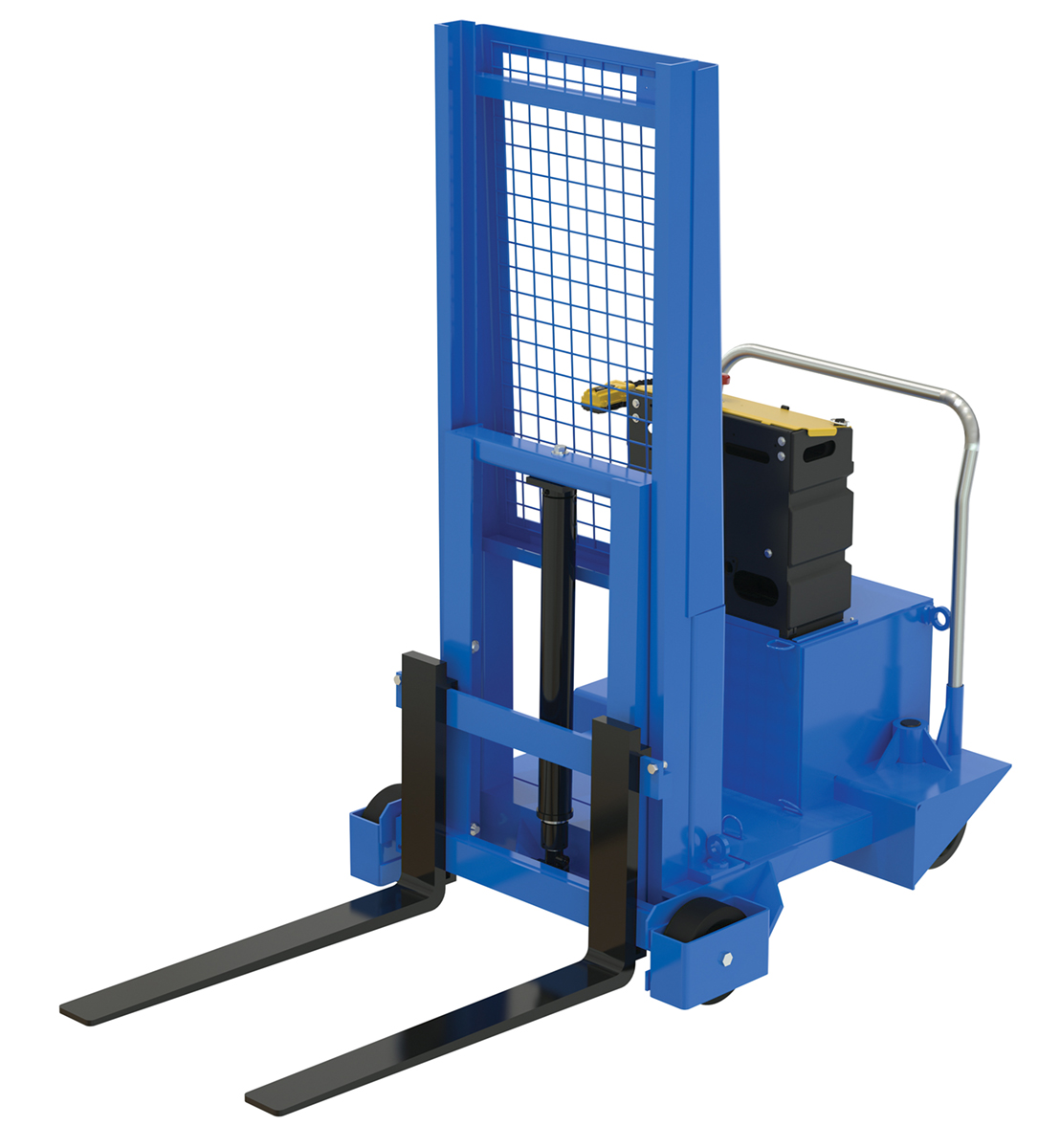

CB-PMPS-6-50-AC
CB-PMPS-6-50-AC1 Year Limited WarrantySteel AC Counter Balance Pallet Master/Server 50 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2430
CB-PMPS-6-50-AIR
CB-PMPS-6-50-AIR1 Year Limited WarrantySteel Reciprocating Air Counter Balance Pallet Master/Server 50 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2345

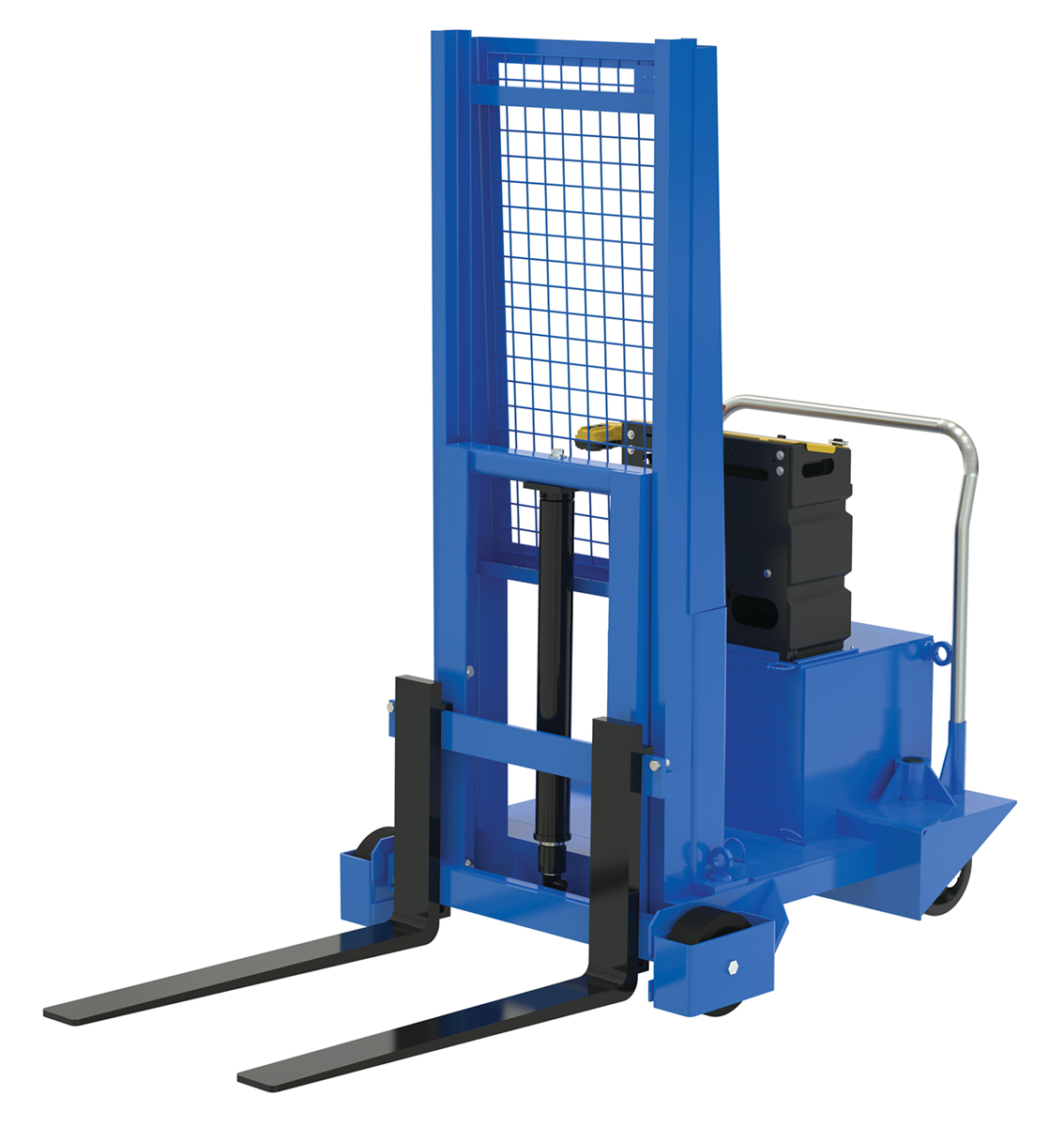

CB-PMPS-6-50-DC
CB-PMPS-6-50-DC1 Year Limited WarrantySteel DC Counter Balance Pallet Master/Server 50 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2252
CB-PMPS-6-60-AC
CB-PMPS-6-60-AC1 Year Limited WarrantySteel AC Counter Balance Pallet Master/Server 60 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2480

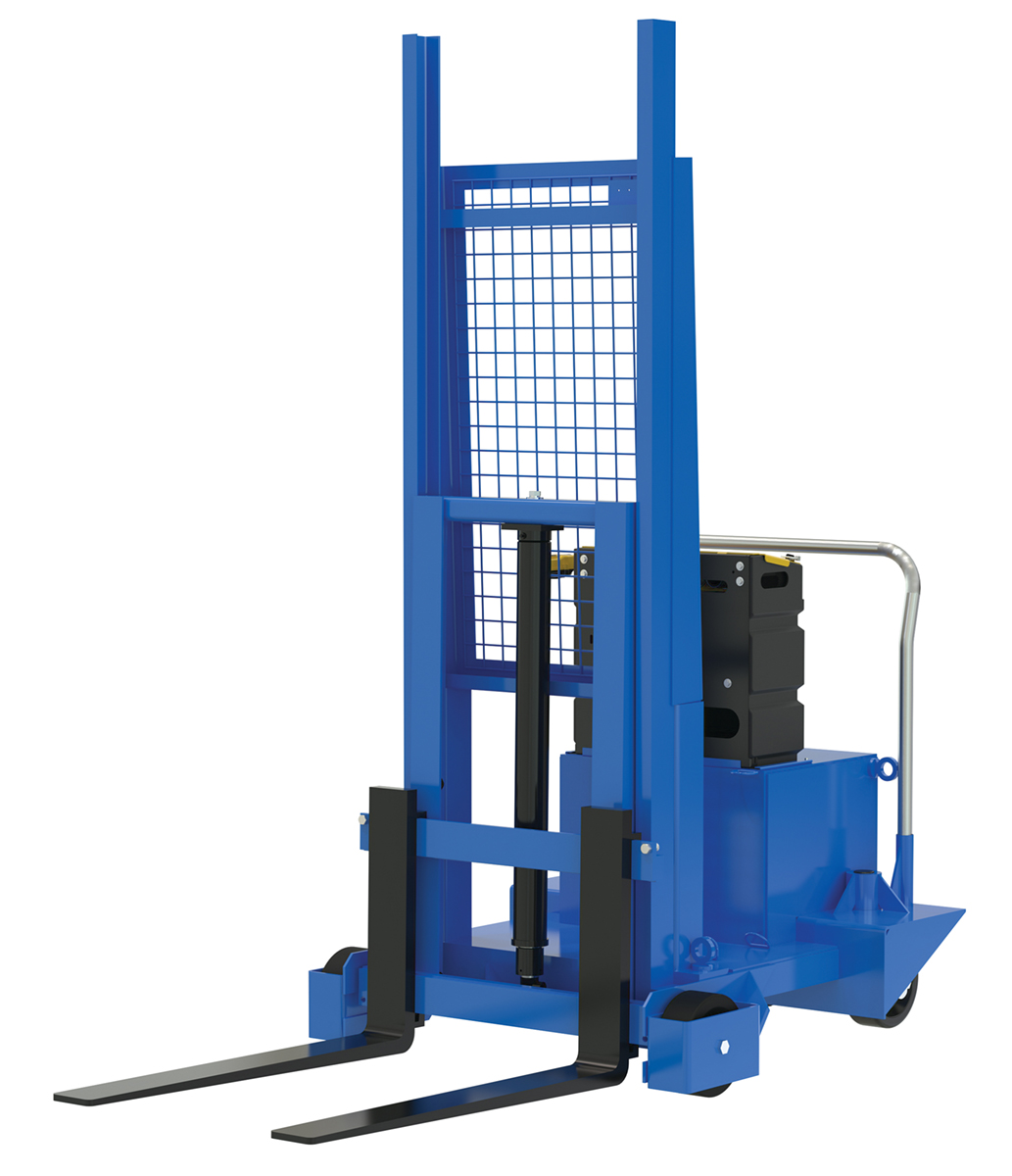

CB-PMPS-6-60-AIR
CB-PMPS-6-60-AIR1 Year Limited WarrantySteel Reciprocating Air Counter Balance Pallet Master/Server 60 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2389

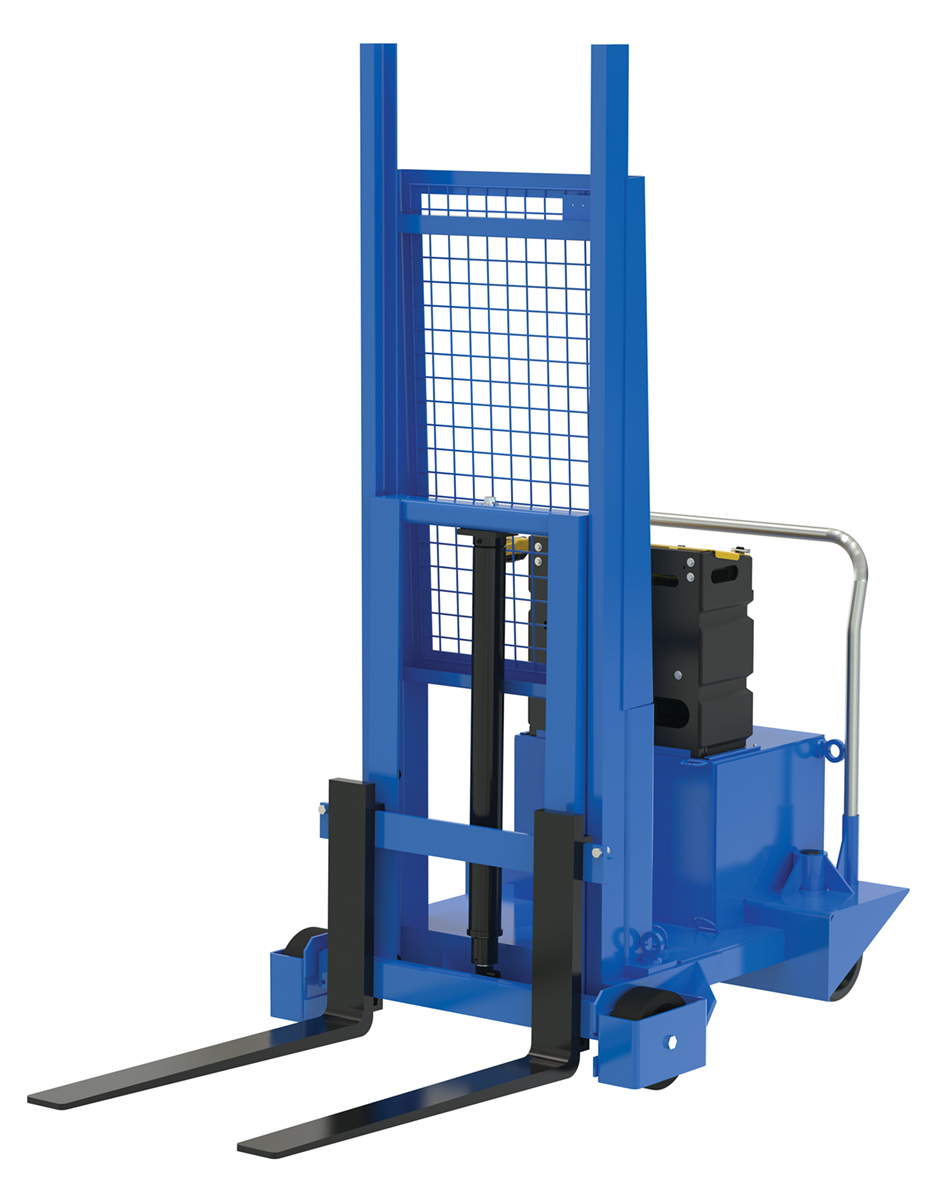

CB-PMPS-6-60-DC
CB-PMPS-6-60-DC1 Year Limited WarrantySteel DC Counter Balance Pallet Master/Server 60 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Fork Width (in.): 4		2274

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CB-PMPS-10-50-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-10-50-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-10-50-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-10-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-10-60-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-10-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Fork Width (in.): 4
Uniform Capacity (lb.): 1000
Fork Width (in.): 4

CB-PMPS-6-50-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4

CB-PMPS-6-50-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4

CB-PMPS-6-50-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4

CB-PMPS-6-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4

CB-PMPS-6-60-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4

CB-PMPS-6-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Fork Width (in.): 4
Uniform Capacity (lb.): 600
Fork Width (in.): 4
For More Details of the Option Click the Red Model Button

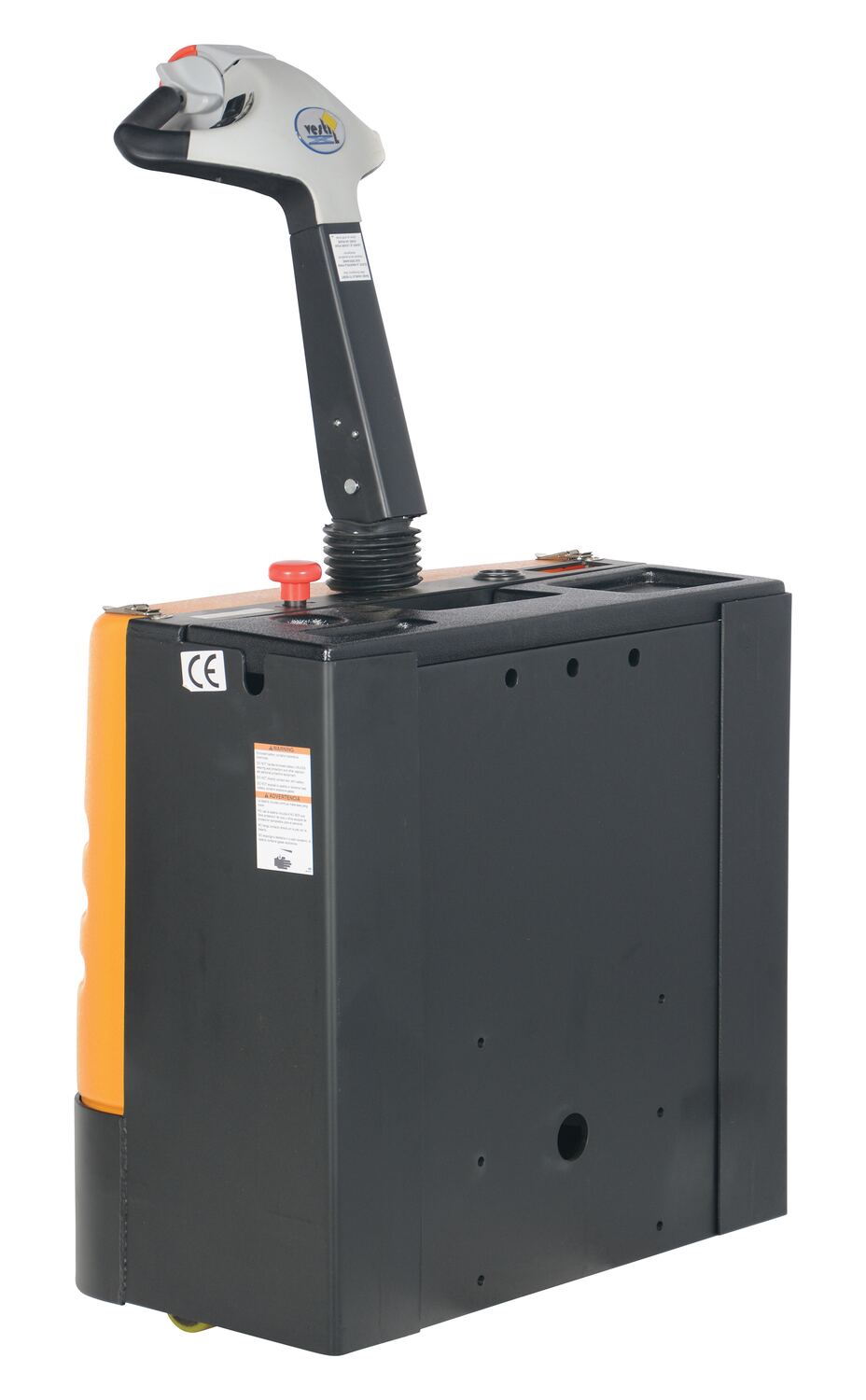

CB-PMPS-PTDS-E CB-PMPS-PTDS-E1 Year Limited WarrantyFactory Installed Power Traction Drive System For Counter Balanced Pallet Master/ServersMaximum Speed (mph.): 2.5
Power: 24V DC		558

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Counter-Balanced Pallet Master/Servers PDF's will open in a new window when clicked.

Manuals


CB-PMPS
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CB-PMPS-10-50-AC

CB-PMPS-10-50-AIR

CB-PMPS-10-50-DC

CB-PMPS-10-60-AC

CB-PMPS-10-60-AIR

CB-PMPS-10-60-DC

CB-PMPS-6-50-AC

CB-PMPS-6-50-AIR

CB-PMPS-6-50-DC

CB-PMPS-6-60-AC

CB-PMPS-6-60-AIR

CB-PMPS-6-60-DC

Testing Certificates


CB-PMPS-10-50-AC

CB-PMPS-10-50-AIR

CB-PMPS-10-50-DC

CB-PMPS-10-60-AC

CB-PMPS-10-60-AIR

CB-PMPS-10-60-DC

CB-PMPS-6-50-AC

CB-PMPS-6-50-AIR

CB-PMPS-6-50-DC

CB-PMPS-6-60-AC

CB-PMPS-6-60-AIR

CB-PMPS-6-60-DC

CB-PMPS-PTDS-E

SDS Sheets

Hydraulic Oil SDS Sheet for: CB-PMPS-10-50-AC
Hydraulic Oil SDS Sheet for: CB-PMPS-10-50-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CB-PMPS-10-50-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-10-50-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-10-60-AC
Hydraulic Oil SDS Sheet for: CB-PMPS-10-60-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CB-PMPS-10-60-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-10-60-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-50-AC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-50-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CB-PMPS-6-50-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-50-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-60-AC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-60-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CB-PMPS-6-60-DC
Hydraulic Oil SDS Sheet for: CB-PMPS-6-60-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CB-PMPS-PTDS-E
Hydraulic Oil SDS Sheet for: CB-PMPS-PTDS-E

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the turning radius of the pallet master?

A: The turning radius of the CB-PMPS-10-50-DC is approximately 48".
