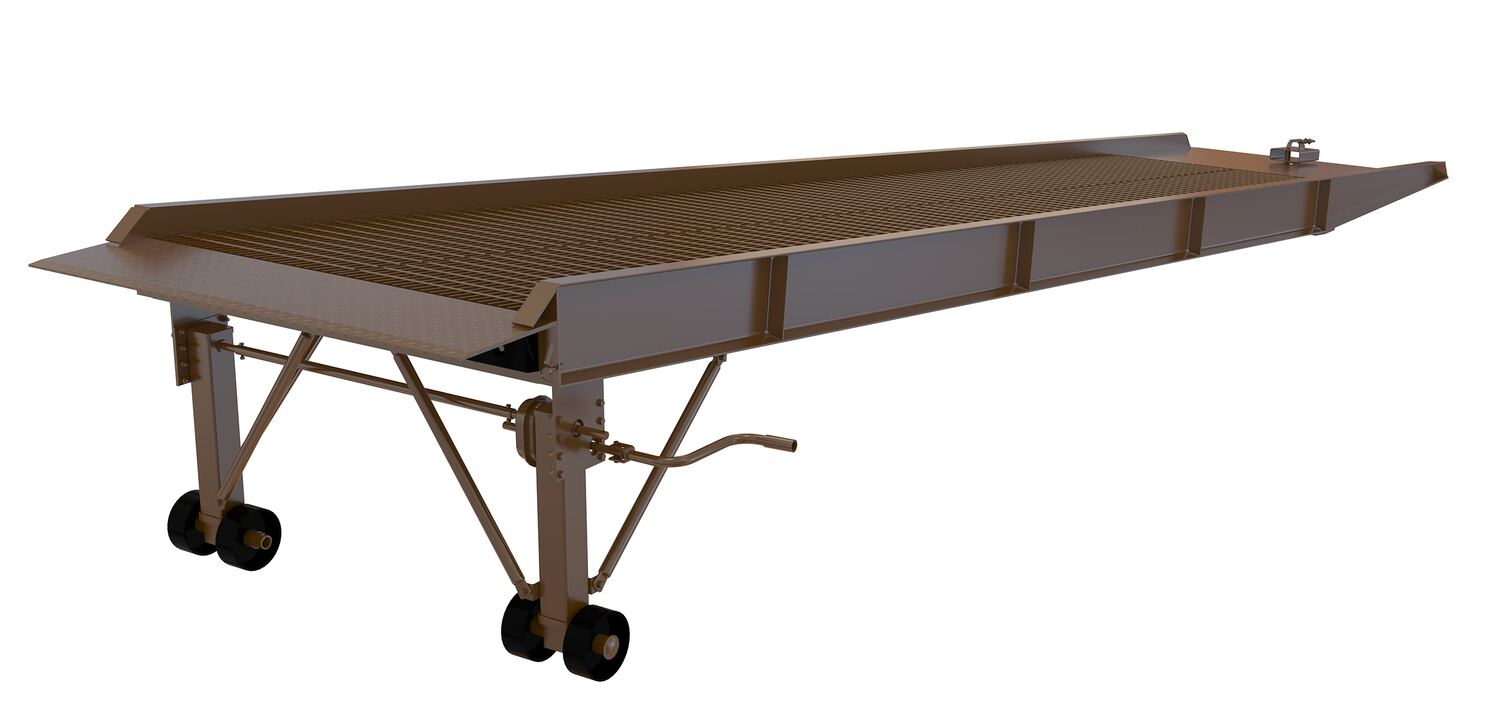

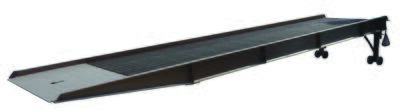

model YR-25-8530
SERIES: YR

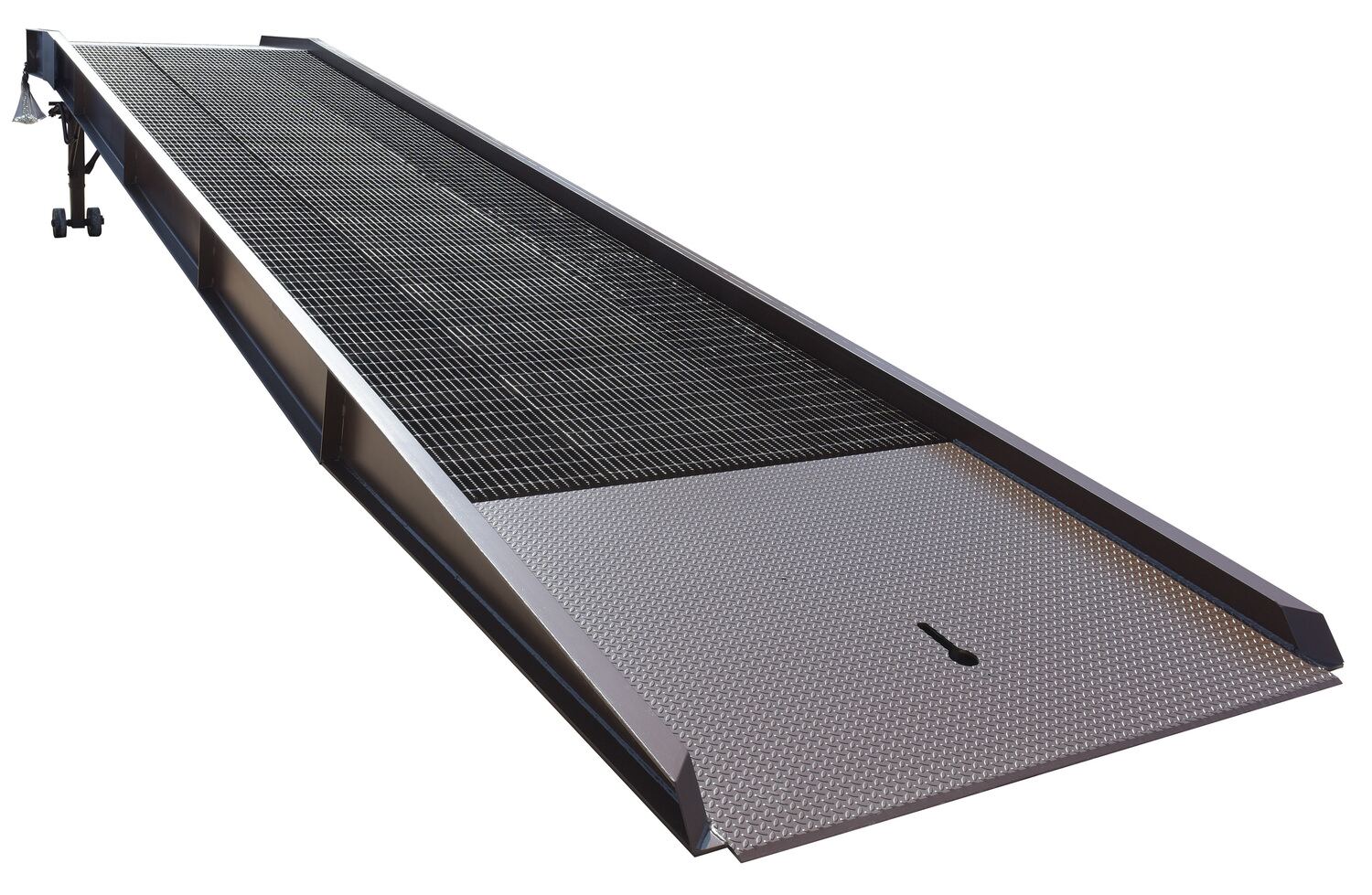

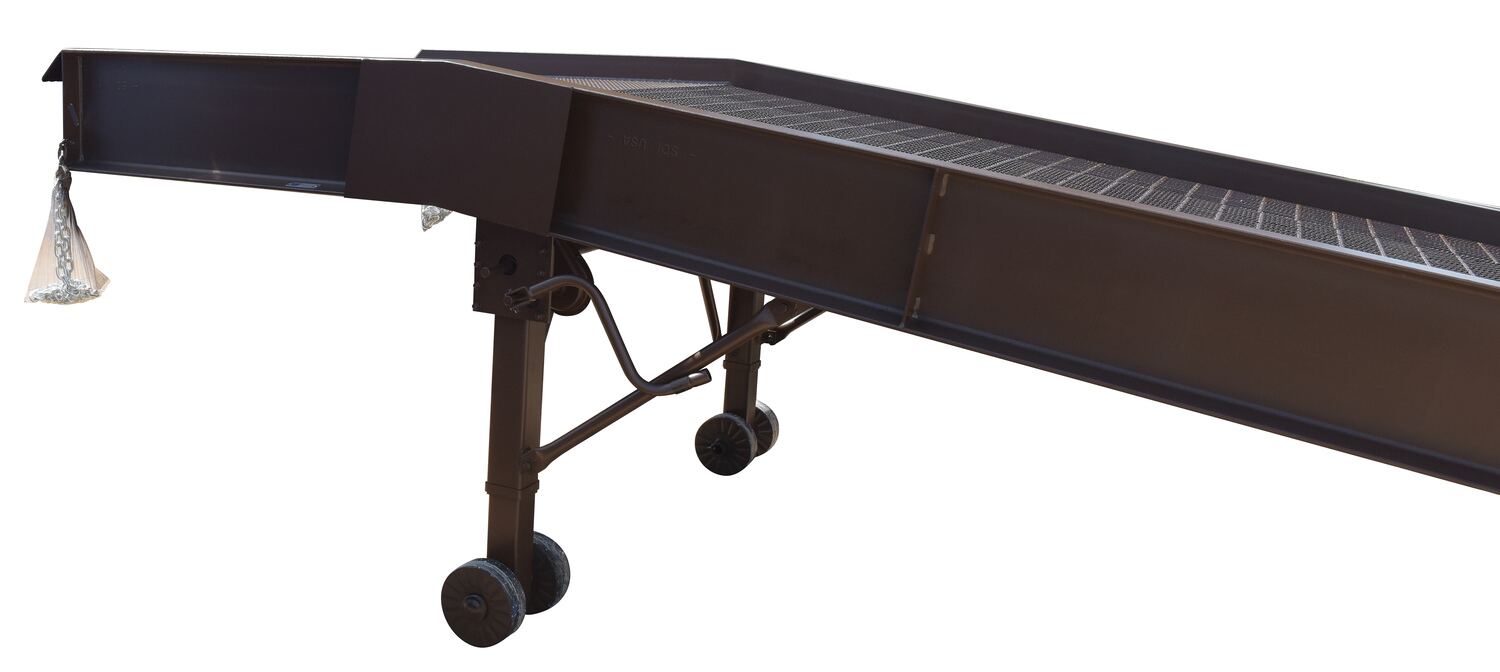

Steel Yard Ramps

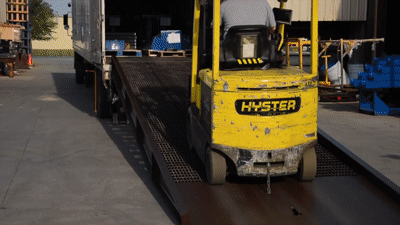

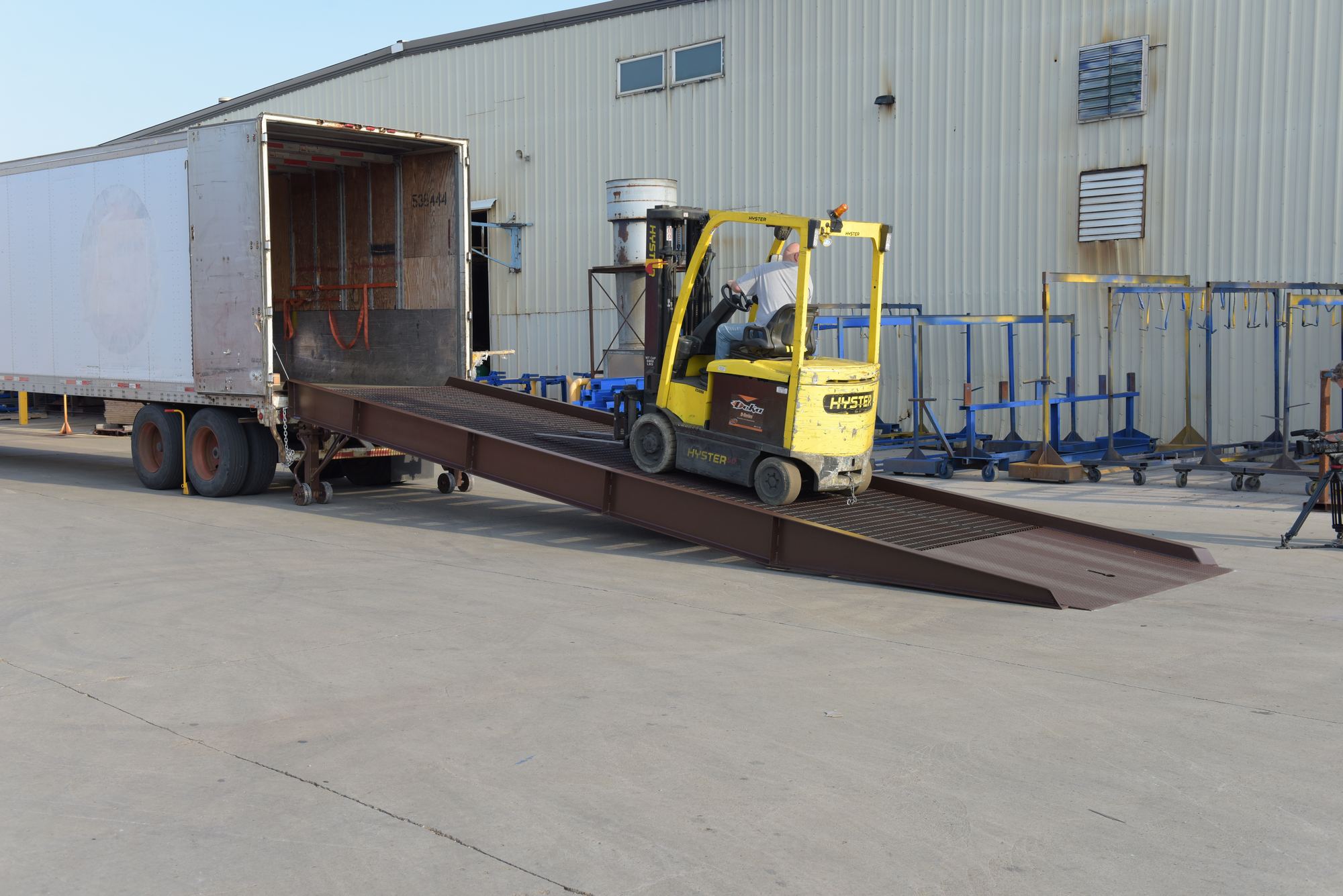

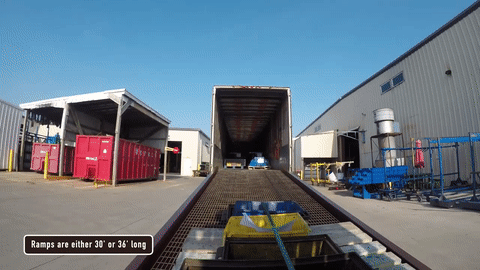

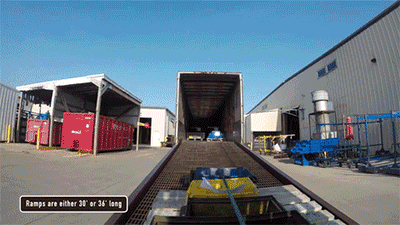

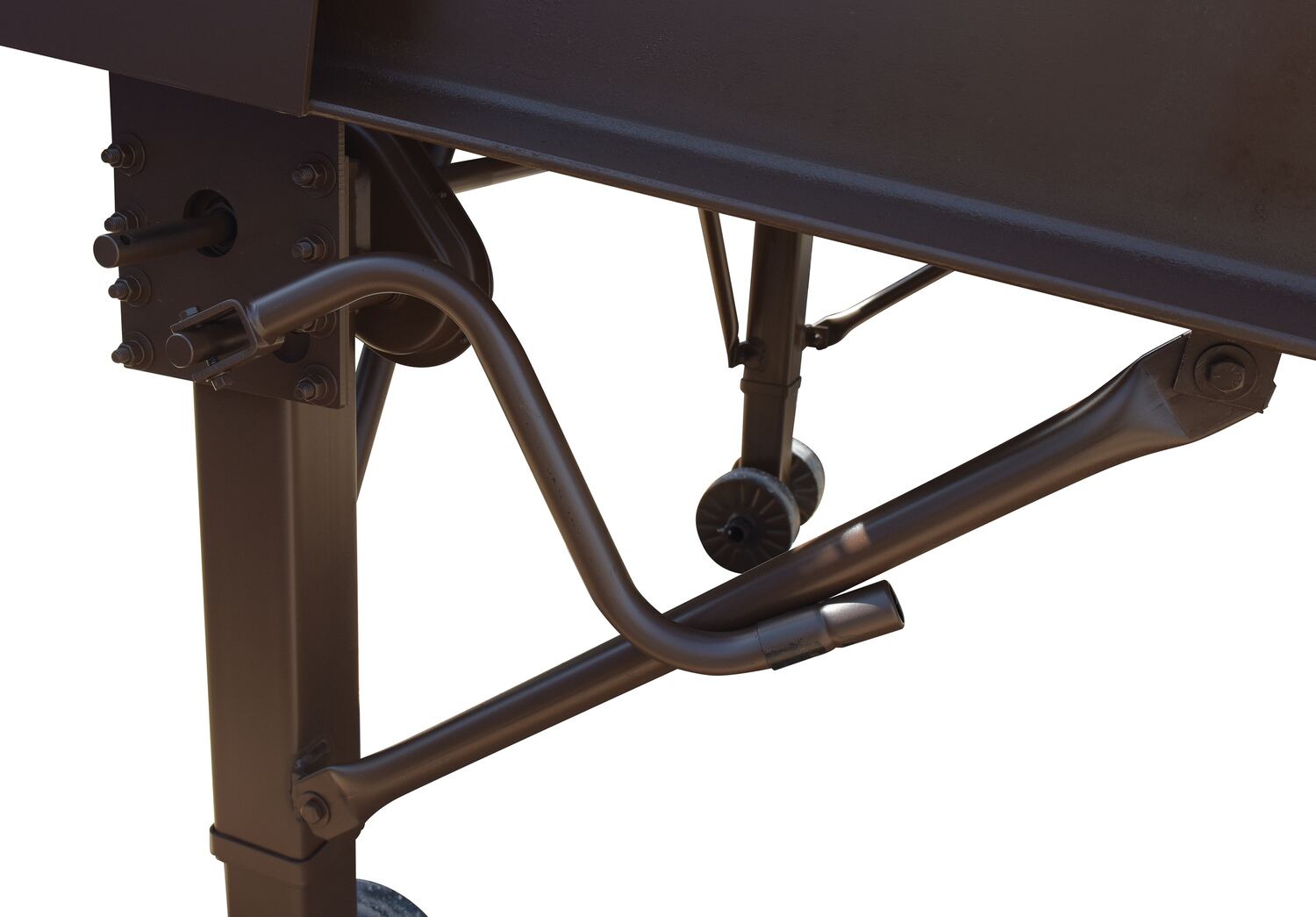

Quickly load and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one person height adjustment offers a service range of 45" to 62". Available in 30 foot of straight ramp or 36 foot overall length; 30 foot of straight ramp and 6 foot level off. Standard features include: 8-5/8" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel safety curbs, rubber bumpers, 13 7/8" usable lip support edge, tow bar pocket and welded steel construction. Painted neutral earth-tone brown. All units must ship flatbed truck.

Check out our Aluminum Yard Ramps.

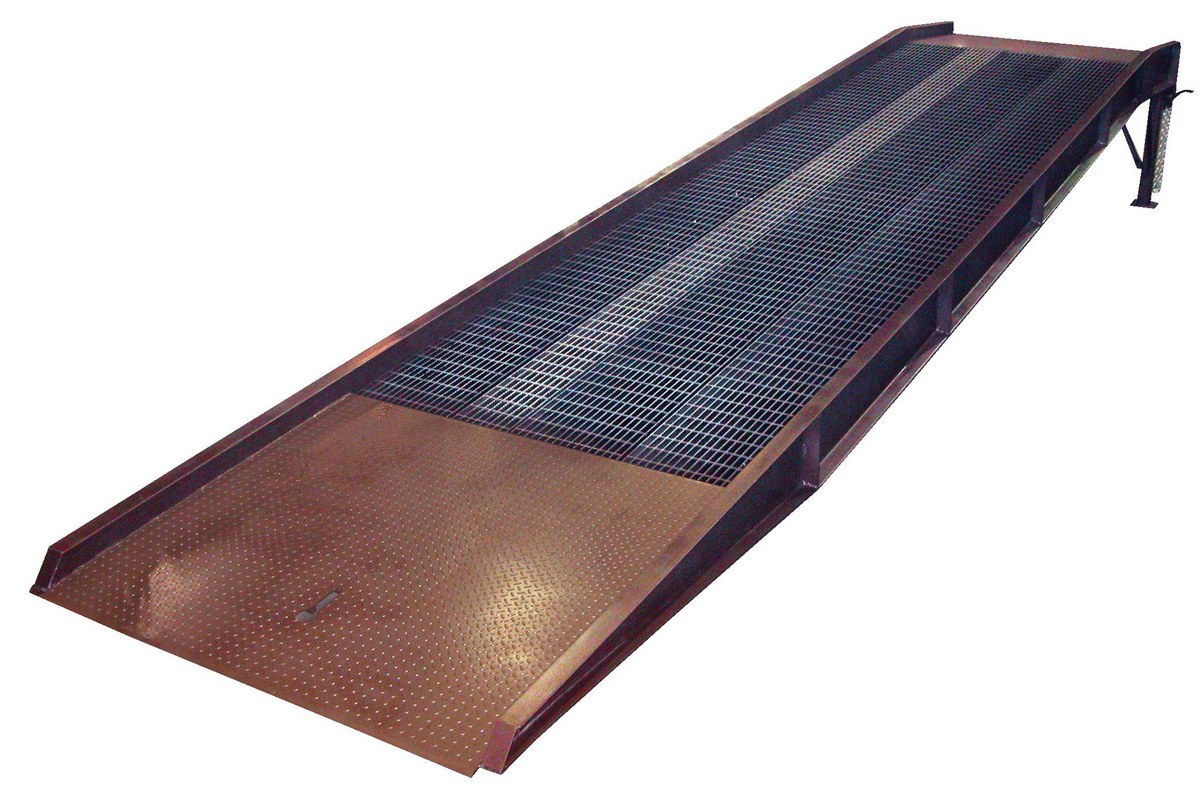

YRDS-16-7236-M

model YRDS-16-7236-M

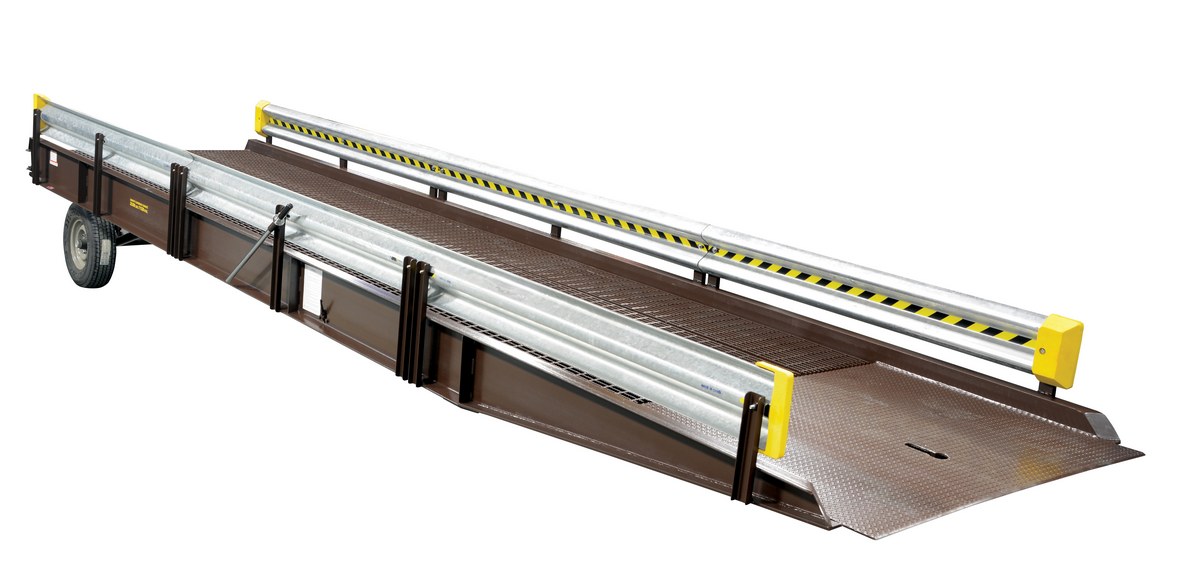

YR-GR-30

model YR-GR-30

YR-HDRL

model YR-HDRL

YR-HL

model YR-HL

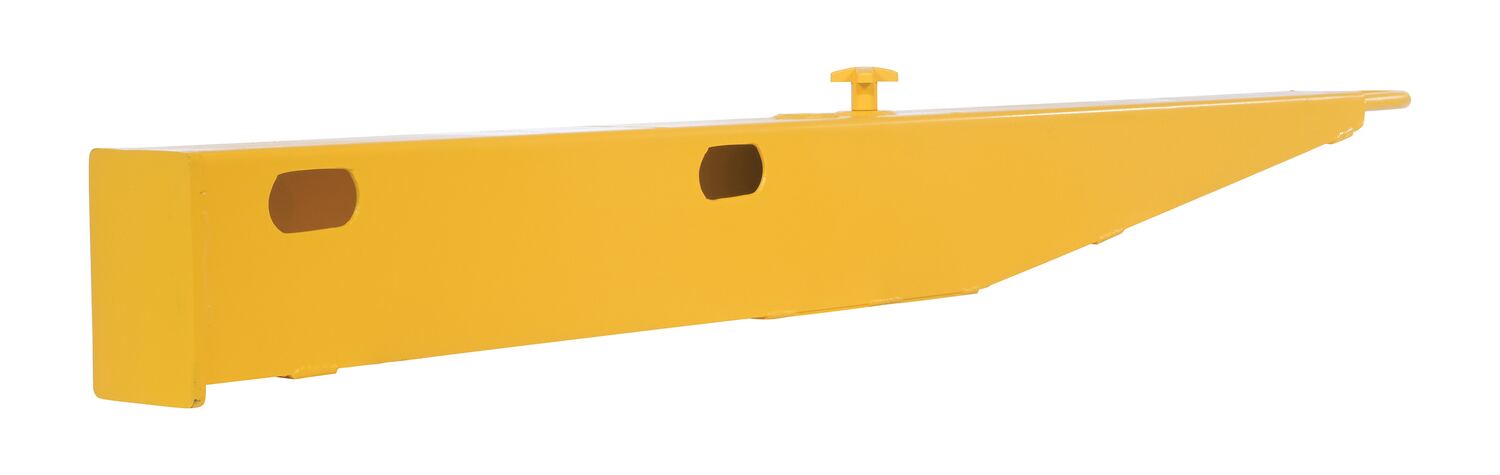

YR-TB-H

model YR-TB-H

YR-FS

model YR-FS

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Portable Steel Yard Ramps

Model Number

PDF's

Capacity (Pounds)

Overall
Width

Usable
Width

Length

Wt. (lbs)

YR-16-7230 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16,000 72" 66" 30' 4625

YR-16-8430

icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16,000 84" 78" 30' 5375
YR-16-7236 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16,000 72" 66" 36' 5925
YR-16-8436 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16,000 84" 78" 36' 6250
YR-20-7330 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20,000 73" 66" 30' 5275

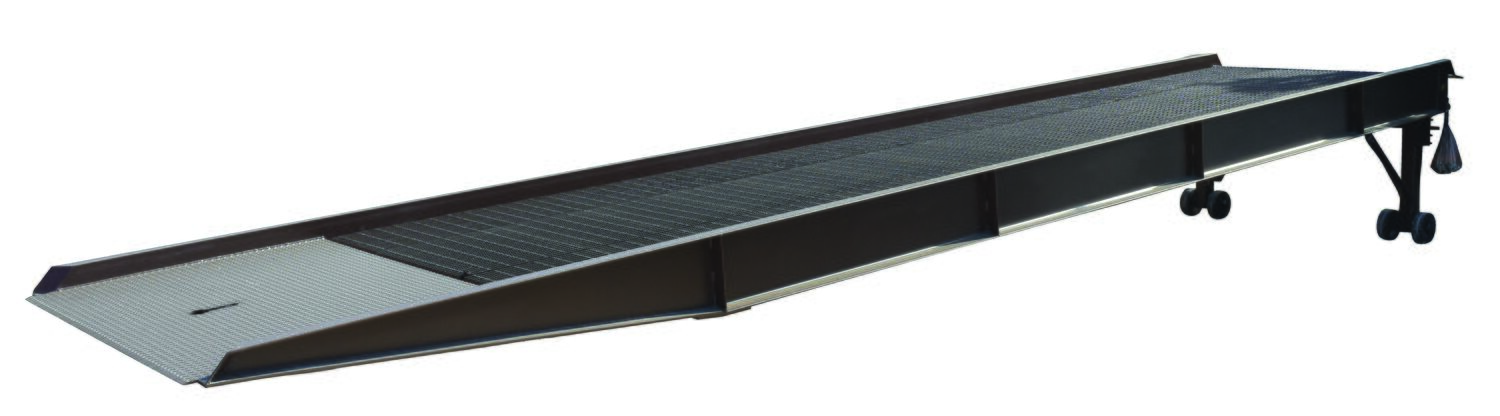

YR-20-8530 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20,000 85" 78" 30' 5852
YR-20-7336 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20,000 73" 66" 36' 6275
YR-20-8536 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20,000 85" 78" 36' 6975
YR-25-7330 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 25,000 73" 66" 30' 5450
YR-25-8530 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 25,000 85" 78" 30' 6000

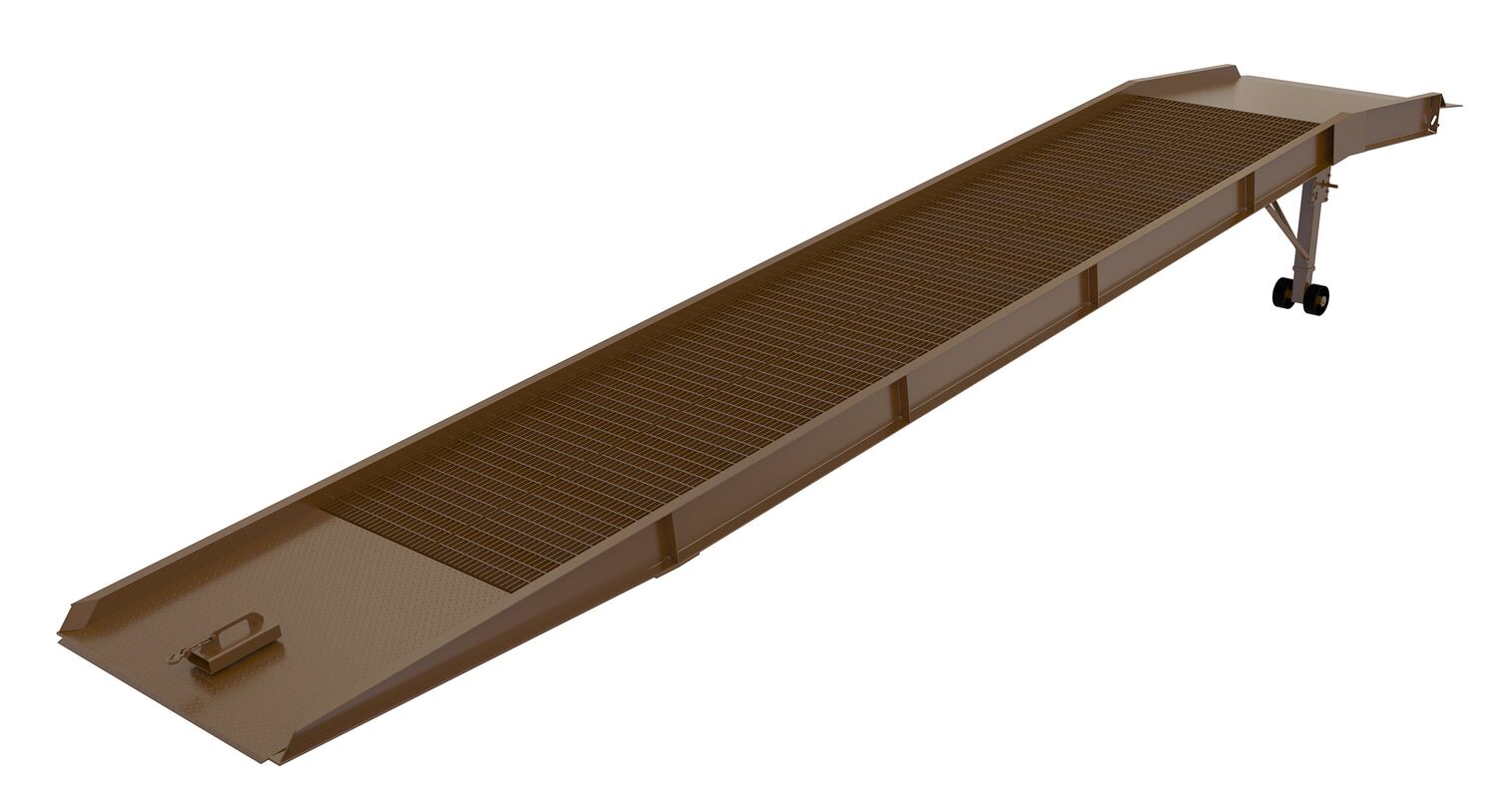

YR-25-7336 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 25,000 73" 66" 36' 6475
YR-25-8536 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 25,000 85" 78" 36' 7175
YR-30-7330 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30,000 73" 66" 30' 5600
YR-30-8530 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30,000 85" 78" 30' 6175
YR-30-7336 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30,000 73" 66" 36' 6650
YR-30-8536 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30,000 85" 78" 36' 7350
Portable Steel Yard Ramp w/ Hydraulic Edge-O-Dock*
YRD-16-7236-H Warranty PDFCompliance Certificate 16,000 72" 66" 36' 5670
YRD-16-8436-H Warranty PDFCompliance Certificate 16,000 84" 78" 36' 6090
YRD-20-7336-H Warranty PDFCompliance Certificate 20,000 73" 66" 36' 6880
YRD-20-8536-H Warranty PDFCompliance Certificate 20,000 85" 78" 36' 6300
YRD-25-7336-H Warranty PDFCompliance Certificate 25,000 73" 66" 36' 6090
YRD-25-8536-H Warranty PDFCompliance Certificate 25,000 85" 78" 36' 6510
YRD-30-7336-H Warranty PDFCompliance Certificate 30,000 73" 66" 36' 6300

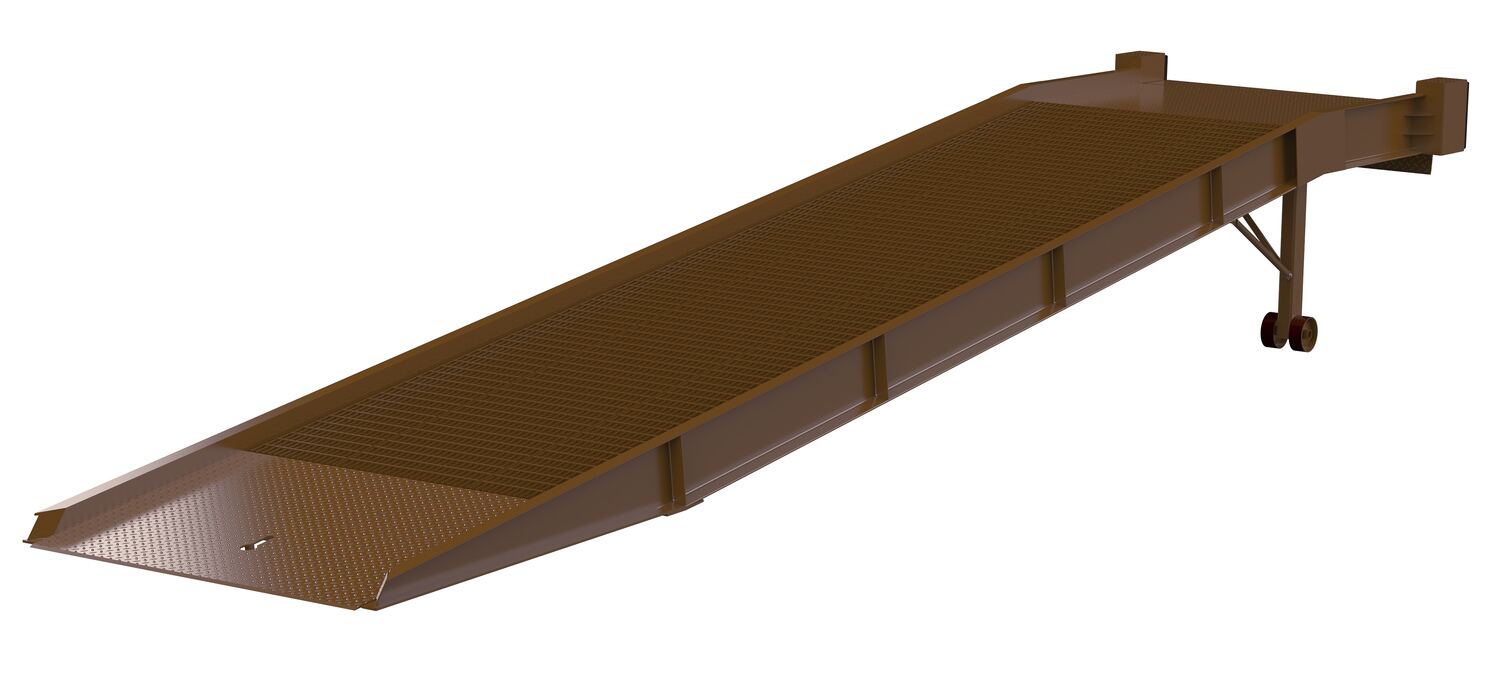

YRD-30-8536-H Warranty PDFCompliance Certificate 30,000 85" 78" 36' 6720

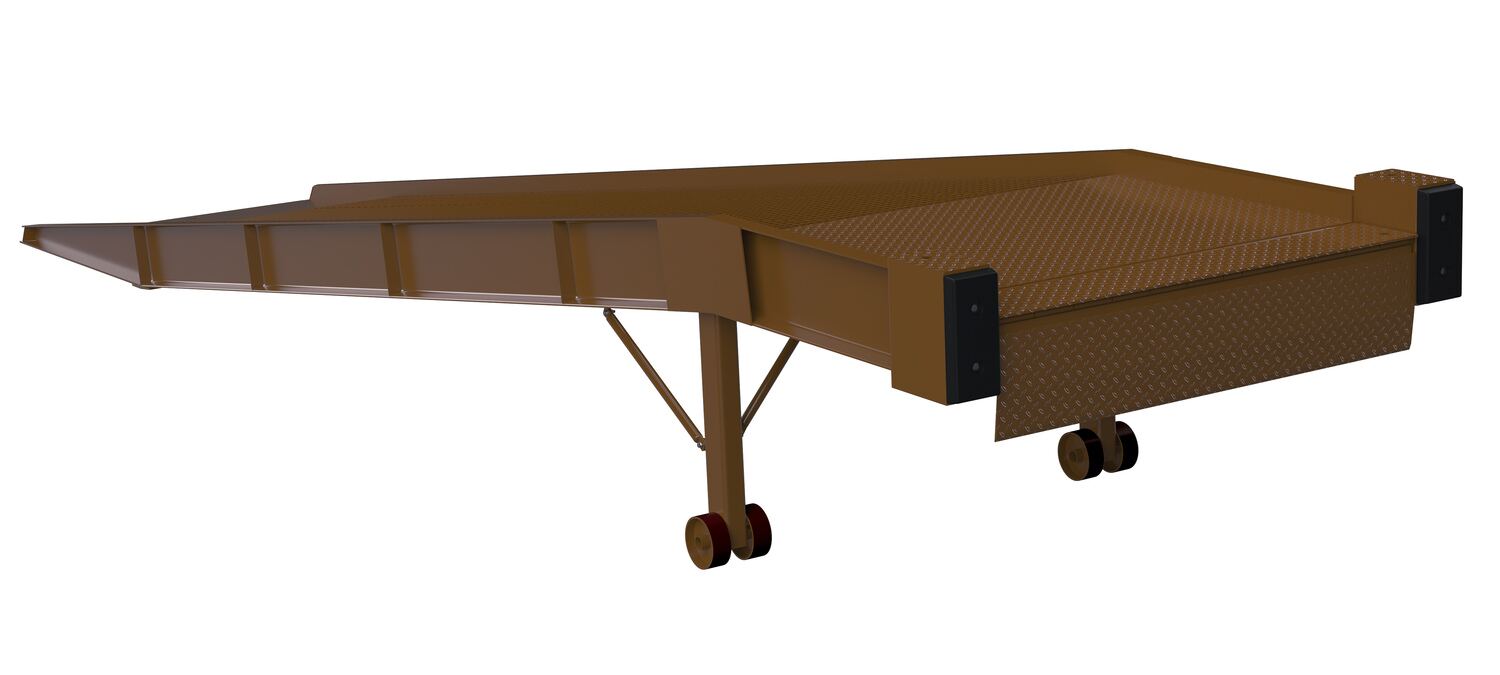

Portable Steel Yard Ramp w/ Mechanical Edge-O-Dock*
YRD-16-7236-M Warranty PDFCompliance Certificate 16,000 72" 66" 36' 5670
YRD-16-8436-M Warranty PDFCompliance Certificate 16,000 84" 78" 36' 6090
YRD-20-7336-M Warranty PDFCompliance Certificate 20,000 73" 66" 36' 6800
YRD-20-8536-M Warranty PDFCompliance Certificate 20,000 85" 78" 36' 6300
YRD-25-7336-M Warranty PDFCompliance Certificate 25,000 73" 66" 36' 6090
YRD-25-8536-M Warranty PDFCompliance Certificate 25,000 85" 78" 36' 6510
YRD-30-7336-M Warranty PDFCompliance Certificate 30,000 73" 66" 36' 6300
YRD-30-8536-M Warranty PDFCompliance Certificate 30,000 85" 78" 36' 6720

*Leveler is 64" wide on 72" Models. Leveler is 72" wide on 84" & 85" Models

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

YR-16-7230
YR-16-7236
YR-16-8430
YR-16-8436
YR-20-7330
YR-20-7336
YR-20-8530
YR-20-8536
YR-25-7330
YR-25-7336
YR-25-8530
YR-25-8536
YR-30-7330
YR-30-7336
YR-30-8530
YR-30-8536

Testing Certificates

YR-16-7230
YR-16-7236
YR-16-8430
YR-16-8436
YR-20-7330
YR-20-7336
YR-20-8530
YR-20-8536
YR-25-7330
YR-25-7336
YR-25-8530
YR-25-8536
YR-30-7330
YR-30-7336
YR-30-8530
YR-30-8536

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Steel Yard Ramp Options

Model

PDF Description Wt. (lbs)

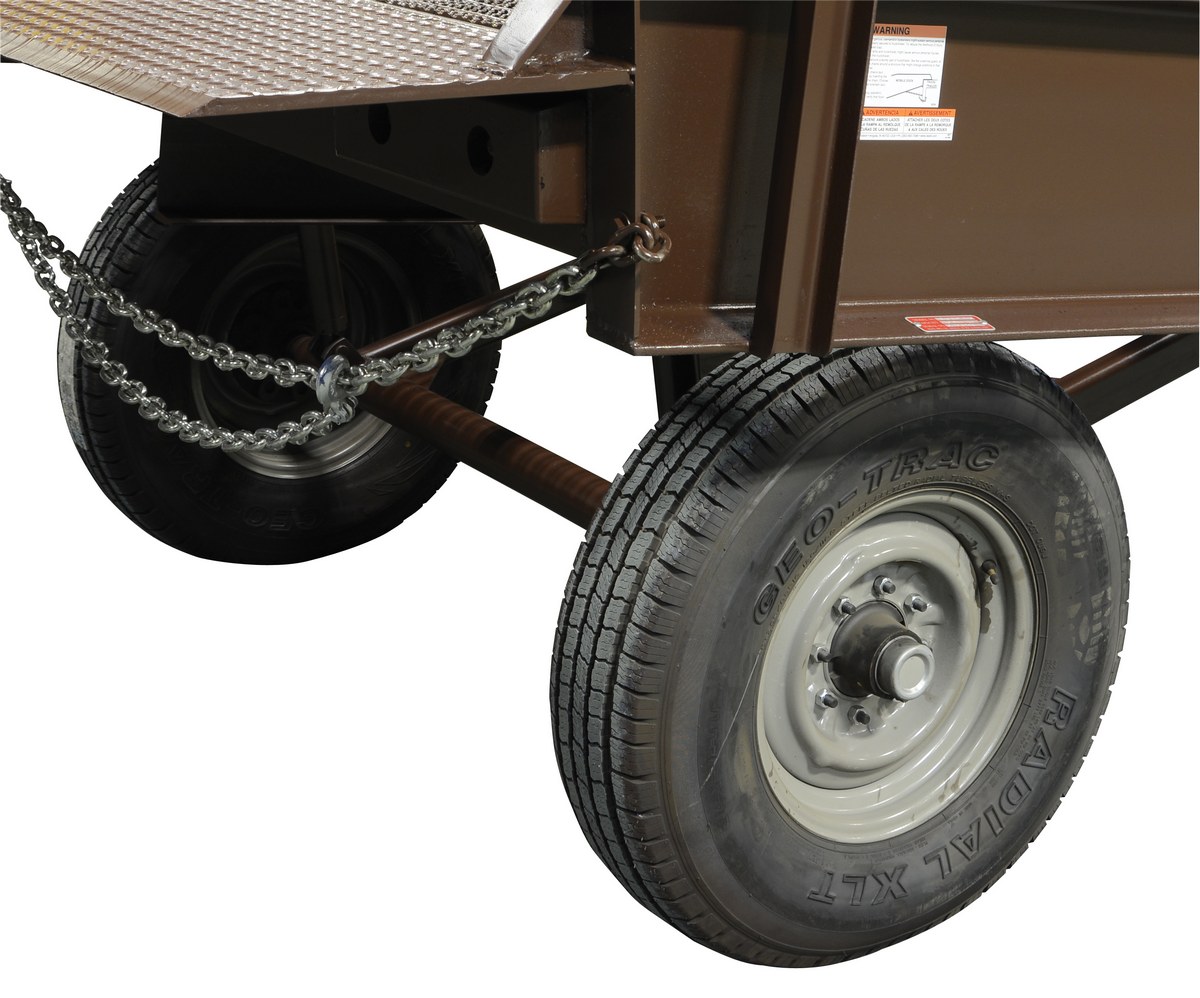

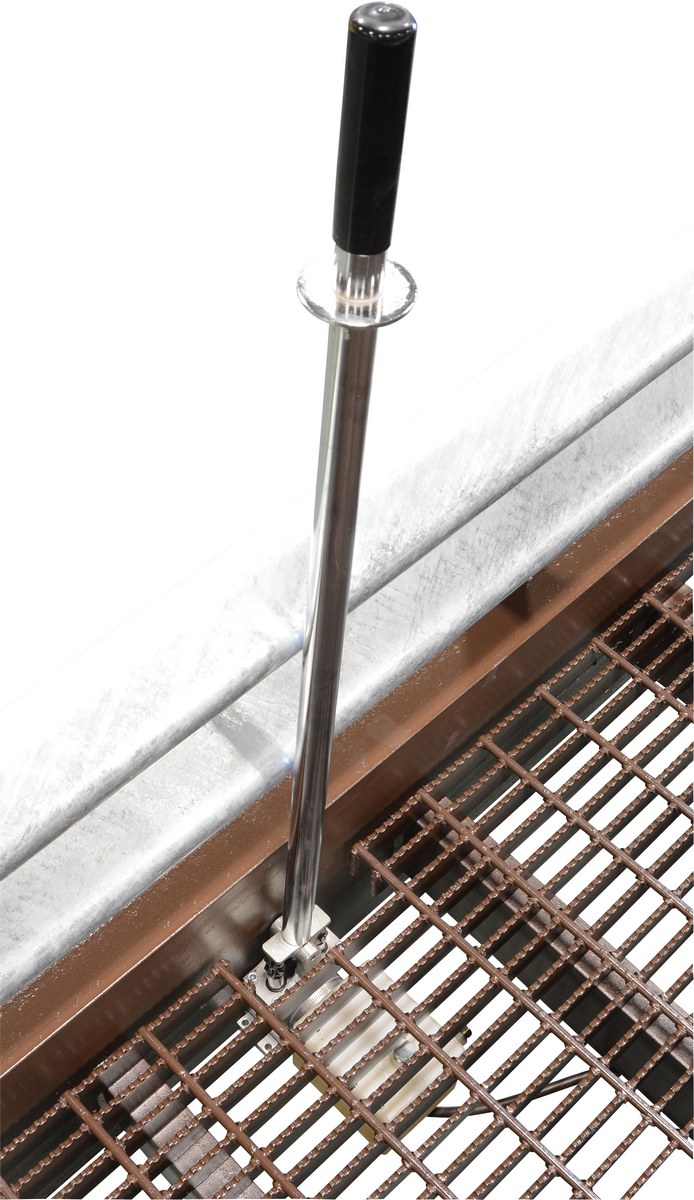

YR-HL - Pneumatic tire and hand pump hydraulic lift (5 mph Max. tow speed) (not available on YRD, YRDS models) 230
YR-HL-DC* - Pneumatic tire and 12v DC hydraulic lift (5 mph Max. tow speed) not available on YRD, YRDS models) 288

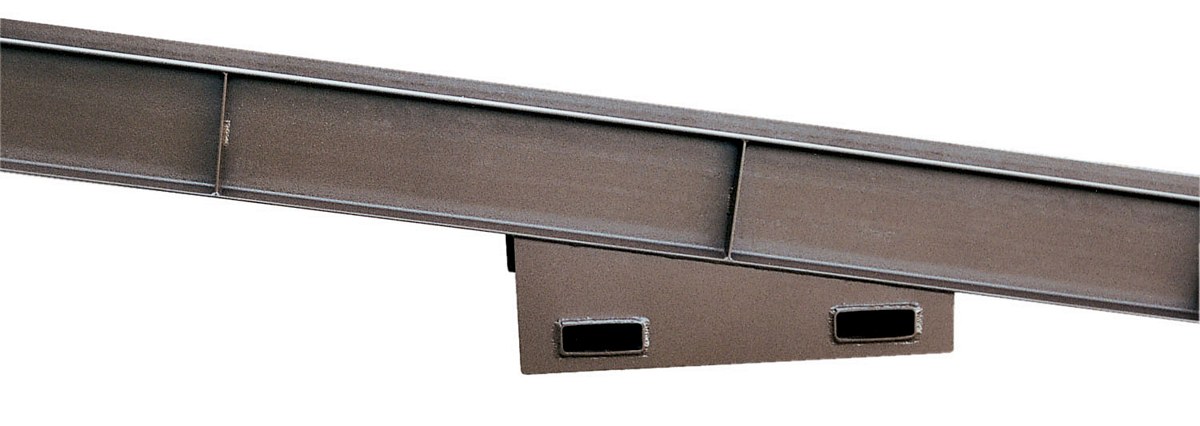

YR-FS - Fork lift pick-up slots (7-1/2"W x 2-1/2"H usable on 24" centers) 460

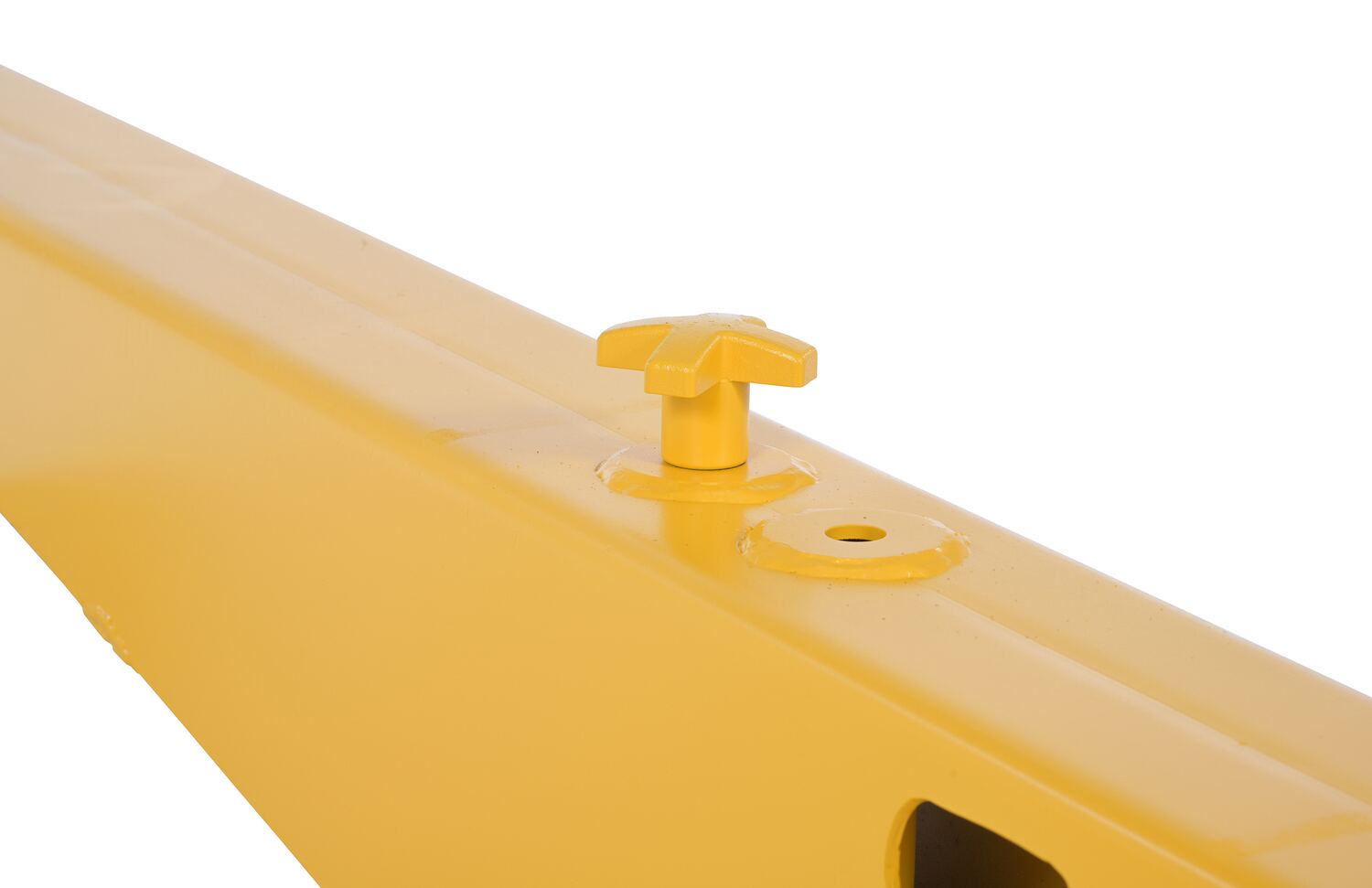

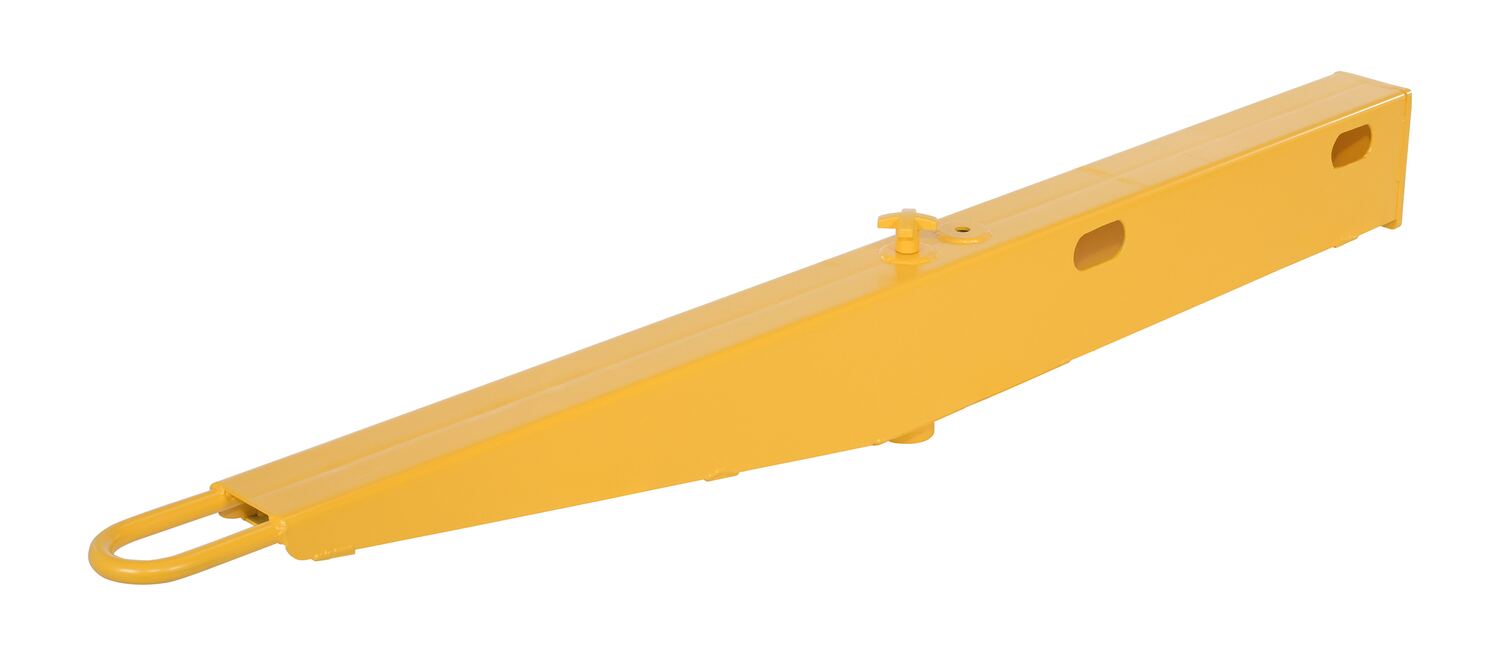

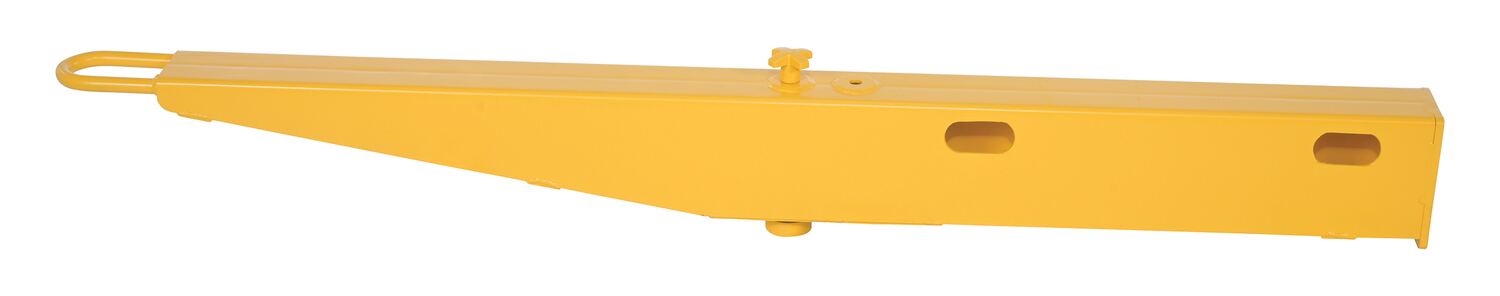

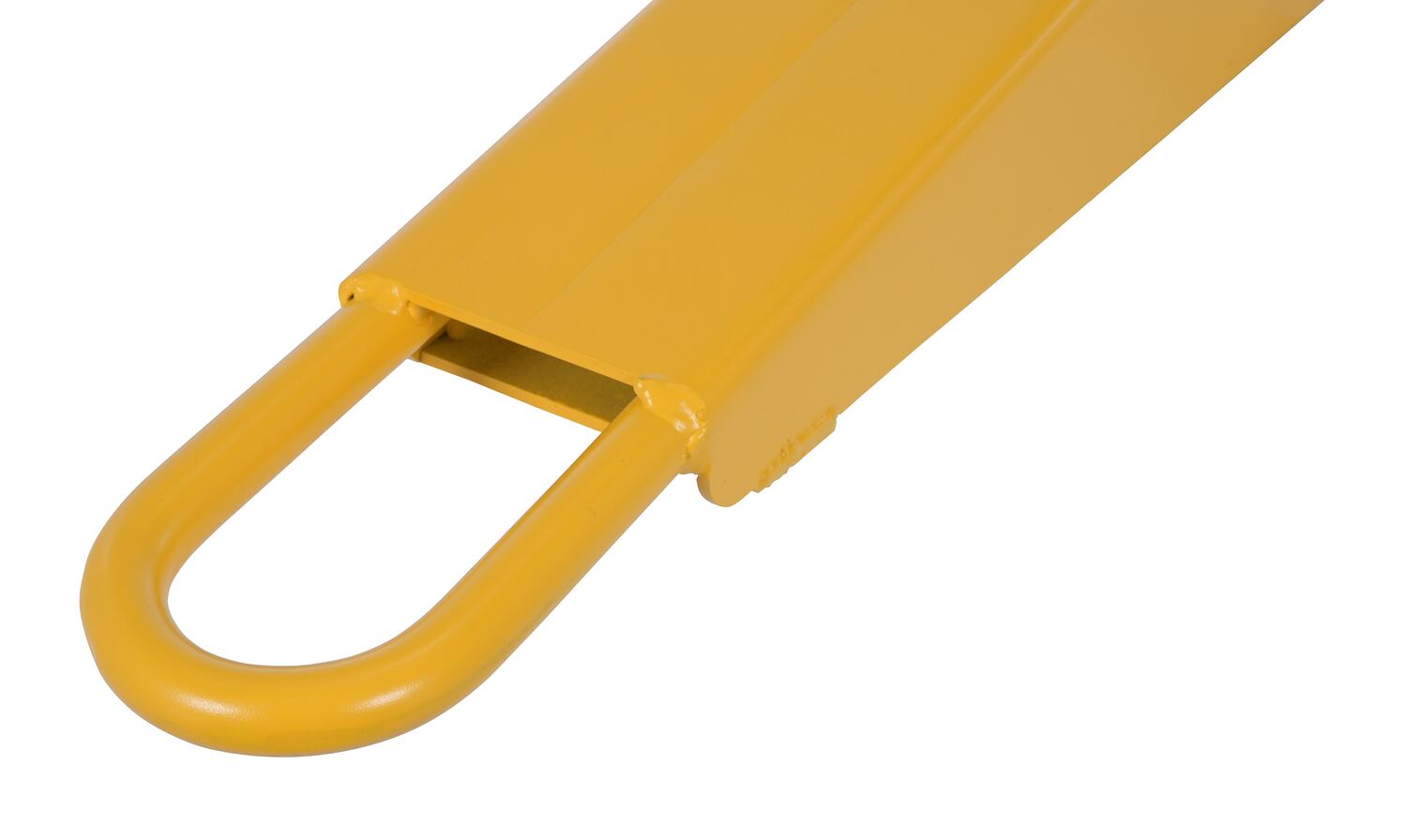

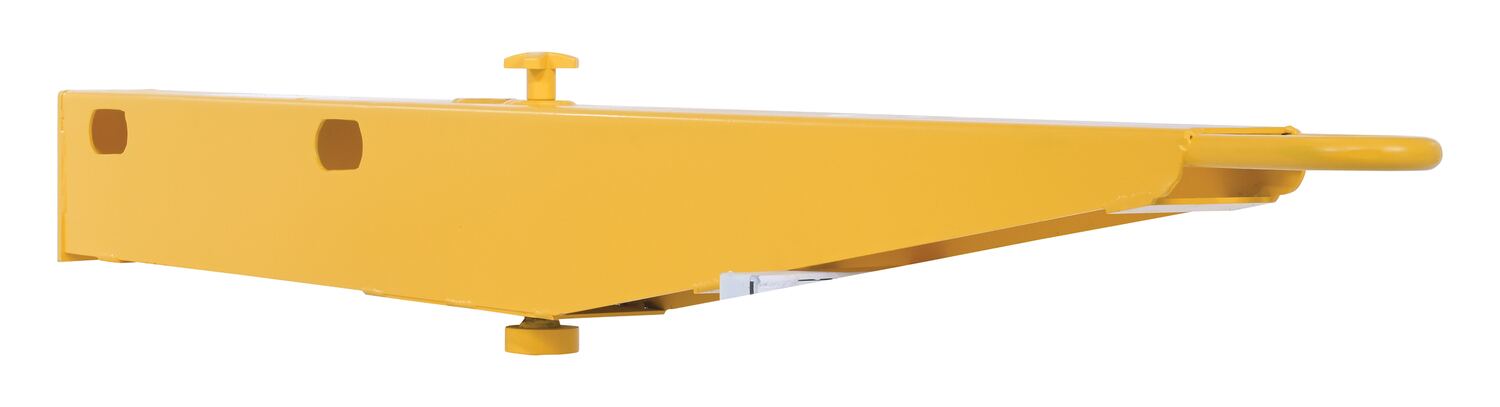

YR-TB-H icon_approvaldrawings.jpg Tow bar hitch 145

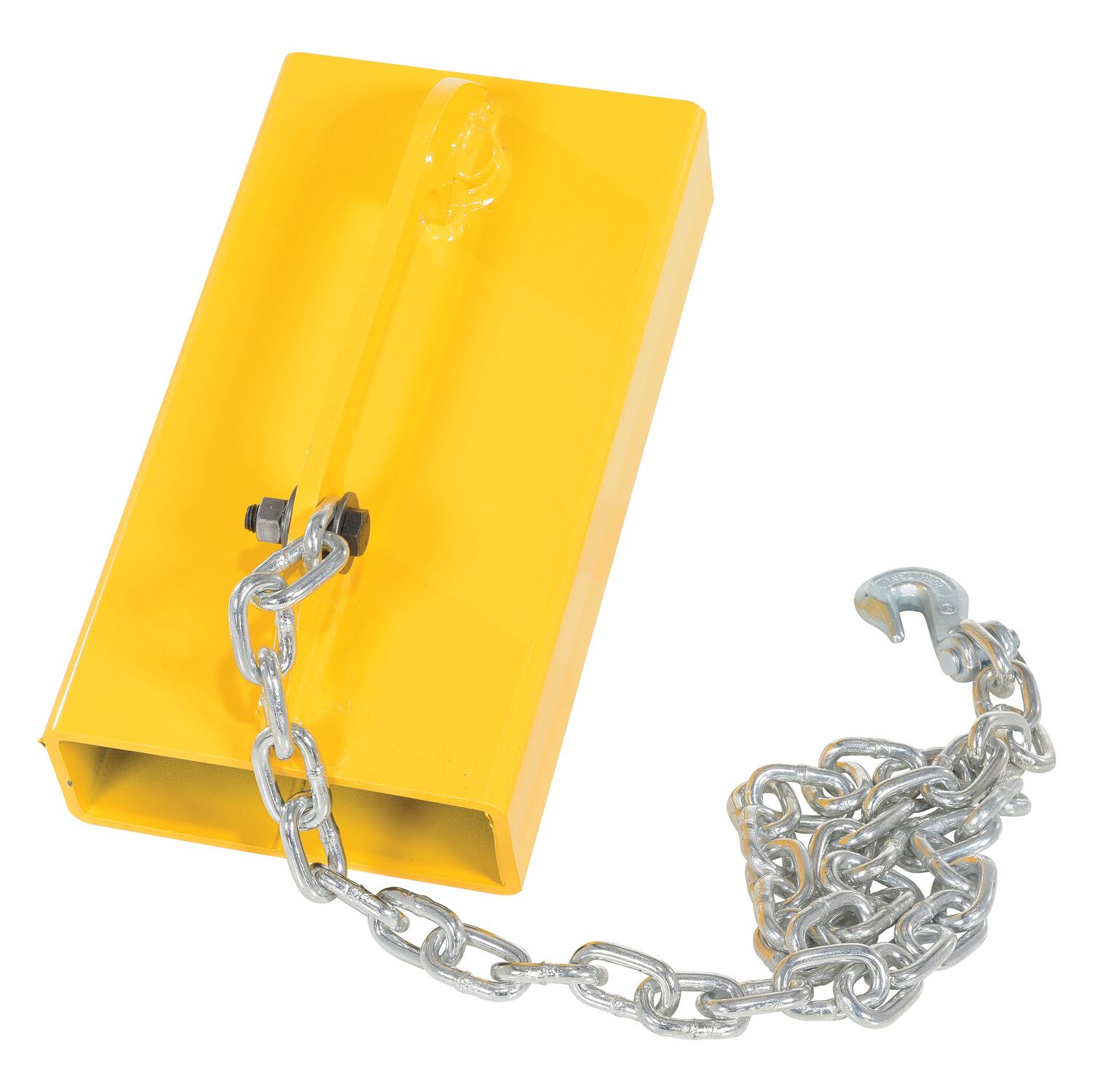

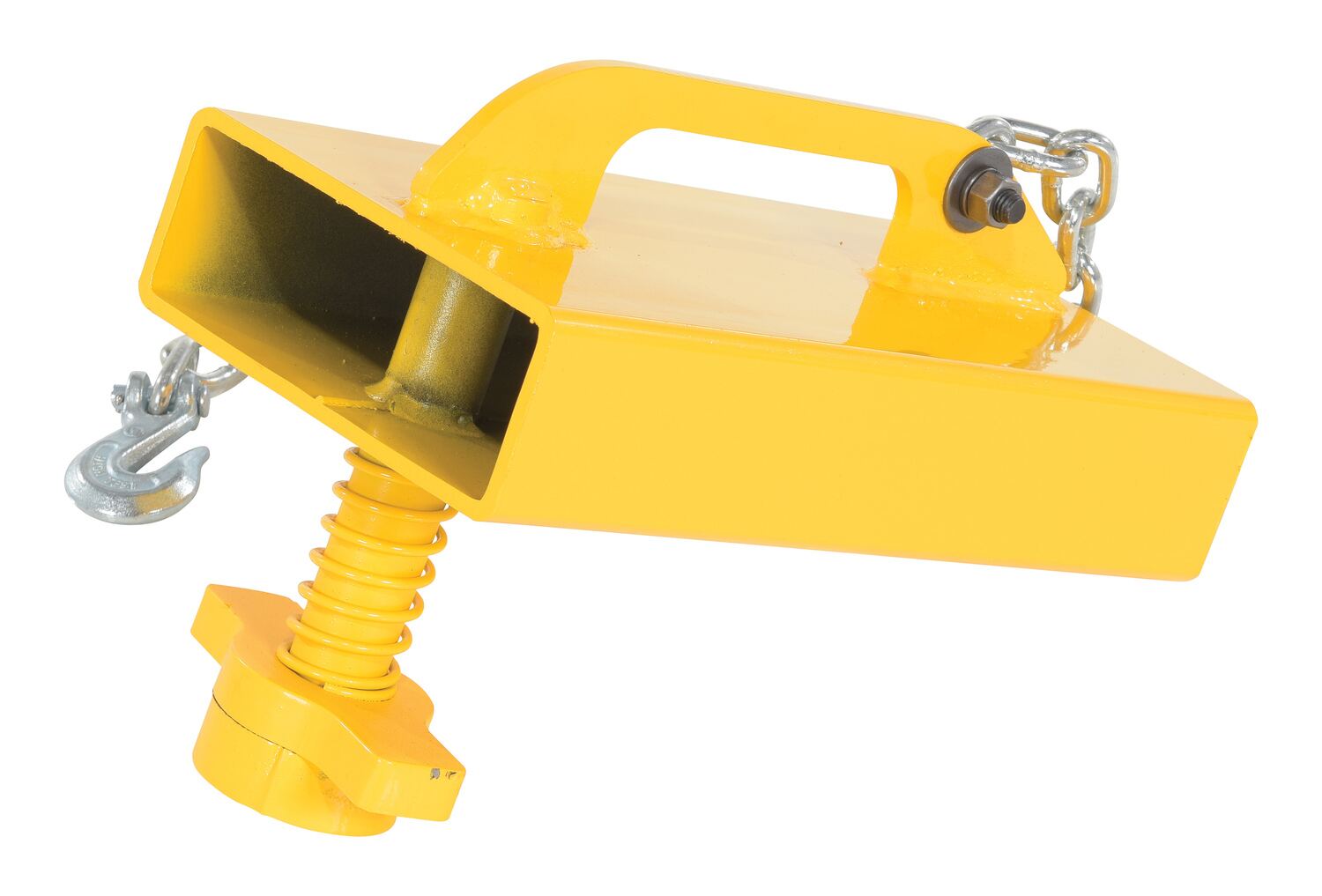

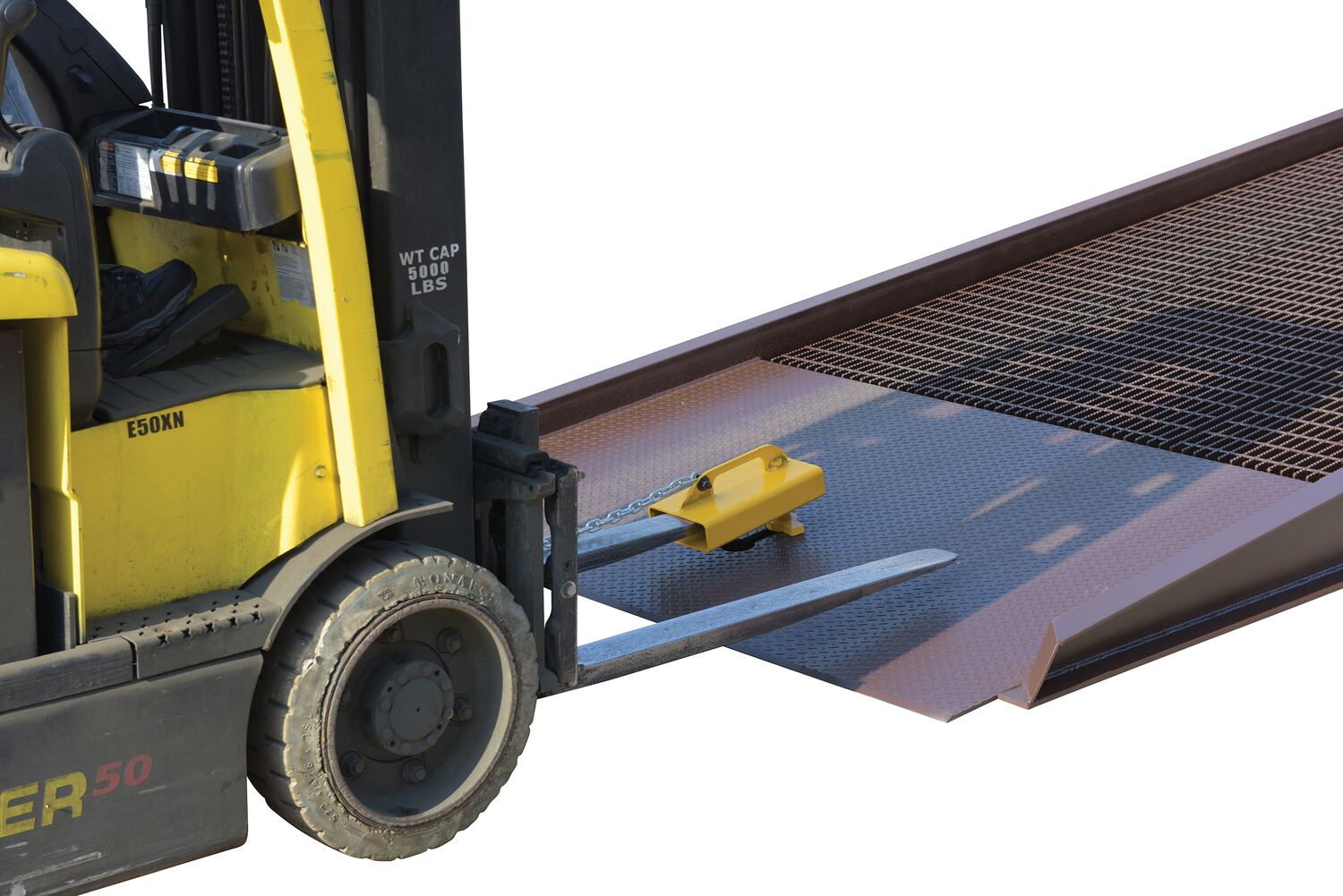

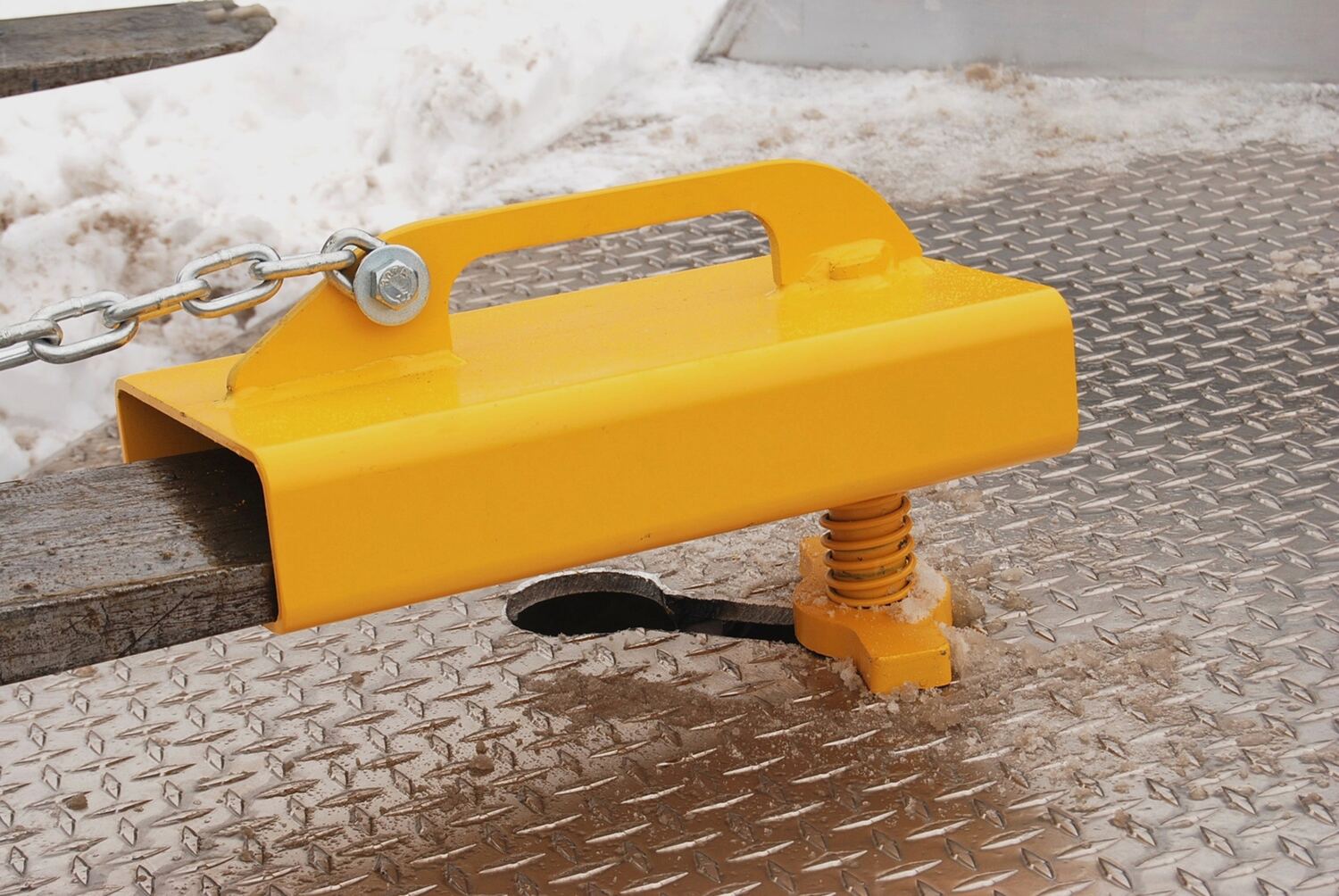

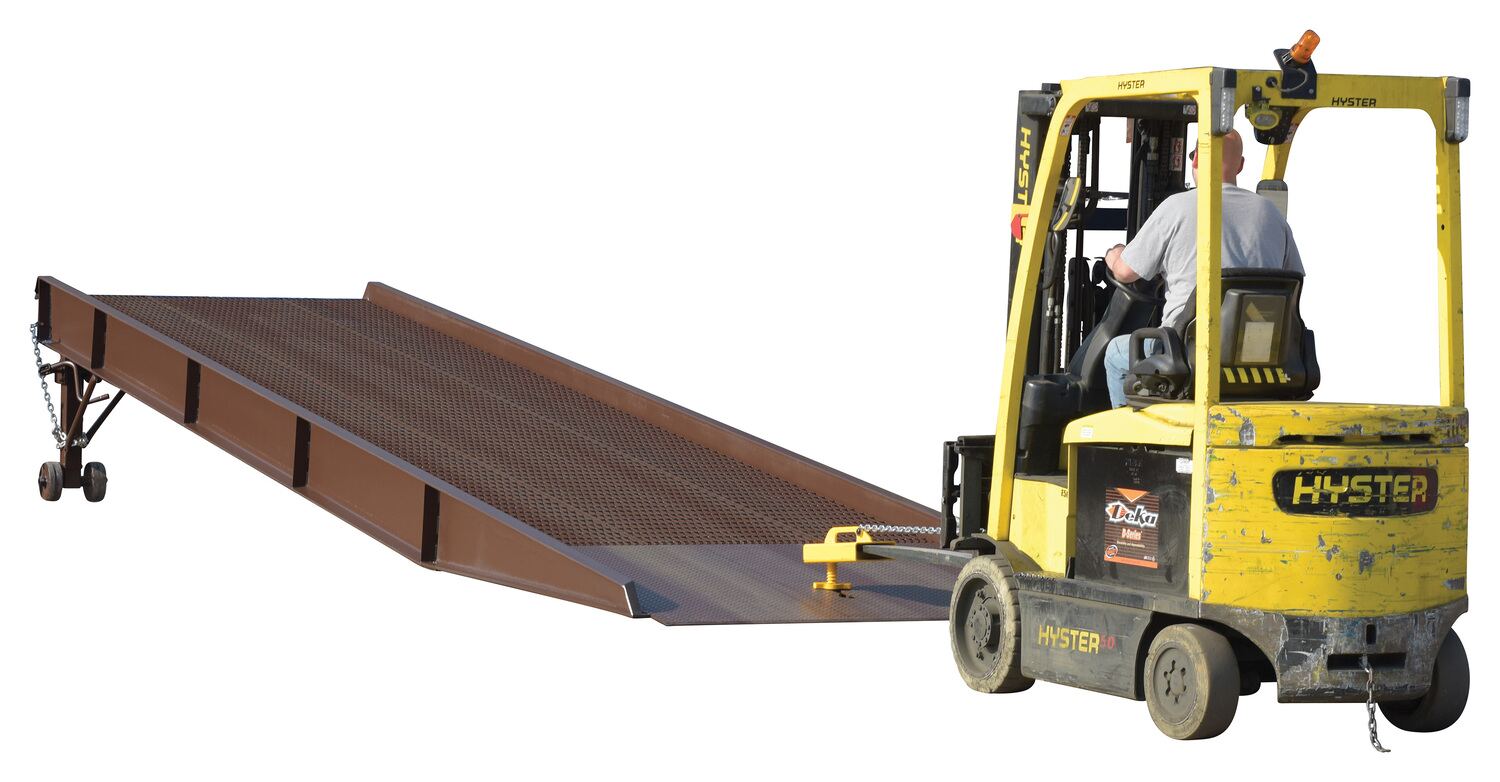

YR-TB-P - Tow Bar Pocket (Replacement) 35

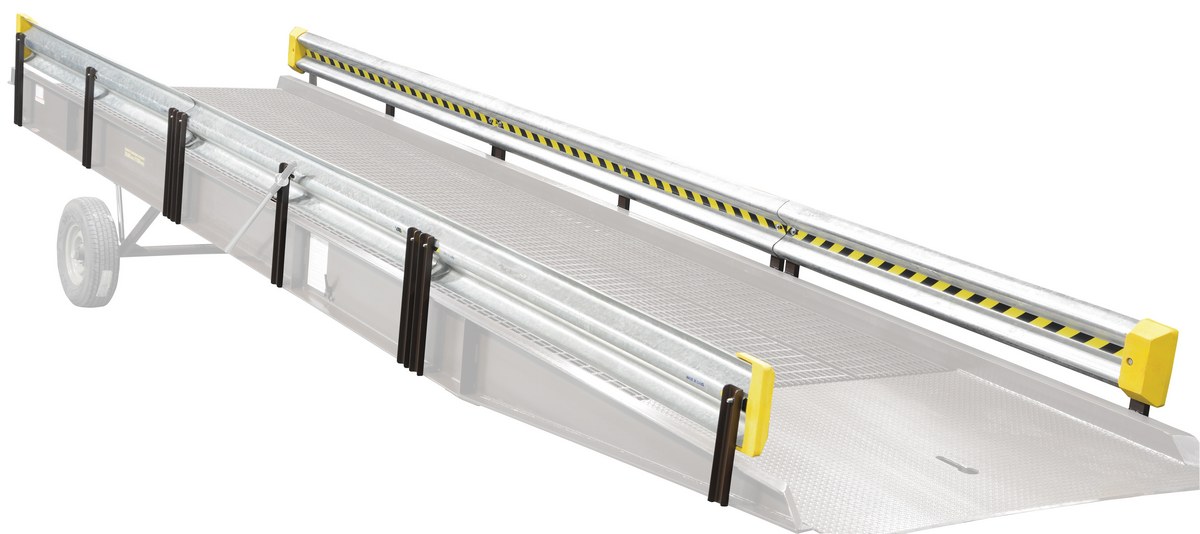

YR-GR-30 - 12" High Guard Rail Option For 30 Feet Ramps (Both Sides) 456
YR-GR-36 - 12" High Guard Rail Option For 36 Feet Ramps (Both Sides) 550

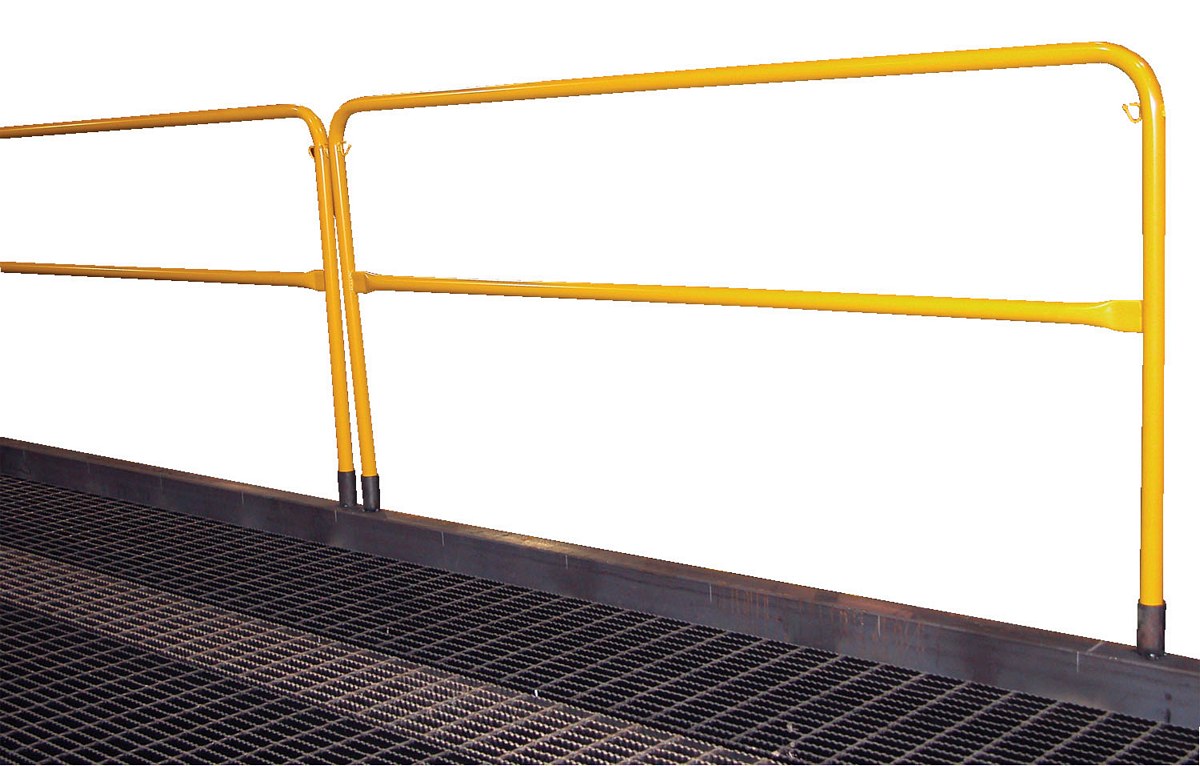

YR-HDRL - Non-Removable 42" high steel handrails w/21" midrail (welded) 9/ft.
YR-RHDRL - Removable 42" high steel handrails w/21" midrail 9/ft.
YR-RAHDRL - Removable 42" high aluminum handrails w/21" midrail 3/ft.
YRD-DH - Holes in lip to lag ramp to top of dock -

* Includes on-board charger

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
