SERIES: WL-100

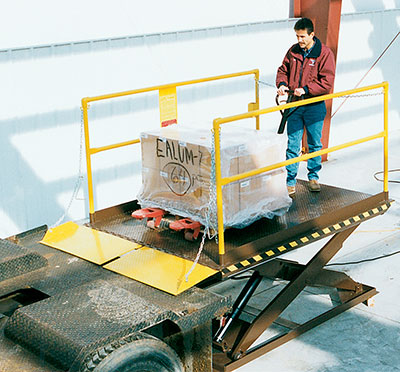

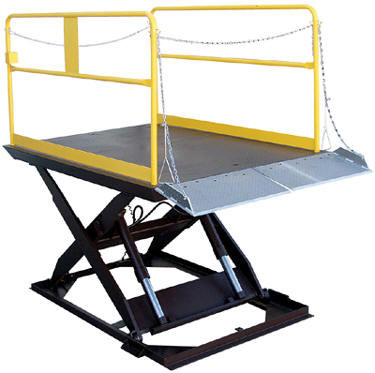

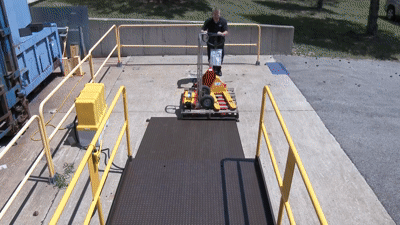

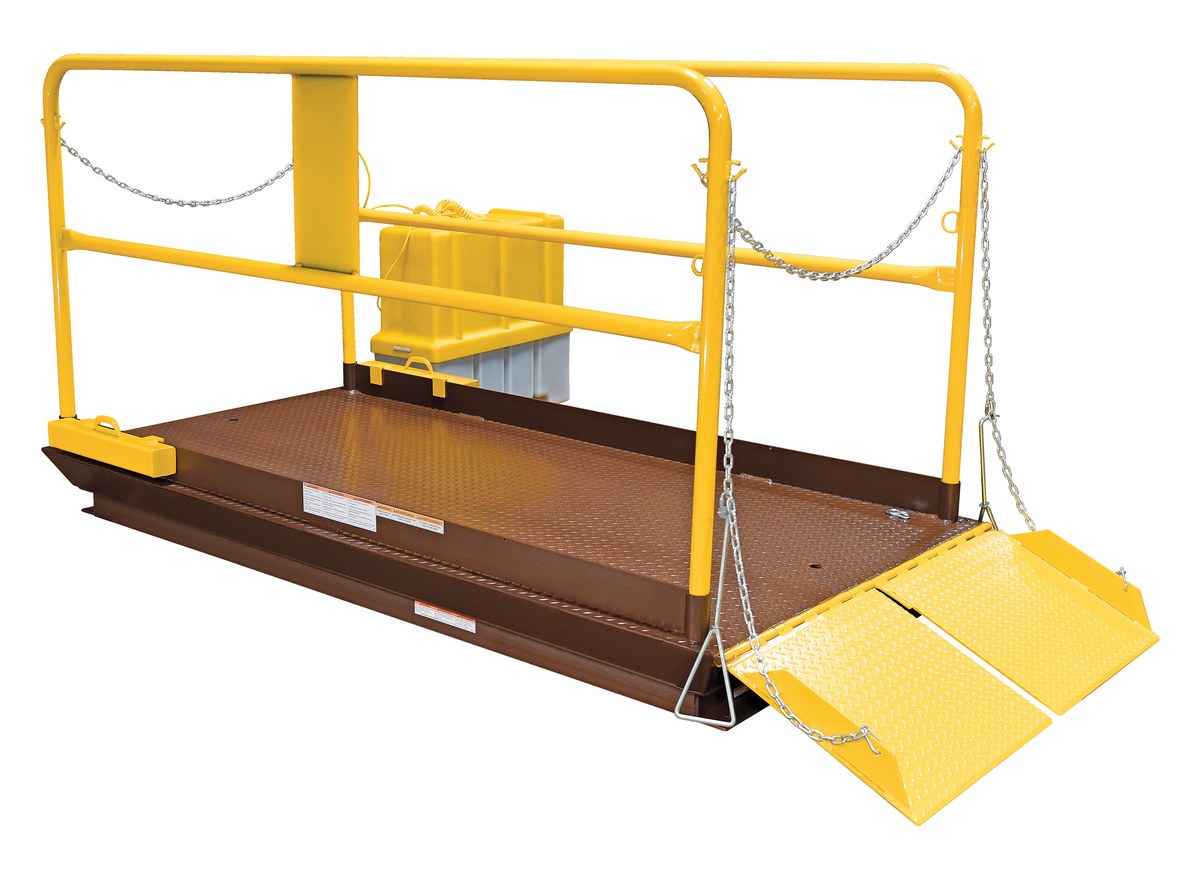

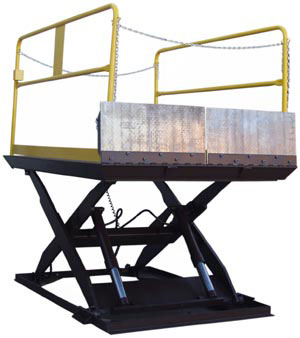

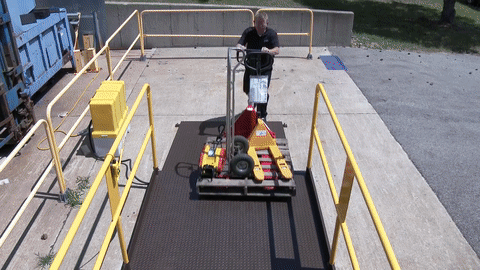

Premium Truck Scissor Dock Lifts

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload relay. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. Standard external 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Safety Features

The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a person’s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering. Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.

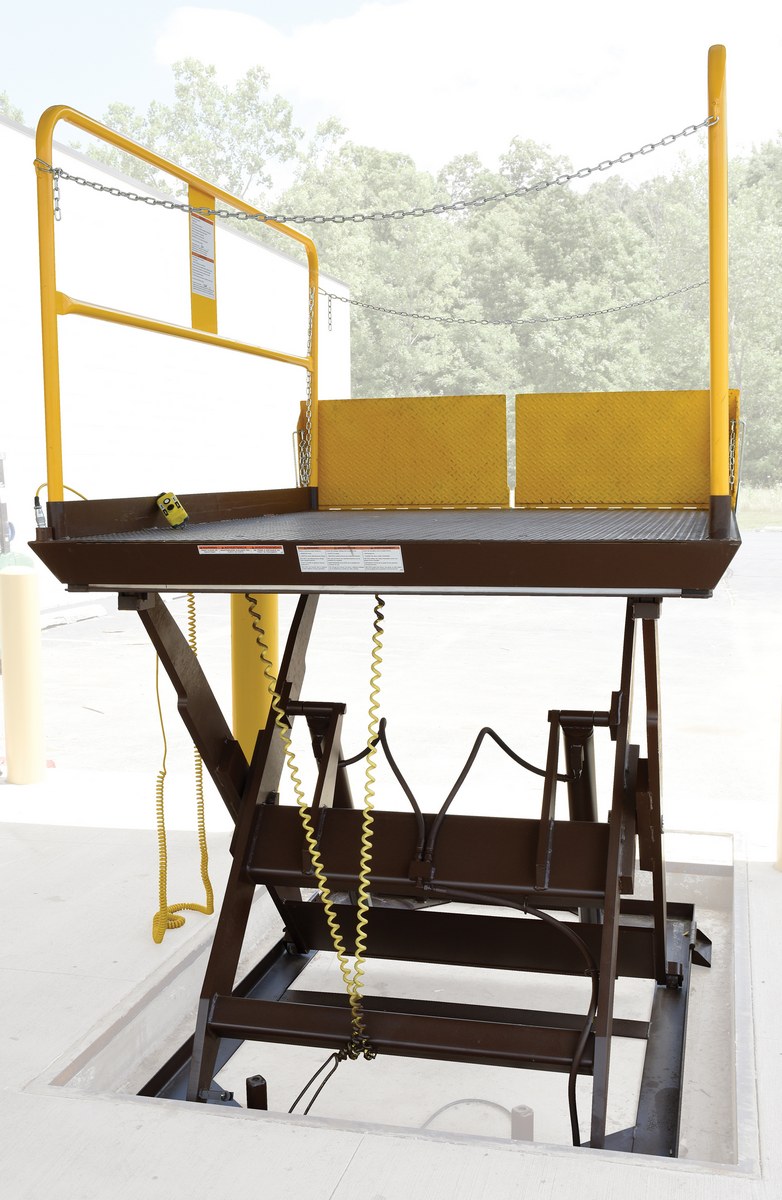

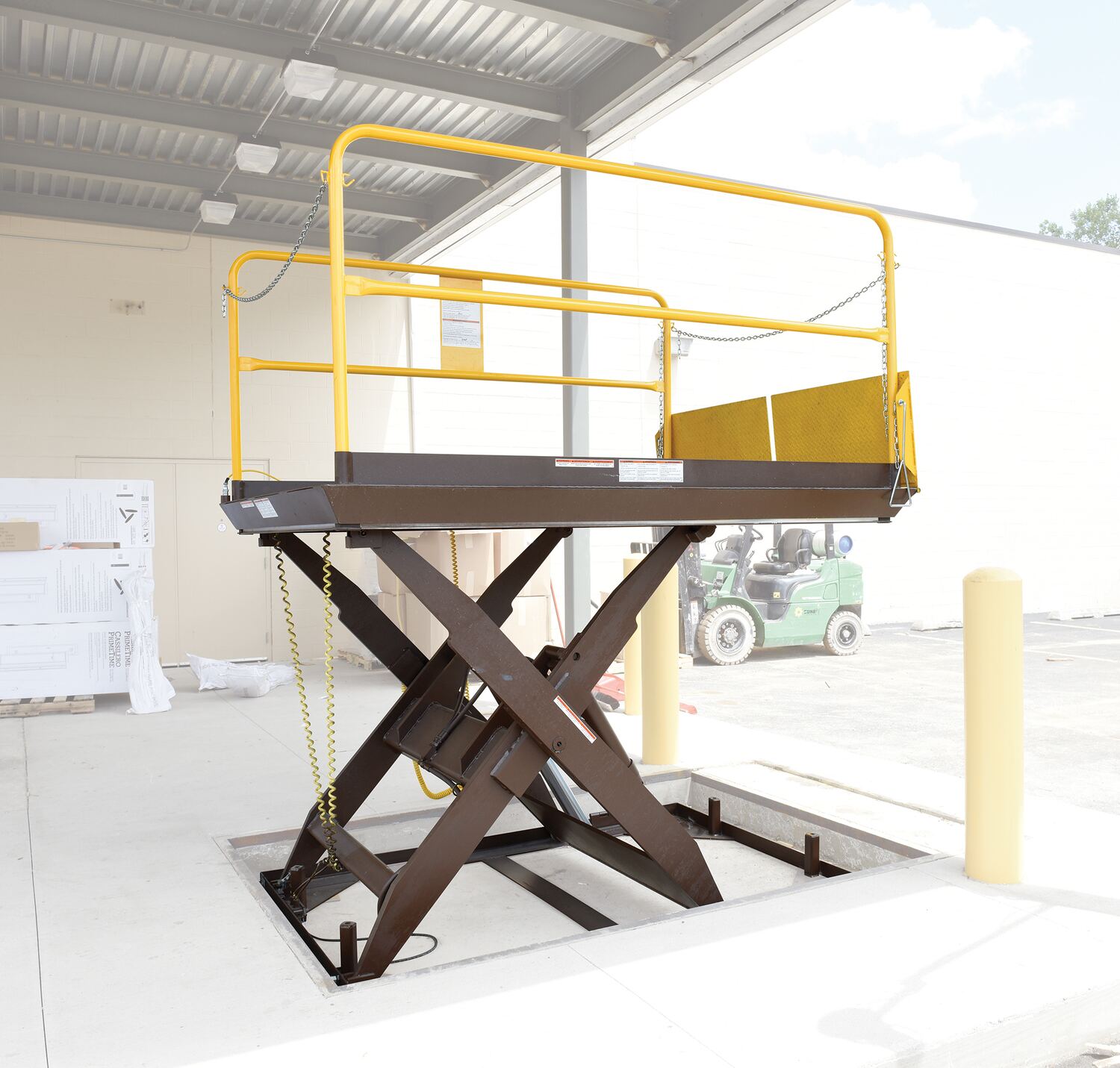

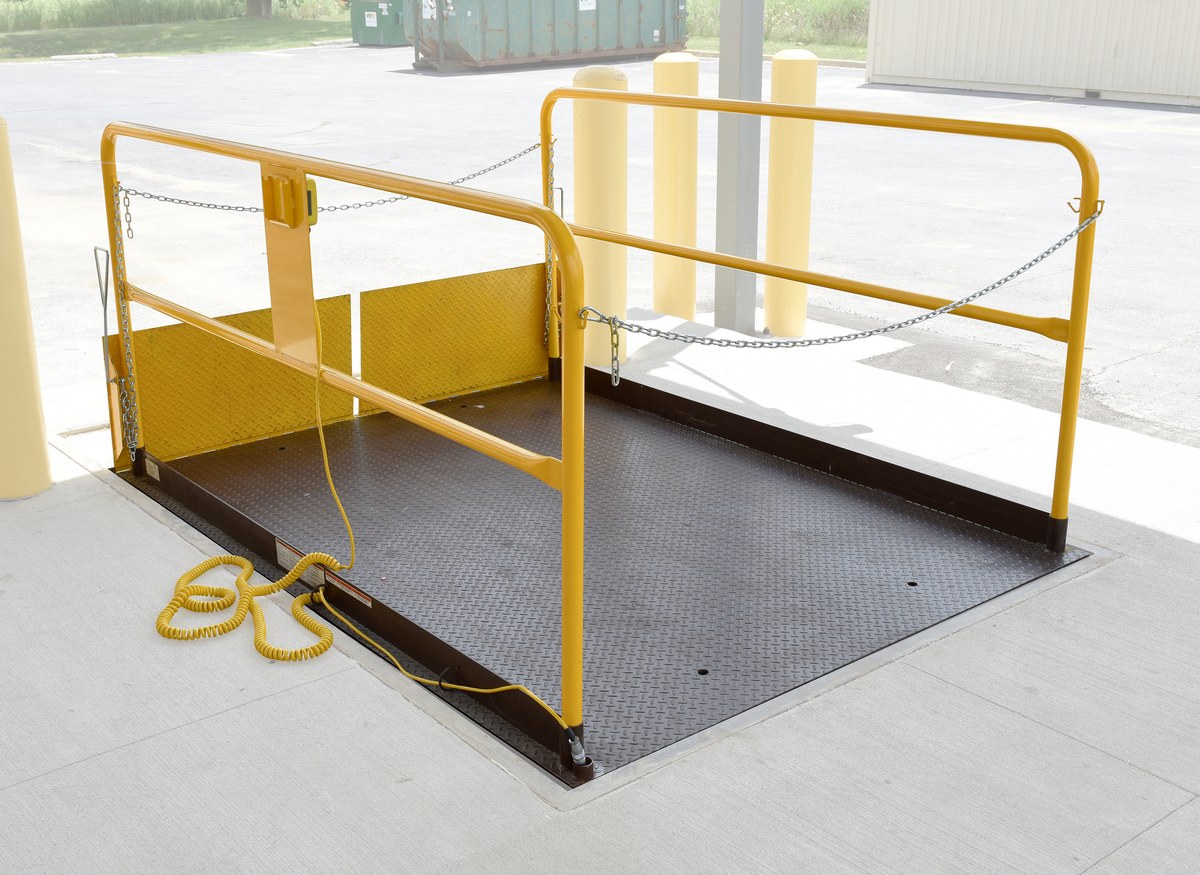

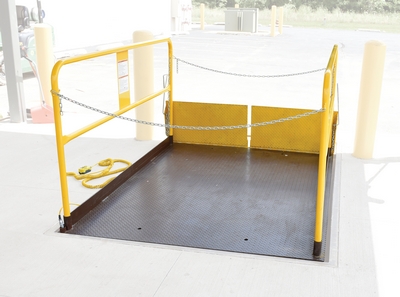

WL-100-5-68

model WL-100-5-68

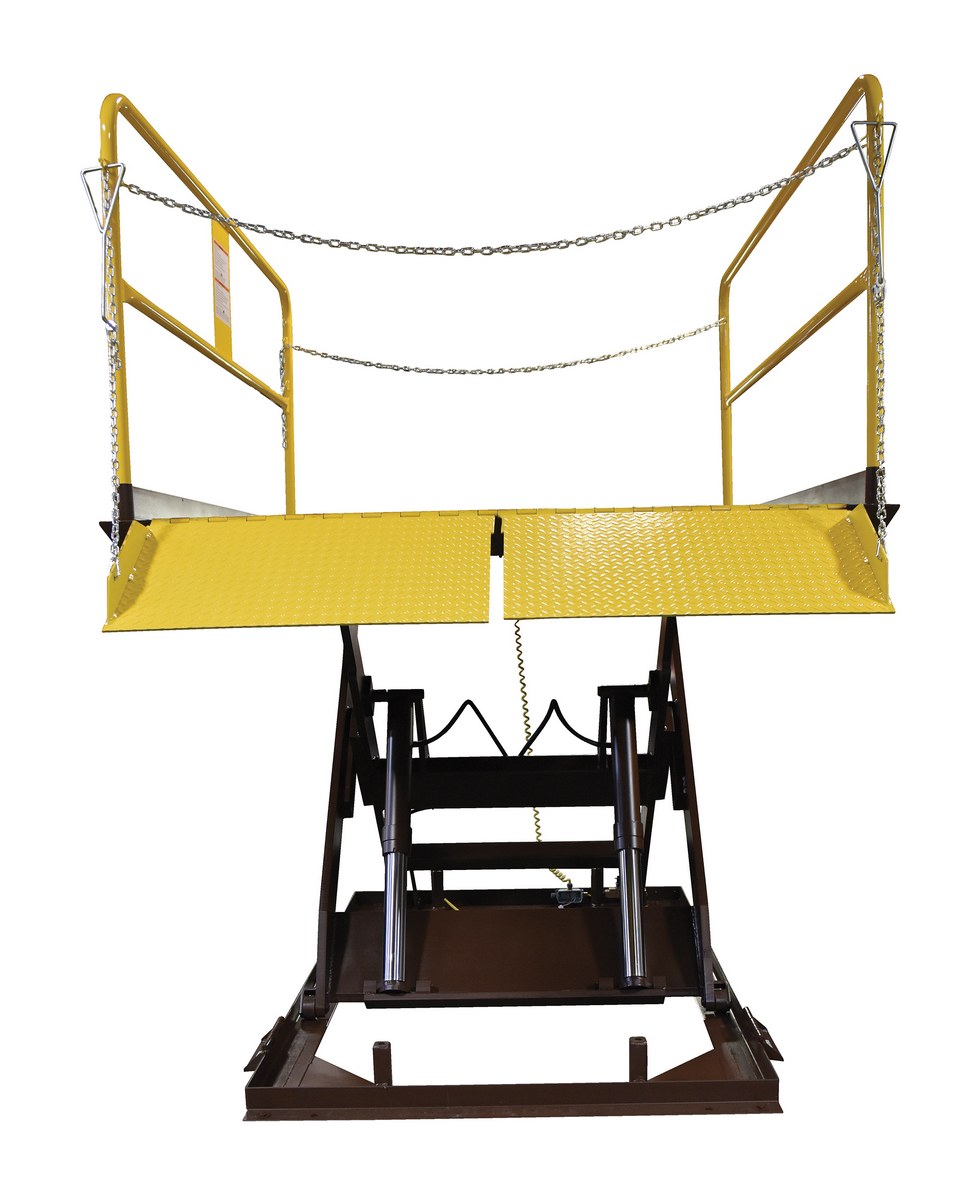

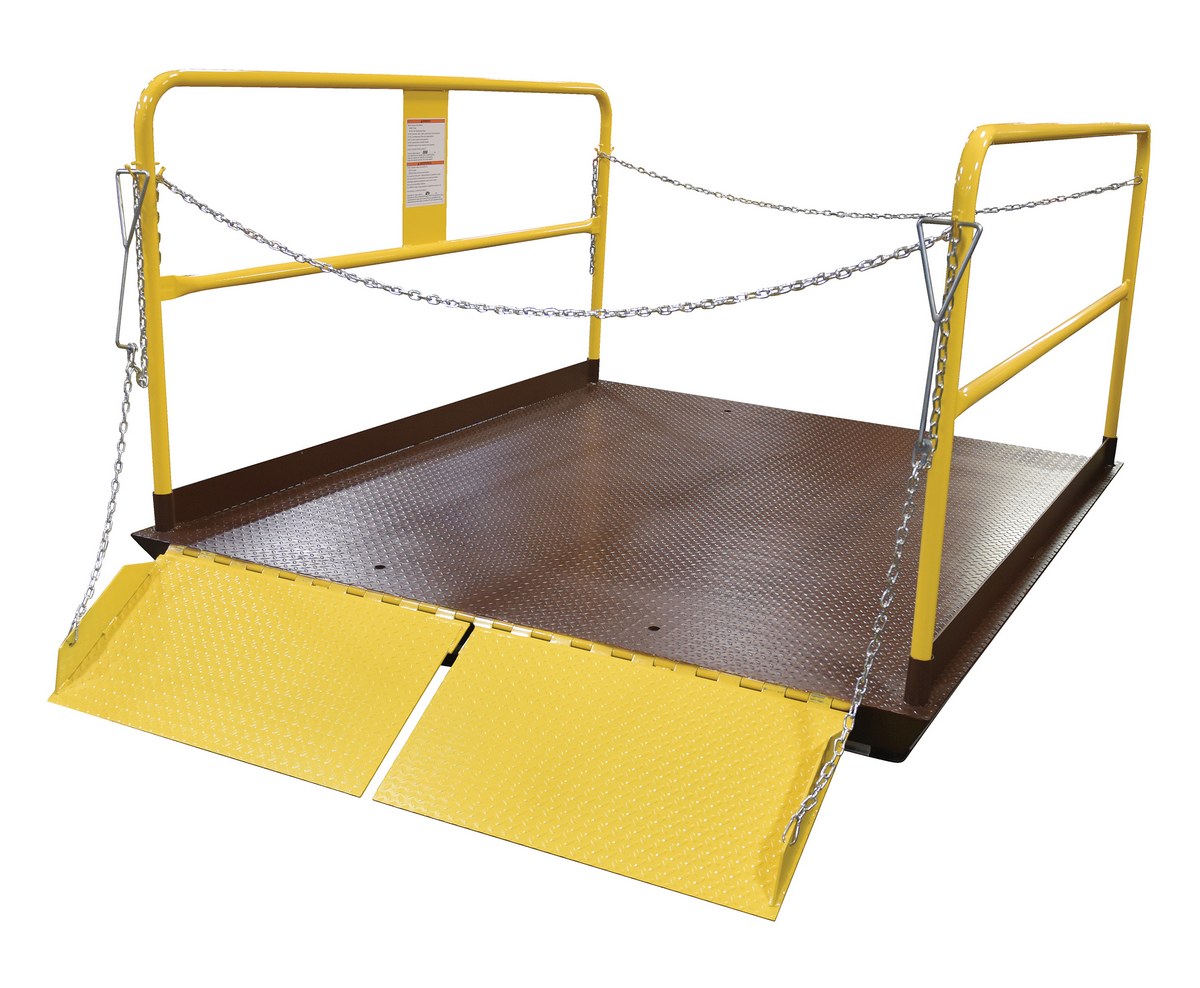

WL-100-5-78

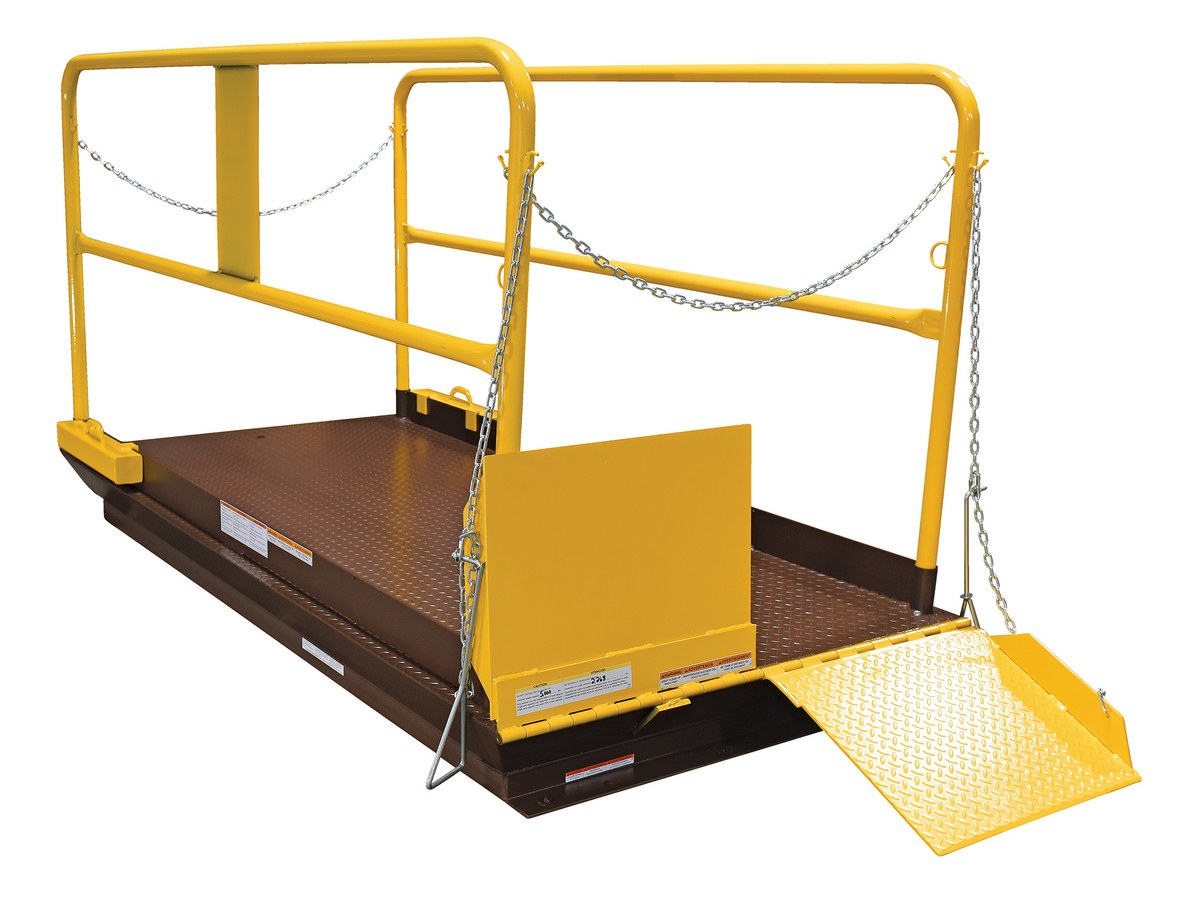

model WL-100-5-78

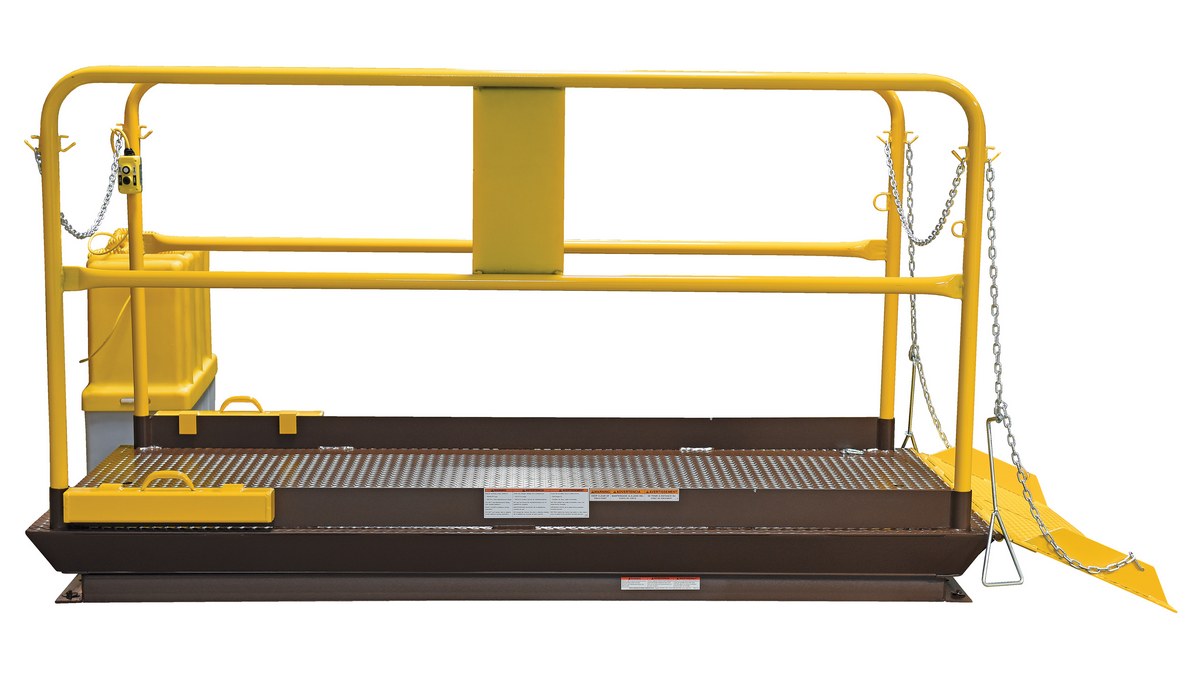

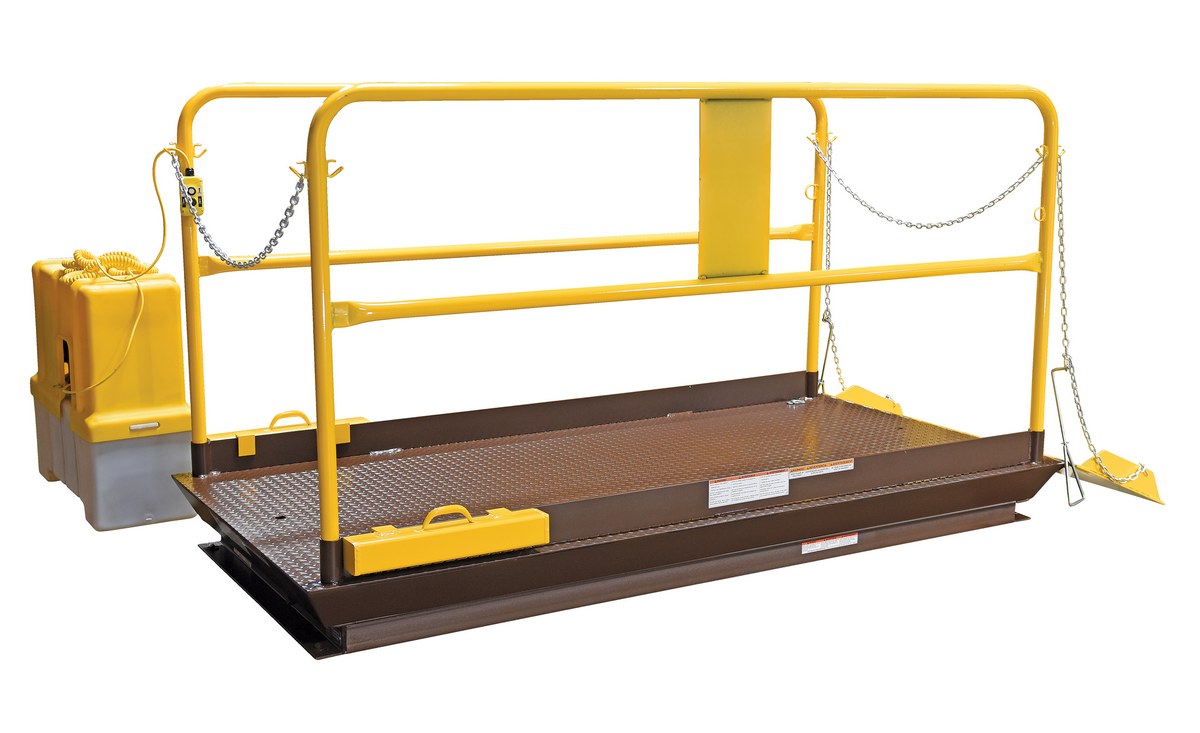

WL-100-5-48

model WL-100-5-48

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Premium Truck Scissor Dock Lifts
Model PDF's Platform Size
(WxL)
Lowered
Height
Raised
Height
Capacity
(lbs)
Overall Frame
Size (WxL)
Wt.
(lbs)
WL-100-5-48 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
48"x96" 8" 68" 5,000 41"x93" 2856
WL-100-5-68 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x96" 8" 68" 5,000 62"x93" 3501
WL-100-5-78 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x96" 8" 68" 5,000 62"x93" 3750
WL-100-5-88* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x96" 8" 68" 5,000 86"x93" 3996
WL-100-5-610 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x120" 8" 68" 5,000 62"x118" 3867
WL-100-5-710 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x120" 8" 68" 5,000 62"x118" 4071
WL-100-5-810* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x120" 8" 68" 5,000 86"x118" 4151
WL-100-6-68 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x96" 10" 70" 6,000 62"x93" 3415
WL-100-6-78 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x96" 10" 70" 6,000 62"x93" 3616
WL-100-6-88* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x96" 10" 70" 6,000 86"x93" 4211
WL-100-6-610 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x120" 10" 70" 6,000 62"x118" 3983
WL-100-6-710 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x120" 10" 70" 6,000 62"x118" 4082

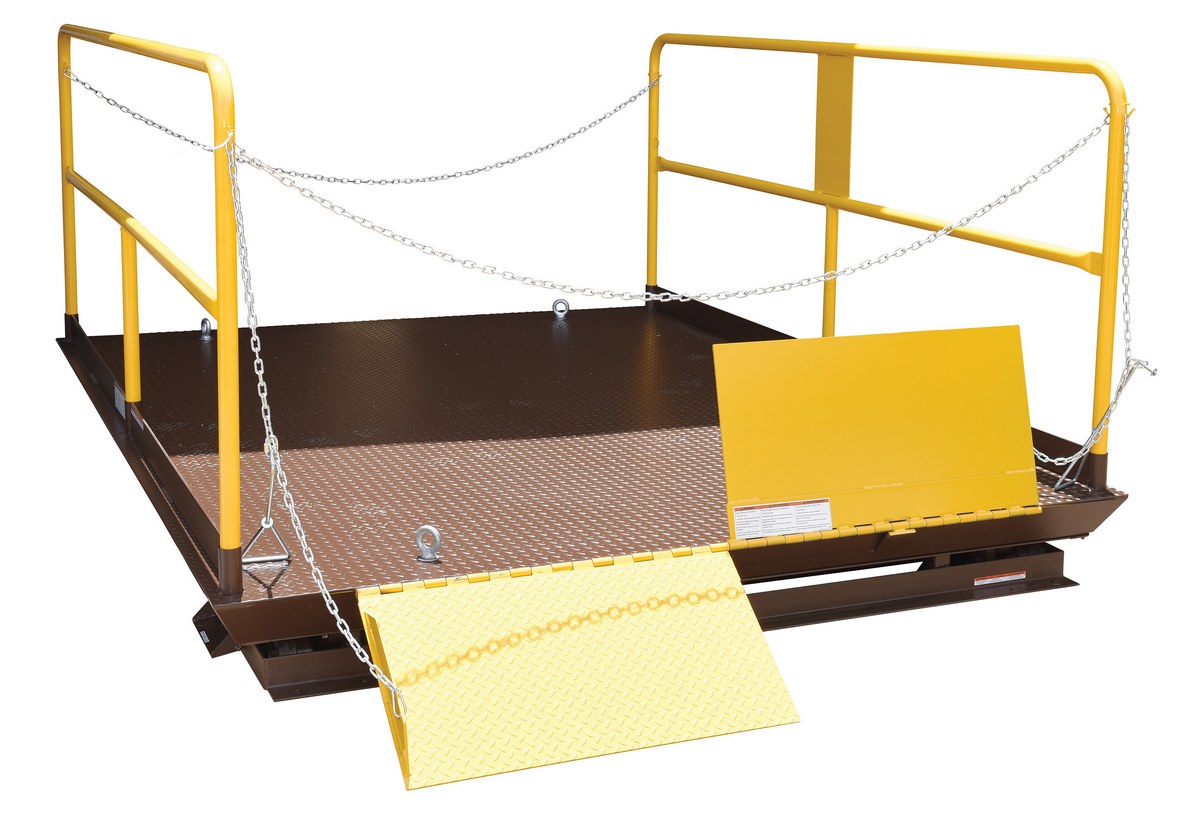

WL-100-6-810* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x120" 10" 70" 6,000 86"x118" 4345
WL-100-8-68 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x96" 10" 70" 8,000 62"x93" 4440
WL-100-8-78 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x96" 10" 70" 8,000 62"x93"

4636

WL-100-8-88* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x96" 10" 70" 8,000 86"x93" 4742
WL-100-8-610 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x120" 10" 70" 8,000 62"x118" 4851
WL-100-8-710 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x120" 10" 70" 8,000 62"x118" 4957
WL-100-8-810* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x120" 10" 70" 8,000 86"x118" 5201
WL-100-10-68 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x96" 14" 72" 10,000 62"x93" 5848
WL-100-10-78 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x96" 14" 72" 10,000 62"x93" 6035
WL-100-10-88* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x96" 14" 72" 10,000 86"x93" 6221
WL-100-10-610 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x120" 14" 72" 10,000 62"x118" 6081
WL-100-10-710 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x120" 14" 72" 10,000 62"x118" 6268
WL-100-10-810* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x120" 14" 72" 10,000 86"x118" 6454
WL-100-10-612 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x144" 14" 72" 10,000 62"x118" 6548
WL-100-10-712 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x144" 14" 72" 10,000 62"x118" 6734
WL-100-10-812* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x144" 14" 72" 10,000 86"x118" 6920
WL-100-12-68 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x96" 14" 72" 12,000 62"x93" 6431
WL-100-12-78 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x96" 14" 72" 12,000 62"x93" 6617
WL-100-12-88* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x96" 14" 72" 12,000 86"x93" 6775
WL-100-12-610 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x120" 14" 72" 12,000 62"x118" 6664
WL-100-12-710 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
84"x120" 14" 72" 12,000 62"x118" 6851
WL-100-12-810* icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
96"x120" 14" 72" 12,000 86"x118" 7037
WL-100-12-612 icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
72"x144" 14" 72" 12,000 62"x118" 7142
WL-100-12-712 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
84"x144" 14" 72" 12,000 62"x118" 7269
WL-100-12-812* icon_approvaldrawings.jpgicon_approvaldrawings.jpg
Warranty PDFCompliance Certificate
96"x144" 14" 72" 12,000 86"x118" 7480
* Units 96" wide cannot ship LTL. These sizes will need to ship flat bed.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets


Approval Drawings

WL-100-5-48
WL-100-5-68
WL-100-5-78
WL-100-5-88
WL-100-5-610
WL-100-5-710
WL-100-5-810
WL-100-6-68
WL-100-6-78
WL-100-6-88
WL-100-6-610
WL-100-6-710
WL-100-6-810
WL-100-8-68
WL-100-8-78
WL-100-8-88
WL-100-8-610
WL-100-8-710
WL-100-8-810
WL-100-10-68
WL-100-10-78
WL-100-10-88
WL-100-10-610
WL-100-10-612
WL-100-10-710
WL-100-10-712
WL-100-10-810
WL-100-10-812
WL-100-12-68
WL-100-12-78
WL-100-12-88
WL-100-12-610
WL-100-12-612
WL-100-12-710
WL-100-12-712
WL-100-12-810
WL-100-12-812
WL-AR8
WL-AR8-48
WL-AR8-RS-48
WL-AR10
WL-AR14
WL-RMB

Testing Certificates

IOH-230V
IOH-460V
SPO-WL-LS-SSC
SPO-WL-LS-ZRC
WL-3HP
WL-7HP
WL-10HP
WL-50
WL-100-5-48
WL-100-5-68
WL-100-5-78
WL-100-5-88
WL-100-5-610
WL-100-5-710
WL-100-5-810
WL-100-6-68
WL-100-6-78
WL-100-6-88
WL-100-6-610
WL-100-6-710
WL-100-6-810
WL-100-8-68
WL-100-8-78
WL-100-8-88
WL-100-8-610
WL-100-8-710
WL-100-8-810
WL-100-10-68
WL-100-10-78
WL-100-10-88
WL-100-10-610
WL-100-10-612
WL-100-10-710
WL-100-10-712
WL-100-10-810
WL-100-10-812
WL-100-12-68
WL-100-12-78
WL-100-12-88
WL-100-12-610
WL-100-12-612
WL-100-12-710
WL-100-12-712
WL-100-12-810
WL-100-12-812
WL-ADDSATB
WL-AR8
WL-AR8-48
WL-AR10
WL-AR14
WL-HH
WL-KL
WL-RHT
WL-RMB
WL-SATB
WL-SSS
WL-SSTB
WL-TSP
WL-WB
WL-WK

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Premium Truck Scissor Dock Lift Options

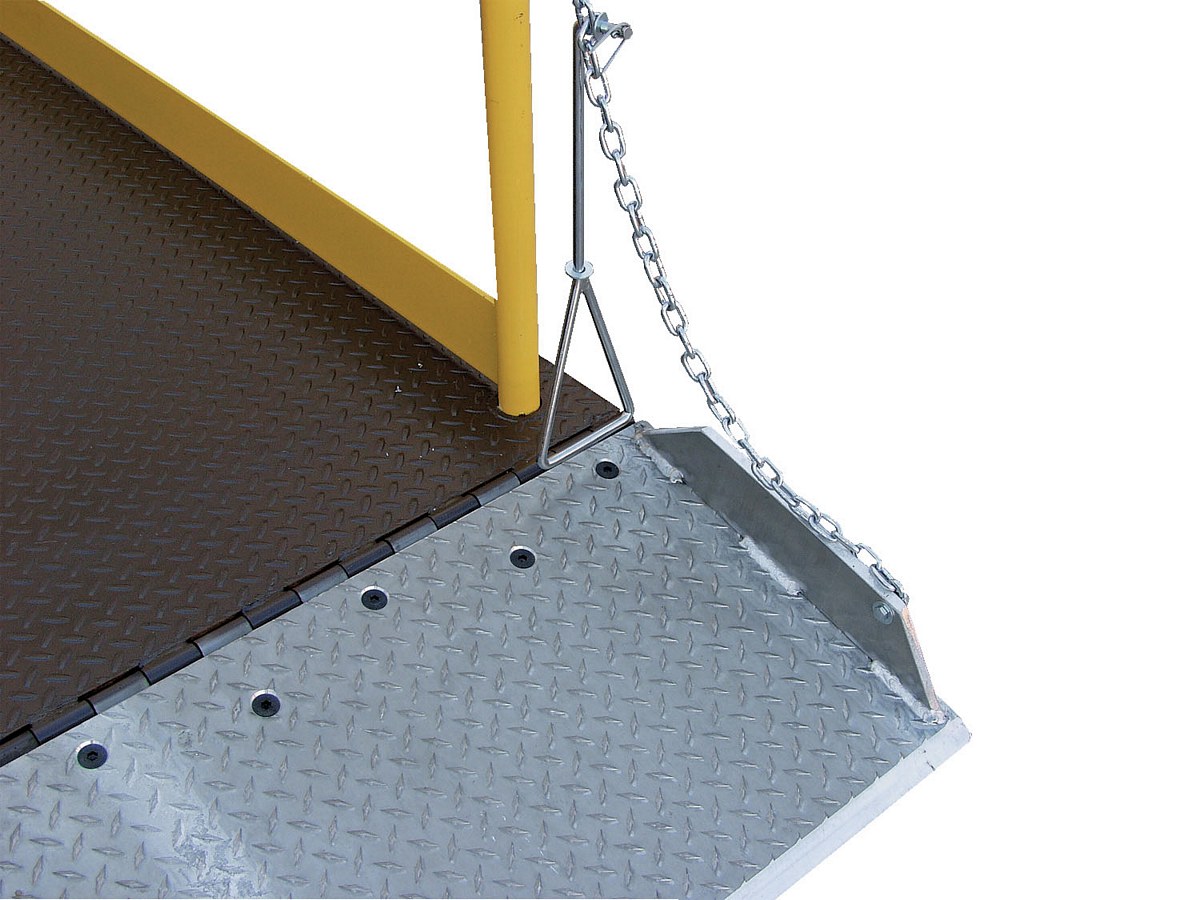

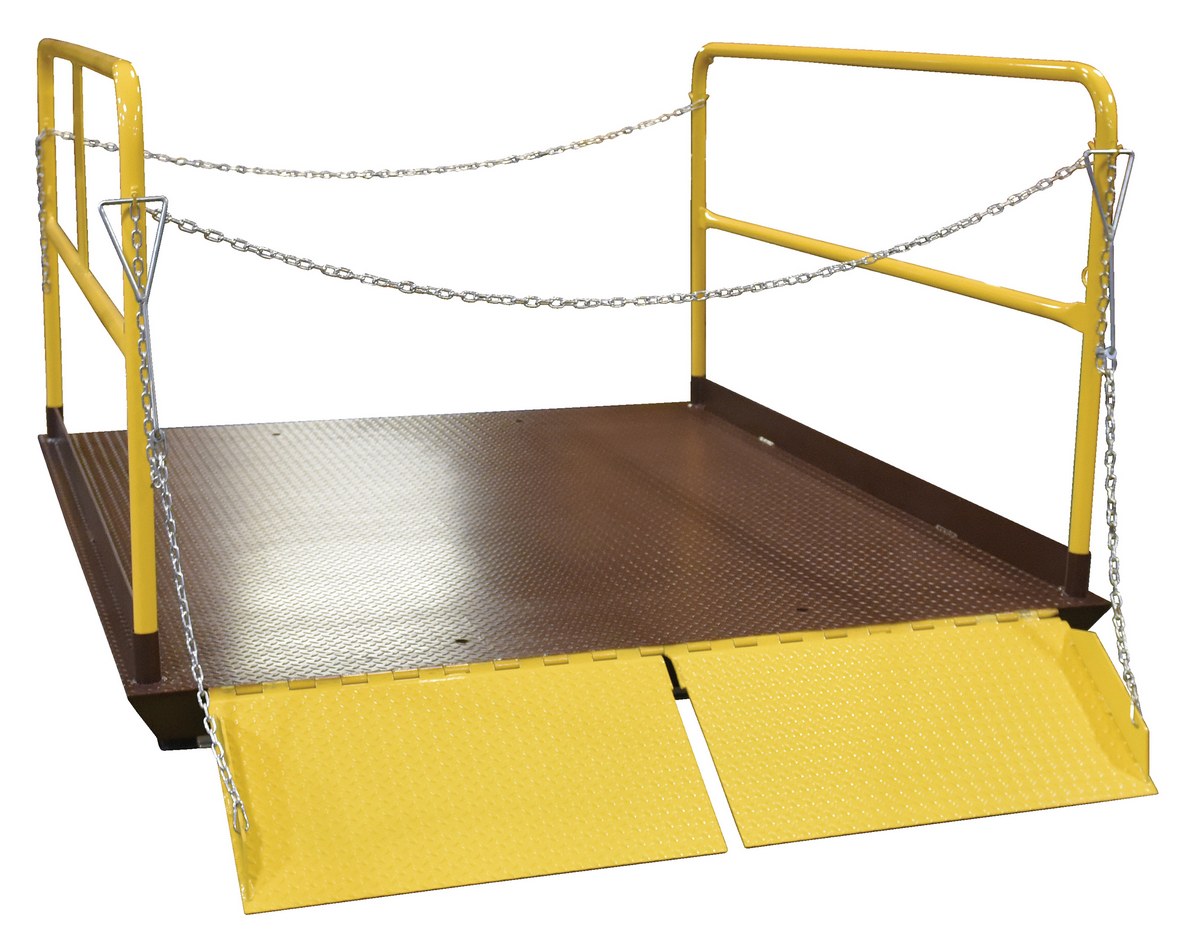

wl-1002.jpgSPLIT ALUMINUM TRUCK BRIDGE: Standard steel bridge can be replaced with an aluminum bridge 72" wide x 18" long. For 5K& 6K units. (110 lb. additional bridge) Ideal for government applications. Model WL-SATB.

Additional split aluminum bridge. Model WL-ADDSATB

SAFETY ACCORDION SKIRT: Keep people and debris from getting under lift. Contact Factory.

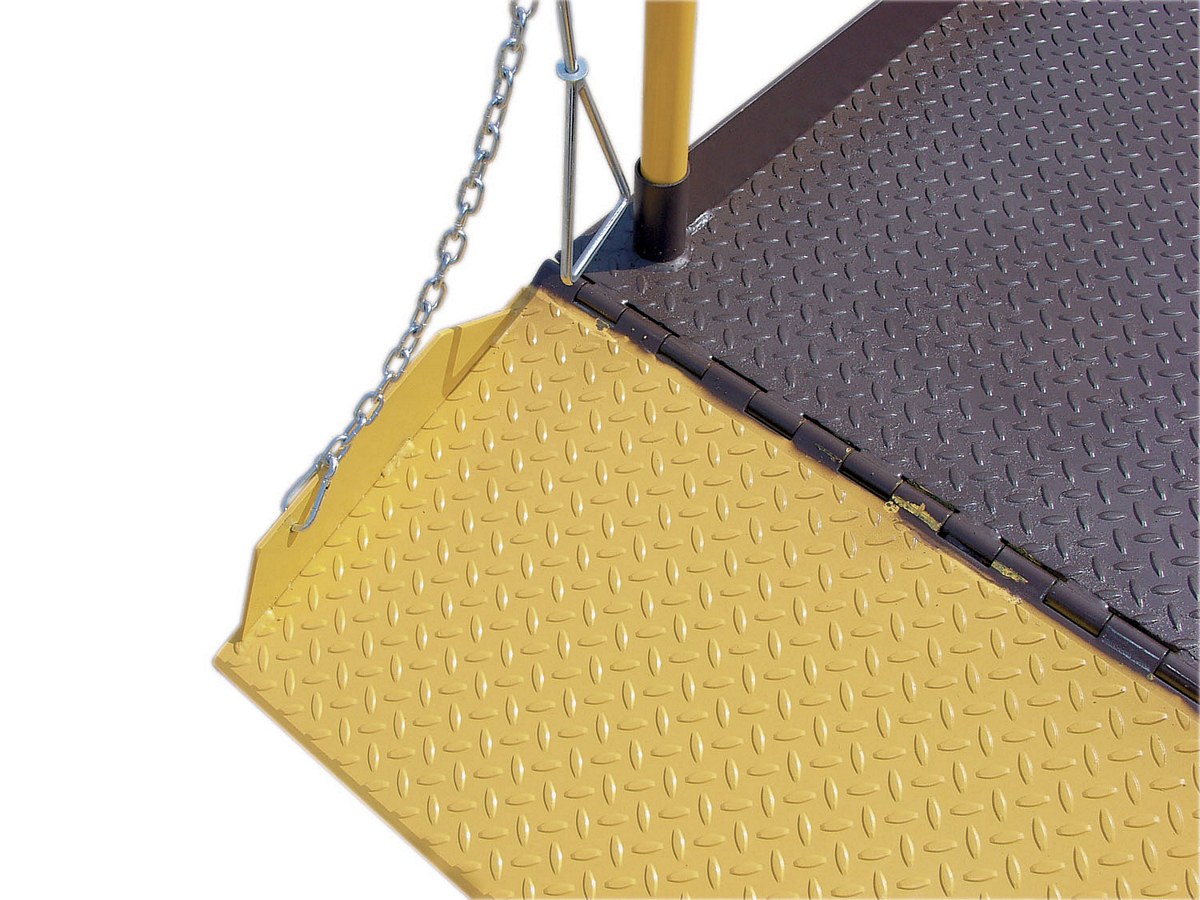

SPLIT STEEL BRIDGE: An additional split steel bridge can be added to opposite side of unit. 72" wide x 18" long. (180 lb. additional bridge) Model WL-SSTB.

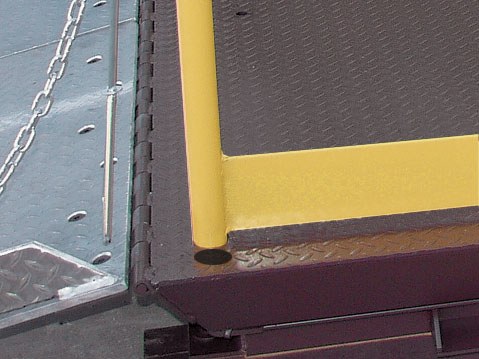

REMOVABLE HANDRAILS/TOEBOARDS: When mounting this lift in a pit, this option allows platform to be flush with the floor for fork truck cross traffic. Deduct 7-1/2" from overall width for usable width. Model WL-RHT.

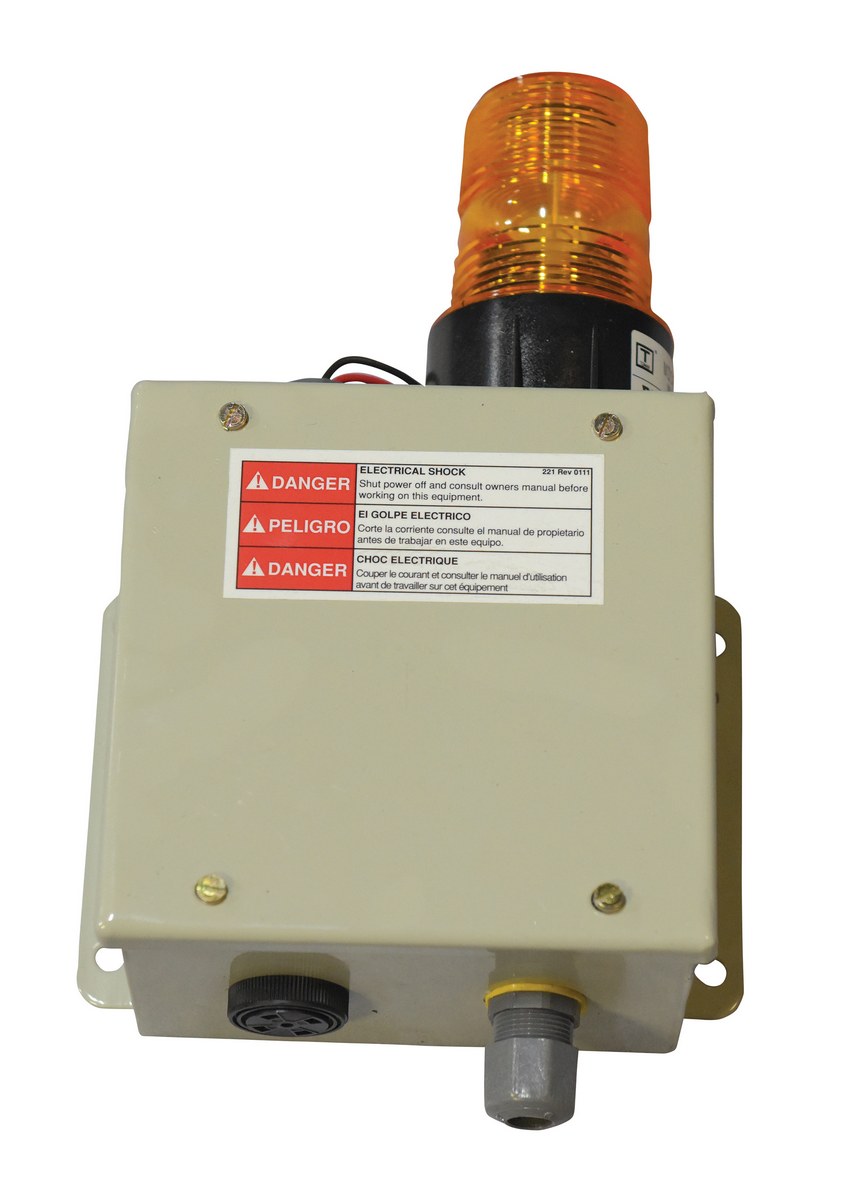

WARNING BEEPER & STROBE: Sounds and flashes during lifting and lowering operations. 80 decibels. Model WL-WB.

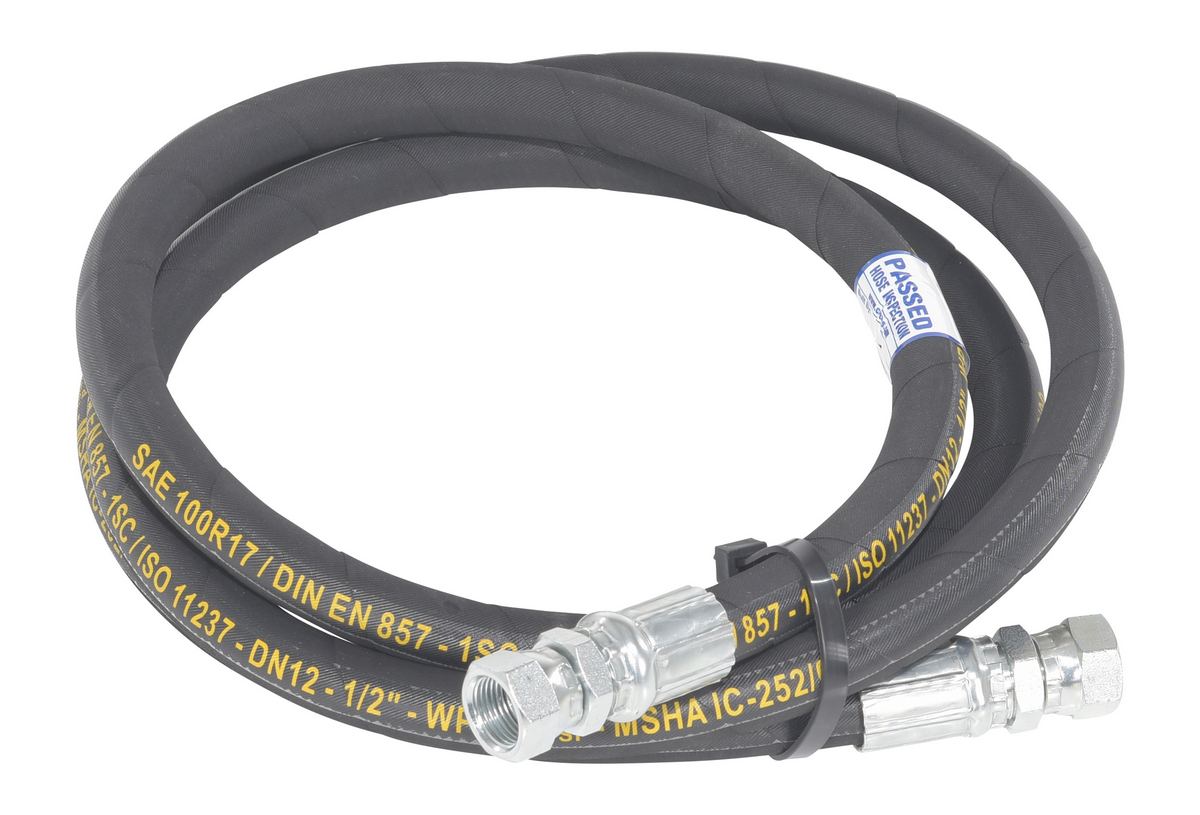

ADDITIONAL HYDRAULIC LINE: To order, tag model number with suffix WL-HH-(the amount of line needed in feet). Model WL-HH. (8 foot hose standard) Allows you to locate power unit further away from the lift.
Model ADDL-HH-25-10 - 1/4" - 10ft.
Model ADDL-HH-25-20 - 1/4" - 20ft.
Model ADDL-HH-50-10 - 1/2" - 10ft.
Model ADDL-HH-50-20 - 1/2" - 20ft.
APPROACH RAMP FOR 8" LOWERED HEIGHT LIFTS: icon_approvaldrawings.jpg 60" wide x 65" long. 7 degree ramp angle. 397 lbs. Model WL-AR8.

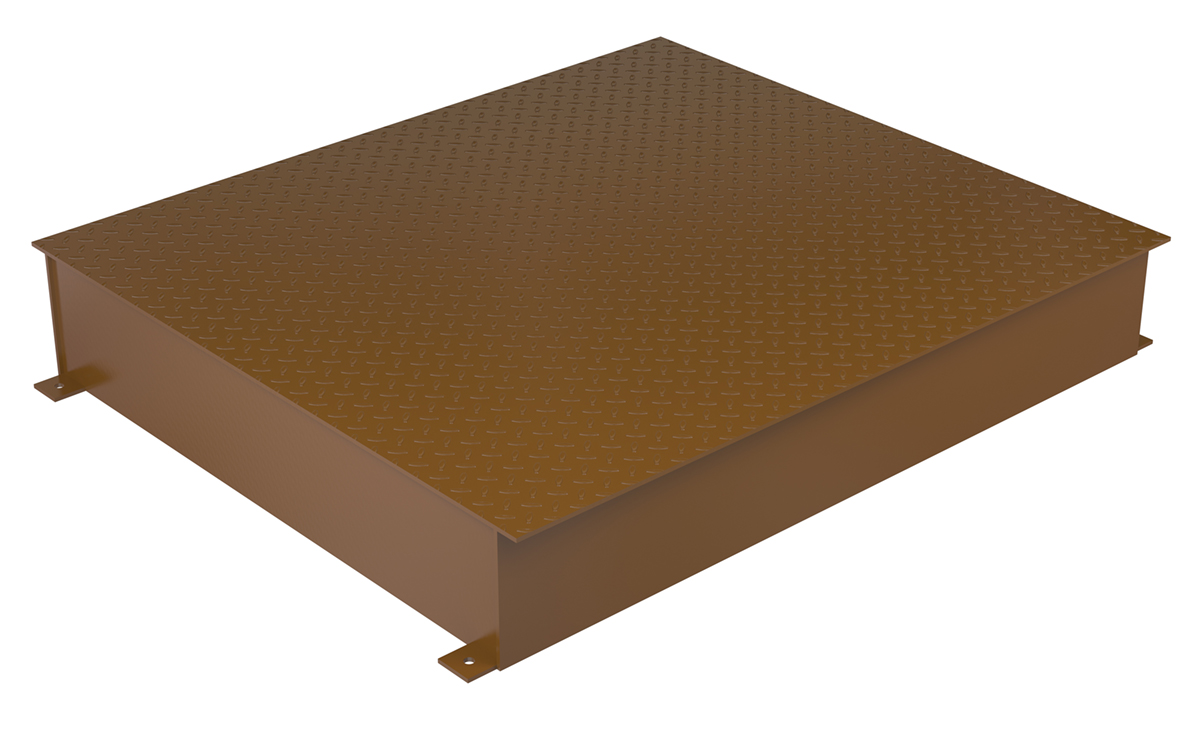

APPROACH RAMP SPACER 8" HEIGHT An approach ramp spacer makes transitions that much easier. The robust construction fits in well with the existing ramps creating an even better user experience. This ramp spacer decreases and minimizes the chance of uneven surfaces when traversing ramps to a new surface. A simple installation allows for immediate use. Model WL-AR8-RS-48

APPROACH RAMP FOR 8" LOWERED HEIGHT LIFTS: 48" wide x 65" long. 7 degree ramp angle. 386 lbs. Model WL-AR8-48.

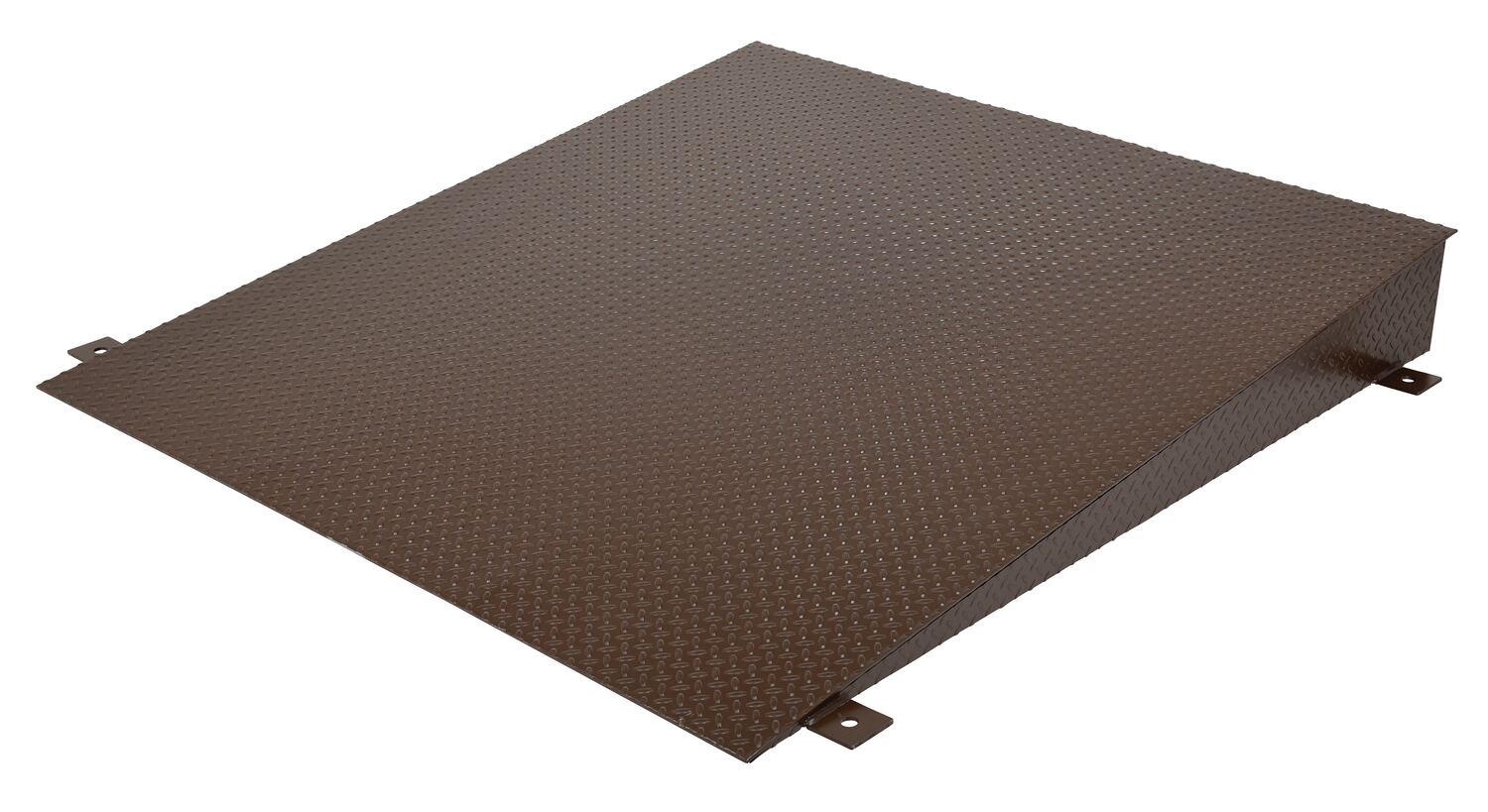

wl-1010.jpgAPPROACH RAMP FOR 10" LOWERED HEIGHT: icon_approvaldrawings.jpg 60" wide x 82" long. 7 degree ramp angle. 517 lbs. Model WL-AR10.

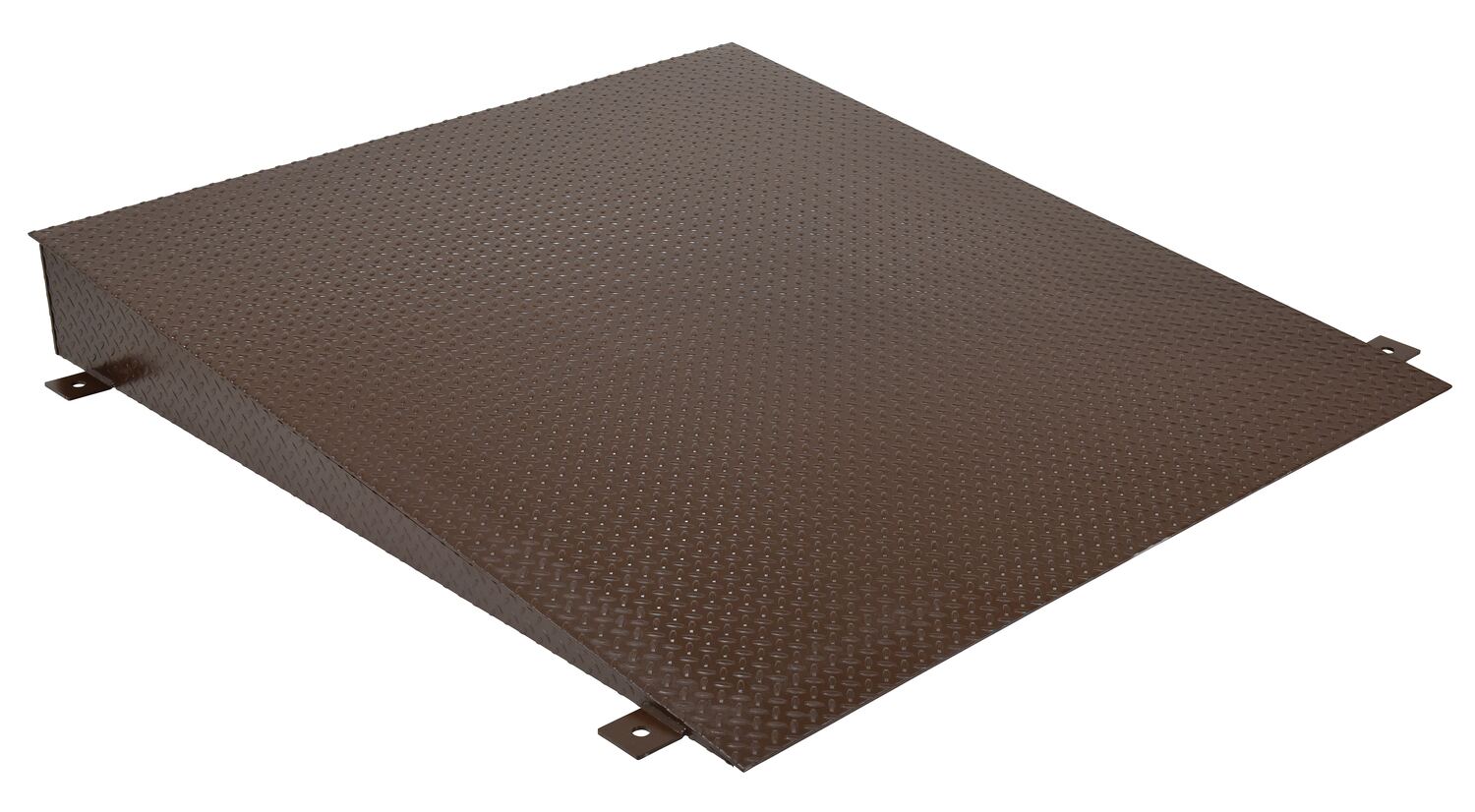

APPROACH RAMP FOR 14" LOWERED HEIGHT: 60" wide x 116" long. 7 degree ramp angle. 788 lbs. Model WL-AR14. icon_approvaldrawings.jpg

**APPROACH RAMPS MUST BE ANCHORED TO THE FLOOR**

50,000 lbs. ROLLOVER CAPACITY (25,000 lbs. per axle): Add'l structural channel and supports for deck. Increases lowered height 2". Model WL-50.

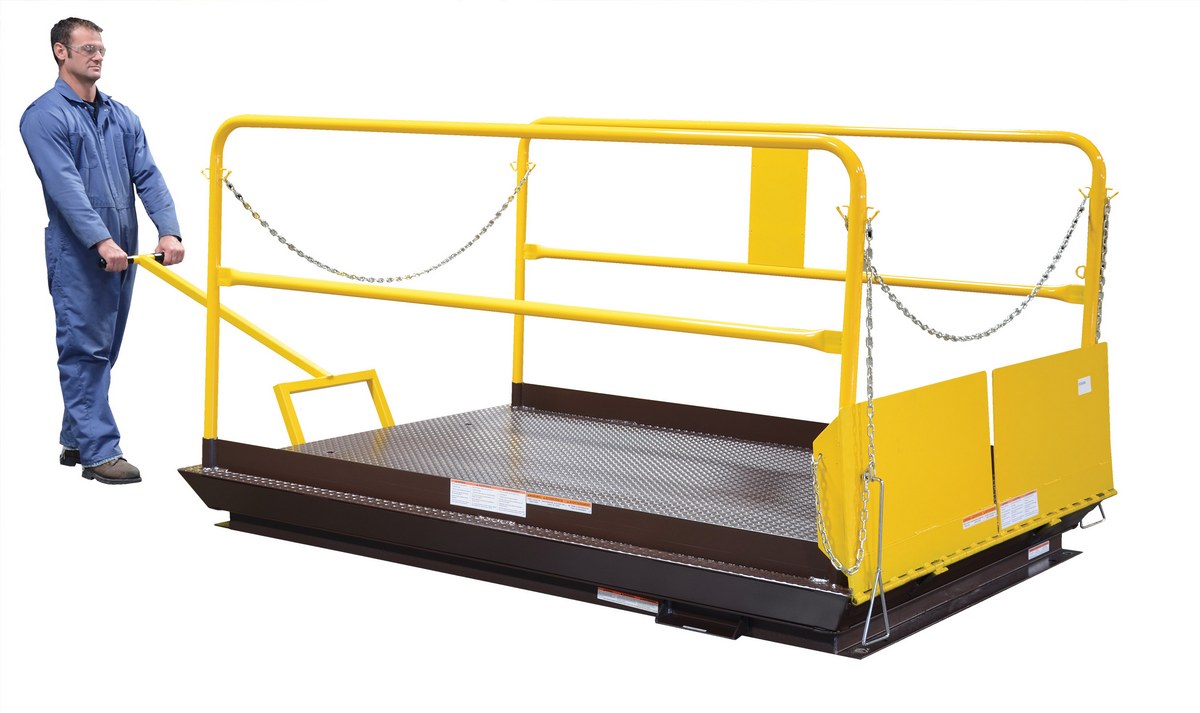

MOBILE WHEEL KIT: Kit may be used on the 5,000 and 6,000 lbs. capacity units only. System includes casters and detachable handle. (400lb.) Model WL-WK. *Factory Install Only

POWER CHANGE: Voltage change to 208-230 Volt 3 phase. Model VCC-208/230-3

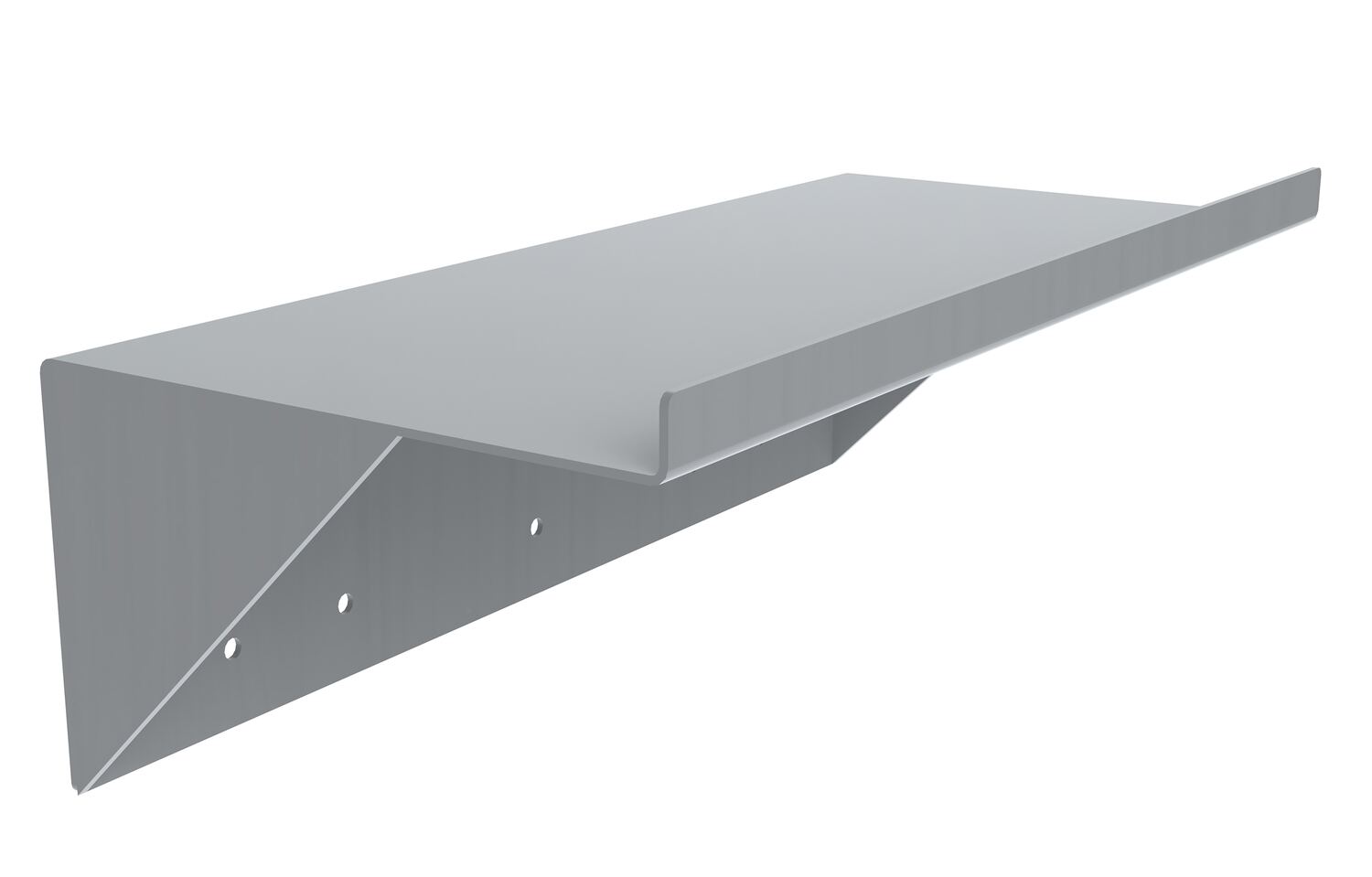

SPECIAL RESERVOIR MOUNTING: Available in a wall mount or a handrail mount (non-removable.) Model WL-RMB. icon_approvaldrawings.jpg

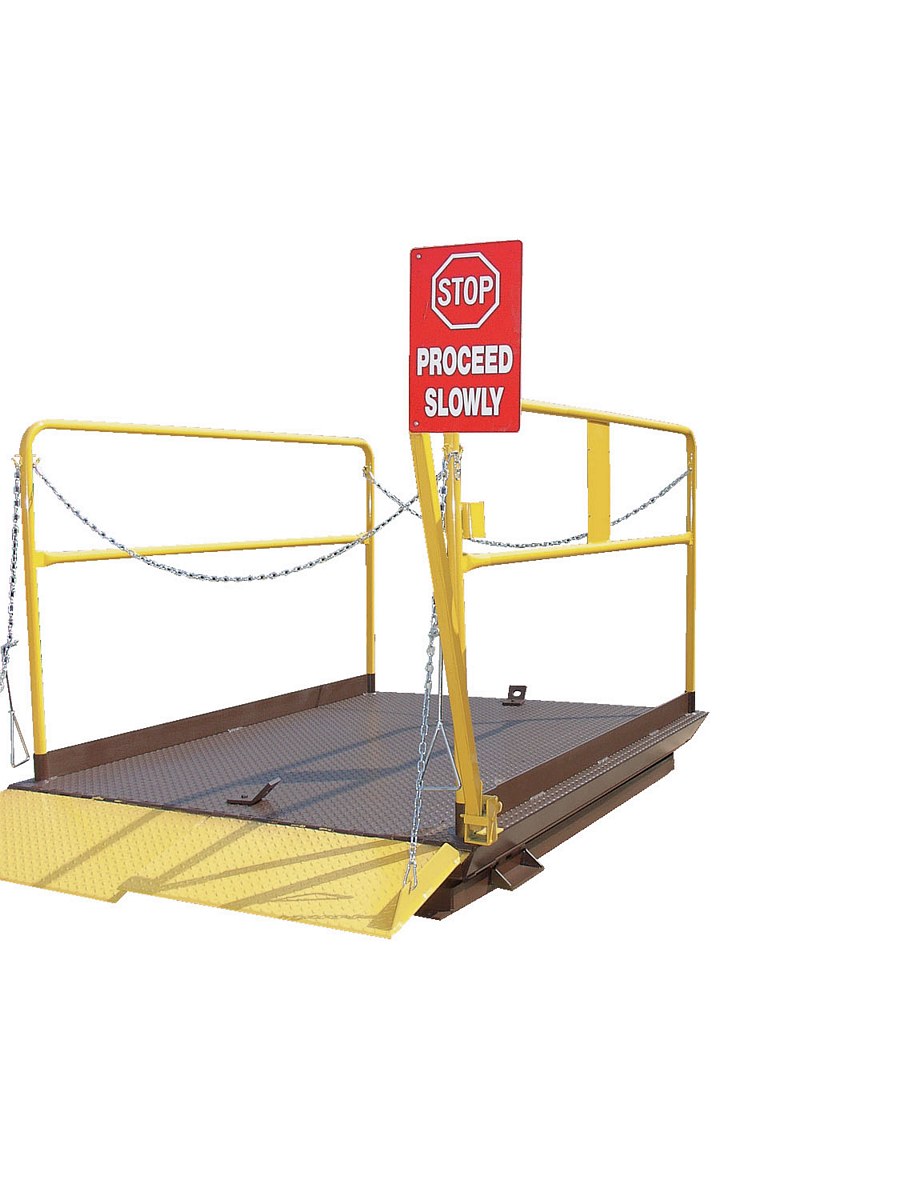

wl-1004.jpgSTOP SIGNAL SIGN: Optional Stop Sign Signal that raises up to let the driver know when to stop for safe loading/unloading.This is only available on surface mount units with fixed toe boards. (reduces usable width by 3") Model WL-SSS.
KEY LOCK OPERATION: To avoid unauthorized use of the lift, this option will lock out the controls. Model WL-KL.
TWO SPEED PUMP: Increase lifting speed by 55% when lift is unloaded. Ideal for unloading applications. Model WL-TSP.

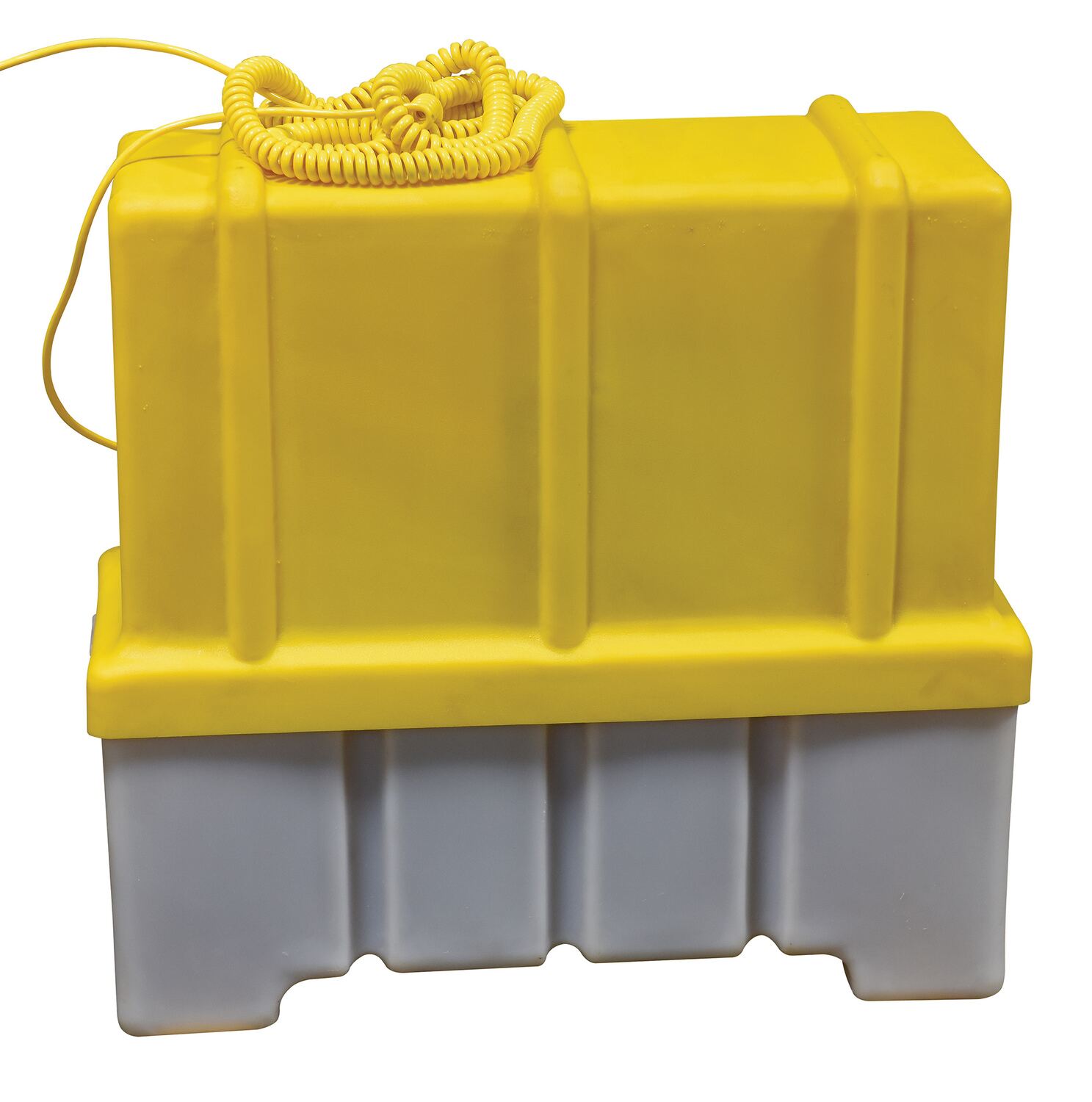

3 HP SINGLE PHASE ELECTRIC MOTOR: Replace standard three phase power unit with 208/230V, 1 phase, 60Hz power unit (1-1?2 gallons per minute pump speed). Model WL-3HP.
7-1/2 HP POWER UNIT: Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 6 gallons per minute. Model WL-7HP.
10 HP POWER UNIT: Power unit is wired for three phase 208-230/460V 60Hz, unit will pump 8 gallons per minute. Model WL-10HP.
wl-1005.jpgCold GALVANIZED Liquid COATING: For application usage visit www.zrcworldwide.com. Model SPO-WL-LS-ZRC.
STEEL-IT COATING: Visit www.steel-it.com for application use. Model SPO-WL-LS-SSC.

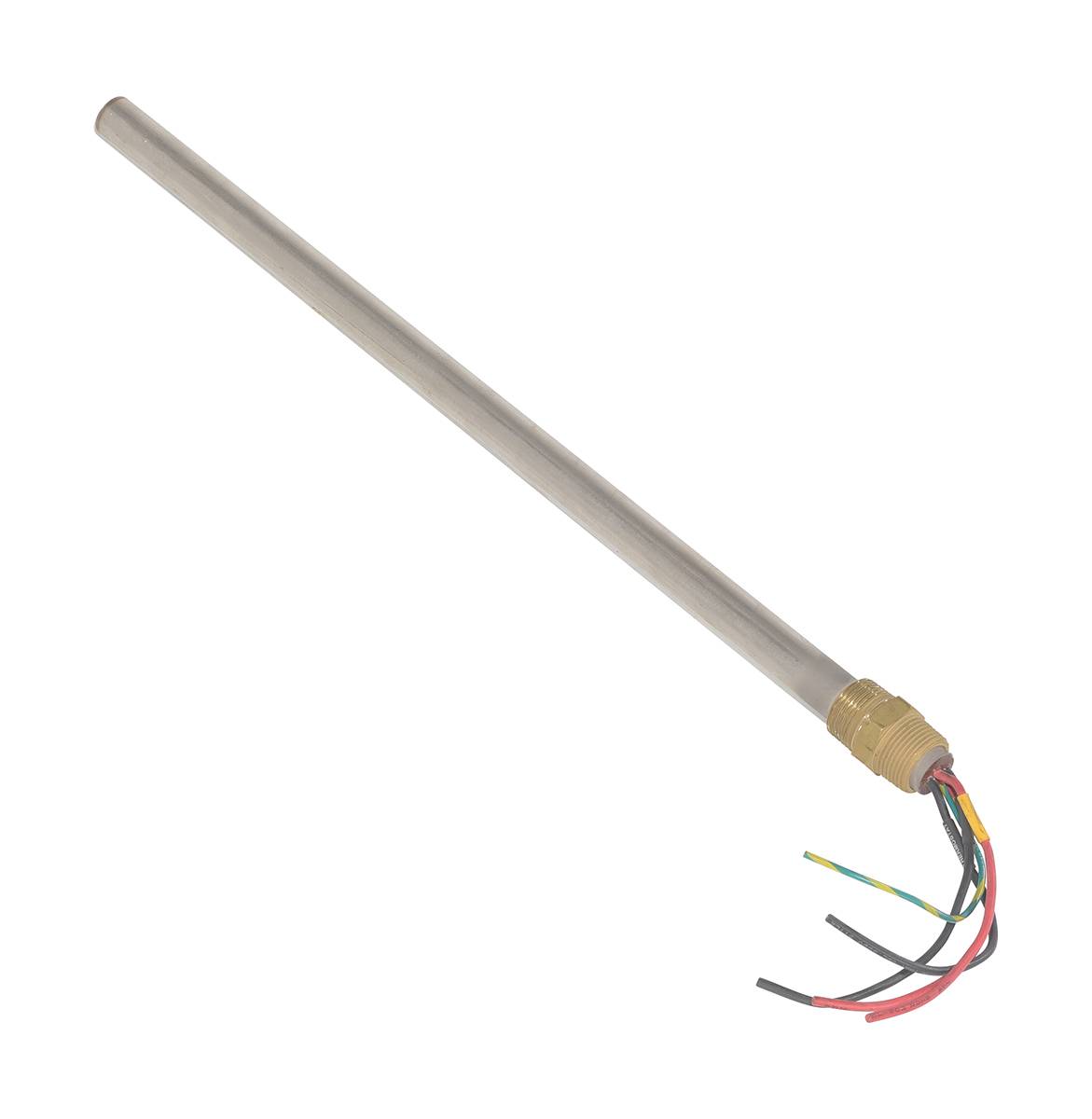

IMMERSION OIL HEATER: For cold weather applications with a built in metal reservoir & thermostat for automatic heat control. 208-230V single/three phase power. 250 watts. This option can only be used in steel tanks. Model IOH-230V
Same as above; to be used with 460V three phase power unit, 500 watts. Model IOH-460V
