model WP-400-AC
SERIES: WP-400


Linearizer Electric Worker Platforms

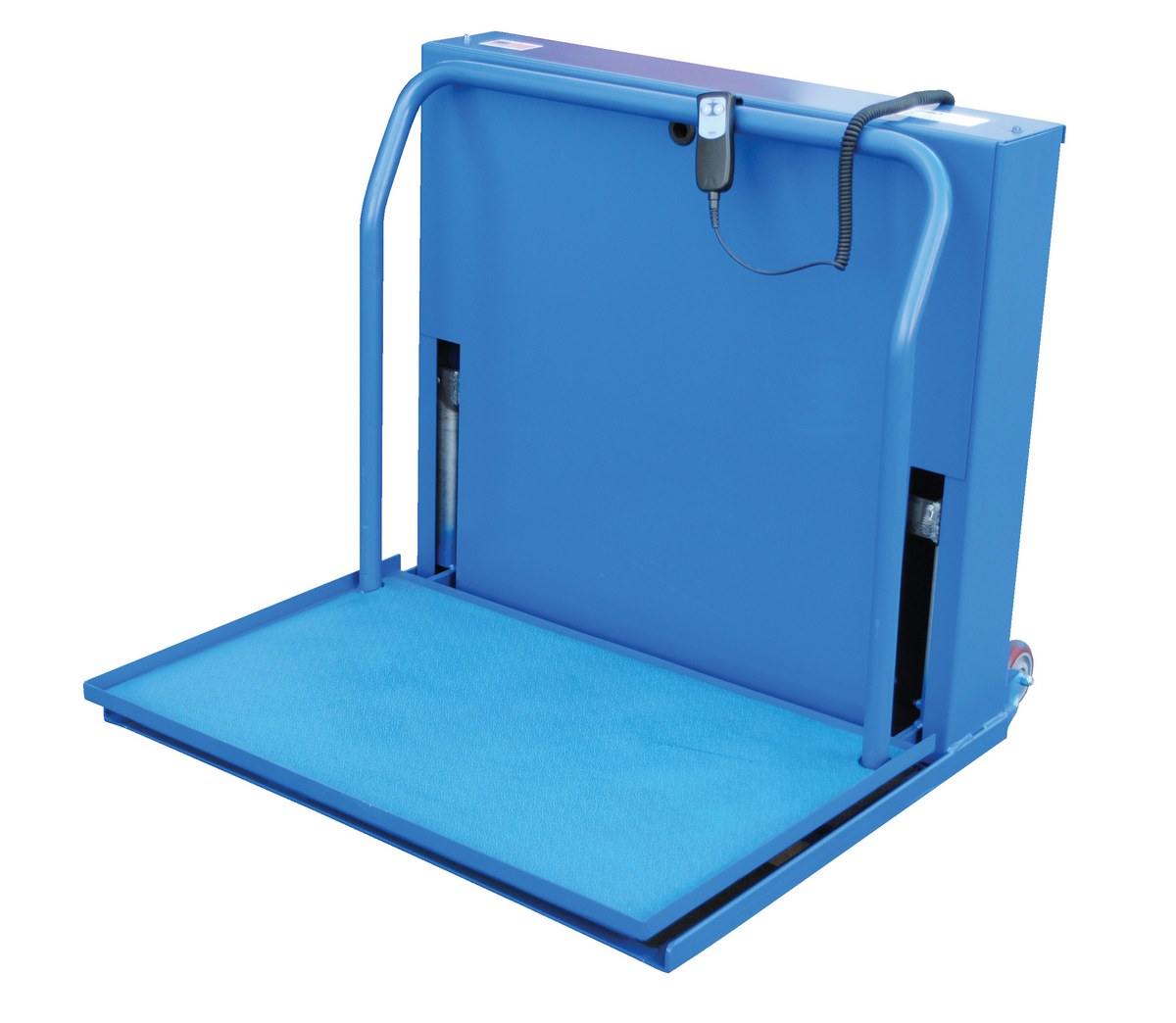

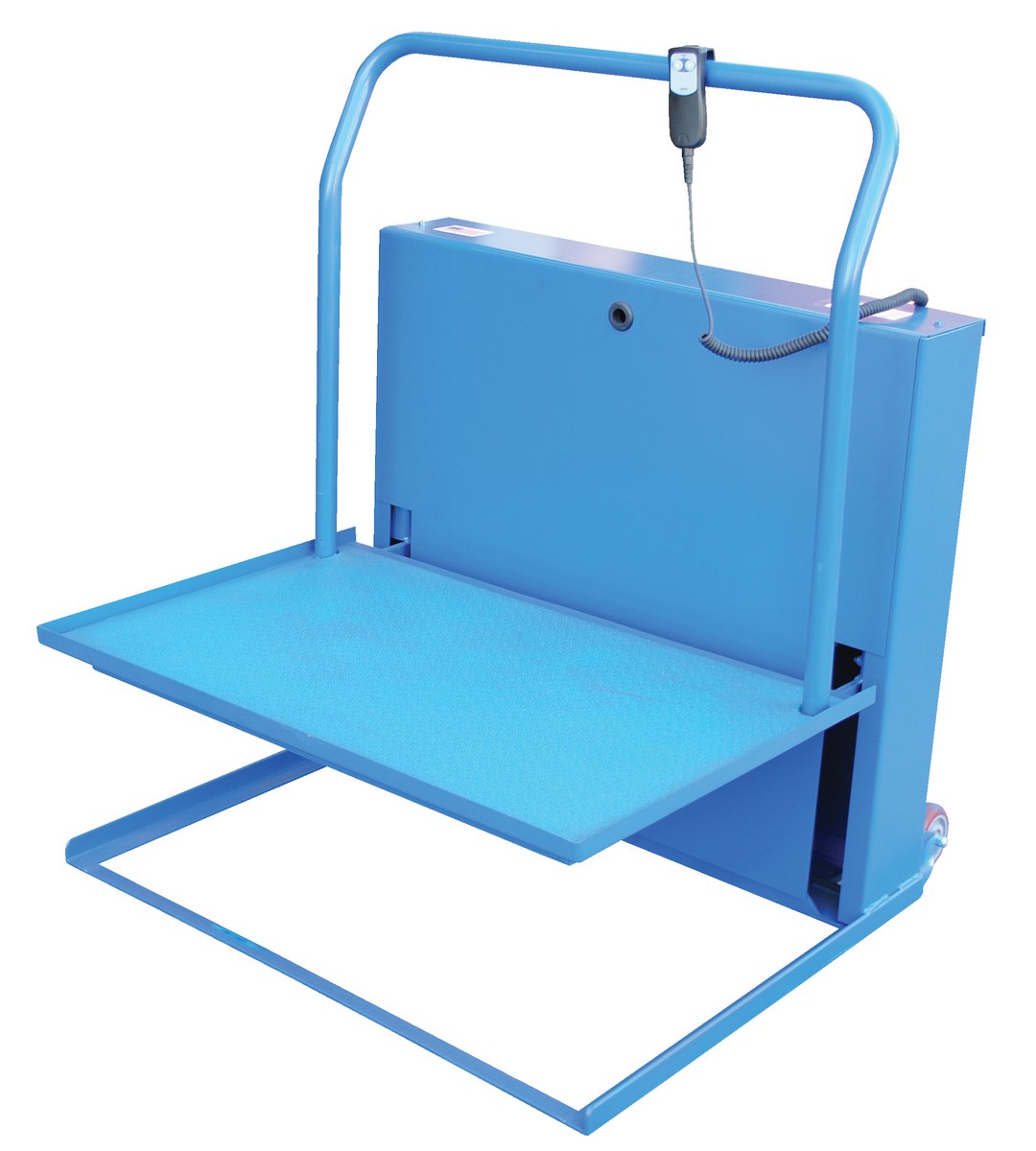

The Linearizer, series WP-400, is designed to raise or lower a worker to the optimum working height for maximum productivity with minimum risk of back injury and fatigue. Ergonomically speaking, the optimum working elevation for most jobs is 2" below elbow height. Typical applications might include packing stations, heavy machinery such as drill presses, lathes and saws, individual work cells or work areas where height is a problem. The WP-400 may be used in a clean room environment since the lifting source is an electric linear actuator. An ergonomic anti-fatigue mat is included on the platform. For minimizing cumulative trauma injuries, the Linearizer is the obvious choice.

Operation

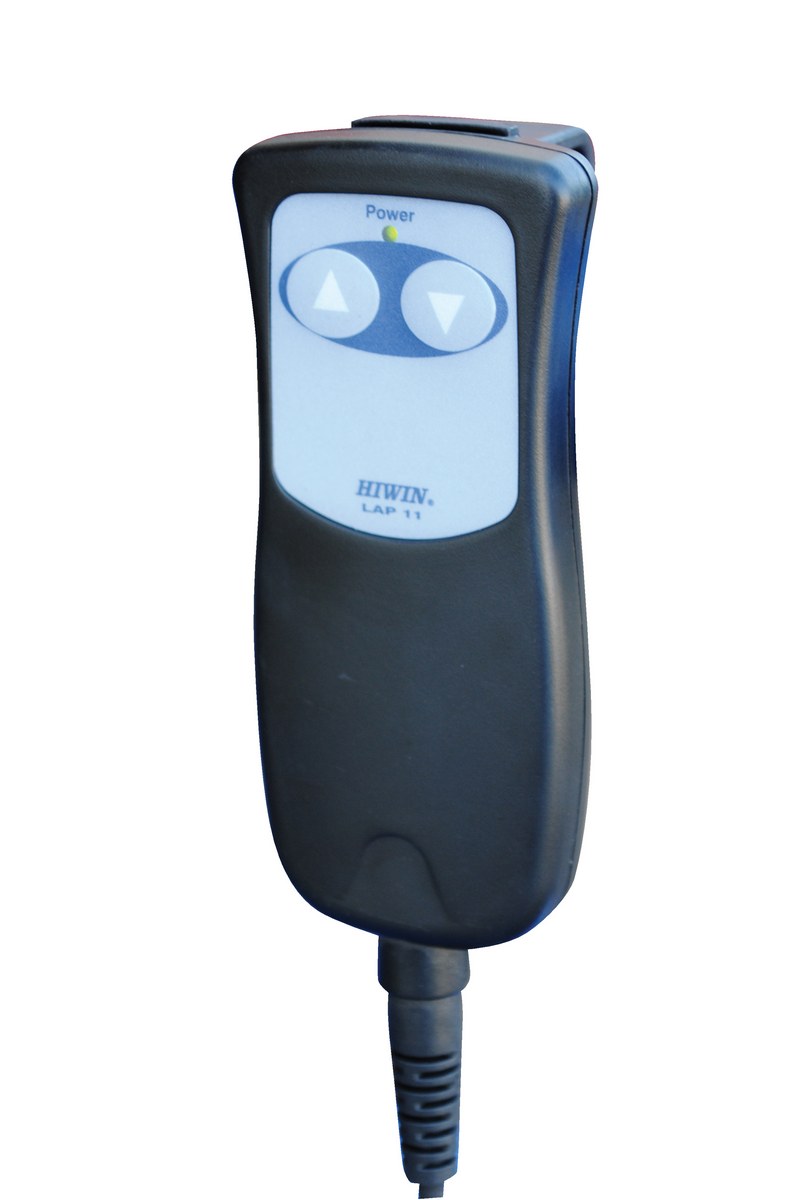

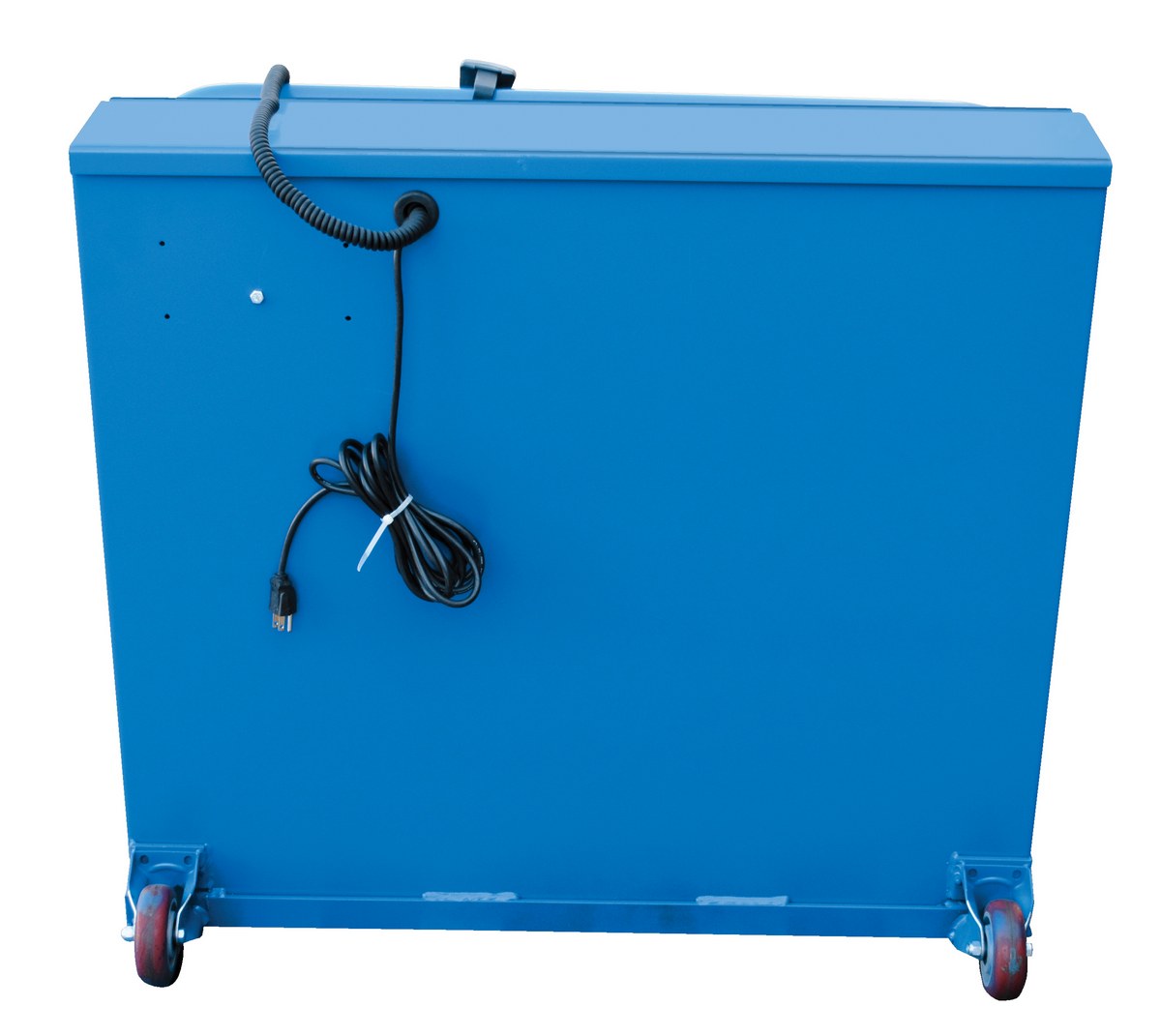

Operation of the Linearizer is as simple as pushing a button. An electric linear actuator is used to raise or lower the platform to the optimum ergonomic level. Unit is operated with a 24V pendent hand held push button control on an 6' cord. The actuator power supply may be either 115V A/C or 24V D/C. D/C powered with lithium battery. The WP-400 includes two rigid casters on the back side to facilitate ease in transporting.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Linearizer - Electric Worker Platforms
Model PDFs Platform (WxL) Lowered Height Raised
Height
Capacity
(lbs)
Operation Wt. (lbs)
WP-400-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x24" 2-3/4" 14-5/8" 400 115V AC Power 276

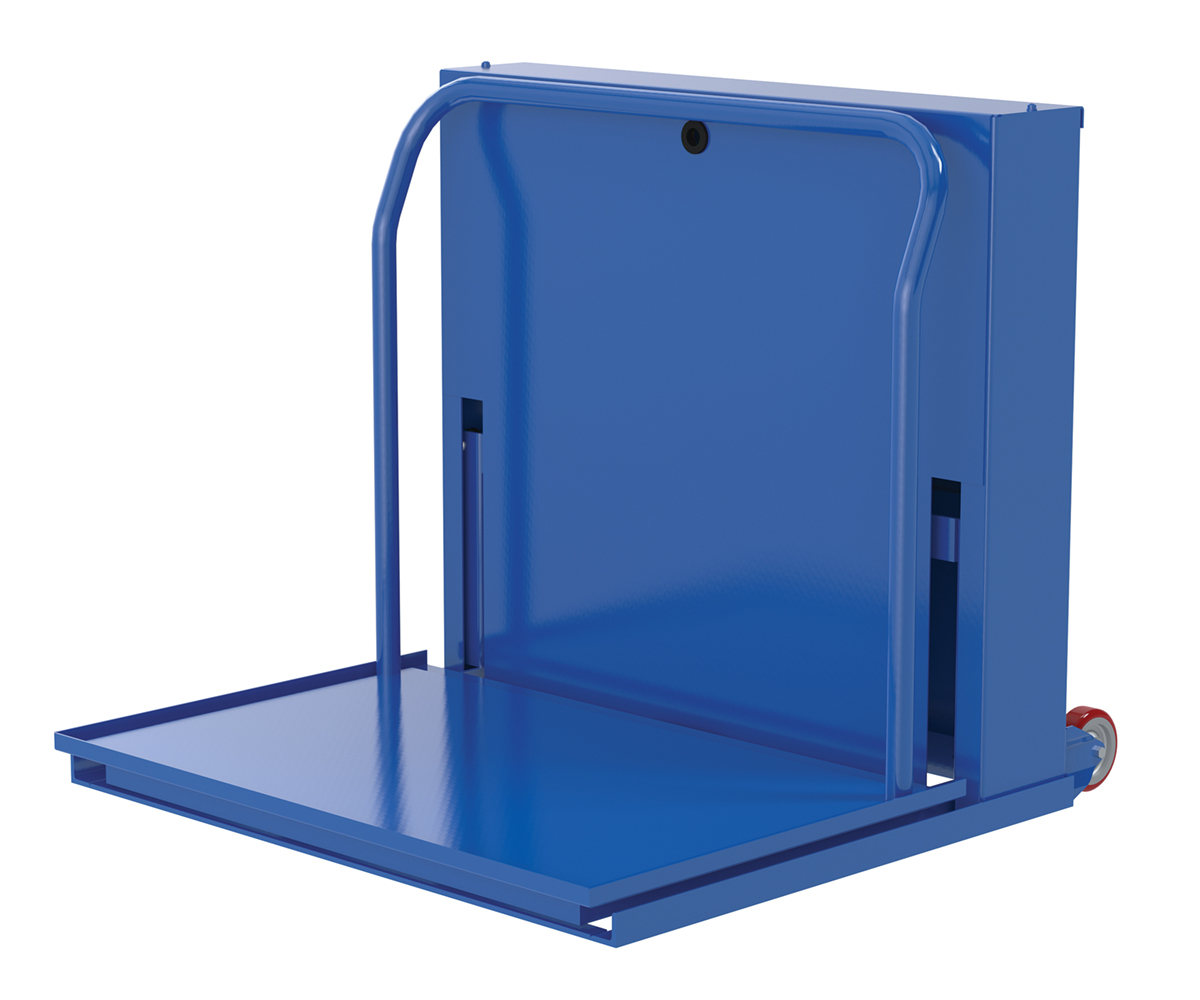

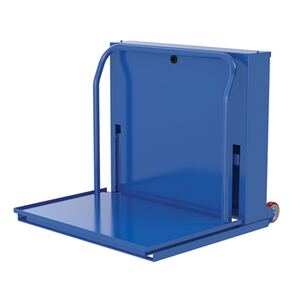

WP-400-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x24" 2-3/4" 14-5/8" 400 24V DC Power 349

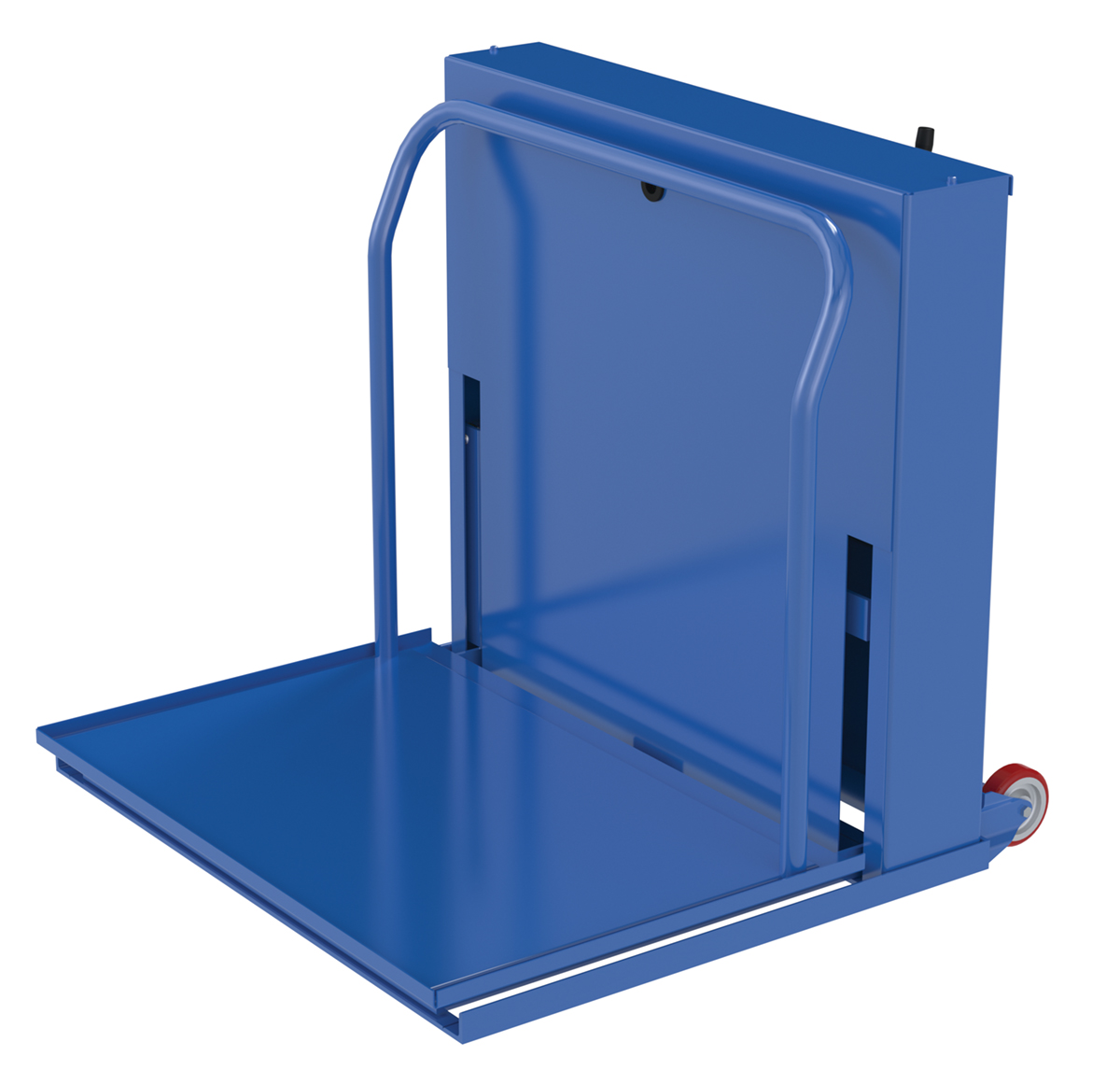

WP-400-AIR tilt_m4.jpgCompliance Certificate 36"x24" 2-3/4" 14-5/8" 400 Factory Air 304

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

WP-400-AC
WP-400-DC

Testing Certificates

WP-400-AC
WP-400-AIR
WP-400-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Video Gallery

No Videos for this product at this time. Please Check back.









Options

No Options for this product at this time. Please Check back.

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below
