Product Family Overview


Fork Truck Jacks
SERIES: AIR-J,FORK-J

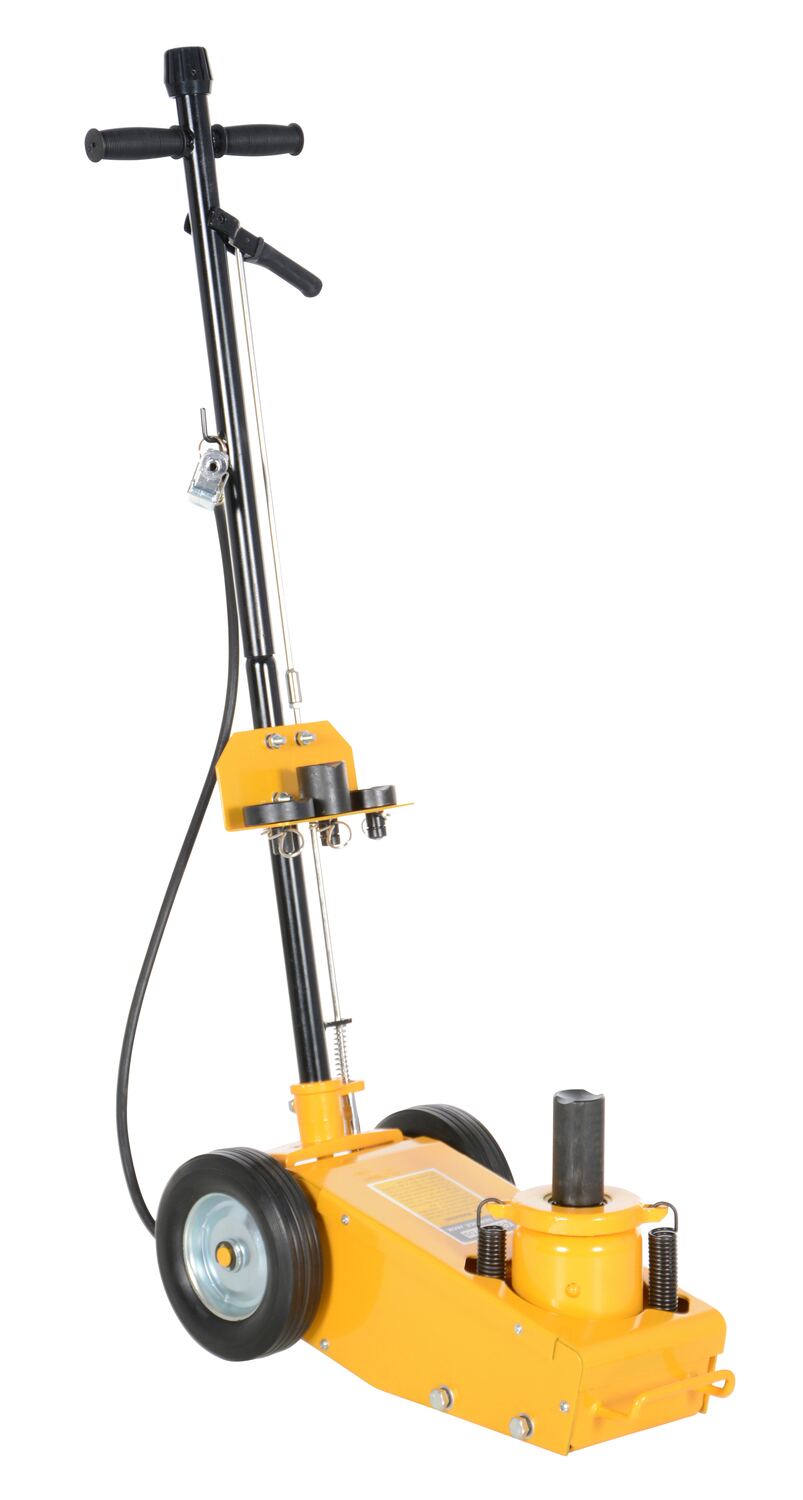

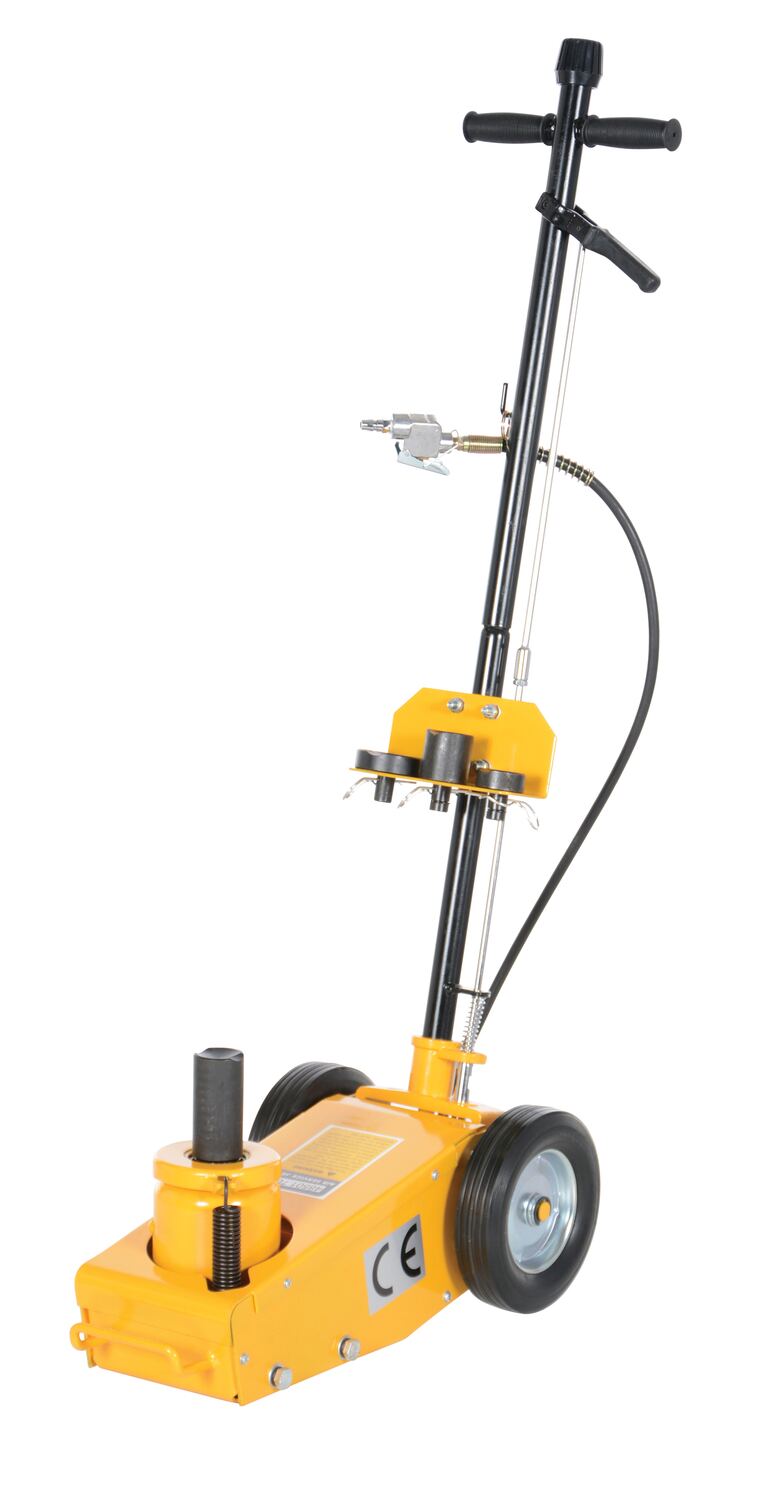

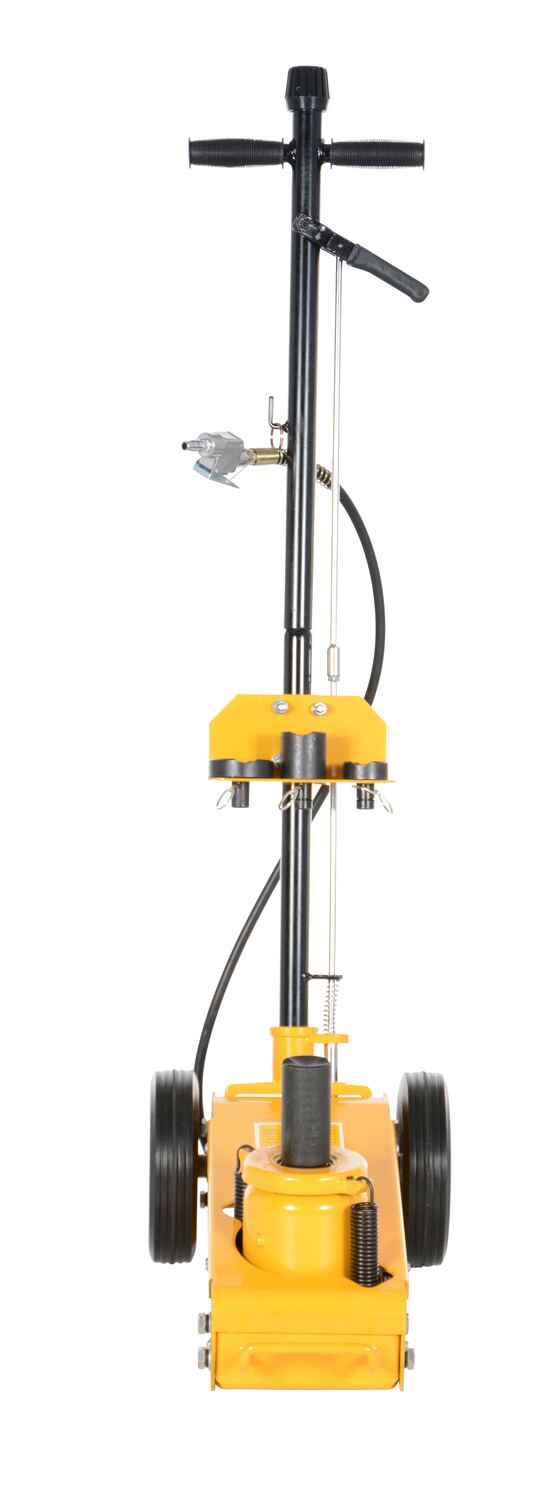

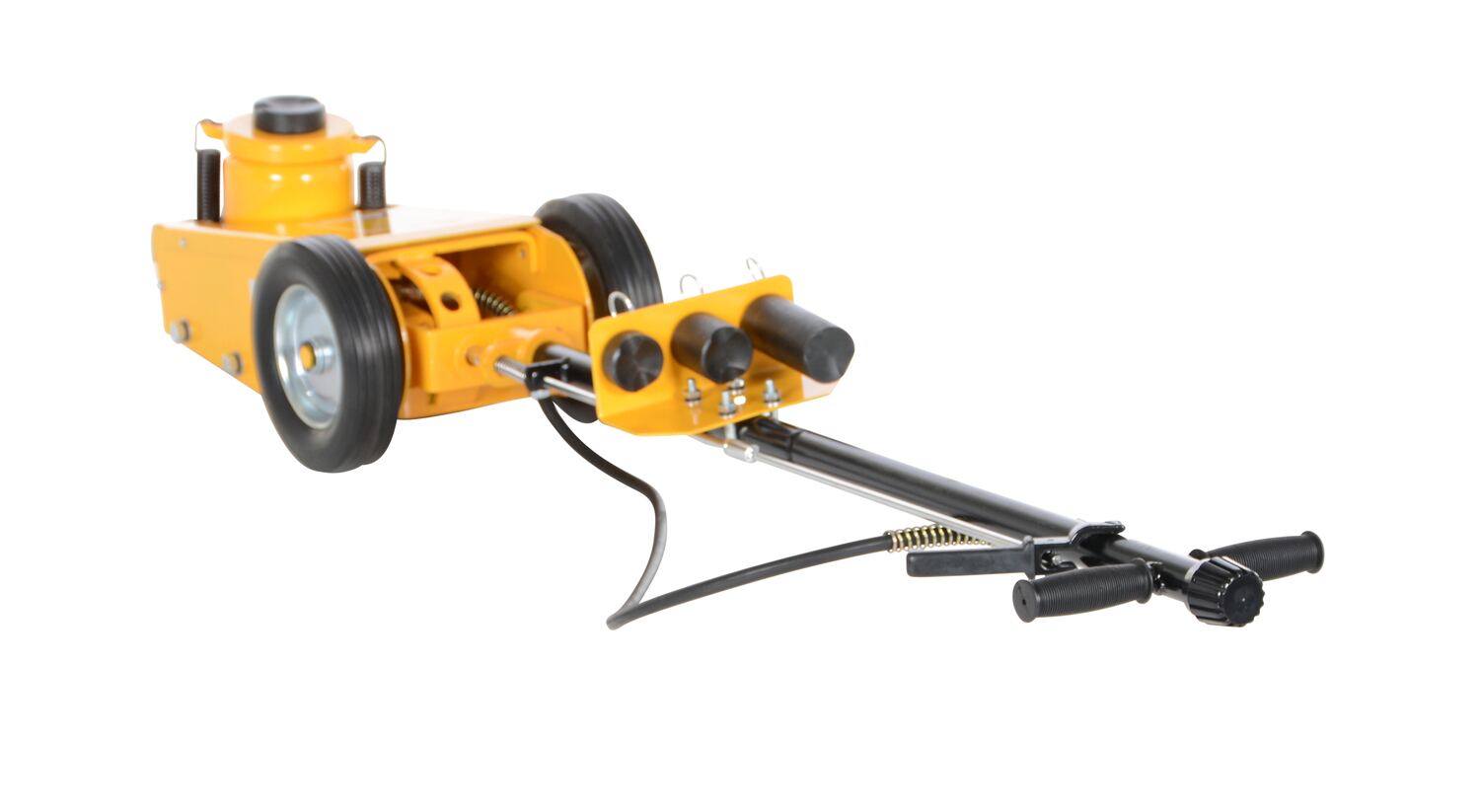

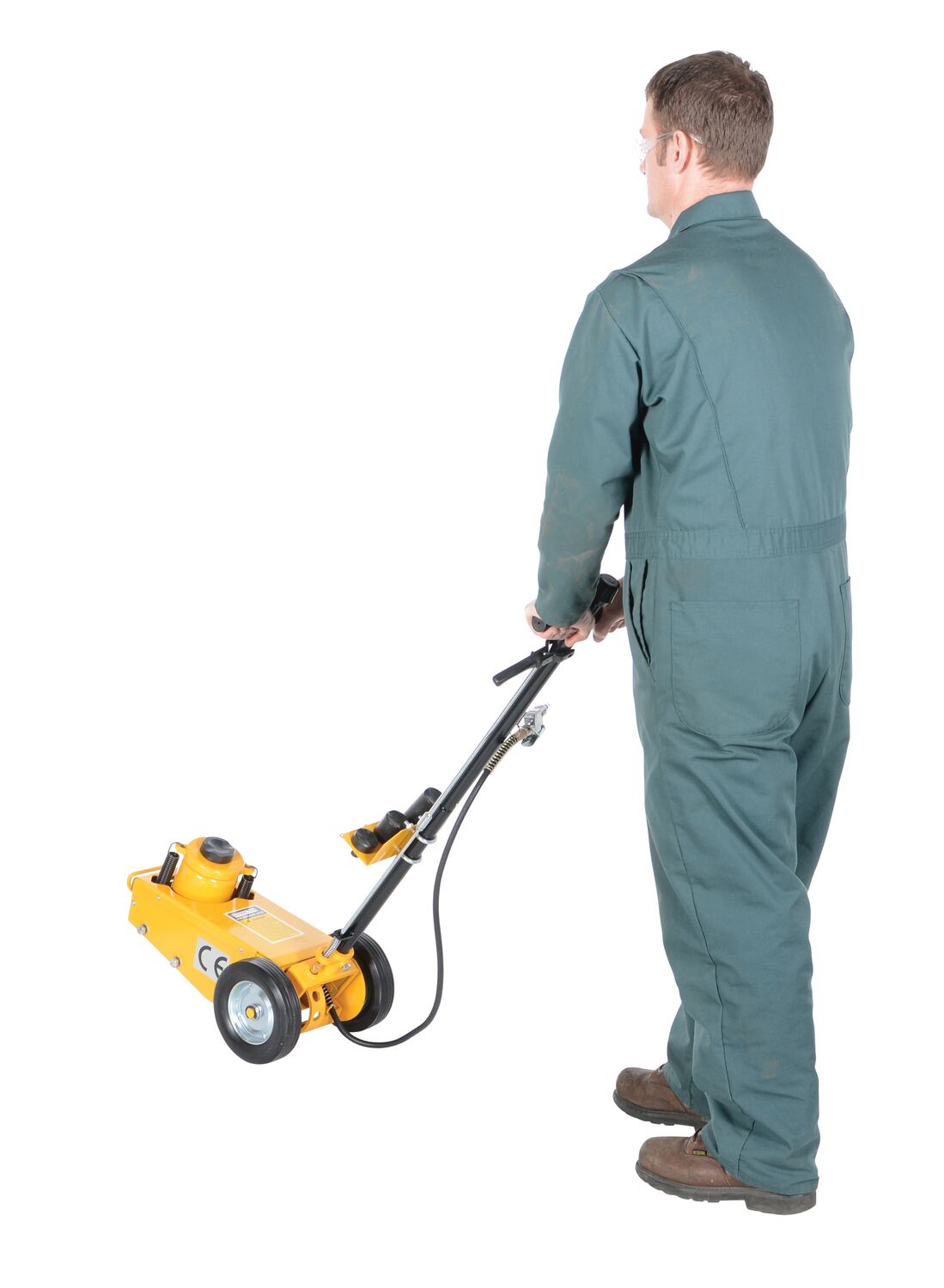

Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

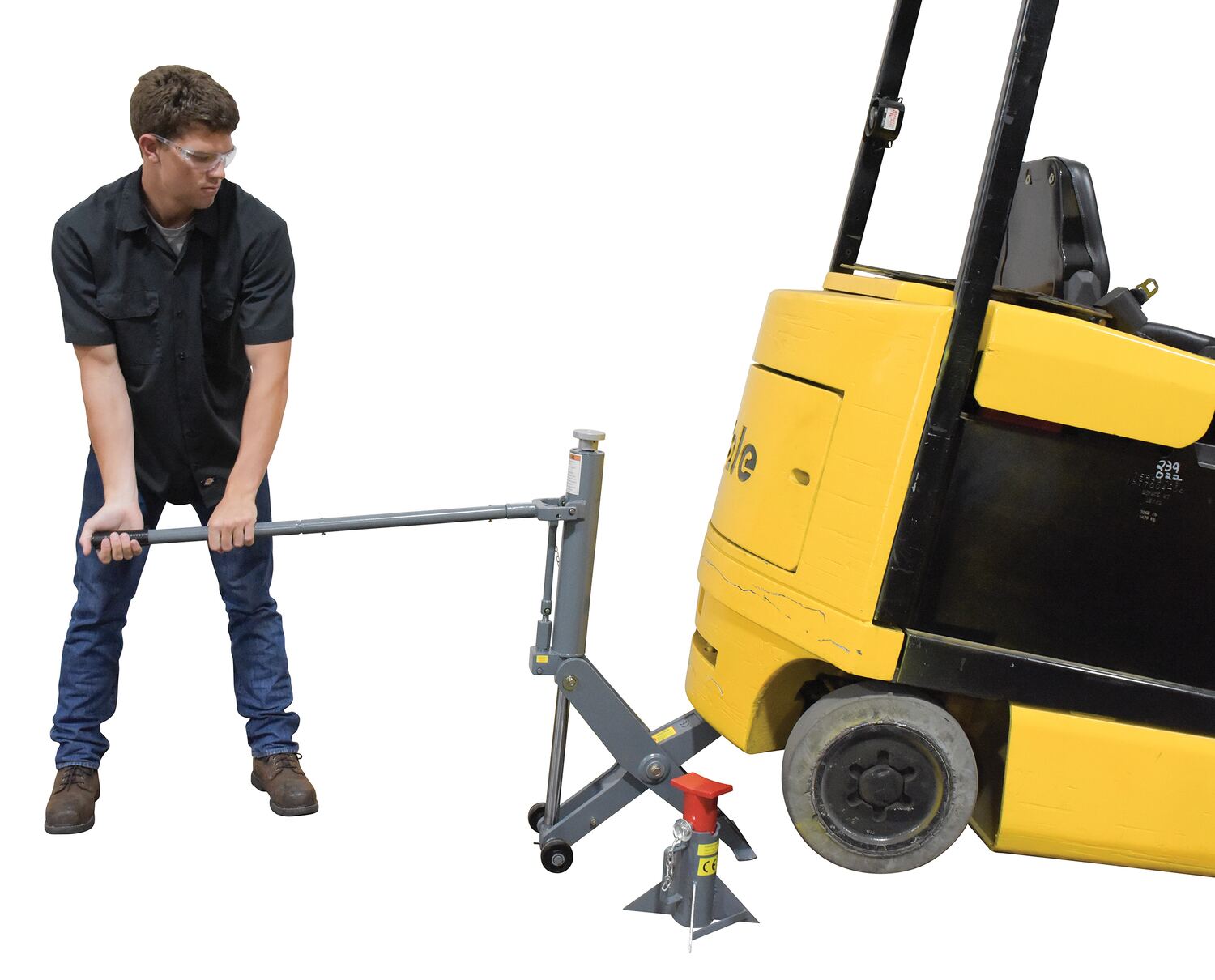

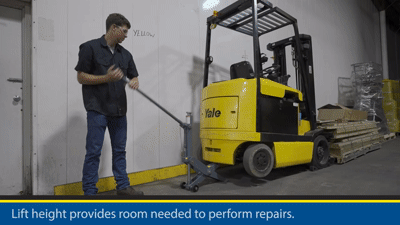

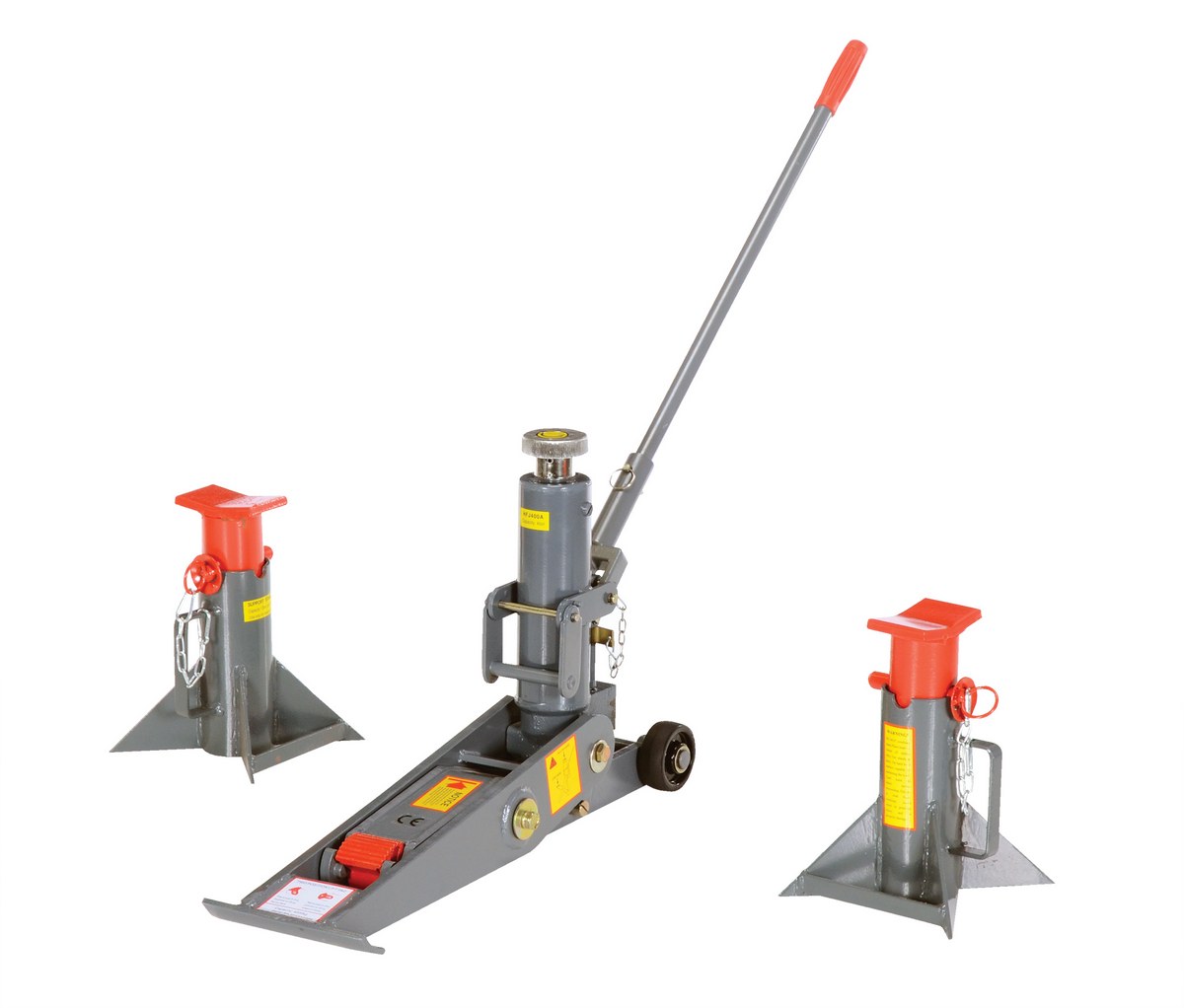

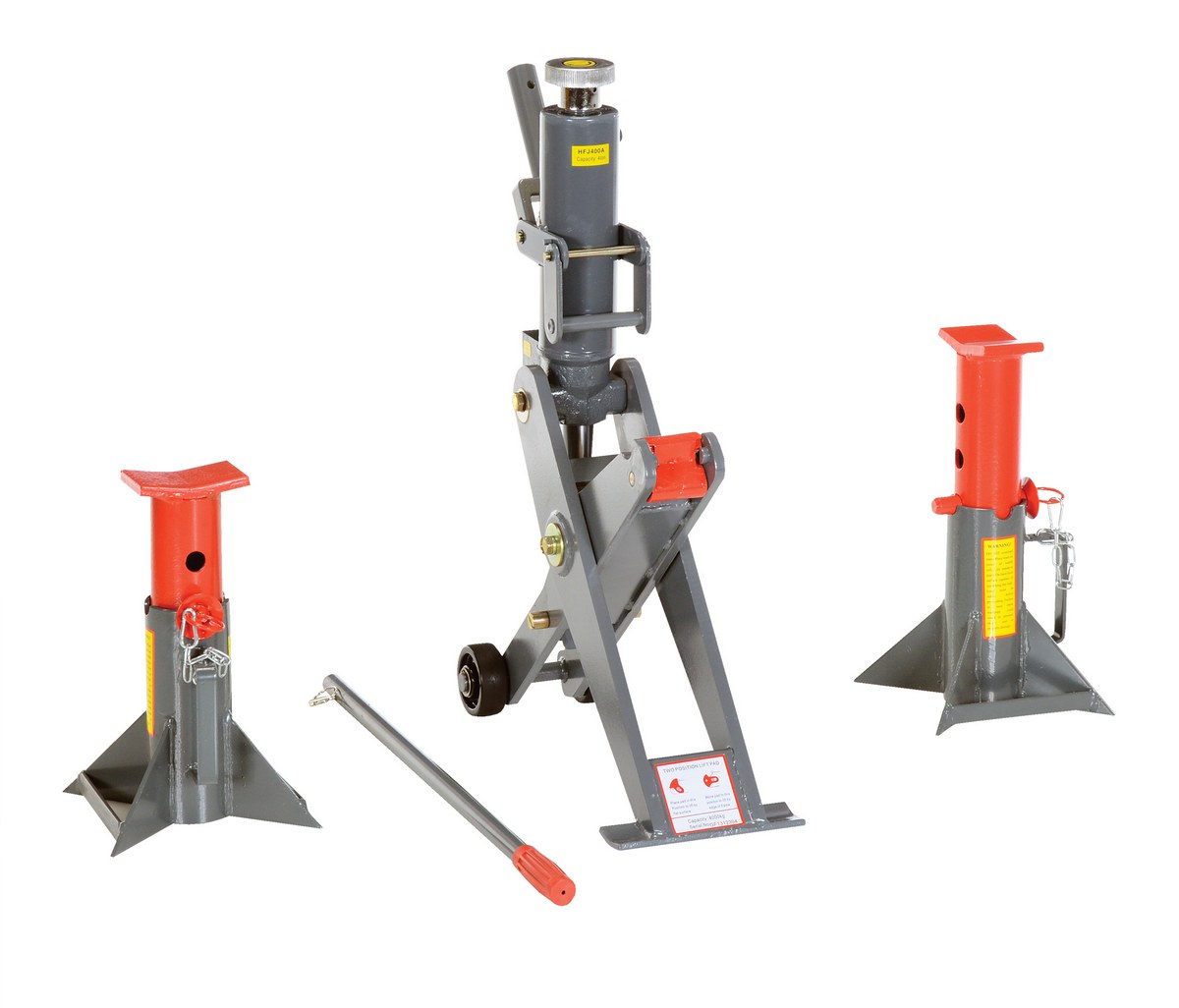

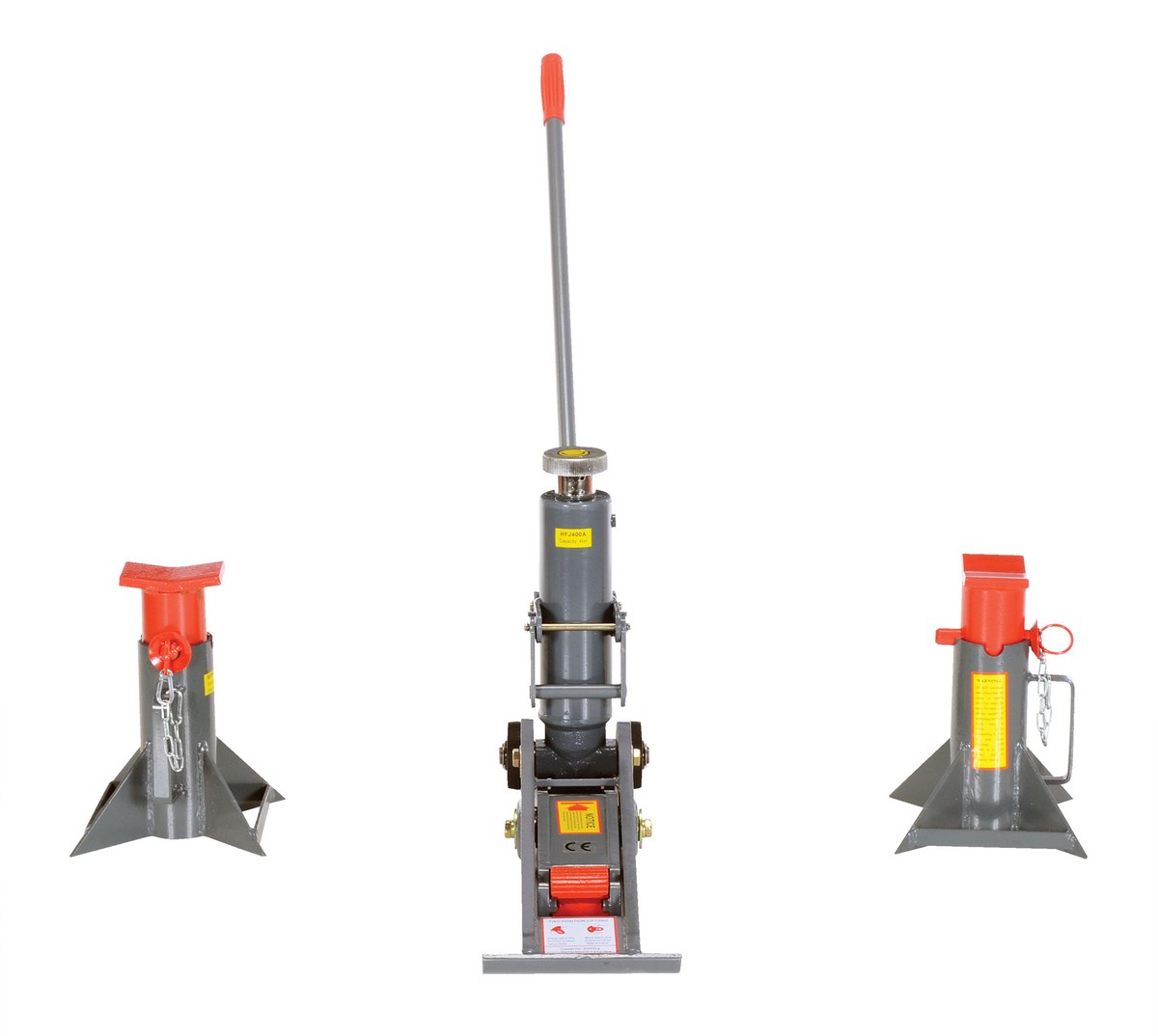

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.

Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.

Additional Models In This Family

AIR-J

model AIR-J

FORK-J

model FORK-J

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
AIR-J AIR-J90 Days Limited WarrantySteel Air Powered Fork Truck Jack 44000 Lb. Capacity YellowUniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4
146
FORK-J FORK-J90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity YellowUniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4
117

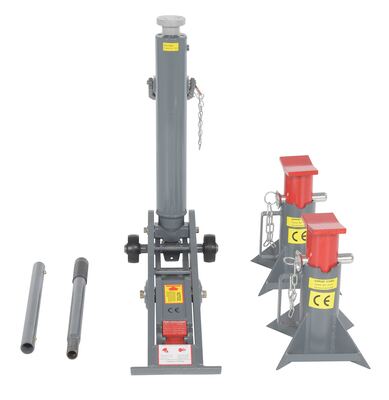

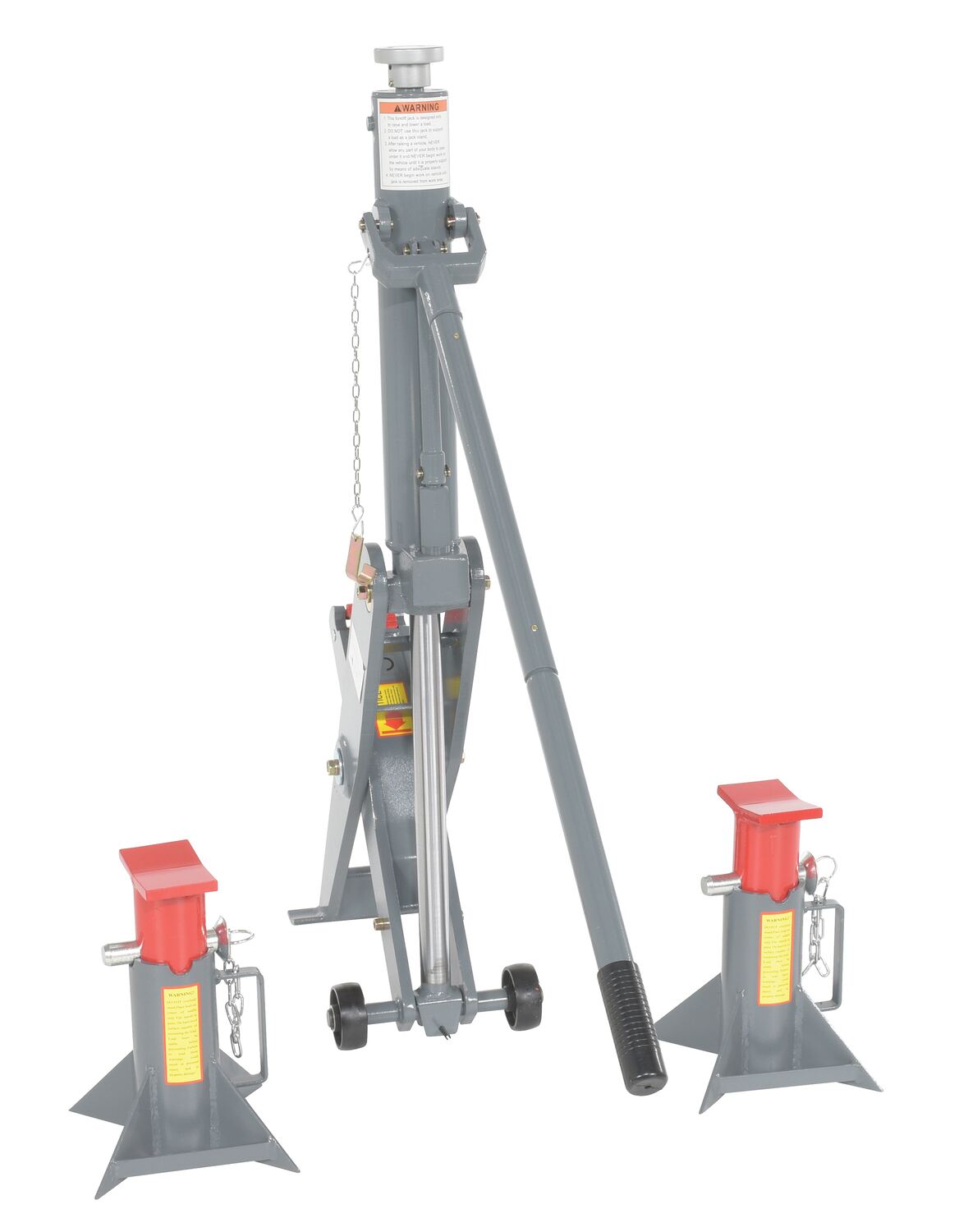

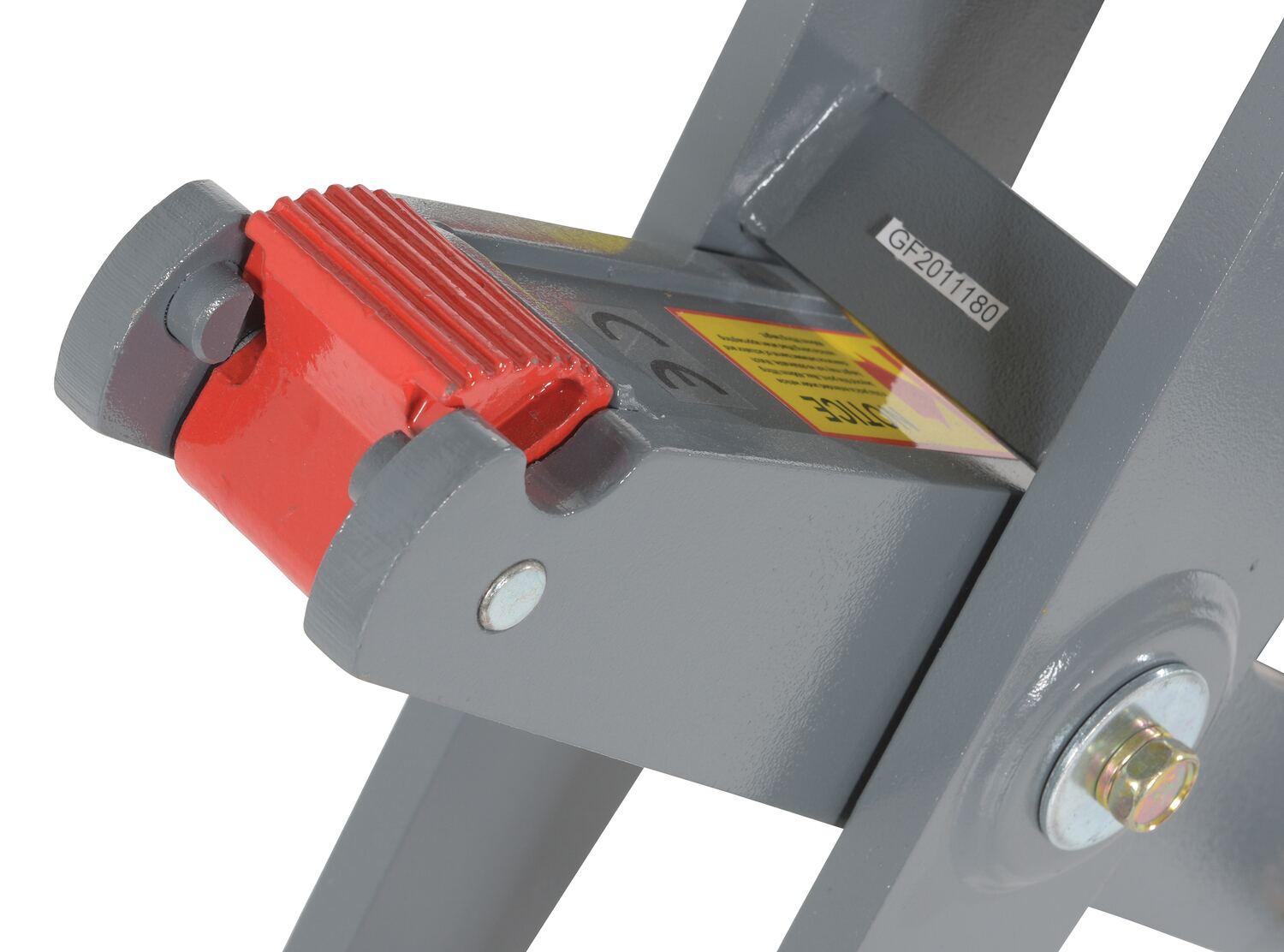

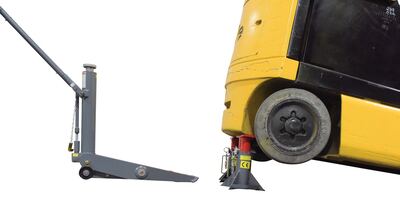

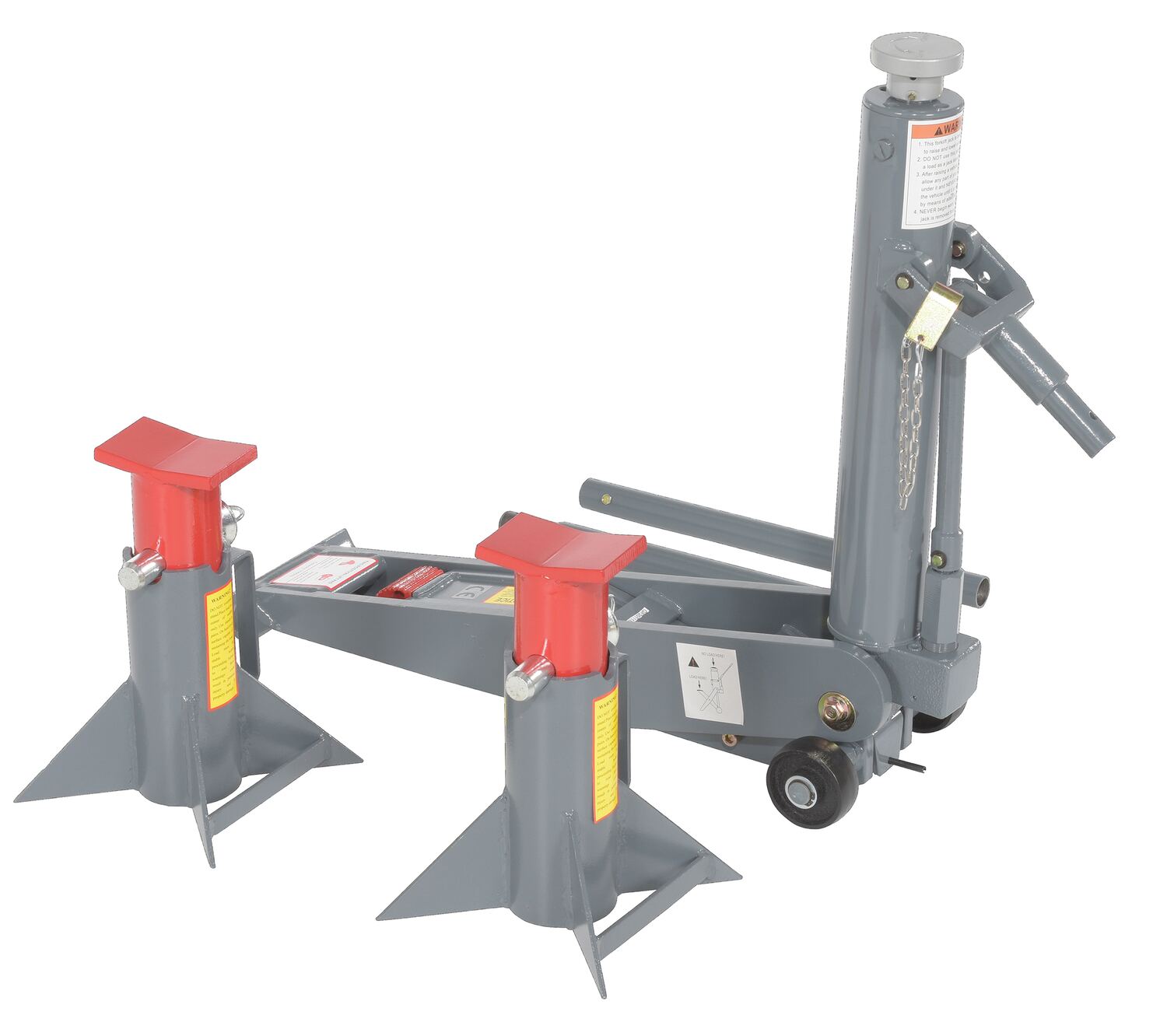

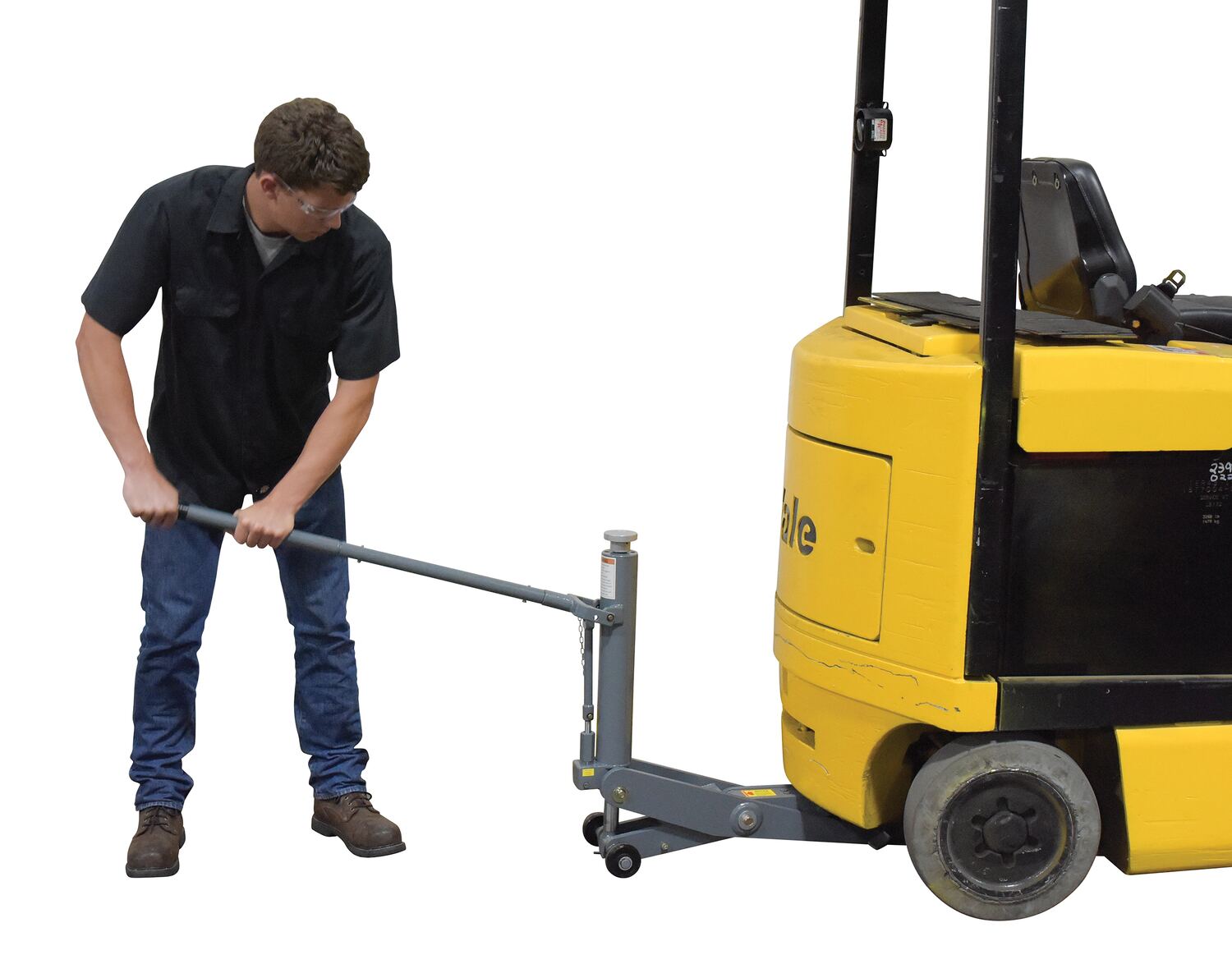

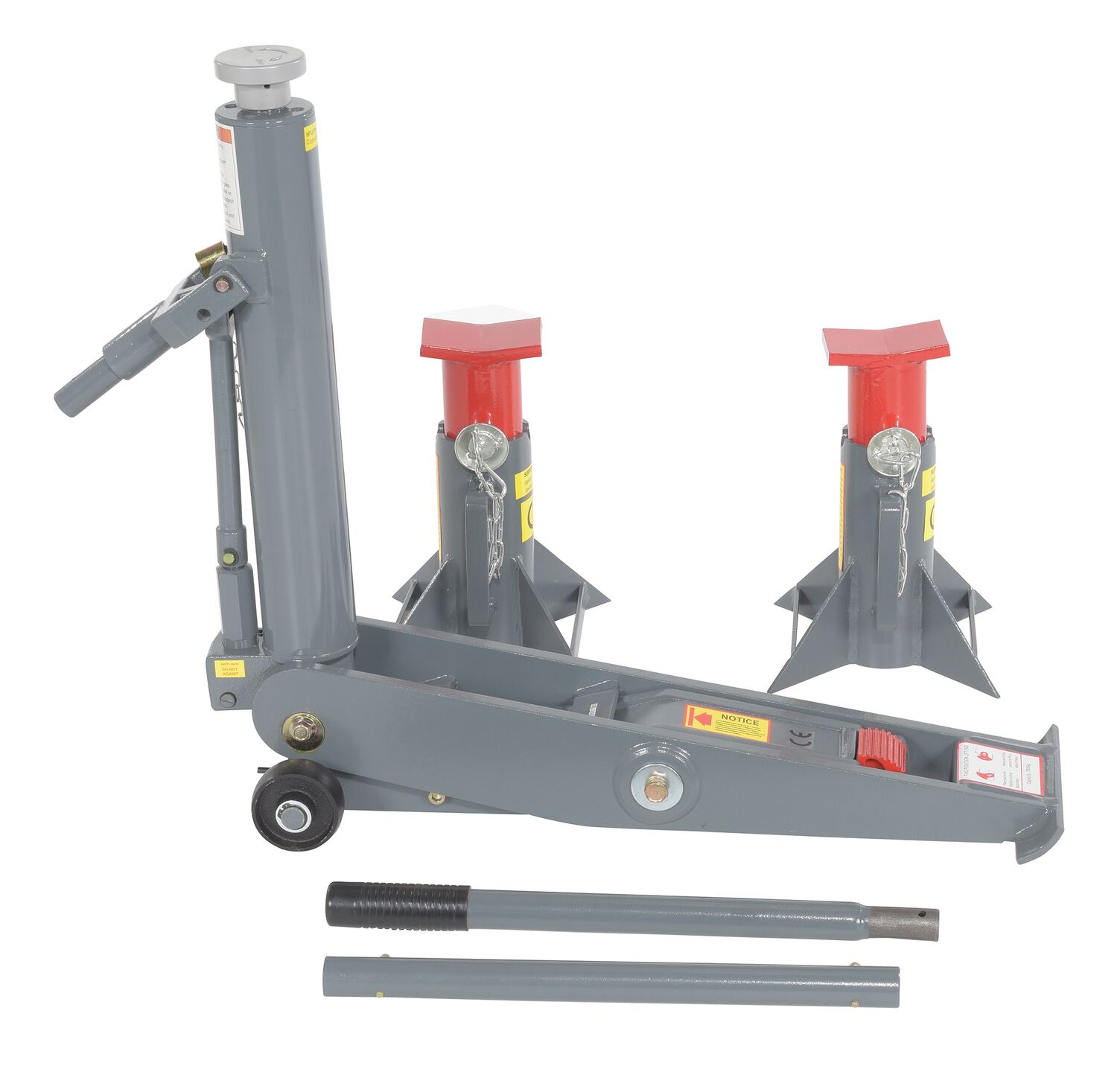

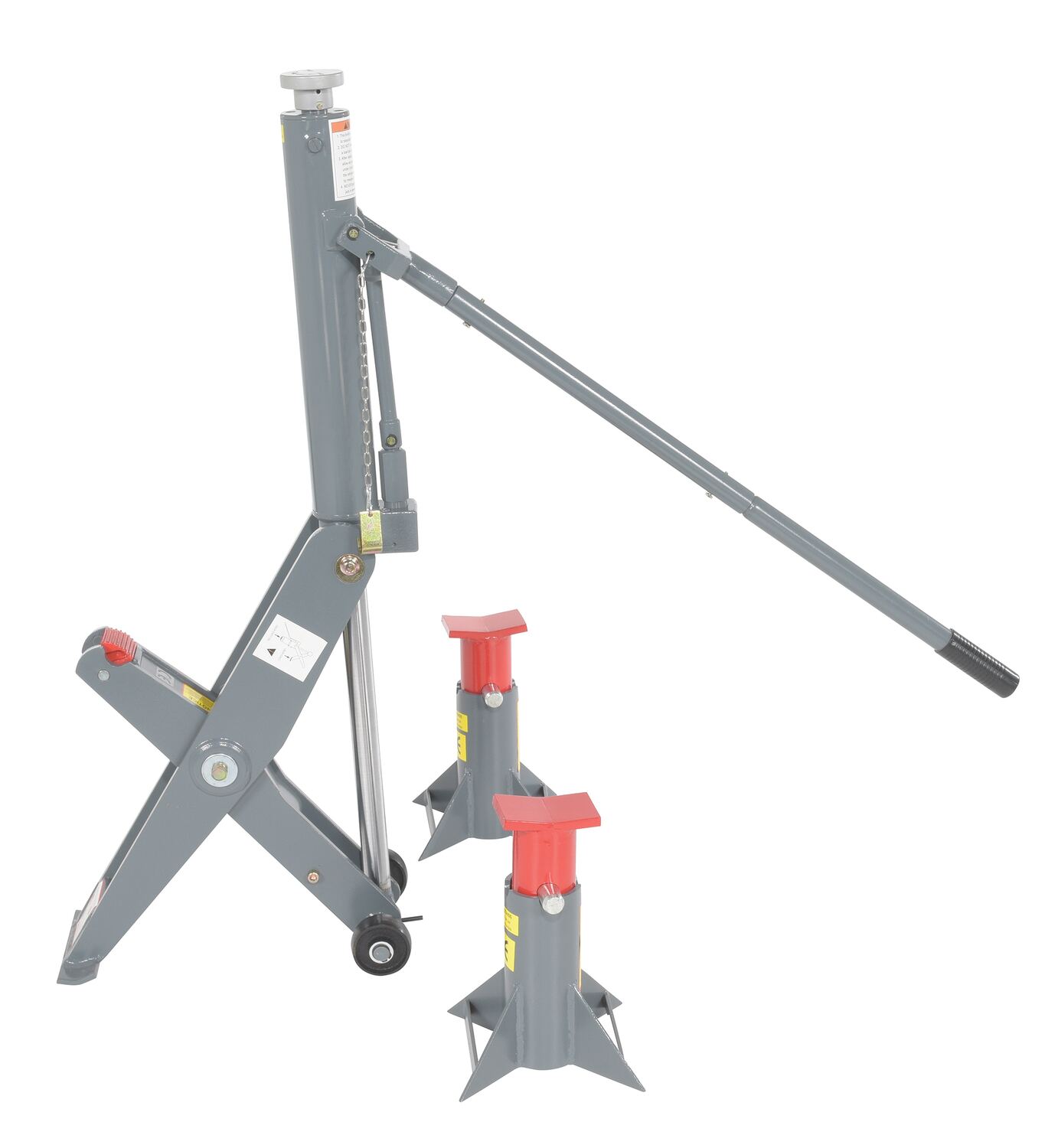

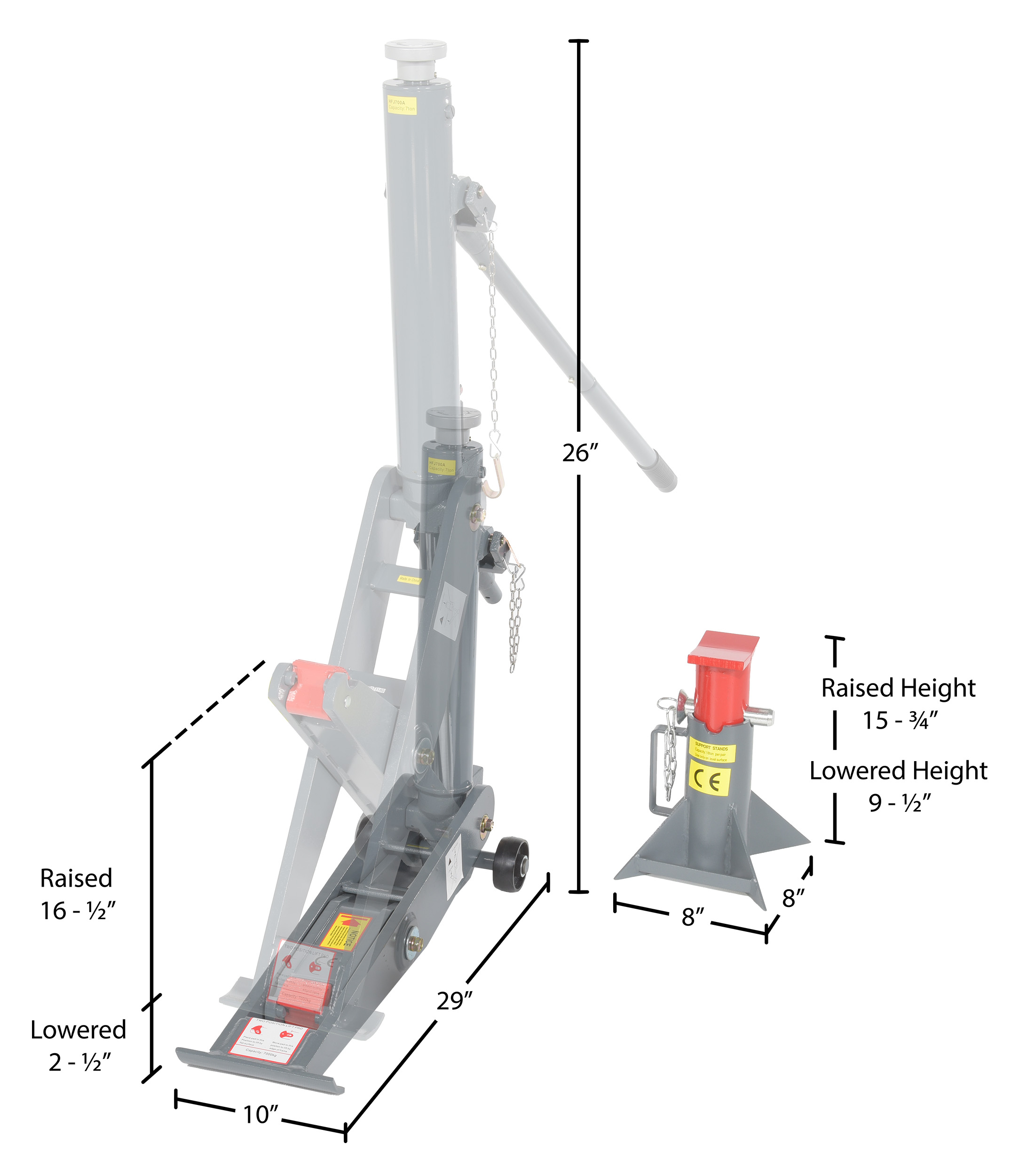

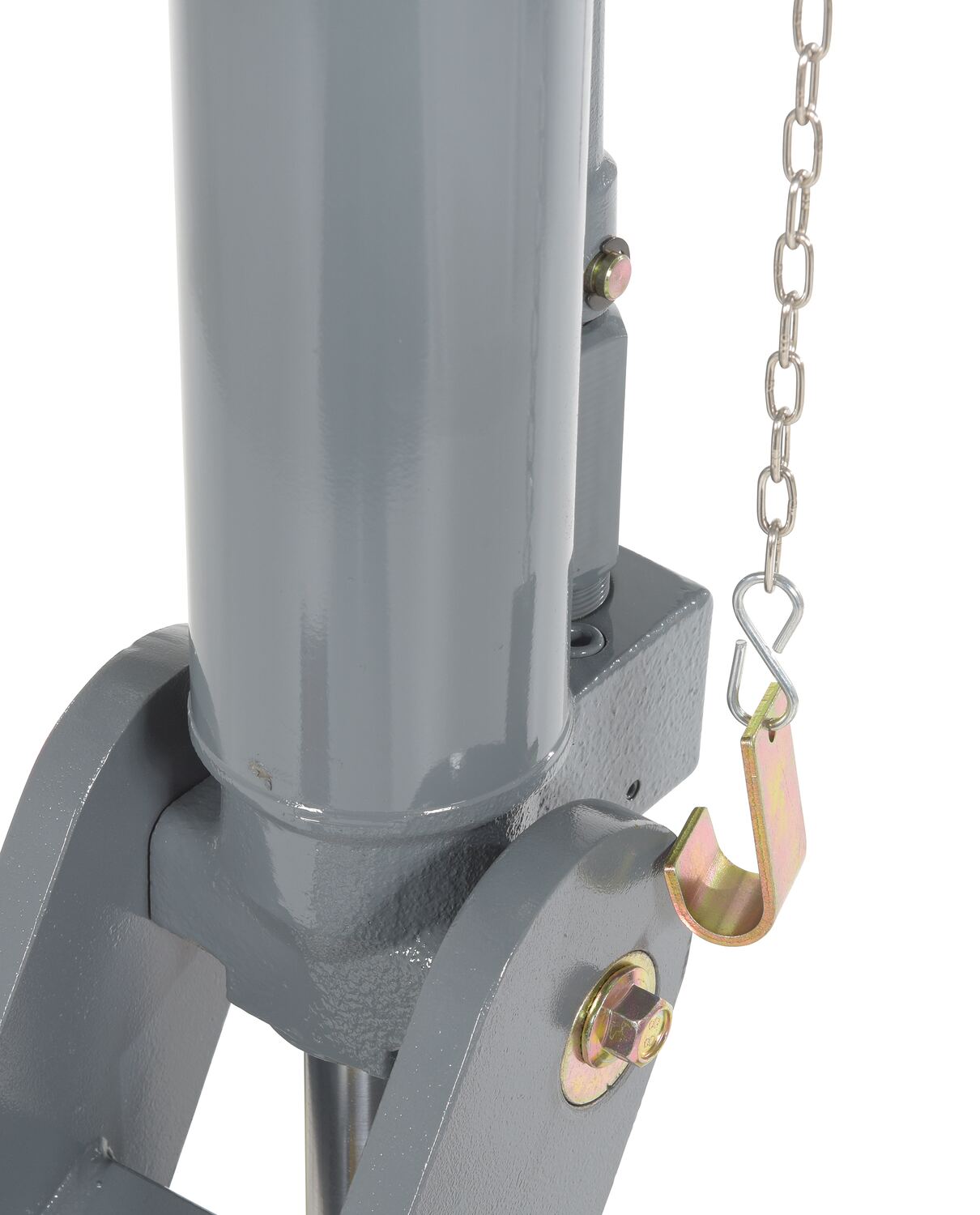

FORK-J-HD FORK-J-HD90 Days Limited WarrantySteel Manual Hydraulic Fork Truck Jack 29 In. x 10 In. x 26 In. 15,000 Lb. Capacity YellowUniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4
192

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

AIR-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4
Uniform Capacity (lb.): 44,000
Lowered Height (in.): 8-1/4

FORK-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4
Uniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4

FORK-J-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4
Uniform Capacity (lb.): 15,000
Lowered Height partial pad (in.): 2-1/4


Fork Truck Jacks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


AIR-J

FORK-J

FORK-J-HD

SDS Sheets

Hydraulic Oil SDS Sheet for: AIR-J
Hydraulic Oil SDS Sheet for: FORK-J
Hydraulic Oil SDS Sheet for: FORK-J-HD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products



Q: We are interested in the AIR-J fork truck jack. If an air compressor is not available can we use a manual pump.

A: The AIR-J will not operate with the use of a manual pump.


Q: What is the PSI required to operate the AIR-J?

A: 102-145 PSI is required.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Truck Jacks




Air Powered Fork Truck Jack Air-assist motor quickly raises saddle to lift point and then lifts load to desired height. Air powered for quick and easy operation. Uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

Manual Hydraulic Fork Truck Jack Designed to raise your fork truck for maintenance. Features high-quality seals, chrome plated internal components and rugged steel construction. Maximum lift of 16" provides room needed to perform a variety of repairs. Manually raised by hand pump lever. Removable handle and compact size makes it easy to maneuver and transport. Includes two jack stands (13 ton capacity per pair), with holding pins for adjustable heights.


Fork Truck Jacks
Model Image PDFs Description Service
Range
Capacity
(lbs)
Wt.
(lbs)
FORK-J 360_icon.jpgCompliance Certificate Hydraulic 2-1/4"to16" 8,000 106
AIR-J Compliance Certificate Air 8-1/4"to18-1/4" 44,000 131
