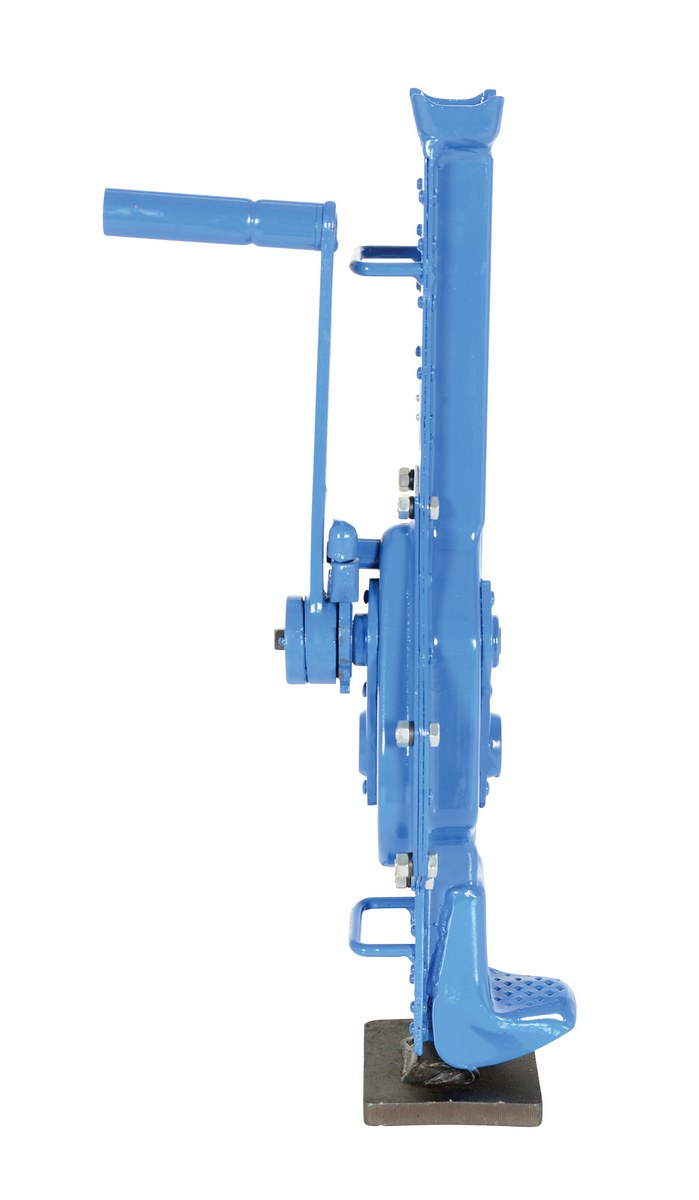

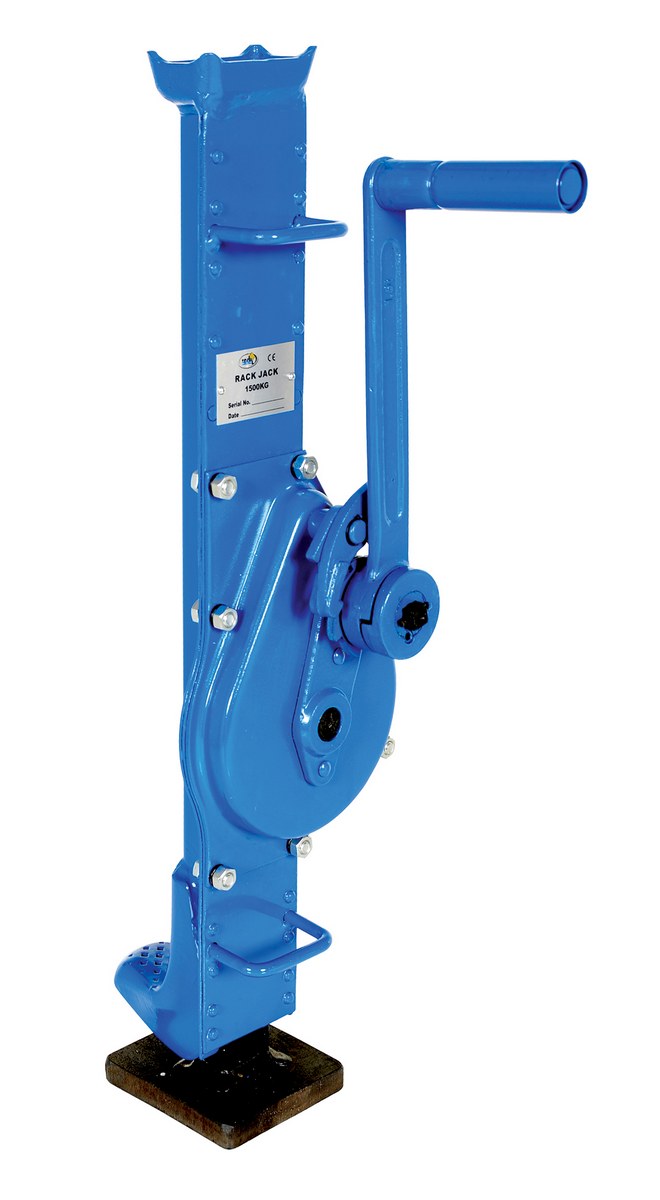

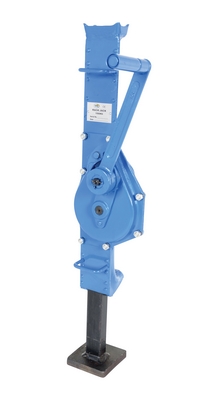

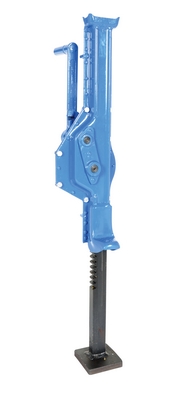

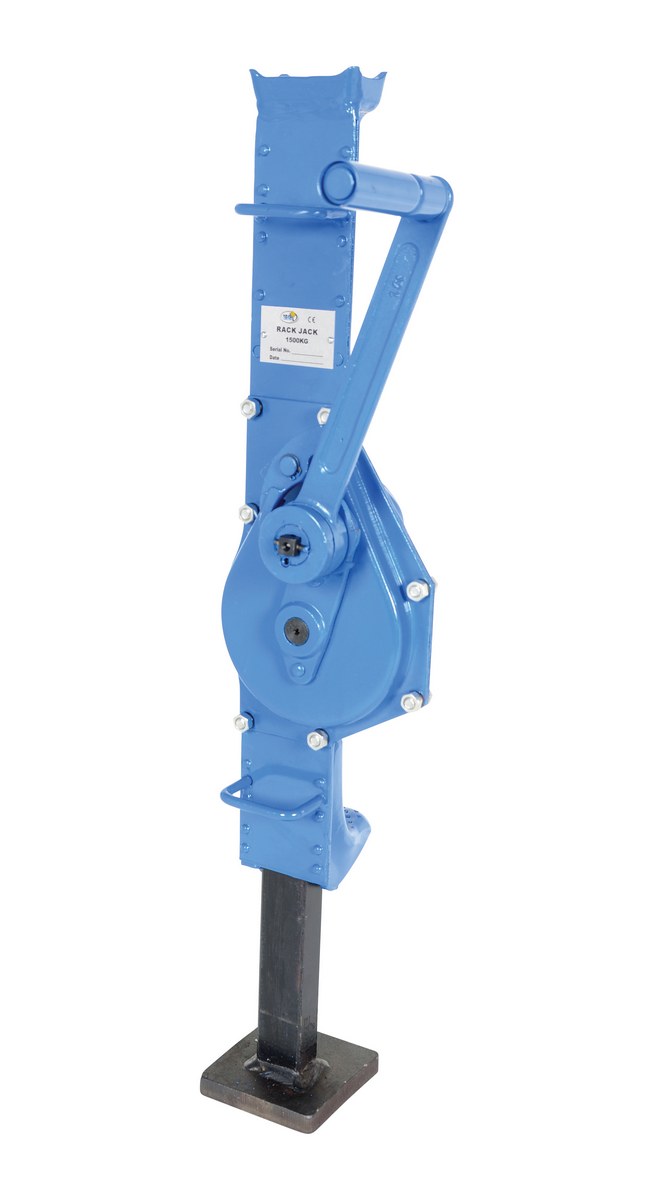

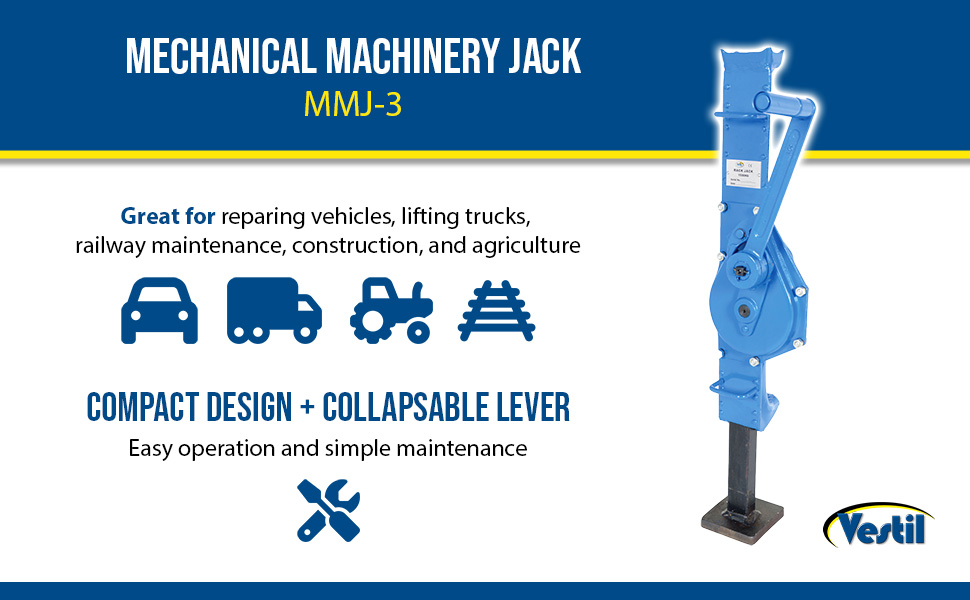

model: MMJ-3


SERIES: MMJ
Mechanical Machinery Jacks

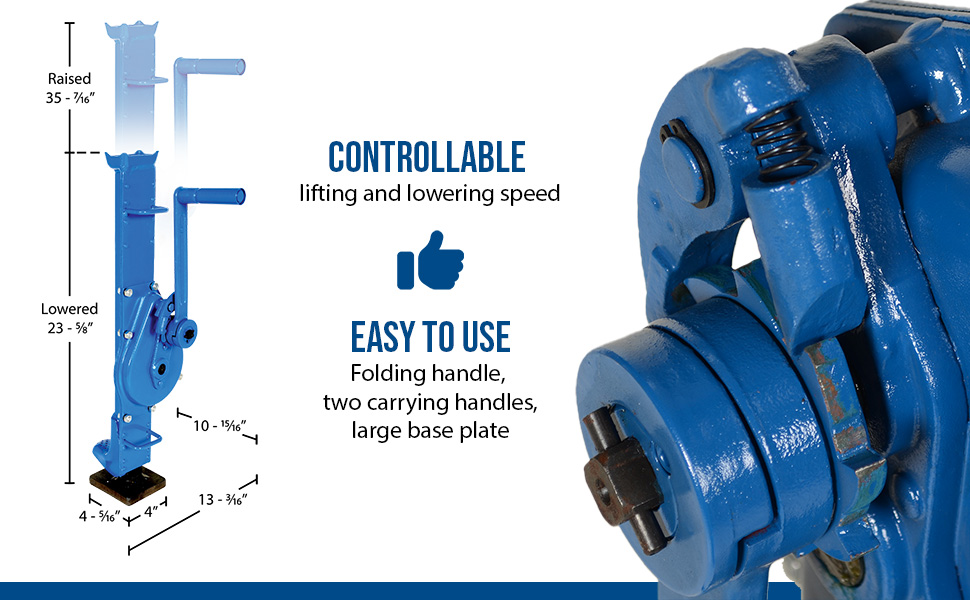

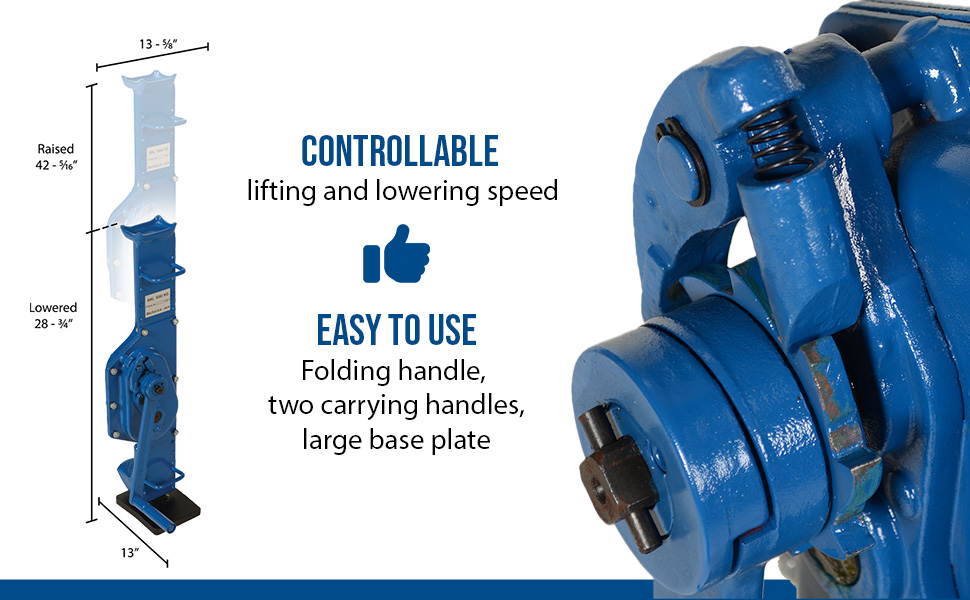

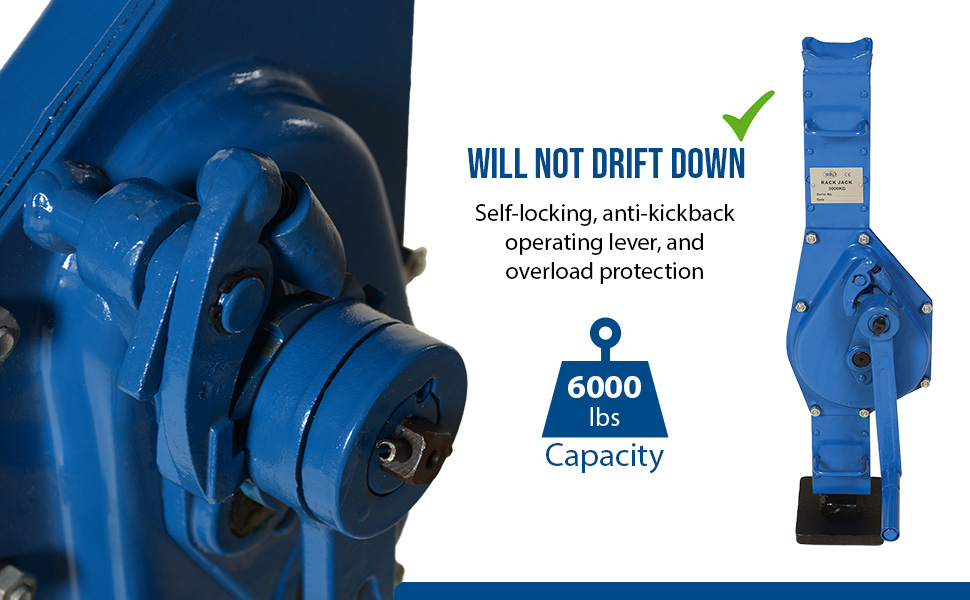

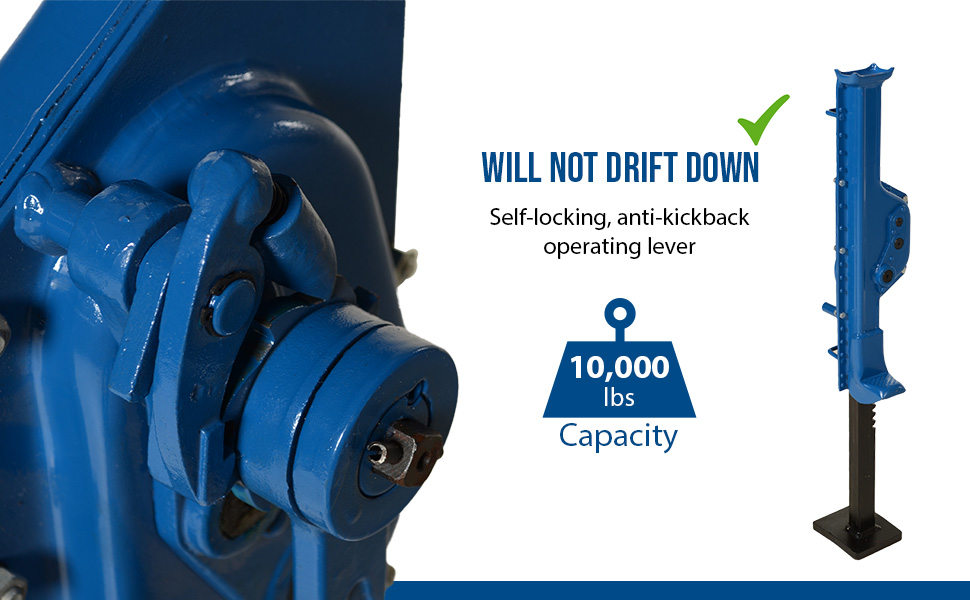

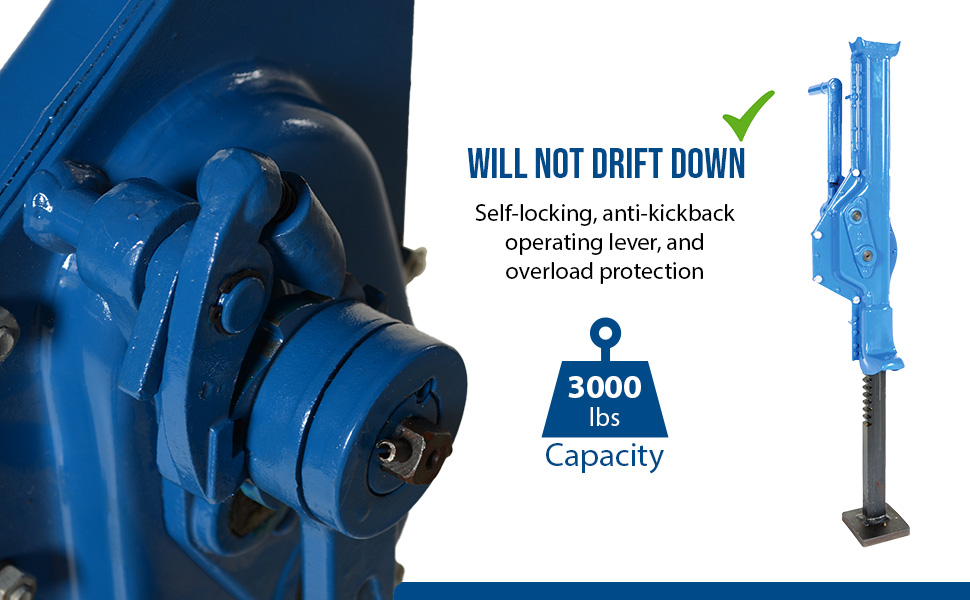

Mechanical Machinery Jacks are good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.

Mechanical Machinery Jacks are good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.

Other Machinery Jacks

Mechanical Machinery Jacks

Mechanical Machinery Jacks

Heavy-Duty Power Packs

Heavy-Duty Power Packs

Share This Page

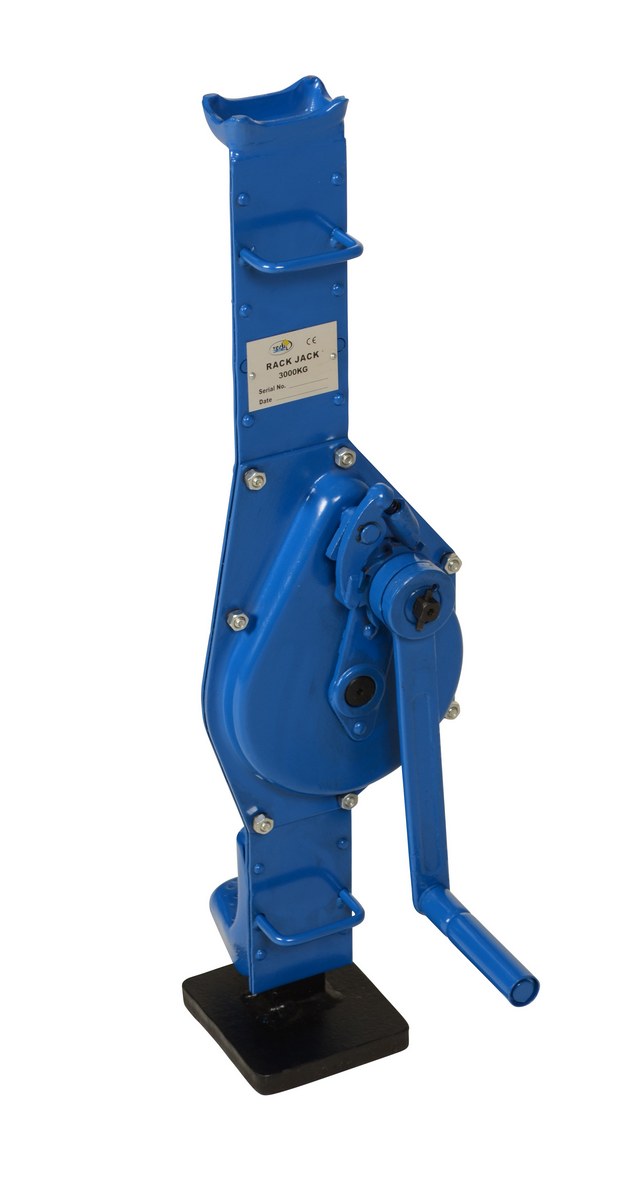

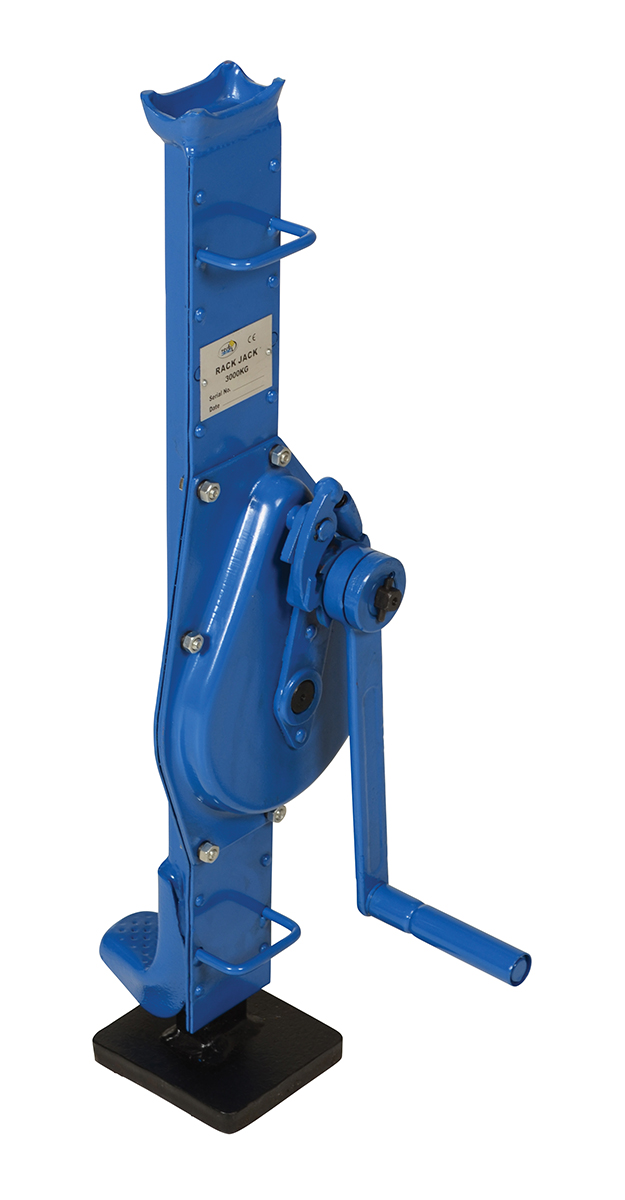

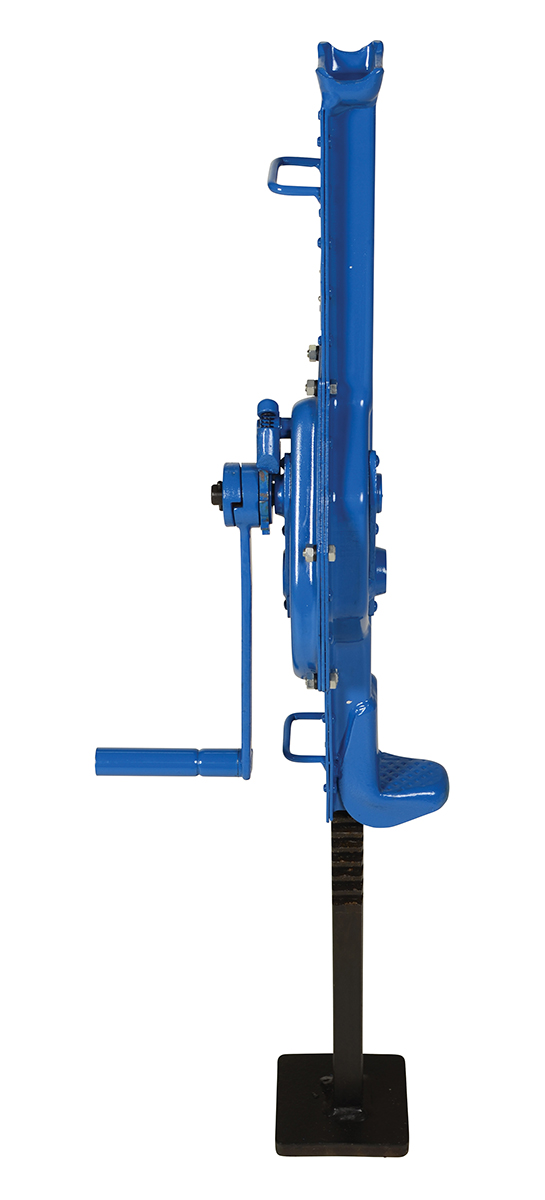

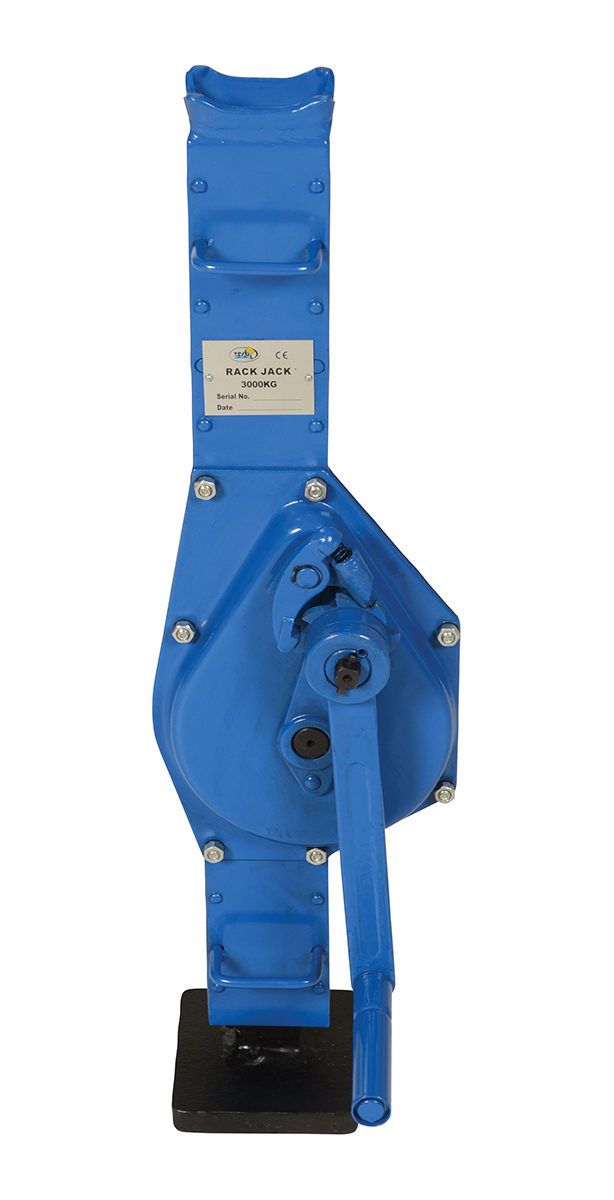

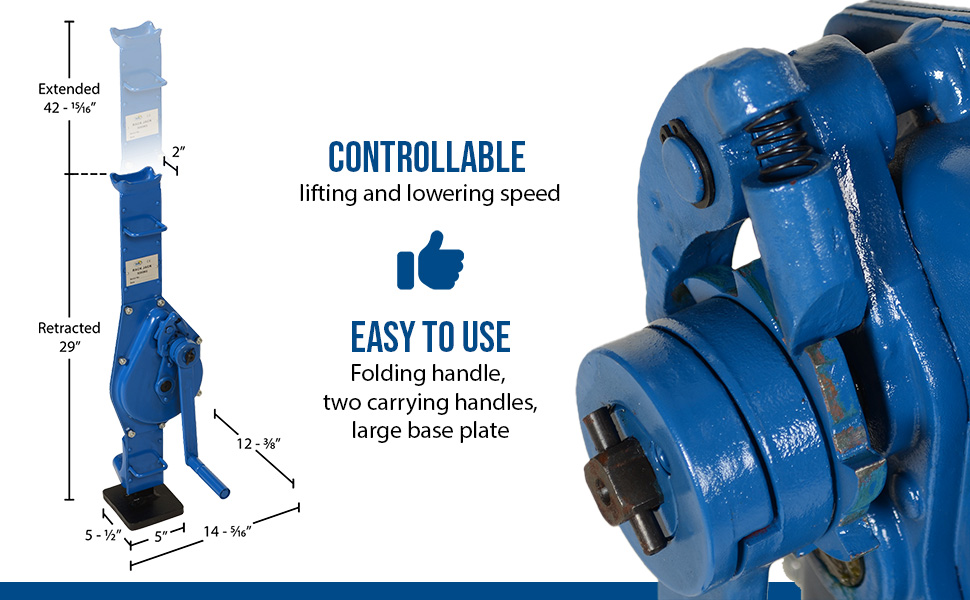

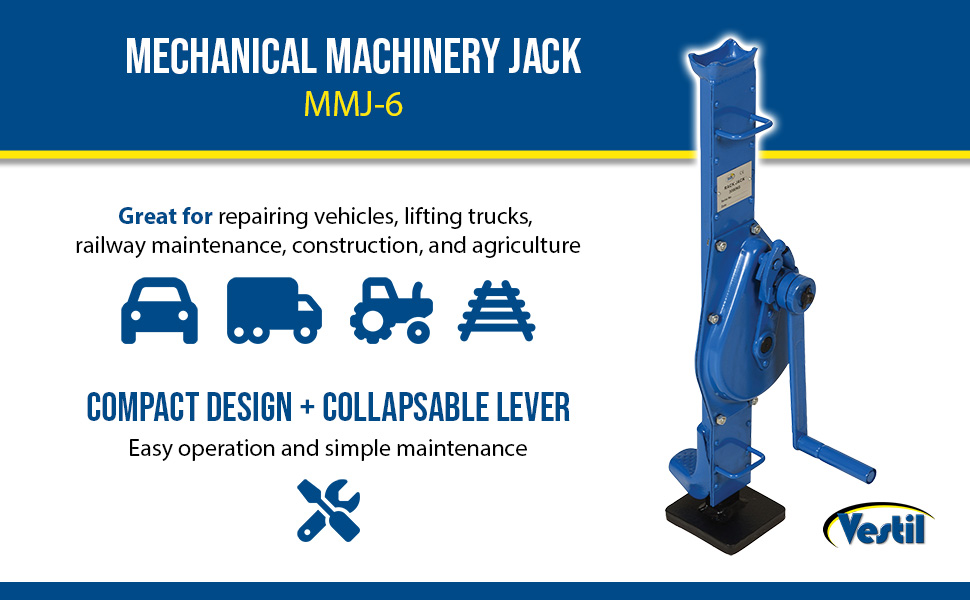

MMJ-6

model MMJ-6

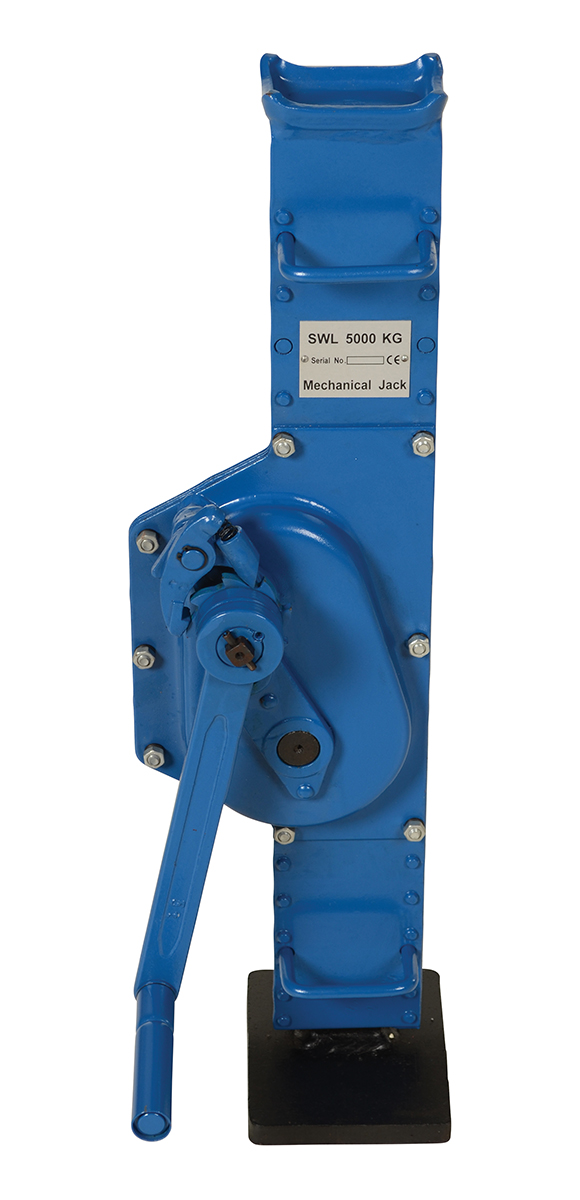

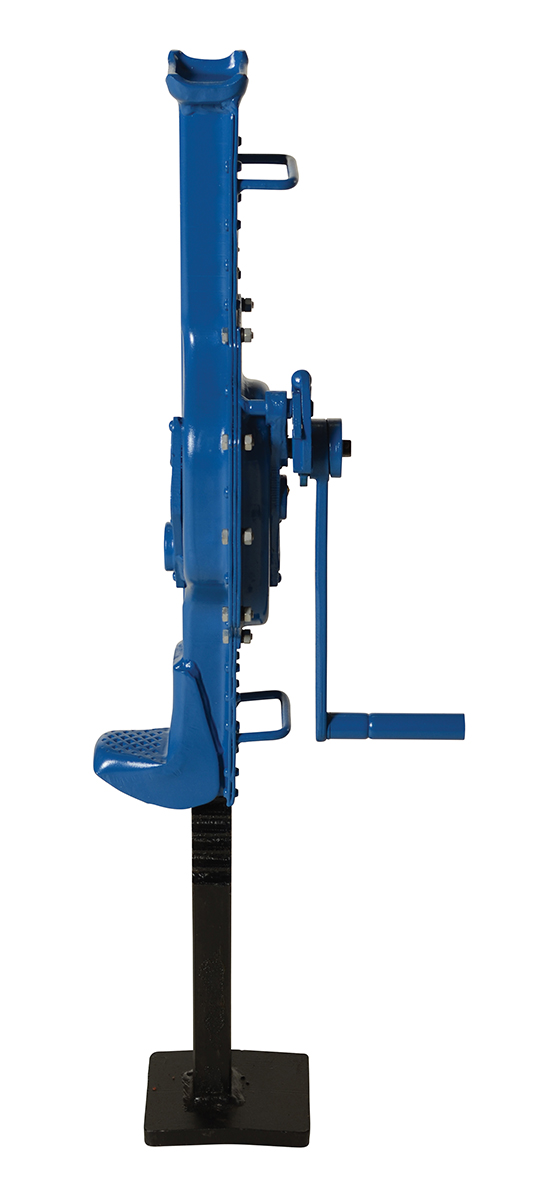

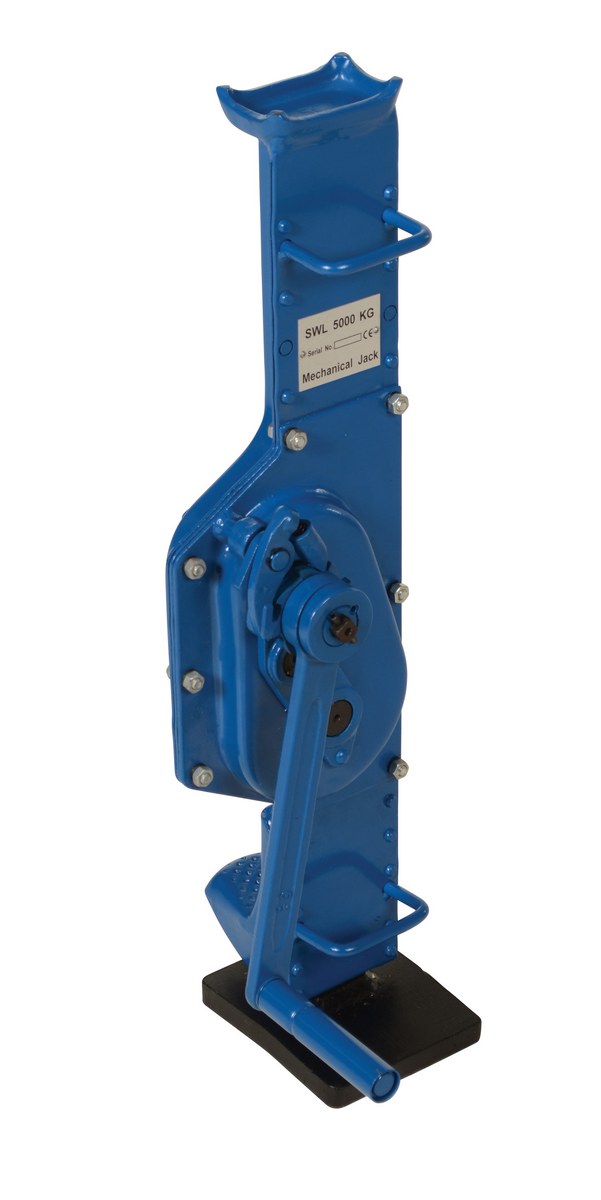

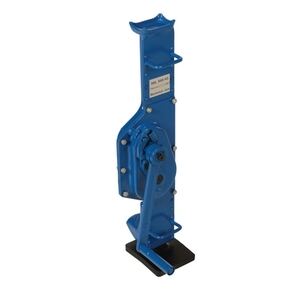

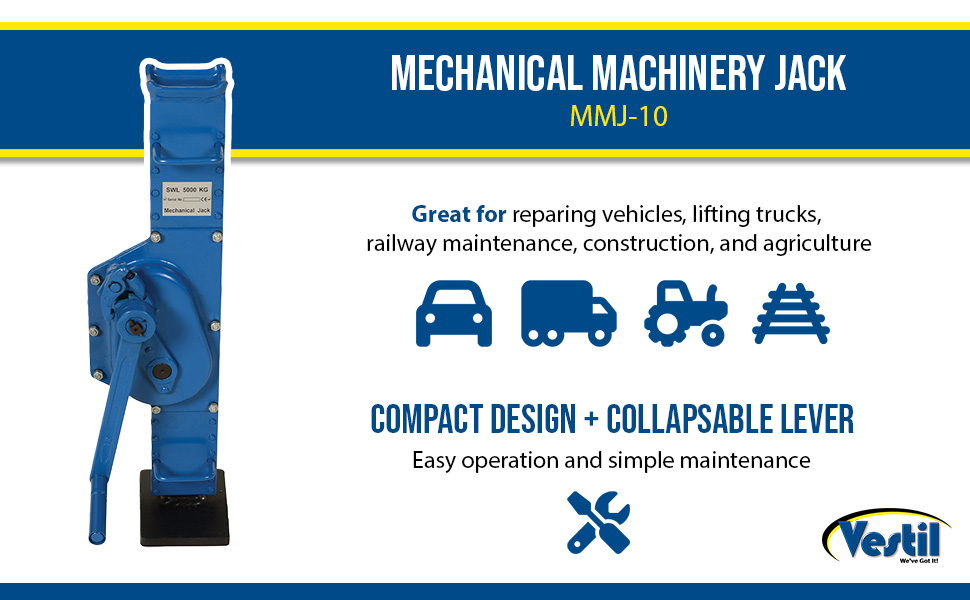

MMJ-10

model MMJ-10




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

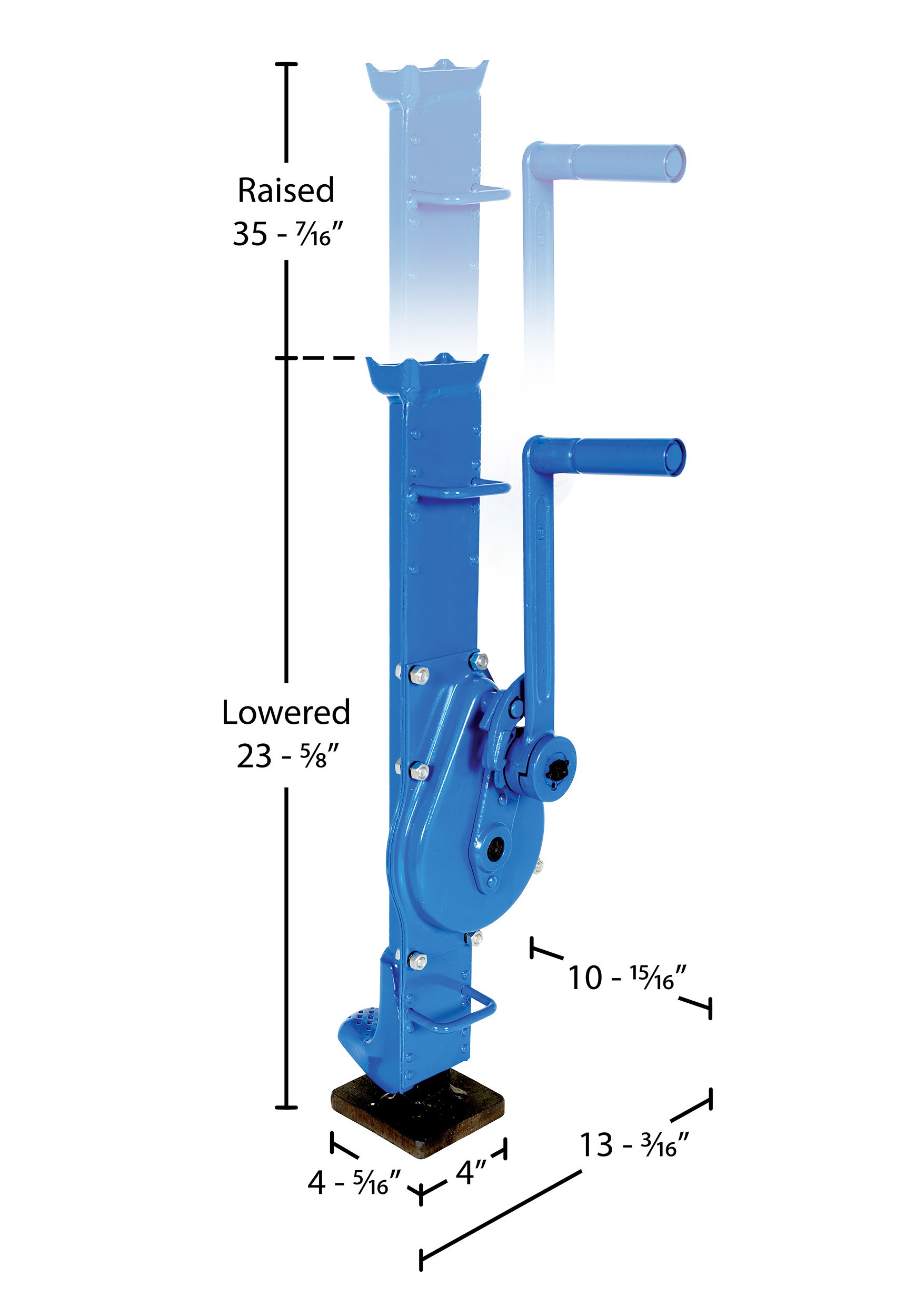

Mechanical Machinery Jacks
Model PDFs Capacity
(Tons)
Lowered
Height
Raised
Height
Travel
(inches)
Force to Lift
Max. Load
Wt. (lbs)
MMJ-3 icon_approvaldrawings.jpg Warranty PDF Compliance Certificate 1.5 23-5/8" 35-7/16" 11-13/16" 63 lbs. 33
MMJ-6 icon_approvaldrawings.jpg Warranty PDF Compliance Certificate 3 29" 42-15/16" 13-15/16" 79 lbs. 46
MMJ-10 icon_approvaldrawings.jpg Warranty PDF Compliance Certificate 5 28-3/4" 42-5/16" 13-9/16" 90 lbs. 64

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

MMJ-10

MMJ-10

MMJ-3

MMJ-3

MMJ-6

MMJ-6






Mechanical Machinery Jacks PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

MMJ-3
MMJ-6
MMJ-10

Testing Certificates

MMJ-10
MMJ-6
MMJ-3

Other PDF's

No "Other PDFs" For This Product...
